Hypoxia and perfusion in breast cancer: simultaneous assessment using PET/MR imaging

Abstract

Objectives

Hypoxia is associated with poor prognosis and treatment resistance in breast cancer. However, the temporally variant nature of hypoxia can complicate interpretation of imaging findings. We explored the relationship between hypoxia and vascular function in breast tumours through combined ¹⁸F-fluoromisonidazole (¹⁸ F-FMISO) PET/MRI, with simultaneous assessment circumventing the effect of temporal variation in hypoxia and perfusion.

Methods

Women with histologically confirmed, primary breast cancer underwent a simultaneous ¹⁸F-FMISO-PET/MR examination. Tumour hypoxia was assessed using influx rate constant K_i and hypoxic fractions (%HF), while parameters of vascular function (K^trans, k_ep, v_e, v_p) and cellularity (ADC) were derived from dynamic contrast-enhanced (DCE) and diffusion-weighted (DW)-MRI, respectively. Additional correlates included histological subtype, grade and size. Relationships between imaging variables were assessed using Pearson correlation (r).

Results

Twenty-nine women with 32 lesions were assessed. Hypoxic fractions > 1% were observed in 6/32 (19%) cancers, while 18/32 (56%) tumours showed a %HF of zero. The presence of hypoxia in lesions was independent of histological subtype or grade. Mean tumour K^trans correlated negatively with K_i (r = − 0.38, p = 0.04) and %HF (r = − 0.33, p = 0.04), though parametric maps exhibited intratumoural heterogeneity with hypoxic regions colocalising with both hypo- and hyperperfused areas. No correlation was observed between ADC and DCE-MRI or PET parameters. %HF correlated positively with lesion size (r = 0.63, p = 0.001).

Conclusion

Hypoxia measured by ¹⁸F-FMISO-PET correlated negatively with K^trans from DCE-MRI, supporting the hypothesis of perfusion-driven hypoxia in breast cancer. Intratumoural hypoxia-perfusion relationships were heterogeneous, suggesting that combined assessment may be needed for disease characterisation, which could be achieved using simultaneous multimodality imaging.

Key Points

• At the tumour level, hypoxia measured by ¹⁸F-FMISO-PET was negatively correlated with perfusion measured by DCE-MRI, which supports the hypothesis of perfusion-driven hypoxia in breast cancer.

• No associations were observed between 18F-FMISO-PET parameters and tumour histology or grade, but tumour hypoxic fractions increased with lesion size.

• Intratumoural hypoxia-perfusion relationships were heterogeneous, suggesting that the combined hypoxia-perfusion status of tumours may need to be considered for disease characterisation, which can be achieved via simultaneous multimodality imaging as reported here.

Electronic supplementary material

The online version of this article (10.1007/s00330-020-07067-2) contains supplementary material, which is available to authorized users.

Introduction

Hypoxia is a common characteristic of the tumour microenvironment and arises due to avid metabolism and poor perfusion as a result of the structurally and functionally aberrant microcirculation found in tumours [1]. In breast cancer, the presence of hypoxia has been confirmed with pO₂ histography and occurs irrespective of histological type, molecular subtype, grade or patient characteristics [2, 3]. In vitro studies have shown that hypoxia promotes a dedifferentiated phenotype in ductal carcinoma in situ [4] and downregulates the expression and function of oestrogen receptor-α (ERα) [5]. Several clinical and preclinical studies in breast cancer have demonstrated that overexpression of hypoxia-related proteins is associated with an aggressive phenotype, poor prognosis and resistance to treatment [6–8].

Although tumour hypoxia can be broadly categorised as diffusion or perfusion limited, it is generally accepted that the tumour microenvironment is a highly dynamic entity, exhibiting temporally varying perfusion patterns and heterogeneous oxygen-tension gradients [9]. Experimental evidence suggests that oxygen levels continually fluctuate owing to transient changes in perfusion [10]. These changing perfusion and oxygenation levels induce a variety of gene expression profiles resulting in a unique micromilieu that is pivotal for tumour growth and metastatic dissemination [11]. Given the temporal variation in oxygenation and perfusion within tumours, sequential multimodal imaging investigations may not always be effective in assessing the association between these parameters, as similar tumour status cannot be guaranteed between imaging sessions. Simultaneous assessment of the hypoxia and perfusion in tumours can mitigate confounders associated with the dynamic character of these processes, and thus allow additional pathophysiological characterisation of breast cancer.

Imaging methods, including positron emission tomography (PET) and magnetic resonance imaging (MRI), have been used for the non-invasive assessment of the tumour microenvironment. Dynamic contrast-enhanced (DCE) MRI has shown utility in characterising tumour perfusion and vascular permeability in clinical studies [12], while diffusion-weighted imaging (DWI) can provide surrogate measures of tumour cellular density [13]. PET with ¹⁸F-labelled nitroimidazoles can provide specific measures of intracellular hypoxia [14]. In breast cancer, ¹⁸F-fluoromisonidazole (¹⁸F-FMISO) has been used for the evaluation of response to anti-angiogenic and HER2-targetted treatment [15, 16] and shown potential utility as a predictor of response to primary endocrine therapy [17, 18]. Additionally, high ¹⁸F-FMISO uptake at baseline has been associated with shorter disease-free survival [18] and disease-specific death [19].

Despite the intrinsic link between tumour hypoxia and perfusion, multimodal imaging approaches to characterise this aspect of cancer pathophysiology have been limited in the clinical setting [16, 19–24]. To effectively assess relationships between temporally varying microenvironment parameters, combined PET/MR imaging presents an attractive option as it permits examination of the tumour under the same physiologic conditions, while also conferring methodological advantages in the spatial registration of data from the two modalities.

The primary objective of this study was to examine the association between hypoxia and vascular function in patients with treatment-naïve breast cancer using simultaneous ¹⁸F-FMISO-PET/MRI. To our knowledge, this is the first such study in breast cancer.

Materials and methods

Study participants

Women aged > 18 years with histologically confirmed primary breast cancer and a tumour diameter > 10 mm on mammography and/or ultrasound were eligible for the study (February 2017 to November 2018). Pregnancy, lactation, previous surgery or radiotherapy for cancer or benign breast disease, inadequate renal function and contraindications to MRI were exclusion criteria for the study. The research was approved by a National Research Ethics Committee (14/EE/0145). All study participants provided written informed consent before PET/MRI examination.

PET/MRI acquisition

Participants underwent a 60-min simultaneous PET/MR scan of the breasts in the prone position on a SIGNA PET/MR scanner (GE Healthcare), using a 16-channel bilateral breast array (RAPID Biomedical) 120 min (median [range], 120.2 [119.8–127.5] min) after injection of 306 ± 14 MBq ¹⁸F-FMISO. The uptake period post injection (p.i.) was used to enhance hypoxic-to-normoxic tissue contrast and allow the free ¹⁸F-FMISO concentrations in tissue and blood to reach equilibrium [25, 26], a requirement for influx rate constant (K_i) determination by Patlak analysis [27].

PET: Emission data from 120 to 180 min p.i. (12 × 5-min frames) were reconstructed using time-of-flight ordered-subsets expectation-maximisation (TOF-OSEM) with 4 iterations and 28 subsets (Supplemental Methods I). Plasma radioactivity concentration from two venous blood samples, acquired immediately before and after PET/MR acquisition, was used to scale a ¹⁸F-FMISO population-based arterial input function (AIF) derived from existing data, permitting calculation of K_i [28] (Supplemental Methods II; Supplemental Fig. 1; [29–31]).

MRI: The MRI protocol involved a 2-point Dixon sequence for PET attenuation correction, T₁- and T₂-weighted images, DWI, and a DCE series. Sequences were also acquired to measure B₁⁺ transmission-field non-uniformity, using a Bloch-Siegert method, and baseline T₁ (T₁₀) as required for the pharmacokinetic analysis of DCE-MRI data [32]. DCE-MRI acquisition involved five pre-contrast images, followed by 43 phases after intravenous bolus injection of 0.1 mmol/kg of Gadovist (Bayer Healthcare). MRI sequence details are given in Supplemental Table 1.

Image analysis

Tumour regions were manually delineated in OsiriX, version 8.0.2 (Pixmeo SARL), by three radiologists in consensus (1, 3 and > 20 years of experience in breast MRI). Regions were drawn on the peak-enhancing volumes of the DCE-MRI series on all contiguous axial sections encompassing the invasive part of the tumour and including multifocal/multicentric disease (Supplemental Methods III). Synchronous bilateral cancers were regarded as independent lesions [33].

DCE-MRI: Pharmacokinetic analysis of the DCE-MRI series was performed in MIStar, version 3.2.63 (Apollo Medical Imaging), using the extended Tofts’ model [34] to calculate contrast influx rate constant, K^trans; efflux-rate constant, k_ep; extravascular-extracellular volume fraction, v_e; and plasma volume fraction, v_p (Supplemental Methods III).

DWI: Calculation of apparent diffusion coefficient (ADC) maps was performed in OsiriX, using b values of 0 and 900 s/mm². Mean lesion ADC was calculated by manually outlining whole tumour regions on the b = 900 s/mm² image (Supplemental Methods III; [35] ).

PET: Image frames from 150 to 180 min p.i. were averaged, rigidly registered to the peak-enhancing phase of the DCE-MRI series and subsequently employed for the determination of ¹⁸F-FMISO uptake as mean and maximum standardised uptake values normalised by body weight (SUV_mean, SUV_max) and maximum tumour-to-plasma (T_max/P) and tumour-to-muscle (T_max/M) ratios within the regions defined on the DCE-MRI. The influx rate of ¹⁸F-FMISO into the trapped (hypoxic) tissue compartment (K_i) was determined by Patlak-plot analysis, utilising all frames in the registered ¹⁸F-FMISO series and the scaled population-based AIF. Hypoxic fractions (%HF) in tumour regions were calculated as the percentage of voxels with K_i values > 2 × standard deviations (SD) of the mean K_i of normoxic muscle (Supplemental Methods III).

Histology

Histopathological information including tumour histological subtype, grade, oestrogen receptor (ER), progesterone receptor (PR) and human epidermal growth factor receptor-2 (HER2) status was obtained from core biopsies or surgical tumour specimens. Cancers with positive ER or PR expression were classified as hormone-receptor (HR) positive.

Statistics

Statistical analysis was performed in IBM SPSS Statistics for MacOS, v25.0 (IBM Corp.) or Matlab 2016b. Continuous data were assessed for normality using the Anderson-Darling test. Correlations between continuous variables were assessed using the Pearson correlation coefficient (r). t tests were used for comparison between means of two groups, and ANOVA when more than two groups were compared. Where data were not normally distributed, or normality could not be assessed, Mann-Whitney U and Mood’s median or Kruskal-Wallis H tests were employed for comparisons between two or more groups, respectively. p values < 0.05 were considered statistically significant.

Results

A total of 32 women were enrolled into the study. Two participants withdrew before the PET/MR examination. PET/MRI data and DCE-MRI data from two participants were excluded owing to inadequate acquisition of DCE-MRI and poor pharmacokinetic-model fitting respectively. In total, data from 29 participants with 32 biopsy-confirmed primary breast cancers were analysed. ADC calculations included data from 18 patients (19 lesions), who successfully completed the DWI examination.

Two thirds of the lesions (21/32; 66%) were invasive ductal cancers (IDC). The majority of cancers (29/32; 91%) were either grade 2 or 3. HR-positive expression was noted for 31/32 (97%) lesions, with 24/32 (77%) cancers being HER2-negative. Tumour characteristics are summarised in Table 1. Additional clinical information is provided in Supplemental Table 2.

Table 1.

Clinical characteristics for the patient population (n = 29)

Characteristic	n (%)
Age at diagnosis (years)a	57 [37–78]
Lesions	32
Pathological size (mm)a, b	26 [10–142]
Lesion longest diameter on MRI
≤ 20 mm	10 (31)
> 20 mm	22 (69)
Histopathological subtype
Ductal (IDC)	21 (66)
Lobular (ILC)	6 (19)
Mucinous (IMC)	2 (6)
Mixedc	3 (9)
Histological graded
1	3 (9)
2	16 (50)
3	13 (41)
Hormone-receptor statuse
Positive (ER or PR)	31 (97)
Negative	1 (3)
HER2 statusf
Positive	7 (22)
Negative	25 (78)

ER oestrogen receptor, PR progesterone receptor, HER2 human epidermal growth factor receptor 2

^aData presented as median [range]

^bPathological size measured on tumour specimens from patients undergoing primary surgery (n = 21)

^cInvasive carcinomas with presence of both lobular and ductal components on histology

^dNottingham combined histologic grade

^eTumours classified as ER or PR-positive, if > 10% of the cells demonstrated nuclear staining by immunohistochemistry

^fTumours classified as HER2-positive, if they scored 3+ on immunohistochemistry or if they carried gene amplification as detected by fluorescence in situ hybridisation (FISH)

Relationship between ¹⁸F-FMISO-PET and DCE-MRI parameters

Scatter plots indicating the relationships between DCE-MRI parameters and K_i or %HF are illustrated in Fig. 1. An inverse relationship was observed between mean lesion K_i and K^trans, v_e and v_p (Fig. 1(a–d); Supplemental Fig. 2 [36]), which was statistically significant for K_i vs. K^trans (r = − 0.38, p = 0.04), but not for K_i vs. v_e (r = − 0.30, p = 0.10) or v_p (r = − 0.28, p = 0.12). Associations between %HF and DCE-MRI parameters followed similar trends, also indicating a decrease in hypoxia with increasing K^trans, v_e and v_p (Fig. 1(e–h)). Statistically significant correlations were observed between %HF and both K^trans (r = − 0.33, p = 0.04) and v_e (r = − 0.38, p = 0.03). No correlation was observed between k_ep and either K_i (r = 0.08, p = 0.65) or %HF (r = 0.02, p = 0.90).

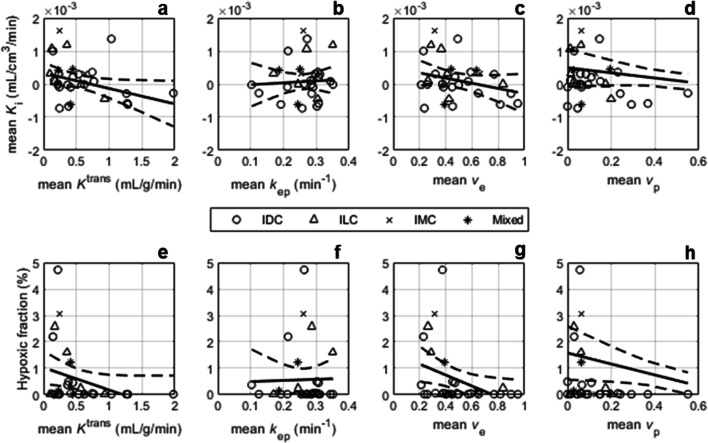

Fig. 1.

¹⁸F-FMISO-PET K_i and hypoxic fraction (%) vs. the following DCE-MRI parameters: (a, e) contrast influx rate, K^trans (mL/g/min); (b, f) contrast efflux rate, k_ep (min⁻¹); (c, g) fractional volume of extravascular-extracellular space, v_e; (d, h) plasma fractional volume, v_p. IDC, invasive ductal carcinoma; ILC, invasive lobular carcinoma; IMC, invasive mucinous carcinoma; Mixed, carcinoma of mixed ductal and lobular type

Figure 2 presents axial slices through K_i and K^trans parametric maps of four tumours of different histological subtypes, indicating heterogeneous spatial relationships between hypoxia and perfusion; other DCE-MRI parametric images are given in Supplemental Fig. 3.

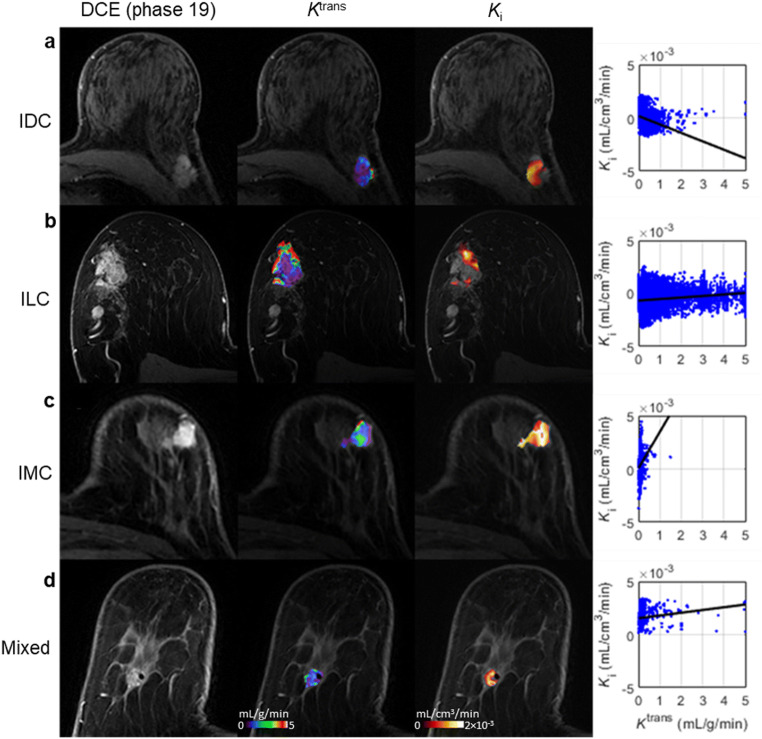

Fig. 2.

Axial images of four representative patients with: a invasive ductal carcinoma (IDC); b invasive lobular carcinoma (ILC); c invasive mucinous carcinoma (IMC); and d carcinoma of mixed ductal and lobular type (Mixed). (Left-to-right) DCE-MRI image at peak enhancement; K^trans map representing tumour perfusion for the lesion ROI overlaid on the peak-enhancing DCE-MRI image; K_i map representing tumour hypoxia for the lesion ROI overlaid on the peak-enhancing DCE-MRI image; scatter plot and regression line of K_i vs. K^trans voxel values within the tumour. K^trans, contrast influx rate (mL/g/min); K_i, ¹⁸F-FMISO influx rate (mL/cm³/min)

¹⁸F-FMISO-PET and DCE-MRI parameters vs. tumour histology and grade

Hypoxic fractions > 1% were observed in 6/32 (19%) cancers with an additional 8/32 (25%) lesions displaying hypoxic fractions greater than zero but less than 1%; the remaining 18/32 (56%) tumours had a %HF of zero. Dot plots of %HF vs. tumour histological subtype and grade are presented in Fig. 3. K_i, %HF and ¹⁸F-FMISO uptake parameters showed no significant difference between different histological subtypes or grades (Tables 2 and 3). Similarly, no significant differences were observed between histological groups or grades for the DCE-derived parameters (Tables 2 and 3), except for the efflux rate constant k_ep, which displayed a statistically significant difference among grade 2 and 3 cancers (median [range], 0.25 [0.13–0.34] vs. 0.30 [0.10–0.35] min⁻¹; p = 0.01). Furthermore, analysis of hypoxia and K^trans values in the most vascularised area of the tumour (hotspot on DCE-MRI) yielded no significant differences among different subtypes or grades (Supplemental Tables 3 and 4).

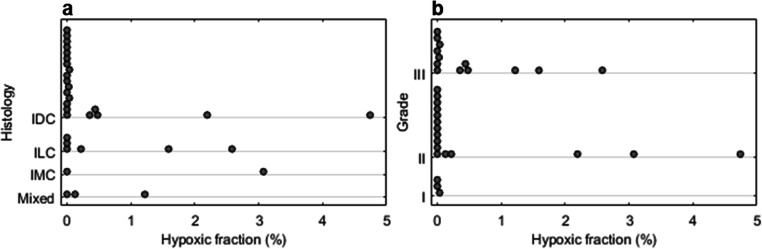

Fig. 3.

Dot plots of hypoxic fraction (%) by (a) histological type and (b) nuclear grade

Table 2.

MRI and ¹⁸F-FMISO-PET parameters with respect to tumour histology. Data are presented as median [range] or mean ± standard deviation (SD) as appropriate

Parameter	Histology				p value
	IDC	ILC	Mixed	IMC
Lesions (n = 31)	20	6	3	2
Ktrans	0.43 [0.14–1.97]	0.26 [0.10–0.94]	0.41 [0.23–0.45]	0.44 [0.25–0.64]	0.77a
kep	0.26 [0.10–0.35]	0.28 [0.17–0.35]	0.25 [0.19–0.25]	0.26 [0.25–0.26]	0.14a
ve	0.46 [0.21–0.95]	0.39 [0.26–0.84]	0.44 [0.39–0.64]	0.49 [0.31–0.66]	0.30a
vp	0.08 [0–0.55]	0.05 [0.01–0.2]	0.06 [0.03–0.19]	0.09 [0.06–0.13]	0.77a
Lesions (n = 19)	14	3	1	1
ADC (× 10−3)	0.90 [0.42–1.55]	1.05 [0.84–1.28]	1.02 [−]	2.46 [−]	0.51b
Lesions (n = 32)	21	6	3	2
Ki (× 10−3)	0.00 ± 0.52	0.37 ± 0.65	0.08 ± 0.61	0.97 ± 0.91	0.26c
%HF	0 [0–4.74]	0.10 [0–2.58]	0.13 [0–1.22]	1.54 [0–3.07]	0.63a
SUVmax	1.53 ± 0.41	1.77 ± 0.16	1.60 ± 0.21	1.25 ± 0.12	0.31c
SUVmean	1.14 ± 0.26	1.27 ± 0.18	1.17 ± 0.16	1.07 ± 0.15	0.65c
Tmax/M	1.02 ± 0.24	1.30 ± 0.29	1.09 ± 0.22	0.95 ± 0.02	0.12c
Tmax/P	0.87 ± 0.22	0.83 ± 0.33	0.87 ± 0.09	0.84 ± 0.09	0.99c

IDC invasive ductal carcinoma, ILC invasive lobular carcinoma, Mixed invasive carcinoma with presence of lobular and ductal components, IMC invasive mucinous carcinoma, K^trans contrast influx rate (mL/g/min), k_ep contrast efflux rate (min⁻¹), v_e fractional volume of extravascular-extracellular space, v_p plasma fractional volume, ADC apparent diffusion coefficient (mm²/s), K_i ¹⁸F-FMISO influx rate (mL/cm³/min), %HF percentage hypoxic fraction, SUV standardised uptake value (g/mL), T_max/M maximum tumour-to-muscle ratio, T_max/P maximum tumour-to-plasma ratio

^aMood’s median test

^bMann-Whitney U test for malignancies of type IDC and ILC only (mixed and IMC lesions were not included in the comparison)

^cOne-way analysis of variance (ANOVA)

Table 3.

MRI and ¹⁸F-FMISO-PET parameters with respect to nuclear grade. Data are presented as median [range] or mean ± standard deviation (SD) as appropriate

Parameter	Grade			p value
	1	2	3
Lesions (n = 31)	3	15	13
Ktrans	0.41 [0.24–0.54]	0.24 [0.10–1.98]	0.45 [0.17–1.27]	0.29a
kep	0.29 [0.26-0.31]	0.25*c [0.13–0.34]	0.30*d [0.10–0.35]	0.009**a
ve	0.38 [0.24–0.77]	0.45 [0.23–0.84]	0.43 [0.21–0.95]	0.65a
vp	0.06 [0.05-0.08]	0.06 [0.00–0.55]	0.09 [0.00–0.37]	0.46a
Lesions (n = 19)	1	9	9
ADC (× 10−3)	1.08 [−]	1.05 [0.42–2.46]	0.84 [0.70–1.28]	0.34b
Lesions (n = 32)	3	16	13
Ki (× 10−3)	− 0.18 ± 0.52	0.25 ± 0.58	0.06 ± 0.65	0.47c
%HF	0 [0-0.04]	0 [0–4.74]	0.04 [0–2.6]	0.35a
SUVmax	1.28 ± 0.29	1.55 ± 0.29	1.66 ± 0.46	0.28c
SUVmean	0.98 ± 0.09	1.18 ± 0.19	1.18 ± 0.29	0.37c
Tmax/M	0.96 ± 0.02	1.04 ± 0.17	1.56 ± 0.36	0.36c
Tmax/P	0.78 ± 0.08	0.81 ± 0.20	0.85 ± 0.25	0.21c

K^trans contrast influx rate (mL/g/min), k_ep contrast efflux rate (min⁻¹), v_e fractional volume of extravascular-extracellular space, v_p plasma fractional volume, ADC apparent diffusion coefficient (mm²/s), K_i ¹⁸F-FMISO influx rate (mL/cm³/min), %HF percentage hypoxic fraction (%), SUV standardised uptake value (g/mL), T_max/M maximum tumour-to-muscle ratio, T_max/P maximum tumour-to-plasma ratio

^*p < 0.05; ^**p < 0.01

^aKruskal-Wallis H

^bMann-Whitney U test for grade 1 and 2 cancers only (grade 1 lesions were not included in the comparison)

^cOne-way analysis of variance (ANOVA)

^dSignificant difference between grade 2 and 3 cancers (p = 0.01). Pairwise multiple comparison analysis utilised the Dwass-Steel-Critchlow-Fligner method

Effect of tumour size on ¹⁸F-FMISO-PET and DCE-MRI parameters

Table 4 presents correlations between imaging indices and tumour size as measured by longest diameter on MRI or pathological size. No or weak negative correlations were observed between tumour size and DCE-MRI parameters. Conversely, ¹⁸F-FMISO-PET parameters correlated positively with size; %HF significantly correlated with pathological size (r = 0.63, p = 0.001), while ¹⁸F-FMISO-PET uptake metrics displayed associations of moderate strength with longest diameter on MRI.

Table 4.

Pearson correlation coefficient r (p value) between tumour size, MRI and ¹⁸F-FMISO-PET parameters

Parameter	Tumour size (mm)
	Longest diameter on MRI	Pathological sizea
Lesions (n)	31	21
Ktrans	− 0.15 (0.42)	− 0.16 (0.48)
kep	− 0.04 (0.84)	− 0.15 (0.48)
ve	− 0.04 (0.83)	− 0.27 (0.22)
vp	− 0.13 (0.50)	− 0.09 (0.70)
Lesions (n)	19	11
ADC (× 10−3)	0.06 (0.80)	0.56 (0.07)
Lesions (n)	32	21
Ki (×10−3)	0.15 (0.29)	0.21 (0.48)
HF (%)	0.26 (0.16)	0.63 (0.001**)
SUVmax	0.48 (0.02*)	0.26 (0.24)
SUVmean	0.42 (0.006**)	0.39 (0.07)
Tmax/M	0.45 (0.01*)	0.32 (0.14)
Tmax/P	0.43 (0.02*)	0.49 (0.02*)

K^trans contrast influx rate (mL/g/min), k_ep contrast efflux rate (min⁻¹), v_e fractional volume of extravascular-extracellular space, v_p plasma fractional volume, ADC apparent diffusion coefficient (mm²/s), K_i ¹⁸F-FMISO influx rate (mL/cm³/min), %HF percentage hypoxic fraction, SUV standardised uptake value (g/mL), T_max/M maximum tumour-to-muscle ratio, T_max/P maximum tumour-to-plasma ratio

^*p < 0.05; ^**p < 0.01

^aPathological size as measured on tumour specimens from patients undergoing primary surgery (n = 21)

ADC vs. ¹⁸F-FMISO-PET and DCE-MRI parameters

Positive correlations were observed between ADC and DCE-MRI indices (K^trans: r = 0.24, p = 0.34; v_e: r = 0.29, p = 0.25; v_p: r = 0.20, p = 0.43), except for k_ep which correlated negatively with ADC (r = − 0.15, p = 0.56; Fig. 4), none of which were statistically significant. No correlations were observed between ADC and K_i or %HF (K_i: r = 0.05, p = 0.84; %HF r = 0.04, p = 0.88; Fig. 5). Representative ADC maps are given in Fig. 6.

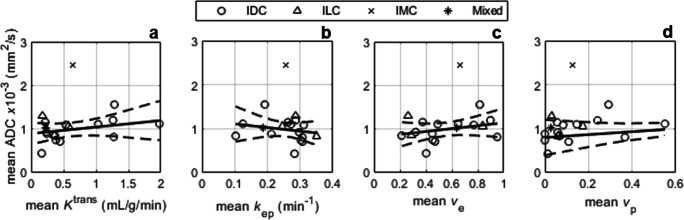

Fig. 4.

Apparent diffusion coefficient (ADC) vs. DCE-MRI parameters: a contrast influx rate, K^trans; b contrast efflux rate, k_ep; c fractional volume of extravascular-extracellular space, v_e; d plasma fractional volume, v_p. IDC, invasive ductal carcinoma; ILC, invasive lobular carcinoma; IMC, invasive mucinous carcinoma; Mixed, carcinoma of mixed ductal and lobular type

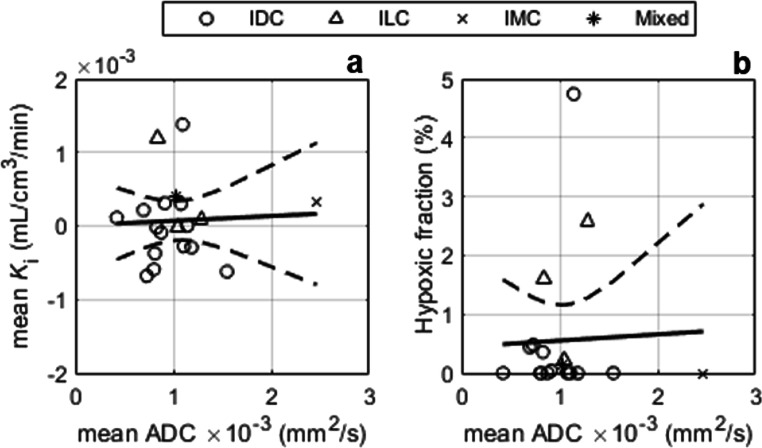

Fig. 5.

¹⁸F-FMISO-PET parameters vs. apparent diffusion coefficient (ADC): (a) influx rate K_i and (b) hypoxic fraction (%). IDC, invasive ductal carcinoma; ILC, invasive lobular carcinoma; IMC, invasive mucinous carcinoma; Mixed, carcinoma of mixed ductal and lobular type

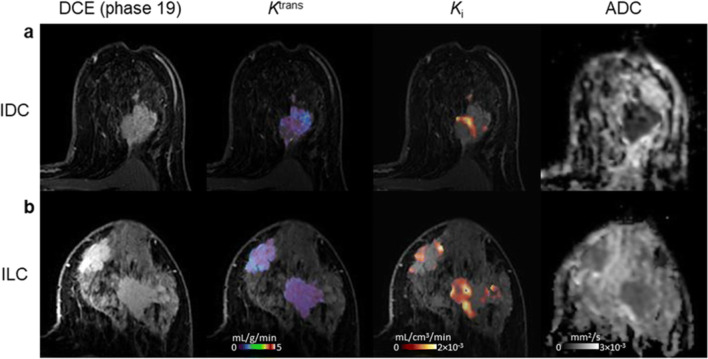

Fig. 6.

Axial images of two patients with: a invasive ductal carcinoma (IDC); b invasive lobular carcinoma (ILC). (Left-to-right) DCE-MRI image at peak enhancement; K^trans map representing tumour perfusion for the lesion ROI overlaid on the peak-enhancing DCE-MRI image; K_i map representing tumour hypoxia for the lesion ROI overlaid on the DCE-MRI image at peak enhancement; ADC map. K^trans, contrast influx rate (mL/g/min); K_i, ¹⁸F-FMISO influx rate (mL/cm³/min); ADC, apparent diffusion coefficient (mm²/s)

Discussion

This study explored the relationship between tumour hypoxia and vascular function in breast cancer using combined ¹⁸F-FMISO-PET/MRI. Hypoxic fractions and K_i measured on ¹⁸F-FMISO-PET showed inverse relationships with the DCE-MRI perfusion parameter K^trans, consistent with the generally accepted view that tumour hypoxia is a consequence of inadequate oxygen supply to the tumour [1]. Previous clinical studies in cervical and head-and-neck carcinomas have demonstrated significant negative correlations between contrast enhancement or pharmacokinetic parameters from DCE-MRI and polarographic pO₂ measurements or pimonidazole immunohistochemistry [37, 38]. These findings are consistent with our results in breast cancer.

However, PET and DCE-MRI parametric images exhibited largely heterogeneous intratumoural patterns with hypoxic islands on K_i maps often colocalising with areas of increased K^trans. This spatially discrepant relationship between hypoxia and perfusion has been previously documented, with the co-existence of hypoxic and hyperperfused tumour sub-volumes [39]. Various biological mechanisms, including hypoxia-induced angiogenesis, interstitial fluid pressure, a fluctuating haemodynamic response, increased oxygen diffusion distances from the microvasculature and the presence of longitudinal oxygen gradients across tumour vessels, have all been proposed to explain the occurrence of hypoxia in highly perfused areas [40, 41]. Thus, although the general trend of our results would support the widely accepted view that hypoxia develops in hypoperfused breast tumours, the diverse relationships observed in individual tumour sub-volumes indicate heterogeneity in hypoxia-perfusion patterns and reflect the variety of pathophysiological mechanisms occurring in cancers.

The weak relationship between PET hypoxia parameters with k_ep suggests that the degree of tumour hypoxia is more strongly influenced by vascular flow rather than vessel permeability. Li et al [42] have previously suggested that k_ep is a much more sensitive measure of vessel permeability than K^trans, as the latter represents a combined measure of blood flow, vessel permeability and capillary-surface area. Our findings broadly agree with previous research in cervical and head-and-neck carcinomas, which illustrated weaker correlations between hypoxia and permeability-surface-area product than between hypoxia and blood flow [37, 43]. The relationship between K^trans and regional hypoxia observed in our study suggests this is due to fluctuations in tumour vascular flow rather than capillary permeability.

No or weak positive correlations were found between static ¹⁸F-FMISO parameters (SUV_mean, SUV_max, T_max/M, T_max/P) and DCE-MRI metrics. In contrast, in human head-and-neck cancer, where hypoxia is often marked, ¹⁸F-FMISO SUV measurements were negatively correlated with both K^trans and k_ep [20]. A plausible explanation for this disparity is the higher level of hypoxia typically encountered in head-and-neck cancer, which will lead to uptake values being more dominated by hypoxia-specific ¹⁸F-FMISO trapping rather than non-specific tracer accumulation. Due to the higher contribution of non-specific ¹⁸F-FMISO accumulation at low hypoxia levels [44], the use of uptake values in cancers without marked hypoxia may not accurately reveal relationships between hypoxia and perfusion.

No significant correlation was observed between PET hypoxia parameters and tumour grade or subtype. Our sample size of non-IDC cases was small for evaluating the impact of histology on tumour hypoxic status, but the presence of non-zero hypoxic fractions was observed in all histological subtypes studied. Hypoxic fractions and higher K_i were noted in both grade 2 and 3 tumours, and less so in grade 1 cancers. These findings are concordant with previously reported small differences in hypoxia between low- and high-grade breast malignancy [2].

Correlations between DCE-MRI functional parameters and pathological size or MR tumour diameter yielded moderate negative relationships and conversely positive associations between ¹⁸F-FMISO-PET hypoxia parameters and size. The size-related hypoxia changes could be ascribed to diffusion-limited hypoxia, concomitant perfusion decreases or increased interstitial fluid pressure [45].

ADC has been shown to inversely correlate with cellular density [46], and therefore, a reduction in ADC should theoretically be accompanied by an increase in tumour hypoxia. Our findings indicated no association between ADC and PET hypoxia parameters. This result could be explained by the molecular subtype of lesions in our sample, which predominantly consisted of ER-positive/HER2-negative cancers. Due to lower blood flow, ER-positive or HER2-negative lesions exhibit lower ADC values than ER-negative or HER2-positive cancers [47, 48]. As ADC is affected not only by tissue cellularity but several pathophysiologic processes including blood flow, membrane permeability and the geometric architecture of the interstitial space [49, 50], it is likely that the lack of association between the PET hypoxia parameters and ADC is a consequence of the combined effect of cellularity, perfusion and microvessel structure on ADC. This assertion is further supported by the weak correlations between DCE-MRI indices and ADC observed in this study. It should be noted, however, that inconsistent correlations between ADC and DCE-MRI parameters have been reported in tumours, including breast cancer [51–53].

We calculated hypoxic fractions based on a specific parameter for hypoxia namely influx rate constant K_i. Despite the higher variability associated with kinetic parameter estimates, our choice was based on two considerations. First, several authors have reported lack of correlation between ¹⁸F-FMISO uptake ratios and pO₂ measurements casting doubt on the accuracy of thresholds derived from static PET imaging for hypoxic quantification [54, 55]. Kinetic parameters, including K_i, have provided superior correlations with physiological measures of hypoxia from pO₂ histography and immunohistochemistry [54, 55]. Second, these thresholds have mostly been defined on measurements from head-and-neck cancers and are not necessarily applicable to other tumour types, including breast cancer.

The main limitations of our study are the small sample size and that the majority of cancers were HR-positive ductal carcinomas. Though our findings cannot be generalised to the full spectrum of histological/molecular subtypes encountered in breast cancer, our study indicates the presence of hypoxia in all histological subtypes studied independent of nuclear grade. While the majority of lesions (56%) examined were found to be non-hypoxic, it should be noted that breast tumours are generally less hypoxic than cancers of the head and neck, cervix or lung and show greater variability in hypoxia among molecular subtypes, with basal-like subtypes being the most hypoxic [56].

Our demonstration of in vivo simultaneous measurement of perfusion and hypoxia is clinically important for three reasons. First, previous reports have indicated that tumours with a high hypoxia-perfusion ratio (i.e. hypoxia due to low perfusion) have a poorer prognosis and suboptimal treatment response [57, 58]. In breast cancer, studies have described differences in the response to perfusion-related hypoxic exposure between molecular subtypes [59, 60], emphasising the need for combined hypoxia-perfusion measurements to provide more accurate prognostic information or tailor treatment. Second, preoperative radiotherapy or radiochemotherapy regimes in early or locally advanced breast cancer have reported beneficial clinical outcomes [61, 62]. Hypoxia and hypoperfusion are known to reduce the effectiveness of radiotherapy and chemotherapy, and the hypoxia-perfusion status of tumours at baseline could allow optimisation of these regimens. Third, tumour hypoxia can occur independently of hypoperfusion as evidenced in the oncology literature [39, 40, 57, 58] and our findings. As such, the data presented here can be viewed as providing further indication of the benefit of non-invasive multimodal assessment of the tumour microenvironment for disease characterisation.

In conclusion, we found a negative relationship between tumour hypoxia, measured by ¹⁸F-FMISO-PET, and markers of perfusion and vascular function from DCE-MRI, endorsing the hypothesis of perfusion-driven hypoxia in breast cancer. No associations were observed between ¹⁸F-FMISO-PET parameters and tumour histology or grade, but hypoxic fractions increased with lesion size. The intratumoural heterogeneity observed in hypoxia and perfusion images is consistent with the known complex relationship between perfusion and the hypoxic tumour micromilieu. The combined hypoxia-perfusion status of tumours may need to be considered in determining treatment efficacy or informing therapy selection in breast cancer, which could be achieved using simultaneous multimodality imaging as reported here.

Abbreviations

%HF

Percentage hypoxic fraction

¹⁸F-FMISO

¹⁸F-fluoromisonidazole

ADC

Apparent diffusion coefficient (mm²/s)

k_ep

Contrast efflux rate constant (min⁻¹)

K_i

Tracer influx rate constant (mL/cm³/min)

K^trans

Contrast influx transfer rate constant (mL/g/min)

SUV

Standardised uptake value (g/mL)

T_max/M

Maximum tumour-to-muscle ratio

T_max/P

Maximum tumour-to-plasma ratio

v_e

Extravascular-extracellular volume fraction

v_p

Plasma volume fraction

Funding information

This study was co-funded by Cancer Research UK (CRUK) – Cambridge Institute (CCCIT02) and the National Institute for Health Research (NIHR) Cambridge Biomedical Research Centre (BRC). J. C. Carmona-Bozo is supported by the Vargas Scholarship, Darwin College, University of Cambridge. R. Manavaki, M. J. Graves and A. J. Patterson are supported by NIHR Cambridge BRC. F. J. Gilbert is a Senior Investigator at NIHR Cambridge BRC. The University of Cambridge PET/MR facility was funded by the Medical Research Council (MRC), UK. The views expressed are those of the authors and not necessarily those of the NIHR or the Department of Health and Social Care, UK.

Compliance with ethical standards

Guarantor

The scientific guarantor of this publication is Professor Fiona J Gilbert.

Conflict of interest

The authors declare relationships with the following companies: FJG has research collaborations with Bayer Healthcare, GE Healthcare, Hologic Inc., and a consultancy arrangement with Google.

Statistics and biometry

No complex statistical methods were necessary for this paper.

Informed consent

Written informed consent was obtained from all subjects (patients) in this study.

Ethical approval

Institutional Review Board approval was obtained. All procedures performed involving human participants were in accordance with the ethical standards of a National Research Ethics Committee (NRES Committee East of England – Cambridge Central; 14/EE/0145) and the Administration of Radioactive Substances Advisory Committee (ARSAC), UK.

Methodology

• prospective

• observational

• performed at one institution
