Synthetic Tailoring of Graphene Nanostructures with Zigzag‐Edged Topologies: Progress and Perspectives

Abstract

Experimental and theoretical investigations have revealed that the chemical and physical properties of graphene are crucially determined by their topological structures. Therefore, the atomically precise synthesis of graphene nanostructures is essential. A particular example is graphene nanostructures with zigzag‐edged structures, which exhibit unique (opto)electronic and magnetic properties owing to their spin‐polarized edge state. Recent progress in the development of synthetic methods and strategies as well as characterization methods has given access to this class of unprecedented graphene nanostructures, which used to be purely molecular objectives in theoretical chemistry. Thus, clear insight into the structure–property relationships has become possible as well as new applications in organic carbon‐based electronic and spintronic devices. In this Minireview, we discuss the recent progress in the controlled synthesis of zigzag‐edged graphene nanostructures with different topologies through a bottom‐up synthetic strategy.

This Minireview summarizes the design, synthesis, and exotic properties of graphene nanostructures with dominant zigzag‐edged topologies. Deep insights into the advantages and challenges of their synthetic methods and strategies are provided to encourage future endeavors and developments.

1. Introduction

In 2004, Novoselov, Geim et al. isolated the first stable graphene as single‐ to few‐layer hexagonal carbon nanosheets by using a micromechanical cleavage method. ^[1] This groundbreaking experiment stimulated research studies in graphene and carbon nanostructures. The outstanding electronic and optical properties of graphene not only constitute an important issue in fundamental physics but also hold promise for use in future nanoelectronics.[ ² , ³ , ⁴ , ⁵ ] Nonetheless, the conduction and valence bands of graphene cross at the Dirac points, thereby leading to a zero‐band gap semiconductor, which dramatically limits the integration of graphene into digital electronic devices. ^[6] Therefore, finding a way to open the band gap in graphene is of great importance. Many top‐down approaches involving band‐gap opening, such as substrate‐induced band‐gap tuning,[ ⁷ , ⁸ ] bilayer graphene, ^[9] hydrogen passivation, ^[10] or nanoscale holes to create graphene nanomeshes ^[11] have been reported. The most prominent method is to realize quantum confinement of charge carriers with tailorable band gaps in graphene nanostructures by cutting graphene into finite graphene fragments and strips, so‐called nanographenes (NGs) and graphene nanoribbons (GNRs).[ ¹² , ¹³ , ¹⁴ , ¹⁵ , ¹⁶ , ¹⁷ ]

According to theoretical calculations, the magnetic and electronic properties of NGs and GNRs, as well as their chemical reactivities, are crucially determined by their edge types.[ ¹⁸ , ¹⁹ ] In general, there are five types of edge structures for graphene: zigzag, armchair, cove, gulf, and fjord (Figure 1 a). In contrast to armchair‐, cove‐, gulf‐, and fjord‐edged graphene nanostructures, which generally present semiconducting properties, most zigzag‐edged NGs exhibit distinct magnetic features because of the spin polarization associated with their edge states.[ ²⁰ , ²¹ ] For example, Enoki and co‐workers experimentally confirmed the edge state of zigzag‐edged hydrogen‐terminated NGs by using scanning tunneling microscopy (STM) and scanning tunneling spectroscopy (STS).[ ²² , ²³ ] Tapasztó and co‐workers demonstrated spin ordering along the edges in narrow zigzag‐edged graphene nanoribbons (ZGNRs; Figure 1 b). The ferromagnetic and antiferromagnetic coupling with the zigzag and armchair edges as well as their switching behavior were elucidated. ^[24] Although substantial efforts have been dedicated in the last decade to preparing high‐quality NGs, the above top‐down approaches suffer from difficulties in controlling the sizes and edge structures. ^[25] For example, the top‐down‐fabricated narrow GNRs show ruffled edges, which make the band gap poorly defined, thereby resulting in dramatically degraded charge‐carrier transport properties. ^[26] This constitutes the main reason why achieving NGs with atomically smooth edges has been a major obstacle for applying graphene in nanoelectronic devices.

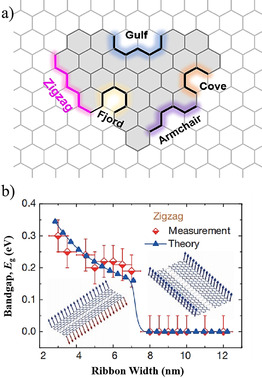

Figure 1.

a) Different edge structures of graphene. b) In ZGNRs, the edge magnetism can be tailored by the ribbon width. ^[24]

In contrast with the top‐down method, the bottom‐up synthetic strategy has the incomparable advantage of controlling the widths and edge topologies of NGs at the atomic level.[ ³ , ¹⁴ , ²⁷ ] The classical bottom‐up synthesis of NGs or large polycyclic aromatic hydrocarbons (PAHs) involves a typical oxidative intramolecular cyclodehydrogenation of dendritic oligophenylene precursors. By using such a synthetic strategy, a broad class of PAHs with different topological structures have been synthesized in recent decades.[ ³ , ²⁸ ] In contrast to the armchair‐edged NGs (A‐NGs) with a fully benzenoid structure, zigzag‐edged NGs (Z‐NGs) have another ring fused at the bay position (pink; Figure 2), and the two additional π‐electrons cannot be drawn as a Clar sextet. ^[29] For example, the fully benzenoid hexa‐peri‐hexabenzocoronene (HBC, 1) can be annulated with three, four, or six additional benzene rings at the bay regions to generate a tri‐zigzag HBC (2), ^[30] tetra‐zigzag HBC (3), ^[31] and full‐zigzag HBC (4; also called supercoronene), respectively (Figure 2). Such a zigzag K‐region has double‐bond character, thus enabling its electrophilic substitution reaction or oxidation to the diketone structure. ^[32] Despite the failure in the synthesis of full zigzag HBC (4) thus far, another family of PAHs with a full zigzag periphery, namely, circumacenes, has received much synthetic success (Figure 3). Among these, coronene (5) and ovalene (6) date back to efforts from Clar in the last century.[ ³³ , ³⁴ , ³⁵ , ³⁶ ] In 1991, Broene and Diederich described a synthetic route for the next generation circumarenes, namely, circumanthracene (7; Figure 3). ^[37] However, they could not characterize this compound because of its poor solubility. Even three decades after its discovery, there have been no significant efforts towards the synthesis and application of circumanthracene, its derivatives, or the next generation of circumacenes.

Figure 2.

The chemical structures of representative zigzag‐edged HBCs.

Figure 3.

Circumacene‐based NGs with full zigzag‐edged structures.

The integration of zigzag edges or reactive double bonds into NGs exerts a large influence on the electronic and magnetic properties, as well as their chemical reactivity, such as in oxidation reactions or electrophilic substitutions. For example, our group demonstrated an edge chlorination method for the functionalization of coronene, whereby the chlorine atoms at the edges provide the opportunity for further chemical derivatization to produce a thiol‐substituted coronene.[ ³² , ³⁸ ] On the other hand, zigzag‐edged NGs generally have non‐Kekulé structures or open‐shell structures because of the unpaired electrons present in the molecules,[ ³⁹ , ⁴⁰ ] which render them ideal candidates for application in nanocarbon‐based spintronics. A prominent example is phenalenyl radical[ ⁴¹ , ⁴² ] (8; Figure 4) with a delocalized spin/radical structure. In the first study of 8 in the 1950s,[ ⁴³ , ⁴⁴ ] it was found to be very reactive and only survived under an inert gas atmosphere in solution. Later, 8 was stabilized by protection with three tert‐butyl groups, which allowed its isolation and characterization.[ ⁴⁵ , ⁴⁶ ] Since the 1990s, phenalenyl radicals have been widely explored as building blocks for constructing open‐shell polycyclic hydrocarbons (PHs), and Nakasuji and Kubo have intensively investigated a series of biphenalenyl derivatives (9–11; Figure 4).[ ⁴⁷ , ⁴⁸ ] Another outstanding molecule rich in zigzag edges is zethrene (12; Figure 4), a unique PAH with formally fixed C−C double bonds. Clar first synthesized zethrene (12) in 1955. ^[49] Later, in the 1960s, Staab and Sondheimer developed more straightforward synthetic methods through the cross‐coupling of copper acetylides and iodoarenes.[ ⁵⁰ , ⁵¹ , ⁵² ] Recently, the groups of Tobe and Wu have paid particular attention to zethrene and its higher homologues (such as heptazethrene and octazethrene) with open‐shell characteristics.[ ⁵³ , ⁵⁴ , ⁵⁵ , ⁵⁶ , ⁵⁷ ] Very recently, we in collaboration with the Fasel group demonstrated the on‐surface synthesis of super‐heptazethrene on Au(111). ^[58] In contrast to its open‐shell singlet ground state in solution, super‐heptazethrene presents a closed‐shell character on Au(111). Since there have already been excellent reviews summarizing phenalenyl‐based[ ⁴⁷ , ⁴⁸ ] and zethrene‐type radicals,[ ⁵⁹ , ⁶⁰ , ⁶¹ , ⁶² , ⁶³ ] we will not discuss them further in this Minireview.

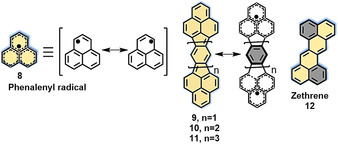

Figure 4.

Phenalenyl radical (8) and its resonance forms, biphenalenyls 9–11 and their resonance forms, and zethrene (12).

In the last decade, a remarkable breakthrough was achieved in the bottom‐up synthesis of zigzag‐edged NGs and GNRs, which benefited from the advancement of synthetic methods and analytical tools. In particular, powerful and complementary on‐surface and in‐solution synthetic strategies have been established; in the former case, the characterization of NGs at the atomic/molecular level is currently possible.[ ¹⁷ , ⁶⁴ ] For example, open‐shell peri‐tetracene[ ⁶⁵ , ⁶⁶ ] and peri‐pentacene, ^[67] the next highest analogues of bisanthene, which have been pursued for several decades but hampered by their poor chemical stabilities, are now accessible by solution‐based or surface‐assisted syntheses. π‐Extended triangulene ^[68] with three unpaired electrons and chemically unstable full zigzag‐edged GNRs ^[69] have also been recently realized by on‐surface synthesis. All of these graphene nanostructures show a critical dependence of their electronic properties on the topological structures, especially with the dominant zigzag edges.

In this Minireview, we will highlight recent advances in the synthetic strategies and physiochemical properties of graphene nanostructures rich in zigzag‐edges, including peri‐acenes, triangular‐shaped NGs, rhombus NGs, heteroatom‐doped NGs, and zigzag‐edged GNRs. We will provide our views on the advantages and challenges of the respective synthetic methods and routes. Moreover, the unique chemical, electronic, photophysical, and magnetic properties of these graphene nanostructures will be discussed in this context.

2. peri‐Acenes

Acenes are linearly cata‐condensed PAHs, while peri‐acenes consist of two or more rows of peri‐fused acenes (Figure 5). ^[70] Generally, the solution synthesis of longer acenes (larger than hexacenes) remains elusive because of their poor stability under ambient conditions, ^[71] whereas higher acenes up to dodecacene have been achieved through on‐surface synthesis.[ ⁷² , ⁷³ , ⁷⁴ , ⁷⁵ ] Bisanthene (14) can be regarded as a laterally extended perylene (13; Figure 5), and was synthesized for the first time in 1948.[ ⁷⁶ , ⁷⁷ ] Recently, homologous PAHs with zigzag‐edge peripheries, such as teranthene (15) and quateranthene (16), ^[40] were synthesized by expanding the bisanthene core in the longitudinal direction (Figure 5). From the resonance structures, there are three and four additional Clar sextets for teranthene (15‐1) and quateranthene (16‐1), respectively. According to the Clar sextet rule, more sextets in the open‐shell biradical form results in higher aromatic stabilization energies and thus a more dominant contribution of the biradical form to the ground state (Figure 5). ^[40] From calculations, the biradical indexes (y ₀) of 15 and 16 are estimated to be 0.42 (CASSCF) and 0.84 (UBHandHLYP), respectively, in contrast to only 0.07 (CASSCF) for 14. The open‐shell characteristics of 15 and 16 also lead to their unique optical and electronic properties. ^[78] For example, 15 and 16 display weak low‐energy absorption at λ=1054 nm (15) and λ=1147 nm (16) in the NIR region, which indicates that the energy gap between their highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) is small.

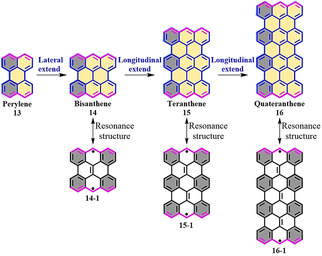

Figure 5.

Chemical structures of zigzag‐edged NGs based on bisanthene.

According to theoretical calculations, the energy gap of peri‐acenes drastically decreases as their length increases.[ ⁷⁹ , ⁸⁰ ] In 2015, we reported the synthesis of bistetracene 17 (tetrabenzo[a,f,j,o]perylene), ^[81] in which two tetracenes are fused together by two bonds (Figure 6). First, 20 was synthesized in eight steps. Then, bistetracene 17 was synthesized through a Grignard reaction, ring fusion, and oxidative dehydrogenation (Scheme 1 a). The optical energy gap (E _g ^opt) of 17 was estimated to be 1.56 eV from its UV/Vis absorption spectrum. Interestingly, based on the calculation, 17 has a biradical nature (y ₀=0.61) in the ground state. The driving force to form biradical 17‐1 is due to the three additional Clar sextets in the open‐shell form compared to its closed‐shell form (Figure 6). However, 17 is unstable under ambient conditions, with a half‐life (t _1/2) of only about 30 min (Scheme 1 c). A red‐colored solution was obtained during the oxidation, which corresponds to the formation of tetrabenzo[a,f,j,o]perylene‐9,19‐dione (23; Scheme 1 b).

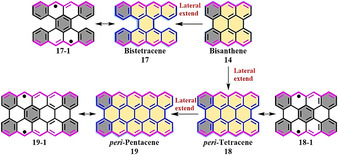

Figure 6.

Chemical structures of the zigzag‐edged NGs based on bisanthene.

Scheme 1.

a) Synthesis of bistetracene 17. b) Structural formula of 23. c) Time‐dependent UV/Vis spectra of 17 under ambient conditions. ^[81]

In 2018, the next highest analogue, peri‐tetracene 18, was synthesized in solution by us and by Wu (Scheme 2).[ ⁶⁵ , ⁶⁶ ] The synthesis of peri‐tetracene 18 was achieved by dehydrogenation of 26 with 2,3‐dichloro‐5,6‐dicyano‐1,4‐benzoquinone (DDQ, Scheme 2). The UV/Vis absorption spectrum of 18 shows an intense absorption centered at λ=881 nm along with two shoulders (λ=788 and 1021 nm) in the NIR region (Scheme 2 b). Accordingly, the optical energy gap (E _g ^opt) of 18 was estimated to be 1.11 eV, which is much smaller than that of bistetracene 17 (1.56 eV). Moreover, from the DFT calculations (UHF/6‐31G*), the singlet biradical character (y ₀) of peri‐tetracene 18 is 0.72, which is higher than that of 17 (y ₀=0.61). Similar to 17, peri‐tetracene 18 is also unstable under ambient conditions, with a half‐life (t _1/2) estimated to be about 3 h (Scheme 2 b). Moreover, we also demonstrated the surface‐assisted synthesis of unsubstituted peri‐tetracene via the key monomer 7,14‐di(2‐methylphenyl)benzo[k]tetraphene. ^[82] Remarkably, the solution‐based synthesis of peri‐tetracene 18 enabled the in situ generation of circumanthracene derivatives.[ ⁶⁵ , ⁸³ ] For example, the novel circumanthracene derivative 4CN‐7 with four cyano groups was produced by two Diels–Alder (DA) reactions at the bay position of peri‐tetracene 18 by using DDQ (Scheme 2 a). This reaction can be attributed to the relatively low‐lying LUMO (−3.50 eV) of 18.

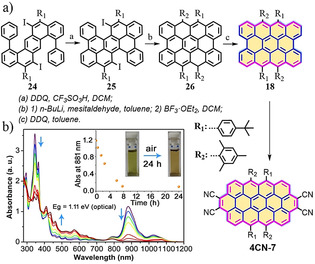

Scheme 2.

a) Synthetic route towards peri‐tetracene 18 and 4CN‐7 through Diels–Alder reactions of 18. b) Time‐dependent UV/Vis absorption spectra of 18. ^[65]

Researchers have not abandoned the pursuit of higher peri‐acenes, even though their synthesis has been met with tremendous challenges. Thus far, two synthetic approaches have been proposed for the synthesis of peri‐pentacene (19) in solution; unfortunately, both were unsuccessful.[ ⁸⁴ , ⁸⁵ ] In 2015, peri‐pentacene (19) was reported through on‐surface synthesis from the precursor 6,6′‐bipentacene (29) under ultrahigh vacuum (UHV) conditions (Figure 7). ^[67] After depositing 29 on the Au(111) surface, it arranged into highly ordered linear chains, as visualized by STM imaging (Figure 7 b). Annealing at 200 °C, led to 29 being fully cyclized to form peri‐pentacene (19), as confirmed by STM and noncontact‐AFM (nc‐AFM) with a CO‐functionalized tip (Figure 7 c–e). Interestingly, the highly reactive 19 could be stabilized on the surface through interaction with the free valences of the Au substrate.

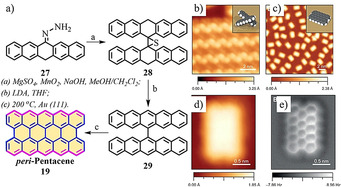

Figure 7.

a) Synthesis of 19 on a gold surface. b) STM image of 29. c,d) STM images of 19. e) nc‐AFM image of 19. ^[67]

3. Triangular‐Shaped Nanographenes

C ₃‐Symmetric triangulene (30) was first studied by Clar in 1941, ^[86] and with two unpaired electrons is one of the most fundamental non‐Kekulé PAHs (Figure 8). ^[87] Moreover, the singlet–triplet energy gap (ΔE _S‐T) of triangulene (30) was calculated to be 20 kcal mol⁻¹, thus suggesting that 30 displays a triplet biradical feature in the ground state. ^[88] Clar and Stewart made the first attempt to synthesize 30; however, only the polymerized compound was obtained, which indicates the thermodynamic instability of 30.[ ⁸⁹ , ⁹⁰ ] In 2001, Morita, Nakasuji, and co‐workers introduced tert‐butyl (t‐Bu) groups onto the zigzag edges of triangulene to kinetically protect the reactive edges (t ‐Bu 30; Scheme 3). ^[91] However, this compound was only confirmed by electron‐spin resonance (ESR). In addition, this tert‐butyl‐protected triangulene was not stable in solution, with oligomers forming even at room temperature (Scheme 3).

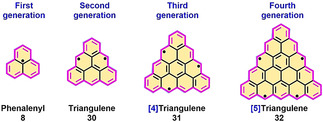

Figure 8.

The nomenclature of higher triangular‐shaped nanographenes.

Scheme 3.

Synthesis of triangulene t ‐Bu 30 with three tert‐butyl groups. ^[91]

In 2017, Pavliček, Gross et al. demonstrated the surface‐assisted synthesis of triangulene (30) under UHV conditions, ^[92] whereby dihydrotriangulenes (39; Figure 9 a) were deposited on NaCl(100), Cu(111), and Xe(111) surfaces and 30 formed by atomic manipulation (Figure 9 b–d). The differential conductance dI/dV(V) of 30 was measured (Figure 9 e). There are two clear peaks at V=−1.4 V and V=1.85 V, which correspond to the negative and positive ion resonances. Figure 9 f–h shows the STM images of 30 at different voltages, with the image taken in the gap region (V=0.1 V) appearing to be triangular‐shaped. Very recently, Frederiksen and co‐workers reported the on‐surface synthesis of graphene flakes based on the [3]triangulene molecules, which possess a spin S=1 ground state. ^[93]

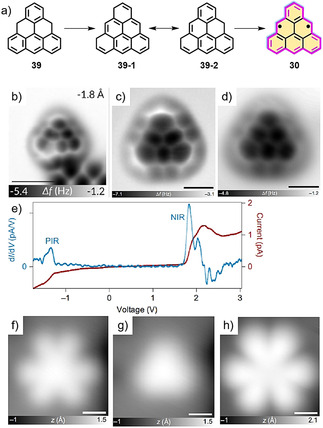

Figure 9.

a) Synthesis of triangulene 30 on a surface. b) AFM images of 30 on NaCl. c) AFM images of 30 on Cu. d) AFM images of 30 on Xe. e) The differential conductance dI/dV(V) of 30. f‐h) STM images of 30 at different voltages (f: V=−1.4 V; g: V=0.1 V; h:V=1.85 V). ^[92]

The next generation in the family of PAHs with triangular topology, [4]triangulene (31, C₃₃H₁₅) with three unpaired electrons, was recently reported by the Fasel group and us (Scheme 4). ^[68] The key precursor 42 with three strategically installed methyl substituents was achieved through a photocyclization reaction of 41. Subsequently, 42 was sublimated on the Au(111) surface, and then ring‐closure reactions of the methyl groups were performed by annealing at 320 °C to afford 31. The structure of 31 was confirmed by ultrahigh‐resolution STM (Figure 10 a), which shows 31 adopts a planar structure on the surface through adsorption onto Au(111), which is also in line with the DFT calculations (Figure 10 b). The electronic properties of 31 were studied by STS (Figure 10 c), and the electronic band of 31 was estimated to be 1.55 eV. Moreover, calculations based on density functional, tight‐binding, and many‐body perturbation theory were carried out, which indicated that [4]triangulene (31) maintains an open‐shell quartet ground state on the surface.

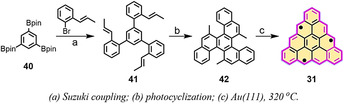

Scheme 4.

Synthetic route towards [4]triangulene 31. ^[68]

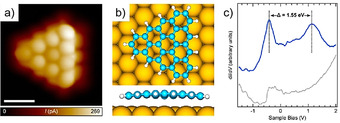

Figure 10.

a) STM image of [4]triangulene (31). b) DFT‐simulated geometry of 31 on the Au(111) surface. c) dI/dV spectrum of 31 (blue curve). ^[68]

In 2019, Wu et al. demonstrated the synthesis of the next‐generation triangulene, [5]triangulene (32), by surface‐assisted cyclodehydrogenation (Scheme 5). ^[94] Precursor 47 was sublimated onto Cu(111) (Figure 11 a) and Au(111) (Figure 11 b) surfaces. The STM study showed the successful formation of [5]triangulene 32 with the expected D _3h symmetry. Interestingly, the yield on Cu(111) (ca. 60 %, ca. 500 K) was much higher than that on the Au(111) substrate (ca. 5 %, ca. 600 K). The STS measurements to unveil the electronic properties were performed on Au(111) substrates, since they possess weak interactions with [5]triangulene (Figure 11 c). Conductance (dI/dV) mapping of the [5]triangulene molecule was conducted using a metallic tip, in which the P ₁ state revealed five bright spots located at the zigzag edge of 32 (Figure 11 d), while the P ₂ state exhibited an edge‐localized pattern (Figure 11 e).

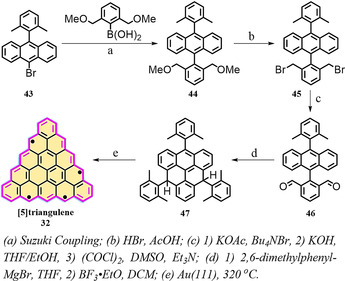

Scheme 5.

The synthetic route towards [5]triangulene 32. ^[94]

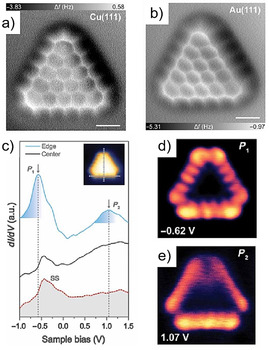

Figure 11.

Structural characterization of 32 on a) Cu(111) and b) Au(111) surfaces. c) dI/dV spectra of 32 (solid blue line). d,e) Experimental dI/dV maps performed at different energy positions (d: −0.62 V; e: 1.07 V). ^[94]

In 1972, Clar and MacKay predicted the bowtie‐shaped PAH 53 (C₃₈H₁₈; Scheme 6), ^[95] in which two [3]triangulenes are connected head‐to‐head. It is important to emphasize that 53 belongs to the family of the as then undiscovered concealed non‐Kekulé structures.[ ⁹⁶ , ⁹⁷ ] A concealed non‐Kekulé molecule displays no Kekulé structure and possesses the same number of white and black (or unstarred and starred) vertices (Scheme 6 a). ^[98] Like triangulene, a Kekulé structure of 53 cannot be drawn with paired electrons. Very recently, we in collaboration with the Fasel group demonstrated the first synthesis of Clar's goblet PAH 53 through combined in‐solution and on‐surface synthesis. ^[99] The synthesis of 53 involves the key precursor 52 (Scheme 6 b), in which the four methyl groups serve as ring‐closure units. The generation of 52 involved a multistep synthesis (Scheme 6 b). Precursor 52 was deposited onto Au(111) and annealed at 300 °C to boost the on‐surface synthesis. The successful formation of 53 was confirmed by ultrahigh‐resolution STM (inset Figure in Scheme 6 b), with the two radicals located at the terminal zigzag edges. Moreover, STM and spin excitation spectroscopic analysis of 53 on the Au(111) surface showed it had a strong antiferromagnetic character with an exchange coupling of 23 meV (an effective exchange parameter J _eff=23 meV; Figure 12), which is larger than that of the Landauer limit of minimum energy dissipation at room temperature. Interestingly, this electronic decoupling was confirmed when 53 linearly fused to form its dimer structure (di‐53; Figure 13 a). This arises because the electron spins in di‐53 are separated by a large nonmagnetic unit. The chemical structure of di‐53 was clearly confirmed by ultrahigh‐resolution STM (Figure 13 b–d).

Scheme 6.

a) Schematic illustration of the difference between white and black (or unstarred and starred) vertices for triangulene and Clar's goblet 53. b) The synthetic route towards bowtie‐shaped nanographene 53. Insert: ultrahigh‐resolution STM image of 53. ^[99]

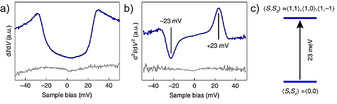

Figure 12.

a) dI/dV and b) d² I/dV ² spectra of 53. c) Spin excitation of 53. S _z denotes the spin projection quantum number. ^[99]

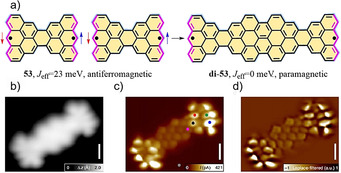

Figure 13.

a) The formation of di‐53 by the linear fusion of 53. b) High‐resolution STM image of di‐53. c,d) Ultrahigh‐resolution STM images of di‐53. ^[99]

4. Rhombus Nanographenes

In contrast to the family of full zigzag‐edged triangulenes with intrinsic open‐shell character in the ground state, [m,n]rhombus NGs with full zigzag edges can be drawn with Kekulé structures, where m is the number of [n]acenes that annulate a rhombic nanographene (Figure 14). The [m,n]rhombus NGs reported thus far possess small diradical characteristics and display high chemical stability under ambient conditions. The [m,n]rhombus structures gain fewer Clar sextet rings in their diradical forms through resonance than the respective peri‐acenes and triangular‐shaped NGs. In 2012, Zhang and Briseno demonstrated the solution synthesis of [2×3]anthanthrene (54),[ ¹⁰⁰ , ¹⁰¹ ] which was investigated as an electron donor in organic solar cells and yielded a promising power conversion efficiency (PCE) of up to 2.0 %. Very recently, extended [m,n]peri‐acenoacenes such as [2×4]peri‐tetracenotetracene (55) and [2×5]peri‐pentacenopentacene (56) were successfully synthesized by Wu and co‐workers (Scheme 7). ^[102]

Figure 14.

Chemical structures of the rhombus nanographenes.

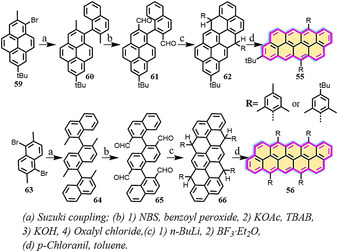

Scheme 7.

Synthesis of 55 and 56. ^[102]

The methyl groups in 60 and 64 were transformed into dialdehyde and tetraaldehyde groups by bromination, esterification, hydrolysis, and Swern oxidation to afford 61 and 65. The dihydro/tetrahydro precursors 62/66 were synthesized by treatment of aldehydes 61/65 with phenyllithium followed by Friedel–Crafts cyclization. Dehydrogenation of 62/66 using p‐chloranil provided target compounds 55 and 56. Single‐crystal analysis shows that both 55 and 56 have a flat π‐conjugated framework. Compared to [2×3]anthanthrene (54), the absorption maxima (λ _max) of 55 and 56 are bathochromicaly shifted from λ=449 nm to 561 nm and 702 nm, respectively (Figure 15 a). Accordingly, compared to peri‐acenes, rhombic NGs 55 and 56 display somewhat larger band gaps and thus are much more stable under ambient conditions.

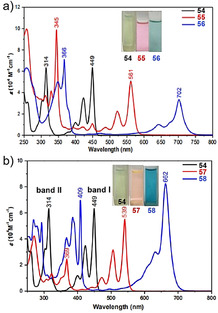

Figure 15.

a) UV/Vis absorption spectra of 54, 55, and 56. ^[102] b) UV/Vis absorption spectra of 57 and 58. ^[103]

In addition, Wu and co‐workers recently reported the synthesis of extended [3×3]anthanthrene 57 and [3×4]tetracenotetracene 58 by extension of [2×3]anthanthrene along the lateral and longitudinal directions (Scheme 8). ^[103] The synthesis of 57 and 58 is based on the vital intermediate tetraaldehydes 69 and 73, in which anthracene and dibenzopyrene serve as the key building blocks, respectively. Both 57 and 58 display nearly planar π‐conjugated frameworks. Based on DFT calculations ((U)CAM‐B3LYP/6‐31G**), 57 has zero biradical character, whereas 58 possesses a small biradical contribution (y ₀=0.18). Similar to 55 and 56, both 57 and 58 behave like closed‐shell compounds and feature intense absorptions at λ=539 nm and 662 nm, respectively (Figure 15 b). We also achieved the on‐surface synthesis of [3×3]anthanthrene‐based polymers, namely, poly(para‐dibenzo[bc,kl]coronenylene), which could be laterally fused to form zigzag‐edge‐extended GNRs. ^[104]

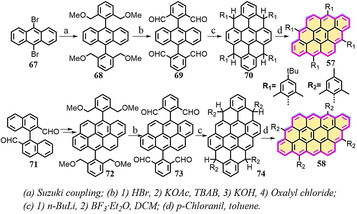

Scheme 8.

Synthesis of 57 and 58. ^[103]

Compared to the above‐reported closed‐shell [m,n]rhombus NGs, an open‐shell singlet ground state will emerge when m,n≥5. Agapito et al. predicted that the [5,5]rhombus NG exhibits unique magnetic states that could be selectively tuned with the gate voltage. ^[105] Thus, the bottom‐up synthesis of next‐generation rhombus NGs with full zigzag edges is expected to provide exotic low‐dimensional quantum phases of matter, such as magnetic exchange coupling behavior, in purely organic systems.

5. Heteroatom‐Doped Nanographenes

In addition to edge topologies, the employment of heteroatoms in sp²‐carbon frameworks is another method to tune the intrinsic chemical and physical properties of PAHs.[ ¹⁰⁶ , ¹⁰⁷ , ¹⁰⁸ ] The implementation of heteroatoms, such as an isoelectronic B‐N unit (Figure 16), has a significant influence on the electronic structures of PAHs.[ ¹⁰⁹ , ¹¹⁰ ] Moreover, compared with the nonpolar C=C bond, the B−N bond can be regarded as a zwitterionic double bond in its neutral state. The redox behavior of the B‐N unit has received significant interest recently (Figure 16). ^[111]

Figure 16.

Isoelectronic structure of B‐N and C=C units.

Azomethine ylides (AMY 1; Scheme 9 a) are classic 1,3‐dipolar molecules.[ ¹¹² , ¹¹³ ] Interestingly, AMY 1 possesses several resonance structures, since the negative charge on the allyl anion (AMY 1 a and 1 b) can be distributed onto the neighboring carbon atoms. In addition to these two ionic structures, AMY 1 also displays diradical character (AMY 1 c) in the ground state (Scheme 9 a).[ ¹¹⁴ , ¹¹⁵ ] In 2014, we reported the synthesis of conjugated AMY‐containing aromatic rings (PAMY), in which the C‐N‐C unit is installed at the zigzag edge. This unprecedented PAMY can be used as a building block to synthesize nitrogen‐doped PAHs (N‐PAHs; Scheme 9 b).[ ¹¹⁶ , ¹¹⁷ ] In general, the synthesis of zigzag‐edged PAMY consists of three steps. First, 76 is synthesized through the Suzuki coupling of 75 and 1‐hydroxy‐3H‐2,1‐benzoxaborole. Then, 77 with a zigzag edge is obtained by HCl‐induced cyclization of 76. The final PAMY is synthesized by the treatment of 77 with basic conditions. Remarkably, zigzag‐edged PAMY enables the synthesis of extended N‐PAHs by 1,3‐dipolar cycloaddition. For example, 78 was directly synthesized through a 1,3‐dipolar cycloaddition with dimethoxyacetylene dicarboxylate (Scheme 9 b). Subsequently, the planar compound benzo[7,8]indolizino[6,5,4,3‐def]phenanthridine (79) was synthesized in 82 % yield by the oxidative dehydrogenation of 78. Following this strategy, and by using different dipolarophiles, different kinds of unprecedented inner nitrogen‐doped NGs can be produced.[ ¹¹⁷ , ¹¹⁸ , ¹¹⁹ , ¹²⁰ ]

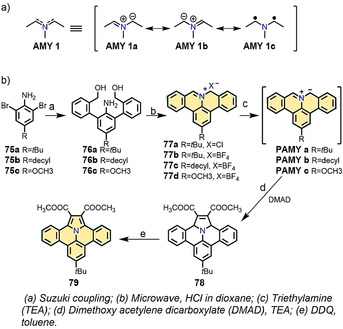

Scheme 9.

a) The resonance structures of AMY 1. b) Synthesis of 79. ^[116]

In addition to the cycloaddition reaction of PAMY, interestingly, 81 was produced through the dimerization of 80 in low yield (3 %; Scheme 10). The yield of 81 (51 %) could be greatly improved by increasing the temperature. Further oxidation of 81 a with DDQ provided pyrazine‐incorporated hexabenzoperylene (HBP) 82. However, 82 is extremely unstable, likely because of the antiaromatic nature of the pyrazine‐type core (Scheme 10). On the other hand, dimerized intermediate precursor 81 c was not observed when 80 c was annealed on the surface. Instead, diaza‐HBC 83 was directly formed (Scheme 10). ^[121] Moreover, 80 b substituted with a ‐CN group enabled the synthesis of polyaromatic azaullazine chain 84 (Scheme 10) on insulating layers, metal substrates, and in the solid state through intermolecular head‐to‐tail cycloaddition reactions. ^[122]

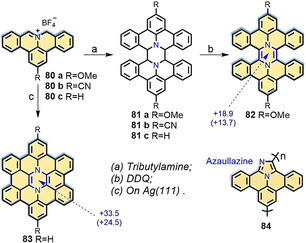

Scheme 10.

Solution‐based synthesis of 82, on‐surface synthesis of N‐doped HBC 83, ^[121] and polyaromatic azaullazine chain 84. ^[122] Blue: NICS(1) value.

The introduction of a N‐B‐N motif at the zigzag edge not only affords the synthesis of stable zigzag‐edged NGs in solution but also provides the possibility to generate radical cations at the NBN‐doped edge through selective oxidation (Scheme 11 a).[ ¹²³ , ¹²⁴ , ¹²⁵ , ¹²⁶ ] In 2016, our group demonstrated the first synthesis of 1,9‐diaza‐9a‐boraphenalenes containing NBN zigzagged edges (88; Scheme 11 b). ^[123] NBN‐edged 88 was synthesized from 87 through electrophilic borylation, in which trimethylsilyl (TMS) served as the leaving group to form the NBN unit. Interestingly, 88 was dimerized to 88‐2 through chemical oxidation (Scheme 11 c). In addition, π‐extended dimer 94 was produced (Scheme 12), thus highlighting the potential of making GNRs containing NBN zigzag edges.

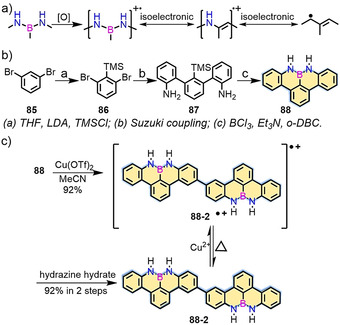

Scheme 11.

a) NBN‐edged structure and its radical cation and isoelectronic structures. b) Synthetic routes towards NBN‐doped 88. c) The possible oxidation process of 88. ^[123]

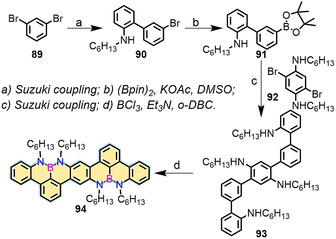

Scheme 12.

Synthesis of NBN‐doped 94.^[123

In contrast to BN‐ or NBN‐doped isoelectronic compounds, the B‐N‐B unit serves as an isoelectronic structure to its corresponding all‐carbon cation. In 2017, BNB‐edged benzo[fg]tetracene 96 was synthesized as an unstable intermediate, which could further react with itself (→97) or boronic acid (→98) to afford the B₃NO₂ ring (Scheme 13). ^[124] In the same year, Bettinger and co‐workers demonstrated the synthesis of such compounds, which were stabilized by mesityl groups (103; Scheme 14). ^[126] Moreover, BNB‐edged 103 is isoelectronic to its all‐carbon cation 104 (Scheme 14) ^[127] with similar NICS values, thus indicating 104 and 103 possess similar aromaticity. In addition to these efforts, Zeng and co‐workers reported the synthesis of BNB‐embedded phenalene, which is isoelectronic with its all‐carbon phenalenyl cation. ^[128]

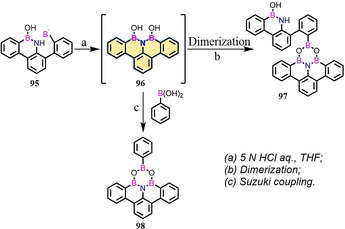

Scheme 13.

Synthesis of six‐membered B₃NO₂ heterocycles 97 and 98. ^[124] .

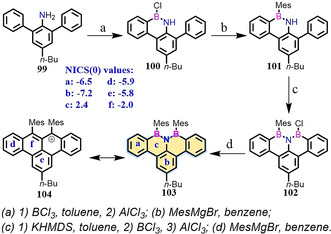

Scheme 14.

Synthesis of BNB‐edged 103 with mesityl groups. ^[126]

6. Zigzag‐Edged GNRs

The procedures established for the synthesis of PAHs can be further explored to construct GNRs from the corresponding polyphenylene polymers. In contrast to armchair‐edged GNRs (AGNRs) that display semiconducting behavior, zigzag‐edged GNRs (ZGNRs) demonstrate unique electronic and magnetic properties, including narrow band gaps and localized edge states.[ ¹²⁹ , ¹³⁰ ] Therefore, although the solution‐based synthesis of AGNRs has been successfully demonstrated,[ ¹³¹ , ¹³² , ¹³³ ] GNRs with rich zigzag edges have been limited thus far to on‐surface synthesis under UHV conditions because of their poor chemical stability. In 2016, the first bottom‐up synthesis of a full zigzag‐edged GNR (6‐ZGNR) on a Au(111) surface was realized by Fasel, Müllen, and us (Scheme 15). ^[69] This method relied on the rational design of the U‐shaped dibenzoanthracene‐based precursor 105, which allows on‐surface polymerization to form a snake‐type polymer (Polymer‐1). Moreover, two additional methyl groups on phenyl ring A are preinstalled (Scheme 15), which are essential to bridge with neighboring phenyl rings to establish additional zigzag‐edged rings.

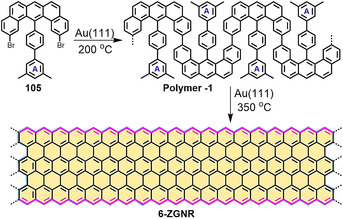

Scheme 15.

The synthetic route towards 6‐ZGNR from the U‐shaped monomer 105 with two preinstalled methyl groups. ^[69]

For the on‐surface synthesis, monomer 105 was first sublimated at 150 °C. Then, Polymer‐1 was synthesized by annealing at 200 °C (Figure 17 a). Finally, the fully zigzag‐edged 6‐ZGNR was achieved by further annealing at 350 °C (Figure 17 b). Further structural details of 6‐ZGNR could be unraveled by nc‐AFM (Figure 17 c), which demonstrated that its edge topology and width correspond to the conceived 6‐ZGNR. However, the electronic edge states of zigzag edges are difficult to observe owing to the energetic electronic coupling between the gold surface and the ribbons. By manipulating 6‐ZGNR with an STM tip onto insulating NaCl islands, clear evidence of the edge states could be observed as a result of electronic decoupling from the gold substrate (Figure 17 d). ^[134] Edge states have also been detected on other carbon‐based nanostructures,[ ¹³⁵ , ¹³⁶ ] such as graphene quantum dots (GQDs). The less‐defined zigzag edges resulted in their energy splitting being considerably smaller than that of 6‐ZGNR. These results show that the magnetic and electronic properties of graphene nanostructures are very sensitive to their interactions with the underlying metal substrate and their edge roughness.

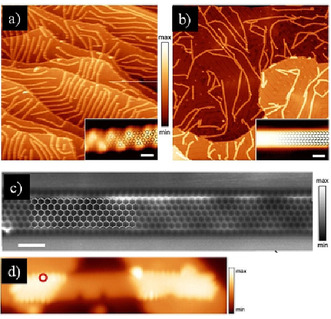

Figure 17.

a) STM image of Polymer‐1. b) STM image of 6‐ZGNR. c) nc‐AFM image of 6‐ZGNR. d) STM image of 6‐ZGNR on NaCl monolayer islands. ^[69]

Following a similar synthetic strategy, the surface‐assisted synthesis of NBN‐edged ZGNRs (ZGNR1 and ZGNR2; Scheme 16) from two U‐shaped NBN‐doped precursors (106 and 107) was recently reported by us. ^[137] First, two iodo‐functionalized monomers 106 were synthesized by multistep organic synthesis, in which the NBN motif was preinstalled on the zigzag periphery. Then, monomer 106 was deposited onto the gold substrate (Figure 18 a). The swallow‐shaped polymer poly‐1 was synthesized by annealing at 200 °C (Figure 18 b). Subsequently, the target ZGNR1 could be obtained through intramolecular cyclodehydrogenation of poly‐1 at 450 °C. The zigzag‐edge topologies were evidently unveiled through STM and nc‐AFM measurements (Figure 18 c,d). Monomer 107 containing one additional phenyl ring than 106 was further synthesized to afford ZGNR2 (Figure 18 e,f), in which the zigzag‐edge proportion (57 %) was higher than that of ZGNR1 (37 %). However, as a consequence of the substantial steric hindrance between the additional ring C with the side rings (such as rings D; Scheme 16) in polymer poly‐2, the length of the corresponding ZGNR2 is shorter than that of ZGNR1. A comparison of the electronic structures of all‐carbon‐based ZGNRs (PC‐ZGNR1: 0.52 eV; PC‐ZGNR2: 0.27 eV; Scheme 16) shows the energy band gaps of ZGNR1 (1.50 eV) and ZGNR2 (0.90 eV) are much higher, which indicates that NBN doping plays a pivotal role in tailoring the electronic structures of graphene nanostructures. Since the NBN unit can be selectively oxidized to form the radical cation (Scheme 11 a), which corresponds to a pristine C ₃ carbon segment, this strategy offers further chemical modification for NBN‐doped ZGNRs.

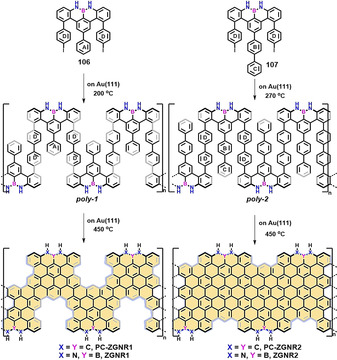

Scheme 16.

Synthetic strategy for NBN‐doped ZGNR1 and ZGNR2. ^[137]

Figure 18.

a) STM image of 106. b) STM image of polymers poly‐1. c) STM image of ZGNR1. d) nc‐AFM image of ZGNR1. e) STM image of ZGNR2. f) nc‐AFM image of ZGNR2. ^[137]

Another significant breakthrough for GNRs was made in 2018 with the discovery of topological properties.[ ¹³⁸ , ¹³⁹ ] It was shown that zigzag edges provide a platform to realize GNRs with exceptional physical properties. For example, topologically nontrivial (Z₂=1) and trivial (Z₂=0) GNRs were demonstrated by the introduction of short zigzag edge segments (pink segments) into 7‐AGNR (Scheme 17). ^[139] First, GNR1 (7 ‐AGNR‐S(1,3)) was synthesized from monomer 108 on a Au(111) surface (Scheme 17 a). The methyl groups play an essential role in the formation of the zigzag topology by bridging the neighboring rings. The chemical structure of GNR1 was unambiguously confirmed using nc‐AFM (Scheme 17 a, inset). STS measurements showed the band gap of GNR1 significantly decreased to 0.65 eV compared to pristine 7‐AGNR (2.4 eV). Moreover, to determine whether GNR1 behaves similarly to the topologically trivial class (Z₂=0) or the nontrivial class (Z₂=1), sequential sublimation of 108 (for GNR1) and 109 (for 7 ‐AGNR) was carried out (Scheme 17 b). The experimental results demonstrated that the resulting GNR1 could be classified as topologically trivial, with Z₂=0, which is consistent with the tight‐binding prediction. In addition, by sequential sublimation of precursors 110 and 109, GNR3 (named 7 ‐AGNR‐I(1,3)) and 7 ‐AGNR could be produced (Scheme 17 c). The inset in Scheme 17 c displays the nc‐AFM image of GNR3 (with 5 units), which is laterally expanded on both sides by 7 ‐AGNR units. The dI/dV analysis shows that, in contrast to the trivial (Z₂=0) GNR1, the resulting GNR3 belongs to the topologically nontrivial class (Z₂=1) and possesses topological end states.

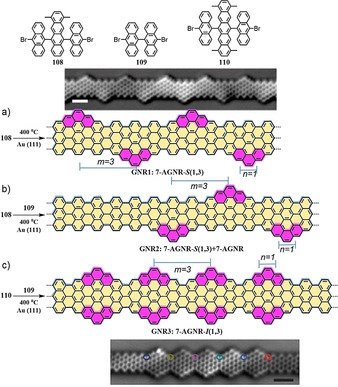

Scheme 17.

a) On‐surface synthesis of GNR1. b) 7‐AGNR‐extended GNR1. c) 7‐AGNR‐extended GNR3. ^[139]

7. Conclusions and Perspectives

This Minireview offers an overview of the recent developments in the synthesis of graphene nanostructures with dominant zigzag‐edged topologies. Both bottom‐up solution‐based and surface‐assisted synthetic strategies have been established and have achieved significant breakthroughs in the past few years. For example, peri‐tetracene with its biradical character in the ground state, which had been pursued for more than 70 years, was successfully synthesized in solution. π‐Extended triangulenes and full zigzag‐edged GNRs (6‐ZGNR) have been successfully synthesized by surface‐assisted routes. These atomically precise Z‐NGs and ZGNRs open up tremendous opportunities for the exploration and regulation of their fundamental physicochemical properties. A prominent example is the switching of the magnetic ground state from S=$1/2$ to S=0, which was recently reported for the concealed non‐Kekulé structure of Clar's goblet molecule, with quenched spins through atomic manipulation. ^[99]

Despite the incredible advances over the last few years, the development of Z‐NGs and ZGNRs is still in its infancy. Many challenges and opportunities remain for the synthetic exploration of this elusive type of graphene material, some of which are listed in this Minireview. Although the surface‐assisted synthesis of several prominent types of Z‐NGs and ZGNRs has been demonstrated, their solution‐based chemistry still lags behind because of their poor chemical stability. The introduction of bulky groups for kinetic protection or electron‐deficient groups (such as fluorine atoms) for thermodynamic stabilization can be a tradeoff strategy to obtain access to some stable Z‐NGs or ZGNRs in solution. Moreover, the introduction of nonplanarity by the incorporation of nonhexagonal rings into sp²‐carbon frameworks may provide an alternative pathway.[ ¹⁴⁰ , ¹⁴¹ , ¹⁴² , ¹⁴³ , ¹⁴⁴ ] Only by overcoming the stability obstacle will further integration of these exotic materials in carbon‐based nanoelectronic devices become possible.

Heteroatom doping has been demonstrated as an efficient strategy for synthesizing stable Z‐NGs and ZGNRs with extended zigzag edges, which also enables chemical tuning of their electronic and magnetic properties. Therefore, further studies, both in solution and in on‐surface synthesis, focusing on the specific concentrations and positions of the heteroatoms in the zigzag‐edged graphene nanostructures will be essential for understanding the effects of substitutional doping on physicochemical properties. In addition to heteroatom doping, defect engineering, together with the structural design of zigzag edges, may provide an attractive method to tune the electronic and magnetic properties of Z‐NGs and ZGNRs.[ ¹⁴⁵ , ¹⁴⁶ ] Our recent work shows that a five‐membered ring incorporated at the zigzag edge of nanographene can break the bipartite character of the sp²‐carbon lattice and induce a single net spin of S=$1/2$ .[ ¹⁴⁷ , ¹⁴⁸ ] On the other hand, concealed non‐Kekulé NGs with intrinsic magnetism remain a class of less‐developed graphene nanostructures, and more effort will be needed for both solution and on‐surface synthesis. Moreover, given the high‐spin ground states, other attractive fundamental and technical prospects can be realized by the synthesis of one‐dimensional polymers, ribbons, and two‐dimensional networks by incorporating magnetic graphene molecules as building blocks. ^[149] We hope that this Minireview will inspire new ideas in the design and synthesis of novel and stable zigzag‐edged graphene nanostructures, as well as the development of carbon‐based nanoelectronic devices.
