Luminescence intensity of vortex cavitation in a Venturi tube changing with cavitation number

Graphical abstract

Highlights

• •Vortex cavitation is important phenomenon in luminescence of hydrodynamic cavitation.
• •Pressure wave induced by collapse of vortex cavitation is visualized.
• •Sound velocity in cavitating flow field is evaluated by observing the pressure wave.
• •The sound velocity is key factor of luminescence intensity.
• •Luminescence intensity is enhanced by optimizing pressure where bubble collapse.

Abstract

Hydrodynamic cavitation in a Venturi tube produces luminescence, and the luminescence intensity reaches a maximum at a certain cavitation number, which is defined by upstream pressure, downstream pressure, and vapor pressure. The luminescence intensity of hydrodynamic cavitation can be enhanced by optimizing the downstream pressure at a constant upstream pressure condition. However, the reason why the luminescence intensity increases and then decreases with an increase in the downstream pressure remains unclear. In the present study, to clarify the mechanism of the change in the luminescence intensity with cavitation number, the luminescence produced by the hydrodynamic cavitation in a Venturi tube was measured, and the hydrodynamic cavitation was precisely observed using high-speed photography. The sound velocity in the cavitating flow field, which affects the aggressive intensity of the cavitation, was evaluated. The collapse of vortex cavitation was found to be closely related to the luminescence intensity of the hydrodynamic cavitation. A method to estimate the luminescence intensity of the hydrodynamic cavitation considering the sound velocity was developed, and it was demonstrated that the estimated luminescence intensity agrees well with the measured luminescence intensity.

1. Introduction

Cavitation in fluid machineries, i.e., hydrodynamic cavitation, has a severe impact on bubble collapse, and cavitation causes severe erosion in hydraulic components, such as pumps [1], [2] and valves [3]. However, the impact can be utilized for mechanical surface enhancement to enhance material properties, such as fatigue strength, in the same way as shot peening [4], [5], and this is called “cavitation peening” [6]. Through research on cavitation damage and cavitation peening, Soyama et al. found that vortex cavitation, as shown in Fig. 1, produced a severe impact [3], and vortex cavitation occurring in the Venturi tube produced luminescence [7]. Vortex cavitation is initiated from the cavitation nuclei, which become longitudinal bubbles because of low pressure at the vortex core. The vortex, which produces vortex cavitation, is a type of turbulent eddy. It was reported that the aggressive intensity of hydrodynamic cavitation in a Venturi tube was enhanced by approximately 100 times when the pressure was increased in the region where the bubble collapses without additional power. Thus, it is worthwhile to clarify the enhancement mechanism of the aggressive intensity of vortex cavitation in a Venturi tube.

Fig. 1.

Typical vortex cavitation [3]

Since the discovery of abrupt cavity separations on a cavitating hydrofoil [8], many researchers have focused on cloud cavitation [9], [10], [11], [12], [13], [14]. As Arndt reviewed [12], cloud cavitation is a form of cavitation in vortical flows. Whereas a typical vortex cavitation is “tip vortex cavitation,” which occurs in the tip vortex of a screw propeller [15], in the present work, “vortex cavitation” is used to describe the cavitation, as shown in Fig. 1. The vortex cavitation as shown in Fig. 1 was observed in the shear flow region downstream of the butterfly valve. In Fig. 1, the main flow direction was from the right-hand side to the left-hand side. The vortex cavitation was developed at the boundary between the main flow region, i.e., the orifice jet, and the recirculating region. More details are given in reference [16]. A video regarding vortex cavitation is available in the electronic version as supplementary data.

In the case of hydrodynamic cavitation, a practical application for wastewater treatment has been proposed using multiple orifices [17], [18], [19], [20], [21], [22], [23], [24]. Disruption of Escherichia coli [25], degradation of dichlorvos [26], removal of pharmaceuticals from wastewater [27], waste-activated sludge pretreatment [28] and effluent treatment [29] have also been proposed. Regarding the treatment of biomass using hydrodynamic cavitation, treatment of cellulose [30], [31], [32], delignification of wheat straw [33], pretreatment of lignocellulosic biomass [34], pretreatment of rice bran for microbial fuel cells for electricity generation [35], pretreatment of sugarcane bagasse [36], biomass extraction [37] and energy harvesting with microscale hydrodynamic cavitation thermoelectric generation coupling [38] have been investigated. Pretreatments of biomass using hydrodynamic cavitation and ultrasonic cavitation were compared [34]. In the experiment, ultrasonic cavitation was produced by a probe-type ultrasonic generator (Sonifier 250, Branson Ultrasonics) with a vibration tip (12.7 mm extension) fixed in a glass beaker with an inner diameter of 4.7 cm and height of 9.0 cm, in which the biomass powder (2.0) g was suspended in 50 mL of solution. The frequency was 20 kHz, ultrasonic power output was 50 W, and treatment time was 1 h. The estimated obtained glucose was 0.196 g. By contrast, hydrodynamic cavitation was produced using a diaphragm pump (Duplex II D3635E7011A, FLOJET), that was driven by a 30 W motor. The biomass powder (16 g) was suspended in 400 mL of solution and treated for 1 h. The obtained glucose estimated through hydrodynamic cavitation was 2.42 g. Thus, the pretreatment efficiencies of ultrasonic cavitation and hydrodynamic cavitation were 0.109 × 10^-5 g glucose/J and 2.24 × 10^-5 g glucose/J, respectively. Hence, it was concluded that the efficiency of pretreatment using hydrodynamic cavitation was 20 times better than that of ultrasonic cavitation [34]. Other applications using hydrodynamic cavitation, such as nanosuspensions [39], biodiesel production [40], generation of pharmaceutical nanoemulsions [41], degradation of carbamazepine [42], increase in biochar surface area and porosity [43], ammonia stripping [44], liposome destruction [45] and deactivation of Salmonella typhimurium [46], have been proposed.

Because it was reported that the aggressive intensity of hydrodynamic cavitation was enhanced by an increase in the pressure in the bubble collapse region [7], the issue of cavitation number value in studies of water treatment by hydrodynamic cavitation was raised [47]. From the viewpoint of cavitation erosion caused by hydrodynamic cavitation, the erosion rate was maximum at a certain cavitation number [48], [49]; however, the reason for this is not clear. Although it is known that there is a correlation between the acoustic impedance and cavitation erosion rate [50], [51], sound velocity in the cavitating flow field has hardly been investigated. The propagation of sound through a liquid containing bubbles [52] and its sound velocity [53] were investigated, and they were changed by the diameter of the bubbles [54]. It was also reported that the sound velocity depended on the void fraction, and it is lower than the sound velocity in air or liquid. [55]. Thus, in the present study, the sound velocity in the cavitation flow field, which affects the aggressive intensity of the cavitation, was evaluated.

Cavitation has been studied for a long time, spherical bubbles have been investigated mainly by simulations [56] and experimental studies [57], [58], [59], and the effects of bubble shape and bubble interactions have also been studied [60]. Furthermore, the collapse of spherical cloud cavitation consisting of fine bubbles was analyzed numerically [61]. Hydrodynamic cavitation was also investigated theoretically [62] for cloud cavitation; however, vortex cavitation was not investigated. Although modeling of hydrodynamic cavitation with an orifice or in a Venturi tube was proposed [63], [64], only shear flow was considered. Such vortices as Rankine's vortex cavitation were not considered. The behavior of the vortex cavitation shown in Fig. 1 can be explained by considering Rankine's vortex [65]. A vortex-based cavitation device was proposed and simulated numerically [66]; however, the vortex used was similar to a suction vortex, which is observed in hydro turbines or pumps. It is different from the target vortex, which is closely related to a turbulent eddy. Although the vortex structure of cavitating flow is important in cavitation peening [4], [5], [6], [67], there is significant misunderstanding of the vortex flow around the submerged water jet [68], [69], [70], and a spherical bubble in shear flow was assumed in the simulation [71], [72].

From the viewpoint of luminescence, as Suslick and Flannigan reviewed [13], much research on the luminescence caused by a collapse of spherical bubbles has been reported [73], [74], and photons have been reported to be proportional to the maximum diameter of the bubble [75]. In the cases of ultrasonic cavitation and hydrodynamic cavitation, it was believed that the chemical effect of cavitation was caused by a collapse of the spherical bubble [76]. However, in the case of hydrodynamic cavitation, experimental results on the oxidation of aqueous KI solution with a hydrodynamic cavitation setup [77], hydrogen produced by a cavitating jet [78], luminescence on a hydrofoil [79], [80], luminescence caused by a cavitating jet [81], luminescence arising in a Venturi tube [7] and luminescence in the microchannel [82], [83] were obtained. Although a cluster approach was proposed [84], [85], the shape was spherical. It was reported that there is an effect of the shape, such as rectangular and circular, when comparing the shapes of Venturi tubes [86], but flow was not observed. Although a method of hydrodynamic cavitation using multiple orifices was proposed [87], it may lead to a reduction in processing efficiency, because the vortex structure is miniaturized. From the viewpoint of luminescence [7], [60], [88], [89] and erosion [90], the effect of the sound velocity of dissolved gas has been considered. There has been no report on evaluating the sound velocity of the cavitating flow field itself. The issue of studying cloud cavitation was proposed [91], but no systematic studies have been conducted on the luminescence of vortex cavitation and the evaluation of the sound velocity of the cavitating flow field.

The Weissler reaction has been used to measure the aggressive intensity of ultrasonic and hydrodynamic cavitation, however, it had been reported that the Weissler reaction is not a good model reaction for assessing the effectiveness of hydrodynamic cavitation [92]. Moreover, it has been demonstrated that the luminescence intensity of hydrodynamic cavitation is related to the aggressive intensity [7], [93]. In addition, considering the results of the luminescence spectra and the electron spin resonance ESR spectra of hydrodynamic cavitation [7], [93], the luminesces of hydrodynamic cavitation in the Venturi tube is mainly caused by hydroxyl radicals. As is well known, the radicals would assist the chemical reactions.

In the present study, vortex cavitation in a Venturi tube, which produced luminescence, was precisely investigated through high-speed photography. In addition, the sound velocity in a cavitating flow field was evaluated because sound velocity is one of the most important factors affecting the aggressive intensity of hydrodynamic cavitation. An estimation method for the luminescence intensity produced by hydrodynamic cavitation was developed considering the sound velocity. It was demonstrated that the estimated luminescence intensity had a good correlation with the measured luminescence intensity.

2. Experimental apparatus and procedures

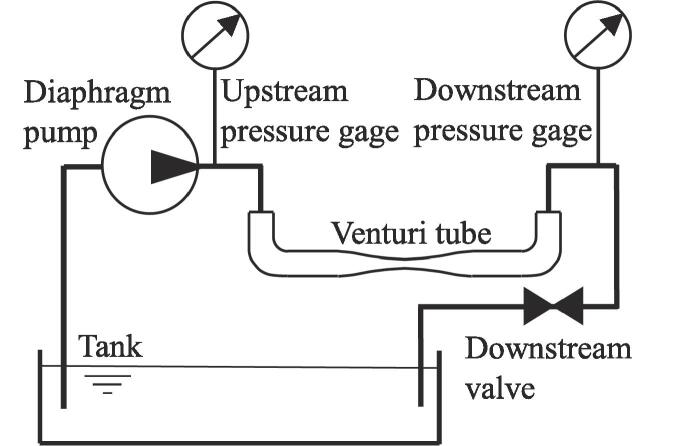

Fig. 2 is a schematic diagram of a hydrodynamic cavitation system. The ion-exchanged water was poured into a tank, pressurized by a diaphragm pump, and then injected into a Venturi tube made of quartz glass. The temperature of the tested water was 293 ± 2 K. The downstream pressure of the Venturi tube was controlled by a downstream valve. The upstream pressure p₁ and the downstream pressure p₂ of the throat of the Venturi tube were measured using upstream and downstream pressure gauges. In the present study, the absolute pressures were used for p₁ and p₂, because the target phenomenon was cavitation. This means that, when the downstream pressure is atmospheric pressure, p₂ is 0.1 MPa. The geometry of the Venturi tube used is shown in Fig. 3. The inner diameter D of the tube was 3.6 mm and throat diameter d of the Venturi tube was 1.2 mm, as previously reported [7]. The length of the curved area, 2L, was 40 mm.

Fig. 2.

Schematic diagram of experimental apparatus.

Fig. 3.

Schematic diagram of test section (d = 1.2 mm).

The aspect of hydrodynamic cavitation in the Venturi tube was observed by a high-speed video camera, whose maximum recording speed was 4000 frames per second (fps) in the full frame and 109,999 fps in the partial frame. The aspect was also taken by instantaneous photography using a digital camera with a flush lamp whose exposure time was 1.1 μs. The high-speed video camera and the digital camera were placed perpendicular to the Venturi tube. Because the shedding of vortex cavitation is a periodic phenomenon, the shedding frequency was evaluated by image analysis [94] as follows. The brightness change with time at a certain point was obtained from the images captured by the high-speed video camera, and the data were analyzed through fast Fourier transform. The average value and standard deviation of the shedding frequency were calculated using three frequencies from the maximum power spectral density (PSD) to the third PSD. The image acquisition and analysis software used were Motion Studio ver. 2.15, IDT Inc. and Motion analyzer ver. 1.5, Keyence Corp., respectively. The recording speed and the number of analyzed frames of the high-speed video camera that was used to observe the unsteady behavior of vortex cavitation at the vortex shedding were 51,999 fps and 4,096 frames, respectively. The sampling rate was 1.92 × 10^-5 s (=1/51,999) and the sampling length was 7.88 × 10^-2 s (=1.92 × 10^-5 × 4,096). Considering sampling theorem, the highest and the lowest frequencies associated with image acquisition and analysis of the unsteady behavior of vortex cavitation were 26.0 kHz (=51,999/2) and 12.7 Hz (=1/(7.88 × 10^-2)), respectively.

The luminescence caused by hydrodynamic cavitation was evaluated using a luminescence analyzer. The photomultiplier tube in the analyzer can detect 50–10⁸ photons/cm²/s. One count of the analyzer is equivalent to 50 photons. During the evaluation of the luminescence, the Venturi tube was set in the test chamber in the analyzer. It was reported that the luminescence spot was observed at the collapsing region of hydrodynamic cavitation [93]. In the horizontal direction, the throat of the Venturi tube was set 30 mm downstream from the center of the window for the photomultiplier. The vertical distance between the center of the Venturi tube and the window for the photomultiplier was 40 mm. When the cavitating region was decreased, the luminescence spots became further from the photomultiplier to verify that the shorter the cavitating length, the higher the luminescence intensity. In the present experiment, the measuring time of the luminescence was 10 s, and it was repeated six times under each condition. Then, the averaged value and standard deviation were calculated from the six data.

The cavitation number, σ which is a key parameter of the cavitating flow, is defined as follows:

$$\sigma =\frac{p_2-p_v}{\frac{1}{2}\rho U^2}=\frac{p_2-p_v}{p_1-p_2}$$ (1)

Here, p_v and ρ are the vapor pressure and density of the test water, respectively, and U is the velocity at the throat.

3. Results

3.1. Vortex cavitation in the Venturi tube

Fig. 4 shows typical aspects of vortex cavitation in the Venturi tube. In Fig. 4, the flow direction is from the left-hand side to the right-hand side, and the dense white area is the cavitating region. Typical vortex cavitation is indicated by a white arrow in Fig. 4. Several vortex cavitations, whose vortex cores are visualized by longitudinal bubbles, as shown in Fig. 1, are observed at the downstream edge of the cavitating region. The length and the diameter of a typical vortex cavitation are several millimeters and submillimeter order, respectively. The dimmed extremely small bubbles downstream of the vortex cavitation are small air bubbles, and they are called “residual bubbles” [95] because they exist after cavitation bubble collapse.

Fig. 4.

Typical aspects of vortex cavitation in Venturi tube (p₁ = 0.6 MPa, p₂ = 0.1 MPa).

To demonstrate the unsteady behavior of the vortex cavitation, Fig. 5, Fig. 6 reveal the aspect of hydrodynamic cavitation at p₁ = 0.6 MPa and p₂ = 0.1 MPa in the Venturi tube as observed by the high-speed video camera. In Fig. 5, Fig. 6, the recording speed of the camera was 51,999 fps. In Fig. 5, Fig. 6, the flow direction is from the left-hand side to the right-hand side. The picture in Fig. 5 shows every 10 images of t = 0 –15.385 ms. As the cavitating length changes periodically [7], the yellow dotted line is placed at the downstream of the trailing edge of the cavitating region to investigate periodical frequency. The yellow dotted line was shifted slightly downstream to avoid disturbance of the cavitation aspect. As shown in Fig. 5, the trailing edge of the cavitating region was broken up, and then the vortex or cloud cavitation was shedding periodically downstream. For example, when the dense white region, i.e., the cavitating region, at t = 2.692 ms was observed, the cavitating length was about 22 mm and it increased with the time, and then it was broken up at 15 mm at t = 3.077 ms. The cloud cavitation at the trailing edge of the cavitating region was shedding downstream; it disappeared at t = 3.462 ms. When the images of the periodic phenomenon were counted, the shedding frequency of the vortex cavitation was approximately 0.65 – 2.6 kHz. For example, the cavitating region was increased with time in four pictures from t = 2.692, 5.769, 7.885, 13.462, and 14.231 ms. The four pictures in Fig. 5 mean 40 frames, because the picture in Fig. 5 shows every 10 images. The duration of 40 frames was 0.769 ms, and it was 1.3 kHz. Five patterns, i.e., 0.769 ms × 5 = 3.845 ms, were observed in 15.385 ms. Thus, the possibility of occurrence per unit time was 25%. The development of the cavitating region in five pictures and six pictures correspond to 1.04 and 0.87 kHz. The number of observations was three patterns for five pictures and two patterns for six pictures; thus, the possibility was 18.7% for five pictures and 15% for six pictures. Because the possibility of patterns of four to six pictures covered about 60%, the shedding frequency of vortex cavitation at p₁ = 0.6 MPa and p₂ = 0.1 MPa was 0.87 – 1.3 kHz.

Fig. 5.

Unsteady behavior of vortex cavitation (p₁ = 0.6 MPa, p₂ = 0.1 MPa, t = 0 – 15.385 ms).

Fig. 6.

Unsteady behavior of vortex cavitation (p₁ = 0.6 MPa, p₂ = 0.1 MPa, t = 2.250 – 3.346 ms).

As shown in Fig. 5, the cavitating length decreased with the periodic shedding from t = 0 ms to t ≈ 8 ms, and the cavitating length increased from t ≈ 8 ms to t ≈ 15 ms. For example, the cavitating length at t = 0.192 ms was approximately 25 mm, decreasing to approximately 10 mm at t = 7.5 ms and then increasing to 25 mm at t = 15.385 ms. In other words, the cavitating length changes at a frequency of approximately 60 Hz. At p₁ = 0.6 MPa, as the diaphragm pump produced pressure fluctuations with an amplitude of approximately ± 10% and a frequency of 57.0 ± 2.5 Hz, the changes in the cavitating region were caused by the pressure fluctuation of the pump. The frequency of the vortex shedding was 10 or 20 times higher than that of the pump pressure fluctuation.

The behavior of vortex cavitation can be observed precisely using the images in Fig. 6. The pictures in Fig. 6 show each image at t = 2.250 – 3.346 ms in Fig. 5. To clarify the rebound of the vortex, in Fig. 6, the brightness is adjusted to be brighter than that in Fig. 5. The typical vortex cavitation at t = 2.250 ms is indicated by blue and red arrows. The vortex cavitation with the blue and the red arrow shrank at t = 2.289 and 2.404 ms and then rebounded. At both collapses, the velocity of the axial collapse was approximately 46 m/s because the axial length of the vortex was half the tube diameter, i.e., 1.8 mm, and they collapsed within two frames, i.e., 0.039 ms. As is clearly shown at t = 2.5 ms, the rebounded shape of the vortex cavitation was also a longitudinal bubble. The collapse and rebound of the real vortex cavitation were similar to the behavior of the modeled cavitating vortex generated by a rotating device [96].

The other interesting phenomenon in Fig. 6 is shown by the yellow arrows. After the shrinkage of the vortex cavitation indicated by the blue arrow, the boundary between the black and white regions shifted downstream at t = 2.346 – 2.442 ms. A similar phenomenon was observed at t = 3.289 – 3.346 ms. When the moving velocity of the boundary was calculated, it was 104 m/s at t = 2.346 – 2.442 ms and 187 m/s at t = 3.289 – 3.346 ms. Because the flow condition of Fig. 6 was p₁ = 0.6 MPa and p₂ = 0.1 MPa, the maximum flow velocity was 31.6 m/s. In other words, the moving velocity of the boundary was much larger than the maximum flow velocity because of the pressure difference. The details of the moving velocity of the boundary are discussed in Section 3.2.

In Fig. 6, a part of the periodic shedding is also observed. The large vortex cavitation collapsed at t ≈ 2.4 and 3.3 ms. The estimated cycle was 1.1 kHz, and it was between 0.87 and 1.3 kHz, as mentioned above. Fig. 7 illustrates the shedding frequency f_s at various p₁ and p₂ values obtained by image analysis [94]. The f_s obtained by the image analysis at p₁ = 0.6 MPa and p₂ = 0.1 MPa was 1.06 ± 0.04 kHz, and it was between 0.87 and 1.3 kHz. Thus, the f_s obtained by the image analysis is reasonable. In Fig. 7, f_s is shown as a function of cavitation number σ as the shedding frequency of hydrodynamic cavitation changes with σ [12], [97]. As the superharmonics and subharmonics of the shedding frequency were detected, the data points were scattered, and the standard deviation was large. For example, the shedding frequencies of the five and six pictures patterns in Fig. 5 were 1.04 kHz and 0.87 kHz, respectively. Furthermore, the frequencies of the two and three pictures patterns in Fig. 5 were 2.6 kHz and 1.7 kHz, respectively. Specifically, two and three pictures patterns are a type of superharmics of the five and six pictures patterns. By contrast, when the vortex cavitation did not reach the image analysis area, the subharmonics frequency was obtained from the FFT analysis. In any case, f_s was roughly proportional to σ, and this tendency corresponds to f_s ∝ σ ^0.83±0.10, which was obtained from the observation of the cavitating jet [97]. As the vortex cavitations continue shedding downstream with each other as in the Karman vortex shedding, they become larger and larger. Thus, the shedding frequency decreases with an increase in the cavitating length, i.e., a decrease in the cavitation number. In other words, the shedding frequency increases with an increase in the cavitation number. This tendency is similar to the cloud shedding of the cavitating jet [97], [98]. Then, the experimental formula to estimate f_s [Hz] is described by Eq. (2). Here, c₀ is constant and equal to 1 Hz.

$$f_s=c_0(688\sigma +961)$$ (2)

Fig. 7.

Shedding frequency of vortex cavitation.

3.2. Sound velocity in the cavitating flow field

To investigate the phenomenon of the boundary between the black and white regions in Fig. 6, Fig. 8 shows the cavitating aspects taken by the instantaneous photography. The boundary indicated by the arrow was clearly observed. Many tiny residual bubbles were observed in the white region, and the residual bubbles were scarcely observed in the black region. As mentioned above, the moving velocity was much higher than the flow velocity, and the collapse of the vortex cavitation was observed at the starting time of the boundary movement in Fig. 6. Thus, this phenomenon suggests that the pressure produced by the vortex cavitation collapse propagated with the collapse of residual bubbles. After the pressure wave had passed, the residual bubbles collapsed, and residual bubbles were hardly observed. This would be the mechanism of the movement of the boundary between the black and white regions. Then, the movement velocity suggested the propagating velocity of the pressure, i.e., sound velocity.

Fig. 8.

Typical aspects of visualized pressure wave by shrinkage of residual bubbles (p₁ = 0.6 MPa, p₂ = 0.1 MPa).

To demonstrate the measurement of the sound velocity, Fig. 9 shows the images taken by the high-speed video camera at 109,999 fps with p₂ at p₁ = 0.6 MPa. As the height of the observation area was limited to increase the recording time, the central region of the Venturi tube was observed. In Fig. 9, the boundary between the black and white regions is indicated by the arrow, and the sound velocity, which was calculated from the distance of the movement of the boundary and the time, is shown on the right-hand side of the images. The sound velocity varied but increased with p₂. When p₂ was increased at constant p₁, σ increased. Then, the void ratio decreased with an increase in σ. Here, the void ratio is defined as the ratio between the bubble volume and liquid volume. It was reported that the sound velocity changed with the void ratio, and the sound velocity increased with a decrease in the void ratio in a certain void ratio region [55]. When the void ratio is less than 0.1, the sound velocity increases from less than the sound velocity in air to the sound velocity in water as the void ratio decreases [55]. The obtained sound velocity was reasonable.

Fig. 9.

Visualized pressure wave and obtained velocity (a) p₁ = 0.6 MPa, p₂ = 0.1 MPa (b) p₁ = 0.6 MPa, p₂ = 0.12 MPa. (c) p₁ = 0.6 MPa, p₂ = 0.14 MPa. (d) p₁ = 0.6 MPa, p₂ = 0.16 MPa. (e) p₁ = 0.6 MPa, p₂ = 0.18 MPa.

Fig. 10 illustrates the sound velocity v_s at various p₁ and p₂ values. Averaged values and standard deviations were obtained from 20 points at each p₁ and p₂. In Fig. 10, v_s is revealed as a function of σ because σ is the key parameter of the cavitating flow. Because the sound velocity depends on the void ratio in the cavitating flow field and the void ratio changes with time, the standard deviation is large. However, it can be concluded that v_s increases with σ. Thus, the experimental formula to estimate v_s from σ is as follows:

$$v_s=c_1\sigma +c_2$$ (3)

Fig. 10.

Sound velocity as a function of cavitation number.

Here, c₁ [m/s] and c₂ [m/s] are constants, and they were 8395 and 469 for p₁ = 0.4 MPa, 7486 and 418 for p₁ = 0.5 MPa, and 4805 and 121 for p₁ = 0.6 MPa, respectively. Thus, c₁ and c₂ can be expressed, respectively, as follows:

$$c_1=-88590{p_1}^2+70639p_1-5686$$ (4)

$$c_2=-12287{p_1}^2+10549p_1-1785$$ (5)

In the cavitating flow field in the present experiment, v_s at any p₁ and p₂ can be estimated from Eqs. (1), (3) – (5).

3.3. Cavitating length of hydrodynamic cavitation in the Venturi tube

Because the aggressive intensity of both hydrodynamic cavitation and ultrasonic cavitation depends on the bubble size, the size of hydrodynamic cavitation in the Venturi tube was considered. Because the diameter of the vortex cavitation is submillimeter, as shown in Fig. 4, and it changes with time drastically, as revealed in Fig. 5, Fig. 6, the size of vortex cavitation was estimated from the cavitating region in the present study. Fig. 11 (a) shows the typical aspect of the hydrodynamic cavitation in the Venturi tube changing with p₂ at p₁ = 0.6 MPa, and Fig. 11 (b) reveals the aspect changing with p₁ at p₂ = 0.1 MPa. As shown in Fig. 5, Fig. 6, the cavitating length changes with time. The longest one was chosen from 20 images, as shown in Fig. 11. As reported elsewhere [7], the cavitating length decreased with an increase in p₂, as shown in Fig. 11 (a). This is because the pressure difference between p₁ and p₂ decreased when p₂ increased. The cavitating length increased with p₁ with constant p₂, as shown in Fig. 11 (b).

Fig. 11.

Typical aspects of cavitation in Venturi tube (a) Aspects changing with downstream pressure p₂ (p₁ = 0.6 MPa) (b) Aspect changing with upstream pressure p₁ (p₂ = 0.1 MPa).

The following experimental formula was used to obtain the cavitating length L_cav from σ [99], and the cavitating lengths of Fig. 11 are plotted in Fig. 12.

$$L_{\mathit{cav}}=c_3{\sigma }^{c_4}$$ (6)

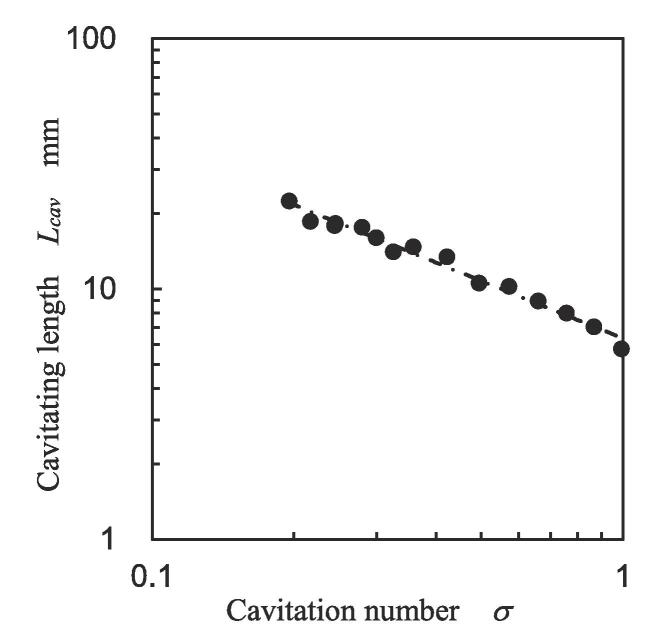

Fig. 12.

Cavitating length as a function of cavitation number.

Here, c₃ [mm] and c₄ are constants, and they are 6.358 and − 0.761, respectively. As shown in Fig. 12, all plots are on the line. Then, L_cav at various p₁ and p₂ can be estimated from σ by using Eq. (6).

As shown in Fig. 11 (a), when p₂ was increased, the vortex core was clearly observed. The vortex pattern in Fig. 11 (a) suggested that vortex cavitations were combined with each other with shedding downstream, similar to the Karman vortex. This means that the shedding frequency f_s at small L_cav was higher and f_s at large L_cav was lower. This tendency corresponds well to the results of Eq. (2), which means f_s at large σ was higher and f_s at small σ was lower.

3.4. Luminescence intensity of hydrodynamic cavitation in the Venturi tube

Fig. 13 illustrates the measured luminescence intensity I_{L meas} as a function of p₂ at various p₁. As reported previously [7], I_{L meas} increased with p₁, and it was maximum at a certain p₂ at constant p₁. In the present work, the p₂ in which I_{L meas} was maximum is denoted by p_{2 max}. In the present experiment, the throat of the Venturi tube was set 30 mm upstream from the center of the window for the photomultiplier, and the maximum cavitating length was shorter than 30 mm, as shown in Fig. 11, Fig. 12. The setting of the Venturi tube and window for the photomultiplier suggests that the luminescence spots were getting further from the photomultiplier when p₂ was increased. Thus, the setting confirms that the luminescence intensity increases with an increase in p₂ until p_{2 max}. The p_{2 max} changed with p₁ and increased with p₁. For example, I_{L meas} was (2.127 ± 0.041) × 10³ count/s at p₁ = 0.6 MPa and p₂ = 0.1 MPa, and it was (3.459 ± 0.074) × 10³ count/s at p₁ = 0.6 MPa and p₂ = 0.14 MPa. In other words, I_{L meas} had increased by 1.63 ± 0.07 times without an increase in the additional energy for the hydrodynamic cavitation.

Fig. 13.

Measured luminescence intensity as a function of downstream pressure.

Fig. 14 illustrates the measured luminescence intensity I_{L meas} as a function of σ at various p₁ by solid lines. The I_{L meas} was maximum at σ ≈ 0.4, as reported previously [7]. Thus, p_{2 max} can be estimated by considering σ. Because it is organized by the cavitation number, it is a unique phenomenon of the cavitating flow field. The mechanism explaining why luminescence intensity I_{L meas} was maximum at a certain cavitation number σ is discussed in Section 4.

Fig. 14.

Luminescence intensity as a function of cavitation number.

4. Discussion

As the luminescent spots induced by the cavitating jet were observed using an EM-CCD camera [81], the luminescence intensity was proportional to the number of luminescent spots per unit time and the individual luminesce intensity. The luminescent spots per unit time can be regarded as the number of vortex cavitations per unit time, and the individual luminesce intensity can be regarded as the individual aggressive intensity, I_cav, of the vortex cavitation collapse. Thus, to estimate the luminescence intensity I_{L est} under various conditions, it was assumed that I_{L est} was proportional to the number of the vortex cavitations per unit time and the individual aggressive intensity I_cav of the vortex cavitation collapse. The number of vortex cavitations per unit time is expressed by the shedding frequency of the vortex cavitation, f_s. Thus, I_{L est} can be described by the product of I_cav and f_s, as follows:

$$I_{Lest}\propto I_{\mathit{cav}}{\bullet f}_s$$ (7)

Because the energy of cavitation is proportional to the volume of the cavitation and the pressure difference of the bubble [100], and it was reported that the number of photons was proportional to the maximum diameter of the bubble [75], I_cav was assumed as follows. The volume of the cavitation was expressed by the cube of the cavitating length, (L_cav)³, as follows:

$$I_{\mathit{cav}}\propto {{(L}_{\mathit{cav}})}^3\bullet \left(p_2-p_v\right)$$ (8)

On the other hand, as I_cav is affected by the acoustic impedance [50], [51], the term of the sound velocity v_s was added in Eq. (8). Because I_cav was also affected by the flow velocity, which was defined by the pressure difference, i.e., $\sqrt{p_1-p_2}$, the velocity term was also added in Eq. (8).

$$I_{\mathit{cav}}\propto {{(L}_{\mathit{cav}})}^3\bullet \left(p_2-p_v\right)\bullet \left(v_s-v_{sth}\right)\bullet {\left(\sqrt{p_1-p_2}\right)}^n$$ (9)

Here, v_{s th} is the threshold level of the velocity considering the threshold level of I_cav [101]. The n is the exponent in Eq. (9) to consider the power law of the velocity on I_cav [102], [103], [104], [105], [106]. From Eqs. (7), (9), Eq. (10) is obtained.

$$I_{Lest}=c_5{{(L}_{\mathit{cav}})}^3\bullet \left(p_2-p_v\right)\bullet \left(v_s-v_{sth}\right)\bullet {(\sqrt{p_1-p_2})}^n{\bullet f}_s$$ (10)

Here, c₅ is constant. As mentioned above, f_s, v_s, and L_cav can be calculated using Eqs. (2), (3), and (6) from σ, which is defined by p₁, p₂, and p_v. Moreover, c₅, v_{s th}, and n were obtained by a least-squares method compared with I_{L meas} and I_{L est}. In the preset experiment, c₅, v_{s th}, and n were 1.51 × 10⁻⁴, 190 m/s, and 4.95, respectively. In the present calculation, when v_s obtained from Eq. (3) was larger than 1500 m/s, it was replaced by v_s = 1500 m/s. Then, I_{L est} can be calculated from the cavitating flow condition, i.e., p₁, p₂, and p_v.

In Fig. 14, I_{L est} is shown with I_{L meas}, and I_{L est} is illustrated by dotted lines. In Eq. (10), (L_cav) and $\sqrt{p_1-p_2}$ decrease as σ increases. By contrast, (p₂ –p_v), (v_s – v_{s th}) and f_s increase as σ increases. This is why the luminescence intensity increases up to a certain cavitation number and then decreases. As ${\left(\sqrt{p_1-p_2}\right)}^n$ was in Eq. (10) and n = 4.95, the trend stabilized at a lower value of p₁. To investigate the correlation between I_{L meas} and I_{L est}, Fig. 15 reveals the relationship between I_{L meas} and I_{L est}. As shown in Fig. 14, I_{L est} describes the peak at σ ≈ 0.4 at each p₁. The solid lines, i.e., the measured values, and the dotted lines are very close. As shown in Fig. 14, I_{L est} of a lower cavitation number at a low upstream pressure is smaller than I_{L meas}. As shown in Fig. 10, v_s at p₁ = 0.4 MPa is slightly smaller than that of the other values. This would be one of the reasons. The correlation coefficient between I_{L meas} and I_{L est} was 0.992. Because the number of datasets was 55, the probability of a noncorrelation is less than 0.01%. If the probability of a noncorrelation is less than 1%, it can be concluded that the relationship is highly significant. Thus, the relationship between I_{L meas} and I_{L est} is highly significant, and I_{L est} can be obtained by Eq. (10).

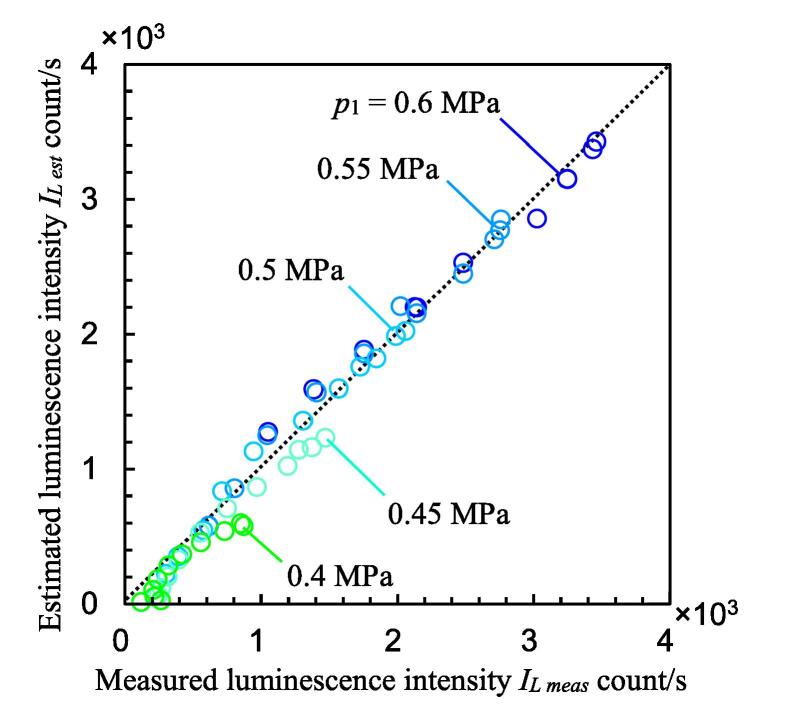

Fig. 15.

Relationship between measured luminescence intensity and estimated luminescence intensity.

As described in Eqs. (2), (3), (6), and (10), when σ was increased, L_cav and p₁–p₂ decreased. However, p₂–p_v, v_s, and f_s increased with σ. If the term v_s–v_{s th} was not considered, I_{L est} did not show a maximum value with respect to σ. The sound velocity in the cavitating field was a key factor in considering the luminescence intensity of the hydrodynamic cavitation.

5. Conclusions

To investigate the mechanism that explains why the luminescence produced by hydrodynamic cavitation in a Venturi tube has a maximum at a certain cavitation number, the luminescence intensity was measured by a luminescence analyzer at various upstream pressures p₁ and downstream pressures p₂ of the Venturi tube by observing the aspect of the hydrodynamic cavitation by high-speed photography. The results obtained are summarized as follows.

• (1)The luminescence intensity was increased by optimizing the downstream pressure without increasing the additional energy. Under the present condition, the luminescence intensity increased 1.63 ± 0.07 times at p₁ = 0.6 MPa.
• (2)The collapse and rebound of the vortex cavitation in the Venturi tube were observed, and the pressure wave was detected at the collapse of the vortex cavitation.
• (3)The sound velocity in the cavitating flow field was evaluated by observing the aspect of the residual bubbles. The sound velocity increased with an increase in cavitation number because of changes in the void ratio.
• (4)A method to estimate the luminescence intensity at various p₁ and p₂ was proposed considering the sound velocity, the frequency of the vortex cavitation, and the cavitating length. The estimated luminescence intensity can describe the tendency of the luminescence intensity to change with cavitation number, and it had a good correlation with the measured luminescence intensity.
• (5)The key factors affecting the change in the luminescence of the hydrodynamic cavitation with cavitation number are the vortex cavitation and the sound velocity in the cavitating flow field.
