Monitoring anatomical changes of individual patients using statistical process control during head-and-neck radiotherapy

Highlights

• •EWMA trends from DIR data enabled timely detection of anatomical changes.
• •The majority of the systematic trends occurred before the 4th week of treatment.
• •Using SPC control limits, only 24% of patient positioning trends could be confirmed.
• •Using a 2 mm threshold, 82% of patient positioning trends could be confirmed.
• •Using SPC control limits, 90% of the soft tissue changes could be confirmed.

Abstract

Background and purpose

Reduced toxicity while maintaining loco-regional control rates have been reported after reducing planning target volume (PTV) margins for head-and-neck radiotherapy (HNRT). In this context, quantifying anatomical changes to monitor patient treatment is preferred. This retrospective feasibility study investigated the application of deformable image registration (DIR) and Exponentially Weighted Moving Average (EWMA) Statistical Process Control (SPC) charts for this purpose.

Materials and methods

DIR between the computed tomography for treatment planning (pCT) images of twelve patients and their daily on-treatment cone beam computed tomography (CBCT) images quantified anatomical changes during treatment. EWMA charts investigated corresponding trends. Uncertainty analysis provided 90% confidence limits which were used to confirm whether a trend previously breached a threshold.

Results

Trends in patient positioning reproducibility occurred before the end of treatment week four in 54% of cases. Using SPC process limits, only 24% of these were confirmed at a 90% confidence level before the end of treatment. Using an a priori clinical limit of 2 mm, absolute changes in patient pose were detected in 39% of cases, of which 82% were confirmed. Soft tissue trends outside SPC process limits occurring before the end of treatment week four were confirmed in 90% of cases.

Conclusion

Structure specific action thresholds enabled detection of systematic anatomical changes during the first four weeks of treatment. Investigation of the dosimetric impact of the observed deviations is needed to show the efficacy of SPC to timely indicate required treatment adaptation and provide a safety net for PTV margin reduction.

1. Introduction

The introduction of intensity modulated radiotherapy has enabled highly conformal dose deliveries which allows dose reduction to organs at risk (OAR) and reduced treatment toxicity [1], [2], [3]. These highly conformal treatments require image-guided radiotherapy (IGRT) to warrant accurate patient positioning and monitoring of changes in patient anatomy [4]. Planning target volume (PTV) margins of 5 mm are commonly applied to establish target coverage [5], [6]. PTV margins and IGRT do not standardly account for non-rigid anatomy changes which are commonly observed in head-and-neck radiotherapy (HNRT) [7]. Nevertheless, two retrospective studies have suggested that 3 mm planning target volume (PTV) margins are sufficient if daily IGRT is used to correct for rigid patient position variations [8], [9]. The group of Chen et al. has also clinically implemented reduced PTV margins from 5 mm to 3 mm and reported a reduction in late toxicity side-effects while maintaining equivalent two- and three-year loco-regional control rates [9], [10], [11]. However, these results may have been confounded by the application of adaptive radiotherapy (ART) for selected patients [12]. A recent study by Navran et al. also reported on favorable toxicity profiles for reduced 3 mm PTV margins while maintaining good tumor control rates [13]. The latter study applied an IGRT protocol that accounted for non-rigid patient positioning deviations as well as ART for selected patients. As we considered whether it was possible to implement reduced 3 mm PTV margins after achieving a large improvement in patient positioning in our department [14], it was recognized that many other aspects of HNRT including accuracy of target delineation, robustness of the planning solution for anatomical changes influence treatment outcomes [15] and should all be considered when the PTV margins are reduced. In addition, objective and generally applicable guidelines to select patients who will benefit from treatment adaptation are lacking [4], [16], and most studies on ART apply subjective criteria to select patients for treatment adaptation [12], [17], [18], [19]. In an effort to create a safety net for patients who exhibit large non-rigid deformations and objectively select patients who would benefit from treatment adaptation in the context of PTV margin reduction, this feasibility study investigated the first step to build such a framework. Specifically, the suitability of deformable image registration (DIR) and exponentially weighted moving average (EWMA) statistical process control (SPC) charts to objectively quantify and monitor individual patients’ deformation, i.e., non-rigid changes in both pose and anatomy of the patient during treatment were investigated.

2. Materials and methods

2.1. Patient group

This retrospective study included twelve patients with cancers of the head-and-neck (HN) region that were treated radically. Comprehensive information regarding the patient cohort can be found in Supplementary Data A. The patients included in this retrospective study provided written consent to use their data in clinical audits.

2.2. pCT contouring

Nine bony anatomy (BA) structures were delineated on each patient’s computed tomography for treatment planning (pCT) scan: C1-C3, C3-C5, C5-C7, mandible, maxilla, base of skull, hyoid, occipital and larynx. A pre-defined neck volume $V^{\mathit{neck}}$ was defined as all tissue within the volume bounded by axial planes at the base of C3 at the anterior cortical boundary and base of C4 at the anterior cortical boundary (Fig. 1). The original parotid gland (PG) contours were reviewed by a radiation oncologist and corrected where necessary to minimize the uncertainty of the DIR results.

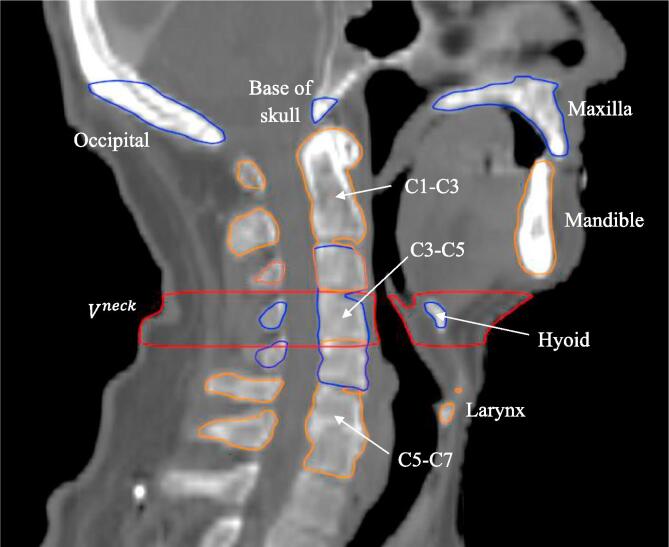

Fig. 1.

Definition of bony anatomy (BA) structures and neck volume ${\mathrm{V}}^{\mathrm{n}\mathrm{e}\mathrm{c}\mathrm{k}}$ in the central sagittal plane. The superior end of the occipital bone contour was defined as to just include the external occipital protuberance.

2.3. Deformable image registration

The pCT of each patient was deformed to match the anatomy of each daily cone beam computed tomography (CBCT) using SmartAdapt v.13 (Varian Medical Systems, Palo Alto CA, USA), resulting in 30 deformed CTs (dCT). The deformed structures of the dCT as well as the non-deformed structures of the pCT were propagated to the corresponding CBCTs. These data sets were exported in Digital Imaging and Communications in Medicine (DICOM) format for subsequent analysis with in-house developed software (MATLAB 2016b version 9.1, The MathWorks Inc.).

2.4. Quantifying non-rigid deformations

The exported contours were used to quantify the non-rigid deformations: BA positioning reproducibility, centroid shifts of the PGs, volume changes of the PGs ($V^{\mathit{PG}})$ and $V^{\mathit{neck}}$ changes. The BA positioning reproducibility was quantified by first calculating the change T in centroid position C of all BA structures with respect to its pCT position for each direction k = x, y, z, and each fraction f:

$$T_{f,k}^{\mathit{BA}}=C_{f,k,dCT}^{\mathit{BA}}-C_{f,k,pCT}^{\mathit{BA}}$$ (1)

Subsequently, the 3D-deviations of all BA structures were calculated relative to the reference structure C1-C3, using:

$${\partial }_f^{\mathit{BA}}=\sqrt{{\left(T_{x,f}^{\mathit{BA}}-T_{x,f}^{C1-C3}\right)}^2+{\left(T_{y,f}^{\mathit{BA}}-T_{y,f}^{C1-C3}\right)}^2+{\left(T_{z,f}^{\mathit{BA}}-T_{z,f}^{C1-C3}\right)}^2}$$ (2)

Similarly, the 3D-shifts of the PGs were calculated relative to C1-C3 according to Eq. (2).

To assist with readability, the 3D-deviation of BA structure X relative to C1-C3 will be referred to as “deviation of X” from here onwards.

2.5. Statistical process control

The trends of the metrics ${\partial }_f^{\mathit{BA}}$, ${\partial }_f^{\mathit{PG}}$, $V_f^{\mathit{neck}}$, $V_f^{\mathit{PG}}$ over time were monitored using EWMA charts [20]. The values E_f of the EWMA statistic were calculated using:

$$E_f=\lambda X_f+\left(1-\lambda \right)E_{f-1}$$ (3)

where λ is a constant defined as $0<\lambda \le 1$ that determines the depth of memory (smoothing) of the EWMA and X_f is the metric of interest for fraction f. As shown in Fig. 2, E₀ is the average metric of interest during the EWMA reference period. The first week of treatment (i.e. fractions 1–5) is used as the EWMA reference period, assuming that prospective monitoring of EWMA statistics would be conducted from fraction six onwards in a clinical scenario, with EWMA statistics for fractions 1–5 analyzed retrospectively.

Fig. 2.

Workflow detailing the exponentially weighted moving average (EWMA) statistics monitoring procedure based on DIR. (a) The planning CT (pCT) is deformed to match the anatomical configurations of each cone beam CT (CBCT) of treatment week 1; (b) Deformed pCT contours propagated to the CBCTs are used to calculate metrics of interest X_f for fractions 1–5. The average metric of interest is defined as E₀ and used to calculate the EWMA statistics E₁… E₅ as per Eq. (3); (c-d) At the beginning of treatment week two, propagation of deformed contours and EWMA calculations are conducted on a fraction-by-fraction basis.

The lower and upper process limits LPL and UPL, which indicate a statistically significant difference from the reference period, were calculated using:

$$\text{LPL, UPL}={\mu }_0\pm L\sigma \sqrt{\left(\frac{\lambda }{2-\lambda }\right)\left[1-{\left(1-\lambda \right)}^{2f}\right]}$$ (4)

The initial deviation ${\mu }_0$ and variation $\sigma$ were calculated as the mean and SD for the reference period, and L is a factor determining the width of the process limits. Considering that Q-Q plots indicated the metrics of interest were not always normally distributed, λ and L were set to λ = 0.05 and L = 2.492 to obtain similar type I and type II error probabilities as for normally distributed data [21].

PGs were grouped according to mean dose at planning: high- (≤26 Gy, n = 7) and low-dose (>26 Gy, n = 17) consistent with the different impact of radiation dose predicted below or above this cut-off point by normal tissue complication probability (NTCP) models [22], [23]. In cases where the superior or inferior extents of the CBCT did not contain a specific BA structure, that structure was excluded from the analysis for that patient.

The fraction numbers at which the EWMA statistics went outside the corresponding process limits were recorded. Where possible, EWMA trends that were obtained using DIR were compared with results obtained using an alternative manual method. ${\partial }_f^{\mathit{BA}}$ results obtained using DIR were compared with results obtained using a manual method of registration (MMR) as described by various authors [14], [24]. The MMR used rigid image registrations (translations only; no rotations) of the individual structures to assess the shift of the structure centroids relative to the pCT. DIR results for $V_f^{\mathit{neck}}$ trends were compared with the change of a single axial slice volume at the base of C2 that was manually contoured for all CBCTs as well as changes in patient weight. Considering that a change in patient weight may occur at any location of the patient’s body, $V_f^{\mathit{neck}}$ trends were expected to describe volume change of the treatment region more appropriately than a simple weight metric.

2.6. Detection of trends

In this study two methods to detect trends were investigated:

2.6.1. SPC limits for trend detection

A detailed uncertainty analysis was carried out to assess whether DIR and EWMA charts can accurately monitor non-rigid deformation trends of individual patients, and detect changes in patient positioning or anatomy in a timely manner. In these analyses including both the DIR and manual results, the uncertainty was calculated as per the Guide to the Expression of Uncertainty in Measurement (GUM) [25] (see Supplementary data B). The results of the uncertainty analyses were used to quantify the accuracy of trends as the average 90% level of confidence interval of the EWMA statistics for each metric over all treatment fractions. The sensitivity to detect a trend (i.e., the minimal detectable trend magnitude) with 90% confidence with respect to the reference period (i.e., E₀ set to zero) was defined as the difference between the 90% level of confidence of the upper EWMA process limit and the EWMA center line at the last treatment fraction. Differences between the sensitivity and accuracy of the two methods over all patients were assessed using paired t-tests at the 0.05 level of significance. The robustness of trend detection using SPC limits was quantified as the proportion of cases where the accuracy interval of the trend exceeded the 90% level of confidence of the process limits before the end of treatment relative to the number of cases where the EWMA statistic itself exceeded a process limit before the end of the fourth week of treatment.

2.6.2. Clinical limit for trend detection

Preliminary SPC trend results highlighted sub-mm process limits for specific structures which would likely not provide an efficient threshold for clinically relevant process changes. Also the exact moment that a BA deviation trend exceeded the control limits within a certain statistical confidence level was not easily defined, in particular for shallow trends in combination with narrow process limits of a structure. The EWMA trend analysis was therefore also carried out using an a priori 2 mm clinical limit as detection threshold for absolute BA deviations. The robustness of trend detection using a 2 mm clinical limit (including the observed E₀) was defined as the proportion of cases where the accuracy interval of the EWMA statistic exceeded this limit relative to the number of cases where the EWMA statistic itself exceeded this clinical limit before the end of the fourth week of treatment.

3. Results

3.1. SPC trends

Overall, 31% of the trends describing BA positioning reproducibility acquired with DIR remained within the EWMA process limits during treatment, while 54% and 15% of the trends exceeded a process limit before and after the end of the fourth week of treatment (i.e., fraction 20), respectively (Supplementary Data C). Fig. 3a shows the deviation of the mandible for patient three exceeding the upper DIR process limit at fraction 18.

Fig. 3.

Example of the exponentially weighted moving average (EWMA) charts used in this study of the mandible deviation for patient three. EWMA trends derived from deformable image registration (DIR) or the manual method of registration (MMR), are shown in orange and blue, respectively. Trends are plotted either as deviations relative to the SPC reference period (panels a and b) or absolute deviations including E₀ (panel c). (a) DIR derived EWMA chart including uncertainty analysis and corrected for initial deformation E₀; (b) comparison of DIR and MMR derived EWMA charts; (c) DIR and MMR derived EWMA charts including observed E₀ for the purpose of comparing the trends with a 2 mm clinical limit.

3.1.1. SPC limits for trend detection

Both the average accuracy and sensitivity calculated over all patients were smaller than 1 mm for BA deviations. Table 1 summarizes the average accuracy and sensitivity recorded for the various structures and compares the results obtained for DIR and MMR. Except for the deviation of the occipital bone calculated with DIR, the average accuracies were smaller than the corresponding average sensitivities indicating that the minimal detectable trend with a 90% level of confidence was generally equal to the observed sensitivity. Statistically significant differences between DIR and MMR accuracies were observed for all BA structures except deviation of the maxilla. Conversely, only the sensitivity to detect a C5-C7 deviation was significantly different between the two methods.

Table 1.

Average sensitivity S and accuracy A of exponentially weighted moving average (EWMA) charts established from deformable image registration (DIR) and manually acquired raw data (MMR). Δ represents the difference between DIR and MMR results. Accuracy A = average 90% level of confidence interval over all treatment fractions. Sensitivity S = half the EWMA process limit 90% level of confidence at the last treatment fraction. ^*Indicates a statistically significant difference.

	DIR		MMR		Δ
Structure	A	S	A	S	A	S
Occipital bone [mm]	0.3	0.3	0.2	0.3	0.1*	0.0
Base of skull [mm]	0.2	0.3	0.2	0.3	0.0*	0.0
Maxilla [mm]	0.2	0.3	0.2	0.4	0.0	−0.1
C3-C5 [mm]	0.1	0.3	0.2	0.3	−0.1*	0.0
C5-C7 [mm]	0.1	0.4	0.2	0.5	−0.1*	−0.1*
Hyoid [mm]	0.2	0.7	0.3	0.7	−0.1*	0.0
Larynx [mm]	0.2	0.8	0.3	0.8	−0.1*	0.0
Mandible [mm]	0.2	0.4	0.2	0.4	0.0*	0.0
High dose PG dev. [mm]	0.1	0.3	–	–	–	–
Low dose PG dev. [mm]	0.1	0.3	–	–	–	–
High dose PG vol. [cm3]	0.3	0.5	–	–	–	–
Low dose PG vol. [cm3]	0.3	0.5	–	–	–	–
$V_f^{\mathrm{n}\mathrm{e}\mathrm{c}\mathrm{k}}$ [cm3]	2.0	3.9	–	–	–	–

The robustness to detect a statistically significant change relative to the reference period for each trend is summarized in Table 2 (individual patient results available in Supplementary Data D). For BA deviations, the overall robustness of trend detection was 24% (95% CI: 11–38%), with none of the potential trends for occipital, base of skull, maxilla and larynx deviations confirmed to be an actual trend at a 90% level of confidence. In contrast, the robustness of trend detection for soft tissue trends was 90% (95% CI: 80–99%), due to steeper gradients of these trends.

Table 2.

Median and range of the fraction number where the exponentially weighted moving average (EWMA) statistic exceeded an SPC process limit before the end of treatment week 4, and the proportion of cases where the existence of a trend was confirmed by the accuracy interval of the trend exceeding the process limits 90% level of confidence before the end of treatment. This proportion is also expressed as percentage representing the robustness of the trend detection with the corresponding 95% confidence interval. EWMA parameters were established from deformable image registration (DIR) raw data. (PG = parotid gland; BOS = base of skull; Occ = occipital; Max = maxilla; Mand = mandible).

	${\partial }_f^{\mathit{Occ}}$	${\partial }_f^{\mathit{BOS}}$	${\partial }_f^{\mathit{Max}}$	${\partial }_f^{\mathrm{C}3-\mathrm{C}5}$	${\partial }_f^{\mathrm{C}5-\mathrm{C}7}$	${\partial }_f^{\mathrm{H}\mathrm{y}\mathrm{o}\mathrm{i}\mathrm{d}}$	${\partial }_f^{\mathrm{L}\mathrm{a}\mathrm{r}\mathrm{y}\mathrm{n}\mathrm{x}}$	${\partial }_f^{\mathrm{M}\mathrm{a}\mathrm{n}\mathrm{d}}$	${\partial }_f^{\mathrm{P}\mathrm{G}\mathrm{h}\mathrm{i}\mathrm{g}\mathrm{h}}$	${\partial }_{\mathrm{f}}^{\mathrm{P}\mathrm{G}\mathrm{l}\mathrm{o}\mathrm{w}}$	$V_f^{\mathrm{P}\mathrm{G}\mathrm{h}\mathrm{i}\mathrm{g}\mathrm{h}}$	$V_f^{\mathrm{P}\mathrm{G}\mathrm{l}\mathrm{o}\mathrm{w}}$	$V_f^{\mathrm{n}\mathrm{e}\mathrm{c}\mathrm{k}}$
Median	13	15	11	14	14	14	19	15	14	9	10	12	13
Range	12–19	9–20	8–15	10–18	12–19	11–17	14–20	8–18	9–20	7–18	8–20	9–20	9–18
Proportion confirmed	0/4	0/6	0/5	3/7	3/5	2/7	0/4	3/7	12/13	4/5	14/16	6/6	7/8
Robustness	0%	0%	0%	43%	60%	29%	0%	43%	92%	80%	88%	100%	88%
95% CI	0–13%	0–8%	0–10%	0–87%	7–100%	0–69%	0–13%	0% −87%	74–100%	35–100%	68–100%	92–100%	58–100%

3.1.2. Clinical limit for trend detection

The absolute BA deviations exceeded the 2 mm clinical limit in 33/84 (39%) of the available cases (Table 3) (individual patient results available in Supplementary Data E). Fig. 3c provides an example of this analysis where the deviation of the mandible for patient 3 acquired using DIR did not exceed the 2 mm clinical limit during the treatment period. In the majority of cases (29/33) these deviations were already larger than 2 mm from the start of treatment in particular for the hyoid and larynx, indicative of the high mobility of these structures (see also Supplementary Data F). The overall robustness of trend detection for BA deviations larger than 2 mm was 82% (95% CI: 67–96%).

Table 3.

Median and range of the fraction number where the exponentially weighted moving average (EWMA) statistic exceeded a 2 mm clinical limit before the end of treatment week 4, and the proportion of cases where the existence of a trend was confirmed by the accuracy interval of the trend exceeding the clinical limit before the end of treatment. This proportion is also expressed as percentage representing the robustness of the trend detection with the corresponding 95% confidence interval. EWMA parameters were established from deformable image registration (DIR) raw data. (BOS = base of skull; Occ = occipital; Max = maxilla; Mand = mandible).

	${\partial }_f^{\mathit{Occ}}$	${\partial }_f^{\mathit{BOS}}$	${\partial }_f^{\mathit{Max}}$	${\partial }_f^{\mathrm{C}3-\mathrm{C}5}$	${\partial }_f^{\mathrm{C}5-\mathrm{C}7}$	${\partial }_f^{\mathrm{H}\mathrm{y}\mathrm{o}\mathrm{i}\mathrm{d}}$	${\partial }_f^{\mathrm{L}\mathrm{a}\mathrm{r}\mathrm{y}\mathrm{n}\mathrm{x}}$	${\partial }_f^{\mathrm{M}\mathrm{a}\mathrm{n}\mathrm{d}}$
Median	1	1	6	NA	1	1	1	1
Range	1–1	1	1–11	NA	1–19	1	1	1–10
Proportion confirmed	3/4	0/1	1/2	0/0	3/3	9/9	8/9	3/5
Robustness	75%	0%	50%	NA	100%	100%	89%	60%
95% CI	20–100%	0–50%	0–100%	NA	83–100%	94–100%	63–100%	7–100%

3.1.3. Trends returning to control

EWMA trends for BA deviations did not move back within either the process limits or clinical limits in any of the cases after previously exceeding control at the 90% level of confidence. In 2–3% of cases a prior confirmation of a trend was negated as the lower boundary of the trend’s accuracy interval moved back either within the upper process limit’s 90% level of confidence or the clinical limit.

3.2. Soft tissue analysis

For eight patients (73%), the trend describing a volume change of $V_f^{\mathit{neck}}$ exceeded a process limit before the end of the fourth week of treatment, and for one patient (9%), this occurred during the final two weeks of treatment. These trends usually represented a decrease of the neck volume, however for two of these nine patients, an increase in $V_f^{\mathit{neck}}$ was observed.

A strong correlation (r² = 0.87; p < 0.01) was found between the changes in $V_f^{\mathit{neck}}$ and patient weight. A slightly lower correlation (r² = 0.76; p < 0.01) was found between the changes in $V_f^{\mathit{neck}}$ and those of the single axial slice volume at the base of C2. The 90% confidence intervals of the EWMA trends of the latter two metrics overlapped in 91% of cases.

Ninety-four percent of the 48 trends describing shift or shrinkage of a PG exceeded a process limit during HNRT treatment. EWMA trends describing shrinkage of high and low mean dose PG groups exceeded a process limit before the end of the fourth week of treatment in 94% and 86% of the cases, respectively. A decrease in volume was observed for all parotid glands. EWMA trends describing PG shift exceeded a process limit before the end of the fourth week of treatment in 76% and 71% of the cases, respectively. Supplementary Data G shows EWMA trends of average volume and shift for both PG groups.

The average volume change of the PGs from planning to end of treatment was not significantly different (p = 0.20) for the high dose PGs (-5.9 cm³; range −3.3 to −10.0 cm³) and the low dose PGs (−4.8 cm³; range: −3.5 to −9.4 cm³). Similarly, the average shift during treatment was not significantly different (p = 0.38) for the high dose PGs (2.1 mm; range 1.1–3.1 mm) and the low dose PGs (1.1 mm; range 1.1–3.3 mm).

4. Discussion

This study investigated the suitability of DIR and EWMA SPC to quantify and monitor individual patients’ changes in pose and anatomy during HNRT. This method facilitates a standardized approach to quantify patient deformations with an estimated robustness derived from comprehensive uncertainty analyses. It is a first step in developing a safety net for PTV margin reduction in HNRT as well as objective guidelines to select patient for treatment adaptation. Considering that loss in target coverage during treatment might occur more often and might become more relevant with reduced mm PTV margins, EWMA-facilitated detection of non-rigid changes in pose and anatomy during treatment of an individual patient could allow for early treatment adaption.

Previous studies investigated the application of SPC charts to monitor the reproducibility of patient positioning based on MMR [14]. However, MMR is very labour and time intensive; hampering clinical implementation. The application of DIR and SPC to quantify and monitor individual patient deformations during treatment can largely be automated and is therefore attractive from an economic and efficiency perspective. Considering that a change in treatment is usually not feasible in the final weeks of treatment due to the time required for re-scanning the patient, contouring and re-planning, this study assumed that clinically relevant changes in pose and anatomy should be detected before the end of treatment week four.

Over all patients, DIR EWMA trends exceeded a process limit before the end of treatment week 4 in 54%, 73% and 83% of cases for BA deviations, volume changes of $V_f^{\mathit{neck}}$ and PG changes, respectively (Supplementary Data C). However, these process limits represent the boundaries of the variation expected for a ‘process’ based on the observed variation during the reference period. The SPC limits therefore ignore the offset E₀ during the reference period relative to the desired patient position as defined during CT-planning which can be several mm’s in case of highly mobile structures. Therefore, deformation trends exceeding an SPC process limit itself is not indicative for the clinical relevance of an observed BA deviation and would require additional interpretation rules. In addition, potential trends occurring during the reference period add to the uncertainty of the SPC limits. Furthermore, the exact moment that the trend of a BA structure deviation relative to the initial value during the reference period exceeded an SPC process limit was not easily defined due to the shallow trends that were observed, in spite of the sub-mm accuracies of the EWMA statistic and process limits. The latter problem is exemplified in Fig. 3a where the EWMA statistic exceeds the upper process limit at fraction 18, but the 90% level of confidence interval of the EWMA statistic does not cross the 90% level of confidence of the upper process limit during the treatment course. Similar behavior was observed for MMR derived EWMA charts (Fig. 3b). At the 90% level of confidence, BA deviation trends where the EWMA statistic exceeded the process limits during the first four weeks of treatment were only confirmed in 24% of the cases. For these reasons, it is more efficient to apply a clinical limit to detect BA deviations that could potentially have a clinical impact during treatment. This study showed that EWMA statistics representing BA deviation trends exceeding a generic a priori 2 mm clinical limit before the end of treatment week four were detected in 82% of cases at the 90% level of confidence. However, this clinical limit should be individually set for each BA structures’ deviations based on expected impact to target coverage and/or OAR sparing, which is subject to future investigations. Alternatively, the robustness of SPC limits can possibly be improved by also considering the rate of the changes during the treatment to define SPC control limits.

In contrast to the observations for BA deviations, SPC process limits were useful to detect soft tissue trends that exceeded the process limits before the end of treatment week four which could be confirmed in 90% of cases.

DIR precision is important for correct anatomical mapping of the pCT to daily CBCTs. In the absence of a golden standard, trends acquired using DIR were compared with results obtained using an alternative manual method where possible in combination with an uncertainty analyses were conducted. Overall at the 90% level of confidence, BA deviation trends acquired with DIR and MMR overlapped in 77% of cases. This was slightly lower than expected (0.9²) and may be caused by the assumption that various factors in the uncertainty analyses were normally distributed. Differences in E₀ between DIR and MMR ranged from −1.5 to 1.5 mm (Supplementary Data D). Further investigation into the differences between the two methods revealed two main causes: 1) Large deviations of mobile structures such as mandible could not always be recovered by DIR; 2) BA structures appeared to have expanded (‘creep’) after DIR due to structure boundaries not coinciding with anatomical boundaries such as the superior end of the occipital bone, and due to differences in pCT and CBCT Hounsfield Unit (HU) calibration. For the DIR algorithm used in this study, application of local rigidity constraints to the delineated BA may reduce the impact of ‘creep’ [26], [27].

Precision of PG propagation using DIR was evaluated by comparing these results against independent radiation oncologist CBCT re-contours (Supplementary Data H) and were found to be in excellent agreement with values reported in literature [28], [29], [30]. Well aligned to literature [16], the PGs included in this study demonstrated an average volume decrease of 21% and an average medial shift of 2.6 mm during HNRT.

Considering the high correlation between these metrics, there was no indication that $V_f^{\mathit{neck}}$ provides a more accurate metric to assess changes of the treatment volume than overall changes in patient weight.

Dosimetric analysis establishing the clinical relevance of the observed non-rigid changes in pose and anatomy is required to define objective decision rules and appropriate thresholds that can be applied in a safety net for patients who exhibit larger non-rigid deformations in the context of PTV margin reduction. We are therefore currently investigating these aspects in concert with the most efficient treatment adaptation approach for anatomical changes.

In conclusion, this study assessed the potential to quantify and monitor an individual patient’s deformation, i.e., non-rigid changes in pose and anatomy during HNRT using DIR in combination with SPC. BA deviation trends occurring before the end of treatment week four could only be confirmed in 24% of cases when SPC process limits were used, whereas absolute BA deviations could be confirmed in 82% of cases when an a priori 2 mm clinical limit was used. SPC process limits were useful to detect soft tissue trends occurring before the end of treatment week four which could be confirmed in 90% of cases. The approach proposed in this study could facilitate timely treatment adaption through detection of problematic patient positioning reproducibility and anatomy changes for individual patients.
