Ultrasonic-assisted hydrothermal synthesis of cobalt oxide/nitrogen-doped graphene oxide hybrid as oxygen reduction reaction catalyst for Al-air battery

Highlights

• •A persistent ultrasound-assisted hydrothermal synthesis has been developed.
• •Ultrasonication can promote the production of Co₃O₄/N-GO hybrids.
• •The ultrasonicated Co₃O₄/N-GO hybrids are effective catalyst for Al-air battery.
• •Ultrasound allows Co₃O₄ particles uniformly grow on the dispersed graphene oxides.

Abstract

A persistent ultrasound-assisted hydrothermal method has been developed to prepare cobalt oxide incorporated nitrogen-doped graphene (Co₃O₄/N-GO) hybrids. The electrochemical behaviors and catalytic activity of the prepared hybrids have been systematically investigated as cathode materials for Al-air battery. The results show that ultrasonication can promote the yield ratio of Co₃O₄ from 63.1% to 70.6%. The prepared Co₃O₄/N-GO hybrid with ultrasonication exhibits better ORR activity over that without ultrasonication. The assembled Al-air battery using the ultrasonicated Co₃O₄/N-GO hybrid exhibited an average working voltage of 1.02 V in 4 M KOH electrolyte at 60 mA∙cm⁻², approximately 60 mV higher than that using hybrid without ultrasonication. This should be attributed to large number density of fine Co₃O₄ particles growing on the dispersed GO sheets under the persistent ultrasonication. The related ultrasonic mechanism has been discussed in details.

1. Introduction

Storage and conversion of renewable resources are promising to meet the most urgent goals for clean energy production and environmental remediation [1], [2]. Aluminum-air battery is one of the promising and efficient energy storage and supply systems, delivering renewable energy with metals and the inexhaustible O₂ in air [3], [4], [5]. However, there are many technical and scientific issues that hinder the large-scale development and application of Al-air batteries.

The oxygen reduction reaction (ORR) activity is one of the most important concerns for the Al-air battery with high energy efficiency [5]. Precious metal catalysts (e.g. Pt, Au, Ag) have superior ORR catalytic performance [6], [7]. However, their scarcity, high cost and poor tolerance limit the large-scale application. Thus, it is crucial to develop low-cost and efficient ORR catalysts for Al-air battery. Transition metal oxides have been reported to be cheap and effective ORR catalysts [8], [9], and among them, Co₃O₄ has attracted great interests [10], [11], [12]. However, careful adjustment should be done to promote the electrical conductivity and stability of the Co₃O₄-containing ORR catalysts.

One of the effective strategies is using highly stable and conductive catalyst carriers or supporters, for instance, the widely employed graphene oxide (GO) [13], [14], [15], [16]. Furthermore, additional nitrogen doping could greatly increase the electron mobility and introduce chemically active sites for catalyst deposition [17], [18]. Thus, hybrid air-breathing cathodes consisting of cobalt oxide and nitrogen doped graphene oxide, exhibit high ORR activity in alkaline solutions [19], [20], [21], [22], [23]. However, cobalt oxide nanoparticles are easy to aggregate into random bundles among the graphene layers [24]. Such agglomeration gives rise to the reduction of ORR activity for the air-breathing cathodes, due to the decreased number density of active sites.

Many efforts have been made to avoid the agglomeration of catalyst particles. Ultrasound is the prevailing approach to disperse the particles [25], [26], [27]. In general, an ultrasonication for 0.5 ~ 1.5 h can yield dispersive and fine nano particles [28], [29], [30], [31]. Similar ultrasonication treatment for precursors prior to hydrothermal synthesis has been applied to prepare hybrid catalysts nanoparticles [32], [33]. However, the agglomeration of reacting precursors or nanoparticles and catalyst carriers possibly reappears during the long-time hydrothermal synthesis process [34]. Thus, an ultrasonication upon hydrothermal synthesis is proposed to achieve a sufficient dispersion of hybrid catalyst particles and carriers, which has been scantly investigated.

In this work, a persistently ultrasound-assisted hydrothermal process (HU) is developed to prepare a hybrid catalyst incorporating cobalt oxide with nitrogen-doped graphene oxide (HU-Co₃O₄/N-GO). This hybrid is characterized using XPS, FESEM, TEM and electrochemical measurement. In addition, a full Al-air battery is constructed to evaluate the ORR activity of the as-prepared hybrid catalyst.

2. Experimental section

2.1. Material synthesis

Graphene oxide used was commercial product (Tu ling Co., Ltd). Analytical grade C₄H₆CoO₄·4H₂O, NH₄OH, Na₂SO₄, KOH, and activated carbon and acetylene black were supplied from Sinopharm Chemical Reagent Co., Ltd. De-ionized (DI) water was used as a solvent in the synthesis process.

The schematic diagram for the synthesis route of HU-Co₃O₄/N-GO hybrid is shown in Fig. 1. Firstly, graphene oxide (450 mg) was dispersed in Co(CH₃COO)₂ aqueous solution (0.2 mol L⁻¹, 225 ml) at room temperature, then added NH₄OH (4.2 ml, 30% solution) for nitration under ultrasonication. Then, the dispersed precursors were transferred to a Teflon-lined and sealed autoclave with a capacity of 300 ml. A persistently ultrasound-assisted hydrothermal synthesis was carried out at 150 °C for 10 h in a self-designed apparatus, where a 40 kHz ultrasound with a fixed power of 600 W was transmitted into a stainless reactor with periodically repeated switch on for 30 min and off for 5 min via silicone fluid media. The underlying synthesis process for Co₃O₄/N-GO hybrid is considered as following: Co²⁺ cations can homogeneously coat onto GO sheets due to the electrostatic interaction. During the ultrasound-assisted hydrothermal process, N atoms from NH₄OH are doped into the graphene oxide. The precursor covered on the surface of nitrogen can be doped on the graphene oxide surface and finally transformed into Co₃O₄/N-GO hybrid via the following reaction:

$$6{\text{Co}}^{2+}+12{\text{OH}}^{-}+{\text{O}}_2\stackrel{150°\text{C}}{\to }2{\text{Co}}_3{\text{O}}_4+6{\text{H}}_2\text{O}$$ (1)

Fig. 1.

Schematic synthetic procedure of HU-Co₃O₄/N-GO hybrid.

Finally, the HU-Co₃O₄/N-GO hybrid was collected after centrifugation, washed with ethanol and DI water and lyophilization on the reaction products. Similar synthesis was also conducted without ultrasonic assistance to prepare H-Co₃O₄/N-GO hybrid. HU-Co₃O₄ and HU-N-GO were also prepared without the addition of GO and Co (CH₃COO)₂, respectively. A blank H-N-GO was also prepared for a direct comparison.

2.2. Material characterizations

Powder XRD (X-ray diffraction) patterns for the synthesized samples were performed using an Ultima Ⅳ X-ray diffractometer with Cu Kα (λ = 1.54 Å) radiation. The chemical states of C, N, O, and Co elements in the samples were detected by XPS (X-ray photoelectron spectroscopy measurements, AXISULTRA-DLD, Al Kα X-ray radiation source at 150 W). The yield of Co₃O₄ synthesized by hydrothermal reaction was determined by ICP (inductively coupled plasma emission spectrometer, Optima-7000DV). The morphology observation was conducted using a Zeiss Auriga scanning electron microscope (FESEM) coupled with energy dispersive spectra (EDS) and a JEM-2100 transmission electron microscope (TEM).

2.3. Electrochemical measurements

The electrochemical measurements were performed in a three-electrode system using a CHI660E electrochemical workstation. Catalyst powders coated on the glassy carbon electrode (geometric diameter: 3 mm) were used as the working electrode in the aqueous solution of 0.1 M KOH saturated with O₂. Hg/HgO electrode and platinum foil served as the reference electrode and the counter electrode, respectively. Cyclic voltammetry (CV) and linear sweep voltammetry (LSV) were carried out at a scan rate of 50 mV s⁻¹ and 5 mV s⁻¹, respectively. Electrochemical impedance spectroscopy (EIS) was conducted in the scanning range from 0.1 Hz and 100 kHz at 1.023 V.

2.4. Al-air battery tests

Al-air batteries were assembled with the commercial pure Al anode and self-made air-breathing cathodes loaded with the as-prepared hybrid catalysts. The surface area of electrodes was 1 cm², and 4 M KOH aqueous solution was used as electrolyte. The discharge tests were conducted using a LANHE battery testing system at the current densities of 20, 40 and 60 mA cm⁻², respectively.

3. Results and discussion

3.1. Production of synthesized Co₃O₄

Table 1 lists the calculated production of the Co₃O₄ after hydrothermal synthesis with or without ultrasonication based on ICP measurement. The total amount of Co was 2.652 g in each trial for hydrothermal synthesis. The residual Co in the collected filtrates was 0.857 g, 1.065 g, 0.780 g and 0.979 g in HU-Co₃O₄, H-Co₃O₄, HU-Co₃O₄/N-GO hybrid and H-Co₃O₄/N-GO hybrid, respectively. Consequently, the Co₃O₄ production in HU-Co₃O₄, H-Co₃O₄, HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO hybrid were 2.445 g (67.7%), 2.161 g (59.8%), 2.5502 g (70.6%) and 2.2785 g (63.1%), respectively. It suggests that the ultrasonication can promote the hydrothermal reaction for Co₃O₄ production. Furthermore, the catalyst carrier N-GO also has a slight promotion on the Co₃O₄ production.

Table 1.

The calculated production of the Co₃O₄ after hydrothermal synthesis with or without ultrasonication via ICP measurement.

Item (g)	HU-Co3O4	H-Co3O4	HU-Co3O4/N-GO	H-Co3O4/N-GO
Total amount of Co	2.625 (±0.034)
Residual Co in filtrate	0.857 (±0.012)	1.065 (±0.018)	0.780 (±0.022)	0.979 (±0.017)
Co production	1.768 (±0.012)	1.560 (±0.018)	1.845 (±0.022)	1.646 (±0.017)
Theoretical Co3O4 production	3.576 (±0.034)
Actual Co3O4 production	2.408 (±0.016)	2.125 (±0.024)	2.514 (±0.030)	2.242 (±0.023)
Yield ratio	67.3% (±0.4)	59.4% (±0.7)	70.3% (±0.8)	62.7% (±0.6)

3.2. XRD and XPS analysis

Fig. 2(a) shows the XRD pattern of the prepared HU-Co₃O₄/N-GO hybrid. The diffraction peaks at 31.2°, 36.7°, 59.2° and 65.1° can be readily indexed to the (220), (311), (511) and (440) planes of face centered cubic Co₃O₄, respectively [13]. It indicates a successful synthesis of cubic Co₃O₄ in the ultrasound-assisted hydrothermal process.

Fig. 2.

a) XRD patterns of HU-Co₃O₄/N-GO hybrid. b) Survey scan spectrum of the HU-Co₃O₄/N-GO hybrid, c) C 1s, d) N 1s, e) O 1s, and f) Co 2p.

The atomic valence states of the HU-Co₃O₄/N-GO hybrid were studied by XPS characterization. As shown in Fig. 2(b), the principal peaks of C, N, O, and Co appear on the full survey spectrum of the HU-Co₃O₄/N-GO hybrid. Fig. 2(c)–(f) show the high-resolution C 1s, N 1s, O 1s and Co 2p fitted spectra, respectively. There are two peaks in the C 1s fitted spectra, as shown in Fig. 2(c). The peak at 284.7 eV is conformed to the C C/C–C network and the other at 288.2 eV corresponds to C–O in graphene oxide. Fig. 2(d) shows the N 1s fitted spectra. The peak at 399.1 eV and 400.9 eV are assigned to pyrrolic nitrogen and graphitic nitrogen on the graphene oxide surface. The high resolution of O 1s fitted spectra consists of metal–oxygen bonds for the Co₃O₄ phase and carbon–oxygen bonds for graphene oxide with peaks at 530.9 eV and 531.8 eV, respectively. The peaks at 778.6 and 795.9 eV correspond to the Co 2p_3/2 and Co 2p_1/2 spin-orbit peaks of Co₃O₄, as shown in Fig. 2(f). The Co 2p_3/2 peak can be further divided into Co³⁺ and Co²⁺ peaks. There is a peak around the main peak of Co 2p_1/2, representing the Co₃O₄ phase. The XPS result is consistent with that in previous literature [35].

3.3. The morphology and structure of the hybrids

Fig. 3(a) shows the SEM images of as-prepared HU-Co₃O₄/N-GO hybrids and the corresponding EDS mapping analysis. The EDS mapping shows a uniform distribution of C, N, O and Co throughout the observed particle. The EDS point shooting analysis (spectrum 1 and 2) further confirms that the Co content of the particle reaches 31.2 ~ 34.7 at. %. It indicates that the synthesized Co₃O₄ grows on the N-GO sheets. Fig. 3(b) and (c) show the representative TEM images of H-Co₃O₄/N-GO and HU-Co₃O₄/N-GO, respectively. There are just a few cubic Co₃O₄ particles growing on the N-GO sheet without ultrasonication, as shown in Fig. 3(b). A large number density of fine cubic Co₃O₄ particles grow on the flat N-GO sheets in HU-Co₃O₄/N-GO sample (Fig. 3(c)). It clearly reveals that ultrasonication greatly promotes the production of Co₃O₄ during hydrothermal synthesis, which is quite consistent with the calculated result based on the ICP measurement in Table 1.

Fig. 3.

a) SEM image of HU-Co₃O₄/N-GO hybrid with corresponding elemental mapping. b) TEM image of H-Co₃O₄/N-GO hybrid. c) TEM image of HU-Co₃O₄/N-GO hybrid.

Fig. 4 shows the TEM images of initial GO, H-N-GO, HU-N-GO, H-Co₃O₄ and HU-Co₃O₄, in order to further clarify the ultrasonic mechanism for the growth of Co₃O₄ on the N-GO sheets. The initial graphene oxide is crumpled sheet with curled edges, as shown in Fig. 4(a). The H-N-GO presents as thick and large sheets (Fig. 4(b)), while the N-GO transforms into the dispersed and thin sheets with ultrasonication during hydrothermal process, as shown in Fig. 4(c). It can be found that a short period ultrasonication prior to hydrothermal reaction fails to achieve high dispersion of the N-GO sheet. A persistent assistance of ultrasonication can sufficiently ensure a dispersion of fine N-GO sheets during the long-term hydrothermal synthesis. Furthermore, the cubic Co₃O₄ particle clusters (~700 nm) can be observed in the H-Co₃O₄ sample, as shown in Fig. 4(d). It suggests a severe agglomeration of Co₃O₄ particle (~220 nm) during the normal hydrothermal synthesis without the addition of N-GO and ultrasonication. The agglomeration of cubic Co₃O₄ particles is greatly retarded after the persistent assistance of ultrasonication in hydrothermal reaction, as shown in Fig. 4(e). Furthermore, fine Co₃O₄ nanoparticles (~30 nm) are clearly identified in HU-Co₃O₄ sample, as shown in Fig. 4(f).

Fig. 4.

TEM images of the prepared catalysts. (a) Initial GO; (b) N-GO; (c) HU-N-GO; (d) H-Co₃O₄; (e) and (f) HU-Co₃O₄.

It can be clearly concluded that the agglomeration of N-GO sheets and cubic Co₃O₄ particles is easily to appear during the long-term hydrothermal synthesis, even though a dispersion of N-GO sheets and precursors has been achieved prior to hydrothermal process. Ultrasonication-assisted hydrothermal synthesis can be effective to disperse the N-GO sheets and refine the cubic Co₃O₄ particles, as shown in Fig. 4. The N-GO sheets are effective sites for the nucleation and growth of Co₃O₄ particles. Thus, a persistent dispersion of N-GO sheets assisted by ultrasonication is in favor of the dispersion of Co₃O₄. As a result, the number density of Co₃O₄ growing on N-GO sheets greatly increases, as shown in Fig. 3c.

3.4. Electrocatalytic performance for ORR

Fig. 5 shows the electrochemical behaviors including CV, LSV and EIS of the as-prepared hybrids in alkaline solution. Both HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO show oxygen reduction peaks, as shown in Fig. 5(a). The HU-Co₃O₄/N-GO has a 45 mV higher ORR peak than the H-Co₃O₄/N-GO, which manifests a high electrocatalytic activity toward ORR. Furthermore, the HU-Co₃O₄/N-GO hybrid exhibits a half-wave potential (0.76 V vs. RHE), 50 mV higher than the H-Co₃O₄/N-GO (0.71 V vs. RHE), according to the LSV curves in Fig. 5(b). The calculated ORR Tafel slope for HU-Co₃O₄/N-GO is 135 mV dec⁻¹, a bit lower than that of H-Co₃O₄/N-GO (160 mV dec⁻¹), as shown in Fig. 5(c). It fully demonstrates that HU-Co₃O₄/N-GO shows better ORR activity than H-Co₃O₄/N-GO. Fig. 5(d) shows the Nyquist plots of the HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO at 1.023 V. The Nyquist plots consist of two capacitive circles and straight line, which can be fitted by the equivalent circuit model in Fig. 5(d). R_e is resistance of electrolyte, R_int∥CPE_int represents the interphase contact resistance and related capacitance in the electrode. R_ct∥CPE_dl is the charge-transfer resistance and related capacitance, and W₁ is ionic diffusion impedance. According to the fitted results in Table 2, HU-Co₃O₄/N-GO has lower R_e, R_int and R_ct values than the H-Co₃O₄/N-GO, suggesting the fast electron transportation and high ORR activity. Thus, HU-Co₃O₄/N-GO hybrid exhibits a better electrocatalytic activity than H-Co₃O₄/N-GO. This means that ultrasonication can effectively alleviate the agglomeration degree of graphene oxide and make the Co₃O₄ uniformly growing on graphene oxide. Therefore, it is in favor of increasing the number density of active catalytic sites accessible to oxygen, hence greatly promoting ORR activities [36].

Fig. 5.

(a) CV curves of HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO in an oxygen-saturated 0.1 M KOH solutions; (b) LSV curves of HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO in an oxygen-saturated 0.1 M KOH solutions at a scan rate of 5 mV s⁻¹; (c) Tafel plots derived from LSV curves; (d) Nyquist plot of HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO air electrodes in 1 M KOH solutions between 0.1 Hz and 100 kHz at 1.023 V and the equivalent circuit.

Table 2.

Impedance parameters of HU-Co₃O₄/N-GO and H-Co₃O₄/N-GO electrodes obtained by fitting the electrochemical impedance spectra (EIS) at 1.023 V.

Hybrid	Re Ω cm2	Rint Ω cm2	Rct Ω cm2
HU-Co3O4/N-GO	0.61	2.22	0.80
H-Co3O4/N-GO	0.63	2.40	3.10

3.5. Al-air battery tests

Fig. 6 shows the discharge curves of the assembled Al-air batteries with the prepared hybrids as ORR electrocatalysts in 4 M KOH discharged at current densities ranging from 20 to 60 mA∙cm⁻² for 6 h. The assembled Al-air batteries exhibit stable working voltage and low degree of polarization during discharge. The Al-air battery with HU-Co₃O₄/N-GO as ORR electrocatalyst has a voltage plateau of approximately 1.20 V, 1.13 V and 1.02 V, which are about 20, 40 and 60 mV higher than that with H-Co₃O₄/N-GO at 20, 40 and 60 mA∙cm⁻², respectively. It suggests that HU-Co₃O₄/N-GO hybrid has superior catalytic activity over the H-Co₃O₄/N-GO hybrid as cathode materials for alkaline Al-air battery. Thus, the persistent ultrasonication is beneficial for the catalytic performance of the Co₃O₄/N-GO hybrid. This is well consistent with the measured electrochemical behaviors in Fig. 5. Furthermore, Al-air battery with HU-N-GO catalyst has an average working voltage of ~0.79 V (at 60 mA∙cm⁻²), 20 mV higher than that with H-N-GO. This clearly implies that the catalytic activity of N-GO is slightly enhanced with the persistent assistance of ultrasonication, as shown in Fig. 6. However, such enhancement is much smaller than that (~60 mV) on the Co₃O₄/N-GO hybrid induced by ultrasonication. This implies that Co₃O₄ particles play dominating role in the catalytic activity of as-prepared hybrid, and the improved catalytic activity induced by ultrasonication is primarily attributed to the modification of Co₃O₄. Such improvement can be of relative great significance for a better discharge performance with a lower material cost for Al-air battery. Firstly, the preparation of the hybrid N-GO/Co₃O₄ ORR catalyst, even though with ultrasonication, is still quite cost-effective in battery operation compared to use of the precious metal-based catalysts. Secondly, more effective utilization of Co₃O₄ recourse with ultrasonication preparation also means a trade-off reduction in materials cost (using less Co₃O₄) for Al battery construction, compared to the convention hydrothermal preparation method that usually consumes more expensive Co-containing raw materials.

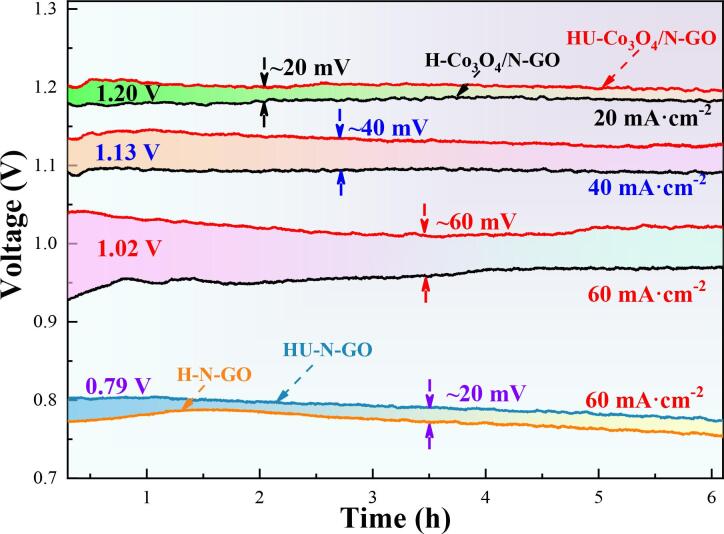

Fig. 6.

Discharge curves of the assembled Al-air batteries with the prepared hybrids as the ORR electrocatalysts in 4 M KOH using at current densities ranging from 20 to 60 mA∙cm⁻².

Fig. 7 schematically illustrates the mechanism for persistently ultrasound-assisted hydrothermal synthesis of Co₃O₄/N-GO hybrids. Ultrasonication improves both the yield and number density of Co₃O₄ particles. To the authors’ best knowledge, disperse and fine particles with high number density are more important than the yield, regarding the ORR activity, since a high yield of Co₃O₄ may contribute to a rapid growth of coarse Co₃O₄ particles with low number density, which is detrimental to electrocatalytic activity (low number density of catalytic sites). Ultrasonication prior to hydrothermal synthesis can perform sufficient dispersion of both graphene oxides and precursors for Co₃O₄ via the outstanding ultrasonic cavitation and streaming effects [25], [37], [38]. However, the dispersed graphene oxides gradually agglomerate to large and thick sheets (Fig. 4(b)) during a 10 h hydrothermal process at 150 °C. Since the agglomerated GO serve as effective substrates for the nucleation of Co₃O₄ particles, it would further result in the agglomeration of the latterly precipitated Co₃O₄ particles, as shown in Fig. 4(d). A persistent assistance of ultrasonication in hydrothermal synthesis can effectively maintain a sufficient dispersion of the precursors and GO, as shown in Fig. 4c. Thus, the latterly precipitated Co₃O₄ particles effectively and uniformly nucleate and grow on the dispersed GO under the persistent assistance of ultrasonication. Furthermore, the significant ultrasonic cavitation can enhance the nucleation events of Co₃O₄ particles by activating the surface of solid particles [39], [40] (possibly graphene oxides in this work). In addition, the enhanced mass transfer would also be beneficial for uniform distribution of precursors [41], [42], [43], refining Co₃O₄ particles via the eliminating the solute segregation upon the solid-liquid interface. This explains that the persistently ultrasound-assisted hydrothermal synthesis process creates large number density of fine cubic Co₃O₄ growing on the dispersed GO sheet, as shown in Fig. 3c. In a word, the persistently ultrasound-assisted hydrothermal synthesis can efficiently prepare well dispersed and fine Co₃O₄/N-GO hybrids, which exhibit better electrocatalytic (ORR) activity as cathode material for Al-air battery.

Fig. 7.

Schematic illustration of the persistent ultrasound-assisted hydrothermal synthesis of Co₃O₄/N-GO hybrid.

4. Conclusions

In this work, a persistently ultrasound-assisted hydrothermal method has been developed to prepare cobalt oxide incorporated nitrogen-doped graphene hybrids. The electrochemical behaviors and catalytic activity of the prepared hybrids have been systematically investigated for cathode materials of Al-air battery. The results show that ultrasonication can promote the yield ratio of Co₃O₄ from 63.1% to 70.6%. It can effectively disperse and refine the cubic Co₃O₄ growing nitrogen-doped graphene oxides, as well as increase the number density of Co₃O₄ particles. The half-wave potential of the Co₃O₄/N-GO hybrid with ultrasonication is 50 mV higher than that without ultrasonication. The assembled Al-air battery using the ultrasonicated Co₃O₄/N-GO hybrid exhibits an average working voltage of 1.02 V in 4 M KOH electrolyte, approximately 60 mV higher than that using the hybrid without ultrasonication at 60 mA∙cm⁻². This should be ascribed that the persistent ultrasonication in hydrothermal synthesis can maintain a favorable dispersion of graphene oxides, allowing the effective and uniform nucleation and growth of Co₃O₄ particles.
