Crystal growth inhibition of gypsum under normal conditions and high supersaturations by a copolymer of phosphino-polycarboxylic acid

Abstract

Scale formation is a bottleneck of most industrial and domestic water equipment, in particular, of oilfield water systems. Therefore, high-performance and environmentally-benign chemical scale inhibitors are highly needed. Phosphino-polycarboxylic acid (PPCA) is a low-in-phosphorous scale inhibitor with high inhibition efficiency, but its synthesis and performance analyses have been rarely disclosed. In this work for the first time, a PPCA copolymer is synthesized by a simple method based on free radical polymerization of acrylic acid and phosphinic acid monomers and directly employed for gypsum scale inhibition. The formation of PPCA was verified by FTIR and ³¹PNMR spectroscopies, and then its inhibition performance was evaluated by the complexometric determination of the Ca²⁺ concentration. The PPCA (2.5 ppm) showed 100% inhibition efficiency at a saturation index of 0.31 at the room temperature and without pH regulation after 24 h with practically no detectable gypsum crystallites even after two months, while the commercial ATMP showed a low inhibition efficiency of 30%. The Field Emission Scanning Microscopy (FESEM) images of the PPCA-inhibited and uninhibited samples revealed that the typical gypsum microfibers are distorted and reduced in size significantly in the inhibited sample. At a still higher saturation index of 1.47 (saturation ratio of 10), the inhibition efficiency of PPCA reduced to 16% and 24% for two dosages of 2.5 and 10 ppm which was attributed to the higher ion activity coefficients at the extremely high ionic strength, and hence, a much higher thermodynamic driving force. The rate constants for these two high supersaturation conditions and low PPCA dosages were also calculated and discussed.

Gypsum; Phosphino-polycarboxylic acid; Scale; Inhibitor.

1. Introduction

Scale deposition or the precipitation of inorganic salts is a serious problem in industrial and domestic waters. It could lead to the blockage of pipelines and equipment, energy leak, or even increased corrosion [1, 2]; therefore, it incurs extra budgets on companies to prevent or remove the scale in order to maintain the efficient flow of water systems. In oil production, scale formation can occur during different processes including water injection, oil extraction, transportation, and thermal (or chemical) treatments [3]. Scale deposition is also a bottleneck of current reverse-osmosis water purification filters [4], heat exchangers [5, 6], boilers [7], and other equipment.

Scale deposition is the direct consequence of the thermodynamic conditions of the system; in other words, when the amount of a cation and anion raise above their saturation level due to various causes, they ultimately deposit on the equipment surfaces. Sparingly soluble salts such as calcium carbonate, calcium sulfate, barium sulfate, strontium sulfate, and other sediments constitute the common scales. Among them, though calcium sulfate (i.e., anhydrite (CaSO₄) or gypsum (CaSO₄.2H₂O)) has the highest solubility, it is widely occurring due to the high crustal abundance of calcium and sulfate ions [8, 9] as well as its pH-independent low solubility that make gypsum scale inhibition highly challenging [13].

Currently, the problem of scale formation is generally tackled by the traditional physical methods or a combination of physical and chemical methods. For example, the water purification filters or oilfield water equipment are regularly dismantled to physically remove the scale. Other methods include acid treatment, thermal or magnetic radiation, as well as the addition of chelating agents such as ethylenediamine-tetraacetic acid (EDTA). However, none of these methods have acceptable efficiency at a reasonable cost. For instance, EDTA is a very good chelating agent for alkaline earth metal cations, and an equivalent amount would practically chelate all the cations and prevent scaling, but for industrial processes it is a costly method; it also requires specific conditions such as regulated pH and water hardness, and also it may increase corrosion rate [10, 11].

The most efficient and economic method of scale prevention is treating the water with chemical scale inhibitors such as (poly) phosphonates, polyacrylamide, polymaleic acid, and polycarboxylates [10]. They are also called threshold scale inhibition agents, because they are only required at micro-molar amounts far below the stoichiometric level to exhibit their highest effect. Generally, their effect is correlated with an increase in the crystal/solution interfacial tension. For instance, the HDTMP and HEDP inhibitors increase the interfacial tension and prolong the nucleation induction period for calcium sulfate [11]. Mechanistically, the inhibition is assumed to occur either at nucleation stage based on re-dissolving the early crystal nuclei by the endothermic adsorption (or interaction) of the inhibitor, or at growth stage through adsorption of inhibitor on the active growth sites; However, in reality scale inhibitors may work based on both mechanisms. The effectiveness of the polymeric inhibitors depends on their functional groups, molar mass, and charge density, in addition to the experimental conditions such as temperature, pH, ionic strength, degree of supersaturation, and cation/anion molar ratio [12, 13].

(Poly) phosphonates have a good inhibition efficiency and are widely studied for gypsum scale inhibition. However, they are susceptible to hydrolysis and may increase the orthophosphates and other phosphorous compounds that react with calcium ions to produce other insoluble salts. Besides, the release of these phosphorous compounds can cause aquatic eutrophication that distorts the environment. More environmentally-benign and yet efficient chemical inhibitors are based on the copolymers of acrylate such as acrylic acid-maleic acid or acrylamide-maleic acid [8, 14]. A well-known inhibitor, phosphino-polycarboxylic acid (PPCA, Scheme 1) is based on acrylate and phosphonate monomers and combines the advantages of both units. Besides, phosphonates are usually growth inhibitors and polyacrylates are nucleation inhibitors, and therefore, their combination can create a synergistic effect.

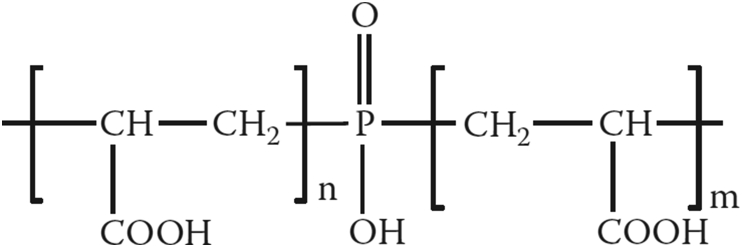

Scheme 1.

Phosphino-polycarboxylic acid (PPCA).

Nevertheless, the PPCA has not gained a wide application for the inhibition of gypsum and other scales since their introduction three decades ago, which could be attributed to the lack of enough information on their preparation methods and performance analysis that is limited to several communications [15, 16, 17, 18]. The synthesis procedures for PPCA-based inhibitors are stored exclusively in several patents [19] and companies’ repositories. Furthermore, the previous studies have focused on the effect of temperature/pressure [20], squeeze treatment modes [15], polymer molecular weight [16, 21], chemical modification [22, 23], as well as its chemical analogues (phosphono/phosphoryl carboxylic acid polymers [24, 25]), while, to the best of our knowledge, there is no report on the chemical synthesis and performance analysis of the PPCA copolymer under normal environmental conditions and high supersaturations.

This study was conducted to evaluate the scale inhibition efficiency of a PPCA copolymer, synthesized by a free radical polymerization, under normal conditions (25 °C, 1 atm, and initial pH of ~7) but at high saturation indexes of SI = 0.31 and SI = 1.47. The results for gypsum inhibition by the as-synthesized PPCA indicate that although PPCA perform excellent with an inhibition efficiency of 100% compared to 30% for commercial ATMP in 24 h, gypsum inhibition becomes highly challenging under the extreme supersaturation condition of SI = 1.45 even with PPCA. This decrease of efficiency was attributed to the curving-up of the ionic activity coefficient-ionic strength that creates a high thermodynamic driving force for gypsum formation.

2. Experimental

2.1. Reagents

Acrylic acid (99%), hypophosphorous acid (also called phosphinic acid) solution (50%), benzoyl peroxide (75%) were obtained from Sigma-Aldrich and used as precursors for the synthesis of PPCA. Calcium chloride (CaCl₂.2H₂O, 99%), sodium sulfate (Na₂SO₄, %99), ethylenediamine-tetraacetic acid (EDTA), murexide (C₈H₈N₆O₆), and the reference inhibitor Amino Trimethylene Phosphinic Acid (ATMP, 50 wt. % in H₂O) were also obtained from Sigma-Aldrich. Sodium chloride (NaCl, >98%) was purchased from the Tehran Bazar and used for maintaining the ionic strength of the solutions. Filter papers (Whatman paper 42, pore size $\le$ 2.5 μm) were obtained from Whatman Company.

2.2. Synthesis of PPCA copolymer

The PPCA inhibitor was synthesized by a simple chemical method based on the free radical polymerization of monomers. For this purpose, the acrylic acid and phosphinic acid monomers with a molar ratio of 8:1 were used. This molar ratio was selected after repeating the synthesis experiments in order to obtain a complete reaction between the monomers. In a typical process, first 58.22 g acrylic acid and 13.2 g phosphinic acid were added to 50 mL of deionized water under stirring in a three-neck round bottom flask connected to a condenser. Next, 0.25 g benzoyl peroxide as initiator was added slowly, and then, the temperature was slowly raised to 96 °C and kept at this temperature for 5 h. Finally, the flask was slowly cooled to room temperature, and a clear and relatively viscous solution was obtained. The as-obtained PPCA solution was directly used for the next analyses.

2.3. Preparation of supersaturated samples

For the preparation of supersaturated samples, first the reference brine solutions of calcium chloride and sodium sulfate were prepared separately each containing excessive amounts of sodium chloride added as supporting electrolyte. Then, they were filtered to remove possible undissolved particles. 50 mL of calcium-containing brines were transferred to different bottles which had been cleansed carefully. Then, specified amounts of diluted inhibitor samples were spiked in each bottle except the bottle denoted as the blank (or control). Finally, equal volumes of sulfate-containing brines were added into each bottle, and after sealing and shaking, they were immediately transferred into a water bath kept at a temperature of 25 (±0.5) °C. No pH-buffering compounds were used in order to avoid their interference with the performance of the inhibitors.

2.4. Characterization methods and instruments

All the kinetic studies and performance analysis of the scale inhibition were carried out by following the concentration of calcium ion in the solution using conventional complexometric titration with EDTA in the presence of murexide as indicator. For the measurements, the supersaturation solutions were sampled at different time intervals, and immediately filtered and titrated.

The gypsum phase structure was analyzed by X-ray diffraction (XRD) on a Philips PW-1730 X-ray diffractometer using Cu Kα radiation (λ = 1.5405 Å). Surface morphology of the gypsum was characterized by field emission scanning electron microscopy (FESEM) on a Zeiss SIGMA VP. The PPCA was characterized by Fourier Transform Infrared (FTIR) spectrometer (Tensor 27, Bruker Co.) and phosphorus-31 nuclear magnetic resonance (D₂O-PNMR, Bruker Co.).

2.5. Inhibition performance analysis

The following relationships were used for calculating the saturation indexes (SI, Eq. (1)) and the Gibbs free energies of gypsum crystallization (ΔG, Eq. (2)) [11]:

$$\text{SI}=\text{Log }(\frac{\text{IAP}}{{\text{K}}_{\text{sp}}})$$ (1)

$$\Delta \text{G}=-\frac{\text{RT}}{\text{ν}}\ln (\frac{\text{IAP}}{{\text{K}}_{\text{sp}}})$$ (2)

In the above relationships, IAP is ion activity product, ν is number of ions per formula unit of the electrolyte, and the other symbols have their usual meanings.

The rate constants (k) of gypsum crystallization when the Ca²⁺/SO₄^3─ is 1 can be calculated through the integrated form of the following relationship (Eqs. (3) and (4)) that is based on the equimolar reactants approaching equilibrium by a second order reaction, proposed first by Nancolas et al. for gypsum crystallization [26]:

$$\text{Differential form: }-\frac{\text{dC}}{\text{dt}}={\text{k}(\text{C}-{\text{ C}}_{\text{eq}})}^2$$ (3)

$$\text{Integrated form: }\frac{1}{(\text{C}-{\text{C}}_{\text{eq}})}=\text{kt}+\text{Const}$$ (4)

where C and C_eq are the total calcium concentration and solubility at reaction temperature.

The inhibition efficiency (IE, eq. 5) of the inhibitors are calculated via the following relationship:

$$\text{\%IE}=\frac{{\text{C}}_{\text{inh}}-{\text{C}}_{\text{un}}}{{\text{C}}^0-{\text{ C}}_{\text{un}}}\times 100$$ (5)

Here, the C_inh, C_un, and C⁰ are the total concentrations of calcium in the inhibited sample, uninhibited sample, and in the sample before crystallization (i.e., t = 0).

All inhibition efficiencies were calculated 24 h after creating the supersaturation condition and adding the inhibitor simultaneously. All calcium and sulfate brines were filtered with the Whatman paper to ensure best condition for homogeneous nucleation. Likewise, all supersaturated samples were filtered immediately before registering calcium concentration to minimize error. Besides, all the induction times are reported in an approximate way by visual detection of first crystallites, and therefore, are not comparable with induction times from the literature that are usually measured by some instrument for critical nuclei formation. Furthermore, all tests were carried out two times at least, and the results were expressed as the average of these two values. The error was below 7%, typically.

3. Results

3.1. Characterization of the PPCA

Figure 1a shows the IR spectrum of the as-synthesized PPCA, and Figure 2 shows the IR spectrum of the phosphinic acid reported in the literature for comparison. The IR bands that belong to (poly)carboxylic acid are always easily detectable due to their very intense appearance at 2400–3400, 1700–1725 cm^─1 and ~1260 cm^─1.

Figure 1.

Spectroscopic characterization of the as-synthesized PPCA. (a) IR and (b) ³¹P NMR spectra. (c) and (d) are the magnified views of the same ³¹P NMR spectrum.

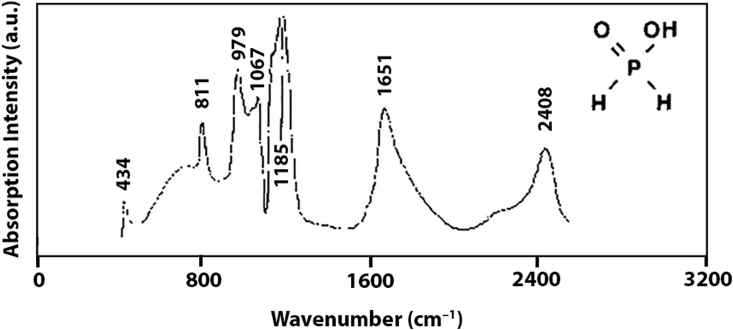

Figure 2.

IR absorption spectrum of phosphinic acid in water. (Adapted from ref. [27] Copyright 2020, with permission from Elsevier).

Here, the strong bands at 1708 cm^─1 and 1256 cm^─1 are due to C=O and C─O stretching vibrations in the polycarboxylic acid, respectively. The broad peak that covers the area from 2300 to 3700 cm^─1 belongs to the O─H stretching vibration from three different origins: the hydroxyls in the polycarboxylic acid and the phosphinic acid, as well as the water content of the sample. The bands at 1405, 1168, and 970 cm^─1 are due to, P–CH₂, P=O, P–OH stretching vibrations [27]. Furthermore, the IR spectrum of the phosphinic acid monomer (Figure 2) shows a peak at ~2408 cm^─1 due to the PH₂ stretching vibration which is absent in the IR spectrum of the PPCA product, confirming successful formation of the product. The band at 2948 cm^─1 is due to CH₂ stretching vibrations in the alkane chain of the PPCA copolymer.

Figure 1b shows the ³¹P NMR spectrum of the PPCA (Figure 1 c and d display magnified views of the same spectrum at different areas). According to previous works [28], the ³¹P NMR of the phosphinic acid monomer exhibits one triplet, in which two symmetric peaks due to the coupling of P–H groups appear at the sides of the central peak due to the P atom. This characteristic triplet is absent in the spectrum of the PPCA product, which is a proof of successful formation of the product. The doublet peaks in the spectrum of the PPCA located at the chemical shift of 10–14 ppm correspond to the CH₂ groups directly bonded to the ³¹P element, and the doublet located at 53–54 correspond to the next CH₂ group located two bonds away from the ³¹P element. The peak at around 35 ppm can be assigned to the shielding effect of the P=O group [29]. Therefore, the IR and ³¹P NMR spectra verify the formation of the PPCA compound.

In addition to structural characterizations, the molar mass of polymeric inhibitors is also an important parameter. Here, the determination of the molar mass was not possible using the gel permeation chromatography unfortunately, due to the highly acidic nature of the as-obtained PPCA sample [30]. However, based on previous reports the molar mass of the present PPCA copolymer should be in the range of 3500–4500 Da [31, 32].

3.2. Inhibition performance of PPCA

Before testing the performance of the as-synthesized PPCA inhibitor, the formation of the gypsum scale is verified by XRD. Figure 3 (a and b) shows the XRD pattern and the corresponding illustration of the crystal lattice for the gypsum precipitated from the uninhibited supersaturated solution at 25 °C. All the XRD peaks are attributed to the gypsum phase (CaSO₄.2H₂O, pdf number 033–0311) in accordance with previous XRD patterns for gypsum [33]. The very intense and narrow peaks indicate very large crystallite sizes.

Figure 3.

(a) XRD of gypsum precipitated from the uninhibited blank sample and (b) a schematic illustration of its crystal structure.

Figure 4a shows the changes in the calcium ion concentration in 24 h for the samples containing 2.5 ppm PPCA, 2.5 ppm ATMP, and the blank sample. Figure 4b shows their associated curves based on Eq. (4), in which the slopes denote rate constants. The initial concentration of Ca²⁺ = SO₄^3- = 75.5 mM is 4.1 times its solubility (18.3 mM) at 25 °C and the NaCl concentration is 0.25 M. In the blank sample after an induction time of about 1.5 h the first crystallites appear, and subsequently, the calcium concentration drops with a high rate to decrease the initial high thermodynamic driving force (-0.9 kJ/mol). Then, the curve approaches equilibrium very slowly, as the initial driving force has now decreased considerably. For the sample containing ATMP, a similar behavior is observed but with an increased induction time (5 h) and decreased reaction rate.

Figure 4.

Calcium ion concentration at different times (a) and the corresponding rate constants (b) for supersaturated samples containing 2.5 ppm PPCA or ATMP and the blank sample (SI = 0.31, C_CaSO4/solubility = 4.1, and C_NaCl = 0.25 M).

Under the same condition (SI = 0.31, C_CaSO4/solubility = 4.1, and C_NaCl = 0.25 M), the sample containing PPCA (2.5 ppm) does not show any measurable drop in calcium ion concentration over 24 h. Interestingly, when this sample was sealed and kept under room temperature for two months, still no drop of concentration is measured and no crystallites were visually detected (Figure 5a).

Figure 5.

(a) Photograph of the supersaturated calcium sulfate sample with a saturation index of 0.31 containing 2.5 ppm PPCA two month after creating the supersaturation by mixing sulfate and calcium brines. (b) Calcium Concentration measured in different times after mixing the calcium and sulfate brines containing PPCA inhibitor at different concentrations (C_CaSO4/solubility = 10, C_NaCl = 0.5 M).

In another experiment, when calcium sulfate concentration raised to 10 times its solubility (i.e., solubility = 0.0183 M, C_CaSO4/solubility = 10), but the concentration ratio of NaCl vs. CaSO₄ kept constant, the PPCA samples underwent a severe drop in the calcium concentration and performed only slightly better than the blank sample in the first 3.5 h (Figure 5b).

However, under the same condition with C_CaSO4/solubility = 10 when the added NaCl concentration increased from 0.5 M to 3 M the PPCA inhibitor showed improved performance. Figure 6a shows the C-t curves for the samples containing 10 ppm, 2.5 ppm, and 0 ppm (blank) PPCA at C_CaSO4/solubility of 10 during 4.5 h. Figure 6b displays the corresponding rate constants. The 10 ppm, 2.5 ppm, and 0 ppm PPCA samples show induction times of 1 h, 34 min, and 2 min, and the rate constants of 0.035, 0.058, and 0.080 L mol^─1 min^─1, respectively. The higher dosages of PPCA had an inferior performance compared to the 10 ppm probably because at high dosages the highly acidic PPCA leads to a drop of pH to 4–5, while it is widely known that for polymeric inhibitors the optimum pH is 8–9.

Figure 6.

Calcium ion concentration at different times (a) and the corresponding rate constants (b) for samples containing 2.5 and 10 ppm PPCA and the blank sample (SI = 1.47, C_CaSO4/solubility = 10, and C_NaCl = 3 M).

Table 1 presents the performance of the PPCA (2.5 and 10 ppm) and its comparison with the ATMP and the blank sample. Here, in order to calculate the ion activities and the saturation indexes, the initial solution compositions were calculated using solution speciation in the PhreeqC program for the two different saturation indexes and the calculated data is outlined in Tables 2 and 3. Then, the initial Gibbs free energies were calculated based on Eq. (2). The inhibition efficiencies were calculated based on Eq. (5). For the saturation index of 0.31 the inhibition efficiencies are 100 % and 30.5 % for the 2.5 ppm PPCA and 2.5 ppm ATMP samples. For the saturation index of 1.47 the inhibition efficiencies are 24 % and 16 % for the 10 ppm and 2.5 ppm PPCA samples. The photographs in Figure 7 exhibit the evolution of the gypsum crystallites for these samples over the time of 4.5 h at the saturation index of 1.47.

Table 1.

Thermodynamic and kinetic data for gypsum crystallization at 25 °C in the presence of NaCl supporting electrolyte at the starting pH of 8 (±0.5).

Sample (ppm)	NaCl Concentration	Saturation index	─ΔG (kJmol─1)	Induction time	Inhibition efficiency (%)	Rate constant (k, L mol─1 min─1)
PPCA (2.5)	0.25 M	0.31	0.9	>24 h	100%	~0∗
ATMP (2.5)	0.25 M	0.31	0.9	5 h	30%	0.015
Blank	0.25 M	0.31	0.9	1.5 h	-	0.10
PPCA (2.5)	3 M	1.47	4.2	15 min	16%	0.058
PPCA (10)	3 M	1.47	4.2	1 h	24%	0.035
Blank	3 M	1.47	4.2	2 min	-	0.080

^∗Very small that it could not be measured by our method within the timescale of the experiment.

Table 2.

Species distribution in the supersaturated solution (SI = 0.31) for gypsum formation obtained by PhreeqC program (error = 9%).

Species	Molality	Activity	Log	Log	Log	mole V
			Molality	Activity	Gamma	cm³/mol
OH−	5.669e-06	2.694e-06	-5.246	-5.570	-0.323	4.00
H+	4.474e-09	3.162e-09	-8.349	-8.500	-0.151	0.00
H2O	5.551e+01	8.416e-01	1.744	-0.075	0.000	18.07
CaHCO3+	2.452e-05	1.503e-05	-4.611	-4.823	-0.213	10.07
CaCO3	8.375e-06	2.935e-05	-5.077	-4.532	0.545	-14.60
HCO3−	4.888e-06	2.868e-06	-5.311	-5.542	-0.232	39.39
NaHCO3	2.821e-06	9.884e-06	-5.550	-5.005	0.545	1.80
NaCO3−	1.621e-06	4.854e-06	-5.790	-5.314	0.476	26.74
CO32−	3.589e-07	4.253e-08	-6.445	-7.371	-0.926	6.00
CO2	6.914e-09	2.423e-08	-8.160	-7.616	0.545	34.43
(CO2)2	3.074e-18	1.077e-17	-17.512	-16.968	0.545	68.87
Ca2+	5.014e-01	4.108e-01	-0.300	-0.386	-0.087	-14.49
CaSO4	5.561e-02	1.948e-01	-1.255	-0.710	0.545	7.50
CaHCO3+	2.452e-05	1.503e-05	-4.611	-4.823	-0.213	10.07
CaCO3	8.375e-06	2.935e-05	-5.077	-4.532	0.545	-14.60
CaOH+	6.061e-06	1.814e-05	-5.217	-4.741	0.476	(0)
CaHSO4+	1.353e-09	4.050e-09	-8.869	-8.393	0.476	(0)
Cl−	4.317e+00	2.589e+00	0.635	0.413	-0.222	20.01
Na+	4.258e+00	6.129e+00	0.629	0.787	0.158	1.13
NaSO4−	1.397e-01	8.194e-02	-0.855	-1.086	-0.232	36.70
NaHCO3	2.821e-06	9.884e-06	-5.550	-5.005	0.545	1.80
NaCO3−	1.621e-06	4.854e-06	-5.790	-5.314	0.476	26.74
NaOH	4.712e-16	1.651e-15	-15.327	-14.782	0.545	(0)
NaSO4−	1.397e-01	8.194e-02	-0.855	-1.086	-0.232	36.70
CaSO4	5.561e-02	1.948e-01	-1.255	-0.710	0.545	7.50
SO42−	4.256e-02	2.668e-03	-1.371	-2.574	-1.203	23.20
CaHSO4+	1.353e-09	4.050e-09	-8.869	-8.393	0.476	(0)
HSO4−	2.740e-10	8.201e-10	-9.562	-9.086	0.476	41.98

Table 3.

Species distribution in the supersaturated solution (SI = 1.47) for gypsum formation obtained by PhreeqC (error = 7%).

Species	Molality	Activity	Log	Log	Log	mole V
			Molality	Activity	Gamma	cm³/mol
OH−	5.148e-06	3.146e-06	-5.288	-5.502	-0.214	-2.66
H+	4.185e-09	3.162e-09	-8.378	-8.500	-0.122	0.00
H2O	5.551e+01	9.831e-01	1.744	-0.007	0.000	18.07
HCO3−	1.816e-05	1.229e-05	-4.741	-4.910	-0.169	26.92
CaCO3	6.269e-06	7.291e-06	-5.203	-5.137	0.066	-14.60
CaHCO3+	5.385e-06	3.734e-06	-5.269	-5.428	-0.159	9.96
NaHCO3	1.747e-06	2.032e-06	-5.758	-5.692	0.066	1.80
NaCO3−	1.340e-06	9.979e-07	-5.873	-6.001	-0.128	2.78
CO32−	8.685e-07	1.823e-07	-6.061	-6.739	-0.678	-2.03
CO2	7.645e-08	8.891e-08	-7.117	-7.051	0.066	34.43
(CO2)2	1.248e-16	1.451e-16	-15.904	-15.838	0.066	68.87
Ca2+	9.495e-02	2.381e-02	-1.023	-1.623	-0.601	-16.71
CaSO4	8.362e-03	9.725e-03	-2.078	-2.012	0.066	7.50
CaCO3	6.269e-06	7.291e-06	-5.203	-5.137	0.066	-14.60
CaHCO3+	5.385e-06	3.734e-06	-5.269	-5.428	-0.159	9.96
CaOH+	1.649e-06	1.228e-06	-5.783	-5.911	-0.128	(0)
CaHSO4+	2.714e-10	2.021e-10	-9.566	-9.694	-0.128	(0)
Cl−	4.663e-01	2.949e-01	-0.331	-0.530	-0.199	18.78
Na+	4.098e-01	2.940e-01	-0.387	-0.532	-0.144	-0.52
NaSO4−	5.000e-03	3.384e-03	-2.301	-2.471	-0.169	21.09
NaHCO3	1.747e-06	2.032e-06	-5.758	-5.692	0.066	1.80
NaCO3−	1.340e-06	9.979e-07	-5.873	-6.001	-0.128	2.78
NaOH	7.954e-17	9.249e-17	-16.099	-16.034	0.066	(0)
SO42−	1.248e-02	2.297e-03	-1.904	-2.639	-0.735	17.45
CaSO4	8.362e-03	9.725e-03	-2.078	-2.012	0.066	7.50
NaSO4−	5.000e-03	3.384e-03	-2.301	-2.471	-0.169	21.09
HSO4−	9.481e-10	7.063e-10	-9.023	-9.151	-0.128	40.95
CaHSO4+	2.714e-10	2.021e-10	-9.566	-9.694	-0.128	(0)

Figure 7.

Photographs of the supersaturated samples containing 10 ppm PPCA (left bottle), 2.5 ppm PPCA (middle bottle) and 0 ppm PPCA (right bottle) with SI = 1.47 and the added NaCl concentration of 3 M at different times. (the arrows indicate gypsum).

In order to investigate the effect of the PPCA inhibitor on the crystal morphology of the formed gypsum, FESEM images were also recorded. Figure 8 (a and b) shows the FESEM images of the gypsum precipitated under same condition from the blank sample and the sample containing 2.5 ppm PPCA at an SI of 0.31 (C_CaSO4/solubility = 4.1), respectively. For the blank sample, the gypsum crystals have grown in their regular fiber-shaped morphology with diameter of about 5 μm, but for the inhibited sample the gypsum crystals have grown quite irregularly with smaller particle dimension of about 2 μm.

Figure 8.

FESEM images of the gypsum precipitated from a) supersaturated blank sample after 1 day and (b) the sample containing 2.5 ppm PPCA after two months. (SI = 0.31 and C_NaCl = 0.25 M).

4. Discussion

The mechanism of scale inhibition by chemical inhibitors is an open subject that is widely debated [34]. Generally, induction times are associated with nucleation kinetics, and the calculated rate constants are associated with growth rates. Since, here the PPCA has caused an increase in the induction times and a reduction in the rate constants, it is implied that it acts based on inhibiting both the nucleation and growth processes, as it is expected for polymer-based inhibitors. On a molecular level, it has been reported that polymer inhibitors are principally nucleation inhibitors through their reaction with newly-formed ionic clusters and causing them re-dissolve [12].

Besides, the experiments at different sodium chloride concentrations here show the obvious impact of this salt on the scaling tendency and the inhibition properties of the PPCA copolymer. This effect could be through changing the ionic strength of the oilfield produced water and the properties of the inhibitor. With increasing the concentration of NaCl from 0.25 M to 3 M and increasing the concentration of calcium sulfate ions (1:1) from 0.075 M to 0.183 M, the calculated ionic strength increases from 0.65 mol/kgw to 5.44 mol/kgw (in molality unit). However, interestingly, the calculated activity coefficient (and the activity) increase from 0.25 to 0.8, leading to an increase in the saturation index from 0.31 to 1.47. Therefore, the reason behind such a loss of performance for the PPCA inhibitor at the high calcium sulfate concentration of 0.183 M is the curving up of the activity coefficient-ionic strength which leads to an extremely high saturation index and thermodynamic driving force (Tables 1,2, and 3). Nevertheless, most studies are focused on the bulk solution with conventional concentrations, while for high saturation indexes scaling tendency would be highly enhanced as shown here [35].

5. Conclusion

Sulfate-based scales are a bottleneck of many industrial water equipment including the Siri Island oil production fields in the south of Iran. Here, the synthesis and performance analyses of a phosphino-polycarboxylic acid (PPCA) copolymer were presented as an efficient scale inhibitor that is more environmentally benign compared to (poly)phosphonates for application under normal conditions. The analyses showed that the as-synthesized PPCA without any pH and temperature regulations can completely prevent gypsum scaling at an SI of 0.31, and in conjunction with the NaCl supporting electrolyte it still shows an inhibition efficiency of 24% at an extremely high SI of 1.47.
