Shape effect on MHD flow of time fractional Ferro-Brinkman type nanofluid with ramped heating

Muhammad Saqib 1, Ilyas Khan 2,, Sharidan Shafie 1,, Ahmad Qushairi Mohamad 1
PMCID: PMC7881191  PMID: 33580116

Abstract

The colloidal suspension of nanometer-sized particles of Fe3O4 in traditional base fluids is referred to as Ferro-nanofluids. These fluids have many technological applications such as cell separation, drug delivery, magnetic resonance imaging, heat dissipation, damping, and dynamic sealing. Due to the massive applications of Ferro-nanofluids, the main objective of this study is to consider the MHD flow of water-based Ferro-nanofluid in the presence of thermal radiation, heat generation, and nanoparticle shape effect. The Caputo-Fabrizio time-fractional Brinkman type fluid model is utilized to demonstrate the proposed flow phenomenon with oscillating and ramped heating boundary conditions. The Laplace transform method is used to solve the model for both ramped and isothermal heating for exact solutions. The ramped and isothermal solutions are simultaneously plotted in the various figures to study the influence of pertinent flow parameters. The results revealed that the fractional parameter has a great impact on both temperature and velocity fields. In the case of ramped heating, both temperature and velocity fields decreasing with increasing fractional parameter. However, in the isothermal case, this trend reverses near the plate and gradually, ramped, and isothermal heating became alike away from the plate for the fractional parameter. Finally, the solutions for temperature and velocity fields are reduced to classical form and validated with already published results.

Subject terms: Engineering, Materials science

Introduction

Enhanced heat transfer is significant due to its industrial and engineering applications. There are certain deficiencies in heat transfer due to the poor thermophysical properties of the working fluid. Recent advancements in nanotechnology result to develop a modern class of heat transfer fluid referred to nanofluids prepared by dispersing nanometer-sized particles 10–50 nm (nanoparticles) of metals, non-metals, and carbide in the working fluid water, oil, and alcohol, etc.16. For the first time, the term nanofluid was used by Choi and Eastman7. The addition of nanoparticles in traditional host fluids has the capacity to significantly improve the heat transfer rate which can be utilized in numerous areas such as, transportation industry, nuclear reactor, cooling applications, electronics, cancer therapy, and drug delivery8. The innovative nanofluid performs as a next generation of heat transfer fluid for novel applications in engineering and industry including aerospace, transportation, electronics, tribology, buildings, medicines. Farshad and Sheikholeslami9 investigated exergy loss in heat transfer in the turbulence flow of Al2O3-H2O through a solar collector using a finite volume method. Sadiq et al.10 relatively analyzed the stagnation point oscillatory flow of Cu-H2O and Al2O3-H2O micropolar nanofluid using the fifth-order R-K Fehlberg method. Alamri et al.11 studied heat transfer in a channel Poiseuille flow of nanofluid using Buongiorno’s nanofluids model with Stefan blowing, slip, and magnetic field effects. Ali et al.12 investigated the MHD flow of water-based Brinkman type nanofluid near an infinite rigid plate with variable velocity. They determined the exact analytical solutions vie the Laplace transform method. Saffarian et al.13 investigated the flow of Al2O3-H2O and CuO-H2O nanofluids in two U-shaped wavy pipes of the same length over a flat plate solar collector. It was indicated that CuO-H2O and wavy pipe enhance heat transfer rate by 78.25% and change in flow direction taken place with a higher heat transfer coefficient.

These days, the research community focuses on magnetic nanofluids (MNFs) known as Ferro-nanofluid, mainly because of its exceptional performance in the improvement of heat transfer productivity; these fluids have been utilized in numerous areas of science such as medicine, transformer cooling, nuclear fusion, and chemical engineering. The MNFs exhibits many characteristics including the controlling of thermal properties and fluid flow by means of the external magnetic field which leads to a more comprehensive thermo-magnetic convection in contrast to traditional gravitational convection. Furthermore, the MNFs are used in rods separation systems, X-rays tubes, oil lubricant bearing, sealing of hard dick damper processes. These fluids are utilized in Wi-Fi speakers, controller in electronic motors. The MNFs are considerably used in MHD based equipment such as audiometer, sensor systems, densitometer, electromechanical converter, pressure transducer, and silent printers14. In view of this revolutionary importance, MNF was initiated by Guptha and Guptha15. Many studies considered MNFs flow in different flow regimes such as Li et al.16 considered the flow of Ferro-nanofluid under the influence of Lorentz forces to investigate the effect of anisotropic thermal conductivity on the fluid flow and heat transfer. Shah et al.17 investigated micropolar Ferro-nanofluid flow over a dynamic stretching sheet in the presence of a magnetic field and thermal radiation. Kumar et al.18 studied the flow of hybrid Ferro-nanofluid of Fe3O4-CoFe2O4 into H2O-C2H6O2 (50–50%). It was detected that the Nusselt number of hybrid Ferro-Nanofluid is higher than Ferro-Nanofluid. Abro et al.19, Khan et al.20, Bezaatpour and Rostamzadeh21, Jamaluddin et al.22, and Aly and Ahmad23 focused on Ferro-nanofluid in their investigations.

The literature survey indicates that many researchers had concentrated on constant wall temperature. But in various real-world circumstances, follow variable thermal conditions at the boundary. The convection heat transfer studies are efficient to examine with step-change thermal boundary conditions. The studies with ramped wall thermal boundary conditions can be employed in thin-film photovoltaic devices to accomplish a certain finish of the system24. Ramped wall temperature is also necessary for heat management in buildings such as air conditioning where the constant wall thermal conditions lead to noticeable error. Motivated from the importance of step-change thermal boundary conditions (Ramped wall thermal boundary conditions), this study examines convection heat transfer with ramped boundary conditions.

To the best of the author's knowledge and from the literature survey, it is noticed that Ferro-nanofluid with a time-fractional Brinkman type fluid model with ramped heating is not reported yet. To fill the research gap, the main objective of the study is to consider the flow of Ferro-nanofluid over a vertical plate. As Ferro-nanofluid is electrically conducting thereby an external magnetic field is employed normal to the flow direction. The Caputo-Fabrizio fractional operator25 is used to fractionalized the Brinkman type fluid model. As Ali et al.26 utilized the Caputo-Fabrizio fractional derivative to investigate the MHD flow simultaneously with heat and mass transfer in Walters’-B fluid in the present magnetic field and porous medium. Khan et al.2729 analyzed the flow of Casson and H2O-CNTs nanofluid in a microchannel using a fractional derivatives approach. They determine the exact solutions by using the Laplace transform method. In a similar way, the proposed model is solved for exact analytical solutions vie the Laplace transform method. These solutions are presented for temperature and velocity fields for both ramped and isothermal heating. The ramped and isothermal solutions are simultaneously plotted in the various figures to study the influence of embedded flow parameters with the physical explanation. Eventually, by making α1, the classical solutions are recovered for temperature and velocity field for both ramped and isothermal heating from these solutions and validated with previously published work.

Description of the problem

Assume heat transfer in MHD flow of time-fractional Ferro-Brinkman type nanofluid near an infinite vertical plate along the x-axis and y-axis is selected transverse to it. Magnetic nanoparticles of different shapes (blade, brick, spherical, and platelet) are dispersed into the water as base fluid to form Ferro-Brinkman type nanofluid. Thermal radiation, heat generation, and ramped wall heating are also considered. At t0, the fluid and plate are set in rest with uy,0=0 and Ty,0=T where T is the ambient temperature. Afterward at t=0+, the velocity and temperature fields are switched to u0,t=U0Htcosωt and T0,t=T0+TW-Tt/t0 if 0<t<t0 or T0,t=TW if t>t0 respectively. At this phase, the fluid starts flowing in x-direction as presented in Fig. 1. The Ferro-Brinkman type nanofluid experience magnetic force because the fluid is electrically conducting, thereby, an external magnetic field is employed normally to the flow direction. The governing equations of the proposed model are derived in the following section.

Figure 1.

Figure 1

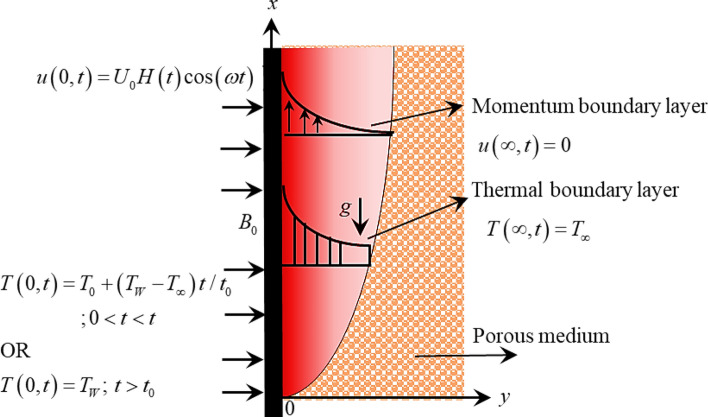

Physical sketch and coordinate system.

Mathematese formulation

In accordance with Rajagopal30 and Fetecau, Fetecau31, the linear momentum equation for Brinkman type fluid can be written as

ρDVDt=·T_+ρF-I0, 1

where DDt=t+ux+vy+wz refers to material time derivatives, V is the velocity vector, T_ represents the Cauchy stress tensor, ρF depicts the body forces, and I0 exhibits the interaction force of porous medium which can be expressed as

I0=αdV, 2

where αd is a positive coefficient of drag force which yields Eq. (1) to the following form

ρVt+V.V=.T_+ρF-αdV. 3

In the case of Brinkman type fluid, the constitutive equation of Cauchy stress tensor is expressed by32

T_=-pI_+μA_1, 4

where p is the scalar pressure, I_ is the identity tensor, μ is the dynamic viscosity, and A_1 is the Rivlin–Ericksen tensor determined by

A_1=V+VT, 5

where the superscript T refers to the matrix transpose and V represents the gradient of the velocity. In the case of the proposed problems, the unsteady, incompressible, unidirectional, and one-dimensional flow is considered thereby, the velocity vector is defined as

V=uy,t,0,0=uy,ti. 6

Bearing in mind, Eqs. (4) and (6), the ·T_ is determined as

·T_=-px+μ2uy,ty2, 7

whereas, the fluid flow is considered in x-direction, therefore, ppy,z which lead p/y=0 p/z=0. Introducing Eq. (7) into Eq. (3) and bearing in mind Eq. (6) which yield to

ρuy,tt=-px+μ2uy,ty2+ρF-αduy,t. 8

Based on Jaluria33, the body forces ρF for convection flow of electrically conducting Brinkman type fluid is given by

ρF=J×B+ρg, 9

where J×B is the Lorentz force, J is the current density, B=B0+b is the magnetic flux intensity, B0 is applied magnetics filed acting in y-direction, b is the induced magnetic field and g=-g,0,0 is the gravitation acceleration. The Lorentz force can be defined by Maxwell’s set of equations as34

.B=0,×B=μmJ,×E=-Bt,, 10

where μm is the magnetic permeability and E is electric field intensity. The current density J is described by the generalized Ohm’s law as35

J=σE+V×B, 11

where σ is the electrical conductivity. Meanwhile, the magnetic Reynolds number is assumed small enough so that the induced field b is neglected compared to the applied field B0. Furthermore, it is assumed that there is no polarization and applied voltages thereby, the electric field E is ignored. Hence, Eq. (11) takes the following form

J=σV×B0=σijku000B00=0,0,σB0uy,t. 12

Keeping in mind Eq. (12), the Lorentz force J×B became

J×B=ijk00σB0u0B00=-σB02uy,t,0,0. 13

Introducing Eq. (13) into Eq. (9) and then into Eq. (8) which gives the following

ρut=-px+μ2uy,ty2-σB02uy,t+αduy,t-ρg. 14

Referred to Jaluria33, the pressure p in Eq. (14) can be written in the following form

p=ph+pd, 15

where ph is the hydrostatic pressure pd is the dynamic pressure. The proposed problem is considered for convection heat transfer therefore, pd.can be neglected. According to White36, the hydrostatic pressure ph in the case of convection heat transfer can be written as

phx=-ρg, 16

where ρ is the ambient density of the fluid. Introducing Eq. (16) into Eq. (14) yield to

ρut=μ2uy,ty2-σB02u+αdu+ρ-ρg. 17

Assuming that βT is the volumetric thermal expansion of the fluid then according to Boussinesq’s approximation33, βT can be written as

βT=-1ρρTp-1ρΔρΔT=-1ρρ-ρT-Ty,t, 18

or

ρβTTy,t-T=ρ-ρ. 19

Introducing Eq. (19) into Eq. (17) yield to

ρut=μ2uy,ty2-σB02uy,t+αduy,t+gρβTTy,t-T, 20

or

uy,tt=υ2uy,ty2-σB02uy,tρ-βuy,t+gβTTy,t-T, 21

where β=αd/ρ is the Brinkman type fluid parameter which corresponds to the drag force of highly non-Darcy’s porous medium. The energy equation together with thermal radiation and heat generation is given by37

ρCpTy,tt=k2Ty,ty2-qry+Q0Ty,t-T. 22

The radiative heat flux qr in Eq. (22) is formulated by using via the Roseland approximation as38

qr=-4σ13k1T4y. 23

The T4 is expanded along T by using the Taylor series as

T4=T4+4T31!T-T+12T22!T-T2+24T3!T-T3 24

The temperature gradient is assumed to be small enough so, the higher-order terms are neglected which yield to

T4T4+4T31!T-T. 25

The further simplification of Eq. (25) yield to the following

T44T3T-3T4. 26

The simplified form of T4 from Eq. (26), is used in Eq. (23) which yield to

qr=-16σ1T33k1Ty. 27

Differentiating Eq. (27) with respect to “y” yield to the following

qry=-16σ1T33k12Ty2. 28

Incorporating Eq. (28) into Eq. (22) yield to the following

ρCpTy,tt=k1+16σ1T33k1k2Ty,ty2+Q0Ty,t-T. 29

For enhanced heat transfer, the Fe3O4 has been dispersed into the water as base fluid to form water-Ferro-nanofluid. As refer to Khanafar et al.39 and Tiwari and Das40 Eqs. (21 and (29) can be written for Ferro-nanofluid flow as

ρnfuy,tt+βuy,t=μnf2uy,ty2-σnfB02uy,t+gρβTnfTy,t-T, 30
ρCpnfTy,tt=knf1+16σ1T33k1knf2Ty,ty2+Q0Ty,t-T, 31

where ρnf is the density, uy,t is the velocity, β is the Brinkman type fluid parameter, μnf is the dynamic velocity, σnf is the electrical conductivity, B0 is the uniform magnetic field, g gravitational acceleration, βTnf is the thermal expansion, Ty,t is the temperature, Cpnf is the heat capacitance, knf is the thermal conductivity, qr is the radiative heat flux and Q0 is the heat generation. The corresponding initial and boundary conditions are given as

uy,0=0,Ty,0=T,y0, 32
u0,t=U0Htcosωt;t0+,T0,t=T0+TW-Ttt0;if0<t<t0,TW;ift>t0uy,t0andTy,tT;ify,. 33

The terms ρnf, μnf, σnf, βTnf, Cpnf and knf appeared in Eqs. (30) and (31) for the enhanced thermophysical properties nanofluid with different shapes (blade, brick, spherical, and platelet) nanoparticles defined as41.

ρnf=1-ϕρf+ϕρs, 34
μnf=μf1+aϕ+bϕ2, 35
σnfσf=1+3σsσf-1ϕσsσf+2-σsσf-1ϕ, 36
ρβTnf=1-ϕρβTf+ϕρβTs, 37
ρCpnf=1-ϕρCpf+ϕρCps, 38

and

Knf=KfKs+n-1Kf+n-1Ks-KfϕKs+n-1Kf-Ks-Kfϕ, 39

where the subscript nf is used for nanofluid, f for base fluid water, and s for solid nanoparticles Fe3O4. Furthermore, in Eq. (35) a and b correspond to shape constant which affects the density factor of nanofluid and in Eq. (39) n is the experimental shape constituent. n can be evaluated as

n=3ψ, 40

where ψ is the sphericity of nanoparticles which influences the thermal conductivity. The different shape nanoparticles and the corresponding values of a, b and ψ are presented in Table 142,43

Table 1.

Different shapes of nanoparticles with corresponding values of a, b and ψ.

Nanoparticle type Sketch a b ψ
Blade graphic file with name 41598_2020_78421_Figa_HTML.gif 14.6 123.3 0.36
Brick graphic file with name 41598_2020_78421_Figb_HTML.gif 1.9 471.4 0.81
Cylindrical graphic file with name 41598_2020_78421_Figc_HTML.gif 13.5 909.4 0.62
Platelet graphic file with name 41598_2020_78421_Figd_HTML.gif 37.1 612.6 0.52

In this study magnetic nanoparticle (Fe3O4) of different shapes is dissolved in water (H2O) as base fluid to form magnetic nanofluid (MNF). The physical values of the thermal properties of nanoparticles and base are given in Table 144,45

Solutions of the problem

This section presents the exact solutions for the magnetic flow of time-fractional Ferro-Brinkman type nanofluid under the effect of a normal magnetic field. In this section, the problem modeled in Sect. 3 is first transformed to dimensionless form to diminish the units for simplification and reduction of number variables. For this purpose, the following dimensionless variables

u=uU0,y=U0υfy,t=tt0,t0=υfU02,θ=T-TTW-T

are implemented into Eqs. (30)–(33) after dropping the * sign for simplicity yield to the following form

ϕ0uy,tt+βuy,t=ϕ12uy,ty2-ϕ2Muy,t+ϕ3Grθy,t, 41
ϕ4θy,tt=ϕ5Preff2θy,ty2+Qθy,t, 42

together with the following dimensionless conditions

uy,0=0,θy,0=0,y0, 43
u0,t=Htcosωtorsinωt;t0+T0,t=t;if0<t<11;ift>1uy,t0andTy,t0;ify, 44

and

β=U02βυf,M=υfσfB02U02ρf,Gr=gβTυfTW-TU03,Pr=μCpkf,Nr=16σ1T33k1kf,Preff=ϕ5Prϕ5+Nr,Q=υfQ0U02ρCpf,ϕ0=1-ϕ+ϕρsρf,ϕ1=1+aϕ+bϕ2,ϕ2=σnfσf,ϕ3=1-ϕ+ϕρβTsρβTf,ϕ4=1-ϕ+ϕρCpsρCpf,ϕ5=knfkf

where β is the Brinkman parameter, M is the magnetic number, Gr is thermal Grashof number, Pr is the Prandtl number, Nr is the radiation parameter, Preff is the effective Prandtl number, Q is the heat generation parameter, and ϕ0, ϕ1, ϕ2, ϕ3, ϕ4, ϕ5 are constant terms. The Caputo–Fabrizio time-fractional derivative is used to transform Eqs. (41) and (42) to time-fractional for as

ϕ0Dtαuy,t+βuy,t=ϕ12uy,ty2-ϕ2Muy,t+ϕ3Grθy,t, 45
ϕ4Dtαθy,t=ϕ5Preff2θy,ty2+Qθy,t. 46

The Caputo–Fabrizio time-fractional operator Dtα,., appeared in Eqs. (45) and (46) is defined by25

Dtαfy,t=Nα1-α0texp-αt-τ1-αfy,ττdτ;0<α<1, 47

where Nα is the normalization function with the following property

N1=N0=1. 48

Using Eq. (48) the Laplace transform of Eq. (47) is given by

LDtαfy,tq=qf¯y,q-fy,01-αq+α,0<α<1, 49

which be reduced for integer-order time derivative as

limα1LDtαfy,tq=limα1qf¯y,q-fy,01-αq+α=qf¯y,q-fy,0=Lfy,tt. 50

Solution for temperature filed

This presents the solutions for temperature filed in both ramped and isothermal heating case.

Solutions for temperature filed with ramped heating

In order to solve the energy equation for the temperature field, the Laplace transform is employed to Eq. (46), keeping in view Eq. (49) and using initial condition from Eq. (43) which yield to

qθ¯y,q-θy,01-αq+α=ϕ5ϕ4Preffd2θ¯y,qdy2+Qθ¯y,q, 51

which gives the following on further simplification

dθ¯y,qdy2-a1q-a2q+b1θ¯y,q=0, 52

along with the transformed corresponding boundary conditions

θ¯0,q=01t·e-qt+11·e-qt=1-e-qq2andθ¯,q=0, 53

where

a1=a0b0-Q1,a2=Q1b1,a0=ϕ4Preffϕ5,Q1=Qϕ4Preffϕ5,b0=11-α,b1=b0α.

The exact analytical solutions of Eq. (52) can be determined by using the transform boundary conditions for Eq. (53) as

θ¯y,q=1q2e-ya1q-a2q+b1-e-q1q2e-ya1q-a2q+b1, 54

which correspond to the solutions of temperature field for ramped heating in the Laplace transform domain. Equation (52) can be further simplified as

θ¯y,q=θ¯Rampy,q-e-qθ¯Rampy,q, 55

where

θ¯Rampy,q=1q2e-ya1q-a2q+b1. 56

The inverse Laplace transform is used to invert back Eq. (55) to the time domain as

θy,t=θRampy,t-θRampy,t-1Ht-1, 57

where Ht-1 is the Heaviside unit step function and the term θRampy,t is defined by

θRampy,t=te-ya1-00tt-τyp12sπτe-b1τ-y24s-a1sI12p1sτdsdτ, 58

where

p1=-a2-a1b1.

Solutions for temperature filed with isothermal heating

In order to find exact solutions for isothermal heating, the boundary condition in the Laplace transform domain is given by

θ¯0,q=1q, 59

The exact analytical solutions of Eq. (52) is obtained by using Eq. (59) as

θ¯y,q=1qe-ya1q-a2q+b1, 60

The final exact solution for isothermal heating is obtained after applying the inverse Laplace transform to Eq. (60) which yield to

θy,t=e-ya1-00typ12sπτe-b1τ-y24s-a1sI12p1sτdsdτ. 61

The exact solutions corresponding ramped and isothermal heating are respectively depicted in Eqs. (57) and (61) which satisfy the impose conditions in both cases. The exact solutions for the velocity field corresponding to ramped and the isothermal heating is presented in the following section.

Solution for velocity field

This section presents exact analytical solutions for the velocity field for both ramped and isothermal heating.

Solutions for velocity field with ramped heating

The Laplace transform is applied to Eq. (45) using initial condition from Eq. (43) yield to

ϕ0qu¯y,q-uy,01-αq+α+βu¯q,t=ϕ1d2u¯y,qdy2-ϕ2Mu¯q,t+ϕ3Grθ¯q,t, 62

which takes the following form after simplification

d2u¯y,qdy2-a3q+a4q+b1u¯y,q=-Gr01-e-qq2e-ya1q-a2q+b1, 63

along with the transformed velocity boundary conditions

u¯0,q=qq2+ω2andu¯,q=0, 64

where

a3=1ϕ1ϕ0b0+ϕ0β+ϕ2M,a4=1ϕ1ϕ0βb1+ϕ2Mb1,Gr0=ϕ3ϕ1Gr.

The analytical solutions of Eq. (63) can be obtained by using the boundary conditions from Eq. (64) as

u¯y,q=qq2+ω2e-ya3q+a4q+b1+Gr0q+b1a5q-a61-e-qq2e-ya3q+a4q+b1-e-ya1q-a2q+b1, 65

where

a5=a1-a3,a6=a2+a4.

In order to find the inverse Laplace transform, Eq. (65) can be written in a more suitable form as

u¯y,q=u¯cy,q+u¯1qu¯2Rampy,q-e-qu¯2Rampy,q-u¯1y,qθ¯y,q, 66

where

u¯cy,q=qq2+ω2e-ya3q+a4q+b1, 67
u¯1q=Gr0q+b1a5q-a6, 68
u¯2Rampy,q=1q2e-ya3q+a4q+b1, 69

and θ¯y,q is previously defined by Eq. (56). Now, the inverse Laplace transform is applied to Eq. (66) which gives

uy,t=ucy,t+u1tu2Rampy,t-Ht-1u2Rampy,t-1-u1y,tθy,t, 70

where

u¯cy,q=te-ya1-00tcost-τyp22sπτe-b1τ-y24s-a1sI12p2sτdsdτ, 71
u1t=a7ea6a5t+1a5δt, 72
u2(Ramp)y,t=te-ya1-00tt-τyp22sπτe-b1τ-y24s-a1sI12p2sτdsdτ, 73

and

p2=a4-a3b1,a7=Gr0a6+a5b1a52.

The symbol * presents the convolutions product and θy,t is depicted in Eq. (57). It is worth highlighting here that Eq. (70) characterize the exact solutions for the velocity field with ramped heating.

Solutions for velocity field with isothermal heating

Next, Eq. (45) is solved again for isothermal heating as

u¯Isoy,q=qq2+ω2e-ya3q+a4q+b1+Gr0q+b1a3q-a21qe-ya3q+a4q+b1-e-ya1q-a2q+b1, 74

For convenience in inverse Laplace transform, Eq. (74) can be written in more in suitable form as

u¯y,q=u¯cy,q+u¯1qu¯3Isoy,q-e-qu¯3Isoy,q-u¯1y,qθ¯y,q, 75

where in this case, terms θ¯y,q,u¯cy,q, u¯1q, and are already defined in Eqs. (60), (67), and (68) respectively. The term u¯3Isoy,q newly appeared is presented by

u¯3Isoy,q=1qe-ya1q+a2q+b1. 76

The solution for isothermal heating is obtained by taking the inverse Laplace transform of Eq. (75) which yield to

uy,t=uCy,t+u1tu3Isoy,t-Ht-1u3Isoy,t-1-u1y,tθy,t, 77

where

u3Isoy,t=e-ya1-00typ22sπτe-b1τ-y24s-a1sI12p2sτdsdτ, 78

and in this case, the terms θy,t ucy,t, u1t are previously defined in Eqs. (61), (71) and (72) respectively. This completes the solutions for the proposed problem.

Limiting cases

This section presents the limiting solutions by making α1 in Eqs. (57), (61), (70) and (77), for both velocity and temperature fields.

Limiting solutions for temperature

This subsection highlights limiting solutions for ramped and isothermal heating for the temperature field.

Limiting solution for temperature filed with ramped heating

Keeping in mind Eq. (50), employing limα1 to Eq. (51) which yield to

qθ¯y,q-θy,0=ϕ5ϕ4Preffd2θ¯y,qdy2+Qθ¯y,q, 79

where θ¯y,q is the classical temperature in the Laplace transform domain and θy,0 is the initial condition. After using the boundary conditions from Eq. (53), the analytical solution of Eq. (79) is given by

θ¯y,q=1q2e-ya0q-Q1-e-q1q2e-ya0q-Q1, 80

which can be written as

θ¯y,q=Ψ¯ya0,Q1a0,q-e-qΨ¯ya0,Q1a0,q, 81

where

Ψ¯ya0,Q1a0,q=1q2e-ya0q-Q1a0, 82

Upon inverting the Laplace transform, Eq. (81) yield to

θy,t=Ψya0,Q1a0,t-Ψya0,Q1a0,t-1Ht-1, 83

where

Ψya0,Q1a0,t=12eyQ1erfcya02t+Q1a0tt+ya0a02Q1+e-yQ1erfcya02t-Q1a0tt-ya0a02Q1. 84

Limiting solution for temperature field with isothermal heating

To find the classical solution for temperature field in case of isothermal heating, Eq. (79) is analytically solved by using the boundary condition Eq. (59) which gives

θ¯y,q=Θ¯ya0,Q1a0,q=1qe-ya0q-Q1a0, 85

The inverse Laplace transform is employed to Eq. (85) which yield to

θy,t=Θya0,Q1a0,t=12e-yQ1erfcya02t-Q1a0t+eyQ1erfcya02t+Q1a0t. 86

It is worth mentioning here that by assuming the thermal conductivity of Maxwell from41 and using numerical values of thermophysical properties of TiO2 nanoparticles From Table 2, the solutions obtained in Eq. (83), can be reduced by setting Q0, to that of Nandkeolyar et al.45 (Eq. 19). In the absence of heat generation, the solutions presented in Eqs. (83) and (86) from the present study and Eq. (19) from Nandkeolyar et al.45, for t=0.5,1.5 are computed and displayed in Fig. 2. This figure clearly indicates that the solutions are identical which validates the present solutions for the Temperature field.

Table 2.

Physical values of thermal properties of nanoparticles and base fluid.

Material Base fluid Nanoparticles
H2O F3O4 TiO
ρkg/m3 997.1 5200 425
CpJ/kgK 4179 670 6862
kW/mK 0.613 6 8.9538
βT×10-5(K-1) 21 1.3 0.9
σ 0.05 25,000 1×10-12
Pr 6.2
Figure 2.

Figure 2

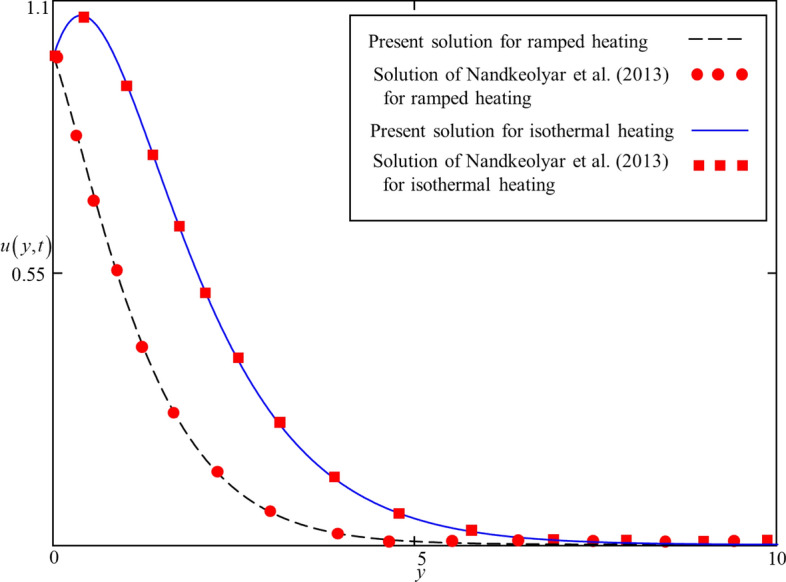

Comparison of present solutions presented in Eqs. (83), (86) and Nandkeolyar et al. .45, Eq. (19) for t=0.5,1.5.

Limiting solution for velocity field

The limiting solutions for the velocity field in case of ramped and isothermal heating is introduced in this subsection.

Limiting solution for velocity field with ramped heating

While taking into account Eqs. (50), (62) is reduced to classical form by applying limα1 to which yield to

ϕ0qu¯y,q-uy,0+βu¯q,t=ϕ1d2u¯y,qdy2-ϕ2Mu¯q,t+ϕ3Grθ¯q,t. 87

The analytical solution of Eq. (87) is determined by using Eq. (80) and boundary conditions from Eq. (64) as

u¯y,q=qq2+ω2+Gr0a8q+a91-e-qq2e-ya6q+a7-Gr0a8q+a91-e-qq2e-ya0q+Q1. 88

where as=a0-a6,a9=a7+Q1.

By using partial fraction, Eq. (88) can be reduced to the following form

u¯y,q=12q+iωe-ya6q+a7+12q-iωe-ya6q+a7+Gr0a8q+a91q2e-ya6q+a7-e-q1q2e-ya6q+a7-Gr0a8q+a91q2e-ya0q+Q1-e-q1q2e-ya0q+Q1. 89

In order to find the inverse Laplace transform, Eq. (89) can be written in a more suitable form as

u¯y,q=12Φ¯ya6,a7a6,-iω,q+12Φ¯ya6,a7a6,iω,q+F¯qΨ¯ya6,a7a6,q-e-qΨ¯ya6,a7a6,q-F¯qΨ¯ya0,Q1a0,q-e-qΨ¯ya0,Q1a0,q, 90

where

Φ¯ya6,a7a6,-iω,q=1q+iωe-ya6q+a7, 91
Φ¯ya6,a7a6,iω,q=1q-iωe-ya6q+a7, 92
Ψ¯ya6,a7a6,q=1q2e-ya6q+a7, 93
F¯q=Gr0a8q+a9, 94

and the function Ψ¯ya0,Q1a0,q is previously defined in Eq. (82). Applying the inverse Laplace transform to Eq. (90) which yield to

uy,t=12Φya6,a7a6,-iω,t+12Φya6,a7a6,iω,t+FqΨya6,a7a6,t-e-qΨya6,a7a6,t-1Ht-1-FqΨya0,Q1a0,t-Ψya0,Q1a0,t-1Ht-1, 95

where

Φya6,a7a6,-iω,t=eiωt2e-ya6a7a6-iωerfcya62t-a7a6-iωteya6a7a6-iωerfcya62t+a7a6-iωt,Φya6,a7a6,iω,t=eiωt2e-ya6iω+a7a6erfcya62t-iω+a7a6teya6a7a6-iωerfcya62t+iω+a7a6t,Ψya6,a7a6,t=12eya7erfcya62t+a7a6tt+ya6a62a7+e-ya7erfcya62t-a7a6tt-ya6a62a7,Fq=Gr0a8e-a9a8t, 96

and the function Ψya0,Q1a0,t is already presented in Eq. (84) .

Limiting solution for velocity field with isothermal heating

In order to reduce Eq. (62) to classical form for the velocity field with isothermal heating, Eq. (85) is used which yield to

u¯y,q=qq2+ω2+1qGr0a8q+a9e-ya6q+a7-1qGr0a8q+a9e-ya0q+Q1, 97

For the convenience in the inverse Laplace transform, Eq. (97) is reduced to the following form

u¯y,q=12q+iωe-ya6q+a7+12q-iωe-ya6q+a7+Gr0a81q1q+a9a8e-ya6q+a7-Gr0a81q1q+a9a8e-ya0q+Q1, 98

which can be written in a further simplified form as

u¯y,q=12Φ¯ya6,a7a6,-iω,q+12Φ¯ya6,a7a6,iω,q+Gr0a81qΦ¯ya6,a7a6,a9a8,q-Gr0a81qΦ¯ya0,Q1a0,a9a8,q, 99

where

Φ¯ya6,a7a6,a9a8,q=1q+a9a8e-ya6q+a7, 100
Φ¯ya0,Q1a0,a9a8,q=1q+a9a8e-ya0q+Q1, 101

and functions Φ¯ya6,a7a6,-iω,q and Φ¯ya6,a7a6,iω,q are given in Eqs. (91) and (92) respectively. Next, taking the inverse Laplace transform of Eq. (99), the exact solution for the classical velocity field in case of isothermal heating is given by

uy,t=12Φya6,a7a6,-iω,t+12Φya6,a7a6,iω,t+Gr0a80tΦya6,a7a6,a9a8,τdτ-Gr0a80tΦya0,Q1a0,a9a8,τdτ, 102

Besides this, the viscosity of Brinkman and thermal conductivity of Maxwell’s from41 are set in Eqs. (95) and (102). After making β0 and Q0, in Eqs. (95) and (102) with TiO2 nanoparticles are computed for t=0.5,1.5 together with Eq. (20) from Nandkeolyar et al.45 and highlighted in Fig. 3. It is found that these solutions are alike which shows the correctness of the present results.

Figure 3.

Figure 3

Comparison of present solutions presented in Eqs. (95), (102) and Nandkeolyar et al.45, Eq. (20) for t=0.5,1.5

Results and Discussion

The exact analytical solutions (solutions for ramped and isothermal heating) for temperature and velocity fields are computed and displayed in numerous graphs to study the impact of pertinent parameters such as fractional parameter α, volume concentration ϕ, shape effect of nanoparticles, thermal radiation Nr, heat generation Q, Brinkman parameter β, magnetic parameter M , and thermal Grashof number Gr. In order to provide a clear understanding, ramped and isothermal solutions are simultaneously plotted in Figs. 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 and 16. It is essential to underline that these graphs satisfy all the initial and boundary conditions. Moreover, for ramped heating time is chosen in 0<t<1 and for isothermal heating, it is selected as t>0. Precisely, for ramped heating time is chosen t=0.5 and for isothermal heating, it is taken t=1.5.

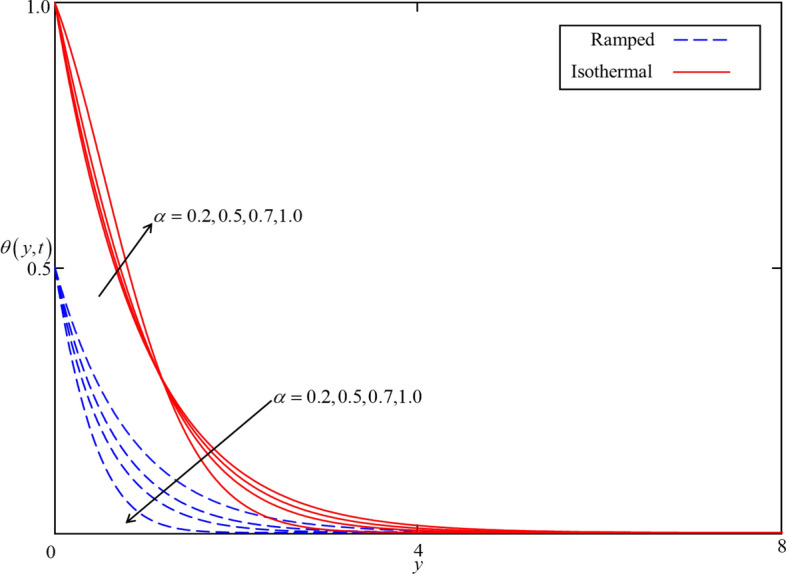

Figure 4.

Figure 4

Consequence of α on θy,t when ϕ=0.04,Nr=0.5, Q=0.5 in case of cylindrical shape nanoparticles.

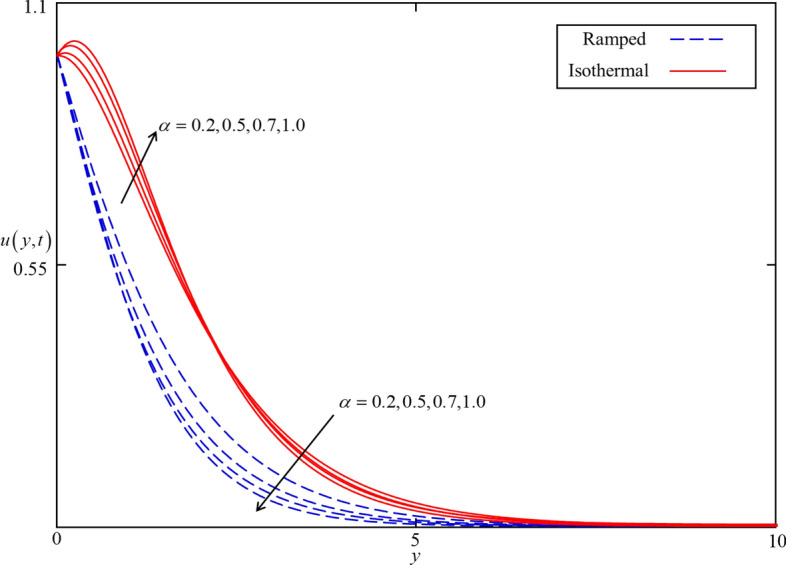

Figure 5.

Figure 5

Consequence of α on uy,t when ϕ=0.04, β=0.5, M=0.5, Gr=5, Nr=0.5, Q=0.5 and ωt=0.15 in case of cylindrical shape nanoparticles.

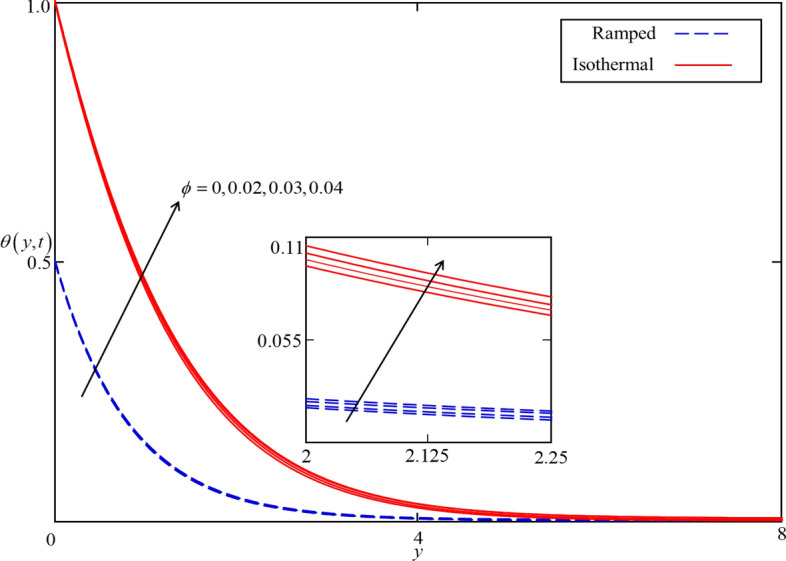

Figure 6.

Figure 6

Consequence of ϕ on θy,t when α=0.5,Nr=0.5, Q=0.5 in case of cylindrical shape nanoparticles.

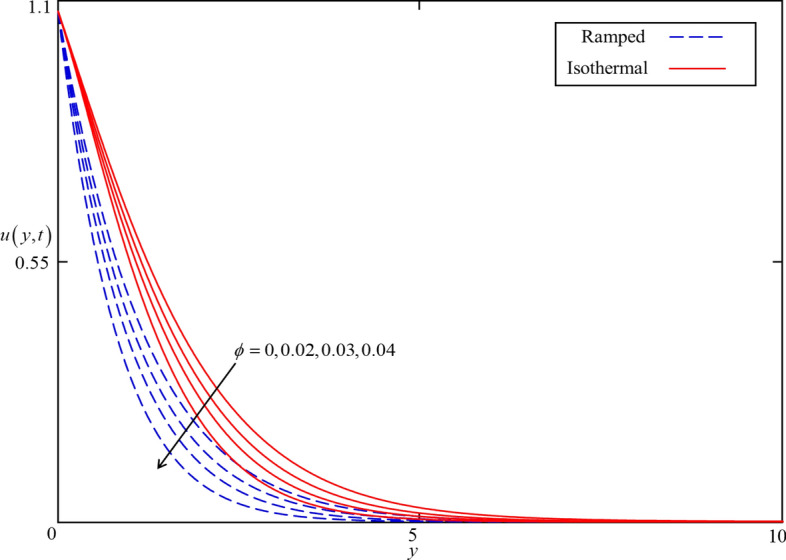

Figure 7.

Figure 7

Consequence of ϕ on uy,t when α=0.5, β=0.5, M=0.5, Gr=5, Nr=0.5, Q=0.5 and ωt=0.15 in case of cylindrical shape nanoparticles.

Figure 8.

Figure 8

Consequence of different shapes of nanoparticles on θy,t when α=0.5, ϕ=0.04, Nr=0.5, Q=0.5

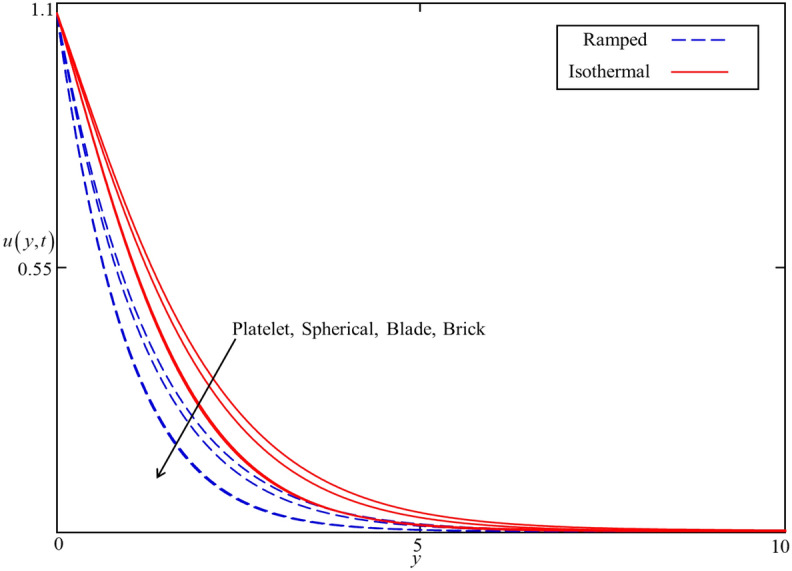

Figure 9.

Figure 9

Consequence of different shapes of nanoparticles on uy,t when α=0.5, ϕ=0.04, β=0.5, M=0.5, Gr=5, Nr=0.5, Q=0.5 and ωt=0.15.

Figure 10.

Figure 10

Consequence of Nr on θy,t when α=0.5, ϕ=0.04, Q=0.5 in case of cylindrical shape nanoparticles.

Figure 11.

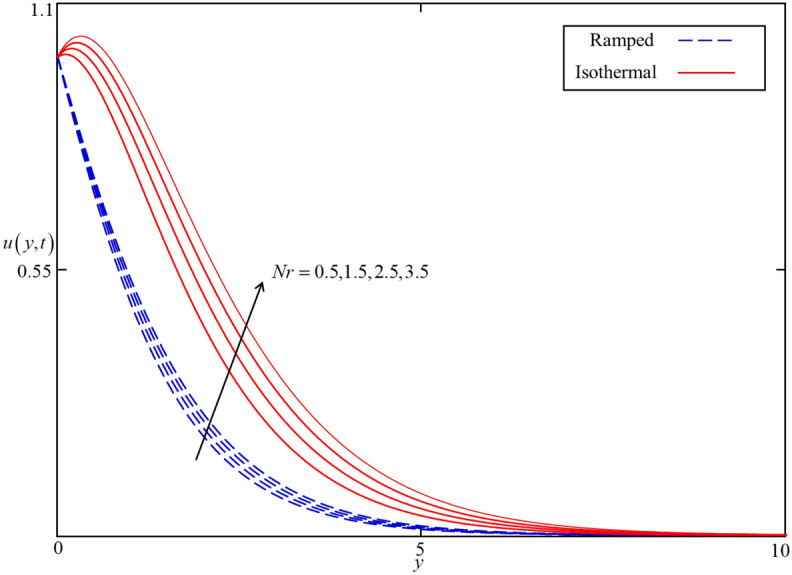

Figure 11

Consequence of Nr on uy,t when α=0.5, ϕ=0.04, β=0.5, M=0.5, Gr=5, Q=0.5 and ωt=0.15 in case of cylindrical shape nanoparticles.

Figure 12.

Figure 12

Consequence of Q on θy,t when α=0.5, ϕ=0.04, Nr=0.5 in case of cylindrical shape nanoparticles.

Figure 13.

Figure 13

Consequence of Q on uy,t when α=0.5, ϕ=0.04, β=0.5, M=0.5, Gr=5, Nr=0.5 and ωt=0.15 in case of cylindrical shape nanoparticles.

Figure 14.

Figure 14

Consequence of β on uy,t when α=0.5, ϕ=0.04, M=0.5, Gr=5, Nr=0.5, and ωt=0.15 in case of cylindrical shape nanoparticles.

Figure 15.

Figure 15

Consequence of M on uy,t when α=0.5, ϕ=0.04, β=0.5, Gr=5, Nr=0.5, and ωt=0.15 in case of cylindrical shape nanoparticles.

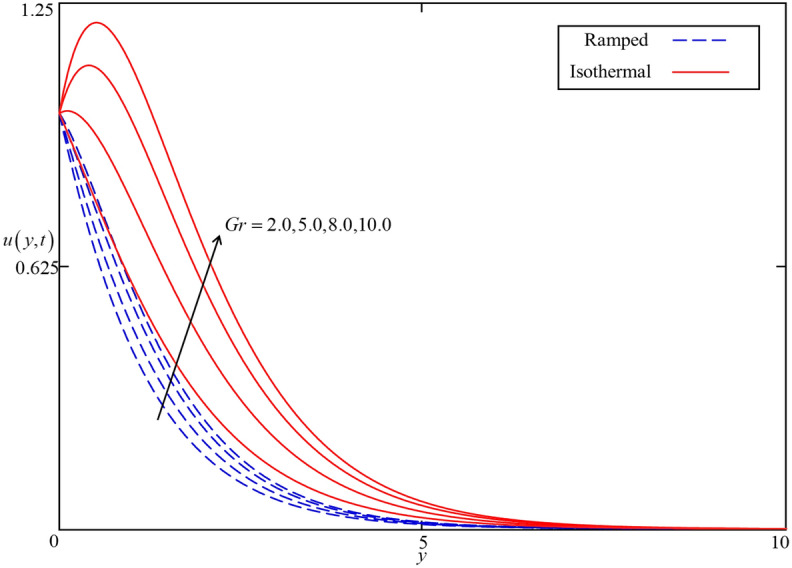

Figure 16.

Figure 16

Consequence of Gr on uy,t when α=0.5, ϕ=0.04, β=0.5, M=0.5, Nr=0.5, and ωt=0.15 for spherical s case.

Effects of flow parameters on both velocity and temperature fields

Figures 4 and 5 present the impact of α on temperature and velocity fields. In the case of isothermal heating, both the temperature and velocity field increase with increasing α near the heated plate. But this trend reverses at a certain point away from the plate. Physically this fact can be justified as α is increasing the thickness of thermal and momentum boundary layers gradually increasing and became thickest near the plate at α=1. However, away from the plate, the thermal and momentum boundary layers behave oppositely. In the case of ramped heating, the trend of temperature and velocity profile is straight forward. Increasing the value of α, decreasing the temperature and velocity fields. This is because the thickness of thermal and momentum boundary layers is inversely related to α in case of ramped heating. So, when α is increased, thermal and momentum boundary layers are gradually decreased as a result the temperature and velocity fields decreased. Additionally, as in Figs. 6 and 7 it can be observed that the temperature and velocity field are significantly affected by ϕ. It is found that the temperature filed increases with increasing values of ϕ for both ramped and isothermal heating. It can be clearly seen from Eq. (39) that an increment in ϕ corresponds to the enhancement in thermal conductivity of the nanofluid as a result the temperature profile increases. Furthermore, it can be seen in Fig. 4 that the velocity field decrease with increasing values of ϕ for both ramped and isothermal heating. This is due to the dynamic viscosity of nanofluid presented in Eq. (35). The dynamic viscosity is directly related to the volume concentration of nanoparticles. Increasing values of ϕ(0<ϕ0.04) leads to an increase in viscosity of the nanofluid and the fluid became thick. Hence, an increase in viscosity resists to nanofluid flow.

Figures 8 and 9 depict the comparison of temperature and velocity fields for different shapes of nanoparticles. It is noticed from Fig. 8 that the temperature field for blade shape nanoparticles is higher followed by platelet, spherical, and brick shaped nanoparticles due to the shape factor n involving in Eq. (39). Besides this, the velocity profile is higher for brick shape nanoparticles flowed by the blade, spherical and platelet shaped nanoparticles which depend on the values of shape constants a and b involving in Eq. (35). Meanwhile, the behavior of temperature and velocity fields for the thermal radiation parameter Nr is studied in Figs. 10 and 11. As expected, an increase in Nr results of an increase in both the temperature and velocity field as Nr indicates the proportional contribution of conduction heat transfer to the thermal radiation. Hence, the temperature field signifying an increasing trend. Furthermore, increasing Nr twist the rate of heat transfer to the nanofluid as a result the attractive forces holding the nanofluid molecule weaken as a result, decreasing the viscosity which accelerates the fluid velocity. Variations in temperature and velocity fields due to heat generation Q are depicted in Figs. 12 and 13, where Q is selected arbitrary 0.2, 0.5, 0.8, and 1.0. It is observed that both the temperature and velocity fields for ramped and isothermal heating increasing for increasing values of Q because the existence of heat generation causes an increment in the energy level due to which the thickness of thermal and momentum boundary grow at the oscillating boundary as a result the temperature and velocity field increases.

The impact of flow parameters which effect only the velocity field

The influence of the Brinkman type fluid parameter β on the velocity profiles for isothermal and ramped heating is displayed in Fig. 14. β is the magnitude of the drag force of a highly non-Darcy’s porous medium. The velocity fields for both isothermal and ramped heating decelerated with an increment in β because of a strong drag force. Hence, increment in β increase the drag forces which decelerate the velocity field. Meanwhile, the effect of the magnetic parameter M is illustrated in Fig. 15 on the ramped and isothermal velocity fields. It is revealed that the isothermal velocity is higher than the ramped velocity. The isothermal and ramped velocity fields decelerated together for greater values of M due to the applied magnetic field which results in the presence of intense Lorentz force. This force works as a dragging force exhibits persistent resistance to the nanofluid flow. Ultimately, the isothermal and ramped velocity filed dropped. But away from the plate, the Lorentz force became poor and nanofluid comes to rest. Besides this, the influence of thermal Grashof number Gr is highlighted in Fig. 16 for both ramped and isothermal heating. It is demonstrated in this figure that the velocity field increases with increasing Gr. The Gr shows the proportional strength of the buoyancy force to the viscous force. thereby, an increase in Gr leads to an increase in thermal buoyancy force. In the proposed problem, the convection flow of nanofluid driven by thermal buoyancy force is considered. As a result, it has a tendency to increase the velocity field in both ramped and isothermal heating cases.

Conclusion

This manuscript has been considered the MHD flow of Ferro-nanofluid near a vertical plate in the presence of thermal radiation, heat generation, and the shape effect of the nanoparticle. The oscillating boundary conditions together with isothermal and ramped heating have been taken at the solid boundary. The flow phenomenon has been modeled in the form of time-fractional Caputo-Fabrizio fractional derivatives. The model has been solved for the exact analytical solutions via the Laplace transform method. The obtained solutions for temperature and velocity field have been simultaneously plotted for ramped and isothermal heating. The results have been revealed that the temperature field for blade shape nanoparticles is higher followed by platelet, spherical and brick shaped nanoparticles due to shape factor n whereas the velocity profile is higher for brick shape nanoparticles flowed by the blade, spherical and platelet shaped nanoparticles which depend on the values of shape constants a and b. Moreover, the temperature and velocity fields increase with increasing values of α near the plate in case of isothermal heating. But away from the plate, this effect reverses. Besides this the temperature field increase with increasing ϕ. However, the velocity filed behaves opposite to this for ϕ. Meanwhile, the temperature and velocity fields increase with increasing Nr and Q. Finally, it has been noticed that the velocity field decreases for increasing β and M whereas it increases with increasing Gr. Furthermore, this work can be extended in the future by developing a non-linear model with fractional derivatives. Meanwhile, the fractional boundary layer flow can be taken in a channel and cylindrical tubes with new fractional operators (Supplementary information S1).

Supplementary Information

Supplementary Information (48.4KB, docx)

Acknowledgements

The authors would like to acknowledge Ministry of higher Education (MOHE) and Research Management Centre-UTM, Universiti Teknologi Malaysia (UTM) for the financial support through vote numbers 5F004, 07G70, 07G72, 07G76, 07G77, 08G33 and 5F278.for this research.

Author contributions

I.K. formulated the problem. A.Q.M transformed the problem into a dimensionless form. M.S. solved the problem and plotted the graphs. S.S. discussed the results. M.S and I.K. wrote the manuscript. S.S and A.Q.M. proofread the manuscript.

Competing interests

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Ilyas Khan, Email: i.said@mu.edu.sa.

Sharidan Shafie, Email: sharidan@utm.my.

Supplementary Information

The online version contains supplementary material available at 10.1038/s41598-020-78421-z.

References

  • 1.Chamkha AJ, Selimefendigil F. MHD free convection and entropy generation in a corrugated cavity filled with a porous medium saturated with nanofluids. Entropy. 2018;20(11):1–17. doi: 10.3390/e20110846. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.Selimefendigil F, Öztop HF. Mixed convection of nanofluid filled cavity with oscillating lid under the influence of an inclined magnetic field. J. Taiwan Inst. Chem. Eng. 2016;63(6):202–215. doi: 10.1016/j.jtice.2016.03.003. [DOI] [Google Scholar]
  • 3.Selimefendigil F, Öztop HF. Role of magnetic field and surface corrugation on natural convection in a nanofluid filled 3D trapezoidal cavity. Int. Commun. Heat Mass Transfer. 2018;95(7):182–196. doi: 10.1016/j.icheatmasstransfer.2018.05.006. [DOI] [Google Scholar]
  • 4.Selimefendigil F, Öztop HF. MHD Pulsating forced convection of nanofluid over parallel plates with blocks in a channel. Int. J. Mech. Sci. 2019;157(7):726–740. doi: 10.1016/j.ijmecsci.2019.04.048. [DOI] [Google Scholar]
  • 5.Selimefendigil, F., Öztop, H.F. Hydro-thermal performance of CNT nanofluid in double backward facing step with rotating tube bundle under magnetic field. Int. J. Mech. Sci. https://doi.org/10.1016/j.ijmecsci.2020.105876 (2020).
  • 6.Selimefendigil, F, Öztop, H.F. Effects of local curvature and magnetic field on forced convection in a layered partly porous channel with area expansion. Int. J. Mech. Sci. https://doi.org/10.1016/j.ijmecsci.2020.105696 (2020).
  • 7.Choi, S.U., Eastman, J.A. Enhancing thermal conductivity of fluids with nanoparticles. 1995, Argonne National Lab., IL (United States). pp. 99–105.
  • 8.Ellahi R, Zeeshan A, Hassan M. Particle shape effects on Marangoni convection boundary layer flow of a nanofluid. Int. J. Numer. Meth. Heat Fluid Flow. 2016;26(7):2160–2174. doi: 10.1108/HFF-11-2014-0348. [DOI] [Google Scholar]
  • 9.Farshad SA, Sheikholeslami M. Nanofluid flow inside a solar collector utilizing twisted tape considering exergy and entropy analysis. Renew. Energy. 2019;141(10):246–258. doi: 10.1016/j.renene.2019.04.007. [DOI] [Google Scholar]
  • 10.Sadiq MA, et al. Numerical simulation of oscillatory oblique stagnation point flow of a magneto micropolar nanofluid. RSC Adv. 2019;9(9):4751–4764. doi: 10.1039/C8RA09698H. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Alamri SZ, et al. Convective radiative plane Poiseuille flow of nanofluid through porous medium with slip: an application of Stefan blowing. J. Mol. Liq. 2019;273(1):292–304. doi: 10.1016/j.molliq.2018.10.038. [DOI] [Google Scholar]
  • 12.Ali F, Gohar M, Khan I. MHD flow of water-based Brinkman type nanofluid over a vertical plate embedded in a porous medium with variable surface velocity, temperature and concentration. J. Mol. Liq. 2016;223(11):412–419. doi: 10.1016/j.molliq.2016.08.068. [DOI] [Google Scholar]
  • 13.Saffarian MR, Moravej M, Doranehgard MH. Heat transfer enhancement in a flat plate solar collector with different flow path shapes using nanofluid. Renewable Energy. 2020;146(2):2316–2329. doi: 10.1016/j.renene.2019.08.081. [DOI] [Google Scholar]
  • 14.Hathaway D. Use of ferrofluid in moving-coil loudspeakers. Db-Sound Engineering Magazine. 1979;13(2):42–44. [Google Scholar]
  • 15.Gupta MD, Gupta A. Convective instability of a layer of a ferromagnetic fluid rotating about a vertical axis. Int. J. Eng. Sci. 1979;17(3):271–277. doi: 10.1016/0020-7225(79)90090-9. [DOI] [Google Scholar]
  • 16.Li Y, et al. Effects of anisotropic thermal conductivity and Lorentz force on the flow and heat transfer of a ferro-nanofluid in a magnetic field. Energies. 2017;10(7):1–19. [Google Scholar]
  • 17.Shah Z, et al. Influence of Cattaneo-Christov model on Darcy-Forchheimer flow of Micropolar Ferrofluid over a stretching/shrinking sheet. Int. Commun. Heat Mass Transfer. 2020;110:1–12. doi: 10.1016/j.icheatmasstransfer.2019.104385. [DOI] [Google Scholar]
  • 18.Kumar KA, et al. Effect of irregular heat source/sink on the radiative thin film flow of MHD hybrid ferrofluid. J. Therm. Anal. Calorim. 2020;139(3):2145–2153. doi: 10.1007/s10973-019-08628-4. [DOI] [Google Scholar]
  • 19.Abro, K.A., I. Khan, and J. Gómez-Aguilar, Heat transfer in magnetohydrodynamic free convection flow of generalized ferrofluid with magnetite nanoparticles. J. Thermal Anal. Calorimetry. 10.1007/s10973-019-08992-1 (2020).
  • 20.Khan Z, et al. Hydromagnetic flow of ferrofluid in an enclosed partially heated trapezoidal cavity filled with a porous medium. J. Magn. Magn. Mater. 2020;499(4):1–10. [Google Scholar]
  • 21.Bezaatpour M, Rostamzadeh H. Heat transfer enhancement of a fin-and-tube compact heat exchanger by employing magnetite ferrofluid flow and an external magnetic field. Appl. Therm. Eng. 2020;164(1):1–13. [Google Scholar]
  • 22.Jamaludin A, et al. Thermal radiation and MHD effects in the mixed convection flow of Fe3O4–water ferrofluid towards a nonlinearly moving surface. Processes. 2020;8(1):1–17. doi: 10.3390/pr8010095. [DOI] [Google Scholar]
  • 23.Aly AM, Ahmed SE. ISPH simulations for a variable magneto-convective flow of a ferrofluid in a closed space includes open circular pipes. Int. Commun. Heat Mass Transfer. 2020;110(1):1–20. [Google Scholar]
  • 24.Khan A, et al. Effects of wall shear stress on unsteady MHD conjugate flow in a porous medium with ramped wall temperature. PLoS ONE. 2014;9(3):1–12. doi: 10.1371/journal.pone.0090280. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Caputo M, Fabrizio M. A new definition of fractional derivative without singular kernel. Progr. Fract. Differ. Appl. 2015;1(2):1–13. [Google Scholar]
  • 26.Ali F, et al. Application of Caputo-Fabrizio derivatives to MHD free convection flow of generalized Walters’-B fluid model. Eur. Phys. J. Plus. 2016;131(10):1–10. doi: 10.1140/epjp/i2016-16377-x. [DOI] [Google Scholar]
  • 27.Khan I, Saqib M, Ali F. Application of time-fractional derivatives with non-singular kernel to the generalized convective flow of Casson fluid in a microchannel with constant walls temperature. Eur. Phys. J. Spec. Topics. 2017;226(16–18):3791–3802. doi: 10.1140/epjst/e2018-00097-5. [DOI] [Google Scholar]
  • 28.Khan I, Saqib M, Alqahtani AM. Channel flow of fractionalized H2O-based CNTs nanofluids with Newtonian heating. Disc. Contin. Dyn. Syst. S. 2019;13(3):769–779. [Google Scholar]
  • 29.Khan I, Saqib M, Ali F. Application of the modern trend of fractional differentiation to the MHD flow of a generalized Casson fluid in a microchannel: modelling and solution. Eur. Phys. J. Plus. 2018;133(7):1–10. [Google Scholar]
  • 30.Rajagopal K. On a hierarchy of approximate models for flows of incompressible fluids through porous solids. Math. Models Methods Appl. Sci. 2007;17(02):215–252. doi: 10.1142/S0218202507001899. [DOI] [Google Scholar]
  • 31.Fetecau C, Fetecau C, Imran M. On stokes problem for fluids of Brinkman type. Math. Rep. 2011;13(63):15–26. [Google Scholar]
  • 32.Qayyum M, et al. Analysis of unsteady axisymmetric squeezing fluid flow with slip and no-slip boundaries using OHAM. Math. Probl. Eng. 2015;2015(2):1–12. doi: 10.1155/2015/860857. [DOI] [Google Scholar]
  • 33.Jaluria Y. Natural convection, heat and mass transfer, in HMT. Beccles and London: Pergamon Press; 1980. [Google Scholar]
  • 34.Shah NA, Vieru D, Fetecau C. Effects of the fractional order and magnetic field on the blood flow in cylindrical domains. J. Magn. Magn. Mater. 2016;409(7):10–19. doi: 10.1016/j.jmmm.2016.02.013. [DOI] [Google Scholar]
  • 35.Sheikholeslami M. Numerical investigation for CuO-H2O nanofluid flow in a porous channel with magnetic field using mesoscopic method. J. Mol. Liq. 2018;249(1):739–746. doi: 10.1016/j.molliq.2017.11.069. [DOI] [Google Scholar]
  • 36.White, F., Fluid Mechanics (4th ed.). 1997, McGraw Hill Higher Education. New York.
  • 37.Anwar T, et al. Impacts of thermal radiation and heat consumption/generation on unsteady MHD convection flow of an oldroyd-B fluid with ramped velocity and temperature in a generalized darcy medium. Mathematics. 2020;8(1):1–18. doi: 10.3390/math8010130. [DOI] [Google Scholar]
  • 38.Saqib M, et al. Heat and mass transfer phenomena in the flow of Casson fluid over an infinite oscillating plate in the presence of first-order chemical reaction and slip effect. Neural Comput. Appl. 2018;30(7):2159–2172. doi: 10.1007/s00521-016-2810-x. [DOI] [Google Scholar]
  • 39.Khanafer K, Vafai K, Lightstone M. Buoyancy-driven heat transfer enhancement in a two-dimensional enclosure utilizing nanofluids. Int. J. Heat Mass Transf. 2003;46(19):3639–3653. doi: 10.1016/S0017-9310(03)00156-X. [DOI] [Google Scholar]
  • 40.Tiwari RK, Das MK. Heat transfer augmentation in a two-sided lid-driven differentially heated square cavity utilizing nanofluids. Int. J. Heat Mass Transf. 2007;50(9–10):2002–2018. doi: 10.1016/j.ijheatmasstransfer.2006.09.034. [DOI] [Google Scholar]
  • 41.Saqib M, et al. Recent advancement in thermopgycial properties of nanofluids and hybrid nanofluids: An overview. City Univ. Int. J. Comput. Anal. 2019;3(2):16–25. [Google Scholar]
  • 42.Saqib M, Khan I, Shafie S. Shape effect in magnetohydrodynamic free convection flow of sodium alginate-ferrimagnetic nanofluid. J. Thermal Sci. Eng. Appl. 2019;11(4):1–8. doi: 10.1115/1.4044201. [DOI] [Google Scholar]
  • 43.Shafie, S., A. Gul, I. Khan. Molybdenum disulfide nanoparticles suspended in water-based nanofluids with mixed convection and flow inside a channel filled with saturated porous medium. in AIP Conference Proceedings. 2016. AIP Publishing LLC.
  • 44.Sheikholeslami M, Shamlooei M, Moradi R. Numerical simulation for heat transfer intensification of nanofluid in a porous curved enclosure considering shape effect of Fe3O4 nanoparticles. Chem. Eng. Process. Process Intens. 2018;124(2):71–82. doi: 10.1016/j.cep.2017.12.005. [DOI] [Google Scholar]
  • 45.Nandkeolyar R, Das M, Pattnayak H. Unsteady hydromagnetic radiative flow of a nanofluid past a flat plate with ramped temperature. J. Orissa Math. Soc. 2013;975(1):15–30. [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary Information (48.4KB, docx)

Articles from Scientific Reports are provided here courtesy of Nature Publishing Group

RESOURCES
