Sulfamoylbenzamide-based Capsid Assembly Modulators for Selective Inhibition of Hepatitis B Viral Replication

Abstract

As the spread of infections caused by hepatitis B virus (HBV) threatens public health worldwide, investigations from multiple perspectives and of various mechanisms of action are urgently required to increase the HBV cure rate. Targeting the encapsidation of the nuclear capsid protein (core protein, HBc) has emerged as an attractive strategy for inhibiting the viral assembly process; however, a drug targeting this mechanism has not yet been approved. We synthesized novel sulfamoylbenzamides (SBAs) as capsid assembly modulators of HBV and found that the effects and safety profiles of compounds 3 and 8 have potential therapeutic applicability against HBV. The formation of tubular particles was time-dependent in the presence of 3, indicating a new mode of protein assembly by SBA compounds. Our findings provide a new entity for developing safe and efficient treatments for HBV infection.

Hepatitis B virus (HBV), a member of the Hepadnaviridae family, is an enveloped virus with a partial, circular DNA genome of ∼3.2 kb in length. Because acute or chronic hepatitis B (CHB) infections in humans can potentially proceed to cirrhosis and hepatocellular carcinoma, it has become one of the greatest global health concerns, with reports of over 257 million infection cases and 887 000 deaths by HBV annually.¹

The currently approved anti-HBV agents for managing CHB include PEGylated interferon alpha and nucleos(t)ide analogues.²⁻⁴ However, the current drugs cannot completely cure this disease, and lifelong treatments result in serious side effects and the emergence of drug resistance.^5,6 Moreover, an absolute cure for HBV infection has been regarded as unachievable, mainly because of the viral persistence reservoir, covalently closed circular DNA (cccDNA).^7,8 As an episomal minichromosome, cccDNA serves as a stable replication template for the transcription of viral RNA in infected human hepatocytes. Therefore, along with inhibitors targeting cccDNA,^9,10 different antiviral strategies, including the suppression of viral replication or the stimulation of the host immune response, have been introduced to control HBV infections.¹¹⁻¹³

In the exploration of promising antiviral targets among HBV proteins translated from mRNA transcripts, capsid protein (core protein, HBc) has been identified to be key in the regulation of viral infectivity.^14,15 Icosahedral capsid particles are constructed by the assembly of 120 HBc dimers around complexes of pregenomic RNA (pgRNA) and HBV DNA polymerase. It has been known that amino acids 1–149 within the full-length HBc of 183 amino acids are critical for the self-assembly process. Because the assembly of HBc strictly controls the replication of HBV, modulating or inhibiting encapsidation has emerged as an attractive antiviral target.¹⁶⁻¹⁸

There are two classes of small-molecule-based compounds targeting HBc (Figure 1).¹⁶⁻¹⁸ Class-I inhibitors, such as the heteroaryldihydropyrimidine (HAP) derivative, BAY 41-4109,¹⁹ promote HBc assembly and mislead dimers into irregular and abnormal formulations of capsid particles. Class-II inhibitors such as phenylpropenamides and sulfamoylbenzamides (SBAs), represented by AT-130²⁰ and NVR 3-778,²¹ respectively, disrupt encapsidation of pgRNA, thus constructing genetically empty, capsid-like particles. Although studies to develop efficient capsid assembly modulators (CAMs) to treat HBV infections have led to the release of several candidates currently in clinical trials, the need for more efficient and safe compounds remains unmet.

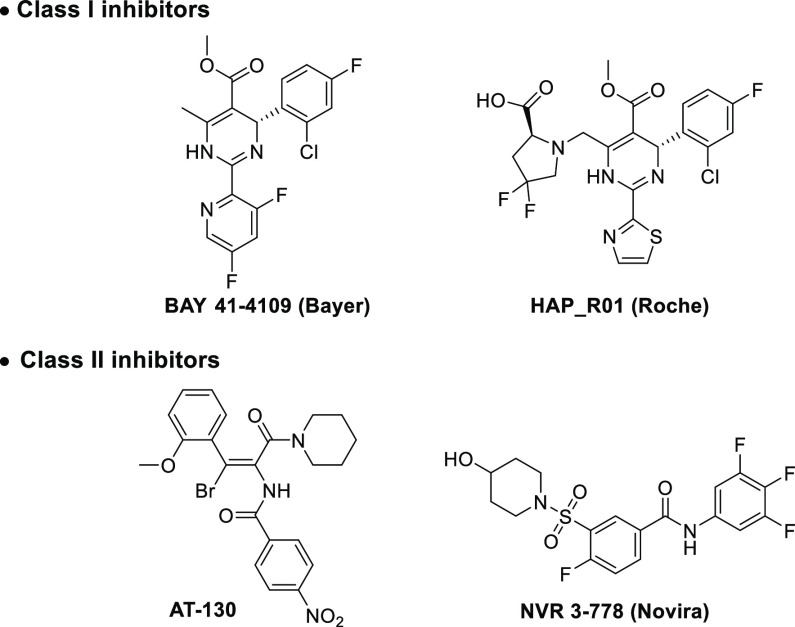

Figure 1.

Representative capsid assembly modulators.

Our prior efforts to improve anti-HBV activity starting from NVR 3-778 and HAP_R01 yielded a structurally related but more potent compound, KR-26556.²² Despite its cellular potency evidenced by reduced HBV DNA levels in HepAD cells, the present findings in HepG2.2.15 cells (Table 1, entry 15, EC₅₀ = 0.27 μM and CC₅₀ = 19.7 μM) revealed the need to develop more HBV-specific antiviral candidates. We aimed to synthesize more KR-26556 derivatives and identify alternative CAMs by investigating structure–antiviral activity relationships (SARs). We also explored the mode of protein assembly by transmission electron microscopy (TEM) to elucidate the undisclosed molecular mechanism of related compounds including KR-26556.

Table 1. Structure–Activity Relationships of the A Ring.

^aAntiviral effects of compounds. After 5 days of incubation with the compounds, HBV DNA was purified from the HepG.2.2.15 cell culture supernatants and subjected to real-time PCR.

^bCytotoxicity of compounds determined by cell viability assays after incubating HepG2.2.15 cells with compounds. Data are shown as the mean ± SD of three independent experiments. n.d.: not determined.

Table 1 shows that potency and selectivity values were higher for KR-26556 (15) than for NVR 3-778 (entries 15 and 16). This compound was found to be beneficial for maintaining both fluorine and amino groups in the central aromatic ring of 15. Therefore, we investigated the antiviral and cytotoxic effects of substituents in the A ring of KR-26556 for SAR studies (Figure 2).

Figure 2.

Structure of KR-26556 (15).

Although the 3- or 4-fluoro derivatives, compounds 1 and 2, were not as potent as trifluoro 15 (entries 1 and 2 vs 15), the improved cell viability in the presence of 1 and 2 led to an examination of the effects of other substituents on potency and cytotoxicity. Antiviral activity was more potent for the 3,4-difluoro compound 3 than for monofluoro compounds (entry 3 vs 1 and 2), with comparable EC₅₀ and CC₅₀ values as those of compound 15.

In contrast, among chlorine-substituted compounds 4–6, 5 and 6 had deleterious effects on both EC₅₀ and selectivity index (SI) values (entries 5 and 6). Notably, the 3-chloro-4-fluoro compound 4 had better antiviral activity than compounds 5 and 6, indicating the advantage of a para-fluoro group, which was also evident in the comparison of compounds 1 and 2.

We investigated the different functionalities at the meta-position of the A ring while retaining the para-substituted fluoride (entries 7–9). Difluoromethyl-substituted compound 8 selectively and efficiently inhibited HBV, whereas the trifluoromethyl group of compound 7 did not enhance the EC₅₀ and showed low antiviral selectivity (entries 7 and 8). Most noticeably, when the meta-position was replaced with a cyano group in compound 9, cell cytotoxicity was lost (CC₅₀ > 900 μM), despite having decreased antiviral potency compared with compound 8 (entry 9). Moreover, consistent with previous data, a similar series of compounds with chlorine at the para-position (entries 10 and 11) or 3-halo-4-trifluoro compounds (entries 13 and 14) lost their anti-HBV effects, and most were quite cytotoxic. Compound 12 had no cytotoxicity or antiviral effects (entry 12).

The SAR studies of the A ring revealed several features associated with potency and selectivity. Three fluorines, as in compound 15 and NVR 3-778, are not prerequisite for antiviral efficacy. We determined the importance of para-substituted fluorine atoms for the potent inhibition of HBV, which suggested the importance of incorporating substituents with appropriate size and polarity. In addition, meta-CN-substituted compounds 9 and 12 were essentially noncytotoxic, with the best SI for compound 9. These findings support further optimization studies and provide insights that are useful for improving the current HBV CAMs in terms of the enhanced SI value.

The molecular docking studies with the HBV core protein (PDB code: 5T2P) showed that the proposed binding mode of 3 was similar to those of the cocrystallized ligand and 15 in our previous study (Figure 3).²² The oxygen of the benzamide in 3 forms a key hydrogen bond with Trp102 (B chain), whereas Thr128 (C chain) forms additional hydrogen bonds with the nitrogen of the benzamide group. In addition, the piperidyl group of 3 points toward the solvent-exposed area. The amino group of the central aromatic ring in 3 notably enabled the advantageous hydrogen bonding with Tyr118.²² Finally, the difluoro-substituted phenyl group of 3 bound to the hydrophobic pocket formed by Pro25, Leu30, Thr33, Ile105, and Ser106 of the B chain and Val124 of the C chain.

Figure 3.

Predicted binding mode of compound 3 with the HBV core protein (PDB code: 5T2P). Red ribbons, B and C chains. Green dashed lines, hydrogen bonds. Key interaction residues are represented by stick models and labeled with three-letter amino acid codes for clarity.

To assess the effect of the series of compounds on the capsid assembly, we purified the recombinant HBc(1–149)-His protein for TEM analysis (Figure 4A). We initially tested whether this recombinant protein could self-assemble into nanosized spherical particles. We found that incubating HBc(1–149)-His in assembly buffer for 5 days resulted in the construction of spherical particles of 35.6 ± 2.6 nm in diameter (Figure 4B,C). Interestingly, the representative compound 3 facilitated the self-assembly of HBc(1–149)-His into mainly spherical (∼43 nm in diameter) and short rod-shaped particles (∼100 nm in length) after incubation for 12 h (Figure 4D). Some particles had irregular or immature shapes with nicks. Further incubation of proteins with compound 3 for 3 or 5 days resulted in the generation of longer tubular particles, eventually becoming rod-shaped particles with lengths ranging from nanometers to micrometers (Figure 4E,F). These results suggest that the anti-HBV activity of compound 3 is due to the stimulation of aberrant HBc particle formation.

Figure 4.

Effects of compound 3 on HBc self-assembly. (A) Purification of His-tagged HBc(1–149) protein. Total E. coli lysates or soluble fractions were prepared before (−) or after (+) isopropyl β-d-1-thiogalactopyranoside (IPTG) induction. Flow-through, wash, and eluted fractions of the sample on Ni-NTA columns were separated by SDS-PAGE. Imidz, imidazole. The HBc(1–149)-His protein is marked with an arrow on the right side of the Coomassie blue-stained gel. (B–F) TEM analysis. (B) HBc(1–149)-His protein (150 μM) incubated without compounds at 4 °C for 5 days. (C) Rectangle area in panel B. HBc(1–149)-His protein (150 μM) incubated with compound 3 (30 μM) for (D) 12 h, (E) 3 days, and (F) 5 days. Scale bar, 200 nm.

Structurally, the compounds in Table 1 are typically class-II capsid assembly modulators, SBAs. However, the structures of capsid particles for class-II compounds reportedly produce only capsid-like spherical particles without the viral genome.²³ In contrast, the class-I capsid inhibitor, BAY 41-4109, has a unique tubular ensemble like compound 3.²⁴ It is plausible that slight changes in the structures may result in different thermodynamic outcomes of capsid assembly. The different morphological consequences of the same SBA series of molecules indicated a need to explore the molecular mechanism of each compound to understand its exact mode of action.

To obtain further insight into the binding-derived outcomes in the course of dimer assembly, we predicted the conformational changes of unliganded/liganded AB dimers of HBc through molecular dynamics (MD) simulations. Simulations at 50 ns revealed that the conformation considerably differed between the AB dimer structure and the unliganded X-ray crystal structure (Figure 5). Further analysis of the structural changes of AB dimers in the presence of bound BAY 41-4109, HAP_R01, and NVR 3-778 revealed distinctive changes in their dimeric conformations (Figure S12B–D). On the basis of the dynamics of the protein conformations determined by MD simulations, the apparent changes in the conformations of the AB dimer and the degree of α-helix flexibility induced by compound 3 possibly perturbed the original interactive angles between monomers, eventually triggering the atypical assembly of viral capsid particles.

Figure 5.

Structural comparison of AB dimers. Overlays of the AB dimer bound to compound 3 on molecular dynamics simulation with the X-ray crystal structure for HBc alone.

We pharmacologically assessed the active compounds 3 and 8 based primarily on their anti-HBV activity (EC₅₀ of ∼0.3 μM) in vitro and secondarily on the selectivity (SI > 50). Table 2 summarizes the results. Both compounds only minimally inhibited the metabolic activity of cytochrome P450 (CYP) with IC₅₀ > 10 μM against five major CYP isozymes (CYP1A2, CYP2C9, CYP2C19, CYP2D6, and CYP3A4) but did not significantly bind to hERG (IC₅₀ > 10 μM), indicating that both compounds were minimally hepatotoxic or cardiotoxic at their antiviral concentrations. In addition, liver microsomal stability tests showed that 67.9 and 68.1% of compound 3 remained without degradation, resulting in half lives of 52.0 and 74.4 min in rat and human liver microsomes, respectively. In contrast, only 54.1 and 40.5% of compound 8 was intact with shorter half lives (29.3 and 30.6 min in rat and human microsomes, respectively), clearly emphasizing the metabolic instability of compound 8 compared with compound 3. Additionally, both compounds were stable in rat and human plasma. Compounds 3 (84.6 and 93.6%) and 8 (99.6 and 100.0%) were detected even after 4 h of incubation at 37 °C. The protein binding analysis showed that the bound fraction of compound 3 was 92.7% in rat plasma and 96.5% in human plasma, whereas compound 8 gave 89.2 and 97.1%, respectively.

Table 2. Safety and Pharmacokinetic Profile of Compounds 3 and 8In Vitro.

	3	8
CYP inhibition (IC50, μM)a
1A2	>100.0	45.5
2C9	25.0	25.2
2C19	18.3	19.0
2D6	29.3	26.7
3A4	41.0	20.8
cardiotoxicity (IC50, μM)
hERG ligand binding assay	50.0	>10
liver microsomal phase-I stabilityb
rat (%)	67.9 ± 0.4	54.1 ± 2.3
human (%)	68.1 ± 2.5	40.5 ± 3.2
rat (t1/2, min)	52.0 ± 2.2	29.3 ± 0.7
human (t1/2, min)	74.4 ± 4.5	30.6 ± 0.8
plasma stabilityc
rat (%)	84.6 ± 2.6	99.6 ± 6.0
human (%)	93.6 ± 4.2	100.0 ± 11.1
plasma protein bindingd
rat (%)	92.7 ± 2.6	89.2 ± 2.7
human (%)	96.5 ± 1.2	97.1 ± 0.6

^aIC₅₀ (μM) in human liver microsomes determined using cocktail substrate assays.

^bLiver microsomal phase-I stability (% remaining after 30 min).

^cRatio (%) remaining after 4 h of incubation at 37 °C.

^dPlasma protein binding rate (%). Assay conditions are described in the Supporting Information. All data are shown as the mean ± SD; n = 3 for all.

To clarify the pharmacokinetic (PK) properties of compounds 3 and 8in vivo, the time courses of plasma concentrations of the two compounds were assessed in male Sprague–Dawley (SD) rats, and Table 3 summarizes the results. After intravenous (I.V.) administration, the plasma clearance of compound 3 was moderate at 2.1 L/h/kg with a volume distribution of 2.9 L/kg. The mean terminal half life and area under the plasma concentration–time curve from time zero to infinity (AUC_∞) of compound 3 were 1.2 h and 2.5 μg·h/mL, respectively. The clearances of compound 8 (2.2 L/h/kg) and AUC_∞ (2.3 μg·h/mL) were similar to those of compound 3, in contrast with the higher volume of distribution (3.6 L/kg) and the longer half life (2.6 h). When compound 3 (5 mg/kg) was administered orally (P.O.), the maximum concentration (C_max) was 0.48 μg/mL, and the level of exposure (AUC_∞) was 2.10 μg·h/mL, which afforded a high oral bioavailability of 84.2%. In contrast, the estimated oral bioavailability of compound 8 was moderate at 49.9%, corresponding more to the lower C_max (0.28 μg/mL) and AUC_∞ (1.23 μg·h/mL) compared with compound 3.

Table 3. In Vivo Pharmacokinetic Parameters of Compounds 3 and 8 in SD Male Rats^a.

	3		8
parameterb	I.V. (5 mg/kg)c	P.O. (5 mg/kg)d	I.V. (5 mg/kg)c	P.O. (5 mg/kg)d
Tmax (h)	N/A	1.67 ± 2.02	N/A	1.33 ± 0.58
Cmax (μg/mL)	N/A	0.48 ± 0.39	N/A	0.28 ± 0.15
T1/2 (h)	1.22 ± 0.07	3.84 ± 0.20	2.55 ± 0.33	5.16 ± 1.16
AUClast (μg·h/mL)	2.45 ± 0.51	2.08 ± 0.33	2.31 ± 0.15	1.15 ± 0.53
AUC∞ (μg·h/mL)	2.50 ± 0.48	2.10 ± 0.32	2.33 ± 0.15	1.23 ± 0.57
CL (L/h/kg)	2.05 ± 0.40	N/A	2.16 ± 0.14	N/A
Vss (L/kg)	2.88 ± 0.85	N/A	3.59 ± 0.82	N/A
Ft (%)	N/A	84.17	N/A	49.94

^aDetailed pharmacokinetics of compounds 3 and 8 are described in Supporting Information.

^bValues are shown as the mean ± standard deviation of at least three independent experiments.

^cParameters from intravenous administration.

^dParameters from oral administration.

Scheme 1 summarizes the synthesis of compounds 1–3 and 5–14 initiated with amine protection. Chlorosulfonylation at position C5 was accomplished by incubation with chlorosulfonic acid at 170 °C for 72 h. The resulting carboxylic acid with a chlorosulfonyl group at C5 was further reacted with piperidin-4-ol. Amide intermediates were obtained via coupling of acid 16 with various amines using 1-[bis (dimethylamino)methylene]-1H-1,2,3-triazolo[4,5-b]pyridinium 3-oxide hexafluorophosphate (HATU) and N,N-diisopropylethylamine (DIPEA) in dimethylformamide (DMF). Finally, aqueous 1 N NaOH was added in excess amounts to obtain the desired product.

Scheme 1. Synthetic Route for Compounds 1–3 and 5–15.

Reagents and conditions: (a) trifluoroacetic anhydride, CH₂Cl₂, 0–25 °C, 10 h (93%); (b) ClSO₃H, 0–170 °C, 72 h; (c) piperidin-4-ol, DIPEA, dioxane/H₂O (10:1), 25 °C, 2 h (34%, two-step yield); (d) HATU, DIPEA, amine, DMF, 25–60 °C, 12–36 h; (e) 1 N NaOH (aq.), MeOH, 25 °C, 2 h (4–32%, two-step yield).

Compound 4 was synthesized according to Scheme 2 but with an additional step to prepare the amide. To obtain the acid chloride intermediate, thionyl chloride was heated with carboxylic acid 16 at 80 °C for 2 h. Amine was added to the resulting acid chloride in tetrahydrofuran (THF) to generate the desired amide bond.

Scheme 2. Synthetic Route for Compound 4.

Reagents and conditions: (a) SOCl₂, 80 °C, 2 h; (b) 3-chloro-4-fluoroaniline, DIPEA, THF, 25 °C, 15 h (20%, two-step yield); (c) 1 N NaOH (aq.), 25 °C, 2 h (24%).

In summary, we developed new HBV capsid assembly modulators, compounds 3 and 8, and then evaluated their anti-HBV potency (EC₅₀), selectivity (SI) in vitro, and pharmacokinetics (PK) in vitro and in vivo. The findings showed that both compounds specifically inhibited HBV replication with validated PK properties. The mode of action of compound 3 showed the time-dependent formation of tubular particles, and computational studies sequentially revealed the origins of this phenomenon. However, the detailed mechanism of abnormal assembly triggered by compound 3 remains elusive because of the high complexity during the assembly process. Our results provide insight into pathways requiring further study and develop novel capsid assembly modulators with the desired potency and safety.

Glossary

Abbreviations

AUC_last (μg·h/mL)

area under the plasma concentration–time curve from time zero to time of last measurable concentration

AUC_∞ (μg·h/mL)

area under the plasma concentration–time curve from time zero to time infinity

F_t (%)

bioavailability

CL (L/h/kg)

total clearance from plasma

I.V.

intravenous

P.O.

per os

T_max (h)

time of maximum drug concentration

C_max (mg/mL)

maximum plasma concentration

T_1/2 (h)

terminal half life

V_ss (L/kg)

steady-state volume of distribution

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsmedchemlett.0c00606.

• Experimental procedures for biological assays, ligand docking studies, molecular dynamics simulations, and synthetic procedures and characterization data for presented compounds, including the spectral copies of ¹H and ¹³C NMR spectra (PDF)
