Treating Hepatobiliary Cancer: The Immunologic Approach

Abstract

Hepatobiliary cancer comprises a heterogeneous group of malignancies in which the standard treatments for advanced disease are minimally effective and evolve slowly over time. Like the majority of gastrointestinal cancers, with some notable exceptions, the impact of immune-based approaches is yet to be experienced. Notwithstanding this, the etiological background of hepatobiliary cancer – overlapping in almost every known causative or associated factor with inflammation – provides a strong clue that these approaches may have an impact on this group of diseases. This review seeks to put the management of hepatobiliary cancers in the context of its inflammation-based etiology, with the aim of pointing to the therapeutic opportunities in immune-based approaches currently entering the clinic or those that are about to do so.

Introduction

The term hepatobiliary cancer refers to primary malignancies, which develop in the liver, either hepatocellular carcinoma (HCC), or the intra- and extra-hepatic biliary ductal system giving rise to biliary tract carcinomas (BTC). Hepatobiliary cancers have in common trends in global prevalence where striking peaks in incidence in certain regional hotspots contrast with relative rarity in western countries. For example, gallbladder cancer is a leading cause of cancer mortality in Chile but has an incidence of approximately in 5,000 people in the United States [1]. The practical consequence of this is that standard of care evolves slowly with a general paucity of randomized studies. For advanced metastatic disease, the modest standard of care comprises either sorafenib (for HCC) or gemcitabine-based chemotherapy (for BTC), based on the so-called SHARP and ABC-02 trials respectively [2, 3]. Beyond that there is no outright standard second-line option and clearly there is an unmet need here to improve the treatment options at every stage for patients with this group of malignancies.

The past number of years have seen much progress for immune-based approaches in solid tumor malignancies, with FDA approvals for various strategies, including dendritic cell vaccination as well as so-called immune checkpoint inhibition [4–6]. The next frontier is for these treatments to prove themselves in diseases that have thus far proved refractory. So far, with notable exceptions, this has included cancers of the gastrointestinal tract, including hepatobiliary cancers as a group. One of the first studies evaluating PD1/programmed death ligand (PD-L1)-directed therapy was disappointing from a GI cancer viewpoint [7]. Similarly negative results for GI cancers were seen in other studies of checkpoint inhibition when used as a single modality [8–10].

Inflammation and Predisposition to Hepatobiliary Cancer

The causative link between inflammation and cancer development stretches back to the 19th-century observations of Rudolph Virchow. Chronic inflammation can greatly facilitate cancer development through a number of means, culminating in an immunosuppressed microenvironment containing dysfunctional “exhausted” T cells, high expression of inhibitory receptors (e.g., CTLA4) and cytokine milieu weighted towards suppression versus activation [11, 12]. This broad and sometimes paradoxical relationship between cancer and inflammation is particularly relevant in hepatobiliary cancers, a group of malignancies whose predominantly associated predisposing conditions have chronic inflammation as their common underlying pathological denominator (Fig. 1). The dominant known risk factor for HCC is cirrhosis induced by long-standing inflammation from a variety of causes – viral hepatitis, environmental factors such as alcohol, metabolic syndromes and, more appreciably, non-alcoholic steatohepatitis. Similarly, for biliary tract cancers gallbladder carcinoma – the most common subtype of BTC in the United States – cholelithiasis-induced chronic inflammation, whereas – worldwide – infestation of the biliary ducts by parasites or persistent hepatolithiasis are important predisposing factors for intrahepatic cholangiocarcinoma (ICC) [13]. In the United States and Europe, primary biliary cirrhosis and sclerosing cholangitis are all established risk factors for BTC, as are causes of intrahepatic inflammation, for example, obesity [14]. Recent studies have linked liver disease associated with the same increasing incidence of chronic hepatitis C virus infection, which explains much of the increase in HCC rates with ICC [15].

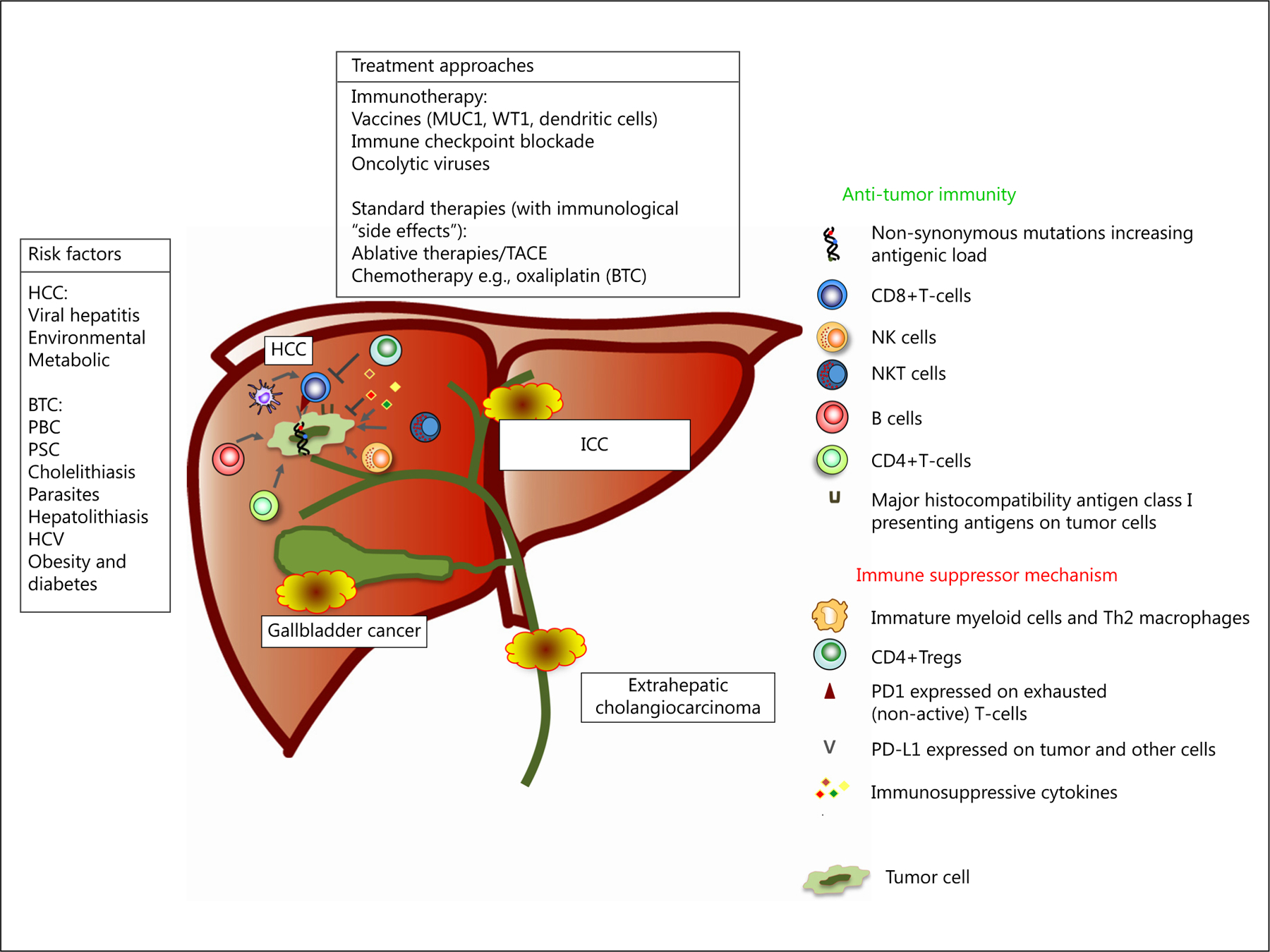

Fig. 1.

Immunological events described in hepatobiliary cancer: risk factors, immune-based approaches, immune-activating and immunosuppressive events.

Immunogenicity of Hepatobiliary Cancer

The acknowledgement of an immune role in the etiology of hepatobiliary cancer is important because it raises the possibility of an immune-based remedy where the predisposition and pathogenesis can be manipulated for therapeutic gains. The success of immune checkpoint inhibition is dependent upon the presence of an existing endogenous anti-tumor immune response. Spontaneous immune responses including T-cell responses [16] as well as humoral responses to different tumor-associated antigens [17] have been described in HCC. A number of studies have described that tumor infiltrating CD4+ regulatory T-cells correlate with poor outcome in patients who undergo surgical resection [18, 19]. Likewise, spontaneous immune responses also occur in BTC. This was illustrated in a dramatic manner by Tran and colleagues who performed whole-exomic-sequencing on the resected tumor of a patient with metastatic chemo-refractory cholangiocarcinoma [20]. By generating tandem minigene constructs of each of the somatic tumor mutations and co-culturing with expanded populations of isolated tumor infiltrating lymphocytes (TIL), they identified a reactive population of CD4+ cells, an enriched population of which the investigators were able to adoptively transfer to produce tumor regression. It has been postulated that the degree to which these anti-tumor responses exist is related to the mutagenic burden of the tumor. Hepatobiliary cancers in general are not highly mutated. In HCC, the median number of mutations is 39 [21]. The number is similarly low in BTC. Whole-exome sequencing of 239 cases of BTC revealed median numbers of mutations across the ICC, extrahepatic cholangiocarcinoma and gallbladder cancer subtypes of 39, 35, and 64 [22]. This relatively average degree of mutagenicity in the setting of spontaneous anti-tumor immunity challenges somewhat the direct relationship between mutagenicity and immunogenicity, which is clearly relevant but not absolute. Indeed, Tran and colleagues have recently suggested that this relationship is more nuanced, with the finding of immunoreactive TIL even in the setting of low mutational burden [23].

Perhaps the best indicator of an existing antitumor immunity is the presence of TIL. In HCC, the presence of TIL has been shown to be prognostic [24, 25]. In BTC, the prevalence and prognostic relevance of TIL have also been documented. Sabbatino et al. [26] evaluated lymphocyte infiltration in 27 cases of ICC. All tumors had TIL, and this correlated with HLA expression. Nakakubo et al. [27] investigated the significance of TIL presence in 110 resected gallbladder specimens and found that both CD4+ and CD8+ T cell infiltration correlated with decreasing tumour invasion and survival. Goeppert et al. [28] evaluated immune cell infiltration in 375 cases of BTC following resection. Approximately half the number of patients had some degree of TIL and this was also found to correlate with survival. Interestingly, patients who had higher total regulatory T lymphocyte counts had a better survival outcome. The prognostic value of Tregs in other GI tumor types has been varying in terms of whether it was a favorable or adverse factor [29].

Another method of immune evasion by tumors is achieved by changes in the expression downregulation of MHC I [30–32]. HCCs express low levels of MHC class I molecules in addition to costimulatory molecules [33]. Similarly, in BTC, Goeppert et al. [34] analysed the impact of MHC expression on survival in a large series of patients (n = 334) as well as the relationship of this to TIL. MHC I expression was assessed semi-quantitatively and divided into 2 groups of high and low expression. There was a trend for higher MHC I expression in lower disease stages and an association between MHC I expression and the number of TIL. Interestingly, the investigators found that associations differed based on the BTC subtype, with the prognostic significance of MHC I expression, being by trend stronger in extrahepatic disease compared with intrahepatic disease, suggesting that mechanisms of immune escape may vary with anatomical subtype.

In addition to evasive mechanisms, tumors have the ability to suppress antitumor immunity in a variety of ways. Myeloid-derived suppressor cells, a heterogeneous cell population that suppress T-cell responses, have been shown to accumulate in the blood of patients with hepatobiliary malignancies [35, 36]. A separate mechanism results from the expression by tumors of PD-L1, which also inhibits T-cell reactivity. PD-L1 is heavily expressed in HCC and has been shown to be of prognostic significance [37, 38]. Similarly, in BTC, Ye et al. [39] evaluated the expression of PD-L1 and its ligand PD-1 in n = 31 surgically resected cases in addition to the corresponding cancer-adjacent tissues. Expression of PD-L1 was found to be upregulated in cholangiocarcinoma tissues compared with the cancer-adjacent tissues. Tumor-related PD-L1 expression was significantly correlated with both tumor differentiation and pTNM stage and was inversely correlated with CD8+ tumor-infiltrating lymphocytes. In the analysis by Sabbatino et al. [26] 8 of 27 ICC cases expressed PD-L1.

Translational Immune-Based Approaches in Hepatobiliary Cancers

Immunotherapy has been tested in hepatobiliary cancers for many years, particularly HCC. Most studies in the past have either used cytokine-based or antigen-based approaches [35]. While these studies have generally proven to be safe with induction – in peripheral blood or serum– of tumor-specific immune responses, a majority have failed to show that this translates into clinical efficacy. In more recent times, however, evidence of efficacy has been demonstrated in a number of immune modalities, mainly in HCC.

Hepatocellular Carcinoma

The use of immune-based approaches is especially attractive for HCC, given the invariable underlying existence of cirrhosis and related problems such as thromocytopenia. The development of conventional cytotoxic regimens, particularly those requiring hepatic metabolism, is therefore an additional challenge in this cancer over others. The most promising immune-based approaches tested in HCC have been oncolytic viruses and immune checkpoint inhibitors. The use of oncolytic virus as a treatment strategy in HCC is a recent development. JX-594 is an oncolytic poxvirus modified by the insertion of β-galactosidase, a surrogate marker for the detection of viral gene expression and human GM-CSF to stimulate anti-tumor immune responses. The vaccinia virus replicates in cancer cells dependent on cellular thymidine kinase activity [40]. Intra-tumoral application of JX-594 was shown to be safe in a phase I study in HCC [41]. Results from a second study in 30 patients with advanced HCC were subsequently reported in which patients were randomized for treatment with low-dose (10⁸ PFU) or high-dose (10⁹ PFU) JX-594 administered by intra-tumoral injection [42]. Objective responses rates were 15% in both groups and an intrahepatic disease control of 50% was achieved. It should be noted that disease control rates were equivalent in injected and distant untreated tumors suggesting the presence of a systemic immune response. There was a clear dose relationship with regard to overall survival (6.7 months in the low and 14.1 months in the high dose). Immune-monitoring studies demonstrated that at least 11 of 16 patients developed HCC-specific antibody responses as determined by the analysis of complement-dependent cytotoxicity of patients’ serum against HCC cell lines. Cellular immune responses were studied by ELISpot analysis against β-gal and they demonstrated the induction of β-gal specific T cells, which were found in one patient 18 months after treatment.

The other strategy that has shown promise in HCC recently is immune checkpoint inhibition. Tremelimumab – a fully human monoclonal antibody that binds to CTLA-4 expressed on the surface of activated T lymphocytes and results in inhibition of B7-CTLA-4-mediated downregulation of T-cell activation – was initially tested in a pilot clinical trial in 20 patients with advanced HCC and HCV infection [43]. Tremelimumab, at a dose of 15 mg/kg every 90 days i.v., was tolerated well and showed evidence of activity. Three out of 17 evaluable patients developed confirmed partial responses and 10 patients had stable disease as the best response to treatment. HCV-specific T-cell responses were studies conducted in these patients as a surrogate marker for the anti-CTLA4-induced immune responses. Recently, preliminary results for a representative agent of the other most prominent class of immune checkpoint inhibitors currently in clinic, PD1 blockade, were presented [44]. In this study, n = 47 patients with preserved liver function but advanced HCC were treated with nivolumab, with impressive, preliminary evidence of activity. Out of 39 evaluable patients, there were 2 complete responses and 7 partial responses.

One of the unique features of HCC is the reliance upon interventional radiologic procedures in everyday patient management, either for the purposes of curative intent (heat-based or cryo-ablation) or disease control (TACE). Systemic therapy plays a comparatively modest role. Following ablation, tumor antigens from necrotic tumor are taken up by antigen-presenting cells (mainly DCs), resulting in activating tumor-specific immune responses [45, 46]. Ablated tumor tissue has been shown to promote DC maturation [47, 48]. A tumor-specific immune response may prevent recurrent disease in addition to treating distant metastases. Several preclinical and clinical studies have documented an increase in peripheral immunity following ablation [47, 49–52]. We are currently conducting a study evaluating subtotal RFA in combination with anti-CTLA4 therapy (NCT01853618) in patients with HCC and BTC. Provisionally, this approach is feasible and safe, with some early evidence of efficacy, which needs to be confirmed with more number of patients and more mature follow-up [53].

Biliary Tract Carcinomas

In terms of published clinical data for immune approaches in BTC, the experience is dominated by peptide vaccines. These small studies have been well tolerated without showing a strong signal of efficacy [54, 55]. For example, Aruga et al. [56] conducted a small phase I clinical trial evaluating multiple-peptide vaccination for patients with advanced BTC. Peptide-specific T-cell immune responses and disease stability were observed in some patients. Dendritic cell–based vaccines have also been evaluated, most commonly in combination with standard modalities, which complicates assessment of efficacy [57, 58]. The experience with checkpoint inhibitors is very preliminary. Documented response to anti-CTLA-4 therapy has been observed, manifesting as a delayed response after initial disease progression [59]. The early data for anti-PD1 inhibition has been recently presented, showing encouraging evidence of efficacy, and which seems consistent with use of this agent in other solid tumor studies [60].

One of the advantages of immune-based approaches is the potential role of their combination with standard therapies – cytotoxic agents, radiation or interventional radiologic procedures [61]. Certain chemotherapeutics can activate rather than suppress the immune system and a robust immune response is a necessary component determining tumor response [62]. Gemcitabine is a nucleoside analogue that is part of the standard treatment, and probably the most common chemotherapeutic agent used in BTC [3, 63]. The immune effects of gemcitabine have been studied perhaps more than for any other drug used in GI cancer. Its effects on the immune system are diverse [61]. With regard to BTC, Koido et al. [64] demonstrated that in ICC cells isolated from a patient with malignant ascites, immunogenic modulation of the cells could be induced by gemcitabine with the upregulation of MHC class I and II, calreticulin – a modulator or immunogenic cell death – MUC1 and WT1 mRNA [64]. Interestingly, the authors found that gemcitabine also induced the upregulation of immunosuppressive PD-L1, suggesting a potential rationale for combination therapy.

Conclusions

The advantages of immune-based treatments are clear, such that the initial results of the checkpoint inhibitors in particular have captured the imaginations of physicians and the general public alike. While the benefit seen thus far is real, hepatobiliary malignancies have not been among the banner group of malignancies to have so far shown dramatic and durable evidence of efficacy. This is beginning to change with the presentation of what so far is a relatively small volume of clinical experience, albeit encouraging. The close etiological relationship between hepatobiliary cancer and inflammation speaks to an important role for the immune system in these diseases, as do the data discussed showing by almost any measure – TIL, MHC downregulation, PD-L1 expression – evidence of a reactive surveillance, which can be potentially manipulated by the new drugs and technologies that are making their way in the clinic.
