A Near-Infrared, Wavelength-Shiftable, Turn-on Fluorescent Probe for the Detection and Imaging of Cancer Tumor Cells

Abstract

Fast, selective, and noninvasive reporting of intracellular cancer-associated events and species will lead to a better understanding of tumorigenesis at the molecular level and development of precision medicine approaches in oncology. Overexpressed reductase presence in solid tumor cells is key to cancer progression and protection of those diseased cells from the oxidative effects of therapeutics meant to kill them. Human NAD(P)H:quinone oxidoreductase isozyme I (hNQO1), a cytoprotective 2-electron-specific reductase found at unusually high activity levels in cancer cells of multiple origins, has attracted significant attention due to its major role in metastatic pathways and its link to low survival rates in patients, as well as its ability to effectively activate quinone-based, anticancer drugs. Accurate assessment of hNQO1 activities in living tumor models and ready differentiation of metastases from healthy tissue by fluorescent light-based protocols requires creation of hNQO1-responsive, near-infrared probes that offer deep tissue penetration and low background fluorescence. Herein, we disclose a quinone-trigger-based, near-infrared probe whose fluorescence is effectively turned on several hundred-fold through highly selective reduction of the quinone trigger group by hNQO1, with unprecedented, catalytically efficient formation of a fluorescent reporter. hNQO1 activity-specific production of a fluorescence signal in two-dimensional cultures of respiring human cancer cells that harbor the reductase enzyme allows for their quick (30 min) high-integrity recognition. The characteristics of the near-infrared probe make possible the imaging of clinically relevant three-dimensional colorectal tumor models possessing spatially heterogeneous hNQO1 activities and provide for fluorescence-assisted identification of submillimeter dimension metastases in a preclinical mouse model of human ovarian serous adenocarcinoma.

Graphical Abstract

Although initially thought to be protective of only healthy tissue cells by their ability to combat cancer-initiating reactive oxygen species (ROS),¹ certain reductases that are upregulated in various tumor-derived cell lines and especially those tumor cells experiencing hypoxic conditions are pivotal to their survival during prolonged oxidative attack,² the latter being the major cell-killing pathway provided by chemo- and radiotherapies.³ Importantly, metastasis from primary solid tumors to other sites can occur via a redox-based escape mechanism that relies upon adaptive cancer cells possessing significantly elevated levels of ROS-combating reductases,² and the ability to change phenotype in order to exist as isolated, individual cells.⁴ As a result, the presence of said reductases at upregulated values within cancer cells, such as human NAD(P)H:quinone oxidoreductase isozyme I (hNQO1) that has been found at elevated levels in more than 50% of the NCI-60 tumor cell line database,^5,6 has been identified as key in the development of a new generation of anticancer drugs (e.g., mitomycin C,⁷β-lapachone,^8,9 deoxynyboquinones¹⁰) whose success is derived from their selective reductase activation.

Interestingly, only recently have the tools been investigated that are necessary to leverage upregulated, cytoprotective reductase presence in human cancer cells, so as to allow the latter’s identification, imaging, and study.^11–14 This nascent field poses a great challenge for the measurement and imaging science communities with regard to creation of approaches that selectively and sensitively report on overexpressed reductase activity in living cancer tissues. Such yet-to-be-implemented approaches will have a potentially large impact on knowledge regarding tumorigenesis and metastasis, as well as in precision medicine-based diagnoses and treatments of cancer. Turn-on, enzyme substrate probe-based fluorescence^15–18

Turn-on, enzyme substrate probe-based fluorescence^15–18 holds much promise as a transduction path for the determination of cytoprotective reductase presence and activity within tissue cells, with the caveat that its successful application requires the existence of fluorescently silent, reductase-sensitive probes that can efficiently penetrate into cells and then be selectively and rapidly converted to a highly fluorescent reporter by the enzyme. The resulting emitted light from an appropriately designed reporter has the potential to describe the temporal and spatial dependence of reductase activity within a single cell or in two- and three-dimensional assemblies of cells. In addition, it may be possible that upregulated enzyme activities in abnormal cells will yield a fluorescence signal that is sufficient to allow for differentiation of diseased and healthy tissue with cellular resolution. To date, a select group of endogenous reductases has been targeted in the development of turn-on fluorescent probes that can be used to image and detect human cancer cells overexpressing a given reductase, including nitroreductases,^19–23 human aldo-ketoreductase,¹³ thioredoxin reductase,¹¹ and hNQO1.^14,24–26 However, for end-goal applications that target the study of microenvironmental effects²⁷ in three-dimensional multicellular tumor mimics²⁸ and their use in drug evaluation studies,^29,30 and realtime determination of borders between cancerous and normal tissues during surgery,^31–34 not only must the optical properties of a probe be distinctly different from those of the reductase-generated fluorescent reporter so as to yield a high target-to-background signal ratio^14,35 but the energies for reporter excitation and emission should lead to less tissue absorption and scattering events—a scenario achieved at wavelengths above 600 nm.^32,33 At the time of this writing, there are no reports of reductase-sensitive probes that meet these criteria.

hNQO1, aka DT-diaphorase, is a cytosolic, two-electron-specific reductase whose expression is regulated by the Kelch-like, ECH-associated protein 1 (Keap1)/nuclear factor E2-related factor 2 (Nrf2)/antioxidant response element (ARE) pathway, similar to other cytoprotective reductases.^2,3,5 Under normal cellular conditions, the Keap1 protein binds to the Nrf2 transcription factor to promote its demise through ubiquitination followed by proteasomal degradation. However, in response to increased oxidative stress, Keap1 loses its capability to target and degrade the Nrf2 transcription factor, due to oxidation of cysteine sites in Keap1. As a result, Nrf2 is transported into the nucleus where it accumulates and binds to an ARE sequence, thereby triggering hNQO1 expression.^36–38 In normal cells, hNQO1 levels are typically low, but the enzyme is known to be highly upregulated in many types of cancer cells and solid tumors,^6,39 and in particular, those cancers that are or have become resistant to chemo- and radiotherapies.^40–42 Importantly, hNQO1 overexpression has been directly linked to tumorigenesis and cancer stem cell phenotype,^4,43 as well as poor patient survival.^44–48 Therefore, development of hNQO1-activatable profluorogenic probes that target the elevated hNQO1 found in solid tumors is useful for understanding enzymatic processes at the molecular level and developing tools to determine borders between diseased and healthy tissue during fluorescence-assisted surgery.

We report here the development and in vitro and in vivo evaluation of a profluorogenic probe, Q₃STCy, whose latent electron-transfer-quenched NIR fluorescence is selectively turned on by hNQO1 reduction of the Q₃ trigger group to yield the corresponding fluorescent reporter TCy, Scheme 1. A unique feature of the quinone reductase-triggered, near-infrared (NIR) probe/reporter system is the low background signal that results from the significant difference in probe and reporter excitation and emission energies, an outcome achieved by use of a self-eliminating, electronically altering linker. Importantly, the latter yields an unprecedented probe activation efficiency, paving the way for probe use in real-time imaging applications. To that end, the energies for TCy reporter excitation and emission are such that tissue damage and autofluorescence background signal limitations are not concerns, thereby demonstrating the advantages of the new probe-reporter system versus extant NQO1-responsive probes.^{14,24–26,49} Furthermore, the carefully crafted NIR probe/reporter system does not suffer from structural alterations or changes in reporter signal transduction that result from the presence of biologically active, potentially cross-reactive species in the cellular milieu; such events have impeded progress in the development of activatable NIR probes. Finally, we show that the new NIR probe is capable of detecting hNQO1 activity in two- and three-dimensional cultures of human cells and an in vivo preclinical tumor model, allowing for identification of tiny ovarian cancer tumors.

Scheme 1. Proposed TCy Reporter Release Path and Fluorescence Turn on by Treatment of Q₃3STCy with hNQO1.

RESULTS AND DISCUSSION

Design, Preparation, and Characterization of the Q₃STCy Probe.

To achieve a successful profluorogenic hNQO1-specific probe of practical application in several disciplines, many design factors need to be carefully considered. hNQO1 is an intracellular enzyme present mainly within the cytosol; its location can provide an advantage for numerous applications, especially those for which retention of hNQO1 generated reporter within target cells offers their ready discrimination from nontarget normal cells or the ability to provide quantitative information on cellular enzyme activity levels. For example, such a scenario is a prerequisite for successful real-time cytoreductive surgical removal of cancerous tissue that requires sustained, time-invariant, target-to-background ratios (TBRs).³⁵ Furthermore, this tack will allow for correlation of prodrug efficacy and their hNQO1-based activation in cellular assays.⁵⁰ To that end, cell membrane permeability of the probe and cellular retention of the resulting reporter are essential for the development of hNQO1-activatable probes. In addition, for an effective reporting of cellular hNQO1 activities, the probe will be recognized and activated selectively by hNQO1 without any interference from competing reducing agents (e.g., biothiols and reductases) found in the complex physiological environment. Furthermore, to achieve remarkable TBR values as a result of ready differentiation of the reporter emission signal from the background, the probe and the reporter will have distinct photophysical properties. As such, the reporter will have photostable emission that occurs at an energy much different than that of absorption (λ_abs vs λ_em, large Stokes shift), is insensitive to pH changes, and yields a high brightness (ε × Φ). In contrast, the unactivated probe is to possess a low fluorescence quantum efficiency, significantly different absorption and emission profiles from the reporter, and good environmental stability.

With these criteria in mind, the tricarbocyanine TCy (Scheme 1) was selected as the reporter because of its anticipated NIR absorption/emission wavelengths that possess large Stokes shifts, high quantum efficiency, and photo-stability.^51,52 Importantly, the methylamine group in its meso position provides a synthetic handle that can be functionalized with an hNQO1 specific trigger (Q₃). Small changes in the electronic properties of substituents at the meso position can induce large changes in photophysical properties of the TCy reporter due to the nature of its π-electron density distribution.^53,54 Introduction of an electron-withdrawing carbamate bond at the meso position is posited to significantly alter the electron density on the backbone of the TCy, thereby generating dramatic changes in the photophysical properties of the TCy reporter. The trimethyl locked quinone propionic acid Q₃ motif has been successfully demonstrated as a highly selective hNQO1 substrate, capable of being catalytically reduced to its hydroquinone with NADH cofactor; this trigger group has been targeted in the design of bioreductive prodrugs,^55–58 nanomaterials,^59,60 drug delivery systems,⁶¹ and imaging probes.^{14,24–26,49} Furthermore, in the Q₃STCy probe, the Q₃ group will not only act as an hNQO1-specific trigger, but its electron-deficient nature is anticipated to allow it to be an effective photoinduced electron-transfer (PeT) quencher of the fluorescence of the covalently linked TCy reporter. Finally, the self-eliminating 2-mercaptoethanol linker between the Q₃ trigger and the bulky TCy reporter is expected to result in enhanced enzyme activation of Q₃STCy.⁶²

The synthetic route for Q₃STCy is outlined in Scheme S1. To help provide a rationale regarding the unreported spectroscopic properties of Q₃STCy, as well as investigate the influence of Q₃PA on the photophysical properties of Q₃STCy, a structural analogue of Q₃STCy, namely iBuTCy without the Q₃PA moiety, was also prepared. All compounds were characterized with ¹H NMR, ¹³C NMR, and ESI-HRMS and gave satisfactory outcomes (Supporting Information).

Photophysical Properties.

As shown in Figure 1, the spectral behavior of the Q₃STCy probe and TCy reporter was measured in phosphate-buffered aqueous solution (PBS, pH = 7.4). In contrast to the Q₃STCy probe, the TCy reporter has distinct spectroscopic properties that are anticipated to allow for ready differentiation of a reporter signal from that of the probe in complex biological environments. Of particular note is the large difference in maximum energy of absorption for the TCy reporter (λ_abs^reporter = 606 nm) and the Q₃STCy probe (λ_abs^probe = 786 nm), as well as the significant difference in peak emission wavelength (λ_em^reporter = 755 nm vs λ_em^probe = 798 nm). The dissimilarities in energies of absorption and emission for the TCy reporter and Q₃STCy probe, caused by introduction of a carbamate bond at the meso position, were examined by investigating the HOMO and LUMO energy levels⁵³ of TCy and an analogue of the Q₃STCy probe that also possesses a carbamate moiety, dubbed iBuTCy (Scheme S1). The latter is structurally similar to the Q₃STCy probe, but iBuTCy is more facile to study with computational methods. As determined from semiempirical DFT calculations (B3LYP/6–31G, Figure S4), the energy difference of 1.35 eV in the HOMO and LUMO of iBuTCy is 0.28 eV smaller than the 1.63 eV value for TCy, thereby providing rationale for the observed longer absorption/emission wavelengths of iBuTCy, and thus the Q₃STCy probe, vs those of the reporter. The ability to use, in cellular imaging experiments, an excitation energy that leads to large reporter absorption but almost nonexistent probe absorption is expected to result in a much attenuated background signal from probe fluorescence, in turn leading to high contrast between target cells and nontarget cells. Additionally, the exceedingly large Stokes shift of the TCy reporter (149 nm) is attributed to formation of an ICT state.⁵¹ Such a difference in reporter absorption/emission energies will minimize possible reporter self-quenching and thereby provide a high target signal, as well as lead to decreased background associated with scattering of the excitation light.

Figure 1.

Spectra of 2 μM solutions in 1% DMSO/0.1 M PBS/0.1 M KCl solution (pH = 7.4). (A) Absorption and (B) emission spectra of TCy (red), Q₃TCy (black), and iBuTCy (dashed). Emission spectra were measured with λ_ex = 600 nm. T =25°C.

As expected from the design parameters discussed above, the Q₃STCy probe is much less fluorescent in aqueous solution than is its corresponding TCy reporter. Quantum yield values (Φ) of Q₃STCy and TCy were determined from their aqueous solutions (2% DMSO: 98% PBS, pH = 7.4) using indocyanine green in water (Φ = 0.012)⁶³ and in-house-synthesized 1,1′,3,3,3′,3′-hexamethyl-3,5-propylene-4-(dimethylamino)-2,2′-indotricarbocyanine perchlorate (HPDITCP) in ethanol (Φ = 0.161) as standards.⁶⁴ Q₃STCy possesses a quantum yield (0.0046) that is 14-fold lower than that of the TCy reporter (Φ = 0.063), Table S1. Through use of the Rehm-Weller equation, in conjunction with voltammetric half-wave potentials and spectroscopic data (Figure S3), a free energy change of -0.47 eV is computed for the donor-excited photoinduced electron-transfer (d-PeT) quenching of the Q₃STCy probe, indicating that electron transfer from the excited state of the TCy fluorophore to the electron-deficient quinone moiety is a thermodynamically feasible process. Thus, Q₃ is an effective quenching group capable of substantially decreasing the fluorescence quantum efficiency of Q₃STCy. Furthermore, when irradiated near the maximum absorption of the TCy reporter at 600 nm—186 nm less energetic than the absorption peak of the Q₃STCy probe—the reporter offered a 240-fold higher emission intensity at 765 nm compared to Q₃STCy, which is rationalized by the ~10× higher molar absorptivity of the TCy reporter. In sum, the Q₃STCy probe/TCy reporter system possesses the required spectral characteristics to make it a strong candidate as a turn-on sensor of hNQO1 activity.

Fluorescence Turn On by hNQO1

We next examined the efficacy of Q₃STCy activation by hNQO1 under physiological conditions (37 °C in 0.1 M, pH 7.4 PBS). The absorption and emission spectra of Q₃STCy solutions were recorded over time upon introduction of 688 U mL⁻¹ of hNQO1 with added 100 μM NADH cofactor. A total of 1 U of hNQO1 will reduce 1 nmol of cytocytochrome c min⁻¹ in the presence of menadione substrate at 37 °C;²⁴ the value of 688 U mL⁻¹ is approximately that found for hNQO1 in HT-29 colorectal cancer cells (761 ± 18 U mL⁻¹, assuming an average cell volume of 1 pL)⁶⁵ using dichlorophenolindophenol as the redox mediator,⁶⁶ vide infra. As shown in Figure 2A, hNQO1 presence leads to a rapid decrease in the intensity of the absorption band maximum of Q₃STCy at 785 nm (50% decrease in 3 min, 90% decrease in 10 min), while the intensity of a new band centered at 606 nm, presumed to be that of the TCy reporter, increases concomitantly (50% increase in 6 min, 90% increase in 15 min); there was an obvious change in solution color from green to blue. Furthermore, the fluorescence emission exhibited an immediate increase at 798 nm, followed by a larger change in intensity at the peak value of the TCy reporter (755 nm) that led to a 193-fold increase in fluorescence within 20 min, Figure 2B. These spectral changes are assigned to initial formation of a fluorescent intermediate of Q₃STCy possessing an intact carbamate bond, referred to as STCy, which has spectral properties similar to those of iBuTCy; Scheme 1. Thus, we associate hNQO1 generation of STCy with the initial fluorescence increase at 798 nm. Subsequent intensity increases at the emission maximum of the TCy (755 nm) are attributed to its formation upon intramolecular cyclizative cleavage of the five-membered 1,3-oxathiolan-2-one (aka thiolanone) in Scheme 1. Mass spectrometry data support these conclusions, vide infra.

Figure 2.

Time-dependent spectral changes initiated by the addition of hNQO1 (688 U mL⁻¹) with 100 μM NADH cofactor in 0.1 M PBS/0.1 M KCl solution (pH = 7.4) containing 0.007% BSA (U = 1 nmol of cytochrome c reduced min⁻¹). (A) Absorption (2 μM Q₃STCy) spectra and corresponding change in absorbance maximum for the probe and reporter. (B) Emission (4 μM Q₃STCy) spectra and associated increase at the peak emission of the TCy reporter. Color changes are demonstrated by the inset in A. Absorption spectra were measured every 1 min, and emission spectra were recorded every 4 min; λ_ex = 605 nm, excitation slit width = 5.0, emission slit width = 7.5. T =37°C.

To investigate that the hNQO1-induced fluorescence turn on was indeed caused by the release of TCy via the proposed mechanism in Scheme 1, solutions of Q₃STCy treated with 688 U mL⁻¹ of hNQO1 for 20 min under physiological conditions (37 °C in pH 7.4 PBS) were analyzed by HPLC coupled to ESI-TOF mass spectrometry (Figure S5). Four of the expected products were successfully separated and identified, having m/z values of 235.1356 [HQ₃-L + H]⁺, error = 11.5 ppm; 610.3458 [STCy]⁺, error = 1.4 ppm; 506.3539 [TCy]⁺, error = 0.8 ppm; and 842.4639 [Q₃STCy]⁺, error = 8.6 ppm. No H₂Q₃STCy was detected, as expected, due to its rapid cyclization to HQ₃-L (k_cycle ~ 1 min). We assume that the thiolanone coelutes with solvent between 1 and 2 min. These results confirm the initial formation of STCy upon Q₃STCy treatment by hNQO1, with subsequent TCy release. However, due to differences in ionization efficiencies, we are unable to state how much of the individual species exist with respect to each other after the 20 min incubation period.

To obtain quantitative information on hNQO1 efficacy in activating Q₃STCy, the apparent kinetic parameters were determined by monitoring the release of the TCy reporter, as noted by fluorescence emission at λ_em = 755 nm (λ_ex = 605 nm), using various Q₃STCy probe/substrate concentrations (0.5–5 μM), Figure 3A. The TCy fluorescence intensity was converted to concentration by using a linear calibration curve. Upon fitting the TCy production rate to the Michaelis-Menten equation, an apparent Michaelis constant K_m = 1.1 ± 0.5 μM (standard deviation; n = 3) and maximum velocity V_max = 0.31 ± 0.05 μmol min⁻¹ mg hNQO1⁻¹ were obtained. On the basis of these values, the catalytic constant or turnover number k_cat = 0.162 ± 0.024 s⁻¹ and the catalytic efficiency k_cat/K_m = 1.5 ± 0.7 × 10⁵ M⁻¹ s⁻¹ were calculated. As of this writing, the bimolecular rate constant (kcat/Km) is the highest reported for any probe of hNQO1 activity obtained under physiological conditions (pH 7.4, 0.1 M PBS). For example, the k_cat/K_m value for other hNQO1 probes ranges from 5 to 35 × 10³ M⁻¹ s⁻¹, which is 5–30 times slower than that afforded by the Q₃STCy probe. We attribute these favorable probe properties to the presence of the self-eliminating 2-mercaptoethanol linker that separates the Q₃ enzyme trigger group from the bulky TCy reporter. This scenario allows for ready access of the trigger group to the active site of the enzyme—as we have shown in computational and enzyme kinetics studies,⁶² thereby yielding rapid activation of Q₃STCy by hNQO1—and it also leads to a hydrolytically stable probe whose fluorescence is effectively quenched in aqueous media. These characteristics are demonstrated with results from time-drive experiments, Figure 3B, wherein was monitored over time the fluorescence of two Q₃STCy solutions with or without added hNQO1. In the presence of hNQO1, the fluorescence signal due to TCy formation rapidly increased (50% of maximum in 11 min) and reached a plateau near 30 min. There was no significant change in fluorescence signal in the absence of hNQO1, even after 150 min, the longest time examined.

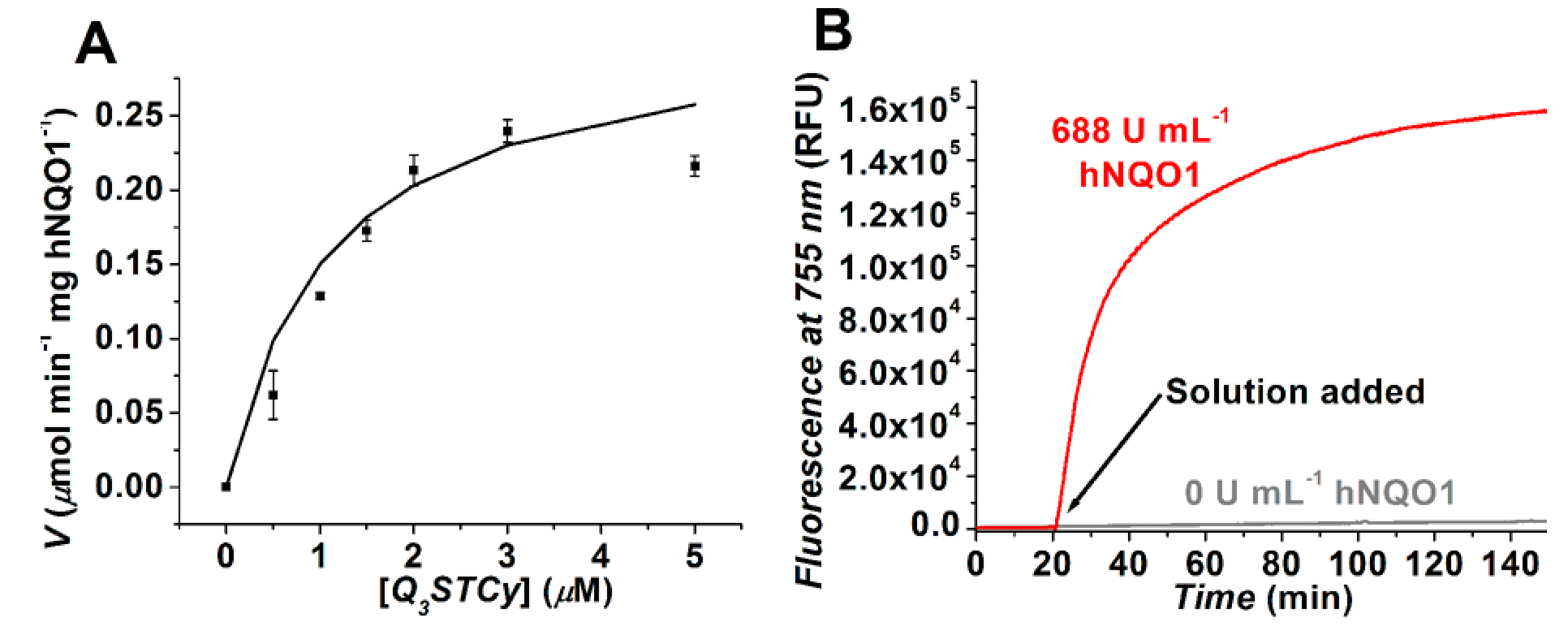

Figure 3.

(A) Kinetic plot of hNQO1 (0.5 × 10⁻⁶ g mL⁻¹, 250 U mL⁻¹) with Q₃STCy as a substrate in pH 7.4, 0.1 M PBS solution containing 0.007% BSA and 100 μM NADH. Values shown are the average of three trials with errors bars being ±1 standard deviation; line is best fit to data (χ² = 0.00076). (B) The fluorescence (λ_ex = 605 nm, λ_em = 755 nm) from a 4 μM solution of Q₃STCy was recorded with or without the addition of 688 U mL⁻¹ hNQO1 at the 20 min time point. T =37 °C.

Q₃STCy and TCy Stability and Enzyme Selectivity.

In order to successfully examine enzyme activity levels during in vitro and in vivo studies, it is paramount that the probe provide a highly selective response to the enzyme of interest and both probe and reporter be stable in the absence of the target enzyme. Biological species, oftentimes present in tissue and cells at concentration levels several hundreds to thousands of times higher than probes and reporters used to interrogate a target, have the potential to yield either a false positive report of target presence that is caused by nonselective activation of the trigger group or a low sensitivity response for a given target that results from deactivation of the target-generated fluorescent reporter. The requisite characteristics for a successfully implementable probe/reporter system can be more challenging to obtain for probes whose reporters provide a fluorescence signal in the far-green and near-infrared energy regions, as the structures of the probe and reporter must be carefully crafted to provide LUMO and HOMO energy levels that do not lead to interferent-induced redox reactions or quenching events, such as those caused by NADH or glutathione present at levels typical of the cellular environment.²⁴

To rule out possible activation of Q₃STCy by hydrolysis or any interfering biological reductants (e.g., thiols⁶⁷ and other quinone reductases) potentially present and known to be present in mammalian cells, the fluorescence response of Q₃STCy solutions exposed to various pH conditions and select species was evaluated. As expected, there was no apparent impact of solution pH over the range of 4.5 to 9.5, Figure S6. Importantly, there was no significant change in fluorescence even after 20 min of incubation of the probe with 1 mM glutathione (GSH), ascorbic acid (AA), L-cysteine (Cys), L-homocysteine (Hcy), or dithiothreitol (DTT), all in the absence of hNQO1 cofactor NADH; the results are shown in Figure 4. On the basis of known reactions of NRH:quinone oxidoreductase 2 (QR2, aka NQO2) and cytochrome P450 reductase (CPR) with certain quinone species,^14,24 we investigated their potential to activate the Q₃STCy probe in the presence of their respective cofactors, NRH and NADPH; the individual influence of the latter two cofactors on the probe were also studied. A response roughly 20% of that for hNQO1-catalyzed NADH activation of the Q₃STCy probe was found when using an NQO2 activity 275 times the highest reported NQO2 activity level in human cancer cells, the latter being a mere 0.2% of the hNQO1 activity present in the same tumor-derived cancer cell line.⁶⁸ It is important to note the NQO2 cofactor NRH is not native to cells at concentration levels high enough to allow for NQO2 activation of quinone substrates, and NRH is unstable in cellular and aqueous environments.⁶⁸ CPR, in the presence of NADPH cofactor, produced a fluorescence response approximately 10% that of the signal for hNQO1-catalyzed activation of the probe, even though the CPR activity used here is roughly that found in lung cancer cell monolayers⁶⁹ and 4% of the hNQO1 activity in colorectal cancer xenografts.⁷⁰ Furthermore, neither hNQO1 nor NADH was independently capable of inducing release of the reporter. These outcomes are significant in the use of the Q₃STCy probe to identify hNQO1 activity in cancer cells, as they demonstrate the high selectivity of probe activation by hNQO1.

Figure 4.

Fluorescence (λ_em = 755 nm, λ_ex = 600 nm) from solutions of 4 μM Q₃STCy after 20 min of incubation at 37 °C with various reducing agents and reductase enzymes in pH 7.4, 0.1 M PBS. Reducing agent concentrations: 1 mM for ascorbic acid (AA) and thiols, 100 μM for NRH cofactor of NRH:quinone oxidoreductase 2 (NQO2), and 100 μM for NADH and NADPH. The reductases were present at 688 U mL⁻¹ for hNQO1, 617 U mL⁻¹ for NQO2, and 14.1 U mL⁻¹ for cytochrome P450 reductase (CPR).

To examine the stability of the selectively released TCy reporter, we studied the effects of pH and biological reductants (GSH, AA, Cys, Hcy, DTT) on the fluorescence signal of TCy solutions. As shown in Figure S6, variation of aqueous pH (4.5–9.5) did not result in any meaningful changes in the fluorescence intensity of the TCy reporter. Moreover, the reporting capability of TCy was not influenced by the presence of these biological reducing species, as demonstrated by the lack of any significant variations (<10%) in reporter response in comparison to its incubation in PBS for 2 h, Figure S7. In total, the characteristics of the Q₃STCy probe and TCy reporter bode well for biological imaging applications.

Fluorescence Imaging of Endogenous hNQO1 in Tumor-derived Cancer Cell Monolayers.

Reassured by the effective and selective nature of Q₃STCy in detecting hNQO1 activity in vitro, we used confocal microscopy to investigate the ability of Q₃STCy to identify and differentiate tumor cells based on the presence of hNQO1 activity. The overexpression of hNQO1 in the colorectal carcinoma cell line HT-29 and the ovarian cancer cell line OVCAR-3 has been established.^6,71 In contrast, the nonsmall cell lung carcinoma (NSCLC) cell line H596, known to have undetectable hNQO1 activity resulting from a point mutation,⁷² served as an hNQO1-negative cell line. From hNQO1-specific activity assays using dichlorophenolindophenol (DCPIP) as an enzyme substrate,⁶⁶ we validated the high activity of hNQO1 in 24-h-old HT-29 cells (488 nmol DCPIP min⁻¹ mg protein⁻¹), the lower hNQO1 activity in OVCAR-3 cells (8 nmol DCPIP min⁻¹ mg protein⁻¹), and undetectable activity in H596 cells. We report here for the first time that SHIN3 cells derived from an ovarian serous adenocarcinoma⁷³ have overexpressed levels of hNQO1, with the activity value (55 nmol DCPIP min⁻¹ mg protein⁻¹) being higher than that in OVCAR-3 cells of an equivalent culture age (1 day). In addition, western blot analysis was used to demonstrate hNQO1 expression in the HT-29, OVCAR-3, and SHIN3 cell lines, Figure S8. Monolayers of all four cancer cell lines were incubated with 5 μM Q₃STCy in cell culture medium for 30 min under identical conditions, followed by paraformaldehyde cell fixation. As seen in the confocal microscopy images of Figure 5, fluorescence in the near-infrared region (660–820 nm) was found for the hNQO1-positive HT-29, OVCAR-3, and SHIN3 cell lines. These observations indicate that the Q₃STCy probe is cell membrane permeable, in agreement with its very high log octanol-water partition coefficient of 7.9 at pH 7.4,⁷⁴ and the probe is readily activated by intracellular hNQO1. In contrast, virtually undetectable fluorescence in this energy range was found in the hNQO1-negative H596 cell line, as expected. When cells are exposed to the hNQO1 inhibitor dicoumarol, their subsequent incubation with the probe leads to significantly diminished fluorescence (Figure S9), further supporting intracellular probe activation by the upregulated hNQO1.

Figure 5.

Confocal and differential interference contrast (DIC) images of 24-h-old H596 (negative), OVCAR-3 (positive), HT-29 (positive), and SHIN3 (positive) cells incubated with 5 μM Q₃STCy for 30 min at 37 °C. Fluorescence images were obtained using 633 nm excitation and 660–820 nm emission. A 1.0 Airy pinhole was used. Scale bar represents 20 μm.

So as to offer a more quantitative approach to distinguishing target cells from nontarget (negative) cells, we calculated the target-to-background ratio (TBR), a significant index for predicting the potency of optical imaging agents in real-time cytoreductive surgery for cell/tissue differentiation.⁷⁵ In the cases at hand, the TBR is defined as the signal from the hNQO1-positive (HT-29, OVCAR-3, SHIN3) cells in an image compared to that from hNQO1-negative H596 cells. TBR values reported at the 95% confidence interval are 5.4 ± 0.4 for HT-29 (53 cells)/H596 (38 cells), 3.0 ± 0.2 for OVCAR-3 (55 cells)/H596 (38 cells), and 2.2 ± 0.2 for SHIN3 (32 cells)/H596 (32 cells). All of the TBR values are sufficiently large to support successful use of the Q₃STCy probe to identify cancerous regions during fluorescence-guided surgery,⁷⁵ as well as allow for Q₃STCy probe-based assessment of cellular hNQO1 levels in drug efficacy studies.⁵⁰ Furthermore, it is important to note that the cells were washed two times with pH 7.3 PBS prior to their being fixed and imaged; that the TBR values remain high after this process points to significant retention of the intracellularly produced TCy reporter from the Q₃STCy probe.

To further demonstrate the difference in fluorescence signal observed in the cell images is indeed caused by hNQO1 activity level, the fluorescence turn on of Q₃STCy was evaluated in an hNQO1 gene-transfected H596 cell line and in the wild-type, hNQO1-negative H596 cell line, Figure S10. The difference in hNQO1 activity in the wild-type versus transfected H596 cells was proven by measuring the specific activity of hNQO1 from cellular protein extracts using dichlorophenolindophenol (DCPIP) as an hNQO1 substrate;⁶⁶ in addition, the expression of hNQO1 in the gene-transfected H596 cell line and its absence in the wild-type, hNQO1-negative H596 cell line were demonstrated with western blot analysis of cell lysates, Figure S8. From confocal microscopy images, limited fluorescence was observed in wild-type H596 cells, while an approximately 3-fold (3.1 ± 0.3; 95% confidence interval) larger fluorescence intensity was observed in the transfected H596 cells. These experiments clearly show that intracellular conversion of the Q₃STCy probe to the fluorescent TCy reporter reflects differences in hNQO1 activity, thereby allowing for identification of hNQO1-positive cells.

Colocalization experiments were performed with Q₃STCy and organelle trackers (mitotracker green and lysotracker green DND-26) to determine the ultimate location of TCy in HT-29 cells resulting from its hNQO1-stimulated release within the cytosol. As shown in Figure S11, the fluorescence derived from the released TCy reporter is colocalized well with that of the lysotracker dye. Using the coloc 2 plugin in ImageJ, the Pearson correlation coefficient for colocalization (PCCC) was determined to be 0.77, a value indicative of excellent TCy/lysotracker colocalization.⁷⁶ In contrast, poor colocalization of TCy and mitotracker green was evident in fluorescence images (Figure S12), and the PCCC value of 0.28 obtained upon their statistical analysis confirmed this. Importantly, TCy released in the cytosol accumulates in the lysosomes and/or late endosomes, allowing for its enhanced intracellular retention. We posit the high TBR values in hNQO1-positive cells result from this reporter retention effect. Furthermore, these outcomes are significant, as certain tricarbocyanine dyes tend to accumulate in the mitochondria, resulting in deleterious effects.^77,78 Cytotoxicity studies with HT-29 cells using 1–2 μM probe in DMSO/PBS buffer for 3-h incubations indicate that cell viability (93.4 ± 2.1% and 88.1 ± 1.1%, respectively) is not significantly impacted.

hNQO1 Activity-based Fluorescence Imaging of Multicellular Tumor Spheroids (MCTSs).

The shortcomings associated with cell monolayers and the high cost and limited availability of xenograft models in animals, when applied to screening assays, are major hurdles in the successful development of drugs. This is particularly problematic for materials that target solid tumors, as it is often the case that promising preclinical outcomes derived from cell monolayer-based assays do not translate to the patient in the clinic.⁷⁹ As a result, the use of three-dimensional multicellular tumor spheroids (MCTSs) in drug evaluation studies is seen as a pathway toward improved patient outcomes.²⁹ This potential is based on the fact that MCTSs closely resemble avascular tumors, whose interiors possess cells that are either dead or near death (senescent) due to an acidic/hypoxic environment unlike that found for monolayer cultures that respond well to drug candidates. The distinct behavior of promising enzyme-activatable drugs within MCTSs is most likely the result of temporospatial enzyme activities that are dictated by the microenvironment of the MCTSs.²⁷ Furthermore, laboratory-cultured MCTSs resemble multicellular aggregates isolated from ascites of ovarian cancer patients whose disease has spread by intraperitoneal dissemination, a progression route also common to colorectal, gastric, and pancreatic cancers.^80,81 These multicellular aggregates are ticking time bombs that upon initial attachment to the peritoneal lining⁸² are too small to be readily identified by surgeons during cytoreductive surgery,⁷⁵ are isolated from the vasculature necessary for effective transmission of chemotherapeutic drugs designed to kill them, and are suggested to be resistant to such therapeutic agents due to a microenvironment that is mimicked by MCTSs. Thus, it is highly valuable to evaluate the ability of enzyme-responsive, fluorescence-based probes to be turned on inside cells of submillimeter-sized MCTSs. Such knowledge has immediate implications for fluorescence-guided surgical approaches and longer term ramifications in studies of the spatial dependence of upregulated target enzymes in three-dimensional cell assay applications.

Exposure of live colorectal cancer MCTSs to Q₃STCy probe leads to its rapid uptake and subsequent hNQO1 activation to yield the TCy reporter, as noted in wide-field fluorescence microscopy images, Figure 6. We selected MCTSs of advanced culturing age because their microenvironment more closely reflects that of multicellular aggregates and avascular metastases in vivo,^30,83 with the 23-day-old HT-29 MCTSs used here having a ~ 100-μm-thick viable cell layer at the periphery and a highly hypoxic, necrotic core. Although the measured fluorescent signal from the TCy reporter using the Cy5 filter (λ_em = 662–738 nm) is distinct from that of its precursors, the recorded response with the Cy7 filter (λ_em = 765–855 nm) reflects the summed fluorescence of the Q₃STCy probe and any STCy intermediate possibly present. Prior to probe introduction, there is no significant fluorescence present in either detection channel. However, exposure of the MCTSs to the Q₃STCy probe leads to almost immediate increases in fluorescence, as noted by both the micrographs and total MCTS fluorescence intensity from said images. Relatively linear time-dependent fluorescent responses are observed for both emission ranges in the entire MCTS region of interest during the 3-h experimental period, the longest time used. We attribute the heterogeneity of TCy reporter fluorescence (brighter near periphery) to an hNQO1 activity in the ~100-μm-thick viable cell layer that is much higher than in the necrotic core of the 23-day-old spheroids; MCTSs cultured for 15 days or less do not exhibit such a core of dead and dying cells.⁸⁴ In sum, the outcomes from the MCTS studies indicate that the activatable Q₃STCy probe quickly penetrates into the three-dimensional cancer tumor mimics and gains entry to their component cells, where it reports on cytosolic hNQO1 activity.

Figure 6.

Representative wide-field micrographs of living HT-29 colorectal cancer multicellular tumor spheroids (23 days old, 970 ± 24 μm diameter) in RPMI-1640 medium that were exposed to 5 μM Q₃STCy at 37 °C for different times. Images were captured every 30 min using a Leica DM6 microscope with Cy7 (λ_ex = 672–748 nm, λ_em = 765–855 nm; 50 ms exposure time) and Cy5 (λ_ex = 590–650 nm, λ_em = 662–738 nm; 500 ms exposure time) filters. Note the necrotic core (dark center) in the differential interference contrast (DIC) images. Scale bar represents 200 μm. The control is a spheroid in medium without added probe. Reported fluorescence values are the average of measurements from four different spheroids, with error bars of ±1 standard deviation.

Identification of Peritoneal Ovarian Cancer Micrometastases in an in Vivo Mouse Xenograft Model.

Having demonstrated successful detection of upregulated hNQO1 activity within various cancer cell lines cultured in two and three dimensions, we wished to explore the potential of the Q₃STCy probe for in vivo identification of tiny cancer foci in an animal model. The ability to visualize and surgically remove <1-mm-diameter metastatic lesions that result from intraperitoneal dissemination will have important ramifications in the treatment of colorectal, gastric, pancreatic, and ovarian cancers. For example, it has been shown that the median overall survival of patients is twice as great (64 months) if the surgeon is able to remove ovarian cancer tumors less than 1 mm in dimension versus patients with residual diseased tissue larger than 1 mm.⁸⁵

Successful resection of such small cancers is predicated on their identification/detection, a feat impeded by poor differentiation of diseased and healthy tissues during traditional white light examination.^31,75 Fluorescence-guided surgery^31–33 that is based on topical application of activatable probes holds much promise for discrimination of tissues,^86–88 because such turn-on probes outshine their always-on fluorescent counterparts as a result of increased target-to-background signal ratio and exceedingly rapid nature of the visualization events, oftentimes on the time scale of minutes.⁷⁵ Importantly, cell-permeable probes that are activated by cancer-associated intracellular enzyme targets to yield cell-retained fluorescent reporters hold the possibility of providing diseased/healthy tissue discrimination with near cellular resolution. To date, only two intracellular enzyme-probe systems have been used to detect human cancers in preclinical studies, namely, one based on β-galactosidase⁸⁹ that is overexpressed in ovarian cancers and another targeting hexosaminidase, which is upregulated in colorectal cancer cells;⁹⁰ both enzymes reside in the lysosomes.

Exposure of peritoneal xenograft tumors in living mice to dilute solutions of Q₃STCy probe subsequently affords ready detection of ovarian cancer tumors as small as ~0.5 mm in dimension, Figure 7. Although imperceptible by white light, the tiny ovarian cancer tumors are clearly visible in spectral images of the excised mesentery that correspond to the red fluorescent protein (RFP)-transfected SHIN3 cells and their interaction with the Q₃STCy probe. We selected the low hNQO1-expressing SHIN3 cells in the xenograft studies so as to demonstrate the capabilities of the Q₃STCy probe. Under the same imaging conditions as xenograft animals, there were no detectable signals in control animals that did not possess tumors (Figure 7, control). Importantly, spectral acquisition and unmixing allows for examination of the integrity of cancer foci identification by the Q₃STCy probe, which is achieved by a side-by-side comparison of the resulting “Q₃STCy image” and the “RFP image” produced by the genetically encoded fluorescent protein in the SHIN3-DsRed ovarian cancer cells.⁹¹ As seen in Figure 7, the fluorescence signal generated by Q₃STCy incubation in the peritoneum of mice possessing SHIN3-DsRed tumors is mostly coincident with RFP-positive foci, thereby demonstrating the ability of the NIR probe to identify the presence of the hNQO1-overexpressing SHIN3 cells. However, in the Q₃STCy image, the fluorescence signal is sometimes noted in areas of the small bowel adjacent to the RFP-labeled tumor nodules, suggesting possible nonspecific activation of the probe within healthy, neighboring cells in these regions. We posit this observation is actually due to probe activation in healthy cells having higher-than-normal hNQO1 activity that results from their being stimulated by products released from their cancer cell neighbors. Such a scenario is supported by reports of higher-than-normal hNQO1 expression within some healthy tissues in immediate proximity to cancerous tissue;⁹² this was attributed to induced hNQO1 activity in normal tissue cells by membrane-permeable materials released from tumor cells,^93,94 with said inducing agents potentially being the cause of increased hNQO1 activity in cancer cells cultured at high cell density.^95,96 This observation with hNQO1 may eventually lead to limitations in the resolution of surgical resections that rely upon hNQO1-based probes, similar to what is possible with extracellularly activated probes whose reporters may enter cancerous and nearby healthy cells.

Figure 7.

Visualization of peritoneal metastases in SHIN3 mouse model of human ovarian cancer via fluorescence spectral imaging of mesentery at 1 h post intraperitoneal administration of Q₃STCy (300 μL of 100 μM probe in pH 7.4 PBS). Red fluorescent protein (RFP) signal results from the RFP-transfected cells (SHIN3-DsRed). Control designates mouse having no xenograft and treated with Q₃STCy. Scale bar represents 5 mm.

It is of particular note that short exposure times and dilute concentrations of Q₃STCy probe in the peritoneum result in effective identification of peritoneally disseminated ovarian cancer by fluorescence-activated imaging, in a spectral range that allows for deep penetration of light into tissue. These outcomes are quite valuable, as the construction and successful use of NIR probes and reporters for in vivo biomedical imaging applications is exceedingly challenging. Development of enzyme-activatable, cell-penetrable NIR probes is complicated by the multitude of structure and size limitations imposed on the probe, oftentimes making so poor the efficiency of enzymatic activation that topical application of the probe is no longer feasible. As a result, the use of intravenously delivered always-on fluorescent molecules that target cell surface uptake receptors has been extensively investigated, but they oftentimes yield high background fluorescence signals that decrease the TBR due to their being taken up by cancer tissue in nonspecific⁹² or inefficient⁹⁷ ways. Although synthetic elaboration of the structure of tissue-targeting NIR molecules can yield a lower background signal,⁹⁸ the time needed for them to reach the target site is large. Also, due to their intravenous delivery at relatively high concentrations, they face the prospect of regulatory agency approval, similar to that for new drug molecules.³¹ Furthermore, systemically introduced reporters cannot access remote diseased tissues, such as multicellular tumor spheroids associated with ovarian cancer metastasis and reoccurrence.⁸⁰ Thus, our achievements with the Q₃STCy NIR probe demonstrate the strength of locally applied, activatable molecules for fluorescence-based identification of diseased tissues, particularly those overexpressing reductases that are key to disease progression.

Conclusions

We have developed a novel NIR probe that provides high-fidelity detection and visualization of endogenous intracellular NAD(P)H quinone reductase activity in two- and three-dimensional cancer cell cultures and an in vivo preclinical model of peritoneally disseminated ovarian cancer. hNQO1-specific reductive activation of the carefully crafted, electron-transfer-quenched probe leads to autonomous release of its corresponding tricarbocyanine reporter, which possesses an NIR fluorescence emission that is energetically distinct and several orders of magnitude more intense than that of the inactive probe. The characteristic target-to-background signal provided by the probe/reporter system allows for facile microscopic detection and differentiation of human cancer cells possessing varied hNQO1 activity levels, including cells experiencing different microenvironments as a result of their location in multicellular tumor mimics. Local application of dilute solutions of the probe in mouse xenograft models leads to identification of human ovarian cancer tumors as small as 0.5 mm in dimension. In total, the quinone reductase-activatable probe holds much promise in the evaluation of drug action and efficacy in clinically relevant tumor models and preclinical animal investigations that address the specificity and sensitivity of microtumor detection, the latter a topic of current investigation in our laboratories.
