Multiplicative priming of the correct response can explain the interaction between Simon and flanker congruency

Alodie Rey-Mermet; Miriam Gade; Marco Steinhauser

doi:10.1371/journal.pone.0248172

. 2021 Mar 9;16(3):e0248172. doi: 10.1371/journal.pone.0248172

Multiplicative priming of the correct response can explain the interaction between Simon and flanker congruency

Alodie Rey-Mermet ^1,^2,^*, Miriam Gade ^1,³, Marco Steinhauser ¹

Editor: Ludovic Ferrand⁴

PMCID: PMC7943002 PMID: 33690621

Abstract

In the Simon task, participants perform a decision on non-spatial features (e.g., stimulus color) by responding with a left or right key-press to a stimulus presented on the left or right side of the screen. In the flanker task, they classify the central character while ignoring the flanking characters. In each task, there is a conflict between the response-relevant features and the response-irrelevant features (i.e., the location on the screen for the Simon task, and the flankers for the flanker task). Thus, in both tasks, resolving conflict requires to inhibit irrelevant features and to focus on relevant features. When both tasks were combined within the same trial (e.g., when the row of characters was presented on the left or right side of the screen), most previous research has shown an interaction. In the present study, we investigated whether this interaction is affected by a multiplicative priming of the correct response occurring when both Simon and flanker irrelevant features co-activate the correct response (Exp. 1), a spatial overlap between Simon and flanker features (Exp. 2), and the learning of stimulus-response pairings (Exp. 3). The results only show an impact of multiplicative priming.

Introduction

In a Simon task, participants are asked to perform a decision on non-spatial features for stimuli presented on the left and right side of the screen [e.g., 1–3]. For example, they can be instructed to perform a color decision by pressing a left key for one response (e.g., the response “red”) and a right key for the other response (e.g., the response “blue”). In a flanker task, participants are asked to classify the central character of a row (e.g., the color of the middle letter from a row of X’s) while ignoring the flanking characters [e.g., 4]. When both tasks are combined within the same trial (e.g., by presenting a colored row of X’s on the left or right side of the screen), previous research has revealed an interaction [5–9 but see 8, 10]. The purpose of the present study was to shed more light on the source of this interaction. More specifically, we asked whether this interaction is affected by a multiplicative priming effect, a spatial overlap between Simon and flanker features, or the learning of stimulus-response pairings.

Simon task, flanker task, and their interaction

In both Simon and flanker tasks, trials are labelled incongruent when they contain features pointing to two different response alternatives. For example, a trial is incongruent in the Simon task when the stimulus location on the screen activates a response that is different from the correct response (e.g., a red letter presented on the right side of the screen but requiring a left key-press). In the flanker task, a trial is incongruent when the response activated by the color of the central letter is different from the response activated by the color of the flanking letters (e.g., a red central letter flanked by blue letters). In contrast, trials are congruent when the response-relevant and the response-irrelevant features activate the same response. For example, a trial is congruent in the Simon task when the stimulus location on the screen activates the correct response (e.g., a red letter presented on the left side on the screen and requiring a left-key press). In the flanker task, a trial is congruent when the response activated by the color of the central letter is the same as the response activated by the color of the flanking letters (e.g., a red central letter flanked by red letters). In both tasks, the results showed slower and more error-prone performance on incongruent trials than on congruent trials. This difference in performance is called “congruency effect”.

Theoretically, resolving the conflict in the flanker or Simon task requires to focus on relevant features and/or to inhibit irrelevant features, suggesting at least a similarity or a relation between the processes assumed to be involved in each task. Findings from correlational studies showed, however, small to moderate correlations between both congruency effects (-.01 to .21), suggesting different processes across the tasks [11–16]. In contrast to the correlational approach, the experimental approach suggests a relation between both tasks by showing an interacting pattern. Table 1 shows an overview about the previous studies combining both tasks experimentally. Typically, both tasks were combined by presenting the row of characters for the flanker task on the left or right side of the screen. Most results showed an under-additive interaction, indicating that one congruency effect (e.g., the flanker congruency effect) was smaller in trials that were incongruent with respect to the other congruency variable (in this case, Simon incongruent trials).

Table 1. Previous studies combining Simon and flanker congruency within the same trial.

Study	Sample size	Under-additive interaction?	Decision	Number of stimulus values per congruency variable	Simon orientation	Flanker orientation
Akçay and Hazeltine [10]–Exp. 1	18	no	color	4 locations, 4 colors	horizontal	vertical
Akçay and Hazeltine [10]–Exp. 2	24	no	color	5 locations, 5 colors^a	horizontal	vertical
Frühholz and colleagues [5]–EEG session	20	yes	color	2 locations, 2 colors	horizontal	horizontal and vertical (i.e., cross-like around the target)
Frühholz and colleagues [5]–fMRI session	24	yes	color	2 locations, 2 colors	horizontal	horizontal and vertical (i.e., cross-like around the target)
Hommel [6]–Exp. 2 (horizontal)	16	yes	letter	2 locations, 2 letters	horizontal	horizontal
Hommel [6]–Exp. 2 (vertical)	16	yes	letter	2 locations, 2 letters	vertical	vertical
Rey-Mermet & Gade [7]–Exp. 3	24	yes	color	4 locations, 4 colors	quadrant^b	horizontal
Stoffels and Molen [8]–Exp. 1^c	20	no	letter	3 locations, 3 letters^d	horizontal	horizontal
Stoffels and Molen [8]–Exp. 2^c	16	yes	arrow	3 locations, 3 arrows^d	horizontal	horizontal
Treccani and colleagues [17]–Exp. 1^e	26	yes	colors	2 locations2 colors	horizontal	horizontal
Wendt and colleagues [9]–Exp. 2a	15	yes	letter	2 locations, 2 letters	horizontal	horizontal and vertical (i.e., cross-like around the target)

Open in a new tab

EEG = electro-encephalogram. fMRI = functional magnetic resonance imaging. The studies listed here tested young healthy adults (see [18] for a study including a neglect patient).

^aAll locations and colors were response relevant.

^bStimuli were presented in one of the four quadrants limited by a cross hair.

^cSimon and flanker congruency variables were so combined that the stimulus for the flanker congruency (either congruent, incongruent or neutral) was accompanied by auditory noise presented to the ear ipsilateral to the correct response (Simon congruent), to the ear contralateral to the correct response (Simon incongruent), or to both ears (neutral).

^dOne location and one letter/arrow was included to create neutral trials (i.e., not all locations and letters/arrows were response relevant).

^eA unilateral flanker stimulus was combined with an accessory Simon stimulus. That is, a central colored square was presented in the middle of the screen, which was flanked by another colored square either to the left or to the right. Thus, the flanker square was a distractor for the flanker congruency variable because it was presented in a congruent or incongruent color. At the same time, it was also a distractor for the Simon congruency variable because it conveyed an irrelevant location, which was assumed to be congruent or incongruent with the response location.

Accounts used to explain the interaction between Simon and flanker congruency

Previous research has used different theoretical accounts to explain the interaction between congruency variables. A first attempt is based on the conflict monitoring framework [19], which assumes that a conflict monitoring system estimates the current levels of conflict and adjusts control accordingly. While conflict monitoring has originally been used to account for sequential modulations of control across trials [see 20, 21, for reviews], it has also been applied to explain the within-trial interactions between the different congruency variables [7, 22, 23]. In particular, to account for the interaction between Simon and flanker congruency, one could assume that if the first irrelevant feature being processed (e.g., the irrelevant flanker) is incongruent with the relevant one and thus associated with a high degree of conflict, this leads to a shift of control signal. As a consequence, the response-relevant feature is activated while all irrelevant features–including the irrelevant stimulus location–are inhibited. Thus, the strength of control is also adjusted for the second irrelevant feature to be ignored. This reduces the impact of the irrelevant features if the second irrelevant feature is also incongruent, thus resulting in a smaller congruency effect. According to this account, control processes generalize across all irrelevant features, explaining the under-additive interaction observed in most previous studies.

A second account is based on the spontaneous decay of response-irrelevant features [6]. According to this “temporal overlap” account, whereas the representations of the response-relevant features are actively maintained, the representations of response-irrelevant features are assumed to decay rapidly. Thus, when the trial is Simon and flanker incongruent, incongruent flankers slow down trial processing, which thus provides a longer opportunity for the irrelevant location code to decay. This decreases the impact of the irrelevant location code on response selection. In contrast, when the trial is Simon incongruent but flanker congruent, the time to decay for the representation of the irrelevant location would be shorter, and its impact would be greater. Together, this results in a smaller Simon congruency effect for flanker incongruent trials than for flanker congruent trials, thus explaining the interaction between Simon and flanker congruency.

A third account used to explain the interaction between Simon and flanker congruency is the multiplicative priming of the correct response. According to this account, when trials are congruent for both congruency variables, the correct response is not only activated by the target feature, but also primed by the irrelevant stimulus features (i.e., the color of the flanking character for the flanker congruency and the irrelevant location for the Simon congruency). Multiplicative effects of priming can result if each of the irrelevant features increases response activation proportional to its activation. Once the response is primed by one of the irrelevant features, the priming effect of the other feature would have a stronger effect on the activation level of this response. First empirical support for such a priming of irrelevant features was provided by Treccani and colleagues [17]. In their study, both Simon and flanker congruency variables were so combined that a colored square was presented in the middle of the screen, which was flanked by one colored square either to the left or to the right (see Fig 1). Thus, the flanker square conveyed the irrelevant flanker color that causes the flanker congruency effect. At the same time, it also conveyed the irrelevant location that causes the Simon congruency effect. The reason is that the square location was either congruent or incongruent with the location of the correct response. Thus, in congruent-congruent trials, the irrelevant square triggers the correct response twice (i.e., by means of its color and its position; see the top-left panel of Fig 1), thus facilitating performance. Moreover, in this particular design, the irrelevant square also triggers the incorrect response in incongruent-incongruent trials twice (again by means of its color and its position; see the bottom-right panel of Fig 1). This allows a faster rejection of this response. Together, this accounts for the interaction between Simon and flanker congruency by explaining the faster and more correct response in congruent-congruent trials and incongruent-incongruent trials compared to the trials mixing incongruent and congruent features.

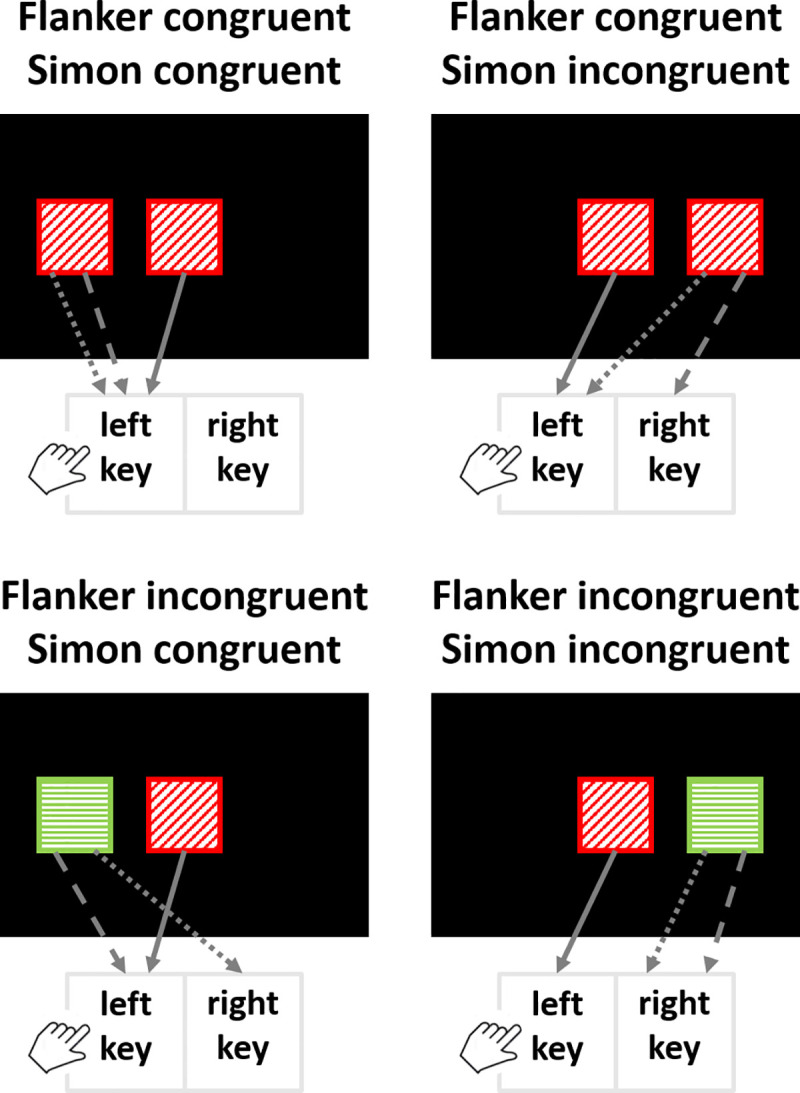

Fig 1 — The target feature associated to the correct response is the color of the central square, which was presented either in red or green. These two colors are additionally presented in oblique and horizontal striations, respectively. The red color was mapped to the left key, whereas the green color was mapped to the right key. Squares presented on the left and right side of the screen were the flanker squares. Solid arrows represent the priming of the target feature (i.e., the color of the central square) to the correct response. Dotted arrows represent the priming of the flanker irrelevant feature (i.e., the color of the flanker square) to the response. Dashed arrows represent the priming of the Simon irrelevant feature (i.e., the left-right location of the screen) to the response. The figure was adapted from the Fig 3 of Treccani and colleagues [17].

The first two accounts–that is, the within-trial conflict monitoring and the spontaneous decay of the representations of response-irrelevant features–have been questioned by empirical findings. First, it has been shown that the interaction between Simon and flanker congruency may occur throughout the RT distribution [7], questioning the temporal overlap account, in particular the assumption that the slow processing of incongruent flankers provides a longer opportunity for the irrelevant location code to decay. However, the design used by Rey-Mermet and Gade [7] differed from the design used, for example, by Hommel [6] (see Table 1), suggesting that the decay of the response codes could explain the observed interaction in some experiments but not in others. Second, the central assumption put forward in both accounts–that is, resolving the first conflict affects the processing of the second conflict–has been put into question by a study using event-related potentials (ERPs) [5, see also 23, 24]. In that study, ERPs were used to track the neural time course of conflict processing. The results showed an interaction in RTs, but a sequential conflict processing in the ERPs. That is, the processing of the flanker conflict was associated with an early component (i.e., N2), whereas the processing of the Simon conflict was associated with a later component (i.e., P3b). However, no interaction was observed in the ERPs, in particular on the later component. If the first conflict affected the processing of the second conflict, this should have resulted in an interaction in the later component because this later component is associated to the processing of the second conflict. In contrast, the results suggest that there is little influence of the first conflict on the processing of the second conflict.

The multiplicative priming effect of the correct response has been so far tested only by Treccani and colleagues [17, 18]. In comparison to previous studies (see Table 1), they used a very particular design in which the same object–that is, the irrelevant square–conveyed the irrelevant features for both congruency variables. This may have changed the weight for processing the irrelevant features so that the irrelevant features could trigger the associated response. Thus, it is possible that in all other studies reported in Table 1 in which the Simon and flanker congruency variables were combined in a more standard way–that is, with different objects conveying the irrelevant features for both congruency variables–the priming effect cannot account for the interaction between Simon and flanker congruency. This might be particularly the case because there is some debate in previous research whether in standard Simon and flanker tasks, the irrelevant stimulus feature can co-activate the correct response in congruent trials at all [2, 4, 25–29].

Together, the above-mentioned accounts can so far explain some but not all empirical results. Accordingly, more than one process could account for the under-additive interaction between flanker and Simon congruency.

Why was the interaction between Simon and flanker congruency sometimes not observed?

Table 1 highlights that whereas most studies report an interaction between Simon and flanker congruency [5–9, 17], a few studies did not [8, 10]. A closer inspection of these studies suggest two possible candidates explaining the discrepancy in findings: (1) the feature overlap between both Simon and flanker congruency variables, and (2) the learning of stimulus-response pairings. We next discuss each of these candidates in detail.

Feature overlap between Simon and flanker congruency

First, most studies included some spatial overlap in the features of the Simon and flanker congruency variables [see 10, for an exception]. For example, in Treccani and colleagues [17], the irrelevant features for both congruency variables were conveyed by the same distractor object (i.e., a colored square presented to the left or right of the screen). In Hommel [6], the irrelevant location leading to the Simon congruency effect was the horizontal position of the stimulus display (flankers + target), and the flankers were also presented horizontally (i.e., left and right to the target). In Rey-Mermet and Gade [7], there was also a partial overlap. That is, the stimulus display (flankers + target) were presented in one of the four quadrants so that the irrelevant locations leading to the Simon congruency effect were the horizontal and vertical position of the stimulus display. Thus, there was a partial overlap with the flanker congruency variable as the flanking characters were presented horizontally.

In most studies including some spatial overlap, the interaction between Simon and flanker congruency was observed (see the first experiment in [8] for an exception), whereas no interaction was reported when there was no overlap [10]. This suggests that certain aspects of the task structure–such as an overlap in the Simon and flanker features–may favor an integration of representations of Simon and flanker features [30], thus creating a basis for the interaction between Simon and flanker congruency.

Learning of stimulus-response pairings

A second issue is the question whether the interaction is affected by episodic memory effects, in particular the learning of stimulus-response pairings [31]. According to this account, the interaction would be affected by the different numbers of stimulus-response pairings in the four trial types (i.e., flanker congruent–Simon congruent, flanker incongruent–Simon congruent, flanker congruent–Simon incongruent, flanker incongruent–Simon incongruent). That is, in case all four trial types are presented equally often but there are different numbers of stimulus-response pairings pro trial type, some stimulus-pairings are presented more frequently than others. In this case, the stimulus-pairings that are presented more frequently are more practiced, explaining better performance for these stimulus-pairings and thus the trial types to which these pairings belong. It is important to note that this difference in learning stimulus-pairings cannot affect the interaction when the stimulus set is small (i.e., when there are two stimulus values per congruency variable, such as the left and right location for the Simon congruency variable, and the colors blue and green for the flanker congruency variable). In this case, the number of stimulus-response pairings is similar across all trial types (see Fig 2, top part), and thus the learning of these stimulus-response pairings should be similar in all trial types.

Fig 2 — For the set size 2, the target feature associated to the correct response is the color of the central square, which was presented either in red or green. These two colors are additionally presented in oblique and horizontal striations, respectively. The red color was mapped to the left key, whereas the green color was mapped to the right key.

In contrast, when the stimulus set consists of four stimulus values (i.e., four locations for the Simon congruency variable and four colors for the flanker congruency variable), the number of stimulus-response pairings differed across trial types (see Fig 2, bottom part). There are four stimulus-response pairings when both congruency variables are congruent (i.e., for each of the four congruent pairings of stimulus and response locations, there is one congruent paring of target and flanker colors), twelve stimulus-response pairings when one congruency variable is congruent and the other is incongruent (i.e., 4 congruent target/flanking colors x 3 incongruent locations, or 3 incongruent target/flanking colors x 4 congruent locations), and thirty-six stimulus-response pairings when both congruency variables are incongruent (i.e., 4 target colors x 3 flanking colors x 3 locations). Thus, presenting equally often each trial type results in different frequencies for each stimulus-response pairing. This may result in a better learning for the stimulus-response pairings which are presented more frequently and thus practiced more often. It is so far unknown how this learning might shape the interaction between Simon and flanker congruency. For example, it is possible that more practice does not lead, at first, to better performance (e.g., going from the few presentations of each of the stimulus-response pairings for incongruent-incongruent trials to the relatively more frequent presentations of the stimulus-response pairings for trials mixing incongruent and congruent features). However, a significant improvement in performance may be found with much more practice, such as when the stimulus-response pairings are presented very frequently in congruent-congruent trials. Therefore, if the learning of stimulus-response pairings has an impact on the interaction between Simon and flanker congruency, it should be best observed in congruent-congruent trials. This would explain why responses were the fastest and the most correct for the congruent-congruent trial type. Critically, explaining performance on this trial type may be sufficient to account for the interaction between Simon and flanker congruency observed in Rey-Mermet and Gade [7]. In that study, all possible stimulus-response pairings were presented in each trial type (please note that this information was not provided in Akçay and Hazeltine [10], the unique other study including a large stimulus set but showing no interaction between both congruency variables; see Table 1). In particular, Rey-Mermet and Gade’s [7] results showed that the interaction was driven by fast RTs and high rates of correct responses in the congruent-congruent trials. There was no decrease in RTs (i.e., faster RTs) or increase in correct responses (i.e., higher rates of correct response) in the incongruent-incongruent trials.

The present study

The purpose of the present study was to shed more lights on the variables influencing the under-additive interaction observed between Simon and flanker congruency. More precisely, Experiments 1a and 1b were designed to investigate the role of multiplicative priming in the interaction when using standard administration of the Simon and flanker congruency variables, that is, when different objects convey the irrelevant features for both Simon and flanker congruency variables. Experiment 2 was conducted to test for the possibility that an overlap in the spatial configuration of the Simon and flanker features is necessary to find an interaction between Simon and flanker congruency. Experiment 3 was intended to determine the impact of the learning of stimulus-response pairings on the under-additive interaction. In all experiments, we opted for a design with a large stimulus set as this design was investigated only in a few studies and resulted in mixed evidence (see Table 1). Moreover, the data were analyzed using null-hypothesis significance testing (NHST) with analyses of variance (ANOVAs) and Bayesian hypothesis testing with Bayesian ANOVA.

Experiment 1

Experiments 1a and 1b were conducted to determine whether the under-additive interaction between Simon and flanker congruency is affected by the multiplicative priming of the correct response in a design in which–contrary to the design used by Treccani and colleagues [17, 18]–the irrelevant features for both Simon and flanker congruency variables are conveyed by different objects (see Fig 3). With such a design, in congruent-congruent trials, the correct response is activated not only by one of the irrelevant features (e.g., the position on the screen) but also by the other irrelevant feature (e.g., the flanker; see the top-left panel of Fig 3). This may result in multiplicative effects of priming of the correct response due to co-activation [17, 32]. Thus, this would accelerate trial processing for the congruent-congruent trials not only compared to when the response is primed by only one irrelevant feature (see all other panels of Fig 3), but its facilitative effect would be also stronger than the sum of the single priming effects. This over-additive priming would result in an under-additive RT pattern because the processing of congruent-congruent trials is selectively accelerated.

Fig 3 — The target feature associated to the correct response is the color of the central X, which was presented either in red, brown, violet, or white. X’s presented above and below the central X were the flanker stimuli. Solid arrows represent the priming of the target feature (i.e., the color of the central X) to the correct response. Dotted arrows represent the priming of the flanker irrelevant feature (i.e., the color of the flanker X) to the response. Dashed arrows represent the priming of the Simon irrelevant feature (i.e., the location of the screen) to the response.

To assess the impact of this priming, we included neutral trials–that is, trials with only one response-relevant feature–in each congruency variable. For the flanker congruency, the neutral trials were the trials in which the flanking letters were printed in a response-irrelevant color (e.g., dark pink or green). For the Simon congruency, previous research has used two types of neutral trials [33]: (1) trials in which the stimulus was presented in the middle of the screen, and (2) trials in which the stimulus was also presented in the center but in the top or bottom part of the screen. Both types of Simon neutral trials were used in Experiments 1a and 1b, respectively. In Experiment 1b, we opted for two stimulus exemplars (i.e., the top and bottom part of the screen) for Simon neutral trials. Thus, all stimulus-response pairings for both Simon and flanker neutral trials were presented equally often.

With such a design, we had three trial types for each Simon and flanker congruency variable in each experiment: incongruent trials, which are assumed to trigger interference, congruent trials, which are assumed to trigger positive priming or facilitation, and neutral trials, which are assumed to trigger neither interference nor facilitation. This allows us to distinguish the interference effect from the facilitation effect [e.g., 34–36]. By computing the difference between incongruent and neutral trials, we can measure the interference processes induced by incongruent trials. By computing the difference between congruent and neutral trials, we can measure the priming induced by congruent trials.

In both experiments, we hypothesized that if the interaction between Simon and flanker congruency is affected by the co-activation of the correct response when the trial is both Simon and flanker congruent [17, 32], the interaction should be observed when the analyses focused on the facilitation effect. The reason is that the facilitation effect is computed as the difference between congruent and neutral trials, and congruent trials are assumed to induce some facilitative priming. In contrast, the interaction should not be found when the analyses focused on the interference effect because this difference involved incongruent and neutral trials (i.e., trials in which no facilitative priming is assumed to occur). However, these hypotheses are based on the assumption that the irrelevant stimulus feature for each Simon and flanker congruency co-activate the correct response in congruent trials. This assumption has been debated in previous research [2, 4, 25–29], raising the possibility that both the irrelevant location and flanking letters do not co-activate the correct response. In this case, the co-activation of the correct response would not occur when the trial is both Simon and flanker congruent. If so, no interaction should be observed when the analyses focused on the facilitation effect.

Method

Participants

For all experiments, we aimed at a minimum sample size of 24 participants per congruency variable in which the interaction between Simon and flanker congruency is expected to occur. This belongs the largest sample sizes tested in previous research (see Table 1). Twenty-nine participants took part in Experiment 1a (28 women, 26 right-handed, mean_age = 21.5 years, SD_age = 3.0). Thirty new participants took part in Experiment 1b (27 women, 29 right-handed, mean_age = 21.8 years, SD_age = 2.9).

All participants had normal or corrected to normal vision. They received payment (8 € per hour) or course credit for participating in the experiment. The study was approved by the ethics committee of the Catholic University of Eichstätt-Ingolstadt (approval number: 2016/18), and written informed consent was acquired from all participants.

Material

The present experiment consisted of three types of blocks: (1) a stimulus-response mapping block, which was included as a practice block to learn the stimulus-response mapping; (2) pure Simon and flanker blocks, which served to familiarize participants with each congruency separately and to control for the presence of congruency effects within each congruency variable; and (3) mixed blocks in which both congruency variables were combined. The stimuli for each block type are described separately.

In the stimulus-response mapping block, a stimulus consisted of a row of four asterisks colored in either red, brown, violet, or white (the same colors we used in [7]). All stimuli were presented centrally on a black background in 40-point Arial Bold font. They comprised a height of 0.38° visual angle and a width of 1.81° visual angle at a viewing distance of 60 cm (screen size: 38 x 30 cm, and screen resolution: 1280 x 1024 px). The stimulus color was determined randomly for each trial.

In the pure Simon blocks, a stimulus consisted of a row of four asterisks displayed in the colors red, brown, violet, and white. All stimuli were presented on a black background in 28-point bold Arial font. In Experiment 1a, each stimulus was displayed in one of five locations, which were presented horizontally in the center of the screen (see Fig 4A). At each location, a square comprising a side length of 3.25° visual angle was presented in yellow. The distance between the squares was 1.81° visual angle. In Experiment 1b, each stimulus was displayed in one of six locations: four of them deviated horizontally from the center of the screen (two left, two right), and two of them deviated vertically from the center of the screen (up, down; see Fig 4B). Similar to Experiment 1a, a square comprising a side length of 3.25° visual angle was presented in yellow at each location. For the four squares with a horizontal deviation, their location was the same as in Experiment 1a. For the two squares with a vertical deviation, the distance between them was 8.50° visual angle. The stimulus–displayed in the center of the square–was determined randomly for each trial. A trial was congruent when the location of the asterisks on the screen corresponds to the location of the response key. In contrast, it was incongruent when the location of the asterisks on the computer screen does not correspond to the location of the response key. Furthermore, in Experiment 1a, a trial was neutral when the stimulus was presented in the middle of screen. In Experiment 1b, a trial was neutral when the stimulus was presented at a location that deviated vertically from the center of the screen. Congruent, incongruent, and neutral trials were presented equally often.

Fig 4 — Participants were asked to indicate the color of the central letter while ignoring the flanking letters and their location on the screen. They used the four response keys y, v, m, and -, which were mapped to the colors red, brown, violet, and white, respectively. Top part: Experiment 1a. Bottom part: Experiment 1b.

In the pure flanker blocks, the stimulus consisted of the letter X presented three times, displayed either in red, brown, violet, white, dark pink or green. All stimuli were presented centrally (without a yellow square) on a black background in 28-point Arial Bold font. In Experiment 1a, the flanker X’s were presented above and below the target so that all three letters comprised a height of 1.62° visual angle and a width of 0.57° visual angle. In Experiment 1b, to avoid increasing the impact of flanking letters when moving the eyes to the top or bottom on the screen in mixed blocks (see below), flankers were presented on the diagonal. The two diagonals (i.e., from the bottom left to the top right and from the top left to the bottom right) were presented equally often. The stimulus was determined randomly for each trial. A trial was congruent when the color of the central letter was the same as the color of the flanking letters. A trial was incongruent when the color of the central letter was different from the color of the flanking letters. Furthermore, a trial was neutral when the flanking letters were presented in dark pink and green, that is, colors which were assigned to no response. Congruent, incongruent, and neutral trials were presented equally often.

In the mixed blocks, the material for the mixed blocks was the same as in the pure flanker blocks, except that colored X’s were displayed as in the pure Simon blocks. All trial types (i.e., Simon incongruent and flanker incongruent, Simon incongruent and flanker congruent, Simon incongruent and flanker neutral, Simon congruent and flanker incongruent, Simon congruent and flanker congruent, Simon congruent and flanker neutral, Simon neutral and flanker incongruent, Simon neutral and flanker congruent, Simon neutral and flanker neutral) occurred equally often.

Procedure

A trial sequence is illustrated in Fig 4. Each trial started with a 500-ms foreperiod. For the pure Simon and mixed blocks, yellow squares were presented in each of the locations during this foreperiod. For the stimulus-response mapping block and the pure flanker blocks, a yellow fixation cross was presented centrally during this foreperiod. Then, the stimulus was presented until a response or 5000 ms elapsed. To respond, participants used the four response keys y, v, m, and—of a standard German QWERTZ keyboard. These keys were mapped to the colors red, brown, violet, and white, respectively. In case of an error, the German word “Fehler” (engl. error) was displayed in yellow for 500 ms. This feedback was presented in the middle of each yellow square for the pure Simon and mixed blocks, and in the middle of the screen for the stimulus-response mapping block and the pure flanker blocks. Finally, a blank was presented during an intertrial interval of 1000 ms. In case pure Simon and mixed blocks, the yellow squares were displayed in each location during this blank.

All participants first performed the stimulus-response mapping block for practice. After this block, half of the participants started with a pure flanker block, followed by a pure Simon block, whereas the other half started with a pure Simon block followed by a pure flanker block. After the first two blocks, all participants performed ten mixed blocks. After these critical blocks, we again presented pure blocks of each congruency variable in order to have enough observations to compute the congruency effects. That is, participants performed a pure flanker block and a pure Simon block in the same order as in the first two pure blocks (e.g., participants who started with a pure flanker block, followed by a pure Simon block, had then a pure flanker block, followed by a pure Simon block). The stimulus-response block included 96 trials, pure blocks included 180 trials each, and mixed blocks included 144 trials each. An overall feedback, which consisted of mean reaction time (RT) and error rate, was displayed at the end of each block. Participants could take brief rests after each block.

At the beginning, after being informed, participants signed the informed consent sheet. Then, they were given short instructions about the task they had to carry out. Before each change of block type (e.g., from the pure flanker block to the mixed blocks), a short instruction for the now relevant task was also given. For the stimulus-response mapping block, participants were instructed to indicate the color of the stimulus. For the pure Simon blocks, they were instructed to indicate the color of the stimulus while ignoring the location of the stimulus on the screen. For the pure flanker blocks, they were instructed to indicate the color of the central letter while ignoring the flanking letters. For the mixed blocks, they were instructed to indicate the color of the central letter while ignoring the location on the screen and the color of the letters.

Participants were tested in group up to six during one session of approximately 2 hours. The experiment was programmed using Tscope5 [37] and run on IBM compatible computer.

Data preparation

The stimulus-response mapping block, which served as a practice block, was not analyzed. The first trial of each block was considered as a warm-up trial and thus was excluded. The dependent variables were reaction times (RTs) and error rates. We applied an arcsine square root transformation to the error rates for statistical analysis. For RTs, to exclude error-related cognitive processes [38], we additionally removed errors and one trial following an error from the raw data set. In Experiment 1a, this dismissed 13.50% of the trials for the mixed blocks, 12.22% of the trials for the pure Simon blocks, and 12.03% of the trials for the pure flanker blocks. In Experiment 1b, this dismissed 14.10% of the trials for the mixed blocks, 12.38% of the trials for the pure Simon blocks, and 14.67% of the trials for the pure flanker blocks.

We also excluded RTs faster than 3 standard deviations (SD) from the mean and slower than 3 SD from the mean for each trial type and participant. In Experiment 1a, this further dismissed 1.97% of the trials for the mixed blocks, 2.03% of the trials for the pure Simon blocks, and 1.96% of the trials for the pure flanker blocks. In Experiment 1b, this further dismissed 1.61% of the trials for the mixed blocks, 1.63% of the trials for the pure Simon blocks, and 1.78% of the trials for the pure flanker blocks

Data analysis

Analyses for the pure blocks are presented in S1 File (see S1a and S1b Table as well as S1 Fig). In the mixed blocks, we investigated whether or not an interaction between Simon and flanker congruency occurred. To this end, we first used a NHST approach by carrying out three two-way repeated-measures ANOVA with Simon congruency and flanker congruency. The focus in the first ANOVA was on the congruency effect, and thus each congruency variable included the level incongruent and congruent. In the second ANOVA, the focus was on the interference effect, and thus each congruency variable included the level incongruent and neutral. In the third ANOVA, the focus was on the facilitation effect, and thus each congruency variable included the level neutral and congruent. These ANOVAs were implemented in R [39] with the afex package [40]. An alpha level of 0.05 was used for all these tests. Effect sizes are expressed as η_g² values (generalized eta square) [41]. In case of significant two-way interactions, follow-up two-tailed t-tests were performed and effect sizes are expressed Cohen’s d.

In addition, to assess not only the strength of evidence for the alternative hypothesis (e.g., the presence of the interaction) but also the strength of evidence for the null hypothesis (e.g., the absence of the interaction), we used a Bayesian approach by computing Bayesian ANOVAs with default prior scales. These were implemented in R with the BayesFactor package [42]. To compute the Bayes Factor (BF) in favor of the alternative hypothesis (i.e., BF₁₀) for the main effect model including either the Simon or flanker congruency, we compared the main effect model against the null model. To compute the BF₁₀ for the two-way interaction model, we compared the interaction model (i.e., the model with both main effects and the interaction) with the main-effects model (i.e., the model with both main effects but no interaction) by calculating the ratio BF_{Interaction Model} / BF_{Main Effects Model} [43]. For each model comparison, the Bayes Factor in favor of the null hypothesis (BF₀₁) was computed as 1/BF₁₀. Following Raftery’s [44] classification scheme, we considered a BF between 1–3 as weak evidence, between 3–20 as positive evidence, between 20–150 as strong evidence, and larger than 150 as very strong evidence.

Results

In the present experiments, the most relevant results are the interaction between both congruency variables, that is, the modulation of the congruency effect (i.e., incongruent vs. congruent trials), the interference effect (i.e., incongruent vs. neutral trials), and the facilitation effect (i.e., neutral vs. congruent trials) of one congruency variable by the congruency of the other variable. The descriptive results for RTs and error rates are presented in Figs 5 and 6, for Experiment 1a and 1b, respectively. The results from the NHST and Bayesian analyses are presented in Tables 2 and 3 for Experiment 1a and 1b, respectively. The results are first presented for Experiment 1a, and then for Experiment 1b.

Fig 5 — (A) Mean reaction times (RT) and (B) mean raw error rates for both flanker and Simon congruency. Error bars represent within-subject confidence intervals [see 45, 46].

Fig 6 — (A) Mean reaction times (RT) and (B) mean raw error rates for both flanker and Simon congruency. Error bars represent within-subject confidence intervals [see 45, 46].

Table 2. Experiment 1a: Inferential statistical values for the two-way repeated-measures analysis of variance (ANOVA) with the variables Simon congruency and flanker congruency, and Bayes Factors (BF) from model comparisons.

Effect–Model	Reaction times					Arcsine transformed error rates
Effect–Model	ANOVA			Bayesian analysis		ANOVA			Bayesian analysis
	F	p	η_g²	BF₁₀	BF₀₁	F	p	η_g²	BF₁₀	BF₀₁
Congruency effect (incongruent vs. congruent)
Simon congruency	33.00	< .001	.04	305.51	3.27 x 10⁻³	18.41	< .001	.03	1.41 x 10³	7.09 x 10⁻⁴
Flanker congruency	322.79	< .001	.11	7.25 x 10¹³	1.38 x 10⁻¹⁴	5.48	.027	.007	1.08	0.92
Two-way interaction	6.35	.018	.003	1.65	0.61	7.00	.013	.007	2.36	0.42
Interference effect (incongruent vs. neutral)
Simon congruency	155.82	< .001	.10	3.89 x 10¹⁵	2.57 x 10⁻¹⁶	3.73	.064	.003	0.94	1.07
Flanker congruency	57.67	< .001	.03	66.56	0.02	4.54	.042	.004	1.60	0.63
Two-way interaction	3.43	.074	.002	0.92	1.09	0.00	.980	< .001	0.28	3.59
Facilitation effect (neutral vs. congruent)
Simon congruency	11.14	.002	.008	11.85	0.08	10.73	.003	.01	11.52	0.09
Flanker congruency	49.22	< .001	.02	1.17 x 10⁴	8.52 x 10⁻⁵	0.91	.348	.001	0.30	3.33
Two-way interaction	10.26	.003	.006	16.99	0.06	2.01	.167	.002	0.56	1.77

Open in a new tab

dfs = (1, 28). Effect sizes are expressed as generalized η² values. BF₁₀ = Bayes Factor in favor of the alternative hypothesis (i.e., in favor of the effect). BF₀₁ = Bayes Factor in favor of the null hypothesis (i.e., in favor of the absence of the effect).

Table 3. Experiment 1b: Inferential statistical values for the two-way repeated-measures analysis of variance (ANOVA) with the variables Simon congruency and flanker congruency, and Bayes Factors (BF) from model comparisons.

Effect–Model	Reaction times					Arcsine transformed error rates
Effect–Model	ANOVA			Bayesian analysis		ANOVA			Bayesian analysis
	F	p	η_g²	BF₁₀	BF₀₁	F	p	η_g²	BF₁₀	BF₀₁
Congruency effect (incongruent vs. congruent)
Simon congruency	15.27	< .001	.01	1.23	0.82	7.66	.010	.02	6.62	0.15
Flanker congruency	231.32	< .001	.15	4.48 x 10²⁰	2.23 x 10⁻²¹	39.05	< .001	.05	967.18	1.03 x 10⁻³
Two-way interaction	1.44	.240	.001	0.48	2.07	12.26	.002	.02	21.53	0.05
Interference effect (incongruent vs. neutral)
Simon congruency	25.59	< .001	.01	1.03 x 10³	9.70 x 10⁻⁴	0.24	.628	< .001	0.21	4.84
Flanker congruency	28.50	< .001	.009	436.06	2.29 x 10⁻³	5.71	.024	.01	2.48	0.40
Two-way interaction	1.75	.196	< .001	0.59	1.69	2.60	.118	.007	1.06	0.94
Facilitation effect (neutral vs. congruent)
Simon congruency	27.96	< .001	.02	34.48	0.03	4.68	.039	.02	4.10	0.24
Flanker congruency	171.79	< .001	.11	1.87 x 10¹⁷	5.35 x 10⁻¹⁸	15.09	< .001	.02	6.90	0.14
Two-way interaction	0.001	.978	< .001	0.27	3.66	10.25	.003	.01	3.84	0.26

Open in a new tab

dfs = (1, 29). Effect sizes are expressed as generalized η² values. BF₁₀ = Bayes Factor in favor of the alternative hypothesis (i.e., in favor of the effect). BF₀₁ = Bayes Factor in favor of the null hypothesis (i.e., in favor of the absence of the effect).

Experiment 1a: Congruency effect (incongruent vs. congruent)

For RTs, the ANOVA including the variables Simon congruency (incongruent, congruent) and flanker congruency (incongruent, congruent) showed a significant interaction (see Table 2, left part). In line with the NHST analysis, the Bayesian analysis revealed small evidence in favor of the interaction model (see Table 2). Thus, the flanker congruency effect was smaller, but still significant, when the trials were Simon incongruent (64 ms), t(28) = 8.89, p < .001, d = 1.65, BF₁₀ = 9.38 x 10⁶, BF₀₁ = 1.07 x 10⁻⁷, compared to when they were Simon congruent (87 ms), t(28) = 16.81, p < .001, d = 3.12, BF₁₀ = 1.52 x 10¹³, BF₀₁ = 6.60 x 10⁻¹⁴ (see Fig 5A). Similarly, the Simon congruency effect was smaller, but still significant, when the trials were flanker incongruent (30 ms), t(28) = 3.08, p = .005, d = 0.57, BF₁₀ = 8.91, BF₀₁ = 0.11, compared to when they were flanker congruent (53 ms), t(28) = 7.24, p < .001, d = 1.34, BF₁₀ = 2.11 x 10⁵, BF₀₁ = 4.74 x 10⁻⁶.

For error rates, the ANOVA from the NHST approach showed a significant interaction between Simon and flanker congruency, and there was weak evidence in favor of the interaction model in the Bayesian analysis. Thus, the flanker congruency effect on error rates was small and not significant when the trials were Simon incongruent (-.004), t(28) = -0.02, p = .981, d = 0.004, BF₁₀ = 0.20, BF₀₁ = 5.07. In contrast, it was slightly larger and significant when the trials were Simon congruent (.02), t(28) = 4.06, p < .001, d = 0.75, BF₁₀ = 83.61, BF₀₁ = 0.01 (see Fig 5B). Similarly, the Simon congruency effect was small and not significant when the trials were flanker incongruent (.01), t(28) = 1.84, p = .076, d = 0.34, BF₁₀ = 0.87, BF₀₁ = 1.14. In contrast, it was slightly larger and significant when the trials were flanker congruent (.04), t(28) = 4.90, p < .001, d = 0.91, BF₁₀ = 653.35, BF₀₁ = 1.53 x 10⁻³. Together, when the focus is on the congruency effect, the results showed an interaction between Simon and flanker congruency for both RTs and error rates.

Experiment 1a: Interference effect (incongruent vs. neutral)

The ANOVA including the variables Simon congruency (incongruent, neutral) and flanker congruency (incongruent, neutral) showed no significant interaction, although the p-value approached the significance level (see Table 2, left part). Furthermore, the Bayesian analysis revealed weak evidence against the interaction model (see Table 2). The descriptive results suggest an over-additive interaction, rather than an under-additive interaction (see Fig 5A). That is, the flanker interference effect was observed in both Simon incongruent and neutral trials, but it was larger–at least descriptively–when the trials were Simon incongruent (43 ms), t(28) = 6.11, p < .001, d = 1.14, BF₁₀ = 1.34 x 104, BF₀₁ = 7.45 x 10⁻⁵, compared to when they were Simon neutral (26 ms), t(28) = 4.24, p < .001, d = 0.79, BF₁₀ = 128.00, BF₀₁ = 0.01 (see Fig 5A). Similarly, the Simon interference effect was significant for both flanker incongruent and neutral trials, but it was larger–at least descriptively–when the trials were flanker incongruent (81 ms), t(28) = 9.07, p < .001, d = 1.68, BF₁₀ = 1.41 x 10⁷, BF₀₁ = 7.07 x 10⁻⁸, compared when they were flanker neutral (63 ms), t(28) = 11.04, p < .001, d = 2.05, BF₁₀ = 8.60 x 10⁸, BF₀₁ = 1.16 x 10⁻⁹. These results speak against an under-additive interaction between Simon and flanker congruency.

For error rates, the ANOVA from the NHST approach showed no significant interaction, and the Bayesian analysis revealed positive evidence against the interaction model. Thus, the flanker interference effect on error rates was similar for both Simon incongruent and neutral trials (.01), and the Simon interference effect was similar for both flanker incongruent and neutral trials (.01; see Fig 5B). Together, when the focus is on the interference effect, the results showed no under-additive interaction between Simon and flanker congruency for both RTs and error rates.

Experiment 1a: Facilitation effect (neutral vs. congruent)

The ANOVA including the variables Simon congruency (neutral, congruent) and flanker congruency (neutral, congruent) showed a significant interaction (see Table 2, left part). In line with the NHST analysis, the Bayesian analysis reveals positive evidence in favor of the interaction model (see Table 2). Thus, the flanker facilitation effect was smaller, but still significant, when the trials were Simon neutral (13 ms), t(28) = 2.36, p = .025, d = 0.44, BF₁₀ = 2.11, BF₀₁ = 0.47, compared to when they were Simon congruent (46 ms), t(28) = 6.28, p < .001, d = 1.16, BF₁₀ = 1.86 x 10⁴, BF₀₁ = 5.38 x 10⁻⁵ (see Fig 5A). More surprisingly, a reversed Simon facilitation effect was observed in both flanker neutral and congruent trials. This was significant when the trials were flanker neutral (-35 ms), t(28) = -4.35, p < .001, d = 0.81, BF₁₀ = 168.11, BF₀₁ = 0.01, but it was not significant when the trials were flanker congruent (-3 ms), t(28) = -0.41, p = .686, d = 0.08, BF₁₀ = 0.21, BF₀₁ = 4.69.

For error rates, the ANOVA from the NHST approach showed no significant interaction, and the Bayesian analysis revealed weak evidence against the interaction model. Nevertheless, at the descriptive level, the results for the error rates mirror the pattern of results observed when the analyses focused on the congruency effect. That is, although the flanker facilitation effect was not significant in both Simon neutral and congruent trials, it was smaller when the trials were Simon neutral (-.001), t(28) = -0.25, p = .808, d = 0.05, BF₁₀ = 0.20, BF₀₁ = 4.93, compared to when they were Simon congruent (.009), t(28) = 1.49, p = .148, d = 0.28, BF₁₀ = 0.53, BF₀₁ = 1.89 (see Fig 5B). Furthermore, the Simon facilitation effect was small and not significant when the trials were flanker neutral (.01), t(28) = 1.07, p = .294, d = 0.20, BF₁₀ = 0.33, BF₀₁ = 3.01. In contrast, it was slightly larger and significant when the trials were flanker congruent (.02), t(28) = 4.49, p < .001, d = 0.83, BF₁₀ = 239.45, BF₀₁ = 4.18 x 10⁻³.

Experiment 1a: Discussion

The results of Experiment 1a showed an under-additive interaction when the analyses focused on the congruency effect (i.e., incongruent vs. congruent). Critically, this interaction was not found when the focus was on the interference effect (i.e., incongruent vs. neutral). In contrast, the under-additive interaction was observed when the focus was on the facilitation effect (i.e., congruent vs. neutral). That is, the facilitation effect of one congruency variable was smaller when the trials of the other congruency variable were neutral compared to when they were congruent. Together, these findings suggest that the interaction between Simon and flanker congruency can be found even with a paradigm involving neutral trials and that the modulation of one congruency effect by the other congruency effect mainly involve priming or facilitation.

For the Simon congruency, we also observed a reverse facilitation effect (i.e., slower performance on congruent trials than on neutral trials; see [33] for a similar finding). This finding may result from the fact that our Simon neutral stimuli were presented at the center of the display where the visual acuity is higher and where no attentional selection process is required [36]. In contrast, in Simon congruent trials, stimuli were presented to the left or right side of the screen, thus requiring moving your attention to the location (left or right) on the screen. This additional attentional process may explain why performance was slower on Simon congruent trials than on neutral trials.

Experiment 1b: Congruency effect (incongruent vs. congruent)

For RTs, the ANOVA including the variables Simon congruency (incongruent, congruent) and flanker congruency (incongruent, congruent) showed no significant interaction (see Table 3, left part). The Bayesian analysis revealed weak evidence against the interaction model (see Table 3). Nevertheless, at the descriptive level, the results mirror the pattern of results observed in the previous experiment. That is, the flanker congruency effect was smaller, but still significant, when the trials were Simon incongruent (78 ms), t(29) = 8.79, p < .001, d = 1.60, BF₁₀ = 1.01 x 10⁷, BF₀₁ = 9.90 x 10⁻⁸, compared to when they were Simon congruent (91 ms), t(29) = 13.01, p < .001, d = 2.37, BF₁₀ = 5.81 x 10¹⁰, BF₀₁ = 1.72 x 10⁻¹¹ (see Fig 6A). Similarly, the Simon congruency effect was smaller, but still significant, when the trials were flanker incongruent (15 ms), t(29) = 2.44, p = .021, d = 0.45, BF₁₀ = 2.41, BF₀₁ = 0.42, compared to when they were flanker congruent (29 ms), t(29) = 3.00, p = .005, d = 0.55, BF₁₀ = 7.54, BF₀₁ = 0.13.

For error rates, the ANOVA from the NHST approach showed a significant interaction between Simon and flanker congruency, and there was strong evidence in favor of the interaction model in the Bayesian analysis. Thus, the flanker congruency effect on error rates was small and not significant when the trials were Simon incongruent (.01), t(29) = 1.48, p = .148, d = 0.27, BF₁₀ = 0.52, BF₀₁ = 1.92. In contrast, it was slightly larger and significant when the trials were Simon congruent (.03), t(29) = 6.37, p < .001, d = 1.16, BF₁₀ = 2.89 x 10⁴, BF₀₁ = 3.46 x 10⁻⁵ (see Fig 6B). Similarly, the Simon congruency effect was small and not significant when the trials were flanker incongruent (.0002), t(29) = 0.04, p = .969, d = 0.01, BF₁₀ = 0.19, BF₀₁ = 5.14. In contrast, it was slightly larger and significant when the trials were flanker congruent (.03), t(29) = 4.12, p < .001, d = 0.75, BF₁₀ = 101.27, BF₀₁ = 0.01. Together, the results showed that when the focus was on the congruency effect, the under-additive interaction between flanker and Simon congruency was significant for error rates, and only observed at the descriptive level for RTs.

Experiment 1b: Interference effect (incongruent vs. neutral)

For both RTs and error rates, the ANOVA including the variables Simon congruency (incongruent, neutral) and flanker congruency (incongruent, neutral) showed no significant interaction and the Bayesian analysis revealed inconclusive evidence regarding the interaction model (see Table 3, left part). Nevertheless, at the descriptive level, the RTs results mirror the pattern of results observed when the analyses focused on the congruency effect. That is, the flanker interference effect was smaller, but still significant, when the trials were Simon incongruent (15 ms), t(29) = 2.29, p = .030, d = 0.41, BF₁₀ = 1.82, BF₀₁ = 0.55, compared to when they were Simon neutral (26 ms), t(29) = 5.00, p < .001, d = 0.91, BF₁₀ = 910.54, BF₀₁ = 1.10 x 10⁻³ (see Fig 6A). Similarly, although the Simon interference effect was reversed in RTs (i.e., slower RTs for neutral trials than for incongruent trials), the Simon interference effect was smaller, but still significant, when the trials were flanker incongruent (-27 ms), t(29) = -4.46, p < .001, d = 0.81, BF₁₀ = 231.27, BF₀₁ = 4.32 x 10⁻³, compared to when they were flanker neutral (-16 ms), t(29) = -2.55, p = .016, d = 0.46, BF₁₀ = 2.96, BF₀₁ = 0.34.

For the error rates (see Fig 6B), the flanker interference effect was relatively similar for both Simon incongruent and neutral trials (.003 and .02, respectively). Similarly, the Simon interference effect was relatively similar for both flanker incongruent and neutral trials (-.01 and .01, respectively). Together, when the focus was on the interference effect, the results showed no interaction between flanker and Simon congruency in error rates, and an interaction in RTs but only at the descriptive level.

Experiment 1b: Facilitation effect (neutral vs. congruent)

For RTs, the ANOVA including the variables Simon congruency (neutral, congruent) and flanker congruency (neutral, congruent) showed no significant interaction (see Table 3, left part). In line with the NHST analysis, the Bayesian analysis revealed positive evidence against the interaction model (see Table 3). Thus, the flanker facilitation effect was exactly similar for Simon neutral and Simon congruent trials (i.e., 33 ms for both trial types). Similarly, the Simon facilitation effect was exactly similar for both flanker neutral and congruent trials (i.e., 75 ms for both trial types; see Fig 6A).

For error rates, the ANOVA from the NHST approach showed a significant interaction between Simon and flanker congruency, and the Bayesian analysis revealed positive evidence in favor of the interaction model (see Table 3, right part). Thus, the flanker facilitation effect was smaller when the trials were Simon neutral (.003), t(29) = 0.46, p = .649, d = 0.08, BF₁₀ = 0.21, BF₀₁ = 4.67, compared to when they were Simon congruent (.02), t(29) = 4.96, p < .001, d = 0.91, BF₁₀ = 821.02, BF₀₁ = 1.22 x 10⁻³ (see Fig 6B). Similarly, the Simon facilitation effect was smaller when the trials were flanker neutral (.005), t(29) = 0.18, p = .860, d = 0.03, BF₁₀ = 0.20, BF₀₁ = 5.07, compared to when the trials were flanker congruent (.02), t(29) = 3.71, p = .001, d = 0.68, BF₁₀ = 36.93, BF₀₁ = 0.03. These results show that when the analyses focused on the facilitation effect, the interaction between Simon and flanker congruency was not significant for RTs, but significant for error rates.

Experiment 1b: Discussion

The results of Experiment 1b were more puzzling than those of the previous experiment. First, when error rates were taken into consideration, the results replicated previous findings. That is, overall error rates increased linearly across Simon congruent, neutral and incongruent trials (see Fig 6B), confirming that performance on Simon neutral trials represent an appropriate baseline for error rates [33]. More critically, the results of the present study showed an under-additive interaction for error rates when the analyses focused on the congruency effect (i.e., incongruent vs. congruent) and the facilitation effect (i.e., congruent vs. neutral). However, no such interaction was observed when the focus was on the interference effect (i.e., incongruent vs. neutral). In line with Experiment 1a, these findings emphasize priming or facilitation in the interaction between Simon and flanker congruency.

In contrast, for the RTs, no significant interaction between Simon and flanker congruency was found in any of the three effects (congruency, interference, and facilitation). Only at the descriptive level, the interaction was observed when the analyses focused on the congruency effect and the interference effect. However, contrary to previous research in which performance increased linearly across Simon congruent, neutral and incongruent trials [33], the present results showed the slowest performance on the Simon neutral trials (see Fig 6A and S1 File for the same pattern of results in the pure blocks). This challenges the view that these Simon neutral trials represent a good baseline for RT performance [33], thus emphasizing the necessity to interpret with caution the RT findings of this experiment.

Experiment 2

Experiment 2 was designed to determine whether the interaction between Simon and flanker congruency is affected by the overlap in spatial configuration. To this end, we tested two groups of participants in which the spatial configuration was manipulated orthogonally between both congruency variables. In the first group (“Simon horizontal–flanker vertical”), the overlap in spatial configuration was similar to Experiment 1a. That is, the four locations for the Simon congruency were presented horizontally, and the flanking characters for the flanker congruency were presented vertically (i.e., above and below the target). In the second group (“Simon vertical–flanker horizontal”), the four locations for the Simon congruency were presented vertically, and the flanking characters for the flanker congruency were presented horizontally (i.e., on the left and right side of the target). We hypothesized that if the interaction between Simon and flanker congruency is affected by the spatial overlap in both congruency variables [30], it should be observed in none of the groups.
