Biomedical applications of electrical stimulation

Abstract

This review provides a comprehensive overview on the biomedical applications of electrical stimulation (EStim). EStim has a wide range of direct effects on both biomolecules and cells. These effects have been exploited to facilitate proliferation and functional development of engineered tissue constructs for regenerative medicine applications. They have also been tested or used in clinics for pain mitigation, muscle rehabilitation, the treatment of motor/consciousness disorders, wound healing, and drug delivery. However, the research on fundamental mechanism of cellular response to EStim has fell behind its applications, which has hindered the full exploitation of the clinical potential of EStim. Moreover, despite the positive outcome from the in vitro and animal studies testing the efficacy of EStim, existing clinical trials failed to establish strong, conclusive supports for the therapeutic efficacy of EStim for most of the clinical applications mentioned above. Two potential directions of future research to improve the clinical utility of EStim are presented, including the optimization and standardization of the stimulation protocol and the development of more tissue-matching devices.

Introduction

EStim is a non-invasive and non-pharmacological physical stimulus. EStim has a broad range of biomedical effects (Fig. 1). At the molecular level, it can facilitate the transport of both charged and uncharged biomolecules through biological membranes via electrophoresis and electroosmosis. These two processes collectively are called iontophoresis [1]. At the cellular level, EStim can interact with a variety of cellular components, such as ion channels, membrane-bound proteins, cytoskeleton and intracellular organelles [2]. These interactions alter cellular activities and functions, such as contraction, migration, orientation and proliferation [3, 4].

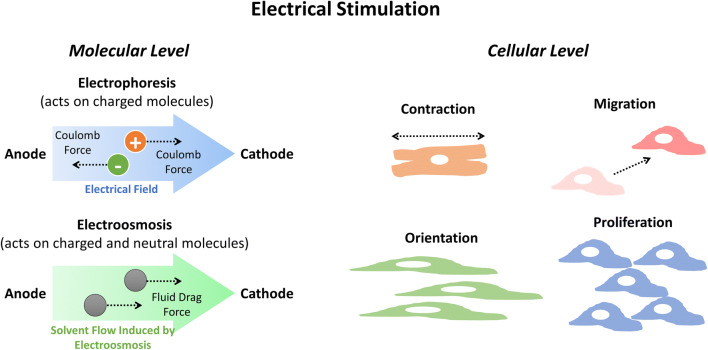

Fig. 1.

EStim has multiple effects at molecular and cellular levels

Due to these direct effects on biomolecules and cells, EStim has been utilized in a wide range of biomedical and clinical applications. EStim is frequently utilized in tissue engineering and regenerative medicine to provide electrical cues to facilitate cell proliferation, stem cell differentiation, tissue regeneration, as well as remodeling and maturation of engineered tissue constructs [2]. For example, EStim has been widely used in neural tissue engineering. The effects of EStim include the accelerated and directional neurite and axon growth, and the differentiation of embryonic stem cell into the neural fate [5]. Many different types of EStim have been utilized in neural tissue engineering, including direct current (DC), alternating current (AC), pulsed current (PC) and pulsed electromagnetic fields (PEMF). EStim has shown efficacy in muscle tissue engineering. In skeletal muscle tissue engineering, EStim has shown to be able to promote the proliferation of myoblasts, the fusion of myoblasts to myotubes, and the expression of myosin heavy chain [6–8]. In cardiac tissue engineering, EStim has been frequently used to facilitate the functional maturation of stem cell-derived or fetal cardiomyocytes (CMs), including the alignment and elongation of CMs, the increased expression of connexin 43 and troponin-I, as well as the synchronous contractions of CMs within constructs [9]. PC EStim is usually used for the stimulation of muscle tissue constructs. EStim has been used to stimulate bone regeneration [10–12]. In vitro studies have shown that EStim can stimulate calcium signaling and increase bone formation [11]. EStim can also upregulate the production of bone growth factors [11]. When DC EStim is used, the cathode electrochemical reactions generate hydroxide ions and hydrogen peroxide, which have been shown to stimulate osteoblast and VEGF production by macrophages [11]. DC, AC, PC and PEMF EStim modes have been tested and shown efficacy for bone tissue regeneration. EStim has also been shown to facilitate wound healing [13–15]. EStim contributes to healing wounds by enhancing the proliferation of skin cells, inducing directional migration of skin cells, providing bacteriostatic and bactericidal effects, and increasing blood perfusion [13]. DC, AC, PC and PEMF have all been utilized in wound healing.

Besides the regenerative medicine, EStim has also been proposed as an alternative treatment modality to conventional pharmacological interventions and an effective drug delivery method for a variety of diseases. The utility of EStim on pain management has been extensively studied. Some evidence has shown that EStim has the potential to reduce neck pain [16], post-operative pain [17], cancer pain [18], chronic pain [19, 20], diabetic peripheral neuropathy [21], and osteoarthritic knee pain [22, 23]. Moreover, it has been reported that EStim is capable of improving muscle contraction force and maintaining muscle mass and strength after nerve injuries, which is particularly useful in sports medicine and rehabilitation after injury [24]. Transcranial direct current stimulation (tDCS) has been used to treat Parkinson’s disease [25], aphasia [26], multiple sclerosis [27], epilepsy [28], Alzheimer’s disease [29], tinnitus [30], depression [31], addiction and craving [32]. It has received level B recommendation (i.e., probable efficacy) for fibromyalgia, depression and craving/addiction in a recent literature survey on the state-of-the-art of the therapeutic use of tDCS [33]. In addition, a large number of studies have shown that iontophoresis can significantly increase the drug delivery efficiency through tissue barriers, such as skin and cornea compared to passive diffusion [34–36]. As mentioned previously, iontophoresis consists of two physical processes, electrophoresis and electroosmosis (Fig. 1, left panel) [1]. Electrophoresis alters the mobility of charged drug molecules through the Coulomb force that the electrical field exerts on those molecules. Electroosmosis induces a solvent flow across ionized membranes due to tht the electrical force exerted on the thin electric double layers. The direction of the flow depends on the charge in the biological membrane. For skin and cornea, the flow is from the anode to the cathode. The drug molecules in the solvent flow in the same direction due to fluid drag force. Therefore, neutral drug molecules can be transported by electroosmosis. Electrophoresis and electroosmosis always happen simultaneously, and their relative strength determines the net flow direction of the drug molecules.

The EStim conditions commonly used for each type of application and the typical effects of EStim are summarized in Table 1.

Table 1.

Common EStim modes and parameters used for each tissue type or application, and the typical outcomes of EStim

Target tissue or application of EStim	Modes of EStim typically used	Common EStim parameters	Typical tissue/cell responses	Substrate for tissue engineering
Nerve [5]	DC, AC, PC, PEMF	Electrical voltage: 10–100 mV Electrical current: up to 200 mA Frequency: DC or 1–500 Hz	Accelerated and directional neurite and axon growth, the differentiation of stem cell into the neural fate	Electrically conductive scaffolds are typically used for tissue engineering
Muscle [37, 38]	PC	Electrical current: up to 250 mA. Frequency: 1–50 Hz Pulse width: 10 µs–150 ms	Proliferation and maturation of myoblast, expression of myosin heavy chain, alignment and elongation of cardiomyocytes, increased expression of connexin 43 and troponin-I, synchronous contractions of cardiomyocytes	Non-conductive natural or synthetic scaffolds are usually used for skeletal muscles. Conductive scaffolds are used for cardiac tissue engineering
Bone [10]	DC, AC, PC, PEMF	Electrical current: 5–100 µA (DC) Electrical field: 1–100 mV/cm (AC, PC and PEMF) Frequency: DC or 20–200 kHz (AC, PC) or 1–100 Hz (PEMF)	Increased calcium signaling and bone formation, upregulated bone growth factors, increased activity of osteoblast, increased production of VEGF	Both non-conductive and conductive scaffolds are used for bone tissue engineering
Wound healing [13]	DC, AC, PC, PEMF	Electrical voltage: 5–300 V. Electrical current: 30 µA–20 mA Frequency: DC or 0.8–600 Hz (AC, PC, PEMF)	Directional and accelerated migration of skin cells, increased proliferation of skin cells, bacteriostatic and bactericidal effects, increased blood perfusion
Pain relief [39]	PC	Electrical current: up to 100 mA Frequency: 50–200 Hz	Clinical trials showed inconsistent and inconclusive results regarding EStim efficacy on pain relief
Drug delivery [1]	DC	Electrical current density: 0.8–25 mA/cm2 Frequency: DC	Increased membrane permeability, increased mobility of drug molecules through electrophoresis and electroosmosis

The hardware for EStim application has been revolutionized over the last several decades due to the development of novel materials and new device architectures. Macroscale rod- or wire-shaped electrodes are conventionally inserted in tissue culture medium to deliver EStim [40]. However, microfabricated electrodes have started to gain popularity due to their capability to integrate in engineered scaffolds to provide localized and directional EStim [41, 42]. For therapeutic EStim, electrode pads are often placed on the skin at the target location to deliver EStim. More recently, the advancement in material science and circuit design has enabled the development of electrical circuit on soft and stretchable substrates that have programmable life time. This has led to wearable and degradable EStim devices that allow more convenient and continuous EStim therapy [43, 44].

In this review, our objective is to: (1) discuss the fundamental mechanisms of tissue and cellular response to EStim; (2) review in vitro high-throughput and tissue engineering devices that are developed to either study or utilize EStim; (3) review clinical evidence on the efficacy of EStim for wound healing and ocular drug delivery; and (4) discuss the critical needs and gaps for the future development of therapeutic EStim. The term “electrical stimulation” in our review has a broad meaning. It refers to not only the physiological stimulation of cellular and tissue activities through the application of electrical field or current, but also the physical “stimulation” of faster molecular transports through biological membranes.

Mechanisms of cellular response to EStim

Common cellular responses to EStim include adhesion, proliferation, differentiation, directional migration, and cell division. For nerve cells, it has been reported that EStim enhances oligodendrocyte maturation and myelin formation [45], neural precursor migration in mouse brains in vivo [46], promotes nerve cell regeneration and stimulates Schwann cells to express neurotrophic factors [47]. EStim of injured peripheral nerves has accelerated axonal regeneration in laboratory animals [48, 49]. For bone cells, EStim of osteoblasts promotes natural healing of fracture bone break cases in humans [50] and enhances osteoblast cells activity [51]. AC EStim has been shown to promote bone regeneration by promoting differentiation of osteoblastic cells [52], and the osteogenic differentiation of human mesenchymal stem cells (hMSCs) [53]. For muscle cells, nanosecond pulsed electric field can modulate myoblast for proliferation and differentiation [54]. EStim of the skeletal muscle bundles can be used to study contraction-dependent endocrine effects of myokines on the activity of co-cultured monocytes [55]. Exposure of mouse myoblast cells to an electrical field resulted in morphological alterations with elongated nucleus, roughening of the cell surface topography, and myogenesis [56]. For skin cells, EStim has shown to guide the migration of epidermal stem cells (EpSCs) to regulate wound healing [57]. EStim can shift injury response from healing/scarring toward regeneration by promoting cell proliferation, generating less condensed collagen fibrils, and by modifying macrophage responses [58]. AC EStim of 50 µA, generated by a triboelectric nanogenerator (TENG), has been shown to promote fibroblast cell proliferation [59].

The fundamental physical mechanisms that are responsible for the aforementioned cellular responses to EStim are currently under active research. A number of hypotheses have been proposed, which are summarized here. (1) Structural water disruption: EStim can lead to immediate disruption in the ordered arrangement of dipolar water (i.e., structured water) surrounding both the external surface of the cell as well as the cell cortex [60, 61]. This effect causes the cell to loss its gel structure to become more of a sol, and releases a large amount of trapped calcium ions leading to a calcium wave. Disruption of extracellular structured water also allows rapid influx of Na⁺ ions with an opposite flow of K⁺ outside the cell. This transition leads to the lamellipodial protrusion at the leading edge of the cell and its concomitant directional mobility. The ion flux can also affect cell volume and membrane potential [62]. (2) Electroosmotic fluid flow: in addition to accelerating trans-membrane drug delivery, the electroosmosis induced by the application of an electrical field can also generate forces acting on the surface of the cell. These forces reorient the cell through a form of hydrodynamic drag force (F_HD) [63]. This effect occurs because of the partitioning of larger Na⁺ ions externally and small K⁺ ions internally across the cell membrane. Larger Na⁺ ions attract larger aqueous shell of water molecule externally as compared to small shell of water molecules attracted by K⁺ ions internally. This difference can create strong external dragging force in the presence of electrical field, resulting in cell mobility [64], and intracellular transport of biomolecules [65]. The electroosmotic forces can have various phenotypic effects including cell proliferation, cell differentiation, and embryogenesis [66, 67]. (3) Asymmetric ion flow and opening of voltage gated channels: the application of electrical field to cell will asymmetrically hyperpolarize the anodal side, and depolarize the cathodal side of the cell thus modulating the cell membrane potential resulting into change in the activity of voltage-gated sodium, potassium, and calcium channels. This change creates asymmetric ion flow once ion channels are open [68]. This electromotive force is also called electrostatic force (F_e) [69]. Similarly, in the presence of an electrical field, intracellular polyamines accumulate toward the cathode side, increasing the inward rectifying property of KCNJ15/Kir4.2, and blocking the influx of K⁺ ions [69]. However, the anode side will show decreased inward rectifying property. This biased inward rectifying property of potassium channels to the cathode side will result in asymmetric flow of K⁺ ions. This asymmetric ion flow and opening of voltage gated ion channels can lead to various cellular responses effecting the final phenotype. For example, K⁺ waves integrate Pseudomonas aeruginosa cells and Bacillus subtilis cell in the biofilm soma [70]; ion channel signaling affects limb and spinal cord regeneration in vertebrates [71, 72]; active inwardly rectifying potassium (Irk) channels regulate release of the Drosophila bone morphogenetic protein Dpp, which is necessary for normal wing morphogenesis [73]; electric synapses modulate eye size and border cell fate via DPP signaling in Drosophila [74, 75]; ion-channel-dependent signaling causes developmental defects in mammals [76]. (4) Mechanosensation: the electrostatic and electroosmotic forces induced by the electrical field will apply mechanical forces (F_m) on the tension-sensitive components on the cell surface, e.g., focal adhesion and cadherin adhesion. As a result, cell components will be dragged laterally. These mechanical signals alter the downstream gene expression and signaling pathways (i.e., mechanotransduction), causing change in various cellular processes, including cell mobility, cell proliferation, organogenesis, and development [77–79]. For example, mechanosensitive pathways such as Notch and Wnt/Ang2, play crucial roles in cardiovascular development and homeostasis in zebrafish model [80]. (5) Redistribution of membrane components and lipid rafts: F_e and F_HD, at the plasma membrane will create a polarity along the electrical field axis by redistributing charged particles of the membrane [81]. Similarly, the three forces (F_e, F_HD, and F_m) generated by applied electrical field can induce forces on the lipid rafts resulting in its asymmetric redistribution across the cell membrane [82]. This preferential distribution further polarizes cell membrane components, e.g., integrin, and caveolin, which in positive feedback loop with lipid raft redistribution promote raft structural stabilization. This polarized effect of electrical field can lead to directional mobility of cells. Previous reports on the effect of integrin type on the direction of cell migration [83] makes feed-forward interaction between lipid rafts and integrin effect on cell mobility even more interesting. This redistribution of membrane components and lipid rafts can bring changes in cell-to-cell communication and the initiation of intracellular signals among other pathophysiological functions [84]. The above-mentioned hypotheses have been summarized in Fig. 2.

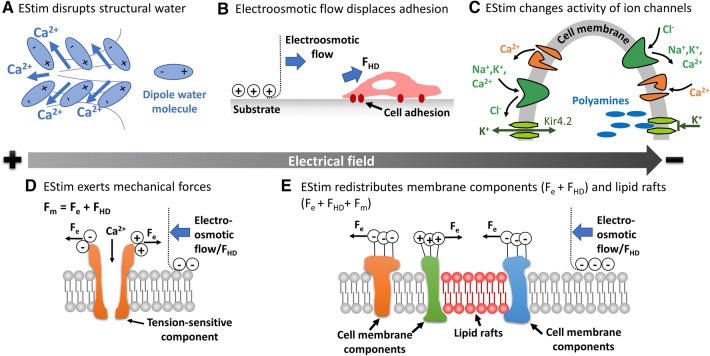

Fig. 2.

Models depicting the fundamental physical effects of EStim on cells. a Application of electrical field disrupts the layer of structured water, leading to a calcium wave. Entry of Na⁺ ions and escape of K⁺ ions also take place when the layer of structured water is disrupted (not shown in current figure). b Hydrodynamic drag force (F_HD) on the cell applied by the electroosmotic flow at the charged migration surface could displace adhesions laterally. c Polarization of the cell by EStim can change the electromotive forces (F_e) and opening/closing of voltage-gated ion channels. d Electroosmotic forces (F_HD) combine with electrostatic forces (F_e) on charged macromolecules and membrane components and produce mechanical forces (F_m). As depicted, this could asymmetrically activate a force sensor creating a local signal that could be used to define the front and the back of the cell. e Local electro-osmotic (F_HD) and electrostatic forces (F_e) at the cell membrane can also push other membrane components. Negatively charged components will move toward the anode, and positively charged components will migrate towards the cathode. Depending upon the net surface charge possessed by the proteins of the cell they will be pushed to one side of the cell or the other by the electroosmotic forces at the membrane. Similarly, all three forces, electroosmotic (F_HD), electrostatic forces (F_e), and mechanical work (F_m) add up to drag the lipid rafts toward the cathode

All of these putative sensors of external electrical field relay information through receptor-based cell signaling to different partners of intracellular components which act as a microprocessor that processes the electrical code, gets perturbed and transforms the electrical signal into cellular responses. Here, we use cell mobility as an example to illustrate some of the downstream signaling pathways that may be involved in eliciting cellular responses [85, 86]. The electrical field-induced passive accumulation of Ca²⁺ ions at the anodal side of the cell is sufficient to induce contraction of the cytoskeleton and propel the cell towards the cathode [87]. However, cytoskeleton perturbation does not provide sufficient evidence to explain the molecular mechanism of electrical field-induced cellular response. Clearly, some intracellular signaling pathways may also play roles in how cell behavior is altered in the presence of an external electrical field. PI3K-AKT (phosphoinositide-3 kinase-AKT serine/threonine kinase) and PTEN (phosphatase and tensin homolog) gene are two key molecules that play crucial role in electrical field-induced cell migration [14]. It has been shown that directional cell movement can be eliminated by genetic disruption of PI3 kinase γ, while the deletion of the PTEN (an antagonist of the PI3K-AKT pathway) has an enhancing effect on electrical field-induced directional cell movement. Similarly, DC EStim can alter the distribution of epidermal growth factor receptor (EGFR) on both keratinocytes and epithelial cells [88, 89]. This further induces asymmetric activation or distribution of intracellular signaling molecules, including lamellipodial Ca²⁺ sparks, extracellular signal-regulated kinase 1, 2 (ERK1, 2), and phosphorated ERK1, 2 [90–92].

In vitro systems that study or utilize estim

High-throughput platforms for studying cellular response to EStim

To fully exploit the therapeutic potential of EStim, it is necessary to elucidate the fundamental mechanisms of cellular responses to EStim and to identify the most effective and safe EStim conditions for different application scenarios. Conventional experimental setups for studying cellular response to EStim, such as the electrotaxis chamber, have limited throughput. They usually can only test one condition or one type of cell in each experiment. This low throughput has significantly hindered the progress of EStim-related discoveries for both fundamental research and clinical applications.

To address this issue, high-throughput and integrated testing systems have been developed that are capable of testing multiple EStim conditions or cell types in one experiment. The most commonly used high-throughput experimental setup is the multiwell plate. In two studies from Barker’s group [93, 94], a six-well plate-based high-throughput experimental setup was developed to investigate the effects of different EStim parameters, including electrical field strength and EStim duration on the osteogenic differentiation of mesenchymal stem cells (MSCs). The L-shaped EStim electrodes were attached to the lid of the 6-well plate, and were able to deliver uniform EStim to each individual well. In another study by Du et al. [95], a 96-well plate-based high-throughput screening platform was developed for studying the optimal EStim parameters for human neural crest stem cell (NCSC) differentiation. The EStim electrodes were arranged in a top-down configuration to generate a vertical electrical field that can stimulate a larger area. The parameters investigated include EStim frequency, duration, and the direction of electrical field.

More recently, microfabricated platforms, such as microfluidics and lab-on-a-chips, have been used in EStim studies, which have significantly improved the throughput. Microfluidics channels with changing widths [96, 97] (Fig. 3a) or resistor-ladder design [98, 99] (Fig. 3b) have been developed to generate multiple EStim strengths, which can be studied in the same device in one experiment. Among these devices, the resistor-ladder design is capable of generating a wide range of EStim intensity spanning over three orders of magnitude from 2.1 mV/mm to 1.6 V/mm using a simple and expandable channel layout [98]. Salt bridges, power supply and/or voltage meter have been integrated in these systems, minimizing the footprint of the experimental setup. The system that allows multiple different cells to be tested in the same experiment was also developed. Gao and colleagues developed a barcoded microplate-based platform to study the EStim response of a library of 563 Dictyostelium discoideum strains with morphological defects [100] (Fig. 3c). Each microplate had a unique graphic barcode which was correlated with the D. discoideum strain that it carried. Up to 30 types of microplates/strains were loaded in a testing chamber and their response to EStim was studied in one experiment. This study identified a number of genes that mediate the electrotaxis of D. discoideum. These studies have significant impact in the field. They collectively provide the technological advancement that is necessary to elucidate the molecular mechanisms of electrotaxis and to identify the effective and safe stimulation conditions for clinical utilities.

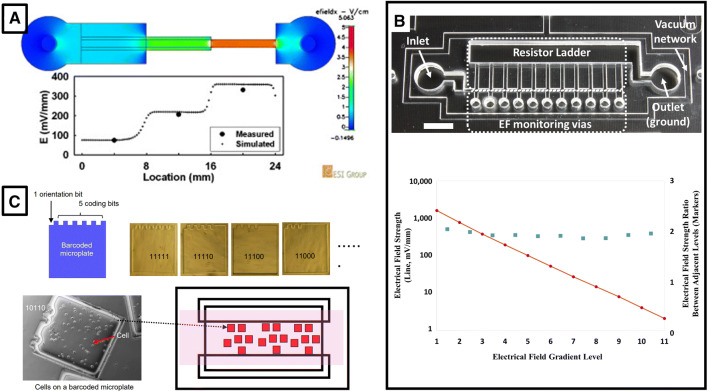

Fig. 3.

High-throughput systems for testing cellular responses to EStim. a A multi-field microfluidic device that can generate three different electrical field strengths simultaneously. Image reproduced from [97] with permission. Copyright 2009, Elsevier. b A resistor ladder-based microfluidic device that can generate 10 levels of electrical field strength spanning over three orders of magnitude. Adapted from [98] with permission. Copyright 2014, Royal Society of Chemistry. c A microplate platform that allows testing 30 different Dictyostelium discoideum strains in one experiment. Reproduced from [100] with permission. Copyright 2015, American Association for the Advancement of Science

The optimal EStim parameters found in high-throughput studies have benefited tissue engineering applications. A study from Vunjak-Novakovic’s group [101] used a miniaturized experimental platform and high-throughput method to identify the optimal electrode material and electrical parameters, including amplitude and frequency, for the EStim of neonatal rat cardiomyocytes. The optimal EStim condition they identified have been used in many cardiac tissue engineering studies to improve cell morphology, the production of proteins that are specific to cardiac gap junctions and contraction, and the contraction force [102, 103]. The best EStim conditions found in Barker’s studies [93, 94] have been used in a recently published study [12] to enhance the osteogenic differentiation of bone tissue engineering constructs with encapsulated MSCs. In the same study, the optimal EStim condition was also applied to bone tissue engineering constructs that were implanted to treat rat femur large defects. The EStim therapy significantly improved the healing of rat femur large defects, with higher bone formation, strength and increased expression of osteogenic genes. The optimal EStim parameters identified in the study by Du et al. [95] was applied to NCSCs that were transplanted in live animals with sciatic nerve injuries. It was found that this EStim protocol significantly enhanced the survival rate and differentiation of the transplanted NCSCs, as well as the overall nerve regeneration. These results show that high-throughput EStim studies have provided practical guidance on the selection of optimal EStim conditions for tissue engineering applications.

Tissue engineering systems that utilize EStim

Due to its direct effects on cells and the crucial role of electrical signal in early tissue development and regeneration, EStim has been widely integrated in tissue engineering systems or applied during in vivo tissue regeneration to improve tissue proliferation, remodeling and maturation [2]. It has been shown that EStim applied directly to tissue scaffolds could significantly enhance the nerve cell proliferation and neurite outgrowth in vitro [104–107] (Fig. 4a), as well as axonal regeneration/remyelination and functional recovery in vivo [108–110] compared to the same scaffolds without EStim. EStim has also been applied to engineered skeletal muscle tissues. It was reported that the application of EStim improved the myobundle size, muscle contraction force and the expression of genes related to sarcomere development [111–113] (Fig. 4b). Due to the importance of electrical cues and activities in the development and functions of cardiac tissue, EStim has been widely used in cardiac tissue engineering. It has been shown that EStim could improve the assembly and the functional development of neonatal rat cardiomyocytes into cardiac tissues that exhibited contractile capability [101, 102, 114] (Fig. 4c). EStim has also been applied to bone tissue engineering constructs to enhance the differentiation of stem cells into osteo-lineage and the functional maturation of the tissues. For example, in two studies by Hu et al., a biocompatible polypyrrole scaffold with adjustable electrical conductivity was developed [115, 116]. Rat bone marrow stromal cells (rBMSCs) were seeded on the scaffolds and electrically stimulated. It was found that the conductive scaffolds and the EStim significantly accelerated the differentiation of rBMSCs and enhanced their mineralization. A detailed evaluation of different EStim modes revealed that square wave at 200 mV/mm electrical field strength delivered the best outcomes.

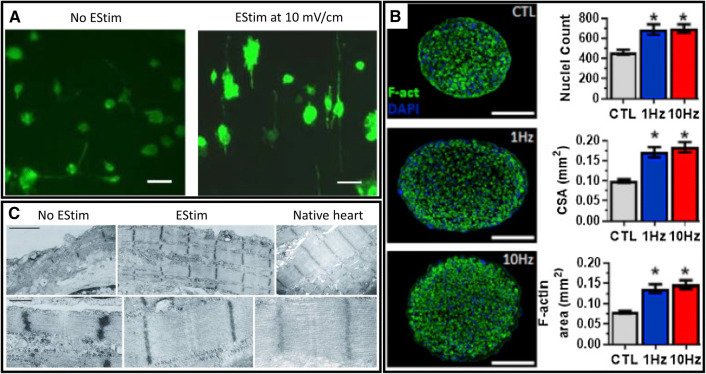

Fig. 4.

EStim enhances tissue regeneration. a EStim increases the neurite length of PC12 cells. Scale bars are 50 μm. Image reprinted from [107] with permission. Copyright 2009, Elsevier. b EStim (at 1 and 10 Hz) promotes growth of myobundles of human skeletal muscle. CTL is no-EStim control. CSA is myobundle cross-sectional area. F-act is a filamentous actin. Scale bars are 200 μm. Image reprinted from [112] with permission. Copyright 2019, Elsevier. c EStim facilitates the assembly and ultrastructural development of cardiomyocytes, which is similar in many aspects to native myocardium. Bar is 2 μm in the first row and 1 μm in the second row. Image reprinted from [114] with permission. Copyright 2004, National Academy of Sciences

EStim can be directly applied to the tissue culture medium as in the case of cardiac tissue EStim [40] (Fig. 5a). Electrodes are typically made of inert materials, such as carbon and platinum [42, 117]. It is also a common practice to apply EStim through conductive scaffolds, which are typically made of conducting polymer fibers or carbon nanomaterials [5, 118, 119] (Fig. 5b). These conductive scaffolds have attracted much attention recently, because they are not only capable of delivering localized EStim to the cells that are attached to the scaffolds [104, 105, 120], but also able to provide topographic cues for cell orientation and proliferation [121, 122]. Conducting polymers and carbon nanomaterials are easy to be modified to allow better tissue interfaces and functions. Extracellular components (e.g., laminin fragments and RGD motifs) and bioactive molecules (e.g., hyaluronic acid) have been blended in or grafted to the surface of the conducting polymer fibers [123–125]. Functional groups (e.g., carboxyl group) and biomolecules (e.g., polyethyleneimine and phospholipids) have been grafted on the surface of carbon nanotubes to improve their biocompatibility and functions [126].

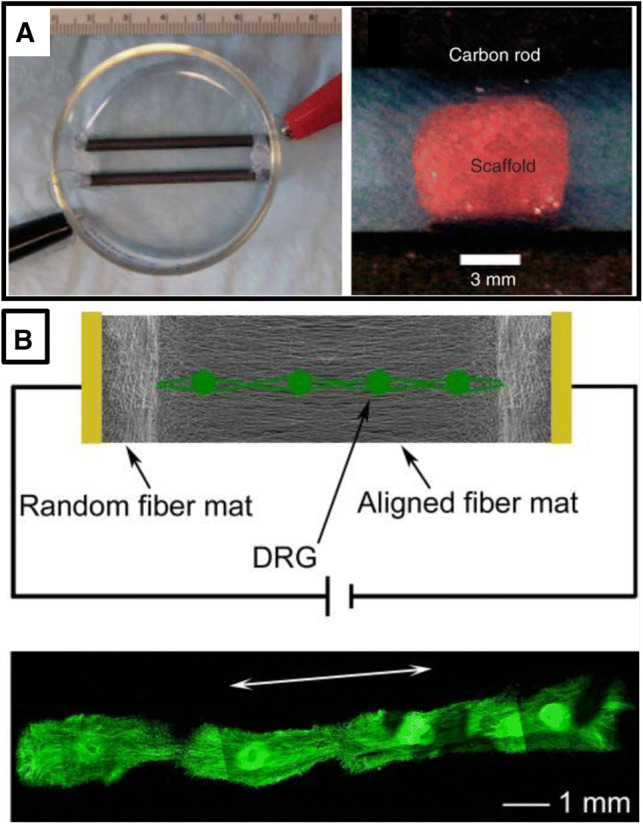

Fig. 5.

Commonly used EStim setups for tissue engineering. a Carbon rod electrodes directly inserted in culture medium are used to deliver EStim. 3D scaffolds can be placed in between the electrodes. Image reprinted from [40] with permission. Copyright 2009, Springer Nature. b EStim can be applied through conductive nanofibrillar scaffold (PCL-PPy) to increase neurite length. Image reprinted from [105] with permission. Copyright 2009, John Wiley and Sons

The clinical utilities of EStim

As mentioned previously, EStim has many potential clinical applications as a non-invasive and non-pharmacological therapeutic modality. However, for many of the applications that have been tested, there is a lack of strong clinical evidence that supports the therapeutic efficacy of EStim. For example, two recent reviews summarized the clinical evidence for the use of EStim in bone regeneration in human patients [11, 127]. They found the existing clinical trials have reported inconclusive and mixed results regarding the clinical efficacy of EStim on bone repair. The evidence provided by many clinical trials was of limited quality due to the small sample size, poorly designed controls and/or variability in fracture sites. The efficacy of EStim on the restoration and recovery of denervated muscles is also inconsistent [128]. According to the literature, the EStim efficacy is highly dependent on the EStim conditions: higher current intensities and longer pulse widths usually generated better outcomes, especially in human muscles that have been denervated for long time [38, 129]. However, such high current intensities and long pulse widths can cause serious tissue damage [130–132], so it is unclear how useful they are in a clinical setup. Very few clinical trials have tested the efficacy of EStim on nerve regeneration in human subjects. One randomized controlled clinical trial compared the effects of EStim on sensory nerve regeneration with no-EStim control [133]. Although a trend of greater functional improvements was shown in the EStim group when compared to the control, the difference was not statistically significant. Another randomized controlled clinical trial aimed to determine the efficacy of EStim on axonal regeneration after surgery [48, 134]. The EStim group showed faster motor neuron regeneration than the control group. However, the EStim group failed to show significantly greater improvement in motor performance when compared to the control. Transcutaneous electrical nerve stimulation (TENS) has been frequently used for pain relief. A recently published systemic review surveyed the efficacy of TENS in pain reduction in human patients [135]. It concluded that the existing studies showed conflicting outcomes: some showed efficacy while the others showed no improvement. Another problem is the lack of high-quality clinical studies and the inconsistency in TENS parameters used in the existing studies.

There are two EStim application areas that have been extensively studied in animal models and clinical trials and have generated relatively consistent positive outcomes, which are the EStim-assisted wound healing and the iontophoretic drug delivery. For iontophoretic drug delivery, we are particularly interested in ocular drug delivery, because EStim is non-invasive and enables high drug delivery efficiency, two attributes highly desired for ocular applications that are not offered by any of the conventional methods. Therefore, we will focus our discussion in this section on EStim-assisted wound healing and iontophoretic ocular drug delivery.

Electrical field assisted wound healing

As mentioned previously, the application of external EStim can enhance the migration directedness and/or speed of a variety of cell types, including cells that actively participate in the wound healing process, such as keratinocytes [136, 137] and dermal fibroblasts [138, 139]. EStim has been successfully used to speed up the healing of in vitro scratch wounds, indicating strong therapeutic potentials.

A number of clinical trials have been conducted in the last 3 decades to assess the efficacy of EStim on enhancing the healing of various chronic wounds [140–149]. Pulsed direct current is the most commonly used form of EStim. DC electrical field provides the directional cue that is necessary to guide cell migration into the wound bed. The pulsed signal reduces the time when the voltage is on so that the adverse effects, such as local heating and chemical changes, do not accumulate on the tissue surface. Continuous DC EStim is also used. However, the intensity has to be kept low to avoid tissue damage.

Many studies have reported that the application of EStim was able to significantly enhance the wound healing speed and/or the number of wounds closed at the end of the study, compared to conventional wound care. For example, using a pulsed DC EStim at a low current intensity of 600 µA, Wood and colleagues reported that EStim significantly increased the number of wounds healed at the end of the study compared to sham control (P < 0.0001) [141]. Lundeberg and colleagues reported that the application of pulsed EStim signal could significantly increase both the number of wounds healed and the wound healing speed (P < 0.05) [146]. Carley and colleagues have shown that continuous, low-intensity DC EStim could effectively increase wound closing speed compared to the control (P < 0.01) [147]. Houghton [144] and Lawson [149] in two separate reports demonstrated that pulsed EStim with high intensity could effectively increase wound healing speed (P < 0.05 and P < 0.01, respectively).

Other studies have reported less encouraging findings on the effect of EStim on wound healing, which were either insignificant improvement compared to control or no improvement. For example, Peters [140], Adunsky [145], Griffin [143] and Houghton [142] in their respective reports have shown that high-voltage, pulsed DC EStim could enhance the wound healing speed and/or the number of wounds healed compared to control, but the differences were not significant (P > 0.05). In the study conducted by Feedar and colleagues [150], it was found that high-voltage, pulsed DC EStim could effectively improve the wound healing speed compared to the sham control (P < 0.02), but the number of wounds healed at the end of the 4-week study was fewer than those of the sham control, although not significant (P > 0.05).

Commercial wound dressings with EStim capabilities are being developed. POSiFECT^® is one of the early products developed by Biofisica, Inc. [151] (Fig. 6a). It is a disposable wound dressing device capable of delivering EStim to facilitate the wound healing process. The POSiFECT device represents a typical design of EStim wound dressing, consisting of a ring-shaped anode placed on the outside of the wound and a small cathode placed at the center of the wound bed to direct the electrical field/current toward the wound bed. The power is provided by an integrated battery module and a constant EStim current is ensured through a control circuit. Procellera^® is a wound dressing device currently under active development by Vomaris Innovations, Inc. [152] (Fig. 6b). It integrates a novel micro-cell battery array that the company claims uses in situ electrochemical reactions to generate EStim current for wound stimulation. It has been shown that Procellera wound dressing had antibacterial effects against clinical wound pathogens, which could potentially reduce the risk of infection at the wound site [153]. A controlled, preclinical study has been conducted that provided in vivo evidence on the anti-biofilm efficacy of Procellera wound dressing. WoundEL^® is a commercial EStim device that can deliver low-voltage, pulsed current to facilitate the wound healing process and reduce wound-related pain. A human clinical trial demonstrated that the WoundEL treatment of leg ulcers for 3 and 7 days could significantly reduce the pain score compared to the onset of the study [154]. The use of analgesic treatments could thus be reduced. A Dacron-mesh silver nylon stocking has been used as a wearable electrode to deliver EStim wound treatment during night time. Compared to conventional electrodes, these stocking electrodes provided long-term EStim capability along with comfort [140].

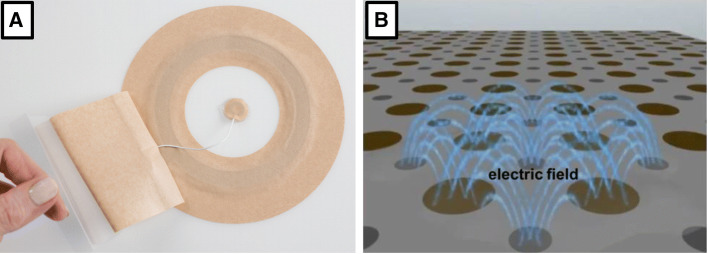

Fig. 6.

Commercial EStim wound dressings. a POSiFECT^®RD bioelectric dressing. Image reproduced from [151] with permission from Rafael V. Andino. Copyright 2006, Biofisica, Inc. b Procellera redox active bioelectric dressing. Image reproduced from [152] with permission under the terms of the Creative Commons Attribution License. Copyright 2014, Public Library of Science

Iontophoretic ocular drug delivery

Another area of clinical utility of EStim that has attracted much attention is the iontophoretic ocular drug delivery. Iontophoresis, as mentioned previously, can significantly increase the trans-membrane transport of biomolecules without affecting tissues given that the EStim energy is within a safe range. Due to its non-invasiveness and high drug transport efficiency, iontophoresis has been tested for drug delivery into the eye, which is an organ where conventional drug delivery routes (e.g., systemic and topical delivery) have low efficiency. DC EStim is the primary approach used in this type of application, because a constant electrical field direction is required to continuously “push” drug molecules into the eye tissue. The iontophoretic ocular drug delivery typically uses two routes, the trans-corneal route and the trans-scleral route. For trans-corneal iontophoresis, the working electrode and the drug reservoir are typically placed on the cornea. Drug molecules would penetrate the cornea under the guidance of an electrical field and eventually get delivered into the anterior segment. This route is used to treat anterior segment diseases, such as glaucoma, dry eyes and keratitis. For trans-scleral iontophoresis, working electrodes are usually placed at the pars plana on the sclera. Drug molecules would penetrate the sclera and choroid and eventually get delivered into the retina or the vitreous. This route is used to treat posterior segment diseases, such as age-related macular degeneration. For both routes, the counter electrode is typically placed on the ear [155, 156]. A recent study showed that effective ocular iontophoresis could also be achieved when both working and counter electrodes were placed on the same eye [157].

Trans-corneal iontophoresis has been frequently used to deliver riboflavin, which is a chemical used in combination with ultraviolet (UV) irradiation to crosslink and stiffen the cornea [158]. In a clinical trial published in 2014, trans-corneal iontophoresis was performed in 19 patients (22 eyes) to deliver riboflavin into the cornea, which was subsequently used to crosslink the cornea by UV irradiation to treat progressive keratoconus [159]. It was found that the riboflavin/UVA treatment resulted in decreases in both keratometry level and corneal astigmatism, and improved the uncorrected distance visual acuity from 0.61 ± 0.44 up to 0.48 ± 0.41 (LogMAR) 1 year after the procedure. A more recent randomized controlled clinical trial compared the outcomes of the trans-epithelial iontophoresis-assisted corneal crosslinking and the standard corneal crosslinking with the epithelial layer removed (epi-off) [160]. At 6-month post-procedure, the iontophoresis group resulted in a significantly higher corrected distance visual acuity compared to the standard epi-off corneal cross linking. However, at 24-months, the difference was not significant any more. Also after 24 months, the iontophoresis was less effective than the standard corneal cross linking on the stabilization and regression of keratometry values. It was found that iontophoresis had a less penetration depth of riboflavin than the standard method with epi-off.

Trans-scleral iontophoresis has been used to deliver corticosteroids to the posterior segment. Two separate clinical trials studied the effectiveness of a trans-scleral iontophoresis device, EyeGate II, on delivering EGP-437 (a dexamethasone phosphate formulated for iontophoresis) for treating dry eye [161] and noninfectious anterior uveitis [162]. The first study showed that the iontophoretic delivery of EGP-437 significantly improved the signs and symptoms of dry eye, including corneal staining, ocular protection index and ocular discomfort, compared to placebo control where sodium citrate buffer solution was used instead of dexamethasone. The second study tested a range of different EStim intensity (1.6, 4.8, 10.0, or 14.0 mA-min) for the delivery of EGP-437 and assessed their efficacy in treating noninfectious anterior uveitis. It was found that the lower doses seemed to be the most effective, and all treatments were well tolerated. The same EyeGate II device has also been used to deliver another corticosteroid, methylprednisolone sodium succinate, into the cornea through trans-scleral iontophoresis followed by lateral diffusion [163]. It was shown that this method was effective in reducing active corneal graft rejection and improving corrected visual acuity.

Commercial iontophoretic devices have been developed to target ocular drug delivery. As mentioned previously, EyeGate II, developed by EyeGate Pharma, uses trans-scleral iontophoresis to deliver therapeutic concentration of drug molecules into various ocular tissues [162] (Fig. 7a). The most commonly delivered drug is EGP-437, which is a dexamethasone phosphate optimized specifically for iontophoresis. Last year, the company announced on their website the outcomes of its Phase 3 clinical study on the safety and efficacy of EGP-437 delivered by the EyeGate II device. Although the iontophoretically delivered EGP-437 showed therapeutic efficacy, it was inferior to the positive control which used the standard prednisolone acetate. Ocuphor was another ocular iontophoretic device that was once under investigation [164] (Fig. 7b). It had a simpler design compared to the EyeGate II system, and used the same trans-scleral route. Human clinical study was conducted to evaluate the safety of Ocuphor device in healthy volunteers and found that it was in general safe if the dose was less than 3 mA for 20 min or 1.5 mA for 40 min [165]. However, no new studies on Ocuphor can be found after 2003.

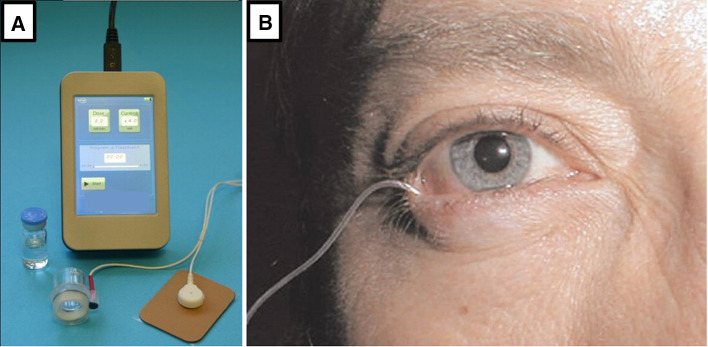

Fig. 7.

Commercial iontophoretic ocular drug delivery devices. a The EyeGate II Delivery System. Image reproduced from [162] with permission. Copyright 2012 Elsevier. b OcuPhor iontophoretic device inserted in the eye. Image reproduced from [164] with permission under the terms of the Creative Commons Attribution License. Copyright 2011, Wolters Kluwer

Problems and perspectives

The need to unveil the fundamental mechanism of cellular response to EStim

To apply EStim-based therapies to cure diseases and improve biological processes such as tissue regeneration there is a dire need to unveil the mechanism of how exactly the cell behaves in an electrical field. The mechanisms behind cell–EStim interactions are not yet well understood. The difficulty to understand mechanisms for EStim–cell interaction calls for a detailed understanding of the induced EStim structures in cells. This first requires thorough knowledge about ion channel targets expressed in tissues of interest so that they can then be accordingly manipulated using EStim. Recently a bioinformatics platform, electroceutical design environment (EDEn), has been designed that includes information on ion channels and ion pumps, linked to known chemical modulators and their properties [166]. The database also provides information about the expression levels of the ion channels in over 100 tissue types. This database can help us to determine which ion channels should be manipulated by electroceuticals or EStim to bring downstream changes in transcriptional and epigenetic profile resulting in modifying the current state (diseased or immature) to the desired state. Also, construction of mathematical models is especially crucial to improve the understanding of these ion-channels and how cells behave in an external electrical field. Various such mathematical models have been proposed before. For example, Fricke and Schwan model predicted the potential induced in an ellipsoidal and spherical cell respectively within the suspension exposed to external EStim [167, 168]. Numeric finite-element modelling (FEM) [169], transport lattice (TLM) models [170], and approaches based on equivalent circuits [171] examined complex cells of complex shapes immersed in an electrolyte. However in many in vivo conditions cells behavior toward EStim is more dynamic involving complex feedback loops; therefore, the next road map in this effort is to develop machine learning-based computation platforms e.g., BioElectric Tissue Simulation Engine (BETSE), a finite volume method multiphysics simulator that can predict the origin and progression of local and long-range bioelectric patterns in complex multicellular tissues [172]. In future such efforts, along with their clinical trials can open new windows in the field of bioelectricity-based therapies.

The need to standardize and improve therapeutic EStim protocol and device

Although EStim has a broad range of therapeutic potentials, it has not been widely accepted in everyday clinical practice. This is because its therapeutic efficacy is inconsistent and inconclusive. After careful review of the published clinical studies, we think there are three reasons that are potentially responsible for such inconsistent outcomes.

First, a variety of different EStim conditions have been used in clinical studies, including different voltages, currents, duration, waveform and polarity. Some studies were voltage controlled, while some were current controlled. These diverse experimental conditions make it very difficult to compare results from different clinical studies or to reach any reliable conclusion. It is also impossible to establish any guidance for future implementation of EStim in the clinics. There is a critical need for systemic studies to identify optimal EStim conditions for each application. The fundamental mechanism of EStim response of different cell/tissue types would help to unveil such information.

Second, most of the published studies did not monitor how much EStim was actually delivered to the target tissues. EStim energy may be lost in the circuit or at the circuit/tissue interface. The heterogeneous tissue structures and electrical properties could lead to a highly non-uniform electrical field distribution. All these factors would affect the amplitude of the EStim signal that is delivered to the target tissues. In addition, dynamic effects should also be considered, such as the change of the impedance at circuit/tissue interface during EStim application [173]. It is necessary to establish a detailed electrical model for each different tissue type to help predict the spatial and dynamic distribution of the EStim signal. It is also necessary to perform real-time EStim monitoring at the target tissue during EStim application to ensure that the desired EStim intensity is delivered and the outcome is reproducible.

Third, the EStim delivery capacity of current electrical devices is largely limited. There are fundamental differences between current electrical systems and biological tissues, including the type of current conducted and their mechanical properties. All current electrical circuits conduct electron currents. Biological tissues, however, use ion currents. To deliver EStim to tissues, the electron currents have to be converted to ion currents through electrochemical reactions (if the voltage delivered is higher than a threshold, which is typically 1 V for water). These reactions induce physical and chemical changes, such as local heating and pH changes, which may cause tissue damage. These adverse effects limit the amount of EStim energy (intensity × duration) that can be delivered using these electrical circuits, and thus their therapeutic efficacy. In addition, most electrical circuits are prepared with rigid materials, while most biological tissues are soft. This mechanical mismatch can cause tissue injury, inflammation and scar tissue formation, especially when long-term EStim is required. Therefore, there is a critical need for a new generation of electrical circuits capable of conducting ion currents and matching the stiffness of biological tissues to allow delivering higher EStim energy without causing tissue damage.

Some efforts have been undertaken to minimize device–tissue mismatch by pursuing alternative materials and circuit designs. The recently developed ionic conductors are prepared with tissue-matching soft hydrogels infused with salt solutions [174–177] (Fig. 8a). Their ion current-conducting capability could potentially eliminate the electrochemical reactions and the associated adverse effects during EStim. However, these ionic conductors lack stability in aqueous environments due to ion diffusion. As a result, they are not suitable for devices that directly interface with biological tissues. To address the issue with ionic conductors, a water-stable, hydrogel-based circuit system, referred to as hydrogel ionic circuit, was developed. Hydrogel ionic circuit is capable of conducting ion currents in its high-concentration salt solution-filled channels [178] (Fig. 8b). These salt solution channels are fabricated within a polyethylene glycol (PEG) hydrogel matrix. A unique aqueous two-phase system formed between the PEG hydrogel and the salt solution stabilizes salt ions in the channels so their diffusion into the PEG hydrogel or the surrounding aqueous medium is minimal. Meanwhile, PEG hydrogels permits ion currents to pass, so EStim can be delivered to biological tissues. These hydrogel ionic circuits have been used to deliver EStim to induce muscle contraction. Adverse effects associated with EStim, including local heating and pH changes are reduced compared to conventional electrodes.

Fig. 8.

Recent efforts to minimize device–tissue mismatch. a Ionic conductors are prepared with hydrogel materials infused with high concentration salt solutions. It can be used to prepare ionic cable to transmit music signal. Image reprinted from [176] with permission. Copyright 2015, Elsevier. b A hydrogel ionic circuit that can deliver ion current to activate LEDs. Scale bars are 1 cm. Image reprinted from [178] with permission. Copyright 2018, John Wiley and Sons

Conclusion

EStim holds great therapeutic potentials due to its capability to non-invasively and non-pharmacologically affect cellular activities and biomolecule transport. To address the current issue of inconsistent and inconclusive therapeutic efficacy of EStim, future research on the fundamental mechanism of cellular response to EStim needs to be conducted, which will shed light on the optimization of EStim conditions for different applications. New EStim devices will need to be developed to match the properties of biological tissues to maximize EStim delivery capacity while minimizing tissue damages. Additional functions can be added, such as wireless energy transfer, preprogrammed/on-demand EStim to improve the usefulness of EStim therapy and patient compliance.
