Clinical effectiveness of therapy with continuous-flow left ventricular assist devices in nonischemic versus ischemic cardiomyopathy: a systematic review and meta-analysis

Abstract

Background

Clinicians may be less inclined to consider long-term left ventricular assist device (LVAD) therapy in end-stage heart failure (ESHF) as a result of non-ischemic cardiomyopathy (NICM) versus ischemic cardiomyopathy (ICM) owing to potentially greater right ventricular involvement in the former; however, it is unknown whether the cause of heart failure has a clinically meaningful effect on outcomes following LVAD implantation. In this systematic review, we aimed to determine whether ischemic versus nonischemic etiology has any impact on patient-relevant outcomes.

Methods

We searched MEDLINE, Embase, PubMed and the Cochrane Library for studies published in English between Jan. 1, 2000, and Nov. 22, 2018, that examined survival and transplantation rates following LVAD implantation in patients with NICM or ICM. Randomized clinical trials, cohort studies, case–control studies, cross-sectional studies and case series with a sample size of at least 8 patients were eligible for inclusion. To be included in the meta-analysis, outcomes had to include at least death reported at 30 days or 1 year after LVAD implantation. Quality of included studies was assessed by 2 independent reviewers using the Newcastle–Ottawa Quality Assessment Scale for Cohort Studies. The Grading of Recommendations Assessment, Development and Evaluation (GRADE) quality-assessment tool was used to assess outcomes (30-d survival, 1-yr survival and cardiac transplantation following LVAD therapy) across studies.

Results

From a total of 2843 citations identified, 7 studies met all inclusion criteria. Studies were generally of good quality, but reporting of patient demographic characteristics, outcomes and complications was heterogeneous. We found no significant difference in 30-day or 1-year survival or in cardiac transplantation rates after device implantation between the NICM and ICM groups. Patients in the 2 groups had similar outcomes up to 1 year with LVAD therapy.

Conclusion

Early outcomes of LVAD therapy do not appear to be affected by heart failure etiology. Ongoing investigation is required to determine the long-term outcomes of LVAD therapy in ICM and NICM.

Systematic review registration: PROSPERO register, record ID 76483.

The advent of continuous-flow left ventricular assist devices (LVADs), with increased reliability and fewer complications than older-generation pulsatile devices, has led to a rise in the use of LVADs for medically refractory end-stage heart failure (ESHF).^1,2 Long-term survival data are emerging in the literature as LVADs remain implanted for longer periods, with patients routinely surviving over 5 years with LVAD support.^3–5 In a multicentre study of 156 patients surviving for at least 4 years on LVAD support, the mean survival duration was 7.1 years, with the majority of patients retaining good function (New York Heart Association Classification class I or II).⁵

Given the increasing utility of LVADs to prolong life in patients with ESHF, a better understanding of factors influencing patient outcomes following LVAD implantation becomes more important.⁶ Patients with ESHF as a result of ischemic cardiomyopathy (ICM) may have better long-term clinical outcomes with LVAD therapy than patients with ESHF as a result of nonischemic cardiomyopathy (NICM) owing to a typically greater degree of right ventricular involvement in the latter.^7,8 On the other hand, patients with NICM are typically younger, with fewer comorbidities.^9,10 There have been contradictory reports in the literature on outcomes following LVAD implantation in patients with NICM and those with ICM.^11,12

The objective of this systematic review was to determine whether there is a difference in survival and rates of patient-relevant complications with LVAD therapy between patients with ESHF as a result of NICM versus ICM.

Methods

This systematic review and meta-analysis followed the guidelines presented in the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) Statement.¹³ The study protocol is in the PROSPERO register under record ID 76483.

Search strategy

We performed a search of the MEDLINE, Embase, PubMed and Cochrane Library databases. We also conducted a grey literature search using Clinicaltrials.gov. Search results were restricted by date from Jan. 1, 2000, to the date the search was run (Nov. 22, 2018) and to articles published in English. Before 2000, the literature offered clinical data only on older-generation pulsatile LVADs, which were excluded from our study. We searched databases using the following search terms: “cardiomyopathy,” “heart failure,” “systolic dysfunction,” “left ventricular assist device” and “continuous flow,” and their variants.

Study selection

Two reviewers (C.W. and A.S.) independently screened records identified through the search using a 2-stage strategy of an initial title and abstract review, and then a full-text review of pertinent articles identified. Disagreements were resolved through discussion and consultation with a third reviewer (C.Y.). Randomized clinical trials, cohort studies, case–control studies, cross-sectional studies and case series with a sample size of at least 8 patients were eligible for inclusion. Studies included were those that examined clinical outcomes, with mortality as a required inclusion criterion, following LVAD implantation in defined NICM and ICM patient populations. Studies that used pulsatile-flow LVADs, those in pediatric (< 18 yr) populations, and those in acute myocarditis or compaction were excluded.

Data extraction

Two reviewers (C.W. and A.S.) independently extracted the data from included studies using a standardized form. Disagreements were resolved by review by a third reviewer (C.Y.).

To be included in the meta-analysis, outcomes had to include at least death reported at 30 days or 1 year after LVAD implantation. The other commonly reported outcome was whether patients underwent heart transplantation following LVAD therapy or continued with LVAD support as destination therapy.

Where possible, we extracted data on age, gender, certain comorbidities (diabetes, hypertension, chronic renal insufficiency, dialysis, chronic obstructive pulmonary disease, previous stroke or transient ischemic attack, peripheral arterial disease), length of stay in hospital and in the intensive care unit, and certain major complications (major bleeding, right ventricular failure, infection, stroke/transient ischemic attack or readmission to hospital).

Quality assessment

The quality of included studies was assessed by 2 independent reviewers (C.W. and A.S.) using the Newcastle–Ottawa Quality Assessment Scale for Cohort Studies.¹⁴ Author disclosure statements were also examined when available for financial and other conflicts of interest. The Grading of Recommendations Assessment, Development and Evaluation (GRADE) quality-assessment tool was used to assess outcomes (30-d survival, 1-yr survival and cardiac transplantation) following LVAD therapy across studies.¹⁵

Statistical analysis

All statistical analyses were performed in Stata 14.0 (Stata-Corp). Heterogeneity, as defined by the I² statistic, was determined a priori to be above the threshold for pooling at 40%. In addition, studies were pooled only if the reviewers believed them to be clinically similar and did not have concerns with pooling. We summarized pooled data with descriptive statistics, using means and standard deviations with normally distributed data, and medians with interquartile ranges where necessary. When pooling was determined to be appropriate, odds ratios (ORs) and 95% confidence intervals (CIs) were reported. We decided a priori that, owing to the expected clinical heterogeneity in studies, random-effects models would be most appropriate.

Results

Our search strategy identified 2843 citations, of which 7 met the inclusion criteria: 6 full-text manuscripts and 1 conference abstract. Our search and selection strategy is summarized in Figure 1. Agreement between reviewers on which studies to include was fair (Cohen κ = 0.25). One additional conference abstract was identified that met the inclusion criteria; however, the authors did not provide data on mortality after LVAD implantation in a usable format (only the OR was stated), and we were unable to contact the investigators.¹⁶

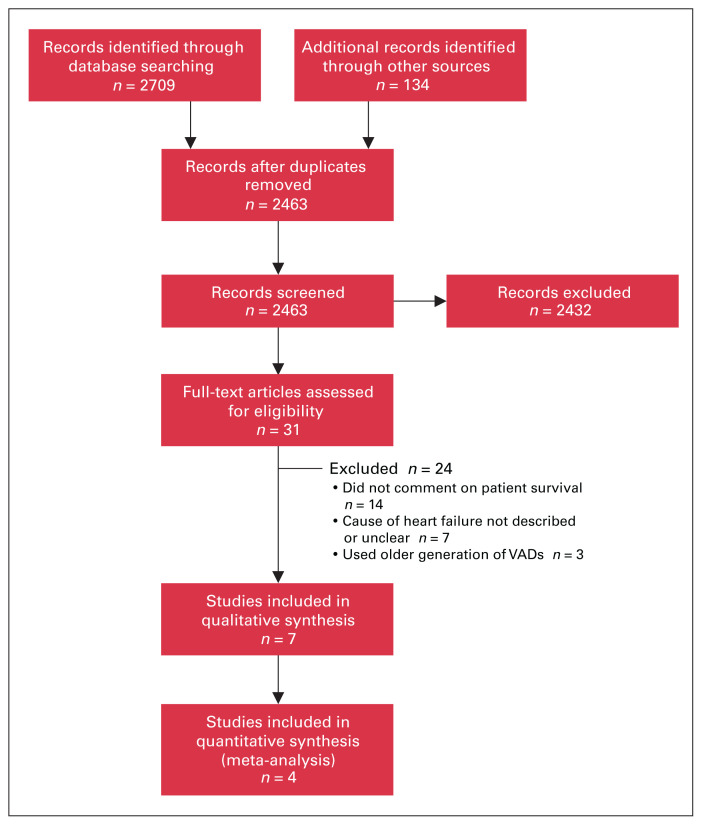

Fig. 1.

Flow diagram showing study selection. VAD = ventricular assist device.

Characteristics of the included studies are provided in Table 1. Five studies were conducted at centres in the United States,^{11,12,17–19} and 2 were conducted at Japanese centres.^20,21 Six studies were single-centre observational studies or case series, and 1 study was a multicentre study that examined patient records from 31 centres in the US.¹¹ The HeartMate II (Thoratec Corporation) was the most commonly used device (96.4%), with the HeartWare (HeartWare International) (2.4%) and Jarvik 2000 (Jarvik Heart) (1.2%) being more rarely used.^{11,12,17–21}

Table 1.

Characteristics of studies included in review

Study	Design	Patient population	Intervention	Comparator	Primary outcome(s)
John et al.,11 2010	Prospective cohort	ESHF with UNOS status 1A or 1B, NYHA class IV listed for transplantation	LVAD support	Duration of support	30-d and 1-yr mortality
Kumar et al.,17 2012	Retrospective cohort	Patients with ESHF resulting from ICM or NICM who underwent LVAD implantation	LVAD support in patients with ICM	LVAD support in patients with NICM	30-d and 1-yr mortality
Maltais et al.,18 2014	Retrospective cohort	CABG + MVR surgery and end-stage ICM with severe mitral regurgitation	LVAD support	Conventional CABG + MVR surgery	30-d and 1-yr mortality
Nishi et al.,20 2014	Case series	ESHF eligible for cardiac transplantation	LVAD support	NA	30-d mortality
Segura et al.,19 2015	Case series	ESHF with LVAD implantation and history of anthracycline exposure	LVAD support	NA	Histopathological changes, mortality at follow-up
Tsiouris et al.,12 2013	Retrospective cohort	Patients with ESHF resulting from ICM or NICM who underwent LVAD implantation	LVAD support in patients with ICM	LVAD support in patients with NICM	30-d, 6-mo and 1-yr mortality
Yoshioka et al.,21 2014	Case series	ESHF with LVAD implantation	LVAD support	NA	1-, 2- and 3-yr mortality

CABG = coronary artery bypass graft; ESHF = end-stage heart failure; ICM = ischemic cardiomyopathy; LVAD = left ventricular assist device; MVR = mitral valve replacement; NA = not applicable; NICM = nonischemic cardiomyopathy; NYHA = New York Heart Association; UNOS = United Network for Organ Sharing.

The demographic characteristics of the patient population included are summarized in Table 2, although reporting of patient demographics was heterogeneous. A total of 674 patients (mean sample size 96, median sample size 33) were enrolled across all included studies. Study sample sizes varied greatly, from 8 patients in a study reporting a single-centre experience with LVAD therapy²¹ to 468 patients in a study detailing a multicentre prospective cohort trial.¹¹ Patients had their devices implanted between 2003 and 2012.

Table 2.

Demographic characteristics of patient populations

Characteristic	Nonischemic cardiomyopathy		Ischemic cardiomyopathy
	No. of studies reporting	Range across studies, %*	No. of studies reporting	Range across studies, %*
Age, yr	5	33.5–53.9	4	59.5–73
Male sex	5	25–86	4	0–85
Length of follow-up, d	4	143–426	3	152–414
Comorbidities
Diabetes	2	8–30	2	18–74
Hypertension	2	8–85	1	91
Chronic renal insufficiency	3	11–29	3	0–70
Dialysis	1	2	1	6
Chronic obstructive pulmonary disease	1	12	1	32
Previous stroke/transient ischemic attack	1	17	0	12
Peripheral arterial disease	1	11	1
History of cardiac surgery	4	10–14	3	43–100
Creatinine level, mg/dL	3	0.8–1.35	2	0.8–1.49
Mechanically ventilated	1	3	1	9

^*Except where noted otherwise.

A summary of the outcomes reported in included studies is provided in Table 3, although this reporting was also heterogeneous. Most studies were retrospective cohorts or case series that were interested primarily in rates of death and of major complications. Only John and colleagues¹¹ reported a prospective cohort study that examined the impact of duration of LVAD support on survival rates after heart transplantation. Most studies reported mortality rates 30 days and 1 year after device implantation or transplantation. Studies typically reported whether patients underwent transplantation and also indicated whether LVAD therapy was being used as bridge-to-transplantation or destination therapy. There did not appear to be any major differences in the proportion of patients who received LVAD support as bridge-to-transplantation or destination therapy between patients with NICM and those with ICM, nor were there major differences in rates of major complications and the average length of intensive care unit and hospital stays between the 2 groups.

Table 3.

Outcomes

Outcome	Nonischemic cardiomyopathy			Ischemic cardiomyopathy
	No. of studies reporting	Total patients included	Range across studies	No. of studies reporting	Total patients included	Range across studies
Survival
30 d	6	258	85–100	5	198	83–100
6 mo	4	94	89–100	2	35	85–100
1 yr	6	258	64–100	5	198	61–100
Latest reported survival, yr	4	171	1.5–4.4	2	108	1.1–1.7
Underwent transplantation	6	258	11–100	5	198	0–100
Destination therapy	5	192	0–89	4	164	0–100
Explanted/recovery	5	192	0–25	4	164	0–0
Length of stay, d
Intensive care unit admission	2	73	5.0–11.5	2	35	3.0–13.0
Hospital admission	2	75	21.3–68.4	2	67	18.0–24.9
Complications
Major bleeding	2	75	5–11	2	67	15–64
Right ventricular failure	3	82	11–14	1	34	9
Infection	3	82	14–22	2	67	12–24
Stroke/transient ischemic attack	3	82	14–22	3	68	12–24
Readmission	2	73	26–29	1	34	21

Quality of included studies

All included studies reported data on mortality after LVAD implantation or after implantation following LVAD support. Data included in the meta-analysis were obtained only from studies in which the authors compared mortality rates directly between NICM and ICM patient groups.

Characteristics of the patient population in the included studies tended to be fairly homogeneous. To be considered for LVAD therapy, patients had to have a diagnosis of medically intractable ESHF. Therefore, for cohort studies, we found that patient selection was adequately free of bias, with study participants being representative of the typical population that would require device support. Whether patients belonged to the NICM or ICM group was ascertained through patient records in all studies. Most studies controlled for patient age and sex, the 2 most important demographic factors that could affect study outcomes (older patients generally have worse overall outcomes, and women are at greater risk for cerebrovascular complications after LVAD implantation than men²²). In all cases, 30-day mortality or 1-year mortality, or both, was reported for all patients included in the studies.

Study quality as assessed with the Newcastle–Ottawa Quality Assessment Scale for Cohort Studies is shown in Table 4. Although we included the result from Kumar and colleagues¹⁷ in our review, it was not possible to complete proper quality assessment on this study because only the abstract was available to us. We therefore excluded this study from the meta-analysis since we could not be confident in its quality.

Table 4.

Quality of included studies as assessed with the Newcastle–Ottawa Quality Assessment Scale for Cohort Studies^14*

Study	Selection			Comparability	Outcome
	Representativeness of exposed cohort	Selection of nonexposed cohort	Ascertainment of exposure		Assessment of outcome	Duration of follow-up	Completeness of follow-up
John et al., 201011	★	★	★	★★	★	★	★
Kumar et al., 201217
Maltais et al., 201418	★	★	★	★★	★	★	★
Nishi et al., 201420			★		★	★	★
Segura et al., 201519			★		★	★	★
Tsiouris et al., 201312	★	★	★	★	★	★	★
Yoshioka et al., 201421			★		★	★	★

^*A study can be awarded a maximum of 1 star for each item within the “Selection” and “Outcome” categories. A maximum of 2 stars can be given for “Comparability.”

All included studies with the exception of that of Segura and colleagues¹⁹ had a published disclosure statement. In the study by John and colleagues,¹¹ which examined posttransplantation survival following LVAD support with HeartMate II devices, 3 of 11 investigators disclosed previous financial support from the manufacturer. In the study by Maltais and colleagues,¹⁸ the principal investigator disclosed previous financial support from the company that manufactures the device used in their study. None of the authors of the other studies reported potential conflicts of interest. It was not possible to determine whether any disclosures were reported by Kumar and colleagues.¹⁷

Evidence synthesis

From data sets obtained from the studies included, we were able to perform a meta-analysis of 30-day (I² = 21%) and 1-year (I² = 38%) survival, as well as likelihood of undergoing transplantation (I² = 4%) for patients with NICM versus ICM. Owing to the heterogeneity in the data presented by each study, only data from 3 studies could be included for each analysis.

We first examined differences in survival after LVAD implantation in patients with NICM versus ICM. Data included in this analysis were from John and colleagues¹¹ and Tsiouris and colleagues.¹² Despite observing a trend of increased survival in patients with NICM, we did not find significant differences in survival rates between the 2 patient groups 30 days (Fig. 2A) (OR 1.82, 95% CI 0.67–4.97) and 1 year (Fig. 2B) (OR 1.00, 95% CI 0.47–2.12) after LVAD implantation. Interestingly, Kumar and colleagues¹⁷ observed a trend toward increased survival in patients with NICM at both 30 days and 1 year after device implantation, and Tsiouris and colleagues¹² observed a trend toward increased survival in patients with NICM at 1 year. However, John and colleagues¹¹ observed slightly increased survival in patients with ICM at both 30 days and 1 year after implantation.

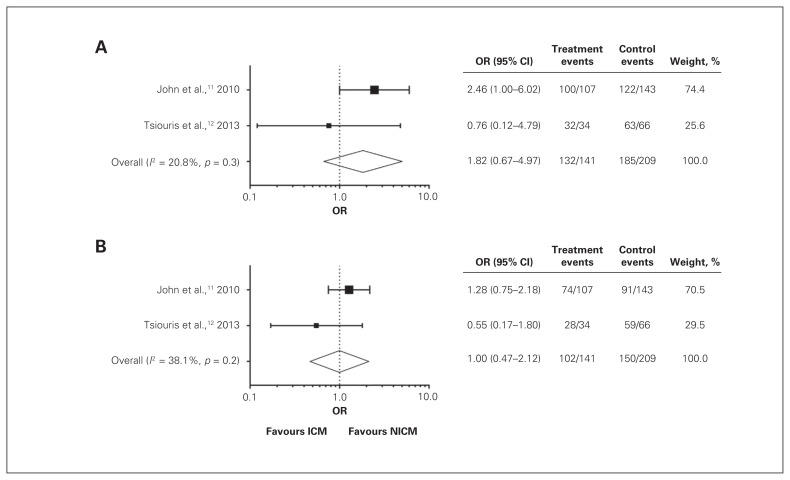

Fig. 2.

Patient survival following implantation of left ventricular assist devices 30 days after implantation (A) and 1 year after implantation (B). Forest plots summarize available data from studies included in the review presented as ischemic cardiomyopathy (ICM) (treatment) versus nonischemic cardiomyopathy (NICM) (control).

In addition, we did not identify any significant differences in risk of transplantation after LVAD implantation between patients with NICM and those with ICM (Fig. 3) (OR 0.47, 95% CI 0.16–1.39). Data included in this analysis were from Tsiouris and colleagues¹² and Yoshioka and colleagues.²¹ The latter observed a trend toward more frequent transplantation in the NICM group, but this was not significant, even in their single study. John and colleagues¹¹ specifically examined survival in patients who had undergone LVAD implantation and subsequently transplantation, so all patients in their study underwent transplantation and could not be included in the analysis of differences in transplantation rates.

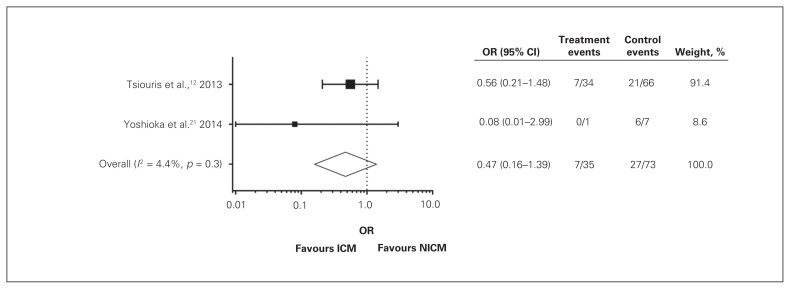

Fig. 3.

Rates of cardiac transplantation following implantation of left ventricular assist devices. Forest plot summarizes available data from studies included in the review presented as ischemic cardiomyopathy (ICM) (treatment) versus nonischemic cardiomyopathy (NICM) (control).

Discussion

Heart transplantation continues to be the gold standard treatment for patients with medically refractory ESHF. However, the availability of donor organs continues to be limited. Furthermore, some patients are deemed ineligible for transplantation. Durable LVAD support has emerged as a viable strategy for both bridge-to-transplantation and destination therapy. Despite the predicted increase in LVAD use, very little is known about the impact of the cause of heart failure on outcomes following LVAD therapy. Etiology could reasonably be expected to have a substantial impact on outcomes owing to the observation that ICM typically affects the left ventricle more significantly, whereas NICM more typically shows biventricular involvement. Clinicians may therefore be somewhat more reluctant to offer long-term LVAD therapy in patients with NICM. On a cellular level, the cause of heart failure appears to be important in cardiomyocyte remodelling. Wever-Pinzon and colleagues²³ showed significant improvements in left ventricular ejection fraction for both patients with ICM and those with NICM following LVAD support. However, only 5% of patients with ICM achieved a left ventricular ejection fraction greater than 40%, compared to 21% of patients with NICM.

There are conflicting reports on the impact of the cause of heart failure on the outcome of LVAD therapy. In a study among 100 patients with ICM or NICM, mortality rates following device implantation were not significantly different between the 2 groups.¹² In contrast, Kumar and colleagues¹⁷ reported that ICM was an independent predictor of death after LVAD implantation. The matter is further complicated by limited duration of follow-up and small samples, which makes it difficult to determine whether the cause of ESHF has a significant impact on patient outcomes following LVAD therapy over a longer period. It is possible that the subtype of NICM played a role in some of the inconsistencies that we observed in our meta-analysis. Neither Tsiouris and colleagues¹² nor John and colleagues¹¹ reported the specific cause in their NICM cohorts, which made it impossible to determine whether NICM subtype had any affect on outcomes.

Following the considerations on evidence quality put forward by the GRADE Working Group,¹⁵ we found no difference in survival rates between ICM and NICM 30 days and 1 year after LVAD implantation. This allows us to make a very weak conclusion that the cause of ESHF does not have a substantial impact on short-and medium-term survival and cardiac transplantation rates following LVAD implantation. Table 5 presents a GRADE evidence profile of the 3 major outcomes examined in this meta-analysis (30-d survival, 1-yr survival and cardiac transplantation). Given that patients with NICM may be expected to have slightly worse outcomes than those with ICM because of a greater degree of right ventricular involvement in the former population,^7,8 it was surprising to see no differences in survival at 30 days or 1 year. If more high-quality data had been available, it is possible that this prediction would have been borne out, but it is also possible that any expected survival benefit for patients with ICM who have LVAD support is offset by the fact that these patients tend to be older and have more comorbidities.^9,10 In addition, although we did not formally include recovery of left ventricular function as an outcome in our review, it should be noted that only 1 of the 7 studies included reported left ventricular recovery.¹⁹ In that study, 3 of 12 patients were reported to have recovery of left ventricular function and device explantation.

Table 5.

Grading of Recommendations Assessment, Development and Evaluation (GRADE) evidence profile for use of left ventricular assist device therapy in patients with end-stage heart failure resulting from ischemic or nonischemic cardiomyopathy

Outcome; no. of studies (no. of participants)	Quality assessment					Summary of findings
	Study limitations*	Consistency†	Directness	Precision‡	Publication bias	OR (95% CI)	Best estimate of ICM group rate, %	Best estimate of NICM group rate, %	Quality
30-d survival
2 (350)	Serious limitations	Explainable heterogeneity	Direct	Imprecision	Unlikely	1.82 (0.67–4.97)	79.6	88.9	Very low
1-yr survival
2 (350)	Serious limitations	Explainable heterogeneity	Direct	Imprecision	Unlikely	1.00 (0.47–2.12)	72.5	72.7	Very low
Transplantation
2 (108)	Serious limitations	Explainable heterogeneity	Direct	Imprecision	Unlikely	0.47 (0.16–1.39)	20.0	37.0	Very low

CI = confidence interval; ICM = ischemic cardiomyopathy; NICM = nonischemic cardiomyopathy; OR = odds ratio.

^*Observational studies only (randomized controlled trials unavailable).

^†One study examined outcomes following cardiac transplantation only; another used a different continuous-flow left ventricular assist device model from that used in the other studies.

^‡Confidence interval includes possible survival advantage from use of left ventricular assist device in both patient groups.

Limitations

Our study is limited by a small sample size, differences in causes of NICM, the older age of the ICM group and an absence of any randomized controlled trials available to be included in the analysis. Another major limitation is the very small number of studies that were usable for our meta-analysis, owing to limitations in how authors reported their outcomes in the studies that met the inclusion criteria. As more and longer-term outcomes following LVAD support are published, sample sizes for review will increase, which will help mitigate these limitations with statistical analysis. In addition, third-generation centrifugal continuous-flow pumps are beginning to be used clinically, with promising early results.²⁴ The recently published MOMENTUM 3 trial showed that the HeartMate 3 — a magnetically levitated centrifugal pump — had a higher rate of survival free of disabling strokes and reoperation or pump removal at 6 months (hazard ratio 0.46, 95% CI 0.31–0.69) and at 2 years, and a lower rate of pump thrombosis than the older HeartMate II axial flow pumps.²⁵ However, studies comparing outcomes in NICM versus ICM with these next-generation centrifugal-flow LVADs are still pending. Although LVADs may be on track to compete with heart transplantation,²⁶ we are still far from the equipoise required to conduct a randomized controlled trial in this patient population. It is therefore relevant for future investigators to investigate and report the impact of specific causes of heart failure on patient outcomes over a longer period.

Conclusion

As LVADs for destination therapy become commonplace, a more comprehensive understanding of the impact of the cause of heart failure on patient outcomes following LVAD therapy over longer periods is necessary to inform decision-making. Although our findings suggest that there are no differences in short- or medium-term outcomes after LVAD therapy in patients with ICM versus NICM, the paucity of data beyond 1 year highlights the need for studies examining long-term patient outcomes following LVAD therapy.
