Water Adsorption Behavior on a Highly Dense Single-Walled Carbon Nanotube Film with an Enhanced Interstitial Space

Dong Young Kim †,*, Keun Soo Kim ‡, Cheol-Min Yang §, Jungpil Kim ∥,*
PMCID: PMC7970577  PMID: 33748615

Abstract

graphic file with name ao0c06302_0011.jpg

In this study, we describe the adsorption behavior of water (H2O) in the interstitial space of single-walled carbon nanotubes (SWCNTs). A highly dense SWCNT (HD-SWCNT) film with a remarkably enhanced interstitial space was fabricated through mild HNO3/H2SO4 treatment. The N2, CO2, and H2 adsorption isotherm results indicated remarkably developed micropore volumes (from 0.10 to 0.40 mL g–1) and narrower micropore widths (from 1.5 to 0.9 nm) following mild HNO3/H2SO4 treatment, suggesting that the interstitial space was increased from the initial densely-packed network assembly structure of the SWCNTs. The H2O adsorption isotherm of the HD-SWCNT film at 303 K showed an increase in H2O adsorption (i.e., by ∼170%), which increased rapidly from the critical value of relative pressure (i.e., 0.3). Despite the remarkably enhanced adsorption capacity of H2O, the rates of H2O adsorption and desorption in the interstitial space did not change. This result shows an adsorption behavior different from that of the fast transport of H2O molecules in the internal space of the SWCNTs. In addition, the adsorption capacities of N2, CO2, H2, and H2O molecules in the interstitial space of the HD-SWCNT film showed a linear relationship with the kinetic diameter, indicating an adsorption behavior that is highly dependent on the kinetic diameter.

Introduction

Water (H2O) adsorption into porous materials, such as porous silica, metal–organic frameworks, and metal-based catalyst materials, has been studied passionately over a number of years because of its potential applicability in eco-friendly energy devices.1−6 In addition, studies into the adsorption/desorption of H2O molecules in these nanoporous materials have been the basis for energy and environmental research in industrial processes, such as H2O purification, desalination, drug delivery, and ion transport.7−10 Since the adsorption/desorption behaviors of H2O molecules are altered by the pore structures and properties of such materials, further research is required in this area.

Carbon nanoporous materials mainly possess a hydrophobic surface but show a unique phenomenon in which the adsorption of H2O molecules increases rapidly at a critical value of the relative H2O vapor pressure.11−14 The adsorption of H2O through control of the pore structures of these nanoporous carbons has been extensively studied.15−17 For example, the mechanisms for stable H2O cluster formation and adsorption in nanoporous carbons with different pore widths were examined through small-angle X-ray scattering measurements, simulations, and in situ molecular adsorption studies for carbon materials with nanopores of various shapes (i.e., activated carbon fibers, carbon nanohorns, and carbon aerosol materials).18−20

Single-walled carbon nanotubes (SWCNTs) with one-dimensional hollow structures and high aspect ratios can be divided into their internal spaces and interstitial spaces, which are formed by the networks between the nanotube bundles.21,22 In particular, the narrow internal spaces of SWCNTs with diameters of generally ≤2 nm can realize the fast transport of molecules (e.g., H2O) with a particularly strong confinement effect.23−27 In this context, Holt et al. reported a mechanism for the fast transport of H2O to microfabricated membranes using sub-2 nm SWCNT arrays.24 In addition, Tunuguntla et al. reported an enhanced H2O permeability and tunable ion selectivity through the application of 0.8 nm diameter SWCNT porins,27 while Ohba et al. studied the formation of H2O clusters in the SWCNT internal space and examined the H2O adsorption mechanism based on the nanotube diameter using X-ray diffraction and molecular simulation analyses.28,29 Furthermore, a number of studies into the unique H2O adsorption phenomena and mechanisms taking place in the SWCNT internal spaces have been reported.30−32

However, compared to extensive and systematic studies into the internal spaces of SWCNTs, studies into the adsorption behaviors and storage mechanisms of molecules, such as H2O, in the interstitial spaces of SWCNTs are rare. The interstitial space formed by the assembly network between nanotubes has the advantage of being able to freely control the nanoporosity through interfacial engineering of a solution-based process, unlike the internal space determined by the nanotube diameter.33−38 The study of H2O adsorption in such developed interstitial spaces would therefore be expected to provide a clear understanding of the nanoporous structures of SWCNTs and the adsorption behaviors of different molecules.

Thus, we herein report the behavior of H2O adsorption in the interstitial spaces of SWCNTs, which are remarkably developed through mild acid treatment. The rates of H2O adsorption and desorption are examined before and after the treatment, and the adsorption capacity of the molecule, which depends on the kinetic diameter of the molecule, is also described.

Results and Discussion

Figure 1a,b shows photographic images of the highly dense SWCNT (HD-SWCNT) film fabricated via mild acid treatment in HNO3/H2SO4 at 298 K and subsequent vacuum filtration (VF). The HD-SWCNT film exhibits a relatively uniform and rigid surface, and the film thickness was determined to be ∼30 μm. Figure 1c,d shows the field emission scanning electron microscopy (FE-SEM) images of the surface morphologies of the SWCNTs and the HD-SWCNT film, respectively. After HNO3/H2SO4 treatment, the network assembly form of the HD-SWCNT film exhibited a fairly uniform and dense structure (Figure 1d). The dense packing structure of the HD-SWCNT film can be attributed to the following two phenomena: (1) randomly entangled as-grown SWCNT bundles are highly dispersed by oxygen-containing functional groups introduced by the HNO3/H2SO4 treatment, and (2) the individual SWCNTs in the dispersed suspension are densely rearranged through the VF process after sonication. The assembly of SWCNTs through a high dispersion and rearrangement process by the introduction of oxygen-containing functional groups is therefore a simple and effective method for controlling the narrow microporosity in solution-based CNT processes. Such a dense assembly structure of the HD-SWCNT film can provide a remarkably developed adsorption capacity attributed to increasingly narrow micropores.

Figure 1.

Figure 1

Open in a new tab

(a,b) Photographic images of the HD-SWCNT film fabricated using the mild HNO3/H2SO4 treatment process, and FE-SEM images of the (c) SWCNTs and (d) HD-SWCNT film.

To determine the surface chemical states of the SWCNTs and the HD-SWCNT film, X-ray photoelectron spectroscopy (XPS) was carried out (Figure 2). The C 1s spectra were fitted with four peaks originating from C=C and/or C–H (284.4 eV), C–O and/or C=O (286.4 eV), O–C=O (288.6 eV), and π–π* shake-up (290.4 eV), as shown in Figure 2a,b.39,40 After functionalizing the SWCNTs by HNO3/H2SO4 treatment and thermal treatment at 1173 K (HD-SWCNT film), the content of the oxygen-containing functional groups (i.e., C–O and/or C=O) increased by up to 42.4% (Figure 2a,b). Recently, our group demonstrated the peak shifts and the corresponding full widths at half-maximum (fwhms) of the XPS peaks of nanocarbon materials with various defects.39,41−43 The XPS peak originating from vacancy defects appears at ±0.7 eV from the C=C and/or C–H main peak.39,41 Thus, the fwhm of the peak originating from the C=C and/or C–H peak increased upon the introduction of internal pores to the CNT wall due to the presence of an increased number of vacancies and edge structures in the wall.39,41 However, the fwhm of the peak originating from the C=C and/or C–H moiety of the HD-SWCNT film was not increased compared to that of the SWCNTs (Figure 2c), which indicates either that the number of internal pores was small or that no internal pores were introduced.

Figure 2.

Figure 2

Open in a new tab

C 1s XPS spectra of the SWCNTs and the HD-SWCNT film. (a) Peak separation of the SWCNTs. (b) Peak separation of the HD-SWCNT film. (c) Comparison of the fwhms of the peaks originating from the C=C and C–H moieties between the SWCNTs and the HD-SWCNT film.

In Figure 3a, the adsorption isotherms of the SWCNTs are typical IUPAC type II isotherms, whereas the HD-SWCNT film was found to exhibit a type IV isotherm with small hysteresis, especially in the low relative pressure region (P/P0 = 0.1). In addition, the film presented a significantly higher adsorption capacity (∼2×) than the SWCNTs. In the low relative pressure region (P/P0 = 0.1), the marked increase in the amount of N2 adsorption was associated with the development of narrow micropores, which can be more clearly observed in the adsorption isotherm by plotting the logarithm of P/P0 (see the inset of Figure 3a). The development of this remarkable microporosity can lead to a high micropore surface area and a high micropore volume. The subtracting pore effect (SPE) method determined by the αs-plots is an effective analytical tool for accurately characterizing micropores.33,44Figure 3b shows high-resolution αs-plots of the adsorption of N2 by the SWCNTs and the HD-SWCNT film. A significant increase in the lower regions of the αs-plots (αs < 0.5) indicates the presence of abundantly developed uniform micropores. The pore structure parameters of the SWCNTs and the HD-SWCNT film calculated from the SPE method are summarized in Table 1. After HNO3/H2SO4 treatment, the total surface area of the HD-SWCNT film increased approximately 3 times from 341 to 1048 m2 g–1, as shown in Table 1 and Figure 3c. This significant increase in the total surface area is mainly due to the increased interstitial space between nanotubes, which in turn is caused by the formation of tightly packed assembly structures. The micropore surface area of the HD-SWCNT film increased by approximately 10 times from 82 to 859 m2 g–1, and the micropore volume increased by 4 times from 0.10 to 0.40 mL g–1 (Table 1).

Figure 3.

Figure 3

Open in a new tab

N2 adsorption properties of the SWCNT samples at 77 K. (a) N2 adsorption isotherms of the SWCNTs (●) and the HD-SWCNT film (▲). The solid and open symbols indicate the adsorption and desorption branches, respectively. The inset shows N2 adsorption isotherms in the logarithmic scale. (b) αs-plots, (c) Total surface areas, and (d) DR plots of the N2 adsorption isotherms.

Table 1. Pore Structure Parameters of the SWCNTs and the HD-SWCNT Film Determined by the SPE Method.

sample total surface area (m2 g–1) micropore surface area (m2 g–1) mesopore surface area (m2 g–1) total pore volume (mL g–1) micropore volume (mL g–1) mesopore volume (mL g–1)
SWCNTs 341 82 259 1.01 0.10 0.91
HD-SWCNT film 1048 859 189 0.72 0.40 0.32
Open in a new tab

The Dubinin–Radushkevich (DR) equation was then applied to analyze the precise microporous structure and the isosteric heat of adsorption (qst,Φ=1/e) for the SWCNTs and the HD-SWCNT film.34Figure 3d shows the DR plot of the N2 adsorption isotherm at 77 K, where it is apparent that both DR plots of the SWCNTs and HD-SWCNT film are linear in the low-pressure range. The values of qst,Φ=1/e, w, Inline graphic, and Inline graphic obtained from the DR plots are summarized in Table 2. In addition, the average micropore width of the HD-SWCNT film was found to narrow from 1.5 to 0.9 nm (Table 2). In general, the qst,Φ=1/e value depends on the micropore width, the chemical state, and the interaction of the pore walls.34 This implies that the higher the qst,Φ=1/e value, the stronger the adsorbent–pore interaction. Following mild HNO3/H2SO4 treatment, the qst,Φ=1/e value of the HD-SWCNT film increased by 3.1 kJ mol–1 compared to that of the SWCNTs. These results clearly indicate the remarkable development of micropores with a narrow average width of 0.9 nm, mainly owing to the enhancement of the interstitial space caused by the formation of highly packed SWCNT assemblies.

Table 2. Isosteric Heats of Adsorption (qst,Φ=1/e), Average Micropore Widths (w), and Micropore Volumes (Inline graphic and Inline graphic) Determined from DR Plots of the N2 (77 K) and CO2 (273 K) Adsorption Isotherms.

sample qst,Φ=1/e (kJ mol–1) w (nm) Inline graphic (mL g–1) Inline graphic (mL g–1)
SWCNTs 9.8 1.5 0.10 0.08
HD-SWCNT films 12.9 0.9 0.40 0.32
Open in a new tab

Subsequently, the enriched narrow interstitial space of the HD-SWCNT film with w = 0.9 nm was analyzed by applying the CO2 adsorption technology. Since CO2 molecules (kinetic diameter = 0.330 nm) are smaller than N2 molecules (kinetic diameter = 0.364 nm) and have a higher kinetic energy, they can easily access the very narrow interstitial spaces of the nanotubes where N2 molecules cannot be adsorbed (Table 3).45,46Figure 4 shows the CO2 adsorption isotherms of the SWCNTs and the HD-SWCNT film at 273 K up to a maximum relative pressure (P/P0) of 0.029. CO2 adsorption by the HD-SWCNT (170 mg g–1) film exhibits a Langmuir isotherm, in addition to an approximately 2.9 times higher adsorption than the SWCNTs (59 mg g–1). The significant increase in the amount of CO2 adsorption following HNO3/H2SO4 treatment indicates the presence of well-developed and abundant micropores with a narrow size distribution. After HNO3/H2SO4 treatment, the micropore volume (Inline graphic) value obtained from the DR plot of the CO2 adsorption isotherm also increased approximately 4 times from 0.32 to 0.08 mL g–1, as outlined in Table 2.

Table 3. Kinetic Diameters of the N2, CO2, H2, and H2O Molecules.

molecule N2 CO2 H2 H2O
kinetic diameter (nm) 0.36445 0.33045 0.28945 0.26546
Open in a new tab

Figure 4.

Figure 4

Open in a new tab

CO2 adsorption on the SWCNTs and the HD-SWCNT film at 273 K. (a) CO2 adsorption isotherms and (b) CO2 adsorption isotherms in the logarithmic scale.

The kinetic diameter of the H2 molecule is 0.289 nm, which is smaller than that of the CO2 molecule (0.330 nm), and so can provide accurate information regarding the narrow microporosity of a densely-packed HD-SWCNT film (Table 3). Figure 5 shows the H2 adsorption isotherm and the DR plot analysis of the SWCNTs and the HD-SWCNT film obtained by H2 adsorption at 77 K, respectively. In the H2 adsorption isotherm at a pressure up to 100 kPa, H2 adsorption by the HD-SWCNT film increased approximately 2.5 times from 7 to 18 mg g–1 (Figure 5a). This enhancement in the H2 adsorption may be associated with an increase in the narrow interstitial space in the SWCNT assembly network following HNO3/H2SO4 treatment. Supercritical DR plots are primarily used to accurately characterize the interactions of micropores with supercritical gases such as H2. The following supercritical DR equation was therefore applied to analyze the precise microporous structure and the isosteric heat of adsorption for the HD-SWCNT film with an enhanced narrow interstitial space47−49

graphic file with name ao0c06302_m004.jpg 1

where WL is the amount of saturated H2 adsorption at 77 K, which can be calculated from the Langmuir plot of the H2 adsorption isotherm, W is the amount of gas adsorption at adsorption pressure P, P0q is the quasi-saturated vapor pressure, R is the gas constant, and T is the temperature. In addition, β is the affinity coefficient, and E0 is the characteristic adsorption energy. The isosteric heat of adsorption at the filling ratio of 1/e, qst,Φ=1/e can be obtained from the value βE0 determined from eq 2

graphic file with name ao0c06302_m005.jpg 2

where ΔHv is the enthalpy of vaporization (ΔHv of H2 = 0.898 kJ mol–1). Figure 5b shows the DR plot of a linear H2 adsorption isotherm at 77 K above 10–2 kPa. The measured values of WL, P0q, and qst,Φ=1/e are listed in Table 4. As indicated, the WL and P0q values of the HD-SWCNT film more than doubled, while the qst,Φ=1/e value for the H2 molecule gave almost similar values in the range of 4.5–4.6 kJ mol–1. The qst,Φ=1/e value of the HD-SWCNT film remained relatively unchanged compared to the corresponding value for the SWCNTs, suggesting that the interstitial space following mild HNO3/H2SO4 treatment was similar to that of the SWCNTs. Therefore, this result indicates that the increase in the adsorption amount of H2 is due to the development of a narrow interstitial space in the HD-SWCNT film.

Figure 5.

Figure 5

Open in a new tab

H2 adsorption on the SWCNTs and the HD-SWCNT film at 77 K: (a) adsorption amount of H2 and (b) DR plot of the H2 adsorption isotherm.

Table 4. Adsorption Parameters Calculated by the Supercritical DR Plots of H2 (77 K) Adsorption.

sample Inline graphic (mL g–1) P0q (kPa) (mL g–1) qst,Φ=1/e (kJ mol–1)
SWCNTs 7.8 3.9 × 103 ± 0.4 × 103 4.6 ± 0.2
HD-SWCNT film 18.9 1.8 × 103 ± 0.4 × 103 4.5 ± 0.2
Open in a new tab

The SWCNTs have a hydrophobic surface but can exhibit a unique H2O adsorption behavior due to the strong interaction effect between H2O molecules and the nanotube surface. Figure 6 shows the H2O adsorption isotherm at 303 K for the SWCNTs and the HD-SWCNT film. The H2O adsorption of the SWCNTs is classified as IUPAC V-type with a small hysteresis, indicating that the isotherm gradually increases above P/P0 = 0.3. The HD-SWCNT film also exhibited a similar increase at P/P0 = 0.3 but showed a greater hysteresis than the SWCNTs, and its H2O adsorption capacity increased significantly from 188 to 320 mg g–1 close to a P/P0 value 0.9. This increased H2O adsorption amount corresponds to a 170% greater quantity compared to that of the SWCNTs and was attributed to an increase in the number of narrow interstitial spaces measuring <0.9 nm. This result is in good agreement with previous studies showing that the amount of H2O adsorption increases as the micropore volume of the nanohorn increases.16 The inset in Figure 6 shows the adsorption branch of the H2O adsorption isotherm up to P/P0 = 0.6. In both samples, the H2O adsorption amount increased at P/P0 = 0.3, and the H2O adsorption amount of the HD-SWCNT film shows a steeper rise than that of the SWCNTs.

Figure 6.

Figure 6

Open in a new tab

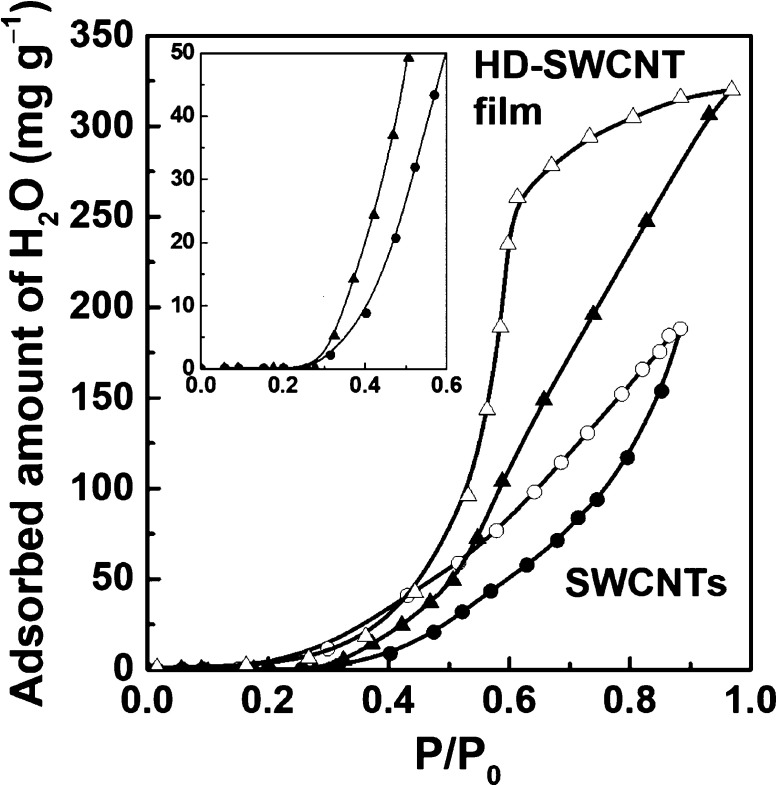

H2O adsorption on the SWCNTs and the HD-SWCNT film at 303 K.

The equilibrium time for H2O adsorption and desorption was then determined to evaluate the H2O adsorption rate of the HD-SWCNT film exhibiting an enhanced interstitial space. Figure 7a shows the equilibration times required for H2O adsorption by the SWCNTs and HD-SWCNT films. More specifically, in the initial 60 min, the H2O adsorption amounts of the SWCNTs and the HD-SWCNT film rapidly increased to 220 and 122 mg g–1, respectively, prior to reaching an equilibrium state (Figure 7b). Interestingly, the adsorbed amount of H2O was similar to the result of stepwise H2O adsorption from a low pressure (P/P0 = 0.005), as shown in Figure 6. In addition, Figure 7c,d shows the variations in the P/P0 values of the SWCNTs and HD-SWCNT films. For both samples, the value of P/P0 decreased rapidly during the initial 60 min, with an increase in the amount of H2O adsorption being observed. Furthermore, Figure 7e,f shows the adsorption branches of the normalized H2O adsorption rates. The larger slope observed for the normalized H2O adsorption in this range reflects the more rapid adsorption of H2O molecules in the narrower micropores of the interstitial space. In this system, the adsorption capacity of H2O for the HD-SWCNT film increased by ∼180%, and the average micropore width narrowed from 1.5 to 0.9 nm; however, the slope of the adsorption rate was similar to that of the SWCNTs. This result shows that the width of the developed interstitial space in the HD-SWCNT film is not sufficiently narrow to increase the adsorption rate of H2O. These results therefore agree with the unchanged qst,Φ=1/e value of the isosteric heat value of the HD-SWCNT film during H2 adsorption at 77 K (Table 3).

Figure 7.

Figure 7

Open in a new tab

Effect of the equilibration time of H2O adsorption at 303 K on the SWCNT samples. (a,b) Variation in the amount of H2O adsorbed with equilibration time, (c,d) variation in the saturation pressure with equilibration time, and (e,f) normalization of the H2O adsorption amount using the saturated adsorption amounts.

The equilibrium time for H2O desorption was also measured, as shown in Figure 8. After H2O adsorption by the SWCNTs and the HD-SWCNT film had reached equilibrium (i.e., after 500 min), the H2O desorption process was performed at 303 K from P/P0 = 0.97 to 0.001 under a vacuum condition of 10–4 Pa for 500 min. Figure 8a,b shows the change in the amount of H2O desorption on the SWCNTs and the HD-SWCNT film initiated at fully adsorbed equilibrium states. During the initial 20 min, the amount of H2O desorption from the SWCNTs and the HD-SWCNT film decreased rapidly from 208 to 12 mg g–1 (∼94 wt %) and from 122 to 6 mg g–1 (∼95 wt %), respectively. Despite the intensive desorption process carried out under vacuum (10–4 Pa) for 500 min, ∼5 wt % of the adsorbed H2O remained in the nanopores of the SWCNTs and the HD-SWCNT film. This may be due to the high potential energy caused by the strong interactions between the nanotube surface and the H2O molecules. Figure 8e,f shows the H2O desorption rates for the SWCNTs and the HD-SWCNT film, whereby similar slopes can be observed for the desorption rates. These results indicate that the H2O desorption capacity was significantly reduced, but the H2O desorption rate did not change after introduction of the increased interstitial space in the SWCNTs upon mild HNO3/H2SO4 treatment.

Figure 8.

Figure 8

Open in a new tab

Effect of the equilibration time for H2O desorption at 303 K for the SWCNTs and the HD-SWCNT film. (a,b) Variation in the amount of desorbed H2O with equilibration time, (c,d) variation in the saturation pressure with equilibration time, and (e,f) normalization of the H2O desorption amount using the saturated desorption amounts.

Finally, we summarized the relationship between the kinetic diameter and the adsorption capacities of the H2O, H2, CO2, and N2 gas molecules. More specifically, the adsorption capacities of H2O, H2, and CO2 were obtained from the ratio of the increase in adsorption amount using gravimetric methods, while the value for N2 was obtained by measuring the ratio of the total surface area, as calculated by the SPE method. Figure 9 shows that the slope corresponding to the increase in the kinetic diameter and the adsorption capacity of each molecule is relatively linear, therefore indicating that the increase in the interstitial space of the SWCNTs is more appropriate for the adsorption of N2 and CO2 molecules (i.e., molecules with larger kinetic diameters) than H2O molecules. Therefore, the adsorption behavior of molecules into the enhanced interstitial space is closely related to the kinetic diameter of each molecule, and as such, it is essential to properly match the interfacial engineering between the kinetic diameter and the interstitial space to maximize the adsorption capacities of gas molecules.

Figure 9.

Figure 9

Open in a new tab

Relationship between the kinetic diameter and the enhanced adsorption capacities toward H2O, H2, CO2, and N2.

Conclusions

A HD-SWCNT film with a narrow interstitial space was fabricated through the mild HNO3/H2SO4 treatment of SWCNTs and a subsequent VF process. The pore structure of the enhanced interstitial space of the HD-SWCNT film was analyzed by αs-plot and DR plot analyses from the adsorption isotherms of N2, CO2, and H2, which indicated a remarkably developed interstitial space with narrow micropores of an ∼0.9 nm diameter. H2O adsorption at 303 K showed that the adsorption capacity of the HD-SWCNT film increased significantly from 188 to 320 mg g–1. However, in the equilibrium time measurements, despite an increase in the adsorption capacity of ∼170%, the adsorption rate did not change, which indicated that the developed interstitial space had no effect on the adsorption rate of H2O. It also shows that the adsorption behaviors of N2, CO2, H2, and H2O within the developed interstitial space are linear with respect to their kinetic diameters. This result suggests that the enhanced interstitial space of the HD-SWCNT film obtained upon mild HNO3/H2SO4 treatment can provide the appropriate nanoporosity for the adsorption of larger molecules, such as N2 and CO2. We expect that controlling the interstitial spaces of SWCNTs through interface engineering in a scalable solution-based process will lead to their use in energy and environmental applications for selective molecular capture and also in the storage of clean fuel gases.

Experimental Section

Fabrication of the HD-SWCNT Film

SWCNTs produced by the high-pressure CO disproportionation (HiPco) process were used for the purpose of this study (Carbon Nanotechnologies, Inc., USA). The as-produced SWCNT powder was stirred in ethanol for 1 h, sonicated for 5 min, and then dried for 24 h at 383 K. Subsequently, the dried SWCNTs (100 mg) were stirred in a mixed solution of HNO3 (65%) and H2SO4 (98%) (100 mL, 1:3 v/v) for 12 h at 298 K. The resulting acid-treated suspension was filtered through a membrane filter (10 μm pore diameter) and washed several times with distilled water. The washed sample was sonicated with distilled water for 30 min and then subjected to VF once again. The resulting HD-SWCNT film was then dried at 383 K for 24 h and annealed at 1173 K under an Ar atmosphere for 1 h.

Characterization and Gas Adsorption Experiments

The morphologies of the SWCNTs and the HD-SWCNT film were observed by FE-SEM (JEOL JSM-6330F). The chemical states of the SWCNTs and the HD-SWCNT film were analyzed by XPS (ESCALAB 250Xi, Thermo Fisher Scientific Inc.) using an Al Kα gun at 10 mA and 15 kV with a pass energy of 10 eV. A flood gun was used as a charge neutralizer. The C 1s peaks of the SWCNTs and the HD-SWCNT film were set to 284.4 eV for calibrating the binding energy values. All C 1s spectra were normalized by adjusting the maximum intensities of the C 1s spectra to 1.0. The pore structures of the SWCNT samples were analyzed from the adsorption isotherms of N2 (77 K), CO2 (273 K), and H2 (77 K) using volumetric equipment (Quantachrome AS-1-MP) after preheating at 423 K under 10–4 Pa for 2 h. The parameters of the pore structures were calculated by the SPE method and the DR method. The SPE method was derived using high-resolution αs-plots constructed for standard adsorption data for highly crystalline non-porous carbon black.44 The adsorption isotherms of H2O in the SWCNTs and the HD-SWCNT film were measured gravimetrically at 303 K after prevacuum treatment at 10–4 Pa and 423 K for 2 h. H2O was introduced into the adsorption cell after repeated purification via freeze–pump–thaw cycling. For the H2O adsorption and desorption equilibrium time measurements of the SWCNT samples, distilled water was injected at a pressure P/P0 of ∼0.97 (corresponding to an equivalent H2O vaporization of 31.8 Torr at 303 K) after pre-evacuation at 423 K and 10–4 Pa for 2 h. The changes in the adsorption amount and in P/P0 with the equilibrium time were recorded.
