Protocol for synthesis and use of a turn-on fluorescent probe for quantifying labile Zn²⁺ in the Golgi apparatus in live cells

Summary

Quantitative analysis using a turn-on fluorescent probe is inherently difficult due to the dependency of the fluorescence intensity on the probe concentration. To overcome this limitation, we developed an in situ quantification method using a turn-on fluorescent probe and a standard fluorophore, which are colocalized by protein tag technology. This protocol describes the synthesis of a Zn²⁺ probe, named ZnDA-1H, and the procedure to quantify the labile Zn²⁺ concentration in the Golgi of live HeLa cells by confocal fluorescence microscopy.

For complete details on the use and execution of this protocol, please refer to Kowada et al. (2020).

Graphical Abstract

Highlights

• •Protocol for organic synthesis of turn-on Zn²⁺ fluorescent probe, ZnDA-1H
• •ZnDA-1H is less pH sensitive and suitable for detecting labile Zn²⁺ in the Golgi
• •Protocol for Zn²⁺ quantification method in live cells by confocal microscopy

Quantitative analysis using a turn-on fluorescent probe is inherently difficult due to the dependency of the fluorescence intensity on the probe concentration. To overcome this limitation, we developed an in situ quantification method using a turn-on fluorescent probe and a standard fluorophore, which are colocalized by protein tag technology. This protocol describes the synthesis of a Zn²⁺ probe, named ZnDA-1H, and the procedure to quantify the labile Zn²⁺ concentration in the Golgi of live HeLa cells by confocal fluorescence microscopy.

Before you begin

Small-molecule fluorescent Zn²⁺ probes have rarely been used for the quantitative analysis of subcellular labile Zn²⁺ concentration despite the fine tunability of their optical properties, coordination properties, and chemical stability. One of the main reasons is the lack of subcellular localization, which often results in leakage from live cells during observation or undesired subcellular accumulation. To address these problems, we developed an in situ standard quantification method, where a turn-on green fluorescent probe and an internal standard red fluorescent dye are colocalized in a target subcellular compartment using the HaloTag labeling technology (Figure 1). By using the ratio calculated from these two probe signals, it is possible to eliminate signal fluctuations resulting from cell morphological movements, focus deviations, local probe concentration changes, etc. The use of this quantification method with our less pH-sensitive Zn²⁺ fluorescent probe, ZnDA-1H, instead of more pH-sensitive protein-based probes could allow a more stable quantification of labile Zn²⁺ in the Golgi apparatus.

Note: Unless otherwise specified, all reagents were purchased from chemical suppliers and used without further purification.

Figure 1.

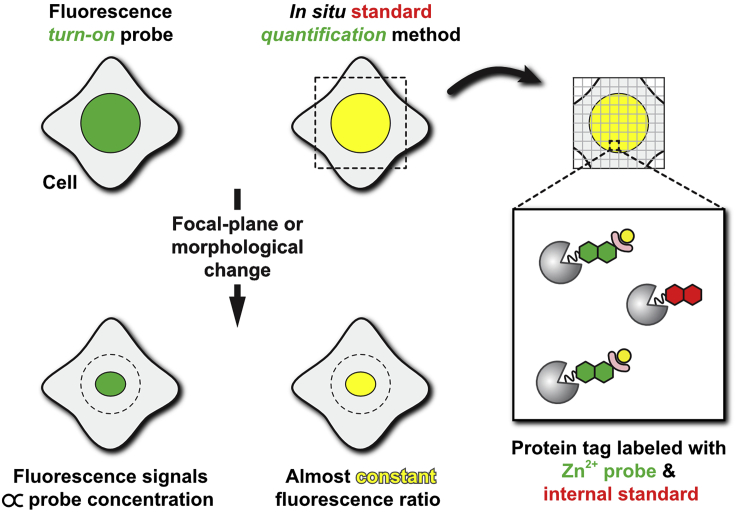

Schematic illustration of in situ standard quantification method

Reprinted with permission from Kowada et al., 2020.

Assembly of reaction apparatus for moisture-sensitive reactions

Timing: 30 min

This section outlines how to assemble a reaction apparatus for organic synthesis, which is necessary to carry out the reaction in a water-free and inert atmosphere.

• 1.Assemble a reaction apparatus consisting of a two-neck round-bottom flask, a stirring bar, a rubber septum, a balloon for N₂ gas, a three-way stopcock, and a Dimroth condenser (for heating reactions).
• 2.Dry the apparatus using a heating gun in vacuo.
• 3.After cooling down to ambient temperature (20–25°C), fill the balloon and apparatus with N₂ gas.

Preparation of media for HeLa cell culture

Timing: 5 h

This section outlines the preparation of minimum essential medium (MEM) for HeLa cell culture.

• 4.Autoclave two 250-mL glass bottles with a cap.
• 5.
  After cooling down, mix MEM and FBS (f. c. 10%) on a clean bench.

  • a.
    For subculture, mix 120 mL of MEM, 13.5 mL of FBS, and 1.35 mL of penicillin-streptomycin solution (P/S, f. c. 1%).
  • b.
    For transfection, mix 121.5 mL of MEM and 13.5 mL of FBS.
• 6.Store the media at 4°C.

CRITICAL: Avoid the use of antibiotics during transfection. Antibiotics can reduce transfection efficiency or cause cell death.

Preparation of Ca²⁺/Mg²⁺-free phosphate-buffered saline (PBS)

Timing: 4 h

This section outlines the preparation of PBS solution from powder.

• 7.Dissolve 1.44 g of D-PBS powder that does not contain Ca²⁺ or Mg²⁺ in 150 mL of Milli-Q water contained in a 250-mL glass bottle.
• 8.Autoclave the glass bottle with a cap.
• 9.After cooling down, store it at 4°C.

Preparation of Chelexed HHBSS buffer for quantifying Zn²⁺ concentration in live cells

Timing: 10 h

This section outlines the preparation of HEPES-buffered HBSS (HHBSS; phosphate, calcium, and magnesium-free) for in situ Zn²⁺ calibration during live-cell imaging.

• 10.Mix 3.20 g of NaCl (f. c. 8.0 g/L), 0.160 g of KCl (f. c. 0.40 g/L), 12.0 mL of 1.0 M HEPES-NaOH buffer (pH 7.4), and 345 mL of Milli-Q water in a 500-mL conical flask.
• 11.Pour the solution into an empty glass chromatography column with a porous polymer bed support (50 mm I.D. × 200 mm, Econo-column chromatography column, Bio-Rad).
• 12.Add 3.60 g of Chelex. Mix by inverting 10 times and allow it to stand for 6 h at 4°C.
• 13.Discard the first 5 mL fraction and collect the following fraction in a 500-mL glass bottle.
• 14.Autoclave the bottle.
• 15.After cooling down, supplement the solution with 40.0 mL of filter-sterilized 30 g/L glucose (f. c. 3.0 g/L) on a clean bench.
• 16.Store at 4°C.

CRITICAL: The HBSS buffer, which normally contains phosphate ions, is used as an imaging buffer. This often leads to precipitate formation after the addition of zinc pyrithione.

Preparation of a dish lid with a small hole and a solution injection tool

Timing: 30 min

This section outlines the preparation of a handmade dish lid and a solution injection tool to add reagents to cells during imaging.

• 17.Make a 5–9 mm diameter hole on the lid of a 35-mm glass-bottom dish using a cork borer (Figure 2).
• 18.Cut a silicone tube into three pieces of lengths 17, 37, and 45 cm.
• 19.Remove the Luer lock part of the 16-G blunt-tip stainless needle and prepared two tubes. Slightly bend one end.
• 20.Combine them with a 5-mL plastic syringe and Luer fittings to assemble the tool (Figure 3).

Figure 2.

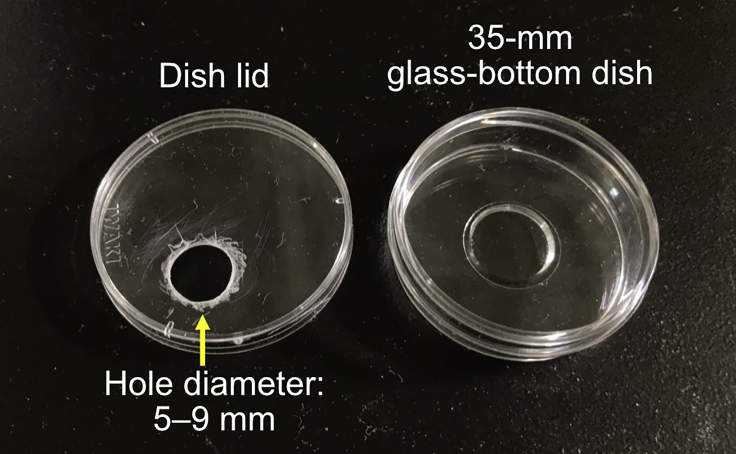

A dish lid with a small hole

Figure 3.

Solution injection tool

(A) A 5-mL disposable plastic syringe.

(B) A 16-G blunt-tip stainless needle; 80 mm in length.

(C–E) Silicone tubes (1.0 mm ID × 2.0 mm OD). The lengths were 45 cm (C), 37 cm (D), and 17 cm (E).

(F) A polypropylene male Luer fitting.

(G) A polypropylene female Luer fitting.

(H and I) 16-G stainless tubes prepared from the 16-G blunt-tip stainless needle.

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
anti-GM130 rabbit polyclonal antibody	MBL	Cat#PM061; RRID: AB_10598333
CF568-conjugated donkey-anti-rabbit IgG	Biotium	Cat#20098-1; RRID: AB_10853318
Chemicals, peptides, and recombinant proteins
Acetic acid (AcOH)	FUJIFILM Wako Pure Chemicals	Cat#017-00256
Acetonitrile (MeCN, dehydrated)	FUJIFILM Wako Pure Chemicals	Cat#018-22901
Acetonitrile (MeCN, HPLC grade)	FUJIFILM Wako Pure Chemicals	Cat#015-08633
2-(Bromomethyl)pyridine hydrobromide	Sigma-Aldrich	Cat#491047-5G
1-Butanol	FUJIFILM Wako Pure Chemicals	Cat#023-03336
tert-Butyl 4-bromobutyrate	(Patel et al., 2004)	N/A
Ca(OAc)2·H2O	Nacalai Tesque	Cat#06717-92
CDCl3	Eurisotop	Cat#D307HAG
CD2Cl2	FUJIFILM Wako Pure Chemicals	Cat#049-34264
Celite 535RVS	Nacalai Tesque	Cat#08019-95
2-(2-((6-Chlorohexyl)oxy)ethoxy)ethan-1-amine	(Singh et al., 2013)	N/A
Citric acid	FUJIFILM Wako Pure Chemicals	Cat#030-05525
Dichloromethane (CH2Cl2)	Nacalai Tesque	Cat#22414-94
Dichloromethane (CH2Cl2, dehydrated)	Kanto Chemical	Cat#11338-84
N-(3-Dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride (EDC·HCl)	Peptide Institute	Cat#1030
N,N-Dimethylformamide (DMF, dehydrated)	Kanto Chemical	Cat#11339-84
Dimethyl sulfoxide (DMSO)	FUJIFILM Wako Pure Chemicals	Cat#045-28335
DMEM	Nacalai Tesque	Cat#08490-05
D-PBS without Ca and Mg, powder	Nacalai Tesque	Cat#07269-84
Ethyl acetate (EtOAc)	Nacalai Tesque	Cat#14622-14
Ethyl nitroacetate	TCI	Cat#N0657
FBS	Gibco	Cat#10270-106
Formic acid (HCOOH, HPLC grade)	FUJIFILM Wako Pure Chemicals	Cat# 066-00461
FuGENE HD	Promega	Cat#E231A
d-(+)-Glucose	Nacalai Tesque	Cat#16806-25
200 mM-l-Glutamine	Nacalai Tesque	Cat#16948-04
H2 gas	Tanuma Sanso	N/A
Hank’s balanced salt solution (HBSS)	Nacalai Tesque	Cat#09735-75
HaloTag TMR ligand (HTL-TMR)	Promega	Cat#G825A
HEPES	Dojindo Laboratories	Cat#342-01375
Hexane	Nacalai Tesque	Cat#17922-94
1-Hydroxybenzotriazole monohydrate (HOBt·H2O)	Peptide Institute	Cat#1022
KCl	FUJIFILM Wako Pure Chemicals	Cat#163-03545
K2CO3	Nacalai Tesque	Cat#28509-55
2-Mercaptopyridine N-oxide (pyrithione)	TCI	Cat#H0302
MEM	Nacalai Tesque	Cat#21442-25
Methanol (MeOH)	Nacalai Tesque	Cat#21915-64
MgSO4	Nacalai Tesque	Cat#21032-95
N2 gas	Tanuma Sanso	N/A
NaCl	FUJIFILM Wako Pure Chemicals	Cat#191-01665
NaHCO3	FUJIFILM Wako Pure Chemicals	Cat#195-01303
Na2SO4	Nacalai Tesque	Cat#31916-15
Na2S2O3·5H2O	Nacalai Tesque	Cat#32005-15
NH2-modified silica gel thin-layer chromatography (TLC) plate	Merck	Cat#1.05533.0001
NH2-silica gel	Fuji Silysia Chemical	Cat#NH-DM1020
Opti-MEM	Thermo Fisher Scientific	Cat#31985062
Pd/C	Sigma-Aldrich	Cat#205699-1G
Piperidine	FUJIFILM Wako Pure Chemicals	Cat#160-02771
Penicillin-streptomycin mixed solution	Nacalai Tesque	Cat#26253-84
Phosphorus oxychloride (POCl3)	Kanto Chemical	Cat#32192-20
Silica gel	Fuji Silysia Chemical	Cat#BW-300
Silica gel TLC plate	Merck	Cat#1.05715.0001
1,2,3,4-Tetrahydroquinolin-7-ol	(Anzalone et al., 2013)	N/A
N,N,N′,N′-Tetrakis(2-pyridylmethyl)ethylenediamine (TPEN)	Dojindo Laboratories	Cat#340-05411
Tetramethylammonium bromide	TCI	Cat#T0135
Triethylamine (Et3N, dried by distillation over KOH)	FUJIFILM Wako Pure Chemicals	Cat#202-02646
Trifluoroacetic acid (TFA)	FUJIFILM Wako Pure Chemicals	Cat#208-02741
Trypsin-EDTA solution	Nacalai Tesque	Cat#32777-44
0.5%-Trypan blue stain solution	Nacalai Tesque	Cat#29853-34
ZnSO4·7H2O	FUJIFILM Wako Pure Chemicals	Cat#269-01052
Compound 2	(Kowada et al., 2020)	N/A
Compound 3	(Kowada et al., 2020)	N/A
Compound 4	(Kowada et al., 2020)	N/A
Compound 5	(Kowada et al., 2020)	N/A
Compound 6	(Kowada et al., 2020)	N/A
ZnDA-1H	(Kowada et al., 2020)	N/A
Experimental models: cell lines
HeLa	RIKEN BRC	Cat#RCB0007
Recombinant DNA
pEF4MycHisB-hManII-Halo	(Kowada et al., 2020)	N/A
Software and algorithms
Data Analysis 4.0	Bruker Daltonics	N/A
FluoView	Olympus	N/A
ImageJ (Fiji)	National Institutes of Health	https://imagej.net/Fiji/Downloads
KaleidaGraph 4.5	Synergy Software	N/A
Microsoft Excel 2016	Microsoft	N/A
TopSpin 3.6.1	Bruker BioSpin	https://www.bruker.com/service/support-upgrades/software-downloads/nmr.html
Other
Balloon	AS ONE	Cat#3-3318-11
Blunt-tip stainless needle (16G, 80 mm)	Sansyo	Cat#72-0451
Chelex 100 Chelating Resin	Bio-Rad	Cat#1432832
Confocal laser scanning microscope (FV1000)	Olympus	N/A
60-mm culture dish	AS ONE	Cat#2-8590-02
Econo-column chromatography column	Bio-Rad	Cat#7375031
35-mm glass-bottom dish	AGC Techno Glass	Cat#3971-035
Hemocytometer	Erma	Cat#03-303-1
Inertsil ODS-3 column, for semi-prep	GL Sciences	Cat#5020-06812
Lens cleaner (HYPER CLEAN 6310)	Olympus	N/A
Luer fitting (female, VRF106)	AS ONE	Cat#5-1043-07
Luer fitting (male, VRM106)	AS ONE	Cat#5-1043-01
micrOTOF-Q II mass spectrometer	Bruker Daltonics	N/A
NMR spectrometer (AVANCE III 400)	Bruker BioSpin	N/A
NMR spectrometer (AVANCE III HD 500)	Bruker BioSpin	N/A
Objective lens (UPLSAPO60XS2)	Olympus	N/A
5-mL plastic syringe	Terumo	Cat#SS-05SZ
Stage top incubator	Tokai Hit	Cat#INUBTF-WSKM
Silicone immersion oil	Olympus	Cat#SIL300CS-30CC
Silicone tube (I.D. 1 mm × O.D. 2 mm)	AS ONE	Cat#9-869-02
Syringe filter (0.2 μm, SFCA)	Sartorius	Cat#17597K

Materials and equipment

• •Prepare a 10 mM TPEN stock solution by dissolving 12.7 mg (0.0300 mmol) of TPEN in 3.0 mL of DMSO. TPEN is a membrane-permeable and high-affinity zinc chelator. Prepare aliquots of the stock solution and store at −20°C.
• •Prepare 10 and 20 mM ZnSO₄ stock solutions by dissolving 8.63 mg (0.0300 mmol) or 17.3 mg (0.0600 mmol) of ZnSO₄·7H₂O in 3.0 mL of Milli-Q water. Sterilize the solutions with a syringe filter, prepare aliquots of the solutions, and store them at −20°C.
• •Prepare a 2.0 mM pyrithione stock solution by diluting a 20 mM pyrithione stock solution, which is prepared by dissolving 2.5 mg (0.020 mmol) of pyrithione in 1.0 mL of DMSO. Prepare aliquots of the solutions and store them at −20°C.
• •Prepare a 180 mM Ca(OAc)₂ stock solution by dissolving 31.7 mg (0.180 mmol) of Ca(OAc)₂·H₂O in 1 mL of Milli-Q water. After sterilization with a syringe filter, store at −20°C.
• •Determine the concentration of ZnDA-1H in CD₂Cl₂ by quantitative NMR spectroscopy. After drying, prepare a 10 mM ZnDA-1H stock solution by dissolving it in DMSO. Dilute the 10 mM solution to 250 μM with DMSO. Prepare aliquots of the stock solution and store at −20°C.

CRITICAL: Avoid repeated freeze-thaw cycles, which may lead to the degradation of the compound. Store the ZnDA-1H solution under dark conditions.

• •Prepare a 5.0 μM HTL-TMR solution by diluting the 5 mM stock solution of HTL-TMR with DMSO. Store the solution at −20°C.
• •On the day of use, supplement DMEM with 4.0 mM glutamine (50-times dilution of 200 mM glutamine) and chelexed HHBSS buffer with 1.8 mM Ca(OAc)₂ (100-times dilution of the 180 mM stock solution) and 1.0 μM ZnSO₄ (1000-times dilution of the 10 mM stock solution). Prepare a working solution of 25 μM ZnDA-1H (10-times dilution of the stock solution) and 0.50 μM HTL-TMR (10-times dilution of the 5.0 μM stock solution) in DMEM containing 4.0 mM glutamine and 20% DMSO. Prepare a 200 μM TPEN working solution in chelexed HHBSS buffer by diluting the 10 mM TPEN stock solution in DMSO.

CRITICAL: A low concentration of DMSO may lead to the adsorption of ZnDA-1H and HTL-TMR on a plastic tube, resulting in insufficient labeling of HaloTag. Store the working solution of the probes at 4°C under dark conditions.

• •Thirty min prior to the imaging, warm up the 200 μM TPEN working solution and chelexed HHBSS buffer for the preparation of a zinc pyrithione (ZPT) working solution. Immediately prior to the image acquisition, prepare the working solution of ZPT consisting of 4.4 mM ZnSO₄ and 22 μM pyrithione in chelexed HHBSS buffer by diluting the stock solutions of 20 mM ZnSO₄ and 2.0 mM pyrithione.

CRITICAL: The ZPT working solution should be prepared just before imaging. The ZPT complex may not be stable for longer incubation or storage.

Step-by-step method details

Synthesis of tert-butyl 4-(7-hydroxy-3,4-dihydroquinolin-1(2H)-yl)butanoate (2)

Timing: 4 days

This method outlines the preparation of compound 2 (Figure S1).

• 1.Weigh 0.780 g (5.23 mmol) of 1,2,3,4-tetrahydroquinolin-7-ol (1) (Anzalone et al., 2013), 0.550 g (6.55 mmol) of NaHCO₃, and 82.0 mg (0.532 mmol) of tetramethylammonium bromide in a 50 mL two-neck round-bottom flask containing a magnetic stirring bar.
• 2.Add 5.0 mL of H₂O to the flask.
• 3.Slowly add 1.43 g (6.41 mmol) of tert-butyl 4-bromobutyrate (Patel et al., 2004) at 0°C to the aforementioned flask.
• 4.Stir the suspension at room temperature (20–25°C) for 70 h.
• 5.Extract the reaction mixture with EtOAc (3 × 40 mL) using a separatory funnel to obtain an organic layer. Wash the organic layer with brine (2 × 40 mL). Dry the organic layer with MgSO₄ and filter to remove the MgSO₄. Remove the volatile material using a rotary evaporator under reduced pressure to obtain a brown oil (2.25 g).
• 6.Purify the crude product using silica gel column chromatography (EtOAc/hexane = 8/92) to afford compound 2 (0.512 g, 1.76 mmol, yield 34%, R_f = 0.4 (EtOAc/Hexane = 1/4)) as a pale yellow oil.

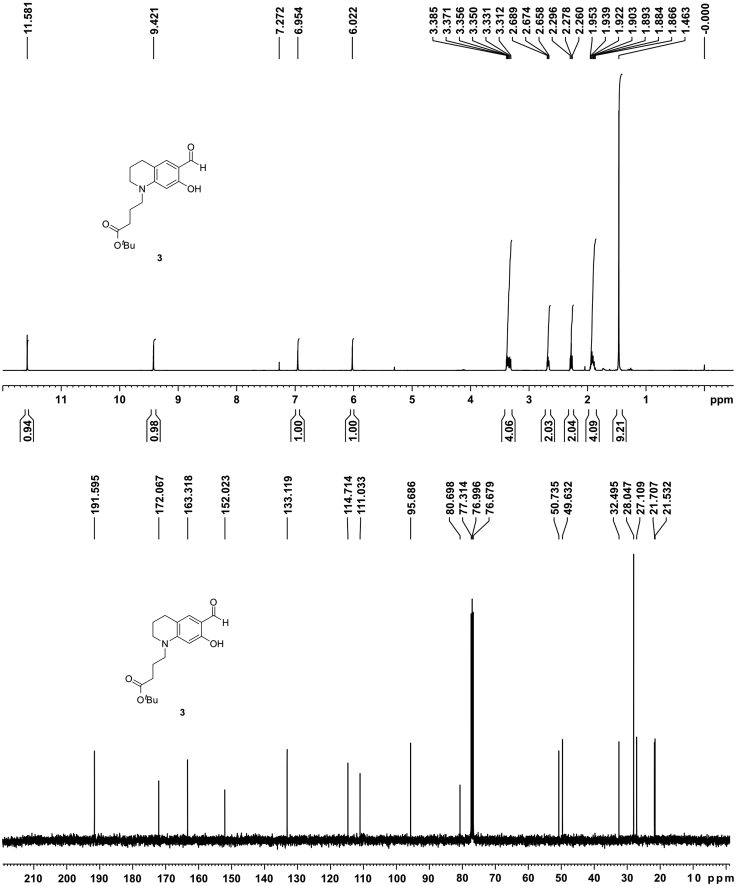

• 7.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Synthesis of tert-butyl 4-(6-formyl-7-hydroxy-3,4-dihydroquinolin-1(2H)-yl)butanoate (3)

Timing: 30 h

This method outlines the preparation of compound 3 (Figure S1).

• 8.Using a syringe, add 2.0 mL of dry DMF in a 50 mL dried two-neck round-bottom flask under N₂.
• 9.Add 181 mg (1.18 mmol) of POCl₃ dropwise to the aforementioned flask at 0°C.
• 10.Stir the solution for 5 min at 0°C.
• 11.Stir for 15 min at room temperature (20–25°C).
• 12.After cooling down to 0°C, add dropwise 225 mg (0.772 mmol) of compound 2 in 2.0 mL of dry DMF to the solution using a syringe.
• 13.Stir the reaction mixture at 0°C for 5 min.
• 14.After stirring at room temperature (20–25°C) for 24 h, pour the reaction mixture into 25 mL of the cold saturated aqueous solution of NaHCO₃.
• 15.Extract the mixture using the 1:1 mixture of EtOAc/Et₂O (5 × 50 mL) in a separatory funnel. Dry the organic layers with Na₂SO₄. Condense the organic layers using a rotary evaporator to afford compound 3 (240 mg, 0.751 mmol, yield 97%, R_f = 0.35 (EtOAc/Hexane = 1/4)) as pale yellow oil.
• 16.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Synthesis of tert-butyl 4-(3-nitro-2-oxo-7,8-dihydro-2H-pyrano[3,2-g]quinolin-9(6H)-yl)butanoate (4)

Timing: 12 h

This method outlines the preparation of compound 4 (Figure S1).

• 17.Weigh 1.91 g (5.98 mmol) of compound 3 and add it in a 300 mL dried two-neck round-bottom flask under N₂.
• 18.Using syringes, add 0.740 mL (6.67 mmol) of ethyl nitroacetate, 90 μL (0.91 mmol) of piperidine, 180 μL (3.15 mmol) of AcOH, and 60 mL of 1-butanol.
• 19.Stir the suspension for 5 h at 120°C.
• 20.After cooling to 0°C, collect the resulting precipitate by filtration.
• 21.Wash the precipitate with 20 mL of 1-butanol and 20 mL of hexane.
• 22.Dry the solid in vacuo at 50°C to obtain compound 4 (1.98 g, 5.10 mmol, yield 85%, R_f = 0.5 (EtOAc/Hexane = 1/1)) as a red solid.
• 23.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Synthesis of tert-butyl 4-(3-amino-2-oxo-7,8-dihydro-2H-pyrano[3,2-g]quinolin-9(6H)-yl)butanoate (5)

Timing: 10 h

This method outlines the preparation of compound 5 (Figure S1).

• 24.Weigh 301 mg (0.775 mmol) of compound 4 in a 50 mL round-bottom flask containing a magnetic stirring bar.
• 25.Add 20 mL of MeOH/CH₂Cl₂ (3:1, v/v) and 9.8 mg of Pd/C.
• 26.Place an H₂ balloon with a three-way stopcock on the flask and replace the atmosphere with H₂ using three vacuum–fill cycles.
• 27.Stir at room temperature (20–25°C) for 3 h under H₂.
• 28.Filter the reaction mixture via celite, and wash the celite with MeOH and CH₂Cl₂.
• 29.Remove the volatile material using a rotary evaporator under reduced pressure to afford a crude product.
• 30.Purify the crude product using silica gel column chromatography (EtOAc/hexane = 15/85) to afford compound 5 (265 mg, 739 μmol, yield 95%, R_f = 0.5 (MeOH/CH₂Cl₂ = 5/95)) as pale yellow oil.
• 31.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Synthesis of tert-butyl 4-(3-(bis(pyridin-2-ylmethyl)amino)-2-oxo-7,8-dihydro-2H-pyrano[3,2-g]quinolin-9(6H)-yl)butanoate (6)

Timing: 31 h

This method outlines the preparation of compound 6 (Figure S1).

• 32.Weigh 265 mg (0.739 mmol) of compound 5 and add it in a 200 mL dried two-neck round-bottom flask under N₂.
• 33.Add 40 mL of dry MeCN using a syringe, 391 mg (1.55 mmol) of 2-(bromomethyl)pyridine hydrobromide, and 308 mg (2.23 mmol) of K₂CO₃.
• 34.Stir at 90°C for 25 h under N₂.
• 35.After cooling to room temperature (20–25°C), extract the reaction mixture with CH₂Cl₂. Wash the organic layer with water (2 × 50 mL), a 2% aqueous solution of Na₂S₂O₃ (2 × 50 mL), and brine (2 × 50 mL). Dry the organic layer with Na₂SO₄. After removing the solvents using a rotary evaporator, purify the crude product using amino-functionalized silica gel column chromatography (MeOH/CH₂Cl₂ = 5/95) to afford compound 6 (43.2 mg, 79.9 μmol, yield 11%, R_f = 0.6 (MeOH/CH₂Cl₂ = 5/95) on NH₂-modified TLC) as a brown oil.
• 36.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Synthesis of 4-(3-(bis(pyridin-2-ylmethyl)amino)-2-oxo-7,8-dihydro-2H-pyrano[3,2-g]quinolin-9(6H)-yl)butanoic acid (ZnDA-1)

Timing: 16 h

This method outlines the preparation of compound ZnDA-1 (Figure S1).

• 37.Weigh 101 mg (0.187 mmol) of compound 6 and add it in a 50 mL dried two-neck round-bottom flask under N₂.
• 38.Using syringes, add 4.0 mL of dry CH₂Cl₂ and 0.50 mL of TFA.
• 39.Stir the mixture at room temperature (20–25°C) for 13 h.
• 40.Remove volatile materials using a rotary evaporator to afford ZnDA-1 (92.0 mg) as a brown oil.
• 41.Use the crude product in the next step without further purification.

Synthesis of 4-(3-(bis(pyridin-2-ylmethyl)amino)-2-oxo-7,8-dihydro-2H-pyrano[3,2-g]quinolin-9(6H)-yl)-N-(2-(2-((6-chlorohexyl)oxy)ethoxy)ethyl)butanamide (ZnDA-1H)

Timing: 4 days

This step describes how to prepare the compound ZnDA-1H (Figure S1).

• 42.Add 92.0 mg of crude ZnDA-1 in a 100 mL dried two-neck flask under N₂.
• 43.Add 4.0 mL of dry DMF using a syringe, 50.1 mg (0.261 mmol) of EDC·HCl, 60.8 mg (0.272 mmol) of 2-(2-((6-chlorohexyl)oxy)ethoxy)ethan-1-amine (Singh et al., 2013), 45.0 mg (0.294 mmol) of HOBt·H₂O, and dry Et₃N (75.0 μL, 0.565 mmol).
• 44.Stir at room temperature (20–25°C) for 78 h under N₂.
• 45.After adding 20 mL of water, extract the mixture with CH₂Cl₂ and wash the organic layer with saturated aqueous solution of NaHCO₃ (2 × 20 mL), water (2 × 20 mL), 10% citric acid (2 × 20 mL), and brine (2 × 20 mL). Dry the organic layer with Na₂SO₄. After removal of the solvent using a rotary evaporator, purify using amino-functionalized silica gel column chromatography (EtOAc/hexane = 30/70) to afford 32.6 mg of ZnDA-1H as a mixture. Purify further using reversed-phase HPLC (0.1% HCOOH in water/0.1% HCOOH in MeCN = 80/20 (v/v, 0 min), 20/80 (v/v, 15 min), 0/100 (v/v, 20 min), and 0/100 (v/v, 30 min)). Lyophilize the fractions to afford ZnDA-1H (25.8 mg, 0.0374 mmol, 20% over 2 steps, R_f = 0.3 (MeOH/CH₂Cl₂ = 10/90) on NH₂-modified TLC) as a yellow oil.
• 46.Characterize the product by ¹H and ¹³C NMR spectroscopies and ESI-MS. (see the expected outcomes section).

Pause point: At this point, the product can be stored at 4°C for at least 3 months.

Note: Step 44: Monitor the reaction progress using TLC as the condensation reaction of the carboxylic acid and the amine is typically completed in approximately one day.

Seeding cells in imaging dishes

Timing: 0.5–1 h

This method outlines the preparation of HeLa cells in an imaging dish.

• 47.
  Detach HeLa cells from a 60-mm culture dish:

  • a.
    Aspirate the medium.
  • b.
    Wash twice with 2 mL of Ca²⁺/Mg²⁺-free PBS.
  • c.
    Aspirate PBS.
  • d.
    Add 500 μL of PBS and 500 μL of trypsin/EDTA solution and tilt the dish to spread the solution on the dish surface.
  • e.
    Incubate the cells at 37°C for 2 min.
  • f.
    Add 500 μL of antibiotics-free MEM containing 10% FBS.
  • g.
    Suspend the cells using gentle pipetting.
• 48.
  Count the cell number:

  • a.
    Take 10 μL of the cell suspension and mix with 10 μL of trypan blue stain.
  • b.
    Add the suspension to a hemocytometer.
  • c.
    Count the cell number under a microscope.
• 49.
  Seed the cells in a 35-mm glass-bottom dish:

  • a.
    Add 2 mL of antibiotics-free MEM containing 10% FBS.
  • b.
    Add 2.5 × 10⁴ cells to the dish.
  • c.
    Gently shake the dish with an upwards and downwards motion and from left to right.
• 50.Incubate the cells for 24 h at 37°C in a humidified incubator containing 5% CO₂.

Note: Step 49: Adjust the number of cells to be seeded according to the cell proliferation rate so that the cell density is not too high (30–50%) on the imaging day.

Transfection of cells with a HaloTag expression vector

Timing: 30 min

This method describes the transfection of cells with a plasmid encoding a fusion protein of human mannosidase II and HaloTag using FuGENE HD as a transfection reagent. HaloTag is a mutant bacterial haloalkane dehalogenase that can specifically form a covalent bond with its substrate, such as a functional small molecule conjugated with a 6-chlorohexyl group. This protein is widely used to label intracellular proteins with functional molecules.

• 51.
  Prepare a solution of FuGENE HD transfection reagent and a plasmid DNA mixture with the following steps:

  • a.
    Add 100 μL of Opti-MEM to a sterile 1.5 mL tube.
  • b.
    Add 150 ng of the plasmid DNA (pEF4MycHisB-hManII-Halo) and mix by pipetting.
  • c.
    Add 1.05 μL of FuGENE HD (a 7:1 ratio of FuGENE HD and DNA) and mix immediately by pipetting (troubleshooting 1) (troubleshooting 2).
  • d.
    Incubate for 15 min at room temperature (20–25°C).
• 52.Add the mixture to the imaging dish and gently shake the dish with an upwards and downwards motion and from left to right.
• 53.Incubate the cells for 36 h at 37°C in a humidified incubator containing 5% CO₂.

CRITICAL: The use of antibiotics during the transfection should be avoided because it may affect the transfection efficiency and worsen the cellular health.

CRITICAL: The total amount of plasmid DNA, the ratio of FuGENE HD and the DNA, and the incubation time after the addition of the transfection reagent/DNA mixture should be optimized to obtain proper expression and intracellular distribution of the HaloTag fusion protein prior to the assay. We observed a high rate of cell death and an increased population of cells in which the HaloTag was mislocalized upon using a higher amount of the plasmid DNA (250 ng).

Note: Other transfection reagents can be used instead of FuGENE HD. In that case, the optimization of the transfection conditions may be required.

Time-lapse imaging of transfected cells

Timing: 2–2.5 h

This method describes the labeling of the HaloTag expressed in the transfected cells with ZnDA-1H and HTL-TMR and time-lapse imaging for the quantification of labile Zn²⁺ concentration using the in situ standard quantification method (Figure 1).

• 54.
  Set up the microscope:

  • a.
    Turn on the temperature controller of the on-stage incubation chamber and the light source.
  • b.
    Choose a proper objective lens.
  • c.
    Assemble the hand-made solution injection tool (Figure 4).
  • d.
    Clean and moisten the interior of the injection tube using 70% EtOH and water (2 × 200 μL).
• 55.Aspirate the medium from the imaging dish.
• 56.Wash twice with 1 mL of HBSS (+).
• 57.
  Label the HaloTag expressed in the cells with the probes as per the following procedure:

  • a.
    Add 990 μL of DMEM containing 4 mM glutamine.
  • b.
    Add 10 μL of DMEM containing 4 mM glutamine, 25 μM ZnDA-1H, and 0.50 μM HTL-TMR.
  • c.
    After gentle shaking, incubate the dish for 30 min at 37°C in a humidified incubator containing 5% CO₂.
• 58.Wash twice with 1 mL of HBSS (+).
• 59.Add 1.9 mL of chelexed HHBSS buffer supplemented with Ca²⁺ and Zn²⁺.
• 60.Supplement 180 μL of chelexed HHBSS buffer with 18.2 μL of 20 mM ZnSO₄. Heat the solution along with 200 μM TPEN solution at 37°C.
• 61.Add a drop of proper oil to the objective lens, if necessary, and place the dish on a pre-warmed on-stage incubation chamber of an inverted laser scanning confocal microscope (troubleshooting 3).
• 62.Replace the normal dish lid with a lid with a small hole (Figure 2) and insert the end of the injection tube into the hole (troubleshooting 4).
• 63.Set the imaging parameters of FluoView software (Figure 5): Excitation laser: 473 nm (ZnDA-1H), 559 nm (HTL-TMR); Emission filters: 490–540 nm (ZnDA-1H), 575–675 nm (HTL-TMR). See the caption of Figure 5 for more details.
• 64.Find and focus cells that show fluorescence signals of both probes and proper protein localization.
• 65.Mix 2.2 μL of 2.0 mM pyrithione in DMSO with chelexed HHBSS buffer supplemented with Zn².
• 66.Start image acquisition.
• 67.Add 100 μL of 200 μM TPEN solution (f. c. 10 μM) after 2 min to obtain the minimum intensity values of ZnDA-1H.
• 68.Add 200 μL of the ZPT solution (f. c. 400 μM Zn²⁺/2.0 μM pyrithione) after 7 min to obtain the maximum intensity values of ZnDA-1H.
• 69.After acquiring the images, wash the injection tube interior with 70% EtOH and water (2 × 200 μL).
• 70.Wipe off the oil from the objective lens.

CRITICAL: Before starting image acquisition, the imaging dish should be incubated for 15 min in the on-stage incubation chamber to obtain stable fluorescence signals.

CRITICAL: The end of the injection tube should be positioned over the glass part of the dish, not touching the imaging medium. Otherwise, diffusion of the added solution may not be efficient and quick responses might not be obtained upon the addition of ZPT and TPEN solutions.

CRITICAL: Do not use higher laser power to avoid photobleaching of the probes. In our study, we used 0.2% laser power (Head output: 473 nm: 15 mW; 559 nm: 15 mW).

CRITICAL: Adjust the values of HV and gain so that the ZnDA-1H fluorescence signals are not saturated upon the addition of ZPT.

CRITICAL: Avoid adding TPEN and ZPT solutions during scanning.

Note: In our study, we used only the 60× silicone oil immersion objective lens (UPLSAPO60XS2, NA 1.30) for quantifying Zn²⁺ concentration. Although our method is theoretically independent of the type of objective lens, it is desirable to use an objective lens with a larger NA to obtain sufficiently high signals with a lower laser power considering that the photobleaching of the probes impairs quantitativeness.

Note: In principle, this quantification method can be applied not only to confocal microscopy but also to other fluorescence microscopic techniques as long as the quantitativeness of the detected fluorescence signals is maintained.

Note: Step 64: When searching the cells for imaging, use a larger CA value (for example 300) rather than a higher laser power to detect lower ZnDA-1H fluorescence signals at the steady-state and to avoid photobleaching.

Note: Steps 67 and 68: Disconnect the Luer fittings, add the solution into the tube using a micropipette, and retain the solution in the middle of the tube. Reconnect the Luer fittings, and when the time for addition comes, drip the solution slowly into the dish by pushing air through the syringe.

Figure 4.

Assembly of the solution injection tool and an on-stage incubator

(A) Insert the stainless tube into an inlet port.

(B) Place the tip of the injection tool close to the top of the glass part of the dish.

Figure 5.

Acquisition setting in the software FluoView

(A) Light path: Select the high-sensitivity GaAsP detector. Dichroic mirror: 560 nm. Band-pass filters: 490–540 nm (for ZnDA-1H); 575–675 nm (for HTL-TMR).

(B) Scan speed: 2.0 μs/pixel. Frame size: 1024 × 1024 pixels. Zoom: 1.0. Laser power: 0.2% (473 nm); 0.2% (559 nm). Objective lens: 60×, silicone oil-immersion (UPLSAPO60XS2, NA 1.30). Autofocus: Put check “Enable ZDC AF during Time Series Scan” in order to use z-drift compensator. Time interval: 30 s. Scan number: 27.

(C) HV: Set a proper value between 500 and 700 to obtain sufficient fluorescence signals. Gain: 1. Offset: 0. Confocal aperture: 120 (auto).

Image processing and analysis

Timing: 1–2 h

This method describes how to process the time-lapse imaging data using the Fiji software to quantify labile Zn²⁺ concentration (Figure 6).

• 71.Open time-lapse images using the FIJI software.
• 72.
  Reduce the noise by applying a median filter to both ZnDA-1H and HTL-TMR channels:

  • a.
    Process -> Filters -> Median -> Enter “1.0” pixels -> Press “OK”
  • b.
    Press “Yes” when you are asked if you want to “Process all images”.
• 73.
  Subtract the background:

  • a.
    Select the region where the cells are not present as a background using a rectangle tool and add to the ROI manager: Analyze -> Tools -> ROI Manager -> Add (shortcut: [t]).
  • b.
    Measure the mean value in the ROI: Analyze -> Measure (shortcut: [m]).
  • c.
    Subtract the mean value from the image: Process -> Math -> Subtract -> Enter the mean value -> Press “OK”
  • d.
    Repeat this process for all slices, or use the plug-in “Subtract_Measured_Background.ijm” deposited on GitHub (https://github.com/JoachimGoedhart/Quantify-Intensity-from-Timelapse).
• 74.
  Create a binary mask:

  • a.
    Duplicate the HTL-TMR channel stack: Image -> Duplicate (shortcut: ctrl + shift + [d])
  • b.
    Threshold the ROIs of the duplicated HTL-TMR channel stack: Image -> Adjust -> Threshold (shortcut: ctrl + shift + [t]).
  • c.
    Choose a proper algorithm to extract the desired ROIs (troubleshooting 5).
  • d.
    Convert the thresholded ROIs into binary: Process -> Math -> Divide -> Enter “255” -> Press “OK”.
  • e.
    Press “Yes” when you are asked if you want to “Process all images”.
  • f.
    Save the binary stack as “mask.tiff”.
• 75.
  Apply the mask to both ZnDA-1H and HTL-TMR channel stacks.

  • a.
    Process -> Image Calculator
  • b.
    Select the file for the ZnDA-1H channel stack as Image 1 and the mask file as Image 2, select “Multiply” in the operation tab, and put checks to “Create new window” and “32-bit (float) result”. Press “OK”.
  • c.
    Press “Yes” when you are asked if you want to “Process all images”.
  • d.
    Repeat for the HTL-TMR channel stack.
• 76.Draw a circle to select the ROI for each cell in the HTL-TMR channel stack and add it to the ROI manager (shortcut: [t]).
• 77.
  Set measurements to obtain the total fluorescence intensity in the ROIs:

  • a.
    Analyze -> Set Measurements -> Put a check to “Integrated density”.
• 78.
  Obtain the total fluorescence intensity of both ZnDA-1H and HTL-TMR from each ROI:

  • a.
    Select ROIs in the ROI manager, and then, More -> Multi Measure. Put checks to “Measure all slices” and “One row per slice”. Press “OK”.
  • b.
    Save the results as CSV files. In the “Results” window, File -> Save As.
  • c.
    Perform for both ZnDA-1H and HTL-TMR channel stacks.
• 79.Open the CSV files, calculate the ratio of ZnDA-1H/HTL-TMR, and plot the data (Figure 7). We used Microsoft Excel and KaleidaGraph.
• 80.Calculate labile Zn²⁺ concentration in the Golgi apparatus ([Zn²⁺]_Golgi) using the following equation:

[Zn²⁺]_Golgi = K_d × (R_ss – R_min)/(R_max – R_ss),

where K_d is the apparent dissociation constant of Halo-ZnDA-1H toward Zn²⁺ at pH 6.5 (K_d = 0.54 ± 0.05 μM), and R is the fluorescence signal ratio of ZnDA-1H and HTL-TMR. The subscript ss denotes a steady-state.

Note: Step 73: Alternatively, you can perform background subtraction differently. Process -> Subtract background -> Enter a sufficiently large value into “Rolling ball radius”.

Note: Step 74c: In our study, we used the “Otsu” threshold algorithm. Alternatively, you can use Huang or other algorithms to determine a proper threshold.

Note: Step 80: We used the K_d value determined at pH 6.5 for the estimation of [Zn²⁺]_Golgi as the pH in the Golgi can vary from 6.7 to 6.0. You can also estimate [Zn²⁺]_Golgi at a different pH by applying different K_d values determined under different pH conditions.

Figure 6.

Schematic illustration of imaging data-processing

A median filter algorithm (1 px) was applied to raw images in order to remove sharp spike noises. For background subtraction, the mean intensity of the cell-free region was subtracted from each image. To remove the background and obtain the fluorescence intensity only from the target organelle, a mask image was created from an image in the TMR channel using the Otsu threshold algorithm and applied to images in both the TMR and ZnDA channels. Regions of interest (ROIs) were circled to select the target organelle within the single cell. The line profiles indicate the fluorescence intensities of HTL-TMR, which were measured along the green and magenta lines in the images.

Figure 7.

Quantitative imaging of [Zn²⁺] in the Golgi apparatus in live HeLa cells via the combination of ZnDA-1H and HTL-TMR

(A) Confocal microscopy images of ZnDA-1H and HTL-TMR targeted into the Golgi apparatus. HaloTag proteins expressed in the Golgi were labeled with both 0.25 μM ZnDA-1H and 5.0 nM HTL-TMR. Scale bar: 20 μm. For intracellular Zn²⁺ calibration in live cells, 10 μM TPEN was added after 2 min, and Zn²⁺/pyrithione (ZPT, 400 μM Zn²⁺/2 μM pyrithione) was added after 7 min. Cell boundaries were manually traced with a yellow dotted line.

(B) Time course of the fluorescence ratios (black) and intensities of ZnDA-1H (green) and HTL-TMR (orange). Error bars represent SEM (n = 106, N = 9). n and N indicate the numbers of the examined cells and the independent experiments, respectively.

(C) [Zn²⁺]_Golgi at the steady-state in HeLa cells. A plot was constructed from the dataset as shown in Figure 7B. A red dot represents the mean value.

Modified and reproduced with permission from Kowada et al., 2020.

Expected outcomes

ZnDA-1H is synthesized according to the 7-step reactions shown in Figure S1. The characterization data are summarized in Table 1. NMR spectra are shown in Figures 8, 9, 10, 11, 12, and 13.

Table 1.

NMR and MS data

Compound	1H NMR, δ [ppm]	13C NMR, δ [ppm]	HRMS (ESI)
2	400 MHz, CDCl3 6.76 (d, J = 7.9 Hz, 1H), 6.13 (d, J = 2.4 Hz, 1H), 6.05 (dd, J = 7.9, 2.4 Hz, 1H), 5.25 (br s, 1H), 3.25–3.19 (m, 4H), 2.66 (t, J = 6.3 Hz, 2H), 2.27 (t, J = 7.2 Hz, 2H), 1.92–1.84 (m, 4H), 1.46 (s, 9H)	100 MHz, CDCl3 173.0, 155.2, 146.1, 129.7, 114.7, 102.3, 97.8, 80.6, 50.8, 49.4, 32.9, 28.1, 27.4, 22.4, 21.7	Calcd for C17H25NNaO3+ [M + Na]+, 314.1727; found 314.1718
3	400 MHz, CDCl3 11.58 (s, 1H), 9.42 (s, 1H), 6.95 (s, 1H), 6.02 (s, 1H), 3.38–3.31 (m, 4H), 2.67 (t, J = 6.1 Hz, 2H), 2.28 (t, J = 7.2 Hz, 2H), 1.95–1.87 (m, 4H), 1.46 (s, 9H).	100 MHz, CDCl3 191.6, 172.1, 163.4, 152.1, 133.2, 114.7, 111.1, 95.7, 80.7, 50.8, 49.7, 32.6, 28.1, 27.1, 21.7, 21.6	Calcd for C18H26NO4+ [M + H]+, 320.1856; found 320.1871
4	400 MHz, CDCl3 8.60 (s, 1H), 7.10 (s, 1H), 6.44 (s, 1H), 3.50 (t, J = 5.7 Hz, 2H), 3.43 (t, J = 7.8 Hz, 2H), 2.79 (t, J = 6.1 Hz, 2H), 2.32 (t, J = 7.0 Hz, 2H), 2.00–1.91 (m, 4H), 1.47 (s, 9H)	100 MHz, CDCl3 171.8, 157.0, 153.5, 152.9, 142.8, 129.9, 126.2, 122.4, 106.3, 95.7, 81.0, 51.3, 50.0, 32.2, 28.1, 27.2, 21.3, 20.9	Calcd for C20H24N2O6+ [M + H]+, 389.1707; found 389.1725
5	400 MHz, CDCl3 6.83 (s, 1H), 6.64 (s, 1H), 6.44 (s, 1H), 3.30 (dt, J = 10.4, 5.6 Hz, 4H), 2.74 (t, J = 6.0 Hz, 2H), 2.28 (t, J = 7.3 Hz, 2H), 1.97–1.87 (m, 4H), 1.46 (s, 9H)	100 MHz, CDCl3 172.4, 160.3, 150.2, 144.9, 127.5, 124.8, 120.0, 114.4, 109.6, 96.8, 80.5, 50.8, 49.3, 32.7, 28.1, 27.7, 21.9, 21.4	Calcd for C20H26N2NaO4+ [M + Na]+, 381.1785; found 381.1790
6	400 MHz, CDCl3 8.50 (ddd, J = 4.9, 1.5, 0.9 Hz, 2H), 7.62–6.72 (m, 4H), 7.11 (ddd, J = 6.7, 4.9, 1.4 Hz, 2H), 6.75 (d, J = 7.1 Hz, 2H), 6.40 (s, 1H), 4.56 (s, 4H), 3.31–3.24 (m, 4H), 2.67 (t, J = 6.2, 2H), 2.26 (t, J = 7.3 Hz, 2H), 1.92–1.83 (m, 4H), 1.46 (s, 9H)	100 MHz, CDCl3 172.3, 160.3, 158.6, 151.4, 148.9, 145.8, 136.6, 130.1, 126.0, 125.1, 122.7, 122.1, 119.7, 108.9, 96.2, 80.6, 57.5, 50.8, 49.3, 32.7. 28.1, 27.6, 21.8, 21.4	Calcd for C32H36N4NaO4+ [M + Na]+, 563.2629; found 563.2642
ZnDA-1H	500 MHz, CDCl3 8.52 (d, J = 4.70 Hz, 2H), 7.64–7.56 (m, 4H), 7.14 (dd, J = 5.8, 5.8 Hz, 2H), 6.78 (s, 1H), 6.76 (s, 1H), 6.40 (s, 1H), 6.08 (t, J = 4.8 Hz, 1H), 4.57 (s, 4H), 3.63–3.46 (m, 13H), 3.33–3.29 (m, 4H), 2.69 (t, J = 6.2 Hz, 2H), 2.23 (t, J = 7.3 Hz, 2H), 2.25–1.27 (m, 15H)	125 MHz, CDCl3 171.9, 160.3, 158.5, 151.4, 148.9 (2C), 145.9, 136.6 (2C), 130.0, 126.0, 125.1, 122.7 (2C), 122.1 (2C), 119.7, 108.8, 96.1, 71.2, 70.2, 70.0, 69.8, 57.4, 50.8, 49.2, 45.0, 39.2, 33.4, 32.5, 29.4, 27.6, 26.6, 25.4, 21.805, 21.795	Calcd for C38H4935ClN5O5+ [M + H]+, 690.3417; found 690.3407

Figure 8.

¹H (400 MHz, upper) and ¹³C NMR (100 MHz, lower) spectra of 2 in CDCl₃

Figure 9.

¹H (400 MHz, upper) and ¹³C NMR (100 MHz, lower) spectra of 3 in CDCl₃

Figure 10.

¹H (400 MHz, upper) and ¹³C NMR (100 MHz, lower) spectra of 4 in CDCl₃

Figure 11.

¹H (400 MHz, upper) and ¹³C NMR (100 MHz, lower) spectra of 5 in CDCl₃

Figure 12.

¹H (400 MHz, upper) and ¹³C NMR (100 MHz, lower) spectra of 6 in CDCl₃

Figure 13.

¹H (500 MHz, upper) and ¹³C NMR (125 MHz, lower) spectra of ZnDA-1H in CDCl₃

At a steady-state, weak fluorescence signals of ZnDA-1H can be detected from the Golgi apparatus accompanied by HTL-TMR fluorescence signals (Figure 7A). For the [Zn²⁺]_Golgi quantification, intracellular calibration is necessary, and TPEN and ZPT are used for the depletion and saturation of labile Zn²⁺, respectively (Figures 7A and 7B). After processing the imaging data (Figure 6), the resulting ratio values are used for calculating [Zn²⁺]_Golgi (Figure 7C).

Quantification and statistical analysis

The average, standard deviation (SD), and standard error of the mean (SEM) values were calculated using Microsoft Excel. Microscopic images were processed using ImageJ (Fiji).

Limitations

The K_d value of ZnDA-1H toward Zn²⁺ ranges from 0.30 μM to 0.54 μM at pH 7.4–6.5. In our quantification protocol, the K_d value at pH 6.5 (generally considered as the pH value of the Golgi apparatus) is used to estimate the concentration of Zn²⁺ in the Golgi apparatus. However, intracellular pH fluctuations during imaging can affect the results of Zn²⁺ quantification. It is preferable to simultaneously monitor both Zn²⁺ concentration and pH level with a Zn²⁺ probe and a pH probe.

To quantify the concentration of labile Zn²⁺ with high accuracy, zinc levels in organelles should be in the range of 0.1–10 times the K_d value of the Zn²⁺ probe. Our data (Kowada et al.) indicated that labile Zn²⁺ concentrations in the mitochondria, cytosol, nucleus, and ER of HeLa cells were lower than the detection limit of ZnDA-1H. The results are consistent with those of studies reporting that steady-state Zn²⁺ concentrations in such subcellular compartments range from the pM to sub-nM levels (Kambe et al., 2015). In our latest unpublished study, we developed several ZnDA-1H derivatives with higher affinity for Zn²⁺ with a K_d value for Zn²⁺ ranging from tens of pM to nM and confirmed that our method is applicable to the quantification of Zn²⁺ concentrations in the above-mentioned subcellular compartments using these Zn²⁺ probes.

HaloTag expression in cells is required to localize ZnDA-1H to target subcellular regions. Therefore, this quantification method is not applicable to samples where it is difficult to genetically express HaloTag.

Troubleshooting

Problem 1

Mislocalization of the HaloTag-fused protein

Potential solution

Overexpression of the HaloTag-fused protein in the Golgi apparatus may lead to the mislocalization of the expressed protein. We observed the strong fluorescence signals of mislocalized proteins mainly from membrane fractions such as the plasma membrane and perinuclear regions. If the probe fluorescence is observed from a location other than the Golgi apparatus, optimize transfection conditions by changing the amount of the plasmid DNA, the ratio of the DNA and a transfection reagent, and incubation time after transfection. We have used only HeLa cells and HEK293T cells and found that it was more difficult to reduce the expression level of HaloTag to prevent its mislocalization in HEK293T cells. To confirm HaloTag expression in the Golgi apparatus, we performed immunostaining using anti-GM130 rabbit polyclonal antibody (1:1000) and CF568-conjugated donkey-anti-rabbit IgG (1:1000). Establishing stable cell lines may be an effective solution to ensure HaloTag expression in the target regions.

Problem 2

Increased cell death by transfection

Potential solution

Since the overexpression of transfected genes is one of the causes of increased cell death, the transfection conditions should be optimized. In HeLa cells expressing mannosidase II-fused HaloTag, there were more dead cells following treatment with 250 ng of plasmid DNA compared with 150 ng of the plasmid. Exchanging medium to remove the transfection reagent 3–5 h after transfection may be effective, although it is not required according to the standard protocol of FuGENE HD.

Problem 3

Appearance of bubbles in the field of view during time-lapse imaging

Potential solution

Remove the oil cleanly from the objective lens with a lens cleaner, and apply oil on it again. If you leave the oil container upside down for a while before applying the oil, it will prevent the inclusion of air bubbles. It is also effective to discard the first drop of oil before adding oil to an objective lens.

Problem 4

No change in the fluorescence signal or time lag after the addition of TPEN or ZPT

Potential solution

Since the reagent solution may have been dropped far from the observation area, place the tip of the injection tube near the glass-plastic interface of the glass bottom dish.

Problem 5

The error “Threshold is not set” appears.

Potential solution

Set a threshold after converting the image depth to 8 bit.

Resource availability

Lead contact

Shin Mizukami (shin.mizukami@tohoku.ac.jp).

Materials availability

Requests for resources and reagents should be directed to and will be fulfilled by the lead contact.

Data and code availability

This study did not generate any datasets or code.
