Cembranoids from Octocoral Lobophytum crassum (von Marenzeller, 1886)

Abstract

Two cembranoids, including a new compound, lobocrassin I (1), as well as a known analogue, lobohedleolide (2), were obtained by solvent extraction from octocoral Lobophytum crassum. This study employed a spectroscopic approach to establish the structures of these two cembranoids, and utilized single-crystal X-ray diffraction analysis to determine their absolute configurations. The results of biological activity assays demonstrated that cembranoid 2 exhibited bioactivity against the protein expressions of inducible nitric oxide synthase (iNOS) lipopolysaccharide (LPS)-treated RAW 264.7 mouse macrophage cells.

1. Introduction

Cembrane-type diterpenoids are a group of 14-membered macrolides obtained from terrestrial and marine organisms, with novel structures and extensive bioactivities [1]. Octocorals belonging to the genera Lobophytum, Sarcophyton, and Sinularia are currently known to be critical sources for the supply of cembranoids [2]. In connection with our continuing studies of marine invertebrates with biomedical potential, we have focused considerable attention on invertebrates found in the marine habitat of the waters around Taiwan, with the aim of informing new drug development. In this research, we completed the preparation, structural identification, and anti-inflammatory activity assessment of a new cembranoid, lobocrassin I (1), as well as a known cembranoid, lobohedleolide (2) [3,4,5,6] (Figure 1), obtained from L. crassum (von Marenzeller, 1886) [7,8]. Lobophytum crassum is a rich cembranoid-containing octocoral distributed extensively in tropical Indo-Pacific Ocean, including Taiwanese waters where the Kuroshio current and South China Sea surface current converge to provide high biodiversity and the cembrane-type diterpenoids prepared from soft coral L. crassum were proven to have the potential to be used as therapeutic agents to treat inflammation [9,10,11,12,13,14,15]. This paper reported details of the isolation, structure determination, and biological evaluation of cembranoids 1 (lobocrassin I) and 2 (lobohedleolide) (Figure 1).

Figure 1.

Structures of lobocrassin I (1) and lobohedleolide (2).

2. Results and Discussion

Freshly-collected L. crassum was frozen and subsequently freeze-dried, powdered, and extracted with a solvent mixture of methanol/dichloromethane (MeOH/CH₂Cl₂) at a 1:1 ratio to give an extract that was subsequently separated by organic solvent ethyl acetate (EtOAc)-water partitioning. The EtOAc layer was collected and loaded onto a column chromatograph with silica gel, and subsequently separated using high performance liquid chromatography (HPLC), yielding cembranoids 1 and 2. The known compound was elucidated as lobohedleolide (2) by analysis of its spectroscopic data and comparison with previously reported values [3].

Lobocrassin I (1) was obtained as colorless prisms. The positive mode high resolution electrospray ionization mass spectrum ((+)-HRESIMS) showed a peak at m/z 355.18815, suggesting the molecular formula C₂₀H₂₈O₄ (calcd. for C₂₀H₂₈O₄ + Na, 355.18798), indicating seven degrees of unsaturation in the compound. The IR spectrum revealed absorptions for α,β-unsaturated carboxyl (ν_max 3749~2216 and 1710 cm^–1) and γ- lactone (ν_max 1766 cm^–1) groups. The ¹³C NMR spectrum of 1 (Table 1) showed signals of 20 carbons. The multiplicities of carbon signals were determined from a distortionless enhancement by polarization transfer (DEPT)/heteronuclear single quantum coherence (HSQC) spectrum, indicating three methyls, six sp³ methylenes, three sp³ methines (one bearing a heteroatom), three sp² methines, and five sp² non-protonated carbons (two carbonyls and three olefins). From the ¹H and ¹³C NMR spectra (Table 1), 1 was found to possess a γ-lactone (δ_C 179.3, C-16), a carboxyl carbon (δ_C 170.7, C-19), and three tri- substituted olefins (δ_H 5.74, 1H, dd, J = 8.4, 3.6 Hz, H-7; 5.21, 1H, d, J = 10.8 Hz, H-3; 4.93, 1H, dd, J = 8.8, 7.6 Hz, H-11; δ_C 119.6, CH-3; 142.4, C-4; 147.8, CH-7; 128.7, C-8; 122.7, CH-11; 135.5, C-12). Five double bonds that accounted for the five degrees of unsaturation were identified. The remaining two degrees of unsaturation delineated the configuration, and indicated that 1 was a bicyclic molecule.

Table 1.

¹H and ¹³C NMR data for cembranoids 1 and 2.

	1		2
Position	δH a (J in Hz)	δC b	δH a (J in Hz)	δC b
1	2.21 m	46.6, CH c	3.11 m	42.9, CH c
2	5.32 dd (10.8, 7.2)	77.6, CH	5.43 dd (10.4, 8.0)	77.9, CH
3	5.21 d (10.8)	119.6, CH	5.05 d (10.4)	120.5, CH
4		142.4, C		142.0, C
5/5’	2.38 m; 2.24 m	39.9, CH2	2.38 br d (14.0); 2.19 m	39.8, CH2
6/6’	3.11 m; 2.42 m	26.6, CH2	3.07 m; 2.46 br d (12.4)	26.6, CH2
7	5.74 dd (8.4, 3.6)	147.8, CH	5.72 dd (8.8, 4.0)	148.1, CH
8		128.7, C		128.8, C
9	2.75 br d (13.2); 1.82 m	35.2, CH2	2.71 br d (13.2); 1.87 ddd (13.2, 7.6, 7.6)	35.1, CH2
10	2.19 m	25.0, CH2	2.18 m	25.0, CH2
11	4.93 dd (8.8, 7.6)	122.7, CH	4.93 dd (8.4, 8.0)	122.8, CH
12		135.5, C		135.3, C
13/13’	2.01 m; 1.67 m	36.6, CH2	2.07 m; 1.69 m	36.1, CH2
14/14’	1.84 m; 1.35 m	27.8, CH2	1.99 ddd (12.8, 6.4, 3.2); 1.45 m	27.0, CH2
15	2.33 dq (12.0, 6.8)	38.8, CH		138.7, C
16		179.3, C		170.6, C
17a/b	1.25 d (6.8)	13.6, CH3	6.28 d (3.2); 5.54 d (3.2)	120.8, CH2
18	1.73 s	15.0, CH3	1.73 s	15.3, CH3
19		170.7, C		171.7, C
20	1.52 s	16.0, CH3	1.54 s	16.1, CH3

^{a 1}H NMR (400 MHz, CDCl₃), ^{b 13}C NMR (100 MHz, CDCl₃), ^c Multiplicity-edited ¹³C, DEPT, and HSQC spectra.

The H₂-13/H₂-14/H-1/H-2/H-3, H₂-5/H₂-6/H-7, H₂-9/H₂-10/H-11, and H-1/H-15/H₃-17 spin systems identified by ¹H-¹H correlation spectroscopy (COSY) (Figure 2) were fit to the regiochemistry of vicinal couplings in 1. Based on the aforementioned data and the results of ¹H-¹³C long-range correlations obtained from heteronuclear multiple-bond coherence (HMBC) analysis, the molecular framework of 1 was determined (Figure 2). The vinyl methyls at C-4 and C-12 were established from HMBC correlations between H₃-18/C-3, C-4, C-5, and H₃-20/C-11, C-12, C-13, respectively. The carboxyl group at C-8 was established from an HMBC correlation between one of the C-9 methylene protons (δ_H 1.84) and the carbonyl carbon of carboxyl group at δ_C 170.7 (C-19). An ester carbonyl signal at δ_C 179.3 (C-16) showed a ²J-coupling with a methine proton at δ_H 2.33 (H-15); ³J- couplings with an oxymethine proton at δ_H 5.32 (H-2), and methyl protons at δ_H 1.25 (H₃-17) in the HMBC spectrum established the α-methyl-γ-lactone moiety in 1.

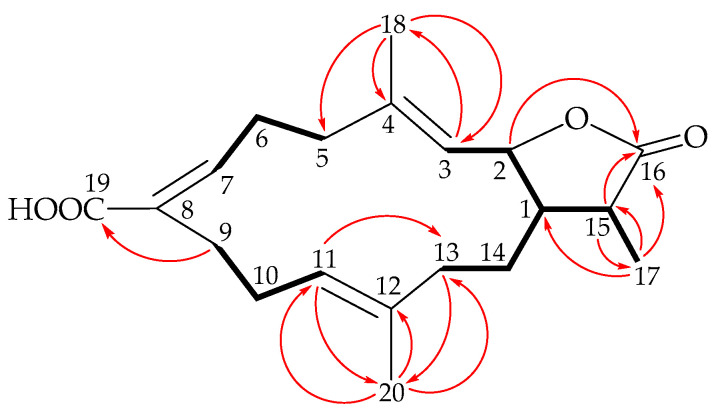

Figure 2.

Major COSY () and HMBC () correlations of 1.

The interactions obtained using nuclear Overhauser effect spectroscopy (NOESY) and the data of vicinal ¹H-¹H coupling constants revealed the relative stereochemistry of 1 (Figure 3). Biogenetically, in most cases the proton at C-1 is β-oriented in naturally-occurring cembranoids from Lobophytum spp. [2]. The NOESY cross-peak of H-1 and H-2 suggested that these two protons were β-oriented. The vinyl methyl H₃-18 exhibited a NOESY response with H-2, but not with H-3, and a NOESY correlation was observed between H-3 and H-15, demonstrating the trans configuration of ∆³, and H-15 was therefore α-oriented in the γ-lactone moiety. The trans relationship between H-1 and H-15 was established from a large coupling constant (J = 12.0 Hz) for these two vicinal protons. H-11 showed a NOESY correlation with one of the C-13 methylene protons (δ_H 2.01), but not with H₃-20, indicating the trans configuration of ∆¹¹. Furthermore, olefin proton H-7 exhibited a NOESY correlation with one of the C-14 methylene protons (δ_H 1.82), also demonstrating the cis geometry of ∆⁷. Based on the aforementioned results, the configurations of the stereogenic centers of 1 were assigned as (1S*,2R*,15S*) (Supplementary Materials, Figures S1–S10).

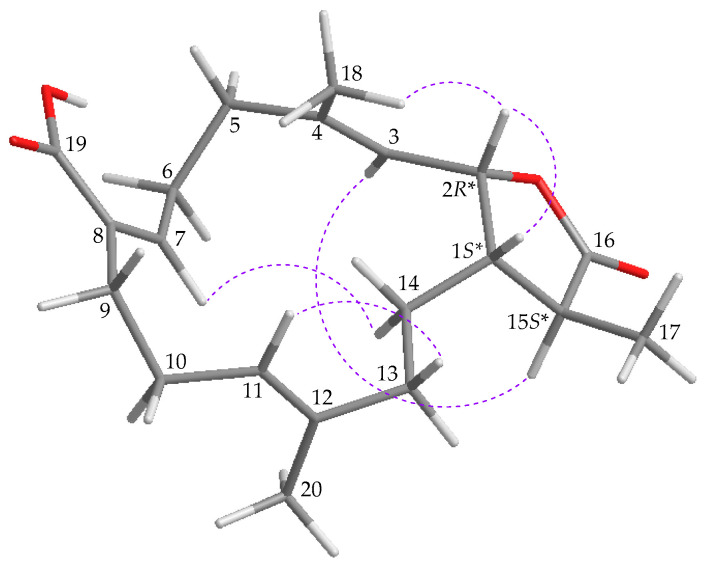

Figure 3.

Major protons with NOESY () correlations of 1.

Single-crystal X-ray diffraction was used to confirm the structure of 1. The data suggested E-geometries of the C-3/4, C-11/12, and Z-geometry of the C-7/8 carbon-carbon double bonds in 1; in addition, the absolute configurations of the stereogenic carbons of 1 were confirmed as (1S,2R,15S) based on an Oak Ridge thermal-ellipsoid plot (ORTEP) of 1 (Figure 4). According to the X-ray determined structure of 1, the carboxylic acids formed dimers, in which the monomer units were held together by hydrogen bonds.

Figure 4.

ORTEP plot revealing the absolute configuration of 1.

Cembranoid 2 was obtained as colorless prisms, showing a sodiated ESIMS quasimolecular ion peak at m/z 353, and was found to have the molecular formula C₂₀H₂₆O₄ by analysis of ¹³C and ¹H NMR data (see Materials and Methods). The result revealed that this compound had 8 degrees of unsaturation. Strong bands at 3665~2398 (broad), 1760, and 1682 cm⁻¹ in the IR spectrum indicated the presence of α,β-unsaturated carboxyl and γ-lactone groups. The ¹³C NMR and DEPT spectra revealed that 2 had 20 carbons, including two methyls, six sp³ methylenes, one sp² methylene, two sp³ methines (one bearing a heteroatom), three sp² methines, and six sp² non-protonated carbons (one ester carbonyl and one carboxyl group). Therefore, 2 was identified as having two rings. It was found that the NMR data of 2 were almost identical to those of a known compound, lobohedleolide [3], and these two compounds were found to possess positive optical rotation value, suggesting that compound 2 is lobohedleolide, although the ¹³C chemical shift for the carboxyl carbon in 2 (δ_C 171.7, C-19) was different from that reported (δ_C 173.2) [3] (Supplementary Materials, Figures S11–S19).

Lobohedleolide (2) was first isolated from octocoral Lobophytum hedleyi, collected from the coral reefs of Yayeyama Islands of Okinawa, Japan [3]. The structure of lobohedleolide was revealed by spectroscopic analysis, and its absolute configuration was concluded from X-ray study of its p-bromophenacyl ester derivative [3]. In this study, the structure of 2 was determined by single-crystal X-ray diffraction directly for the first time, and the absolute configuration for this compound was elucidated as (1S,2S) (Figure 5). Because the structure of 2 has been established by a single-crystal X-ray diffraction analysis, the authors suggested that the ¹³C chemical shift of carboxyl carbon in structure for lobohedleolide should be re-examined [3].

Figure 5.

ORTEP plot revealing the absolute configuration of 2.

The anti-inflammatory effects of lobocrassin I (1) and lobohedleolide (2) were assessed by measuring their effects on proinflammatory proteins/enzymes inducible nitric oxide synthase (iNOS) and cyclooxygenase 2 (COX-2) production from lipopoly-saccharides (LPS)-stimulated RAW264.7 cells (a murine macrophage cell line). Western blotting results showed that cembranoid 2 at 10 µM inhibited iNOS expression, which reduced the protein level to 28.50%, as compared with cells in the control group treated with LPS only (Table 2). In previous studies, cembranoid 2 was reported to exhibit extensive bioactivities such as cytotoxic [3,5], antiviral [4,16,17], and anti-inflammatory [16,18,19,20] activities, and the anti-inflammatory activity of 2 has been evaluated and revealed that 2 is effective against both carrageenin induced edema and cotton pellet implantation rat models [18]. Lobocrassin I (1) did not show activity, implying that the exo-methylene substituent at C-15 enhanced the bioactivity in comparison with cembranoid 2.

Table 2.

Suppression effects of cembranoids 1 and 2 on iNOS and COX-2 protein/enzyme expressions in LPS-induced macrophages.

Compound/Treatment	iNOS		COX-2		β-Actin
(10 µM)	Production Level
Control	2.23	±0.87	1.02	±0.14	106.12	±4.17
Vehicle	100.01	±4.27	100.00	±2.62	100.00	±0.74
1	90.82	±2.16	110.85	±2.10	102.38	±2.12
2	28.50	±2.69	78.99	±3.36	100.45	±2.06
Dexamethasone	54.53	±3.58	17.66	±1.75	103.14	±2.46

Values of cells treated with LPS alone were set to 100% as the reference for normalization. Dexamethasone at 10 µM was used as a positive reference to treat cells. Experimental results are shown as the mean ± S.E.M. The β-actin of Western blotting is used for loading/internal control.

3. Materials and Methods

3.1. General Experimental Procedures

A digital polarimeter (model P-1010; JASCO Corp., Tokyo, Japan) was used to determine optical rotations of the samples. IR spectra were collected using a spectro-photometer (model Nicolet iS5 FT-IR; Thermo Fisher Scientific, Waltham, MA, USA). ¹H and ¹³C NMR spectra were recorded on an ECZ-400 spectrometer (Jeol Ltd., Tokyo, Japan) for solutions in CDCl₃ (with residual CHCl₃ (δ_H 7.26 ppm) and CDCl₃ (δ_C 77.0 ppm) as internal standards). For coupling constants (J), the results were given in frequency units, Hz. For ESIMS and HRESIMS, the results were obtained using a SolariX FTMS mass spectrometer (7 Tesla; Bruker, Bremen, Germany). The extracted samples were separated by column chromatography with silica gel (range, 230 to 400 mesh; Merck, Darmstadt, Germany). The purity of a compound can be determined by Thin-layer chromatography (TLC), a method for analyzing mixtures by separating the compounds in the mixture. The TLC plates with silica gel coated with fluorescent indicator F₂₅₄ were employed. For visualization, the plates were charred with 10% (v/v) aqueous sulfuric acid solution, then heated at 105 °C until spots were seen. For normal-phase HPLC separation, a system containing a pump (Hitachi model L-7110; Tokyo, Japan) and an injection interface (No. 7725; Rheodyne) was employed, which was equipped with a semi-prep column with a dimension of 2 × 25 cm, 5 μm particle size (Sigma, St. Louis, MO, USA). For reverse-phase HPLC separation, a system composed of a pump (Hitachi model L-2130, Tokyo, Japan) and a diode-array detector (LaChrom L-2455, Hitachi, Tokyo, Japan) were used, which was equipped with a column with a dimension of 2.1 × 25 cm, 5 μm particle size (Phenomenex, Torrance, CA, USA).

3.2. Soft Coral Specimens

The soft coral L. crassum was manually collected by an underwater diver with a breathing apparatus from the marine habitat around Southern Taiwan on 23 July 2020. The specimens were frozen directly after harvesting. Identification of the specimens was performed by one of the authors of this study (Y.-T.Y.) by assessment of the features and comparison with the characteristics reported in the literature [7,8]. A representative sample of the soft coral (voucher no.: NMMBA-TW-SC-2020-0723) was stored in the National Museum of Marine Biology and Aquarium, Taiwan.

3.3. Cembranoid Compound Preparation

Lobophytum crassum (wet/dry weight = 1174 g/591 g) was crushed and then extracted with a mixture of MeOH and CH₂Cl₂ (1:1) to give an extract (22.4 g), that was next separated by solvent-partition with EtOAc and H₂O. The EtOAc extract (7.34 g) was then placed in an SiO₂ column and washed with an eluent of hexanes/EtOAc (by stepwise-gradient increase from 100:1—pure EtOAc) to yield 12 fractions A−L. Fraction J (294 mg) was then purified by semi-prep normal-phase HPLC to give eight fractions J1–J8. Fraction J3 (161.0 mg) was then purified by semi-prep reverse-phase HPLC (MeOH:H₂O = 65:35 (v/v); at a rate of 5.0 mL/min) to afford compounds 2 (47.1 mg) and 1 (16.6 mg).

Lobocrassin I (1): Colorless prisms; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{22}$ + 46 (c 0.03, CHCl₃); IR (ATR) ν_max 3749~2216 (broad), 1766, 1710 cm⁻¹; ¹H NMR (400 MHz, CDCl₃) and ¹³C NMR (100 MHz, CDCl₃) data, see Table 1; ESIMS: m/z 355 [M + Na]⁺; HRESIMS: m/z 355.18815 (calcd. for C₂₀H₂₈O₄ + Na, 355.18798).

Lobohedleolide (2): Colorless prisms; ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}^{22}$ + 48 (c 0.21, CHCl₃) (ref. [3] ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}$ + 104.2 (c 1.12, CHCl₃); ref. [4] ${\left[\mathsf{\alpha }\right]}_{\mathrm{D}}$ + 97.3 (c 0.38, CHCl₃)); IR (ATR) ν_max 3665~2398 (broad), 1760, 1682 cm⁻¹; ¹H NMR (400 MHz, CDCl₃) and ¹³C NMR (100 MHz, CDCl₃) data, see Table 1; ESIMS: m/z 353 [M + Na]⁺.

3.4. Single-Crystal X-ray Crystallography of Lobocrassin I (1)

Suitable colorless prisms of 1 were acquired from EtOA/acetone (4:1). The crystal (0.256 × 0.210 × 0.210 mm³) belongs to the monoclinic system, space group P2₁ (#4), with a = 19.0021(4) Å, b = 9.3796(2) Å, c = 22.1329(5) Å, V = 3810.26(14) ų, Z = 8, D_calcd = 1.159 Mg/m³, and λ (Mo Kα) = 0.71073 Å. Intensity data (up to θ_max of 27.5°) were obtained using an X-ray diffractometer (Bruker D8 Venture, Bremen, Germany). All 30,010 reflections were collected. By using direct methods and a full-matrix least-squares refinement [21,22], the structure of compound 1 was obtained. The refined structural model converged to a final R1 = 0.0546 and wR2 = 0.1277 for 17,444 observed reflections, with I > 2σ(I) and 881 variable parameters. The absolute configuration of this molecule was confirmed by an absolute structure Flack parameter, x = 0.0(4) [23,24]. Crystallographic data of compound 1 have been deposited with the Cambridge Crystallographic Data Center (CCDC) as supplementary publication no. CCDC 2053256 [25].

3.5. Single-Crystal X-ray Crystallography of Lobohedleolide (2)

Suitable colorless prisms of 2 were acquired from MeOH. The crystal (0.324 × 0.193 × 0.152 mm³) belongs to the orthorhombic system, space group P2₁2₁2₁ (#19), with a = 8.8283(4) Å, b = 12.4788(6) Å, c = 16.8460(7) Å, V = 1855.87(14) ų, Z = 4, D_calcd = 1.183 Mg/m³, and λ (Mo Kα) = 0.71073 Å. Intensity data (up to θ_max of 30.0°) were obtained using an X-ray diffractometer (Bruker D8 Venture, Bremen, Germany). All 12,446 reflections were collected. The structure of compound 2 was obtained using the same processes as described above for compound 1. The refined structural model converged to a final R1 = 0.0502 and wR2 = 0.1294 for 5399 observed reflections, with I > 2σ(I) and 220 variable parameters. The absolute configuration of this molecule was confirmed by Flack parameter x = −0.1(5) [23,24]. Crystallographic data for the structure of lobohedleolide (2) were also deposited with the CCDC as supplementary publication no. CCDC 2043446 [25].

3.6. In Vitro Anti-inflammatory Assay

Murine RAW 264.7 macrophages were obtained from the American Type Culture Collection (ATCC; No. TIB-71). Inflammation in macrophages was induced by incubating them for 16 h in a medium containing only LPS (0.01 µg/mL) without compounds. For the anti-inflammatory activity assay, compounds (10 µM) were added to the cells 5 min before LPS challenge. The cells were then washed with ice cold phosphate-buffered saline (PBS), lysed in ice-cold lysis buffer (50 mM Tris, pH 7.5, 150 mM NaCl, 1% Triton X-100, 100 µg/mL phenylmethylsulfonyl fluoride, 1 µg/mL aprotinin), and then centrifuged at 20,000× g for 30 min at 4 °C. The supernatant was decanted from the pellet and retained for Western blot analysis of pro-inflammation inducible nitric oxide synthase (iNOS) and cyclooxygenase-2 (COX-2) protein expression. Protein concentrations were determined using the detergent compatible (DC) protein assay kit (Bio-Rad, Hercules, CA, USA). Western blotting was performed according to the method described in a previous study [26]. An equal volume of sample buffer (2% 2-mercaptoethanol, 2% sodium dodecyl sulfate (SDS), 0.1% bromophenol blue, 10% glycerol, and 50 mM Tris-HCl (pH 7.2)) was added to the samples, and the protein lysates were loaded onto a 10% SDS- polyacrylamide gel. Electrophoresis was carried out at 150 V for 90 min. After electro-phoresis, gels were transferred overnight at 4 °C in transfer buffer (380 mM glycine, 50 mM Tris-HCl, 1% SDS and 20% methanol) onto a polyvinylidene difluoride membrane (PVDF; Immobilon-P, Millipore Corp., Billerica, MA, USA (0.45 µm pore size)). The PVDF membrane was first blocked with 5% non-fat dry milk in Tris-buffered saline containing 0.1% Tween (TTBS; 20 mM Tris-HCl, 0.1% Tween 20, and 137 mM NaCl (pH 7.4)) and incubated overnight at 4 °C with the primary antibodies for iNOS, COX-2, and β-actin proteins. Anti-iNOS and anti-COX-2 antibodies were purchased from Cayman Chemical Company (Ann Arbor, MI, USA). A horseradish peroxidase-conjugated secondary antibody was used for detection. It was obtained from Jackson ImmunoResearch Laboratories (West Grove, PA, USA). The bound antibodies were detected by chemiluminescence (Millipore Corp.). The images were obtained using the UVP BioChemi Imaging System, and the LabWorks 4.0 software (UVP, Upland, CA, USA) was used to quantify the relative densities.

4. Conclusions

A series of cembranoids, including lobocrassins A−F [27,28,29], have been obtained from this target organism. The structures of a new compound lobocrassin I (1) and its analogue lobohedleolide (2), two cembranoids isolated from L. crassum containing α,β-unsaturated carboxyl group and γ-lactone systems, were elucidated using spectroscopic methods and X-ray analysis. Cembranoid 2 exhibited effective inhibition of iNOS production. Structure-activity relationship (SAR) comparison also indicated that the exomethylene group at C-15 has an important role in the activity against the inflammatory response. We have started to optimize the aquaculture conditions for this octocoral in tanks, with the aim of culturing a large quantity of coral that is able to provide a stable supply of bioactive materials. This approach will protect the coral population in natural marine habitats from over-exploitation [30,31], and provide raw materials of consistent quality.
