Comprehensive genetic analysis of adhesin proteins and their role in virulence of Candida albicans

Abstract

Candida albicans is a microbial fungus that exists as a commensal member of the human microbiome and an opportunistic pathogen. Cell surface-associated adhesin proteins play a crucial role in C. albicans’ ability to undergo cellular morphogenesis, develop robust biofilms, colonize, and cause infection in a host. However, a comprehensive analysis of the role and relationships between these adhesins has not been explored. We previously established a CRISPR-based platform for efficient generation of single- and double-gene deletions in C. albicans, which was used to construct a library of 144 mutants, comprising 12 unique adhesin genes deleted singly, and every possible combination of double deletions. Here, we exploit this adhesin mutant library to explore the role of adhesin proteins in C. albicans virulence. We perform a comprehensive, high-throughput screen of this library, using Caenorhabditis elegans as a simplified model host system, which identified mutants critical for virulence and significant genetic interactions. We perform follow-up analysis to assess the ability of high- and low-virulence strains to undergo cellular morphogenesis and form biofilms in vitro, as well as to colonize the C. elegans host. We further perform genetic interaction analysis to identify novel significant negative genetic interactions between adhesin mutants, whereby combinatorial perturbation of these genes significantly impairs virulence, more than expected based on virulence of the single mutant constituent strains. Together, this study yields important new insight into the role of adhesins, singly and in combinations, in mediating diverse facets of virulence of this critical fungal pathogen.

Introduction

Fungal pathogens have been emerging as a significant threat to human health, resulting in over 1.6 million deaths worldwide each year (Bongomin et al. 2017; Denning 2017; Geddes-McAlister and Shapiro 2019). Despite fungal pathogens affecting over 1 billion people each year, they still remain relatively understudied compared with many other infectious disease pathogens (Denning 2017; Fisher et al. 2020). Candida albicans is amongst the most pervasive fungal pathogens of humans, and can cause infectious disease ranging from acute mucosal infections, to systemic candidiasis with extremely high morbidity and mortality rates (Pfaller and Diekema 2007; Kullberg and Arendrup 2016; Bongomin et al. 2017). Candida albicans is an opportunistic pathogen present in the gastrointestinal tract, skin, reproductive tract, and oral cavity of most healthy adults. It asymptomatically colonizes many tissues of the human body, and may overgrow if there is a perturbation or depression of the host immune system, including treatment with antibiotics, organ transplants in combination with immunosuppressive drugs, or diseases such as HIV/AIDS (Kullberg and Arendrup 2016).

The success of C. albicans as a human pathogen relies on multiple virulence strategies, including morphological plasticity and robust biofilm formation (Shapiro et al. 2011; Sudbery 2011; Mayer et al. 2013). C. albicans is a polymorphic yeast, and its ability to reversibly transition between yeast and filamentous growth states (including hyphal and pseudohyphal growth) is a critical component of this pathogen’s virulence (Sudbery 2011). C. albicans is capable of forming robust biofilms, not only on host tissues, but also on hospital equipment and medical implants such as catheters, pacemakers, and prosthetics (Finkel and Mitchell 2011; Nobile and Johnson 2015; Lohse et al. 2018). With the rising usage of medical implants, instances of implant-related infections are on the rise, with the majority of these infections associated with microbial biofilms (Finkel and Mitchell 2011; Nobile and Johnson 2015; Tsui et al. 2016; Lohse et al. 2018). As with many other microbial pathogens, C. albicans biofilms are typically resilient to many external stressors such as antifungals and host defense factors, making C. albicans significantly more difficult to treat in a biofilm state (Nobile and Johnson 2015; Tsui et al. 2016; Sharma et al. 2019).

Candida albicans pathogenesis is significantly impacted by its adherence abilities, and indeed the most frequently isolated pathogenic Candida species are those with the greatest adhesive capacities, and these tend to be more pathogenic than other strains (Calderone and Braun 1991; Hoyer 2001). While many factors are involved in C. albicans adhesion, it is known that this process is largely due to the expression of fungal cell wall proteins, including adhesins, which are highly expressed on filamentous cells, and involved in surface adhesion, biofilm formation, and host colonization (Sundstrom 1999; de Groot et al. 2013; Lipke 2018). A family of adhesin proteins of particular interest in C. albicans is the ALS (agglutinin-like sequence) family of cell surface glycoproteins (Hoyer 2001). This family shares a four domain structure consisting of a high-complexity N-terminal domain that mediates protein-ligand interactions with host cells or other substrates, a threonine-rich domain, a low-complexity central domain that is highly variable in length, and a C-terminal domain that anchors the adhesin to the fungal cell wall via a glycosylphosphatidylinositol (GPI) anchor (Hoyer 2001; Hoyer and Cota 2016). There are eight ALS loci currently described in C. albicans: ALS1-7 and ALS9 (Hoyer et al. 2008; Hoyer and Cota 2016). Other families of adhesins have also been identified, including HWP, IFF, and HYR (de Groot et al. 2013). Some C. albicans adhesins, such as ALS1 and ALS3, have been subject to fairly comprehensive molecular genetic and biochemical analysis, and have well-described roles in various aspects of adhesion, host–pathogen interactions, filamentation, and fungal virulence (Fu et al. 1998, 2002; Hoyer et al. 1998; Sheppard et al. 2004; Zhao et al. 2004; Ibrahim et al. 2005; Phan et al. 2007; Almeida et al. 2008; Nobile et al. 2008; Cleary et al. 2011; Donohue et al. 2011a), while other adhesins remain incompletely described or fully uncharacterized. Additional evidence indicates that the numerous C. albicans adhesins have complex interactions and may have complementary, compensatory, or redundant functions (Zhao et al. 2004, 2005; Nobile et al. 2008; Shapiro et al. 2018a).

Given the complex interplay between C. albicans adhesin proteins, a useful strategy to assess the function of these factors is through genetic interaction analysis. Genetic interaction analysis is a powerful strategy that typically takes advantage of single- and double-gene deletion strains to assess epistatic interactions between genes, and can be used to organize gene products into pathways, identify genetic synergies and redundancies, and predict gene function (Dixon et al. 2009; Baryshnikova et al. 2013). While genetic interaction analysis has been exploited widely in model organisms (Butland et al. 2008; Costanzo et al. 2010, 2016; Babu et al. 2011; Norris et al. 2017), it has more recently been employed as a tool to dissect genetic interaction networks in diverse microbial pathogens, including C. albicans (Glazier et al. 2017, 2018; Shapiro et al. 2018a, 2018b; Glazier and Krysan 2020; Halder et al. 2020). Our previous work established a CRISPR-Cas9-based gene drive array (GDA) platform, which permits facile, precise and efficient creation of combination gene knockouts in C. albicans, which we applied to construct a library of 144 mutants, comprising 12 unique adhesin genes deleted singly, and in every possible combination of double deletions (Shapiro et al. 2018a; Halder et al. 2019). This library enables the analysis of complex genetic interactions between adhesins and their prospective roles in C. albicans’ adhesion; it further enables the identification of combinations of genes which, when deleted together, may interfere with fungal biofilm formation, host–pathogen interactions, or virulence.

Studying putative C. albicans virulence factors, such as adhesins, requires the use of a model host to assess fungal pathogenicity in vivo. Caenorhabditis elegans is a free-living nematode that has been exploited as a simple and practical model for studying host–pathogen interactions with diverse microbial pathogens (Aballay and Ausubel 2002; Marsh and May 2012; Issi et al. 2017; Kumar et al. 2020), including C. albicans (Pukkila-Worley et al. 2009, 2011; Jain et al. 2013; Elkabti et al. 2018; Feistel et al. 2019) and other fungal pathogens (Mylonakis et al. 2002b; Tang et al. 2005; Huang et al. 2014; Ahamefule et al. 2020; Hernando-Ortiz et al. 2020). One of the first papers to utilize C. elegans as a host for C. albicans elegantly demonstrated that virulence in C. elegans utilized some of the same processes that are used in mammalian hosts, such as biofilm and hyphal formation (Breger et al. 2007). The use of C. elegans to study C. albicans virulence has been recently reviewed in detail (Elkabti et al. 2018).

Caenorhabditis elegans is a simple and cost-effective model organism that is readily propagated and stored, and lends itself to high-throughput screening of microbial pathogens (Moy et al. 2009; Kirienko et al. 2013, 2016). C. elegans host–pathogen interactions have many conserved features that are shared with mammalian species, making it an advantageous model for studying human disease and infections. The intestinal epithelial cells of C. elegans have morphological features, such as microvilli, that are similar to mammalian epithelial cells, and it is estimated that 40%–60% of genes in C. elegans have human orthologs (C. elegans Sequencing Consortium 1998; McGhee 2007; Kumar et al. 2020). With regards to C. albicans infection, many biological mechanisms by which C. albicans infects C. elegans are similar in humans and nematodes, and C. elegans host immune responses to pathogens are remarkably conserved (Gravato-Nobre and Hodgkin 2005; Kim and Ausubel 2005; Pukkila-Worley and Mylonakis 2010). Once ingested by C. elegans, C. albicans can cause a persistent lethal infection, making monitoring the infection relatively simple for research purposes (Pukkila-Worley and Mylonakis 2010; Elkabti et al. 2018). Many C. albicans genes that are known to be required for murine infection are similarly required for infection in C. elegans (Pukkila-Worley et al. 2009; Elkabti et al. 2018).

C. elegans' utility as a model organism in the study of innate immunity, while powerful, does require certain caveats. For example, this nematode lacks several important signaling pathways that are involved for cell-mediated immunity, including the MyD88 adaptor, the NF-κB transcription factor, and the immune function associated with its sole Toll-like receptor, TOL-1, remains limited (Irazoqui et al. 2010; Ermolaeva and Schumacher 2014). It is also important to note that the system lacks both adaptive immunity and professional immune cells. Despite these limitations, this model has demonstrated remarkable versatility and usefulness for innate immune studies ranging from the identification of the pervasive interplay between canonical stress responses and innate immunity, the connections between innate immunity and the nervous system, and between pro-immune and pro-longevity pathways. It is also a versatile platform for high-throughput and high-content screening.

Here, we perform systematic characterization and genetic interaction analysis of a C. albicans library of adhesin (or adhesin-like) gene mutants (de Groot et al. 2013), deleted for these factors singly or in combinations of double knockouts. We use C. elegans as a model host system to perform screening of our C. albicans library of 144 adhesin mutant strains, and identify single and combination genetic mutations that significantly alter fungal virulence. Following up on the strains with the highest and lowest levels of virulence, we characterize phenotypes associated with other virulence traits, including host colonization, biofilm formation, and cellular morphogenesis. We find that many virulence-associated phenotypes are uncoupled under our experimental conditions. We further perform genetic interaction analysis to identify and characterize significant negative genetic interactions, whereby double mutants are significantly impaired in virulence based on what we would predict given the virulence of their single mutant counterparts. Together, this study comprehensively characterizes the roles of single- and double-adhesin mutant strains in fungal pathogenicity, with important implications for understanding fungal virulence and host interactions.

Materials and methods

Caenorhabditis elegans–C. albicans liquid infection assay and screening

The C. elegans–C. albicans infection assay was performed with slight modifications to the previous method (Breger et al. 2007). In brief, C. elegans glp-4(bn2) mutants were reared on NGM media seeded with concentrated E. coli OP50 media until they reached the young adult stage (1 day at room temperature and then shifted to 25°C for 2 days) (Kirienko et al., 2014).

C. albicans strains were cultured overnight in 96-well deep-well plates containing 300 μL YPD and incubated at 37°C. OD₆₀₀ of each plate was read and cultures were diluted with S Basal to normalize C. albicans density. 384-well assay plates were set, with final media composition of 10% BHI, C. albicans at OD₆₀₀ = 0.03, 3.5 µg/mL cholesterol, and S Basal (to bring the final volume to 50 μl/well). Using a COPAS FlowPilot (a large-bore fluorescence-activated worm sorter, analogous to a FACS machine), and LP (large particle) Sampler (Union Biometrica, MA), 25 C. elegans nematode worms were added to each well. Plates were covered with breathable membranes and incubated for 72 h at 25°C. OD₆₀₀ was read for each plate. Plates were washed 5 times with S Basal, then liquid was aspirated using an EL 406 Plate washer/Liquid dispenser (BioTek, VT). Fifty microliters of 0.01% tween in S Basal were added to each well to limit worms adhering to pipette tips; worms were then transferred to new 384-well plates to minimize background. Plates were washed 5 times with S Basal to remove transferred pathogens, and then liquid was aspirated. Fifty microliters of SytoxOrange stain (0.2 μL Sytox/1 mL S Basal) were loaded into each well. Plates were incubated 12–16 h in a dark place at room temperature. Plates were washed 5 times with S Basal. Plates were imaged with both bright field and red channel RFP using a Cytation 5 multimode plate reader/imager (BioTek, VT). Images were analyzed for worm survival using CellProfiler, as previously described (Anderson et al. 2018). Statistical analysis was performed on all data to ensure significance. Caenorhabditis elegans liquid infection assay data were initially checked using the coefficient of variation (CV) and outliers were removed to obtain CV scores of 0.5 or less in as many strains as possible. The remaining strains had CV scores of less than 1. The selected mutants in all datasets were subjected to one-way ANOVA tests to compare each strain to the wild type.

Genetic interaction analysis

Each single mutant tested in this research was assigned a virulence score based on the results of the C. elegans infection assay. The virulence score of the wild type was normalized to 1, and the results from all other strains were divided by the wild-type results to achieve these relative virulence scores. The virulence scores of each single parent strain were multiplied by one another and the product became the predicted virulence score of the double mutants. Genetic interaction analysis was based on deviation from predicted virulence scores. If the double mutant’s actual score was significantly different from its predicted score, it was considered a “hit.” Genetic interaction analysis was done using R. First, the program bound all the replicate results together, labeled each single mutant and created a single dataset with the library’s unique combinations. A two-sided t-test was used to compare the predicted and actual virulence scores. A positive interaction had an adjusted p-value < 0.05 and a deviation that is greater than the predicted score. A negative interaction had an adjusted p-value < 0.05 and a deviation that is lower than the predicted score. The R program used for this GI analysis can be found here: https://github.com/kieran11/wormdata

Colonization assay

To assess C. elegans colonization by C. albicans following agar- or liquid-based infection, worms were infected as described above. After 24 h, worms were transferred onto a clean plate and allowed to crawl away from C. albicans. Then they were transferred via pick to a 1.5 mL microcentrifuge tube containing S Basal with 1% levamisole, and incubated 10 min until all worms were paralyzed. Worms were washed 5–6 times in S Basal containing 0.01% Triton X-100 to remove residual fungi. After the final wash, worms were resuspended in 200 µL of 0.1% Triton-X 100 in S Basal and vortexed for 1 min using zirconium beads (Thermofisher Scientific, NC0442292). The resulting lysate was serially diluted five-fold and plated onto YPD agar plate to quantify the number of colony forming units (CFU) per unit volume. This value was then used to derive the average number of CFUs per worm in each sample. The assay was performed using three biological replicates, each of them consisting of three technical replicates, with 15 worms per technical replicate. Colonization, rather than cuticle attachment, of the fungus was verified using a strain of C. albicans that expressed GFP. As expected, the CFUs identified were from inside of the host; no apparent fungus was seen on the surface.

Caenorhabditis elegans–C. albicans agar-based killing assay

Kim et al. (2020) recently outlined an agar killing assay as a nematode infection model to study fungal pathogenesis. Briefly, C. elegans glp-4 eggs were extracted with worm bleach and resuspended in S Basal to establish a fresh stock of worms. The C. elegans worms were then counted on an NGM plate under a stereomicroscope and 5000–6000 worms dropped onto two superfood agar plates, which were left overnight at room temperature then moved to 25°C for an additional two nights. C. albicans strains were incubated overnight in 1 mL of YPD at 37°C and 250 rpm and then 70 μL of culture was spread onto a BHI-kanamycin (Kan) plate, which were then incubated for 16 h at 30°C. Approximately 6 mL of S Basal was dispensed onto each C. elegans superfood agar plate to dislodge the worms. The worms were then washed 3 times with S Basal before being made into a solution of 2 worms per μL of S Basal. 45–55 worms were transferred onto each C. albicans-inoculated BHI-Kan plate, which were then left at room temperature for 1 h before being stored overnight at 25°C. Dead worms were counted and removed with a platinum wire worm pick from the plates under a stereomicroscope daily until all worms were dead.

Quantitative, real-time reverse-transcription PCR

For quantitative, real-time reverse-transcription PCR (qPCR), C. albicans were prepared as for agar- or liquid-based assays. Next, C. albicans was either scraped off the plate and resuspended in S Basal or centrifuged down (for agar or liquid assays, respectively). RNA was extracted from a ∼100 µL fungal pellet. RNA was purified by vortexing the fungal sample with glass beads and then subsequent Trizol extraction with BCP as a phase-separating agent, as previously described (Kirienko et al. 2019). Reverse transcription was performed using an AzuraQuant cDNA Synthesis Kit (Azura). qPCR was conducted in a CFX-96 real-time thermocycler (Bio-Rad) using SYBR green AzuraQuant Fast Green Fastmix (Azura). Fold-changes were calculated using a ΔCt method with actin as a housekeeping gene. Cycling parameters and primer sequences are available upon request. For each experiment, at least three biological replicates were performed.

Filamentation assay and analysis

C. albicans strains were incubated overnight in 5 mL YPD at 37°C and 250 rpm. OD₆₀₀ of each culture was taken. Cultures were diluted with fresh YPD media to normalize to the same OD₆₀₀ value. C. albicans was subcultured into 5 mL YPD with 10% fetal bovine serum (FBS). Subcultures were incubated at 37°C and 350 rpm for 4 h. Ten microliters of each culture were pipetted onto a microscope slide and visualized under phase microscopy at 40X magnification using a Leica DM 2000 LED microscope. Images of each strain were taken with a Leica ICC50 W camera. Images were analyzed using the ImageJ program and MicrobeJ plugin. Analysis involved using ImageJ to count the number of yeast cells and filamentous cells in each image as well as measure the length of each filamentous cell in each image.

Biofilm assay

Candida albicans strains were incubated overnight in 5 mL YPD at 37°C and 250 rpm. OD₆₀₀ of each culture was taken. Cultures were diluted with BHI+Kan media to normalize to the same OD₆₀₀ value. Strains were subcultured into flat-bottomed 96-well polystyrene plates containing 100 μL of BHI+Kan and 100 μL of culture per well. Two hundred microliters of YPD per well in one row served as a negative control. 96-well plates were wrapped in tinfoil and incubated at 37°C for 72 h. One hundred and twenty microliters of planktonic cells from each well were transferred to new 96-well plates, then read in a plate reader at OD₆₀₀. Plates were washed twice with 200 μL PBS and left upside down to dry in a fume hood. One hour later or once dry, 90 μL of XTT (1 mg/mL PBS) and 10 μL of PMS (0.32 mg/mL H₂O) was added to each well. Plates were wrapped in tinfoil and incubated for 2 h at 30°C. Plates were read at 490 nm using a Tecan infinite M nano spectrophotometer. The XTT biofilm growth values were normalized to planktonic cell growth.

Data and reagent availability

Candida albicans–C. elegans virulence screening data are available in Supplementary Table S1. The R program used for this GI analysis can be found here: https://github.com/kieran11/wormdata. All C. albicans strains used as part of this research will be made available upon request. Supplemental Material available at figshare: https://doi.org/10.25386/genetics.13517432.

Results

Caenorhabditis elegans infection assay identifies avirulent C. albicans adhesin mutants

First, we aimed to assess the virulence profiles of a library of C. albicans adhesin single- and double-gene deletion mutants (Shapiro et al. 2018a), to assess the role of these factors, singly or in combination, in fungal pathogenicity. This adhesin mutant library consisted of 144 adhesin mutants, representing 12 single adhesin gene deletions, and 66 double adhesin gene deletions with “reciprocal pairs,” where a reciprocal pair refers to the same mutant genotype, but generated by mating opposite mating type haploids (i.e. aΔ/bΔ and bΔ/aΔ). In order to assess virulence, we used a high-throughput screening model with C. elegans as a model host. Young adult C. elegans worms were added to 384-well plates containing each of the C. albicans mutant strains, and incubated for 72 h. After infection, plates were washed to remove C. albicans and dead C. elegans were stained with a cell-impermeant fluorescent dye (Figure 1A and see Materials and Methods for additional details). This infection assay was repeated in six replicates. Increased survival of the C. elegans host indicated less virulence by the particular mutant strain of C. albicans. Figure 1B depicts an example of bright field imaging that allows visualization of all worms after infection. Figure 1C depicts examples of fluorescent images, where only dead C. elegans worms are stained and are visible with fluorescence. Worm death is monitored and calculated based on the ratio of the area of fluorescence to the area of total worms in brightfield.

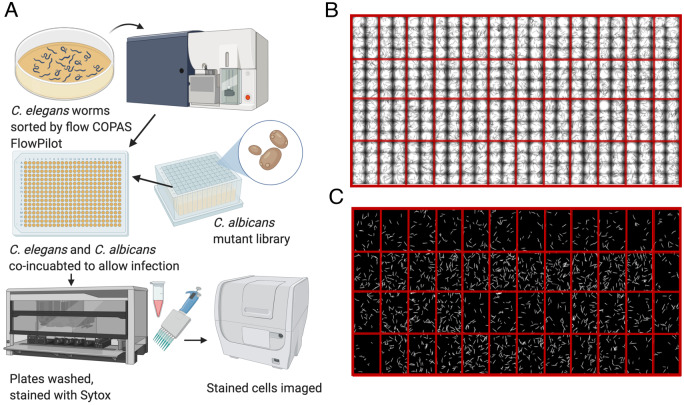

Figure 1.

A protocol of C. albicans—C. elegans high-throughput screening for fungal virulence regulars. C. elegans is a model host for C. albicans fungal infection and can be used in high-throughput screening settings to identify regulators of fungal virulence. (A) A schematic indicating the workflow for the C. albicans—C. elegans infection assay. Worms were sorted by COPAS FP worm sorter and an equal number of worms were deposited into each well of a 384-well plate. C. albicans mutant strains (the single- and double-gene deletion library) were inoculated into the 384-well plate, and C. albicans and C. elegans were co-incubated to allow for infection. To stop the infection progression, plates were washed with a plate washer to remove C. albicans, and C. elegans were stained with a cell impermeant dye Sytox Orange to identify dead worms. Plates were then imaged in brightfield and fluorescence channels, and processed using Cell Profiler software to identify the total area of worms, as well as the area of fluorescence inside of the worms per each well. This figure was created using BioRender (biorender.com) (B) An example of brightfield imaging, which allows visualization of all of the worms (alive and dead) after infection. Red lines have been added to the image to depict the delineation between wells with the same strain of C. albicans inoculated. (C) Example of fluorescence microscopy images used to identify dead fluorescent worms stained with the cell-impermeant fluorescent dye, Sytox Orange. Only dead C. elegans worms were stained and visible with fluorescence. Red lines have been added to the image to depict the delineation between wells with the same strain of C. albicans inoculated (technical replicates).

The wild-type strain, with no gene deletions, was used to determine baseline virulence, and was compared with the 144 mutant strains for ability to cause death in the C. elegans host. As predicted, the wild-type strain showed a high level of virulence toward C. elegans with greater than 50% of worms killed during the course of the infection assay (Figure 2, Supplementary Table S1). Overall, many of the adhesin mutants were found to be impaired in virulence, compared with the wild-type strain (Figure 2): 24 out of 78 unique genotypes (12 single mutants and 66 double mutant genotypes) led to significant reduction in worm death compared to the wild-type strain (P < 0.05, ANOVA, Supplementary Table S1). Interestingly, there was no positive correlation between growth rates and virulence. In contrast, a weak negative correlation was observed, suggesting that strains with lower virulence grew to a higher optical density (Supplementary Figure S1).

Figure 2.

Multiple C. albicans adhesin mutant strains are impaired in virulence in C. elegans model of infection. When screened for virulence using C. elegans as a model host, C. albicans adhesin mutant strains displayed variable levels of virulence. The library of 144 single- and double-genetic mutant strains was screened for virulence, and the fraction of dead worms was established for each mutant strain. The heat map depicts the compiled and processed results from the experiment, with darker blue/purple squares indicating more worm death (higher fraction of dead worms), and white or lighter-colored squares indicating less death (lower fraction of dead worms). The heatmap shows virulence for each strain, averaged over at least four biological replicates. The heat map was generated using Morpheus matrix visualization and analysis software from the Broad Institute (https://software.broadinstitute.org/morpheus).

Of the mutants with significantly impaired virulence, 22 were double mutants, and two (als1Δ and als5Δ) were single mutants. Mutation of als1Δ, and to a lesser extent als5Δ, singly or in combination with other genes, attenuated the ability of the pathogen to kill the host to the greatest extent, suggesting that these adhesin genes significantly contribute to C. albicans’ virulence in this C. elegans infection model. This is in line with previous studies in mammalian models that have demonstrated a key role for ALS1 as an important virulence regulator (Braun et al. 2000; Kamai et al. 2002; Alberti-Segui et al. 2004; Zhao et al. 2004).

The five most virulent strains (excluding wild-type) were als3Δiff4Δ, als9Δiff4Δ, hwp2Δ, als3Δhwp2Δ, and als9Δeap1Δ; all of which displayed similar death percentages to the wild-type strain (>50% of worms dead). The single mutant counterpart strains of these mutants, hwp2Δ, als3Δ, iff4Δ, als9Δ, and eap1Δ all show comparatively high virulence, indicating that these adhesins are not essential for virulence, at least in this infection model. The least virulent strains were hyr1Δals1Δ, als7Δals5Δ, als1Δiff4Δ, and rbr1Δals1Δ. The three most significantly attenuated strains (hyr1Δals1Δ, als7Δals5Δ, and als1Δiff4Δ, < 10% death) were selected for follow-up study. The single mutant strains, in order from least virulent to most virulent were as follows: als1Δ, als5Δ, rbt1Δ, als9Δ, eap1Δ, rbr1Δ, hyr1Δ, als7Δ, hwp1Δ, iff4Δ, als3Δ, and hwp2Δ. Several of these single adhesin factors with important roles in virulence in our C. elegans model (such as als1Δ and rbt1Δ), have been well-established as virulence regulators based on animal model studies (Braun et al. 2000; Kamai et al. 2002; Alberti-Segui et al. 2004; Zhao et al. 2004).

The double mutant “reciprocal pairs” were all validated to ensure they indicate the same results. For example, als1Δals3Δ and als3Δals1Δ should theoretically show the same results because the same two genes were deleted, though the strains were generated independently. The majority of the mutants showed very similar data results between the reciprocal pairs, similar to what had been seen in previous analysis of this library (Shapiro et al. 2018a). Amongst the 66 total double deletion genotypes, 13 (hwp1Δhwp2Δ, hwp1Δhyr1, als3Δhwp1Δ, als3Δhwp2Δ, als3Δiff4Δ, als5Δals9Δ, als5Δhwp1Δ, als5Δrbt1Δ, als7Δhwp1Δ, als7Δrbr1Δ, als9Δiff4Δ, als9Δrbr1Δ, and eap1Δhyr1Δ) had a virulence difference between their reciprocal pairs of 10% points or more (i.e. if aΔbΔ resulted in 45% dead worms and bΔaΔ resulted in 55% dead worms). Differences between reciprocal pairs could be stochastic and associated with variation observed in the C. elegans virulence assays, or could be due to factors, including secondary mutations acquired through the transformation and/or mating process, or from off-target effects of CRISPR-Cas9.

Low- and high-virulence C. albicans mutants exhibit different ability to colonize C. elegans

Next, we examined the relationship between C. albicans colonization of C. elegans and strain virulence. As previously described, we focused on our assembled panel of six mutant strains, three with low virulence (als1Δiff4, hyr1Δals5Δ, als7Δals5Δ) and three with high virulence (als3Δhwp2Δ, als3Δiff4Δ, als9Δiff4Δ) (Figure 3A;  p < 0.0001 pooled low- and high-virulence groups, Student’s t-test). Sterile, young adult glp-4(bn2) worms were exposed to each C. albicans strain in a liquid pathogenesis assay for 24 h. Worms were then collected, washed, and lysed. Serially diluted fungi were plated on YPD agar media and colony-forming units were counted to establish the colonization potential of these different fungal mutants. Interestingly, significant differences were observed between the levels of colonization of low-virulence compared with high-virulence subsets (Figure 3B;  p < 0.05 pooled low- and high-virulence groups, Student’s t-test). Strains with lower virulence in the C. elegans infection assay, demonstrated increased capacity for worm colonization (Figure 3B). Interestingly, this contrasts with previous observations of bacterial pathogens that colonize C. elegans; in those cases, colonization and virulence directly (rather than inversely) correlated (Garsin et al. 2003; Evans et al. 2008; Kirienko et al. 2013). One possible explanation for this difference is that C. elegans detects pathogenic determinants or damage afflicted by the fungus during infection and responds with increased innate immune activity that restricts fungal colonization. This suggests an interesting trend amongst these fungal mutant strains that unlinks pathogen colonization potential and virulence.

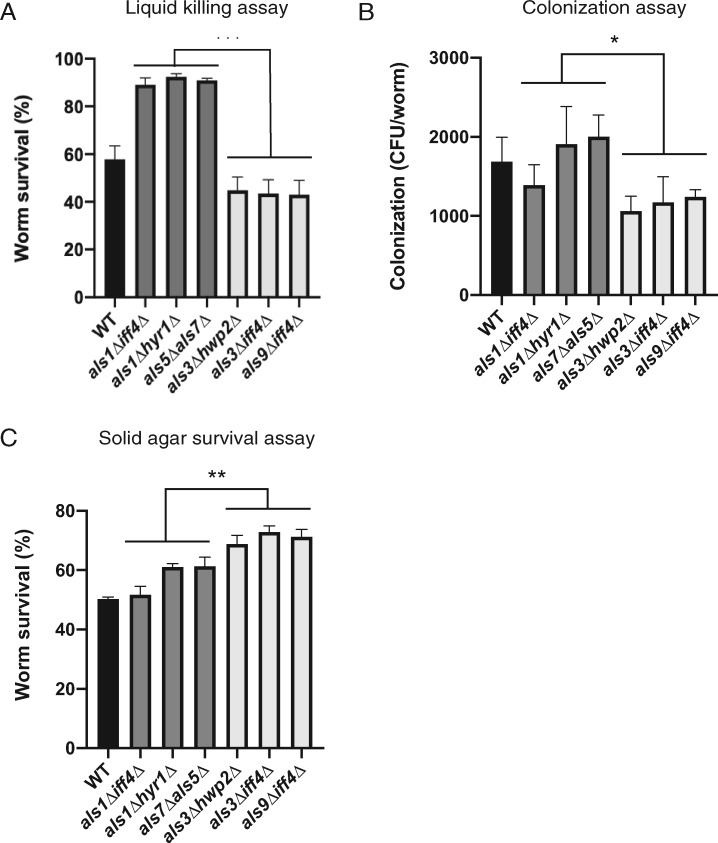

Figure 3.

C. albicans mutants’ virulence depends on infection model. C. albicans strains with the highest and lowest levels of virulence from our C. elegans infection screen were selected for follow-up analysis and monitored for worm colonization, as well as virulence in an agar plate infection model. (A) The three strains with lowest virulence (als1Δiff4Δ, hyr1Δals5Δ, als7Δals5Δ; dark grey) and three with highest virulence (als3Δhwp2Δ, als3Δiff4Δ, als9Δiff4Δ; light grey), based on the high-throughput C. elegans liquid media screen. Graph depicts the percent of worm survival. The three strains with lowest virulence were significantly different from the high-virulence strains p < 0.0001 for the pooled low- and high-virulence groups based on Student’s t-test (***). (B) Ability of C. albicans mutant strains and wild type to colonize C. elegans worms was monitored. Colonization was assessed using colony-forming units (CFU) of C. albicans per worm. Lower virulence mutants (dark grey) had higher CFU/worm compared with higher virulence mutants (light grey) [p < 0.05 for the pooled low- and high-virulence groups based on Student’s t-test (*)]. (C) An agar-based C. elegans infection model was used to compare data from the liquid-based infection screen. In this agar assay, C. elegans survival was scored daily until all the worms were dead. Graph depicts C. elegans survival data at day 4, at which point wild-type C. albicans has killed approximately 50% of worms. Low- and high-virulence mutants show a reverse trend from liquid assay, as strains that were highly virulent liquid killing had low pathogenesis on solid media, and vice versa [p < 0.001 for the pooled low- and high-virulence groups based on Student’s t-test (**)]. All graphs were generated with GraphPad Prism. Error bars represent SEM.

Candida virulence mechanisms differ between liquid- and agar-based assays

Research using C. elegans-based pathogenesis models have convincingly demonstrated that the microbial virulence determinants are strongly influenced by the context of the infection assay (e.g. media composition, state of matter, etc.). For example, at least five distinct C. elegans–Pseudomonas aeruginosa pathogenesis models have been described (Mahajan-Miklos et al. 1999; Tan et al. 1999; Gallagher and Manoil 2001; Zaborin et al. 2009; Kirienko et al. 2013; Utari and Quax 2013). To investigate whether this phenomenon holds true for C. albicans, host killing in an agar-based infection model was compared to data from the liquid-based C. elegans infection model. In this agar-based assay, C. elegans survival was scored daily until all the worms were dead. For a more direct comparison with the liquid-based assay, we extracted survival data for day 4. At this time, wild-type C. albicans has killed approximately 50% of worms, a value consistent with our observations from liquid-based assays. Interestingly, when pooled data for low- and high-virulence mutants were compared, we saw the reverse of the outcome from the liquid-based assay: strains that were highly pathogenic in liquid killing and had low colonization, also had low pathogenesis on solid media (Figure 3C;  p < 0.001 pooled low- and high-virulence groups, Student’s t-test). Kaplan–Mayer curves demonstrating longitudinal survival are shown in Supplementary Figure S2.

We hypothesized that the relative expression of adhesin genes, and perhaps the compensatory upregulation of different adhesin genes in different mutant strain backgrounds under variable growth conditions, may underlie these differences. Such compensatory upregulation of adhesins has been predicted to be involved with other fungal adhesins, and may explain why deletion of adhesins ALS5, ALS6, and ALS7 in C. albicans leads to increased adhesion to human vascular endothelial cells and buccal epithelial cells (Zhao et al. 2007). To test this prediction, qRT-PCR was used to measure expression levels of seven adhesin genes (ALS1, ALS5, ALS7, EAP1, HWP2, HYR1, and IFF4) in wild-type Candida and low-virulence (als7Δals5Δ) and high-virulence (als3Δhwp2Δ) mutants. In addition to their phenotypes associated with virulence in the C. elegans liquid infection assay, these two mutants were further selected based on the highest (als7Δals5Δ, 2,002 CFU/worm) and the lowest (als3Δhwp2Δ, 1,060 CFU/worm) ability to colonize C. elegans, respectively. Expression levels were measured for each strain using both liquid- and agar-based conditions.

Overall, we found that adhesin expression patterns tend to be influenced by the infection environment. Adhesin expression on agar and in liquid was significantly different for wild-type fungi or the als3Δhwp2Δ mutant (i.e. high-virulence strains), but not in the low-virulence mutant als7Δals5Δ (Figure 4, A–C). Interestingly, of the adhesins measured, ALS1 and ALS5 showed the highest expression in wild type (Figure 4A), but their expression in the mutant strains was even higher when compared to the other adhesins (Figure 4, B and C). This outcome was surprising, as ALS1 and ALS5 were deleted from multiple mutants that retain the ability to efficiently colonize worms (als7Δals5Δ, hyr1Δals1Δ, and iff4Δals1Δ). This suggests that either these adhesins do not play a prominent role in colonization, or one or more other genes compensate for their loss, making them redundant. Next, we compared expression for all four adhesin genes from als3Δhwp2Δ and als7Δals5Δ mutants under liquid conditions, where significant differences in colonization were observed. No significant differences for specific adhesins, nor the panel overall, were observed (Figure 4D). These findings likely indicated that the ability to colonize C. elegans’ intestine is the outcome of expression of multiple adhesins. We also observed that adhesin expression is dependent on genotype, as expression levels of adhesin panel genes differed significantly between wild-type and mutant strains, regardless of media condition (p < 0.0001, for each comparison). Therefore, these data further support previous conclusions that, like bacterial pathogenesis assays, microbial physiology (as determined by growth media) can have a profound impact on pathogen virulence.

Figure 4.

Adhesin gene expression patterns are affected by media conditions and genotype. qRT-PCR was used to measure expression levels of seven adhesin genes (ALS1, ALS5, ALS7, EAP1, HWP2, HYR1, and IFF4) for wild-type and representative low-virulence, high-colonization (als7Δals5Δ) or high-virulence, low-colonization (als3Δhwp2Δ) mutants. Expression levels were measured for each strain under both liquid and agar conditions. Relative expression of adhesin panel (measured relative to the housekeeping gene ACT1) in wild-type (A) and high-colonization, low-virulence (als7Δals5Δ) (B) or high-virulence, low-colonization (als3Δhwp2Δ) (C) mutants, under liquid or solid growth conditions. (D) Relative adhesin expression in liquid condition in selected mutants. Error bars represent SEM. ***p < 0.001, *p < 0.05, N.S. p > 0.05 according to Student’s t-test for the overall panel.

Adhesin mutant strains are impaired in filamentation and biofilm formation

Following in vivo analysis of fungal virulence and colonization, we performed in vitro biofilm and filamentation assays to determine whether observed differences in fungal virulence and/or colonization could be ascribed to altered ability of adhesin mutant strains to form biofilm or undergo cellular morphogenesis. Therefore, we first performed in vitro biofilm growth assays of the wild-type strain, along with the three most virulent, and three least virulent adhesin mutant strains. While this mutant library had previously been screened for biofilm formation (Shapiro et al. 2018a), here, we grew biofilms in the same BHI media in which the C. elegans liquid infection assays were performed, in order to maintain similar conditions between these assays. The selected strains were allowed to form biofilms in flat bottom 96-well plates for 72 h, planktonic cells were removed, and metabolic activity of the remaining biofilm was measured via XTT and quantified by spectrophotometer readout at OD₄₉₀. With the exception of als9Δiff4Δ, each of the adhesin mutant strains were found to have impaired biofilm formation compared with the wild-type strain (Figure 5A;  P < 0.0005). Given the known role of adhesins in fungal adhesion and biofilm initiation and growth, it is expected that these mutant strains would likely be defective in biofilm growth. However, these results do not indicate a correlation between biofilm formation and virulence in our C. elegans liquid killing or agar-based assays, and suggest that mutants with reduced ability to form biofilms under these in vitro conditions are still capable of virulence in the C. elegans model of infection.

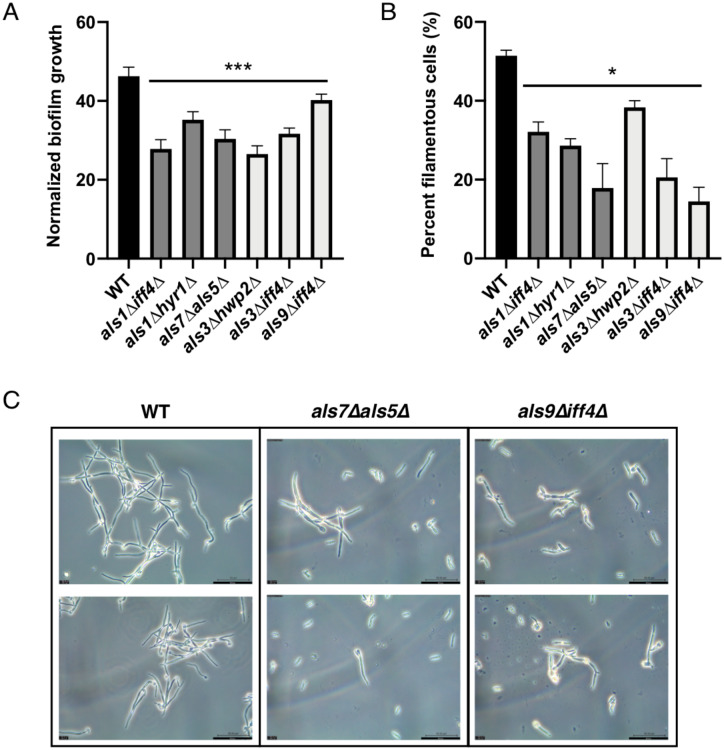

Figure 5.

Adhesin mutant strains are deficient in filamentation and biofilm growth. The three strains with lowest virulence (als1Δiff4Δ, hyr1Δals5Δ, als7Δals5Δ) and three with highest virulence (als3Δhwp2Δ, als3Δiff4Δ, als9Δiff4Δ), based on the high-throughput C. elegans liquid media screen, have reduced ability to undergo morphogenesis or form biofilms, regardless of virulence phenotype. (A) Lowest virulence strains (als1Δiff4Δ, hyr1Δals5Δ, als7Δals5Δ; dark grey) and highest virulence strains (als3Δhwp2Δ, als3Δiff4Δ, als9Δiff4Δ; light grey), all have reduced ability to form biofilms compared to a wild-type strain (ANOVA, p < 0.0005 (***)). Biofilm growth was quantified by an XTT metabolic readout, measured at OD₄₉₀ and normalized to planktonic growth. (B) Lowest virulence strains (als1Δiff4Δ, hyr1Δals5Δ, als7Δals5Δ; dark grey) and highest virulence strains (als3Δhwp2Δ, als3Δiff4Δ, als9Δiff4Δ; light grey), all have reduced ability to form filamentous cells [ANOVA, p < 0.05 (*)]. C. albicans cells were grown in media containing 10% FBS at 37˚C to induce filamentation, and cells were counted using brightfield microscopy to determine the percentage of filamentous cells in the population. (C) Examples of reduced filamentation in a lower virulence (als7Δals5Δ) and higher virulence (als9Δiff4Δ) mutant strain. C. albicans cells were grown in media containing 10% FBS at 37˚C to induce filamentation, and cells were counted using brightfield microscopy. Two representative microscopy images are shown for each strain at 40X magnification, scale bar is 50 µm.

Selected mutants used in follow-up biofilm assays were also used in filamentation assays to assess the filamentation capabilities of adhesin mutants with variable virulence profiles. For this assay, wild-type and mutant strains were cultured in media with or without 10% serum, to induce filamentation in C. albicans cells. Each strain was imaged under phase microscopy and the percentage of filamentous cells (as a fraction of total cells) was calculated. Similar to what was observed with the biofilm growth assay, each of the adhesin mutant strains were found to have impaired ability to undergo morphogenesis and grow as filamentous cells, compared with the wild-type strain (Figure 5B;  p < 0.05); although each of these mutants retains the ability to filament, they formed fewer filamentous cells compared with a wild-type strain, while retaining a similar growth rate to the wild type based on optical density (OD₆₀₀) measurements taken at the time of microscopic imaging. Representative microscopy of a low-virulence (als7Δals5Δ) and high-virulence (als9Δiff4Δ) strain indicate that both low- and high-virulence adhesin mutants are impaired in filamentous growth compared with a wild-type strain, when grown in the presence of serum (Figure 5C). The role of adhesins in mediating C. albicans filamentation has been less well-studied compared with biofilm formation. These data suggest that deleting adhesin factors results in reduced ability to form filamentous cells, but similar to biofilm formation, is not correlated with virulence in our C. elegans liquid or agar infection assays. The lack of correlation between biofilm formation and virulence defects amongst C. albicans genetic mutant strains is in line with previous observations of transcription factor mutants (Nobile and Mitchell 2005; Pukkila-Worley et al. 2009).

Genetic interaction analysis identifies negative interactions between ALS5 and EAP1, as well as ALS5 and HWP2 in C. albicans

In addition to identifying the most virulent and avirulent adhesin mutants, we further wanted to characterize any potential genetic interactions between adhesin genes. Genetic interaction analysis would allow us to identify significant positive and negative genetic interactions, which point toward important synergies between these adhesin factors. Therefore, we performed genetic interaction analysis on our C. albicans–C. elegans virulence datasets, which compares virulence of double mutant deletion strain to that of their single mutant counterparts (i.e. aΔbΔ virulence compared to aΔ virulence and bΔ virulence). We used the commonly employed multiplicative model of genetic interactions (Boone et al. 2007; Baryshnikova et al. 2013; Halder et al. 2019), which predicts that the fitness of a double mutant will be the product of the fitness of each single mutant counterpart. Double mutant strains found to be less fit than predicted are said to have a negative genetic interaction, and those with higher fitness have a positive genetic interaction. For our assay, negative genetic interactions are particularly interesting, as it suggests deleting two adhesins in combination may lead to significantly reduced virulence—more than would be expected by deletion of either single adhesin on its own.

We used a simple program to assess genetic interactions and compare each double adhesin deletion mutant to its single mutant counterparts. First, for each replicate of the virulence screen, we normalized each mutant to the wild-type strain in order to obtain a relative virulence score. We then used these relative fitness measurements to calculate a predicted interaction score for each double mutant, based on the multiplicative model. Each predicted score was compared to the double mutant scores for both reciprocal pairs in each of the six replicate assays, and t-tests were used to compare the experimental values and the predicted values and determine whether we would reject the null hypothesis that there is no difference between the two (Figure 6A). We found two double mutants to have a significant negative genetic interaction: als5Δeap1Δ and als5Δhwp2Δ (Figure 6, A and B, p < 0.05). This indicates that deletions of als5Δ and eap1Δ, or als5Δ and hwp2Δ together, renders C. albicans significantly less virulent than deletion of als5Δ, eap1Δ, or hwp2Δ on their own, and that these factors act synergistically to promote fungal virulence in this C. elegans infection model. Interestingly, no significant positive genetic interactions were identified in this dataset.

Figure 6.

Genetic interaction analysis of adhesin mutant strains. Genetic interaction analysis was performed for all adhesin mutant strains to identify and characterize genetic interactions. (A) Summary of genetic interactions between each of the double mutant adhesin strains. A multiplicative model of genetic interactions was used to identify interactions where the double mutant strain virulence (fraction of dead worms) deviated from the predicted virulence based on the product of the two corresponding single mutants. The heatmap shows p-values for each double mutant genotype (reciprocal pairs were considered together as a single genotype), based on actual vs. predicted virulence measures across the six replicate experimental infection assays. Darker blue/purple represents lower p-values, and white represents higher values. Two mutants (als5Δeap1Δ and als5Δhwp2) were identified as significant interactions with p < 0.05. The heat map was generated using Morpheus matrix visualization and analysis software from the Broad Institute (https://software.broadinstitute.org/morpheus). (B) The virulence (percent worm death) of the two genetic interaction mutants (light grey), compared with their single mutant constituent mutants (dark grey) as well as the wild-type strain, based on the high-throughput C. elegans liquid media screen. Graph depicts the percent of worm death. (C) Each of the genetic interaction double mutants and their single mutant constituent strains have reduced ability to form biofilms compared to a wild-type strain [ANOVA, p < 0.05 (*)]. Biofilm growth was quantified by an XTT metabolic readout, measured at OD₄₉₀ and normalized to planktonic growth. (D) Each of the genetic interaction double mutants and their single mutant constituent strains have reduced ability to form filamentous cells [ANOVA, p < 0.005 (**)]. C. albicans cells were grown in media containing 10% FBS at 37˚C to induce filamentation, and cells were counted using brightfield microscopy to determine the percentage of filamentous cells in the population.

Finally, we assessed whether these two genetic interaction mutants (als5Δeap1Δ and als5Δhwp2Δ) were impaired in filamentation and biofilm formation, compared with their counterpart single mutant strains. We performed a biofilm growth assay with each of these mutants, and found that while the single mutant strains (als5Δ, eap1Δ, and Δhwp2Δ) as well as the double mutant strains (als5Δeap1Δ and als5Δhwp2Δ) were all impaired in biofilm formation, compared to the wild-type strain (Figure 6C, p < 0.05), the double mutants were not further deficient in biofilm growth compared to their single mutant counterpart strains. Similarly, all single and double mutant strains were significantly impaired in filamentation compared to the wild-type strain (Figure 6D, p < 0.005), yet the double mutants were not further deficient in filamentation growth compared to their single mutant counterpart strains, and in fact filamented more robustly than their single mutant counterparts. This suggests an uncoupling between filamentation, biofilm formation, and virulence, and/or further indicates how specific environmental conditions may influence the requirement for different adhesin proteins.

Discussion

Here, we present a systematic analysis of the role of adhesin factors, singly and in combinations, in C. albicans virulence. Our initial screening of 144 C. albicans strains exploited C. elegans as a model host uniquely suited for such high-throughput virulence analysis, and revealed single- and double-genetic mutant strains that retained high levels of virulence (comparable to wild type), and strains with significantly reduced levels of virulence. This screening platform was further able to identify genetic interactions between adhesin genes, and specific pairs of mutants that are significantly less virulent that would be expected based on the virulence of their single mutant constituent strains. This highlights the value in assessing virulence in higher-order genetic mutants, such as these double mutant libraries. In addition to screening for virulence, we followed up on strains with the highest and lowest levels of virulence. We found that in vitro measures of pathogenicity traits, including C. albicans filamentation, and biofilm formation were impaired in adhesin mutant strains regardless of their virulence patterns in C. elegans, suggesting that under the conditions tested, filamentation and biofilm growth were uncoupled from virulence, which has been previously suggested (Pukkila-Worley et al. 2009; Noble et al. 2010). Furthermore, we found that mutants with less virulence in the C. elegans agar model were able to colonize these worms less well, compared with the more virulent strains, and that C. elegans survival upon C. albicans infection varied under different infection conditions (i.e. solid agar vs. liquid killing assays). Together, these data suggest a complex role of adhesin factors in mediating fungal virulence, and that specific environmental conditions have a critical role in influencing the requirement for different adhesin factors.

In this study, we were able to identify both combinations of adhesins, as well as single mutant adhesin strains with defects in virulence in a C. elegans model. Some of the single adhesin mutant strains have been previously identified as having a key role in virulence based on mammalian models of C. albicans infection. In our C. elegans liquid model, the als1Δ mutant strain had the most significant defect in virulence, and has similarly been implicated as a key mediator of virulence in a murine models of disseminated candidiasis (Alberti-Segui et al. 2004), a reconstituted human epithelium (RHE) model of oral candidiasis (Zhao et al. 2004), and a murine model of oropharyngeal candidiasis (Kamai et al. 2002). Other mutants with significant impairment in virulence in our C. elegans model, including rbt1Δ, have similarly been demonstrated to play a key role in virulence in mouse models of systemic C. albicans infection, as well as a rabbit cornea models of infection (Braun et al. 2000). In some cases, we found that mutants previously described to have significant impairment in virulence in animal models (i.e. als3Δ in RHE model of oral candidiasis and hwp1Δ in several mouse models of systemic and oropharyngeal candidiasis [Tsuchimori et al. 2000; Sundstrom et al. 2002a, 2002b]) had only modest defects in virulence in our C. elegans model, and in the case of iff4Δ [found to have decreased virulence in a murine intravenous infection model (Kempf et al. 2009)], we found essentially no defects in C. elegans virulence. Other single mutants, such as als5Δ, had significant virulence defects in our worm model, but have not been reported to have virulence defects in other animal models, to our knowledge. These observed differences and similarities between different adhesin mutants in their ability to cause virulence in distinct host models is likely due to the ligand or substrate binding specificity of these unique adhesin factors. ALS1 and ALS5, for instance, which had the most significant role in virulence in our C. elegans model, are highly versatile adhesins with a demonstrated ability to recognize a very broad array of target ligands (Klotz et al. 2004), and adhere to numerous biotic and abiotic substrates (Gaur and Klotz 1997; Fu et al. 1998; Donohue et al. 2011b; Aoki et al. 2012; de Groot et al. 2013).

Host–pathogen interactions are complex and dynamic. In this manuscript, we demonstrated that C. albicans likely utilizes different virulence mechanisms in liquid- and agar-based assays. First, colonization on agar is higher than in liquid pathogenesis conditions (Supplementary Figure S3). Second, mutants with higher colonization (als1Δiff4Δ, als1Δhyr1Δ, and als7Δals5Δ) are more virulent in an agar-based assay compared to mutants with lower colonization (als3Δhwp2Δ, als3Δiff4Δ, and als9Δiff4Δ). At the same time, these higher colonization mutants have an approximately five-fold decrease in their ability to kill worms in the liquid-based assay. Interestingly, the same result was observed in the well-studied C. elegans–P. aeruginosa pathosystem, where multiple virulence models have been developed. For example, agar-based slow killing is characterized by high colonization of the host and the requirement for bacterial quorum sensing pathways for full virulence, with lasR and gacA mutants being low colonizers with attenuated virulence (Tan et al. 1999; Feinbaum et al. 2012). In contrast, liquid killing is characterized by low colonization, wild-type virulence of quorum-sensing mutants, and a requirement for the siderophore pyoverdine for full virulence (Kirienko et al. 2013, 2015; Kang et al. 2018). In this assay, multiple pvd mutants are attenuated, but no difference in colonization is observed between bacteria with low and wild-type virulence (Kirienko et al. 2013). This suggests that there may be a wide-spread correlation between colonization and virulence in agar assays but that correlation will be absent in liquid-based assays, where colonization is reduced.

The clear importance of different infection models and the broader pathogen environment on influencing fungal virulence, highlights the need to assess pathogenicity in different contexts. While mammalian models such as the mouse intravenous tail vein infection model for systemic candidiasis remain a gold standard for fungal virulence assays (Segal and Frenkel 2018), the simplicity of the C. elegans model and its tractability for high-throughput manipulation allowed us to rapidly screen a large library of adhesin mutants, and identify key regulators of virulence. Indeed, a breadth of previous research has exploited this model to study fungal virulence (Pukkila-Worley et al. 2009), the role of the antifungal host immune response (Pukkila-Worley et al. 2011, 2014), and antifungal drug efficacy (Breger et al. 2007; Okoli et al. 2009; Ewbank and Zugasti 2011) in C. albicans, and other fungal pathogens (Mylonakis et al. 2002a; Scorzoni et al. 2013). Other infection models that have been valuable for the study of C. albicans virulence include a Drosophila infection model (Alarco et al. 2004; Chamilos et al. 2006; Glittenberg et al. 2011; Wurster et al. 2019), and Galleria mellonella moth larvae model (Fuchs et al. 2010; Frenkel et al. 2016). Very recently, Manduca sexta caterpillars have been developed as a novel host model for the study of fungal virulence and drug efficacy (Lyons et al. 2020), which have several advantages over other nonmammalian models, including their ability to be maintained at 37˚C and ability to assess fungal burden throughout the course of infection via the caterpillar’s hemolymph of feces. Other recent work has identified a novel virulence phenotype to assess Candida pathogenesis in the C. elegans host model; this study found that in addition to causing host lethality, fungal pathogens such as C. albicans also reduce C. elegans fitness by delaying reproduction (Feistel et al. 2019). This has longer-term implications for overall C. elegans population growth, adds an important new layer to our understanding of this host–pathogen interaction, and may provide a more complete picture of virulence when studying fungal mutant strains, such as the adhesin mutants described here.

One of the unique capabilities of a high-throughput host–pathogen interaction model, is our ability to perform complex genetic interaction analysis. Genetic interaction analysis typically requires the analysis of single- and double-genetic mutant strains to compare double mutants to their single mutant counterparts, and often requires the analysis of numerous strains in order to identify significant interactions. While this work represents one of the first genetic interaction screens to monitor C. albicans virulence using an in vivo infection model, numerous other studies have probed the genetic interaction networks mediating pathogenesis traits in fungal pathogens (Bharucha et al. 2011; Diezmann et al. 2012; Usher et al. 2015; Glazier et al. 2017, 2018; Shapiro et al. 2018a; Glazier and Krysan 2020; Halder et al. 2020), as well as numerous bacterial pathogens (Joshi et al. 2006; van Opijnen et al. 2009; Côté et al. 2016; Skwark et al. 2017), and parasites (Fang et al. 2018). Genetic interaction analysis in microbial pathogens has similarly been used as a means to probe complex genetic networks mediating host–pathogen interactions (O’Connor et al. 2012; Urbanus et al. 2016; Lee et al. 2019). While our CRISPR-based gene drive system enables such genetic interaction analysis in C. albicans, a caveat of this system is the potential for off-target mutations from the integrated CRISPR-Cas9 plasmid, which has been highlighted as a limitation of CRISPR systems in fungi and numerous other organisms (Hsu et al. 2013; Mitchell 2017; Song et al. 2019; Uthayakumar et al. 2021). Our previous whole-genome sequencing analysis (Shapiro et al. 2018a) had revealed that the gene drive system was specific with regards to gene deletions, but was not able to take into account possible off-target mutations and indels, which is a limitation of this specific platform.

In addition to using genetic interaction analysis as a means to understand genetic networks, genetic interaction analysis can also be exploited as a means to uncover novel pairs of cellular targets for combination antimicrobial therapeutics (Halder et al. 2020). In particular, synthetic lethal interactions, where mutation of two genes in combination is lethal to the cell while deletion of either gene on its own remains viable, can be used to identify targets for combination drug therapies (Cokol et al. 2011). Such genetic interaction-based approaches have been well validated for combination therapies for cancer (Han et al. 2017), as well as for antimicrobial therapeutics (Cheng et al. 2014; Pasquina et al. 2016; Usher and Haynes 2019). While our work does not identify lethal genetic combinations, we have identified genetic combinations that significantly impair virulence, more than would be expected by mutating the constituent single genes. Targeting virulence regulators, which impair a pathogen’s ability to cause infection without altering its overall fitness, is gaining momentum as a potentially effective strategy for antimicrobial therapy (Cegelski et al. 2008; Maura et al. 2016; Dickey et al. 2017). Such “antivirulence” agents have been identified that inhibit pathogenicity traits such as morphogenesis and biofilm formation in C. albicans (Toenjes et al. 2005; Fazly et al. 2013; Romo et al. 2017; Vila et al. 2017; Garcia et al. 2018). Our work lends an understanding to new combinations of adhesins that significantly impair fungal virulence, suggesting new putative targets for combination antivirulence therapeutics.
