Effects of boron on the mechanical properties of polymethylmethacrylate denture base material

Abstract

Purpose:

The objective of this study was to determine whether the addition of different types of boron (Borax, Boric Acid and Colemanite) to polymethyl methacrylate denture base resin would improve flexural and impact strengths, and surface hardness of polymethyl methacrylate.

Materials and methods:

Borax, Boric acid, Colemanite were added to heat polymerized polymethyl methacrylate specimens were prepared for flexural strength (65x10x2.5 mm), impact strength (50x6x4 mm), and hardness (20x6x4 mm) tests according to the manufacturers’ instructions (n=10). To determine flexural strength of the specimens, they were loaded until failure on a universal testing machine using a three point bending test. Specimens were subjected to the Charpy impact test machine. Hardness of the specimens was measured with an analog shoremeter Shore D. The data were analyzed with Kruskal-Wallis and Mann-Whitney U tests (α=0.05).

Results:

The highest mean flexural strength value was seen in 3% Borax group and followed by 1% Colemanite group. In addition, the highest mean impact strength value was recorded in 1% Colemanite group, and differences between 1% Colemanite group and control group were found to be statistically significant (p=0,001). Furthermore, there was significant difference in hardness between control group and all other groups (p<0.001).

Conclusion:

The addition of 1% Colemanite to polymethyl methacrylate improved the mechanical properties of PMMA.

Introduction

Polymethylmetacrylate (PMMA) acrylic resins are used for over 70 years in fabricating complete dentures (1). Though esthetics, low water absorption and surface smoothness are advantages of acrylic resins as denture base material, low mechanical properties are their main disadvantage (2, 3, 4). Due to insufficient mechanical properties, patients wearing removable prosthesis often complain about denture fracture. Many materials and methods are developed to overcome this problem and tried to make restoration better; aluminum and steel plates, using stainless steel wire and lattice, adding metallic powder and particles into acrylic resin, using fiber polyethylene, glass, carbon or graphite with various quantity and forms, adding cross linked vbonding agent and copolymers into resin are the attempts to strengthen denture bases (5, 6, 7).

Metals do not chemically bond to resins; they also adversely affect the esthetic results of resins. Glass fibers meet the esthetic requirements and can chemically bond to the resin matrix after silane treatment. However, glass fibers are difficult to be mixed homogeneously with resin, thereby resulting in inadequate impregnation of the fibers with the resin (8).

inadequate impregnation of the fibers with the resin (8). Aluminum borate (Al18B4O33) whiskers —first developed in 1980s— offer superior mechanical properties at a low cost (9). However, there are few studies on the use of aluminum borate to strengthen the PMMA prosthesis (10).

Boron, shown by symbol B in the periodic table, has an atomic number of 5, atomic mass of 10.81, and it is an element in between metal and non-metal having semi conducting property. It is the first and the lightest element of 3A group in the periodic table. Boron compounds show different properties when reacted with various metal and non-metal elements that provide them to be used in many industries. Boron behaves as a non-metal in its compounds whereas pure boron is an electricity conductor like carbon. Crystalline boron looks like diamond in terms of appearance and optical properties and is nearly as hard as diamond (11). Application areas of boron are glass, ceramic, cleaning and bleaching, flame retardants, agriculture, metallurgy, nuclear applications, boron fibers, aerospace, energy, health and cement. Specialty boron products are boric acid, borax and colemanite (12). Boric acid is mostly used in periodontology in the field of dentistry due to its antimicrobial properties (13). There are also few studies in which boron complexes are incorporated into dental materials for reinforcement (10,14).

In the present study, the reinforcement effects of Borax, Boric Acid and Colemanite in PMMA was investigated by measuring flexural and impact strengths and surface hardness.

The null hypothesis was that the incorporation of Borax, Boric Acid and Colemanite in PMMA resin would no effect on the flexural strength, impact strength and surface hardness.

Materials and methods

This study was approved by the Clinical Research Ethics Committee of Cumhuriyet University, Sivas.

Study designing

In this study, 3 different types of boron [Borax (Na2B4O7), Boric acid (H3BO3), Colemanite (Ca2B6O11.5H2O)] were used. The type, manufacturer, composition of the materials and definitions used in this study are presented in Table 1. For 3 experiments of this study (flexural strength, impact strength and hardness), 360 specimens were prepared ( n=40 per each). Specimens were randomly distributed based on the different boron material into three main groups. Each group was then divided into four subgroups (n = 10). where one subgroup of each main group was kept without reinforcement (Control), while the other three groups were reinforced with 1,2 and 3wt% of boron, respectively.

Table 1.

Details of different boron materials used.

Material Name	Material Type	Composition		Manufacturer
Borax Pentahydrate (Na2B4O7.5H2O)	Boron	B2O3	47.80 -49.00%	Eti Mine Works General Management, Technology Development Department, Ankara/Turkey
		Equivalent Na2B4O7.5H2O	100.00- 102.51%
		Na2O	21.36 - 21.81%
		SO4	200 ppm max.
		Cl	70 ppm max.
		Fe	3 ppm max.
		Insolubles in Water	150 ppm max.
		Size	0.075mm
		Physical state	Powder
		Colour	White
Boric Acid (H3BO3)	Boron	B2O3	56.25 - 56.90 %	Eti Mine Works General Management,Technology Development Department, Ankara/Turkey
		Equivalent H3BO3	99.92 - 101.07%
		SO4	130 ppm max.
		Cl	5 ppm max.
		Fe	4 ppm m
		Insolubles in Water	4.7%- 27.5%
		Size	0.063mm
		Physical state	Granular
		Colour	White
Colemanite (Ca2B6O11.5H2O)	Boron	B2O3	40.00 ±0.50 %	Eti Mine Works General Management, Technology Development Department, Ankara/Turkey
		CaO	27.00 ±1.00 %
		SiO2	4.00-6.50%
		SO4	0.60% max.
		As	35 ppm max.
		Fe2O3	0.08% max.
		Al2O3	0.40% max.
		MgO	3.00% max.
		SrO	1.50% max.
		Na2O	0.50% max
		Size	45 µm (75% min.)
		Physical state	Powder (Ground)
		Colour	Light grey

Mold and specimens’ preparation

Following ANSI/ADA specification No.12 (15), metal molds were constructed for a flexural strength test in the desired shape with the dimensions of 65 × 10 × 2.5 mm, Impact strength specimens measuring dimensions of 50 × 6× 4 mm and hardness specimens measuring dimension of 20 × 6 × 4 mm. These specimens were prepared for each acrylic resin according to the manufacturers’ recommendations.

Dental wax (Cavex Set Up Wax, Cavex, Netherland) was used to build the shape of the molds and invested in a dental stone (Moldastone, Heraeus Kulzer GmBH, Hanau, Germany) using a metal flask. After the dental stone had set, a wax burnt out procedure was performed through immersing the specimens in boiled water for 5 minutes and then molds were washed out and dried.

The heat-cured specimens were prepared in the molds in denture flasks and cured in a manner similar to that used in conventional denture construction. The heat-polymerized acrylic resin (Paladent, Heraeus Kulzer, Hanau, Germany) was processed according to the manufacturer’s recommended polymer: monomer ratio. The temperature was brought up from room temperature to 74°C, then increased to 100°C for 20 min for curing of samples. After cooling, the flask was opened and acrylic specimens were removed and finished.

2.3 gr of powder with 1 mL liquid (monomer) of denture base resin was mixed according the manufacturer’s instructions. The amount of boron was calculated as a percentage of the powder weight. Required amount of liquid for powder was adjusted. Different boron types was added to the liquid at the rates of 1 wt%, 2 wt% and 3 wt% respectively, and kept for 5 minutes. Then powder was mixed manually with boron added liquid for 3 minutes and polymerization was achieved by sealing the flask.

Before testing the flexural strength, impact strength and hardness, the specimens were left in distilled water at 37°C in a water bath machine for 48 hours (BM 402; Nuve, Ankara, Turkey).

Testing procedures

Three-point bending test was performed on a universal testing machine (Lloyd LF Plus; Ametek Inc., Lloyd Instruments, Leicester, UK) at a 5 mm/min crosshead speed to measure flexural strength. The distance between the supports was adjusted to be 50 mm. The load of fracture was recorded and the flexural strength were calculated using the equation: FS=3Fl/2bh2

FS indicates the flexural strength, F is the load to fracture value measured in Newton (N), I presents the separation distance, and b and h are presented the specimen width and thickness, respectively.

The impact strength was evaluated using the Charpy method for which the specimens were horizontally positioned with a distance of 40 mm between the 2 fixed supports. The test was performed at room temperature in an impact testing machine (Zwick HIT 5.5, Germany). Charpy method was carried out with 0.5 J pendulum and a distance between two supporting points of 40 mm. Impact strength of the specimens were calculated by using following formula:

acU=(Ec/hb)10³

where acU=Charpy impact strength of the unnotched specimen (kJ/m2); Ec=corrected energy absorbed by breaking the test specimen (J); h=thickness of specimen; and b=width of specimen.

Hardness of the specimens was measured with an analog shore D durometer tester (Tronic, Korean). Specimens were measured five times from different area, which was calibrated according to ASTM D2240. The shore value was calculated by averaging the 5 determined values and this process was perform for each specimen.

FTIR and SEM analysis

The fourier transforms infrared spectrophotometer (FTIR) was used to evaluate the chemical structure differences for the PMMA and PMMA samples with added chemicals. The PMMA polymer and PMMA samples with added chemicals were prepared as the Potassium Bromide (KBr) pellets (2 mg sample in 100 mg KBr) and then analyzed in a FTIR (Mattson 1000, Unicam, USA) at wavelengths between 400–4000 cm_1 and at 4 cm_1 resolution.

Specimens fractured surface evaluated by using Scanning Electron Microscope (SEM) (LEO 440; Zeiss, Oberkochen, Germany). One sample from each experimental group was selected for SEM imaging. 2mm cross section was taken from the broken surfaces of the selected samples. The samples were kept in Polaron SC 7620 Sputter Coater until a vacuum of 4x10-2 mbar was reached and the samples were coated with approximately 45 Aº Au / Pd.

The SEM analysis was performed based on the difference in the polymer matrix among the different boron materials and its distribution based on the different concentrations. Microphotos were captured at 1,000 X standardized magnification for visual inspection and research.

Statistical analysis

Data was analyzed by using the SPSS 14.0 (SPSS Inc, Chicago). The Kruskal-Wallis and Mann-Whitney U tests were used to compare the different groups. Confidence interval was set to 95% and p< 0.05 considered statistically significant.

Results

Table 2 summarizes the mean values and standard deviations of flexural strength test for all groups. The highest mean flexural strength value was seen in 3% Boraks group and followed by 1% Colemanite group. At the other groups, a drop with respect to control group is observed.

Table 2.

Flexural strength test results of PMMA specimens (MPa).* For each vertical column; the same lowercases are significant as statistically (P less than 0.05),. For each horizontal row, the same uppercases are significant as statistically (P less than 0.05).

	Borax	Boric acid	Colemanite
Control	103.61±2.82a,b	103.61±2.82d,e,f	103.61±2.82ı,k
1%	A,B91.22± 5.86 a,c	A,C53.28 ±4.73d,g	B,C106.09± 7.38l,m	KW=23.00
				P=0.001
				P less than 0.05
2%	D,E100.70± 11.47	D,F56.33± 2.52e,h	E,F77.63± 10.02ı,l,n	KW=24.12
				P=0.001
				P less than 0.05
3%	G,H114.38±11.11b,c	G,K71.86 ±10.59f,g,h	H,K88.58±5.85k,m,n	KW=23.00
				P=0.001
				P less than 0.05
	KW=20.62	KW=32.32	KW=30.36
	P=0.001	P=0.001	P=0.001
	P less than 0.05	P less than 0.05	P less than 0.05

In addition, impact strength results including the mean values and standard deviations for all tested specimens are summarized in Table 3. The highest mean impact strength value was recorded in 1% Colemanite group, and differences between 1% Colemanite group and control group were found to be statistically significant (p<0.05).

Table 3.

Impact strength test results of PMMA specimens (J\m2). For each vertical column; the same lowercases are significant as statistically (P less than 0.05). For each horizontal row, the same uppercases are significant as statistically (P less than 0.05).

	Borax	Boric acid	Colemanite
Control	4.89± 0.42a,b,c	4.89±0.42d,e	4.89±0.42h
1%	A3.40± 0.77a	B4.36±1.35f,g	A,B6.93±0.59h,k,l	KW=15.71
				P=0.001
				P less than 0.05
2%	A3.27± 0.80b	B3.01± 0.71d,f	A,B4.31± 0.95k	KW=9.14
				P=0.001
				P less than 0.05
3%	A3.42± 0.66c	B2.61±0.69e,g	A,B4.62±1.02l	KW=15.71
				P=0.001
				P less than 0.05
	KW=20.06	KW=20.97	KW=22.66
	P=0.001	P=0.001	P=0.001
	P less than 0.05	P less than 0.05	P less than 0.05

Also, Surface hardness test results including the mean values and standard deviations for all tested specimens are summarized in Table 4. There was significant difference in hardness between control group and all other groups (p<0.05). The highest surface hardness was detected in 2% Boric acid group and respectively, 2% Borax, 2% Colemanite for all percentage intervals.

Table 4.

Surface hardness test results of PMMA specimens.*The same lowercases are significant as statistically at the column (P less than 0.05)

	Borax	Boric acid	Colemanite
Control	78.50±2.36a,b,c	78.50±2.36d,e,f	78.50±2.36g,h,k
1%	84.60± 3.97a	84.40± 4.00d	85.70± 2.62g	KW=2.41
				P=0.299
				P higher than 0.05
2%	87.30± 2.86b	87.60± 2.41e	87.10± 2.02h	KW=0.80
				P=0.670
				P higher than 0.05
3%	84.70± 4.08c	84.40± 3.20f	85.50± 3.68k	KW=2.41
				P=0.299
				P higher than 0.05
	KW=18.59	KW=21.57	KW=21.24
	P=0.001*	P=0.001*	P=0.001*
	P less than 0.05	P less than 0.05	P less than 0.05

FTIR spectra of PMMA polymers was carried out by the Fourier transform infrared spectrophotometer (Figure 1). (b), (c) and (d) curves shows borax, boric acide and colemanite added PMMA, respectively, and the (a) curve without any chemical added to PMMA.

According to the FTIR, Boricacid showed difference from the control (in 2328 and 2056) C=O pics but didnt changed as chemicaly. On the other hand colemanite and borax showed a chemical changes in the FTIR analysis.

The finger print characteristic frequency of O-C=O stretch at 1717.52 cm-1 and 1432 cm-1 were detected in the spectrum, which could originate from the ester groups in the PMMA and added PMMA side chains (16, 17, 18). Similar to the other peaks as follows: The bands at 2991.93cm-1 and 2948.32-2919.35 cm-1 correspond to the C-H stretching of the CH3, methyl group of the PMMA and the irradiated PMMA, the bands at 1382.13 cm-1 and 1432.56cm-1 were corresponding to the C-H symmetric and the asymmetric stretching vibration modes, respectively. The 1236.08 cm-1 frequency vibration was related to CH2, the methylene group, and the 1137.18 cm-1 frequency vibration band corresponds to the C-O ester group. In addition, the C-C stretching frequency vibration bands were at 981 cm-1 and 836 cm-1 (16,18). The presence or absence of any other notable peaks were not detected in the spectrum of the PMMA and all borax added PMMA and boric acid added spectra. Except a new peak were detected which has arisen from CO2 (concerning experimental conditions or preparing KBr pellets) on boric acid added PMMA (c) at 2318.54 cm-1 and 29156.45 cm-1 and colemanite added PMMA (d) at 2075.29 cm-1. The FTIR findings demonstrate that the addition process does not change the chemical structure of the borax added PMMA and boric acid added PMMA samples. New peaks detected around at 2000-2300 cm-1 could be attributed to water and stretching vibrations of atoms in the C – O bond of gaseous CO2 sorbed in the samples (19).

It is observed that boron compound bond chemically with acrylic (Figure 1). It can be said that this chemical bond and chemical change increase the strength of the material.

Figure 1.

The structural characterization of PMMA samples by an overlapped FTIR spectra (a) Control group (PMMA), (b) Borax added PMMA, (c) Boric acid added PMMA, and (d) Colemanite added PMMA.

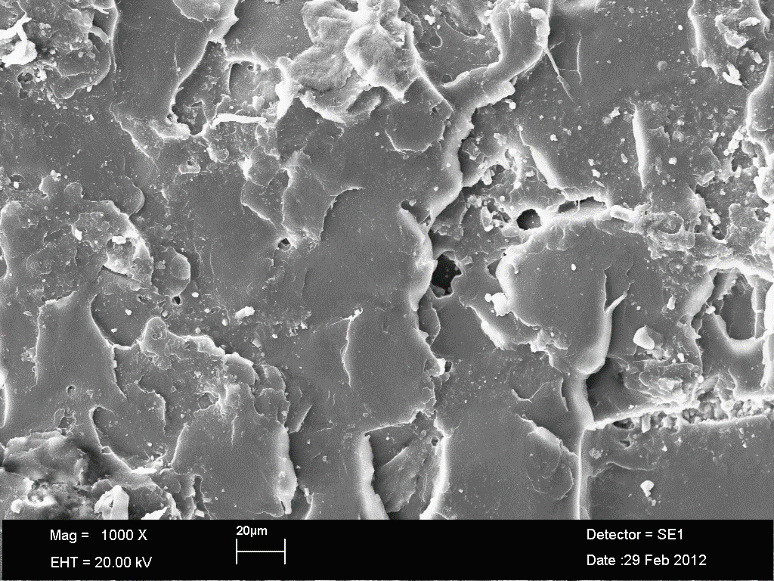

SEM images of acrylic polymer after the impact testing are presented in Figure 2. While Borax observed in the sample with particles had big diameters and consisted of too many particles (Figure 3), small diameters particles and small number of particles were seen in boric acid (Figure 4). In colemanite, it was determined that it dissolves in acrylic due to the absence of particles in SEM images (Figure 5).Compared to other boron components, integration with acrylic composition supports higher values in the Colemanite group. On the other hand, there is no parallel with the percentage change in the Colemanite addition.

Figure 2.

SEM micrograph of PMMA (Control group).

Figure 3.

SEM micrograph of Borax added PMMA group.

Figure 4.

SEM micrograph of Boric acid added PMMA group.

Figure 5.

SEM micrograph of Colemanite added PMMA group.

Discussion

The aim of this study is to investigate the changes in the mechanical properties of polymethylmethacrylate when Boron components are added to the acrylic mass in different proportions. Changes in the mechanical properties of polymethylmethacrylate were evaluated by flexural strength, impact strength and surface hardnes tests.

The addition of Borax, Boric acid and Colemanite to polymethylmethacrylate resulted in an increase in surface hardness value. Thus, the null hypothesis was partially accepted.

Fracture strength of denture base resins is of great concern and many approaches have been made to improve the fracture resistance of acrylic resin dentures by strengthening them. Most dentures fracture inside the mouth, primarily due to resin fatigue, with midline fractures being commonly encountered (20, 21). Outside the mouth, fracture occurs due to impact of falling. Various modifications have been suggested to overcome these shortcomings, which included plasticization (22), copolymerization with rubber (23), use of crosslinking agents such as polyethylene glycol dimethacrylate and reinforcement with metal strengthener’s (24, 25). Last two decades has seen a dramatic increase in the use of fiber-reinforced composites with different fibers (26-28). ISO 20795-1 (2008) international standards and ADA (American Dental Association) standart have established respectively 50 MPa and 65 MPa as the minimum flexural strength required of all acrylic resins used for denture bases (15,29).

We added in certain proportions considering that the boron is as durable as a diamond will increase the impact strength of PMMA (11). It is known that boron is an essential element for humans and animals. Boron play important roles in many life processes including embryogenesis, bone growth and maintenance, immune function and psychomotor skills. However, it is indicated that boron compounds have bacteriostatic, bactericidal, fungistatic, fungicidal and antiviral effects and it is highly biocompatible (30).

In this study, it is seen that the flexural and impact strength of the polymethylmethacrylate is affected independently of both the added boron component and the boron component addition percentage. However, while different kind of boron had significantly different effects on the mechanical properties of PMMA, for the purpose of strengthening acrylic structure created the biggest effect at flexural and impact resistance of 1% Colemanite group. Finally, the addition of 1% Colemanite to PMMA improved the mechanical properties of PMMA.

In this study, the highest flexural strength values were observed in the 3% Borax group (114.38 MPa) and 1% Colemanite group (106.09 MPa), the lowest flexural strength value in the 1% Boric acid group (53.28 MPa). All values obtained did not fall below the value specified in ISO standards.

Mean impact strength values were lower than the control group in all experimental groups except 1% Colemanit group. The highest mean impact strength value was recorded in 1% Colemanite group (6.93 MPa), and differences between 1% Colemanite group and control group (4.89 MPa) were found to be statistically significant (p<0.05).

These results indicate that the most ideal composition of polymethylmethacrylate components and boron compounds is achieved by adding 1% Colemanite.

Unfortunately, efforts to find the ideal material to reinforce the acrylic is still continuing. Boron derivatives such as Borax, Boric Acid, and Colemanite is commonly used as inorganic binder in the ceramic industry. They reduce the viscosity and surface tension, and that provide resistance to cracking and surface staining (31, 32). However, there are not readily available in the literature, investigating the effect of these compounds on mechanical and chemical properties of acrylic material; therefore, it was not possible to compare the results of the present study and those of previous similar studies. Because of the lack of study with boron to strengthen the acrylic, filler and nano-filler addition studies were compared.

Arora et al. reviewed the effect of alumina addition and reported a positive impact on the properties of acrylic resin (33).

There are other studies reporting that the addition of metal oxides reduces both impact and tensile strength of PMMA, although there are studies reporting that the resin has increased bending strength, impact strength, tensile strength, compressive strength, and surface hardness after the addition of metal oxides. The positive and negative changes in the mechanical properties of PMMA have been explained because of the stress concentration around the embedded metal and its poor adhesion to the polymer (34, 35, 36, 37).

The superior properties of nano-diamonds, high hardness and thermal conductivity suggested that it can be used to improve the mechanical properties of PMMA. Al-Harbi et al. reported that the addition of nano-diamond to acrylic denture base improved the flexural strength and surface roughness at low concentrations while impact strength was decreased (38). The researchers interpreted that the addition of high concentrations of nano-diamond negatively affects the mechanical properties of the polymethylmethacrylate, as nano-diamonds may have been collected as stress concentration points (38, 39).

Boron compounds can also be considered as a filler material. The reason for the different results in this study may have changed in relation to how concentrated the boron components are in the fracture line.

In this study Borax, Boric Acid, Colemanite was added to heat-polymerized denture base resin at volume ratios of 1%, 2% and 3% and the reinforcing effects depending on the boron type and concentration were evaluated. The flexural properties of denture base resin showed significant differences depending on the various combinations and concentrations of the three boron. Addition of 1% Colemanite to PMMA improved the mechanical properties of PMMA. There was an increase in surface hardness in all groups. The structural characterization of boron added PMMA by Fourier Transform Infrared Spectrophotometry showed that there were chemical changes in Colemanite and Borax group.

The SEM image of the fracture surface of the control group was smoother, while the 1% colemanite sample images with the highest flexural and impact values showed a more roughened structure. On the images of borax and boric acid, undissolved particles that may cause porosity in the structure were observed. We think that this maybe negatively affect the resistance. It is advisable to reinforce the denture with %1 colemanite because of its positive impact and flexural resistance capability. Further work is clearly required to investigate the effect of colemanite on PMMA.

SEM images confirmed the unreinforced PMMA had a sharp crack surface without visible plastic deformation. With the addition of %1 colemanite, uniform multi-stepped morphology was observed (Fig 5), increased the impact and flexural strength of PMMA.

The current study is limited by its an in vitro study, it does not accurately simulate intraoral conditions and predicting the clinical behavior of the material can be difficult. Therefore, in addition to further in vitro studies, clinical studies are also required.

Conclusion

Within the limitations of this study, the following conclusions can be drawn:PMMA impact strength increases with the addition of %1 colemanite.The increase in flexural strength of PMMA is greater with the addition of 3 % Borax when compared to 1 % Colemanite. Borax increased the surface hardness of PMMA denture base resin. Finally, when high strength acrylic resins are needed, boron reinforced resins may be the material of choice.
