Abstract
Photon detection at microwave frequency is of great interest due to its application in quantum computation information science and technology. Herein are results from studying microwave response in a topological superconducting quantum interference device (SQUID) realized in Dirac semimetal Cd3As2. The temperature dependence and microwave power dependence of the SQUID junction resistance are studied, from which we obtain an effective temperature at each microwave power level. It is observed the effective temperature increases with the microwave power. This observation of large microwave response may pave the way for single photon detection at the microwave frequency in topological quantum materials.
Subject terms: Materials science, Nanoscience and technology
Introduction
Single photon detection (SPD) has found increasingly important applications in many forefront areas of fundamental science and advanced engineering applications, ranging from studying the galaxy formation though cosmic infrared background to entanglement of superconducting qubits, single molecular spectroscopy, and remote sensing1, 2. In recent years, the rapid developments in superconducting quantum computation, high fidelity quantum measurement, quantum key distribution, and quantum network call for SPD in the microwave frequency range3. The current SPD scheme has good sensitivity for photons in the high frequencies range (e.g., visible light). However, their sensitivity decreases drastically for low-frequency, low energy, microwave photons. As a result, the detection of single photons at this low frequency is highly prone to error from classical noise.
Graphene single photon detectors (i.e., graphene superconducting Josephson junctions) have emerged as one new platform to meet the needs of detecting single microwave photons4, 5. It is capable of performing SPD over a wide frequency range, particularly at the infrared and microwave frequencies due to its linear energy dispersion relationship. Like graphene, the helical surface states in Cd3As2, a Dirac semimetal6–8, also possess Dirac linear dispersion relationship. As a result, Cd3As2 is also sensitive to low-frequency microwave photons. Compared to graphene, Cd3As2 may be even more promising for microwave photon detection9 based on the following reasons. First, a higher electron mobility has been reported. Indeed, a mobility as high as 107 cm2/Vs has recently been reported in Dirac semimetal Cd3As2 single crystals10. Second, they can be readily grown by many conventional growth techniques, such as vapor transport11, MBE12, PLD13 techniques; this enables their facile integration into any optical device structures, such as microwave cavities. Third, the unique electronic and optical properties in Cd3As2 may allow for polarization-resolved photon detection14. Fourth, superconductivity in Cd3As2 thin films15 and the supercurrent states in Cd3As2-based Josephson junctions via the superconducting proximity effect16–18 have been demonstrated, receptively. This may make the adoption of the well-developed single photon detection schemes, such as superconducting nanowires and transition edge sensors2, possible in the Cd3As2 material system. Final, the helical surface states in topological semimetals, when combined with conventional superconductors, can host Majorana zero modes, which can be used to construct topological qubits. New single photon detection scheme utilizing Majorana zero modes have also been proposed recently19. Together, the microwave single photon detection capability and qubit operation is predicted to lead to high-fidelity quantum computation20.
In this paper, microwave response in the proximity induced superconducting state is presented in a superconducting quantum interference device (SQUID) structure fabricated on Cd3As2, as shown in the inset of Fig. 1a. In our SQUID device, a large photo response is observed at various microwave frequencies ranging from 0.5 to 10 GHz.

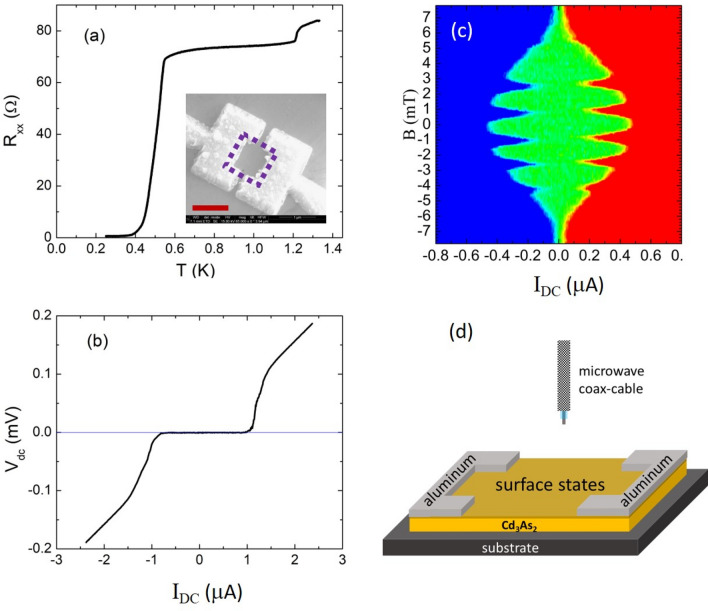

Figure 1.
(a) The temperature dependence of the junction resistance in a superconducting quantum interference device (SQUID). The insert shows the SQUID device fabricated on a Cd3As2 thin flake. The scale bar is 1 µm. (b) The current–voltage (I–V) curve measured in the SQUID. The critical current is ~ 1 µA. (c) The two-dimensional color plot of I–V traces as a function of magnetic fields at 0.44 K. The red color represents a positive Vdc, blue for negative Vdc. The green area represents the supercurrent regime. (d) The schematic setup (dimension not to scale) used to examine microwave response.
Device and methods
The mechanical exfoliation method is used to obtain flat and shiny Cd3As2 thin flakes from the initial bulk ingot materials. Information about the Cd3As2 polycrystalline ingots can be found in Ref.16. The thickness of the resulting exfoliated Cd3As2 flakes is approximately 200 nm. To fabricate the alminimum-Cd3As2-almuninum SQUID, a two-step process is employed. First, a Cd3As2 flake is deposited on a Si/SiO2 substrate (with SiO2 thickness of 1 µm). Then, e-beam lithography is used to define the aluminum (Al) electrodes. The thickness of resultant Al electrodes is 300 nm. A low-frequency (~ 11 Hz) phase-sensitive lock-in amplifier technique, with an excitation current of 10 nA, is used to measure the sample resistance. To measure the differential resistance, a large direct current (up to ± 2 µA) is added to the 10 nA a.c. current. The entire device is immersed in cryogenic liquid; all measurements are carried out at the cryogenic temperature of ~ 0.25 K.
Results and discussion
Figure 1a shows the temperature dependence of the SQUID resistance Rxx. At high temperatures, the Rxx is nearly constant. The drop at T ~ 1.2 K is due to the onset of the superconductivity in the aluminum electrodes. Rxx continues to decrease slowly from 1.2 K to ~ 0.55 K. After 0.55 K, Rxx drops precipitately and reaches a zero-resistance state at T ~ 0.35 K. We thus take 0.55 K as the superconducting transition temperature (Tc). Direct current–voltage (I–V) measurements in this junction is shown in Fig. 1b. For large d.c. currents IDC, the I–V curve follows a linear dependence. From the slope of this straight line, a normal state resistance of Rn ≈ 75 Ω can be deduced. Extrapolating the line to zero Vdc, we obtain an excess current of ~ 0.08 µA. Assuming the two Josephson junctions in the SQUID are identical and taking into account the superconducting gap of Δ = 1.75kBTc, we can estimate the barrier strength Z ~ 1 in our SQUID, based on the calculations in the paper by Flensberg et al.21, 22. Correspondingly, the junction transparency T = 1/(1 + Z2) is estimated to be ~ 0.5. In the small IDC regime of |IDC|< 1 μA, the voltage across the junction Vdc is zero, demonstrating the robust supercurrent states. The critical current is approximately 1 µA.
Figure 1c shows the magnetic field dependence of the I-V data in this SQUID. Periodic oscillations of the critical current are clearly seen, as expected for a conventional SQUID. The period is estimated to be ~ 1.8 mT. This corresponds to an effective SQUID area of ~ 1.1 µm2, as illustrated by the dashed square in the inset of Fig. 1a. We note that in a small SQUID the effective area is often larger than the middle open area, due to the flux compression effect by the surrounding electrodes23. Another feature in Fig. 1c is the envelop of the oscillatory pattern being modulated by the Fraunhofer diffraction pattern of the single Josephson junction in the SQUID.
To examine the microwave response in our SQUID device, a setup shown schematically in Fig. 1d is utilized. An Agilent 83592B sweep generator is used to generate microwave photons, which are conducted through a semirigid coax cable. The end of coax cable is located about 5 mm above the sample surface. The microwave power is tuned at room temperature; the exact microwave power at the end of coax cable is not known.
The differential resistance dV/dI as a function of d.c. current bias (IDC) in this SQUID is measured and reported in Fig. 2a–c; it has been collected at the three selected microwave frequencies of 0.5, 7, and 10 GHz, respectively. Additionally, the microwave power was varied at each frequency. The SQUID shows a large response at both the zero and also the finite d.c. bias. In this paper, we will focus on the microwave response at the zero-bias current. Other features, such as the Shapiro steps24 at non-zero d.c. bias, merits more detailed studies and will be discussed elsewhere.

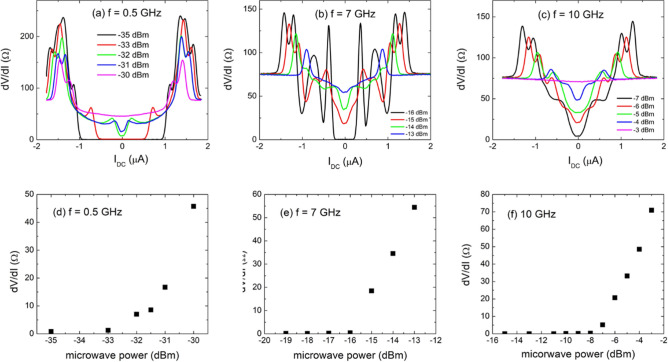

Figure 2.
(a–c) The differential resistance measured at three selected microwave frequencies, 0.5, 7, and 10 GHz. At each frequency, the microwave power is also varied. (d–f) The zero-bias resistance as function of microwave power at 0.5, 7, 10 GHz, respectively.
A general trend is seen when the resistance as a function of microwave power for each microwave frequency is plotted, see Fig. 2d–f. At low microwave powers, the resistance is approximately zero. With further increase in microwave power, resistance becomes non-zero and starts increasing. We note here that the onset microwave power (in dBm) for non-zero dV/dI is different for different microwave frequencies, e.g., − 33 dBm for f = 0.5 GHz and − 16 dBm for f = 7 GHz. This is mainly due to different power attenuations at different frequencies through the semi-rigid coax cable we used in the measurements.
Overall, the microwave power dependence of the zero-bias resistance shows a similar trend to its temperature dependence, seen in Fig. 1a. The zero-bias resistance is zero at low microwave powers (versus zero resistance at low temperatures). After an onset microwave power, the zero-bias resistance increases with increasing microwave power. This, again, is like the temperature dependence, in which the resistance increases with increasing temperature after a critical temperature. The similarity suggests that the increase of zero bias resistance probably is of a bolometric origin, i.e. due to the increasing temperature upon microwave photon absorption. Based on this assumption, it is possible to deduce the effective electron temperature at various microwave powers by relating the resistance value with the temperature dependence from Fig. 1a.
It is important to note that this procedure works well for mid-range microwave powers, where the resistance is finite and has not reached the normal state resistance. For lower microwave powers, the resistance is zero thereby rendering it difficult to determine the effective electron temperatures. For higher microwave powers, or higher electron temperatures, the resistance change is gradual, and the error bar is relatively large. In Fig. 3, a plot shows the effective electron temperature as a function of mid-range microwave power (in a logarithmic scale). It is clearly shown that the effective temperature increases roughly linearly with increasing microwave power (in the logarithmic scale).

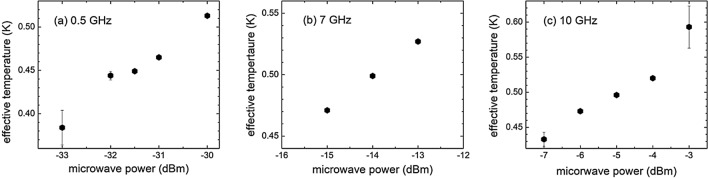

Figure 3.
The effective junction temperature as a function of microwave power at 0.5 (a), 7 (b), and 10 (c) GHz.
The above result, i.e., effective temperature increasing with increasing photon energy, is promising for microwave photon detection. Indeed, with further optimization of microwave coupling structure, for example through utilization of a meander line25, quarter wave resonator4, or log periodic antennas26, measurements can be done at much lower microwave power level, which may provide more support for single photon detection with number resolving9, 27 capability. Compared to other superconducting photon detectors, such as transition edge sensors (TESs), the photon detection in this device is done by the zero-bias resistance, thus avoiding a large source-drain current needed, for example, in a TES structure28. Consequently, issues caused by the large source-drain current, such as the flicker noise, are greatly reduced.
Conclusion
In summary, a large microwave response has been observed in a superconducting quantum interference device fabricated on Dirac semimetal Cd3As2 thin flakes, in which the temperature dependence and microwave power dependence of the junction resistance are studied. The effective temperature of the junction device under microwave radiation increases with increasing microwave power (in the logarithmic scale). This result may pave the way of single photon detection at the microwave frequency in topological quantum materials.
