Interneuronal mechanisms for learning-induced switch in a sensory response that anticipates changes in behavioral outcomes

Summary

Sensory cues in the natural environment predict reward or punishment, important for survival. For example, the ability to detect attractive tastes indicating palatable food is essential for foraging while the recognition of inedible substrates prevents harm. While some of these sensory responses are innate, they can undergo fundamental changes due to prior experience associated with the stimulus. However, the mechanisms underlying such behavioral switching of an innate sensory response at the neuron and network levels require further investigation. We used the model learning system of Lymnaea stagnalis^{1, 2, 3} to address the question of how an anticipated aversive outcome reverses the behavioral response to a previously effective feeding stimulus, sucrose. Key to the switching mechanism is an extrinsic inhibitory interneuron of the feeding network, PlB (pleural buccal^4,5), which is inhibited by sucrose to allow a feeding response. After multi-trial aversive associative conditioning, pairing sucrose with strong tactile stimuli to the head, PlB’s firing rate increases in response to sucrose application to the lips and the feeding response is suppressed; this learned response is reversed by the photoinactivation of a single PlB. A learning-induced persistent change in the cellular properties of PlB that results in an increase rather than a decrease in its firing rate in response to sucrose provides a neurophysiological mechanism for this behavioral switch. A key interneuron, PeD12 (Pedal-Dorsal 12), of the defensive withdrawal network^5,6 does not mediate the conditioned suppression of feeding, but its facilitated output contributes to the sensitization of the withdrawal response.

Graphical abstract

Highlights

• •Anticipation of an aversive outcome reverses the behavioral response to food.
• •The switching mechanism relies on an interneuron extrinsic to the feeding network.
• •Aversive learning causes persistent physiological change in this interneuron.

Pirger et al. demonstrate that persistent modulation of an inhibitory interneuron extrinsic to the feeding system can switch the behavioral response so that a previously salient food stimulus elicits an aversive response. Anticipation of punishment associated with food induces excitation of an interneuron that inhibits the feeding network.

Results

Switching of the behavioral feeding response to sucrose after aversive conditioning

As predicted by the model that suggests behavioral responses to sensory stimuli depend on prior learning experiences, aversive conditioning in Lymnaea results in a selective impairment of the feeding response to sucrose, an innate feeding stimulus. We obtained the behavioral evidence by developing a 5-trial aversive conditioning paradigm (Figure 1A) in which in each trial, sucrose was the conditioned stimulus (CS) and a series of aversive tactile stimuli to the head served as the unconditioned stimulus (US) that evoked a whole-body withdrawal response. Unpaired and naive groups were used as the primary controls (Figure 1A), but a number of other control groups (CS alone, US alone, random US alone and a naive group pre-tested with the CS prior to the commencement of training in the paired group and tested again at the same time as the other groups at 24 h post-training) also were used to fully rule out the possibility of non-associative learning (Figure S1A).

Figure 1.

Aversive classical conditioning reduces the innate behavioral response to a food stimulus

(A) The experimental groups and protocols used in the behavioral experiments. In each of the 5 paired and unpaired episodes of trials the CS (conditioned stimulus) was sucrose, the series of US (unconditioned stimuli) was 7 strong tactile stimuli delivered using a hand-held probe with a tip made of a tooth-pick at 15 s intervals to the head of the animals, which evoked whole-body withdrawal. In the paired trials (see insert), the CS to first US interval was 15 s; in the unpaired trials it was 10 min.

(B) After aversive classical conditioning, only the CS+US paired group shows a significantly reduced feeding response to sucrose, a highly salient food stimulus in control animals (also compare to additional controls in Figure S1). Graphs show means ± standard error of means (SEM). Asterisk indicates significance detected by the pairwise and multiple comparisons made after the ANOVA. ANOVA for the CS+US paired, CS+US unpaired and Naive 24 h test data: F[3, 50] = 19.07, p < 0.0001; Tukey’s tests: CS+US paired group (n = 12) versus CS+US unpaired (n = 12) and Naive group (n = 18), p < 0.0001 for both; CS+US unpaired group versus Naive group, p = 0.84). Aversive conditioning with sucrose as the CS did not affect the feeding response to a different food stimulus, cucumber juice. Although the group of aversively conditioned animals shows a significant reduction compared to their pre-training feeding response to sucrose (unpaired t test, t = 4.36, df = 22, p = 0.0003), it shows the same high level of feeding response to the cucumber juice as it did to sucrose before training (unpaired t test, t = 0.65, df = 22, p = 0.5252) and as the unpaired and naive control animals after training (ANOVA, F[2, 39] p = 0.63). The cucumber test data are significantly higher than the sucrose test after paired training data (unpaired t test, t = 5.4, df = 2, p < 0.0001).

At 24 h post-training, the CS+US paired group of animals showed a significantly reduced feeding response compared to the unpaired and naive group, and also compared to its own pre-training feeding response to sucrose (Figure 1B, statistics in legend). There was no significant difference between the pre- and post-training feeding responses to sucrose in the unpaired and naive group (Figure 1B) or in any of the other control groups used in the experiments (Figure S1B, statistics in legend), confirming that the change in the CS+US paired group was the result of associative learning. It was also important to confirm that the reduction of the behavioral response after aversive conditioning is specific to the sucrose stimulus. Another salient feeding stimulus, fresh cucumber juice, was applied 24 h after aversive training with sucrose as the CS but there were no reductions in the feeding response (Figure 1B, statistics in legend).

Interneuronal mechanism of feeding inhibition after aversive conditioning

We reasoned that a learning-induced long-term reversal of the hyperpolarizing response of the PlB interneurons to sucrose-activated sensory inputs (Figures S2A and S2B) underlies the observed behavioral changes induced by aversive conditioning. PlB has an inhibitory effect on the feeding CPG and motoneurons^4,5. In naive animals, this inhibition is weakened in the presence of sucrose, allowing the activation of the feeding network⁵. The hyperpolarizing effect of sucrose that underlies the removal of tonic inhibition of the feeding network by PlB needs to be reversed for sucrose to be able to inhibit rather than activate feeding in aversively conditioned animals. Alternative hypotheses for the interneuronal mechanisms involved in a post-training reversal of sucrose-induced hyperpolarization of PlB are outlined in Figures S2C and S2D). Using a semi-intact preparation, we carried out intracellular electrophysiological recordings of PlB and simultaneously recorded feeding ingestion movements of the feeding apparatus⁷ (the buccal mass) to monitor changes in the neural and muscular activity following sucrose application to the lips. Comparisons were made of the changes in membrane potentials and firing frequencies of the PlB neurons in response to sucrose in semi-intact lip-CNS preparations made from snails that had been subjected either to paired or unpaired behavioral protocols or were from naive animals (n = 10 in each group). In preparations from naive and unpaired animals, sucrose application to the lips hyperpolarized PlB and consequently reduced its spontaneous tonic firing (to reduce its inhibitory effects on the neurons of the feeding network), and this was accompanied by an increase in the frequency of muscular contractions of the buccal mass (Figures 2A and 2B) that underlie ingestive feeding behavior in the intact animal⁷. In contrast, in preparations from aversively trained animals the PlB cell showed a marked depolarization and a consequent increase in its tonic firing rate (to increase its inhibitory effects on the feeding network) during the application of sucrose to the lips, accompanied by a cessation of spontaneous rhythmic buccal mass movements (Figure 2C, statistical comparisons between the three groups are shown in Figure 2D). Spontaneous buccal mass contractions were observed in the lip-CNS-buccal mass preparations from aversively trained animals (example in Figure 2C), whereas the same type of preparations made from snails that had been subjected either to the unpaired protocol or were from naive animals showed no or occasional contractions of the buccal mass (examples in Figures 2A and 2B). These results support the conclusion that by increasing PlB’s firing rate, sucrose is now strongly activating the inhibitory PlB to feeding circuit pathway, known to be involved in the suppression of feeding⁴.

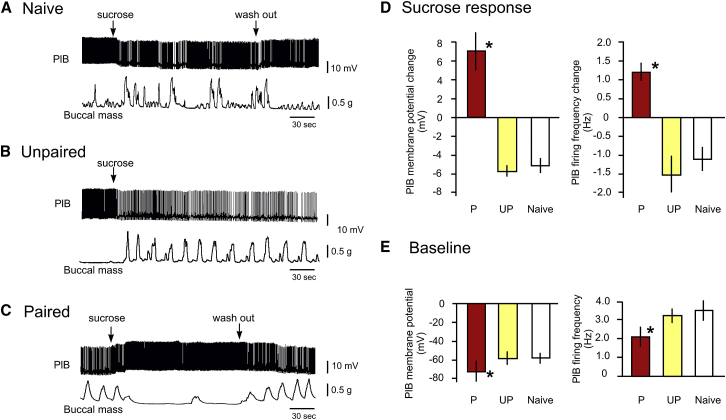

Figure 2.

Aversive classical conditioning reverses the electrophysiological response of an identified modulatory interneuron, PlB, to a food stimulus

(A and B) In typical semi-intact preparations from naive and unpaired control animals, the application of sucrose to the lips results in the hyperpolarization and resulting reduction of the firing rate of the modulatory interneuron PlB and the triggering of rhythmic contractions of the buccal mass. The Unpaired trace in (B) illustrates that if the sucrose stimulus is not removed from the sensory areas, PlB remains hyperpolarized with a correspondingly lower spike frequency, and rhythmic feeding activity continues.

(C) Representative example of a semi-intact preparation from a CS+US paired animal where the application of sucrose to the lips results in the depolarization and resulting increase of the firing rate of PlB and the cessation of the spontaneous rhythmic contractions of the buccal mass.

(D) Statistical comparisons of the sucrose-evoked electrophysiological responses of PlBs in preparations from CS+US paired and control (unpaired [UP] and naive) animals. The measurements were taken using Spike 2 in the 30 s period before and after the application of sucrose and the change was computed as the numerical difference between the pre- and post-sucrose data. When compared among the naive (n = 10), unpaired (n = 10), and paired groups (n = 10), both the changes in PlB membrane potential and firing rate in response to sucrose are consistently in the opposite direction and highly significantly different in the paired versus the other two groups (ANOVA for membrane potential change data: F[2, 27] = 24.69, p < 0.0001, Tukey’s: p < 0.001 for both comparisons. ANOVA for spike frequency change data: F[2, 27] = 16.23, p < 0.0001), Tukey’s: p < 0.05 for both comparisons). Neither the membrane potential nor the spike frequency changes are significantly different between the naive and unpaired group (Tukey’s: p = 0.84 and 0.42, respectively).

(E) Statistical comparisons of baseline (intrinsic) electrical properties (membrane potential and firing frequency in the absence of a sucrose stimulus) of PlBs in preparations from CS+US paired (P) and control (unpaired (UP) and naive) animals. PlBs from CS+US trained animals have a significantly more hyperpolarized baseline membrane potential and lower baseline spike frequency compared to PlBs from both naive and unpaired animals. ANOVA for baseline membrane potential data: F[2, 27] = 4.40, p < 0.03, Tukey’s for both comparisons: p < 0.05, Tukey’s for unpaired and naive comparison: p = 0.99. ANOVA for baseline spike frequency data: F[2, 27] = 4.72, p < 0.02, Tukey’s for both comparisons: p < 0.05, Tukey’s for unpaired and naive comparison: p = 0.98.

Graphs in (D) and (E) show means ± standard error of means (SEM). Asterisks indicate statistical significance of at least p < 0.05.

Further analysis of the data revealed a significant difference between the baseline membrane potential (in the absence of sucrose presentation) and consequent baseline spike frequency levels of the PlBs in preparations from paired versus naive and unpaired control animals, respectively, 24 h after training. PlBs from the CS+US trained animals had significantly more hyperpolarized baseline membrane potential and lower baseline spike frequency compared with those from naive and unpaired groups of animals (Figure 2E, statistics in legend). This suggests that aversive conditioning changes the intrinsic cellular properties of the PlBs to control the firing rate of this inhibitory interneuron; with increased background hyperpolarization, the excitatory response in the presence of sucrose could be more robust (as inactivation of sodium and calcium channels would be reduced). This possibility however needs to be tested in future experiments.

Photo-inactivation of a single PlB removes the effects of aversive conditioning yielding strong evidence that the PlB interneurons are the main locus for the learning-induced changes in the sucrose response. Photo-inactivation of carboxyfluorescein-filled PlB interneurons showed a progressive reduction in the resting membrane potential in aversively trained animals from −53 ± 8 mV to 0 mV within 7 min, leading to a gradual loss of PlB spike activity (Figures 3A and 3B). A previous study⁸ showed that there is electrical coupling between the paired PlBs sufficient in strength for them to act as a single unit. Thus, the photo-inactivation of one PlB will automatically block the spiking in the contra-lateral PlB homolog and prevent inhibition of feeding by sucrose. This is similar to what was demonstrated previously in photoinactivation experiments targeting the also electrotonically coupled pair of N1M feeding CPG interneurons, which showed that the photoablation of a single N1M can block the activation of the feeding rhythm by a higher-order modulatory neuron⁹.

Figure 3.

Photoinactivation of PlB converts the paired-preparation phenotype to a naive one

(A and B) The temporal progression of the loss of the electrical properties (firing and membrane potential) of carboxyfluorescein-filled PlB neurons during photoinactivation (example trace of a PlB being photoinactivated shown in green in (A), white arrow indicates onset of photoinactivation).

(C) Left, cessation of spontaneous and absence of sucrose-induced fictive feeding cycles recorded on a B3 feeding motoneuron in a semi-intact preparation from a CS+US paired animal before PlB photoinactivation (see hypothetical scenario in Figure S2C). Right, after PlB photoinactivation in the same preparation, the feeding motoneuron shows fictive feeding cycles in response to sucrose applied to the lips.

D. Statistical comparison of the number of fictive feeding bursts recorded in B3 during the application of sucrose. Graphs show means ± standard error of means (SEM). n = 8 preparations, paired t test: p < 0.0003 (asterisk indicates significance).

Rhythmic motoneuronal feeding activity following application of sucrose was recorded before and after photo-inactivation (Figures 3C and 3D). Prior to PlB photoinactivation, the application of sucrose to the lips inhibited the spontaneous fictive feeding activity in the B3 feeding motoneuron and failed to trigger rhythmic feeding activity (Figure 3C, left). After photo-inactivation, the same preparations regained their ability to respond to the sucrose stimulus with an increased number of feeding motoneuronal bursts (Figure 3C, right), a pattern of firing that underlies cyclical feeding in the intact animal. A comparison of the fictive feeding cycles recorded in B3 after the application of sucrose showed a significant difference between the feeding rates before and after PlB had been photo-inactivated (Figure 3D, statistics in legend).

The withdrawal response interneuron PeD12 is not a pathway for the inhibitory sucrose responses following aversive conditioning but its facilitated output contributes to the sensitized withdrawal response to mild touch

Although the photoinactivation experiments confirmed that PlB was necessary for the conditioned suppression of feeding response in response to the CS, we could not rule out that one or more other interneurons were driving its strong depolarization when sucrose was applied to the lips. Our previous study showed that the withdrawal response interneuron PeD12 is a key element in touch-induced inhibition of feeding⁵. Aversive touch excites PeD12 and via a monosynaptic excitatory pathway increases the tonic firing of PlB leading to the suppression of feeding. We reasoned that following CS+US paired training, the now aversive sucrose stimulus could activate PeD12 in the same way aversive touch activates it in preparations from naive animals⁵. We set up semi-intact lip-CNS preparations from CS+US trained, unpaired and naive control animals and co-recorded PeD12 with a B3 or B4 feeding motoneuron to establish if PeD12 responded to the sucrose CS after aversive classical conditioning and could therefore be a source of the sucrose-triggered excitatory PlB response after paired training (hypothesis outlined in Figure S2C). We found that although the fictive feeding response was suppressed in preparations from CS+US paired animals (example in top traces of Figure 4A), PeD12 did not respond to the sucrose CS with increased firing and so plays no role in the blocking of feeding and neither does it play a role in the activation of feeding by sucrose in preparations from CS+US unpaired or naive animals, as shown in the examples in the middle and bottom traces of Figure 4A.

Figure 4.

The withdrawal interneuron PeD12 is not involved in the conditioned aversive response but plays a role in sensitization

(A) Top two traces: simultaneous recordings of the feeding motoneuron B3 and the withdrawal interneuron PeD12 in a preparation made from a CS+US paired animal showing the lack of a fictive feeding response in B3, in the absence of sucrose-triggered activation of PeD12. Middle and bottom traces: sucrose activates fictive feeding in preparations from an unpaired and a naive animal, respectively. As expected, the withdrawal interneuron, PeD12, shows no activation from the application of sucrose, a rewarding food stimulus.

(B) Square-pulse triggered bursts of action potentials in PeD12 evoke facilitated excitatory postsynaptic responses in PlBs in preparations from both a CS+US paired and an unpaired animal compared to a preparation from a naive animal. In these experiments the PlBs were hyperpolarized briefly to the same membrane potential level (−80 mV) via the recording electrode to temporarily stop their tonic firing activity while testing their responses to the PeD12 bursts.

(C) Statistical comparisons of the PeD12-triggered PlB EPSP peak amplitudes and spike frequencies (the latter calculated from the number of spikes in the first 3 s of the PlB bursts) in preparations from naive (N) versus unpaired (UP) and CS+US paired (P) animals. Graphs show means ± standard error of means (SEM). Asterisks indicate significance of at least p < 0.05 (compared against the naive data). Twenty-four h after training, an artificially triggered burst of PeD12 action potentials resulted in a significant increase in both the postsynaptic depolarization and spike frequency recorded in the PlB in preparations from CS+US paired (n = 17) as well as unpaired animals (n = 13) compared to naive controls (n = 17) (ANOVAs: F[2, 44] = 9.17, p < 0.0005 (EPSP size), F,[2, 44] p < 0.0001 (spike frequency); Tukey’s multiple comparisons tests: p < 0.001 for both Naive versus Paired and Naive versus Unpaired, for both EPSP size and spike frequency, p = 0.98 for Unpaired versus Paired (EPSP size) and p = 0.600 for Unpaired versus Paired (spike frequency).

(D) Cartoon of the behavioral sensitization analysis. Animals were placed in a Petri dish and a weak tactile stimulus applied to the tentacle, which evoked a withdrawal of the tentacles as well as the head/foot complex. Animals were videoed from below and analyzed offline. One second before the stimulus, the total head/foot area of the animal was measured, and again at 0.5, 1, 1.5, 2, 2.5, and 3 s after the stimulus. The withdrawal response was measured as a decrease in total area, as illustrated in the cartoon of a snail before and after touch.

(E) Heat plots of the head/foot area of the same animals (n = 24) before and after sensitization. Data was normalized to the pre-stimulus condition. At each post-stimulus time point, the mean withdrawal response to the weak tactile stimulus was significantly stronger when the same snails were tested 24 h after the sensitization training, compared to when they were tested with the same stimulus 1 h before sensitization (Two-way ANOVA with RM: “Time after weak touch x Sensitization,” F[6, 276] = 23.78,” p < 0.0001; “Time after weak touch,” F[2.2, 101.0] = 50.80,” p < 0.0001; “Sensitization,” F[1, 46] = 46.33, p < 0.0001; paired sample t tests comparing the Before sensitization and After sensitization data for each individual animal at each time point: p < 0.0001).

Simultaneous recordings from PeD12 and PlB (examples in Figure 4B) revealed that the strength of the post-synaptic excitatory response in PlB to artificially triggered PeD12 bursts was significantly increased in preparations from both paired and unpaired animals compared with naive controls (Figure 4C, statistics in legend). This suggested that even though PeD12 was not recruited by the aversive training to mediate the conditioned excitatory effect of sucrose on PlB, its excitatory synaptic output was facilitated after both paired and unpaired aversive training. Based on this finding, we predicted that the animals would be sensitized by the strong tactile stimulation alone that triggers bursts of action potentials in RPeD12 to drive a whole-body withdrawal response⁵.

Evidence for sensitization was obtained in behavioral experiments. Series of strong tactile stimuli were applied to the lips in the same temporal pattern as during paired or unpaired aversive conditioning (see Figure 1A) but without the sucrose CS. The withdrawal response to a weak tactile stimulus was tested 24 h after the training and compared with pre-training behavioral responses to the same weak tactile stimulus using quantitative analysis of videos that, unknown to the observer, were either from pre- or post-training animals. These experiments revealed that animals showed a significantly greater withdrawal 24 h after sensitization training compared to 1 h before training in response to the same weak tactile stimulus (Figures 4D and 4E, statistics in legend).

Discussion

Our results conform to the general model that behavioral responses to a sensory stimulus depend on the prior experience associated with this stimulus and we provide an interneuronal mechanism for it. Aversive conditioning in Lymnaea results in a selective impairment of the feeding response to sucrose, an innate feeding stimulus. Strong touches to the head provided the aversive unconditioned stimuli in the conditioning experiments because they trigger a defensive withdrawal response and inhibit feeding⁵. However, unless the sucrose CS is explicitly paired with multiple series of US to the head, there is no reversal of the feeding response to sucrose. Thus, unpaired application of the CS and US, the application of the CS or US alone and random application of head touch do not lead to long-lasting alteration of the innate feeding response (see Figure 1 and Figure S1). This provides evidence that the change in the response to sucrose depends on the explicit association with aversive stimuli so that the sucrose sensory stimulus now anticipates a long-lasting future danger to the animal, rather than food. Interestingly, when sensitization training with strong electric shocks to the body wall was used in Aplysia, it resulted in a persistent suppression of feeding behavior as well as a sensitized defensive response to a brief, mild current pulse to the tail¹⁰. Based on these previous findings we would have expected to see a suppressed feeding response in both the Paired and Unpaired groups of animals in our experiments. However, we only found a reduced feeding response after paired training indicating that aversive associative and non-associative training may have different effects on the neural circuits controlling the withdrawal and feeding network.

Our earlier work¹¹ on aversive classical conditioning of feeding in Lymnaea identified the PlB modulatory interneuron as a significant part of the feeding learning circuit involved in this type of associative learning. Isolated CNS preparations were made from animals aversively conditioned with L-serine, as the appetitive chemical CS and quinine as the aversive chemical US. Electrical stimulation of the CS chemosensory neurons in their lip nerve pathway to the CNS caused a significant increase in PlB firing rate compared with naive controls, and a reduced expression of fictive feeding cycles in motor neurones of the feeding circuit, i.e., an in vitro correlate of the behavioral conditioned response. Although this experiment showed in principle that PlB was involved in aversive associative conditioning, the role of strong tactile stimulation linked to the inhibition of feeding⁵ was not established. Therefore, in the present study we carried out an additional associative learning experiment where aversive tactile stimuli were used as the US. Application of sucrose (the CS) to the lips in semi-intact preparations from aversively conditioned animals increased PlB firing frequency and inhibited feeding via inhibitory synaptic connections with the interneurons and motoneurons of the feeding network⁴, whereas in preparations from control animals that received unpaired training or no training, the opposite happened: PlB firing frequency decreased and feeding was activated in response to the sucrose stimulus. The baseline membrane potential of PlBs from aversively trained PlBs is significantly more hyperpolarized than in PlBs from both unpaired and naive control animals resulting in a significantly lower rate of tonic spike activity and a corresponding increase in ingestion feeding movements. The hyperpolarization of the PlB is long-lasting (recorded at 24 h after aversive training) and not dependent on any sensory stimulation, so we assume that there must be a persistent change in the biophysical properties of the interneuron. However, we cannot rule out that this hyperpolarization is at least partially due to a persistent tonic inhibitory input from another, so far unidentified, neuron. The subsequent depolarization of PlB by sucrose application could be a rebound effect from the hyperpolarization due to aversive conditioning because in the control groups the hyperpolarization is significantly less. Although there is an indication of an increase in excitability resulting from artificial hyperpolarization of PlB in one of our previous studies⁵, this hypothesis needs to be tested by further electrophysiological experiments.

Although we ruled out RPeD12 as a source of enhanced excitatory input to PlB after training, there may be further associative changes elsewhere in the circuit, affecting the CS to PlB pathway presynaptically to PlB, which together with the intrinsic mechanisms, drive continuous spiking activity in PlB, sufficient to inhibit feeding behavior (Figure S2D). However, these competing hypotheses need to be tested in further experiments.

C. elegans provided a tractable nervous system that made it possible to identify an olfactory neuron (AWC) that is responsible for avoidance learning induced switching of behavioral responses to a food stimulus^{12, 13, 14}. Similar to C. elegans, Lymnaea also has a single cell type that is crucial for the switching between attraction (feeding) and avoidance (whole body withdrawal). However, in the case of Lymnaea, the decision is made by an interneuron (PlB) rather than a sensory neuron and importantly, its electrical properties can be altered by learning. Simultaneous recordings of intracellular activity from identified neurons of both the feeding and the withdrawal circuits revealed that increasing the firing frequency of the PlB neuron by positive current injection supressed the feeding network whereas reducing the firing by hyperpolarization led to the activation of feeding⁵. After aversive conditioning, the firing rate of the PlB increases in response to application of sucrose to the lips, demonstrating that the interneuron is capable of suppressing a strong innate behavioral response. Similar changes were observed in vertebrates where populations of inhibitory neurons in the NAc increased their firing rate after aversive conditioning causing the suppression of the feeding response¹⁵.

Extensive work on insects concentrated on identifying the molecular and neuronal mechanisms of odor aversion and attraction. These studies highlighted that neurons with related sensory receptors and similar projections to the olfactory bulb can generate opposing behaviors. Ablation experiments in Drosophila found that two higher order olfactory nuclei, the lateral horn and the mushroom body, mediate innate and learned odor responses, respectively^{16, 17, 18}.

In conclusion, two distinctly different models for behavioral switching have been identified, an interneuronal model based on extrinsic control of behavioral motor networks and a sensory model where modifications of the pathways involved in sensory processing are re-programmed to change the behavioral response. The extrinsic nature of a controlling interneuron is a positive feature because the target behavioral circuitry is not disabled and so other types of cogent sensory stimuli positive or negative could still be operational via different sensory pathways. The sensory model allows for targeted changes in neuronal pathways that code for specific sensory cues at different levels in the nervous system that process sensory information. Our example is an interesting case of the first model. It provides insights into the cellular and synaptic details of the way that inhibition mediates sensory switching. Our results suggest that that there is an important role for tonic inhibition in behavioral control of sensory responses and we suggest that it represents a general mechanism that is central to adaptive behavioral switching in other systems^19,20.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Chemicals, Peptides, and Recombinant Proteins
Sucrose	Thermo Fisher Scientific	CAS: 57-50-1
Protease Type XIV	Sigma-Aldrich	P5147
Lucifer Yellow dilithium salt	Sigma-Aldrich	L0259
Experimental Models: Organisms/Strains
Lymnaea stagnalis	University of Sussex	N/A
Deposited Data
		https://doi.org/10.25377/sussex.13664207
Software and Algorithms
ImageJ	NIH	https://imagej.nih.gov/ij/
Graphpad Prism version 9	Graphpad Software	https://www.graphpad.com/
pClamp version 8.2	Molecular Devices	https://www.moleculardevices.com/
Origin version 8.5	OriginLab	https://www.originlab.com/

Resource availability

Lead contact

Further information and requests should be directed to and will be fulfilled by the Lead Contact (Ildiko Kemenes; i.kemenes@sussex.ac.uk)

Materials availability

This study did not generate new unique reagents.

Data and code availability

Original data has been deposited to FigShare (https://doi.org/10.25377/sussex.13664207). This study did not generate any computer code.

Experimental model and subject details

In this study we used Lymnaea stagnalis from a laboratory-bred stock of adult (5-6 months old) snails. Animals were kept in groups in large holding tanks containing copper-free water at 20-21°C on a 12:12 h light-dark regime. The animals were fed lettuce three times and a vegetable-based fish food (Tetra-Phyll; TETRA Werke, Melle, Germany) twice a week. Before starting an experiment, animals were food-deprived for two days.

Method details

Multi-trial aversive classical conditioning

Snails were trained using a multi-trial aversive classical conditioning protocol in which the order of the two stimuli (touch and sucrose) originally used for reward conditioning^{19, 20, 21, 22, 23} was reversed and the concentration of sucrose was reduced while the intensity and number of tactile stimuli used in each trial was increased. Thus, in this paradigm, in each trial, 0.34% sucrose (final concentration in 100 mL copper-free water), the conditioning stimulus (CS), was paired with a series of seven aversive tactile stimuli, each serving as an unconditioned stimulus (US).

Before aversive training, the snails were placed individually into Petri dishes containing 95 mL of copper-free water for a 10 min acclimatization period, so that a low level of spontaneous rasping was reached in the novel environment²⁴. During each trial of the tactile classical conditioning protocol, the snails were first presented with the CS. After 15 s (when all the freely moving snails had started feeding in response to the presentation of sucrose), the first of a series of seven tactile stimuli was presented using a hand-held probe with a tip made of a toothpick. Each of the individual tactile stimuli delivered with the tooth-pick probe induced a very similar withdrawal response to what we saw when we used a 4 g Von Frey hair in a previous study⁵. The target zone on the lip structure was the median portion adjacent to the mouth parts including the leading edge of the lips as previously described by Staras et al.²². During the rest of the 2 min trial period, the procedure was repeated every 15 s so the time of overlap between the presence of the CS and the delivery of the seven tactile stimuli was 90 s during a 120 s-long application of the CS. The pairing of sucrose with a series of a total of 7 tactile stimuli constituted one trial. After each trial, the animals were rinsed in a clean water tank to remove any residual sucrose before they were placed back into their home tank. There was a total of five trials with a 60 min intertrial interval (ITI) (Figure 1A). For explicitly unpaired control, the snails also received five trials with a 60 min ITI. Each unpaired trial consisted of the presentation of the CS and a series of 7 aversive tactile US delivered at 15 s intervals, with 10 min intervals between the start of the application of the CS and the first tactile stimulus, in contrast to the 15 s intervals used in the paired training protocol. Similar to the paired training protocol, the snails were placed individually into Petri dishes for a 10 min acclimatization period and presented with the CS in the 0.34% final concentration, but this was not followed by the presentation of the series of US. After a 2 min period, the animals were transferred to another Petri dish (100 mL copper-free water) for 10 min, after which the US was presented 7 times with 15 s intervals. Thereafter, the animals were put back into their home tank. CS tests were performed both before and after paired and unpaired training (Figure 1A).

To test the possibility of non-associative learning influencing the post-training response to sucrose, we used three further control groups of animals. A CS alone group of animals only received 5 applications of the CS, whereas a US alone group only received 5 series of 7 tactile stimuli each, following the same temporal pattern as the CS and US applications, respectively, in the CS+US paired group. Finally, a random US alone control group received the same number (5) of series of 7 tactile stimuli as the paired and unpaired group but at random intervals.

Twenty-four h after the first trial, individual snails were taken from their home tanks using a blind procedure and placed in Petri dishes for testing the response to the CS. After a 10 min acclimatization period, rasps were counted for 2 min (i.e., spontaneous rasping in water). Sucrose was then applied, and rasps were counted for a further 2 min (i.e., the feeding response to the sucrose CS). For testing the integrity of the feeding network of trained animals as well as the stimulus specificity of the conditioned response after aversive training with sucrose and strong touch, an additional control experiment was performed. In this experiment the number of rasps was counted after presenting filtered cucumber juice to the animals as a feeding stimulus other than sucrose.

Two naive control groups of animals were also used in the experiments; both of these groups were kept in the same general conditions as the experimental ones. Animals in one of these groups (Naive 1) were only tested once with the CS at the same time when the experimental groups were tested 24 h after the paired or unpaired training. Animals in a second group (Naive 2) were tested with the CS both 1 h before and 24 h after the trials commenced in the other groups. A detailed comparison of all the training paradigms is shown in Figure S1.

Sensitization training

The pre-training treatment of the snails (n = 24) in this experiment was the same as described for the aversive conditioning experiment. However, in the pre-training test, the animals were presented with a weak tactile stimulus to the right tentacle using a hand-held probe with a tip made of a thin wedge of soft, flexible plastic²², while their behavior was recorded by the video camera of an Apple iPhone 6S+.

During the 2-min training periods, the same strong serial tactile stimulation to the lip region that was used as the US in the aversive training protocol, was repeated every 15 s in each trial, but in the absence of the sucrose CS. After this, the animals were placed back into the home tank. Sixty minutes after the first trial, the animals received a second US only training trial followed by three more trials at 60 min intervals.

After 24 h, individual snails were taken for testing from their home tanks and placed in Petri dishes. After a 10-min acclimatization period, the same weak tactile stimulation that was used in the pre-tests was applied to the lip region of the animals while they were being videoed. The pre- and post-training video clips were randomized for blind quantitative analysis and the total area of the head/foot complex was measured 1 s before the stimulus and at 6 time points after the stimulus (0.5 s, 1 s, 1.5 s, 2 s, 2.5 s and 3 s) in each video clip using ImageJ software. The head/foot area was normalized to the before stimulus condition to compare changes induced by the weak test stimulus. A reduced area therefore represented a withdrawal response of the head/foot complex to the tactile stimulus and the size of this response was compared between the before sensitization and after sensitization time points.

Preparations for electrophysiology

Experiments were performed on semi-intact preparations containing the entire CNS and attached sensory regions (lips and tentacles)^5,22,25,26. A modified semi-intact preparation, containing the buccal mass, the main feeding muscle, was used to measure rhythmic contractions induced or inhibited by sucrose.

Transducer recordings

Rhythmic buccal mass contractions in the preparations were activated or inhibited by sucrose (0.02 mM in normal saline) applied to the lips via a computer-controlled gravity-fed perfusion system. At the systems level, the sucrose induced responses were observed both on the buccal mass and on the feeding motoneurons (B3 or B4) confirming that they were generated by the feeding network. The buccal mass was attached to a force transducer (WPI FORT10 g, World Precision Instruments, Incorporation, Sarasota, USA). Muscle recordings were made by connecting the force transducer through a DigiData 1320A interface (Axon Instruments, Union City, CA, USA) to a PC.

Electrophysiology recordings

Preparations were dissected and neurons recorded in a Sylgard-lined chamber containing normal snail saline (50 mM NaCl, 1.6 mM KCl, 3.5 mM CaCl₂, 2.0 mM MgCl₂, 10 mM HEPES, pH 7.9). The outer layer of the thick connective tissue sheath was removed mechanically from the dorsal surface of ganglia and the inner layers were softened by 1% protease treatment (Sigma XIV, Sigma) for 2 min.

Intracellular recordings were performed under a stereomicroscope (Leica MZ FLIII, Switzerland). AxoClamp 2B (Axon Instruments, Union City, CA, USA) and NeuroLog D.C. (Digitimer Ltd., UK) amplifiers were used to monitor the electrical activity of identified neurons. Membrane potential (MP) manipulation was carried out by current injection through the recording electrode. Microelectrodes were pulled from borosilicate glass pipettes (GC200F-15, Harvard Apparatus, UK) with Narishige (Narishige Scientific Instrument Laboratory, Japan) vertical puller to a 15–20 MΩ tip resistance when filled with 4 M potassium acetate. For data acquisition and protocols, the amplifiers were connected via a DigiData 1320A interface (Axon Instruments, Union City, CA, USA) to a PC supplied with pClamp8.2 software (Axon Instruments, Union City, CA, USA). The recorded traces were analyzed by OriginLab Corporation Origin 8.5 software.

Identification of neurons

The left and right B3 feeding motoneurons of the buccal ganglia were mainly used to monitor the central pattern generator (CPG)-driven fictive feeding rhythm. In some experiments B4 feeding motoneurons of the buccal ganglia were recorded to confirm the occurrence of feeding cycles. Both types of neuron can be identified by size, location and characteristic fictive feeding activity^7,25,27.

The PlB (Pleural-Buccal) neuron is an extrinsic modulatory interneuron that inhibits the feeding network⁴. It is a small neuron (20-30 μm cell body diameter) that lies on the medial surface of the pleural ganglion close to the pleural-pedal connective^4,5. It shows characteristic tonic firing activity and its identification is confirmed by recording inhibitory synaptic responses on feeding neurons.

PeD12 is a recently described interneuron (60 μm in cell body diameter) of the whole-body withdrawal network and its artificial stimulation excites the PlB monosynaptically causing inhibition of ongoing feeding⁵. It lies close to the previously described PeD11²⁸ on the dorsal surface of the pedal ganglia close to the statocyst.

Dye-injection and photoinactivation

To photoinactivate the PlB cells, they were filled with the fluorescent dye Lucifer Yellow dilithium salt (10 mM, Sigma, UK). After identification of PlB, the dye was loaded into the cell bodies from the recording microelectrode by a 10 ms and 5-8 psi pulse of a multi-channel picospritzer (General Valve Corporation, New Jersey, USA). The loaded PlB cells were photoinactivated by continuous high- energy UV flash lamp pulses using a JML-C2 (Rapp OptoElectronic, Hamburg, Germany). During photoinactivation, 1000 μs (C3 capacitor mode) 180-200 J energy pulses were used for up to 8 min. The JML-C2 was triggered by an external TTL signal. The membrane potential of PlB was monitored continuously during the flash photolysis procedure by pClamp8.2 software (Axon Instruments, Union City, CA, USA).

Quantification and statistical analysis

All the behavioral and electrophysiological data passed the Kolmogorov-Smirnov test for normality and therefore parametric statistical tests were used. In both the behavioral and in vitro experiments comparisons between more than two independent groups (e.g., naive, unpaired, trained) were carried out using ANOVA followed by multiple post hoc Tukey’s tests. When comparing only two independent samples, unpaired t tests were used. When comparing two sets of data obtained under different conditions from the same group of animals, paired t tests were used. When comparing time-dependent changes in the same group of animals under two different conditions, a two-way ANOVA with RM (repeated-measures) was used, followed by paired t tests. All statistical analyses were carried out using Prism (GraphPad) software. The differences were considered statistically significant at p < 0.05. Group numbers and details of the statistical tests can be found in the figure legends.

Published: February 10, 2021
