Simultaneous profiling of Arabidopsis thaliana and Vibrio vulnificus MO6-24/O transcriptomes by dual RNA-seq analysis

Graphical abstract

Abstract

We previously demonstrated that a marine bacterial pathogen Vibrio vulnificus isolated from sea foods modulated gene expression levels and defense responses of a land plant Arabidopsis thaliana. Although the interaction between V. vulnificus and A. thaliana was verified under artificial and greenhouse conditions, the simultaneous changes in host and pathogen transcriptomes remained obscure. In this study, we simultaneously analyzed the transcriptome of V. vulnificus MO6-24/O and A. thaliana by dual RNA-sequencing analysis. Disease symptoms appeared at 5 and 7 days post-inoculation in vitro and post-infiltration in planta, respectively. A total of 31, 128, 303, 219, and 130 differentially expressed genes (DEGs) were identified in V. vulnificus MO6-24/O at 3, 6, 12, 24, and 48 h post-infiltration. Out of these, 14 genes involved in the virulence and pathogenicity of V. vulnificus MO6 were characterized. These genes were clustered into six categories, including adherence, antiphagocytosis, chemotaxis and motility, iron uptake, toxin and secretion system. In plant side, the bacterium DEGs potentially played a pivotal role in activating pattern recognition receptors (PRRs)-mediated defense responses. A. thaliana genes related to PRRs, reactive oxygen species burst, mitogen-activated protein kinase cascade induction, salicylic acid, jasmonic acid, ethylene, abscisic acid, auxin, gibberellin, and cytokinin were highly induced by V. vulnificus MO6-24/O challenge. Taken together, our results indicate that the sophisticated communication between a marine bacterial pathogen V. vulnificus and A. thaliana occurs. It is the first report demonstration that V. vulnificus actively modulates its virulence factors and potential host immune regulator in a land plant species.

1. Introduction

Vibrio vulnificus is a Gram-negative bacterium belonging to the Vibrionaceae family and is found in warm coastal areas at temperatures ranging from 9 to 31 °C [1]. Vibrio species including V. vulnificus, V. cholera, and V. parahemolyticus causes severe diseases including cholera, gastroenteritis, eye and ear infection, and sepsis in human and livestock [2], [3]. Transcript profiles of five human pathogenic strains of V. vulnificus indicate that genes encoding the RtxA1 bacterial toxin, flagellar components, Flp-coding region, the GGDEF family protein, iron acquisition system proteins and sialic acid metabolic proteins play a role in the virulence of V. vulnificus [4]. In addition, RNA-seq analyses demonstrate that Vibrio species modulate the first layer of innate immunity of diverse hosts including fish and human, resulting in induction of toll-like receptors, RIG-like receptor, antioxidant genes, and NF-kB signaling genes [5], [6], [7]. Besides animal infection by Vibrio species, V. vulnificus also infects the land plant Arabidopsis thaliana under favorable conditions and regulates plant defense responses [8]. Although RNA-seq has been widely used to study the transcriptome of Vibrio species and its hosts including human, fish, and plants, the simultaneous spatiotemporal dynamics of the pathogen and host plant remains largely unknown.

Gene expression analyses can provide useful clues for understanding the molecular mechanisms underlying certain diseases and host–pathogen interactions, including Vibrio–plant interactions, and most of the new techniques used to quantify mRNA levels are based on polymerase chain reaction (PCR), first developed in 1984, such as quantitative PCR (qPCR), microarrays and RNA-sequencing (RNA-seq) [9], [10]. Among these methods, RNA-seq, which was developed more than a decade ago, has been used extensively to analyze gene expression under different conditions [10]. To date, RNA-seq analysis has been used to determine differential gene expression between different tissues in maize (Zea mays), A. thaliana, yeast (Saccharomyces cerevisiae), mouse (Mus musculus), and human (Homo sapiens) [11], [12], [13], [14], [15], [16], and to examine mRNA splicing and gene regulation by non-coding RNAs and enhancer RNAs [17], [18], [19], [20].

More recently, dual RNA-seq has been used to study gene expression and quantify mRNAs in both the host and its interacting pathogen simultaneously [21]. The first dual RNA-seq was performed in Candida albicans (animal pathogenic fungus) and mouse [22]. However, this study demonstrates closely related with computational model of host–pathogen interaction. To date, dual RNA-seq analysis has been used to study host–virus and host–parasites including bacteria and fungi interactions by high resolution techniques [23], [24], [25], [26], [27]. Although dual RNA-seq analysis of bacteria and their eukaryotic host is relatively difficult because the transcriptomic structure and numbers of prokaryotes is quite different from that of eukaryotes [21], dual RNA-seq is normally unique platform to understand microbial nature during host infection stages.

In this study, we performed dual RNA-seq analysis of V. vulnificus MO6-24/O (hereafter referred to as Vv MO6) during A. thaliana leaf infection. In vitro and in planta assays demonstrated that Vv MO6 caused disease symptoms in A. thaliana, and the population of Vv MO6 was 10–15-fold higher in Vv MO6 infiltrated A. thaliana leaf sample than in uninfected control plants [10% phosphate-buffered saline (PBS)]. The results of dual RNA-seq analysis revealed that Vv MO6 genes grouped in six categories, including adherence, antiphagocytosis, chemotaxis and motility, iron uptake, toxin, and secretion system. These genes were characterized for their potential ability to activate common pattern recognized receptors (PRRs) and plant immunity. In addition, plant genes involved in pathways mediated by defense hormones, including salicylic acid (SA), jasmonic acid (JA), and ethylene (ET), as well as abscisic acid (ABA)-, gibberellin (GA)-, auxin-, and cytokinin (CK)-dependent pathways were up-regulated at all tested time points compared with the negative control. Our results prove that gene expression profile of a marine pathogenic bacterium Vv MO6 and a land plant A. thaliana can be simultaneously analyzed from Vv MO6 infected A. thaliana under favorable conditions.

2. Materials and methods

2.1. Plant material and growth conditions

A. thaliana ecotype Columbia (Col-0) seeds were sterilized and germinated on half-strength of Murashige and Skoog (1/2 MS) medium, as described previously [8]. The germinated seeds were transferred to new growth media to prevent any contamination and incubated until needed for further experiments. The media composition and growth chamber conditions were the same as those reported previously [8].

To conduct in planta assays, Col-0, fls2, efr1, and fls2/efr1 seeds were sown in soilless potting media (Punong, Gyeongju, South Korea), and seedlings were grown and incubated as described previously [8].

2.2. Analysis of disease severity and population density in vitro

Disease severity was examined as described previously [8]. Briefly, sterilized Col-0 seeds were grown on half-strength Murashige and Skoog (0.5x MS) medium supplemented with 3% sucrose and 0.6% plant agar and incubated in a growth chamber at 24 ± 2 °C under a 12 h light/12 h dark photoperiod for 3 days and germinated seeds were transferred to new medium for two weeks. Suspension cultures of bacterial pathogens, Vv MO6 and Pseudomonas syringae pv. tomato DC3000 (Pto DC3000; a positive control), were prepared, and their optical density was measured at 600 nm (OD₆₀₀). Three to four leaves of Col-0 plants were drop-inoculated with Vv MO6 (OD₆₀₀ = 2.0), Pto DC3000 (OD₆₀₀ = 1.0) or 10% phosphate-buffered saline (PBS; a negative control) (Bioneer, Daejeon, South Korea). Disease severity was evaluated with ten plants per treatment at 5 days post-inoculation (dpi) [28]. The results were repeated at least 2–3 times.

To determine pathogen density in vitro, three to four leaves of 2-week-old Col-0 plants were drop-inoculated with Vv MO6 and Pto DC3000 for 5 dpi, harvested, homogenized, spread on LB agar medium containing 2% NaCl and 5 ug/ml rifampicin and LB agar medium containing 5 ug/ml rifampicin, respectively, and incubated at 30 °C for 2 days. Bacterial colonies were counted at 2 days after incubation. Vv MO6 and Pto DC3000 previously generated spontaneous resistance against rifampicin. The results were repeated at least 2–3 times.

2.3. Population density in planta

The population density of bacterial pathogens in planta was determined as described previously [8]. Briefly, suspensions of Vv MO6 (OD₆₀₀ = 1.0) and Pto DC3000 (OD₆₀₀ = 0.1) were infiltrated into the three to four leaves of 3-week-old Col-0, fls2, efr1, fls2/efr1, NahG, sid2, npr1, jar1, and etr1 plants (n = 10), and bacterial cells were counted at 3, 4, and 7 dpi. The infiltrated leaves were homogenized, resuspended in 10% PBS, spread on LB agar medium containing 2% NaCl and 5 ug/ml rifampicin, and incubated at 30 °C for 2 day. The results were repeated at least 2–3 times.

2.4. Total RNA extraction, qRT-PCR, and RNA-seq library construction and massively parallel sequencing

Leaves of 3-week-old Col-0 plants were infiltrated with Vv MO6 suspension (OD₆₀₀ = 1.0) and 10% PBS (negative control) and infiltrated leaves were harvested at 0, 3, 6, 12, 24, and 48 h post-infiltration (hpi). Three to four leaves were harvested in each plant and at least 20 plants were used for each treatment at each time point in two independent experiment. The harvested leaves were finely ground in liquid nitrogen using a mortar and pestle. Total RNA was extracted from approximately 100 mg of the powdered tissue using the RNeasy Plus Mini Kit, according to the manufacturer’s instructions (Qiagen, CA, USA). The quality of total RNA was analyzed by agarose gel electrophoresis and with a Nanodrop spectrophotometer (Nanodrop Technologies, Inc., DE, USA). First strand cDNA was synthesized using 2 ug total RNA, oligo-dT primer, random hexamer, dNTPs and Moloney murine leukaemia virus reverse transcriptase (M-MLV RT, enzynomics, Daejeon, South Korea. qRT-PCR was conducted using a Chromo4 Real-Time PCR System (Bio-RAD, CA, USA). Mixture contained 2x Brilliant SYBR Green Supermix (Bio-RAD, CA, USA), cDNA and 0.5 uM gene specific primer sets. The reactions were run using the following conditions: denaturation at 95 °C for 3 min, followed by 49 cycles of denaturation at 95 °C for 10 sec, annealing at 60 °C for 10 sec, and extension at 72 °C for 20 sec. Primer sets used in this study were listed in Supplementary Table 1.

The RNA-seq library was constructed using TruSeq Stranded Total RNA LT (with Ribo-Zero Plant) Set A (Illumina, CA, USA), according to the manufacturer’s instructions. The constructed dual RNA-seq library was sequenced on the Illumina HiSeq 2000 platform (Illumina, CA, USA) at the Korea Research Institute of Bioscience & Biotechnology (KRIBB), Daejeon, South Korea. The RNA-seq data were deposited in the NCBI Gene Expression Omnibus (GEO) public database under the accession number GSE159018.

2.5. Preprocessing and short read mapping

Illumina adapter sequences were removed from the sequence reads using cutadapt [29], and the preprocessing of reads was subsequently performed using DynamicTrim and LengthSort of the SolexaQA package [30]. The mean length of trimmed reads was 88.08 bp across all samples (minimum length = 25 bp). The trimmed reads were mapped to the reference genomes of A. thaliana (Araport) and V. vulnificus MO6-24/O (NCBI genome assembly accession no.: GCA_000186585.1) using the spliced-aware mapping algorithm implemented in HISAT2 (v2.1.0) [31]. Subsequently, the number of clean reads for each gene were counted using HTSeq (v. 0.11.0) [32]. To avoid bias due to differences in coverage depth among genes, the number of clean reads was normalized using the DESeq package in R [33].

2.6. Gene expression and hierarchical clustering analyses

Differentially expressed genes (DEGs) between samples were identified based on the fold change in gene expression and binomial test. False discovery rate (FDR), calculated using DESeq, was used as the threshold along with the p-value. Fold change was the ratio between normalized counts of treatment and normalized counts of control and p value adjusted for multiple testing with the Benjamini-Hochberg procedure. Correlation and hierarchical clustering analyses were performed using the AMAP library (version 0.8–14) and gplots (version 2.16.0).

2.7. Prediction of metabolic pathways

All DEGs were annotated by Gene Ontology (GO), [34], Kyoto Encyclopedia of Genes and Genomes (KEGG), and PATHVIEW analyses with Araport GO annotations. The number of GO terms and KEGG pathways in A. thaliana was assessed using in-house scripts (SEEDERS Inc., Daejeon, South Korea).

2.8. Statistical analysis

Analysis of variance (ANOVA) of the data was performed using the JMP software (version 5.0; SAS Institute, Cary, NC, USA). The significance of differences was determined based on the magnitude of the F-value (P < 0.05).

3. Results and discussion

3.1. Vv MO6 and A. thaliana interact both in vivo and in vitro

A marine bacterial pathogen, V. vulnificus, causes disease in the land plant A. thaliana under favorable conditions [8], suggesting that V. vulnificus affects expression levels of genes related with host defense responses. However, the mechanisms employed by V. vulnificus to modulate the host immunity remained unclear. In this study, we analyzed the transcriptomes of V. vulnificus and A. thaliana by dual RNA-seq analysis during their interaction. To optimize the conditions for host–pathogen interaction and to assess disease symptom in plants, leaves of A. thaliana plants were drop-inoculated with Vv MO6 or Pto DC3000 (positive control) in vitro and incubated for 5 days. After 5 days of incubation, plants inoculated with Vv MO6 and Pto DC3000 displayed disease symptoms, whereas uninoculated plants (mock) and plants inoculated with 10% PBS (negative control) showed no symptoms (Fig. 1A).

Fig. 1.

Vibrio vulnificus MO6-24/O (Vv MO6) and A. thaliana interact both in vivo and in vitro. (A) Assessment of disease severity in A. thaliana plants upon drop-inoculation with Vv MO6, Pseudomonas syringae pv. tomato (Pto) DC3000 (positive control) or 10% PBS (negative control). Photos were taken at 5 days post-inoculation (dpi), and disease symptoms were observed in by Vv MO6-inoculated plants. (B) Quantification of the population density of Vv MO6 in A. thaliana leaves. Approximately 15-fold higher population density was observed at 5 days after drop-inoculation in vitro and 7 days after infiltration in planta.

To confirm that the disease symptoms caused by Vv MO6 or Pto DC3000, we quantified the population density of the pathogens on leaves drop-inoculated in vitro. The inoculated leaves were harvested, homogenized and plated on LB agar medium supplemented with 2% NaCl and 50 µg/ml rifampicin (for Vv MO6-inoculated leaves) or with only 50 µg/ml rifampicin (for Pto DC3000-inoculated leaves). The population density of Vv MO6 and Pto DC3000 at 5 dpi was approximately 10- and 15-fold higher, respectively, than that at 0 dpi (Fig. 1B, left panel). To verify these results in planta, leaves of 3-week-old soil-grown A. thaliana plants were infiltrated with the Vv MO6 suspension, and the population density of Vv MO6 was quantified with culturable bacterium number on the media (Fig. 1B, right panel). The results obtained were consistent with the in vitro assay (Fig. 1B, right panel). Taken together, our results suggest that Vv MO6 causes disease in A. thaliana under tested conditions.

In fact, Vv MO6 originated from a patient who demonstrated seafood contamination-associated illness, whereas V. vulnificus 96-11-17M was obtained from the environmental sample [35]. The virulence and pathogenicity levels were similar between Vv MO6 and V. vulnificus 96-11-17M (data not shown). We hypothesized that a human pathogenic strain Vv MO6 well-adapted to host compared to an environmental strain V. vulnificus 96-11-17M. Therefore, we chose and tested Vv MO6 in this study. Thus, regardless of the origin, V. vulnificus strains cause disease in A. thaliana. This suggests that the virulence and pathogenicity of Vibrio species may be dependent on the conditions of the inoculated or infiltrated plant host. This is supported by the accumulating evidence showing that virulence and pathogenicity of V. vulnificus depend on the acidification, salinity, and carbon dioxide (CO₂) levels in the host [36], [37], [38].

3.2. Gene expression profiles of Vv MO6 in A. thaliana

To demonstrate that Vv MO6 modulates host immunity, we investigated gene expression levels of Vv MO6 in A. thaliana leaves at 0, 3, 6, 12, 24 and 48 h post-infiltration (hpi). The expression levels of Vv MO6 genes 3, 6, 12, 24 and 48 hpi were normalized relative to those at the 0 h time point. A total of 4,470 Vv MO6 genes were analyzed by RNA-seq, of which 4,344 were functionally annotated. The trimmed reads, which get rid of A. thaliana sequences, were mapped on to the Vv MO6 reference genome (https://www.ncbi.nlm.nih.gov/genome/189?genome_assembly_id=165751), with an average mapping rate of 7.8% across six time points and 12 samples. The correlation coefficients of Vv MO6-infiltrated replicates were very high (range: 0.92–0.97), suggesting that no variation was present among replicates (Supplementary Fig. 1).

Compared with the 0 h time point, a total of 31, 128, 303, 219, and 130 genes were differentially expressed at 3, 6, 12, 24, and 48 hpi, respectively (Table 1) and overlapping DEGs were presented at indicated time points (Supplementary Fig. 2). Among these DEGs, the top ten up- and down-regulated genes were characterized (Supplementary Tables 2–6). Based on their characterization at each time point, the DEGs were classified into four independent clusters by unsupervised hierarchical clustering analysis (Fig. 2A). Of these, approximately 92.5% (371) genes were classified into clusters 1 and 2. According to line plot analyses, genes in clusters 1 and 2 were up-regulated and down-regulated, respectively, at all time points tested (Fig. 2B). Genes in cluster 3 genes were specifically up-regulated at 12 and 24 h, while those in cluster 4 showed mixed expression patterns (i.e., down-regulated at 3, 6 and 48 h but up-regulated at 12 and 24 h) (Fig. 2B). Eight genes belonged to cluster 1 were validated using real-time reverse transcription-PCR (qRT-PCR) and these gene were highly upregulated compared to 0 h control (Supplementary Fig. 3).

Table 1.

Number of genes differentially expressed in Vibrio vulnificus MO6-24/O (Vv MO6) upon the infection of Arabidopsis thaliana plants at the indicated time points.

Comparison	Total number of DEGsa	Number of up-regulated DEGs	Number of down-regulated DEGs
0 h vs. 3 h	31	25	6
0 h vs. 6 h	128	80	48
0 h vs. 12 h	303	166	137
0 h vs. 24 h	219	128	91
0 h vs. 48 h	130	77	55

^aDEGs, differentially expressed genes showing at least 2-fold difference in expression between treatments at the same time point.

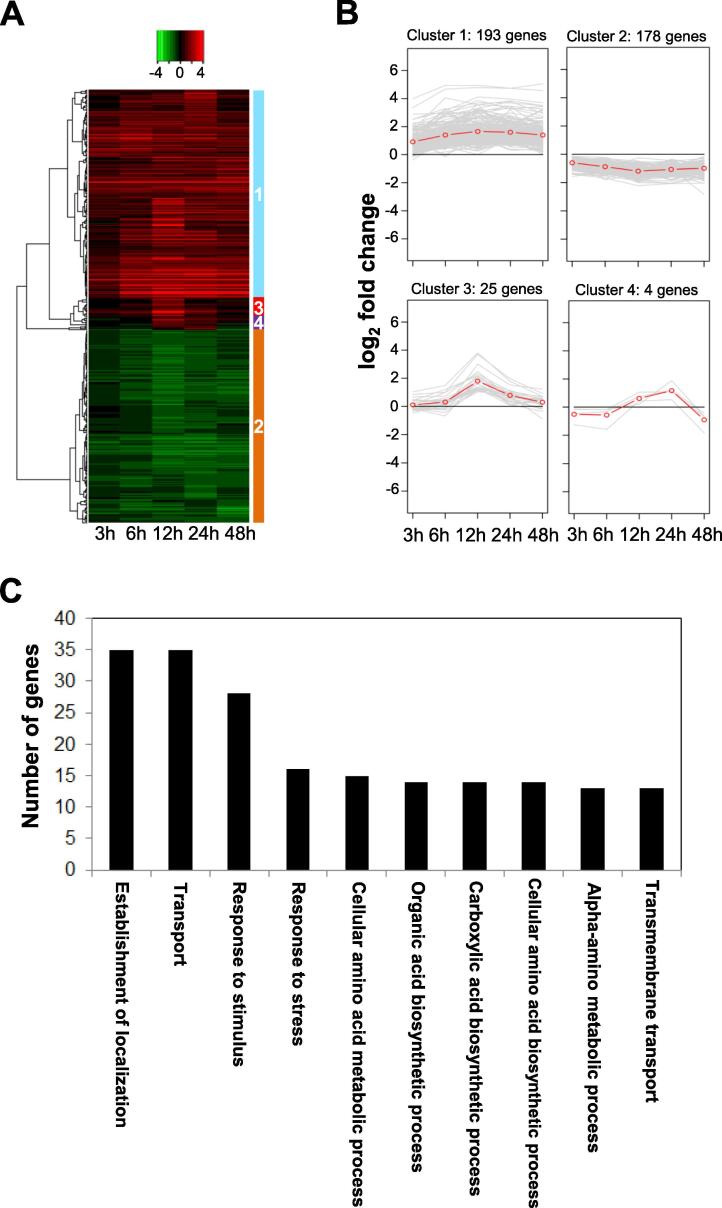

Fig. 2.

Expression analysis of Vv MO6 genes in infiltrated A. thaliana leaves. (A) A total of 811 differentially expressed genes (DEGs) of Vv MO6 were selected at 3, 6, 12, 24, and 48 h post-infiltration (hpi). Heat map analysis shows four independent clusters determined by unsupervised hierarchical analysis. Red and green colors indicate high and low expression levels, respectively. (B) Line plot analysis of the relative expression patterns of Vv MO6 genes at different time points. Most of the 400 clustered genes belonged to clusters 1 and 2. Red line indicates the mean expression of all genes at each time point. (C) Gene Ontology (GO) analysis of DEGs of Vv MO6. Genes in cluster 1 were enriched in the biological process GO category and were mainly involved in establishment of localization, transport, response to stimulus, and response to stress. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Next, to predict the potential functions of genes in these four clusters, we performed GO enrichment analysis. Expression patterns of cluster 1 and 2 genes exhibited a contradictory mode, which hypothesized us that the patterns of biological process in between cluster 1 and 2 genes were highly different from each other. Genes in cluster 1 contributed to a total of 36 types of biological processes, including the establishment of localization, transport, response to stimulus and response to stress (Fig. 2C). Interestingly, although cluster 2 contained 178 genes, almost no biological process term was enriched among these genes (Supplementary Fig. 4).

Although we proved and verified that Vv MO6 causes disease symptom in A. thaliana in our previous study, the underlying molecular mechanism was not elucidated. The notion was somehow addressed in the current study based on the following results: 1) Vv MO6 and A. thaliana sequences were detected by RNA-seq; 2) a total of 811 DEGs were identified in Vv MO6 during the infection of A. thaliana; 3) the specific metabolic pathways of clustered genes were predicted and annotated by GO and KEGG analyses; and 4) the total transcripts of Vv MO6 were precisely detected and analyzed from A. thaliana plants. These results indicate that disease symptoms in A. thaliana were caused by Vv MO6, which is the first evidence in this field. Interestingly, unlike cluster 2 genes (down-regulated at all time points), cluster 1 genes (up-regulated at all time points) were involved in a variety of biological processes. This suggests that up-regulation of genes is required for inducing disease symptoms and modulating defense responses in A. thaliana. However, it may be still unclear how Vv MO6 regulates acidification, salinity, and CO₂ levels to survive and maintain its virulence and pathogenicity in plant host [36], [37], [38], [39], [40], [41]. Therefore, if we analyzed genes involved in controlling the growth conditions of Vv MO6 or encoding its virulence and pathogenicity factors, the potential mechanisms of Vv MO6-induced disease in A. thaliana should be predictable.

3.3. Virulence and pathogenicity-associated Vv MO6 genes are up-regulated during the infection of A. thaliana

To determine how Vv MO6 survived and caused disease in A. thaliana, we screened the DEGs encoding virulence factors by tblastn (E-value ≤ 1e-10; identity ≥ 95%). The identified candidate genes were grouped into six categories: adherence, antiphagocytosis, chemotaxis and motility, iron uptake, secretion system, and toxin [42]. Of these, 14 candidate genes were characterized (Table 2). Three mannose-sensitive hemagglutinin (MSHA) biogenesis protein genes, mshE, mshM, and mshN, were up-regulated at 12 hpi. Antiphagocytosis-associated genes were broadly up-regulated at most time points. Among chemotaxis and motility genes, only the flagellar biosynthesis gene, fliR, was constantly up-regulated at all time points. The flagellar forming proteins (flagellins) are important pathogen-associated molecular pattern (PAMP) molecules for activating PAMP-triggered immunity (PTI) in plant and human [43]. In addition, the heme transport gene hutR was up-regulated at 6 hpi, and two RTX toxin-encoding gene rtxD and two type II secretion system component-encoding genes (epsE and epsJ) were slightly up-regulated in comparison with other genes (Table 2). These results suggest that the abovementioned genes play a key role in the virulence of Vv MO6, and function as modulators of plant immunity in A. thaliana. However, we do not conclude how toxins and secretion system of Vv MO6 regulate plant immune responses, resulting symptom development and increases of plant susceptibility.

Table 2.

Virulence and pathogenicity factor related genes of Vv MO6 showing differential expression at indicated time points.

Category	Subcategory	Gene name	Gene description	Log2 (fold change)
				3 h	6 h	12 h	24 h	48 h
Adherence	Mannose-sensitive hemagglutinin (MSHA type IV pilus)	mshE	MSHA biogenesis protein MshE			1.33		1.10
Adherence	Mannose-sensitive hemagglutinin (MSHA type IV pilus)	mshM	MSHA biogenesis protein MshM			1.30
Adherence	Mannose-sensitive hemagglutinin (MSHA type IV pilus)	mshN	MSHA biogenesis protein MshN			1.54
Antiphagocytosis	Capsular polysaccharide	cpsC	Polysaccharide export protein	2.35	1.61	1.58	1.29	1.02
Antiphagocytosis	Capsular polysaccharide	cpsI	Glycosyltransferase	2.00		1.40
Antiphagocytosis	Capsular polysaccharide	wbfV/wcvB	UDP-glucose 6-dehydrogenase		1.41	1.38	1.19	1.42
Chemotaxis and motility	Flagella	flhB	Flagellar biosynthesis protein		1.13	1.34		1.29
Chemotaxis and motility	Flagella	fliQ	Flagellar biosynthesis protein			1.27	1.20	1.50
Chemotaxis and motility	Flagella	fliR	Flagellar biosynthesis protein		1.38	1.72	1.47	1.69
Chemotaxis and motility	Flagella	flgL	Flagellar hook-associated protein				1.06	1.06
Iron uptake	Heme receptors	hutR	Heme transport protein		1.30
Toxin	RTX toxin	rtxD	RTX toxin transporter		1.01		1.16	1.61
Secretion system	EPS type II secretion system	epsE	Type II secretory pathway, ATPase EpsE			1.17
Secretion system	EPS type II secretion system	epsJ	Type II secretory pathway, component EpsJ			1.10

The mshA gene, which is highly identical to mshE, mshM, and mshN, encodes a type IV pilus subunit protein and is involved in the adhesion of Vibrio parahaemolyticus to its host [39], [40]. The expression level of mshA is reduced under aerobic conditions, resulting in decreased adhesion of V. parahaemolyticus to the host. This is because the decreased expression level of mshA inhibits the expression of cpsA and cpsC, which are involved in capsular polysaccharide (CPS) production and transportation, thus decreasing adhesion and biofilm formation in V. parahaemolyticus [41]. Our results indicated that up-regulation of msh genes and cpsC stimulated biofilm formation in Vv MO6 and enhanced its ability to adhere to A. thaliana, thus causing disease.

Previous evidence revealed that when Vibrio species infect animal hosts, the up-regulation of genes encoding toll-like receptors, RIG-like receptor, antioxidants and NF-kB signaling proteins was enhanced by the activation of innate immunity in the host cells [5], [6], [7]. These results suggest that Vibrio-mediated signals could be perceived by the membrane receptors of the host, and their signals may activate the downstream intracellular signaling pathways. Therefore, to understand Vv MO6–A. thaliana interactions, it is important to investigate the expression patterns of A. thaliana genes in response to Vv MO6 infection and to determine the role of certain receptor-mediated pathways and downstream defense responses.

3.4. Vv MO6 infection alters the expression levels of A. thaliana genes

To obtain molecular evidence supporting the notion that Vv MO6 modulates A. thaliana immunity, we analyzed the transcriptome of A. thaliana plants infiltrated with Vv MO6 or 10% PBS (negative control) at 3, 6, 12, 24, and 48 hpi. The relative expression levels of A. thaliana genes were quantified after Vv MO6 infiltration and compared with the negative control at the indicated time points. A total of 27,655 A. thaliana genes were used in this analysis, of which 21,662 were affected by Vv MO6 infiltration and annotated. In addition, trimmed reads corresponding to these genes were mapped on to the reference genome of A. thaliana (https://www.araport.org), with an average mapping rate of 92% across 20 samples. The correlation coefficients of replicates were very high (range: 0.98–0.99), indicating that no variation among replicates (Supplementary Fig. 5).

Comparison between Vv MO6-infiltrated and 10% PBS-infiltrated A. thaliana plants revealed 2,097, 1,839, 1,220, 1,170, and 1,383 DEGs at 3, 6, 12, 24, and 48 hpi, respectively (Table 3), and overlapping DEGs were presented at indicated time points (Supplementary Fig. 6). Among these, the identity, description and expression fold-change of the top 20 up- and down-regulated genes are listed in Supplementary Tables 7–11. These DEGs were classified into six independent groups by unsupervised hierarchical clustering analysis (Fig. 3A). Approximately 80% (3,692) of these genes were grouped in clusters 1 and 2. Line plot analysis revealed that cluster 1 genes were up-regulated at each time point after Vv MO6 infiltration, whereas cluster 2 genes were down-regulated post infiltration (Fig. 3B). Cluster 3 and 5 genes were not affected by Vv MO6 infiltration at any of these time points; cluster 4 genes were down-regulated at 3 hpi and up-regulated at 12–48 hpi; and cluster 6 genes were down-regulated at 6–24 hpi (Fig. 3B). Seven genes belonged to cluster 1 were validated using qRT-PCR and these gene were highly upregulated in comparison with controls (Supplementary Fig. 7).

Table 3.

Number of A. thaliana genes differentially expressed between Vv MO6- and 10% PBS (control)-infiltrated plants at the indicated time points.

Time point	Total number of DEGsa	Number of up-regulated DEGs	Number of down-regulated DEGs
3 h	2,097	1,506	591
6 h	1,839	1,092	747
12 h	1,220	816	404
24 h	1,170	769	401
48 h	1,383	874	509

^aDEGs, differentially expressed genes showing at least 2-fold difference in expression between treatments at the same time point.

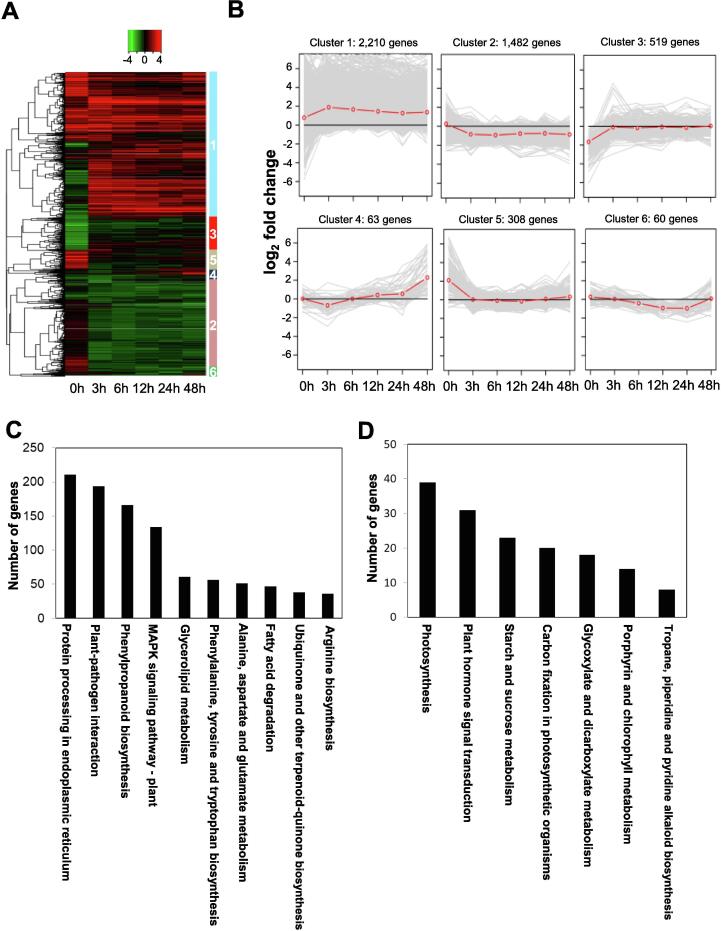

Fig. 3.

Vv MO6 modulates the A. thaliana transcriptome upon infiltration. (A) A total of 7,709 DEGs of A. thaliana were selected at 3, 6, 12, 24, and 48 hpi. Heat map analysis shows six independent clusters determined by unsupervised hierarchical analysis. Red and green colors indicate high and low expression levels, respectively. (B) Line plot analysis of the relative expression patterns of A. thaliana genes at different time points. Of the 4,642 clustered genes, approximately 80% genes belonged to clusters 1 and 2. Red line indicates the mean expression level of all genes at each time point. (C and D) GO and KEGG analyses of DEGs of A. thaliana in cluster 1 (C) and cluster 2 (D). (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

The results of GO and KEGG analyses showed drastic differences between cluster 1 and 2 genes. Cluster 1 genes were broadly involved in protein processing in endoplasmic reticulum, plant-pathogen interaction, phenylpropanoid biosynthesis, and mitogen-activated protein (MAP) kinase signaling pathway (Fig. 3C). In contrast to cluster 1 genes, cluster 2 genes were predominantly related with photosynthesis and plant hormone signaling transduction (Fig. 3D). In addition, specific metabolic pathways were analyzed and summarized in Supplementary Fig. 8).

3.5. A. thaliana PRRs activate downstream signaling pathways upon the perception of Vv MO6

To investigate whether and how A. thaliana plants perceive Vv MO6, the abundance of Vv MO6 was quantified in A. thaliana Col-0 (wild type) plants and knockout mutants of genes that perceive the PAMPs or MAMPs such as flagellin and elongation factor [43]. Bacterial colonies were counted in Col-0 plants and flagellin sensing 2 (fls2) and elongation factor 2 related 1 (efr1) knockout mutants at 3 dpi. The fls2 and efr1 mutants showed approximately 15-fold higher abundance of Vv MO6 than Col-0 plants (Fig. 4A), suggesting that FLS2 and EFR1 are required for recognizing the molecular patterns of Vv MO6, and the recognized receptors play a pivotal role in activating intracellular downstream signaling pathways.

Fig. 4.

Pattern recognized receptors (PRRs) of A. thaliana perceive Vv MO6 signals and activate downstream pathways. (A) Population density of Vv MO6 in three mutant lines at 3 dpi. Disruption of PRR genes resulted in approximately 15-fold increase in population density. Different letters indicate significant differences (P = 0.05) between genotypes. (B) Seven A. thaliana DEGs encoding PRR genes post-infiltration with Vv MO6. (C) Characterization of 10 DEGs in A. thaliana involved in reactive oxygen species (ROS) burst and mitogen-activated protein (MAP) kinase cascade.

In agreement with genetic analysis of PRRs, transcriptome analysis revealed that EFR, PEP1 receptor 1 (PEPR1) and Brassinosteroid insensitive 1-associated receptor kinase (BAK1) were up-regulated in Vv MO6-infiltrated plants compared with control plants (Fig. 4B). Additionally, mRNA levels of Lectin receptor kinase 4.1 (LECRKA 4.1) and LECRKA 4.2, which encode other type of receptors, were significantly higher in Vv MO6-infiltrated plants than in control plants (Fig. 4B). It is known that signals activated by PRRs are transferred to the cytoplasmic receptors in plant innate immunity [44]. Therefore, we monitored the transcript levels of two well-known cytosolic receptor-encoding genes, Botrytis-induced kinase 1 (BIK1) and PBS1-like 1 (PBL1). The results showed that BIK1 was up-regulated at all tested time points, and PBL1 was significantly up-regulated at 3 and 24 hpi (Fig. 4B).

Reactive oxygen species (ROS) burst and the induction of mitogen-activated protein (MAP) kinase cascade are necessary for activating plant immunity [45]. Consistent with this observation, we found that the Respiratory burst oxidase homolog D (RBOHD) gene was slightly up-regulated at 3 hpi (Fig. 4C). In addition, three MAP kinase kinase kinase (MAPKKK) genes, two MAP kinase kinase (MAPKK, MKK) genes and four MAP kinase (MAPK, MPK) genes were identified as DEGs (Fig. 4C). Among these genes, MAPKKK15, MAPKKK19 and MPK11 were highly up-regulated at all time points (Fig. 4C).

Plant defense machinery is activated by plant pathogens [43]. Similarly, our results suggest that Vv MO6 signals are recognized by the common PRRs (e.g., EFR1) and subsequently interact with co-receptors (e.g., BAK1). The activation of Vv MO6 signals by PRRs and co-receptors stimulates cytosolic receptors (such as BIK1 and PBL1), leading to ROS burst and MAPK cascade induction. The perception of PAMPs/MAMPs by PRRs activates defense responses, referred to as PTI [46]. For example, the perception of PAMPs by PRRs triggers the production of hydrogen peroxide (H₂O₂) mainly by the action of RBOHD [47]. In addition, the perception of PAMPs by PRRs leads to the activation of MAP kinases. Previously, flg22 treatment revealed that at least six MPKs and MPK3/MPK6 are dependent on the upstream MKK4/MKK5 proteins [48]. To overcome PTI, pathogens inject virulence effectors into the host cells, resulting in disease. This phenomenon is referred to as effector-triggered susceptibility (ETS) [49]. Subsequently, host resistance (R) genes recognize the effectors and terminate pathogen growth, resulting in robust immunity, termed as effector-triggered immunity (ETI) [50]. This information suggests that Vv MO6 potentially secretes effector proteins into the A. thaliana cells to shut down PTI, and then certain R genes directly or indirectly recognize Vv MO6 effector proteins. It is noteworthy that V. vulnificus, a marine bacterium, can manipulate the immune system of A. thaliana, a land plant.

3.6. Vv MO6 regulates hormone-related genes in A. thaliana

Salicylic acid (SA), jasmonic acid (JA) and ethylene (ET) function as major defense related hormones in plants [51]. To verify the potential roles of these hormones in defense against Vv MO6, we used a genetic approach. The population density of Vv MO6 was quantified in Vv MO6-infiltrated Col-0 (wild type) plants, and several mutant lines including SA-deficient NahG transgenic and SA-deficient mutant (sid2), SA-insensitive mutant (nonexpressor of pathogenisis-related gene 1; npr1), JA response mutant (jar1), and ethylene insensitive mutant (ethylene receptor 1; etr1). The results showed no difference in the population density of Vv MO6 between Col-0 and SA deficient or insensitive lines at 4 dpi (Fig. 5A). However, the population density of Vv MO6 was 12- and 13.5-fold higher in jar1 and etr1 mutants, respectively, than in Col-0 plants (Fig. 5A).

Fig. 5.

Vv MO6 modulates phytohormone-mediated pathways in A. thaliana. (A) Quantification of the population density of Vv MO6 in wild-type (Col-0) and mutant plants. several mutant lines including SA signaling pathways NahG transgenic, SA-deficient mutant (sid2), SA-insensitive mutant (npr1), JA response mutant (jar1) and Ethylene Receptor 1 mutant (etr1). The population density of Vv MO6 was 12- and 13.5-fold higher in jar1 and etr1 mutants, respectively, than in Col-0 plants. Different letters indicate significant differences (P = 0.05) between genotypes. (B) Top five DEGs involved in defense hormone related pathways. Genes involved in salicylic acid (SA)-, jasmonic acid (JA)-, and ethylene (ET)-dependent pathways are shown. (C) Selected DEGs involved in abscisic acid (ABA), auxin, cytokinin (CK), and gibberellin (GA) related pathways.

Five representative genes of the SA, JA, and ET signaling pathways are shown in Fig. 5B. The expression levels of genes such as phytoalexin deficient 3 (PAD3), pathogenesis-related protein 1 (PR1), alternative oxidase 1D (AOX1D), elicitor activated gene 3–2 (ELI3-2), 1-amino-cyclopropane-1-carboxylate synthase 2 (ACS2) and 1-amino-cyclopropane-1-carboxylate synthase 6 (ACS6) were relatively higher than those of other genes at all time points (Fig. 5B). In addition to the defense hormone related genes, the ABA, auxin, CK, and GA related genes were selected in Fig. 4C. The up-regulation of GA pathway-associated genes was relatively weaker than that of other hormone pathway-associated genes. Additionally, genes such as ATP-binding cassette G40 (ABCG40), PYR1-like 6 (PYL6), aldehyde oxidase 1 (AAO1), GRETCHEN HAGEN 3.6 (GH3.6), UDP-glucosyl transferase 85A1 (UGT85A1), kiss me deadly 2 (KMD2) and cytokinin oxidase/dehydrogenase 4 (CKX4) were differentially up-regulated at all time points (Fig. 5C).

Although RNA-seq analysis showed that SA, JA, and ET pathway related genes were highly up-regulated in Vv MO6-infiltrated plants, our genetic analyses indicated plant defense against Vv MO6 relied only on JA and ET pathways. This observation is consistent with our previous study [8]. The difference between the results of RNA-seq analysis and genetic analysis may be explained based on two hypotheses: 1) the SA deficient or insensitive mutants used in this study did not represent the SA related genes involved in the response to V. vulnificus; 2) V. vulnificus modulates the transcript levels of SA, JA and ET genes, but only JA and ET related genes regulate plant immunity against V. vulnificus at the post-transcriptional and post-translational levels. Further research is needed to test these hypotheses. Nonetheless, it is intriguing that pathogen can regulate genes related to plant growth and development hormones such as ABA, auxin, CK and GA. These results suggest that sophisticated phytohormone signaling pathways interact with each other to defend the plant against V. vulnificus.

4. Conclusions

In the current study, Vv MO6 clearly modulates its own transcripts and its plant host simultaneously under favorable conditions. To the best of our knowledge, this is the first time that the transcriptome of a marine bacterial pathogen is conclusively analyzed in a plant host. As our intriguing findings are summarized in Fig. 6, Vv MO6, approximately 92.5% (371) genes were up- or down-regulated during its interaction with A. thaliana. More intriguingly, the expression of virulence and pathogenicity-associated genes in bacterium may be required for inducing disease and modulating plant immune responses. Thus, our results shed light on the cross-talking between a human marine pathogen and a plant host. Our data provide a new strategy to identify important factors of animal and human pathogens by using plants as alternative hosts. Collectively, our results reveal a unique scenario in which a human pathogenic bacterium and a plant communicate simultaneously within the same space under artificial and favorable conditions.

Fig. 6.

Schematic representation of the proposed A. thaliana –Vv MO6 interaction model.

CRediT authorship contribution statement

Yong-Soon Park: Conceptualization, Methodology, Formal analysis, Supervision, Funding acquisition, wrote original paper. Jong-Seok Park: Conceptualization, Resources, Funding acquisition. Soohyun Lee: Methodology. Sung-Hee Jung: Methodology. Seon-Kyu Kim: Conceptualization, Methodology. Choong-Min Ryu: Conceptualization, Supervision, Project administration, Funding acquisition.

Declaration of Competing Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Appendix A. Supplementary data

The following are the Supplementary data to this article:

Supplementary Fig. 1

Scatterplot matrices of Vibrio vulnificus MO6-24/O (Vv MO6)-infiltrated A. thaliana samples. The correlation coefficients of samples were very high (0.92–0.97), indicating no variation among samples.

Supplementary Fig. 2

Overlapping DEGs of Vv MO6 at indicated time points.

Supplementary Fig. Fig. 3

Validation of Vv MO6 expression levels using qRT-PCR.

Supplementary Fig. Fig. 4

Gene Ontology (GO) analysis of cluster 2 of Vv MO6.

Supplementary Fig. 5

Scatterplot matrices of A. thaliana samples. The correlation coefficients of all samples were very high (0.98–0.99), indicating no variation among samples.

Supplementary Fig. 6

Overlapping DEGs of A. thaliana at indicated time points.

Supplementary Fig. 7

Validation of A. thaliana expression levels using qRT-PCR.

Supplementary Fig. 8

Some metabolic pathway analyses in cluster 1 and 2 of A. thaliana.

Supplementary Table 1

Primer sequences used in this study.

Supplementary Tables 2–6

Supplementary Table 2. Top 10 differentially expressed genes (DEGs) of Vibrio vulnificus MO6-24/O (Vv MO6) at 3 h post-infiltration (hpi) of A. thaliana leaves. Supplementary Table 3. Top 10 DEGs of Vv MO6 at 6 hpi of A. thaliana leaves. Supplementary Table 4. Top 10 DEGs of Vv MO6 at 12 hpi of A. thaliana leaves. Supplementary Table 5. Top 10 DEGs of Vv MO6 at 24 hpi of A. thaliana leaves. Supplementary Table 6. Top 10 DEGs of Vv MO6 at 48 hpi of A. thaliana leaves.

Supplementary Tables 7–11

Supplementary Table 7. Top 20 DEGs of A. thaliana at 3 hpi with Vv MO6. Supplementary Table 8. Top 20 DEGs of A. thaliana at 6 hpi with Vv MO6. Supplementary Table 9. Top 20 DEGs of A. thaliana at 12 hpi with Vv MO6. Supplementary Table 10. Top 20 DEGs of A. thaliana at 24 hpi with Vv MO6. Supplementary Table 11. Top 20 DEGs of A. thaliana at 48 hpi with Vv MO6.
