An optimized fixation method containing glyoxal and paraformaldehyde for imaging nuclear bodies

Run-Wen Yao 1, Peng-Fei Luan 1, Ling-Ling Chen 1,2,3
PMCID: PMC8127994  PMID: 33846273

Abstract

The mammalian cell nucleus contains different types of membrane-less nuclear bodies (NBs) consisting of proteins and RNAs. Microscopic imaging has been widely applied to study the organization and structure of NBs. However, current fixation methods are not optimized for such imaging: When a fixation method is chosen to maximize the quality of the RNA fluorescence in situ hybridization (FISH), it often limits the labeling efficiency of proteins or affects the ultrastructure of NBs. Here, we report that addition of glyoxal (GO) into the classical paraformaldehyde (PFA) fixation step not only improves FISH signals for RNAs in NBs via augmented permeability of the fixed nucleus and enhanced accessibility of probes, but also largely preserves protein fluorescent signals during fixation and immunostaining. We also show that GO/PFA fixation enables the covisualization of different types of nuclear bodies with minimal impact on their ultrastructures under super-resolution microscopy.

Keywords: glyoxal, paraformaldehyde, nuclear body, RNA fluorescence in situ hybridization, immunofluorescence

INTRODUCTION

The mammalian cell nucleus is highly organized into distinct membrane-less nuclear bodies (NBs) such as nucleoli, nuclear speckles, and paraspeckles (Stanek and Fox 2017). These microscopically visible compartments concentrate a variety of RNAs and proteins, providing a microenvironment for different biological processes including gene regulation, RNP biogenesis and stress responses (Sawyer et al. 2019). In the past decades, an increasing number of RNAs have been found to regulate the integrity and function of NBs (Stanek and Fox 2017). While some RNAs are defined as markers of NBs or required for their assembly, others accumulate in NBs to regulate their functions (Stanek and Fox 2017; Yao et al. 2019a). Deciphering the RNA composition and localization in NBs is key to understand regulatory roles of NBs.

Microscopy-related techniques including RNA fluorescence in situ hybridization (FISH) and protein immunofluorescence have been widely used to study the structure and function of NBs (West et al. 2016; Wu et al. 2016; Xing et al. 2017; Wang et al. 2018; Yao et al. 2019b). Conventional RNA FISH methods use nonionic detergents to improve the signal. Due to the compacted nature of NBs, sample preparations to detect RNA in NBs have been modified to enhance RNA FISH signals. These methods include digestion with proteinase K and treatment with acid or alcohol (Yin et al. 2012; Dunagin et al. 2015; Xing et al. 2017; Shah et al. 2018). Although these treatments could enhance RNA signals to some extent, such additional treatments also potentially disrupt ultrastructures of NBs, damage epitopes of proteins, and bleach endogenously knocked-in fluorescent proteins, making it difficult to combine multiple imaging modalities in the same sample. A method that can enhance RNA FISH signals without affecting signals from different means of protein staining or ultrastructures of NBs is needed.

Glyoxal (GO) is a low-toxicity, commercially available aldehyde that contains only two carbon atoms. The GO-mediated RNA denaturation is via introducing an additional ring onto guanosine residues, thus sterically hindering the formation of G–C base pairs (Nakaya et al. 1968; Broude and Budowsky 1971; McMaster and Carmichael 1977). It has been used in sample preparation for electron microscopy (Sabatini et al. 1963) and for tissue fixation during histological imaging (Umlas and Tulecke 2004; Paavilainen et al. 2010). A recent study showed that the combination of 3% GO and 20% ethanol serves as an alternative fixative to the most commonly used paraformaldehyde (PFA) in detecting both protein and RNA targets (Richter et al. 2018).

Here, we evaluated whether GO could benefit the imaging of NB structures and their RNA and protein components. We found that mixing 0.4% GO, 4% PFA and 0.1% methanol during fixation yielded much improved RNA FISH signals in NBs, possibly due to the increased permeability of the fixed nucleus and enhanced accessibility of probes to target RNAs, without affecting the signal acquisition of protein immunostainings. We also showed that GO could be combined with different staining methods to covisualize different types of NBs with minimal impact on their ultrastructures.

RESULTS

Addition of GO to PFA fixation provides a brighter smFISH signal than PFA alone without introducing autofluorescence

Addition of 3% GO to 20% ethanol could enhance immunostainings (Richter et al. 2018). Since PFA is the most widely used fixative, we asked whether addition of GO to the commonly used 4% PFA could increase RNA FISH signals. Given that the amount of RNAs in nuclear bodies is uncertain and cannot be accurately quantified, we chose NORAD, a lncRNA localized both in the cytoplasm and the nucleus, to optimize the GO concentration in RNA single-molecule FISH (RNA smFISH). We found that introducing low-concentration GO into 4% PFA enhanced RNA smFISH signals with 0.4% as the optimal concentration (Fig. 1A). Due to the ability of alcohol to act as an accelerator in GO-based fixation (Richter et al. 2018), we included 0.1% methanol into the 0.4% GO + 4% PFA formula and found it further improved NEAT1 signals, while addition of 0.1% methanol to 4% PFA alone had no detectable effect (Supplemental Fig. S1A), suggesting that methanol facilitates GO-based fixation rather than acting alone. Next, we evaluated the performance of the optimized GO/PFA formula (0.4% GO + 0.1% methanol + 4% PFA) in quantitative smFISH to measure different RNA species, including polyadenylated RNAs (localized in both nuclear speckles and the cytoplasm), MALAT1 (mainly localized in nuclear speckles), NEAT1 (localized in paraspeckles), and the pre-rRNA internal transcribed spacer 2, ITS2 (localized in nucleoli). Quantitative imaging showed that GO/PFA significantly raised the intensity of FISH signals of all the RNAs examined (Fig. 1B). For example, both cytoplasmic and nuclear polyadenylated RNAs could be readily detected by GO/PFA fixation, whereas cytoplasmic polyadenylated RNAs could be barely detected by PFA alone (Fig. 1B). Further comparison to other commonly used fixation methods, including 0.1% glutaraldehyde + 4% PFA (GA/PFA), 3% glyoxal + 20% ethanol (GO/EtOH), and 10% acetic acid + 3.6% PFA (AA/PFA), for the detection of PNCTR lncRNA localized in the perinucleolar compartment (PNC) showed that GO/PFA yielded signals as strong as AA/PFA, but outperformed GA/PFA and GO/EtOH (Supplemental Fig. S1B).

FIGURE 1.

FIGURE 1.

Open in a new tab

Addition of glyoxal improves RNA FISH signals in nuclear bodies. (A) Introducing 0.4% glyoxal into 4% PFA improves the RNA FISH signals. Statistics were derived from over 4000 NORAD molecules counted across three independent experiments under each condition. Mean ± SEM and Mann–Whitney test are shown. Scale bar: 10 µm. (B) GO/PFA fixation dramatically enhances the FISH signals for different kinds of RNAs (cyan) in nuclei (magenta). Note that cytoplasmic polyadenylated RNAs could be readily detected by GO/PFA fixation; but these RNAs were barely detected by the PFA alone fixation (first panel, enlarged view). Statistics were counted from more than 100 cells under each condition. Mean ± SD and Mann–Whitney test are shown across three independent experiments for each RNA. Scale bar: 5 µm. (C) Glyoxal does not cause additional autofluorescence in all commonly used channels. The heat map was generated from 30 images for each channel under each fix condition. (D) Glyoxal provides a uniform background in all commonly used channels. The heat map was generated from 30 images for each channel in each fix condition. (E) GO/PFA fixation provides high-quality FISH images for different types of RNAs. Nuclei were labeled by DAPI and shown in magenta. Scale bar: 5 µm.

A successful RNA FISH requires not only strong signals but also low and uniform backgrounds. Since aldehydes often introduce autofluorescence, the addition of GO may also increase background fluorescence. To exclude this concern, we fixed HeLa cells with PFA or GO/PFA and then imaged these cells directly without staining. We found that no additional autofluorescence was introduced by GO in all commonly used channels and GO/PFA yielded even lower autofluorescence compared with PFA alone or other fixatives (Fig. 1C; Supplemental Fig. S1C,D). Meanwhile, GO/PFA fixation resulted in a more uniform background, shown by the lowest standard deviation (SD) values of the fluorescence intensity in all examined channels (Fig. 1D; Supplemental Fig. S1C,E). Furthermore, we used GO/PFA fixation to the smFISH detection of additional types of RNAs localized in different cellular compartments and obtained high-quality images in all cases (Fig. 1E).

GO improves cell permeability and probe accessibility for RNA FISH

A possible reason for the improved RNA imaging in the presence of GO for smFISH probes (Fig. 1; Supplemental Fig. S1) is that GO can increase cell permeability. To test this idea, we examined the penetration of DAPI with different fixation methods (Fig. 2A). Time-lapse imaging showed that GO/PFA fixation increased the penetration rate of DAPI as well as its intensity at the plateau stage (Fig. 2B,C).

FIGURE 2.

FIGURE 2.

Open in a new tab

Glyoxal/PFA fixation improves RNA FISH efficiency by improving nuclear permeability and probe accessibility. (A) Schematic of the process to detect nuclear permeability. (B) GO/PFA fixation augments the nuclear permeability shown as a faster DAPI penetration under GO/PFA than PFA alone. Scale bar: 5 µm. (C) Statistics of B. Statistics were counted from more than 50 cells across three independent experiments under each condition. Mean ± SD and extra sum-of-squares F-test are shown. (D) An illustration of the effect of glyoxalation on RNA denaturation and the probe hybridization. Glyoxal reacts with nucleic acids and could introduce an additional ring onto guanosine residues to block the formation of G–C pairing (Nakaya et al. 1968; Broude and Budowsky 1971; McMaster and Carmichael 1977) while the exogenously introduced probes may still possibly bind to the glyoxalated-RNA. (E) Dot blots show that glyoxalation of RNA has minimal effect on probes hybridization. (F) Schematic of the process for detection of probe accessibility. (G) GO/PFA fixation augments the probe accessibility. Note that pRNA is a type of RNA polymerase I transcribed ncRNA that is tightly associated with rDNA promoter and related RBPs (Strohner et al. 2001; Zhou and Grummt 2005; Mayer et al. 2006). Statistics were quantified from more than 20 cells across three independent experiments under each condition. Mean ± SD and paired t-test are shown. Scale bar: 10 µm.

GO reacts with nucleic acids by introducing an additional ring onto guanosine residues, thus hindering the formation of G–C pairing and blocking the renaturation of native structure (Fig. 2D; Nakaya et al. 1968; Broude and Budowsky 1971; McMaster and Carmichael 1977). Next, we analyzed the effect of GO on the RNA-probe hybridization in vitro. We found that GO pretreatment of the target RNA did not alter the hybridization efficiency (Fig. 2E, lanes 1,2), while GO pretreatment of both the probe and the target RNA resulted in decreased association (Fig. 2E, lane 3). This observation prompted us to monitor the entire hybridization process during RNA smFISH for both highly abundant 18S rRNAs (Supplemental Fig. S2) and lowly abundant pRNAs (Fig. 2F). Of note, pRNAs are tightly associated with rDNA promoters and RNA binding proteins at individual FC/DFC regions within the dense nucleoli (Strohner et al. 2001; Zhou and Grummt 2005; Mayer et al. 2006). In both cases, a faster appearance of the RNA signal with stronger intensity was observed under the GO/PFA fixation compared to the PFA alone (Fig. 2G; Supplemental Fig. S2). Considering the ability of GO to enhance cell permeability (Fig. 2A–C), but not to promote the association of target RNA with the probe (Fig. 2E), we conclude that the improved RNA smFISH quality conferred by GO/PFA fixation is due to enhanced probe accessibility. It is worthwhile noting that GO/PFA fixation is unlikely to improve RNA FISH signals with long probes produced from nick translation (Supplemental Fig. S3). In this setting, two long probes, ∼3 kb for NEAT1 (Supplemental Fig. S3A; Wang et al. 2018) and ∼8 kb for SPA1 (Supplemental Fig. S3B; Wu et al. 2016) were examined and the length of these probes significantly exceeds that of smFISH probes (∼20–22 nt in length). We suspect that such long DNA probes are insensitive to cell permeability or probe accessibility.

GO/PFA fixation produces strong and accurate protein immunostaining signals

Having verified that GO is a promising additive to improve FISH of RNAs including NB-associated RNAs, we proceeded to investigate its efficiency in immunostaining with antibodies. We first tested SC35, the marker protein of nuclear speckles (Spector and Lamond 2011) and obtained the highest immunostaining intensity when using GO/PFA fixation among all examined methods (Fig. 3A). However, the brightest signal is not indicative of the highest accuracy of the immunofluorescence. To test whether GO/PFA yields accurate immunostaining signals, we stained the RPA194-EGFP knocked-in HeLa cell lines (Yao et al. 2019b), where the nucleolar FC regions were labeled by EGFP, with anti-RPA194 antibodies to visualize the colocalization of endogenous RPA194-EGFP and antibody-labeled RPA194. The intensity of anti-RPA194 signal was noticeably higher in cells with GO/PFA fixation than those with PFA alone (Fig. 3B). Importantly, the Pearson's colocalization value between the endogenous RPA194 and antibody-labeled RPA194 in the GO/PFA fixation group was much higher than that in the PFA fixation group (Fig. 3B), showing that GO/PFA fixation provides a higher accuracy in immunostainings.

FIGURE 3.

FIGURE 3.

Open in a new tab

Introducing glyoxal largely preserves protein epitopes and fluorescent protein signals. (A) GO/PFA fixation preserves the protein epitopes during immunostaining. Statistics were counted from more than 30 cells across three independent experiments under each condition. Mean ± SD and paired t-test are shown. Scale bar: 5 µm. (B) GO/PFA fixation provides a better colocalization accuracy in immunostaining shown by higher P's colocalization value between the CRISPR/Cas9-mediated EGFP KI at the endogenous RPA194 locus and the antibody labeled RPA194 proteins. Statistics were counted from more than 1500 RPA194 condensates (the FC regions in nucleoli) across three independent experiments under each condition. Mann–Whitney test is shown. Scale bar: 1 µm and 400 nm for zoomed regions. (C) GO/PFA fixation largely preserves the fluorescent protein signals during RNA FISH, represented by the slower decreasing rate of fluorescent protein signals during FISH process under GO/PFA fixation than PFA alone. Statistics were counted from more than 20 cells across three independent experiments under each condition. Mean ± SD and paired t-test are shown. Scale bar: 10 µm.

GO preserves fluorescent protein signals during RNA FISH and immunostaining

Harsh RNA FISH conditions often reduce signals of fluorescent proteins. We found that GO/PFA better preserved the fluorescent protein signals than PFA alone, shown by visualizing the change of EGFP in RPA194-EGFP knocked-in HeLa cell lines after RNA FISH procedures carried out with different hybridization times (Fig. 3C). Although the 6-h hybridization drastically reduced EGFP signals in both GO/PFA and PFA groups, the EGFP signal in the GO/PFA group after 16-h hybridization were twice as bright as that in the PFA group (Fig. 3C). Meanwhile, we measured the preservation of fluorescent protein (FP) signals after immunostaining under different fixation methods (Supplemental Fig. S4A). The FP intensity after GO/PFA fixation indeed was better preserved compared with PFA, AA/PFA or GO/EtOH fixation (Supplemental Fig. S4A). It should be also noted, although GA/PFA fixation also preserves the FP fluorescence signal well, this formula introduced strong autofluorescence (Supplemental Fig. S1C,D), which is not suitable for RNA FISH.

Further comparing the effects of pH conditions (Supplemental Fig. S5A) and fixation durations (Supplemental Fig. S5B) on RNA and protein in NBs showed that an acidic or a neutral pH condition displayed the similar level of NEAT1 signals for FISH; however, an acidic fixation led to reduced signals of the examined NB marker protein, SC35 (Supplemental Fig. S5A). Prolonged GO/PFA fixation duration from 10 to 60 min did not further improve the signals of examined IF or smFISH signals (Supplemental Fig. S5B).

GO improves multiple staining methods with little effect on NB ultrastructure

Remarkably, GO/PFA fixation led to fewer membrane blebbing areas than PFA alone, suggesting its better performance in preserving cell morphology (Fig. 4A). It should be noted that membrane blebbing is a common phenomenon when cells are insufficiently fixed (Huebinger et al. 2018). The observation of fewer membrane blebbing (Fig. 4A) indicated that GO/PFA had a stronger fixation ability than PFA alone. Consistently, structured illumination microscopy (SIM) showed that GO/PFA well-preserved the structures of chromatin domains and interchromatin compartments (Supplemental Fig. S6A; Miron et al. 2020). Furthermore, using the live-cell images as the positive control, we found that GO/PFA fixation led to a more intact and detailed morphology of the shell structure in paraspeckles labeled by the 5′ and 3′ ends of NEAT1 (Fig. 4B) and the DFC regions in nucleoli labeled by FBL (Fig. 4C) than PFA fixation alone. In addition, consistent with our previous finding (Yao et al. 2019b), RPA194 and FBL present a core-shell-like structure with 5′ ETS-1 in DFC regions under both GO/PFA and PFA fixations. Quantification of these images further showed that GO/PFA fixation resulted in brighter signals for both RPA194 IF and 5′ ETS-1 FISH than those by PFA fixation (Supplemental Fig. S6D). Together, these observations suggest that the denaturation ability of GO has little effect on the ultrastructure of RNA-based NBs.

FIGURE 4.

FIGURE 4.

Open in a new tab

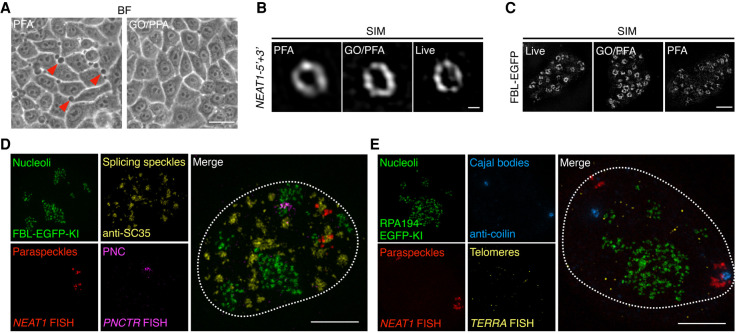

Glyoxal/PFA fixation enables the covisualization of different types of nuclear bodies with minimal impact on their ultrastructures. (A) GO/PFA fixation shows a better preservation of the cell morphology than PFA alone, shown by fewer membrane blebbing (red arrows, left). BF, bright field. Scale bar: 15 µm. (B) Structured illumination microscopy (SIM) reveals that GO/PFA fixation enables a better preservation of the shell of paraspeckles labeled by NEAT1-5′ + 3′ RNA FISH than PFA alone. Scale bar: 200 nm. (C) SIM reveals that GO/PFA fixation enables a better preservation of the ultrastructure (the DFC regions) of nucleoli labeled by the CRISPR/Cas9-mediated EGFP knock-in at the endogenous FBL locus. Scale bar: 2 µm. (D,E) GO/PFA fixation enables the covisualization of different types of nuclear bodies. Nucleoli were labeled by the CRISPR/Cas9-mediated EGFP knock-in at the endogenous FBL locus (D) or CRISPR/Cas9-mediated EGFP knock-in at the endogenous RPA194 locus (E); paraspeckles were labeled by lncRNA NEAT1 FISH; perinucleolar compartments (PNC) were labeled by the lncRNA PNCTR FISH; telomeres were labeled by lncRNA TERRA FISH; splicing speckles were labeled by anti-SC35 antibodies; Cajal bodies were labeled by anticoilin antibodies. Nuclei were marked by dotted line. Scale bar: 5 µm.

Next, we fixed the cells carrying EGFP KI at the endogenous FBL or RPA194 locus with the GO/PFA method and combined RNA smFISH and immunostaining to visualize different NBs simultaneously. We covisualized PNCs, paraspeckles, nuclear speckles, and nucleoli by labeling the lncRNA PNCTR, the lncRNA NEAT1, and the protein SC35 in FBL-EGFP KI HeLa cell lines (Fig. 4D), or covisualized telomeres, paraspeckles, Cajal bodies, and nucleoli by labeling the lncRNA TERRA, the lncRNA NEAT1, and the protein coilin in RPA194-EGFP KI HeLa cell lines (Fig. 4E). These SIM results showed that all examined NBs could be readily imaged by the combination of multiple staining methods upon GO/PFA fixation (Fig. 4D,E).

DISCUSSION

NBs are involved in important regulatory processes in cells (Dundr 2012; Stanek and Fox 2017). Imaging is one of the most powerful tools to study the organization, structure and assembly of NBs. However, due to their unique dense nature and composition of a variety of RNAs and proteins, simultaneous imaging of multiple contents of NBs has remained technically challenging. Inspired by the previous report demonstrating GO in combination with ethanol as an alternative to PFA in immunostainings (Richter et al. 2018), we evaluated whether GO could facilitate imaging of covisualization of RNAs and proteins in NBs. By introducing low-concentration GO into PFA, we identified a simple fixation method that improved RNA imaging (Figs. 1, 2), preserved protein fluorescence and immunostainings (Fig. 3) as well as enabled covisualization of RNAs and proteins in different types of NBs (Fig. 4), indicating that the fixation method theoretically would allow for staining of both RNA and protein targets in a single NB, which warrants further investigations. Nonetheless, addition of GO to PFA increased the cell permeability, enhanced the probe accessibility (Fig. 2) and promoted the visibility of details of NB structures (Fig. 3). Importantly, the addition of GO did not cause strong autofluorescence (Fig. 1C,D), thus achieving a high signal-to-background ratio.

GO-mediated fixation has been used in immunostainings and RNA labeling (Richter et al. 2018). However, the combination of highly concentrated ethanol (∼20%) in this reported method (Richter et al. 2018) would potentially lead to RNA sedimentation, thus affecting the ultrastructure of RNA-enriched NBs. Indeed, we found the GO/EtOH (3% GO + 20% ethanol) fixation was not suitable for NB staining (Fig. 3A; Supplemental Figs. S1B, S4A) and showed weak capability in ultrastructure preservation (Supplemental Fig. S6B,C), which limits its application in fixation of NBs. Since the PFA has been commonly used in imaging NBs (West et al. 2016; Fei et al. 2017; Xing et al. 2017; Wang et al. 2018; Yao et al. 2019b), here, we examined PFA rather than EtOH as the main fixative and introduced GO to enhance RNA FISH signals without losing protein immunostaining signals. We also included methanol in the GO/PFA formula given the function of alcohol as an accelerator in the GO fixation (Richter et al. 2018), but methanol was supplied at a minimal concentration of 0.1% (Supplemental Fig. S1A) to prevent the RNA sedimentation, thus minimizing the effect on NB morphology. Indeed, such fixation preserves the ultrastructure of NBs to the maximum extent in examined conditions (Figs. 3, 4; Supplemental Fig. S6). In addition, our method does not have a complicated formulation, nor does it require further pH adjustment, which facilitates its application in the daily experimental procedures.

We mainly focused on the fixation and staining for the imaging of condensates in the nucleus in this study, although our preliminary data showed that GO addition also enhanced signals for several examined cytoplasmic RNAs (Fig. 1A,E; Supplemental Fig. S2). These results suggest that GO fixation could also be used for imaging of cytoplasmic RNPs and structures. Meanwhile, our GO/PFA method appears to be a strong fixation procedure, which would theoretically minimize loss of cytoplasmic materials and thus provides a possibility for a more precise quantitative imaging. Further, we observed that GO/PFA fixation resulted in a lower noise and a more uniform background in the most commonly used channels (Fig. 1C,D; Supplemental Fig. S1C,E). In principle, a lower noise and a more uniform background would be beneficial for nanoscopy. It will be of great interest to investigate whether the GO/PFA fixation would improve nanoscopic imaging such as STORM and STED.

In conclusion, we provide a simple and effective fixation method for RNA and protein imaging, particularly in NBs. GO/PFA fixation achieves a balanced performance in different staining methods including RNA FISH, immunostaining, and FP fixation to visualize multiple components in NBs simultaneously.
