Stabilizer-free bismuth nanoparticles for selective polyol electrooxidation

Summary

Bismuth is the least toxic element among heavy metals, an outstanding advantage for environmental and health considerations. Yet, utilizing bismuth as anodic electrocatalyst is hindered by the formation of a spreading Bi(OH)₃ inhibitor layer during the anodic process. Herein, we report that bismuth nanoparticles, produced using laser ablation, can avoid such drawbacks. The production of Bi(V) species assists polyol electrooxidation. For glucose, instead of the commonly reported gluconic acid as the product, the Bi(V) species enables highly selective oxidation and C–C bond cleavage to produce arabinonic acid, erythronic acid, and eventually glyceric acid. We not only generate high-valent Bi(V) species for catalytic applications, especially for bioelectrocatalysis where the less toxic bismuth is highly appreciated, but also present Bi nanoparticle as a highly selective electrocatalyst that can break C–C bond. We believe that Bi electrocatalyst can find broader applications in electrochemical biomass conversion and electrosynthesis.

Graphical abstract

Highlights

• •Stabilizer-free bismuth nanoparticles (Bi NPs) are synthesized by laser ablation
• •Bi NPs show activity toward polyol electrooxidation, breaking C-C bond
• •The in situ generated Bi(V) is essential for the electrocatalytic oxidation
• •Unlike Bi polycrystal, surface oxide layers do not inhibit the activity of Bi NPs

Catalysis; Electrochemistry; Materials Science

Introduction

Bismuth, a post-transition metal element in group 15 of the periodic table, has been recently praised as “the magic element” after being overlooked for decades (Kanatzidis et al., 2020). Such a shift in research interest is mainly due to the miscellaneous coordination and bonding types enabled by the stereochemically active 6s² lone-pair electrons of the bismuth atom and its broad valence states from reduced −3 to oxidized +5 assisted by the three p-orbital electrons. Such flexible nature of bismuth has made bismuth-based materials promising for electrocatalysis.

However, compared with the well-studied transition metal-based materials, the electrochemical applications of bismuth are rarely reported. After the pioneering studies of its fundamental electrochemistry reported in the 1970s and the 1980s (Williams and Wright, 1976, 1977; Wrona and Galus, 1980), it is only recently that bismuth-based materials (metal and oxides) have started to regain researchers' attention due to their unexpected high catalytic activity in the electrochemical reduction of carbon dioxide (Deng et al., 2019; Gong et al., 2019; Li et al., 2020; Medina-Ramos et al., 2017; Zhang et al., 2019) and nitrogen (Li et al., 2019; Wang et al., 2019; Yao et al., 2020), both of which involve the cathodic properties of bismuth atoms at low-valent states. Nevertheless, the utilization of its high-valent states under anodic conditions, such as Bi(III) and Bi(V), for the electrocatalytic oxidation process has not been demonstrated yet.

The enabling of bismuth-based materials for electrooxidation catalysis is especially critical for many bioelectrochemical applications because bismuth and its compounds generally show much lower toxicity than other transition metal-based ones (Nordberg; et al., 2015). Glucose electrooxidation, for example, is one of the most extensively studied bioelectrochemical reactions due to its importance in biosensing and energy conversion (Brouzgou and Tsiakaras, 2015; Heller and Feldman, 2008). The oxidation of glycerol also poses a great interest in the community of biomass conversion. Recent results demonstrated that both activity and selectivity of glycerol electrooxidation on conventional noble metal electrocatalysts, such as Pd and Pt, can be significantly improved by the Bi adatoms on their surface (de Souza et al., 2019, 2020; Garcia et al., 2017). Yet, the electrocatalysts based on earth-abundant elements, such as Cu (Zheng et al., 2019a), Co (Madhura et al., 2020), and Ni (Chen et al., 2016), are preferred due to their low cost. In these systems, an M^x/M^x+1 (x = 2 for Cu and Ni; x = 3 for Co) redox cycle (Zheng et al., 2019b) is often proposed as the mechanism. Yet, their high toxicity toward cells and proteins cannot be ignored. On the other hand, bismuth shares a similar redox cycle of Bi(III)/Bi(V), which has been put into application in recent homogeneous catalysis (Planas et al., 2020). Such information leads us to wonder whether Bi alone can act as the electrocatalyst for polyol electrooxidation.

The key to enabling the electrocatalytic oxidation ability of bismuth-based materials is to generate Bi(V) species. The desired Bi(0)-Bi(III)-Bi(V) pathway, however, has not been found among the previous anodic studies on bulk bismuth (Wrona and Galus, 1980). Instead of continuous oxidation to its high-valent states, a higher potential led to the production of a spreading and thickening Bi(OH)₃ layer from the surface to the inner lattice, which also acted as an inhibitor and hindered both electron transport and mass diffusion (Vivier et al., 2001; Williams and Wright, 1976, 1977).

Decreasing the size of the bismuth structure to nanometers seems to be a reasonable tactic to avoid the drawbacks caused by the micrometer levels of bismuth hydroxide formation. However, bismuth metal nanoparticles (NPs) are highly susceptible to oxidation upon exposure to air due to their vulnerable p-orbital electrons, making the preparation of sub-10-nm bismuth NPs very challenging. Currently, their synthesis relies heavily on hydrothermal methods, which involve stabilizers/capping agents on the particle's surface to lower the surface energy (Xia et al., 2014; Yarema et al., 2010). The existence of such agents, however, is known to block specific active sites, obstruct reactant(s) adsorption, change the reaction path, and alter the electronic properties of surface atoms dramatically (Heuer-Jungemann et al., 2019; Phan and Nguyen, 2017). Therefore, the obtaining of stabilizer-free bismuth NPs is essential to understanding its intrinsic electrocatalytic properties without interferences from other aspects.

Here, we present the preparation of stabilizer-free sub-10 nm Bi NPs using laser ablation. The differences between the electrochemical behaviors of Bi NPs and polycrystals (PCs), which lie in the ability of further oxidation to generate Bi(V) species on the NPs' surface, are discussed comprehensively. The Bi(III)-Bi(V) redox cycle enables glucose electrocatalytic oxidation on Bi NPs and C–C cleavage to produce C5, C4, and C3 hydrocarbon compounds. These results mark one of the first examples of using Bi NPs as catalysts for electrocatalytic oxidation.

Results and discussion

Preparation and characterization of Bi PCs and NPs

We employed two forms of elemental Bi for electrochemical studies: PCs and NPs. The Bi PCs-coated electrode was fabricated following a previously reported electrodeposition method by cathodically treating a glassy carbon electrode (GCE) in Bi³⁺-containing acidic electrolyte (see transparent methods and Figure S1 for related data) (Sandnes et al., 2007).

The stabilizer-free Bi NPs were prepared via pulsed laser ablation in the liquid phase (PLAL), which had been demonstrated to be effective for other colloidal NP preparations (Amendola and Meneghetti, 2009; Zheng et al., 2020). As illustrated in Scheme 1 (for experimental setup, see Figure S2), a bulk Bi crystal was irradiated in deoxygenated isopropyl alcohol by a pulsed laser (Nd:YAG Q-switched, λ = 1,064 nm, 650 mJ, frequency = 10 Hz). Once the laser impacted the surface, a few ultrafine particles were emitted from the irradiated spot, causing the colorless solution to change to light gray within 5 min, indicating the formation of a particle suspension (see Video S1). The well-established PLAL mechanism can be described as a combination of plasma generation and quenching. As the laser interacts with the Bi surface, a localized high-temperature plasma consisting of atoms and NPs is generated. After leaving the irradiation zone, such plasma is subsequently quenched by the surrounding liquid environment to form NPs (Zeng et al., 2012). Compared with conventional hydrothermal methods (Heuer-Jungemann et al., 2019), no stabilizer (or capping agent) is required in the PLAL process, ensuring a clean NP surface.

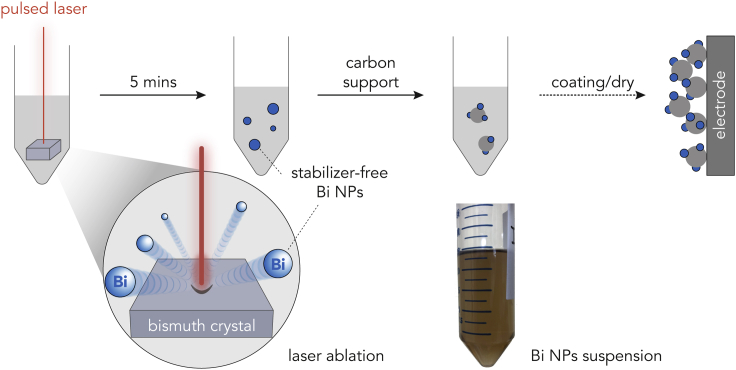

Scheme 1.

Illustration of the laser ablation for Bi NPs production and the Bi NPs/AC-coated electrode preparation

On the other hand, the absence of any stabilizer on the surface means high surface energy of the generated NPs, which often results in aggregation and Ostwald ripening (Heuer-Jungemann et al., 2019). To minimize these undesirable phenomena, the NPs suspension was immediately mixed with activated carbon (AC) support (Scheme 1) to immobilize the Bi NPs.

Figure 1A shows the optical image of the as-prepared Bi PCs-coated GCE, featuring numerous crystals at the micrometer scale (mainly 7–20 μm) anchoring on the smooth glassy carbon surface. Atomic force microscopy (AFM) image (Figure 1B) reveals the typical step formation on the surface of the crystal, a characteristic trait of Bi as a hopper crystal: quicker edge growth than facial crystallization (Cereceda-Company and Costa-Kramer, 2018). Meanwhile, the AFM (Figure 1C) and transmission electron microscopy (TEM, Figure 1D) images of the laser-treated sample confirm the successful preparation of Bi NPs, where the aggregation of the high surface energy NPs is also evident. A high-resolution TEM image of a single NP is presented in Figure 1E alongside the atomic model (three-dimensional [3D] and projection) of a Bi NP (Crystallography Open Database [COD] ID: 7123351, space group: R-3m) (Wei et al., 2019). The hexagonal projection matches well with the elemental Bi model, and the real atomic arrangement agrees with the projected Bi atomic pattern (region highlighted by red dotted frame), validating the production of elemental Bi NPs by PLAL. The size distributions of Bi NPs (see Figure S3 for low-magnification TEM image) and PCs are shown in Figure 1F, with the mean diameters of 9.6 nm and 11.4 μm, respectively.

Figure 1.

Morphologic and structural characterization of Bi PCs and NPs

(A) Optical image of cathodically deposited Bi PCs on GCE surface.

(B) AFM image of the selected Bi PC's surface (white box in A). The yellow dashed line outlines the crystalline surface boundary.

(C) AFM image of the aggregated spherical Bi NPs.

(D) TEM image of Bi NPs.

(E) High-resolution TEM image of a single Bi NP (highlighted in blue color). The atomic model and projection of a Bi NP is shown on the right, together with the real and matching simulated atomic arrangement.

(F) Size distribution of Bi NPs (from TEM images) and Bi PCs (from optical images).

(G) XRD patterns of Bi PCs and Bi NPs/AC samples. The predictions of Bi and alpha-Bi₂O₃ are generated using VESTA software with the structural models (for Bi, COD ID: 7123351; for alpha-Bi₂O₃, COD ID: 1526458). The standard patterns (Bi: PDF#44-1246; apha-Bi₂O₃: PDF#41-1449) are compared.

Further structural information can be provided by the X-ray diffraction (XRD) patterns of Bi PCs and NPs, as shown in Figure 1G. The standard (PDF#44-1246) and simulated XRD profiles of elemental Bi and its ambient oxide form (alpha-Bi₂O₃: PDF#41-1449) are also provided for comparison. Electrochemically deposited Bi PCs show peaks that match well with both standard and simulated patterns. The Bi NPs exhibit two additional peaks at 26.77° and 33.05° (marked with ∗) in addition to the peaks assigned to elemental Bi and the broad signal between 15° and 35° attributed to amorphous AC. These two signals can be attributed to the (111) and (121) peaks of alpha-Bi₂O₃, which are produced by the inevitable oxidation of high surface energy Bi NPs when exposed to ambient oxygen.

Electrochemistry of Bi PCs and NPs

Understanding the fundamental electrochemistry of Bi PCs and NPs is beneficial for further electrocatalysis discussions. As the following glucose electrooxidation is performed in an alkaline electrolyte (0.1 M KOH aqueous solution), the discussion here regarding the electrochemical behavior of both Bi samples is limited to the alkaline conditions.

We used mainly two methods, cyclic direct current voltammetry (DCV, or CV for short) and Fourier transformed large-amplitude alternating current voltammetry (FTACV), to study the electrochemical behaviors. Briefly, CV is a well-established method that shows current responses caused by potential sweep on the electrode (Figure 2A), whereas FTACV, a relatively new technology developed by Alan M. Bond and co-workers, highlights the fast surface electron transfer processes (Zhang et al., 2018). Unlike the linearly increased potential in CV, a sinusoidal wave is applied onto the potential ramp in FTACV (Figure 2B). After the Fourier transform, the current response can be resolved to multiple frequency domains. In general, the higher domains (third and higher) are only related to the fast electron transfer and catalytic steps, not the slow mass transfer involved steps. FTACV can provide critical insights into the electrochemical processes as it is free of any background current. The following parts of this article will mainly rely on CV and FTACV results to provide an overall image of the electrochemical behaviors of bismuth.

Figure 2.

Electrochemistry of Bi PCs and NPs in 0.1 M KOH electrolyte

(A and B) Potential sequence used for (A) CV and (B) FTACV.

(C and D) Continuous CV plots (1, 2, …, 10, 25, 50, 75, 100) of (C) Bi PCs and (D) Bi NPs/AC. The scan rate is 10 mV s⁻¹. The insets show the correlation between the anodic peak (at ca. 0.4 V) charge and the cycle number.

(E and F) The third harmonic components of the FTACV plots of (E) Bi PCs and (F) Bi NPs/AC during the anodic and cathodic scans.

Figures 2C and 2D show the continuous CV plots of Bi PCs and NPs from 1 to 100 cycles at a scan rate of 10 mV s⁻¹. The Bi NPs show larger double layer capacitance than Bi PCs, mainly due to the additional AC as well as the smaller particle size.

The anodic scan of the Bi PCs-coated electrode reveals a distinct oxidation peak A₁ centering at 0.42 V (versus RHE, the same below) and a broad peak A₂ from 0.51 to 0.65 V followed by an oxidation plateau. Vivier et al. (2000, 2001) described that all anodic signals within this potential range are related to the oxidation of Bi(0) species to Bi(III) species as follows:

Bi⁰ → Bi⁺ + e⁻ (1)

3Bi⁺ → Bi³⁺ + 2Bi⁰ (2)

Bi³⁺ + 3OH⁻ → Bi(OH)₃ (3)

In other words, a fast electron transfer reaction (Reaction 1) is followed by two relatively slow chemical processes (Reactions 2 and 3). It should be noted that besides the electron transfer, such processes also involve a structural transition (structural models as shown in Figure S4) from metallic Bi(0) to Bi(OH)₃ (or BiOOH), and eventually to Bi₂O₃ at open circuit potential (OCP) (Vivier et al., 2001). Comparing the Raman spectra of the Bi-coated electrode before and after anodic treatment (see Figure S5) confirms the formation of alpha-Bi₂O₃, as indicated by the trait of O–Bi–O bands between 300–600 cm⁻¹ (Betsch and White, 1978; Vila et al., 2012). Despite the fact that the reactions are the same, distinct peaks result from Bi atoms in different environments. The A₁ peak is associated with the oxidation of Bi(0) atoms at the BiPCs/electrolyte interface, whereas A₂ is related to the bulk Bi(0) atoms that are not directly exposed on the surface (Vivier et al., 2000). The observation that the total anodic charge of A₂ and the plateau is much larger than that of A₁ supports such an explanation because Bi PCs have more bulk atoms than the surface ones. As the surface/local OH⁻ is consumed by A₁, the local pH decreases, and the oxidation potential of sublayer Bi shifts to a higher value (formation of A₂). The formation of the surface Bi(OH)₃ (and eventual Bi₂O₃) further hinders the diffusion of OH⁻ from the bulk electrolyte into the Bi sites, causing the plateau. The cathodic scan shows the reduction current of Bi(III) to Bi(0) from 0.25 to 0 V.

The continuous CV study of Bi PCs shows an ever-changing profile from 1 to 100 cycles. The first cycle is of particular interest because it shows the highest oxidation signal of all three regions: A₁, A₂, and plateau. Such signals, however, decline significantly in the second cycle, whereas further cycling causes a gradual increment of all peaks. Following the previous explanation, these results indicate that the electron-accessible Bi atoms' population drops significantly after merely one CV cycle of the fresh Bi PCs and recovers slowly. The oxidation charge of the A1 peak (shown as the inset of Figure 2C) quantifies the surface Bi atoms where 10 cycles recover 85% of the initial. Nevertheless, Bi PCs are not electrochemically stable.

Figure 2D shows the continuous CV plots of the Bi NPs, revealing a different story. An oxidation peak at 0.45 V is evident, followed by a minor broad signal between ca. 0.5 and 0.8 V. Similar to the Bi PCs, the former peak can be assigned to the oxidation of surface Bi(0) and the following signal to bulk atoms. The much higher current density at 0.45 V is understandable because the NPs have a much higher surface-to-bulk atomic ratio than PCs. However, another oxidation signal appears from ca. 1.2 V, indicating further oxidation of Bi(III), most likely to the unstable Bi(V) species (Espinosa et al., 1991; Pourbaix, 1974), posing the most significant difference between the Bi NPs and PCs. As the cycle number increases, the oxidation charge of the surface Bi(0) increases gradually from 0.09 to 0.15 mC after 10 cycles. It stabilizes at 0.11 mC after 100 cycles, indicating the same trend of the surface atoms' population. Therefore, the Bi NPs are much more electrochemically stable than the PCs form.

The difference between NPs and PCs can be further revealed by the scan rate-dependent CVs (see Figure S6). At a low scan rate (5 mV s⁻¹) where diffusion factors are negligible, the separation between the anodic and cathodic peak potentials is ca. 0.28 V, showing a clear sign of irreversible behavior of Bi PCs, an observation that is also supported by the shifting peak potential of both anodic peaks with rising scan rates. Notably, the high scan rate (100 mV s⁻¹) produces an abnormally low current. This is most likely due to the accumulated inhibiting Bi₂O₃ layer created by the continuous cycles. The Bi NPs-coated electrode shows a similar anodic/cathodic peak separation (ca. 0.30 V). However, unlike PCs, the current grows with increasing scan rate, showing no inhibitor accumulation.

FTACV, as mentioned previously, can reveal the fast electron-transfer process of a coupled electrochemical reaction. Figure 2E presents the third harmonic components of both the anodic and cathodic scan of the Bi PCs-coated electrode. Two anodic peaks, which are centered at 0.34 and 0.57 V, are revealed, similar to its CV profile, whereas higher potential (>0.7 V) shows no signal. Thus, both anodic peaks are related to immediate electron transfer steps (Reaction 1), yet further oxidation (the plateau in Figure 2C) involves diffusion. Unlike the PCs, the FTACV results of the Bi NPs (Figure 2F) indicate a minor signal from 0.3 to 0.5 V and a distinct peak centering at 0.97 V. Despite the similar oxidation peaks suggested by the CV (0.42 V in Figure 2C and 0.45 V in Figure 2D), the oxidation of Bi(0) in the Bi NPs is most likely diffusion-controlled. Wrona and Galus (1980) suggested an alternative path different from V. Vivier's using a Bi Hg electrode:

Bi⁰ + 2OH⁻ → Bi(OH)₂⁺ + 3e⁻ (4)

As the nanoscale NPs are similar to Bi atoms dispersed in Hg, we believe that Reaction 4 is more suitable than Reaction 1 to describe electrooxidation of the Bi NPs. Meanwhile, the prominent peak at 0.97 V, which is not found in Figures 2E, is related to the Bi(III) to Bi(V) oxidation. During the cathodic scan of both samples, the current signals are significantly reduced, meaning that the electrochemical reduction follows different routes and is diffusion limiting, a topic that is beyond our focus here.

Glucose electrooxidation on Bi PCs and NPs

With the electrochemical behaviors of Bi PCs and NPs understood, the electrocatalytic activity of both materials toward glucose electrooxidation is studied, and the results are shown in Figure 3. With 2 mM glucose in the electrolyte, Bi PCs show no distinguishable oxidation signal from 0.7 to 1.6 V apart from slight intensity changes of Bi(0) species (inset of Figure 3A). The peak current of A₁ drops, and A₂ grows. As both peaks are attributed to the same reaction, these changes are likely to be caused by the coordination between glucose and surface Bi(0) atoms (Wenkin et al., 2002), resulting in more stable Bi(0) species with higher oxidation potential. Bi NPs, on the other hand, exhibit an oxidation signal at ca. 1.46 V after adding 2 mM glucose to the electrolyte (Figure 3B), which can be attributed to glucose electrooxidation on Bi. Apart from that, the differential anodic signal (subtracting the anodic scan by the glucose-free scan) indicates extra charge output in the Bi(0) oxidation region, presumably for glucose adsorption.

Figure 3.

Electrochemistry of Bi PCs and NPs in 0.1 M KOH electrolyte with 2 mM glucose

(A and B) Comparison of CV plots between (A) Bi PCs and (B) Bi NPs/AC with/without 2 mM glucose. The scan rate is 5 mV s⁻¹. Inset of (A) shows the enlarged oxidation peaks from 0 to 1.0 V.

(C and D) The third harmonic components of the FTACV plots of (C) Bi PCs and (D) Bi NPs/AC during the anodic scan with/without 2 mM glucose in the electrolyte.

Figures 3C and 3D present the anodic FTACV profiles of both materials with/without 2 mM glucose. Bi PCs show no significant changes, whereas the rate of Bi(III) to Bi(V) electrooxidation of Bi NPs is slowed down (smaller FTACV current) after the addition of glucose. Based on the glucose electrooxidation mechanism on multi-valent transition metals (such as Cu, Ni) (Zheng et al., 2019b), a possible explanation is offered:

$$\text{Without glucose: Bi}\left(\text{III}\right)\stackrel{-2e^{-}}{\to }\text{Bi}\left(\text{V}\right)\stackrel{O{H}^{-}}{\to }\text{Bi}\left(\text{III}\right)$$

$$\text{With glucose: Bi}\left(\text{III}\right)-\text{glucose}\stackrel{-2e^{-}}{\to }\text{Bi}\left(\text{V}\right)-\text{glucose }\stackrel{redox}{\to }\text{ Bi}\left(\text{III}\right)+\text{ product}\left(\text{s}\right)$$

In the glucose-free electrolyte, after the Bi(III) oxidation to Bi(V), the high-valent species is unstable and would be converted to Bi(III) via a redox reaction. However, in the presence of glucose, the regeneration of Bi(III) species is kinetically controlled by the slower Bi(V)-glucose redox reaction (as well as glucose diffusion), resulting in a decreased high harmonic signal.

Why are BiPCs inactive for glucose electrooxidation?

Although the proposed mechanism on the Bi NPs is similar to that of transition metals, the significant difference between them is that bulk Bi (Bi PCs) shows no observable activity. The direct reason is that the Bi(V) species cannot be produced on the surface of Bi PCs at the same potential as that of the Bi NPs. However, the question still remains: why the enlargement of Bi particle size inhibits the production of Bi(V)?

To address this, we employed time-dependent electrochemical impedance spectroscopy (EIS) and analyzed the charge transfer resistance of both samples. Figure 4A illustrates the methodology where the electrodes were held at a pretreatment potential for different times before being subjected to the EIS test at OCP. Two pretreatment potentials at 0.4 and 1.0 V were selected to represent two scenarios for the Bi PCs: (1) the limited oxidation of the surface Bi(0) atoms and (2) the ready accumulation of Bi(III) oxide layers in the crystal, whereas for Bi NPs, both scenarios represent the full oxidation of Bi(0) to Bi(III).

Figure 4.

Resistance analysis of Bi PCs and Bi NPs at different oxidation states

(A) The potential sequence used for EIS testing. The electrode was held at pretreatment potential (0.4 and 1.0 V) for different durations before EIS testing at OCP.

(B–E) Nyquist plots of (B) Bi PCs pretreated at 0.4 V, (C) Bi NPs/AC pretreated at 0.4 V, (D) Bi PCs pretreated at 1.0 V, and (E) Bi NPs/AC pretreated at 1.0 V. Insets of (C and D) show the high-frequency domain with the semicircle outlined.

(F and G) C-AFM setup illustration and current profiles of Bi PCs and NPs in pristine and treated (1.0 V 1200 s) conditions.

(H and I) Illustration of the different electrooxidation behaviors of (H) Bi PCs and (I) NPs. For clarity, the activated carbon support of the Bi NPs is omitted. Yellow arrows indicate the simplified charge transfer path.

When treated at 0.4 V, the EIS spectra of Bi PCs (Figure 4B) are semicircular in shape, and their diameter represents the charge transfer resistance if a simple Randles circuit model is adopted. The charge transfer resistance increases as the amperometric treatment time prolongs, conforming to the thickening Bi(OH)₃ layer. On the contrary, the EIS spectra of the Bi NPs (Figure 4C) remain stable throughout the 1,200-s treatment, featuring a semicircle at high frequency and a diffusion line at the middle to low frequency. Remarkably, the charge transfer resistance of the Bi NPs is much smaller than that of the Bi PCs (97 Ω compared with 34 kΩ after 1,200-s treatment). Also, at the same frequency (0.1 Hz, for example), the resistance to transfer electrons in the Bi PCs is much higher than that of the Bi NPs.

As the treatment potential increases to 1.0 V, it is understood that the same Bi(OH)₃ layer in the Bi PCs can evolve faster. Therefore, higher resistance is expected. Figure 4D indeed shows the similar traits of the semicircle, but with much higher charge transfer resistance (45 kΩ at 1.0 V compared with 34 kΩ at 0.4 V after 1,200 s). However, the Bi NPs show a different trend, as Figure 4E suggests a smaller charge transfer resistance (68 Ω) than the treatment at 0.4 V (97 Ω). One possible reason is that the formation of Bi(V) species can assist charge transfer better than the insulating Bi(III) compounds (Bi(OH)₃ and Bi₂O₃).

Another direct evidence confirming the conductivity change is provided by conductive-AFM (C-AFM), as shown in Figures 4F (setup) and 4G (50 s current response). A voltage bias of 500 mV was applied between the cantilever and sample substance. The current signal before and after electrooxidation treatment (1.0 V versus RHE for 1,200 s) is presented as pristine and treated, respectively. Compared with its pristine form, the treated Bi PCs exhibit a much smaller current, suggesting the formation of an insulating layer on its surface. On the contrary, in agreement with the EIS results, the Bi NPs present an increased current signal after treatment, showing an accelerated charge transfer.

In brief, the different electrochemical behaviors of the Bi PCs and NPs are illustrated in Figures 4H and 4I. The Bi PCs-coated electrode features multi-layer Bi atoms, where the oxidation occurs sequentially from the surface to the bulk to form Bi(III) hydro(oxide) layers. Such layers possess high resistance, hindering the charge transfer between electrode and surface, and obstructing the diffusion of OH⁻ species to inner Bi sites. As a result, further oxidation of Bi(III) to Bi(V) is difficult. The Bi NPs-coated electrode does not have these problems. As the crystalline size of the Bi NPs is much smaller than that of PCs, the charge transfer path from the electrode to the NP's surface is significantly shorter. Even with the formation of Bi(OH)₃, the total resistance is much smaller due to the limited particle scale. Meanwhile, unlike the Bi PCs, the OH⁻ species can access Bi atoms on the NPs from all available coordination sites, meaning there is no diffusion limitation. As a result, the surface Bi(III) species can be oxidized to Bi(V) species to enable glucose oxidation.

Glucose electrooxidation on Bi NPs

To understand the glucose electrooxidation mechanism on the Bi NPs, we first studied the oxidation current response of various hydrocarbons containing C–OH structure. As shown in Figure 5A, compounds containing C(OH)–C(OH)–C(OH) structural fragment, such as glucose, glycerol, and gluconic acid, cause immediate current response once they are added to the electrolyte. In contrast, both ethanol and ethylene glycol show no current response. Therefore, the Bi NPs can selectively oxidize the C(OH)–C(OH)–C(OH) structure. Such selectivity is probably due to the difficulty of forming C–O⁻–Bi (hydrocarbon adsorbed on Bi surface) structure. Notably, the high selectivity to glycerol over ethylene glycol implies possible multi-site adsorption of hydrocarbon on Bi surface (three sites instead of two sites), which is of great importance to selective biomass conversion of glycerol. However, the electrooxidation of glycerol is beyond our scope of discussion here.

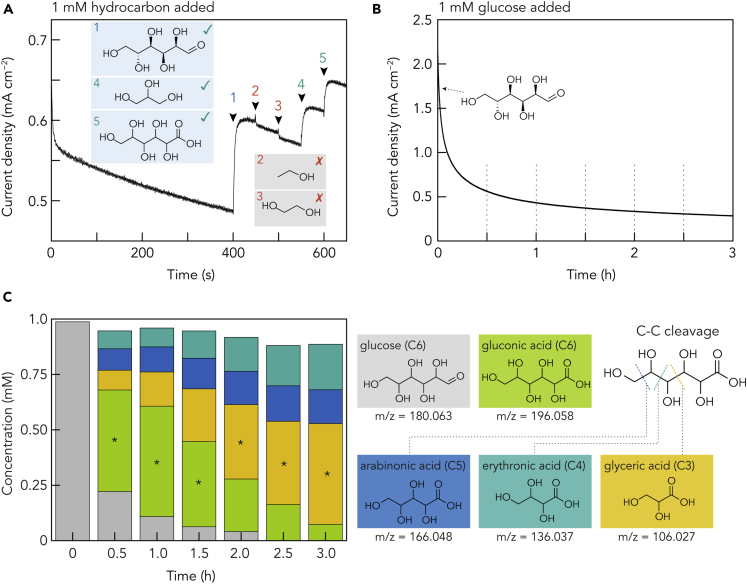

Figure 5.

Mechanism study of glucose electrooxidation on Bi NPs

(A) Amperometric response of Bi NPs/AC (Bi: 1.5 wt %)-coated GCE to various hydrocarbon compounds: 1: glucose, 2: ethanol, 3: ethylene glycol, 4: glycerol, and 5: gluconic acid. The hydrocarbon concentration in 0.1 M KOH electrolyte is 1 mM, and the applied potential is 1.47 V versus RHE.

(B) Long-term (3 h) electrolysis of 1 mM glucose in 0.1 M KOH electrolyte using Bi NPs/AC (Bi: 1.5 wt %)-coated carbon paper electrode. Applied potential is 1.47 V versus RHE.

(C) Product analysis results from UPLC-MS/MS at different times during the long-term electrolysis. The main product is marked with ∗.

Knowing the structure of electrolysis products is essential for mechanism analysis. We performed a 3-h electrolysis of 1 mM glucose in 0.1 M KOH electrolyte with an applied potential of 1.47 V versus RHE using an H-type electrochemical cell. The possible leakage of Bi species from the electrode into the electrolyte is examined by inductive-coupled plasma optical emission spectrometry (ICP-OES). The results (see Table S1) indicate only trace amount of Bi (0.01–0.03 ppm) detected in the electrolyte, confirming that most of the Bi NPs remain on the electrode surface.

With a sampling interval of 30 min, the electrolyte is analyzed using an ultra-performance liquid chromatography-tandem mass spectrometer (UPLC-MS/MS) (see transparent methods for analytical details). Figures 5B and 5C show the corresponding current response and product analysis. The initial stage (0–30 min) shows the highest reaction rate (current), and a steady oxidation current of ca. 0.4 mA cm⁻² is presented after 1 h. Interestingly, the UPLC-MS/MS analyses (see Figure S7 and S8, and Table S2 for data) reveal four products, gluconic acid, arabinonic acid, erythronic acid, and glyceric acid, with decreasing carbon atom numbers of 6, 5, 4, and 3. The time-dependent product distribution results in Figure 5C show that glucose is significantly consumed within 30 min with gluconic acid as the main product. However, further electrolysis causes decreasing gluconic acid concentration and increasing C5 (arabinonic acid), C4 (erythronic acid), and C3 (glyceric acid) products. After 3 h, glyceric acid is the dominating product, followed by C4 and C5 products, whereas the C6 product (gluconic acid) is minor. The structure of the Bi NPs before and after electrocatalysis is compared in Figure S3. Apart from producing some larger particles, likely due to aggregation, no significant size change of most Bi NPs is found. These results, together with the ICP-OES analysis, demonstrate the high stability of Bi NPs during electrooxidation.

The UPLC-MS/MS results suggest that the Bi NPs can perform C–C bond cleavage selectively. It is currently widely accepted in the literature that the product of glucose electrooxidation is gluconic acid regardless of the electrocatalyst (Au, Pt, Ni, Cu, etc.) (Brouzgou and Tsiakaras, 2015). However, our data suggest an extended route that shows gluconic acid is not the final product. Figure 5A confirms that gluconic acid can be oxidized at the same condition as glucose. The decreasing concentration of gluconic acid after 1 h (Figure 5A) also suggests that gluconic acid is an intermediate and can be further oxidized to C5, C4, and C3 products. A detailed comparison between the Bi and other metal electrocatalysts is summarized in Table S3.

Therefore, we propose a mechanism of Bi NPs-catalyzed glucose electrooxidation in Scheme 2. Two main routes are involved, namely, the glucose to gluconic acid oxidation and the following C–C bond cleavage to produce C5, C4, and C3 compounds. First, the glucose molecule is adsorbed on the Bi(III)–OH surface to form a C–O–Bi(III) bond. With the oxidization of Bi(III) to Bi(V), the adsorbed glucose molecule tends to donate electrons to the Bi(V) sites and to be oxidized to gluconolactone, followed by hydrolysis to gluconic acid. This process is similar to other multivalent electrocatalysts, such as Cu (Zheng et al., 2017) and Au (Juſík et al., 2016). Second, the produced gluconic acid molecules are also adsorbed on the Bi(V) surface, most likely via multiple Bi(V) sites. The highly oxidizing Bi(V) species then draw electrons from the carbon atoms, weakening the C–C bonding, and eventually breaking it to produce C5, C4, and C3 compounds.

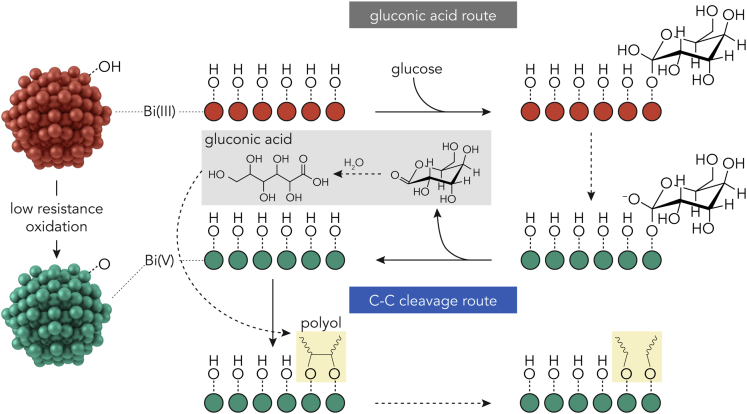

Scheme 2.

Proposed continuous glucose electrooxidation mechanism on Bi NPs electrocatalyst

After understanding the mechanism of glucose oxidation, we further evaluated the electrocatalytic activity of the Bi NPs. Quantitative analysis was performed by changing the catalyst loading and glucose concentration, and the results are summarized in Figure 6. As suggested in Figures 6A and 6B, an optimal catalyst loading of 40 μg is evident as a lower or higher mass loading would produce a lower oxidation peak current. Understandably, compared with 20 μg, a higher catalyst loading of 40 μg provides more charge transfer sites. Nevertheless, excessive coating would increase the diffusion path of glucose molecules, which in turn would lower the peak current.

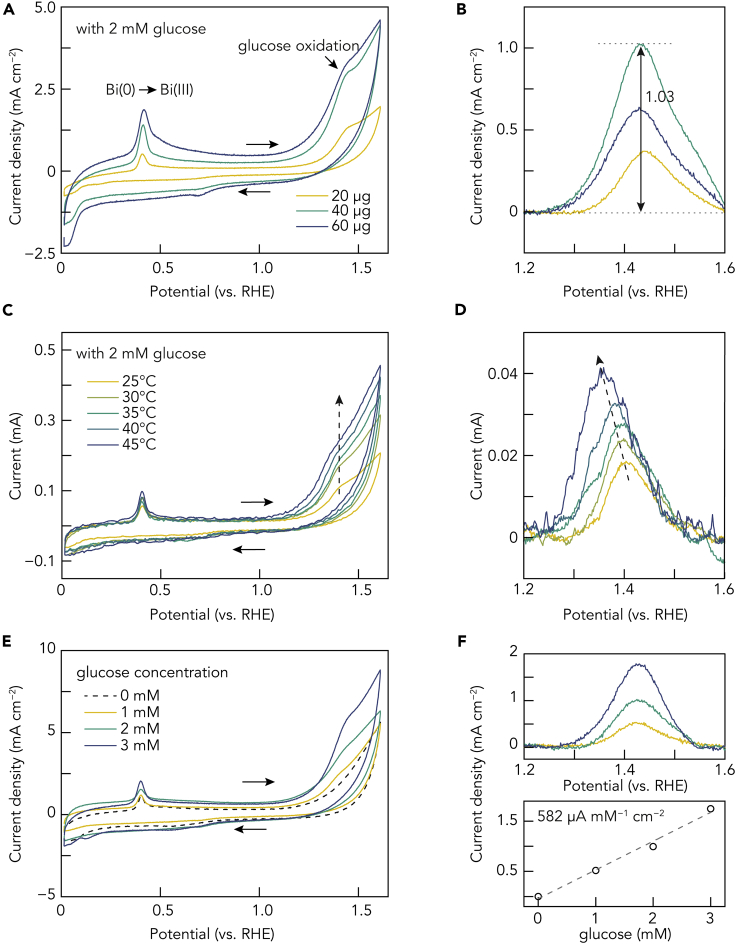

Figure 6.

Quantitative analysis of glucose electrooxidation on Bi NPs

(A) CV plots of electrodes coated with different amounts (20, 40, and 60 μg) of the Bi NPs/AC (Bi: 1.5 wt %) composites in 0.1 M KOH electrolyte with 2 mM glucose.

(B) Corresponding glucose electrooxidation signal in (A) after background subtraction.

(C) CV plots of the Bi NPs/AC-coated (40 μg) electrode in 0.1 M KOH electrolyte with 2 mM glucose at different temperatures.

(D) Corresponding glucose electrooxidation signal in (C) after background subtraction.

(E) CV plots of the Bi NPs/AC-coated (40 μg) electrode in 0.1 M KOH electrolyte with different glucose concentrations (0, 1, 2, and 3 mM).

(F) Corresponding glucose electrooxidation signal in (E) after background subtraction (up) and the linear correlation between oxidation peak current density and glucose concentration (down).

Varying the reaction temperature can provide insights into the reaction activation parameters. As shown in Figures 6C and 6D, higher temperature (from 25°C to 45°C) causes higher oxidation current (reaction rate). Moreover, the oxidation peak potential decreases slightly (2.4 mV °C⁻¹), which is due to the accelerated glucose diffusion at a higher temperature. However, because the mechanism involves more than one step and the transferred electron number is difficult to assume, the activation energy of overall glucose electrooxidation on Bi NPs cannot be calculated accurately.

Finally, we studied the impact of glucose concentration on the corresponding oxidation signal (Figures 6E and 6F). Increasing the glucose concentration would promote oxidation signal, confirming that the peak at 1.46 V can be exclusively attributed to glucose electrooxidation on the Bi NPs catalyst. A well-fitted (R = 0.98) linear relationship between the oxidation current density and glucose concentration is presented with a slope of 582 μA mM⁻¹ cm⁻². This excellent correlation implies the potential application of the Bi NPs as an electrochemical glucose sensor. With a sensitivity of 582 μA mM⁻¹ cm⁻², the performance of the Bi NPs is comparable to those of some state-of-the-art transition metal catalysts (Zheng et al., 2019a).

Conclusion

In summary, we prepared stabilizer-free Bi NPs with a mean diameter of 9.6 nm using a laser ablation method. The electrochemical properties and glucose electrooxidation activity of the Bi PCs and Bi NPs in alkaline conditions are compared using CV and FTACV. It is found that the Bi NPs can generate Bi(V) species on its surface at high anodic potential and act as the electrocatalyst for glucose electrooxidation, whereas the BiPCs cannot. Evidence from both EIS and C-AFM suggests that the formation of a non-conductive Bi(OH)₃ layer on the Bi PCs surface during anodic polarization prevents further electrooxidation of Bi(III) to Bi(V), whereas the much shorter charge transfer pathway of the Bi NPs significantly reduces the impact of Bi(OH)₃ layer formation, enabling high-valent Bi(V) species production, which also benefits the charge transfer.

The formation of Bi(V) species on the surface of the Bi NPs is the reason for its glucose electrooxidation activity. Contrary to common belief that gluconic acid is the final product, glucose electrooxidation catalyzed by the Bi NPs produces gluconic acid as the intermediate product, which can be further oxidized to C5 (arabinonic acid), C4 (erythronic acid), and C3 (glyceric acid) products during long-term electrolysis. A highly selective glucose oxidation mechanism involving C–C bond cleavage is thus suggested. Also, the Bi NPs, but not ethylene glycol, show selective catalytic activity toward glycerol electrooxidation, suggesting a possible multi-Bi(V) site adsorption mechanism.

These results represent one of the first examples of using Bi-only electrocatalyst for electrooxidation. We not only explain why Bi PCs do not show any catalytic activity but also present a method to prepare Bi NPs electrocatalyst suitable for oxidation applications, which is of great importance especially for bioelectrocatalysis in which the less toxic bismuth is highly appreciated. Moreover, the high selectivity and ability to break C–C bond make Bi NPs a promising catalyst for electrochemical biomass conversion and organic synthesis.

Limitations of the study

Our work demonstrates the electrocatalytic activity of Bi NPs for polyol (mainly glucose) electrooxidation and suggests that the C–C bond cleavage is promoted via the formation of the surface Bi(V) species. We also explain why Bi PCs are not active using mainly electrochemical data. However, a deeper understanding of the Bi surface during the anodic catalysis is still required. It is only possible by engaging in situ techniques coupled with electrochemistry, such as Raman and XRD. Furthermore, the impact of particle morphology (shape and size) on the electrocatalytic activity and selectivity needs to be further investigated. This requires the shape/size-controllable synthesis of Bi NPs, which we are currently working on.

Resource availability

Lead contact

Further information and requests for resources should be directed to and will be fulfilled by the lead contact, Lawrence Yoon Suk Lee (lawrence.ys.lee@polyu.edu.hk).

Materials availability

This study did not generate new reagents.

Data and code availability

This article includes all datasets/code generated or analyzed during this study.

Methods

All methods can be found in the accompanying Transparent Methods supplemental file.
