A cascade reaction of cinnamyl azides with vinyl sulfones directly generates dihydro-pyrrolo-pyrazole heterocycles

Abstract

This report describes the direct synthesis of dihydro-pyrrolo-pyrazole heterocycles from allylic azides and methyl vinyl sulfone. The product results from a complex cascade reaction that is operationally straightforward, with aromatization being the result of a concomitant elimination step. A variety of azides could participate in this reaction (12 examples) and the isolated yields of the desired product ranged from 51%–72%. Lastly the ethylene sulfone group could be removed by heating the product in pyrrolidine.

Graphical Abstract

Many pharmaceuticals, agrochemicals, and natural products contain one or more nitrogen heterocycles.[1,2] Both aromatic and saturated nitrogen heterocycles are prevalent in these societally important molecules. Thus, developing and manufacturing novel agents often requires efficient and robust synthetic access to differentially substituted N-heterocycles. While a plethora of synthetic routes are available for some of the most common N-heterocycles, more complex fused systems often lack expedient and direct access.

The dihydro-pyrrolo-pyrazole ring system is a fused N-heterocyclic framework featuring an aromatic pyrazole ring fused to a pyrrolidine (Fig. 1). This fused ring system is a key substructure in omarigliptin, which is an approved treatment for type 2 diabetes,[3] and danusertib, which entered clinical trials to treat chronic myelogenous leukemia (Fig. 1).[4,5] The dihydro-pyrrolo-pyrazole substructure also appears in a glycine transporter-1 inhibitor, a P21-activated kinase inhibitor, and elsewhere.[6,7] Versatile synthetic routes to dihydro-pyrrolo-pyrazole heterocycles are lacking, which is surprising in light of the stated utility. Current methods to synthesize dihydro-pyrrolo-pyrazoles are primarily based on carbonyl condensation with hydrazine (Scheme 1). Exposing 1,3-diketones or β-keto-nitriles to hydrazine can generate the pyrazole (Scheme 1a).[8] Other prefunctionalized ketones can condense with hydrazine (Scheme 1b).[3,8,9] Alternatively, an intramolecular dipolar cycloaddition is possible (Scheme 1c). [10,11] While effective, these approaches require preformation of the substrate. Ideally, there would be a divergent method to generate a wide variety of these heterocycles directly from simple starting materials.

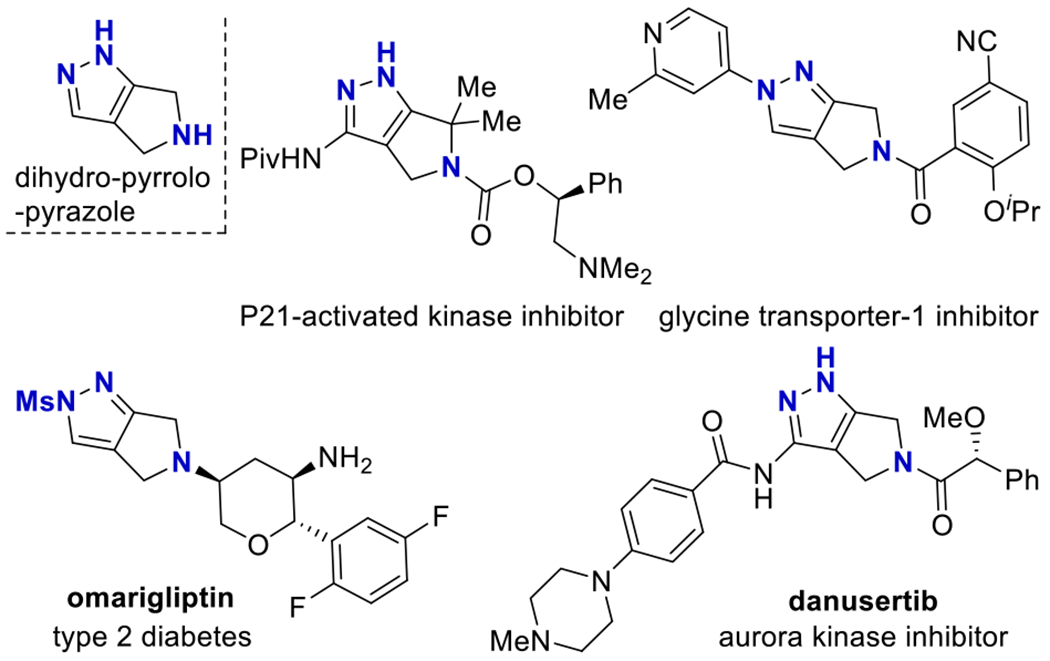

Fig. 1.

Select Biologically Active Molecules Containing a Dihydro-pyrrolo-pyrazole.

Scheme 1.

Prior Syntheses of Dihydro-pyrrolo-pyrazoles.

We envisioned accessing dihydro-pyrrolo-pyrazole heterocycles from allylic azides. Previously, we reported a cascade reaction between cinnamyl azides and commodity acrylates to form tetrahydro-pyrrolo-pyrazoles (Scheme 2).[12] The proposed mechanism for this cascade reaction begins with a (3 + 2)-cycloaddition between the azide and electron deficient alkene to generate triazoline 3.[13–19] This triazoline can equilibrate to the corresponding diazo species 4 and amine bases can facilitate this equilibrium. [18,20] Diazo 4 can undergo an intramolecular (3 + 2)-cycloaddition to generate tetrahydro-pyrrolo-pyrazole 5.[21,22] Tautomerization to the conjugated isomer (6) generated the product previously reported.[21,22] This reaction was remarkably effective at generating a diverse family of complex heterocycles from a variety of Michael acceptors.

Scheme 2.

Cascade Reaction with Allylic Azides.

Conceivably, by using a Michael acceptor that could subsequently eliminate, the cascade reaction could be extended a step further to aromatization (Scheme 2, step v). This would result in a dihydro-pyrrolo-pyrazole ring system (7). To explore this possibility, our previous reaction conditions were screened against a variety of Michael acceptors. Gratifyingly, when vinyl methyl sulfone was utilized, the reaction afforded the desired dihydro-pyrrolo-pyrazole. However, in the presence of excess methyl vinyl sulfone, the amine underwent a conjugate addition to generate compound 2. A detailed analysis of this reaction mixture also revealed that some of the triazoline had undergone premature elimination to generate the N-substituted 1,2,3-triazole (8).

The cascade reaction was subjected to a systematic optimization (Table 1). The reaction tolerated a range of solvents (entries 1–6), as might be expected for a cycloaddition sequence. Dioxane proved optimal for the dihydro-pyrrolo-pyrazole product. As previously mentioned, premature elimination to the triazole is one of the primary side products. Because of this, alternate amine bases were screened with the hope of slowing the rate of triazole formation. The use of TEA afforded the highest yield (Table 1).

Table 1.

Reaction Optimization with Methyl Vinyl Sulfone.

entry	solvent	base	equiv MVS	1aa(%)	2aa(%)
1	C6H6	TEA	3	n.d.	65
2	MeCN	TEA	3	n.d.	58
3	IPA	TEA	3	n.d.	68
4	MeOH	TEA	3	n.d.	57
5	DCE	TEA	3	n.d.	54
6	Dioxane	TEA	3	n.d.	72
7	Dioxane	DIPEA	3	n.d.	28
8	Dioxane	DIPA	3	n.d.	64
9	Dioxane	TEA	1.2	52	32
10	Dioxane	TEA	2	30	57
11	Dioxane	TEA	4	n.d.	70

^aReactions were conducted with azide 1b (70 μmol), methyl vinyl sulfone (84, 140, 210, or 280 μmol), and base (35 μmol) in solvent (0.2 M) at 70 °C for 48 h. Conversion and yield were determined by ¹H NMR analysis with dibenzylether as the internal standard. Not determined = n.d. MVS = methyl vinyl sulfone.

The equivalents of methyl vinyl sulfone were reduced in an attempt to prevent the conjugate addition and isolate the free amine (Table 1, entries 9–10). Unfortunately, reducing the equivalents simply led to low conversion. The eliminated sulfinic acid could consume an equivalent of methyl vinyl sulfone, with the dimer being isolated as a side product (shown in header). This prevented reducing the equivalents of methyl vinyl sulfone below three equivalents. Conveniently, this side product is fairly insoluble and can be removed by filtration. Three equivalents of methyl vinyl sulfone in dioxane with TEA (entry 6) were taken as optimal.

Using the optimized conditions, the model substrate (1a) was isolated in 72% yield (Table 2). Ethyl vinyl sulfone and phenyl vinyl sulfone were also competent in the reaction (2b and 2c).

Table 2.

Scope of vinyl sulfones.

Yields are reported for isolated and purified products. Yield values reflect the average of duplicate trials. See Supporting Information for details.

The cascade reaction was performed with a variety of cinnamyl azides (Table 3). The reaction can tolerate electron donating and electron withdrawing substituents on the arene (2d–2g). Also, the benzene ring could be replaced by a thiophene (2h), benzothiophene (2i), or furan (2j). Substrates with electron neutral arenes generally performed worse and were difficult to isolate (not shown). However, when substituents were added onto the azide carbon, the reaction proceeded well (2k–2l). Only substrates with an aryl group were examined in this reaction because alkyl allylic azides undergo the Winstein rearrangement.[23–25] This rearrangement generally causes the starting allylic azide to exist as a mixture of equilibrating isomers and complicates the reaction mixture. Installing an aryl group biases the equilibrium so that only one azide isomer is observed and provides some polarization to the alkene.

Table 3.

Scope of Cascade Reaction with Cinnamyl Azides.

Yields are reported for isolated and purified products. See Supporting Information for details.

During the course of these studies, dynamic NMR behavior was frequently observed. This was attributed to the two different NH tautomers that are possible on the pyrazole ring. The tautomerization often resulted in significant broadening of the resonances in both the ¹H and ¹³C NMR. This was true in many common NMR solvents including CDCl₃, CD₂Cl₂, MeOD, DMSO, and MeCN. It was found that in AcOD, both tautomers were independently visible for some compounds. The optimal NMR solvent was substrate dependent, but a mixture of MeCN and AcOD frequently limited the broadening and easily dissolved the compounds. Compounds 2c and 2g were crystallized and analyzed by X-ray diffraction (Fig. 2). Interestingly, the diffraction pattern was most consistent with each being a different tautomer, which supports a dynamic equilibrium. The location of the NH has been arbitrarily drawn through this report.

Fig. 2.

Crystal structure of compound 2c and 2g.

The ethyl sulfone group attached to the pyrrolidine nitrogen could be useful in its own right or potentially viewed as a protecting group. This group was easily removed by simply heating the compound in pyrrolidine (Scheme 3). Presumably, this is a retroaza-Michael addition followed by an aza-Michael addition with excess pyrrolidine.

Scheme 3.

Removing the protecting group.

In conclusion a new cascade reaction has been developed to generate dihydro-pyrrolo-pyrazoles directly from cinnamyl azides and vinyl sulfones. The yields for this cascade reaction are modest, but acceptable given the large increase in molecular complexity and number of competing reaction pathways. Removal of the ethylene sulfone group can be easily accomplished.
