Synthesis and properties of hypervalent electron-rich pentacoordinate nitrogen compounds

Abstract

Isolation and structural characterization of hypervalent electron-rich pentacoordinate nitrogen species have not been achieved despite continuous attempts for over a century. Herein we report the first synthesis and isolation of air stable hypervalent electron-rich pentacoordinate nitrogen cationic radical (11-N-5) species from oxidation of their corresponding neutral (12-N-5) species. In the cationic radical species, the nitrogen centers adopt a trigonal bipyramidal geometry featuring a 3-center-5-electron hypervalent attractive interaction. The combination of single crystal X-ray diffraction analysis and computational studies revealed weak N–O interactions between the central nitrogen cation and oxygen atoms. This successful design strategy and isolation of air-stable pentacoordinate hypervalent nitrogen species allow further investigations on reactivity and properties resulting from these unusually weakly coordinating interactions in nitrogen compounds.

Structural characterization of hypervalent electron-rich pentacoordinate nitrogen species has long been a synthetic challenge. Here we report the first nitrogen cationic radical (11-N-5) species featuring a weak hypervalent 3c-5e interaction.

1. Introduction

Hypervalent compounds^1,2 have been defined as main group element compounds which contain a number of formally assignable electrons of more than the octet in a valence shell directly associated with the central atom.^1,3,4 More recently, Parkin⁵ clearly distinguished main group element compounds that feature three-center four-electron (3c-4e) interactions from those that feature 3c-2e interactions. The former, in which one of the atoms appears to have an expanded octet, are termed “electron-rich” hypervalent molecules. The latter are invoked for so-called “electron deficient” hypercoordinate molecules.^6–14

The N-X-L nomenclature¹⁵ has been used to classify hypervalent compounds, where N is the number of valence electrons formally present on the central element according to the Lewis diagram, X is the identity of the central element and L is the number of ligand atoms bonded to the central atom. Parkin proposed ML_lX_xZ_zH_h classifications,⁵ which are more detailed descriptions of the N-X-L nomenclature.

The debate on the fundamental bonding descriptions of this class of compounds to understand why they do not comply to the Lewis “octet rule” has lasted for decades on the theoretical front.^{4,7–10,16–27} In a recent review, Crabtree²⁸ pointed out the similarity among hypervalency and other types of weak bonding and the valence shell of the central atom is essentially an octet and the electrons beyond 8e are predominantly located on ligands, not on the central atom. The hypervalent bonding nature and geometry have significant implications in several current fast-growing areas of synthetic organic chemistry, such as hypervalent iodine reagents,^29–31 sterically constrained T-shaped phosphorus(iii) compounds in small molecule activation and catalysis,^32–39 and application of new heavier group 14 ⁴⁰ and 15 ^41–47 Lewis acids in frustrated Lewis pair chemistry. While hypervalent compounds of heavy main group elements are common,^2,47–53 those of the light, second row elements still remain a synthetic challenge, with only a handful of isolated and structurally confirmed examples of penta-/hexa-coordinate carbon^54–57 and boron^58–61 compounds reported (Chart 1B and C).

Chart 1. Structurally confirmed hypercoordinate (A) nitrogen and hypervalent (B) boron, (C) carbon and (D) nitrogen compounds.

Hypervalent pentacoordinate nitrogen species (10-N-5) are some of the most fundamental hypervalent compounds, with their synthetic attempts traced back to 1916.^62–70 Despite theoretical calculations predicting their existence and structural stability,^71–76 thermally stable hypervalent nitrogen compounds (N–N–L; N > 10, L > 4) have not been reported to date.^68,70,77,78 Some success has been achieved by detection,^79–83 isolation and structural characterization of transient, as well as stable^84–86 hypervalent tetracoordinate nitrogen radical species (9-N-4, Chart 1D).

Here we report the first hypervalent “electron-rich” pentacoordinate nitrogen cationic radical (11-N-5 or ML2X3H1) species with 3c-5e interactions and their corresponding neutral (12-N-5) compounds although “electron-deficient” pentacoordinate nitrogen compounds^6–9,87,88 have been reported as shown in Chart 1A.

2. Results and discussion

To stabilize the trigonal-bipyramidal (TBP) geometry of a 10-N-5 structure, which is typically a transition state resembling an S_N2 reaction,^1,3 we targeted the tridentate 2,6-di(alkoxycarbonyl)phenyl framework⁶⁰ in consideration of two crucial factors: (i) electronegative elements (oxygen) are positioned at apical positions to localize the electron density at the 3-center-4-electron (3c-4e) hypervalent bond and (ii) the apical 3c-4e attractive interaction should be weak enough (O⋯N attractive interactions) to avoid a “bell-clapper” type equilibrium.^89,90 The alkoxycarbonyl groups provide some degree of steric rigidity, which plays an important role in balancing the two factors and thus stabilizing the hypervalent compounds. The tert-butyl group at the para position increases the solubility.

We synthesized neutral triarylamine precursors 2Mea-b and 2iPra-b from the Ullmann coupling reaction of methoxyl- and isopropoxyl-carbonyl substituted bromobenzenes (1Me and 1iPr) with chloro- and trifluoromethyl-substituted diarylamines (Scheme 1). Compounds 2Mea-b and 2iPra-b were isolated as white to pale yellow solids and found fluorescent in solution. Their absorption spectra obtained in CH₂Cl₂ showed two absorption bands at approximately 310 nm and 350 nm, which are assignable to HOMO–LUMO+2 and HOMO–LUMO transitions, respectively (Fig. S7†). The similar absorption wavelengths and oscillator strengths between methyl- and isopropyl-substituted analogues suggest very similar electronic structures of 2Mea-b and 2iPra-b in their ground state. In contrast to the similarities of absorption, the fluorescence emission of 2Mea-b and 2iPra-b measured in CH₂Cl₂ at 25 °C showed substituent-dependence on the aryl groups (X = Cl or CF₃, see Fig. S1 and Table S1†). The ester groups (R = Me or i-Pr) do not exert clear influence. The quantum yields of 2iPra-b (9.43%, 13.95% respectively) with R = i-Pr are obviously higher than those of 2Mea-b (3.22%, 3.50% respectively) with R = Me, likely due to the more restricted rotation around the N-Ph bonds with the sterically larger i-Pr groups.

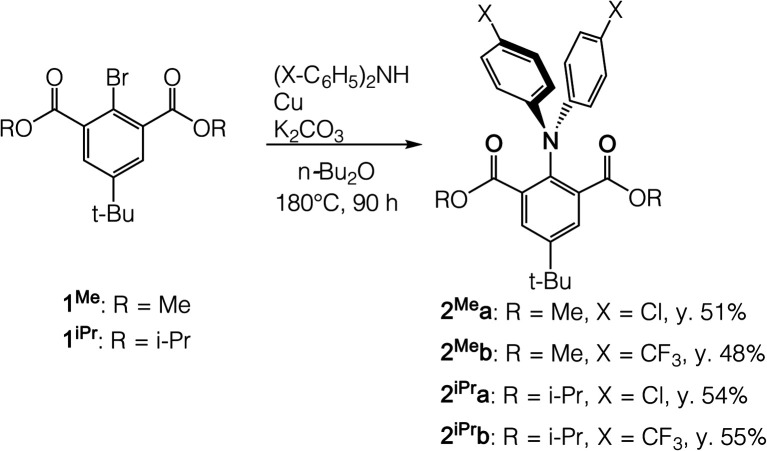

Scheme 1. Preparation of neutral triarylamine precursors 2Mea-b and 2iPra-b.

Cyclic voltammetry (CV) of 2Mea-b and 2iPra-b in CH₂Cl₂ at room temperature with TBAPF₆ as a supporting electrolyte revealed a reversible one electron oxidation wave at formal potentials of +1.196 V, +1.485 V, +1.177 V and +1.477 V versus Fc/Fc⁺ respectively, indicating stability of the corresponding monocationic species (Fig. S3†). The σ withdrawing effect of trifluoromethyl groups is clearly shown in the higher oxidation potentials observed in 2Meb and 2iPrb. The σ donating effect between the methyl and isopropyl substituents is much less prominent. A 2^nd electron oxidation wave was not observed under this condition between −2.0 and 2.0 volts, which is the limit of our instrument.

The one electron oxidation reaction of 2Mea-b and 2iPra-b (Scheme 2) was easily achieved by using 1 equiv. (2,4-Br₂C₆H₃)₃NSbCl₆ as an oxidant in CH₂Cl₂. Dark blue-green solids 3Mea-b and 3iPra-b were obtained in moderate to high yields. The absorption spectra of 3Mea-b and 3iPra-b showed bands at 600–800 nm, significantly red-shifted from those of the neutral compounds in the visible region (ca. 310 nm, Fig. 1). This is due to the smaller HOMO–SOMO energy gaps of radical species in comparison to the HOMO–LUMO energy gaps in neutral species. The chloro-analogues 3Mea (745 nm) and 3iPra (739 nm) showed absorption maxima at noticeably longer wavelengths compared to their CF₃-substituted 3Meb (688 nm) and 3iPrb (681 nm), revealing that electron-donating substituents decrease HOMO–SOMO energy gaps. The chloro-substituted cationic radical species 3Mea and 3iPra are stable in air and moisture for several days at room temperature without detectable decomposition. In contrast, the trifluoromethyl derivatives 3Meb and 3iPrb decompose readily when taken out of an inert atmosphere. All of them appear to be light-sensitive.

Scheme 2. One electron oxidation of 2Mea-b and 2iPra-b.

Fig. 1. Absorption spectra of 10⁻⁵ M 2Mea-b and 2iPra-b (dashed line) and 3Mea-b and 3iPra-b (solid line) in CH₂Cl₂ at 25 °C.

Single crystals suitable for X-ray crystallographic studies were obtained by recrystallization from CH₂Cl₂/hexane solution mixtures of 2Mea-b, 2iPra-b, 3Mea and 3iPra at room temperature. Their solid-state molecular structures and selected bonding parameters are shown in Fig. 2 and Table 1. Due to proneness to decomposition, publishable data of the trifluoromethyl-substituted derivatives 3Meb and 3iPrb could not be obtained. In all structures, the central nitrogen atoms are essentially planar, with the sum of the angles around nitrogen (∑Nα) being larger than 359°. The ester groups seem to rotate along the carbon–carbon single bond, resulting in conformational differences between the solid-state structures of neutral (2Mea and 2iPra) and oxidized compounds (3Mea and 3iPra). The sp³ alkoxyl oxygen (OR) atoms align almost coplanar with the central nitrogen atom in 2Mea and 3iPra, while in the case of 2Meb, 2iPra-b and 3Mea, the sp² carbonyl (CO) oxygen atoms and the nitrogen atom are aligned. Calculations show that the energy differences resulting from the two coordination modes are trivial (<3 kcal mol⁻¹, see Table S12 and Fig. S15†). Therefore, conformational preferences observed in the crystals may be influenced significantly by crystal packing energy. This lack of consistency of coordination modes makes the structural comparison difficult to elucidate.

Fig. 2. Solid-state molecular structures of 2Mea-b, 2iPra-b, 3Mea and 3iPra. Thermal ellipsoids are set at 30% probability. Ellipsoids of periphery atoms, hydrogen atoms, and counter ions are omitted for clarity. A side-view is included in the ESI.† CCDC numbers: 1945530–1945536.⁹¹.

Selected experimental bond lengths (Å), angles and dihedral angles [°] of 2Mea-b, 2iPra-b, 3Mea and 3iPra.

Parameters	Ionic radical	Neutral		Ionic radical	Neutral
	3Mea	2Mea	2Meb	3iPra	2iPra	2iPrb
Coord.	(CO)	(OMe)	(CO)	(OiPr)	(CO)	(CO)
N–O1	2.721(3)	2.764(18)	2.945(15)	2.662(5)	2.891(3)	2.843(12)
N–O2	2.790(3)	2.823(18)	3.015(16)	2.676(5)	2.952(3)	2.868(13)
N–OAve	2.755(3)	2.793(18)	2.980(16)	2.669(5)	2.921(3)	2.855(13)
N–C1	1.440(3)	1.423(2)	1.422(18)	1.454(6)	1.409(5)	1.428(12)
N–C2	1.376(3)	1.408(2)	1.411(17)	1.383(5)	1.408(5)	1.405(13)
N–C3	1.409(3)	1.414(2)	1.415(17)	1.397(6)	1.420(5)	1.404(14)
ΣNα	360.0(6)	359.1(39)	359.8(31)	359.9(12)	359.5(9)	360.0(24)
Φ OCCO	47.7	77.8	90.7	49.0	81.9	77.3

In all the structures, the ester groups twist out of the plane of their attached phenyl ring (Fig. S5† for a side view). Although the N–O bond lengths in all neutral and cationic species are longer than the sum of the covalent bond radii of N and O atoms (1.34 Å),⁹² they are shorter than the sum of van der Waals radii of N and O atoms (2.79–3.16 Å),^93–99 falling in the upper range of previously reported hypervalent bonds.⁵⁶ This suggests possible weak interactions between the central nitrogen atom and both oxygen atoms in both cationic and neutral structures. The torsion angles (Φ) between CO1 and CO2 (Table 1) are the smallest in the formally 11-N-5 cationic species 3Mea and 3iPra (47.7° and 49.0° respectively). They correspond to the shortest N–O distances, 2.721(3) Å and 2.790(3) Å (3Mea) and 2.662(5) Å, 2.676(5) Å (3iPra) among all structures, indicating the strongest N–O interactions.

Among the neutral compounds, the trend of torsion angles (Φ_occo) correlate with that of N–O distances, increasing from 2Mea (2.793(18) Å, 77.8°) and 2iPrb (2.855(13) Å, 77.3°) to 2iPra (2.921(3) Å, 81.9°) and lastly, 2Meb (2.980(16) Å, 90.7°). These N–O distances are slightly shorter than those in Shimizu and co-worker's parent 2-aminoisophthalic acid diester, Ph₂N[C₆H₃(COOMe)] (3.093 Å and 2.984 Å), which also displayed a larger Φ_occo (96.6°).¹⁰⁰

As an additional comparison, we investigated the molecular structure of the bromo-substituted starting material 1Me, which may not be expected to form the same type of pentacoordinate hypervalent interaction. (Fig. S4†). The smallest Φ_occo of 120.4° in 1Me is much larger than those found in our neutral compounds (2Mea-b and 2iPra-b) formed from the methoxy group on each side of the bromo-substituent. This shows that there is no preferred alignment of the two ester groups of 1Me through C_phenyl-C_ester rotation for a small Φ_occo in the absence of the 3c-5e attractive interaction.

Overall, in the solid state, sp³ alkoxyl (OR) coordination forms shorter apical N–O interactions and thus stronger attractive interaction than those from the sp² carbonyl (CO) coordination. In addition, the N–O interactions are stronger in cationic radical species than those in neutral compounds.

To confirm the interactions between the central nitrogen atom and the two oxygens in both neutral and cationic radical species, DFT calculations were carried out at the RCAM-B3LYP-D3/def2-SVP level for 2 and at the UCAM-B3LYP-D3/def2-SVP level for 3 using the Gaussian 09 program (Table S6†). The optimized structures corroborate well with the crystal structures except 2Meb, in which the N–O distances are underestimated.¹⁰¹ The unsystematic inconsistency between calculated and solid-state structures may be due to the solvent effect during the recrystallization process and packing effect of the crystal. Therefore, Atoms in Molecules (AIM) analysis of 2Mea-b, 2iPra-b, 3Mea and 3iPra was carried out based on single point calculations of the X-ray geometries (Fig. 3 and Table S10†).¹⁰²

Fig. 3. Atom in molecules (AIM) analysis results based on X-ray geometries of 2Mea-b, 2iPra-b, 3Mea and 3iPra showing bond paths between the central nitrogen and the carbonyl oxygen, calculated at the RCAM- and UCAM-B3LYP-D3/def2-SVP levels in 2 and 3, respectively.

The results of the cation radical species (3Mea and 3iPra) showed (3, −1) critical points between the central nitrogen atom and the ester oxygen atoms with small electron densities (ρ(r) 0.014–0.017 e/a_o³) and small positive Laplacian values (∇²ρ(r) 0.051–0.064 e/a_o⁵). This indicates that the N–O interactions in 3Mea and 3iPra are weak and polarized, similar to those of the reported second row hypervalent compounds (ρ(r), 0.014 − 0.022 e/a_o³ and ∇²ρ(r), 0.051–0.078 e/a_o⁵).^54–57

According to the review paper by A. C. Tsipis,¹⁰³ the following classifications are presented based on the character of the bond/interaction:

(1) ∇²ρ < 0 and H_cp < 0 indicate weakly polar and nonpolar covalent bonds.

(2) ∇²ρ > 0 and H_cp < 0 correspond to intermediate interactions including strong hydrogen bonds and most of the coordination bonds.

(3) ∇²ρ > 0, ρ(r) < 0.2 and G_cp/ρ_cp > 1 indicate closed-shell interactions such as weak hydrogen bonds and van der Waals interactions.

(4) ∇²ρ > 0 and |V_cp|/G_cp < 1 characterize ionic bonding.

The AIM results of 3Mea and 3iPra (Table S10†) match the criteria of the class 3 and 4 mostly, which revealed an ionic (non-covalent), weak secondary bonding nature of the N–O interactions. This provides further support for Crabtree's generalization of hypervalent, hydrogen and secondary bonding interactions.²⁸

Among neutral species, although no hypervalent bonding was expected due to the repulsion between the nitrogen and oxygen lone pairs, the AIM analysis showed (3 −1) critical points between N and O atoms in 2Mea and 2iPrb. Their electron density (0.013–0.015 e/a_o³) and Laplacian (0.048–0.052 e/a_o⁵) values are slightly smaller than those found in cationic species (ρ(r) 0.014–0.017 e/a_o³, ∇²ρ(r) 0.051–0.064 e/a_o⁵). In contrast, no N–O (3, −1) critical points were found in 2Meb and 2iPra (Fig. 3). These AIM results corroborates well with the N–O distances: cation radicals show the shortest N–O distances (2.662–2.790 Å) and (3, −1) critical points with the highest ρ(r) and ∇²ρ(r) values, followed by 2Mea and 2iPrb with intermediate N–O distances (2.764–2.868 Å) and weaker (3, −1) critical points. The N–O distances in 2Meb and 2iPra are the longest (2.891–3.015 Å) and no (3, −1) critical points were found along the N–O paths.

Combined X-ray bonding analysis and theoretical AIM studies suggest that the N–O interactions in the cation radical cases are stronger than in the neutral cases. 3Mea and 3iPra should be regarded as hypervalent electron-rich pentacoordinate nitrogen species with a 3c-5e attractive interaction (ML2X3H1). The neutral compounds may or may not exert weak N–O attractive interactions. Any N–O interactions exhibited in the neutral case may originate from the effective delocalization of the nitrogen electron lone pair in the triarylamine structure (evident by the planar amine geometry and slightly shortened N–C_ipso bond distances, Table 1). The slightly positive nitrogen atom then can form electrostatic interactions with the adjacent oxygen electron pairs, forming an interaction (Fig. 4).

Fig. 4. The delocalization structures of neutral compounds (2Mea and 2iPrb) with electron-withdrawing groups (-Cl and CF₃).

The cationic radical compounds 3Mea-b and 3iPra-b were also characterized by Electron Paramagnetic Resonance (EPR) spectroscopy in CH₂Cl₂ (Fig. 5). In all cases, the spectrum showed a nitrogen centered radical with hyperfine coupling to hydrogen nuclei of the singly substituted aryl groups (rings B and C, Table 1), indicating that the radical delocalizes over the aryl groups B and C in all structures (Table S3 and Fig. S9–S12†). Larger hyperfine coupling constants (A_H1 and A_H2) in rings B and C and additional coupling contribution from the heteroatoms (Cl and F) were observed. This suggests that stronger electron-withdrawing CF₃-substituents promote delocalization of the radical in the structures. The delocalization to the phenyl rings B and C is more effective than A, reflected by the significantly longer N–C1 distances in comparison to N–C2/C3 distances in the solid-state structures of 3Mea and 3iPra (Table 1).

Fig. 5. Observed (bottom) and simulated (top) EPR spectra of 3Mea-b and 3iPra-b in CH₂Cl₂ solution at 25 °C. Spin Hamiltonian parameters estimated from simulation are labelled in MHz (Table S3†).

3. Conclusions

In conclusion, we successfully synthesized, isolated, and structurally characterized the first air stable hypervalent “electron-rich” pentacoordinate nitrogen compounds. The N–O bond distance in cationic radical species is shorter than the sum of N–O van der Waals radii, indicating attractive interactions between N and O atoms. AIM calculations showed the presence of (3, −1) critical points along the N–O bond paths in cationic radical species, confirming the formation of 11-N-5 hypervalent 3c-5e bonding. In addition, the shorter N–O bond distances and the presence of (3, −1) critical points in neutral compounds 2Mea and 2iPrb suggest possible electrostatic 12-N-5 interactions, likely due to an stabilization effect.

The isolation of these new nitrogen compounds and confirmation of their weak attractive interaction will allow us to explore the effect of weak electronic perturbation on the properties and/or reactivity of nitrogen containing compounds.
