Comprehensive Structure–Activity Profiling of Micheliolide and its Targeted Proteome in Leukemia Cells via Probe-Guided Late-Stage C–H Functionalization

Abstract

The plant-derived sesquiterpene lactone micheliolide was recently found to possess promising antileukemic activity, including the ability to target and kill leukemia stem cells. Efforts toward improving the biological activity of micheliolide and investigating its mechanism of action have been hindered by the paucity of preexisting functional groups amenable for late-stage derivatization of this molecule. Here, we report the implementation of a probe-based P450 fingerprinting strategy to rapidly evolve engineered P450 catalysts useful for the regio- and stereoselective hydroxylation of micheliolide at two previously inaccessible aliphatic positions in this complex natural product. Via P450-mediated chemoenzymatic synthesis, a broad panel of novel micheliolide analogs could thus be obtained to gain structure–activity insights into the effect of C2, C4, and C14 substitutions on the antileukemic activity of micheliolide, ultimately leading to the discovery of “micheliologs” with improved potency against acute myelogenic leukemia cells. These late-stage C–H functionalization routes could be further leveraged to generate a panel of affinity probes for conducting a comprehensive analysis of the protein targeting profile of micheliolide in leukemia cells via chemical proteomics analyses. These studies introduce new micheliolide-based antileukemic agents and shed new light onto the biomolecular targets and mechanism of action of micheliolide in leukemia cells. More broadly, this work showcases the value of the present P450-mediated C–H functionalization strategy for streamlining the late-stage diversification and elucidation of the biomolecular targets of a complex bioactive molecule.

Short abstract

A P450-based chemoenzymatic C−H functionalization strategy was applied to discover improved analogs of the anticancer terpene micheliolide and to profile its target proteome in leukemia stem cells.

Introduction

Sesquiterpene lactones (SQLs) constitute a family of bioactive natural products isolated from various plants.¹ Members of this family containing an α-methylene-γ-lactone moiety have recently attracted significant attention because of their promising anticancer properties, especially in the context of leukemias.²⁻⁴ Previous studies indeed showed that parthenolide (PTL) and semisynthetic derivatives thereof are capable of targeting and killing acute myeloid leukemia (AML) cells as well as leukemia stem cells (LSCs).⁵⁻¹⁰ Due to the role of LSCs in self-renewal, disease initiation, and disease propagation^11,12 but low sensitivity to mainstay AML chemotherapeutic agents (e.g., daunorubicin and cytarabine),^13,14 selective eradication of LSCs represents an important goal in the development of next-generation antileukemic drugs.¹⁵⁻¹⁹ Similar to parthenolide, the SQL micheliolide (MCL, 1; Scheme 1) was recently found to possess promising activity and selectivity against AML cells and LSCs.^20,21 In addition to AML, this natural product was shown to possess promising in vitro and in vivo activity in the context of other forms of cancer.²²⁻²⁵ While showing lower antileukemic activity than PTL (∼3 fold higher LC₅₀ in vitro), MCL exhibits several favorable features such as higher chemical stability, water solubility, and an improved pharmacokinetic profile in vivo,²⁰ which make it a promising scaffold for the development of antileukemic agents. The anti-inflammatory and anticancer activities of SQLs have been linked to their reactive α-methylene-γ-lactone “warhead”, which can act as a Michael acceptor resulting in covalent inhibition of target proteins.²⁶⁻²⁸ While chemical modification of this reactive moiety provides a facile route for the functionalization of these molecules, modifications at this site typically result in significant reduction or loss of biological activity.^7,20,29,30 Indeed, tolerated substitutions at this site in both PTL and MCL have been largely limited to dimethylamine adducts (Scheme 1A), which have improved oral bioavailability but show similar or lower anticancer activity than the parent natural product.^6,20 In MCL, the hydroxyl group at C4 is also available for late-stage functionalization purposes (Scheme 1A) and C4-substituted analogs of MCL were investigated by Chen and co-workers.³¹ However, none of these C4-substituted analogs showed improved antileukemic activity compared to MCL, further highlighting the challenges of improving the anticancer potency of this natural product using currently available methods.

Scheme 1. Micheliolide (MCL) and Chemical vs Chemoenzymatic Synthesis of Micheliolide Analogs.

P450 enzymes constitute attractive biocatalysts for the selective oxyfunctionalization of organic molecules,³²⁻³⁴ and protein engineering has provided a means to expand the substrate scope of these enzymes to include non-native substrates, including natural products.^9,35−42 Here, we report the successful application of engineered P450s and P450-mediated chemoenzymatic C–H functionalization^9,38,43 as a strategy to access novel—and previously inaccessible sites—for the late-stage elaboration of MCL (Scheme 1B). As fine-tuning of the regio- and stereoselectivity of P450 enzymes remains a major challenge,^32,33 we have implemented a novel probe-based fingerprinting approach for guiding the development of highly regio- and stereoselective P450 catalysts for the chemoenzymatic functionalization of this complex natural product. Using these selective P450 catalysts, a broad panel of semisynthetic MCL analogs could be obtained to illuminate structure–activity relationships of modifications at multiple sites within the MCL scaffold (Scheme 1B) and enable the development of MCL-based agents with improved antileukemic activity. In addition, using this chemoenzymatic strategy, a complementary set of MCL-based affinity reagents could be generated and leveraged to perform a comprehensive profiling of the MCL-targeted proteome in leukemia stem cells. Our results show that the present strategy was both effective and critical toward (i) enabling the identification of “hot spots” for potentiating the antileukemic activity of MCL, (ii) discovering improved MCL-based antileukemic agents, and (iii) permitting a comprehensive analysis of the MCL-targeted proteome in leukemia stem cells, including putative targets which would have been overlooked through derivatization of the parent natural product alone.

Results and Discussion

Micheliolide Oxidation via a Substrate Promiscuous P450_BM3 Variant

In previous work, we found that FL#62, an engineered variant of the fatty acid monooxygenase P450_BM3 (Bacillus megaterium),^44,45 is able to oxidize parthenolide⁹ and a broad range of bulky terpenes.^38,46 Based on these results, we envisioned that this P450 variant could also accept micheliolide (MCL, 1) as a substrate for oxidation. Indeed, FL#62 was found to support the oxidation of MCL with 280 turnovers (TON) in the presence of a NADPH cofactor regeneration system. From these enzymatic reactions, three mono-oxygenated products were produced in an 87:7:6 ratio, as determined by gas chromatography (GC) (Scheme 2). Structural elucidation of these compounds by NMR revealed that the major product corresponds to 2(R)-hydroxy-micheliolide (2, 87%), whereas the minor products correspond to 14-hydroxy-micheliolide (3, 7%) and 14-formyl-micheliolide (4, 6%), respectively. The R configuration of the C2 carbon in 2 was assigned based on NMR NOE experiments, which revealed a strong NOE between the 5(H) and the 2β(H) protons and the absence of an NOE between the 6(H) and 2α(H) protons (Figures S1–S2). The identity of compound 3 was further confirmed by X-ray crystallography (Scheme 2, Figure S3). Unlike FL#62, wild-type P450_BM3 enzyme showed negligible oxidation activity on MCL (<1 TON).

Scheme 2. Enzymatic Oxidation of MCL (1) using P450_BM3 Variant FL#62.

Product distribution: 87% 2; 7% 3; 6% 4. The X-ray crystal structure of 3 (CCDC 2033958) is also shown.

Interestingly, compounds 2, 3, and 4 are not naturally occurring derivatives of MCL, nor have they been previously obtained using synthetic means. The hydroxylation products 2(R)-hydroxy-MCL (2) and 14-hydroxy-MCL (3) were considered particularly valuable as they provide two new points of entry for late-stage functionalization of the MCL scaffold at two remote C(sp³)—H sites relative to the preexisting hydroxyl group at C4 and the reactive α-methylene-γ-lactone (C13 site). 14-Formyl-micheliolide (4) likely arises from a second P450-catalyzed oxidation of the C14 site in 3 to give a C14 gem-diol, which yields the aldehyde product via dehydration. Compound 4 can be reduced in the presence of NaBH₄ in methanol to give the alcohol product 3 (data not shown). This notwithstanding, the poor regio- and chemoselectivity of FL#62 toward MCL oxidation was limiting, in particular for functionalization of the C14 site. Accordingly, FL#62 was chosen as a promising starting point for evolving P450 variants with improved site-selectivity for each of the targeted aliphatic C–H sites.

Probe-Guided Search of Regioselective P450 Catalysts for MCL Oxidation

In previous work, we have generated a collection of over 800 functionally diverse P450 variants via site-saturation mutagenesis of first-sphere active-site residues (74, 75, 78, 81, 82, 87, 180, 181, 184, 263, and 328; Figure 1b) in FL#62 (or derivative thereof), followed by high-throughput fingerprinting of these variants using a panel of structurally diverse chromogenic probes.^9,38,46 As part of this work, we have reported methods for predicting P450 reactivity based on the analysis of their fingerprints via single component (SCA)^9,46 and multicomponent analysis (MCA).^9,38 In the interest of expanding the toolbox of high throughput methods for expediting the development of P450 catalysts with fine-tuned selectivity, we sought to develop a complementary fingerprint-based strategy (called “regio-fingerprinting”) that could concurrently relay information about the P450 oxidation activity on a target substrate (i.e., MCL) and the regioselectivity of the P450 enzymes on such substrate.

Figure 1.

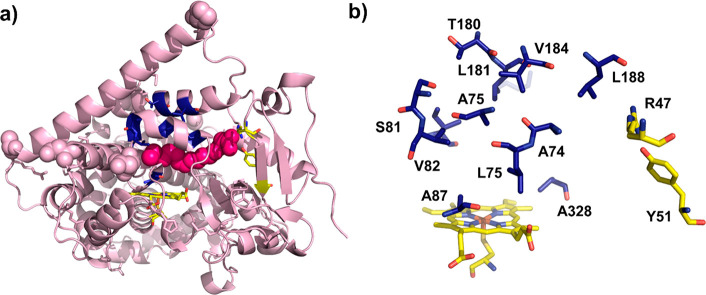

(a) Crystal structure of the heme domain of P450_BM3 in complex with N-palmitoyl glycine (PDB code 1JPZ). The heme and bound substrate are colored in yellow and magenta (space-filling model), respectively. (b) Model of the P450_BM3 variant FL#62 active site with key residues around the heme cofactor (yellow) displayed as stick models.

As outlined in Figure 2a, this method relies on surrogate probes derived from the target substrate, in which a methoxy “reporter” group⁴⁶ is installed at the C–H site of interest (i.e., C2 or C14 in MCL). In this approach, P450-dependent demethylation activity on the probe substrate, which is quantifiable via a Purpald-based colorimetric assay compatible with cell lysate and high-throughput screening,^38,46 was expected to provide information about the oxidation activity of the P450 on the parent molecule (i.e., MCL) and its regioselectivity toward the corresponding C–H site in the unfunctionalized scaffold (Figure 2a). According to these design principles, we synthesized two MCL-based probes containing a methoxy (—OMe) group at either C2 (P1) or C14 (P2) position (Figure 2a) via methylation of 2 and 3, respectively. Next, we screened the library of ∼800 functionally diverse P450 variants against the two MCL-based probes P1 and P2, in parallel, using 96-well plates (E. coli DH5α cells). The enzymatic activity on each probe was quantified based on colorimetric measurement of the formaldehyde product generated upon demethylation of the reporter methoxy group. For each variant, the probe activity was normalized to that of a reference P450 (P450_BM3(F87A)), which has low yet detectable activity on both probes (Figure 2b). A threshold of >20% relative activity compared to the reference P450_BM3(F87A) was applied to discriminate MCL-active P450 variants from MCL-inactive ones. The probe-based regioselectivity of the P450 variants was then calculated based on their relative activity on P1 and P2 using the equation (A_P1 × 100)/A_tot or (A_P2 × 100)/A_tot, where A_P1 and A_P2 are the normalized demethylation activity of each variant on P1 and P2, respectively, and A_tot is the total probe activity. A probe selectivity of >60% toward P1 (i.e., A_P1/A_tot > 0.6) or toward P2 (i.e., A_P1/A_tot < 0.4) was applied as a predictor for high regioselectivity toward the oxidation of aliphatic positions C2 and C14, respectively, in MCL.

Figure 2.

Fingerprint-guided prediction of P450 regioselectivity. (a) Overview of high-throughput “regio-fingerprinting” method using the MCL-based chromogenic probes P1 and P2. High P1- or P2-selectivity is used a predictor of C2- or C14-selectivity, respectively, for MCL hydroxylation. (b) Total probe activity with relative contribution from P1 and P2 activity for a representative set of P450 variants. Probe activity was normalized to the reference enzyme P450_BM3(F87A), which was included in the screening. (c) Percentage of correct regiofingerprint-guided predictions for C2-selective variants (A_P1/A_tot > 0.6, C14-selective variants (A_P2/A_tot > 0.6), and unselective variants (0.6 > A_P1/A_tot > 0.4).

To experimentally test the predictions, we selected the top 15–20 variants favoring either probe (i.e., A_P1/A_tot > 0.6 or < 0.4), along with several nonselective variants (0.6 > A_P1/A_tot > 0.4) with variable total probe demethylation activity (Table S1). A total of 50 variants that met these criteria were expressed in 48-well plates and analyzed for their activity and regioselectivity toward MCL hydroxylation by GC. These experiments showed that the fingerprint-based substrate activity predictions were confirmed in all cases, indicating that both probes, combined, can relay reliable predictions about the ability of the corresponding P450 variant to accept MCL as a substrate for oxidation. More importantly, a very good correlation was also observed between the fingerprint-based site-selectivity predictions as derived from P₁/P_tot activity and the enzyme regioselectivity in MCL hydroxylation (Table S1). In particular, the C2-selective P450 variants selected based on their high P₁/P_tot probe activity ratio displayed the highest fraction of correct predictions (87%), whereas a rate of 69% and 78% correct predictions was observed for the C14-selective variants and the unselective variants, respectively (Figure 2c). Using this method, P450 variants featuring >90–95% regioselectivity toward hydroxylation of either C2 or C14 could be rapidly identified (Figure 3), thus demonstrating the functionality of regio-fingerprinting in guiding and expediting the search of regioselective P450 catalysts for MCL oxidation. The ability of the regio-fingerprints to capture differences in the enzyme active site configuration that favor C2 vs C14 hydroxylation (or vice versa) is remarkable also in view of the close spatial proximity of these C(sp³)—H sites within this molecule (Scheme 1). Another interesting observation emerging from these studies was the generally higher catalytic activity of the P1-selective P450 catalysts compared to the P2-selective variants (Figure 3). This result can be explained in view of the fact that the parent FL#62 inherently favors MCL oxidation at the C2 position—mimicked by P1 activity—and that dramatic changes in the regioselectivity of a P450 are often accompanied by a trade-off in catalytic activity.^38,47−49

Figure 3.

Regioselectivity (blue/pink bars) and activity (black line) of representative P450 variants identified via regio-fingerprinting toward MCL oxidation. Conditions: cell lysate containing ∼0.1 mol % P450, 2 μM PTDH, 150 μM NADP⁺, 50 mM sodium phosphite in 50 mM potassium phosphate buffer (pH 8.0), r.t., 14 h. Activity was measured as percent total product conversion as determined via gas chromatography.

Identification of C2- and C14-Selective P450 Catalysts for MCL Hydroxylation

From the analyses above, a panel of candidate C2- and C14-selective enzymes were selected for further characterization as purified proteins (Table S2). Gratifyingly, these experiments revealed multiple variants featuring improved C2-selectivity compared to FL#62 (95–97% vs 87% C2-selectivity), such as V-F10 and V-E10 (Tables 1 and S2), both of which were predicted to be C2-selective based on their regiofingerprints (Figure S1). As an exception, II-G9 also exhibited high C2-selectivity (96%) despite its regiofingerprint indicating a preference for oxidation at the C14 site (Figure S1). Among these variants, V-F10 emerged as the best catalyst for C2-hydroxylation of MCL, enabling the synthesis of compound 2 with >97% regioselectivity, absolute R-stereoselectivity, and in near quantitative yield (97%) at a catalyst loading of merely 0.05 mol % (Table 1). This activity corresponds to 1930 catalytic turnovers (TON), i.e., nearly 7-fold higher TON than the parent enzyme FL#62. Notably, these variants were found to be all triple site mutants (vs FL#62) sharing a common Val → Ala mutation at position 82 and an aromatic residue (Phe or Tyr) at position 78. These positions cluster in the same region within the heme pocket of the enzyme (Figure 1b).

Table 1. Amino Acid Mutations and Catalytic Properties of Selected MCL-Oxidizing P450 Variants^a.

	amino acid substitutionb								(%) product distribution
variant	47	74	78	81	82	87	180	184	2	3	4	[MCL] (μM)	mol %P450	% yield (GC)	TONc
FL#62	R	A	A	S	V	A	T	V	87	4	9	500	0.1	28	280 ± 10
II-G9			F	A	A				96	4	0	500	0.4	>99	>250
V-E10			Y	Y	A				95	5	0	500	0.4	>99	>250
V-F10			F	V	A				97	3	0	500	0.4	>99	>250
V-F10			F	V	A				97	3	0	1000	0.05	97	1,930 ± 20
V-D12			L	Y	A	T			51	49	0	500	0.2	9	42 ± 5
V-H10			N	F	A				36	64	0	500	0.2	51	256 ± 15
VIII-C4		T	N	F			A	S	30	70	0	500	0.2	15	74 ± 5
VIII-B1		T	N	F		F	A	S	17	80	3	500	0.2	3	12 ± 1
V-H10(A87L)			N	F	A	L			13	87	0	500	0.1	9	90 ± 10
V-H10(A87I)			N	F	A	I			3	97	0	500	0.1	10	95 ± 9
V-H10(R47C,A87I)	C		N	F	A	I			3	97	0	500	0.1	26	258 ± 18
V-H10(R47C,A87I)d	C		N	F	A	I			1	99	0	500	0.1	72	720 ± 15

^aReaction conditions: substrate and P450 at the indicated concentrations, 2 μM PTDH, 150 μM NADP⁺, 50 mM sodium phosphite in 50 mM KPi buffer (pH 8.0), r.t., 12 h.

^bCompared to P450_BM3, FL#62 carries the following mutations: V78A, F81S, A82 V, F87A, P142S, T175I, A180T, A184V, A197V, F205C, S226R, H236Q, E252G, R255S, A290V, L353V.

^cMean values and standard deviations are calculated from triplicate experiments.

^dUsing 1 M potassium phosphate buffer (pH 8.0).

Importantly, a complementary set of P450 variants with high regioselectivity for C14-hydroxylation (64–80% C14-select. vs 4% for FL#62) was also successfully identified, which included VIII-B1, VIII-C4, and V-H10 (Table S2). The most C14-selective variant was VIII-B1, which produces 14-hydroxy-MCL (3) with 80% selectivity but in low yield (3%) and catalytic activity (12 TON; Table 1). A more promising catalyst for C14 hydroxylation of MCL was V-H10, which exhibits 64% regioselectivity toward formation of 3, no overoxidation to 4, and higher catalytic activity compared to VIII-B1 (256 TON; Table 1).

Using this variant, MCL was oxidized in 51% yield at a catalyst loading of 0.2 mol %. Sequencing analysis of the C14-selective variants revealed a series of “consensus” active site mutations corresponding to Ala78 → Asn and Ser81 → Phe (Tables 1 and S2), which appear to be critical for steering the enzyme site-selectivity toward favoring C14 hydroxylation. This mutational pattern is in stark contrast with that of the C2-selective variants, which feature a bulkier residue (Phe/Tyr) at position 78 and a small residue (i.e., Ala, Val, or Pro) at position 81. A subset of the C14-selective variants also shared mutations A74T, T180A, and V184S, but these substitutions did not appear to be critical for favoring C14 selectivity and they tended to be associated with low catalytic activities (<50 TON), as determined from comparison of structure–activity data for sequence-related variants (Table S2). In general, however, the C14-selective variants identified at this stage were ∼10-fold less efficient in MCL oxidation than the C2-selective variants (12–256 vs 250–1930 TON, respectively, Table 1), a result consistent with the trend observed from screening the P450 variants in cell lysate (Figure 3). Interestingly, some of the P2-selective variants, such as V-D12 (Table 1), exhibited a lower C14-regioselectivity as purified enzyme (49% C14-select.) than predicted based on their P₂/P_tot activity ratio (56%; Table S1) and MCL oxidation reactivity in cell lysate (81% C14-select; Table S3). Control experiments involving reactions with the purified enzyme in a buffered solution spiked with E. coli cell lysate (50% v/v) reproduced the C14-selectivity observed during screening in cell lysate (Table S3). This phenomenon is not unprecedented,³⁷ and it may arise from macromolecular crowding and/or allosteric effects in the presence of cell lysate. More importantly, these results confirmed that the fingerprinting method reports on the regioselectivity of these enzymes under the applied screening conditions (i.e., in cell lysate).

Further Refinement of C14 Regioselectivity

In order to develop an improved catalyst for C14 hydroxylation, a rational design approach was undertaken guided by the structure–activity data accrued from the C14-selective P450 variants identified via regio-fingerprinting (Table S2). Indeed, in addition to the crucial role of residues Asn78 and Phe81 as noted above, these data indicated that Ala87 → Ile/Leu mutations could potentially be beneficial for enhancing C14-selectivity, as suggested by the effect of a A87I mutation toward increasing C14-regioselectivity in XIII-A4 vs VIII-C4 (70 → 76% C14-select.) and that of a A87L mutation in disfavoring C2 hydroxylation over C14 hydroxylation in V-B2 vs V-E7 (10 → 39% C14-select.) (Table S2). The importance of position 87 in influencing C14-selectivity was also apparent from the improved C14-selectivity of VIII-C4 vs VIII-B1 (70% → 83% C14-select.), which differ only by an A87F mutation, although this mutation also caused a 6-fold reduction in activity (13 vs 74 TON) (Table 1). Based on these analyses, two derivatives of V-H10 that incorporate the mutation A87L or A87I were prepared. Gratifyingly, both V-H10-derived variants showed a noticeable improvement in C14 regioselectivity compared to V-H10 (64% → 87–97% C14-select.; Table 1). Specifically, V-H10(A87I) exhibited a nearly complete regioselectivity for C14 hydroxylation (97%) although this was accompanied by a 2.5-fold reduction in catalytic activity compared to the parent enzyme (95 vs 256 TON) and a corresponding reduction in product yield (10% vs 51%; Table 1).

In P450_BM3, the Arg47 residue located at the opening of the substrate channel (Figure 1a) is known to facilitate binding of the fatty acids substrates.⁵⁰ Mutation of this site has been found to facilitate recognition of non-native substrates by this enzyme.⁵¹⁻⁵⁷ Accordingly, the R47C mutation was introduced into V-H10(A87I) to give V-H10(R47C,A87I). Gratifyingly, this variant showed improved catalytic activity (95 → 258 TON), while maintaining high C14-regioselectivity (97% C14-selectiv.; Table 1). Upon optimization of the reaction conditions (Table S4), and in particular in the presence of high concentration (1 M) phosphate buffer, the V-H10(R47C,A87I)-catalyzed reaction with MCL could be further optimized to yield 14-hydroxy-MCL (3) with excellent chemo- and regioselectivity (99% selectivity for 3), good yield (72%), and significantly improved catalytic activity (720 TON, Table 1). Overall, the P450 regiofingerprint strategy implemented in this work enabled us to rapidly isolate P450 variants with refined site-selectivity for each of the sites in MCL targeted by the parent enzyme FL#62. Furthermore, this method allowed for the acquisition of structure–reactivity data across multiple C2- and C14-selective variants (Table S2), which expedited the engineering of P450 catalysts with further improved regioselectivity and activity for selective C14 hydroxylation in MCL.

Characterization of the Regioselective P450 Catalysts

The best variants for C2 and C14 oxidation in MCL were further characterized to gain insights into the effects of the amino acid mutations on their catalytic properties. All of these enzymes exhibited a small but detectable heme spin shift upon incubation with micheliolide (Figure S4a). Accordingly, difference spectra (Abs_390–420) measured at varying MCL concentrations were used to estimate the enzyme binding affinity for the non-native substrate (Table 2, Figure S4b). Using this assay, the parent enzyme FL#62 was found to bind MCL with a K_D of 61 μM. In comparison, the triple mutant V-F10 exhibits a comparable affinity for MCL (K_D = 88 μM), whereas the C14-selective P450 variants show 6- to 20-fold higher K_D values, indicating that the amino acid substitutions favoring C14 selectivity also result in a weakened enzyme–substrate interaction. Kinetic experiments further showed that FL#62 oxidizes MCL with an initial product formation rate (PFR) of 49 turnovers min^–1 and a coupling efficiency of 36% (Table 2). Whereas the C2-selective V-F10 show similar kinetic properties to FL#62 (PFR: 28 turnovers min^–1), optimization of C14 hydroxylation selectivity is accompanied by a more pronounced reduction in both product formation rate (2–13 turnovers min^–1) and coupling efficiency (3–10%; Table 2) compared to the parent enzyme. These features correlate with the significantly lower substrate binding affinity (590–1250 vs 88 μM; Table 2) and catalytic activity (12–256 vs 1930 TON; Table 1) of these C14-selective variants compared to the C2-selective V-F10. This selectivity/activity trade-off is not unexpected considering the dramatic shift in regioselectivity exhibited by these enzymes compared to the parent enzyme and intrinsically lower reactivity of the methyl group in C14 compared to the secondary C–H bond in C2. In this context, noteworthy is the beneficial effect of the R47C mutation in V-H10(R47C,A87I), whose improved performance toward MCL hydroxylation (95 → 258 TON; Table 1) is associated with an ∼4-fold increase in binding affinity for MCL (K_D: 1254 → 365 μM), product formation rate (3 → 13 turnovers min^–1), and coupling efficiency (3 → 10%) when compared to V-H10(A87I) (Table 2).

Table 2. Substrate Binding Affinity and Kinetic Properties of Selected MCL-Oxidizing P450 Variants^a.

variant	selectivity	KD (μM)b	product formation ratec	coupling efficiencyd
FL#62	C2-selective	61 ± 3	49 ± 1	36%
V-F10	C2-selective	88 ± 18	28 ± 5	18%
VIII-B1	C14-selective	nd	2 ± 0.1	3%
V-H10	C14-selective	590 ± 90	7 ± 1	7%
V-H10(A87I)	C14-selective	1250 ± 54	3 ± 0.5	3%
V-H10 (R47C,A87I)	C14-selective	365 ± 53	13 ± 3	10%
		(128 ± 8)e	(22 ± 4)e	(15%)e

^aMean values and standard deviations are calculated from triplicate experiments conducted at room temperature.

^bDerived from heme spin shift experiments; nd = not determined.

^cRates are measured over initial 60 s in 50 mM potassium phosphate (KPi) (pH 8.0) and expressed as mole product per mole P450 per minute.

^dRatio between product formation rate and NADPH consumption rate in the presence of MCL.

^eReactions in 1 M KPi buffer (pH 8.0).

These studies also offered insight into the important enhancement in catalytic activity observed for V-H10(R47C,A87I) in the presence of high-concentration (1 M) phosphate buffer. Indeed, these reaction conditions were found to further enhance the product formation rate, coupling efficiency, and substrate binding affinity of the enzyme (Table 2) compared to standard buffer conditions (50 mM phosphate), which in turn led to a significant improvement in catalytic activity (258 → 720 TON) and product yield (26 → 72%; Table 1). Control experiments ruled out that this effect is correlated with the buffering capacity of the solution (no observed changes in pH throughout the reaction) and/or to the production of hydrogen peroxide through uncoupling pathways, since the addition of catalase had no effect on these reactions (Table S5). It is worth noting that the high buffer concentration has a similar beneficial effect on V-H10(A87I) but negligible effect on variant V-F10, thus showing a certain P450 variant dependence (Table S5). To our knowledge, the beneficial effect of high phosphate buffer concentration on the catalytic activity of these P450_BM3 variants was not documented before and this could prove to be a rather straightforward strategy to improve the performance of other P450s.

Large Scale Enzymatic Oxidation of Micheliolide

Based on these results above, V-F10 and V-H10(R47C,A87I) were selected as the best P450 catalysts for the functionalization of micheliolide at the C2 and C14 site, respectively. Accordingly, preparative scale (0.2 g) reactions were carried out using P450 variants V-F10 (0.1 mol %) and V-H10(R47C,A87I) (0.1 mol %) in the presence of a NADPH regeneration system to afford >150 mg of 2 and 3, respectively, in high isolated yield (70–90%; Scheme 3). These results demonstrated the utility of these engineered P450 enzymes to access two key intermediates for further late-stage elaboration of this complex natural product at a synthetically useful scale.

Scheme 3. Preparative-Scale Enzymatic Synthesis of 2(R)-Hydroxy-MCL (2) and 14-Hydroxy-MCL (3) with the Optimized P450 Catalysts.

Synthesis and Antileukemic Activity of Micheliolide Derivatives

The isolated 2(R)-hydroxy-MCL (2) and 14-hydroxy-MCL (3) were further processed via deoxofluorination and acylation chemistry to produce a diverse panel of semisynthetic MCL analogs functionalized at position C2, C14, and/or C4 in order to gain comprehensive structure–activity insights into the impact of these modifications on the antileukemic properties of micheliolide (Table 3). Among them, analogs with identical substituents installed at the three different sites across the molecule (C2, C14, C4) were prepared to examine the positional effect of these modifications and the relative potential of these sites toward potentiating the antileukemic activity of this natural product.

Table 3. Chemical Structures of MCL Analogs Prepared via Chemoenzymatic Functionalization of C2, C14, and C4 Sites.

^aReagents and conditions: MeI, Ag₂O, anhydrous DMF, r.t. to 50 °C, 24 h.

^bReagents and conditions: DAST, anhydrous DCM, −78 °C → 0 °C.

^cReagents and conditions: DMAP, Et₃N, substituted benzoyl chloride, anhydrous DCM, r.t. to 40 °C, from 2 to 72 h.

The antileukemic activity of the MCL analogs was first tested using the leukemia cell line, M9-ENL1. These cells are derived from lineage depleted (Lin-) human cord blood cells transduced with a leukemogenic mixed-lineage leukemia (MLL)-11 19 leukemia (ENL) fusion gene and they develop a rapid and fatal pro-B cell acute lymphoblastic leukemia (ALL) disease in NOD/SCID mice.^17,58 M9-ENL1 cells show an enrichment of embryonic and B-cell progenitor gene sets and exhibit the hallmarks and gene expression patters typical of leukemia stem cells.¹⁷ Cells were treated with a standard 20 μM dose of MCL analog for 24 h followed by measurement of cell viability using Annexin-V and 7-amino-actinomycin (7-AAD) stains (Figure 4). At this dose, MCL shows a 50% reduction in cell viability, which is in line with its LC₅₀ value of 14.6 μM measured from dose-dependent curves using the same assay. Notably, the hydroxylated MCL derivatives show minimal activity (80–100% cell viability; Figure 4) at this dose indicating that the presence of a polar hydroxyl group at either site is deleterious to the antileukemic activity of the parent compound. The methoxy derivatives MCL-1 (P1) and MCL-2 (P2) and the C2- and C14-fluorinated derivatives MCL-3 and MCL-4 show comparable and slightly improved activity, respectively, relative to the parent natural product. In stark contrast, more than half of the MCL analogs derived from acylation of 2 or 3 exhibited significantly improved antileukemic activity compared to MCL (2–30% vs 50% cell viability at the fixed dose) (Figure 4).

Figure 4.

Viability of M9-ENL1 cells upon treatment (24 h) with MCL and the MCL analogs at 20 μM (* = 10 μM). The bars are color coded according to the site(s) of functionalization. UNT = untreated cells. VEH = cell treated with DMSO vehicle only.

The introduction of a benzoyl group at either the C2 (MCL-5) or C14 site (MCL-6) resulted in a loss (C14) or no change (C2) in antileukemic activity, while the same substitution at C4 (MCL-7) brought about a moderate (2-fold) improvement in antileukemic activity compared to MCL. Interestingly, the introduction of a fluorine substituent at the para position of the benzoyl group greatly improved the antileukemic activity of all three analogs (4–8% cell viability for MCL-8, -9, and -10). The beneficial effect of increasing the lipophilicity of the aryl group at either the C2 or C14 position was further supported by the substituent effect: 4-CF₃-Bz ≈ 4-F-Bz ≫ 4-N(Me)₂-Bz ≥ Bz observed across the series of C2-substituted analogs (MCL-13, -11, -8, and -5) and the C14-substituted counterparts MCL-14, -12, -9, and -6. Based on these results, the lipophilicity of the aryl group was further increased by installing two trifluoromethyl groups at the ortho, para positions (MCL-15, -16, -17) and meta, meta positions (MCL-18, -19, -20). The latter modification at the C2 or C14 site resulted in two very potent compounds, namely MCL-18 and MCL-19, capable of inducing nearly complete M9-ENL1 cell death (<2–3% cell viability) at the single dose of 20 μM. Interestingly, the same substitution at the C4 site (MCL-20) resulted in significant loss of activity, further revealing a strong positional effect of the aryl substituent toward influencing the activity of the molecule. Interestingly, a different structure–activity trend (C14 > C2 ≈ C4 vs C14 ≈ C2 ≫ C4) along with generally lower antileukemic activity (7–30% cell viability) was exhibited by the regioisomeric analogs incorporating the ortho,para-bis-trifluoromethyl-phenyl substituents (MCL-15, -16, -17). Altogether, these results point at a specific and position-dependent interaction of these substituents with the biomolecular targets of these compounds in leukemia cells. Along with the monosubstituted analogs, difunctionalized MCL derivatives obtained through modification of C2/C4 (MCL-21) and C14/C4 (MCL-22) were also tested. Both compounds, however, showed parentlike antileukemic activity and thus significantly reduced activity compared to the C2- and C14-monosubstituted counterparts.

Focusing on the modification of the C2 and C14 site, which showed most promise for potentiating the antileukemic activity of MCL based on the results above, additional analogs were prepared by introducing alternative aromatic, heteroaromatic and biaryl groups (i.e., naphthalene, indole, furan, pyrazole) at either of these positions (Table 3). Whereas all these MCL analogs show improved antileukemic activity compared to MCL (Figure 4), the naphthyl-substituted MCL-23 and MCL-24 as well as the phenyl-pyrazole containing analogs MCL-31 and MCL-32 showed very high cytotoxicity against M9-ENL1 cells, resulting in 3–7% cell viability after treatment with these compounds. Across the indolyl derivatives, the C14-substituted analog (MCL-28) emerged as the most promising analog, showing noticeably higher activity than the C2-substituted analog (4% vs 42% cell viability). In all cases, additional substitution at the C4 position caused a significant reduction (MCL-29 and MCL-30 vs MCL-28) or complete loss in activity (MCL-25 and MCL-26 vs MCL-24), further supporting the notion that introduction of bulky substituents at both sites is not well tolerated.

Antileukemic Activity against Patient-Derived AML Specimens

From these activity tests, several MCL analogs were discovered that exhibit significantly improved antileukemic activity compared to the parent molecule, MCL (Figure 4). MCL analogs causing ≥93% lethality of M9-ENL1 cells after 24-h incubation at 20 μM were further characterized by determining their half-maximal lethal concentration (LC₅₀) value from dose–response curves (Table 4). In these experiments, MCL was determined to exhibit a LC₅₀ of 15.4 μM (Table 4). MCL-9, which bears a para-fluorobenzoyl moiety at the C14 position, showed a 3-fold enhanced activity (LC₅₀ = 4.8 μM) compared to MCL and the C2-substituted counterpart MCL-8 (LC₅₀ = 14.7 μM). Notably, MCL-13, which differs from MCL-8 by substitution of the fluorine group with a trifluoromethyl group, exhibited high antileukemic activity with a LC₅₀ of 1.8 μM; this corresponding to an 8-fold improvement compared to the parent molecule (Table 4). The o,p- and m,m-ditrifluoromethyl-substituted aryl derivatives MCL-16 and MCL-18, MCL-19 as well as the pyrazole-containing analogs MCL-31 and MCL-32 were also found to possess improved antileukemic activity (2- to 3-fold) compared to MCL, with LC₅₀ values ranging from 4.1 μM to 9.5 μM. In contrast, the napthoyl- and indolyl-substituted analogs MCL-24 and MCL-28, respectively, show no significantly improved LC₅₀ values compared to MCL (LC₅₀ ≈ 13–14 μM; Table 4).

Table 4. LC₅₀ Values of Micheliolide (MCL) and Its Derivatives against M9-ENL1 Cells and Four Primary AML Specimens Derived from Patients with Relapsed AML^a.

compound	M9-ENL1 LC50 (μM)	AML01 LC50 (μM)	AML02 LC50 (μM)	AML03 LC50 (μM)	AML04 LC50 (μM)
MCL	15.4	18.8	20.3	15.7	22.1
MCL-8	14.7	nd	nd	nd	nd
MCL-9	4.8	9.0	16.9	13.1	9.5
MCL-13	1.8	8.2	6.6	4.3	4.3
MCL-16/SG-8	5.2	8.3	12.5	9.1	7.4
MCL-18	7.0	25.6	5.9	5.8	4.7
MCL-19	4.1	3.2	2.5	2.5	2.3
MCL-24	13.5	nd	nd	nd	nd
MCL-28	13.6	nd	nd	nd	nd
MCL-31	9.5	19.9	15.8	10.2	19.0
MCL-32	8.6	18.5	16.1	9.5	19.5

^and = not determined. Standard errors are within 20%.

The most promising MCL analogs identified through these studies were then tested for their activity against acute myelogenous leukemia (AML) specimens derived from patients with relapsed AML. Whereas compounds MCL-9, MCL-13, MCL-16, and MCL-18 all showed 2- to 3-fold enhanced activity against primary AML specimens compared to the parent natural product, compound MCL-19 emerged as the most potent antileukemic agent within this group, exhibiting a LC₅₀ of ∼2–3 μM across all the four primary AML specimens tested (Table 4). This activity corresponds to approximately an order of magnitude higher potency compared to MCL (LC₅₀ ∼ 19–22 μM).

Altogether, these results demonstrated that C2 and C14 constitute two “hot spots” for potentiating the antileukemic activity of MCL, with selective chemoenzymatic functionalization of these sites enabling the development of MCL analogs with significantly enhanced antileukemic properties compared to the parent natural product. Furthermore, as shown by the data in Table 3, systematic structure–activity relationship (SAR) data across three distinct sites within this complex molecule could be obtained by combining this approach with functionalization of the pre-existing hydroxyl group at position C4, thus enabling direct comparison of positional effect of a given substituent on the activity of the molecule against leukemia stem cells and patient-derived AML specimens. Of note, the functionalization pattern at position C14 which resulted in the most potent compound identified in this study, MCL-19, causes a decrease in antileukemic activity when installed at position C4, further highlighting the value of the present P450-mediated late-stage functionalization strategy with engineered P450 with tailored site-selectivity.

Multiprobe Profiling of Micheliolide-Targeted Proteome in Leukemia Cells

Pull-down experiments in combination with proteomic analyses constitute a powerful approach for the identification of the cellular target(s) of bioactive molecules, including natural products.⁵⁹⁻⁶⁵ Conventionally, this approach relies on the use of a single affinity probe generated through functionalization of the bioactive molecule of interest at a permissible site.⁶⁶ Especially for bioactive molecules with a complex mechanism of action and/or multitarget specificity, however, this single-probe approach bears the risk of providing only partial or biased information due to a potentially differential effect of the affinity tag in the recognition of the molecule by its biomolecular targets. Leveraging the regiodivergent P450 catalysts described above, we thus sought to obtain a set of multiple MCL-based affinity probes for a multiplexed analysis of the biomolecular targets of MCL in leukemia cells. Accordingly, two MCL-based affinity probes were prepared by conjugating a biotin moiety, via a flexible linker, to the C2 or the C14 position of MCL by chemoenzymatic means (2-biot-MCL and 14-biot-MCL, respectively; Figure 5a; see Scheme S1 and the SI for details). A third biotin-conjugated probe was prepared through functionalization of the pre-existing OH group at C4 (4-biot-MCL; Scheme S1). Upon testing them in M9-ENL1 cells, the three biotinylated MCL-based probes showed a LC₅₀ value comparable to that of MCL (i.e., LC₅₀ = 13–17 μM; Figure 5a), indicating that, in each case, the affinity tag did not have any significant impact on the overall antileukemic properties of the molecule. Therefore, all three probes were deemed viable affinity reagents for examining proteome targeted by MCL in leukemia cells via pull-down experiments.

Figure 5.

Multiprobe analysis of MCL-targeted proteome in leukemia cells. (a) Chemical structures of the biotinylated MCL-based affinity probes and their antileukemic activity (LD₅₀) in M9-ENL1 cells (n = 6). (b) Overview of the competitive pull-down experiments for analysis of MCL-targeted proteins in acute myeloid leukemia cells (M9-ENL1 cells) (n = 3 per probe). (c) Volcano plots of protein hits identified using the biotinylated MCL-based probes. The top three highly enriched/scoring proteins (= enrichment ratio >3-fold; P < 0.05) are labeled and highlighted in red. See Figures S5–S7 for additional data. (d) Venn diagram showing the overlap (or not) of the most representative putative target proteins identified using the different biotinylated MCL-based probes. The total number of significant hits (>1.25-fold enrichment; P < 0.05 in ≥1 probes) for each probe is displayed in brackets. See Tables S7 and S8 for additional data. (e) Dose-dependent induction of heme oxygenase 1 (HO-1) in primary AML specimens by MCL, PTL, and MCL analogs MCL-13 and MCL-19.

As outlined in Figure 5b, these experiments were carried out by treating M9-ENL1 cell lysates with each of the three MCL-based probes both with and without pretreatment with MCL. This competitive setup allows identification of hits based on the fold enrichment over the MCL-treated control, minimizing background noise due to unspecific protein binding to the affinity matrix. The probe-bound proteins were captured with neutravidin-coated beads and analyzed via LC-MS/MS and bioinformatic tools. Upon comparison of the sample groups (pretreated with vehicle only) versus controls (pretreated with MCL), a total of 47 putative target proteins were identified using the entire panel of MCL-based probes (Figures 5c; Table S7). While various hits were shared among the probes (vide infra), the total number of significant hits identified with each probe varied, corresponding to 14 for C2-biot-MCL, 24 for C14-biot-MCL, and 33 for C4-biot-MCL (Figure 5d; Table S7). As summarized in Tables 5 and S8, putative target proteins showing the highest enrichment (>3-fold) with one or more probes included proteins/enzymes involved in redox homeostasis (TXNDC12), metabolism (PAPSS1, DHFR, DCXR), and signal transduction (RAB2A, GIT2, ITPR2). Insightfully, these experiments revealed the MCL features a complex protein-targeting profile in leukemia cells, suggesting the engagement of multiple protein targets in these cells. These results are in contrast with the previously proposed single-target specificity and high selectivity of MCL toward targeting pyruvate kinase M2 (PKM2), as determined using HL60 cells and a C4-biotinylated probe similar to 4-biot-MCL.⁶⁷ At the same time, our results are consistent with the behavior of parthenolide, which shares with MCL an α-methylene-γ-lactone moiety as an electrophilic warhead critical for anticancer activity and which was determined to target multiple proteins and pathways in leukemia cells.⁶⁸ While the specific proteins targeted by MCL and PTL differ from each other, functionally related proteins include proteins implicated in redox homeostasis (i.e., GPX1 and TXN for PTL).⁶⁸ Similar to PTL,²⁸ MCL was reported to suppress the NF-κB pathway in cancer and noncancer cells, a mechanism associated with its anti-inflammatory activity.^21,69,70 Interestingly, while PTL is known to covalently inhibit NF-κB,²⁷ NF-κB was not among the hits for any of the MCL-based probes. Thus, these results suggest that, in stark contrast to PTL, the inhibitory effect of MCL on the NF-κB pathway does not stem from a direct interaction of the natural product with NF-κB.

Table 5. Most Significant Putative Targets of MCL in Leukemia Cells (M9-ENL1) as Determined Using the Three Biotinylated Probes^a.

gene name	protein	function	enrichment ratio	probe
EXOC1	exocyst complex component 1	vesicle transport	5.1	C2
GIT2	ARF GTPase-activating protein GIT2	signal transduction	5.8	C14
ITPR2	inositol 1,4,5-trisphosphate receptor type 2	signal transduction	4.0	C14
DHFR	dihydrofolate reductase	metabolism	3.0	C14
RAB2A	Ras-related protein Rab-2A	signal transduction	7.0	C4
DCXR	l-xylulose reductase	metabolism	3.1–1.8	C2/C4
PAPSS1	3′-phosphoadenosine 5′-phosphosulfate synthase 1	metabolism	7.6–1.4	C14/C4
TXNDC12	thioredoxin domain containing protein 12	redox homeostasis	7.0–1.5	C14/C4
LPXN	leupaxin	cell signaling in hematopoietic cells	2.5–1.4	C14/C4
RAP1B	Ras-related protein Rap-1b	signal transduction	1.7–1.2	C14/C4
CNBP	cellular nucleic acid-binding protein	gene transcription regulation	3.2–1.5	C2/C14/C4
APRT	adenine phosphoribosyl-transferase	metabolism	1.6–1.2	C2/C14/C4
PRDX1	peroxiredoxin-1	redox homeostasis	1.3–1.1	C2/C14/C4

^aThe protein function, gene name, fold-enrichment (vs MCL-treated cells), and probe(s) used for detection are indicated. See Table S8 for additional information.

Other interesting insights could be obtained from analysis of the overlapping and nonoverlapping hits identified using the three MCL-based probes, as summarized by the Venn diagram in Figure 5d. Indeed, while a large fraction of the hits (22/47 = 47%) were shared among the affinity probes, many others (25/47 = 53%) were uniquely enriched by the different probes (3 with 2-biot-MCL; 13 with 4-biot-MCL; 9 with 14-biot-MCL). For example, the exocytic vesicle protein EXOC1 was a major target solely identified using 2-biot-MCL, whereas the signal transduction proteins ARF GTPase-activating protein GIT2 and Ras-related protein Rab-2A were major targets identified using 14-biot-MCL and 2-biot-MCL, respectively (Figure 5d, Tables S7–S8). These results can be rationalized considering the complex, multitarget specificity of MCL as emerging from our chemical proteomics experiments and the fact that installation of the affinity tag at different positions within the MCL molecule is expected to influence its interaction with the different target proteins in different ways. Most importantly, these results showed that a much more comprehensive picture of the MCL-targeted proteome in leukemia cells could be achieved using the multiprobe set than possible using any single one of these probes. In turn, these results highlight another key benefit of the present approach based on chemoenzymatic C–H functionalization at multiple sites of the bioactive molecule for target identification purposes.

While further studies are warranted to correlate the role of the various MCL-targeted proteins (Tables 5 and S8) with the antileukemic activity of the natural product, another advantage of the present multiprobe chemical proteomics approach is to guide initial focusing of these efforts toward hits lying within the overlapping regions of the Venn diagram of Figure 5d. Among these, peroxiredoxin-1 (PRDX1) and thioredoxin domain containing protein 12 (TXNDC12) (Table 5) are of particular interest, as they play a role in cell protection against oxidative stress.^71,72 By targeting PRDX1 and TXNDC12, MCL is thus expected to cause an unbalance of cell redox homeostasis in leukemia cells, resulting in an oxidative stress induced cytotoxicity. To probe this hypothesis, we investigated the induction of Heme oxygenase (HO-1) in primary AML specimens upon treatment with MCL and the more active analogs MCL-13 and MCL-19 (Figure 5e). HO-1 is an inducible form of heme oxygenase that responds to oxidative stress in cells.^73,74 These experiments showed a dose-dependent induction of HO-1 by MCL compared to the vehicle-only control (Figure 5e). This feature is shared by PTL and the more potent MCL analogs, which were found to cause a comparatively larger induction of HO-1 at lower doses, thus indicating a potentiation of this activity (Figure 5e). Altogether, and in agreement with the chemical proteomics experiments, these results point at oxidative stress induction as one of the cellular mechanisms underlying the antileukemic activity of MCL and its improved analogs. As noted above, further studies are warranted to investigate other potential mechanisms of action of MCL in leukemia cells, as suggested by its complex protein targeting profile as emerging from the present studies (Figure 5). For example, other interesting putative targets lying at the intersection of the probe-targeted profiles (Figure 5d) include the multifunctional nuclear acid-binding protein CNBP, which was reported to control the transcription of multiple oncogenes,⁷⁵ and leupaxin (LXPN), whose downregulation (by siRNA) was found to suppress the proliferation and invasion of human acute monocytic leukemia cells in vivo.⁷⁶

Conclusion

In summary, we have introduced a novel probe-based approach for guiding the development of site-selective P450 oxidation catalysts. This strategy complements and expands the toolbox of fingerprint-based approaches for P450 function prediction,^9,38,46 providing an efficient solution for accelerating the identification of engineered P450 enzymes with tailored regioselectivity for the oxyfunctionalization of a complex molecule. Using this strategy, we were able to obtain two highly regio- and stereoselective P450 catalysts for the late-stage chemoenzymatic C–H functionalization of two previously inaccessible aliphatic positions (C2 and C14) in the antileukemic natural product micheliolide. Along with functionalization of the C4 position, these chemoenzymatic routes have enabled the synthesis and evaluation of a broad panel of C2-, C14-, and disubstituted MCL analogs, providing comprehensive structure–activity data on the effect of substitutions at multiple sites across the complex natural products on its antileukemic properties. Importantly, these studies revealed that both C2 and C14 constitute key sites for potentiating the antileukemic activity of MCL, resulting in the discovery of MCL analogs such as MCL-13 and MCL-19 with significantly enhanced antileukemic activity against both leukemia stem cells (M9-ENL1) and patient-derived primary AML cells. These findings and methods pave the way to the development of MCL-based compounds as antileukemic and anticancer agents. Finally, these chemoenzymatic routes have also enabled the generation of a set of affinity reagents for investigation of the MCL-targeted proteins in leukemia cells via pull-down experiments and proteomics analysis. To our knowledge, this is the first example of exploiting engineered P450 enzymes for the selective incorporation of an affinity tag into a bioactive molecule. In contrast to a previous report, our studies revealed that MCL has a complex protein targeting profile, involving multiple target enzymes implicated in regulation of cellular redox homeostasis, signal transduction and metabolism. Our results further support the notion that induction of oxidative stress in leukemia cells through targeting PRDX1 and TXNDC12 represents one of the key mechanisms of actions underlying the antileukemic activity of MCL. More broadly, these studies demonstrated how the present strategy permitted a comprehensive analysis of the proteome targeted by a bioactive natural product, as made possible through a complementary set of affinity probes generated through the site-selective functionalization of multiple C–H positions across the molecule’s scaffold. In particular, this approach enabled unveiling of multiple targets engaged by MCL in leukemia cells which would have been missed or overlooked using a conventional, single probe-based strategy. We anticipate that this overall approach can prove valuable toward enabling the optimization of the biological activity as well as the investigation of the mechanism of action of other bioactive molecules and natural products.

Experimental Details

Expression and Fingerprinting of the P450 Library

P450s were expressed from pCWori vectors containing the P450 gene under the control of a p_tac promoter. 96-Deep-well plates containing 400 μL of LB medium (100 mg ampicillin L^–1) per well were inoculated with single variants from the P450 library and incubated overnight at 37 °C (200 rpm, 80% humidity). Eight wells in each plate were set to contain P450_BM3(F87A) as a reference variant for data normalization. After overnight growth, 50 μL from each well was used to inoculate a second set of 96-deep-well plates containing 900 μL of Terrific Broth (TB) medium (100 mg ampicillin L^–1). The plates were incubated at 37 °C (200 rpm, 80% humidity) for 2–3 h until the OD600 reached 1.0. The cultures were then induced with β-d-1-thiogalactopyranoside (IPTG) and δ-aminolevulinic acid (ALA) at final concentrations of 0.5 and 0.35 mM, respectively. The cultures were incubated at 27 °C for 20 h (150 rpm, 80% humidity) and harvested by centrifugation at 4000 rpm. The pellets were separated from the supernatant and frozen at −80 °C. Cell lysates were prepared by adding 400 μL of lysis solution (4 U deoxyribonuclease I, 0.8 mg/mL lysozyme, 10 mM MgCl₂, 50 mM phosphate buffer pH 8.0) to each well. After incubation at 37 °C for 60 min (150 rpm), clarified lysates were obtained by centrifugation at 4000 rpm for 20 min. P450 demethylation activity on probes P1 and P2 was measured in parallel reactions with the aid of a Beckman Coulter Multimek 96 automated pipettor and a TECAN Infinity plate reader. Reactions were carried out by mixing 50 μL of clarified cell lysate with 150 μL of 50 mM phosphate buffer (pH 8.0) containing 0.7 mM probe (solubilized in 2% DMSO) and a phosphite dehydrogenase (PTDH)-based cofactor regeneration system (1.8 μM PTDH, 50 mM sodium phosphite, 150 μM NADP⁺). After incubation for 12 h at room temperature (80 rpm), 50 μL of 2 M NaOH containing 150 mM Purpald reagent was added to each well, followed by measurement of the optical density at 550 nm after 30 min.

Regiofingerprint Analysis

The P450 regiofingerprints were analyzed as follows. The normalized activity of each P450 variant on probe P1 (A_P1) and probe P2 (A_P2) was calculated using eqs 1 and 2, respectively:

1

2

where x₁ is the absorbance value measured from the reaction of the P450 with probe P1 in the purpald assay; x₂ is the absolute absorbance value measured from the reaction of the P450 with probe P2 in the purpald assay; R_P1 is the mean value (n = 8) for the reaction of reference P450_BM3(F87A) with probe P1; R_P2 is the mean value (n = 8) for the reaction of reference P450_BM3(F87A) with probe P2. The probe activity of the reference P450 were averaged to eliminate bias in A_P1 and A_P2 calculations due to P450_BM3(F87A)’s inherent preference for C2-hydroxylation (65% C2-selectivity). P450 variants with normalized P1 (A_P1) or normalized P2 activity (A_P2) lower than 0.2 were considered MCL-inactive. Upon calculation of A_P1 and A_P2, the fingerprint-based regioselectivity of the screened P450 variants was calculated using (A_P1 × 100)/A_tot for P1 selectivity and (A_P2 × 100)/A_tot for P2 selectivity, where A_tot = A_P1 + A_P2.

Cell Lysate Reactions

Selected P450 variants identified via regio-fingerprinting were expressed in 48-well plates as described above. For each variant, the clarified lysate (400 μL) was transferred to a 48-deep well plate and incubated with 0.7 mM MCL (solubilized in 2% DMSO) and the PTDH-based cofactor regeneration system. After incubation for 12 h at room temperature (80 rpm), 500 μM guaiacol (in EtOH) was added as internal standard. The reaction mixture were extracted with DCM, followed by gas chromatography (GC) analysis using a Shimadzu GC2010 equipped with an FID detector and a Restek RTX-5 column (15 m × 0.25 mm × 0.25 μm film), and the following program: 200 °C inlet, 300 °C detector, 130 °C oven, 12 °C/min ramp to 150 °C, 36 °C/min ramp to 200 °C, 12 °C/min ramp to 250 °C, 24 °C/min ramp to 290 °C for a total of 8.89 min. P450 concentration in the cell lysate was determined via a CO-binding assay. Product conversion and catalytic turnovers (TON) were calculated based on GC peak areas corresponding to 1 (ret. time: 5.72 min), 2 (rt: 6.82 min), 3 (rt: 7.38 min), and 4 (rt: 7.06 min). Mean and standard deviation values reported were calculated from experiments performed at least in duplicate.

Mutagenesis

The V-H10-derived variants were prepared using pCWori_V-H10 (or pCWori_V-H10(87I)) as template, primers BamHI_2_fwd (5′-GGAAACAGGATCCATCGATGC-3′) and SacI_2_rev (5′- AATATCGAGCTCGTAGTTTGTATGATC-3′) as megaprimers, and the oligonucleotides in Table S6 as mutagenizing primers. The target gene product (1.4 Kbp) was prepared by PCR overlap extension mutagenesis and digested with BamH I-HF and Sac I-HF restriction enzymes at 37 °C for 2 h. The digested gene was ligated to a BamH I-HF/Sac I-HF double-digested pCWori_P450_BM3(WT) vector using T4 DNA ligase. The ligation mixtures were transformed in chemically competent DH5α cells and transformants were selected on LB agar plates containing ampicillin (100 mg L^–1). Mutations were confirmed by Sanger sequencing.

Protein Expression and Purification

The P450 enzymes were expressed from pCWori-based vectors and purified by ion-exchange chromatography as described previously.⁴⁶ P450 concentration was determined from CO binding difference spectra (ε_450–500 = 91 000 M^–1 cm^–1). A vector for the expression of a thermostable phosphite dehydrogenase (PTDH) was kindly provided by the Zhao group.⁷⁷ PTDH was expressed and purified via Ni-affinity chromatography as described previously.⁴⁶

Determination of TON and Regioselectivity for MCL Oxidation

Analytical-scale reactions (1 mL) were carried out by dissolving micheliolide (0.5–1 mM) in potassium phosphate buffer (50 mM, pH 8.0) containing 2% (v/v) DMSO. This solution was added with purified P450 enzyme (0.5–1 μM), followed by the NADPH cofactor regeneration system (2 μM PTDH, 150 μM NADP⁺, 50 mM sodium phosphite). The mixture was stirred (100 rpm) for 12 h at room temperature followed by the addition of 0.5 mM guaiacol as internal standard. The crude products were extracted with DCM and analyzed by gas chromatography as described above. Product yield and TON values were calculated using calibration curves generated with isolated products 2–4.

Product Formation Rates and Coupling Efficiency

Initial product formation rates were measured using 1 mM MCL, 1 μM P450, and 200 μM NADPH in potassium phosphate buffer (50 mM, pH 8.0). After 60 s, the reaction was quenched by addition and rapid mixing with 300 μL DCM. The reaction was analyzed by GC as described above. NADPH oxidation rate in the presence of micheliolide was measured by monitoring NADPH depletion at 340 nm (ε = 6.22 mM^–1 cm^–1) in reactions containing 1 mM MCL, 1 μΜ purified P450, and 200 μM NADPH. The coupling efficiency was determined as the ratio between the product formation rate and the NADPH consumption rate in the presence of the substrate. Reported mean and standard deviation values were calculated from experiments performed at least in triplicate.

K_D Measurements

Binding experiments were performed using 3 μM purified P450 in potassium phosphate buffer (50 mM, pH 8.0) by titrating increasing amounts of micheliolide (5–2000 μM) from an ethanol stock solution (50 mM). At each concentration, a difference spectrum from 350 to 500 nm was recorded and binding curves were generated by plotting the change in absorbance at 390 and 420 nm corresponding to the high-spin and low-spin state of the enzyme, respectively, against MCL concentration. K_D values were calculated using Graph Pad Prism via nonlinear fitting of the experimental binding curves to an equation describing a standard 1:1 binding interaction. Reported mean and standard deviation values were calculated from experiments performed at least in triplicate.

Enzymatic Hydroxylation of MCL

Detailed procedures for the enzymatic synthesis, isolation, and characterization of 2, 3, and 4 are provided as Supporting Information.

Synthesis of MCL and Probes

Detailed procedures for the synthesis of MCL (from parthenolide), fingerprint probes P1–P2, biotinylated probes, and the MCL analogs described in Table 3 are provided as Supporting Information.

Cell Cultures and Cell Viability Assays

For all cell culture studies, cells were kept in a 37 °C humidified incubator with 5% CO₂. Human acute myeloid leukemia samples were obtained after informed consent from volunteer donors. Live mononuclear cells were isolated by subjection to Ficoll-Paque (GE Healthcare Bio-Sciences) density gradient and either cryopreserved (leukemia samples) or cultured without cryopreservation (umbilical cord samples). The viability of cryopreserved leukemia samples after thawing was 40–70%. The cell viability assays with M9-ENL-1 cells were carried out by plating M9-ENL1 cells at a density of 10⁶ cells/mL in αMEM culture media (Invitrogen) supplemented with 5% human plasma, 20% FBS, and the cytokines SCF, IL-3, IL-7, FLT3 ligand (Peprotech), and penicillin/streptomycin. MCL and the MCL analogs were diluted into the culture media from a DMSO stock solution and added to the cells at a fixed dose (i.e., 20 μM) or at different concentrations (typically, between 0.5 and 100 μM) for LC₅₀ determination. After 24 h of drug exposure, cells were collected for flow cytometry analysis. Cells were stained with Annexin V and 7-aminoactinomycin D (7-AAD) to quantify the percentage of nonapoptotic (negative for both stains) cells. Analyses were conducted in triplicate. LC₅₀ values for the biotinylated probes 2-biot-MCL, 14-biot-MCL, and 4-biot-MCL were determined using M9-ENL1 suspension cells seeded in conical 96-well plates (Nunc) at a density of 30 000 cells per well in 90 μL of αMEM culture media (Invitrogen) supplemented with 5% human plasma, 20% FBS, and the cytokines SCF, IL-3, IL-7, FLT3 ligand (Peprotech), and penicillin/streptomycin. The plates were incubated in a humidified incubator for 4 h prior to treatment. The biotinylated probes were diluted from a 10 mM DMSO stock solution into complete cell culture medium and added to the cells to give a final concentration of 2–100 μM and 1% (v/v) DMSO (n = 6). Following a 24-h incubation, 20 μL of a 5 mg/mL Thiazolyl Blue tetrazolium bromide solution was added directly to the culture media. After incubation at 37 °C for 3 h, the plates were centrifuged (4000 rpm, 10 min), the media was removed, and 100 μL of DMSO was added to solubilize the formazan product. The resulting OD was measured at 550 nm using a multiwell plate reader (Tecan).

Pull-down Experiments

M9-ENL1 cells were harvested by centrifugation (500g, 10 min) and washed 5× with cold phosphate buffered saline to remove the culture medium. The cell pellet was lysed in cold RIPA buffer containing a protease inhibitor (pi) cocktail for 10 min at 4 °C followed by sonication. The lysate was centrifuged (10 000g, 10 min) to remove cell debris and the protein concentration was determined using the BCA reagent per manufacturer’s instruction (ThermoFisher). M9-ENL1 cell lysates (2 mg protein per sample) were incubated with 10 μM MCL (MCL-treated control) or just DMSO (sample) for 1 h on ice with gentle shaking. The samples were then treated with the appropriate biotinylated MCL-based probe at a final concentration of 10 μM (control and noncontrol groups). The lysate was incubated on ice for 2 h with gentle shaking and transferred to a 3 kDa centrifugal filter unit. The samples were washed with cold PBS (+ pi) three times to remove any unreacted probe and incubated with 50 μL of ultrahigh capacity neutravidin beads (100 μL of slurry, Pierce) for 60 min at 4 °C with gentle shaking. Cold phosphate buffer saline (PBS) (+ pi) was added to the mixture and the samples were centrifuged for 2 min at 10 000 rpm (2×). Beads were successively washed with 1 mL of PBS containing pi and 2% SDS and the supernatant was removed via centrifugation (2 min, 10 000 rpm, 4×). A 40 μL portion of 1× laemli sample buffer was added to the beads, and then beads were heated at 95 °C for 10 min to elute the neutravidin bound proteins. The pull-down experiments were performed in triplicate for each probe.

LC-MS/MS and Bioinformatic Analysis

Samples were run into a 4–12% SDS-PAGE gel to create a ∼10 mm length region, allowing total protein to be evaluated in a single gel digest. After staining with SimplyBlue SafeStain (Invitrogen), these regions were excised, cut into 1 mm cubes, destained, then reduced and alkylated with DTT and IAA, respectively (Sigma). Gel pieces were dehydrated with acetonitrile. Aliquots of trypsin (Promega) were reconstituted to 10 ng/μL in 50 mM ammonium bicarbonate and added so that the solution was just covering the dehydrated gel pieces. After half an hour at room temp, additional ammonium bicarbonate was added until the gel pieces were completely submerged and placed at 37 °C overnight. Peptides were extracted the next day by addition of 50% acetonitrile, 0.1% TFA, then dried down in a CentriVap concentrator (Labconco). Peptides were desalted with homemade C18 spin columns, dried again, and reconstituted in 0.1% TFA. Peptides were injected onto a homemade 30 cm C18 column with 1.8 um beads (Sepax), with an Easy nLC-1000 HPLC (Thermo Fisher), connected to a Q Exactive Plus mass spectrometer (Thermo Fisher): solvent A 0.1% formic acid in water, solvent B 0.1% formic acid in acetonitrile, gradient 3% B for 2 min, then ramp to 30% B over 41 min, then to 70% over 3 min, then 70% for 4 min, then re-equilibrated to 3%, for a total run time of 60 min. The Q Exactive Plus was operated in data-dependent mode, with a full MS1 scan followed by 10 data-dependent MS2 scans. The full scan was done over a range of 400–1400 m/z, with a resolution of 70 000 at m/z of 200, an AGC target of 1e⁶, and a maximum injection time of 50 ms. The MS2 scans were performed at 17 500 resolution, with an AGC target of 5e4 and a maximum injection time of 120 ms. The isolation width was 1.5 m/z, with an offset of 0.3 m/z, and a normalized collision energy of 27. Raw data was searched using the SEQUEST search engine within the Proteome Discoverer software platform, version 2.2 (Thermo Fisher), using the SwissProt human database. Trypsin was selected as the enzyme allowing up to 2 missed cleavages, with an MS1 mass tolerance of 10 ppm, and an MS2 mass tolerance of 25 mmu. Carbamidomethyl was set as a fixed modification, while oxidation of methionine was set as a variable modification. Minora was used to determine relative protein abundance between samples. Normalization was performed using the total peptide amount option in the precursor ions quantifier node. Percolator was used as the FDR calculator, filtering out peptides which had a q-value greater than 0.01. Missing values were imputed from the normal distribution using Perseus software. The identified proteins were evaluated using an unpaired t test between the MCL treated (control) and DMSO treated (sample) groups with a p-value cutoff of 0.05. The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via the PRIDE⁷⁸ partner repository with the data set identifier PXD024455.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acscentsci.0c01624.

• Crystal structure of 14-hydroxy-micheliolide (CIF)

• Supporting figures and tables, oligonucleotide sequences, synthetic procedures, and compound characterization data (PDF)

Author Contributions

^○ H.A. and S.G. contributed equally to this work.

The authors declare the following competing financial interest(s): A patent application was filed by the University of Rochester that covers methods, enzymes and/or compounds described in this work.
