. 2021 Jun 1;26(11):3320. doi: 10.3390/molecules26113320

Synthesis and Neurotropic Activity of New Heterocyclic Systems: Pyridofuro[3,2-d]pyrrolo[1,2-a]pyrimidines, Pyridofuro[3,2-d]pyrido[1,2-a]pyrimidines and Pyridofuro[3′,2′:4,5]pyrimido[1,2-a]azepines

Samvel N Sirakanyan 1,*, Domenico Spinelli 2,*, Athina Geronikaki 3,*, Victor Kartsev 4, Elmira K Hakobyan 1, Anthi Petrou 3, Ruzanna G Paronikyan 1, Ivetta M Nazaryan 1, Hasmik H Akopyan 1, Anush A Hovakimyan 1
Editor: Farid Chemat
PMCID: PMC8198642  PMID: 34205930

Abstract

Background: Neurotic disturbances, anxiety, neurosis-like disorders, and stress situations are widespread. Benzodiazepine tranquillizers have been found to be among the most effective antianxiety drugs. The pharmacological action of benzodiazepines is due to their interaction with the supra-molecular membrane GABA-a-benzodiazepine receptor complex, linked to the Cl-ionophore. Benzodiazepines enhance GABA-ergic transmission and this has led to a study of the role of GABA in anxiety. The search for anxiolytics and anticonvulsive agents has involved glutamate-ergic, 5HT-ergic substances and neuropeptides. However, each of these well-known anxiolytics, anticonvulsants and cognition enhancers (nootropics) has repeatedly been reported to have many adverse side effects, therefore there is an urgent need to search for new drugs able to restore damaged cognitive functions without causing significant adverse reactions. Objective: Considering the relevance of epilepsy diffusion in the world, we have addressed our attention to the discovery of new drugs in this field Thus our aim is the synthesis and study of new compounds with antiepileptic (anticonvulsant) and not only, activity. Methods: For the synthesis of compounds classical organic methods were used and developed. For the evaluation of biological activity some anticonvulsant and psychotropic methods were used. Results: As a result of multistep reactions 26 new, five-membered heterocyclic systems were obtained. PASS prediction of anticonvulsant activity was performed for the whole set of the designed molecules and probability to be active Pa values were ranging from 0.275 to 0.43. The studied compounds exhibit protection against pentylenetetrazole (PTZ) seizures, anti-thiosemicarbazides effect as well as some psychotropic effect. The biological assays evidenced that some of the studied compounds showed a high anticonvulsant activity by antagonism with pentylenetetrazole. The toxicity of compounds is low and they do not induce muscle relaxation in the studied doses. According to the study of psychotropic activity it was found that the selected compounds have an activating behavior and anxiolytic effects on the models of “open field” and “elevated plus maze” (EPM). The data obtained indicate the anxiolytic (anti-anxiety) activity of the derivatives of pyrimidines, especially pronounced in compounds 6n, 6b, and 7c. The studied compounds increase the latent time of first immobilization on the model of “forced swimming” (FST) and exhibit some antidepressant effect similarly to diazepam. Docking studies revealed that compound 6k bound tightly in the active site of GABAA receptor with a value of the scoring function that estimates free energy of binding (ΔG) at −7.95 kcal/mol, while compound 6n showed the best docking score and seems to be dual inhibitor of SERT transporter as well as 5-HT1A receptor. Conclusions: Тhe selected compounds have an anticonvulsant, activating behavior and anxiolytic effects, at the same time exhibit some antidepressant effect.

Keywords: furo[3,2-d]pyrrolo[1,2-a]pyrimidines; furo[3,2-d]pyrido[1,2-a]pyrimidines; furo[3′,2′:4,5] pyrimido [1,2-a]azepines; neurotropic activity; anticonvulsant action

1. Introduction

Nowadays, neurotic disturbances, anxiety, neurosis-like disorders and stress situations are widespread. Benzodiazepine tranquillizers have been found to be among the most effective antianxiety drugs. The pharmacological action of benzodiazepines is due to their interaction with the supra-molecular membrane GABA-a-benzodiazepine receptor complex, linked to the Cl-ionophore. Benzodiazepines enhance GABA-ergic transmission and this has led to a study of the role of GABA in anxiety. The search for anxiolytics and anticonvulsive agents has involved glutamate-ergic, 5HT-ergic substances and neuropeptides.

Literature data evidenced that derivatives of fused pyrrolo[1,2-a]pyrimidines, pyrido[1,2-a]pyrimidines and pyrimido[1,2-a]azepines have a wide spectrum of biological activities such as anticonvulsive [1], antitubercular [2], bronchodilator [3] activities and HIV integrase inhibitory [4,5].

In a previous paper [6] we have described the synthesis as well as the anticonvulsive and psychotropic properties of a series of furo[3,2-d]pyrrolo[1,2-a]pyrimidines and furo[3′,2′:4,5]pyrimido [1,2-a]azepines I. The results of these previous studies have enabled us to identify several compounds that exhibited potent and wide-spectrum anticonvulsant properties in the maximal electroshock seizure (MES) and the subcutaneous pentylentetrazole (scPTZ) seizure tests. Furthermore, the compounds were studied for their anxiolytic activity in some psychotropic models such as “open field” and elevated plus-maze (EPM). Moreover, our studies have shown that two derivatives among the pyridofuropyrimido[1,2-a]azepines II and III exhibited anticonvulsant activity significantly better than that of commercial drug zarontin (Figure 1) [6].

Figure 1.

Figure 1

General I and lead structure II, III of compounds from our previous study. I. X = CH2, O; R = H, Me; n = 0, 1; R1 = alkyl, aryl; m = 1, 3.

Based on above considerations we now design new compounds with the aim to study the influence of the homologous series on biological effect. Moreover, PASS prediction supported our idea. Continuing our studies in the field, in this paper we present the synthesis of 26 new derivatives of the above mentioned systems I as well as new heterocyclic systems: pyrido[3′,2′:4,5]furo[3,2-d]pyrrolo[1,2-a]pyrimidines, (m = 1), pyido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidines (m = 2) and pyrdo[3″,2″:4′,5′]furo[3′,2′:4,5] pyrimido[1,2-a]azepines (m = 3).

2. Results and Discussion

2.1. Chemistry

For the synthesis of the aimed compounds we used as starting materials cyclopentanone 1a, cyclohexanone 1b, and 2,2-dimethyltetrahydro-4H-pyran-4-one 1c (Figure 2).

Figure 2.

Figure 2

The structure of starting cyclic ketones 1ac. 1a: X = CH2, n = 0, R = H, b: X = CH2, n = 1, R = H, c: X = O, n = 1, R = Me.

For the first time a “one-pot” synthetic method for the preparation of new as well as already known 3-oxo derivatives of cyclopenta[c]pyridine 2ad, of 5,6,7,8-tetrahydroisoquinoline [7,8] 2eh and of pyrano[3,4-c]pyridine [9] 2io was developed and is described. Thus, the reaction of ketones 1 with morpholine in anhydrous benzene led to the formation of the corresponding enamines. After, the acylation of the enamines, followed by the cyclocondensation intermediate compounds with 2-cyanoacetamide in the presence of diethylamine led to the formation of the aimed compounds 2ao in good to high yields (Scheme 1). This approach of synthesis for compounds 2 was not described in the literature but, although no significant difference was observed in terms of yields compared to the already described multistep synthesis of these compounds 2 [7,8,9], it has some advantages: it reduces the time required to obtain these compounds, requires fewer reagents and solvents, and is less laborious.

Scheme 1.

Scheme 1

Reagents and conditions: i (i’) morpholine, C6H6, TsOH, reflux 5 h, (i’’) RCOCl, Et3N, 35–40 °C, 6 h, (i’’’) NCCH2CONH2, NH(Et)2, reflux 10 h; ii ClCH2COOEt, K2CO3/DMF, 75–80 °C, 2 h; iii EtONa, reflux 20 min. 24. ad: X = CH2, n = 0, R = H, a: R1 = i-Pr; b: R1 = n-Bu; c: R1 = C6H11; d: R1 = 2-furyl; eh: X = CH2, n = 1, R = H, e: R1 = Me; f: R1 = Et; g: R1 = i-Pr; h: R1 = i-Bu; io: X = O, n = 1, R = Me, i: R1 = Me; j: R1 = Et; k: R1 = i-Pr; l: R1 = n-Bu; m: R1 = i-Bu; n: R1 = Ph; o: R1 = 2-furyl.

The structure of newly obtained compounds 2ad,g,h (the physico-chemical characterization of compounds 2e,f [7,8] and 2io [9] were already reported) was confirmed by NMR, IR spectroscopy and by elemental analysis. Thus, in the 1H-NMR spectra of these new compounds 2ad,g,h the presence of the NH group proton at 12.05−12.19 ppm was observed. The IR spectra of 2ad,g,h show carbonyl group absorptions near 1630−1647 cm−1, nitrile groups near 2220−2228 cm−1, and NH groups in the region 3117−3142 cm−1 (see Supplementary Material).

All these starting materials 2 are versatile substrates: in fact, all of them are decorated on adjacent carbon atoms of the pyridine ring by two functional groups able to open the way to compounds with a new condensed ring (a furan ring), which in turn will still contain other reactive groups useful for further chemical transformations.

Thus, compounds 2ao by interaction with ethyl chloroacetate in the basic medium were converted into the corresponding O-alkylated compounds 3ao [6,10,11,12,13]. Then, compounds 3 underwent cyclization in the presence of sodium ethoxide giving the fused furo[2,3-b]pyridines 4ao [6,10,11,12,13] by the Thorpe-Ziegler reaction (Scheme 1).

The obtained 1-aminofuro[2,3-b]pyridine-2-carboxylates 4 still contain functional groups which can undergo new cyclization reactions. Thus, the reaction of compounds 4 with some lactams: 2-pyrrolidinone, 2-piperidone, 2-azepanone, in the presence of phosphorus oxychloride led to the simultaneous ring closing reaction of the two heterocycles [1,2,6,14] with formation of new heterocyclic systems: pyrido[3′,2′:4,5]furo[3,2-d]pyrrolo[1,2-a]pyrimidines 5ad, pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidines 6an and pyrido[3″,2″:4′,5′]furo[3′,2′:4,5]pyrimido[1,2-a]azepines 7ah in good yields (Scheme 2, Table 1).

Scheme 2.

Scheme 2

Reagents and conditions: i−2-pyrrolidone (a), 2-piperidone (b), 2-azepanone (c), POCl3, C2H4Cl2, reflux 25 h.

Table 1.

Furo[3,2-d]pyrrolo[1,2-a]pyrimidines 5, furo[3,2-d]pyrido[1,2-a]pyrimidines 6 and furo[3′,2′:4,5]pyrimido[1,2-a]azepines 7.

Compound X R n R1 Yield (%)
5a CH2 H 1 Me 68
5b CH2 H 1 Et 70
5c O Me 1 i-Pr 65
5d O Me 1 Ph 69
6a CH2 H 0 i-Pr 57
6b CH2 H 0 n-Bu 53
6c CH2 H 0 C6H11 56
6d CH2 H 1 Me 61
6e CH2 H 1 Et 54
6f CH2 H 1 i-Pr 58
6g CH2 H 1 i-Bu 55
6h O Me 1 Me 60
6i O Me 1 Et 62
6j O Me 1 i-Pr 57
6k O Me 1 n-Bu 61
6l O Me 1 i-Bu 53
6m O Me 1 Ph 59
6n O Me 1 2-furyl 56
7a CH2 H 0 C6H11 68
7b CH2 H 0 2-furyl 70
7c CH2 H 1 Me 66
7d CH2 H 1 Et 65
7e O Me 1 i-Pr 67
7f O Me 1 i-Bu 64
7g O Me 1 Ph 71
7h O Me 1 2-furyl 69

The structure of new synthesized compounds 57 was supported by NMR and IR spectroscopy. Thus, the IR spectra of compounds 57 did not show the characteristic bands of the amino group, but showed the bands in the range of ν 1683–1702 cm−1 typical for the carbonyl group. In the 1H-NMR spectra the singlet signals of NH2 and ester COOEt groups characteristic for the initial compounds 4 were absent, while the 3, 4 and 5-CH2 group signals appeared, respectively, indicating the cyclization of compounds 4. The structure of compounds 57 was also supported by 13C-NMR data (see Supplementary Material).

As the polycyclic system of pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidines 6 was never described in the literature, their structure was also confirmed by the X-ray analysis in the instance of compounds 6a (Figure 3).

Figure 3.

Figure 3

Single crystal X-ray structure of compound 6a.

2.2. PASS Prediction

PASS prediction of anticonvulsant activity was performed for the whole set of the designed and synthesized molecules. Anticonvulsant activity was predicted with the probability to be active Pa values ranging from 0.275 to 0.43 (Table 2). The calculated Pa values for most of the compounds were less than 0.5, indicating their relative novelty compared to the structures of the compounds from the PASS training set [15,16]. Such results lead to the conclusion that the studied compounds have some features different from those of well-known anticonvulsant agents, which may indicate their innovative potential.

Table 2.

PASS prediction results.

No. Pa Pi Activity No Pa Pi Activity
5c 0.275 0.043 Anticonvulsant 6k 0.286 0.129 Anticonvulsant
5d 0.423 0.055 Anticonvulsant 6l 0.386 0.039 Anticonvulsant
6b 0.281 0.121 Anticonvulsant 6m 0.430 0.053 Anticonvulsant
6c 0.276 0.030 Anticonvulsant 6n 0.284 0.127 Anticonvulsant
6h 0.364 0.081 Anticonvulsant 7e 0.362 0.082 Anticonvulsant
6i 0.267 0.142 Anticonvulsant 7f 0.336 0.098 Anticonvulsant
6j 0.362 0.082 Anticonvulsant 7g 0.430 0.053 Anticonvulsant

2.3. Biological Assay

The neurotropic activity of 26 new synthesized heterocyclic compounds: pyrido[3′,2′:4,5]furo[3,2-d]pyrrolo[1,2-a]pyrimidines 5ad, pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidines 6an and pyrido[3″,2″:4′,5′]furo[3′,2′:4,5]pyrimido[1,2-a]azepines 7ah was investigated according to indicators characterizing anticonvulsant, sedative, anti-anxiety activities and side effects.

The study of the anticonvulsant activity of compounds 57 was assessed by evaluating the antagonism to the convulsive pentylenetetrazole (PTZ) action and maximal electroshock seizures (MES) [17,18,19,20,21,22]. PTZ induced test is considered an experimental model for the clonic component of epilepsy seizures and prognostic anxiolytic activities of the compounds. The MES test is used as an animal model for the generalization of tonic seizures of epilepsy. The side effects of the compounds–neurotoxicity (movement coordination disorder, myorelaxation and ataxia) by using the test of “rotating rod” [17,23] was also studied on mice.

To determine the 50% effective (ED50, causing the anticonvulsant effect of 50% of animals, is calculated by the test antagonism of PTZ), 50% neurotoxic (TD50, causing myorelaxation effect in 50% of animals, is calculated by the test “rotating rod”) and 50% lethal (LD50, causing death in 50% of animals) doses a statistical method of probit analysis as proposed by Litchfield and Wilcoxon [24,25] were used. From a practical point of view for the active compounds therapeutic (TI = LD50/ED50) indexes were identified. The well-known antiepileptic drug ethosuximide and the tranquilizer diazepam were used as reference drugs [26].

The evaluation of anticonvulsant activity of synthesized compounds 57 was performed by PTZ. The results of PTZ test showed that anticonvulsant activity was ranged from 20 to 80. Then their therapeutic (TI) indexes are much greater than that of reference drug ethosuximide (Table 3).

Table 3.

Anticonvulsant activity and toxicity of the examined compounds 6b,j,k,n and 7c,h.

Compound ED50 * mg/kg
(by PTZ Antagonism)
TD50 * mg/kg LD50 * mg/kg TI Latency of Convulsions Induced by TSC, min
М ± м I **
Control 69 ± 2.0 1.0
6b 35.0 (23.0 ÷ 56.1) *** >200 450 (375 ÷ 548) 13 123 ± 15.2 1.78
6j 35.0 (23.0 ÷ 56.7) >200 580.0 (464 ÷ 725) 17 90.0 ± 12.3 1.3
6k 30.0 (17.6 ÷ 51.0) >200 620 (504 ÷ 762.6) 21 125 ± 10.8 1.8
6n 41.0 (22.5 ÷ 74.6) >200 930 (808.7 ÷ 1070) 23 158 ± 13.5 2.3
7c 42.0 (22.5 ÷ 75.1) >200 890 (712 ÷ 1112.5) 21 113 ± 10.1 1.64
7h 30.0 (17.6 ÷ 51.0) >200 680 (557 ÷ 829.6) 23 116 ± 16.8 1.68
Ethosuximide
(200 mg/kg)
155 (117.5 ÷ 204.5) 520 (413÷655) 1325 (1200 ÷ 1462) 8.5 118 ± 14.0 1.7
Diazepam
(2 mg/kg)
0.5 (0.4 ÷ 0.7) 2.7 (1.4 ÷ 5.5) 180 (128.5 ÷ 252.0) 360 65 ± 3.5 0.9

* p = 0.05 at a probability level I, ** Latent period index. *** Confidence intervals ED50 are shown in parentheses.

The ED50 and TD50 data were used to calculate protective index (PI), which is a measure of the benefit-risk proportion of the therapeutic agent. Results of the tested compounds with the data for reference (ethosuximide (ETX) and diazepam are presented in Table 3. It can be seen that all compounds exhibited almost three-to-four-fold lower ED50 value than ethosuximide. Compound 6k showed the highest activity among all tested higher than ethosuximide with ED50 30 mg/kg and TD50 >200, resulted in PI value of 6.7. In general, all compounds showed PI index superior than ethosuximide and almost equal to diazepam.

Thus, activity for the group of pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidines can be presented as follows: 6k > 6j > 6n. Interestingly, compound 7h showed activity similar to that of 6k. The difference between these compounds is that 7h is pyrimido[1,2-a]azepine and 6k is pyrido[1,2-a]pyrimidine derivative as well as in substitution at 5 position. It seems that n-Bu and 2-furyl substituents in position 5 of these two compounds have similar positive influence on activity.

The evaluation revealed that the studied compounds are superior to ethosuximide in anticonvulsant activity by antagonism with pentylenetetrazole, but inferior to diazepam. However, unlike diazepam, they in the studied doses (12.5, 50, 200 mg/kg) do not induce muscle relaxation and are not very toxic (LD50 = 450–930 mg/kg).

The six more active compounds 6b, 6j, 6k, 6n, 7c, and 7h were selected to study them on the model of thiosemicarbazide (TSC) seizures (affecting the exchange of GABA, Table 3). In the TSC-induced seizure model, the anticonvulsant effect is similar to that of the sc-PTZ induced seizure mod (Table 3). The compounds at dose of 100 mg/kg increased latency of thiosemicarbazide seizures to 1.3–2.3 times compared with the control. Ethosuximide has approximately the same effect increasing the latent time of TSC convulsions. Diazepam is not effective in this model.

According to the MES test, the studied compounds as well as reference drugs did not exhibit an anticonvulsant effect. They did not protect from tonic and clonic seizures, caused by MES.

Furthermore, the most effective compounds: 6b, 6j, 6k, 6n, 7c and 7h, were studied on the “open field” [27,28], “elevated plus maze” (EPM) [29], “forced swimming” [30,31] tests at a dose of 50 mg/kg, since the ED50 of these compounds are within 50 mg/kg at the confidence intervals.

In the “open field“ model [27,28] in rats of the control group, the number of horizontal, vertical displacements and the number of examined cells were 14.4, 3.4, and 0.8 respectively (Table 4). The studied compounds caused significant changes in behavioral indices compared to control. After injection of the compounds an increase in horizontal and vertical movements of rats was observed (Table 4). Furthermore, all compounds statistically significant compared with the control, especially compounds 6j and 6n increase the number of sniffing cell examinations, probably due to the expression of the anti-anxiety activity of the compounds. All these findings are an indication of activating effect of the studied compounds.

Table 4.

Research activity of compounds 6b,j,k,n and 7c,h at a dose of 50 mg/kg, ethosuximide at 200 mg/kg and diazepam at a dose of 2 mg/kg in the “open field” model.

Compound Amount (Absolute Data during 5 min) *
Horizontal Displacement Vertical Displacement Cells
Control 14.4 (11.5 ÷ 18.0) 3.4 (2.8 ÷ 4.1) 0.8 (0.4 ÷ 1.2)
6b 57.4 (44.6 ÷ 70.2) ** 9.6 (7.3 ÷ 11.9) ** 4.0 (2.8 ÷ 5.2) **
6j 57.6 (30.9 ÷ 84.3) ** 11.0 (7.4 ÷ 14.6) ** 4.2 (3.0 ÷ 5.4)**
6k 49.6 (39.7 ÷ 62.0) ** 9.0 (6.9 ÷ 11.1) ** 2.4 (1.3 ÷ 3.5) **
6n 64.6 (48.5 ÷ 80.7) ** 7.0 (5.8 ÷ 8.4) ** 5.0 (2.4 ÷ 7.4) **
7c 51.0 (36.6 ÷ 65.4) ** 8.5 (4.6 ÷ 12.4) ** 3.2 (1.2 ÷ 5.2) **
7h 55.0 (42.6 ÷ 67.4) ** 12.0 (5.9 ÷ 18.1)** 3.4 (2.1 ÷ 4.7) **
Ethosuximide 16.8 (13.4 ÷ 21.0) 3.6 (3.0 ÷ 4.4) 0.6 (0.5 ÷ 0.72)
Diazepam 33.6 (27.7 ÷ 40.7) ** 6.4 (5.4 ÷ 7.4) ** 5.0 (4.0 ÷ 6.25) **

*p ≤ 0.05 at a probability level. ** The differences are statistically significant compared with the control.

Diazepam showed an activating effect too, in contrast to ethosuximide, which has neither an activating nor a sedative effect at the studied dose. Compounds, like diazepam, increase the number of cells examined. The data obtained indicate the anxiolytic (anti-anxiety) activity of the pyrido[1,2-a]pyrimidines and pyrimido[1,2-a]azepines, especially pronounced in the compounds 6b, 6j, and 6n. The order of anxiolytic activity of tested compounds in this model is: 6n > 6j > 6b > 7h > 7c > 6k, indicating the beneficial role of 2-furyl substitution in both series pyrido-pyrimidine-ones and pyrimido-azepin-ones.

The evaluation of fear was assessed using the methodology of elevated plus-maze (EPM) developed by Pellow and File [29]. The elevated plus maze is known behavioural assay (fear) used for the estimation of the anti-anxiety effect of pharmacological agents and synthetic compounds. In this model control animals are predominantly located in closed arms (Table 5). All compounds as well as ethosuximide and diazepam increased in a statistically significant manner the time spent by experimental animals in the center. Statistically the investigated compounds significantly reduce the residence time in the closed arms. After the administration of compounds 6b, 6n and 7c, the experimental animals, in contrast to the control animals and those who received ethosuximide at a dose of 200 mg/kg, enter the open arms and stay there from 14 (7c) to 21.8 (6n) s. The administration of these compounds, as well as diazepam, in fact, leads to the identification of an anxiolytic effect. In this test again the most active compound was found to be 6n, followed by 6b.

Table 5.

Influence of compounds 6b,j,k,n; 7c,h and compared drugs on the EPM model (5 min of research).

Compound Dose 50 mg/kg Time Spent in Closed Arms /s/* Number of Entries into the Closed Arms * Time Spent in the Center /s/* Time Spent in the Open Arms /s/*
Control 271.8 (246.2 ÷ 294.4) 5.0 (3.5 ÷ 7.7) 28.1 (23.0 ÷ 33.7)
6j 212 (184.3 ÷ 243.8) ** 2.6 (0.8 ÷ 4.4) 85.0 (51.6 ÷ 118.4) **
6k 197 (168.3 ÷ 230.5) ** 4.4 (1.9 ÷ 6.9) 102.4 (75.2 ÷ 177.6) **
7h 209.8 (182.4 ÷ 241) ** 8.0 (5.5 ÷ 10.5) 90.2 (50.5 ÷ 129.9) **
6n 182.0 (155.6 ÷ 209) ** 6.2 (4.0 ÷ 8.2) 118.0 (75.1 ÷ 193.1) ** 21.8 (18.3 ÷ 40) **
6b 166 (123.7 ÷ 208.7) ** 6.0 (4.2 ÷ 7.8) 116 (81.7 ÷ 115.9) ** 17.0 (5.9 ÷ 28.1) **
7c 178.0 (130.9 ÷ 225) ** 4.0 (2.2 ÷ 6.2) 108.0 (80.1 ÷ 135.9) ** 14.0 (3.3 ÷ 24.7) **
Ethosuximide
(200 mg/kg)
247.2 (212.9 ÷ 277.5) 8.1 (5.6 ÷ 10.6) 52.8 (44.0 ÷ 63.4) **
Diazepam
(2 mg/kg)
257.5 (226.2 ÷ 288.8) 5.5 (4.58 ÷ 6.6) 42.5 (34.8 ÷ 51.85) ** 57 (47.5 ÷ 68.4) **

*p ≤ 0.05 at a probability level; ** The differences are statistically significant compared with the control.

The forced swimming test (FST) [30,31] is used to monitor depressive-like behavior and is based on the assumption that immobility reflects a measure of behavioral despair. On the “forced swimming” model, some of the investigated selected compounds increase the active swimming time and the latent period of first immobilization (188 s for compound 6k) (Table 6). In control mice, the first immobilization occurs after 127.5 s. This indicates that the studied compounds at a dose of 50 mg/kg exhibit some antidepressant effect. The data regarding ethosuximide at a dose of 200 mg/kg are comparable with the control data. The reference drug diazepam at a dose of 2 mg/kg acts similarly to compounds tested increasing the latent time of first immobilization. At the same time, diazepam significantly reduces the total immobilization time, while the compounds 6j, 6k, 7h and ethosuximide increase it. The compounds have practically no effect on the total swimming time or reduce it. According to the data of Table 5, the activity of compounds in the FST can be presented as follows: 6k > 7h > 6j > 7c > 6n > 6b.

Table 6.

Effect of compounds 6b,j,k,n and 7c,h and reference preparations on “forced swimming” (study for 6 min).

Compound Dose mg/kg Time of Active Swimming (s), Latent Period First Immobilization * Total Time of Immobilization (s) * Total Time of Active Swimming (s) *
Control 127.5 (106.3 ÷ 155.6) 42.8 (29.4 ÷ 57.2) 317.2 (302.8 ÷ 331.6)
6b 50 132.0 (111.4 ÷ 152.6) 56.0 (28.6 ÷ 83.4) 304.0 (265.9 ÷ 342.1)
6j 50 168.0 (140 ÷ 201.6) 135.2 (87.4 ÷ 183.0) ** 140.8 (84.3 ÷ 196.7) **
6k 50 188.0 (163.5 ÷ 216.2) ** 79.0 (59.5 ÷ 98.5) ** 281.0 (226.8 ÷ 355.2)
6n 50 146.0 (120.0 ÷ 175.2) 44.0 (35.9 ÷ 52.1) 316.0 (293.4 ÷ 338.6)
7c 50 164.0 (138.3 ÷ 189.7) 49.0 (36.3 ÷ 61.7) 311.0 (275.5 ÷ 346.5)
7h 50 172.0 (139.4 ÷ 204.6) 81.0 (65.1 ÷ 96.9) ** 279.0 (263.2 ÷ 294.8) **
Ethosuximi de 200 125 (102.4 ÷ 152.5) 98 (75.3 ÷ 127.4) ** 262 (199.9 ÷ 324.1)
Diazepam 2 174 (144.0 ÷ 204.0) 24 (20.0 ÷ 28.8) ** 336 (282.6 ÷ 389.4)

*p ≤ 0.05 at a probability level. ** The differences are statistically significant compared with the control.

According to the structure-activity relationship study, in general, the introduction of the butyl and furyl group in the pyridine ring in position 4(5) of heterocyclic systems as in compounds 6b, 6k, 6n and 7h, appeared to be beneficial for neurotropic activity and are in agreement with previous obtained data [6]. From obtained results one can conclude that compound 6j is dual acting anticonvulsant/anxiolytic, while 6k also is dual acting anticonvulsive and antidepressant.

2.4. Molecular Docking

2.4.1. Docking Studies for Prediction of the Mechanism of Anticonvulsant and Anxiolytic Activity (Docking to GABAA Receptor)

It is well known that antiepileptic drugs target GABAA receptors block sodium channels or enhance γ-aminobutyric acid (GABA) function [32,33,34]. Therefore, docking studies of all tested compounds were performed in order to get a better understanding of the GABAA receptor inhibitory potency at the molecular level and to shed light on the interactions in the active site of GABAA receptor.

For docking studies, the crystal structure of GABAA receptor was retrieved from Protein Data Bank (PDB) with PDB ID: 4COF [33]. The X-Ray diffraction structure of GABAA receptor had a resolution of 2.97 Å, R value of 0.206 and R free value of 0.226. As a first step of docking studies and for the validation of docking parameters, the initial co-crystal ligand benzamidine was re-docked at the catalytic site of protein, and the root-mean-square deviation (RMSD) between co-crystal and re-docked pose was found to be 0.34 Å.

Docking results are represented in Table 7 and revealed that compound 6k bound tightly in the active site of GABAA receptor with a value of the scoring function that estimates free energy of binding (ΔG) at −7.95 kcal/mol, forming one hydrogen bond between the oxygen atom of C=O group and the hydrogen atom of the backbone hydrogens of the amino acid residue Thr202 (distance 1.75 Å) respectively (Figure 4). Furthermore, the CH3 groups of the compound showed hydrophobic interactions with the residues Thr176, Phe200 and further stabilizing the complex ligand-enzyme as it was observed for Diazepam (Figure 5). The obtained docking results, even this is only the prediction, are in accordance with the experimental.

Table 7.

Molecular docking scoring function that estimates free energy of binding (kcal/mol) into GABAA receptor (PDB code: 4COF).

Compound Est. Binding Energy (kcal/mol) I-H Residues Involved in Hydrogen Bond Formation Hydrophobic Interactions Aromatic Interactions
6b −8.02 1 Thr202 Ala25, Tyr62, Leu99, Phe200 Phe200
6j −7.14 1 Tyr202 Tyr62, Leu99, Phe200 Phe200
6k −7.95 1 Thr202 Thr176, Phe200, Ala201 -
6n −6.37 1 Thr62 Leu99, Phe200 -
7c −6.25 - - Ty157, Thr202, Tyr205 -
7h −7.63 1 Thr62 Leu99, Phe200, Thr202 -
Diazepam −8.90 1 Thr202 Tyr62, Thr176, Phe200, Ala201, Tyr205 Phe200
Figure 4.

Figure 4

Docked pose of compound 6k and GABAA receptor complex; Red lines show the hydrogen bonds, yellow and purple-colored spheres and lines represent hydrophobic and aromatic interactions, respectively.

Figure 5.

Figure 5

Docked conformation of diazepam and GABAA receptor complex.

2.4.2. Docking to SERT Transporter and 5-HT1A Receptor

Antidepressant drugs fall in two main categories, the tricyclic antidepressants and selective serotonin reuptake inhibitors (SSRIs) [34]. These drugs inhibit the transport of serotonin into the presynaptic neuron by inhibiting the serotonin (5-HT) transporter (SERT). SERT is a transmembrane protein located in the membrane of presynaptic neurons which removes the serotonin from the synaptic cleft resulting to termination of serotonergic neurotransmission. The increase in serotonin activates the 5-HT1A receptors decrease the serotonergic neurotransmission follow-on a delay in the onset of antidepressant action [35,36]. This delay lasts until HT1A receptors become desensitized and the release of serotonin is normalized.

Tacking all the above into account, in order to study if the tested compounds act as dual inhibitors of serotonin transporter (SERT) and alongside antagonize the presynaptic autoinhibitory 5-HT1A receptors, we proceed on docking studies in SERT transporter as well as 5-HT1A receptor.

As there is no available crystal structure of SERT transporter at Protein Data Bank (PDB) we used the X-ray crystal structure of LeuT bound to L-Tryptophan (PDB code: 3F3A), a prokaryotic homologue of SERT [37]. The results of docking studies on SERT transporter are presented in Table 8.

Table 8.

Molecular docking scoring function that estimates free energy of binding (kcal/mol) in SERT transporter (PDB ID: 3F3A).

No. Est. Binding Energy (kcal/mol) I-H Residues Involved in Hydrogen Bond Formation Residues Involved in Van der Waals Interactions Residues Involved in pi-pi Interactions
6b −8.96 1 Arg7 Arg431, Gly432, Gly433, Lys436, Asp267 Asp265, Ile434
6j −7.93 1 Arg7 Asp267, Gly432, Gly433, Lys436 Lys264
6k −7.26 - - Arg7, Arg431, Gly432, Gly433 Asp265, Lys264
6n −10.25 2 Arg7, Gln266 Asp267, Gly432, Gly433 Arg7, Arg263, Lys264, Asp265, Ile434
7c −8.72 1 Arg7 Asp267, Gly432, Gly433 Asp265, Lys264
7h −7.85 1 Asp265 Arg7, Gly432, Lys436 Asp265

Compound 6n by forming two hydrogen bonds showed the best docking score which is in accordance with the experimental results. The first one between the N atom of fused rings and the hydrogen atom of the side chain of Arg7 (distance 2.00 Å) and the other between the oxygen atom of furan ring of the compound and the hydrogen of the side chain of Gln266 (distance 2.83A). The fused rings showed hydrophobic interactions with the residues Arg7, Asp267, Gly433, Gly432 and Ile434, while the furan ring interact hydrophobically with the residues Asp265, Arg263 and Ly264 (Figure 6).

Figure 6.

Figure 6

(A) Docked pose of compound 6n and SERT transporter complex; (B) 2D ligand interaction diagram for docked ligand.

For docking to 5-HT1A receptor the crystal structure of the human β2-adrenergic receptor in complex with the neutral antagonist alprenolol (PDB code: 3NYA) was used [38,39]. For the validation of docking parameters, the initial co-crystal ligand alprenolol was re-docked at the catalytic site of protein, and the root-mean-square deviation (RMSD) between co-crystal and re-docked pose was found to be 0.98 Å.

All the tested compounds were docked into the orthostatic binding site of the 5-HT1A receptor (Table 9). The best docking score was achieved for compound 6n (−10.25 kcal/mol) which formed 3 hydrogen bonds with the residues Asn293, Tyr308, and Tyr316. Additionally, hydrophobic interactions were observed between the fused rings of the compound and the residues Thr110, Phe193, Trp109, Asn312, Asp113, Phe289, Val114, Ser204, Ala200, Phe290, and Tyr199 while the furan ring interact hydrophobically with the residues Val117, Val114, Thr118, Ser207, and Ph208 (Figure 7B). It is worth to underline that alprenolol formed also hydrogen bond with the same Tyr316 residue as compound 6n. Moreover, this compound is orientated in the same cavity into the enzyme as alprenolol does (Figure 7A). This is maybe a reason of the high action of compound 6n. Finally, the docking studies revealed that this compound can probably be a dual target molecule, since it seems to be good inhibitor of SERT transporter and alongside good 5-HT1A receptor binder.

Table 9.

Molecular docking free binding energies (kcal/mol) in 5-HT1A receptor (PDB ID: 3NYA).

No. Est. Binding Energy (kcal/mol) I-H Residues Involved in Hydrogen Bond Formation Residues Involved in Van der Waals
Interactions
Residues Involved in pi-pi
Interactions
6b −10.16 2 Asn312, Tyr316 Trp109, Asp113, Thr118, Ser204, Phe108, Trp286 Val114, Val117
6j −7.35 1 Tyr308 Asp113, Thr118, Ala200, Ser204, Trp286, Asn312 Val114, Phe290
6k −8.13 1 Asn312 Asp113, Ala200, Ser207, Phe108, Trp286, Tyr308 Val114, Val117, Tyr199
6n −11.21 3 Asn293, Tyr308, Tyr316 Trp109, Thr110, Asp113, Thr118, Ala200, Ser204, Ser207, Phe108, Trp286, Asn312 Val114, Val117, Phe193, Tyr199, Phe290
7c −9.67 2 Tyr308, Tyr316 Asp113, Ser204, Ser207, Phe108, Asn312 Val114, Phe193, Phe290
7h −6.88 - - Trp109, Thr110, Asp113, Ala200, Ser204, Phe108, Trp286, Asn312 Val114, Val117, Phe290
Alprenolol −13.19 4 Asp113, Asn312, Tyr316 Met82, Thr110, Tyr118, Ser203, Ser207, Trp286, Phe289, Ala200, Tyr308 Trp109, Val114, Phe193, Tyr199, Phe290
Figure 7.

Figure 7

(A) Docked pose of compound 6n (blue) and alprenolol (red) into 5-HT1A receptor (B) 2D ligand interaction diagram for docked compound 6n.

2.5. Drug Likeness

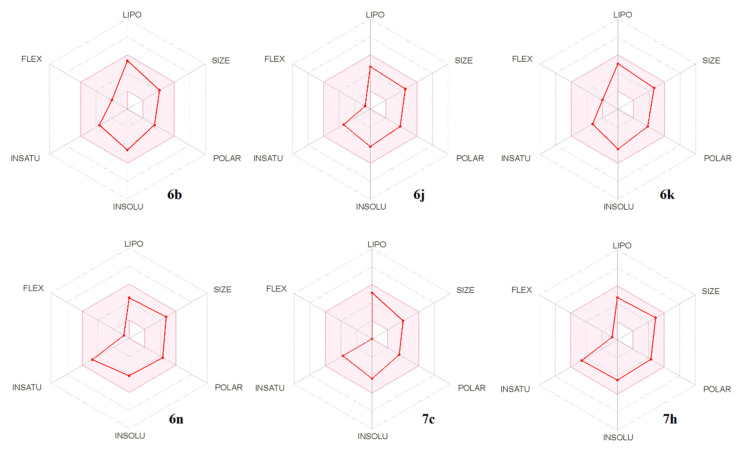

According to definition “drug-likeness” assesses qualitatively the possibility for a molecule to become an oral drug with respect to bioavailability. Drug-likeness was established from structural or physicochemical inspections of development compounds advanced enough to be considered oral drug-candidates. Various rule-based filters such as viz. Lipinski, Ghose, Veber, Egan, and Muegge with diverse ranges of properties inside of which the molecule is defined as drug-like are used, measure Drug-likeness of the tested compounds according to some acute criterion like molecular weight, LogP, number of hydrogen bond acceptors and donors. The number of violations to the above-disclosed rules along with bioavailability and Drug-likeness scores are given in Table 10.

Table 10.

Drug likeness predictions and Physicochemical-Pharmacokinetic/ADME properties of tested compounds.

No. MW Number of HBA a Number of HBD b Log Po/w
(iLOGP) c
Log S d TPSA e BBB Permeant f Lipinski, Ghose, Veber, Egan, and Muegge Violations Bioavailability SCORE Drug-Likeness Model Score
5a 295.34 4 0 2.83 Moderately soluble 60.92 Yes 0 0.55 0.61
5b 309.36 4 0 3.11 Moderately soluble 60.92 Yes 0 0.55 0.90
5c 323.35 5 0 0 Moderately soluble 70.15 No 0 0.55 0.33
5d 357.36 5 0 0 Poorly soluble 70.15 Yes 0 0.55 0.33
6a 323.39 4 0 3.44 Moderately soluble 60.92 Yes 0 0.55 0.61
6b 337.42 4 0 3.60 Poorly soluble 60.92 Yes 0 0.55 0.97
6c 363.45 4 0 3.80 Poorly soluble 60.92 Yes 0 0.55 0.64
6d 309.36 4 0 3.07 Moderately soluble 60.92 Yes 0 0.55 0.57
6e 323.39 4 0 3.31 Moderately soluble 60.92 Yes 0 0.55 0.63
6f 337.42 4 0 3.56 Moderately soluble 60.92 Yes 0 0.55 0.55
6g 351.44 4 0 3.68 Poorly soluble 60.92 Yes 0 0.55 1.01
6h 339.39 5 0 3.28 Moderately soluble 70.15 Yes 0 0.55 0.22
6i 353.41 5 0 3.48 Poorly soluble 70.15 Yes 0 0.55 0.51
6j 367.44 5 0 3.73 Poorly soluble 70.15 Yes 0 0.55 0.57
6k 381.47 5 0 3.99 Poorly soluble 70.15 Yes 0 0.55 0.52
6l 381.47 5 0 4.00 Poorly soluble 70.15 Yes 0 0.55 0.54
6m 401.46 5 0 3.76 Poorly soluble 70.15 Yes 0 0.55 0.33
6n 391.42 6 0 3.62 Poorly soluble 83.29 Yes 0 0.55 0.26
7a 377.48 4 0 3.95 Poorly soluble 60.92 Yes 0 0.55 0.64
7b 361.39 5 0 3.49 Poorly soluble 74.06 Yes 0 0.55 0.53
7c 323.29 4 0 3.24 Moderately soluble 60.92 Yes 0 0.55 0.57
7d 337.42 4 0 3.43 Poorly soluble 60.92 Yes 0 0.55 0.51
7e 381.47 5 0 3.84 Poorly soluble 70.15 Yes 0 0.55 0.54
7f 395.49 5 0 4.05 Poorly soluble 70.15 Yes 0 0.55 0.66
7g 415.48 5 0 3.93 Poorly soluble 70.15 Yes 0 0.55 0.33
7h 405.45 6 0 3.77 Poorly soluble 83.29 No 0 0.55 0.26

(a) number of hydrogen bond acceptors; (b) number of hydrogen bond donors; (c) lipophilicity; (d) Water solubility (SILICOS-IT [S=Soluble]); (e) topological polar surface area (Å2); (f) Blood Brain Barrier permeant.

According to obtained results none of the compounds violated any rule and their bioavailability score was around 0.55. All the tested molecules displayed high gastrointestinal (GI) absorption, are P-gp (p-glycoprotein) inhibitors, and able to pass the blood-brain barrier (BBB) except compounds 5c and 7h. The predictions for the passive BBB permeation, HIA (human gastrointestinal absorption), and P-gp substrates are displayed together in the BOILED-Egg diagram as shown in Figure 8. All compounds exhibited good to excellent Drug-likeness scores ranged from 0.22 to 1.01. Furthermore, the experimentally active compounds 6b, 6j, 6k, 6n, 7c, and 7h appeared to have good in-silico predictions with a Drug-likeness score ranging from 0.26 to 0.97 for compound 6b without any violation. The bioavailability radar of these compounds is presented in Figure 9.

Figure 8.

Figure 8

BOILED-Egg diagram of the tested compounds.

Figure 9.

Figure 9

Bioavailability Radar of compounds 6b, 6j, 6k, 6n, 7c, and 7h. The pink area represents the optimal range for each property for oral bioavailability, (Lipophilicity (LIPO): XLOGP3 between −0.7 and +5.0, Molecular weight (SIZE): MW between 150 and 500 g/mol, Polarity (POLAR) TPSA between 20 and 130 Å2, Solubility (INSOLU): log S not higher than 6, Saturation (INSATU): fraction of carbons in the sp3 hybridization not less than 0.25, and Flexibility (FLEX): no more than 9 rotatable bonds.

3. Materials and Methods

3.1. Chemistry

3.1.1. General Information

1H- and 13C-NMR spectra were recorded in DMSO/CCl4 (1/3) solution (300 MHz for 1H and 75 MHz for 13C, respectively) on a Mercury 300VX spectrometer (Varian Inc., Palo Alto, CA, USA). Chemical shifts were reported as δ (parts per million) relative to TMS as internal standard. IR spectra were recorded on an Avatar 330-FT-IR spectrophotometer (Thermo Nicolet, CA, USA) and the reported wave numbers were given in cm−1. All melting points were determined in an open capillary and were uncorrected. Elemental analyses were performed on a CarloErba-1106 machine (Hewlett-Packard, Milan, Italy). Quoted values were in the range ±0.4% of the theoretical ones. Crystallographic data for the structure of compound 6a were deposited with the Cambridge Crystallographic Data Center as supplementary publication no: CCDC 1918758. Copies of the data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (fax. +44-(0)1223-336033 or e-mail: deposit@ccdc.cam.ac.uk). Compounds 2e,f [7,8], 2io [9], 3a,b,dm,o [6,10,11,12,13], and 4a,b,d,e,gm,o [6,10,11,12,13] were already described.

3.1.2. General Method for the Preparation of Compounds 2ad,g,h

A stirred solution of ketone 1 (100 mmol), morpholine (8.7 g, 100 mmol) and catalytic amount of TsOH in anhydrous benzene (100 mL) was refluxed for 5 h. After triethylamine (10.1 g, 100 mmol) was added and the appropriate acyl chloride (100 mmol) was added dropwise maintaining the reaction temperature at 35–40 °C for 6 h. Then, cyanoacetamide (8.4 g, 100 mmol) and diethylamine (7.3 g, 100 mmol) were added and the reaction mixture was refluxed for 10 h. After cooling, the separated crystals were filtered off, washed with water, dried, and recrystallized from dimethylformamide.

1-Isopropyl-3-oxo-3,5,6,7-tetrahydro-2H-cyclopenta[c]pyridine-4-carbonitrile (2a). Colorless solid, yield 73%, mp 330−332 °C; IR ν/cm−1: 1636 (C=O), 2225 (C≡N), 3142 (NH). 1H-NMR δ: 1.25 (d, J = 7.0 Hz, 6H, CH(CH3)2), 2.03–2.14 (m, 2H, 6-CH2), 2.73 (t, J = 7.3 Hz, 2H, 7-CH2), 2.88 (sept., J = 7.0 Hz, 1H, CH(CH3)2), 2.92 (t, J = 7.5 Hz, 2H, 5-CH2), 11.83 (br s, 1H, NH). 13C-NMR δ: 19.33, 23.99, 28.04, 30.80, 32.75, 95.93, 114.90, 117.32, 153.24, 161.04, 167.30. Anal. calcd. for C12H14N2O: C 71.26; H 6.98; N 13.85%. Found: C 71.61; H 7.18; N 14.11%.

1-Butyl-3-oxo-3,5,6,7-tetrahydro-2H-cyclopenta[c]pyridine-4-carbonitrile (2b). Colorless solid, yield 71%, mp 240−241 °C; IR ν/cm−1: 1647 (C=O), 2228 (C≡N), 3137 (NH). 1H-NMR δ: 0.93 (t, J = 7.3 Hz, 3H, CH2CH3), 1.28–1.41 (m, 2H, CH2CH3), 1.49–1.61 (m, 2H, CH2C2H5), 2.03–2.14 (m, 2H, 6-CH2), 2.43–2.49 (m, 2H, CH2C3H7), 2.68 (t, J = 7.3 Hz, 2H, 7-CH2), 2.92 (t, J = 7.6 Hz, 2H, 5-CH2), 12.05 (br s, 1H, NH). 13C-NMR δ: 13.31, 21.67, 24.06, 27.82, 29.74, 30.63, 32.79, 95.64, 114.96, 118.64, 148.93, 160.79, 166.90. Anal. calcd. for C13H16N2O: C 72.19; H 7.46; N 12.95%. Found: C 72.51; H 7.63; N 13.18%.

1-Cyclohexyl-3-oxo-3,5,6,7-tetrahydro-2H-cyclopenta[c]pyridine-4-carbonitrile (2c). Colorless solid, yield 69%, mp 326−328 °C; IR ν/cm−1: 1643 (C=O), 2220 (C≡N), 3141 (NH). 1H-NMR δ: 1.20–1.28 (m, 3H, C6H11), 1.59–1.95 (m, 7H, C6H11), 2.01–2.17 (m, 2H, 6-CH2), 2.41–2.53 (m, 1H, CH, C6H11), 2.74 (t, J = 7.4 Hz, 2H, 7-CH2), 2.93 (t, J = 7.6 Hz, 2H, 5-CH2), 11.84 (br s, 1H, NH). 13C-NMR δ: 23.97, 24.59, 25.68, 28.21, 28.85, 32.80, 41.13, 95.96, 114.89, 117.68, 152.40, 161.09, 167.17. Anal. calcd. for C15H18N2O: C 74.35; H 7.49; N 11.56%. Found: C 74.72; H 7.70; N 11.84%.

1-(2-Furyl)-3-oxo-3,5,6,7-tetrahydro-2H-cyclopenta[c]pyridine-4-carbonitrile (2d). Yellow solid, yield 74%, mp 356−358 °C; IR ν/cm−1: 1630 (C=O), 2220 (C≡N), 3117 (NH). 1H-NMR δ: 2.10–2.21 (m, 2H, 6-CH2), 2.98 (t, J = 7.7 Hz, 2H, 7-CH2), 3.09 (t, J = 7.4 Hz, 2H, 5-CH2), 6.61 (dd, J = 3.6, 1.7 Hz, 1H, 4-CHfur.), 7.50 (d, J = 3.6 Hz, 1H, 3-CHfur.), 7.75 (d, J = 1.7, Hz, 1H, 5-CHfur.), 12.01 (br s, 1H, NH). 13C-NMR δ: 24.11, 30.40, 32.81, 95.82, 112.81, 114.64, 115.79, 118.38, 134.73, 145.87, 146.57, 160.46, 168.92. Anal. calcd. for C13H10N2O2: C 69.02; H 4.46; N 12.38%. Found: C 69.36; H 4.65; N 12.64%.

1-Isopropyl-3-oxo-2,3,5,6,7,8-hexahydroisoquinoline-4-carbonitrile (2g). Light yellow solid, yield 70%, mp > 360 °C; IR ν/cm−1: 1634 (C=O), 2220 (C≡N), 3142 (NH). 1H-NMR δ: 1.24 (d, J = 6.9 Hz, 6H, CH(CH3)2), 1.72–1.78 (m, 4H, 6,7-CH2), 2.76–2.82 (m, 2H, 8-CH2), 2.92–2.98 (m, 2H, 5-CH2), 3.11 (sept., J = 7.0 Hz, 1H, CH(CH3)2), 11.82 (br s, 1H, NH). Anal. calcd. for C13H16N2O: C 72.19; H 7.46; N 12.95%. Found: C 72.57; H 7.68; N 13.24%.

1-Isobutyl-3-oxo-2,3,5,6,7,8-hexahydroisoquinoline-4-carbonitrile (2h). Colorless solid, yield 72%, mp 248−250 °C; IR ν/cm−1: 1651 (C=O), 2215 (C≡N), 3138 (NH). 1H-NMR δ: 0.94 (d, J = 6.7 Hz, 6H, CH(CH3)2), 1.67–1.81 (m, 4H, 6,7-CH2), 1.89–2.04 (m, 1H, CH(CH3)2), 2.41 (d, J = 7.4 Hz, 2H, CHCH2), 2.42–2.48 (m, 2H, 8-CH2), 2.76–2.82 (m, 2H, 5-CH2), 12.19 (br s, 1H, NH). 13C-NMR δ: 20.98, 21.79, 21.91, 23.44, 27.74, 28.81, 38.21, 99.35, 112.20, 114.94, 151.23, 158.97, 159.59. Anal. calcd. for C14H18N2O: C 73.01; H 7.88; N 12.16%. Found: C 73.32; H 8.06; N 12.40%.

3.1.3. General Method for the Preparation of Compounds 3c,n

To a suspension of compound 2 (10 mmol) and potassium carbonate (1.52 g, 11 mmol) in absolute DMF (30 mL) ethyl chloroacetate (1.2 mL, 11 mmol) was added dropwise under stirring. The reaction mixture was maintained at 75−80 °C for 2 h, then cooled to room temperature, and poured onto cold water. The resulting crystals were filtered off, washed with water, dried, and re-crystallized from ethanol.

Ethyl [(4-cyano-1-cyclohexyl-6,7-dihydro-5H-cyclopenta[c]pyridin-3-yl)oxy]acetate (3c). Colorless solid, yield 94%, mp 125−127 °C; IR ν/cm−1: 1761 (C=О), 2225 (C≡N). 1H-NMR δ: 1.27 (t, J = 7.1 Hz, 3H, CH2CH3), 1.23–1.55 (m, 5H, C6H11), 1.62–1.85 (m, 5H, C6H11), 2.11–2.23 (m, 2H, 6-CH2), 2.55–2.61 (m, 1H, CH, C6H11), 2.68 (t, J = 7.4 Hz, 2H, 7-CH2), 3.04 (t, J = 7.6 Hz, 2H, 5-CH2), 4.15 (q, J = 7.1 Hz, 2H, CH2CH3), 4.83 (s, 2H, OCH2). Anal. calcd. for C19H24N2O3: C 69.49; H 7.37; N 8.53%. Found: C 69.86; H 7.59; N 8.81%.

Ethyl [(5-cyano-3,3-dimethyl-8-phenyl-3,4-dihydro-1H-pyrano[3,4-c]pyridin-6-yl)oxy]acetate (3n). Colorless solid, yield 83%, mp 133−135 °C; IR ν/cm−1: 1748 (C=О), 2231 (C≡N). 1H-NMR δ: 1.24 (t, J = 7.1 Hz, 3H, CH2CH3), 1.36 (s, 6H, С(CH3)2), 2.94 (s, 2H, CH2), 4.22 (q, J = 7.1 Hz, 2H, CH2CH3), 4.71 (s, 2H, OCH2), 4.98 (s, 2H, OCH2CO), 7.39−7.47 (m, 5H, Ph). 13C-NMR δ: 13.65, 26.16, 38.09, 59.64, 60.06, 62.40, 69.19, 94.25, 112.82, 121.95, 127.71, 128.14, 128.82, 137.06, 150.94, 155.07, 160.15, 167.04. Anal. calcd. for C21H22N2O4: C 68.84; H 6.05; N 7.65%. Found: C 69.19; H 6.24; N 7.90%.

3.1.4. General Method for the Preparation of Compounds 4c,f,n

To a solution of sodium ethoxide [0.25 g (11 mmol) in absolute ethanol (30 mL)] was added compound 3 (10 mmol). The mixture was refluxed for 15−20 min, cooled, and poured onto ice. The formed crystals were filtered off, washed with water, dried, and recrystallized from ethanol.

Ethyl 1-amino-5-cyclohexyl-7,8-dihydro-6H-cyclopenta[d]furo[2,3-b]pyridine-2-carboxylate (4c). Colorless solid, yield 87%, mp 157−159 °C; IR ν/cm−1: 3443, 3347 (NH2), 1658 (C=O). 1H-NMR δ: 1.25–1.42 (m, 3H, C6H11), 1.58–1.89 (m, 7H, C6H11), 1.39 (t, J = 7.1 Hz, 3H, CH2CH3), 2.15–2.27 (m, 2H, 7-CH2), 2.64–2.74 (m, 1H, CH, C6H11), 2.91 (t, J = 7.4 Hz, 2H, 6-CH2), 3.25 (t, J = 7.6 Hz, 2H, 8-CH2), 4.31 (q, J = 7.1 Hz, 2H, CH2CH3), 5.53 (br s, 2H, NH2). 13C-NMR δ: 14.16, 24.37, 25.52, 25.93, 28.86, 30.67, 30.88, 43.03, 58.75, 108.58, 121.82, 131.30, 138.60, 148.63, 158.95, 160.18, 160.46. Anal. calcd. for C19H24N2O3: C 69.49; H 7.37; N 8.53%. Found: C 69.79; H 7.54; N 8.76%.

Ethyl 1-amino-5-ethyl-6,7,8,9-tetrahydrofuro[2,3-c]isoquinoline-2-carboxylate (4f). Colorless solid, yield 83%, mp 140−142 °C; IR ν/cm−1: 3491, 3386 (NH2), 1682 (C=O). 1H-NMR δ: 1.27 (t, J = 7.4 Hz, 3H, CH2CH3), 1.40 (t, J = 7.1 Hz, 3H, OCH2CH3), 1.82–1.89 (m, 4H, 7,8-CH2), 2.67–2.72 (m, 2H, 6-CH2), 2.75 (q, J = 7.4 Hz, 2H, CH2CH3), 3.15–3.21 (m, 2H, 9-CH2), 4.32 (q, J = 7.1 Hz, 2H, OCH2CH3), 5.66 (br s, 2H, NH2). 13C-NMR δ: 11.54, 14.15, 20.98, 21.99, 24.87, 25.77, 27.29, 58.76, 109.30, 121.60, 124.12, 139.69, 142.42, 157.39, 160.55, 160.69. Anal. calcd. for C16H20N2O3: C 66.65; H 6.99; N 9.72%. Found: C 66.98; H 7.19; N 9.96%.

Ethyl 1-amino-8,8-dimethyl-5-phenyl-8,9-dihydro-6H-furo[2,3-b]pyrano[4,3-d]pyridine-2-carboxylate (4n). Colorless solid, yield 77%, mp 191−193 °C; IR ν/cm−1: 3453, 3336 (NH2), 1669 (C=O). 1H-NMR δ:1.34 (s, 6H, С(CH3)2), 1.42 (t, J = 7.1 Hz, 3H, CH2CH3), 3.21 (s, 2H, CH2), 4.36 (q, J = 7.1 Hz, 2H, CH2CH3), 4.67 (s, 2H, OCH2), 5.85 (s, 2H, NH2), 7.38−7.50 (m, 5H, Ph). 13C-NMR δ: 14.13, 26.24, 36.09, 59.01, 60.46, 68.81, 110.68, 121.94, 122.77, 127.57, 127.95, 128.20, 138.48, 139.21, 140.77, 154.47, 157.76, 160.46. Anal. calcd. for C21H22N2O4: C 68.84; H 6.05; N 7.65%. Found: C 69.20; H 6.27; N 7.91%.

3.1.5. General Method for the Preparation of Compounds 5ad, 6an and 7ah

A mixture of furo[2,3-b]pyridine 4 (10 mmol), the corresponding lactam (20 mmol) [2-pyrrolidinone (1.7 g); 2-piperidone (1.98 g), or 2-azepanone (2.26 g)] and phosphorus oxychloride (1.87 mL, 20 mmol) in absolute 1,2-dichloroethane (50 mL) was refluxed for 25 h. The solvent was distilled off to dryness and water (50 mL) was added to the residue. The separated crystals were filtered off, washed with water, dried, and recrystallized from ethanol.

5-Methyl-1,2,3,4,11,12-hexahydropyrrolo[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8(10H)-one (5a). Colorless solid, yield 68%, mp 289−291 °C; IR ν/cm−1: 1686 (C=O). 1H-NMR δ: 1.83–1.99 (m, 4H, 2,3-CH2), 2.29–2.40 (m, 2H, 11-CH2), 2.52 (s, 3H, CH3), 2.71–2.76 (m, 2H, 4-CH2), 3.17 (t, J = 7.9 Hz, 2H, 12-CH2), 3.27–3.33 (m, 2H, 1-CH2), 4.17–4.22 (m, 2H, NCH2). 13C-NMR δ: 19.58, 20.79, 22.19, 25.42, 26.23, 31.72, 46.44, 110.07, 126.56, 134.93, 143.42, 143.46, 150.78, 157.01, 159.84, 160. 33. Anal. calcd. for C17H17N3O2: C 69.14; H 5.80; N 14.23%. Found: C 69.48; H 5.98; N 14.46%.

5-Ethyl-1,2,3,4,11,12-hexahydropyrrolo[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8(10H)-one (5b). Cream solid, yield 70%; mp 208−210 °C; IR ν/cm1: 1693 (C=O). 1H-NMR δ: 1.33 (t, J = 7.4 Hz, 3H, CH2CH3), 1.83–1.99 (m, 4H, 2,3-CH2), 2.29–2.40 (m, 2H, 11-CH2), 2.83 (q, J = 7.4 Hz, 2H, CH2CH3), 2.75–2.81 (m, 2H, 4-CH2), 3.18 (q, J = 7.9 Hz, 2H, 12-CH2), 3.29–3.35 (m, 2H, 1-CH2), 4.17–4.23 (m, 2H, NCH2). 13C-NMR δ: 11.55, 19.54, 20.77, 22.21, 24.79, 26.29, 27.37, 31.70, 46.42, 109.82, 125.90, 134.92, 143.40, 143.50, 150.73, 160.09, 160.26, 161.11. Anal. calcd. for C18H19N3O2: C 69.88; H 6.19; N 13.58%. Found: C 70.21; H 6.38; N 13.82%.

5-Isopropyl-2,2-dimethyl-1,4,11,12-tetrahydro-2H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrrolo[1,2-a]pyrimidin-8(10H)-one (5c). Colorless solid, yield 65%; mp 244‒246 °C; IR ν/cm−1: 1701 (C=O). 1H-NMR δ: 1.31 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.34 (s, 6H, C(CH3)2), 2.31−2.41 (m, 2H, 11-CH2), 3.05 (sept., J = 6.6 Hz, 1H, CH(CH3)2), 3.21 (t, J = 8.1 Hz, 2H, 12-CH2), 3.23 (s, 2H, 1-CH2), 4.19− 4.25 (m, 2H, NCH2), 4.86 (s, 2H, OCH2). 13C-NMR δ: 19.58, 21.22, 25.83, 30.38, 31.70, 36.61, 38.95, 46.50, 59.66, 68.50, 110.19, 122.18, 135.31, 140.26, 143.08, 150.71, 160.67, 160.82, 161.95. Anal. calcd. for C20H23N3O3: C 67.97; H 6.56; N 11.89%. Found: C 68.32; H 6.77; N 12.15%.

2,2-Dimethyl-5-phenyl-1,4,11,12-tetrahydro-2H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrrolo[1,2-a]pyrimidin-8(10H)-one (5d). Colorless solid, yield 69%; mp 292−293 °C; IR ν/cm1: 1687 (C=O). 1H-NMR δ: 1.38 (s, 6H, С(CH3)2), 2.31–2.43 (m, 2H, 11-CH2), 3.22 (t, J = 7.9 Hz, 2H, 12-CH2), 3.30 (s, 2H, CH2), 4.19− 4.25 (m, 2H, NCH2), 4.76 (s, 2H, OCH2), 7.41−7.57 (m, 5H, Ph). 13C-NMR δ: 19.59, 26.20, 31.75, 36.73, 46.57, 60.50, 68.81, 111.20, 124.01, 127.66, 128.20, 128.33, 136.04, 138.07, 141.39, 142.88, 150.69, 154.79, 160.46, 160.98. Anal. calcd. for C23H21N3O3: C 71.30; H 5.46; N 10.85%. Found: C 71.67; H 5.69; N 11.12%.

4-Isopropyl-2,3,9,10,11,12-hexahydrocyclopenta[4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidin-7(1H)-one (6a). Cream solid, yield 57%; mp 147‒148 °C; IR ν/cm−1: 1691 (C=O). 1H-NMR δ: 0.99 (d, J = 6.8 Hz, 6H, CH(CH3)2), 1.90−2.08 (m, 4H, 10,11-CH2), 2.22−2.33 (m, 2H, 2-CH2), 2.96−3.05 (m, 4H, 3,12-CH2), 3.19 (sept., J = 6.8 Hz, 1H, CH(CH3)2), 3.33 (t, J = 7.6 Hz, 2H, 1-CH2), 4.08 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 18.40, 20.96, 21.15, 24.43, 29.03, 31.08, 31.11, 32.83, 41.51, 109.04, 133.05, 134.96, 140.58, 149.65, 151.81, 156.19, 161.45, 161.70. Anal. calcd. for C19H21N3O2: C 70.57; H 6.55; N 12.99%. Found: C 70.91; H 6.75; N 13.24%.

4-Butyl-2,3,9,10,11,12-hexahydrocyclopenta[4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidin-7(1H)-one (6b). Cream solid, yield 53%; mp 142‒144 °C; IR ν/cm−1: 1698 (C=O). 1H-NMR δ: 0.99 (t, J = 7.3 Hz, 3H, CH2CH3), 1.37−1.50 (m, 2H, CH2CH3), 1.71−1.81 (m, 2H, CH2C2H5), 1.91−2.08 (m, 4H, 10,11-CH2), 2.23−2.33 (m, 2H, 2-CH2), 2.78−2.83 (m, 2H, CH2C3H7), 2.96−3.02 (m, 4H, 3,12-CH2), 3.35 (t, J = 7.6 Hz, 2H, 1-CH2), 4.09 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 11.52, 18.40, 21.16, 21.90, 24.40, 29.25, 29.76, 31.10, 31.13, 34.94, 41.50, 109.02, 134.03, 134.94, 140.63, 149.44, 151.86, 156.23, 157.01, 161.55. Anal. calcd. for C20H23N3O2: C 71.19; H 6.87; N 12.45%. Found: C 71.51; H 7.06; N 12.68%.

4-Cyclohexyl-2,3,9,10,11,12-hexahydrocyclopenta[4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidin-7(1H)-one (6c). Light yellow solid, yield 56%; mp 186‒188 °C. 1H-NMR δ: 1.31−1.50 and 1.64−2.08 (both m, 3H and 11H, 5CH2-C6H11, 10,11-CH2), 2.22−2.33 (m, 2H, 2-CH2), 2.74−2.87 (m, 1H, CH-C6H11), 2.99 (t, J = 7.6 Hz, 2H, 3-CH2), 3.01 (t, J = 6.6 Hz, 2H, 13-CH2), 3.34 (t, J = 7.6 Hz, 2H, 1-CH2), 4.09 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 18.40, 21.15, 24.42, 25.44, 25.90, 29.06, 30.84, 31.08, 31.14, 41.50, 43.16, 108.94, 133.21, 134.93, 140.62, 149.54, 151.81, 156.15, 160.73, 161.68. Anal. calcd. for C22H25N3O2: C 72.70; H 6.93; N 11.56%. Found: C 73.06; H 7.15; N 11.82%.

5-Methyl-1,2,3,4,10,11,12,13-octahydro-8H-pyrido[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8-one (6d). Colorless solid, yield 61%; mp 282−284 °C; IR ν/cm1: 1689 (C=O). 1H-NMR δ: 1.83–2.07 (m, 8H, 2,3,11,12-CH2), 2.52 (s, 3H, CH3), 2.71–2.77 (m, 2H, 4-CH2), 2.99 (t, J = 6.6 Hz, 2H, 13-CH2), 3.28–3.34 (m, 2H, 1-CH2), 4.08 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 18.42, 20.81, 21.16, 22.19, 22.22, 25.39, 26.20, 31.18, 41.43, 109.93, 126.49, 134.43, 141.52, 143.52, 151.83, 155.90, 157.07, 159.81. Anal. calcd. for C18H19N3O2: C 69.88; H 6.19; N 13.58%. Found: C 70.20; H 6.37; N 13.82%.

5-Ethyl-1,2,3,4,10,11,12,13-octahydro-8H-pyrido[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8-one (6e). Colorless solid, yield 54%; mp 194‒196 °C; IR ν/cm−1: 1697 (C=O). 1H-NMR δ: 1.33 (t, J = 7.4 Hz, 3H, CH2CH3), 1.83–2.08 (m, 8H, 2,3,11,12-CH2), 2.76–2.82 (m, 2H, 4-CH2), 2.83 (q, J = 7.4 Hz, 2H, CH2CH3), 3.00 (t, J = 6.6 Hz, 2H, 13-CH2), 3.31–3.36 (m, 2H, 1-CH2), 4.09 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 11.55, 18.44, 20.81, 21.16, 22.27, 24.79, 26.29, 27.38, 31.18, 41.44, 109.72, 125.87, 134.47, 141.52, 143.63, 151.81, 155.85, 160.09, 161.21. Anal. calcd. for C19H21N3O2: C 70.57; H 6.55; N 12.99%. Found: C 70.91; H 6.74; N 13.24%.

5-Isopropyl-1,2,3,4,10,11,12,13-octahydro-8H-pyrido[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8-one (6f). Light yellow solid, yield 58%; mp 169‒171 °C; IR ν/cm−1: 1695 (C=O). 1H-NMR δ: 1.29 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.84–2.08 (m, 8H, 2,3,11,12-CH2), 2.83–2.88 (m, 2H, 4-CH2), 3.00 (t, J = 6.6 Hz, 2H, 13-CH2), 3.33 (sept., J = 6.6 Hz, 1H, CH(CH3)2), 3.33–3.38 (m, 2H, 1-CH2), 4.09 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 18.44, 20.76, 21.17, 21.29, 22.42, 24.67, 26.48, 30.42, 31.18, 41.44, 109.79, 124.97, 134.56, 141.52, 144.05, 151.81, 155.82, 160.25, 164.99. Anal. calcd. for C20H23N3O2: C 71.19; H 6.87; N 12.45%. Found: C 71.50; H 7.05; N 12.68%.

5-Isobutyl-1,2,3,4,10,11,12,13-octahydro-8H-pyrido[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c]isoquinolin-8-one (6g). Colorless solid, yield 55%; mp 208‒209 °C; IR ν/cm−1: 1687 (C=O). 1H-NMR δ: 1.00 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.83–2.07 (m, 8H, 2,3,11,12-CH2), 2.21−2.35 (m, 1H, CH(CH3)2), 2.68 (d, J = 7.1 Hz, 2H, CHCH2), 2.76–2.82 (m, 2H, 4-CH2), 3.00 (t, J = 6.6 Hz, 2H, 13-CH2), 3.31–3.37 (m, 2H, 1-CH2), 4.09 (t, J = 6.1 Hz, 2H, NCH2). 13C-NMR δ: 18.44, 20.81, 21.18, 22.32, 22.36, 25.23, 26.36, 27.07, 31.18, 41.42, 42.98, 109.77, 126.41, 134.55, 140.98, 141.54, 143.76, 151.82, 155.85, 159.80. Anal. calcd. for C21H25N3O2: C 71.77; H 7.17; N 11.96%. Found: C 72.12; H 7.38; N 12.22%.

2,2,5-Trimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5]furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6h). Colorless solid, yield 60%; mp 278‒280 °C; IR ν/cm−1: 1698 (C=O). 1H-NMR δ: 1.33 (s, 6H, С(CH3)2), 1.91–2.08 (m, 4H, 11,12-CH2), 2.48 (s, 3H, CH3), 3.02 (t, J = 6.6 Hz, 2H, 13-CH2), 3.20 (s, 2H, CH2), 4.10 (t, J = 6.1 Hz, 2H, NCH2), 4.74 (s, 2H, OCH2). 13C-NMR δ: 18.32, 20.91, 21.07, 25.84, 31.15, 36.28, 41.47, 60.02, 68.68, 110.01, 123.80, 134.58, 139.73, 141.16, 151.86, 153.81, 156.63, 160.30. Anal. calcd. for C19H21N3O3: C 67.24; H 6.24; N 12.38%. Found: C 67.57; H 6.43; N 12.62%.

5-Ethyl-2,2-dimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6i). Colorless solid, yield 62%; mp 232‒234 °C; IR ν/cm−1: 1692 (C=O). 1H-NMR δ: 1.33 (s, 6H, С(CH3)2), 1.35 (t, J = 7.4 Hz, 3H, CH2CH3), 1.91–2.08 (m, 4H, 11,12-CH2), 2.74 (q, J = 7.4 Hz, 2H, CH2CH3), 3.02 (t, J = 6.6 Hz, 2H, 13-CH2), 3.22 (s, 2H, CH2), 4.10 (t, J = 6.1 Hz, 2H, NCH2), 4.79 (s, 2H, OCH2). 13C-NMR δ: 11.29, 18.34, 21.11, 25.81, 26.42, 31.14, 36.40, 41.39, 59.69, 68.56, 109.90, 123.05, 134.71, 139.83, 141.13, 151.76, 156.32, 158.01, 160.64. Anal. calcd. for C20H23N3O3: C 67.97; H 6.56; N 11.89%. Found: C 68.34; H 6.78; N 20.95%.

5-Isopropyl-2,2-dimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6j). Colorless solid, yield 57%; mp 239‒241 °C; IR ν/cm−1: 1697 (C=O). 1H-NMR δ: 1.31 (d, J = 6.7 Hz, 6H, CH(CH3)2), 1.34 (s, 6H, С(CH3)2), 1.91–2.08 (m, 4H, 11,12-CH2), 3.02 (t, J = 6.6 Hz, 2H, 13-CH2), 3.05 (sept., J = 6.7 Hz, 1H, CH(CH3)2), 3.24 (s, 2H, CH2), 4.11 (t, J = 6.1 Hz, 2H, NCH2), 4.86 (s, 2H, OCH2). 13C-NMR δ: 18.34, 21.11, 21.22, 25.82, 30.38, 31.13, 36.58, 41.40, 59.66, 68.49, 110.06, 122.12, 134.81, 140.35, 141.16, 151.76, 156.32, 160.78, 162.01. Anal. calcd. for C21H25N3O3: C 68.64; H 6.86; N 11.44%. Found: C 68.99; H 7.05; N 11.69%.

5-Butyl-2,2-dimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6k). Colorless solid, yield 61%; mp 163‒164 °C; IR ν/cm−1: 1696 (C=O). 1H-NMR δ: 1.00 (t, J = 7.3 Hz, 3H, CH2CH3), 1.33 (s, 6H, С(CH3)2), 1.39−1.54 (m, 2H, CH2CH3), 1.72−1.82 (m, 2H, CH2C2H5), 1.91–2.08 (m, 4H, 11,12-CH2), 2.69 (t, J = 7.6 Hz, 2H, CH2C3H7), 3.02 (t, J = 6.6 Hz, 2H, 13-CH2), 3.21 (s, 2H, CH2), 4.10 (t, J = 6.1 Hz, 2H, NCH2), 4.79 (s, 2H, OCH2). 13C-NMR δ: 13.53, 18.34, 21.11, 21.94, 25.81, 29.38, 31.13, 33.01, 36.43, 41.38, 59.79, 68.56, 109.94, 123.19, 134.74, 139.96, 141.16, 151.76, 156.33, 157.33, 160.56. Anal. calcd. for C22H27N3O3: C 69.27; H 7.13; N 11.02%. Found: C 69.58; H 7.30; N 11.25%.

5-Isobutyl-2,2-dimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6l). Colorless solid, yield 53%; mp 212‒215 °C; IR ν/cm−1: 1699 (C=O). 1H-NMR δ: 1.00 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.33 (s, 6H, С(CH3)2), 1.91–2.08 (m, 4H, 11,12-CH2), 2.23–2.37 (m, 1H, CHCH2), 2.57 (d, J = 7.0 Hz, 2H, CHCH2), 3.02 (t, J = 6.6 Hz, 2H, 13-CH2), 3.23 (s, 2H, CH2), 4.10 (t, J = 6.0 Hz, 2H, NCH2), 4.79 (s, 2H, OCH2). 13C-NMR δ: 18.33, 21.11, 22.16, 25.79, 27.31, 31.12, 36.45, 41.41, 42.06, 59.98, 68.52, 109.97, 123.62, 134.78, 140.04, 141.16, 151.77, 156.37, 156.72, 160.48. Anal. calcd. for C22H27N3O3: C 69.27; H 7.13; N 11.02%. Found: C 69.60; H 7.33; N 11.26%.

2,2-Dimethyl-5-phenyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo [3,2-d]pyrido[1,2-a]pyrimidin-8-one (6m). Colorless solid, yield 59%; mp 245‒247 °C; IR ν/cm−1: 1684 (C=O). 1H-NMR δ: 1.38 (s, 6H, С(CH3)2), 1.93–2.10 (m, 4H, 11,12-CH2), 3.05 (t, J = 6.6 Hz, 2H, 13-CH2), 3.32 (s, 2H, CH2), 4.12 (t, J = 6.1 Hz, 2H, NCH2), 4.76 (s, 2H, OCH2), 7.41−7.58 (m, 5H, Ph). 13C-NMR δ: 18.32, 21.09, 26.20, 31.18, 36.70, 41.51, 60.51, 68.80, 111.09, 123.96, 127.65, 128.20, 128.33, 135.51, 138.09, 140.97, 141.48, 151.76, 154.86, 156.63, 160.44. Anal. calcd. for C24H23N3O3: C 71.80; H 5.77; N 10.47%. Found: C 72.16; H 5.99; N 10.72%.

5-(2-Furyl)-2,2-dimethyl-1,4,10,11,12,13-hexahydro-2H,8H-pyrano[4″,3″:4′,5′]pyrido[3′,2′:4,5] furo[3,2-d]pyrido[1,2-a]pyrimidin-8-one (6n). Cream solid, yield 56%; mp 290‒292 °C; IR ν/cm−1: 1683 (C=O). 1H-NMR δ: 1.37 (s, 6H, С(CH3)2), 1.92–2.08 (m, 4H, 11,12-CH2), 3.03 (t, J = 6.6 Hz, 2H, 13-CH2), 3.29 (s, 2H, CH2), 4.11 (t, J = 6.1 Hz, 2H, NCH2), 5.16 (s, 2H, OCH2), 6.63 (dd, J = 3.5, 1.7 Hz, 1H, 4-CHfur.), 7.24 (dd, J = 3.5, 0.8 Hz, 1H, 3-CHfur.), 7.74 (dd, J = 1.7, 0.8 Hz, 1H, 5-CHfur.). 13C-NMR δ: 18.25, 21.03, 25.90, 31.18, 36.94, 38.67, 41.55, 60.65, 68.18, 110.94, 111.79, 112.76, 122.43, 135.55, 141.04, 141.94, 143.10, 144.33, 151.79, 152.86, 156.96, 160.04. Anal. calcd. for C22H21N3O4: C 67.51; H 5.41; N 10.74%. Found: C 67.85; H 5.59; N 10.97%.

4-Cyclohexyl-2,3,10,11,12,13-hexahydro-1H-cyclopenta[4″,5″]pyrido[3″,2″:4′,5′]furo[3′,2′:4,5] pyrimido[1,2-a]azepin-7(9H)-one (7a). Colorless solid, yield 68%; mp 205‒206 °C; IR ν/cm−1: 1698 (C=O). 1H-NMR δ: 1.31−1.50 and 1.64−1.96 (both m, 3H and 13H, 5CH2-C6H11, 10,11,12-CH2), 2.22−2.34 (m, 2H, 2-CH2), 2.74−2.86 (m, 1H, CH-C6H11), 3.02 (t, J = 7.4 Hz, 2H, 3-CH2), 3.11−3.17 (m, 2H, 13-CH2), 3.36 (t, J = 7.6 Hz, 2H, 1-CH2), 4.40−4.46 (m, 2H, NCH2). 13C-NMR δ: 24.47, 25.43, 25.88, 27.07, 28.69, 29.07, 30.84, 31.14, 36.59, 41.89, 43.16, 109.15, 133.26, 135.03, 140.42, 149.56, 151.80, 160.76, 160.90, 161.79. Anal. calcd. for C23H27N3O2: C 73.18; H 7.21; N 11.13%. Found: C 73.51; H 7.40; N 11.37%.

4-(2-Furyl)-2,3,10,11,12,13-hexahydro-1H-cyclopenta[4″,5″]pyrido[3″,2″:4′,5′]furo[3′,2′:4,5] pyrimido[1,2-a]azepin-7(9H)-one (7b). Cream solid, yield 70%; mp 308‒310 °C; IR ν/cm−1: 1689 (C=O). 1H-NMR δ: 1.76–1.95 (m, 6H, 10,11,12-CH2), 2.28–2.39 (m, 2H, 2-CH2), 3.12–3.18 (m, 2H, 13-CH2), 3.02 (t, J = 7.4 Hz, 2H, 3-CH2), 3.36 (t, J = 7.6 Hz, 2H, 1-CH2), 4.41–4.46 (m, 2H, NCH2), 6.61 (dd, J = 3.5, 1.7 Hz, 1H, 4-CHfur.), 7.19 (dd, J = 3.5, 0.7 Hz, 1H, 3-CHfur.), 7.71 (dd, J = 1.7, 0.8 Hz, 1H, 5-CHfur.). 13C-NMR δ: 24.39, 24.62, 26.95, 28.60, 30.80, 31.07, 36.59, 42.04, 110.02, 111.60, 111.85, 131.81, 135.75, 140.31, 142.74, 144.13, 151.88, 151.93, 152.93, 161.20, 161.66. Anal. calcd. for C21H19N3O3: C 69.79; H 5.30; N 11.63%. Found: C 70.14; H 5.51; N 11.89%.

5-Methyl-1,2,3,4,11,12,13,14-octahydroazepino[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c] isoquinolin-8(10H)-one (7c). Colorless solid, yield 66%; mp 259‒261 °C; IR ν/cm−1: 1698 (C=O). 1H-NMR δ: 1.75–2.00 (m, 10H, 2,3,11,12,13-CH2), 2.53 (m, 3H, CH3), 2.71–2.77 (m, 2H, 4-CH2), 3.11−3,17 (m, 2H, 14-CH2), 3.30–3.36 (m, 2H, 1-CH2), 4.39–4.45 (m, 2H, NCH2). 13C-NMR δ: 20.81, 22.20, 22.24, 24.49, 25.39, 26.21, 27.06, 28.73, 36.73, 41.87, 110.12, 126.55, 110.12, 141.30, 143.52, 151.81, 157.09, 159.90, 160.68. Anal. calcd. for C19H21N3O2: C 70.57; H 6.55; N 12.99%. Found: C 70.94; H 6.76; N 13.26%.

5-Ethyl-1,2,3,4,11,12,13,14-octahydroazepino[1″,2″:1′,2′]pyrimido[4′,5′:4,5]furo[2,3-c] isoquinolin-8(10H)-one (7d). Milky solid, yield 65%; mp 214‒215 °C; IR ν/cm−1: 1692 (C=O). 1H-NMR δ: 1.33 (t, J = 7.4 Hz, 3H, CH2CH3), 1.76–1.99 (m, 10H, 2,3,11,12,13-CH2), 2.76–2.82 (m, 2H, 4-CH2), 2.83 (q, J = 7.4 Hz, 2H, CH2CH3), 3.11−3,17 (m, 2H, 14-CH2), 3.31–3.38 (m, 2H, 1-CH2), 4.40–4.45 (m, 2H, NCH2). 13C-NMR δ: 11.56, 20.81, 22.29, 24.49, 24.79, 26.30, 27.07, 27.39, 28.73, 36.73, 41.85, 109.92, 125.90, 134.55, 141.29, 143.63, 151.78, 160.20, 160.60, 161.24. Anal. calcd. for C20H23N3O2: C 71.19; H 6.87; N 12.45%. Found: C 71.52; H 7.07; N 12.69%.

5-Isopropyl-2,2-dimethyl-1,4,11,12,13,14-hexahydro-2H-pyrano[4‴,3‴:4″,5″]pyrido[3″,2″:4′,5′] furo[3′,2′:4,5]pyrimido[1,2-a]azepin-8(10H)-one (7e). Colorless solid, yield 67%; mp 223‒225 °C; IR ν/cm−1: 1694 (C=O). 1H-NMR δ: 1.30 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.34 (s, 6H, C(CH3)2), 1.75−1.94 (m, 6H, 11,12,13-CH2), 3.04 (sept., J = 6.6 Hz, 1H, CH(CH3)2), 3.13−3.21 (m, 2H, 14-CH2), 3.24 (s, 2H, CH2), 4.40−4.47 (m, 2H, NCH2), 4.85 (s, 2H, OCH2). 13C-NMR δ: 21.20, 21.24, 24.53, 25.81, 27.08, 28.69, 30.38, 30.42, 36.61, 36.59, 41.93, 59.66, 68.49, 110.27, 122.15, 134.87, 140.35, 140.92, 151.76, 161.01, 162.04. Anal. calcd. for C22H27N3O3: C 69.27; H 7.13; N 11.02%. Found: C 69.58; H 7.32; N 11.25%.

5-Isobutyl-2,2-dimethyl-1,4,11,12,13,14-hexahydro-2H-pyrano[4‴,3‴:4″,5″]pyrido[3″,2″:4′,5′] furo[3′,2′:4,5]pyrimido[1,2-a]azepin-8(10H)-one (7f). Colorless solid, yield 64%; mp 197‒199 °C; IR ν/cm−1: 1701 (C=O). 1H-NMR δ: 0.99 (d, J = 6.6 Hz, 6H, CH(CH3)2), 1.32 (s, 6H, C(CH3)2), 1.74−1.95 (m, 6H, 11,12,13-CH2), 2.21–2.37 (m, 1H, CHCH2), 2.57 (d, J = 7.0 Hz, 2H, CHCH2), 3.12−3.21 (m, 2H, 14-CH2), 3.22 (s, 2H, CH2), 4.39−4.48 (m, 2H, NCH2), 4.79 (s, 2H, OCH2). 13C-NMR δ: 22.12, 24.53, 25.78, 27.10, 27.33, 28.70, 36.48, 36.60, 41.94, 42.05, 60.00, 68.54, 110.19, 123.68, 134.87, 140.05, 140.93, 151.78, 156.73, 160.57, 161.07. Anal. calcd. for C23H29N3O3: C 69.85; H 7.39; N 10.62%. Found: C 70.21; H 7.61; N 10.88%.

2,2-Dimethyl-5-phenyl-1,4,11,12,13,14-hexahydro-2H-pyrano[4‴,3‴:4″,5″]pyrido[3″,2″:4′,5′] furo[3′,2′:4,5]pyrimido[1,2-a]azepin-8(10H)-one (7g). Colorless solid, yield 71%; mp 228‒229 °C; IR ν/cm−1: 1702 (C=O). 1H-NMR δ: 1.39 (s, 6H, C(CH3)2), 1.78−1.96 (m, 6H, 11,12,13-CH2), 3.17−3.23 (m, 2H, 14-CH2), 3.33 (s, 2H, CH2), 4.43−4.49 (m, 2H, NCH2), 4.77 (s, 2H, OCH2), 7.41−7.56 (m, 5H, Ph). 13C-NMR δ: 24.49, 26.18, 27.02, 28.69, 36.65, 36.71, 42.04, 60.51, 68.78, 111.28, 123.97, 127.64, 128.20, 128.31, 135.59, 138.06, 140.73, 141.47, 151.75, 154.89, 160.52, 161.32. Anal. calcd. for C25H25N3O3: C 72.27; H 6.06; N 10.11%. Found: C 72.59; H 6.26; N 10.35%.

5-(2-Furyl)-2,2-dimethyl-1,4,11,12,13,14-hexahydro-2H-pyrano[4‴,3‴:4″,5″]pyrido[3″,2″:4′,5′] furo [3′,2′:4,5]pyrimido[1,2-a]azepin-8(10H)-one (7h). Cream solid, yield 69%; mp 299‒300 °C; IR ν/cm−1: 1693 (C=O). 1H-NMR δ: 1.38 (s, 6H, С(CH3)2), 1.77–1.95 (m, 6H, 11,12,13-CH2), 3.15−3.21 (m, 2H, 14-CH2), 3.30 (s, 2H, CH2), 4.42−4.47 (m, 2H, NCH2), 5.16 (s, 2H, OCH2), 6.63 (dd, J = 3.5, 1.7 Hz, 1H, 4-CHfur.), 7.24 (dd, J = 3.5, 0.8 Hz, 1H, 3-CHfur.), 7.74 (dd, J = 1.7, 0.8 Hz, 1H, 5-CHfur.). 13C-NMR δ: 24.47, 25.85, 27.03, 28.72, 36.64, 36.94, 42.00, 60.65, 68.04, 111.09, 111.64, 112.63, 122.39, 135.65, 140.73, 141.81, 143.08, 143.86, 151.64, 153.14, 160.11, 161.28. Anal. calcd. for C23H23N3O4: C 68.13; H 5.72; N 10.36%. Found: C 68.47; H 5.91; N 10.61%.

3.2. Biological Evaluation

Compounds were studied for their possible neurotropic activities (anticonvulsant, sedative, anti-anxiety activity) as well as side effects on 450 white mice of both sexes weighing 18–24 g and 50 male rats of the Wistar line weighing 120–140 g. All groups of animals were maintained at 25 ± 2 ºC in the same room, on a common food ration. As reference compounds the known antiepileptic drug ethosuximide and tranquilizer diazepam were used. All the biological experiments were carried out in full compliance with the European Convention for the Protection of Vertebrate. All animal procedures were performed in accordance with the Guidelines for Care and Use of Laboratory Animals of “(ETS No 123, Strasbourg, 03/18/1986): Strasbourg (France).

3.2.1. Evaluation of the Anticonvulsant Activity of the Synthesized Compounds

The anticonvulsant effect of the new synthesized compounds was investigated by tests: pentylenetetrazole, thiosemicarbazide convulsions, maximal electroshock (MES).

The pentylenetetrazole (PTZ) test is an experimental model for inducing myoclonic seizures, as well as for predicting the anxiolytic properties of compounds. Pentylenetetrazole (PTZ) is a common convulsant agent used in animal models to investigate the mechanisms of seizures. Out bred mice (weight 18–22 g) were used for the study. In the case of convulsions induced by PTZ, the PTZ was injected subcutaneously at 90 mg/kg, which induced convulsions in 95% of animals (CD95%). Each animal is placed into an individual plastic cage for observation lasting 1 h. Seizure and clonic convulsions are recorded. Substances were administered intraperitoneally (i.p.) at doses of 10, 25, 50, 75, 100, 150, 200 mg/kg in suspension with carboxymethylcellulose with Twin-80 45 min before administration of PTZ and applying electrical stimulation. The control animals were administered an emulsifier. Every dose of each test compound was studied in six animals.

MES test is used as an animal model for the generalized tonic seizures of epilepsy. The parameters of MES were: 50 mA, duration 0.2 s, the oscillation frequency 50 imp/s. Anticonvulsant properties of compounds was assessed by the prevention of tonic-extensor phase of convulsions.

Thiosemicarbazide being antimetabolite of GABA inhibitor (glutamic acid decarboxylase) in the brain is administered subcutaneously to mice at a dose of 18 mg/kg as a 0.5% solution causes clonic convulsions in animals. Antithiosemicarbazide activity was evaluated on latency time of the onset of seizures. Substances were administered intraperitoneally (i.p.) at doses of 100 mg/kg in suspension with carboxymethylcellulose with Twin-80 45 min before administration of thiosemicarbazide.

The comparative drug ethosuximide was administered in 200 mg/kg and diazepam in 2 mg/kg doses.

3.2.2. Evaluation of the Psychotropic Properties of the Synthesized Compounds

Psychotropic properties of selected compounds were studied by tests: “open field”, “elevated plus maze” (EPM), “forced swimming”.

Open field test. The research-motor behavior of rats was studied on a modified “open field” model [30,31,32]. For this purpose, an installation was used, the bottom of which is divided into squares with holes (cells). Experiments were performed in the daytime with natural light. Within 5 min of the experiment, the indicators of sedative and activating behavior were determined, namely, the number of horizontal movements, standing on the hind legs (vertical movements), sniffing of the cells. The number of animals on this model was 8 for each compound, control, and reference drug. The studied compounds were administered to rats in the most effective dose of 50 mg/kg intraperitoneally as a suspension with methylcarboxycellulose with Tween-80.

Elevated plus maze—EPM test. Anti-anxiety and sedative effects were studied on a model of the “elevated plus maze” in mice. The labyrinth is a cruciform machine raised above the floor, having a pair of open and closed sleeves opposed to each other. Normal animals prefer to spend most of their time in the closed (dark) sleeves of the labyrinth. The anxiolytic effect of the compounds was estimated by the increase in the number of entries into open (light) sleeves and the time spent in, without increasing the total motor activity. This records the time spent in the closed sleeve, the number of attempts to enter the installation center. In the above model, the test compounds and the reference drug were injected intraperitoneally before the experiments. The control animals were administered an emulsifier. Results were processed statistically (p ≤ 0.05).

Forced swimming test. To assess “despair and depression” the model “compelling swimming” was used. Experimental animals were forced to swim in a glass container (height 22 cm, diameter 14 cm), filled 1/3 with water. Intact mices swim very actively, but soon they will be forced to immobilize. The latent period of immobilization, the total duration of active swimming, immobilization is fixed for 6 min (the experiments were conducted under natural light).

3.2.3. Evaluation of Incoordination of Movements in the Rotating Rod Test

Adverse neurotoxic (muscle relaxant) effect of compounds was studied in doses of 50 to 500 mg/kg when administered intraperitoneally, as well as reference drugs in effective anticonvulsant doses. Miorelaxation was investigated by the test of a ″rotating rod″ in mice. To this end, mice were planted on a metal rod with a corrugated rubber coating, which rotated at a speed of 5 revolutions per minute. The number of animals that cannot stay on it for 2 min was determined. To determine the ED50, neurotoxic TD50 and LD50 the statistical method of penetration by Litchfield and Wilcoxon was used. The acute toxicity (LD50), was determined by calculating the number of dead animals after 24 h of exposure (i.p. injection) in doses 100–2200 mg/kg.

3.3. Docking Studies

Docking studies were performed using AutoDock 4.2 into the 3D structures of GABAA receptor (PDB code: 4COF), SERT transporter (PDB code: 3F3A) and 5-HT1A receptor (PDB code: 3NYA), retrieved from Protein Data Bank (PDB). For the preparation of ligand structures, 2D structure was sketched in chemdraw12.0 and converted to 3D, mol2 format, for each ligand. Hydrogens were added to the structures and used for docking. The Grid center was calculated at x = −20.558, y = −19.574 and z = 127.994 for GABAA receptor, at x = −19.7478, y = 22.417 and z = −14.3006 for SERT transporter and at x = −8.207, y = 9.305 and z = −48.61 for 5-HT1A receptor. The grid size was set to 110 × 110 × 110 xyz points with grid spacing of 0.375Å. For the simulation, default values of quaternation, translation and torsion steps were applied. The Lamarckian Genetic Algorithm with default parameters was applied for minimization. The number of docking runs was 100. The Accelrys Discovery Studio 2020 Client [40,41] and LigandScout were used for the graphical representations of all ligand-protein complexes.

3.4. Drug-Likeness

Drug-likeness is one important tool employed for predicting drug-like property. It is designated as an intricate balance of diverse molecular and structural features which plays a pivotal role in establishing whether the specific drug candidate is an oral drug or not. The targeted molecules were appraised for predicting the Drug-likeness based on 5 separate filters namely Egan [42], Ghose [43], Muegge [44], Veber [45] and Lipinski [46] rules accompanying bioavailability and Drug-likeness scores using the Molsoft software and SwissADME program (http://swissadme.ch) (accessed on 10 February 2021) using the ChemAxon’s Marvin JS structure drawing tool.

4. Conclusions

A method for the synthesis of new classes of condensed heterocyclic systems, such as pyridofuro[3,2-d]pyrrolo[1,2-a]pyrimidines, pyridofuro[3,2-d]pyrido[1,2-a]pyrimidines and pyridofuro[3′,2′:4,5]pyrimido[1,2-a]azepines, has been developed. The anticonvulsant activity combined by some psychotropic properties of the new compounds was evaluated.

The biological assays evidenced that some of the studied compounds showed a high anticonvulsant activity by antagonism with pentylenetetrazole being superior to ethosuximide, but inferior to diazepam. The compounds at 100 mg/kg dose increased latency of thiosemicarbazide seizures to 1.3–2.3 times compared with the control and reference drug diazepam. The findings suggest some GABA-ergic mechanism of action of substances. The toxicity of compounds is low and do not induce muscle relaxation in the studied doses. According to the study of psychotropic activity it was found that the selected compounds have an activating behavior and anxiolytic effects on the models of “open field” and EPM, defense mechanism against the fear in contrast to ethosuximide. The data obtained indicate the anxiolytic (anti-anxiety) activity of the derivatives of pyrimidines, especially pronounced in compounds 6n, 6b, 7c. Diazepam at a dose of 2 mg/kg has the same properties, in contrast to ethosuximide. The studied compounds at a dose of 50 mg/kg, increasing the latent time of first immobilization (active swimming time), exhibit some antidepressant effect similarly to diazepam. The results show that the compounds can be effective in various types of human epilepsy associated with mental disorders.

The experimentally active compounds 6b, 6j, 6k, 6n, 7c, and 7h appeared to have good in-silico predictions with a Drug-likeness score ranging from 0.26 to 0.97 for compound 6b without any violation.

Supplementary Materials

The following are available online. The copies of 1H-NMR and 13C-NMR spectra for all new synthesized compounds have been submitted along with the manuscript.

Author Contributions

Conceptualization, S.N.S., E.K.H. and A.A.H. performed experiments on the synthesis of all compounds and analyze the results. R.G.P., I.M.N. and H.H.A. performed the neurotropic activity experiments. A.G. and A.P. performed the docking analysis. D.S. and V.K. reviewed and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the Science Committee of RA, in the frames of the research project № 20TTWS-1D009.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics Committee of The Yerevan State Medical University (YSMU, Yerevan, Armenia) (protocol code 5 and date of approval 24.03.2016), followed the “Principles of labora¬tory animal care” and carried out in accordance with the European Communities Council Directive of 24 November 1986 (86/609/EEC).

Informed Consent Statement

Not applicable.

Data Availability Statement

The study did not report any data.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 17 are available from the authors.

Footnotes

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  • 1.Mkrtchyan A.P., Kazaryan S.G., Noravyan A.S., Dzhagatspanyan I.A., Nazaryan I.M., Akopyan A.G. Synthesis and anticonvulsive activity of a series of new pyrano(thiopyrano,pyrido)[4′,3′:4,5]thieno[2,3-d]pyrimidines. Pharm. Chem. J. 1998;32:469–473. doi: 10.1007/BF02539219. [DOI] [Google Scholar]
  • 2.Kapustina M.V., Amelkin O.Y., Kharizomenova A.I., Shvedov V.I., Filitis L.N. Synthesis and antitubercular activity of benzothieno[2,3-d]pyrimidines. Pharm. Chem. J. 1991;25:475–477. doi: 10.1007/BF00772002. [DOI] [Google Scholar]
  • 3.Hermecz I., Vasvari-Debreczy L., Horvath A., Balogh M., Kokosi J., Devos C., Rodriguez L. Nitrogen bridgehead compounds. 66. Bronchodilator nitrogen bridgehead compounds with a pyrimidinone moiety. J. Med. Chem. 1987;30:1543–1549. doi: 10.1021/jm00392a003. [DOI] [PubMed] [Google Scholar]
  • 4.Ferrara M., Crescenzi B., Donghi M., Muraglia E., Nizi E., Pesci S., Summa V., Gardelli C. Synthesis of a hexahydropyrimido[1,2-a]azepine-2-carboxamide derivative useful as an HIV integrase inhibitor. Tetrahedron Lett. 2007;48:8379–8382. doi: 10.1016/j.tetlet.2007.09.072. [DOI] [Google Scholar]
  • 5.Zhong Y., Krska S.W., Zhou H., Reamer R.A., Lee J., Sun Y., Askin D. Catalytic Asymmetric Synthesis of an HIV Integrase Inhibitor. Org. Lett. 2009;11:369–372. doi: 10.1021/ol802604v. [DOI] [PubMed] [Google Scholar]
  • 6.Sirakanyan S.N., Geronikaki A., Spinelli D., Paronikyan R.G., Dzhagatspanyan I.A., Nazaryan I.M., Akopyan A.G., Hovakimyan A.A. Pyridofuropyrrolo[1,2-a]pyrimidines and pyridofuropyrimido[1,2-a]azepines: New chemical entities (NCE) with anticonvulsive and psychotropic properties. RSC Adv. 2016;6:49028–49038. doi: 10.1039/C6RA06507D. [DOI] [Google Scholar]
  • 7.Rosowsky A., Papathansopoulos N. Pyrimido[4,5-c]isoquinolines. 2. Synthesis and biological evaluation of some 6-alkyl-, 6-aralkyl-, and 6-aryl-1,3-diamino-7,8,9,10-tetrahydropyrimido[4,5-c]isoquinolines as potential folate antagonists. J. Med. Chem. 1974;17:1272–1276. doi: 10.1021/jm00258a008. [DOI] [PubMed] [Google Scholar]
  • 8.Paronikyan E.G., Sirakanyan S.N., Noravyan A.S. In: The Chemistry and Biological Activity of Nitrogen-Containing Heterocycles and Alkaloids. Kartsev V.G., Tolstikov G.A., editors. Volume 1. Iridium Press; Moscow, Russian: 2001. [(accessed on 28 May 2021)]. pp. 441–448. Available online: http://cbcconf.com/izd/azot-e.htm. [Google Scholar]
  • 9.Paronikyan E.G., Sirakanyan S.N., Lindeman S.V., Aleqsanyan M.S., Karapetyan A.A., Noravyan A.S., Struchkov Y.T. Synthesis and structure of 3-oxopyrano[3,4-c]pyridines. Chem. Heterocycl. Compd. 1989;25:953–958. doi: 10.1007/BF00479620. [DOI] [Google Scholar]
  • 10.Sirakanyan S.N., Geronikaki A., Spinelli D., Hovakimyan A.A., Noravyan A.S. Synthesis and structure of condensed triazolo- and tetrazolopyrimidines. Tetrahedron. 2013;69:10637–10643. doi: 10.1016/j.tet.2013.10.015. [DOI] [Google Scholar]
  • 11.Sirakanyan S.N., Spinelli D., Geronikaki A., Hovakimyan A.A., Noravyan A.S. On the reaction of 2-[(4-cyano-5,6,7,8-tetrahydroisoquinolin-3-yl)oxy]acetamides with bases: 1-amino-6,7,8,9-tetrahydrofuro[2,3-c]isoquinoline-2-carboxamides and 3-amino-4-cyano-5,6,7,8-tetrahydroisoquinolines via a Smiles-type rearrangement. Tetrahedron. 2015;71:3263–3272. doi: 10.1016/j.tet.2015.03.114. [DOI] [Google Scholar]
  • 12.Sirakanyan S.N., Spinelli D., Geronikaki A., Hovakimyan A.A. New Methods for the Synthesis of 3-Amino-6,7-dihydro-5H-cyclopenta[c]pyridine-4-carbonitriles and Cyclopenta[d]pyrazolo[3,4-b]-pyridines via a Smiles-type Rearrangement. J. Heterocycl. Chem. 2017;54:1199–1209. doi: 10.1002/jhet.2693. [DOI] [Google Scholar]
  • 13.Sirakanyan S.N., Ghazaryan S.G., Hakobyan E.K., Hovakimyan A.A. Synthesis and Transformations of Oxy Amides Derived from Cycloalka[c]- and Pyrano[3,4-c]pyridines. Russ. J. Org. Chem. 2020;56:1854–1858. doi: 10.1134/S1070428020100310. [DOI] [Google Scholar]
  • 14.Lalezari I., Jabari-Sahbari M.H. New polyheterocyclic series based on 4,5,6,7-tetrahydrothieno[2,3-c]-pyridine. J. Heterocycl. Chem. 1978;15:873–875. doi: 10.1002/jhet.5570150530. [DOI] [Google Scholar]
  • 15.Filimonov D.A., Lagunin A.A., Gloriozova T.A., Rudik A.V., Druzhilovskii D.S., Pogodin P.V., Poroikov V.V. Prediction of the biological activity spectra of organic compounds using the PASS online web resource. Chem. Heterocycl. Compd. 2014;50:444–457. doi: 10.1007/s10593-014-1496-1. [DOI] [Google Scholar]
  • 16.Poroikov V.V. Computer-aided drug design: From discovery of novel pharmaceutical agents to systems pharmacology. Biochem. Suppl. Ser. B Biomed. Chem. 2020;14:216–227. doi: 10.18097/pbmc20206601030. [DOI] [PubMed] [Google Scholar]
  • 17.Vogel H.G., Vogel V.H. Psychotropic and Neurotropic activity. In: Vogel H.E., editor. Drug Discovery and Evalution: Pharmacological Assays. Volume 58. Springer; Berlin, Germany: 2008. [(accessed on 28 May 2021)]. pp. 569–874. Available online: https://scholar.google.com/scholar_lookup?title=Drug+Discovery+and+Evaluation. [Google Scholar]
  • 18.Loscher W., Schmidt D. Which animal models should be used in the search for new antiepileptic drugs? A proposal based on experimental and clinical considerations. Epilepsy Res. 1988;2:145–181. doi: 10.1016/0920-1211(88)90054-X. [DOI] [PubMed] [Google Scholar]
  • 19.Schwale K., Ebert U. Animal models of neuropsychiatric deseases. In: Baraban S.C., editor. Animal models of Epilepsy. Methods and Innovations. Humana Press; Berlin, Germany: 2009. pp. 75–117. [DOI] [Google Scholar]
  • 20.Little Y.M., Conrad E.A. Pentylenetetrazol seizure activity in mice as influenced by route of administration, acute adrenalectomy and reserpine. J. Pharmacol. Exp. Ther. 1960;129:454–461. [PubMed] [Google Scholar]
  • 21.Loscher W. Animal models of epilepsy for the development of antiepileptogenic and disease-modifying drugs. A comparison of the pharmacology of kindling and post-status epilepticus models of temporal lobe epilepsy. Epilepsy Res. 2002;50:105–123. doi: 10.1016/S0920-1211(02)00073-6. [DOI] [PubMed] [Google Scholar]
  • 22.Swinyard E.A., Woodhead J.H., White H.S., Franklin M.R. In: Experimental Selection, Qualification and Evalution of Anticonvulsant, Antiepileptic Drugs. Lery R.H., Dreyfuss F.E., Mattson R.M., Meddrum B.S., Pentry J.K., editors. Raven Press; New York, NY, USA: 1989. [(accessed on 28 May 2021)]. pp. 85–102. Available online: https://europepmc.org/article/med/4007184. [Google Scholar]
  • 23.Dunham N.W., Miya T.S., Edwards L.D. The pharmacological activity of a series of basic esters of mono- and dialkylmalonic acids. J. Am. Pharm. Assoc. Sci. Ed. 1957;46:64–66. doi: 10.1002/jps.3030460119. [DOI] [PubMed] [Google Scholar]
  • 24.Litchfield J.T., Wilcoxon F. A simplified method of evaluating dose-effect experiments. J. Pharmacol. Exper. Ther. 1949;96:99–113. [PubMed] [Google Scholar]
  • 25.Mironov A.H. Manual for Preclinical Studies of Drugs. Medicine; Moscow, Russian: 2012. pp. 235–250. The 1th Part. (In Russian) [Google Scholar]
  • 26.Mashkovskii M.D. Lekarstvennie Sredstva [Medicinal Products] Novaya Volna; Moscow, Russian: 2006. [Google Scholar]
  • 27.Sofia R.D. Comparison of Two Methods for Measuring Drug-Induced Neurotoxicity. J. Pharm. Sci. 1969;58:900–901. doi: 10.1002/jps.2600580730. [DOI] [PubMed] [Google Scholar]
  • 28.File S.E. Factors controlling measures of anxiety and responses to novelty in the mouse. Behav. Brain Res. 2001;125:151–157. doi: 10.1016/S0166-4328(01)00292-3. [DOI] [PubMed] [Google Scholar]
  • 29.Pelow S., File S.E. Anxiolytic and anxiogenic drug effects on exploratory activity in an elevated plus-maze: A novel test of anxiety in the rat. Pharmacol. Biochem. Behav. 1985;24:525–529. doi: 10.1016/0091-3057(86)90552-6. [DOI] [PubMed] [Google Scholar]
  • 30.Porsolt R.D., Anton G., Blavet N., Jalfre M. Behavioural despair in rats: A new model sensitive to antidepressant treatments. Eur. J. Pharmacol. 1978;47:379–391. doi: 10.1016/0014-2999(78)90118-8. [DOI] [PubMed] [Google Scholar]
  • 31.Rogawski M.A., Löscher W. The neurobiology of antiepileptic drugs. Nat. Rev. Neurosci. 2004;5:553–564. doi: 10.1038/nrn1430. [DOI] [PubMed] [Google Scholar]
  • 32.Kammerer M., Rassner M.P., Freiman T.M., Feuerstein T.J. Effects of antiepileptic drugs on GABA release from rat and human neocortical synaptosomes. Naunyn-Schmiedeberg’s Arch. Pharmacol. 2011;384:47–57. doi: 10.1007/s00210-011-0636-8. [DOI] [PubMed] [Google Scholar]
  • 33.Miller P.S., Aricescu A.R. Crystal structure of a human GABAA receptor. Nature. 2014;512:270–275. doi: 10.1038/nature13293. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Saier M.H., Jr. A functional-phylogenetic classification system for transmembrane solute transporters. Microbiol. Mol. Biol. Rev. 2000;64:354–411. doi: 10.1128/MMBR.64.2.354-411.2000. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Perrone R., Berardi F., Colabufo N.A., Lacivita E., Larizza C. Design and synthesis of long-chain arylpiperazines with mixed affinity for serotonin transporter (SERT) and 5-HT1A receptor. J. Pharm. Pharmacol. 2005;57:1319–1327. doi: 10.1211/jpp.57.10.0011. [DOI] [PubMed] [Google Scholar]
  • 36.Blier P. Pharmacology of rapid-onset antidepressant treatment strategies. J. Clin. Psychiatry. 2001;62(Suppl. 15):12–17. [PubMed] [Google Scholar]
  • 37.Singh S.K., Piscitelli C.L., Yamashita A., Gouaux E. A competitive inhibitor traps LeuT in an open-to-out conformation. Science. 2008;322:1655–1661. doi: 10.1126/science.1166777. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Kuipers W., Link R., Standaar P.J., Stoit A.R., van Wijngaarden I., Leurs R., Ijzerman A.P. Study of the interaction between aryloxypropanolamines and Asn386 in helix VII of the human 5-hydroxytryptamine1A receptor. Mol. Pharmacol. 1997;51:889–896. doi: 10.1124/mol.51.5.889. [DOI] [PubMed] [Google Scholar]
  • 39.Wacker D., Fenalti G., Brown M.A., Katritch V., Abagyan R., Cherezov V., Stevens R.C. Conserved Binding Mode of Human β2 Adrenergic Receptor Inverse Agonists and Antagonist Revealed by X-ray Crystallography. J. Am. Chem. Soc. 2010;132:11443–11445. doi: 10.1021/ja105108q. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 40.Bandaru S., Tiwari G., Akka J., Marri V.K., Alvala M., Gutlapalli V.R., Nayarisseri A., Mundluru H.P. Identification of high affinity bioactive Salbutamol conformer directed against mutated (Thr164Ile) beta 2 adrenergic receptor. Curr. Top. Med. Chem. 2015;15:50–56. doi: 10.2174/1568026615666150112113040. [DOI] [PubMed] [Google Scholar]
  • 41.Accelrys Discovery Studio® Visualizer 3.5.0.12158. Dassault Systèmes; San Diego, CA, USA: 2021. (Copyright© 2005-12, Accelrys Software Inc.) BIOVIA, Dassault Systèmes, (Discovery Studio 2021 Client) [Google Scholar]
  • 42.Egan W.J., Merz K.M., Baldwin J.J. Prediction of Drug Absorption Using Multivariate Statistics. J. Med. Chem. 2000;43:3867–3877. doi: 10.1021/jm000292e. [DOI] [PubMed] [Google Scholar]
  • 43.Ghose A.K., Viswanadhan V.N., Wendoloski J.J. A knowledge-based approach in designing combinatorial or medicinal chemistry libraries for drug discovery. A qualitative and quantitative characterization of known drug databases. J. Comb. Chem. 1999;1:55–68. doi: 10.1021/cc9800071. [DOI] [PubMed] [Google Scholar]
  • 44.Muegge I., Heald S.L., Brittelli D. Simple selection criteria for drug-like chemical matter. J. Med. Chem. 2001;44:1841–1846. doi: 10.1021/jm015507e. [DOI] [PubMed] [Google Scholar]
  • 45.Veber D.F., Johnson S.R., Cheng H.Y., Smith B.R., Wars K.W., Kopple K.D. Molecular properties that influence the oral bioavailability of drug candidates. J. Med. Chem. 2002;45:2615–2623. doi: 10.1021/jm020017n. [DOI] [PubMed] [Google Scholar]
  • 46.Lipinski C.A. Lead- and drug-like compounds: The rule-of-five revolution. Drug Discov. Today Technol. 2004;1:337–341. doi: 10.1016/j.ddtec.2004.11.007. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Data Availability Statement

The study did not report any data.


Articles from Molecules are provided here courtesy of Multidisciplinary Digital Publishing Institute (MDPI)

RESOURCES
