Significance
Mastering diverse cognitive tasks is crucial for humans. We study how the brain’s functional organization at rest is configured to support diverse cognitive phenotypes. Emphasizing the multilevel, hierarchical modular structure of brain’s functional connectivity to derive eigenmode-based measures, we demonstrate that the resting brain’s functional organization in healthy young adults is configured to maintain a balance between network segregation and integration. This functional balance is associated with better memory. Furthermore, brains tending toward stronger segregation versus integration foster different cognitive abilities. Thus, the segregation–integration balance empowers the brain to support diverse cognitive abilities. These findings yield high potential to understand the role of whole-brain resting state dynamics in human cognition and to develop neural biomarkers of atypical cognition.
Keywords: functional brain network, hierarchical modules, segregation–integration balance, human cognition, structural equation modeling
Abstract
Diverse cognitive processes set different demands on locally segregated and globally integrated brain activity. However, it remains an open question how resting brains configure their functional organization to balance the demands on network segregation and integration to best serve cognition. Here we use an eigenmode-based approach to identify hierarchical modules in functional brain networks and quantify the functional balance between network segregation and integration. In a large sample of healthy young adults ( = 991), we combine the whole-brain resting state functional magnetic resonance imaging (fMRI) data with a mean-filed model on the structural network derived from diffusion tensor imaging and demonstrate that resting brain networks are on average close to a balanced state. This state allows for a balanced time dwelling at segregated and integrated configurations and highly flexible switching between them. Furthermore, we employ structural equation modeling to estimate general and domain-specific cognitive phenotypes from nine tasks and demonstrate that network segregation, integration, and their balance in resting brains predict individual differences in diverse cognitive phenotypes. More specifically, stronger integration is associated with better general cognitive ability, stronger segregation fosters crystallized intelligence and processing speed, and an individual’s tendency toward balance supports better memory. Our findings provide a comprehensive and deep understanding of the brain’s functioning principles in supporting diverse functional demands and cognitive abilities and advance modern network neuroscience theories of human cognition.
The brain dynamically reconfigures its functional organization to support diverse cognitive task performances (1, 2). Successful reconfiguration underlying better task performance relies not only on sufficiently independent processing in specialized subsystems (i.e., segregation) but also on effective global cooperation between different subsystems (i.e., integration) (1–6). It has been observed that diverse cognitive tasks set different demands on segregation and integration (3, 5, 7–12). Higher segregation has been linked to simple motor tasks, and higher integration seems to underlie performance on tasks with a heavy cognitive load (8–12). However, it remains a great challenge to understand how the brain’s functional organization is configured to support heterogeneous demands on segregation and integration for diverse cognitive processes.
Independently from specific task demands, the brain’s functional organization at rest can mirror relevant task-induced activity patterns and thus predict task performance (13, 14). Emerging evidence suggests that smaller differences between functional patterns at rest versus task states can facilitate better cognitive performance (13–16). Since diverse cognitive tasks differently demand on segregation and integration (3, 5, 7–12), the brain’s functional organization at rest is expected to possess the intrinsic capability of supporting diverse cognitive processes. Furthermore, previous studies suggest that healthy resting brains operate near a critical state to render the capability of rapidly exploring and switching in the brain’s state space with large operating repertoires (3, 13, 17–19). Resting brains are thus supposed to balance the segregation and integration (17, 20), so as to satisfy competing cognitive demands. However, this theory still lacks empirical evidence regarding whether large-scale brain networks at rest entail a balance between segregation and integration and whether the functional balance is associated with individual differences in cognitive abilities.
To date, most of the relationships between brain functional configurations at rest and cognitive abilities are based on single tasks (7–12) that assess only specific aspects of cognition. General and domain-specific cognitive abilities are modeled at the latent level based on multiple tasks in differential psychology (21–24). These latent cognitive abilities are generalizations across tasks of the same domain and account for measurement error (25), and thus, they are much more suitable to reveal the neural basis of individual differences in human cognition. Recently, a cross-disciplinary network neuroscience theory (NNT) proposed a general framework to investigate the neural basis of cognitive abilities relying on system-wide topology characteristics and the dynamics of brain networks (26). According to NNT, brain networks functioning in an easy-to-reach state serve crystallized intelligence, whereas a difficult-to-reach state is needed for fluid intelligence (26). General cognitive ability, which is a statistical summary of fluid and crystallized intelligence, is considered to be facilitated by the capacity to flexibly switch between the above mentioned network states, i.e., an optimal balance between local and global processing (26). These predictions are still built upon a fragile empirical basis (27). Elucidating the relationship between functional balance and different cognitive abilities is crucial for validating and reframing NNT, particularly regarding the question of whether a functional balance in the brain at the resting state is beneficial for general cognitive ability of individuals.
Before these questions can be robustly answered, the balance between segregation and integration in the large-scale brain must be explicitly defined and quantified. The modular structure of brain’s functional connectivity (FC) networks is known to provide the basis for specialized information processing within modules and the integration between them (8, 10, 15, 26, 28, 29). Although many studies have applied measures based on modules at a single level to study functional segregation and integration (7, 8, 10, 15, 28, 30), empirical evidence for a balance in the brain’s functional organization is still lacking. In fact, brain FC networks are hierarchically organized (31–33). Such an organization potentially supports nested segregation and integration across multiple levels. However, the classically applied modular partition at a single level does not allow the detection of hierarchical modules across multiple levels (34, 35). This insufficiency seems to be the main reason for the lack of a robust quantitative definition of the balance between segregation and integration.
Here we explicitly identified the functional balance based on hierarchical modules of resting brain FC networks and explored associations with diverse cognitive abilities in a sample of 991 heathy young adults from the Washington University–University of Minnesota Consortium (WU-Minn) Human Connectome Project (HCP) (36). Using our previously published method called nested-spectral partition (NSP) based on eigenmodes (19), we first detected hierarchical modules in FC networks to propose an explicit balance measure. Second, we combined real data and a Gaussian linear model to demonstrate the functional balance in the group-averaged brain at the resting state. Then, we investigated individual differences in the balance and relationships to the temporal switching between segregated and integrated states. Finally, we applied structural equation modeling (SEM) to estimate latent factors of general and domain-specific cognitive abilities and investigated how segregation, integration, and their balance configure them.
Results
Hierarchical Modules in FC Networks.
Since the length of functional magnetic resonance imaging (fMRI) series affects the dynamic properties of FC networks (29), we concatenated the fMRI data across four scanning sessions and all individuals to obtain a stable average FC network comprising regions (Fig. 1A). The NSP method was applied to detect hierarchical modules in the FC network according to the functional modes (i.e., eigenvalues and eigenvectors ) which were sorted in descending order of (Materials and Methods). At the first level, corresponding to the first eigenvector with the same sign for each region (Fig. 1B), the stable average FC network has the largest coactivation mode, effectively involving the whole brain in a single module (Fig. 1C). At the second level, brain regions are partitioned into two large modules that correspond to positive and negative signs in the second eigenvector (Fig. 1B). This functional partition pattern nearly coincides with the division between the anterior and posterior brain regions (Fig. 1C), suggesting that the second mode reflects the modular division of the brain into anterior and posterior functional systems. Furthermore, according to the negativity and positivity of the third eigenvector, each module at the second level was further subdivided into two modules at the third level (Fig. 1B). Successively, with the increasing order of functional modes, the FC network is modularly partitioned into multiple levels. The hierarchically partitioned FC network has higher average link weights within modules than between modules across multiple levels (Fig. 1A), clearly manifesting the hierarchical modules of the FC network.
Fig. 1.
Hierarchical segregation and integration in FC networks. (A) The stable average FC network and its hierarchical modules. The black dashed lines represent the boundaries of hierarchical modules suggested by the NSP method. (B) Hierarchical modular partition in the first four functional modes, where modules in each level (gray and green) are detected according to the positivity or negativity of eigenvector components. (C) Spatial patterns corresponding to the first four functional modes. (D) Pipeline of defining hierarchical segregation and integration. The combination of contribution and module number provides hierarchical functional components at different levels. Since the modular size may be heterogeneous even for the same module number in each level (see an example of six nodes partitioned into two modules, where the modular sizes of 1 and 5 generate higher integration and lower segregation than the sizes of 3 and 3), the hierarchical components need to be corrected. Then, the first level contributes to the global integration, and the 2nd to 360th levels contain the multilevel segregation components. A functional balance is defined when the global integration component equals the total segregation component.
Hierarchical Segregation and Integration in FC Networks.
Hierarchical modules of brain FC networks involve hierarchically segregated and integrated interactions between regions. At a specific level, regions with the same sign of eigenvector components (e.g., negative or positive) within a module are jointly activated to achieve functional integration, whereas the opposite activation (e.g., negative and positive signs) of regions indicates segregation between modules. The integration of smaller segregated modules at a high-order level (e.g., mode) leads to the formation of a larger module at the lower-order level (i.e., mode), which further generates segregation with other large modules at this lower-order level. Thus, functional segregation and integration are intricately interrelated and hierarchically organized in a nested manner across multiple levels. We defined a weighted module number (Eq. 2) to quantify the nested segregation and integration. The functional component at the first level measures the degree of global integration and is denoted as the integration component (Eq. 4). Functional components across all higher levels (i.e., 2nd to 360th levels) quantify the hierarchical segregation and are summed to obtain an overall measure of the segregation component (Eq. 5).
Aiming to confirm the validity of and , we implemented a Gaussian linear process on structural connectivity (SC) networks and produced simulated individual FC matrices for sufficiently long time frames (19, 37) (Materials and Methods). At an intermediate coupling in the model (i.e., ), the simulated FC networks were most similar to the empirical FC network. This similarity is indicated by the same mean correlation, a minimal distance between real and simulated FC matrices, and the minimal difference in regional degrees, the same characteristic path length, clustering coefficient, and global efficiency (Fig. 2 C and D and SI Appendix, Fig. S1). These results suggest that resting brains correspond to the dynamic point at the critical coupling () in the Gaussian model.
Fig. 2.
Balance between hierarchical segregation and integration. (A) Simulated and real stable FC networks visualized using BrainNet Viewer (38). The binarizing threshold was 0.65. (B) Probability density function (pdf) of correlation values in brain FC matrices and the hierarchical components in each level. (C and D) Mean correlation coefficients of simulated FC matrices and the Euclidean distance between the real stable FC matrix and simulated individual FC matrices at different . (E and F) Modularity and participation coefficient based on the seven functional subsystems (SI Appendix, Fig. S2) at a single level (39). (G and H) The integration component , segregation component , and balance predictor vary with . Here the shadows indicate the standard deviation across individuals, the horizontal green lines represent the corresponding values in the real stable FC network, and the vertical dashed lines mark the critical coupling ().
For small couplings (e.g., ), brain regions are relatively independent and form sparse FC networks (Fig. 2A), as indicated by correlation values approaching zero (Fig. 2B). This state is only able to support segregated activity and is insufficient for large-scale integration. Correspondingly, segregation components have high values, while the global integration component is small (Fig. 2B). In contrast, for strong couplings (e.g., ), brain regions are strongly and densely connected to form globally synchronized patterns (Fig. 2A), as indicated by correlation values distributed toward 1 (Fig. 2B). This large-scale synchronization recruits the whole brain, exhibiting a high integration component and small segregation components (Fig. 2B). This state does not allow specialized activity. Thus, during the dynamic transition from asynchronous to synchronous states, global integration increases and segregation decreases, which is consistent with classical graph-based measures of decreased modularity and increased participation coefficient (Fig. 2 E and F). Crucially, this dynamic transition could be well described by an increased and a decreased (Fig. 2G), indicating the effectiveness of and in characterizing segregated and integrated activity, respectively.
Segregation–Integration Balance in Large-Scale Resting Brains.
Interestingly, the curves of and in the Gaussian model intersect at the critical coupling (Fig. 2G). Thus, the competition between integration and segregation increases from negative values to positive values and crosses zero at (Fig. 2H), indicating a theoretical balance between segregation and integration in the Gaussian model. This balanced state is not revealed by the monotonically changed modularity and participation coefficient based on single-level modules (Fig. 2 E and F). Most importantly, resting brains of heathy young adults are close to the balanced state with in the real stable FC network approaching zero (; Fig. 2H). Indeed, the fMRI signals inevitably contain measurement noise originating from various sources other than neural activity, which would artificially bring more segregation components into the real FC network. However, resting brains correspond to the critical coupling () in the Gaussian model wherein the balance between segregation and integration theoretically exists. Thus, our results provide theoretical and empirical evidence that at the population level, healthy young brains at rest tend to maintain a balance between segregation and integration.
Individual Differences in the Segregation–Integration Balance.
To study individual differences in the segregation–integration balance, we constructed individual static FC networks from four concatenated fMRI sessions. The segregation and integration components in individual FC networks were calibrated to overcome the effects of a shorter fMRI series on segregation, integration, and their balance (Materials and Methods and SI Appendix, Fig. S3). This calibration restores the balance at the between-person level and is appropriate to investigate the intrinsic relationship between brain measures and cognitive abilities (SI Appendix, Table S1).
In an individual with a sparse FC network, brain regions are relatively separated with respect to their functional activation, and thus, they generate a strong segregation component (large negative ; Fig. 3 A–C). In contrast, an individual brain with a dense FC network is highly integrated, corresponding to a strong integration component and large positive . Put differently, individual brains with overly sparse or overly dense FC networks do not display a balance between segregation and integration. However, an individual brain with an intermediate density of FC network is in a balanced state, with (Fig. 3 A–C). Across individuals, the modularity and participation coefficient relate to in a nonlinear manner (Fig. 3 D and E and SI Appendix, Fig. S4). Importantly, these coefficients vary substantially for a specific value, particularly in segregated brains with large negative , indicating that based on hierarchical modules more precisely identifies the balanced state and individual differences therein than the single-level measures. Thus, may offer a more effective representation of an individual’s tendency toward segregation vs. integration, with greater potential to be associated with cognitive abilities.

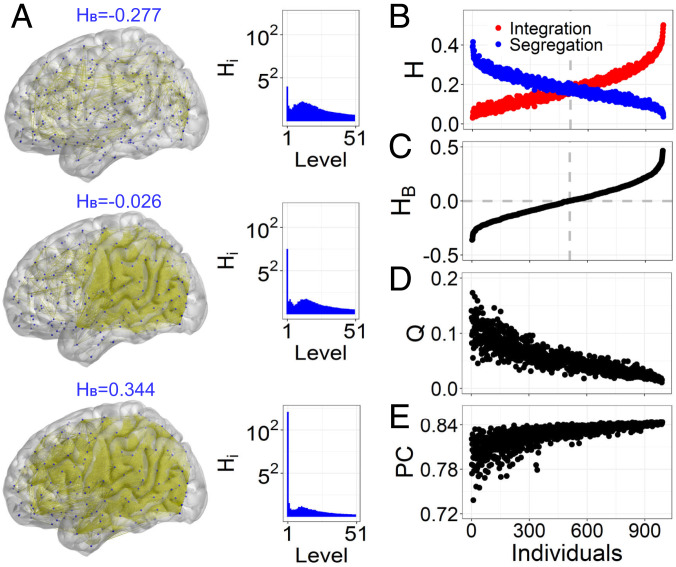

Fig. 3.
Individual differences in the segregation–integration balance. (A) Brain FC networks visualized for three individuals with a tendency toward segregation (), balance (), and integration (). The binarizing threshold was 0.65. The corresponding hierarchical components are also displayed. (B and C) Calibrated segregation component and integration component , as well as the balance indicator for all individuals who were sorted according to increasing values of . (D and E) Corresponding individual modularity and participation coefficient.
Balance Supports Flexible Dynamic Transition between Segregated and Integrated States.
To investigate the temporal switching between segregated and integrated states, we computed temporally dynamic FC networks. The mean segregation and integration components in dynamic FC networks for each individual were also calibrated to the corresponding individual static values (Materials and Methods), such that the data length-independent measure of flexible transition between different states were obtained.
The patterns of switching between segregated and integrated states differ significantly between individuals (Fig. 4). For an individual brain with static , most dynamic processes occur in the segregated state (i.e., ; Fig. 4A), accompanied by a long dwell time (Eq. 9 and Fig. 4B). In contrast, an individual brain with static has a long dwell time in the integrated state (i.e., ; Fig. 4 A and B). The static values across individuals range from negative to positive values. As such, the brain exhibits a competition of dwell times between increased and decreased , as marked by comprising a range of negative to positive values. Crucially, for an individual brain with static , the dwell times in the integrated and segregated states are nearly equal, with a strong linear correlation between and across individuals (), where matches (Fig. 4C). These findings indicate the coexistence of a static and dynamic balance between segregated and integrated states.
Fig. 4.
Functional balance supports more frequent state transitions. (A) The activation patterns, temporal modularity (black line), and (red line) of dynamic FC networks for three individuals (Fig. 3A) tending toward segregation (Upper; ), balance (Middle; ), and integration (Lower; ). Here the activation of a region is measured by the node degree. The blue lines mark the transition between segregated and integrated states. (B and C) Dwell time in the integrated state () and segregated state (), as well as the time difference which is positively correlated to across individuals. (D) Switching frequency between segregated and integrated states. (E) Distributions of for the three individuals. (F and G) Deviation degree from the balance to segregated state () and integrated state (), as well as the total deviation .
Individual brains with high segregation or integration do not readily switch between segregated and integrated states (Fig. 4A). Contrarily, an individual brain with static exhibits apparently more frequent state transitions, as characterized by the highest switching frequency (Eq. 10), and brains tending toward segregation or integration exhibit reduced (Fig. 4D). Thus, a balanced brain is most flexible in its dynamic transitions between segregated and integrated states.
Furthermore, brains with higher segregation or integration substantially deviate from the balanced state during the switching process, whereas the deviation for the brain with static is relatively small (Fig. 4A). With increasing static , the distribution of shifts from large negative to large positive values (Fig. 4E), and it is approximately zero for , reflecting the minimal deviation from the balanced state. To further confirm these results, we defined a degree of deviation from the balance to segregated or integrated states ( and ; Eq. 11). An individual brain with a strong tendency toward segregation (static ) more strongly deviates toward a segregated state, with large . A brain with static deviates toward integrated states, with large (Fig. 4F). For the brain with , and are approximately equal (Fig. 4F), indicating equal deviation from balance toward segregated and integrated states. More importantly, the smallest total deviation is observed for brains with static , whereas the total deviation is increased for brains with a tendency toward segregation or integration (Fig. 4G). This deviation reflects a balanced competition between segregated and integrated states during dynamic reconfiguration to obtain an overall balanced brain.
Segregation, Integration, and Their Balance Predict Different Cognitive Abilities.
To study how segregation, integration and their balance are associated with different cognitive abilities across individuals, we used SEM. We estimated the latent factors of general and three domain-specific cognitive abilities from nine specific task performance indicators, spanning reasoning, crystallized intelligence, processing speed and memory (Materials and Methods).
We first separately tested linear relationships between different network measures (i.e., , , and ; SI Appendix, Table S1, for further associations) and cognitive ability factors in the entire sample (Fig. 5 and SI Appendix, Fig. S5). Three cognitive abilities (i.e., general cognitive ability, crystallized intelligence, and processing speed) are significantly associated with the brain measures (Fig. 5B). First, the general cognitive ability factor is positively associated with (standardized coefficient estimate , ) and negatively associated with (, ) and (, ). Second, the crystallized intelligence factor is negatively related to (, ) and positively related to (, ) and (, ). Third, the processing speed factor is negatively associated with (, ) and positively associated with (, ) and (, ). Thus, a higher general cognitive ability relates to stronger integration, whereas greater segregation supports better crystallized intelligence and processing speed. Importantly, equivalent brain–behavior associations are not obtained using graph-based network measures at a single level (SI Appendix, Table S1). Our results emphasize the advantages of hierarchical module analysis for understanding the neural basis of individual differences in cognitive abilities.

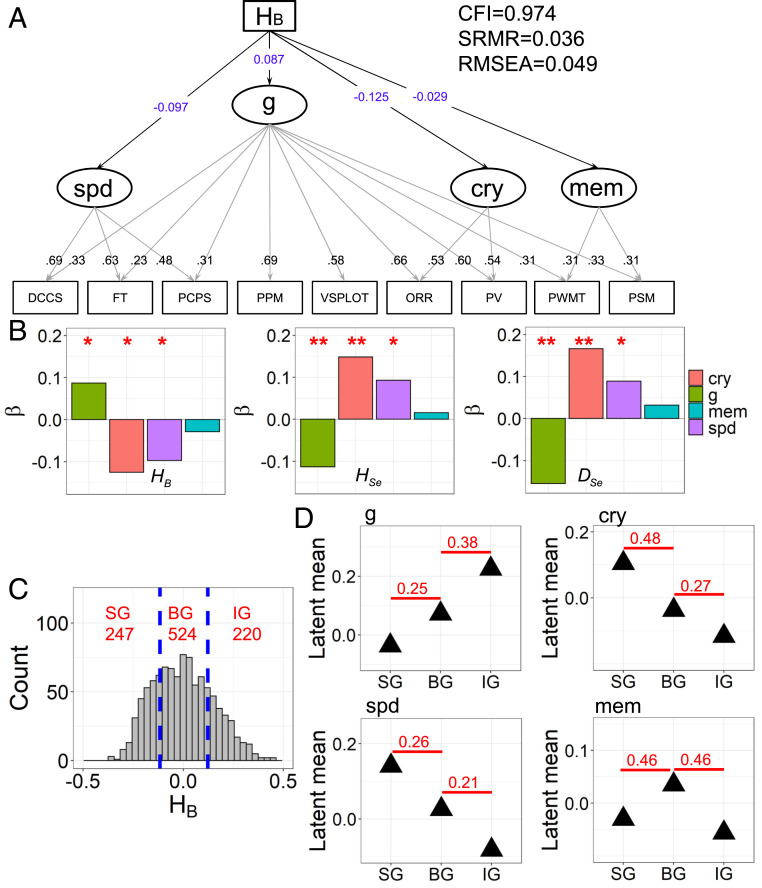

Fig. 5.
Brain–behavior relationship in SEMs. (A) Schematic representation of the SEM testing the linear relationship between and cognitive abilities. Here nine cognitive performance indicators (Materials and Methods) were included in the model to estimate general cognitive ability (g), crystallized intelligence (cry), processing speed (spd), and memory (mem). Standardized factor loadings are displayed on the loading paths. Regression weights of latent factors onto are indicated as standardized estimates (). (B) coefficients estimated in SEMs using , , and . The models fit the data well: , , and (SI Appendix, Fig. S5). * and **. (C) Distribution of individual static . The blue lines ( and 0.123) represent the cutoff values for a specific partition. The group sizes are also provided (red text). This SEM fits well with , , and . (D) Estimated group-specific latent means for the four cognitive abilities. Cohen’s effect size estimates indicating group differences in cognitive abilities are displayed in red.
Notably, the memory factor is not linearly associated with any of the considered brain measures (Fig. 5A and SI Appendix, Fig. S5). However, a nonlinear relationship may exist such that memory may be most strongly facilitated by the functional balance. To test such nonlinearity, we partitioned the entire sample into groups of segregated (SG), balanced (BG), and integrated (IG) individuals and investigated latent ability differences between them by multiple group SEM (Materials and Methods). For a specific partition (Fig. 5C), the latent means of cognitive abilities in the three groups are significantly different (). In detail, the latent mean of general cognitive ability monotonically increases from the SG to IG. The latent differences between the SG and BG and between the BG and IG have small effect sizes (Cohen’s and 0.38), suggesting the highest general cognitive ability in the IG. In contrast, the latent mean of crystallized intelligence decreases from the SG to IG. The difference between the SG and BG reveals a medium effect size (), and the difference between the BG and IG is small (), indicating the better crystallized intelligence in the SG. The same trend of a monotonic decrease occurs for processing speed from the SG to IG. Latent differences between the SG and BG, as well as between the BG and IG, reveal small effect sizes ( and 0.21), indicating the highest processing speed in the SG. These group differences are consistent with the linear associations estimated in the entire sample (Fig. 5B). Most importantly, the largest latent mean of memory was observed in the BG, whereas memory performance is smaller in both the SG and IG. The differences between the SG and BG, as well as between the BG and IG, indicate medium effects ( and 0.46), supporting the highest memory in the BG.
Importantly, the above reported group differences are robust for different partitions into three groups (SI Appendix, Fig. S6). Further partitioning the BG into two subgroups (i.e., resulting in four groups) also led to equivalent results (SI Appendix, Fig. S7). These findings provide robust evidence that higher general cognitive ability is associated with stronger integration, that higher crystallized intelligence and processing speed rely on stronger segregation, and that memory is the strongest in individuals at the balance between segregation and integration during rest.
Discussion
By proposing a hierarchical module approach to brain FC networks, we explicitly identified the functional balance between segregation and integration. Using the large-scale WU-Minn HCP dataset and a Gaussian linear model, we provided theoretical and empirical evidence that healthy young brains at rest are on average close to the balanced state. This state allows the brain to frequently switch between segregated and integrated configurations. Compared with graph-based network measures at a single level, our approach is more effective for revealing the intricate role of segregation, integration, and their balance in different cognitive abilities across individuals. General cognitive ability is facilitated by higher global integration, better crystallized intelligence and processing speed are associated with higher segregation, and memory profits from the tendency toward the balance. Our results not only provide an effective analysis of hierarchical modules in brain FC networks but also reveal the functioning principles of resting brains to support diverse cognitive demands by configuring the functional organization to segregation, integration, or balance.
Network Segregation–Integration Balance of Healthy Young Brains at Rest.
The appealing hypothesis of resting brain at a balance between segregation and integration has been accepted by many researchers (3, 4, 13, 17, 18, 27, 40, 41). Although several methods have been proposed to identify segregated and integrated brain states and the competition within and between modules is expected to capture the balance (10, 18, 42–44), developing a quantitative definition of the balance was still considered a great challenge. We argued that segregated and integrated brain activities are hierarchically organized across pronounced modules in FC networks (31, 32) and found that eigenmodes can reflect the hierarchical modular partition. By characterizing the competition between hierarchical segregation and integration based on eigenmodes, we identified the explicit balance and provided theoretical and empirical evidence that brain functional organizations at rest are on average configured to a balanced state, but there are also significant individual variations in segregation, integration, and balance. This study provides quantitative evidence for the segregation–integration balance in large-scale resting brains of heathy young adults, although the hypothesis has been investigated for many years (3, 4, 13, 17, 18, 27, 40, 41).
Balance Supports Fast Reconfiguration of Brain’s Functional Organizations.
Dynamical reconfiguration of brain functional organization between segregated and integrated states associates with diverse cognitive abilities and neurological disorders (13, 15, 43–46). For example, Parkinson’s disease is associated with a longer dwell time in segregated states and a lower number of transitions between segregated and integrated states (43–45), and individuals with higher intelligence dwells less often transition into states of particularly high network segregation (13). However, previous studies used single-level methods (e.g., -means clustering) to detect different brain states (15, 43, 45), which are unable to quantify a clear borderline for segregated and integrated states. Recently, Hilger et al. theoretically assumed a functional balance in a group of individuals ( years old) and regarded the group mean modularity as the borderline for identifying segregated and integrated states (13). Beyond the theoretical assumptions, we provided a complete quantitative framework for identifying segregated and integrated states. We found that balanced brains work with a balanced time in segregated and integrated states and a highly frequent state switching. Thus, the functional balance allows for more flexible reconfiguration in brain functional organization (2), which is assumed to be necessary for the brain to transit from resting to task states in a timely manner. Our approach has great potential for future investigations of brain’s dynamic reconfigurations and their relationships with cognitive abilities during aging, cognitive training, and mental disorders.
Network Segregation, Integration, and Their Balance Predict Different Cognitive Abilities.
Our work demonstrated that segregation, integration, and their balance predict different cognitive abilities. Even if general cognitive ability is supposed to be facilitated by the balance in NNT, system-wide evidence for such an association remains controversial (21–24). For example, previous studies reported a relationship between the general cognitive ability and global efficiency of resting FC networks (22, 23), but a recent replication study with WU-Minn HCP data did not observe the relationship (24). Our results further confirmed that the single-level network analysis cannot capture the relationship between network characterizations and general cognitive ability (SI Appendix, Table S1), but the hierarchical module analysis effectively revealed that general cognitive ability is robustly predicted by higher global integration. Since general cognitive ability in the present SEM is marked by reasoning tasks (fluid intelligence) (Materials and Methods), our result is consistent with the NNT assumption that weak network connections between regions facilitate a difficult-to-reach state, needed for fluid intelligence (26). Thus, when an individual’s functional organizations are configured to integration, resting brains more strongly exhibit global cooperative activity and flexibly switch to a difficult-to-reach state, supporting better fluid and general intelligence.
Crystallized intelligence is presumed to be facilitated by an easy-to-reach state in NNT (26). Two studies with small sample sizes reported an association between global efficiency in FC networks and crystallized intelligence (22, 23). However, while using the NIH Toolbox Cognition Battery to assess crystallized intelligence, a recent replication study based on the WU-Minn HCP data found that crystallized intelligence was not associated with global efficiency, characteristic path length, and global clustering coefficient (24). Here we used SEM to estimate crystallized intelligence as a latent variable and observed a small but robust association between it and network properties. These associations were present for traditional single-level network measures and our multiple-level measures (SI Appendix, Table S1). Our results indicate a positive association between segregation and crystallized intelligence, providing further support for NNT (26). Thus, an individual’s tendency to exhibit more independent activity in specialized subsystems allows the network to function with an easy-to-reach state which predicts better crystallized intelligence.
Currently, NNT does not make any clear prediction for memory. Memory is itself a complex ability. The main dimensional distinction is being made between working, primary (short-term), and secondary (long-term) memory (26, 47). Indeed, specific memory task performances were shown in the literature to be facilitated by different segregated and integrated processes (48–50), such as the vivid memory requiring higher global integration than dim memory (50), implying that general memory may be facilitated by a balance between segregation and integration. Here we showed that memory is higher in individuals tending toward balance in resting brains. In cognitive and differential psychology, an influential perspective on working memory—taken to be the cognitive mechanism underlying general cognitive ability (51)—assumes it to be a system responsible for building relational representations through temporary bindings between mental chunks (52). We here revoke to see general cognitive ability merely as a statistical summary of domain-specific cognitive abilities. The general cognitive ability in our model was modeled as a factor marked by reasoning tasks (fluid intelligence), and a memory was nested under this general factor. The memory tasks in the WU-Minn HCP arguably capture the ability of building, maintaining, and updating arbitrary bindings (52, 53), which we view as the basic cognitive mechanism underlying general cognitive ability. Thus, this ability is expected to be associated with a pronounced small-world topology, tending to display a balance between segregation and integration, as predicted in NNT (26). Therefore, this study substantially validates and enriches the hitherto proposed NNT of human cognition.
Processing speed is another domain-specific ability that is not explicitly considered in NNT (26). In terms of brain network characteristics facilitating processing speed, theoretically well-justified predictions are difficult to propose (53, 54). Thus, the results and their interpretation from previous studies mainly rely on motor performance. Here we demonstrated that faster processing speed is associated with the tendency toward segregated activity in resting brains. This finding is consistent with theories aiming to understand the lifespan development of modularity (12). More modular neural architectures are associated with better performance when short response deadlines are required in cognitive tasks of low difficulty. Thus, processing speed is expected to relate to stronger modularity, i.e., higher segregation. Furthermore, at the level of specific cognitive tasks, higher segregation was shown to be related to successful motor execution (8). These theoretical claims and few empirical findings are consistent with our results showing that quicker processing speed is predicted by higher segregation. Our findings complement missing constituents of NNT that aim to provide a network neuroscience view on general and domain-specific cognitive abilities, to which processing speed arguably belongs.
Outlooks.
This work also has several valuable outlooks. First, we demonstrate that resting brains are close to a balanced state and that the functional balance is not simply beneficial for all cognitive abilities as sometimes assumed. Since resting brains were found to function around a critical state (19, 55–57), the functional balance theoretically matches the criticality characterizing individuals on average. Thus, our results are in line with a recent finding in a local neural circuit that criticality is not optimal for easy tasks but can facilitate the processing of difficult tasks (58). However, the relationship between the balance and criticality across individuals was not yet clearly understood, mainly due to lack of explicit identification of the functional balance. Our work thus provides a powerful tool to solve this pending issue in physics and network neuroscience.
Second, the functional balance is expected to provide potential for the brain to flexibly switch to task states so as to match the variable task demands. This hypothesis is consistent with emerging evidence that individual brains characterized by more efficient switching from resting to task states perform better on specific cognitive tasks (15, 16, 27). We here found that the functional balance is not beneficial for all cognitive abilities, except for memory. Thus, resting brains tending toward segregation (or integration) may be more efficient to switch to task states that need higher segregation (or integration). From this viewpoint, the tendency of an individual brain toward balance may not necessarily enhance the specific switching efficiency from resting to any particular task state but may enhance the overall switching efficiency among many tasks. An analysis of fMRI data during a working memory task provides a preliminary support to this assumption (SI Appendix, Fig. S8). However, task fMRI data systematically covering a broad range of tasks are needed to comprehensively test this assumption.
Conclusion
Altogether, we found that resting brains maintain a segregation–integration balance to support the heterogeneous demands of diverse cognitive abilities, and across individuals, segregation, integration, and their balance predict different cognitive abilities. The functional balance supports the best memory, higher segregation corresponds to better crystallized intelligence and processing speed, and higher integration is associated with better general cognitive abilities. This study not only contributes to testing current NNT claims but also reframes this theory by including additional domain-specific abilities and a general cognitive ability factor with a straightforward psychological interpretation. Furthermore, the concepts proposed here are helpful to refine the methodology proposed for parameterizing the functional organization of the brain’s dynamic activity, which has potential utility in the rapidly growing field of network neuroscience focusing on aging, cognitive training, and mental disorders.
Materials and Methods
Dataset.
The WU-Minn HCP dataset contains structural MRI, diffusion tensor imaging (DTI), resting state fMRI, and behavioral measures on multiple cognitive tasks for 1,200 healthy young adults (36). Each participant completed a 2-d measurement involving four high-resolution scanning sessions (time of repetition [TR] = 0.72 s), with each session lasting for 864 s (1,200 frames). In this study, 991 subjects (female = 528, age range = 22 to 36 y) with the full time length of four sessions and corresponding DTI data were selected.
Human Brain Connectomes.
Brain was parcellated into 360 regions according to the multimodal parcellation (MMP) atlas (59). The blood oxygen level-dependent (BOLD) time series for each region was extracted with the standard procedure (SI Appendix, SI Methods) (36). The Pearson correlation coefficient between BOLD series of two regions was calculated to indicate the FC. For the stable average FC matrix, the BOLD series for four sessions were concatenated in all individuals so that we obtained the stable FC across long enough time scales, as has been done previously (29). For the individual static FC matrices, the BOLD series for four sessions in each individual were concatenated. This operation greatly improved the reliability of FC (SI Appendix, Fig. S9). For the dynamic FC matrices, the BOLD series for four sessions in each individual were first orderly concatenated, and then a sliding time window method was applied. With a window width of 59.76 s (83 points) and a sliding step of 0.72 s (1 point), the concatenated long BOLD series was divided into 4,717 small pieces to construct the temporal FC matrices. We set negative correlations to zero and applied no other operations to the FC matrices.
The brain regions in the cortex are physically interconnected by white matter fibers. DTI provides diffusion gradients of all of the voxels in the white matter. We performed probabilistic tractography on the DTI data to trace the white matter fibers and thus to quantify the connection probability from region to (59–61) (SI Appendix, SI Methods). The SC between regions was computed as , and the SC matrix thus is
[1] |
Brain Functional Modes.
The FC matrix can be decomposed as with eigenvectors and eigenvalues . In the spectral space, the eigenvalues are usually described as the contribution of functional modes to FC networks, and the total contribution is independent of the dynamical synchronizing process. However, as synchronization increases, cortical regions exchange more information, leading to stronger connectivity, accompanied by a higher degree for the regions. In this case, the contribution of functional modes to FC networks needs to grow as well. Thus, we used to measure the contribution of functional modes to FC networks (19). Few eigenvalues had negative values and were set to zero.
Hierarchical Modular Partition of FC Networks.
Eigenmode-based analysis has been successfully applied to complex networks (34, 62). Here we applied the NSP method to detect the hierarchical modules in FC networks. This hierarchical modular partition at multiple levels is not equivalent with the clustering method and the modularity-maximization method (34). Rather, it is motivated by a principle of physics according to which the regions with the same eigenvector sign are assumed to be cooperatively activated and the regions with different signs oppositely activated. Thus, in the first mode, the elements in the eigenvector for all regions have the same sign, which was referred to as the first level with one functional module (i.e., whole-brain network). In the second mode, the regions with positive signs in the eigenvectors were assigned as a module, and the remaining regions with negative signs were assigned as the second module, which was regarded as the second level distinguishing two functional modules. Each module in the second level could be further partitioned into two submodules based on the positive or negative sign of regions in the third mode, constructing the third level. Successively, the FC network can be modularly partitioned into multiple levels with the order of functional modes increasing until a given level where each module involves a single region only. After each partitioning step, the regions were reordered, and the order within modules remained random. During this nested partitioning process, we obtained the module number and the modular size in each level. Notably, because of the intrinsic differences between the NSP method and classical graph theory method, the hierarchical modules are not matched with the known functional networks [e.g., Yeo et al.’s functional subsystems (39)]. However, a functional subsystem can be reproduced by the combination of several significant modes (62) (SI Appendix, Fig. S2).
Hierarchical Segregation and Integration Components.
Functional segregation and integration are intricately interrelated and hierarchically organized in a nested manner across multiple levels. This hierarchically segregated and integrated activity reflected by eigenmodes has the contribution to the functional organization (Fig. 1D). The first level in the FC network has only a single large module (Fig. 1 B and C), reflecting global integration to allow effective communication across the whole brain and requiring the largest contribution (Fig. 1D). The second level generates integration within the anterior or posterior module and segregation between them (Fig. 1 A–C). This modular organization supports the strong communication and specialized processing within the anterior or posterior regions and weaker cooperation between them and thus requires less contribution than the first global mode (Fig. 1D). Consequently, higher-order modes with more modules and smaller modular sizes relate to deeper levels of finer segregated processes that generate more localized information flow and coordination, accompanied by lower contributions of the corresponding modes (Fig. 1D and SI Appendix, Fig. S10). Specifically, the levels with the highest module number (i.e., ), allowing independent activation of each region, indicate completely segregated activity and are associated with very small contributions (Fig. 1D and SI Appendix, Fig. S10). Thus, the functional modes with larger module numbers generate stronger segregation and smaller-scale local integration, producing weaker contributions to the functional organization.
Consistent with the graph-based modularity (15, 28, 35), modules at a given level support the segregation between them and integration within them. A larger module number reflects higher segregation at this level. Since this segregated and integrated activity makes the contribution of to the functional organization, the weighted module number in each level can be defined to reflect the hierarchical segregated and integrated interactions:
[2] |
where normalizes the module number to the range [0, 1]. At low-order levels, the module number is small and the contribution is large, corresponding to strong integration of smaller modules at higher-order levels into large modules at low-order levels. Meanwhile, the large modules are further integrated into even larger modules at lower-order levels, allowing us to quantify hierarchically nested segregation and integration. Thus, describes the nested segregation and integration across multiple levels.
However, the number of modules alone may not properly describe the picture of nested segregation and integration because the size of modules may be heterogeneous (Fig. 1D). Given an extreme case at the second level, for example, having two modules with a size comprising one region and regions, this level would produce very weak segregation and nearly global integration. The segregation becomes stronger if the modules have a more homogeneous size . Thus, the segregation and integration component in each level needs to be corrected for heterogeneous modular sizes. The correction factor was calculated as , which reflects the deviation from the optimized modular size in the th level. Then, was corrected as
[3] |
This correction aims to reflect the influence of modular size. If modules are dominant with respect to their size at a given level, the integration within this level will become stronger and the segregation weaker, corresponding to smaller . Should the deviation of modular size from homogeneity be large, the correction effect is stronger (Fig. 1D).
At the first level, there is only a single module for the whole FC network, and this level was taken to calculate the global integration component:
[4] |
Further normalization by the node number of results in a measure that is independent of the network size. Since the first level contains only one module, , and the global integration component does not need to be corrected.
The total segregation component unfolds from the multiple segregated levels (2nd to Nth levels):
[5] |
These definitions of the global integration and segregation components in the FC network are illustrated in Fig. 1D.
Gaussian Linear Diffusion Model.
In order to identify the theoretical balance of the brain, a Gaussian linear diffusion model was adopted. Let represent the neural activities of cortical regions that follow a Gaussian linear process (19, 37, 63). The time evolution of neural population activities satisfies (SI Appendix, SI Methods)
[6] |
where is the coupling strength between cortex region and is the brain SC matrix defined in Eq. 1. By averaging over the states produced by an ensemble of noise and defining the , where is the Laplace matrix of the SC matrix, the covariance of this model can be analytically estimated as (41, 64)
[7] |
The simulated FC matrix can be calculated as
[8] |
Thus, built upon the Gaussian linear process of the fluctuating resting brain state, the simulated stable FC networks over a sufficiently long time can theoretically be obtained. These FC networks are robust to noise associated with the SC measurement which is inevitable in DTI data processing (SI Appendix, Fig. S11). The stable FCs will be compared with FC from real fMRI data by tuning the coupling parameter .
Calibration Process.
We provided theoretical and numerical evidence for the resting brain to close to the balance between segregation and integration given a sufficiently long fMRI time series. However, a previous study found that shorter fMRI series resulted in apparently higher segregation estimates in terms of larger modularity in FC networks (29), and we also observed stronger segregation in the case of shorter fMRI series lengths (SI Appendix, Fig. S3). If this artifact was not taken into account, deviation measures from the dynamical balanced state would be biased toward more but artificial segregation. To address this limitation, the segregation and integration components in individual static FC networks need to be calibrated. Considering that the length of fMRI time series would mainly affect the segregation component in static FC networks (SI Appendix, Fig. S3), the group segregation component and integration component were calibrated to the integration component of the stable average FC network. This is equivalent to the mean integration component of simulated FC networks at the balanced state (i.e., ) (Fig. 2 G and H). The segregation components in brains with are more sensitive to the fMRI length (SI Appendix, Fig. S3), and thus, a proportional calibration scheme was adopted. For individual static FC networks (obtained from four sessions), the vectors of segregation (or integration) components for 991 individuals are and , and the calibrated results for each individual are and . Here ⟨⟩ represents the group average across 991 individuals. After this calibration, the group average values of the segregation and integration components will be equal (i.e., ), and the individual ranking of segregation and integration will be fixed.
For dynamic FC networks, the temporal segregation and integration components for each individual were calibrated to its static segregation component and integration component , respectively, to maintain the individual ranking (SI Appendix, Fig. S3). The vectors of segregation (or integration) components for the th individual across 4,717 windows are and , and the calibrated results are and . Here ⟨⟩ represents the average across 4,717 windows. This calibration maintains the individual ranking of static segregation and integration components, and the calibrated results are independent of the length of fMRI series (SI Appendix, Fig. S3). This individual calibration does not affect the dynamic results according to which the balanced brain is characterized by a balanced dwell time and the maximum transition frequency (SI Appendix, Fig. S12).
Dynamic Measures.
In order to characterize the dynamic properties in detail, the dwell time in segregated and integrated states was first defined as
[9] |
Here and measure the duration of the dynamic process at and , and s is the total time.
Second, the switching frequency was used to measure the transition speed between segregated and integrated states, which was defined as
[10] |
where is the total number for time satisfying .
Third, the competition between dynamic segregated and integrated states across long time periods may be balanced, but the fluctuations can vary much at temporal windows. The amplitude of dynamic deviation from the balanced state to the integrated state or segregated state was thus calculated as
[11] |
Here and represent the positive and negative during the dynamic process. A smaller (or larger ) indicates that the brain deviates toward a segregated state with a higher amplitude.
SEM.
Cognitive behavioral measures were collected from nine specific tasks (SI Appendix, Table S2): picture sequence memory (PSM), Penn word memory test (PWMT), Penn progressive matrices (PPM), variable short Penn line orientation test (VSPLOT), picture vocabulary (PV), oral reading recognition (ORR), dimensional change card sort (DCCS), flanker task (FT), and pattern completion processing speed (PCPS). To obtain estimates of general and domain-specific cognitive abilities, we applied a bifactor minus-1 SEM to extract latent factors of common phenotypes that explain the variability across the above listed tasks (65, 66). According to ref. 65, we modeled crystallized intelligence by including ORR and PV as indicators; memory ability based on PWMT and PSM; and processing speed based on DCCS, FT, and PCPS. In particular, general cognitive ability (g) was modeled as the shared variance across the broad set of all task performance scores shared with PPM and VSPLOT. The covariance matrix as well as the mean and standard deviation of all task performance indicators across individuals are provided (SI Appendix, Dataset S1).
The bifactor minus-1 SEM is only partly in line with the theoretical elaborations in NNT that build upon a higher-order structure of human intelligence (26, 67). In NNT, task-specific performance within domains is taken to reflect domain-specific broad mental abilities, such as crystallized and fluid intelligence, to be further subsumed into a higher-order factor called general intelligence (g). This higher-order factor model diverges from the so-called hierarchical (or bifactor) model with respect to how g is estimated. Whereas g in the higher-order model exerts its influence on task performance scores indirectly through domain specific factors, g represents the shared variance across a broad set of task performance scores in the hierarchical model. However, by imposing proportionality constraints on loadings, these two models can be translated to be statistically equivalent (68). More importantly, the controversy around the higher-order model is associated with the resulting cumbersome psychological interpretation of g. Because in the higher-order model, g exerts its influence on measured variables indirectly through domain specific factors, the ratios of the variance in the measured variables comprising domain factors to the indicator variance explained by the higher-order factor are the same. This constraint makes little sense psychologically because no psychological theory stresses such proportionality. Thus, we adhered to bifactor modeling approaches of cognitive abilities including a reference ability for g, which is reasoning ability (66). Because the bifactor model has yet also been shown to have a series of statistical disadvantages (66) and because a clear interpretation of g should be warranted, omitting one of the domain-specific factors to avoid anomalous estimation results has been proposed as solution in the psychometric literature (66). In our application, PPM and VSPLOT were only loaded onto g which can then be interpreted as reasoning (fluid intelligence)-related variance, required by domain-specific tasks to a different degree. This interpretation is consistent with the well-established finding that g and fluid intelligence are correlated above 0.93 (51). Additionally, three domain-specific factors of crystallized intelligence, memory, and speed are nested under g (Fig. 5A). This modeling choice is different from the higher-order g in NNT but is in line with psychologically better interpretable representations of the cognitive ability structure (67).
To empirically test potential nonlinear associations, we further applied the same SEM model of cognitive abilities in a multiple-group modeling framework with different group of individuals best characterized by segregation, balance, and integration. Multiple group models allow fitting the SEM to describe individual differences in cognitive abilities simultaneously across groups. We first partitioned 991 individuals into SG, BG, and IG according to a set of thresholds in sorted individuals according to their . In Fig. 3C, we orderly selected the individuals starting from the largest . The group size of IG was first selected with individuals. Then, starting with the person, we selected the individuals for the BG. By constraining the average in the BG, we could fix the group size of IG with . Individuals at the left were assigned to the SG. After the partition, the model parameters such as the latent mean and the cognitive abilities variance across individuals were specifically estimated for each group, and thus, group differences could be identified by statistical inferences on group-specific model parameter comparisons. Different partitions were explored by a scanning step of 10 persons in the IG to assess the robustness of results across different partitioning thresholds (SI Appendix, Figs. S6 and S7).
SEM analysis was performed using the lavaan package in R (69). The maximum likelihood estimator has been used, and latent variables were identified by reference indicators. The comparative fit index (CFI), root mean square error of approximation (RMSEA), and standardized root mean-square residual (SRMR) were used to evaluate the fit of the estimated models (60, 70). Specifically, the model was considered to fit well for CFI > 0.95, SRMR < 0.08, and RMSEA < 0.08 (70). In multigroup SEMs, we compared the goodness of fit of the model with freely estimated average latent ability with a model introducing equality constraints on the latent means across the groups. The difference test was used for model comparison. The resulting value of the test statistic indicates whether the unconstrained model was a significantly better fit than the constrained model. Group comparisons were based on Cohen’s ( reflects a small effect size, represents a medium effect size, and indicates a large effect size).
Graph-Based Network Measures.
To compare the results between graph-based network measures and hierarchical measures of functional segregation and integration in FC networks, the modularity and participation coefficient were also computed. The modularity in undirected weighted networks is (35)
[12] |
Here is the connectivity between nodes and , is the degree of node , and is the sum of all weights in the network. if nodes and are in the same module; otherwise, . The modularity quantifies the degree to which a network is decomposed into densely connected modules, and a larger reflects higher segregation.
The participation coefficient quantifies the degree to which a node is connected to other nodes across diverse modules. Its definition for a node is
[13] |
where is the module number and is the connectivity strength of node within module . The participation coefficient of a network is the average of in all nodes. Here the modules were previously defined according to the seven functional subsystems (39). These network measures were calculated with the Brain Connectivity Toolbox (https://www.nitrc.org/projects/bct).
Supplementary Material
Acknowledgments
This work was supported by the National Natural Science Foundation of China (Grants 11802229, 11972275, and 11772242), the Hong Kong Scholars Program (Grant XJ2020007), the Outstanding Youth Science Fund of Xi’an University of Science and Technology (Grant 2019YQ3-11), the Hong Kong Research Grant Council (Grant HKBU12301019), the Hong Kong Baptist University Research Committee Interdisciplinary Research Matching Scheme 2018/19 (IRMSSCI01), and Germany–Hong Kong Joint Research Scheme (G_HKBU20117 awarded to C.Z. and ID 57391438 awarded to A.H.). This research was conducted using the resources of the High Performance Computing Cluster Center, Hong Kong Baptist University, which receives funding from Research Grants Council, University Grant Committee of the Hong Kong Special Administrative Region, and Hong Kong Baptist University.
Footnotes
The authors declare no competing interest.
This article is a PNAS Direct Submission.
This article contains supporting information online at https://www.pnas.org/lookup/suppl/doi:10.1073/pnas.2022288118/-/DCSupplemental.
Data and Code Availability
fMRI, DTI, and behavioral measures have been deposited in the WU-Minn HCP (www.humanconnectome.org/study/hcp-young-adult).
The codes used in this study are available in GitHub at https://github.com/TobousRong/Hierarchical-module-analysis.
