. Author manuscript; available in PMC: 2022 Aug 18.
Published in final edited form as: J Toxicol Environ Health A. 2021 May 18;84(16):674–688. doi: 10.1080/15287394.2021.1925608

Zebrafish irritant responses to wildland fire-related biomass smoke are influenced by fuel type, combustion phase, and byproduct chemistry

W Kyle Martin 1, S Padilla 2, YH Kim 3, DL Hunter 2, MD Hays 4, DM DeMarini 2, MS Hazari 5, MI Gilmour 5, AK Farraj 5
PMCID: PMC8237130  NIHMSID: NIHMS1714213  PMID: 34006202

Abstract

Human exposure to wildfire-derived particulate matter (PM) is linked to adverse health outcomes; however, little is known regarding the influence of biomass fuel type and burn conditions on toxicity. The aim of this study was to assess the irritant potential of extractable organic material (EOM) of biomass smoke condensates from 5 fuels (Eucalyptus, Pine, Pine Needle, Peat, or Red Oak), representing various fire-prone regions of the USA, burned at two temperatures each [flaming ( approximately 640° C) or (smoldering approximately 500° C)] using a locomotor assay in zebrafish (Danio rerio) larvae. It was postulated that locomotor responses as measures of irritant effects, might be dependent up on fuel type and burn conditions and that these differences relate to combustion byproduct chemistry. To test this, locomotor activity was tracked for 60 min in 6-day old zebrafish larvae (25–32/group) immediately after exposure to 0.4% dimethyl sulfoxide (DMSO) vehicle or EOM from the biomass smoke condensates (0.3–30 μg EOM/ml; half-log intervals). All EOM samples produced concentration-dependent irritant responses. Linear regression analysis to derive rank-order potency indicated that on a μg PM basis, flaming Pine and Eucalyptus were the most irritating. In contrast, on an emission-factor basis, which normalizes responses to the amount of PM produced/kg of fuel burned, smoldering smoke condensates induced greater irritant responses (>100-fold) than flaming smoke condensates, with smoldering Pine being the most potent. Importantly, irritant responses significantly correlated with polycyclic aromatic hydrocarbons (PAH) content, but not with organic carbon or methoxyphenols. Data indicate that fuel type and burn condition influence the quantity and chemical composition of PM as well as toxicity.

Keywords: wildland fire air pollution, particulate matter, biomass, zebrafish, irritant responses

Introduction

The warming and drying trends associated with climate change are lengthening wildland fire season, expanding the geographical areas that are fire prone, and intensifying fires (Jolly et al., 2015; Burke et al., 2019; Westerling et al., 2006; Trenberth, 2011). One consequence of these trends is an increase in quantities of local and global fine particulate matter (PM2.5), a respirable mixture less than 2.5 μm in aerodynamic diameter consisting of black carbon, organics, and/or metals (Urbanski, 2013). Inhalation of PM2.5 has for decades been demonstrated to produce and/or exaggerate adverse health outcomes such as pulmonary distress and cardiovascular diseases (Lim et al., 2012; Wettstein et al., 2018; Samet et al., 2009; Cochard et al 2020; Shkirkova et al 2020). Further, human and experimental evidence indicates that the severity of adverse health effects is influenced heavily by air pollution source (Hime et al., 2018; Park et al., 2018). This includes studies that demonstrated enhanced toxicity of combustion emissions from petroleum diesel relative to biodiesel (Shvedova et al 2013; Mutlu et al., 2015; Hazari et al., 2015; Farraj et al., 2015; Gavett et al., 2015), of metal-rich residual oil-fly ash relative to carbon black (Wellenius et al., 2002), and of near road PM relative to rural PM (Hargrove et al,. 2018). However, little progress has been made in identifying differences in adverse health effects that may exist due to the unique biomass composition of one vegetated area versus another and the respective resultant composition of the PM2.5 generated when wildlands burn. For example, the increasingly severe Western U.S.A. wildfires, which burn evergreens and, specific to the west coast, eucalyptus, may produce smoke of different chemical composition than the peat bogs of the southeastern U.S.A (Urbanski et al., 2008).

Rodent models have long been the canonical experimental research tool for the investigation of adverse health impacts of respirable pollutants including biomass combustion emissions (Martin et al 2020). However, rodent inhalation exposure studies are limited by the time and expense needed to acquire and process toxicity information. As an alternative for biomedical research, including toxicology, the zebrafish has seen a meteoric rise to prominence driven by the high degree of conservation of the genome, genomic synteny, and analogous expression of proteins involved in human disease, which is >80% (Gunnarsson et al. 2008; Howe et al., 2014). Zebrafish exhibit the following properties (1) high fecundity, (2) amenable to genetic and pharmacological manipulation, (3) low maintenance costs and (4) share key similarities to human physiology. It is noteworthy that zebrafish skin epithelium is sensitive to many chemicals that irritate lung epithelium in mammals (Kroll et al. 2021; Prober et al., 2008) and expresses the same chemical sensors that are expressed in the mammalian lung including the transient receptor potential (TRP) cation channel TRPA1. Activation of such channels, which mediate chemosensation to a variety of xenobiotics (Prober et al. 2008) and pro-oxidants (Takahashi et al. 2011), enhances locomotor activity in zebrafish, responses that are easily measured and used previously as a readout for irritant potential of diesel exhaust PM2.5 (Stevens et al., 2018). Further, Prober et al (2008) previously used locomotor responses as a measure of the potency of the irritant, including responses to the well-established human irritants mustard oil, cinnamon oil and acrolein.

The main objective of this study was to use a zebrafish locomotor assay to (1) screen the irritant potential of PM2.5 from combustions emissions of key wildland-fire related biomass sources and (2) relate biological responses to combustion conditions and chemical composition. To do so, 5 fuel sources (pine, pine needle, red oak, peat, and eucalyptus), each representing a different major wildland fuel type in the USA, were each burned at two separate combustion temperatures, smoldering (approximately 500° C) and flaming (approximately 640° C), representing relevant phases of combustion, using a quartz-tube furnace coupled to a multistage cryotrap system (Kim et al., 2018). Organic extracts of each smoke condensate, which were previously assessed for lung toxicity and mutagenicity (Kim et al., 2018), were tested in a dose-dependent manner in a locomotor assay using 6-day post-fertilization zebrafish to assess irritant potential. It was postulated that fuel types that were resinous might result in combustion byproducts with the greatest irritant potential and that flaming combustion temperatures might, on an equal mass basis, further raise irritant potential given the elevated levels of known irritants, such as polycylic aromatic hydrocarbons (PAHs) in flaming combustions. In addition, the potency extracts were compared on an emission factor (EF) basis, which reflects exposure based upon mass of fuel consumed. Finally, irritant responses were correlated to extract composition to determine the role of key chemical classes in driving toxicity.

Materials and Methods

Combustion and byproduct collection

For this study, the fuel sources consisted of red oak (Quercus rubra), pocosin peat, ponderosa pine needles (Pinus ponderosa), lodgepole pine (Pinus contorta), and eucalyptus (Eucalyptus globulus), each representing fire-prone regions of the USA. Combustion of fuel sources and collection of condensates were previously described in greater detail (Kim et al., 2018). In brief, biomass combustion was carried out in a specialized furnace enabling tight control of combustion conditions. Each of the 5 fuel sources was burned, in separate efforts, at flaming (640° C) and smoldering (500° C) temperatures, generating 10 unique smoke profiles. Smoke from each burn was passed through a multi-phase cooling cryotrap system through 3 steps: −10° C, −50° C, and −70° C. This system enabled collection of particulates, which may be difficult to remove from traditional filter-based systems, and volatile and semi-volatile combustion byproducts, which might not be collected using a filtration method. This method generated a condensate of smoke-derived particulates and semi-volatiles, which were then washed from the trap using acetone (Sigma-Aldrich; St. Louis, MO), concentrated using a nitrogen gas evaporation, and solvent exchanged into dimethyl sulfoxide (DMSO; ≥99.9% purity, Sigma-Aldrich; St. Louis, MO) creating a stock solution of ‘extractable organic material’ [EOM]) that was stored at 4° C away from light.

Chemicals

Zebrafish embryos were reared in 10% Hank’s Buffered Saline Solution (HBSS); all salt components of which (13.7 mM NaCl, 0.54 mM KCl, 25 μM Na2HPO4, 44 μM KH2PO4, 130 μM CaCl2, 100 μM MgSO4, and 420 μM NaHCO3; pH 7.6) were obtained from Sigma-Aldrich and combined in deionized water. HBSS was prepared and used within the week.

Experimental animals

Wild type adult zebrafish (Danio rerio; undefined, outbred stock originally obtained from Aquatic Research Organisms, Hampton, NH, 03842 and EkkWill Waterlife Resources Ruskin, FL 33575) were housed in an Association for Assessment and Accreditation of Laboratory Animal Care-approved animal facility with a 14:10 hr light:dark cycle (lights on at 08:30 hr). It was previously determined that behavioral responses in an outbred line of fish are similar to those in the AB line of fish (unpublished data). Adult fish (males and females housed together, about 8/L) were kept in one of several 9-L colony tanks (Aquaneering Inc., San Diego, CA) with a water temperature of 28° C. For group spawning, all adults from two different home tanks (80–100 total fish) were placed in 15 L static tanks set up about 3:00 pm, with embryos collected the next morning between 8:30 and 9:00 am about 30 – 60 min after the light came on. All embryos were gathered from the breeder tank and placed in a 26° C water bath and washed twice (Westerfield, 2007) with 0.06% bleach (v/v) in 10% HBSS for 5 min. All studies were carried out in accordance with the guidelines of, and approved by, the Institutional Animal Care and Use Committee at the U.S. EPA’s Center for Public Health and Environmental Assessment.

Group size determinations and controlling for plate variability

Sample size analysis was performed using R Studio software (R Studio, Inc.) with the ‘pwr’ package (https://cran.r-project.org/web/packages/pwr/pwr.pdf) and ‘pwr.anova.test’ command and group sizes calculated based upon effect size indexes obtained from pilot studies. All experiments were performed over two plates with data combined from both plates to achieve the total ‘n’ for each group; this was conducted only after ensuring that there were no plate-to-plate differences.

Concentration-Response Studies

For the dose-response studies, zebrafish embryos were randomly selected from a plate containing hundreds of zebrafish embryos and subsequently placed, one fish per well, into a 96 well plate (1 fish/ well) on Day 0. At 6-days post-fertilization (dpf; n = 25 to 32/experimental condition), larvae were exposed beginning approximately 8:00 AM to vehicle (0.4% DMSO, final nominal concentration), or 0.3, 0.96, 3.0, 9.6 or 30 μg EOM/ml and activity immediately assessed in the dark at 26°C for 60 min using Noldus (Leesburg, VA) Ethovision video tracking software (Figure 1). To achieve final concentrations, fresh stock plates containing concentrations 250X the final concentrations outlined in Figure 1 (i.e. 0, 0.3, 3.0, 10 or 30 μg/ml) were prepared. Then 1 μl stock solution was added to 249 μl HBSS in each well using a multi-channel pipette with dosing by row. These concentrations were in part based upon amounts used in our previous study (Stevens et al. 2018). Stevens et al (2018) noted the maximal concentration of 40 μg/ml elicited potent irritating effects. To lessen the potential for overt toxicity a maximal quantity of 30μg/ml was used in the present study. To incorporate as wide a concentration range as possible, levels were decreased by a half-log until the lowest dose (0.3 μg/ml) was achieved. At the end of the experiment, larvae were anesthetized by immersion in ice-cold water. After the heartbeat ceased, and animals were unresponsive, fish were euthanized by immersion in ice cold, 20% bleach (v/v) solution.

Figure 1.

Figure 1.

Open in a new tab

Experimental protocol for treatment and behavior assessment of zebrafish larvae. Zebrafish were plated at 6–8 hr postfertilization, and then dosed at 6-days postfertilization (dpf) with 0.3 to 30 μg/ml extractable organic material (EOM), immediately before assessment. Locomotor activity was recorded in the dark for 60 min, and analysis software was used to derive distance moved (cm)/unit time (min). Control (unshaded wells) and treated (shaded wells) larvae were dosed in alternating columns of each 96-well plate.

To compare potency of the EOM samples, linear regressions of the first 20 min of concentration-response data, which reflected the linear portion of the concentration-response curves for most extracts, were performed to determine slopes. The slopes of the linear regressions were used to indicate the toxicity potency of each extract. This mirrors a similar approach used previously to assess the potency of whole and fractionated diesel exhaust extracts (Stevens et al., 2018) and to quantify the mutagenic potencies of the PM extracts (Mutlu et al., 2013). Slopes were selected based upon the following criteria: 1) correlations that provided the highest goodness of fit (i.e., r-square value) and 2) the highest concentration before the concentration curve plateaued.

Behavioral testing

All testing was performed on 6 dpf larvae in 96-well plates (Figure 1). Video recording of larvae behavior was described previously (Stevens et al., 2018). On the morning of testing, after the rearing solution was changed, plates were moved to the dark in the behavioral testing room for 1 hr. Temperature in the testing room was kept at 26° C. For testing, the plate was transferred to the light box in the testing apparatus for 25 min, with dosing taking place during the last 5 min of the light program. Because irritant effects of exposure were of interest and organisms often adapt to irritant responses over time, the dark program was started immediately after dosing using a behavior-recording system (Media Recorder) to record immediate irritant-induced movement of each fish for 60 min in response to treatment.

Analysis of larvae movement (locomotion) was tracked from videos using Ethovision XT (Noldus Information Technology) software Version 13 by an individual blinded to the treatment groups. Tracking rate was 5 samples/s (i.e., an image was captured every 200 msec). A dynamic subtraction method was used to detect objects that were darker than background, with a minimum object size of 10 pixels. Tracks were analyzed for total distance moved (cm). The software provides a distance output per 2 min period. An input filter of 0.135 cm (minimum distance moved) was employed to remove system noise. All locomotion data were expressed as distance moved (cm) per unit time (Figure 1).

Correlations of potency vs. chemical constituents

Linear regression was utilized to correlate potency both on a mass basis and an emission factor (EF) basis to some of the most prominent chemical classes including PAHs, organic carbon, methoxyphenols, and levoglucosan, the latter two chemicals of which are tracers of biomass burning in the atmosphere. The measurement of these chemicals was described previously (Kim et al. 2018). Tables 1 and 2 demonstrate the chemical concentrations on a mass or an EF basis, respectively.

Table 1:

Concentrations of chemicals in the biomass smoke condensates in mg/g PM

Smoldering Flaming
Pine Needle Red Oak Pine Chips Eucalyptus Peat Pine Needle Red Oak Pine Chips Eucalyptus Peat
Methoxyphenols 15301.78 31068.14 64976.87 21685.34 11613.96 3671.59 1195 15576 14909.52 475
Levoglucosan 17296.21 78877.05 46366.29 52749.74 40957.26 14236.16 37300 61896 125828.57 8650
n-Alkanes 736.08 33.81 69.07 673.82 9289.174 44.54 3410 1804 780.95 2714.29
PAHs 2488.86 85.04 492.40 95.29 643.16 104.90 220 5280 5138.10 139.29
Steranes 0 0 0 0 0 0 0 0 0 67.86
Hopanes 0 0 0 0 185.8974 0 0 0 0 0
OC 699443 529508 601394 532723 797863 416413 629242 513893 624508 430830
Open in a new tab

Adapted from Kim et al. 2018. EOM – extractable organic material; PAHs – polyaromatic hydrocarbons, OC – organic carbon

Table 2:

Concentrations of chemicals in the biomass smoke condensates in g/kg fuel

Smoldering Flaming
Pine Needle Red Oak Pine Chips Eucalyptus Peat Pine Needle Red Oak Pine Chips Eucalyptus Peat
Methoxyphenols 1496.06 4075.83 9265.05 3469.22 825.52 3.82 1.25 15.58 14.76 0.57
Levoglucosan 1691.05 10347.88 6611.37 8438.90 2911.24 14.81 39.17 61.90 124.57 10.29
n-Alkanes 71.97 4.44 9.85 107.80 660.27 0.05 3.58 1.80 0.77 3.23
PAHs 243.34 11.16 70.21 15.24 45.72 0.11 0.23 5.28 5.09 0.17
Steranes 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.08
Hopanes 0.00 0.00 0.00 0.00 13.21 0.00 0.00 0.00 0.00 0.00
OC 68384.54 69466.15 85752.77 85225.03 56712.10 433.07 660.70 513.89 618.26 512.69
MCE 73 98.6 71 98 76 97 83.5 98.1 63 98
Open in a new tab

Adapted from Kim et al. 2018. EOM – extractable organic material; PAHs – polyaromatic hydrocarbons, OC – organic carbon; MCE – modified combustion efficiency

Statistics

All statistical analyses were performed using GraphPad Prizm Software Version 6.0 (La Jolla, CA). Normality of data distributions was assessed with normality tests (D’Agostino-Pearson omnibus normality test) with significance set at p < 0.05. The concentration vs. time data over the 60-min monitoring period reported in Figures 2 and 3 were not normally distributed and, therefore, were tested at each 2-min interval using the nonparametric Kruskal-Wallis test with Dunn’s multiple comparisons post-test. A p value < 0.05 was considered statistically significant. For a comparison of the potency (i.e., slope) data in Figures 4 and 5, slopes were derived from the linear regression of the concentration-response curve during the first 20 min for each EOM sample. The slopes were compared via one-way ANOVA followed by Tukey’s post-hoc test. For this analysis, the slopes were entered as the mean, the standard error for the slope derived from the linear regression data, was entered as the standard error of the mean, and the degrees of freedom (df) value + 1 was entered as “n” or group size – the df for all groups in this analysis was 1. To determine correlations between potency and chemical class reported in Figures 6 and 7, linear regressions were carried out to generate r2 values and to determine if the slopes were significantly non-zero (i.e., p <0.05). The number of independent observations is provided in the figure legends.

Figure 2:

Figure 2:

Open in a new tab

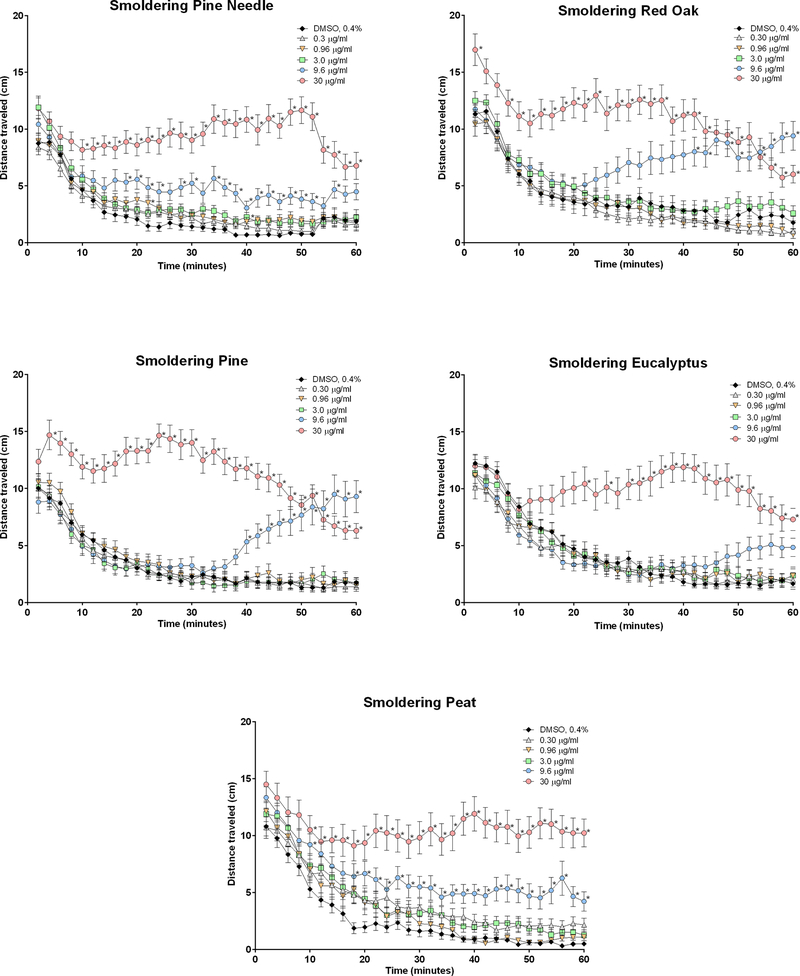

Effect of smoldering EOM samples on zebrafish larval locomotor activity measured in the dark over the course of a 60-min monitoring period. Zebrafish were exposed to 0.3 to 30 μg/ml EOM samples in 0.4% DMSO or 0.4% DMSO alone approximately 5 min before monitoring locomotor behavior. Data are presented as mean ± SEM at each 2-min interval for the entire 60 min of recording. Data from 2 replicate plates were combined for a total of 25–32 zebrafish larvae per exposure group. *Significantly different from DMSO at corresponding time (p < 0.05).

Figure 3:

Figure 3:

Open in a new tab

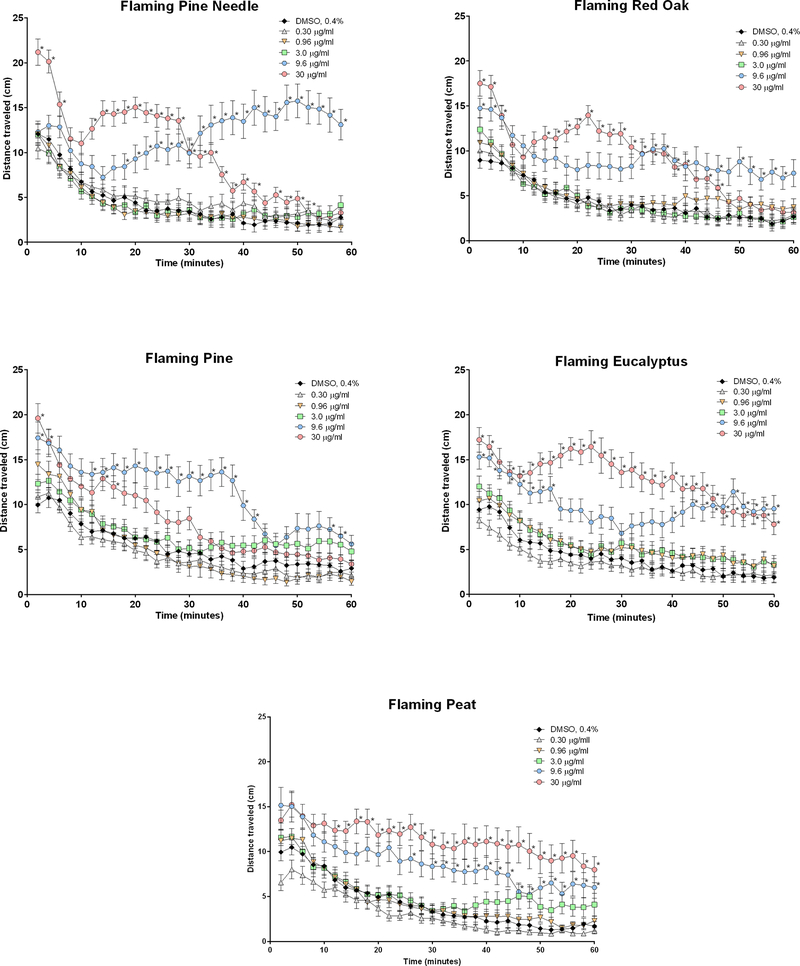

Effect of flaming EOM samples on zebrafish larval locomotor activity measured in the dark over the course of a 60-min monitoring period. Zebrafish were exposed to 0.3 to 30 μg/ml EOM samples in 0.4% DMSO or 0.4% DMSO alone approximately 5 min before monitoring locomotor behavior. Data are presented as mean ± SEM at each 2 min interval for the entire 60 min of recordings. Data from 2 replicate plates were combined for a total of 25–32 zebrafish larvae per exposure group. *Significantly different from DMSO at corresponding time (p < 0.05).

Figure 4:

Figure 4:

Open in a new tab

Potency of all extracts on an extractable organic material (EOM) basis in the zebrafish locomotor assay. The potency data are slopes of linear regressions of dose-response data for each extract. Data represent means standard error of the mean (n = 2). *Significant difference between indicated groups (p < 0.05).

Figure 5:

Figure 5:

Open in a new tab

Potency of all extracts on an emission factor (EF) basis in the zebrafish locomotor assay. The potency data are slopes of linear regressions of dose-response data for each extract. Data represent means with standard error of the mean (n = 2). *Significant difference between indicated groups (p < 0.05).

Figure 6:

Figure 6:

Open in a new tab

Correlations between irritant potencies in zebrafish and concentration of specific chemical classes on an extractable organic material (EOM) mass basis. Linear regression was used to correlate potency with concentrations of polyaromatic hydrocarbons (PAHs), organic carbon, methoxyphenols, and levoglucosan. r2 – coefficient of determination. A p < 0.05 indicates a significant non-zero slope.

Figure 7:

Figure 7:

Open in a new tab

Correlations between irritant potencies in zebrafish and concentration of specific chemical classes on an emission factor (EF) basis. Linear regression was used to correlate potency with concentrations of polyaromatic hydrocarbons (PAHs), organic carbon, methoxyphenols, and levoglucosan. Note: nonlinear regression was used to generate a straight line. r2 – coefficient of determination. A p < 0.05 indicates a significant non-zero slope.

Results

Time Course of Locomotor Responses to Extracts

There were virtually no apparent major signs of overt toxicity such as morphological change and/or absence of heartbeat with treatment with any of the biomass EOM samples. There were only two instances of lethality on two separate plates (1 fish out of 96 total fish/plate). In addition, only 10 total fish spread out over 5 plates were abnormal or injured during handling. All non-surviving, abnormal and injured fish were excluded from analysis. Treatment of zebrafish larvae with each of the 5 smoldering EOM samples induced concentration-dependent responses over time that were significantly greater than DMSO control for most of the monitoring period (Figure 2). Exposure to the highest concentration of 30 μg EOM/ml smoldering red oak and pine produced immediate significant increases over control, whereas significant responses with the remaining smoldering extracts at this concentration did not occur until 10 to 20 min into the monitoring period. All smoldering EOM samples except for eucalyptus initiated significant responses at the second highest concentration of 9.6 μg EOM/ml, although these responses at this concentration were delayed relative to the response at the highest treatment level.

Exposure of zebrafish larvae with each of the 5 flaming EOM samples also induced concentration-dependent responses over time that were significantly greater than control for most of the monitoring period (Figure 3). In contrast to the responses to smoldering EOM samples, the responses to the highest concentration (30 μg EOM /ml) of all flaming EOM samples except peat were immediate and significantly greater than DMSO. The magnitude of the immediate differences in locomotor activity between control and the highest concentration for these flaming EOM samples was also greater than the respective differences with smoldering EOM samples, particularly with flaming pine needle. It is of interest that unlike responses to the smoldering EOM samples, the second highest concentration ( 9.6 μg/ml) of flaming red oak, pine and eucalyptus produced immediate significant elevation in locomotor activity relative to control, Further, the responses to the highest concentration of flaming pine needle, red oak, and pine, although significantly greater than control in the early part of the monitoring period, were no longer significant compared to control by the end of the monitoring period. These same EOM samples at the second highest concentration, however, remained significantly greater than control at the end of the monitoring period. It is important to note that only animals that had confirmed beating hearts were included in these assessments.

Potency determinations for Extracts

Linear regressions were performed on data from the first 20 min of the concentration-response values because this was the period of the greatest increase in activity for most EOM samples. Linear regressions for all 10 EOM samples on an EOM mass basis (Figure 4) illustrated that the potencies (i.e., slopes) varied considerably. Although there were no marked differences among the smoldering samples, smoldering eucalyptus was the least potent ranging from 2.25- to 3.23-fold lower than the remaining smoldering samples. Except for flaming pine needle, the flaming samples were more potent than the smoldering samples on an EOM mass basis. Flaming pine was the most potent sample with significantly greater potency than all smoldering samples and flaming pine with fold differences ranging from 2.27 (vs. smoldering pine) to 7.33 (vs. smoldering eucalyptus). Flaming eucalyptus was the next most potent flaming sample with markedly greater potency than smoldering pine and smoldering eucalyptus with respective fold differences of 2.74 and 6.2.

In contrast to the potencies on an EOM mass basis, linear regressions for all 10 EOM samples (i.e. smoldering and flaming) on an emission factor basis (Figure 5), which accounts for the amount of PM produced per kg fuel, showed that the potencies for smoldering samples were greater than the potencies for the flaming samples. Smoldering pine, the most potent smoldering sample, was 185-fold more potent on an emission factor basis than flaming pine needle, the least potent flaming sample. Smoldering pine was more potent than all the flaming samples as well as smoldering eucalyptus and smoldering peat. Smoldering red oak was also more potent than all the flaming samples.

Correlations of Potency with Chemical Constituents

Linear regressions of potency vs. concentration of chemicals representative of chemical classes were carried out to determine if there was a relationship between potency and concentrations of specific chemical classes. On an EOM mass basis (Figure 6), there was a significant positive correlation between potencies and PAH concentrations in the samples (r2 = 0.55). However, there were no significant correlations between potency and organic carbon, methoxyphenols, or levoglucosan.

On an emission factor basis (Figure 7), there was an even stronger significant correlation between potency and PAH concentration (r2 = 0.91). There were no marked correlations between potency and organic carbon, methoxyphenols, or levoglucosan.

Discussion

The present findings indicate that combustion byproducts from various biomass fuels elicit irritant locomotor responses in zebrafish and which may similarly be irritating to the respiratory tract of mammals. While other mechanisms might influence locomotor responses, the immediacy of the responses, which peaked soon after treatment, coupled with our previous findings that showed blockade of particulate-induced locomotor responses with TRPA1 inhibitors (Stevens et al. 2018) suggest that irritant mechanisms might be driving responses to biomass extracts in the present study. Extracts collected under flaming conditions initiated greater responses on an equal mass basis than extracts derived from smoldering burns, consistent with previous assessments of lung toxicity and mutagenicity to the same fuels (Kim et al., 2018; 2020). However, when expressed on an emission factor basis, smoldering combustion-derived extracts were more irritating than flaming-derived extracts, reflecting the fact that quantity of PM in the ambient air might constitute a major factor in the observed toxicity. Further, chemical composition appears to drive toxicity because irritant responses were strongly correlated with PAH concentration.

The organic extracts of all fuel types and burn conditions produced concentration-dependent hyperactive locomotor responses in zebrafish larvae that peaked during the first min after exposure. These findings are consistent with our previous findings with organic extracts of petroleum diesel exhaust particulate matter (Stevens et al., 2018) and with well-documented PM-induced respiratory irritant responses in humans (Xu et al., 2013) and rodents (Farraj et al., 2011; Filep et al., 2016; Kim et al., 2018; Sussan et al., 2014). Although dipping only slightly during the first minutes after exposure, locomotor responses to the highest concentration of all smoldering extracts plateaued, remaining persistently high for the duration of the monitoring period relative to vehicle control, consist with altered breathing responses of inhaled smoldering emissions reported in a rodent model (Hargrove et al., 2019). In contrast, flaming extracts elicited greater locomotor responses soon after exposure compared to smoldering extracts, although the responses to the highest concentration of some flaming extracts declined markedly to control levels before the end of the monitoring period likely due to induction of overt toxicity. This phenomenon is supported further by the fact that responses to the second highest concentration (9.6 μg EOM/ml) of these same extracts were greater than both the high concentration and the control by the end of the monitoring period. Interestingly, among some extracts across both fuel types, there were two types of responses: an early peak with the high concentration and a delayed rise with the second highest amount. The reasons for this are unclear but may be related to the potential initiation of disparate mechanisms, one that triggered immediate irritant responses resulting from interaction of chemical constituents with zebrafish skin surface and a second delayed response that occurred due to internalization of such constituents over time.

Potency determinations derived from concentration-response data from all extracts revealed that fuel type and burn condition markedly influenced the magnitude of irritant responses. On an equal mass basis, the smoldering extracts did not vary in potency from one another. In contrast, among the flaming extracts, flaming pine and eucalyptus were the most potent, consistent with rodent studies that linked emissions from resinous samples with pulmonary inflammation (Kim et al., 2018). Further, on an equal mass basis, except for flaming pine, the flaming extracts were more potent than smoldering extracts of the same fuel type. The greater activity of the flaming samples on an equal mass basis might be attributed to higher PAH levels, which increase in wood smoke as combustion temperatures rise (McMohan and Tsoukalas, 1987; Bølling et al., 2012; Mcdonald et al., 2000). However, comparisons of potency on an equal mass basis do not account for the fact that smoldering burns generate greater quantity of PM2.5 than the flaming phase of combustion per mass of fuel burned. When comparing potency on an emission factor basis, which factors in the total amount of PM2.5 produced per kg fuel, the smoldering samples were greater than 2 orders of magnitude more potent than the flaming extracts of the same fuel type. Further, among smoldering extracts, pine on an emission factor basis was more potent than eucalyptus and peat, again demonstrating the enhanced relative toxicity of resinous fuels. Interestingly, eucalyptus extracts were the least potent of the fuel types when collected from smoldering burns but were among the most potent when collected after flaming combustion, indicating that combustion phase influences the relative toxicity of a given biomass.

The differences in potency among fuel types appear to be driven by chemical composition of the combustion-derived extracts. Potency on an equal mass basis was positively correlated with PAH concentration in a significant manner. This relationship was even stronger when potency was expressed on an emission factor basis. PAHs have been linked to PM-induced cytotoxicity, inflammation, and oxidative stress, among other mechanisms (Liu et al., 2017; Baulig et al., 2003). Oxidative stress and inflammation by PM constituents may trigger activation of the transient receptor potential ankyrin 1 (TRPA1) cation channels, which previously Stevens et al (2018) noted that in zebrafish was found to mediate irritant locomotor effects of organic constituents of diesel PM. Further, TRPA1 channels are expressed on the skin surface of larval zebrafish and similar to their mammalian orthologues, mediate chemosensation (Kroll et al. 2021; Prober et al., 2008). Red oak and eucalyptus are also rich in other semi-volatile organic compounds such as methoxyphenols (Kim et al., 2018). However, irritant potency did not significantly correlate with methoxyphenols, or other constituents including organic carbon and the semi-volatile levoglucosan. However, these data do not preclude involvement of other constituents such as heavy metals, which are present in varying quantities in biomass smoke Kim et al. 2018).

Although the present study examined locomotor responses, it is unclear to what extent such responses resulted from irritant effects triggered by sensory mechanisms at the skin surface and/or responses resulting from internalization of extract components. This study is therefore limited by the absence of measures of internal concentration, given that hydrophobic chemicals such as PAHs, which are abundant in various sources of PM, are readily absorbed by zebrafish (Kühnert et al., 2013), and once internalized may trigger inflammatory responses (Bai and Van Eeden, 2013). Further, while this model is useful in establishing relative toxicity and biological potency of one PM source from another, the method of exposure, i.e. immersion, in this zebrafish model, precludes direct comparison with inhaled doses encountered by humans. The concentrations used, however, are comparable with PM exposure levels used in previously reported in vitro human lung cell investigations (Lyu et al. 2018; Niu et al. 2021). Further, the biologically conserved sensory mechanisms and responsiveness to chemicals among zebrafish skin and mammalian lung epithelium suggest that interaction of particulates with skin epithelium in this zebrafish model may be comparable and predictive of irritant responses resulting from interaction of inhaled particles with mammalian lung epithelium. Although smoldering and flaming extracts were examined separately in the present study, future investigations need to assess emissions resulting from concurrent flaming and smoldering burns because, in nature, both phases of biomass combustion occur together frequently.

Conclusions

Data demonstrate that zebrafish locomotor assay is a useful tool for screening the irritant potential of biomass combustion emissions and may help expedite relative toxicity determinations of various wildland fire-related sources. Stratification of biomass fuel type and associated combustion conditions based upon biological potency in this model system may help guide targeted inhalation exposure studies in higher order mammalian models.

Acknowledgments:

The authors would like to thank Dr. Michael Hughes of the U.S. EPA for his thorough review of this manuscript prior to submission.

Funding:

WKM was supported by a pre-doctoral traineeship (National Research Service Award T32 ES007126) from the National Institute of Environmental Health Sciences, National Institutes of Health.

Footnotes

Disclosure of interest: The authors report no conflict of interest.

Disclaimer: This manuscript has been reviewed by the Center for Public Health and Environmental Assessment, United States Environmental Protection Agency and approved for publication. Approval does not signify that the contents necessarily reflect the views and policies of the Agency nor does mention of trade names or commercial products constitute endorsement or recommendation for use.

Availability of Data and Material: All data (i.e. individual values used to generate means and standard deviations presented in the tables and figures reported in this manuscript) will be made available on the U.S. E.P.A. public data repository located at https://catalog.data.gov/harvest/epa-sciencehub
