Fibrodysplasia ossificans progressiva (FOP) presenting as a rapidly growing non-calcified neck mass

Abstract

Fibrodysplasia ossificans progressiva (FOP) is an extremely rare autosomal dominant inherited disorder leading to mature ossification within soft tissues. We report a 62-year-old female with a 3-week history of a rapidly enlarging left neck mass with no associated symptoms. A neck CT showed a ~10 cm solid-appearing non-calcified left neck mass that markedly decreased in size on a one-month follow-up neck MRI, but with new extensive edema/intense enhancement in floor of the mouth. Prior radiographs documented hallux valgus and heterotopic ossification of the psoas/paraspinal muscles and shoulder girdle. In this case of FOP, no intervention was implemented and the symptoms improved over time and thus paralleled other such cases for flare-ups. Clinicians should be aware of this rare entity, as it is frequently misdiagnosed as cancer or other benign entities such as infection, resulting in biopsies that can often hasten disease progression.

CASE REPORT

A 62-year-old woman developed a progressive enlarging left neck mass just below the mandible that was first noticeable three weeks after discontinuation of prednisone. She was on 1 mg of oral prednisone daily due to fibrodysplasia ossificans progressiva (FOP). She denied dysphagia, respiratory difficulties, or oral discharge. Furthermore, she did not endorse any new systemic symptoms to include recent fevers, chills, or sweats. In the interim, she was started on oral doxycycline/clindamycin and intravenous vancomycin due to possible infection. This treatment resulted in no apparent improvement. Her extensive medical history was notable for FOP, fibromyalgia, hypothyroidism (on levothyroxine), intertrigo, and muscle cramps. The patient’s only notable lab value was an alkaline phosphatase level of 782 U/L (normal range: 44–147 U/L). Inflammatory/infectious markers, including white blood cell count, erthyrocyte sedimentation rate (ESR), and C-reative protein (CRP), were normal.

Given the suspicion for a parotid mass, a neck CT with contrast was obtained, revealing a large solid-appearing non-calcified left neck mass arising between sternocleidomastoid muscle and carotid space, measuring 10 × 3.6 × 3.5 cm (CC × TV × AP), compressing the internal jugular vein and displacing the common carotid and internal carotid artery medially (Figure 1). The mass was separate from the parotid gland and located posterior to the submandibular gland, extending from the angle of the mandible to the level of the clavicle without an apparent separation from the inferior aspect of the sternocleidomastoid muscle. The scout topogram from this neck CT showed no heterotopic ossification. Given these findings, differential considerations included sternocleidomastoid muscle myositis, myositis ossificans, giant angiolymphadenitis, or rhabdomyoma of the sternocleidomastoid muscle.

Figure 1. 62-year-old female presenting with a neck mass consistent with fibrodysplasia ossificans progressiva (FOP).

FINDINGS: Neck CT using soft tissue windowing demonstrates a large solid-appearing heterogeneously-enhancing mass arising between sternocleidomastoid muscle and carotid space measuring 10 × 3.6 × 3.5 cm (CC × TV × AP) as indicated by the white arrow in A. the axial plane at the level of the thyroid cartilage, B. the axial plane at the level of the parotid glands, C. the coronal plane, and D. the sagittal plane. The mass compresses and posteromedially displaces the internal jugular vein and medially displaces the common carotid and internal carotid arteries. The mass is separate from the parotid gland and located posterior to the submandibular gland, extending from the angle of the mandible to the level of the clavicle without an apparent separation from the inferior aspect of the sternocleidomastoid muscle.

TECHNIQUE: Contrast-enhanced axial CT with multiplanar reformats. Images were acquired with a GE Discovery CT750 HD CT scanner at 89.5 mAs, 120 kV, 5 mm slice thickness, and FOV 249.5, after the intravenous administration of 100 mL of Iohexol (Omnipaque) 350 mg iodine/mL.

A one-month follow-up neck magnetic resonance imaging (MRI) revealed marked interval decreased size in the left sternocleidomastoid muscle measuring 6.7 × 2.5 × 2.3 cm (CC × AP × TV), with minimal residual asymmetric prominence and enhancement (Figure 2). However, there was new extensive edema and intense enhancement involving the floor of the mouth muscles (Figure 2), including the belly of digastric muscles, myelohyoid muscles, and geniohyoid muscles. Additionally there was new submental soft tissue stranding and moderate thickening, edema, and enhancement along the lateral fibers of the lower left scalene muscle. This case is notable in regards to subsequent involvement of the floor of the mouth muscles bilaterally without involvement of the tongue muscles. Interestingly, the tongue, extra-ocular muscles, and diaphragm are spared in FOP [1].

Figure 2. 62-year-old presenting with a neck mass consistent with FOP.

FINDINGS: Neck MRI highlights marked interval decreased size in the left sternocleidomastoid muscle now measuring 6.7 × 2.5 × 2.3 cm (CC × AP × TV), with minimal residual asymmetric prominence and enhancement (white arrows). There is new extensive edema and intense enhancement involving the floor of the mouth muscles, including the belly of digastric muscles (blue arrows), myelohyoid muscles (blue arrowheads), and geniohyoid muscles (blue asterisks), in addition to left submandibular gland with mild asymmetric edema and enhancement favored to be reactive (green arrows) on A. non-contrast axial T1-weighted MRI, B. non-contrast axial T2-weighted MRI, C. contrast-enhanced axial T1-weighted fat-saturated MRI, D–E. contrast-enhanced coronal T1-weighted fat-saturated MRI, and F. contrast-enhanced sagittal T1-weighted fat-saturated MRI.

TECHNIQUE: Axial non-contrast T1-weighted neck MRI acquired on a GE Discovery MR750w 3T MRI scanner with a TE: 14.71, TR: 644, and FOV 240. Axial contrast-enhanced T1-weighted fat-saturated neck MRI acquired with same scanner at 3T, TE: 14.71, TR: 741, and FOV 240, after the intravenous administration of 6 mL of Gadobenate (Multihance) 529 mg/mL.

The rheumatologist decided to monitor the patient, without restarting prednisone. Her symptoms had been stable since her neck MRI on a three-month follow-up visit, although the patient continued to endorse intermittent pain and tenderness of the neck varying by side and site. She had no difficulty swallowing but endorsed difficultly with jaw opening and chewing, similar to prior occasions, but not on the initial presentation with the neck mass.

DISCUSSION

Etiology & Demographics

Fibrodysplasia ossificans progressiva (FOP), previously known as myositis ossificans progressiva (MOP) and also known as Münchmeyer disease, is an extremely rare and debilitating genetic disorder of the connective tissues that is typified by skeletal malformations and progressive heterotopic ossification [1,2]. The disease is sporadic with an autosomal dominant inheritance pattern, a worldwide prevalence of ~0.5–1 per 2 million, and a median life expectancy of ~45 years [3,4].

Clinical & Imaging Findings

First described by John Freke in 1736 [5], FOP first manifests in early adolescence and is clinically characterized by malformation of the great toes and thumbs in addition to progressive heterotopic ossification (i.e. “secondary skeleton”) of the connective tissues, including the ligaments, tendons, aponeuroses, fascia, and skeletal muscles. This ultimately results in permanent immobility and respiratory insufficiency secondary to severe scoliosis [3,6,7]. We report a case of a progressive enlarging left neck mass that initially presented as a clinical challenge of unknown etiology, which favored a parotid mass prior to imaging. This mass markedly improved without intervention months later, findings consistent with a FOP flare. Clinicians should be aware of this rare entity, as it is frequently misdiagnosed as cancer (e.g. sarcoma) or other benign entities, such as infection/cellulitis, resulting in biopsies that can often hasten disease progression.

FOP causes mature ossification within soft tissues, resulting in bridging between osseous structures. This typically initially affects the sternocleidomastoid muscle followed by muscles of the shoulder girdle, upper arms, spine, and pelvis [8]. The disease pattern starts with a mass, surrounding edema, and distortion of fat planes followed by heterotopic ossification in ensuing weeks and months. The ossification pattern in FOP is zonal, comprised of peripheral well-organized mature lamellar bone, intermediate osteoid bone, and a central non-ossified cellular focus (i.e. organizing granulation tissue with fibroblasts).

Radiography is typically sufficient for the evaluation of FOP [3,6], which will show key characteristic disease features, including soft tissue ossification, joint malformations, malformation of the great toes (i.e. hallux valgus, monophalangic, microdactyly), malformation of the thumbs (i.e. macrodactyly), malformation of the cervical spine (i.e. facet joint fusion), malformation of the proximal femurs, and pseudoexostoses of ligamentous insertions. MRI can be useful in detecting subtle edema, characterized by T2 hyperintensity and enhancement on T1 post-contrast imaging, which would not be apparent on plain radiography or CT. Notably, bone scintigraphy will demonstrate activity in affected connective tissues prior to detection of heterotopic ossification on plain radiography [3]. Interestingly, a thorough retrospective chart review revealed that the patient had a hallux valgus deformity of the left great toe (Figure 3), a documented hallux deformity of the right great toe without available imaging, and a remote history of a right upper arm soft tissue mass, diagnosed as fibrosing fasciitis/myositis, that subsequently resulted in a large calcification/osseous bridge overlying the soft tissues of the right chest/shoulder (Figure 4). Pelvic radiographs from about the same time period demonstrated extensive heterotopic ossification predominantly involving the bilateral psoas muscles and right greater than left obturator muscles (Figure 5).

Figure 3. 62-year-old female presenting with a neck mass consistent with FOP with prior foot pain.

FINDINGS: Single AP radiograph of the left foot showing second through fifth hammertoe deformities (white arrows) and hallux valgus deformity (blue arrow). Incidentally noted chronic fracture deformities of the fourth and fifth metatarsal shafts (green arrows), in addition to polyarticular osteoarthrosis most notable at the tarsometatarsal joints (red arrows).

TECHNIQUE: Single frontal view of the left foot acquired at 55 kVp and 4 mAs.

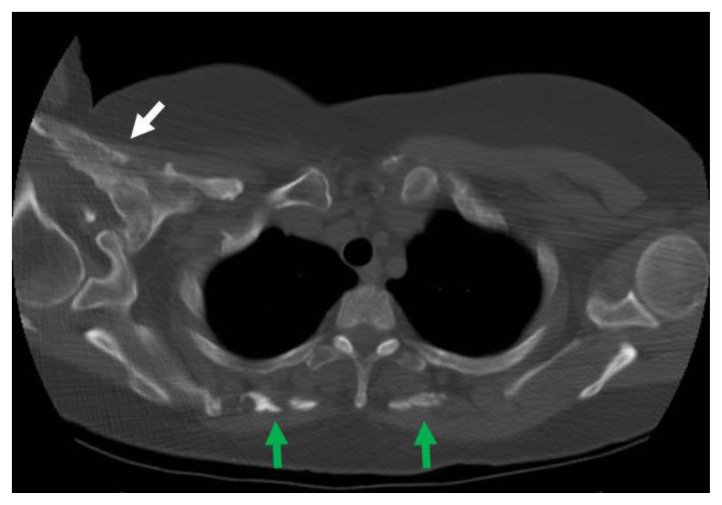

Figure 4. 62-year-old female presenting with a neck mass consistent with FOP with prior shoulder pain.

FINDINGS: Chest CT without contrast using bone windowing showing extensive calcification/osseous bridge overlying the muscles of the right chest/shoulder and bridging multiple superior ribs and the clavicle (white arrow). Heterotopic ossification noted within the soft tissues and muscles of the bilateral upper back (green arrows), including the rhomboid major.

TECHNIQUE: Non-contrast axial CT. Images were acquired with a GE LightSpeed Plus 16 Slice Helical CT scanner at 436.6 mAs, 120 kV, 5 mm slice thickness, and FOV 360.

Figure 5. 62-year-old female presenting with a neck mass consistent with FOP with previous right hip pain.

FINDINGS: Single AP radiograph of the pelvis showing extensive heterotopic ossification predominantly involving the bilateral psoas muscles (white arrows) and right greater than left obturater muscles (green arrows). Severe right hip arthropathy with superolateral subluxation of the femoral head and right acetabular dysplasia (red arrow).

TECHNIQUE: Single frontal view of the pelvis acquired at 75 kVp and 20 mAs.

Treatment & Prognosis

No effective disease-modifying treatment exists for FOP, although corticosteroids are used for short-term treatment of flares [1,3,9]. The genetic underpinnings of this insidious disease have evaded investigators until recently and now upwards of 12 mutations in regions coding for the glycine-serine rich and protein kinase domains of the ACVR1 gene have been described [2,3,7]. ACVR1 encodes activin receptor IA (ACVR1)/activin-like kinase 2 (ALK2), which is a bone morphogenic protein (BMP) type I receptor involved in bone formation, induction, and regeneration. Gain-of-function missense mutations of ACVR1/ALK2 ultimately result in aberrant bone formation in connective tissues and muscles [7]. A chart review revealed that genetic testing from ~8 years prior showed that the patient did not carry the c.617G>A germline mutation in ACVR1 gene, which can be found in ~90% of FOP patients. Interestingly, the patient has a sibling with FOP. As such, it is suspected that the patient is a carrier of one of the other 11 more relatively rare germline mutations that weren’t tested and suggests that the patient’s parents may have been carriers. As was heeded in this patient, biopsies should be avoided for suspected FOP cases as this may result in rapid bone formation in areas where tissue is removed. Furthermore, a biopsied early FOP lesion may be mistaken for several types of cancer depending on the state of lesion maturation.

Differential Diagnoses

Due to its rarity, FOP is frequently misdiagnosed as cancer or other benign entities. A key to early diagnosis is associating a rapid waxing and waning soft tissue mass of the head, neck, shoulder, and upper back with symmetric malformed great toes [3,7]. Although biochemical testing (i.e. alkaline phosphatase or bone-specific alkaline phosphatase) may be helpful in tracking disease flares, this is not always reliable [4]. The diagnosis can only be confirmed with genetic testing of the ACVR1 gene. Early diagnosis is essential to avoid unnecessary and harmful biopsies that can often hasten disease progression [10]. This is an important consideration given that patients with FOP are susceptible to ossification in regions that sustain even minor trauma. Other differential considerations include:

Sarcoma

A reasonable differential consideration especially on initial presentation includes sarcoma (such as rhabdomyosarcoma). Sarcoma demonstrates similar edema and enhancement, marked [¹⁸F]fluorodeoxyglucose (FDG) uptake on PET, possible associated osseous remodeling, periosteal reaction, and/or chondroid matrix. Unlike FOP, sarcoma increases in size and demonstrates persistent or increased FDG uptake on PET over time.

Cellulitis

Cellulitis is a serious and potential common differential diagnosis to be considered in this case, especially in an older patient who is possibly more susceptible to infection. Heterogeneous enhancement, fat stranding, edema, and marked FDG uptake on PET associated with this condition will all typically return to normal after the administration of antibiotics.

Dermatomyositis

A less common differential consideration in this case is autoimmune disease, including dermatomyositis. The edema, enhancement, and diffuse muscular FDG uptake on PET associated with this condition typically normalizes after treatment with steroids, azathioprine, and/or methotrexate. However, the soft tissue/muscular dystrophic calcifications that are typical for this condition will persist after treatment.

Other

Alternative less likely differential considerations in this case include angiolymphadenitis/Castleman disease, aggressive fibromatosis (desmoid), malignant fibrous histiocytoma, scleroderma, and systemic sclerosis/CREST syndrome. However, none of these entities or the differential conditions listed above, is associated with symmetric skeletal malformations or waxing-waning soft tissue masses.

TEACHING POINT

Fibrodysplasia ossificans progressiva (FOP) is an infrequently encountered and thus diagnostically challenging heritable connective tissue disorder characterized by progressive heterotopic ossification that forms qualitative normal bone in muscles, tendons, and ligaments. Clinical history (i.e. rapid waxing and waning soft tissue mass of the head, neck, shoulder, and upper back) and specific quintessential radiologic signs (i.e. symmetric malformed great toes) are key to its early diagnosis and proper clinical management, including avoiding biopsies of suspected lesions that can hasten disease progression.

Table 1.

Summary table of fibrodysplasia ossificans progressiva.

Etiology	Gain-of-function missense mutations of ACVR1/ALK2 resulting in aberrant bone formation in connective tissues and muscles.
Prevalence	Worldwide prevalence of ~0.5–1 per 2 million.
Gender ratio	No significant difference in gender ratio.
Age predilection	95% of patients manifest heterotopic ossification before age 15.
Risk Factors	Except for family history of the disorder, no other known risk factors.
Treatments	No effective disease-modifying treatment exists. Corticosteroids can be used for short-term treatment of flares.
Prognosis	Median age of survival is ~45 years.
Findings on Imaging	Radiography: Soft tissue ossification, joint malformations, malformation of the great toes/thumbs, cervical spine, and proximal femurs; and pseudoexostoses of ligamentous insertions. CT: Mass-like enhancement and heterotopic ossification of the soft tissues during early and late phases of the disease, respectively. MRI: Mass-like edema and enhancement of the soft tissues during flares.

Table 2.

Differential diagnosis table for fibrodysplasia ossificans progressiva.

	CT	MRI	FDG-PET
Fibrodysplasia ossificans progressiva	Early stage shows mass-like enhancement of soft tissues whereas late stages show heterotopic ossification of soft tissues.	During flare is T1 isointense to muscle, T2 hyperintense, and avidly enhances. Rapid waxing and waning soft tissue masses can be seen depending on phase of flare.	Marked FDG uptake during flares that later normalizes until the next flare.
Sarcoma	Heterogeneous enhancement with possible associated osseous remodeling, periosteal reaction, and/or chondroid matrix.	T1 isointense to muscle, T2 hyperintense, and avid heterogeneous enhancement.	Marked FDG uptake that persists or increases over time unless treated.
Cellulitis	Heterogeneous enhancement and fat stranding.	T1 isointense to muscle, T2 hyperintense, and heterogeneous enhancement that typically returns to normal after antibiotics.	Marked FDG uptake that typically returns to normal after antibiotics.
Dermatomyositis	Typically shows dystrophic calcification in muscles and soft tissues.	Generally, T2 hyperintense and with diffuse enhancement throughout affected muscles that may normalize after treatment. Calcific areas may be low in signal.	Diffuse FDG uptake within muscles that later normalizes after treatment.

ABBREVIATIONS

ACVR1

activin receptor IA

ALK2

activin-like kinase 2

BMP

bone morphogenic protein

CT

Computed Tomography

FDG

[18F]fluorodeoxyglucose

FOP

Fibrodysplasia ossificans progressiva

MRI

Magnetic Resonance Imaging
