Learning epistatic gene interactions from perturbation screens

Abstract

The treatment of complex diseases often relies on combinatorial therapy, a strategy where drugs are used to target multiple genes simultaneously. Promising candidate genes for combinatorial perturbation often constitute epistatic genes, i.e., genes which contribute to a phenotype in a non-linear fashion. Experimental identification of the full landscape of genetic interactions by perturbing all gene combinations is prohibitive due to the exponential growth of testable hypotheses. Here we present a model for the inference of pairwise epistatic, including synthetic lethal, gene interactions from siRNA-based perturbation screens. The model exploits the combinatorial nature of siRNA-based screens resulting from the high numbers of sequence-dependent off-target effects, where each siRNA apart from its intended target knocks down hundreds of additional genes. We show that conditional and marginal epistasis can be estimated as interaction coefficients of regression models on perturbation data. We compare two methods, namely glinternet and xyz, for selecting non-zero effects in high dimensions as components of the model, and make recommendations for the appropriate use of each. For data simulated from real RNAi screening libraries, we show that glinternet successfully identifies epistatic gene pairs with high accuracy across a wide range of relevant parameters for the signal-to-noise ratio of observed phenotypes, the effect size of epistasis and the number of observations per double knockdown. xyz is also able to identify interactions from lower dimensional data sets (fewer genes), but is less accurate for many dimensions. Higher accuracy of glinternet, however, comes at the cost of longer running time compared to xyz. The general model is widely applicable and allows mining the wealth of publicly available RNAi screening data for the estimation of epistatic interactions between genes. As a proof of concept, we apply the model to search for interactions, and potential targets for treatment, among previously published sets of siRNA perturbation screens on various pathogens. The identified interactions include both known epistatic interactions as well as novel findings.

1 Introduction

Genetic interactions are also referred to as epistasis, a term that originates from the field of statistical genetics and describes genetic contributions to the phenotype that are not linear in the effects of single genes [1, 2]. Considering two genes at a time, positive and negative epistasis refer to a greater and smaller effect, respectively, of the double mutant genotype than expected from the two single mutant genotypes relative to the wild type. In genetics, the phenotype of primary interest is the reproductive success of a cell, which is commonly termed fitness [3]. In this context, a fitness landscape is the mapping of each combination of possible configurations of gene mutations to a fitness phenotype [4].

The knowledge of fitness landscapes is highly relevant for personalized disease treatment [5]. In cancer, for example, genetic aberrations result in cells with increased somatic fitness, for instance, by evading apoptosis or gaining the ability to metastasise. This increase subsequently promotes post-metastatic tumour development [6]. A major challenge in cancer therapy is the fact that many genes with driving mutations cannot be adequately targeted for inhibition due to toxic side effects and rapid development of drug resistance [7, 8]. To overcome this challenge, a strategy based on the inhibition of genes that interact with genes with cancer driving alterations was proposed [9]. This strategy is based on the principle of synthetic lethality [5, 10, 11], the extreme case of negative epistasis, where single mutants are compatible with cell viability but the double mutant results in cell death. Identifying synthetic lethal gene interactions allows targeting cancer cells in which one of the two genes is mutated, by using drugs that affect the other. In the presence of this drug, the cancer cell lineage will no longer be viable [12].

The identification of fitness landscapes is however a very challenging task, simply due to the exponential growth of the space of interactions. For yeast, for example, it has been shown to be feasible to experimentally perform 75% of all pairwise knockouts [13]. Similarly, [14, 15] study fitness landscapes with a small number of genes in which all or nearly all genotypes of interest have been measured. However, in humans, with approximately 20,000 protein-coding genes, this would constitute to almost 200 million experiments to test all pairwise interactions. An approach that has been successfully applied to identify synthetic lethality in vitro is large-scale perturbation screening of human cancer cell lines using RNA interference [16–19]. However, this strategy only allows cataloguing synthetic lethal gene pairs where one gene is always specific to the screened cell line. While these methods may be sufficient for the identification of a few promising targets for cancer therapy, they do not allow us to estimate general pairwise gene interactions at the human exome scale. To our knowledge, there are currently no methods for inferring gene interactions at this scale. We therefore focus on demonstrating that our approach is sound, rather than comparing to existing methods.

Short-interfering RNAs (siRNAs), the reagents used in RNAi perturbation screening, exhibit strong off-target effects, which results in high numbers of false positives rendering the perturbations hard to interpret [20]. While this is usually conceived as a problem, here we take advantage of this property for the estimation of genetic interactions [21–23]. We propose a novel approach for the second order approximation of a human fitness landscape by inferring the fitness of single gene perturbations and their pairwise interactions from RNAi screening data (Fig 1). Our approach is not restricted to interactions with mutant genes of a specific cell line or explicit double knockdowns. We leverage the combinatorial nature of sequence-dependent off-target effects of siRNAs, where each siRNA in addition to the intended on-target knocks down hundreds of additional genes simultaneously. Not distinguishing between on- and off-targeted genes, we consider each siRNA knockdown as a combinatorial knockdown of multiple genes. Hence, every large-scale RNAi screen, though unintended, contains large numbers of observations of high-order combinatorial knockdowns and provides a rich source for the extraction of pairwise epistasis. These off-target effects have previously been used to improve inference of signalling pathways among a small number (on the order of a dozen) genes [22, 23]. Here, however, we attempt to use it to discover epistatic gene pairs in a genome-wide fashion (i.e. among tens of thousands of genes). Our approach is formulated as a regularized regression model. It can also be deployed for the estimation of epistasis from phenotypes other than fitness, such as for instance phenotypes that measure the activity of disease-relevant pathways, e.g. for pathogen entry [24], TGFβ-signalling [25], or WNT-signalling [26]. Long term, the identification of disease-relevant epistatic gene pairs may allow the design or re-purposing of agents for combinatorial therapy with the potential to improve the efficacy of drugs.

Fig 1. RNAi fitness landscape model.

Black arrows indicate outputs that are actually produced. Red arrows indicate theoretical output.

In solving this model, we adapt two recent statistical learning methods, namely glinternet [27] and xyz [28] to select genes and gene-pairs with non-zero effects on fitness, and evaluate both models on simulated data from real RNAi libraries. We vary the signal-to-noise ratios, number of true gene–gene interactions, number of observations per double knockdown and effect size for epistasis. We find that, within ranges that are realistic to real RNAi data, both approaches are capable of inferring pairwise epistasis with favourable precision and sensitivity when only a small number of genes are involved in interactions. In several tests glinternet continued to infer correct interactions up to several thousand genes, however the run time prohibits more thorough testing. To demonstrate the model on a real data set, we use the perturbation data from [24]. Using glinternet, we search for interactions between kinases, and report the most significant results.

Our simulations are performed using R, and the source code is available at: https://github.com/bioDS/xyz-simulation.

2 Methods

We fix the binary alphabet Σ = {0, 1} representing the two possible states in a perturbation experiment. The value zero denotes the normal state of the gene (unperturbed wild type), whereas the value one indicates knockdown of the gene (perturbed). For p genes we denote by Σ^p the set of binary sequences of length p, indicating the perturbation status of each gene. Any subset $\mathcal{P}\subseteq {\Sigma }^p$ is called a perturbation space and its elements are called perturbation types. If the perturbations are genetic mutations, then the perturbation types are genotypes.

2.1 Fitness landscapes and epistasis

In the following, we focus on fitness landscapes, but would like to note that the theory also holds for any mapping of perturbation type to phenotype. A fitness landscape is a mapping $f:\mathcal{P}\to {\mathbb{R}}_{+}$ from perturbation type space to non-negative fitness values. Genetic interactions are a property of the underlying fitness landscape [29]. For p = 2 genes, the perturbation type space $\mathcal{P}=\{0,1{\}}^2$ contains the wild-type 00, two single perturbations 01 and 10, and the double perturbation 11. The fitness landscape $f:{\{0,1\}}^2\to {\mathbb{R}}_{+}$ can be written as

$$\begin{array}{ccc}\hfill f(0,0)& =& {\beta }_0\hfill \\ \hfill f(1,0)& =& {\beta }_0+{\beta }_1\hfill \\ \hfill f(0,1)& =& {\beta }_0+{\beta }_2\hfill \\ \hfill f(1,1)& =& {\beta }_0+{\beta }_1+{\beta }_2+{\beta }_{1,2}\hfill \end{array}$$

for parameters ${\beta }_i\in \mathbb{R}$. β₀ is called the bias, β₁ and β₂ main effects, and β_1,2 the interaction. Epistasis is defined as

$$\begin{array}{c}\hfill \epsilon =f(0,0)+f(1,1)-f(0,1)-f(1,0)\end{array}$$ (1)

It measures the deviation of the fitness of the double knockdown from the expectation under a linear fitness model in the main effects. We see that ε = β_1,2.

2.1.1 Fitness landscape model

It is challenging to generalize the notion of epistasis (Eq 1), because in higher dimensions, many more types of genetic interactions exist [29], even when restricting to pairwise interactions. In general, it will be impossible to estimate all interactions encoded in the fitness landscape reliably from data. In the following, we show how to assess marginal and conditional pairwise epistasis. For p ≥ 1 genes, we consider the Taylor expansion of the fitness landscape

$$\begin{array}{c}\hfill f(x_1,\dots ,x_p)={\beta }_0+\sum _i{x}_i{\beta }_i+\sum _{i<j}{x}_i{x}_j{\beta }_{i,j}+\sum _{i<j<k}{x}_i{x}_j{x}_k{\beta }_{i,j,k}+\dots \end{array}$$ (2)

Ignoring interactions of order 3 and higher we obtain the more computationally tractable approximation:

$$\begin{array}{c}\hfill f(x_1,\dots ,x_p)\approx {\beta }_0+\sum _i{x}_i{\beta }_i+\sum _{i<j}{x}_i{x}_j{\beta }_{i,j}\end{array}$$ (3)

We show in Appendix A in S1 Appendix that in the fitness landscape model (Eq 3), which contains all main effects and pairwise interactions, but no interactions of higher order, the interaction terms β_i,j alone determine conditional and marginal epistasis of the fitness landscape. Note that although we are discussing the Taylor approximation of the fitness function, the resulting pairwise epistasis definition is identical to that in [15].

2.2 Estimation of epistasis from RNAi perturbation screens

In in vitro RNAi experiments cells are perturbed by reagents, such as siRNA, shRNA, and dsRNA [30], each targeting a specific gene for knockdown. In recent years, it has been shown [20] that siRNAs exhibit strong sequence-dependent off-target effects, such that, in addition to the intended target gene, hundreds of other genes are knocked down. Thus, we can regard siRNA perturbation experiments as combinatorial knockdowns affecting multiple genes simultaneously. On the basis of the fitness landscape model (Eq 3), we propose a regression model for the estimation of epistasis from RNAi data. This inference is only feasible because of the unintended combinatorial nature of siRNA knockdowns.

2.2.1 Perturbation type space

For an RNAi-based perturbation screen, the perturbation type space $\mathcal{P}=\{g_1,\dots ,g_n\}$ is represented as the n × p matrix X that contains g_i in row i. Based on the nucleotide sequences of the reagents, perturbations can be predicted by models for micro RNA (miRNA) target prediction [31]. We use X₁, …, X_p to denote the p column vectors of X for genes 1, …, p and denote by X_i ∘ X_j the column vector consisting of the element-wise products of the entries of X_i and X_j. As a measure of fitness, we use the vector $\mathit{Y}\in {\mathbb{R}}_{+}^n$, denoting the number of cells present after siRNA knockdown.

2.2.2 Regression model

We aim to estimate the conditional epistasis β_i,j between the $\left(\begin{array}{l}p\hfill \\ 2\hfill \end{array}\right)$ pairs of genes (i, j) ∈ {1, …, p}² from all combinatorial gene perturbations in the screen represented in the n × p matrix X, and the n × 1 vector of fitness phenotypes Y. Based on (Eq 3) we regress phenotype Y on perturbations X,

$$\begin{array}{c}\hfill \mathbb{E}[\mathit{Y}\mid \mathit{X}]={\beta }_0+\sum _i{\mathit{X}}_i{\beta }_i+\sum _{i<j}({\mathit{X}}_i\circ {\mathit{X}}_j){\beta }_{i,j}\end{array}$$ (4)

The estimated β_i,j are interpreted as the expected change in the response variable Y per unit change in the predictor variable (X_i ∘ X_j) with all other predictors held fixed [32]. From Corollary 1 it follows that estimates for marginal epistasis ε_i,j can be obtained by multiplication of β_i,j with the constant 2^p−2.

2.2.3 Inference

We aim to infer the regression parameters β = (β₀, β_{i:i>0}, β_{i,j:i<j}). Since it is infeasible to directly perform least squares linear regression on the matrix containing all $\left(\begin{array}{l}p\hfill \\ 2\hfill \end{array}\right)$ interactions, we use a two-stage process. First, we use either the group lasso regularisation package glinternet [27], or the xyz interaction search algorithm [28] to select non-zero interactions. This variable selection step is the main computational challenge.

When using glinternet, we infer parameters β = (β₀, β_{i:i>0}, β_{i,j:i<j}) by minimising the squared-error loss function

$$\begin{array}{c}\hfill \mathcal{L}(\mathit{Y},\mathit{X};\beta )=\frac{1}{2}\Vert \mathit{Y}-({\beta }_0+\sum _i{\mathit{X}}_i{\beta }_i+\sum _{i<j}({\mathit{X}}_i\circ {\mathit{X}}_j){\beta }_{i,j}){\Vert }_2^2\end{array}$$ (5)

under the strong hierarchy constraint

$$\begin{array}{c}\hfill {\beta }_{i,j}\ne 0\text{if}\text{and}\text{only}\text{if}\text{both}{\beta }_i\ne 0\text{and}{\beta }_j\ne 0.\end{array}$$ (6)

This constraint allows conditional epistasis between gene i and j, i.e., β_i,j ≠ 0, only if both single-gene effects β_i and β_j are present and constrains the search space. Lim and Hastie ([27]) show that this model can be formulated as a linear regression model with overlapped group lasso (OGL) penalty [33], where, in contrast to the group lasso [34], each predictor can be present in multiple groups.

To perform the variable selection, xyz searches for pairs (i, j) that maximise Y^T X_i X_j. These are the interaction effects that account for the largest component of the response Y. While xyz can be used directly to find the largest interactions, we used xyz_regression to estimate all interactions. xyz_regression solves the following elastic-net problem [28]

$$\begin{array}{c}\hfill \underset{({\beta }_0,\beta )\in {\mathbb{R}}^{p+1},\theta \in {\mathbb{R}}^{p(p-1)/2}}{\text{min}}[\frac{1}{2n}\sum _{i=1}^N{(y_i-{\beta }_0-x_i^T\beta -w_i^T\theta )}^2+\lambda (P_{\alpha }\left(\beta \right)+P_{\alpha }\left(\theta \right))],\end{array}$$ (7)

where

$$\begin{array}{c}\hfill W\in {\mathbb{R}}^{n\times p(p-1)/2}=(X_1\circ X_2,X_1\circ X_3,\dots ,X_1\circ X_p,X_2\circ X_3,\dots ,X_{p-1}\circ X_p)\end{array}$$ (8)

is the matrix of interactions, and $\theta \in {\mathbb{R}}^{p(p-1)/2}$ is the vector of regression coefficients for pairwise combinations of columns in W.

$$\begin{array}{c}\hfill P_{\alpha }\left(\beta \right)=(1-\alpha )\frac{1}{2}{\left|\right|\beta \left|\right|}_{{\ell }_2}^2+{\alpha \left|\right|\beta \left|\right|}_{{\ell }_1}\end{array}$$ (9)

is the elastic-net penalty.

The parameter α decides the compromise between the ridge-regression penalty (α = 0) and the lasso penalty (α = 1). We left the default value of α = 0.9. The solution is found iteratively, with only a particular set of beta values are allowed to be non-zero at each iteration. In every iteration, the beta values that violate the Karush–Kuhn–Tucker conditions (Eq 10) are added to this set.

$$\begin{array}{c}\hfill KKTConditions:X^T(Y-X\beta )=\lambda s,s_i\in \{\begin{array}{cc}\left\{1\right\}\hfill & if{\beta }_i>0\hfill \\ \{-1\}\hfill & if{\beta }_i<0\hfill \\ [-1,1]\hfill & if{\beta }_i=0\hfill \end{array}\end{array}$$ (10)

Rather than being computed directly, these beta values are found using the xyz algorithm (See Appendix C in S1 Appendix for details). We followed the recommendation in [28] and used $L=\sqrt{p}$ projections to find the strong interactions. Our own tests in Appendix D in S1 Appendix also suggest that further projections do not improve performance.

Second, once the non-zero effects have been estimated using either glinternet or xyz, we construct a matrix X′ with all elements of the set {X_i|X_i ≠ 0} ∪ {X_i ∘ X_j|X_i ⋅ X_j ≠ 0} as columns, in an arbitrary order. We then fit Y ∼ X′β using R’s lm least squares linear regression to calculate the coefficient estimates and corresponding p-values, the latter being whether the value significantly deviates from zero according to a t-test with n − k − 1 degrees of freedom, where k is the number of effects predicted to be non-zero and including in the final regression step. We adjust the p-value to control the false discovery rate with the method of [35], and refer to this adjusted value as the q-value. Given this two-step procedure, we do not expect these values to be the same as if they were calculated using the complete interaction matrix and it should be noted that these may be biased estimates [44].

2.3 Software

The overlapped group lasso for strongly hierarchical interaction terms is implemented in the R-package glinternet 1.0.10 by Lim and Hastie [27] and available through the Comprehensive R Archive Network (CRAN) at https://cran.r-project.org/web/packages/glinternet/. The xyz algorithm is implemented in xyz 0.2 by Gian-Andrea Thanei [28] available at https://cran.r-project.org/web/packages/xyz/. The simulations are run using a version of this software that also contains a trivial bug fix, available at https://github.com/bioDS/xyz-simulation. For the data simulation, analysis and visualisation, we used the R-packages Matrix 1.2.6, dplyr 0.4.3, tidyr 0.4.1 and ggplot2 2.1.0. All simulations are performed using R 3.2.4.

2.4 Simulation of RNAi data

The data simulation followed a three-step procedure. First, we simulate the siRNA–gene perturbation matrix X based on real siRNA libraries. Second, main effects β_i and conditional epistasis between pairs of genes β_i,j are sampled. Based on X and β, we then sample fitness phenotypes Y from our model (Eq 3) and add noise to match specific signal-to-noise ratios [36]

$$\begin{array}{c}\hfill \text{SNR}=\frac{Var\left(\mathbb{E}\right[\mathit{Y}\mid \mathit{X}\left]\right)}{Var(\mathit{Y}-\mathbb{E}[\mathit{Y}\mid \mathit{X}\left]\right)}.\end{array}$$ (11)

Details for each step including parameter ranges are as follows.

We simulate siRNA–gene perturbation matrices based on four commercially available genome–wide libraries for 20822 human genes from Qiagen with an overall size of 90000 siRNAs. First, we predict sequence dependent off-targets using TargetScan [37] for each siRNA as described in [21]. We threshold all predictions to be 1 if larger than zero and 0 otherwise. Then, we sample n = 1000 siRNAs from {1, …, 90000} and p = 100 genes from {1, …, 20822} without replacement and construct the n × p binary matrix X. Hence, each row X_i⋅ then contained the perturbation type g_i = (x_i,1, …, x_i,p).

We simulate q ∈ {5, 20, 50, 100} non-zero conditional epistasis terms β_i,j between genes i and j from all observed combinatorial knockdowns, i.e. if the simulated screen contained siRNAs that target both genes. This is a necessary condition for the identifiability of β_i,j, as otherwise, according to the model (Eq 4), β_i,j will be multiplied by a zero vector X_i ∘ X_j = 0. The effect size of the β_i,j is sampled from N(0, 2). In order to maintain a strong hierarchy, we subsequently simulate for each interaction β_i,j both main effects β_i and β_j. Further, we add r ∈ {0, 20, 50, 100} additional main effects. The effect sizes of the main effects are sampled from N(0, 1), so that the variance in the response fitness phenotypes are split in a ratio of 1:2 between main effects and interactions.

In order to model synthetic lethal pairs, interactions with effect strength of −1000 (on log scale) are added to the simulated data. Since lethal interactions may occur with little or no main effect present [10], we allow these pairs to violate the strong hierarchy and do not add main effects. This is done both for biological plausibility, and to evaluate the performance of xyz and glinternet under less ideal circumstances. Since only glinternet assumes the strong hierarchy, this scenario might favour xyz.

Based on simulated perturbation matrices X, simulated main effects β_i and interaction terms β_i,j, we sampled fitness values with β₀ = 0 according to the fitness landscape model (Eq 3)

$$\begin{array}{c}\hfill \mathit{Y}\sim N\left({\sum }_i{\mathit{X}}_i{\beta }_i+{\sum }_{i<j}({\mathit{X}}_i\circ {\mathit{X}}_j){\beta }_{i,j},{\sigma }^2\mathit{I}\right),\end{array}$$

where we chose σ² for fixed SNRs s ∈ {2, 5, 10}.

2.5 Evaluation criteria

We focus the evaluation on the estimated parameters of the model, specifically the conditional epistasis terms, ${\widehat{\mathit{\beta }}}_{\{i,j:i<j\}}$, rather than the model’s performance in predicting the fitness phenotypes Y. Given the ground truth of true conditional epistasis between gene i and j, β_{i,j:i<j}, we assess the performance of the model to identify epistasis, i.e., estimated non-zero coefficients ${\widehat{\beta }}_{i,j}$, by computing the number of true positives (TPs), false positives (FPs) and false negatives (FN). Here, TPs represent the number of gene pairs (i, j) such that β_i,j ≠ 0 and ${\widehat{\beta }}_{i,j}\ne 0$, FPs the number of gene pairs (i, j): β_i,j = 0 and ${\widehat{\beta }}_{i,j}\ne 0$ and FNs the number of gene pairs (i, j):β_i,j ≠ 0 and ${\widehat{\beta }}_{i,j}=0.$ The performance is then summarised using the following measures

$$\begin{array}{ccc}\hfill \text{precision}& =& \frac{\text{TP}}{\text{TP}+\text{FP}}\hfill \\ \hfill \text{recall}& =& \frac{\text{TP}}{\text{TP}+\text{FN}}\hfill \\ \hfill \text{F1}& =& 2\frac{\text{precision}\times \text{recall}}{\text{precision}+\text{recall}}\hfill \end{array}$$

Furthermore, we investigate whether estimates ${\widehat{\beta }}_{i,j}$ have the same sign as the ground truth conditional epistasis and we quantify the deviation of the magnitude from the truth. Where applicable, we also evaluate the effect of selection of only those β_i,j which significantly deviate from zero on the model’s performance.

3 Results

First, we evaluate the proposed approach to estimating epistatic effects from off-target perturbations on simulated data. The approach depends on a model able to detect non-zero pairwise interactions (Fig 1). Here, we evaluate the approach using two such alternative models, glinternet and xyz.

We evaluate the ability of both xyz and glinternet to identify epistasis between pairs of genes from RNAi screens on simulated data with p = 100 genes and n = 1000 siRNAs. Only for xyz, we also test larger data sets, with p = 1000 and n = 10000. We use off-target information from real siRNAs and investigate the performance for varying signal-to-noise ratios, number of true interactions, number of observations per double knockdown, and effect sizes for epistasis.

We perform a separate set of tests where we specifically assess the performance of the two methods to identify synthetic lethal interactions, the strongest negative interactions. For this purpose, we simulate a separate data set that contains additional synthetic lethal pairs of genes. In this test, we attempt to identify only lethal interactions using xyz and glinternet, given increasingly large numbers of genes.

3.1 Identification of epistasis under varying conditions

Both xyz and glinternet are tested on a series of small simulated data sets. For each combination of parameters q ∈ {5, 20, 50, 100}, r ∈ {0, 20, 50, 100} and s ∈ {2, 5, 10}, controlling the number of true interactions, the number of additional main effects, and the SNRs of the fitness phenotypes, respectively, we sample 50 independent data sets. xyz is tested on a series of larger data sets, with parameters q ∈ {50, 200, 500, 1000}, r ∈ {0, 200, 500, 1000} and s ∈ {2, 5, 10}. Only 10 independent data sets are sampled in these cases. Each data set consists of the perturbation matrix X, phenotypes Y, true conditional epistasis β_i,j and main effects β_i.

The distribution of the number of observations for pairwise knockdowns of gene i and j is shown in Fig 13 in S1 Appendix for an exemplary perturbation matrix X. While only a few genes have many observations, 87% of gene pairs are simultaneously perturbed by at least one siRNA. Note that the distribution seen in Fig 13 in S1 Appendix is similar for both p = 100 and p = 1, 000 genes. We also find that number of additional main effects has relatively little impact on detecting interactions (Appendix B in S1 Appendix), and this value is kept constant during our tests. We select only estimates ${\widehat{\beta }}_{i,j}$ with a magnitude significantly different from zero (q-value < 0.05). This significantly improves precision, at a slight cost to recall, using both glinternet and xyz (Fig 2).

Fig 2. Trade-off between precision and recall for selecting the subset of interactions significantly deviating from zero versus all interactions.

Top and bottom panels depict gain of precision and loss of recall, respectively. (a) glinternet; (b) xyz.

3.1.1 Number of double knockdowns per gene pair

We fixed the number of additional main effects to 20 and investigated performance with respect to the number of double knockdowns per epistatic gene pair, i.e. siRNAs that target both genes (Fig 3). The results are largely similar for both xyz and glinternet. As expected, for increasing numbers of observations, we observe an increase in precision and recall with a steeper increase of precision compared to recall and decreased performance for higher number of true interactions. The number of true epistatic gene pairs primarily affects recall, which decreases for higher numbers of true non-zero β_i,j. For gene pairs with more than 80 observations of the double knockdown, glinternet shows strong performance with F1 values between 0.68 − 0.9 across all tested numbers of true interactions and an SNR larger than or equal to 5 (Fig 3a).

Fig 3. Identification of epistasis for increasing numbers of observations of the pairwise double knockdown.

The number of additional main effects not overlapping with the set of interacting genes is fixed to 20. Results using (a) glinternet and (b) xyz.

xyz shows significantly improved performance for gene pairs with more than 40 observations, with F1 values almost all above 0.25. Small numbers of true interactions are particularly accurate, with F1 > 0.5 when there are also only 5 such effects (Fig 3b).

The number of times each pair of genes is observed is shown in Fig 4. We see that in the large simulation, in which all parameters are multiplied by ten, the number of observations of each pair of genes is similarly scaled. As a result, the overall distribution is similar to the smaller simulation.

Fig 4. The distribution of the fraction of gene pairs stratified by ranges of observed double knockdowns.

Gene pairs with zero observations are not shown. (a) p = 100, n = 1000; (b) p = 1000, n = 10000.

3.1.2 Epistatic effect size

We observe that, for both xyz and glinternet, the performance of the model increases with the absolute value of the magnitude of the conditional epistasis between pairs of genes |β_i,j| (Fig 5). Both for negative and positive epistasis, recall and precision steeply increase with increasing effect size. For pairs of genes with |β_i,j| > 1 and SNRs ≥10, the model performs favourably with F1 values of 0.6 and higher in glinternet, and at least 0.25 in xyz. Overall performance also marginally improves for glinternet at SNR = 5, but no clear effect is seen for xyz or SNR = 10. With both xyz and glinternet, we observe exceptions to the general pattern of the overall V-shape for precision and recall, where strongly negative and positive epistasis and weak epistasis lead to high and low performance of the model, respectively. This effect can be explained by the fact that, after the significance test, an extremely small number of interactions are reported in these ranges (most often only one), with no false positives. The fact that the model’s performance notably decreases for small effect sizes around zero explains why we observe a trend of decreasing performance for increasing numbers of true interactions, when we average over all effect sizes. This is because sampling true epistatic effect sizes from N(0, 2) for increasing numbers of true interactions increases the fraction of interactions with small effects around zero.

Fig 5. Identification of epistasis for varying effect size.

Using (a) glinternet and (b) xyz.

Notably, we can see in Fig 5b that even when the overall performance is poor, xyz is still able to find a small number of strong interactions relatively accurately. This is particularly promising, since synthetic lethal pairs would be such interactions.

3.1.3 Direction

We evaluate the ability of each method to distinguish between negative and positive epistasis among epistatic gene pairs identified as true positives (Fig 6). For both glinternet and xyz, the fraction of incorrect estimates of direction (positive vs. negative) is higher for decreasing effect size and increasing number of true interactions. For epistatic effects with an absolute value > 1, we observe at most 3% incorrect predictions with glinternet, and 8% with xyz. We observe at most 9% and 15% incorrect predictions for smaller effect sizes for glinternet and xyz respectively. Furthermore, we observe that increasing SNRs leads to a subtle decrease of incorrectly predicted direction.

Fig 6. Concordance between the sign of true and estimated epistasis.

The fraction of incorrectly identified signs between true and estimated epistasis for (a) glinternet and (b) xyz.

3.1.4 Magnitude

We evaluate the deviation of the magnitude of estimates for epistasis from the ground truth as a function of observed double knockdowns (Fig 7). The deviation in magnitude is computed as $\frac{\left|{\beta }_{i,j}\right|-\left|{\widehat{\beta }}_{i,j}\right|}{\left|{\beta }_{i,j}\right|}$, i.e. the percent relative change in deviation with respect to the true epistasis. We observe that across varying numbers of observations the model predicts the magnitude of epistasis between pairs of genes with high accuracy using both xyz and glinternet.

Fig 7. Concordance between the sign of true and estimated epistasis.

The fraction of incorrectly identified signs between true and estimated epistasis for (a) glinternet and (b) xyz.

3.2 Scalability

Running glinternet until it has converged takes a prohibitively long time on larger data sets. While we are able to run our p = 100, n = 1, 000 simulations in slightly under two minutes, increasing to p = 1, 000, n = 10, 000 takes over two days using ten cores. Although using more threads is possible, the running time is already dominated by single-threaded components with ten cores. The multi-threaded performance is therefore limited to by Ahmdahl’s Law to approximately the performance we see here. Since fitting with small lambda values takes the majority of the time, we can improve this by changing the minimum value of lambda that gets used. Adjusting this from $\frac{\mathtt{\text{lambdaMax}}}{100}$ to $\frac{\mathtt{\text{lambdaMax}}}{4}$, and fitting only five lambdas in this range rather than fifty, glinternet still takes over an hour. This makes the repeated simulations from subsection 3.1 impractical at a larger scale with glinternet, although we do investigate some larger data sets in subsection 3.3.

It should also be noted that this limits the scale of real-world data that can be analysed using glinternet. While some improvements are possible by disabling cross-validation or setting a high lower limit for lambda, we do not consider analysis of over 1, 000 genes to be practical. Further work needs to be done to develop regression methods for genome-scale data.

Since xyz has significantly shorter run time than glinternet, here we more thoroughly investigate performance on larger data sets. Repeating the earlier simulations with every parameter increased by a factor of 10 (Fig 8), we find that the overall trends remain the same. The fraction of incorrectly identified signs is omitted, as in this test there are no such results.

Fig 8. Simulations repeated using xyz and larger data sets.

(a) number of observations of double knockdown. (b) Precision/recall/f1 by actual effect strength.

There is a significant drop in both precision and recall, and now only effects with a magnitude greater than 3 are found a significant amount of the time (Fig 8b).

3.3 Synthetic lethal pairs

Synthetic lethal pairs are of particular interest, and given that xyz is able to somewhat reliably find extremely strong interactions, it is natural to ask whether it can be used to quickly find lethal pairs, despite its poor performance on weaker interactions. We fix the number of main effects to 10, and simulated 10000 siRNAs on 1000 genes. Synthetic lethal pairs are created as interaction effects of magnitude −1000 (log scale). This rather extreme assumption makes synthetic lethals the best possible case for detection via regression. In practice, synthetic lethal detection accuracy would likely be somewhere between what we see here and that of a small negative effect. Since lethal pairs often do not have strong main effects (i.e. do not follow the strong hierarchy assumption), the components of the interaction are not used as main effects in this case.

Increasing the number of lethal interactions significantly reduces recall, but does not have a clear effect on precision. At this scale, xyz is often able to correctly identify some lethal interactions (Fig 9), particularly when there are only a few to find.

Fig 9. Precision, recall, and F1 performance for varying numbers of synthetic lethal pairs, with additional background interactions, using xyz.

Neither side of the lethal interactions are used as main effects, and as far as lethal interactions are concerned, there is no hierarchy present.

3.3.1 Synthetic lethality detection in larger matrices

While we could not run a significant number of tests at this scale using glinternet, we could investigate how well its accuracy scales compared to xyz. To do this, we simulated sets of up to p = 4000 genes, and measured the performance of both xyz and glinternet. In this case, both to avoid allocating more elements to a matrix than R allows, and to keep the run time of glinternet low, only n = 2 × p siRNAs are simulated. The ratio of siRNAs, genes, main effects, interactions, and lethals, is fixed to:n = 200 siRNAs, p = 100 genes, b_i = 1 main effect, b_ij = 20 interaction effects, l = 5 lethal interactions. Data sets are then generated with these values multiplied by 5, 10, 20, and 40. As in the previous simulation, components of lethal interactions are not added as main effects. The strong hierarchy assumption is not valid in this case.

Interactions are then found with both xyz and glinternet. Here we focus specifically on synthetic lethal detection, and only correct lethal pairs are considered true positives, Any other pair (including a true interaction that is not a lethal) is considered a false positive.

We can see in Fig 10a that precision with glinternet remains fairly consistent as p increases. There is a roughly proportional reduction in recall as the number of lethal interactions increases. After a slight increase from 500 to 100 genes, the actual number of significant interactions found remains fairly consistent. Beyond p = 2000, we found that xyz typically fails to find any of the lethal pairs (Fig 10b)

Fig 10. Performance on increasingly large data sets.

(a) glinternet and (b) xyz.

Fig 11 shows that neither xyz nor glinternet quite demonstrate a linear run time, but the run time for glinternet increases sharply beyond p = 2000. It is possible that this is simply the result of less efficient cache use with larger data, but it is nonetheless worth noting.

Fig 11. Run time in seconds to find interactions on increasingly large data set.

(a) glinternet. (b) xyz. We compiled glinternet with OpenMP and ran with numCores = 10.

3.4 Violations to model assumptions

For the regularised regression model (Eq 4) we assume strong hierarchy (Eq 6) between main effects β_i and interaction terms β_i,j in order to reduce the search space of all possible non-zero coefficients $p+\left(\begin{array}{l}p\hfill \\ 2\hfill \end{array}\right)$ during inference. We refer the reader to [27], where Lim and Hastie show how violations to this assumption affect the performance. For instance, the performance of the model is evaluated when the ground truth only obeys weak hierarchy, i.e. only one main effect present, no hierarchy, or anti-hierarchy. Additionally, approximately 2.5% of simulations produced no interactions using xyz, because the estimated interaction frequency of non interacting pairs was too low. These were fairly evenly distributed across all combinations of parameters (Fig 12), and are not believed to have substantially affected the results.

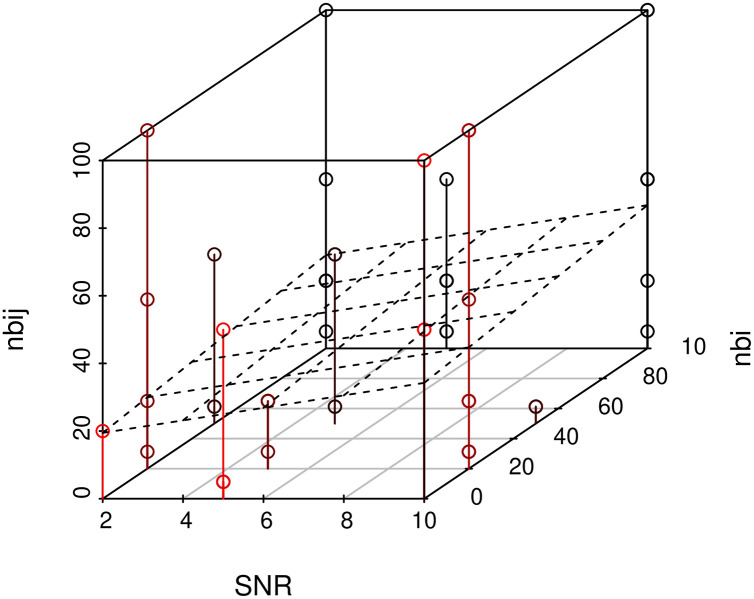

Fig 12. Distribution of xyz failures.

3.5 Summary recommendation

After simulating siRNA knockdown data sets of various sizes, and under various conditions, and attempting to reconstruct the interacting pairs using both xyz and glinternet, we arrive at the following recommendations. For data sets containing less than 4,000 genes (assuming between 2 and 10 experiments per gene), we recommend using glinternet to find interactions. Where glinternet would have a prohibitively long run time (data sets larger than those mentioned above), xyz continues to run quickly, and may still identify some useful results (Fig 9), particularly when interactions are observed a large number of times in the data and have strong effects (sections 3.1.1 and 3.1.2). Particularly when one expects a small number of significant interactions, increasing the number of projections beyond $\sqrt{n}$ may improve performance here (see Appendix D in S1 Appendix).

3.6 Effects in real data

Following the recommendation we have arrived at in subsection 3.5, we apply glinternet (followed by a linear regression analysis) to estimate epistatic effects from a real data set. We use the perturbation data from [24], containing siRNA screens targeting kinases in the presence of five bacterial pathogens and two viruses, and apply the routine as described in subsection 2.2 to identify pairwise kinase-kinase interactions. Specifically, we restrict the data to siRNAs that target kinases from the Qiagen Human Kinase siRNA Set V4.1, and the off-target effects within this set, resulting in an input matrix containing 11214 perturbations × 667 genes. Using $\text{f}=lo{g}_2\left(\frac{\text{Cells}\text{after}}{\text{Cells}\text{before}}\right)$ as a fitness measure, we found 1662 effects, 116 of which had a p-value less than 0.05. Since we have assumed that perturbations are binary in our simulations, we continue to do so here. As a result, all non-zero predicted off-target effects are given a value of 1. The ten most significant predicted effects are shown in Table 1 (the full set of results, significant or otherwise, can be found at https://github.com/bioDS/xyz-simulation/blob/master/real_data_results_sorted.csv). Interestingly, the most significantly associated pair of genes, CDK5R1 and RPS6KA2, are both related to a common pathway. Specifically, CDK5R1 activates CDK5, which, along with RPS6KA2, is part of the IL-6 signalling pathway [38]. Searching both the ConsensusPathDB database [39], and STRING database [40] for relations between the found pairs, we find that a number of the interactions suggested here could be the result of existing known interactions. We each of the identified pairs of genes, we searched for common neighbours (a third gene with which both interact), shared pathways, and whether the produced proteins are found in the same protein complexes, and found the following known relationships:

Table 1. Ten most significant predicted effects of siRNA perturbation screens, targeting all human kinases.

Gene i	Gene j	Type	Combined Effect	P-value	i effect	j effect
CDK5R1	RPS6KA2	interaction	12.52	0.0047	1.71	-2.32
RIPK4	GRK3	interaction	-3.24	0.0056	-24.5	1.87
PHKB	GUK1	interaction	-7.47	0.0061	6.23	-28.4
MAP2K6	UCK1	interaction	-40.89	0.0094	13.8	-22.6
TNIK	PANK4	interaction	-37.41	0.0115	21.3	5.21
RPS6KB2	TTK	interaction	172.04	0.0118	0.5	-20.4
MAPK4	TRPM7	interaction	9.49	0.0120	8.46	16.3
HIPK1	NUAK2	interaction	-13.17	0.0126	18.1	29.5
CDK19	NA	main	3.80	0.0136	3.80
C17orf75	MAPK8IP3	interaction	21.74	0.0136	5.91	20.4

CDK5R1 and RPS6KA2 share a common neighbour, and are present in four of the same enriched pathway-based sets. TTK and RPS6KA2 share nine common neighbours. RIPK4 and GRK3 share one neighbour, nd homologs were found interacting in other species. TNIK and PANK4 share one neighbour, as do MAPK4 and TRPM7, MAP2K6 and UCK1, and HIPK1 and NUAK2. As we could not locate the other identified pairs in the database, we hypothesise that they might constitute novel interactions.

Of the interactions present in Table 1, we see that HIPK1 and NUAK2, TNIK and PANK4, and MAP2K6 and UCK1 are predicted to have negative epistatic effects, and may be promising synthetic lethal candidates.

For comparison we also fit a linear model including all genes, but no interactions. Comparing the R² values for each, we find that individual gene effects explain ≈15% of the variance (R² = 0.150) Including the interactions chosen by glinternet, and removing the main effects it sets to zero, we have R² = 0.392, more than doubling the fraction of explained variance. The Adjusted R² is also significantly higher for the pairwise model, 0.286 as opposed to 0.096, indicating that the additional interaction variables are contributing significantly more than random. Moreover, the Akaike An Information Criterion (AIC) values indicate the pairwise model is more informative, with an AIC value of −11607 as opposed to the main effect only model’s −9853. This highlights the importance of accounting for interactions in large-scale genotype-phenotype analyses, and relevance of bioinformatic tools with this capability.

4 Discussion

To the best of our knowledge, the presented model is the first approach that leverages the combinatorial nature of RNAi knockdown data resulting from sequence-dependent off-target effects for the large-scale prediction of epistasis between pairs of genes. To do this, we take the second-order approximation of the fitness landscape, including only individual and pairwise effects, and attempt to infer the parameters of this model. Since glinternet is able to find pairwise interactions among p = 1, 000 genes, we speculate that searching for three-way interactions is feasible among $\sqrt[3]{1,{000}^2}=100$ genes. We are not aware of any software currently able to do this, however.

For the majority of our tests, we simulate the presence of a strong hierarchy. This constraint would imply that for the inference of non-zero epistatic effects between gene i and j, β_i,j, we penalise cases where the main effects for both single genes, β_i and β_j, are zero. This constraint significantly decreases the complexity of the search space of interactions. However, in biology there are many examples of epistasis where the marginal effects of individual genes are very small, for instance if both genes redundantly execute the same function within the cell [41]. [13] found in their study of experimental double knockouts in yeast that single mutants with decreasing fitness phenotypes tended to exhibit an increasing number of genetic interactions. This observation is reassuring for glinternet, which can pick up the interaction as long as the true single-mutant effects are not exactly zero. Moreover, Lim and Hastie showed in a simulation study that the model is in fact flexible enough to also identify pairwise interactions violating the strong hierarchy constraint [27]. For the detection of strong interactions, specifically synthetic lethal pairs, we have also demonstrated that the strong hierarchy constraint is not required.

In a simulation study, we sampled perturbations for n = 1000 siRNAs and p = 100 genes, and n = 10000 siRNAs with p = 1000 genes. As a consequence of high-throughput genome-wide screening platforms, the setting of n = 10 × p, i.e. ten perturbations with different siRNAs per gene, is realistic even for higher order organisms with tens of thousands of genes [21, 24]. Sampling the perturbations directly from commercially available RNAi libraries allows us to translate results from the simulation study to applications on real data. We observe that increasing SNRs, as expected, results in an overall increase of the number of successfully identified gene pairs with true epistasis.

Nevertheless, we found that even for a moderate SNR of only 2, the model identifies interactions with acceptable performance using glinternet (F1 > 0.5 for 50 true interactions), when we observed each double knockdown over 40 times (Fig 3a) or the effect size of epistasis is larger than 1, i.e. |β_i,j| > 1 (Fig 5a). For an SNR of 5 and across all tested numbers of additional gene pairs and epistatic effect sizes, the performance of the model is approximately constant at around F1 = 0.5, independent of the number of true epistatic gene pairs (Appendix B in S1 Appendix).

Performance in our simulations also suggests that xyz is unable to accurately identify interactions in large data sets. Although xyz has a consistently short run time, and appears capable of running on genome-scale data, we see a significant drop in all other performance measures beyond p = 1000 genes.

The results when using glinternet, however, suggest that the general approach is able to accurately identify pairwise epistasis from large-scale RNAi data sets, given that the SNR of measured fitness phenotypes is larger than 2 and the effect size of epistasis is larger than 1. It is challenging to compare the performance of these models to approaches that estimate genetic interactions from other data, such as for instance from double knockout experiments [13], due to different scales of the epistatic effect size, however, the high precision of glinternet seems quite competitive. Moreover, our simulations demonstrated that if true epistatic effects between pairs of genes are identified, the model identifies both the direction of epistasis (positive and negative) as well as the magnitude of the epistatic effect with high accuracy (Figs 6 and 7).

In detecting lethal interactions specifically, the high precision of glinternet after testing for significant deviations is particularly promising. Using this as a method to detect likely synthetic lethal interactions from RNAi data sets, we could propose candidates for further investigation as anticancer drug targets [9, 12]. While the run time may prevent glinternet from being used as such a method in genome-scale applications, we can recommend it for use with smaller data sets, or where the number of potential interactions can be significantly reduced prior to running glinternet. As the precision does not appear to suffer with larger input, only the run time, we believe combining linear regression with a perturbation matrix is a promising method for further investigation, and work to improve the performance sufficiently for use in genome-scale applications is ongoing.

Demonstrating our method on a set of kinase siRNA knockdowns, we find a number of plausible proposed effects (Table 1). This set is sufficiently small that the true positives may be found experimentally by testing all ≈1.4 million gene pairs (as in [13]). Alternatively, the most likely candidates may analysed with targeted sequencing and fitness measurements (as in [42]) or clinical trials, (as in [43]). It is likely that a significant number of false positives are present among the proposed interactions, and we consider such verification to be an essential second step in discovering true epistatic effects.

While filtering results by p-value does significantly increase accuracy (Fig 2), the p-values we use do not account for the prior variable selection (using glinternet or xyz), and may therefore be biased. Recent work is able to overcome this limitation with regard lasso regression in some cases [44, 45], however existing implementations [45, 46] of these methods require storing the full interaction matrix X′. For non-trivial numbers of interactions this does not typically fit in memory, and we cannot work with it directly. Moreover, the procedure from [47] is not applicable when p ≫ n unless the variance can be efficiently estimated. Given recent progress in variance estimation for lasso regression [48] it may be possible to implement unbiased p-value calculations for lasso regression at this scale, and we suggest this as one possible improvement for future work.

Finally, it is worth noting that this approach is not limited to siRNA perturbation matrices, or to synthetic lethal detection. Any method of suppressing gene expression, combined with an affected proxy for fitness, could be used to find likely candidates for epistasis.

Supporting information

S1 Appendix

(PDF)

Data Availability

Everything necessary to reproduce our results, including data, has been uploaded to Github: https://github.com/bioDS/xyz-simulation.

Funding Statement

This work has partially been funded by SystemsX.ch, the Swiss Initiative in Systems Biology, under IPhD grant 2009/025 and RTD grants 51RT-0 126008 (InfectX) and 51RTP0 151029 (TargetInfectX), evaluated by the Swiss National Science Foundation. AG and KE acknowledge support from the Royal Society Te Ap¯arangi through a Rutherford Discovery Fellowship (RDF-UOO1702) awarded to AG. AG and KE were partially supported by Ministry of Business, Innovation, and Employment of New Zealand through an Endeavour Smart Ideas grant (UOOX1912) and a Data Science Programmes grant (UOAX1932).
