Efficacy of two commercial synthetic pyrethroids (cypermethrin and deltamethrin) on Amblyomma variegatum and Rhipicephalus microplus strains of the south-western region of Burkina Faso

Abstract

Since 2011, period of the livestock invasion by the cattle tick Rhipicephalus microplus in Burkina Faso (BF), tick-control problems were exacerbated. Based on farmer’s reports, most commonly used commercial acaricides were found to be ineffective in Western South part of the country. To investigate the occurrence and extent of such acaricidal ineffectiveness, we performed the standardized larval packet test (LPT) with commercial deltamethrin (vectocid) and cypermethrin (cypertop), on two cattle tick species, the native Amblyomma variegatum and the invasive R. microplus. The resistance ratios (RR) were computed with susceptible Hounde strain of Rhipicephalus geigyi as reference. The R. microplus population showed resistance to the two acaricides tested with the highest lethal concentration (LC) values, and different resistance ratios higher than 4 (deltamethrin: RR₅₀ = 28.18 and RR₉₀ = 32.41; cypermethrin: RR₅₀ = 8.79 and RR₉₀ = 23.15). In the contrary, A. variegatum population was found to be highly susceptible to acaricides tested with low lethal concentrations and resistance ratio values (deltamethrin: RR₅₀ = 0.5 and RR₉₀ = 0.48; cypermethrin: RR₅₀ = 0.68 and RR₉₀ = 0.79). These data demonstrate high synthetic pyrethroid resistance in R. microplus strain, leading to conclude that the acaricide ineffectiveness in tick populations control remains a concern in BF.

Supplementary Information

The online version contains supplementary material available at 10.1007/s11250-021-02849-2.

Introduction

About 17 Ixodidae ticks, belonging to the genus Amblyomma, Hyalomma, and Rhipicephalus, have been identified in West Africa (Biguezoton et al. 2016; Diarra et al. 2017; Ouedraogo et al. 2021). These obligate hematophagous arthropods have direct and indirect effects on livestock health and production in most parts of Sub-Saharan Africa (Stachurski 2000). But, by far, the most important indirect impact of ticks is the transmission of hemopathogens, which cause tick-borne diseases (TBD) that can result in high livestock mortalities (De Meneghi et al. 2016). The species R. microplus and A. variegatum are known to be involved in the main constraints for bovine production system development in the West African context. Amblyomma variegatum is an efficient vector of Ehrlichia ruminantium, agent of heartwater (cowdriosis). It directly impairs animal growth, tending to heavily reduce milk production (Stachurski 2000; Allsopp 2015). Rhipicephalus microplus is the efficient vector of Babesia bigemina and B. bovis, main agents of bovine babesiosis in tropical region (Adehan et al. 2016; Lempereur et al. 2017). Its introduction into an unaffected area can induce the emergence of its acaricide resistant population (Muhanguzi et al. 2020). For several livestock breeders in West Africa, particularly in BF, tick control is carried out by an increasingly used of acaricidal compounds (Adakal et al. 2013b). The occurrence of the invasive tick species in BF (Adakal et al. 2013a) has increased such tick-control method application, with many cases of misuses reported (Adakal et al. 2013b). As a result, resistance in R. microplus population to some commercial acaricidal compounds has been reported (Kande 2014). Since it has been shown (in cattle infestation in BF) that the incidence rate of R. microplus significantly increases in the presence of A. variegatum and vice versa (Biguezoton et al. 2016), the assessment of the acaricidal resistance of the native species (A. variegatum) and invasive species (R. microplus) is of paramount importance. For this purpose, the commercial grade synthetic pyrethroids, deltamethrin (vectocid) and cypermethrin (cypertop), widely used in tick control in BF have been tested on larvae of A. variegatum and R. microplus.

Materials and methods

Study area and gorged female collection

Sampling was carried out during September 2020, in Kimini (N 10.07162; W 4.808), a rural commune located in “Niangoloko,” a department belonging to “Cascades” region, one of the 13 subdivisions of BF territory. This region borders the north of Ivory Coast (Fig. 1). It covers an area of 18,405 km² with about 531,808 habitants active mainly in agriculture and livestock farming. The cattle population was estimated at 654,273 heads in 2013 and represents a source of income for many households (INSD 2018). According to the Adakal et al. (2013b) survey, the most widely acaricide compound used in tick population control in this region is deltamethrin. Farmers involved in this study were requested not to apply any acaricide treatment on cattle at least 2 weeks before the collection date. With the owners’ consent, cattle were kept in lateral decubitus and the whole skin was inspected. All engorged females seen were manually removed, stored in collection jars with lids previously drilled, and closed with compress. Containers were then placed in a plastic bin, with a damp mop on the bottom, in order to allow ticks survival until they reach laboratory at CIRDES (International Research and Development Centre on Livestock in Sub-humid Areas). Once in the lab, ticks were identified, sorted, and about 15–20 live specimens per tick species were placed in an incubator at 27 ± 2 °C with a relative humidity of 85 ± 5% for egg-laying. Eggs obtained were weighed and divided into batches of 0.5 g in different containers. They were then maintained in the same conditions until their hatching.

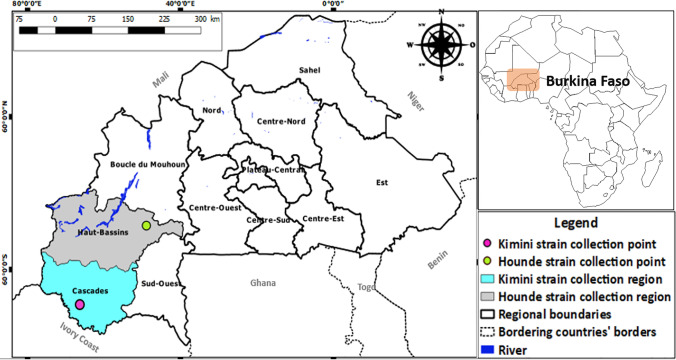

Fig. 1.

Map showing the geographic location of Burkina Faso, sampling points, and the origin of reference strain

Bioassays

The larvae aged between 14 and 21 days were used for the standardized LPT (FAO 2004). The assay was carried out with commercial grade deltamethrin and cypermethrin (respectively Vectocid™ and Cypertop™, LAPROVET, France). For each acaricide, serial dilutions were (Table S1). Different concentrations with a mix ratio of 1 volume olive oil for 2 volumes trichloroethylene (Miller et al. 2002) as solvent were applied. Thereafter, Whatman filter paper was cut into packets of 7.5 × 8.5 cm size and 0.67 ml of each acaricide concentration was applied on each piece of paper filter. The assays were performed in duplicate. For each test, two paper filters were impregnated with solvent (combination of olive oil and trichloroethylene) alone and used as controls. Papers impregnated were placed for 2 h in a fume hood for solvent evaporation. They were then filled with about 100 ticks larvae and incubated at 27 ± 2 °C with 85 ± 5% relative humidity. After 24 h of acaricide exposure, larvae able to move were considered alive, and non-moving one were considered dead. They were counted and mortality rate (death total/total) has been computed for each group/concentration and tick species.

Reference susceptible strain

The susceptible laboratory strain used as reference was R. geigyi. It has been collected at Hounde (N 11.48333; W 3.51667), in the south-western BF in 2005. Engorged females were placed under optimal conditions of temperature (27 ± 2 °C) and relative humidity (85 ± 5%) for egg-laying (Adakal et al. 2013b). This strain is currently maintained in the laboratory of acarology at CIRDES. Over the years, its generations are continuously renewed by artificial infestations on the same cattle breed, Zebu × N’Dama crossbred.

Data analysis

The package Dose–Response Curves (DRC) was used to perform a non-linear regression analysis of dose-mortality data in R 3.6.3 software. The choice of the model was based on that giving the lowest residual variance through the function mselect (Ritz et al. 2015). The four parameters (b: slope, c: lower value, d: upper value, and e: ED50) were computed with the generalized log-logistic function LL.4 (Ritz et al. 2015). Data were then imported and fitted in GraphPad Prism® 8.0 (GraphPad Software, San Diego, CA, USA) for dose–response curves visualization. The lethal concentrations, LC₅₀ and LC₉₀, and their 95% confidence intervals (95% CI) were estimated using the effective dose (ED) command. The resistance ratios (ratio between the studied strain ED and that of the reference strain) at 50% (RR₅₀) and 90% (RR₉₀) of A. variegatum and R. microplus were computed relatively to the susceptible reference strain R. geigyi, with the function ED (Ritz et al. 2015). The resistance status was assessed regarding the reference scale from Jonsson and Hope (2007): a tick population is said to be sensitive to an acaricide when RR < 4; moderately resistant if 4 < RR < 10, and highly resistant when RR > 10.

Results

Amblyomma variegatum and R. microplus resistance status to deltamethrin

The strain of A. variegatum showed low LC₅₀ and LC₉₀ values (0.0016 g/l and 0.0031 g/l, respectively) (Table 1). The highest values were found with the R. microplus strain (0.0879 g/l and 0.2142 g/l, respectively). The reference strain R. geigyi revealed LC₅₀ and LC₉₀ values lower than the R. microplus one (0.0031 g/l and 0.0066 g/l) (Table 1). This is illustrated in Fig. 2a, where R. geigyi dose–response curve is located between those of A. variegatum (left) and R. microplus (right). The curve pattern is also the result of the fairly close slopes (− 2.9, − 3, and − 2.4), reflecting a relatively parallelism. The RR₅₀ and RR₉₀ values of A. variegatum (respectively 0.50 and 0.48) are considerably lower than 4. This leads to conclude to a field strain very susceptible to deltamethrin. In the contrary, R. microplus shows RR₅₀ and RR₉₀ values above 10 (28.18 and 32.41, respectively), indicating a deltamethrin highly resistant strain.

Table 1.

Lethal concentrations (g/l) of Amblyomma variegatum and Rhipicephalus microplus and their resistance to deltamethrin and cypermethrin regarding to strain Rhipicephalus geigyi as reference strain

Tick species	LC50 (95% CI)	LC90 (95% CI)	RR50 (95% CI)	RR90 (95% CI)	Slopes
Deltamethrin
R. geigyi	0.0031 (0.0030–0.00323)	0.0066 (0.0064–0.0068)	–-	–-	− 2.934 ± 0.125
A. variegatum	0.0016 (0.0015–0.0016)	0.0031 (0.0001–0.0032)	0.50 (0.48–0.53)	0.48 (0.43–0.53)	− 3.161 ± 0.146
R. microplus	0.0879 (0.0776–0.0963)	0.2142 (0.1899–0.2385)	28.18 (24.93–32.41)	32.41 (25.24–45.25)	− 2.437 ± 0.243
Cypermethrin
R. geigyi	0.0062 (0.0059–0.0065)	0.009567 (0.0091–0.010	–-	–-	− 5.020 ± 0.430
A. variegatum	0.0042 (0.0040–0.0044)	0.0076 (0.0073–0.0079)	0.68 (0.64–0.72)	0.79 (0.69–0.90)	− 3.706 ± 0.255
R. microplus	0.0547 (0.0484– 0.0610)	0.2258 (0.2012–0.2504)	8.79 (7.83–10.02)	23.15 (18.43–31.10)	− 1.550 ± 0.003

Legend: R, Rhipicephalus; A, Amblyomma; LC, lethal concentration; CI, confidence interval; RR, resistance ratio.

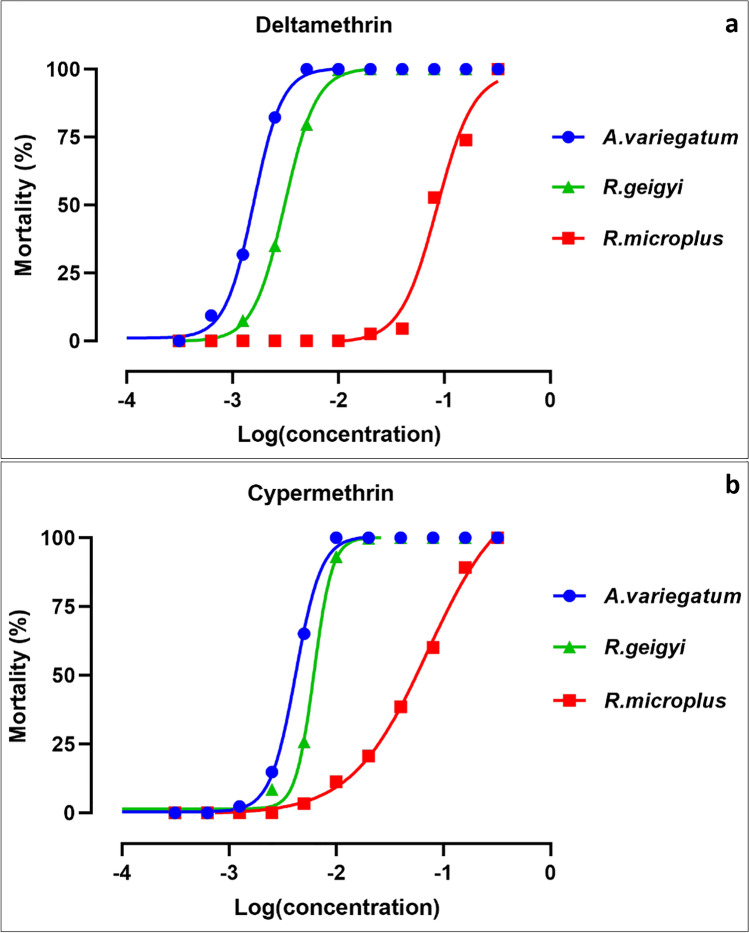

Fig. 2.

Dose–response curves of sampled Amblyomma variegatum and Rhipicephalus microplus strains in comparison to the susceptible reference strain Rhipicephalus geigyi (Hounde, 2005) when tested with deltamethrin (a) and cypermethrin (b). Legend: The logarithm of the null (0) concentration (control), considered as 0.0001, (− 5) was excluded from the X axis for a best visualization

Amblyomma variegatum and R. microplus resistance status to cypermethrin

Regarding the LC₅₀ and LC₉₀ values, the same observations were found as in the case of deltamethrin. The values related to the reference strain R. geigyi are intermediate to A. variegatum (low values, left curve) and R. microplus (higher values, right curve) (Table 1, Fig. 2b). However, the dose–response curves did not show any parallelism, as their slopes values are quite dissimilar (− 5; − 3.7; − 1.5) (Fig. 2b). The RR₅₀ and RR₉₀ values of A. variegatum (0.68 and 0.79) were lower than 4 indicating a high susceptibility to cypermethrin. On the opposite, R. microplus strain shows RR₅₀ value between 4 and 10 (8.79) and a RR₉₀ value higher than 10 (23.15), leading to conclude to a cypermethrin moderate to highly resistant strain.

Discussion

Farmers’ complaints on acaricidal treatment failures, associated with heavy tick infestations in livestock, were the first alert of R. microplus tick occurrence in south-western BF (Adakal et al. 2013b). Even if the resistance of R. microplus to some acaricidal compounds has been evidenced in BF (Kande 2014), this study represents the first investigation involving the native tick species, A. variegatum. As suggested by Adakal et al. (2013b), we assumed that R. microplus ticks from Kimini have been introduced in BF from Ivory Coast through transhumance, as hypothesized by local farmers. Thus, the resistance status evidenced here provides an explanation to previous observation on tick-control failures following R. microplus introduction in Ivory Coast (Madder et al. 2011). According to FAO (2004), emerging resistance can be suspected when RR₅₀ is under 4, while RR₉₀ is above, and the field strain slope smaller than the reference strain one. Here, both RR₅₀ and RR₉₀ values found for R. microplus Kimini strain were above 4, both for the commercial grade deltamethrin and cypermethrin. Moreover, the dose–response curve of this strain showed higher slope values than that of the reference strain R. geigyi. This leads to conclude to no emerging resistance in R. microplus tick population in south-western BF but to an established resistance previously existing in this tick population (Kande 2014). Considering the RR values, R. microplus studied strain’s resistance level is in line with that of other strains tested in Brazil with the same compounds by LPT (Mendes et al. 2011; Klafke et al. 2017). Furthermore, some authors (Barré and Uilenberg 2010; Guerrero et al. 2012) suggest that mutations are favored by the rapid generation successions occurring in some parasite species and that could ease the selection of resistant subpopulations in species such as R. microplus. Its parasitic phase on the host lasts only 21 days and can have three or four generations per year (Cruz et al. 2020). In contrast, compared to R. microplus, the life cycle characteristics of the native tick species A. variegatum are different. It is a 3-host tick species, showing a life cycle lasting between about 140 and 270 days (Pegram and Banda 1990; Yonow 1995). The generation change is slow. Therefore, resistant mutations induced by rapid generation successions occurring in the case of R. microplus are less unlikely to happen. This could partially explain the high susceptibility of this strain. Moreover, R. microplus studied RR values are globally lower than that of some resistant strains reported in Benin (Adehan et al. 2016). This could reflect the various ways and habits in acaricidal compounds use among farmers in the two countries. Indeed, misuses of acaracides, such as the repeated use of the same acaricide, were highlighted in Benin (Achukwi et al. 2001). Furthermore, these results indicate that the aggregation pattern between both tick species on cattle in BF (Biguezoton et al. 2016) did not influence their reaction to the studied acaricides. The native tick species is highly susceptible, while the invasive tick species is resistant to the two acaricides. On contrary to our result, A. variegatum was found to be resistant to organophosphates and toxaphene in Ghana, a bordering country of BF (Turkson and Botchey 1999). Even if this finding is not updated, it could suggest a monitoring of tick acaricide resistance, mainly in bordering area in BF, as risks of livestock invasion through transhumance movements remain.

In conclusion, the study provides current resistance status of A. variegatum and R. microplus regarding commercial grade synthetic pyrethroids in BF. Considering these results, there is a need of a wider investigation on acaricide resistance of the West African R. microplus strain and other tick species, for better control strategies of tick infestations. There is also a need to set up a mechanism to monitor the susceptibility status of A. variegatum strain to the most commonly used acaricidal compounds, as high selection pressure, through repeated use of the same compounds could lead to acaricidal resistance development.

Supplementary Information

Below is the link to the electronic supplementary material.

Author contribution

Claude Saegerman, Laetitia Lempereur, Abel Biguezoton, and Patrick Yao Kouassi conceived and designed research. Achille S. Ouedraogo and Olivier M. Zannou collected samples. Achille S. Ouedraogo conducted the lab experience and wrote the original draft. All authors read and approved the final manuscript.

Data availability

The datasets used during the current study are available from the corresponding author on reasonable request.
