Solar-induced hybrid energy harvesters for advanced oxidation water treatment

Zheng-Yang Huo 1, Dong-Min Lee 1, Young-Jun Kim 1, Sang-Woo Kim 1,2,∗
PMCID: PMC8283326  PMID: 34308295

Summary

Water treatment based on advanced oxidation processes (AOPs) supplies clean water to rural areas lacking electric power supply and/or during natural disasters and pandemics. Considering the abundance of solar energy in the ambient environment, the solar-driven AOPs show an interesting potential to driving the water purification process. Involving the energy harvester (EH) that harvests mechanical or thermal energy into electricity to the solar-driven AOPs can achieve sustainable and self-powered water purification. Herein, we summarize the recent progress in the application of solar-induced hybrid EHs that harvest solar and mechanical/thermal energy simultaneously to drive AOP water treatment. A detailed discussion of the solar-induced hybrid EHs enabling AOP water treatment based on the mechanisms of piezo-, tribo-, pyro-, and thermo-assisted photocatalysis is provided. In addition, this paper explores future opportunities and strategies of the solar-induced hybrid EHs to drive the AOP water treatment in actual situations with unstable and fluctuating environmental conditions.

Subject area: Energy Resources, Energy sustainability, Energy systems

Graphical abstract

graphic file with name fx1.jpg

Open in a new tab

Energy Resources ; Energy sustainability; Energy systems;

Introduction

Currently, nearly a third of the world population does not have reliable access to clean water due to its finite nature and pollution vulnerability (Alvarez et al., 2018; Chu et al., 2019; Westerhoff et al., 2019). The situation has been aggravated by the rapid industrialization, population growth, and urbanization; these three pose a significant water pollution threat through the discharge of organic pollutants including pharmaceuticals, endocrine disruptors, chemical additive/solvents, and human and domestic waste (Bach et al., 2012; Cantwell et al., 2018; Rice and Westerho, 2017). These pollutants could be non-biodegradable, toxic, and recalcitrant under ambient conditions, and, therefore, a huge potential threat to public health (Hodges et al., 2018; Miklos et al., 2018). In addition, water pollution provides pathogenic microbes with favorable thriving conditions, therefore, increasing the risk of waterborne diseases, morbidity, and mortality (Huo et al., 2020; Song et al., 2016; Wang et al., 2019b). Other factors that contribute to the scarcity of clean water are lack of adequate sanitation and shortage of electric power supply, which is required for water purification; this is especially in the rural areas and in developed areas that are facing pandemics/disasters (e.g., COVID-19) (Ahmed et al., 2020; Bogler et al., 2020; Huo et al., 2020).

Water treatment is a feasible solution for water pollution and drinking water shortage. The widening gap between water pollution and treatment has obliged a paradigm shift from the conventional centralized to the emerging decentralized water treatment. Unlike a centralized water treatment system with large pipe network transportation, a decentralized treatment system enables water purification within a smaller scale and closer to its point of consumption (Chaplin, 2019; Huo et al., 2016; Liu et al., 2019b; Pooi and Ng, 2018). As a result, a decentralized system is cost-effective, fast, and energy-efficient, therefore a suitable option for developing countries, as well as regions facing natural disasters or pandemics.

Advanced oxidation processes (AOPs) are appealing treatment options for such decentralized systems (Hodges et al., 2018; Miklos et al., 2018; Xing et al., 2018). AOPs are designed to remove organic pollutants and microbes in water by oxidation. Pollutants can be oxidized to low-toxic or non-toxic molecules under specific reaction conditions in-situ generated reactive oxygen species (ROS) with high oxidation ability including ·OH, H2O2, ·O2-, and ·Cl (Boczkaj and Fernandes, 2017; Li et al., 2018; Moreira et al., 2017). Assisted by the sharply developed novel material fabrication (i.e., catalysis design) and device construction methods, AOPs can achieve high-efficiency ROS generation enabling fast organic pollutant degradation and microbial disinfection (Wang et al., 2019a, 2019b, 2019c). There are several AOPs mechanisms and the most common in water purification are peroxy-based, light-driven, and electric-driven AOPs. In the peroxy-based water treatment mechanism, some specific weak oxidants (i.e., Fe2+/Fe3+ and persulfates) are triggered by H2O2 or metal oxides catalyst under certain conditions to generate ROS for water purification (Qi et al., 2018; Zhang et al., 2017a). However, due to its substantial chemical demand, its application for decentralized water treatment is limited. In the light-driven AOP treatment, ROSs are generated through photocatalysis (Liu et al., 2016, 2017; Loeb et al., 2019). An electric-driven AOP mechanism uses electric energy (either from on-grid electricity or solar cell) to produce ROS for pollutant degradation and microbial disinfection through an electrochemical process (Lin et al., 2018; Liu et al., 2019a; Yang, 2020). With adequate solar energy in rural areas, light-driven and solar cells-powered electric-driven AOPs are the most suitable options for decentralized water treatment (Cheng et al., 2020; Chu et al., 2019; Nie et al., 2016). However, solar energy is unreliable due to sunlight fluctuation and overdependence, which led to a large construction footprint, and additional costs from installing storage devices (e.g., battery and capacitor) during solar energy utilization (Guerin, 2017; Zhang et al., 2018).

Besides solar energy, other green energies such as wind and flow kinetic, wave, heat, and vibrations energies are promising options. With proper management using energy harvesting systems, these can be converted into electric energy and provide continuous and sustainable green power for decentralized water treatment (Cao et al., 2016; Chen et al., 2016; Park et al., 2016). Energy harvesters (EHs) are based on different energy conversion mechanisms, and the most common harvesting mechanisms are piezoelectric, triboelectric, thermoelectric, and pyroelectric effects (Park et al., 2014; Pu et al., 2015; Rojas et al., 2017; Xia et al, 2018, 2020b; Zi et al., 2015). Although researchers have confirmed the feasibility of EHs to drive the AOPs based water treatment systems, they commonly rely on a single energy source, and therefore are still limited by unstable and fluctuating ambient conditions in practical applications (e.g., weather, temperature, and humidity) (Ding et al., 2019; Thuy Phuong et al., 2020; Tian et al., 2017; Xia et al., 2020c). This necessitated the development of a solar-induced hybrid EHs, a hybrid system that integrates mechanical and thermal EHs into solar EHs enabling simultaneous energy harvesting and continuous energy conversion (Figure 1). The hybrid EHs are sustainable and therefore a promising energy system for the AOPs water treatment process (Abdelraheem et al., 2020; De la Obra Jiménez et al., 2019; Rizzo et al., 2019).

Figure 1.

Figure 1

Open in a new tab

Schematics of solar-induced hybrid energy harvesters (EHs) harnessing mechanical energy based on piezoelectric and triboelectric effect and thermal energy based on pyroelectric and thermoelectric effect

For advanced oxidation processes (AOPs) based water purification, solar energy mainly leads to photo-excitation. The charge carrier electrons exist in the conduction band (CB), the charge carrier holes exist in the valence band (VB), and the two bands (CB and VB) are separated to generate polarization when with solar irradiation. Insert images indicate potential applications for water treatment based on AOPs including microbial disinfection and pollutant degradation.

In the solar-induced hybrid EH-powered AOPs, sunlight can be the major energy source during the daytime while at night and rainy/cloudy days, mechanical or thermal energy harvesting systems can be the major sources of energy for the AOP water treatment system. In addition, when the mechanical or thermal energy harvesting systems are integrated into the solar-driven AOP water treatment system, new synergy mechanisms may be developed resulting in a higher ROS generation efficiency and therefore better treatment performance (Qian et al., 2020; Zhang et al., 2017b).

Here, we summarized the recent research progress of the solar-induced hybrid EHs and their application in AOP water treatment systems. We have provided a summary of different types of solar-induced hybrid EHs for AOP water treatment based on the energy harvesting mechanisms including: (1) solar-induced piezoelectric effect, (2) solar-induced triboelectric effect, (3) solar-induced pyroelectric effect, and (4) solar-induced thermoelectric effect. Detailed studies on solar-induced hybrid EHs for pollutant degradation and microbial disinfection with enhanced, reliable, and robust performances are described. This review also provides future opportunities and perspectives for the practical application of solar-induced hybrid EHs during unstable and fluctuating environmental conditions.

Solar-induced hybrid EHs for AOP water treatment

Solar-induced hybrid EHs for continuous energy harvesting has continued to grow as promising candidates to drive the AOP water treatment processes owing to their high performance and coupling effect between solar and other energy harvesting systems including mechanical and thermal EHs (Chou et al., 2019; Pan et al., 2020; Yang et al., 2013a). Mechanical energy harvesting systems consist of piezoelectric and triboelectric-based EHs, while thermal energy harvesting systems consist of pyroelectric and thermoelectric-based EHs (Lee et al., 2016; Ryu et al., 2019). The energy harvesting mechanism and the application of AOP water treatment using solar-induced hybrid EHs are summarized below.

Solar-induced piezoelectric EHs for AOP water treatment

The piezoelectric EH converts mechanical energy in the ambient environment including wind/water flow, waves, and mechanical vibration into electric energy (Han et al., 2018; Kim et al., 2020a; Yoon and Kim, 2020). With specific features that generate electric charges in response to applied mechanical stress, the piezoelectric materials can form internal potential on the surfaces of the material (Lee et al., 2013, 2015; Thuy Phuong et al., 2020). Utilizing this feature, where piezoelectric effect into photocatalysts is involved under the simultaneous photo irradiation and external mechanical stress, new solar-induced piezoelectric EHs will be developed and applied for AOP water treatment (Chen et al., 2017; Pan et al., 2020). Feng et al. developed a Titania (TiO2) modified lead zirconate titanate (PZT) catalyst with a core-shell structure by coating TiO2 nanoparticles on the surface of piezoelectric PZT microsphere (Feng et al., 2018). During the water treatment process, the stirring process exerts external stress on the PZT/TiO2, which leads to a piezoelectric field in the PZT core structure. Meanwhile, when UV light irradiation falls on the outer TiO2 semiconductor, photoelectrons and holes are generated due to the photo-excitation, and the generated photoelectrons and holes are separated without recombination by promotion from the piezo-induced bias voltage (Figure 2A). This specific mechanism leads to enhanced quantum efficiency and charge generation performance. Prompted by the piezo-assisted photocatalysis activity, the generated holes react with water to form hydroxyl radicals (·OH), and the photoelectrons react with oxygen to form superoxide anions (·O2-). The generated ROSs finally enables organic pollutant degradation in the water (Figure 2A).

Figure 2.

Figure 2

Open in a new tab

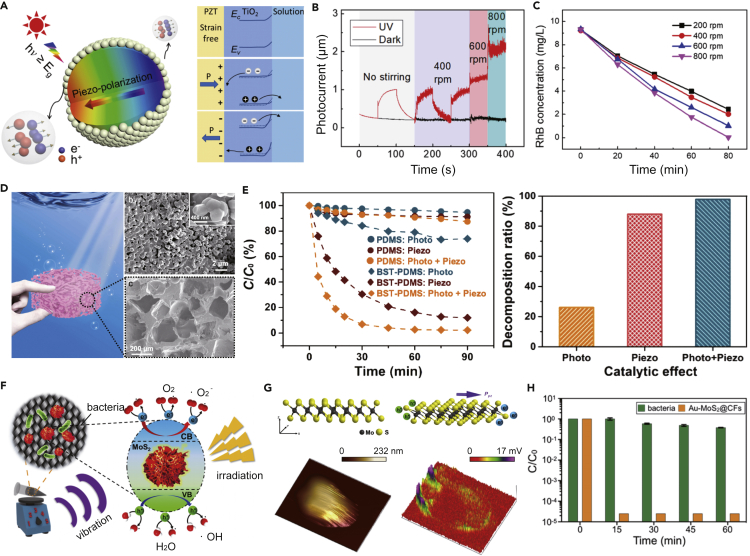

Emerging applications using solar-induced piezoelectric EHs for AOP water treatment

(A) Schematics showing the formation of the piezoelectric field in the lead zirconate titanate (PZT), and illustrations of band structure diagrams of TiO2 at the photocatalyst-solution interface with the piezoelectric-potential.

(B) Photocurrent output on PZT/TiO2 electrode with solar irradiation and water stirring.

(C) Organic pollutant (Rhodamine B; RhB) degradation efficiency using PZT/TiO2 with solar irradiation and water stirring, showing an enhanced performance degradation efficiency based on the piezo-assisted photocatalysis mechanisms. Reproduced with permission from (Feng et al., 2018), Copyright 2018, American Chemical Society.

(D) Schematics showing the barium strontium titanate (BST)-PDMS porous foam for piezo-assisted photocatalysis degradation.

(E) RhB degradation efficiency using BST-PDMS porous foam with periodic mechanical squeezing and solar irradiation. Reproduced with permission from (Xu et al., 2020), Copyright 2020, Elsevier Ltd.

(F) Schematics of the MoS2 nanocatalyst for AOP water disinfection. The MoS2 nanocatalyst can be triggered to generate reactive oxygen species (ROS including ·OH and ·O2-) by mechanical vibration (piezoelectric effect) and light irradiation (photocatalytic effect).

(G) Schematics showing MoS2 with an external force, and illustrations of piezoelectric polarization at active edge sites under an external force.

(H) Disinfection performance of Au-MoS2@CFs under a combination of mechanical vibration and solar irradiation. Reproduced with permission from (Chou et al., 2019), Copyright 2019, Elsevier Ltd.

The transient photocurrent measurement was carried out to investigate the photocatalytic performance of the PZT/TiO2 particles. As shown in Figure 2B, without light (in dark conditions), there was no notable current output from the PZT/TiO2, even with the water-stirring operation. When UV irradiation was applied, significant photocurrent output was generated (0.79 μA) without the water-stirring, which indicated the UV-response of the PZT/TiO2 electrode. When both water stirring and UV irradiation were applied, the amount of photocurrent generated by PZT/TiO2 particles was significant and continued to increase with the water-stirring rate. At the water-stirring rate of 600 rpm, the photocurrent output increased to 1.12 μA, and when the water stirring rate was increased to 800 rpm, a 1.98 μA of the current output can be achieved, which is almost 1.7 times higher than the value attained without stirring. The organic pollutant (Rhodamine B; RhB) degradation efficiency using PZT/TiO2 particles with UV irradiation and water-stirring was also evaluated (Figure 2C). After 80-min operation with UV irradiation and water-stirring (200 rpm), >75% of the RhB degraded. As the speed of water-stirring increased, the degradation efficiency also increased: 80%, 95%, and 100% of RhB molecules were degraded with the water-stirring speeds of 400, 600, and 800 rpm, respectively. Without UV irradiation, only 25% of RhB was degraded with 800 rpm of water-stirring. In addition, about 32% of RhB was degraded under UV irradiation without any stirring. These controlled experiments further confirmed the synergy mechanisms of the piezo-assisted photocatalysis for AOP water treatment. This work demonstrates a promoting effect where the generated piezoelectric field is used to inhibit photoelectron-hole recombination for high-performance organic pollutants degradation. The PZT/TiO2 particles show great potential as solar-induced piezoelectric EHs for harvesting the discrete fluid mechanical energy and solar energy simultaneously, enabling a highly efficient AOP water treatment process.

Instead of using the particle-sized catalysts distributed evenly in water whose application may be limited by the separation process afterward, bulk packaged material with photo-piezo-catalytic effect demonstrates the greater potential for the practical application. As a result, Xu et al. developed a piezoceramic-polymer (i.e., polydimethylsiloxane [PDMS]) porous foam to package the barium strontium titanate (BST) particles to achieve AOP water treatment based on the synergic mechanisms of piezo-assisted photocatalysis (Xu et al., 2020). The developed BST-PDMS porous foam catalyst achieved an enhanced photo-piezo-catalytic coupling effect by combining light irradiation and low-frequency mechanical squeezing (Figure 2D). During the treatment process, the BST-PDMS porous foam was squeezed under a low-frequency (<1 Hz) to mimic the wave or wind press in real-world applications, and a piezoelectric-potential was then generated on the surface of the BST particles. When applied together with the solar irradiation, photo-electron-hole pairs were generated on the BST surface, and charges moved to the surface of the material because the piezoelectric potential inhibited the recombination of electrons and holes. The continuously generated electrons and holes react with O2 and water molecules in the solution to produce ·O2- and ·OH, respectively, which achieved the AOP water treatment process.

The degradation efficiency of RhB was evaluated using the BST-PDMS porous foam. As shown in Figure 2E, compared to the relatively slow degradation efficiency with either photo irradiation or mechanical squeezing, >90% of RhB degraded when applied with the photo irradiation and mechanical squeezing operations simultaneously within 30 min. The notably enhanced degradation performance confirmed the feasibility of the synergy photo-piezo-catalytic effect for AOP water treatment. Furthermore, the durability and stability of the BST-PDMS porous foam were also evaluated, and 10 cycles for repeatable photo-piezo-catalysis treatment were tested. After 10-cycles treatment, BST-PDMS porous foam degraded by >92.7% RhB after 90 min, which was similar to the degradation efficiency (97.8%) in the first cycle. Thus, the robust packaging process of PDMS porous foam offers improved durability and stability, as well as extends the potential for practical application.

The piezo-assisted photocatalysis process is also feasible for inactivating microbes in water owing to its enhanced ROS generation mechanisms. Chou et al. developed a molybdenum disulfide (MoS2) nanosheets catalyst that can generate ROS to inactivate bacteria through the piezo-assisted photocatalysis process under simultaneous mechanical vibration and light irradiation (Figure 2F) (Chou et al., 2019). The piezoelectric effect of MoS2 was investigated using piezo-response force microscopy (PFM). The schematic diagram in Figure 3G showed the formation of the piezoelectric polarization caused by an ambient mechanical force. Once MoS2 encountered an eddy force, it experienced unidirectional deformations that induced piezoelectric polarization to inhibit the recombination of the electron-hole pairs generated by photocatalysis. Owing to the internal electric field created by the piezoelectric polarization, the separated electron-hole pairs migrated to opposite sides constantly. The topography and output piezoelectric potential response in the PFM measurement indicated that the active edge sites of MoS2 had a comparatively higher output piezoelectric potential than the rest of the material. The positive electric potential on the left (purple color) and the negative electric potential on the right (red color) confirmed the existence of piezoelectric polarization. In addition, the large-scale fabrication of the MoS2 nanosheets associated with the potential for practical application was further extended. Using a simple one-step hydrothermal approach, MoS2 nanosheets grew uniformly on the surface of carbon fibers (CFs) in a 15 cm × 15 cm area. Moreover, gold nanoparticles (Au NPs) were deposited on MoS2 nanosheets to further improve the catalytic efficiency, prolonging the lifetime of electron-hole pairs and enhancing the generation of ROS. When applied with the mechanical vibration and solar light irradiation, the prepared Au-MoS2@CFs achieved complete disinfection within 15-min operation (Figure 2H). Attributed to the high ROS generation efficiency caused by the novel piezo-assisted photocatalysis and the feasibility for large-scale application, the Au-MoS2@CFs showed great potential to harvest mechanical and solar energy and at the same time offer reliable access to safe drinking water in rural or disaster-stricken areas.

Figure 3.

Figure 3

Open in a new tab

Emerging applications using solar-induced triboelectric EHs for AOP water treatment

(A) Schematics showing the structure of the hybrid energy harvesting device integrating triboelectric EHs into solar cells.

(B) The output performance (voltage) of the solar-induced triboelectric EH.

(C) Absorption spectra of the RhB solution when applying the operation using solar-induced triboelectric EHs. The inset showing the degradation efficiency of RhB with various operation times. Reproduced with permission from (Yang et al., 2013b), Copyright 2013, American Chemical Society.

(D) Schematics showing the structure of the UV-induced triboelectric EH for water purification.

(E) The degradation efficiency of methyl orange (MO) when applying the operation using UV-induced triboelectric EHs. Reproduced with permission, from (Su et al., 2013), Copyright 2013, IOP Publishing.

(F) Schematics showing the potential application using the visible-light-induced triboelectric EH for water purification and structure of the rotational triboelectric energy harvester.

(G) Peak current of the EH at the different rotation speeds in the dark or under visible light illumination, showing the potential of using visible-light-induced triboelectric EHs for AOP water treatment. Reproduced with permission from (Wei et al., 2018), Copyright 2018, American Chemical Society.

Solar-induced triboelectric EHs for AOP water treatment

Besides the EHs harvesting mechanical energy based on the piezoelectric effect, triboelectric-based EHs are also confirmed feasible for converting the mechanical energy such as pressing, pushing, as well as wind and flow kinetics energy, effectively (Hinchet et al., 2019; Kim et al., 2020b; Kwak et al., 2019; Yoon et al., 2020). The triboelectric nanogenerator (TENG) is based on the triboelectric effect and electrostatic induction that is capable of harvesting mechanical energy (Ryu et al., 2018; Seol et al., 2018). For this power generation unit, a potential is created in the inner circuit by the triboelectric effect due to charge transfer between two thin organic/inorganic films that exhibit opposite tribo-polarities. In the outer circuit, electrons flow between two electrodes attached on the back sides of the films to balance the potential due to the electrostatic induction. Considering the benefits, broad material availability, lightweight, low cost, high voltage output, and high efficiency for low-frequency stimuli, TENGs are garnering increased interests for application in water treatment (Gao et al., 2017; Jeon et al., 2016; Li et al., 2016; Zhou et al., 2019).

When the solar-induced triboelectric hybrid EH is integrated with solar energy, it shows great potential to drive the AOP water treatment in practical applications. Yang et al. reported on a hybrid EH that integrated a transparent flexible polymer-based TENG and a pyramid patterned silicon (Si) solar cell as one hybrid generator for sustainable and simultaneous energy harvesting (Figure 3A) (Yang et al., 2013b). The transparent polymer-based TENG with a PDMS nanowire array can protect the Si-based solar cell while at the same time harnessing the ambient mechanical energy. The output of this solar-induced triboelectric EH is shown in Figure 3B. The output voltage of the Si-based solar cell device was ~0.6 V. To confirm the feasibility of the solar and triboelectric hybrid nanogenerator with a significantly enhanced hybrid output, the output of the TENG was adjusted in a similar manner to the output from the solar cell by adjusting the TENG structure and applied materials. With the periodic contact and separation operation (i.e., pressing and releasing) between the PDMS nanowire array and the solar cell, the TENG can generate an output voltage of ~2 V after rectification. Furthermore, when applying the solar irradiation and pressing operation simultaneously, the solar-induced triboelectric EH can simultaneously harvest the solar and mechanical energies, respectively, with a synergistic output voltage of ~2.6 V. The feasibility of the developed hybrid EH for driving an electrochemical cell to degrade the pollutants in the water was also investigated. As shown in Figure 3C, the solar-induced triboelectric EH converted the ambient environment energy effectively and achieved a pollutant degradation efficiency of >98% for RhB removal after 10-min of operation using the hybrid EH-powered electrochemical cell. In addition, inside the hybrid energy cell, the solar cell and the rectified TENG device were connected in series, which ensured a sustainable voltage/current output when either the solar energy or mechanical energy is available, which further extends the potential for practical application.

Apart from the solar cell and the TENG hybrid EH, another effective way for water purification is to deploy the TENG to drive the photoelectrochemical water purification process. By using light irradiation, minority electron-hole pairs can be generated on the semiconductor surface, and these generated charges can be driven into the solution by the applied external voltage from TENG to produces ROS for either pollutant degradation or microbial disinfection. First reported by Su in 2013, a contact-separation mode of TENG was developed to drive the photoelectrochemical cell (PEC) for organic pollutant degradation as shown in Figure 3D (Su et al., 2013). When driven by the TENG, the methyl orange (MO) can be degraded effectively with UV irradiation: >95% MO degradation after 240-min of operation as shown in Figure 3E. To further improve the treatment efficiency and extend the application potential, a rotational disc-shaped TENG was developed to harness the flow kinetics for higher output, and a titanium modified hematite photoanode was fabricated to achieve visible light excitation as shown in Figure 3F (Wei et al., 2018). With a relatively slow water flow (~100 rpm rotation speed of the TENG) and solar light (UV irradiation), a notable amount of photocurrent can be achieved (0.6 mA) that correspond to considerable charges driven into the solution, which can be further used for pollutant degradation and microbial disinfection.

Solar-induced pyroelectric EHs for AOP water treatment

The thermal energy that is abundantly present in the environment and the continuous temperature change can be used as the main driving force of the pyroelectric harvesting systems (Bowen et al., 2014; Wang et al., 2019a; Zhang et al., 2020). Pyroelectric materials can form potential energy on the surface and generate electrical energy based on spontaneous polarization change as a result of the continuous temperature change (Ryu and Kim, 2019; Wang et al., 2017a, 2017b). The generated pyro-potential can inhibit the recombination of the electron-hole pairs for enhanced photocatalysis performance and ROS generation efficiency. Chen et al. developed ZnSnO3 nanoparticles that showed pyroelectric and photocatalytic features at the same time (Figure 4A) based on a sol-gel fabrication method as shown in Figure 4B (Chen et al., 2020). As one of the typical ferroelectric lead-free perovskite oxides, ZnSnO3 has drawn extensive attention due to its ultra-high remnant polarization. Under the excitation of thermal cycles (20-65°C), the ZnSnO3 nanoparticles will polarize, and pyro-potential will be generated on the material surface. At the same time, when applied with UV irradiation, the photo-electron-hole charge pairs will be generated. Owing to the presence of the pyro-potential within the material, the generated electrons and holes will be driven into the solution continuously. The electrons will react with the O2 in the water to produce ·O2-, and holes will oxidize the water molecules to ·OH, and these generated ROSs contribute to AOP water treatment.

Figure 4.

Figure 4

Open in a new tab

Emerging applications using solar-induced pyroelectric EHs for AOP water treatment

(A) Schematics showing ZnSnO3 nanoparticles with pyroelectric and photocatalytic features at the same time.

(B) Characterizations of ZnSnO3 nanoparticles including transmission electron microscope (TEM) image and X-ray diffraction (XRD) pattern.

(C) Photocurrent output of ZnSnO3 under periodic thermal cycles and solar irradiation.

(D) RhB degradation efficiency using ZnSnO3 nanoparticles with periodic thermal cycles and solar irradiation.

(E) Investigation of the generated ROS during the pyro-assisted photocatalysis degradation. Reproduced with permission, from (Chen et al., 2020), Copyright 2020, Elsevier Ltd.

(F) Characterizations of ZnS:Cu nanoparticles including XRD pattern and scanning electron microscope (SEM) image.

(G) Mechanism of the photocatalytic and pyro-catalytic dye degradation using ZnS:Cu.

(H) Organic pollutant (acid orange 7; AO7) degradation efficiency using ZnS:Cu nanoparticles with solar irradiation and thermal cycles, showing the enhanced performance degradation efficiency based on pyro-assisted photocatalysis mechanisms. Reproduced with permission, from (Luo et al., 2020), Copyright 2020, Elsevier Ltd.

To further investigate the synergistic effects of pyro-assisted photocatalysis, the current generated by ZnSnO3 was evaluated under various conditions. As shown in Figure 4C, hybrid current with thermal cycles and UV light excitation was superior to that applying only one operation (either thermal cycles or UV irradiation). The enhanced current indicated the synergistic effect between the pyro- and photo-catalysis. The AOP water treatment performance was evaluated by degrading the organic pollution (RhB). With the thermal cycles and UV light excitation, the ZnSnO3 achieved high degradation efficiency of >98.1% in RhB removal after 80 min of operation as shown in Figure 4D. This pyro-assisted photocatalytic degradation efficiency was significantly higher than one attained from photo-catalytic (76.8% RhB removal) or pyro-catalytic (20.2% RhB removal). The radical trapping experiment was carried out to explore the synergic mechanisms of pyro-assisted photocatalysis for dye decomposition as indicated in Figure 4E. With the addition of ethylenediaminetetraacetate (EDTA, hole scavenger), benzoquinone (BQ, ·O2- scavenger), or isopropanol (IPA, ·OH scavenger), the pyro-assisted photocatalysis performances were slightly suppressed, which suggested the occurrence of holes, ·O2-, and ·OH during the AOP water treatment process, respectively. As a result, with the benefit of a superior ROS generation efficiency and high energy utilization efficiency, pyro-assisted photocatalysis using ZnSnO3 nanoparticles showed great potential in the practical application for AOP water treatment.

Luo et al. (Luo et al., 2020) developed hexagonal wurtzite phase ZnS:Cu nanoparticles, which were also confirmed to be a feasible pyro-assisted photocatalyst for generating ROS for AOP water treatment. ZnS is capable of rapidly generating electron-hole pairs under UV irradiation (sunlight), and the doped transition metal (Cu) can introduce new energy levels into the ZnS bandgap. As a result, the pristine wide bandgap (3.7–3.9 eV) can be reduced to 2.7 eV, making ZnS a visible-light-responsive photocatalyst. Furthermore, the doped Cu molecules can also reduce the symmetry of the host by creating polar domains, causing polarization and pyroelectricity in the host crystals that make ZnS an effective pyro-catalyst (Figure 4F). During the photocatalytic process, the holes are transferred to the new Cu energy levels by radiative transitions, thus preventing the electron-hole recombination and creating superior photocatalytic effects. At the same time, under thermal cycles, these positive and negative charges are released with varied polarization intensity. The generated electrons and holes react with O2 and H2O to generate the ·O2- and ·OH, respectively, and both ·O2- and ·OH show a strong ability for oxidizing the dye molecules (Figure 4G). The degradation efficiency of organic pollutants (acid orange 7; AO7) was tested to investigate the pyro-assisted photocatalysis efficiency. After running the operation for 60 min with solar irradiation and thermal cycles simultaneously, >95% AO7 was removed, whereas when only one option was used, only 45% and 10% AO7 was removed under either solar irradiation or thermal cycles. As a result, the ZnS:Cu ceramics exhibit strong pyro-assisted photocatalyst, making it a viable option to run the self-powered AOP water treatment process by utilizing solar and thermal energy effectively.

Solar-induced thermoelectric EHs for AOP water treatment

Another effective method to harvest thermal energy is by the utilization of EHs based on the thermoelectric effect (He et al., 2018; Shi et al., 2020; Yu et al., 2020; Zhang et al., 2019a). Thermoelectric nanogenerators (TEGs), also called Seebeck generators, are solid-state devices that convert heat flux (temperature differences) directly into electrical energy through a phenomenon called the Seebeck effect (Domnez Noyan et al., 2019; Zhang et al., 2019b). Since its inception, TEG has been used in a wide array of applications ranging from small portable generators to large plant-scale facilities (Yu et al., 2020; Zhao et al., 2019). As a result, when integrated with solar energy, the hybrid solar-induced thermoelectric EHs show great potential to drive the AOP water treatment process and provide reliable access to safe drinking water in rural or disaster-stricken areas.

Shin et al. developed a catalyst-free PEC cell electrically coupled in series with a TEG, which was capable of utilizing the full solar spectrum by synergistically collecting photon and phonon energies as shown in Figure 5A (Shin et al., 2015). P-type Si (working) and a Pt electrode (counter) were adopted as photocathode and anode for generating hydrogen and oxygen, respectively. Since this work focused only on the enhanced reaction performances of Si photocathode driven by thermo-voltages, only the hydrogen volume generated by the photocathode was measured. To collect hydrogen gas only, a specific system with fritted glass tube isolating a Pt counter electrode was set up. During solar light irradiation, the working cathode of PEC would be triggered, and the solar thermal energy would drive the TEG for a thermo-voltage. When the TEG was connected to the working cathode and the counter electrode (Pt) of the PEC, the Fermi level shifted toward a more positive potential (downward) as shown in Figure 5B. The solar-induced thermoelectric hybrid EH drove the electrons and holes into the water continuously due to the Fermi level lower than the oxidation/reduction potential of water. The generated electrons split the water molecules to produce H2, and the H2 generation efficiency was tested to evaluate the catalysis performance, which can be an essential indicator to confirm the feasibility for ROS generation and AOP water treatment as shown in Figure 5C. After 50 min of solar irradiation, 0.9 mL of H2 was generated. Although the study mainly focused on deploying a hybrid EH to generate electrons and holes for water splitting (i.e., producing H2 and O2), the thermoelectric-assisted photocatalysis shows great potential for application in the AOP water treatment if applied with proper catalysis and reactor design.

Figure 5.

Figure 5

Open in a new tab

Emerging and potential applications using solar-induced thermoelectric EHs for AOP water treatment

(A) Schematics of a hybrid device consisting of a photoelectrochemical cell (PEC) and a thermoelectric nanogenerator (TEG).

(B) Illustrations of the generated potential from TEG adjusting the Fermi level of PEC electrode for an enhanced electrons/holes generation efficiency.

(C) H2 generation efficiency due to the reduction reaction between electrons and water molecules, which can be an essential indicator to confirm the feasibility of ROS generation and AOP water treatment. Reproduced with permission, from (Shin et al., 2015), Copyright 2015, Elsevier Ltd.

Prospects and challenges

Energy harvesting systems are designed to convert multiple ambient environment energies, including mechanical and thermal energy. Assisted by sufficient solar energy, the solar-induced hybrid EHs can achieve sustainable, continuous, reliable, and robust energy harvesting, which shows great potential to drive the AOP water treatment. Without any external power input, the solar-induced hybrid EH-driven AOP water treatment methods are capable of purifying drinking water in rural areas where access to clean water and power supplies are limited, and/or during urgent natural disasters and pandemics (e.g., earthquake and COVID-19).

Further advancement of solar-induced hybrid EH-driven AOP water treatment methods will require the development of innovative mechanisms and techniques to achieve synergic processes for more effective water purification processes (Figure 6). Given that energy harvesting processes generate charges or achieve polarization on the material surface, multiple energy harvesting processes can be applied simultaneously for enhanced ROS generation performance. Previous studies have achieved hybrid piezo- and pyro-assisted photocatalysis processes, which show enhanced water purification efficiency with the synergic mechanisms. As a result, other hybrid energy harvesting materials and devices based on the triboelectric effects can be integrated into the photocatalysis process for high-performance AOP water treatment. In addition, to guarantee optimal AOP water treatment performance in practical application with various environmental conditions, the hybrid solar-induced EHs should be designed based on the application scenarios. The rational design of the EHs based on the available energy source (e.g., mechanical, and thermal energy) and harvester layout can further extend the potential for driving the AOP water treatment methods in practical application. In addition, there is still limited research on the solar-induced pyroelectric and thermoelectric EHs for AOP environmental treatment, more attention should be focused on developing novel mechanisms that will drive environmental purification processes and/or devices. Considering the abundance of thermal energy in the ambient environment, solar-induced pyroelectric and thermoelectric EHs have great potential to drive the AOP water treatment processes.

Figure 6.

Figure 6

Open in a new tab

Outlook of research using solar-induced hybrid EHs to drive AOP water treatment technologies

The reliability of the EHs during the AOP water treatment process should further be considered (Xiong et al., 2018; Xu et al., 2019). In practical application, the environmental conditions are usually unstable and changeable with significant humidity and temperature fluctuation, which may affect the efficiency of the energy harvesting process. Most of the time, humidity and other environmental conditions can negatively impact on EHs, especially the triboelectric-based EHs (Wen et al., 2019; Xia et al., 2020a). A humidity-resisting TENG has been developed by applying a layer of electrospun nanofibrous membranes, which eliminates the adverse effects of water vapor on the electrical output (Shen et al., 2017). In addition, the stability, and the output performance of the solar-induced hybrid EHs are equally essential in drive the AOP water treatment process, which can be further improved through the development of material technologies and device design. Provided such advancements, the demonstrated properties of solar-induced hybrid EHs presents significant opportunities for driving the AOP water treatment devices in rural communities and/or during urgent natural disasters and pandemics, which can provide reliable access to safe drinking water and ultimately improve quality of life.

Acknowledgments

This work was financially supported by Nano Material Technology Development Program (2020M3H4A1A03084600) through the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT. Z.-Y.H. acknowledges the support from the Korea Research Fellowship Program through the NRF of Korea (No. 2019H1D3A1A01102903).

Author contributions

Z.-Y.H. wrote the manuscript and prepared the figures. D.-M.L. and Y.-J.K. helped to write the manuscript and prepare the figures. Z.-Y.H. and S.-W.K. discussed and revised the manuscript.

Declaration of interests

The authors declare no competing interests.
