From structure to function: unveiling the structure of the Na_v channel–toxin complex

Voltage-gated sodium channels (Na_v) are essential for the generation and conduction of the action potentials in excitable cells, including neurons, endocrine cells and muscles. The sodium current was first recorded and mathematically described by the Hodgkin–Huxley model in the 1950s [1], which predicted both the existence of a voltage sensor and gating currents. It took three decades for the first clone of the central pore-forming α subunit cDNA to be obtained by the Numa group [2], which was followed by structure–function and mutational studies on the voltage-dependent gating mechanism, Na⁺ selectivity and the general structure of Na_v channels. The first 3D crystal structure of a prokaryotic Na⁺ channel was reported by the Catterall and Zheng laboratories in 2011. The Yan and King laboratories presented three high-resolution cryo-electron microscopy (EM) structures (2.6–3.2 Å) of the eukaryotic Na_v channel, Na_vPaS from American cockroach, in complex with three animal toxins [3].

This work is a landmark for structure–function studies of a representative voltage-gated channel interacting with toxins. Functional Na_v channels comprise a central pore-forming α-subunit and one to two auxiliary β subunits. The principal channel-forming α-subunit is a large polypeptide that folds into four homologous domains (I–IV) linked by three loops, each domain containing six α-helical transmembrane segments (S1–S6). The S1–S4 segments serve as the voltage-sensing module while the S5–S6 segments constitute the central ion-conducting pore module. Interestingly, Na_v channels are the primary and specific targets of neurotoxins from venomous organisms, which are classified as gating modifiers, such as the spider toxin Dc1a, and pore blockers represented by tetrodotoxin (TTX) and saxitoxin (STX). TTX is among the first neurotoxins that were identified as being extremely specific for Na_v, and has played a distinct role in the ion channel research area. Impressively, the authors revealed the detailed interaction of Na_vPaS with TTX and STX by using high-resolution cryo-EM structures. TTX/STX stabilizes at the outer vestibule through an extensive network of electrostatic interactions, effectively blocking the entrance of Na⁺ to the selectivity filter. The structure of the Na_vPaS-Dc1a complex not only confirms the trapping mechanism between the voltage-sensing domain VSD_II and this gating modifier toxin, but also shows the specific interactions of Dc1a with both the reported VSD_II domain and the unexpected pore domain. The authors also identified a bound Na⁺ ion in the Na_v–toxin complex and defined three acidic residues (DEE) in the selectivity filter region as a favoured binding site for Na⁺, which is very important information for determining the ion pathway within the channel (Fig. 1).

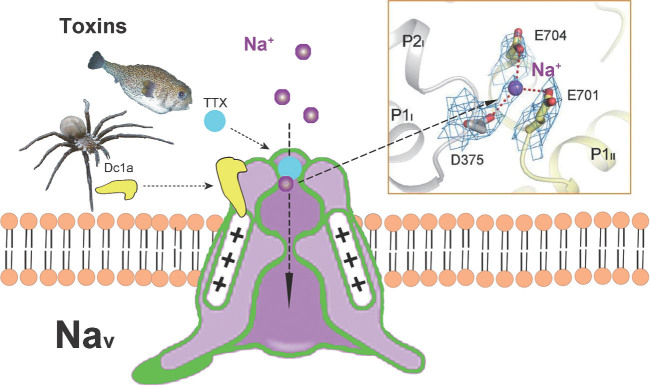

Figure 1.

A cartoon of the Na_v-toxin structure for how the two native toxins regulate the Na⁺ channel's function. The cryo-EM structures of the Na_v-Dc1a-TTX/STX complexes reveal the intermolecular interactions between a Na_v channel and two animal toxins, and indicate a possible Na⁺ binding site in the selectivity filter. Inset (top right) is from Shen et al. [3].

Mutations in Na_v genes are linked with epilepsy, cardiac arrhythmia, neuropathic pain and other pathological conditions, making them important therapeutic targets for pharmaceutical intervention. Although the selective modulation of Na_v by animal toxins has helped the development of Na_v channel drugs, this approach has been impeded by a lack of structural information on the toxin–channel intermolecular interactions.

The voltage-sensing module is a common structure shared not only by all types of voltage-gated Na⁺, Ca²⁺ and K⁺ channels, but also by at least two non-channel proteins (complex), the voltage-sensor-containing phosphatase [4] and the Ca²⁺-independent but voltage-dependent protein complex for exocytosis [5]. Thus, the high-resolution structure of Na_v-Dc1a-TTX/STX sheds light on voltage sensors involved in multiple areas including ion channels, intracellular phosphorylation and neural secretion. Following this insect 3D structure of the Na_v-toxin complex, many future studies are needed, such as 3D-Na_v structure in mammalian cells, which may offer insights into TTX-sensitive versus -insensitive Na_v channels, as well as their representative mutations in human patients.
