Development of a local empirical model of ionospheric total electron content (TEC) and its application for studying solar-ionospheric effects

Pantea Davoudifar 1,2,, Keihanak Rowshan Tabari 1, Amir Abbas Eslami Shafigh 1, Ali Ajabshirizadeh 3, Zahra Bagheri 4, Fakhredin Akbarian Tork Abad 2, Milad Shayan 1
PMCID: PMC8302617  PMID: 34301971

Abstract

Regular and irregular variations in total electron content (TEC) are one of the most significant observables in ionospheric studies. During the solar cycle 24, the variability of ionosphere is studied using global positioning system derived TEC at a mid-latitude station, Tehran (35.70N, 51.33E). Based on solar radio flux and seasonal and local time-dependent features of TEC values, a semi-empirical model is developed to represent its monthly/hourly mean values. Observed values of TEC and the results of our semi-empirical model then are compared with estimated values of a standard plasmasphere–ionosphere model. The outcome of this model is an expected mean TEC value considering the monthly/hourly regular effects of solar origin. Thus, it is possible to use it for monitoring irregular effects induced by solar events. As a result, the connection of TEC variations with solar activities are studied for the case of coronal mass ejections accompanying extreme solar flares. TEC response to solar flares of class X is well reproduced by this model. Our resulting values show that the most powerful flares (i.e. class X) induce a variation of more than 20 percent in daily TEC extent.

Subject terms: Applied physics, Space physics, Astronomy and astrophysics, Space physics, Space physics, Astronomy and planetary science, Physics

Introduction

In the Earth’s ionosphere, the variability of space weather is easily reflected in TEC. As the total number of electrons is measured along a vertical column of one square meter cross-section (1 TEC Unit (TECU) =1×1016electronsm-2) from the height of a GPS satellite (20,000km) to the receiver, thus TEC characterizes variations in both ionosphere and plasmasphere1.

Until now, various techniques have been used to empirically measure TEC. Some examples include: ionosondes2,3, incoherent backscatter radars2,4,5, Faraday Rotation (FR) in beacon satellite signals2,68, altimeter satellite systems, and Global Navigation Satellite Systems (GNSS)1,9. The Global Positioning System (GPS) satellites, provide an effective and low-cost method to measure TEC values10,11 as a function of time for a specific location on the Earth. GPS signal, propagating through the ionosphere, is advanced in phase and delayed in time. As a result, values of carrier phase and pseudo-range combined L-band frequencies (L1 carrier:1575.42 MHz and L2 carrier: 12227.60 MHz) are used to evaluate TEC1215.

TEC values are subject to both temporal/spatial and regular/irregular variations16,17. Spatial variations describe those related to the location on the Earth (i.e. equatorial anomalies etc), whilst temporal variations are related to time (i.e. universal or local). Where, regular variations include periodic changes in TEC values, irregular ones show the temporal effects of phenomena such as solar events and geomagnetic storms.

Investigating TEC variations reveals the main physical processes which are responsible for the ionospheric behaviour. Generally speaking, the changes in TEC values are mainly connected with: the condition of the Earth’s magnetic field, the Earth’s rotation (which induces diurnal effects), the Earth’s position around the Sun (which induces observed seasonal effects) and the solar activity levels. Whilst diurnal and seasonal effects are considered as regular effects, the solar activity levels and its effect on the Earth’s magnetic field may produce both regular and irregular variations. Irregular variations in TEC are mainly due to Traveling Ionospheric Disturbances (TID)1820 and/or ionospheric or geomagnetic storms21.

Solar variability and the ionosphere

Geomagnetic storms are the results of variations in the solar currents, plasmas and the Earth’s magnetosphere which is dominated by the magnetic field. These variations are simply induced to the Earth’s surrounding by solar wind or by plasma pockets from the Sun, travelling in the solar system with their frozen in magnetic fields (i.e. CMEs or totally “Ejecta”s)2225. In fact, the most extreme geomagnetic storms are associated with Coronal Mass Ejection (CME) events26 in most cases accompanying the solar flares.

Considering their peak fluxes, solar flares are classified as X, M and C classes ( <10-4, 10-5-10-4 and >10-4 watts per square meter for C, M and X classes respectively). Sudden increased radiation during a solar flare, causes extra ionization of the neutral components on the day-side of the Earth’s atmosphere27. Whilst soft X-ray and far UV fluxes enhance ionization in the E-region, hard X-ray component is responsible for enhanced ionization in the D-region. Electrons with approximate peak energies of a few keV cause ionization in lower E region and solar proton events with energies more than 100 MeV cause ionization much deeper into the atmosphere, namely into the D-region2830.

The time interval for Solar flare effects on the ionosphere, maybe divided to three main parts: (A) 01 hour; increased photo ionization in the day-side, the flare energetic particles arrive shortly after the flare photons, (B) 1 hour 4 days; Arrival of energetic particles accelerated in fast interplanetary shocks (ICMEs), and (C) 1 day 4+days, the effect of interplanetary electric field on the ionospheric height on day and night-sides31.

The solar cycle 24, was started with low solar activity. During this “deep minimum”, the relationship between solar EUV flux and F10.7 index was deviated from its behavior in the past solar minimum32. Furthermore, the International Reference Ionosphere (IRI) model overestimated TEC values for this period3336, thus developing semi-empirical models matters a lot.

The study of ionospheric response to solar flares, first was introduced by Afraimovich, et al.,3740. In their studies, Afraimovich et al. used TEC values directly and analyzed the observed fluctuations considering variation amplitude and background fluctuations. Other researchers also studied the signature of Solar flares on TEC values41,42 and monitored TEC variation during geomagnetic storms43. These studies are essentially based on analyzing observed TEC values without trying to remove long term regular effects. In some cases the ionospheric response to solar flares was studied using more than one station41. Choi et al.43 showed ionospheric TEC variation over a region to study the response to storm periods. Instead we offer a method to study the signature of solar events even for one station. Using a semi-empirical model we produce expected hourly/daily mean values of TEC for one station during different phases of a solar cycle. Because of the applied method, these mean values represent the regular behavior of TEC. Thus, it is possible to use the results to observe the effect of irregular events such as solar flares and coronal mass ejections.

Justification and outline of our semi-empirical model

Due to the Earth’s magnetic field, three latitudinal regions are recognized in the ionosphere: low-latitude or equatorial, mid-latitude and high-latitude regions. Usually, the low-latitude region contains the highest values of TEC whilst the mid-latitude region is considered as the least variable region of the ionosphere and it contains the most predictable variations of TEC9. It is shown that even in deep solar minimum a strong correlation with the solar indexes still exist13.

When developing a semi-empirical model, it is essential to remove the disturbed periods of geomagnetic storms44,45. The disturbance degree is directly related to the strength of the disturbing phenomena.

The strength of a geomagnetic storm is usually measured using geomagnetic indexes. Amongst them Kp, Dst (disturbance–storm time) (20-30 latitudes), SYM-H and ASY-H (40-50 latitudes) indexes4648 provide good information about the storm condition. Generally, after the storm sudden commencement, three phases are recognized during a storm49: The initial (with an increase in Dst by 20 to 50 nT; for tens of minutes); main (with a Dst decreasing to less than −50 nT; 2–8 hours) and recovery phases (Dst changes from its minimum value to its quiet time value; 8 hours and above)44.

SYM and ASY (both -D and -H) indexes are acquired from observations of magnetic fields at low and mid-latitudes (WDC, Kyoto) and describe the development of a magnetic storm. Compression of the dayside magnetosphere in the initial phase of a storm induces positive Dst values (as well as positive SYM-H values) whilst magnetic reconnection and ring current formation induce strongly negative values during the main phase50. SYM-H index is considered to be an analogues of Dst in many studies5153. On the other hand, it is shown that for Dst variations greater than 400 nT, these two values may differ54. In more detailed studies, it is recommended that SYM-H index can be used as a high-resolution Dst index55,56, of course with different scales for the definition of moderate storms56.

We have considered moderate, intense and super-storms (moderate: − 50 nT >Dstmin> − 100 nT ; intense: − 100 nT >Dstmin> − 250 nT ; super-storm: Dstmin< − 250 nT; During quiet times: − 20 nT <Dst< + 20 nT) to be the most probable reason of disturbed time periods and consequently designed a suitable filter to detect and remove them.

Database

The GPS-TEC data57,58 used in this research were detected by GNSS receiver Tehran (lat: 35.70N, lon: 51.33E) for a period of 11 years from low to high (2008–2013) and high to low (2014–2018) solar activity. The temporal resolution of the data is 30 seconds and received online from IONOLAB (to receive data for a time period, one can use scripting with IONOLAB-TEC/STEC Software), which provides TEC data with a resolution of 30 seconds from Receiver Independent Exchange Format (RINEX) files.

Production of ionization is mainly controlled by the solar EUV radiation. Due to unavailability of a suitable database of solar EUV radiation, solar radio flux (i.e. F10.7) is considered as a substitute index of solar activity which is reflected in our model. The daily F10.7 data were collected from OMNIWEB. Other parameters concerning IMF, solar wind and plasma parameters and activity indexes were acquired from OMNIWEB: High Resolution OMNI.

Processing the above data, the hourly/monthly mean values of the solar index (F10.7) and the ionospheric parameter TEC were prepared which allow us to study the variability of TEC with solar events.

Solar events in the above time interval were selected from Watanabe et al (2012)59 XRT flare catalogue and compared with the information from SOHO LASCO CME catalogue. To study the solar radio bursts RADIO SOLAR TELESCOPE NETWORK 1 Sec Solar Radio Data (SRD) files from RSTN were used.

SYM and ASY (both -D and -H) indexes are acquired from observations of magnetic fields at low and mid-latitudes (WDC, Kyoto).

SYM-H versus Dst

It is not easy to find a unique description for the storm’s degree based on SYM-H values, specially for the common definition of a moderate storm based on Dst values. In a closer look Dst and SYM-H do not behave like each other as it is previously mentioned55. In some cases a moderate storm condition starts with a SYM-H index lower or higher than its Dst value (it can fluctuate around 20 nT). Thus, first we decided to re-scale SYM-H based on Dst for solar cycle 24.

A first and a simple choice was to use the same limits calculated for the period of 1985 through 200956 or 1981 through 200255. For instance56:

SYM-H=0.95Dst+4.5nT, 1

gives a SYM-H index of − 43 nT for starting moderate storms (i.e. Dst of -50 nT). A sample of “storm time intervals” consisting of the time intervals of 1000 storms (of the moderate and above degrees, picked by their Dst values) was used as the test sample for solar cycle 24. As our first step, the entire period of 2009–2018 in the search of a proper lower limit of SYM-H (i.e. for marking moderate storms and above) was studied.

For instance, a comparison between Dst and SYM-H indexes is shown in Fig. 1, where it is seen that in the case of moderate storms, considering − 43 nT as the lower limit of SYM-H leads to the detection of more storms, so the starting value is important. Using − 46 nT gives better result for our data set in this period.

Figure 1.

Figure 1

Dst and SYM-H behavior during the year 2017.

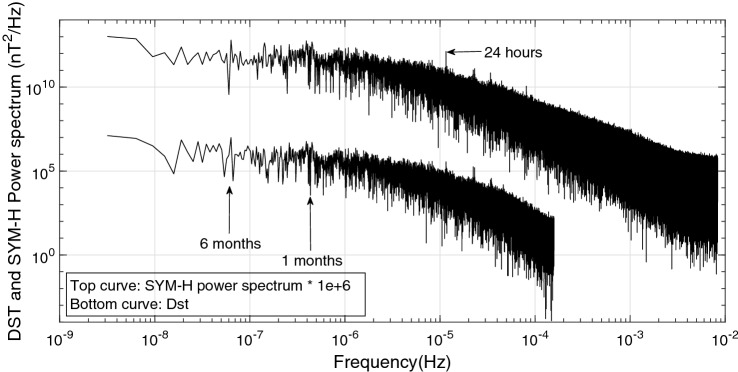

Considering the behavior of power spectrums of Dst and SYM-H (Fig.  2), some differences are seen (compared with the period of 1981–200255). Our power spectrums seems more noisy (Fig.  2) and as a result the peaks are not sharp as previously reported for the time interval of 1981–2002.

Figure 2.

Figure 2

Dst and SYM-H power spectrum during 2009–2018.

Plotting the probability distribution functions of Dst and SYM-H also provides some information about the behavior of these values over the time interval of 1981–2018 (Figs.  3, 4).

Figure 3.

Figure 3

Probability Distribution Functions of Dst during 1981–2018.

Figure 4.

Figure 4

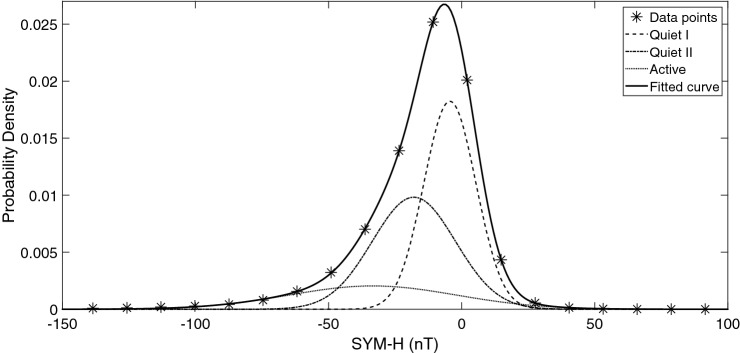

Probability Distribution Functions of SYM-H during 1981–2018.

For example it is seen that the sum of 3 gaussian distributions provides a good fit to both Dst and SYM-H distributions:

P(x)=A1·ex-b12/c12+A2·ex-b22/c22+A3·ex-b32/c32 2

Both Dst (Fig. 3) and SYM-H (Fig. 4) show 3 populations in their probability distributions, with (integrated) probability density values of: 0.43 (μ, − 18.56 nT and σ, 14.98 nT), 0.39 (μ, − 5.10 nT, and σ, 10.18 nT), 0.18 (μ, − 36.72 nT, and σ, 31.32 nT) and 0.45 (μ, − 4.42 nT, and σ, 9.77 nT) , 0.39(μ, − 17.96 nT, and σ, 15.63 nT), 0.16 (μ, − 33.45 nT, and σ, 31.49 nT) respectively. In comparison the gaussian distribution with higher population (− 18.56 nT) occurs at higher SYM-H values (− 4.42 nT) and the lowest population (around − 30 nT) has a difference of 3 nT in the peak position for Dst and Sym-H whilst showing higher values of σ (i.e. 31.32 and 31.49 nT) compared with two other distributions. In comparison, only less than − 10 percent of the events were recorded in the domain of − 50 nT and lower.

Compared with the method used by Wansliss and Showalter55, we see three spectrums. One Active and two Quiets (QI and QII). QI and QII cross the Active spectra at − 46nT and − 28nT respectively.

Through correlation studies for the time period of 1960–2001, the behavior of geomagnetic indices are shown to be correlated the best with Interplanetary Magnetic Fields (IMF)60 embedded within the solar wind. Solar magnetic field originates in convention layer and extends into the corona and the solar wind. Fast solar wind originates from coronal holes whilst slow solar wind originates at the edge of coronal holes61. Solar wind carries the strongest fields at solar maximum which are due to interplanetary coronal mass ejections and at this period the Earth experiences a broad range of solar wind velocities62,63. Around solar minimum, the coronal holes are located at the poles. When the magnetic quadrupole moment dominates over the dipole moment, a number of coronal holes appear at mid-latitudes, this is a typical behaviour in a solar cycle during solar maximum. At solar cycle 24 a deeper decrease of dipole component occurred in solar minimum63. During the deep solar minimum between cycles 23 and 24, the evolution of coronal holes and its connection to solar wind speed is discussed in details64 and a secondary peak in solar wind speed distribution is seen for 2007–2008. During solar cycle 24, solar wind speed is shown to have the highest correlation with geomagnetic indices, Ap and Dst, with zero time delays65. Jackson et al.66, used Current Sheet-Source Surface (CSSS) model67 to determine Geocentric Solar Magnetospheric (GSM) Bz field. They found that the daily variations of Bz are also correlated with geomagnetic Kp and Dst index variations over 11-year period of National Solar Observatory Global Oscillation Network Group (data. GONG). Thus it seems that the existence of 2 quiet spectrum in Figs.  3 and  4 is not accidental and may reflect the different situation of the solar cycle 24.

More numerical studies help to decide about the filters for executing disturbed time intervals. A linear fit to the scatter plot of SYM-H versus Dst (Fig.  5) gives the linear relationship:

SYM-H=0.89Dst-1.31nT, 3

Inserting the limit of − 50 nT for Dst gives the limit of SYM-H − 45.81 nT, comparable with the method applied by Katus et. al.56 (i.e. formula  1).

Figure 5.

Figure 5

The Distribution of storm times SYM-H versus Dst during 2009–2018. The best fit line is shown in black and equation in red.

Applied filter

Instead of considering Dst variations68, our storm finding procedure is based on the variation of SYM-H (formula  3) whilst ASY-H is used to find the storm onset times.

Different steps of our filtering algorithm are listed as below:

  • Generally, SYM-H values below − 46 nT were considered as the start of a possible storm.

  • A second filter is considered to detect storm onset times more precisely using ASY-H and SYM-H values. Observing a sharp positive peak in ASY-H values shows the sub-storm onsets69 prior to / or after occurrence of a moderate geomagnetic storm70,71. So in this method the onset times of the storms were highlighted observing the behavior of ASY and SYM (especially H) indexes.

  • For the storm time periods if there is only one record with the value of “at or below” − 46 nT in the selected period, the time period was not removed.

  • The recovery time also is considered (forwarded in time from the selected starting point) using ASY-H, up to the deepest local minimum after the starting point (if it does not result in less than 2 hours).

  • The specified time periods were recorded and then excluded from raw data of TEC before calculating the desired mean values.

We examined our procedure for a test sample of storm time intervals during 1/1/2017–1/1/2018. The coincidence was 91.2 % using only steps 1 and 2, 97 % when adding step 3.

The above method is applied upon the whole time interval of cycle 24, backward in time. It is obvious that in comparison with the method applied by Badeke et al.68, we remove less time periods (they have removed 36 hours for each considered storm).

As an example of how this procedure works, the time interval of a geomagnetic storm (22 April 2017) (SGAS Number 112 Issued at 0254z on 22 Apr 2017) is shown in Fig.  6.

Figure 6.

Figure 6

ASY-H and SYM-H behavior during geomagnetic storm of 22 April 2017 (DOY 112). The filter discussed in the section "Applied Filter"   were applied to mark disturbed time intervals. Solid lines (black, green and red) show the first occurrence of SYM-H value bellow − 46 nt. Dashed lines (black, green, red) show the start of related sub-storms considering the variation of ASY-H.

To study this storm a time period of 5 days is drawn (2 days before and 2 days after the reported date). The data was acquired from WDC, Kyoto.

Applying this method, in the first step 58 points were recognized with a SYM-H value below − 46 nT.

The first recognized occurrence of a SYM-H value below − 46 nT is on DOY 113, 23 April 2017, 00:08:00. Prior to this time, considering the variation of ASY-H, the start of a sub-storm is recognized on 22 April 2017, 21:33:00. Thus, the onset time for this storm was 22 April 2017, 21:33:00 and the time period from 4/22/2017 21:33:00 to 4/23/2017 00:08:00 was excluded.

Getting Back on time, the next recognized occurrence of a SYM-H below − 46 nT is on 4/22/2017 09:17:00. Same as above, the time period from 4/22/2017 06:48:00 to 4/22/2017 09:17:00 was excluded.

As the last time interval, a SYM-H below − 46 nT was recognized on 4/22/2017 04:38:00. The onset time was 4/22/2017 01:15:00 and the time period from 4/22/2017 01:15:00 to 4/22/2017 04:38:00 was excluded.

Thus, for geomagnetic storm of 22 April 2017 (above example), a sum of 08:27:00 hours was excluded from TEC raw data.

The model

The first step to interpret the observed values of TEC, is considering a linear relation with solar F10.7 index:

TEC=M×F10.7+B 4

M is the dependance rate of F10.7 and B is the hypothetical value of TEC for F10.7 = 0 SFU72.

Semiannual, monthly and diurnal effects induce powerful variations in power spectrums of Dst and Sym-H (Fig.  2). It is expected that such regular time variations can possibly be observed in the mean values of TEC. As a result, we have calculated proper mean values for different hours (1:24) of each month of the solar cycle 24 (1:132).

Diagram of Monthly mean values of TEC versus F10.7 solar flux, shows different behavior in ascending and descending phases of the solar cycle (i.e. the ionospheric hysteresis effect), Fig.  7. Following the present work, we intend to compare the situation of the twenty-fourth and twenty-third solar cycles. Thus, instead of dividing the twenty-fourth cycle into four periods (i.e. 2009–2011 ascending, 2011–2014 high, 2015–2016 descending and 2017–2019 low solar activity), we decided to look at a more general situation. Considering Fig.  7, the moderate linear behavior of solar cycle 24 is seen in descending phase, whilst a good correlation is obvious in ascending phase (see Fig.  8).

Figure 7.

Figure 7

Ionospheric Hysteresis Effect for the time period of 2009–2018.

Figure 8.

Figure 8

Linear regression fittings and correlation coefficients for the monthly mean values of TEC versus F10.7.

Thus, the whole data period has been classified in the ascending (2009–2013) and descending (2014–2018) phases of the solar cycle and the monthly mean values of TEC are calculated.

The coefficients of Eq. 4 were calculated for every hour of a day in a given month by linear regression. For each part (i.e. descending and ascending phases), a 12*24 (12 months of the year × 24 hours of the day) matrix for M and B is generated. For example in Fig. 8, the linear regression and correlation coefficients (R) between monthly mean values of TEC and F10.7 during January at different local times were shown for ascending and descending phases.

Contour plots of TEC, normalized at F10.7 = 100 SFU, for various months at different local times are shown in Fig. 9, for ascending and descending phases. Note that lower values of TEC are expected in comparison with similar plots for equatorial stations.

Figure 9.

Figure 9

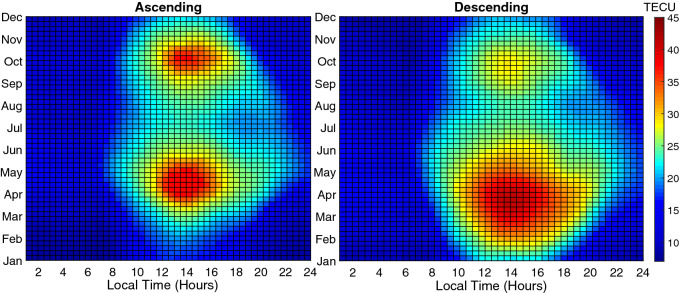

Contour diagram of the Monthly mean GPS-TEC normalized at F10.7 = 100 SFU for various months at different local times during the ascending phase (left panel) and the descending phase (right panel) of the solar cycle 24. The colour scale on the right indicates the different levels of TEC.

The seasonal variation displays a semiannual variation with higher values around equinoxes and lower values around solstices. For instance, a comparison is made in Fig. 10 for ascending and descending phases which shows an asymmetric double peak in seasonal variation. In Fig. 11 daily mean TECU in ascending and descending phases were compared. An important feature of this semiannual variation is the local time dependence of the asymmetrical peak amplitudes. Seasonal anomaly is explained in terms of changes in solar zenith angle and thermospheric composition, especially the ratio [O][N2]73,74.

Figure 10.

Figure 10

Diagrams of Monthly mean TECU in ascending and descending phases (top-left and right) and Monthly mean TECU normalized at F10.7 = 100 SFU during ascending and the descending phases (bottom-left and right).

Figure 11.

Figure 11

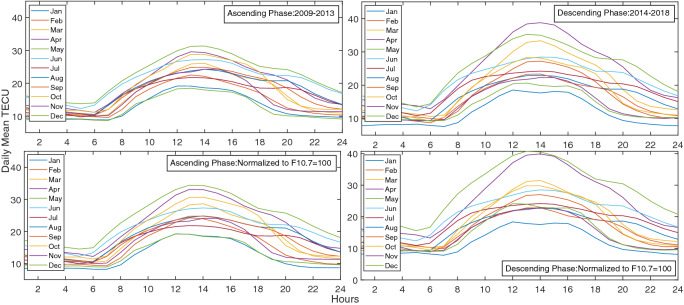

Diagrams of daily mean TECU in ascending and descending phases (top-left and right) and Monthly mean TECU normalized at F10.7 = 100 SFU during ascending and the descending phases (bottom-left and right).

Considering seasonal and diurnal normalized values of TEC, a sinusoidal behavior is observed during ascending and descending phases. This is the reason Fourier analysis is used in the following.

Fourier analysis was used to investigate the relation of regression coefficient matrixes, M and B with month and hour numbers. To achieve positive values for the elements of B matrix, restricted linear regression method is used.

Considering M and B as two images, all the image processing techniques is possible to be applied for further investigation.

Simply, we work with an image for which the discrete values of m and t are spatial coordinates. In the following 2D discrete Fourier analysis, is used.

If M(m,t) represents the values of matrix elements resulted by Eq. 4, then a 2D discrete Fourier transform of M(m,t) is shown by:

FM(u,v)=m=0M-1t=0T-1M(m,t)e-i2πumMe-i2πvtT 5

for which M and T are equal to the dimension of our matrixes, 12 and 24 respectively. The inverse 2D discrete Fourier transform which reproduces the original matrix now is:

M(m,t)=1MTu=0M-1v=0T-1FM(u,v)e+i2πumMe+i2πvtT 6

Applying the same method for B and considering suitable filters to remove noises from high frequency signals, our linearized model ( 4) is extended as below:

TEC(m,t)=1MTu=0M-1v=0T-1FM(u,v)e+i2πumMe+i2πvtT×F10.7+1MTu=0M-1v=0T-1FB(u,v)e+i2πumMe+i2πvtT 7

where FM(u,v) and FB represent the Fourier coefficients of 2D discrete Fourier expansion of equations like  6.

Using proper low and high-pass filters it is possible to decompose the original matrix to the components of desired frequency bands. This method is suitable to study the main frequencies in our linearized model. Here we have applied low-pass filters to remove high frequency noises and the main frequencies were used to reconstruct TEC values. Thus the model is re-written using new values of M(m,t) and B(m,t) (respectively, G1(m,t) and G2(m,t))).

TEC=G1(m,t)×F10.7+G2(m,t). 8

Applying this model, it is possible to compare resulting values with the observed values. Thus, for solar cycle 24 we have marked a set of time intervals for which, a positive residual exist.

In our method the accuracy of the time interval was one hour, but it is possible to increase the accuracy to one minute by considering proper mean values of experimental GPS-TEC (i.e. Fig.  9).

A few examples of our resulted TEC values at four different local times, 1, 6, 12, and 24 during ascending phase of solar cycle 24 are shown in Figs. 12 and  13.

Figure 12.

Figure 12

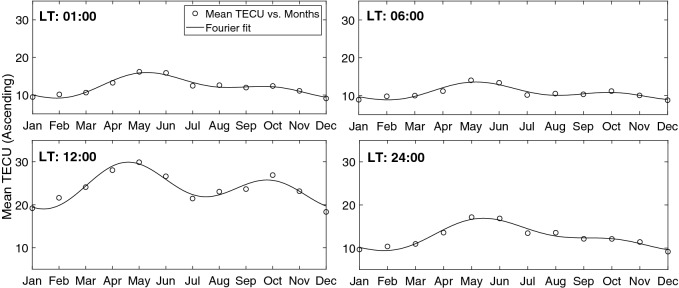

Seasonal variation of monthly mean normalized TEC values at different local times during the ascending phase of the solar cycle 24 (2009–2013). The continuous thick curve presents the resulted fourier series.

Figure 13.

Figure 13

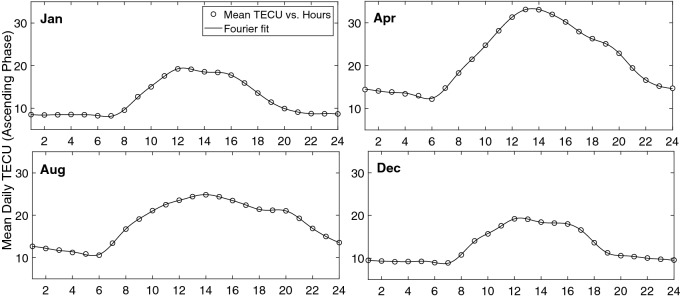

Seasonal variation of daily mean normalized TEC values at different months during the ascending phase of the solar cycle 24 (2009–2013). The continuous thick curve presents the resulted fourier series before using filters.

Figure 13 shows diurnal variation of monthly mean values of TEC for different months of the ascending phase. It is clear that TEC gradually increases with sunrise, reaches a peak at around 11:00–14:00 LT and later declines to reach the minimum value after midnight.

The final results of the model are presented in Figs.  14 and  15 . Figure  14 shows the normalized mean values of TEC for ascending and descending phases, whilst Fig.  15 demonstrates the observed mean values for Tehran station in comparison with the model mean values.

Figure 14.

Figure 14

Final Result of Ionospheric model - Normalized to F10.7 = 100 SFU.

Figure 15.

Figure 15

Final Result of Ionospheric model for the entire cycle. Left panel represents the result of our semi-empirical model, whilst right panel represents mean values of observed TECs. The model response is best for higher solar activities.

Now it is possible to study the effects of CME and solar flares on TEC values. As an example, the impact of X-class solar flares is investigated in the following section.

The impact of X-class solar flares of cycle 24

We apply our method to the full data-set without removing the disturbed time intervals (as in Sect. 6), resulted values are represented by TEC(E), in Table  2. Thus TEC(E), will possibly contain both regular and irregular effects 1. We also presented values estimated by our full criteria (Sect. 6), represented by TEC(MM) in Table  2. Finally, the resulted values are compared against TEC values of a standard plasmasphere-ionosphere model (International Reference Ionosphere, IRI), represented by TEC(I) in Table  2.

Table 2.

Our results compared with the results of IRI model (2016) for solar event of tabel 1. TEC(E), TEC(MM) and TEC(I) represent experimental, calculated by this model and calculated by IRI model values of TEC.

TEC(I) TEC(E) TEC(MM) TEC(E)-TEC(I) TEC(E)-TEC(MM) Daily F10.7 flux CLASS ID Date-Time
319.400 338.274 384.060 18.874 − 45.786 110.000 X2.2 031070 15-Feb-2011 01:45:00
387.700 0.000 576.814 − 387.700 − 576.814 141.000 X1.5 033440 09-Mar-2011
465.000 448.301 454.660 − 16.699 − 6.359 100.200 X6.9 041780 09-Aug-2011 08:05:00
500.000 0.000 543.307 − 500.000 − 543.307 113.200 X2.1 043810 06-Sep-2011
524.700 569.648 500.229 44.948 69.419 157.800 X1.9 048150 03-Nov-2011 20:27:00
458.800 411.510 372.706 − 47.290 38.804 137.400 X1.7 053820 27-Jan-2012 18:37:00
608.400 494.013 560.822 − 114.387 − 66.809 129.500 X1.1 055540 05-Mar-2012 04:05:00
630.800 595.659 560.822 − 35.141 34.837 133.700 X5.4 055910 07-Mar-2012 00:24:00
630.800 595.659 560.822 − 35.141 34.837 133.700 X1.3 055920 07-Mar-2012 01:14:00
490.800 670.332 626.538 179.532 43.794 163.000 X1.1 064660 06-Jul-2012 23:08:00
481.500 537.416 626.538 55.916 − 89.122 170.900 X1.4 065220 12-Jul-2012 16:49:00
479.500 469.093 626.538 − 10.407 − 157.445 140.100 X1.8 071530 23-Oct-2012 03:17:00
640.800 891.365 615.657 250.565 275.708 153.500 X1.7 082890 13-May-2013 02:17:00
640.800 891.365 615.657 250.565 275.708 153.500 X2.8 082980 13-May-2013 16:01:00
640.400 833.747 615.657 193.347 218.090 151.100 X3.2 083010 14-May-2013 01:11:00
639.700 774.173 615.657 134.473 158.516 148.800 X1.2 083050 15-May-2013 01:40:00
633.700 501.158 459.236 − 132.542 41.922 151.100 X1.1 092540 10-Nov-2013 05:14:00
768.500 1022.878 771.702 254.378 251.176 142.300 X1.0 102140 29-Mar-2014 17:48:00
788.900 934.813 739.271 145.913 195.542 126.200 X1.3 104230 25-Apr-2014 00:27:00
620.500 659.693 633.176 39.193 26.517 177.000 X1.6 111580 10-Sep-2014 17:33:00
655.500 0.000 471.949 − 655.500 − 471.949 171.700 X1.1 113350 19-Oct-2014
661.700 590.041 471.949 − 71.659 118.092 214.200 X1.6 113710 22-Oct-2014 14:06:00
636.700 617.843 471.949 − 18.857 145.894 215.400 X3.1 113870 24-Oct-2014 21:15:00
635.000 668.495 471.949 33.495 196.546 216.800 X1.0 113940 25-Oct-2014 17:08:00
632.900 175.708 471.949 − 457.192 − 296.241 214.000 X2.0 114000 26-Oct-2014 10:56:00
631.000 592.129 471.949 − 38.871 120.180 185.400 X2.0 114190 27-Oct-2014 14:23:00
611.000 621.306 606.158 10.306 15.148 142.900 X1.6 115000 07-Nov-2014 17:26:00
487.000 518.782 421.102 31.782 97.680 196.700 X1.8 118000 20-Dec-2014 00:28:00
656.200 659.615 650.272 3.415 9.343 129.900 X2.1 122740 11-Mar-2015 16:22:00
655.800 0.000 571.799 − 655.800 − 571.799 130.000 X2.7 126290 05-May-2015
279.900 354.448 360.955 74.548 − 6.507 134.900 X2.2 160610 06-Sep-2017 09:10:00
279.900 354.448 360.955 74.548 − 6.507 134.900 X9.3 160620 06-Sep-2017 12:02:00
280.800 425.313 360.955 144.513 64.357 130.400 X1.3 160720 07-Sep-2017 14:36:00
283.800 265.420 360.955 − 18.380 − 95.535 101.600 X8.2 161170 10-Sep-2017 16:06:00

Our results for four flare events, are shown in Fig. 16a–d. In comparison to IRI model, our model results in smoother curves for TEC.

Figure 16.

Figure 16

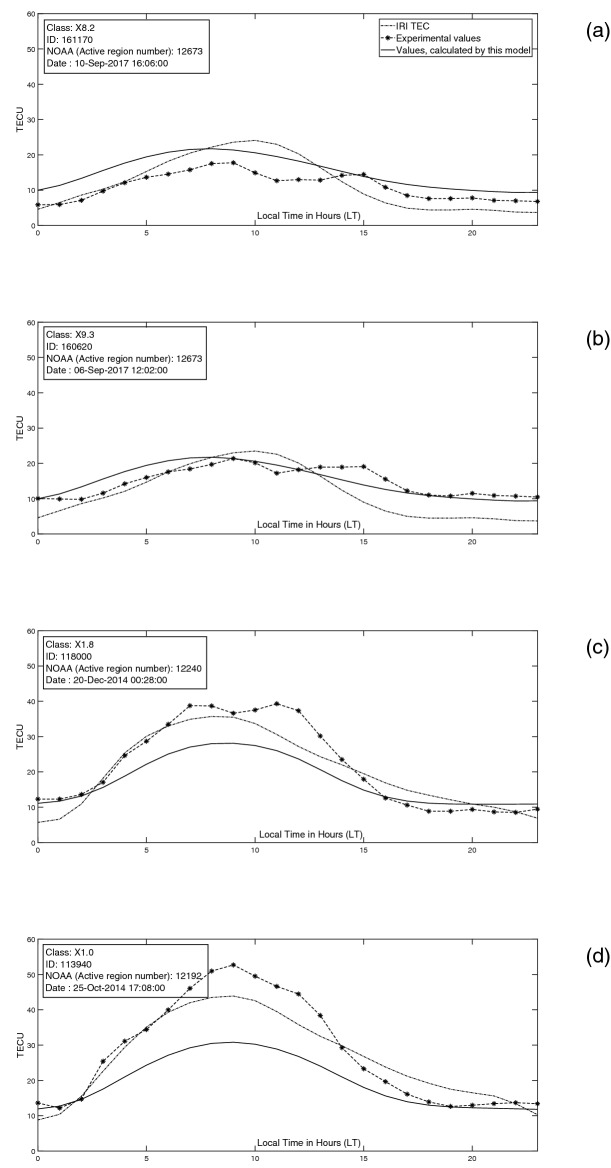

Daily variation of TECU for few different flares.

For completeness of the research, we studied the time intervals of class X solar flares in solar cycle 2459 (XRT flare catalogue). Some of these flares are companying with CMEs. During the studied dates the possibility of solar radio bursts from (RSTN) also are considered in which 1 second records of eight discrete solar radio flux measurement were presented. A set of 34 flares of class X were considered for the present work (Table  1). For Tehran station, no TEC values existed for 4 flares out of 34 (Table  1), and TEC values existed only partially for 2 flares out of 34.

Table 1.

List of studied solar event.

ID CLASS YY MM DD Daily F10.7 flux
031070 X2.2 11 02 15 110.0
033440 X1.5 11 03 09 141.0
041780 X6.9 11 08 09 100.2
043810 X2.1 11 09 06 113.2
048150 X1.9 11 11 03 157.8
053820 X1.7 12 01 27 137.4
055540 X1.1 12 03 05 129.5
055910 X5.4 12 03 07 133.7
055920 X1.3 12 03 07 133.7
064660 X1.1 12 07 06 163.0
065220 X1.4 12 07 12 170.9
071530 X1.8 12 10 23 140.1
082890 X1.7 13 05 13 153.5
082980 X2.8 13 05 13 153.5
083010 X3.2 13 05 14 151.1
083050 X1.2 13 05 15 148.8
092540 X1.1 13 11 10 151.1
102140 X1.0 14 03 29 142.3
104230 X1.3 14 04 25 126.2
111580 X1.6 14 09 10 177.0
113350 X1.1 14 10 19 171.7
113710 X1.6 14 10 22 214.2
113870 X3.1 14 10 24 215.4
113940 X1.0 14 10 25 216.8
114000 X2.0 14 10 26 214.0
114190 X2.0 14 10 27 185.4
115000 X1.6 14 11 07 142.9
118000 X1.8 14 12 20 196.7
122740 X2.1 15 03 11 129.9
126290 X2.7 15 05 05 130.0
160610 X2.2 17 09 06 134.9
160620 X9.3 17 09 06 134.9
160720 X1.3 17 09 07 130.4
161170 X8.2 17 09 10 101.6

In a total view, in 19 events (out of 34) the expected mean values of TEC from the presented model are somewhat lower than IRI 2016.

Figure  16a, demonstrate the TEC variation of 10-Sep-2017. An X8.2 flare with ID: 161170 (Watanabe et al (2012)59 XRT flare catalogue) is seen at 16:06:00 UT with a CME accompanying (SOHO/LASCO Halo CME Catalogue). Though it was one of the most powerful events in solar cycle 24, its effect on TEC values was not considerable for Tehran station, just a second peak reached to our calculated values. Figure  16b, demonstrate the TEC variation of 06-Sep-2017. An X9.3 flare with ID: 160620 (Watanabe et al (2012)59 XRT flare catalogue) is seen at 12:02:00 UT with a CME accompanying (SOHO/LASCO Halo CME Catalogue). A second peak in TEC, is seen for 14 to 15 pm in Fig.  16b, and experimental TEC values are well above our calculated values. Solar event of 10-Sep-2017, is well modeled75. Though the CME eruption was catalogued as Halo, with a Central Position Angle (CPA) of 360 degrees (SOHO/LASCO CME Catalogue), it does not produced an Earth directed Interplanetary CME (ICME). During this event, three CMEs propagated and merged into a complex ICME with main direction towards Mars75,76. So despite of an X8.3 flare, solar events were not geoeffective and excited no Forbush Decrease (FD) or powerful Geomagnetic Storms (GMSs). In comparison, as we see in Fig.  16b, solar flare of 6-Sep-2017, was accompanying with a Halo CME affected with two prior CMEs from the same active region (SOHO/LASCO CME Catalogue). The interaction of these ICMEs together and with high speed stream from coronal hole 823 and corotating interaction region and heliospheric current sheet76 resulting strong IMF and solar wind.

Third example (Fig.  16c) represents the effect of a class X1.8 solar flare, on 20-Dec-2014. For flare ID: 118000 (Watanabe et al (2012)59 XRT flare catalogue), no halo CME event is recorded by SOHO/LASCO Halo CME Catalogue. The flare occurrence is recorded on 00:28 UT and TEC values at Tehran station is disturbed dramatically around noon. Due to (SOHO/LASCO CME Catalogue) 6 CMEs are recorded from 1 am to 21 pm. A partial halo CME occurred at 01:25 am with a CPA of 216 degrees. This event is not followed more, but possibility of a G1 minor geomagnetic storm was reported (Space Weather Prediction Center).

Our last example, Fig.  16d, shows TEC values in the occurrence date of an X1.0 solar flare (25-Oct-2014). For flare ID: 113940 (Watanabe et al (2012)59 XRT flare catalogue), no halo CME event is recorded by SOHO/LASCO Halo CME Catalogue. TEC values are disturbed again around noon, where it is clear that this later event is not connected by flare ID: 113940 at 17 pm (Watanabe et al (2012)59 XRT flare catalogue). A partial halo CME erupted at 4 am (SOHO/LASCO CME Catalogue) Geomagnetic field was forecasted to be quiet to unsettled (Space Weather Prediction Center). The solar burst data (RSTN) is used to observe solar burst in 8 frequencies of 245, 410, 610, 1415, 2695, 4975, 8800 and 15400 MHz. The peak values is shown in Fig. 17.

Figure 17.

Figure 17

Peak flux values at 3 different frequencies: 245, 1415 and 4975 MHz (25-Oct-2014).

For the time interval of 10 am to 22 pm no data exist in all 8 frequencies, but there are few bursts which seems to be responsible for TEC variations of Fig.  16d.

Due to this study, it is seen that a combination of solar events are responsible for TEC variations. But the effect of Solar flares and bursts with radio emissions higher than daily F10.7 values, were detected more clearly at the mid-latitude station of Tehran (the situation might be quite different, e.g., at high latitude stations).

Our resulted values shows that the flares with the most power (i.e. class X) have induced a variation of more than 20 percent in TEC. In some cases for the flares with accompanying CMEs, the variation maybe extended to a few hours. In our study we found no correlation between the local time of the flares occurrence and the magnitude of induced values.

The results and conclusions

  • The probability density of Dst and SYM-H (Figs. 3 and  4) for the time interval of 1981–2018 were formulated as the sum of 3 gaussian distributions:
    P(x)=A1·ex-b12/c12+A2·ex-b22/c22+A3·ex-b32/c32 9
    shows 3 populations based of the magnitude of ionospheric disturbances.
  • For the solar cycle 24, SYM-H was re-scaled based on Dst as (Fig.  5):
    SYM-H=0.89Dst-1.31nT, 10
  • A method to recognize the time intervals of geomagnetic storms based on SYM-H and ASY-H variations is developed and applied in the section Applied Filter.

  • The final results of the model are presented in Figs.  14 and  15 .

  • The same calculation method is used to present estimated values of IRI 2016 model as a reference.

  • Solar flares of class X in solar cycle 24 were studied for completeness. Figure  16a,b and Tables  1 and  2.

  • In the absence of any halo CME, Earth directed ICMEs and streamers from the Sun, solar radio bursts of 25-Dec-2014 (Fig.  17) are probable source of TEC variations (Fig.  16d).

  • Through this method the effect of Solar flares and bursts with radio emissions higher than daily F10.7 values, were better detected.

  • Our resulted values shows that the flares with the most power (i.e. class X) have induced a variation of more than 20 percent in TEC.

Acknowledgements

This work has been supported financially by Iranian Space Agency (ISA) grants under the research project No. EX-RES11X and also by Research Institute for Astronomy and Astrophysics of Maragha (RIAAM), University of Maragheh under the research project No. 1/4165-24. The results presented in this paper rely on: [TEC values] calculated and made available by [Ionospheric Research Laboratoy] IONOLAB. [Dst and ASY index] calculated and made available by [International Service of Geomagnetic Indices: World Data Center for Geomagnetism, Kyoto] from data collected at magnetic observatories. We thank the involved national institutes, the INTERMAGNET network, ISGI and WDC, Kyoto.

Author contributions

Pantea Davoudifar: Conceptualization, Data curation, Formal Analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. Keihanak Powshan Tabari: Conceptualization, Data curation, Formal Analysis, Investigation, Resources, Software, Visualization, Writing – review & editing. Amir Abbas Eslami Shafigh: Conceptualization, Formal Analysis, Investigation, Methodology, Writing – editing. Ali Ajabshirizadeh: Funding acquisition, Writing – editing. Zahra Bagheri: Conceptualization, Formal Analysis, Investigation, Methodology, Writing – editing. Fakhredin Akbarian Tork Abad: Conceptualization, Methodology. Milad Shayan: Conceptualization, Formal Analysis, Methodology.

Competing interests

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

References

  • 1.Hofmann-Wellenhof B, Lichtenegger H, Collins J. Global positioning system theory and practice. Berlin: Springer; 2001. [Google Scholar]
  • 2.Mitra, A. P. Ionospheric effects of solar flares, vol. 46 of Astrophysics and space science library (D. Reidel Publishing Company, Dordrecht, Holland, 1974), 1 edn.
  • 3.Huang X, Reinisch W. Vertical electron content from ionograms in real time. Radio Sci. 2001;36:335–342. doi: 10.1029/1999RS002409. [DOI] [Google Scholar]
  • 4.Mahajan K, Rao P, Prasad S. Incoherent backscatter study of electron content and equivalent slab tickness. J. Geophys. Res. Space Phys. 1968;73:2477–2486. doi: 10.1029/JA073i007p02477. [DOI] [Google Scholar]
  • 5.Zhou C, et al. Comparision of ionospheric electron density distributions reconstructed by GPS computized tomography, backscatter ionograms, and vertical ionograms. J. Geophys. Res. Space Phys. 2015;120:032–047. [Google Scholar]
  • 6.Narayana N, Hamrick L. Simulation and analysis of Faraday rotation of beacon satellite signals in the presence of traveling ionospheric disturbances. Radio Sci. 1970;5:907–912. doi: 10.1029/RS005i006p00907. [DOI] [Google Scholar]
  • 7.Titheridge J. Faraday rotation of satellite signal across the transverse region. J. Geophys. Res. 1971;76:4569–4577. doi: 10.1029/JA076i019p04569. [DOI] [Google Scholar]
  • 8.Wang C, et al. Ionospheric reconstructions using faraday rotation in spaceborne polarimetric SAR data. Remote Sens. 2017;9:1169. doi: 10.3390/rs9111169. [DOI] [Google Scholar]
  • 9.Böhm J, Schuh H, editors. Atmospheric effects in space geodesy. Berlin: Springer; 2013. [Google Scholar]
  • 10.Marković M. Determination of total electron content in the ionosphere using GPS technology. Geonauka. 2014;2:1–9. doi: 10.14438/gn.2014.22. [DOI] [Google Scholar]
  • 11.Zhang B. Three methodes to retrieve slant total electron content measurments from ground-based gps recivers and performance assesment. Radio Sci. 2016;2016:1–17. [Google Scholar]
  • 12.Norsuzila, Y., Abdullah, M., Ismail, M., Ibrahim, M. & Zakaria, Z. Total electron content (TEC) and estimation of positioning error using Malaysia data. Proc. World Congr. Eng.2010(I), 715–719 (2010).
  • 13.Mansoori, A. A., Khan, P. A., Bhawre, P., Gwal, A. & Purohit, P. Variability of TEC at mid latitude with solar activity during the solar cycle 23 and 24. Proceedings of the 2013 IEEE international conference on space science and communication (IconSpace)978-1-4673-5233-8/13, 83–87 (2013).
  • 14.Yasyukevich, Y., Mylnikova, A. & polyakova, A, ,. Estimating the total electron content absolute value from the GPS/GLONASS data. Results Phys.5, 32–33 (2015).
  • 15.Hein WZ, Goto Y, Kashara Y. Estimation method of ionospheric TEC distribution using single frequency measurements of GPS signals. Int. J. Adv. Comput. Sci. Appl. 2016;7:1–6. [Google Scholar]
  • 16.Kane R. Irregular variations in global distribution of total electron content. Radio Sci. 1980;15:837–842. doi: 10.1029/RS015i004p00837. [DOI] [Google Scholar]
  • 17.Talaat E, Zhu X. Spatial and temporal variation of total electron content as revealed by principal component analysis. Annal. Geophys. 2016;34:1109–1117. doi: 10.5194/angeo-34-1109-2016. [DOI] [Google Scholar]
  • 18.Fedorenko YP, Tyrnov OF, Fedorenko VN, Dorohov VL. Model of travelling ionospheric dosturbances. J. Space Weather Space Climate. 2013;3:A30. doi: 10.1051/swsc/2013052. [DOI] [Google Scholar]
  • 19.Vlasov A, Kauristie K, van de Kamp M, Luntama JP, Pogoreltsev A. A study of traveling ionospheric disturbances and atmospheric gravity waves using EISCAT svalbrad radar IPY-data. Annal. Geophys. 2011;29:2101–2116. doi: 10.5194/angeo-29-2101-2011. [DOI] [Google Scholar]
  • 20.MacDougall J, et al. On the production of traveling ionospheric disturbances by atmospheric gravity waves. J. Atmospheric Solar Terrest. Phys. 2009;71:2013–2016. doi: 10.1016/j.jastp.2009.09.006. [DOI] [Google Scholar]
  • 21.Blagojevic D, et al. Variations of total electron content over serbia during the increased solar activity period in 2013 and 2014. Geodetski Vestnik. 2016;60:734–744. doi: 10.15292/geodetski-vestnik.2016.04.734-744. [DOI] [Google Scholar]
  • 22.Tsurutani, B. & Gonzalez, W. On the solar interplanetary causes of geomagnetic storms. Phys. Fluids B Plasma Phys. (1989–1993)5, 2623 (1993).
  • 23.Rostoker, G., Friedrich, E. & Dobbs, M. Physics of magnetic storms, vol. 98 of Geophysical monograph series, 149–160 (American Geophysical Union, 1997).
  • 24.Burlaga, L., Plunkett, S. & O.C.St.Cyr. Successive CMEs and complex ejecta. J. Geophys. Res.107, 1266 (2002).
  • 25.Tsurutani, B. et al.Magnetic storms caused by corotating solar wind streams, vol. 167 of Geophysical monograph series, 1–17 (American Geophysical Union, 2006).
  • 26.Cane H. Coronal mass ejections and forbush decreases. Space Sci. Rev. 2000;93:55–77. doi: 10.1023/A:1026532125747. [DOI] [Google Scholar]
  • 27.Barta V, Satori G, Berenyi KA, Kis A, Williams E. Effectc of solar flares on the ionosphere as shown by the dynamics of ionograms recorded in europe and south africa. Annal. Geophys. 2019;37:747–761. doi: 10.5194/angeo-37-747-2019. [DOI] [Google Scholar]
  • 28.Rishbeth, H. & Garriott, O. Introduction to ionospheric physics, vol. 14 of International geophysics series (Academic Press, NY, 1969).
  • 29.Hargreaves, J. The Solar-Terrestrial Environment. Cambridge Atmospheric and Space Science Series (Cambridge University Press, 1992).
  • 30.Bothmer, V. & Daglis, I. Space weather and effects. Environmental sciences (Springer-Verlag Berlin Heidelberg, 2007), 1 edn.
  • 31.Tsurutani, B. et al. A brief review of “solar flare effects” on the ionosphere. Radio Sci.44, 1–14 (2009).
  • 32.Chen Y, Liu L, Does W. F107 index correctly describe solar EUV flux during the deep solar minimum of 2007–2009. J. Geophys. Res. 2011;116:04304. [Google Scholar]
  • 33.Lühr H, Xiong C. IRI-2007 model overestimated electron density during the 23/24 solar minimum. Geophys. Res. Lett. 2010;37:L23101. doi: 10.1029/2010GL045430. [DOI] [Google Scholar]
  • 34.Odeyemi O, et al. Morphology of GPS and DPS TEC over an equatorial station: validation of IRI and Ne Quick 2 models. Annal. Geophys. 2018;36:1457–1469. doi: 10.5194/angeo-36-1457-2018. [DOI] [Google Scholar]
  • 35.Tariku Y. TEC prediction performance of IRI-2012 model over Ethiopia during the rising phase of solar cycle 24 (2009–2011) Earth Planets Space. 2015;67:140. doi: 10.1186/s40623-015-0312-1. [DOI] [Google Scholar]
  • 36.Nigussie M, et al. Validation of ne quick 2 and IRI-2007 models in East-African equatorial region. J. Atmospheric Solar-Terrest. Phys. 2013;102:26–33. doi: 10.1016/j.jastp.2013.04.016. [DOI] [Google Scholar]
  • 37.Afraimovich E. The gps global detection of the ionospheric response to solar flares. Radio Sci. 2000;35:1417–1424. doi: 10.1029/2000RS002340. [DOI] [Google Scholar]
  • 38.Afraimovich E, Kosogorov E, Leonovich L. The use of the international gps network as the global detector (globdet) simultaneously observing sudden ionospheric disturbances. Earth Planets Space. 2000;52:1077–1082. doi: 10.1186/BF03352334. [DOI] [Google Scholar]
  • 39.Afraimovich E, Altynsev A, Grenchev V, Leonovich L. Ionospheric effects of the solar flares as deduced from global gps network data. Adv. Space Res. 2001;27:1333–1338. doi: 10.1016/S0273-1177(01)00172-7. [DOI] [Google Scholar]
  • 40.Afraimovich E, et al. A review of gps/glonass studies of the ionospheric response to natural and anthropogenic processes and phenomena. J. Space Weather Space Clim. 2013;3:A27. doi: 10.1051/swsc/2013049. [DOI] [Google Scholar]
  • 41.Liu J, et al. Solar flare signatures of the ionospheric gps total electron content. J. Geophys. Res. 2006;111:A05308. [Google Scholar]
  • 42.Hazarika R, Kalita B, Bhuyan P. Ionospheric response to x-class solar flares in the ascending half og the subdued solar sycle 24. J. Earth Syst. Sci. 2016;125:1235–1244. doi: 10.1007/s12040-016-0726-6. [DOI] [Google Scholar]
  • 43.Choi B, Lee S, Park J. Monitoring the ionospheric total electron content variations over the korean peninsula using a gps netweork during geomagnetic storms. Earth Planets Space. 2011;63:469–476. doi: 10.5047/eps.2011.03.004. [DOI] [Google Scholar]
  • 44.Gonzalez W, et al. What is a geomagnetic storm? J. Geophys. Res. 1994;99:5771–5792. doi: 10.1029/93JA02867. [DOI] [Google Scholar]
  • 45.Kamide Y, et al. Current understanding of magnetic storms: stormsubstorm relatioships. J. Geophys. Res. 1998;103:17705–17728. doi: 10.1029/98JA01426. [DOI] [Google Scholar]
  • 46.Sugiura M. Hourly values of equatorial Dst for the IGY. Annual. Int. Geophysi. Year. 1964;35:9. [Google Scholar]
  • 47.Mayaud P. Derivation, meaning, and use of geomagnetic indices. Washington: D. C; 1980. [Google Scholar]
  • 48.Iyemori T. Storm-time magnetospheric currents inferred from mid-latitude geomagnetic field variations. J. Geomagn. Geoelectr. 1990;42:1249–1265. doi: 10.5636/jgg.42.1249. [DOI] [Google Scholar]
  • 49.Akasofu SI. A review of the current understanding in the study of geomagnetic storms. Int. J. Earth Sci. Geophys. 2018;4:018. [Google Scholar]
  • 50.Mursula K, Holappa L, Karinen A. Correct normalization of the Dst index. Astrophys. Space Sci. Trans. 2008;4:41–45. doi: 10.5194/astra-4-41-2008. [DOI] [Google Scholar]
  • 51.Iyemori T. Relative contribution of imf-bz and substorms to the Dst-component. Proc. Int. Conf. Magn. Storms. 1994;1994:98–104. [Google Scholar]
  • 52.Iyemori T, Rao DRK. Decay of the dst field of geomagnetic disturbance after substorm onset and its implication to storm-substorm relation. Annal. Geophys. 1996;14:608–618. doi: 10.1007/s00585-996-0608-3. [DOI] [Google Scholar]
  • 53.Maltsev YP, Ostapenko AA. Variability of the electric currents in the magnetosphere. Phys. Chem. Earth. 2000;25:27–30. [Google Scholar]
  • 54.Solovyev SI, et al. Development of substorms and low latitude magnetic disturbances in the periods of magnetic superstorms of 29–30 october and 20 may, 2003. Solar Terrest. Phys. 2005;8:132–134. [Google Scholar]
  • 55.Wanliss J, Showalter K. High-resolution global storm index: Dst versus SYM-H. J. Geophys. Res. 2006;111:A02202. [Google Scholar]
  • 56.Katus R, Liemohn M. Similarities and differences in low-to middle-latitude geomagnetic indices. J. Geophys. Res. Space Phys. 2013;118:5149–5156. doi: 10.1002/jgra.50501. [DOI] [Google Scholar]
  • 57.Arikan, F., Nayir, H., Sezen, U. & Arikan, O. Estimation of single station interfrequency reciever bias using GPS- TEC. Radio Sci.43, RS4004 (2008).
  • 58.Sezen U, Arikan F, Arikan O, Ugurlu O, Sadeghimorad A. Online, automatic, near-real time estimation of GPS-TEC: IONOLAB-TEC. Space Weather. 2013;11:297–305. doi: 10.1002/swe.20054. [DOI] [Google Scholar]
  • 59.Watanabe K, Masuda S, Segawa T. Hinode flare catalogue. Solar Phys. 2012;279:317–322. doi: 10.1007/s11207-012-9983-y. [DOI] [Google Scholar]
  • 60.Verbanac G, Mandae M, Vrsnak B, Sentic S. Evolution of solar and geomagnetic activity indices, and their relationship: 1960–2001. Solar Phys. 2011;271:183–195. doi: 10.1007/s11207-011-9801-y. [DOI] [Google Scholar]
  • 61.Cranmer SR. Coronal holes. Living Rev. Solar Phys. 2009;6:3. doi: 10.12942/lrsp-2009-3. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 62.Russell CT. Solar wind and interplanetary magnetic field: a tutorial. Space Weather. 2001;125:73–89. [Google Scholar]
  • 63.Shugay Y, Slemzin V, Veselovsky I. Magnetic field sector structure and origins of solar wind streams in 2012. Space Weather Space Clim. 2014;4:A24. doi: 10.1051/swsc/2014021. [DOI] [Google Scholar]
  • 64.de Toma G. Evolution of coronal holes and implications for high-speed solar wind during the minimum between cycles 23 and 24. Solar Phys. 2011;274:195–217. doi: 10.1007/s11207-010-9677-2. [DOI] [Google Scholar]
  • 65.Kilcik A, Yiğit E, Yurchyshyn V, Ozguc A, Rozelot J. Solar and geomagnetic activity relation for the las two solar cycles. Sun Geosphere. 2017;12:31–39. [Google Scholar]
  • 66.Jackson B, et al. A daily determination of bz using the russell-mcpherron effect to forecast geomagnetic activity. Space Weather. 2019;17:639–652. doi: 10.1029/2018SW002098. [DOI] [Google Scholar]
  • 67.Zhao X, Hoeksema T. Prediction of the interplanetary magnetic field strength. Geophys. Res. 1995;100:19–33. doi: 10.1029/94JA02266. [DOI] [Google Scholar]
  • 68.Badeke R, Borries C, Hoque M, Minkwitz D. Empirical forecast of quiet time ionospheric total electron content maps over Europe. Adv. Space Res. 2018;61:2881–2890. doi: 10.1016/j.asr.2018.04.010. [DOI] [Google Scholar]
  • 69.van der Linden, R. Space weather, research towards applications in Europe, vol. 344 of Astrophysics and space science library (Springer, 2007).
  • 70.Foster J. Storm time plasma transport at middle and high latitudes. J. Geophys. Res. 1993;98:1675–1689. doi: 10.1029/92JA02032. [DOI] [Google Scholar]
  • 71.Gómez L, Sabbione J, Zele MV, Meza A, Brunini C. Determination of a geomagnetic storm and substorm effects on the ionospheric variability from GPS observations at high latitudes. J. Atmospheric Solar Terrest. Phys. 2007;69:955–968. doi: 10.1016/j.jastp.2007.03.002. [DOI] [Google Scholar]
  • 72.Hajra R, et al. An empirical model of ionospheric total electron content (TEC) near the crest of equatorial ionization anomaly (EIA) J. Space Weather Space Clim. 2016;6:A29. doi: 10.1051/swsc/2016023. [DOI] [Google Scholar]
  • 73.Rishbeth H, Setty C. The F-layer at sunrise. J. Atmospheric Terrestr. Phys. 1961;20:263–276. doi: 10.1016/0021-9169(61)90205-7. [DOI] [Google Scholar]
  • 74.Zou L, et al. Annual and semiannual variations in the ionospheric F2-layer I Modeling. Annal. Geophys. 2000;18:927–944. doi: 10.1007/s00585-000-0927-8. [DOI] [Google Scholar]
  • 75.Guo J, et al. Modeling the evolution and propagation of 10 september 2017 cmes and seps arriving at mars constrained by remore sensing and in situ measurement. Space Weather. 2018;16:1156–1169. doi: 10.1029/2018SW001973. [DOI] [Google Scholar]
  • 76.Chertok IM, Belov AV, Abunin AA. Solar eruptions, forbush decreases, and geomagnetic disturbances from outstanding active region 12673. Space Weather. 2018;16:1549–1560. doi: 10.1029/2018SW001899. [DOI] [Google Scholar]

Articles from Scientific Reports are provided here courtesy of Nature Publishing Group

RESOURCES
