The Anatomical Basis for Plate Fixation in BSSO to Minimize Condylar Torquing: A Comparative CT Study of Mandibular Advancement and Setback

Abstract

Introduction

Condylar displacement after bilateral sagittal-split osteotomy (BSSO) occur in the sagittal plane as clockwise/counter-clockwise rotation of the ramus, in the coronal plane as medial/lateral inclination, or in the axial plane as medial/lateral condylar torquing. The purpose of this prospective CT study was to evaluate the role of plate fixation in minimizing condylar torquing or rotational changes in the axial plane.

Materials and Methods

This prospective study was carried out on 26 patients, 13 of whom underwent advancement BSSO and 13 setback BSSO, without maxillary LeFort I osteotomies. All mandibular movements were symmetrical. Fixation of the osteotomized segments was achieved with a single 4-hole plate and monocortical screws. In case of mandibular setbacks, a straight plate was used, whereas an inset-bent plate was used for advancements. Computed tomography scans were obtained preoperatively and postoperatively to measure condylar rotation or torqueing in the axial plane. An increase in condylar angle on axial slices was considered as lateral condylar torquing, whereas a decrease was considered as medial condylar torquing

Results

A mean medial condylar torquing of 0.2° was noted postoperatively in case of setbacks (p > 0.05 not significant). This suggested minimal condylar torquing, indicating that the proximal and distal segments maintained contact at the anterior vertical osteotomy fixed with a straight plate. In case of advancements, a mean lateral condylar torquing of 2.2° was noted postoperatively (p < 0.005, highly significant). This suggested that the proximal segment flare at the anterior vertical osteotomy site was maintained by inset-bent plate fixation.

Conclusion

The gaps between the proximal and distal segments created by mandibular advancement and setback should be maintained. An attempt to close these gaps, especially in mandibular advancement, will result in an unfavourable axial condylar torque. Consequently, the areas of bony contact between the proximal and distal osteotomy sites created by mandibular advancement and setback should be maintained as well.

Introduction

The postoperative position of the condyle-bearing ramus or proximal segment after bilateral sagittal-split osteotomy (BSSO) is influenced by various factors. It involves condylar positioning methods, the interference between the proximal and distal segments, type of fixation, operator experience, and influence of the masticatory muscles. The main reasons to justify precise repositioning of the condylar segment after sagittal-split osteotomies of the mandible is to ensure long-term stability of the surgical result, to reduce adverse and/or potentially adverse effects on the temporomandibular joint (TMJ) and improve postoperative masticatory efficiency [1].

Appropriate seating of the condyle in the glenoid fossa during fixation of the osteotomized segments in BSSO is paramount in preventing postoperative sequelae like TMD/internal derangement, condylar resorption, condylar sag (peripheral and central), malocclusion, and relapse secondary to condylar displacement. Condylar displacement can occur in the sagittal plane as clockwise/counter-clockwise rotation of the ramus, in the coronal plane as medial/lateral inclination, or in the axial plane as medial /lateral condylar torquing.

Simple sagittal displacement of the condyle can usually be corrected by postoperative adjustment of the occlusion. However, condylar displacement with axial rotation does not respond to occlusal adjustment and has an increased risk of temporomandibular disorders [2, 3]. Such axial rotational changes also play an important part in condylar resorption after BSSO [4, 5].

The purpose of this prospective CT study was to evaluate the role of plate fixation in minimizing condylar rotational changes or torquing or in the axial plane.

Methodology

This prospective study was carried out at the Department of Oral and Maxillofacial Surgery on 26 patients, 13 of whom underwent advancement BSSO and 13 setback BSSO. No simultaneous maxillary LeFort I procedures were carried out. There were a total of 17 males and 9 females. The ages of the patients ranged from 17 to 29 years, with an average age of 21 years. The amount of setback ranged from 4 to 12 mm (mean 6.6 mm). The amount of mandibular advancement ranged from 4 to 13 mm (mean 6.0 mm). All mandibular movements were symmetrical. The study was approved by the Ethics Review Board of the Institution. All patients received presurgical orthodontics. All cases were performed by the two senior authors of this study employing a standard osteotomy technique, the same condylar positioning method, and a standard fixation technique. All patients underwent a modified bilateral sagittal-split osteotomy technique as described by Wolford et al. [6]. Any bony interferences between the contacting cortical surfaces of the proximal and distal segments were eliminated in order to ensure a uniform contact area before fixation. Fixation of the osteotomized segments was achieved with a single 4-hole plate and monocortical screws along the external oblique ridge. In case of mandibular setbacks, a straight plate was used (Fig. 1), whereas an inset-bent plate (Fig. 2) was used for advancements. The gap or flare between the proximal and distal segments on mandibular advancements was maintained during fixation. No condylar positioning devices were used. During fixation, the anteroinferior border of the proximal segment was pushed posteriorly and slightly inferiorly with a straight Cottle osteotome, while applying light extraoral digital pressure to the angle of the mandible pushing superiorly and slightly anteriorly. The resultant vector to the proximal segment was anterosuperior.

Fig. 1.

Straight plate fixation for mandibular setback

Fig. 2.

Inset-bent plate fixation for mandibular advancement

Measurement of Condylar Angle on Axial CT

Preoperative (1 week prior to surgery) and postoperative (3 months post-surgery) computed tomography (CT) scans were obtained. All preoperative and postoperative CTs were taken with the patient biting in centric occlusion or maximum intercuspation. In axial scan images, the slice with the greatest mediolateral dimension of the condylar head was obtained for each side. A midsagittal line was drawn from the base of vomer to the midpoint of clivus of the sphenoid (line A). Line B was drawn along the axis of the condyle from the lateral pole to the medial pole. Axial rotation of the condyle was measured as a change in the angulation between lines A and B, indicating the medial or lateral rotation of the condyles (Fig. 3).

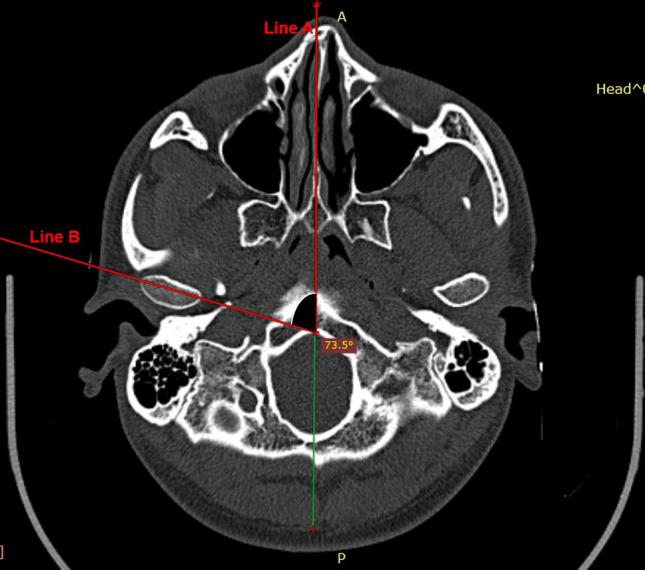

Fig. 3.

Condylar angle measurement on axial CT scan images

Interpretation of Condylar Axial Angle Changes with Proximal Segment Movement

An increase (positive change) in condylar angle in the axial slices was considered as lateral condylar torqueing/rotation with lateral ramal movement at the anterior osteotomy site. A decrease (negative change) in condylar angle in the axial slices was considered as medial condylar torqueing/rotation with medial ramal movement at the anterior osteotomy site.

Clinical Assessment of Temporomandibular Joint

Pain/tenderness, joint sounds like clicks, pops and crepitation, mouth opening, episodes of intermittent locking/dislocation, and deviation of TMJ were assessed preoperatively and postoperatively at intervals of 1, 3, 6, and 9 months, respectively.

Statistical Analysis

A paired sample t-test set at a significance level of 95% was carried out using SPSS statistics software version 25 which was performed for the postoperative condylar angle changes for each of the condyles in the 13 cases in the setback and advancement groups. Hence 26 condylar angle changes were measured in each group (setback and advancement), considering that two condylar angle changes (left and right) were possible, independently in each case.

Results

Mandibular Setback

The amount of setback ranged from 4 to 12 mm (mean 6.6 mm, SD 2.7 mm).

The preoperative condylar axial angle ranged from 53.8° to 86.4° (mean 74.9°, SD 7.5°). The postoperative condylar axial angle ranged from 54.8° to 86.1° (mean 74.6°, SD 7.3°). The condylar torquing ranged from 1.7° (medial) to 1.0° (lateral) for mandibular setback. The mean value was 0.2° (medial) (Table 1).

Table 1.

Mandibular setback (straight plate group)—condylar axial angles

Condylar axial angle	N	Mean	SD	SE mean
Preoperative Postoperative Amount of torquing	26 26 26	74.8538 74.6577 0.1962	7.46535 7.25629 0.71804	1.46407 1.42308 0.14082

A mean medial condylar torquing of 0.2° was noted postoperatively. Using a paired sample t-Test, this change was not significant (p > 0.05) (Table 2).

Table 2.

Paired sample t-test: condylar axial angle changes (mandibular setback—straight plate group)

				95% CI of the difference
Pre-op vs Post-op	Mean 0.19615	SD 0.71804	SE mean 0.14082	Lower -0.09387	Upper 0.48618	t 1.393	df 25	Significance (2-tailed) .176

Mandibular Advancement

The amount of mandibular advancement ranged from 4 to 13 mm (mean 6.0 mm, standard deviation 3.3 mm).

The preoperative condylar axial angle ranged from 61° to 90.7° (mean 70.5°, standard deviation 6.3°). The postoperative condylar axial angle ranged from 63.2 ° to 93.4° (mean 72.6°, standard deviation 6.4°). The condylar torquing ranged from 1.3° (lateral) to 2.9° (lateral). The mean value was 2.2° (lateral) (Table 3).

Table 3.

Mandibular advancement (Inset-bent plate group)—condylar axial angles

Condylar axial angle	N	Mean	SD	SE mean
Preoperative Postoperative Amount of torquing	26 26 26	70.4692 72.6269 2.1577	6.28972 6.35613 0.47089	1.23352 1.24654 0.09235

A mean lateral condylar torquing of 2.2° was noted postoperatively. Using a paired sample t-Test, this change was highly significant (p < 0.001) (Table 4).

Table 4.

Paired sample t-test: condylar axial angle changes (mandibular advancement: inset-bent plate group)

				95% CI of the difference
Pre-op Vs Post-op	Mean 2.15769	SD 0.47089	SE mean 0.09235	Lower  − 2.34789	Upper  − 1.96750	t  − 23.364	df 25	Significance (2-tailed) .000

Temporomandibular Joint Symptoms

No TMJ clinical signs or symptoms were noted postoperatively during follow-up reviews at 1, 3, 6, and 9 months, respectively.

Discussion

The purpose of this prospective study was to evaluate the role and technique of plate fixation to minimize condylar torquing after BSSO setback and advancement using computed tomography.

The postoperative stability following BSSO depends on the osteotomy technique, amount and direction of surgical movement, type of fixation, soft tissue tension caused by surgical changes, occlusal stability, condylar displacement, amount of bone contact between the proximal and distal segments, and surgeon’s experience [7].

Good occlusal interdigitation and normal condylar position after orthognathic surgery are regarded as important factors in the prevention of postoperative relapse. These two factors are interdependent; abnormal interdigitation with normal condylar position can be controlled postoperatively by orthodontic treatment, but malpositioned condyles cannot be corrected postoperatively and eventually disrupt postoperative occlusal stability [8].

Influence of Mandibular Anatomy on Proximal and Distal Segment Contact/Gap

The mandible when viewed axially is convergent to the anterior. The sagittal cuts for the BSSO placed in the convergent body and ramus of the mandible are also convergent. As the distal segment is moved anteriorly, the contact between the distal and proximal segments flares the proximal segment. The most common point of contact is not posterosuperior but posteroinferior with symmetric advancements [9]. In the present paper, every effort was undertaken to eliminate any bony inferences or ‘high points’ along the contacting cortical surfaces of the proximal and distal segments to ensure a uniform contact area and prevent any excessive flare of the proximal segment on mandibular advancement.

In a submentovertex radiographic study of BSSO advancement, Hackney et al. [10] did not find any evidence that V-shaped mandibles with more divergent rami would produce larger increases in intercondylar width (ICW) when compared to U-shaped mandibles, when advanced. They concluded that fixation probably had more of an influence on condylar displacement than the direction, amount of surgical movement, or the shape of the mandible. Bony interferences or gaps between the proximal and distal segments can result in lateral displacement of the proximal segment, leading not only to relapse but also temporomandibular joint pain, clicks, disc displacement, and condylar resorption [10, 11].

This gap would be apparent at the posterior osteotomy site in case of mandibular setbacks and at the anterior osteotomy site in case of advancements. The maintenance of these gaps is the key to ensuring the preoperative condylar position. The greater the mandibular movement on setback or advancement, the larger the gaps. An attempt to close this gap, especially on mandibular advancement where the gap is present at the anterior vertical osteotomy, would result in lateral displacement of the ramus with medial rotation or torquing of the condyle within the glenoid fossa (Fig. 4).

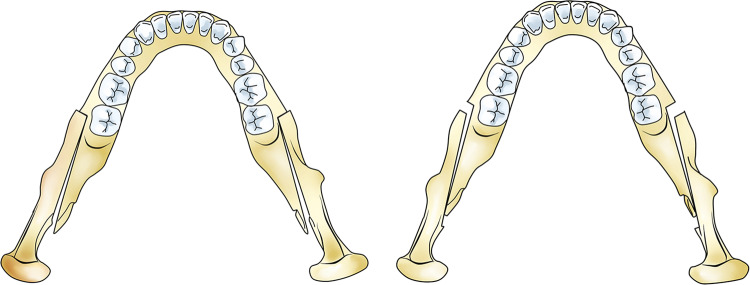

Fig. 4.

The bony contacts and gaps between the segments after BSSO. The gap would be apparent in the posterior osteotomy site in case of mandibular setbacks and in the anterior osteotomy site in case of advancements

Role of Fixation

According to Ellis [12], displacement of the condyles medially or laterally within the mandibular fossa can occur when the proximal and distal segments are not passively positioned to one another during the application of internal fixation devices. If the surgeon forcefully closes a gap between the segments, the condyle will be displaced medially or laterally, depending on the location of the gap. Forcefully closing this gap is most often caused by surgical manipulation, the use of a bone clamp between the segments, or the use of lag screws.

Rigid internal fixation can induce condylar displacement more frequently than semi-rigid fixation during BSSO, especially inward condylar torque with lateral shifting, which can be clearly observed on axial plane images on immediate postoperative CT [13]. Mandibular advancement usually produces greater condylar displacement than mandibular setback if the anterior osteotomy gap is forcefully closed with rigid fixation [14]. Rigid fixation can cause a positional change of the condyle because fixation with screws tends to eliminate the gaps between the proximal and the distal segment, which are normally generated with mandibular movement in any direction [8]. If a condyle is rigidly held in a displaced postoperative position and that position places a load on the condyle or meniscal tissues or both, irreversible TMJ changes may occur [9].

To offset the effects of this anterior osteotomy closure, a bent titanium plate or bone graft at the anterior gap can be used to maintain the gap between the proximal and distal segments [14–17]. Periera et al. [18] described a ‘hybrid’ fixation technique using an inset-bent 4-hole miniplate with monocortical screws along with 2 bicortical positional screws posterior to the miniplate. In the present study, the lateral flare at the anterior osteotomy site was maintained using an inset-bent plate for fixation (Fig. 1). A mean lateral condylar torquing of 2.2 ° was noted postoperatively. This change was highly significant (p < 0.001).

In a study assessing the stability of the intersegmental space maintained with bone grafts after BSSO, Bettega et al. [19] reported that the patient group with bone graft showed more stable results 1 year after surgery compared to the non-grafted group. According to them, it was important to maintain a gap in the osteotomy site when placing the screw so as not to impose a torque constraint on the proximal osseous fragment. In a study by Kang et al. [20], bone fragments from the proximal segment were used in the intersegmental gap to reduce postoperative condylar displacement, facilitating the maintenance of the intersegmental space, stable segmental management, and easier fixation.

Lag screws in combination with position screws may also be used for fixation. When advancing the mandible, a lag screw can be used to stabilize the posterior natural contact area and a position screw fixed anteriorly through a bone graft maintaining the gap. In mandibular setbacks, the natural contact area is situated in the front; hence a lag screw can be fixed at that point. Fixing lag screws to the passive gaps between the proximal and distal segments may cause the proximal segment to torque medially in the case of advancements and laterally in case of setbacks [21].

Condylar Torquing with Plate and Monocortical Screw Fixation

Choi et al. [13], Roh et al. [22], Ueki et al. [23], and Yeo et al. [24] all found statistically significant medial torquing of the condylar angles of 1.3° (p < 0.05), 2.7° (p < 0.05), 5.2° (p < 0.05), and 1.7 ° (p < 0.001), respectively, after BSSO setback on axial images.

However, Katsumata et al. [25] found that rotation of the condylar long axes after BSSO setback was minimal (average 0) on axial CT. In the present study as well, a mean medial condylar torquing of 0.2° was noted postoperatively, which was not significant (p > 0.05). Xi et al. [26] found that the condyle torqued medially by 1° on axial images after BSSO advancement and LeFort I osteotomy, which was significant (p < 0.05).

None of these studies with monocortical screw fixation reported any postoperative TMJ symptoms in their study populations, who were assessed at periodic intervals from 3 months till 2 years. In the study by Ueki et al. [23], the authors also reported that preoperative TMJ symptoms of clicking, crepitus, and pain on mouth opening improved in 76.5% of 19 patients who underwent isolated BSSO setback procedures. Similarly, no temporomandibular clinical signs or symptoms were noted postoperatively (assessed at intervals of 1, 3, 6, and 9 months, respectively) in the present study as well.

Han et al. [27] found medial condylar torquing of 0.95 ° on axial images, after mandibular setback and LeFort I osteotomy with monocortical plate fixation, which was not significant (p > 0.05). In two other groups of patients in the same study, they used a ‘hybrid technique’ of monocortical plate fixation along with bicortical positional screws. The site and number of bicortical screws were determined intraoperatively to increase intersegmental stability in cases of small bone contact surface between the proximal and distal segments. In comparing the three different fixation techniques used in this study, the authors found that semi-rigid fixation using a miniplate allowed the recovery of condylar displacement better than the hybrid technique. However, with the hybrid technique, the condyle moved to its original position better with one bicortical positional screw than with two or three bicortical screws. They concluded that stronger rigid internal fixation in orthognathic surgery using BSSO was associated with reduced flexibility of postoperative functional adjustment of the displaced condyle to the preoperative condylar position. In their study, when the condyles were divided into symptomatic and non-symptomatic groups depending on the presence of postoperative TMJ symptoms, there was no significant difference between the two groups in the amount of condylar displacement and rotational movement 3–6 months after surgery. According to the authors, slight to mild postoperative intersegmental movement in terms of slippage between the proximal and distal segments as a result of the loosening of rigid fixation from muscle activity might be helpful for postoperative functional adjustment of the displaced condyle into the glenoid fossa, while maintaining the occlusion in a stable position without severe disturbance. They postulated that stronger rigid internal fixation was associated with reduced flexibility of the postoperative functional adjustment of displaced condyle to the preoperative condylar position or maintenance of stable occlusion.

Regarding stability of BSSO with the type of fixation used, a recent systemic review and meta-analysis study found that there was no statistically significant difference in skeletal stability between bicortical screw versus monocortical plate and screw fixation following mandibular setback or advancement [28, 29].

In the present study, a mean medial condylar/ramal torquing of 0.2° was noted postoperatively in case of mandibular setbacks. This change was not significant (p > 0.05) suggesting minimal condylar rotation. This indicated that the proximal and distal segments maintained their contact at the anterior vertical osteotomy which was fixed with a straight plate. However, in case of mandibular advancements, a mean lateral condylar/ramal torquing of 2.2° was noted postoperatively. This change was highly significant (p < 0.001). This suggested that the proximal segment ‘kicked out’ at the anterior vertical osteotomy site in mandibular advancement, and this gap was maintained by the inset-bent plate fixation technique.

Conclusion

1. The gaps between the proximal and distal segments created by mandibular advancement and setback should be maintained. This is especially imperative in case of mandibular advancements. An attempt to close this gap at the anterior vertical osteotomy in mandibular advancement by attempting to align the segments with a straight plate would result in lateral displacement of the ramus with medial rotation or torquing of the condyle within the glenoid fossa.

2. Consequently, the areas of bony contact between the proximal and distal osteotomy sites created by mandibular advancement and setback should be maintained as well.

3. Temporomandibular joint function as well as occlusal adjustment is better suited to adapt with semi-rigid fixation of the BSSO segments postoperatively.
