A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

Hideyuki Okano; Akikatsu Fujimura; Tsukasa Kondo; Ilkka Laakso; Hiromi Ishiwatari; Keiichi Watanuki

doi:10.1371/journal.pone.0255242

. 2021 Aug 5;16(8):e0255242. doi: 10.1371/journal.pone.0255242

A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

Hideyuki Okano ^1,^*, Akikatsu Fujimura ², Tsukasa Kondo ², Ilkka Laakso ³, Hiromi Ishiwatari ⁴, Keiichi Watanuki ^1,^2,⁵

Editor: Yoshihiro Fukumoto⁶

PMCID: PMC8341886 PMID: 34351946

Abstract

Application of exposure to 50/60 Hz magnetic fields (MFs) has been conducted in the treatment of muscle pain and fatigue mainly in Japan. However, whether MFs could increase blood flow leading to muscle fatigue recovery has not been sufficiently tested. We investigated the acute effects of a 50 Hz sinusoidal MF at B_max 180 mT on hemodynamics, electrocardiogram, and vascular endothelial function in healthy young men. Three types of regional exposures to a 50 Hz MF, i.e., forearm, upper arm, or neck exposure to MF were performed. Participants who received three types of real MF exposures had significantly increased ulnar arterial blood flow velocity compared to the sham exposures. Furthermore, after muscle loading exercise, MF exposure recovered hemoglobin oxygenation index values faster and higher than sham exposure from the loading condition. Moreover, participants who received real MF exposure in the neck region had significantly increased parasympathetic high-frequency activity relative to the sham exposure. The MF exposure in the upper arm region significantly increased the brachial artery flow-mediated dilation compared to the sham exposure. Computer simulations of induced in situ electric fields indicated that the order-of-magnitude estimates of the peak values were 100–500 mV/m, depending on the exposure conditions. This study provides the first evidence that a 50 Hz MF can activate parasympathetic activity and thereby lead to increase vasodilation and blood flow via a nitric oxide-dependent mechanism.

Trial registration: UMIN Clinical Trial Registry (CTR) UMIN000038834. The authors confirm that all ongoing and related trials for this drug/intervention are registered.

Introduction

Many experimental and epidemiological studies for exploring biological and health effects on extremely low-frequency magnetic fields (ELF-MFs) ranging 1–300 Hz have been carried out and reviewed [1–51]. Aside from potential health concerns, medical applications of ELF-MFs are promising research areas to be explored using a ubiquitous sinusoidal frequency. However, the literature on the effects of sinusoidal MFs on cells and tissues is not as abundant as studies on pulsed MFs [1] and the underlying action mechanisms of sinusoidal MFs for medical therapeutic applications remain poorly understood [2–4]. Interestingly, several preclinical studies in cells and animals have suggested that 50/60 Hz sinusoidal MFs ranging 0.4–5 mT (rms) can improve wound repair [5, 6], osteogenesis [7, 8], and neurogenesis [8–12]. In addition, a 60 Hz MF at 6 mT promoted cell proliferation in Hela and IMR-90 cells by decreasing intracellular reactive oxygen species (ROS) levels [13]. A 50 Hz MF of 1 mT induced a proliferative and survival advantage even in malignant tumor cells by activating antioxidative and detoxification cytoprotective pathways [14]. In contrast, 50 Hz MFs ranging 0.9–4.8 mT inhibited osteoblast proliferation in a non-dose-dependent manner [15], and a 60 Hz MF at 1.5 mT inhibited epidermal keratinocyte proliferation [16]. Other studies reported that 50/60 Hz MFs ranging 0.5–3 mT did not affect either cell proliferation or cell cycle [17, 18]. These inconsistent and contradictory experimental results may be partly explained by the large variation in experimental variables between studies with respect to waveform, frequency, amplitude, duration, cell type, cell age and treatment [19–21]. If the consistent and reasonable results of a specific exposure condition are obtained using 50/60 Hz sinusoidal MFs, they help us to better understand the interaction mechanisms between 50/60 Hz sinusoidal MFs and biological systems.

When mainly focusing on Japan, non-thermal noninvasive 50/60 Hz sinusoidal MF therapy has been used to relieve chronic pain, muscle stiffness, muscle fatigue and so on, for over 40 years, since approved by Japanese Ministry of Health, Labour and Welfare for improvement of muscle stiffness and blood circulation in the MF-exposed region, in which the peak magnetic flux density B_max at the surface area of the approved therapeutic MF exposure devices should range between 35 and 180 mT. In some studies, head exposure to 50/60 Hz MFs in 3–50 mT range altered electroencephalogram (EEG) signals in several brain regions, indicating the presence of magnetosensory evoked potentials [22, 23]. In heart exposure, 50 Hz MFs of 150–200 μT for 30 min significantly reduced low-frequency parameters of heart rate variability (HRV) through known mechanisms [24]. In short-term exposure to 50 Hz MF intensity of up to 100 μT, however, no significant change was detected in HR and HRV [25]. In addition, a recent clinical study has shown that application of MF therapy under exposure to a 50 Hz MF of 10 mT for 20 min significantly reduces pain symptoms and leads to an improvement of functional ability in patients with low back pain, based on the analysis of both subjective parameters, such as visual analogue scales (VAS), and objective parameters reflecting the range of spinal mobility [26]. However, the clinical evidence examined using objective parameters, such as physiological monitoring measures, is not sufficient to support the effectiveness of this therapeutic approach, especially due to the MF-enhanced blood circulation and recovery of muscle fatigue and pain [27–31].

In this study, we attempted to clarify the acute physiological effects of a 50 Hz sinusoidal MF exposure at peak magnetic flux density B_max 180 mT or B_rms 127 mT on arterial blood flow velocity, blood pressure, heart rate, blood oxygenation (concentration of oxyhemoglobin [oxyHb], deoxyhemoglobin [deoxyHb] and total hemoglobin [totalHb]), electrocardiogram (ECG) and flow-mediated dilation (FMD), an index of artery endothelium-derived nitric oxide (NO)-mediated vasodilator function, in healthy human subjects.

Methods

This study adhered to the Declaration of Helsinki, and was approved by the Ethics Committee of the Saitama University. All study procedures were approved by the Institutional Review Board (IRB) of the Saitama University. IRB approval number: H29-E-13. Date of IRB approval: 24/10/2017. This study was registered with the UMIN Clinical Trials Registry (CTR): UMIN000038834. Date of protocol fixation: 07/02/2017. Anticipated trial start date: 25/10/2017. Full date of registration: 09/12/2019. The full trial protocol is available at https://upload.umin.ac.jp/cgi-open-bin/ctr_e/ctr_view.cgi?recptno=R000044252. The trial protocol is also given as S1 File (S2 File in Japanese). To conduct the trial, ethical IRB approval was obtained; however, registration to UMIN-CTR could not be achieved by the start of recruitment and randomization of participants. We noticed after the study had been partially completed that UMIN-CTR accepted trial registration even after participant randomization. Hence, we have agreed with the significance of UMIN-CTR and registered this study. Thus, trial registration occurred during the recruitment phase. The late registration was due to an error of omission. Such late registration does not affect study results and participants. We confirmed that all ongoing and related trials for this intervention are registered. We hereby state that all future trials will be registered prospectively.

The clinical trial was conducted at Advanced Institute of Innovative Technology, Saitama University between October 25, 2017 and April 3, 2020. This study was conducted in accordance with the Consolidated Standards of Reporting Trials (CONSORT) 2010 statement. The CONSORT checklist is given as S3 File. All participants signed informed consent before any study procedures were performed. The informed consent form is given as S1 File (S2 File in Japanese).

Participants

First, 18 healthy right-handed adult male volunteer students were recruited by e-mail from Saitama University. We asked them to participate in face-to-face interview. A response was obtained from 14 men, of whom 12 were eligible and then enrolled in protocol A including the measurements of blood flow velocity, blood pressure and heart rate, the functional near infrared spectroscopy (fNIRS) measurement, and the ECG measurement (Fig 1). The inclusion criteria were as follows: 1) participants have not used any form of physical therapy and have not taken any vasoactive medication during the study period; 2) subjects’ body temperature, heart rate (HR), systolic and diastolic blood pressures (BP) were within normal ranges. Two subjects were excluded as they did not meet inclusion criteria (HR > 100 bpm, systolic BP > 130 mmHg or diastolic BP > 85 mmHg) (Fig 1). Eventually, recruitment and enrollment of 10 participants in protocol A was conducted from October 2017 to April 2020. Thus, protocol A was completed in 10 participants (Fig 1).

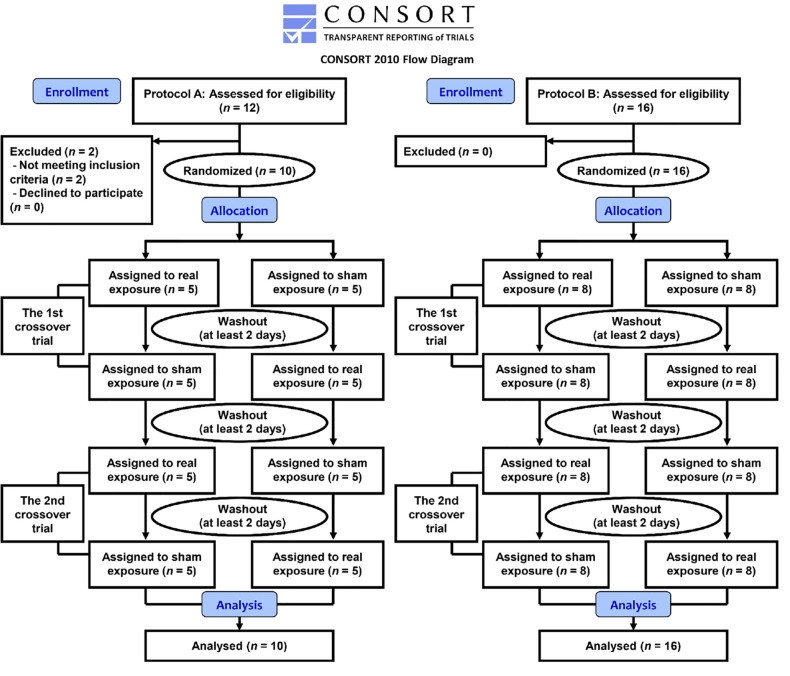

Fig 1 — The flow chart illustrates the basic layout of the clinical trial including steps involved in recruitment of study participants and the actual steps in the clinical trial of protocols A and B.

Second, 16 healthy right-handed adult male volunteer students were recruited and enrolled in protocol B for FMD measurement alone using the same criteria (Fig 1). Protocol B included 6 participants from protocol A. Recruitment and enrollment in protocol B was conducted from February 2018 to March 2020.

In both protocol A and B conditions, subjects’ body temperatures were confirmed to be within normal ranges using an electronic clinical thermometer (MC-681, OMRON Healthcare Co., Ltd., Kyoto, Japan), and systolic and diastolic BP values and HR values were confirmed to be within normal limits using a digital sphygmomanometer with an upper arm cuff (DSK-1051J, NISSEI Co., Ltd., Tokyo, Japan). There were no significant differences between the subject baseline characteristics in the protocols A and B (mean ± SD, n = 10 in A condition and n = 16 in B condition) as shown in Table 1.

Table 1. Subject baseline characteristics in the protocols A and B.

Measured outcomes	Protocol A (n = 10)		Protocol B (n = 16)		p
Measured outcomes	Mean ± SD	Range	Mean ± SD	Range	p
Age (y.o.)	22.8 ± 0.4	22–23	23.2 ± 1.9	21–27	0.7593^b
Height (cm)	171.1 ± 5.1	164.3–179.8	171.0 ± 3.7	165.4–180.3	0.9622^a
Weight (kg)	59.5 ± 8.0	49.7–72.1	59.2 ± 7.6	49.4–68.6	0.9387^a
Body mass index (kg/m²)	20.3 ± 2.4	17.3–24.1	20.3 ± 2.6	17.1–24.1	0.7919^b
Systolic BP (mmHg)	117.6 ± 4.9	112–125	120.3 ± 5.1	112–129	0.1999^a
Diastolic BP (mmHg)	70.7 ± 5.7	63–80	71.5 ± 6.3	58–83	0.7402^a
HR (bpm)	66.2 ± 6.5	58–80	67.3 ± 7.3	52–80	0.6897^a
Body temperature (°C)	36.7 ± 0.2	36.4–36.9	36.7 ± 0.2	36.4–36.9	1.0000^b

Open in a new tab

Mean ± SD, n = 10 in A condition and n = 16 in B condition. Protocol B included 6 participants from protocol A. The Shapiro-Wilk test was performed to assess data distribution (Table A in S4 File). In the case of parametric distribution, p-values between experimental conditions were calculated with ^athe Student’s t-test. In the case of nonparametric distribution, these were obtained with ^bthe Wilcoxon rank-sum test.

Study design

The present study was designed as a prospective, randomized, double-blind, sham (placebo)-controlled, counterbalanced, crossover trial. The values of blood flow velocity, BP, HR, blood oxygenation (concentration of oxyHb, deoxyHb and totalHb), ECG parameters, and FMD were compared with two different exposure conditions, i.e., real MF and sham control exposures. Participants who received either a real MF or a sham exposure and technicians who monitored the outcomes were blinded to real MF or sham exposure, which was randomized between crossover trials. Each crossover trial for each participant was performed twice on different days as the first and second trials after a washout period of at least two days across the four testing sessions (Fig 1), and the duplicate data of real MF or sham exposure were averaged for each individual in each test. The initiation of measurements in all trials was done after more than 10-min rest with a sitting position. All trials were performed during daytime (11:00–17:00) at room temperature (25°C ± 0.5°C) and relative humidity of 50% ± 10%.

Blood flow velocity

We made the preliminary trial protocol of measurement of ulnar arterial blood flow velocity under forearm exposure to a 50 Hz MF and the protocol was described previously [50]. In this study using the protocol as the primary outcome measure, we measured blood flow velocity under three different regional exposures to a 50 Hz MF. The protocol is shown in Fig A in S4 File. The experiments were performed in the sitting position, remaining in constant contact with an MF exposure device. The measurement of blood flow velocity was conducted under one of three types of regional exposures, i.e., forearm, upper arm, or neck exposure to a 50 Hz MF at B_max 180 mT or B_rms 127 mT on the surface of the MF exposure device. The MF-exposed side of the forearm and upper arm was the dorsal side of the arm and that of the neck was the back side of the neck. The MF or sham exposure was performed continuously for 15 min. In all cases of exposures, an ultrasound probe was positioned on the ventral skin surface of the bared left forearm to assess the blood flow velocity in an ulnar artery. In the case of the forearm exposure, after putting on the dorsal side of the left forearm on the MF exposure device for about 5 min, the blood flow velocity (peak systolic velocity [PSV] in pulsed-wave [PW] mode) in an ulnar artery was measured noninvasively from the ventral side of the forearm at 5-min intervals for 25 min using a portable digital color Doppler ultrasound system (JS2 with a linear ultrasound probe L741, 5–12 MHz, Medicare Co., Ltd., Shenzhen, China). The MF exposure device was covered with a specially designed thin cover cloth (P27Mar15, Soken Co., Ltd., Toride, Japan), which is made of cotton to absorb perspiration.

The procedures for measuring the blood flow velocity have been reported in detail elsewhere [50]. Briefly, when holding the left arm at 120–140°of elbow flexion with holding the palm upward, the forearm was positioned on an MF exposure device for about 30 min in order to keep the arm immobile still as long as possible during the clinical trial in each subject. At each time point, the PSV was measured in triplicate for the blood flow velocity and the mean values were calculated. For the upper arm exposure, an additional second MF exposure device was positioned to the dorsal side of the left upper arm. For the neck exposure, an additional third MF exposure device was positioned laterally to the dorsal side of the neck. In the cases of the upper arm and neck exposure experiments, the MF exposure device for the forearm exposure was used to keep the same posture as in the case of the forearm exposure experiment without turning on the power. Each crossover trial for each participant was performed twice on different days after a washout period of at least two days and the duplicate data were averaged for each individual in each test (Fig 1). Therefore, the mean values of two trials in MF or sham exposure were used for statistical analyses.

Blood pressure and heart rate

Arterial blood pressure (BP) and heart rate (HR) monitoring were performed under the forearm exposure alone. The MF or sham exposure was conducted continuously for 15 min. Systolic and diastolic BP and HR values were measured at 10-min intervals of the pre-exposure (baseline), during the exposure (at 10 min after the start of the exposure), and the post-exposure (at 5 min after the termination of the exposure) using a digital BP monitor with an upper arm cuff (DSK-1051J, NISSEI Co., Ltd., Tokyo, Japan) under the same experimental condition of the forearm exposure as one of the secondary outcome measures twice on different days from the measurement of blood flow velocity after a washout period of at least two days and the duplicate data were averaged for each individual in each test (Fig 1).

fNIRS

fNIRS is an optical imaging modality that exploits near infrared light ranged between (700–900 nm), and the relative concentration of hemoglobin was calculated by applying the modified Lambert-Beer law [52]. Regional skeletal muscle blood flow can be noninvasively measured using NIRS [53, 54]. The changes of muscle blood oxygenation were monitored in the ventral side of the left forearm at evaluation points, i.e., middle part of flexor carpi radialis muscle at channel (CH)-1 and proximal part of the muscle at CH-2 due to the higher response to muscle loading exercise. The monitoring of muscle blood oxygenation was conducted in a sitting position. During the entire experiments, the concentration of ΔoxyHb, ΔdeoxyHb, and ΔtotalHb in two muscle regions (CH-1 and CH-2) was measured consecutively at sampling frequency of 1 Hz (1 s per data point) using a compact and wearable multichannel fNIRS device (Pocket NIRS Duo, DynaSense, Hamamatsu, Japan). In this study, the hemoglobin oxygenation index (HOI) values (ΔoxyHb–ΔdeoxyHb concentration) [55, 56] were calculated and compared between the MF- and sham-exposed groups.

Wrist curl training method [57] for muscle loading exercise was selected to examine the condition of the wrist flexor muscles in the left forearm (in the case of a right-handed person). The protocol of muscle loading exercise is shown in Fig B in S4 File. Briefly, the participants performed the wrist curl exercise using a 3kg dumbbell (SINTEX Chrome array 3kg STW021, Sinwa Enterprise, Osaka, Japan) for 5 min in a chair sitting position. Each participant held the dumbbell, kept the forearm stationary, turned the palm up, and raised the wrist freely, then raised the dumbbell to the dorsiflexion position of the wrist joint in 1 s. Thereafter, the dumbbell was lowered to the maximum range of the wrist flexion from the dorsiflexion position in 2 s. It took 3 s to perform 1 cycle. The participant conducted 20 repetition cycles in 1 min and after that took rest for 1 min. Thus, a 5-min exercise consisted of 3 sets of 20 repetition cycles with a 1-min interval between sets.

For the MF exposure, the left forearm was exposed to 50 Hz MF for 15 min immediately after cessation of the muscle loading exercise (Fig B in S4 File). The dorsal side of the left forearm was positioned on a 50 Hz MF exposure device for 25 min (15-min exposure and 10-min post-exposure periods) to keep the hand and arm motionless as long as possible after the muscle loading exercise. Each crossover trial for each participant was performed twice on different days after a washout period of at least two days and the duplicate data were averaged for each individual in each test (Fig 1).

ECG

The ECG monitoring is shown as one of the secondary outcome measures under the neck exposure to a 50 Hz MF in Fig C in S4 File. The ECG monitoring was conducted under the neck exposure alone. The MF exposure device for the forearm exposure was also used to keep posture the same as in the case of the forearm exposure experiment without turning on the power. Therefore, the subjects’ postures in the ECG monitoring were the same as those for the measurement of blood flow velocity. The ECG monitoring in each subject was carried out on different days with the measurement of blood flow velocity. A wireless ECG electrode was attached on the skin surface of the chest over the heart using medical tape. After attaching the ECG electrode for about 5 min, ECG was recorded continuously for 25 min using a multi-channel telemetry system (WEB-1000, Nihon Kohden Co., Ltd., Tokyo, Japan). The MF or sham exposure was conducted continuously for 15 min. Each crossover trial for each participant was performed twice on different days after a washout period of at least two days and the duplicate data were averaged for each individual in each test (Fig 1).

The R-R interval (RRI) of ECG signal were extracted and used in this analysis. A power spectral analysis of RRI by fast Fourier transformation (FFT) was performed to obtain the low-frequency (LF) and high-frequency (HF) power components of HRV over an experimental period of 25 min. The procedures for determining the power-spectral analysis of RRI have been reported in detail elsewhere [58]. Briefly, the frequency range of 0.05–0.15 Hz was computed as the LF component of HRV, which is an index of both sympathetic and parasympathetic activities [59]. The frequency range of 0.15–0.40 Hz was computed as the HF component of HRV, which reflects mainly parasympathetic activity (vagal tone) [60]. In contrast, the LF/HF ratio reflects mainly sympathetic activity [61].

FMD

FMD provides an index of artery endothelium-dependent NO-mediated vasodilator function and the FMD measurement has been reported elsewhere [62–64]. Briefly, an FMD monitoring device equipped with a 10 MHz H-type ultrasound probe (UNEXEF 18VG, UNEX Co., Ltd., Nagoya, Japan) has a high-resolution linear artery transducer coupled to computer assisted analysis software used in an automated edge detection system for the measurement of the brachial artery diameter (% change from the baseline diameter).

We conducted the preliminary trial protocol of FMD measurement of the left brachial artery under the left upper arm exposure to a 50 Hz MF and the protocol was described previously [51]. FMD measurement was performed as shown in Fig D in S4 File. An occlusion cuff was placed around the forearm in accordance with the user manual (Fig D in S4 File). The brachial artery was automatically scanned longitudinally 5–10 cm above the elbow (Fig D in S4 File). When the clearest B-mode image of the intima–media complex was obtained, the transducer was held at the same point throughout the scan by a stereotactic probe holder to ensure consistency of the imaging. Depth and gain settings were adjusted as necessary to optimize the images of the arterial lumen wall interface. When the tracking gate was placed on the intima, the artery diameter was automatically tracked, and the waveform of diameter changes over the cardiac cycle was displayed in real time using the FMD mode of the tracking system. This allowed the ultrasound images to be optimized at the start of the scan and the transducer position to be adjusted immediately for optimal tracking performance throughout the scan. Pulsed Doppler flow was assessed at the baseline and during peak hyperemic flow, which was confirmed to occur within 15 s after cuff deflation (decompression). Blood flow velocity was calculated from the Doppler data and displayed as a waveform in real time. The baseline longitudinal images of the artery were acquired for 30 s, and then the occlusion cuff was inflated to 50 mmHg above systolic pressure for 5 min. The longitudinal images of the artery were automatically recorded continuously until 2 min after cuff deflation. Pulsed Doppler velocity signals were obtained for 20 s at the baseline and for 10 s immediately after cuff deflation. Changes in brachial artery diameter were immediately expressed as a percentage change relative to the vessel diameter before cuff inflation. The FMD value was obtained by the following equation:

F M D (%) = \frac{D 1 - D 2}{D 1} \times 100

(1)

where D1 = the basal diameter and D2 = the maximum diameter reached after cuff release. Thus, FMD values were automatically calculated as the percentage change in peak vessel diameter from the baseline value.

Exposure of the dorsal side of the left upper arm to a 50 Hz MF at B_max 180 mT or B_rms 127 mT was performed with the subject lying on a bed in the supine position for the FMD measurement as one of the secondary outcome measures. The brachial artery FMD values in the left upper arm were monitored during the pre-exposure (baseline) and the post-exposure. After putting on the dorsal side of the left upper arm on an MF exposure device and attaching the cuff around the left forearm about at least 5-min resting period, it took about 10 min to obtain FMD values per one measurement (Fig D in S4 File). The FMD values were monitored before the exposure and immediately after the termination of the exposure (Fig D in S4 File). From a physiological point of view, in the case of repeated measurements of FMD, a time interval of measurement is recommended at least 30 min and accordingly FMD test was frequently performed before and after 30-min interventions to examine the acute effects of interventions and to minimize repeated assessment effects [62–64]. Therefore, FMD test was repeated with an interval of 30 min and the MF or sham exposure was conducted continuously for 30 min between tests. Each crossover trial for each participant was performed twice on different days after a washout period of at least two days and the duplicate data were averaged for each individual in each test (Fig 1).

MF exposure

In the active 50 Hz MF condition, participants were exposed to a 50 Hz MF for 15 min (protocol A) or 30 min (protocol B) using an AC MF exposure device (Soken MS, Soken Co., Ltd., Toride, Japan). The MF exposure device was utilized for research purpose. Two separate electromagnetic coils (inner diameter 20 mm, outer diameter 50 mm, and height 60 mm) are set horizontally inside the MF exposure device and the distance between the centers of the double induction coils is 160 mm. The two coils were electrically connected in series.

The measurement of root mean square (rms) values (a) was made by means of a single-axis teslameter with a suitable transverse probe (F41 teslameter, FP-2X-250-TS15 probe, Lake Shore Cryotronics Co., Westerville, OH, USA). The B_max values (b) of a 50 Hz MF were calculated from the measured B_rms values (a) as:

b = \sqrt{2} a

(2)

The value of B_max is 180 mT on the surface of the MF exposure device above the centers of the coils (Fig E in S4 File). The B_max values decrease exponentially with distance. The estimated B_max values in an ulnar artery, a brachial artery, and a carotid artery are approximately 13 mT, 8 mT, and 5 mT, in which the distances from the surface of the MF exposure device at B_max 180 mT are approximately 3 cm, 4 cm and 6 cm, respectively (Fig F in S4 File). The estimated B_max value in the heart was not detected using this magnetometer because the distance is more than 10 cm between the MF exposure device and the heart.

The surface temperature of the MF exposure device during the MF exposure period of up to 30 min was maintained at 25°C ± 0.5°C using a laptop fan cooler (OPOLAR LC06, OPOLAR Co., Sugar Creek, MO, USA). The relative humidity was controlled at 50% ± 10%. No vibration was detected during the MF exposure period using a horizontal checking device (PWM-25-100, KOD Co., Ltd., Ayabe, Japan). Ambient room noise was 50–55 dB and the sound pressure level of the device was below these levels, which were measured using a sound meter (LA-1440, Ono Sokki Co., Ltd., Yokohama, Japan).

Sample size

The required sample size per group was based on the preliminary estimates from the results of blood flow velocity of 10 subjects under forearm exposure to a 50 Hz MF for 15 min (Fig 2). The blood flow velocity values of all subjects in the sham-exposed group decreased during 15-min sham exposure period, and mean (SD) decrease of ten subjects was 7.7 cm/s (64.8 [22.1] cm/s to 57.1 [22.2] cm/s) (Fig 2A). In contrast, the blood flow velocity values of all subjects in the MF-exposed group increased during 15-min MF exposure period, and mean (SD) increase of 10 subjects was 6.9 cm/s (66.0 [17.6] cm/s to 72.9 [18.3] cm/s) (Fig 2B). From these results, mean (SD) values of blood flow velocity differences between the MF- and sham-exposed groups (MF–sham) gradually increased: baseline, 1.3 (9.9) cm/s; 5 min, 8.6 (9.0) cm/s; 10 min, 15.1 (10.6) cm/s; 15 min, 15.5 (10.0) cm/s (Fig 2C).

Fig 2 — (A) Sham exposure. (B) MF exposure. (C) MF exposure - sham exposure. The duration of exposure is 15 min. The numbers indicate the individual identification numbers.

Here, to detect a statistical difference in the mean change from the baseline between real MF and sham control exposures, we estimated the magnitude of the MF effects on blood flow velocity by setting SD = 10 cm/s and power = 0.80 using a statistical software package (EZR version 1.41, Saitama Medical Center, Jichi Medical University, Saitama, Japan), which is available online (http://www.jichi.ac.jp/saitama-sct/SaitamaHP.files/statmedEN.html). The results of sample size requirements are shown in Table 2.

Table 2. Sample size required to determine significant 50 Hz MF effects on blood flow velocity (BFV).

BFV difference (cm/s)	No. of subjects
5.0	63
6.0	44
7.0	33
8.0	25
9.0	20
10.0	16
11.0	13
12.0	11
13.0	10
14.0	9
15.0	7

Open in a new tab

If the MF exposure is expected to increase blood flow velocity by 13 cm/s relative to the sham exposure, 10 subjects would be expected to find statistical significance as the minimum sample size per group. Our obtained results of mean (SD) values of blood flow velocity differences between both groups are approximately 15 (10) cm/s for 10–15-min exposure, and in this case, the estimated sample size required to determine significant MF effects is 7 subjects per each group. For the primary outcome measure, the estimated minimum sample size of 10 subjects would be able to detect significant differences between both groups. Therefore, on the basis of the significant results from blood flow velocity of 10 subjects per condition, we decided from the beginning that the target number of subjects was set at 10 per condition as a pilot test for all outcome measures for protocol A. Subsequently, after analyzing the FMD results obtained from 10 subjects, we estimated the sample size required to determine significant MF effects, and it is estimated that at least 14 subjects would be required to reach statistical power of 80%. Therefore, an additional 6 subjects were enrolled in protocol B.

Randomization

Randomization was performed according to our preliminary trial protocol [50, 51]. Briefly, all participants were divided evenly into two conditions, a real MF (A) and a sham (B) exposures, with an allocation ratio of 1:1 after block randomization with a permuted block size of 2 according to computer-generated random numbers by an administrative controller/investigator (H.O.) Thus, the allocation of which condition would receive either a real MF (A) or a sham (B) exposure for the first time was randomly generated. When considering the case of the flow chart shown in Fig 1, 2-treatment and 4-period crossover design (2 × 4 crossover sequence) was done; ABAB or BABA.

Blindness

The allocation was blinded to both the participants and the technicians. Real MF and sham control exposures were also blinded to both of them except for one investigator who was regarded as an administrative controller/investigator (H.O.) of an MF exposure device who did not have any contact with the participants and technicians. The operation switch was turned on and off remotely by the investigator using an extension cord. Technicians were not allowed to check the switch of the MF exposure device. All participants were not informed as to when the MF exposure device was switched on or off.

Statistical analyses

Statistical analyses were performed using SAS Analytics version 9.4 (SAS Institute, Cary, NC, USA). A two-way repeated-measures ANOVA was calculated with the factors “Time” and “Condition”. Post hoc analysis of differences between the MF and sham exposures was made with the Student’s t-test or the Wilcoxon rank-sum test (between conditions), and analysis of within the same exposure was performed with the paired t-test or the Wilcoxon signed-rank test (within a condition) with two-sided tests, according to the normality of samples’ distribution verified with the Shapiro-Wilk test. For all comparisons, p < 0.05 was considered significant.

Dosimetry

The in situ electric fields (EFs) induced by a 50 Hz MF generated by double coils were estimated computationally for the left forearm, left upper arm, and neck exposures. Computational methods for determining the MF-induced EFs in heterogeneous anatomically realistic body voxel models are based on the quasi-static approximation of Maxwell’s equations. Under the quasi-static approximation, the induced EFs can be represented in terms of the electric scalar potential which satisfies an elliptic partial-differential equation. The EFs were numerically calculated using the finite-element method (FEM) [65, 66] with first-order cubical elements [67, 68]. Based on the measurement of a 50 Hz MF, the MF exposure coils were modeled using a collection of thin circular current loops. For modeling the anatomy of the torso and arm, a voxel model with a resolution of 0.5 mm was constructed based on the BodyParts3D database (http://lifesciencedb.jp/bp3d/) and is available online (http://version.aalto.fi/ilaakso/alvar). The voxel model includes detailed models of vasculature and consists of 42 different tissues and organs. The electrical conductivity values of tissues at 50 Hz were identical to those listed in the previous study [33]. To reduce numerical artifacts, the voxels with the highest 0.01%-induced EF strength in each tissue were excluded from the analysis.

Results

Twenty-six participants in total were assessed in duplicate measurements on different days for crossover MF and sham exposure experiments (Fig 1). Protocol B included 6 participants from protocol A. Therefore, 20 individuals randomly participated in either protocol A or B, and 6 individuals of them participated in both protocols. All participants had neither discomfort nor any sensation including heat and magnetic sensation during the study period and they have not dropped out after participating in each trial.

Normality tests

The Shapiro-Wilk test was run to test the assumptions of normality. As expected, the results revealed that most of the data was normally distributed (Table A in S4 File) and in the case of parametric distribution, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions). However, some of the data was not normally distributed (Table A in S4 File) and in the case of nonparametric distribution, these were obtained with the Wilcoxon signed-rank test (within a condition) and the Wilcoxon rank-sum test (between conditions).

Effects of MF exposure on blood flow velocity

The blood flow velocity values were evaluated before (baseline) and after 15-min exposure to MFs at 5-min intervals as described previously [50]. The changing rate (%) from the baseline values of blood flow velocity was analyzed because the variability of the baseline values was very large between individuals, which can be associated with slight body movements over time, depending on the individuals (between-subjects variability). The CV (coefficient of variation = [100% × SD] / mean) values for the baseline values of blood flow velocity in the same individual (within-subject variability), which are an indicator of the reproducibility and accuracy of the method for measuring blood flow velocity, were within 20% across the four testing sessions: 7.0% ± 6.0% (mean ± SD), range 1.1–17.9%, n = 10.

The results of the changing rate of blood flow velocity of the ulnar artery in three different regional exposures are shown in Fig 3. The blood flow velocity values in sham exposure were significantly decreased compared with the baseline value (indicated as 100%), probably due to the loading pressure and immobility-induced ischemic conditions by preventing the arm from moving (Table 3A and Fig 3). It is for this reason, for example, that this reduction in blood flow velocity can be induced mainly by the interface pressures (external loading pressures of body weight) on the tissues including blood vessels [69, 70] in combination with being motionless and inactivity [71], and additionally by reduced physiological arousal [29].

Table 3. Comparison of change rate (%) of ulnar arterial blood flow velocity between 50 Hz MF and sham exposures.

A. Sham exposure
t (min)	0	5	10	15	20	25
Sham	100.00	94.15 ± 3.47^***	91.57 ± 4.06^***	88.74 ± 5.95^***	86.94 ± 5.68^***	84.10 ± 6.25^***
Sham	100.00	0.0005	0.0001	0.0002	0.0000	0.0000
B. Forearm exposure
t (min)	0	5	10	15	20	25
MF	100.00	105.47 ± 4.40^**^, ^###	112.94 ± 8.48^***^, ^###	110.95 ± 4.88^***^, ^###	100.97 ± 4.30^###	95.96 ± 6.78^###
MF	100.00	0.0034, 0.0000	0.0009, 0.0000	0.0001, 0.0000	0.1934^a, 0.0006^b	0.0923, 0.0007
C. Upper arm exposure
t (min)	0	5	10	15	20	25
MF	100.00	104.59 ± 3.33^**^, ^###	103.51 ± 2.79^**^, ^###	101.45 ± 4.24^###	97.51 ± 4.28^###	94.94 ± 3.16^***^, ^###
MF	100.00	0.0019, 0.0000	0.0032, 0.0000	0.3074, 0.0000	0.0990, 0.0002	0.0007, 0.0003
D. Neck exposure
t (min)	0	5	10	15	20	25
MF	100.00	101.94 ± 5.31^###	100.10 ± 5.38^###	100.29 ± 4.86^###	99.43 ± 6.47^###	98.57 ± 8.00^###
MF	100.00	0.4316^a, 0.0004^b	0.9539, 0.0009	0.8530, 0.0002	0.7856, 0.0002	0.5851, 0.0003

Open in a new tab

Mean ± SD, n = 10 in each group.

**p < 0.01

***p < 0.001 compared with the baseline (within a condition).

^##p < 0.01

^###p < 0.001 compared with the time-matched sham exposure (between conditions). p-value of sham in each column indicate the within difference. Two p-values of MF in each column indicate the within and between differences in this order. The Shapiro-Wilk test was performed to assess data distribution (Table A in S4 File). In the case of parametric distribution, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions). In the case of nonparametric distribution, these were obtained with ^athe Wilcoxon signed-rank test (within a condition) and ^bthe Wilcoxon rank-sum test (between conditions).

In the forearm exposure, the repeated-measures ANOVA showed a significant Condition by Time interaction [F(5, 90) = 21.51, p < 0.0001]. The MF exposure significantly increased blood flow velocity values during the MF exposure period, and the blood flow velocity value peaked at 10 min after the start of the exposure, increasing from the baseline value by 13.4% (Table 3B and Fig 3A). After the termination of the exposure, the blood flow velocity gradually returned to the baseline value (Fig 3A). These compensatory autonomic responses are protective during the recovery phase of normal cardiovascular homeostasis [60]. The blood flow velocity values were significantly increased by the MF exposure compared with the sham exposure during the exposure and after the termination of the exposure periods (Fig 3A).

In addition, in the upper arm exposure, the repeated-measures ANOVA showed a significant Condition by Time interaction [F(5, 90) = 11.60, p < 0.0001]. The MF exposure significantly increased blood flow velocity values during the MF exposure period, and the value of blood flow velocity peaked at 5-min, increasing from the baseline value by 4.6% (Table 3C and Fig 3B). The blood flow velocity values were also significantly increased by the MF exposure compared with the sham exposure during the exposure and after the termination of the exposure periods (Fig 3B). The forearm exposure induced more significant increase in the blood flow velocity compared with the upper arm exposure, probably due to the higher MF strength (Fig 3A and 3B).

In the neck exposure, the repeated-measures ANOVA showed a significant Condition by Time interaction [F(5, 90) = 11.82, p < 0.0001]. No significant change in blood flow velocity values was induced by the MF exposure, but there were significant differences between the MF and sham exposures (Table 3D and Fig 3C).

Effects of MF exposure on blood pressure and heart rate

The blood pressure (BP) and heart rate (HR) values were evaluated before (baseline) and after 15-min exposure to MFs at 10-min intervals in the forearm exposure. The systolic and diastolic BP and HR values (mean ± SD, n = 10) were measured at 10-min intervals of the pre-exposure, during the exposure (at 10 min after the start of the exposure), and the post-exposure (at 5 min after the termination of the exposure) (Table 4).

Table 4. Comparison of blood pressure (BP) and heart rate (HR) between 50 Hz MF and sham exposures in the forearm.

	Sham			MF
	Pre	During	Post	Pre	During	Post
Systolic BP (mmHg)	116.8 ± 4.2	116.9 ± 3.3	115.7 ± 4.2	116.6 ± 4.3	113.8 ± 4.1	113.4 ± 3.4*
	–	0.9246	0.1022	–	0.2059	0.0156^a
	–	0.9246	0.1022	1.0000^b	0.0793	0.3803^b
Diastolic BP (mmHg)	72.7 ± 6.9	73.0 ± 9.9	73.4 ± 10.0	69.6 ± 5.1	73.4 ± 9.3	73.3 ± 10.0
	–	0.5020^a	1.0000^a	–	0.0521 0.9095^b	0.0547^a
	–	0.5020^a	1.0000^a	0. 0691^b	0.0521 0.9095^b	0.9095^b
HR (bpm)	63.9 ± 7.9	65.1 ± 7.2	65.6 ± 8.6	65.6 ± 7.3	64.0 ± 5.2	65.5 ± 5.5
HR (bpm)	–	0.4074	0.2903	– 0.6236	0.2851 0.7001	0.9720 0.9758

Open in a new tab

Mean ± SD, n = 10 in each group. p-value of sham in each column indicate the within difference. Two p-values of MF in each column indicate the within and between differences in this order. The Shapiro-Wilk test was performed to assess data distribution (Table A in S4 File). In the case of parametric distribution, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions). In the case of nonparametric distribution, these were obtained with ^athe Wilcoxon signed-rank test (within a condition) and ^bthe Wilcoxon rank-sum test (between conditions).

The repeated-measures ANOVA of BP showed no significant Condition by Time interaction [F(2, 36) = 1.34, p = 0.2750] and [F(2, 36) = 1.78, p = 0.1826] in systolic and diastolic BP, respectively. In MF exposure, the systolic BP values significantly decreased, but diastolic BP values did not significantly changed from the pre (baseline) values, and there was no significant difference between MF and sham exposures (Table 4). In addition, the repeated-measures ANOVA of HR showed no significant Condition by Time interaction [F(2, 36) = 0.56, p = 0.5746]. In MF and sham exposures, the HR values were not significantly changed from the pre (baseline) values and there was no significant difference between both conditions (Table 4).

Effects of MF exposure on hemoglobin oxygenation

The muscle hemodynamic changes of 10 male adults were monitored at two muscle regions of the left forearm twice on different days for MF and sham exposure experiments, and the mean hemoglobin oxygenation index (HOI) values were taken from CH-1 and CH-2 using fNIRS. The results showed that the HOI values in both MF and sham exposures in the forearm were peaked about 3–4 min after muscle loading exercise, indicating hyperperfusion (Fig 4A). This reflects the recovery time for hemoglobin/myoglobin desaturation in the capillary bed of exercising muscle [72]. When the values of 5-min exposure period were set at 100%, the recovery (decrease) rates of HOI values are shown in Table 5 and Fig 4B. The repeated-measures ANOVA of HOI showed no significant Condition by Time interaction [F(4, 72) = 1.60, p = 0.1834] in CH-1, and [F(4, 72) = 1.02, p = 0.4042] in CH-2. MF exposure showed faster and larger decrease rates of HOI values than those of sham exposure from the loading condition, but no significant difference was found between those of HOI values of MF and sham exposures at 5-min intervals (Table 5 and Fig 4B).

Fig 4 — The time course of the mean concentration (A) and change rate (B) of hemoglobin oxygenation index values of flexor carpi radialis muscles in the forearm exposure to a 50 Hz MF after muscle loading exercise. CH-1: Middle part of flexor carpi radialis muscles. CH-2: Proximal part of flexor carpi radialis muscles. Relative peak values were set at 1.0 (A). The values of 5-min exposure period were set at 100% (B). The values are expressed as mean ± SEM. n = 10 in each condition. The duration of exposure is 15 min. MF exposure, red closed circles; sham exposure, blue open circles. Two-way repeated-measures ANOVA, followed by the Student’s t-test or the Wilcoxon rank-sum test (between conditions), and the paired t-test or the Wilcoxon signed-rank test (within a condition). Values are expressed as mean ± SEM (n = 10 in each group). *p < 0.05, **p < 0.01, ***p < 0.001 compared with the baseline (within a group).

Table 5. Comparison of change rate (%) of hemoglobin oxygenation index between 50 Hz MF and sham exposures in the forearm.

A. CH-1
t (min)	5	10	15	20	25
Sham	100.00	85.18 ± 5.05^*	77.67 ± 9.06^*	75.40 ± 9.77^*	71.75 ± 13.97
Sham	100.00	0.0166	0.0360	0.0329	0.0738
MF	100.00	84.62 ± 5.07^*	68.52 ± 5.60^***	58.39 ± 6.98^**	51.53 ± 6.47^***
MF	100.00	0.0142, 0.9378	0.0003, 0.4039	0.0039^a, 0.2413^b	0.0000, 0.2124
B. CH-2
t (min)	5	10	15	20	25
Sham	100.00	86.20 ± 4.41^*	76.92 ± 7.99^*	74.41 ± 14.07	78.65 ± 16.25
Sham	100.00	0.0121	0.0371^a	0.0840^a	0.3223^a
MF	100.00	81.38 ± 7.20^*	64.26 ± 7.41^***	55.78 ± 9.17^***	53.44 ± 8.57^***
MF	100.00	0.0295, 0.5769	0.0009, 0.3258^b	0.0009, 0.1306^b	0.0004, 0.2899^b

Open in a new tab

Mean ± SEM, n = 10 in each group.

*p < 0.05

**p < 0.01

***p < 0.001 compared with the baseline (within a condition). p-value of sham in each column indicate the within difference. Two p-values of MF in each column indicate the within and between differences in this order. The Shapiro-Wilk test was performed to assess data distribution (Table A in S4 File). In the case of parametric distribution, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions). In the case of nonparametric distribution, these were obtained with ^athe Wilcoxon signed-rank test (within a condition) and ^bthe Wilcoxon rank-sum test (between conditions).

Effects of MF exposure on ECG parameters

The ECG parameters were evaluated before (baseline) and after 15-min MF and sham exposures in the neck at 5-min intervals. The results of R-R interval (RRI) are shown in Table 6A and Fig 5A. The changing rate (%) from the baseline values of ECG parameters was also analyzed, primarily due to the large between-subjects variability. In sham exposure, the RRI values showed a tendency to be reduced during the motionless condition, which induced tachycardia, probably due to immobility-induced stress, and the RRI values were significantly decreased from the baseline value (indicated as 100%) (Table 6A and Fig 5A). In MF exposure, the RRI values were not significantly changed from the baseline value (Table 6A and Fig 5A). There were some significant differences between both conditions (Table 6A and Fig 5A). However, the repeated-measures ANOVA of RRI showed no significant Condition by Time interaction [F(2, 36) = 0.88, p = 0.7092].

Table 6. Comparison of change rate (%) of ECG parameters between 50 Hz MF and sham exposures in the neck.

A. RRI
t (min)	0	0.5	1	1.5	2
Sham	100.00	98.87 ± 5.59	100.49 ± 4.81	99.24 ± 4.21	98.31 ± 5.09
Sham	100.00	0.5387	0.7570	0.5825	0.3202
MF	100.00	99.87 ± 2.42	101.18 ± 6.58	102.72 ± 6.19	101.74 ± 7.77
MF	100.00	0.8720, 0.6116	0.5852, 0.7915	0.1602^a, 0.3022^b	0.4977, 0.2606
t (min)	2.5	3	3.5	4	4.5
Sham	97.35 ± 4.80	99.11 ± 5.93	99.47 ± 3.77	98.20 ± 5.12	98.75 ± 6.36
Sham	0.1143	0.6479	0.6672	0.2953	0.5496
MF	99.41 ± 5.37	100.78 ± 5.53	101.14 ± 8.83	101.74 ± 9.41	100.42 ± 7.86
MF	0.7365, 0.3767	1.0000^a, 0.8199^b	0.6931, 0.5926	0.5724, 0.3135	0.8710, 0.6090
t (min)	5	5.5	6	6.5	7
Sham	98.65 ± 5.03	96.77 ± 5.77	97.55 ± 5.77	97.20 ± 6.16	98.60 ± 6.24
Sham	0.4169	0.1107	0.2131	0.1844	0.4967
MF	99.74 ± 6.94	100.18 ± 7.40	100.46 ± 8.24	99.99 ± 7.28	100.27 ± 7.07
MF	0.9066, 0.6932	0.9411, 0.2671	0.8629, 0.3740	0.9982, 0.3665	0.9055, 0.5824
t (min)	7.5	8	8.5	9	9.5
Sham	99.86 ± 5.79	98.12 ± 5.31	98.98 ± 5.32	97.51 ± 3.67	97.66± 4.68
Sham	0.9413	0.2921	0.5588	0.0840^a	0.7552
MF	100.13 ± 6.01	101.10 ± 5.76	99.39 ± 6.51	100.64 ± 8.16	101.25 ± 7.64
MF	0.9474, 0.9204	0.5607, 0.2447	0.7729, 0.8796	0.8098, 0.4950^b	0.6161, 0.2242
t (min)	10	10.5	11	11.5	12
Sham	98.14 ± 4.97	97.83 ± 3.27	97.68 ± 3.60	95.76 ± 3.16^**	96.42 ± 2.51^**
Sham	0.2667	0.0652	0.0725	0.0022	0.0015
MF	101.48 ± 7.44	100.60 ± 6.76	101.84 ± 7.69	102.18 ± 7.60^#	101.31 ± 6.58^#
MF	0.5451, 0.2554	0.7851, 0.2640	0.4687, 0.1461	0.3887, 0.0297	0.5455, 0.0494
t (min)	12.5	13	13.5	14	14.5
Sham	97.74 ± 3.41	98.23 ± 3.80	97.20 ± 3.87^*	96.97 ± 3.49^*	95.04 ± 4.51^**
Sham	0.0655	0.1742	0.0478	0.0227	0.007
MF	100.65 ± 6.23	99.41 ± 5.53	98.62 ± 4.30	100.16 ± 3.24^#	100.06 ± 7.88
MF	0.7507, 0.2169	0.7449, 0.5834	0.3350, 0.4486	0.8757, 0.0481	0.9804, 0.1019
t (min)	15	15.5	16	16.5	17
Sham	97.72 ± 4.45	97.64 ± 4.74	98.11 ± 3.92	96.86 ± 5.07	95.99 ± 5.76
Sham	0.1403	0.1496	0.1615	0.0823	0.0552
MF	98.47 ± 8.87	99.37 ± 8.98	98.32 ± 9.59	100.06 ± 7.28	97.39 ± 9.49
MF	0.5991, 0.8148	0.8293, 0.5986	0.6250^a, 0.4249^b	0.9798, 0.2711	0.4070, 0.6962
t (min)	17.5	18	18.5	19	19.5
Sham	96.27 ± 4.96^*	95.60 ± 4.33^*	94.48 ± 3.86^**	95.71 ± 5.44^*	95.1 ± 2.79^***
Sham	0.0415	0.0106	0.0014	0.0117^a	0.0004
MF	99.19 ± 10.30	99.23 ± 10.19	99.64 ± 6.82	101.48 ± 7.00^#	98.70 ± 10.89
MF	0.8086, 0.4345	0.8165, 0.3197	0.8694, 0.0559	0.5207, 0.0443^b	0.7153, 0.3346
t (min)	20	20.5	21	21.5	22
Sham	97.88 ± 3.74	97.14 ± 5.61	96.87 ± 5.79	96.87 ± 5.93	96.74 ± 4.42^*
Sham	0.0840^a	0.1418	0.1211	0.1602^a	0.0446
MF	98.97 ± 10.24	99.63 ± 7.78	100.41 ± 5.08	99.85 ± 4.89	98.27 ± 7.20
MF	0.7581, 0.5696^b	0.8822, 0.4245	0.8063, 0.1638	0.9234, 0.1370^b	0.4654, 0.5768
t (min)	22.5	23	23.5	24	24.5
Sham	97.38 ± 3.96	97.79 ± 5.41	99.09 ± 5.54	97.77 ± 5.32	98.3 ± 4.82
Sham	0.0657	0.2286	0.6176	0.2178	0.2923
MF	99.20 ± 7.15	97.47 ± 7.45	97.26 ± 9.88	100.15 ± 7.79	99.38 ± 7.57
MF	0.7311, 0.4926	0.3115, 0.9146	0.4031, 0.6164	0.9540, 0.4378	0.8001, 0.7088
t (min)	25
Sham	98.68 ± 3.99
Sham	0.3208
MF	100.6 ± 8.88
MF	0.8345, 0.5422
B. HF
t (min)	0	0.5	1	1.5	2
Sham	100.00	110.52 ± 36.41	97.9 ± 38.80	91.07 ± 35.23	88.76 ± 32.37
Sham	100.00	0.3845	0.8679	0.4433	0.3008
MF	100.00	104.5 ± 24.93	102.26 ± 51.65	116.09 ± 56.81	116.36 ± 53.53
MF	100.00	0.5818, 0.6720	0.8929, 0.8335	0.6953^a, 0.4272^b	0.3591, 0.1836
t (min)	2.5	3	3.5	4	4.5
Sham	92.54 ± 36.61	93.85 ± 37.03	90.41 ± 42.80	102.04 ± 32.39	98.32 ± 22.56
Sham	0.5352	0.6121	0.4966	0.8466	0.8189
MF	129.93 ± 53.14	120.12 ± 57.59	114.59 ± 39.87	123.03 ± 53.90	100.97 ± 40.71
MF	0.1086, 0.0856	0.6250^a, 0.3845^b	0.2771, 0.2078	0.2754^a, 0.4494^b	0.9418, 0.8598
t (min)	5	5.5	6	6.5	7
Sham	98.73 ± 38.31	109.2 ± 35.22	104.53 ± 37.31	107.07 ± 46.94	112.58 ± 40.31
Sham	0.9187	0.4299	0.7099	0.6452	0.3494
MF	116.27 ± 33.43	126.71 ± 31.82^*	132.1 ± 65.61	148.47 ± 86.14^*	145.3 ± 56.77^*
MF	0.1582, 0.2900	0.0263, 0.2590	0.1562, 0.2670	0.0273^a, 0.2567^b	0.0326, 0.1565
t (min)	7.5	8	8.5	9	9.5
Sham	117.48 ± 54.29	107.36 ± 45.61	112.04 ± 58.07	106.24 ± 51.73	106.13 ± 48.7
Sham	0.3353	0.6222	0.5285	0.7119	0.2168
MF	133.25 ± 41.7^*	129.48 ± 66.61	131.26 ± 53.08	172.37 ± 62.61^**^, ^#	146.92 ± 76.21^*
MF	0.0327, 0.4763	0.1952, 0.3991	0.0955, 0.4499	0.0053, 0.0194	0.0488^a, 0.2729^b
t (min)	10	10.5	11	11.5	12
Sham	117.17 ± 63.93	114.75 ± 51.58	136.63 ± 55.42	135.45 ± 56.34	119.44 ± 44.11
Sham	0.4176	0.3895	0.0662	0.0778	0.1968
MF	135.46 ± 62.91	148.39 ± 40.08^**	127.50 ± 43.79	132.72 ± 55.23	136.01 ± 92.72
MF	0.1084, 0.5273	0.0098^a, 0.0756^b	0.0783, 0.6879	0.0938, 0.9140	0.3223^a, 1.0000^b
t (min)	12.5	13	13.5	14	14.5
Sham	123.67 ± 52.72	107.39 ± 56.8	110.71 ± 62.49	116.47 ± 45.93	102.38 ± 50.60
Sham	0.1893	0.6905	0.6011	0.2862	0.8849
MF	160.54 ± 89.08	157.64 ± 85.34^*	150.13 ± 87.66	174.29 ± 89.01^*	167.28 ± 63.38^**^, ^#
MF	0.0601, 0.2781	0.0273^a, 0.1041^b	0.1309^a, 0.2121^b	0.0269, 0.0901	0.0084, 0.0214
t (min)	15	15.5	16	16.5	17
Sham	100.09 ± 36.42	94.61 ± 43.15	116.89 ± 59.02	116.63 ± 60.12	120.32 ± 54.17
Sham	0.9941	0.7022	0.3891	0.4045	0.2659
MF	166.24 ± 59.09^**^, ^##	159.97 ± 52.25^**^, ^##	140.28 ± 43.86^*	135.14 ± 63.04	135.37 ± 67.91
MF	0.0020^a, 0.0040^b	0.0055, 0.0071	0.0175, 0.3288	0.1118, 0.5101	0.1309^a, 0.7334^b
t (min)	17.5	18	18.5	19	19.5
Sham	125.74 ± 43.5	113.04 ± 48.57	124.81 ± 62.44	141.37 ± 76.53	129.36 ± 49.54
Sham	0.0941	0.4177	0.2406	0.1216	0.0936
MF	160.09 ± 67.11^*	153.27 ± 58.26^*	129.88 ± 48.32	126.18 ± 62.91	145.09 ± 75.72
MF	0.0197, 0.1940	0.0178, 0.1114	0.0822, 0.8415	0.2207, 0.6340	0.0923, 0.5904
t (min)	20	20.5	21	21.5	22
Sham	148.32 ± 50.79^*	142.36 ± 60.47	148.01 ± 71.95	137.55 ± 58.65	137.56 ± 76.64
Sham	0.0147	0.0540	0.0641	0.0736	0.1556
MF	132.74 ± 38.68^*	148.62 ± 67.81^*	139.64 ± 74.33	133.27 ± 66.76	144.03 ± 75.64
MF	0.0254, 0.4509	0.0496, 0.8300	0.1260, 0.8010	0.1495, 0.8807	0.0988, 0.8514
t (min)	22.5	23	23.5	24	24.5
Sham	172.81 ± 81.91^*	163.78 ± 83.11^*	134.98 ± 87.29	141.7 ± 75.05	140.39 ± 81.78
Sham	0.0203	0.0382	0.2369	0.1128	0.1528
MF	158.27 ± 88.52	143.67 ± 62.14	131.08 ± 52.60^*	127.95 ± 50.07	122.69 ± 50.84
MF	0.0671, 0.7076	0.0534, 0.5482	0.0371^a, 0.9698^b	0.1113, 0.6365	0.1917, 0.5698
t (min)	25
Sham	124.46 ± 79.50
Sham	0.3560
MF	117.78 ± 36.43
MF	0.1934^a, 0.7313^b
C. LF/HF
t (min)	0	0.5	1	1.5	2
Sham	100.00	108.97 ± 41.92	103.34 ± 18.80	95.54 ± 31.03	131.21 ± 50.58
Sham	100.00	0.5157	0.5879	0.3223^a	0.0828
MF	100.00	123.4 ± 71.61	147.07 ± 125.65	117.24 ± 72.5	133.4 ± 110.32
MF	100.00	0.3284, 0.5908	0.8457^a, 0.6499^b	0.9219^a, 0.8202^b	0.5566^a, 0.5966^b
t (min)	2.5	3	3.5	4	4.5
Sham	113.62 ± 53.08	103.1 ± 51.26	142.21 ± 85.00	140.43 ± 72.44	123.77 ± 60.37
Sham	0.4379	0.8526	0.1508	0.1114	0.2446
MF	121.38 ± 80.36	118.86 ± 92.54	112.95 ± 58.22	111.20 ± 58.75	139.52 ± 84.36
MF	0.5566^a, 0.9397^b	0.9219^a, 0.9698^b	0.4997, 0.3824	0.5615, 0.3354	0.1726, 0.6375
t (min)	5	5.5	6	6.5	7
Sham	136.99 ± 73.79	150.09 ± 59.84^*	126.85 ± 51.07	106.59 ± 49.79	113.52 ± 48.86
Sham	0.1474	0.0266	0.1308	0.6852	0.4044
MF	119.31 ± 66.73	106.10 ± 62.85	118.64 ± 94.83	108.24 ± 77.35	103.61 ± 65.73
MF	0.3839, 0.5813	0.7657, 0.1264	1.0000^a, 0.4492^b	0.8457^a, 0.7335^b	1.0000^a, 0.3642^b
t (min)	7.5	8	8.5	9	9.5
Sham	124.19 ± 61.48	134.6 ± 108.42	139.92 ± 68.05	149.65 ± 75.87	125.99 ± 59.12
Sham	0.2448	0.3392^a	0.0966	0.0684	0.8579
MF	101.05 ± 40.29	101.69 ± 37.24	102.24 ± 45.32	124.42 ± 68.14	124.35 ± 80.94
MF	0.9359, 0.3347	0.4922^a, 1.0000^b	0.8793, 0.1648	0.2864, 0.4441	0.3663, 0.9594
t (min)	10	10.5	11	11.5	12
Sham	130.79 ± 69.74	171.64 ± 118.47	166.73 ± 97.49	145.24 ± 78.01	163.07 ± 114.49
Sham	0.1962	0.5566^a	0.0586	0.0534	0.1155
MF	127.68 ± 72.60	126.1 ± 98.03	117.63 ± 77.90	120.57 ± 92.61	163.02 ± 114.57
MF	0.2587, 0.9233	0.4216, 0.4922^b	0.4924, 0.2301	0.7695^a, 0.2897^b	0.1160, 0.9993
t (min)	12.5	13	13.5	14	14.5
Sham	149.03 ± 101.02	95.32 ± 44.97	99.84 ± 40.42	108.16 ± 56.11	130.94 ± 89.58
Sham	0.1592	0.7495	0.9905	0.6566	0.3031
MF	130.98 ± 127.59	101.78 ± 60.11	134.35 ± 57.12	101.33 ± 39.45	116.52 ± 94.55
MF	0.8457^a, 0.4495^b	1.0000^a, 0.6497^b	0.0896, 0.1382	0.9177, 0.7569	0.7695^a, 0.5964^b
t (min)	15	15.5	16	16.5	17
Sham	126.41 ± 90.12	117.42 ± 40.47	115.4 ± 50.24	94.29 ± 34.12	125.64 ± 70.59
Sham	0.1602^a	0.2065	0.6250^a	0.6097	0.3683^a
MF	106.08 ± 86.74	89.50 ± 48.48	104.22 ± 43.14	88.32 ± 31.65	106.82 ± 89.24
MF	0.4316^a, 0.4958^b	0.2324^a, 0.1301^b	0.7640, 0.6774^b	0.2731, 0.6895	1.0000^a, 0.0961^b
t (min)	17.5	18	18.5	19	19.5
Sham	117.74 ± 62.38	106.27 ± 54.44	101.84 ± 56.09	133.35 ± 51.03	142.58 ± 76.22
Sham	0.3919	0.5566^a	0.5566^a	0.0687	0.1111
MF	119.63 ± 73.25	91.20 ± 54.92	92.60 ± 50.36	102.49 ± 68.52	115.60 ± 65.78
MF	0.4186, 0.9510	0.1602^a, 0.5703^b	0.6531, 0.7051^b	0.7695^a, 0.1123^b	0.4725, 0.4081
t (min)	20	20.5	21	21.5	22
Sham	124.43 ± 89.27	128.04 ± 66.16	117.18 ± 59.2	108.55 ± 51.34	109.82 ± 56.06
Sham	0.4094	0.2131	0.3829	0.6110	0.5931
MF	120.33 ± 79.21	109.64 ± 48.70	93.66 ± 51.62	91.75 ± 43.29	100.81 ± 50.54
MF	0.4380, 0.9147	0.5470, 0.4887	0.7068, 0.3566	0.5617, 0.4394	0.9605, 0.7104
t (min)	22.5	23	23.5	24	24.5
Sham	126.28 ± 66.46	124.59 ± 70.27	125.91 ± 81.91	111.11 ± 65.23	119.63 ± 59.93
Sham	0.2428	0.2972	0.3434	0.6030	0.3273
MF	108.40 ± 86.61	116.44 ± 89.30	127.30 ± 77.87	118.10 ± 84.22	114.28 ± 61.61
MF	0.6250^a, 0.2410^b	0.5748, 0.8233	0.2963, 0.9693	0.5138, 0.8382	0.4822, 0.8462
t (min)	25
Sham	139.32 ± 65.17
Sham	0.0840^a
MF	108.13 ± 48.40
MF	0.6081, 0.4055^b

Open in a new tab

Mean ± SD, n = 10 in each group.

*p < 0.05

**p < 0.01

***p < 0.001 compared with the baseline (within a condition).

^#p < 0.05

^##p < 0.01 compared with the time-matched sham exposure (between conditions). p-value of sham in each column indicate the within difference. Two p-values of MF in each column indicate the within and between differences in this order. The Shapiro-Wilk test was performed to assess data distribution (Table A in S4 File). In the case of parametric distribution, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions). In the case of nonparametric distribution, these were obtained with ^athe Wilcoxon signed-rank test (within a condition) and ^bthe Wilcoxon rank-sum test (between conditions).

The results of the high frequency (HF) and low-frequency/high frequency (LF/HF) ratio are shown in Table 6B and Fig 5B and Table 6C and Fig 5C, respectively. In the HF values, the repeated-measures ANOVA showed a significant Condition by Time interaction [F(50, 900) = 1.67, p = 0.0030]. In sham exposure, the HF values showed a tendency to be increased during the motionless condition, and the HF values were significantly elevated from the baseline value at the 20-min condition. The MF exposure more significantly increased HF component values during the exposure and after the termination of the exposure periods from the baseline value and the HF value peaked at 14-min exposure from the baseline value by 74% (Table 6B and Fig 5B). With regard to the differences between the MF and sham exposures, the HF values were significantly increased by the MF exposure compared with the sham exposure intermittently during the exposure and after the termination of the exposure periods (Table 6B and Fig 5B). As the HF component is used as an index for parasympathetic activity [61], these results might be due to MF-induced increase in parasympathetic activity.

In MF and sham exposures, the LF/HF ratio values showed a tendency to be increased from the baseline values under both conditions, probably due to immobility-induced stress, and the LF/HF ratio values were significantly elevated from the baseline value at the 5.5-min condition in sham exposure (Table 6C and Fig 5C). However, the repeated-measures ANOVA showed no significant Condition by Time interaction [F(50, 900) = 0.67, p = 0.9608]. No significant change in LF/HF ratio values was induced by the MF exposure, and there was no significant difference between the MF and sham exposures (Table 6C and Fig 5C).

Effects of MF exposure on FMD

Brachial artery FMD is an indicator of vascular endothelial function and shear stress-induced nitric oxide (NO) production [62–64]. Therefore, MF-induced increase in FMD values largely indicates enhancement of NO production and NO-mediated vasodilator response. The FMD values were evaluated before (baseline) and after 30-min exposure to MFs as described previously [51]. The CV values for the baseline FMD values in the same individual were within 30% across the four testing session: 15.1% ± 9.1% (mean ± SD), range 4.1–29.9%, n = 16. These CV values are within the low range of published values for FMD (30%) in healthy individuals [64]. The repeated-measures ANOVA showed a significant Condition by Time interaction [F(1, 30) = 11.98, p = 0.0016]. The FMD values were significantly increased from the baseline value in the presence of MF exposure (Table 7 and Fig 6). There were significant differences between the MF and sham exposures (Fig 6). In contrast, in sham exposure, the FMD values showed a downward trend, partially due to decrease in endothelial NO synthase expression [73] but there was no significant change during the experimental period of about 30 min (Table 7 and Fig 6). As for this reason for physiological stability, in the case of the supine position without any intense intervention, it has been reported that the values of the forearm blood flow velocity, shear stress and vascular resistance were not changed for at least 5 h [74].

Table 7. Comparison of FMD (%) between 50 Hz MF and sham exposures in the upper arm.

t (min)	0	30
Sham	8.11 ± 1.73	7.41 ± 1.46
Sham	–	0.0613
MF	7.89 ± 2.09	9.00 ± 1.58^*^, ^##
	–	0.0126
	0.7425	0.0060

Open in a new tab

Mean ± SD, n = 16 in each group.

*p < 0.05 compared with the baseline (within a condition).

^##p < 0.01 compared with the time-matched sham exposure (between conditions). p-value of sham in each column indicate the within difference. Two p-values of MF in each column indicate the within and between differences in this order. Parametric distributions in all cases were confirmed with the Shapiro-Wilk test (Table A in S4 File), and thereby, p-values were calculated with the paired t-test (within a condition) and the Student’s t-test (between conditions).

Fig 6 — The duration of exposure is 30 min. MF exposure, red closed circles; sham exposure, blue open circles. Values are expressed as mean ± SD. n = 16 in each condition. Two-way repeated-measures ANOVA, followed by the Student’s t-test or the Wilcoxon rank-sum test (between conditions), and the paired t-test or the Wilcoxon signed-rank test (within a condition). *p < 0.05 compared with the baseline (within a condition). ^##p < 0.01 compared with the time-matched sham exposure (between conditions).

Dosimetry of electric fields (EFs) induced by a 50 Hz MF

Fig 7 shows the estimated distribution of the induced EFs for the three exposure conditions. In terms of the EF intensity at the body surface, the simulation results indicated that the highest EF strengths were located in the regions underneath the coils, with minor diffusion to other regions. The results also indicated a strong effect of the body-coil distance on the induced EF strength, which explains the relative differences in the EF strength between the two coils (Fig 7A and 7B). Since the coil positioning is expected to differ between the computer simulations and the actual subjects, the calculated EFs should therefore be treated as order-of -magnitude estimates.

Table 8 lists the estimated maximum values of the induced EF strengths in various tissues. Computer simulations of the induced EFs indicated that the order-of-magnitude estimates of the peak values were 100–500 mV/m, depending on the exposure conditions. The results indicated that the induced EF strengths were considerably weaker for the neck exposure compared to the forearm and upper arm exposures. For all three exposure conditions, the highest EF strengths were found in the skin and subcutaneous fat. The induced EFs in blood vessels, including large arteries and veins, were maximal in the forearm exposure condition.

Table 8. The peak EF strengths (mV/m) in tissues induced by a 50 Hz MF for the forearm, upper arm and neck exposures.

Tissue	Forearm	Upper arm	Neck
Skin	319.3	491.7	122.0
Fat	282.3	453.9	96.9
Muscle	141.9	382.8	63.5
Blood vessel	142.8	39.0	23.5
Bone	237.8	98.9	82.3
Heart	1.1	4.4	11.4

Open in a new tab

Discussion

The present study examined the acute effects of a 50 Hz MF on the values of blood flow velocity, blood pressure, heart rate, blood oxygenation, ECG parameters and FMD in healthy young men. Experiments were carried out in a prospective, randomized, double-blind, sham-controlled, counterbalanced, crossover manner using an MF exposure device. Participants were regionally exposed to the MF at B_max 180 mT or B_rms 127 mT for up to 30 min. The results of the blood flow velocity as the primary outcome measure showed that regional MF exposures significantly increased blood flow velocity compared to sham exposure (Fig 3). After the termination of the MF exposure, the MF effects on the blood flow velocity were sustained for at least 10 min. Considering the prolonged immobility conditions in subjects, we have not examined the prolonged post-exposure effects. When subjects leave the left forearm still on the exposure device for more than 30 min, the blood flow velocity will remain stagnant like a pressure ulcer. Here, the mean external pressure levels against the dorsal side of the forearm resulting from body weight support were 56.7 mmHg ± 4.1 mmHg (mean ± SD, n = 10), which were measured using a portable interface pressure sensor (Palm Q, CAPE, Yokosuka, Japan). The interface pressure level of 60 mmHg applied for 1 h or more is considered to impede blood flow and induce tissue damage [69]. More recently, the capillary pressures excessively higher than 32 mmHg for 2 h or more are considered to cause tissue damage, and therefore, the pressure of 32 mmHg is regarded as the capillary closing pressure threshold [70].

At 10 min after the termination of regional exposure, the mean values of blood flow velocity in MF exposure were still higher than those in sham exposure by about 12%, 11% and 14% under forearm, upper arm and neck exposures, respectively (Fig 3). In these cases, the mean decrease rate of blood flow velocity in the post-exposure period was about 1.5%/min for MF exposure and about 0.5%/min for sham exposure. Therefore, it is estimated that the MF effects will last for at least 20-min post-exposure. In another way, however, when subjects lift the forearm away from the device and move it freely, the blood flow velocity will recover to the baseline level in a few minutes, and the significant differences in the blood flow velocity between both exposures will disappear. Therefore, the prolonged post-exposure effects remain elusive and further research is necessary to clarify the effects.

The increased effects on the blood flow velocity by the MF exposure (50 Hz, 1 mT, for 10 min) were consistent with those of the previous animal study under anesthesia [32]. To clarify these neuroelectric mechanisms of time-varying MFs, the relationship between nerve stimulation and increased blood circulation has been examined mainly using low-frequency repetitive transcranial magnetic stimulation (rTMS) [75, 76]. In contrast, however, the decreases in blood circulation induced by rTMS have been reported [76, 77]. Thus, the effects of rTMS on blood circulation are variable and fluctuating, depending on the stimulus regions, conditions and/or configurations, e.g., stimulus frequency, intensity, duration and repeated sessions, have not been established, and moreover, as is the case of 50 Hz MF effects examined in this study, the prolonged post-exposure effects also have not been clarified.

The results of fNIRS experiments showed that hemoglobin oxygenation index (HOI) values in both MF and sham exposures were peaked about 3–4 min after muscle loading exercise (Fig 4A). MF exposure recovered HOI values faster and higher than sham exposure from the loading condition, but no significant difference was found between those of HOI values of MF and sham exposures (Fig 4B). These findings suggest that MF exposure could partially improve autonomic responses to maintain the homeostatic balance in the recovery process in increased circulation after exercise. This is because MF can actively enhance a better blood recovery compared to the normal recovery process, indicating faster hemodynamic adaptation to inflammatory conditions.

The response of electrically excitable nerve and muscle tissues to induced EFs has been demonstrated [33–35]. The EFs stimulate the tissues in the exposed region when the exposure condition exceeds the threshold of tissues. The most robustly established effect of EFs below the threshold for direct nerve or muscle excitation is the induction of magnetophosphenes, which is the perception of faint flickering light in the periphery of the visual field [35]. In this case of retina, the threshold for induced EF intensity has been estimated to lie between about 50 and 100 mV/m at 20 Hz, rising at higher and lower frequencies. In the present experiment at 50 Hz, however, we have not detected the magnetophosphene perception by any participants. In vitro experimental studies using brain slices suggest that minimum thresholds for nerve cell activity lie below frequencies of 100 Hz and may be as low as 100 mV/m [34].

Except for retina, brain and heart, however, the induced EFs in tissues have not yet been estimated and discussed in the field of 50 Hz MF, especially, at the high intensity such as 180 mT. The actual induced EFs depend strongly on the subject, e.g., the individual anatomy, posture and coil position. In addition, electrical conductive inhomogeneity and anisotropy of tissues, such as myocardium [37] and different tissue conductivities [38] strongly guide the resulting variability in induced EFs. Therefore, in this study, computer simulations were performed as order-of-magnitude estimates. The simulations indicated that the order-of-magnitude estimates of the peak induced EFs were 100–500 mV/m, depending on the exposure conditions (Table 8). The induced EFs were highest underneath the coils, with minor diffusion to other regions. The peak values of induced EFs in blood vessels were 143 mV/m in the forearm exposure, 39 mV/m in the upper arm exposure, and 24 mV/m in the neck exposure (Table 8). The increase rate of ulnar artery blood flow velocity being exposed in three different regions (Fig 3) is likely dependent on and positively correlated with the induced EFs in blood vessels. However, the induced EF strength is below the basic restrictions of ICNIRP (0.8 V/m in all tissues of head and body) [35], or the dosimetric reference limit of IEEE-ICES (2.1 V/m in hands, wrists, feet and ankles) [36]. Hence, it seems likely that the EF strength are far too weak to cause direct myelinated nerve stimulation, or at least could not induce adverse effects in terms of rheobase excitation thresholds. On the other hand, the peak MF strength in the case of 50 Hz are above the basic restrictions of IEEE-ICES (B_max 107 mT or B_rms 76 mT in arms or legs and B_max 3.83 mT or B_rms 2.71 mT in torso) [36].

We speculate that regional MF strength could play a crucial role in the initiation of a series of the physiological response processes involved in hemodynamic responses. Our results demonstrated that ulnar artery blood flow velocity values were significantly increased by the regional MF exposures compared with the sham exposures. The estimated B_max (B_rms) values in an ulnar artery (forearm), a brachial artery (upper arm), and a carotid artery (neck) are approximately 13 mT (9.2 mT), 8 mT (5.7 mT), and 5 mT (3.5 mT) respectively (Fig F in S4 File), and the blood flow velocity increased corresponding to the B_max values (Fig 3), which are also apparently positively correlated with the induced EFs in blood vessels (Fig 7). Thus, these MF effects seem to be a field strength-dependent and may be region-specific.

The diastolic BP and HR values were not significantly affected by the regional MF exposure (Table 4). Therefore, it seems plausible that this regional MF exposure method did not strongly affect systemic hemodynamics or whole body circulatory response in healthy young men. Interestingly, the results of ECG parameters showed that parasympathetic HF activity was significantly increased by the neck MF exposure compared with the sham exposure intermittently during the exposure and after the termination of the exposure periods. In contrast, no significant change in LF/HF ratio values was induced by the MF exposure. These results suggest that the MF exposure can activate parasympathetic activity and thereby lead to increase vasodilation and blood flow. In addition, from the results of FMD test, the MF exposure significantly increased FMD values compared to the baseline value as well as compared to the sham exposure. The results were consistent with our previous findings investigated with smaller sample sizes [51]. As FMD is an indicator of vascular endothelial function and shear stress-induced nitric oxide (NO) production [62–64], the MF-induced increase of FMD values is largely related to enhancement of NO production [51]. These findings suggest that this 50 Hz MF exposure can activate parasympathetic nerves and induce hemodynamic responses via cholinergic mediators together with NO-mediated vasodilation.

The hemodynamic mechanisms of 50 Hz MFs have been reviewed [27, 30, 31], and we have proposed the mechanisms by which 50 Hz MFs could alter acetylcholine (ACh) and NO signaling pathways [50, 51] based on the following reports [5,39,40,41,42]. ACh has been found to be released from some vascular endothelial cells through blood flow and the ACh mediatesto vasodilation by forming and releasinge of NO from these cells [78], and the inhibitory effect of 50 Hz MFs on acetylcholinesterase (ACh lytic enzyme) has been reported in the magnetic intensity of 0.74 mT or more [39]. Furthermore, the modulatory effects of 50 Hz MFs on NO signaling pathways have been shown in the magnetic intensity of 1 mT (rms) in vitro [5, 40, 41]. For instance, B_rms 1 mT 50 Hz MF for 3 h exposure significantly increased expression levels of induced NOS (iNOS) and endothelial NOS (eNOS) [5]. These 50 Hz MF-induced NOS expression increased in parallel with increased NOS activity [5]. Moreover, a recent clinical study revealed that a 40 Hz MF at 7 mT for 15 min/day significantly increased 3-nitrotyrosine and nitrate/nitrite levels in post-stroke patients, and improved functional and mental status [42]. Concerning the physiological mechanisms of NO, it has been reported that NO formed via eNOS and neuronal NOS (nNOS) causes vasodilatation, hypotension and blood flow increase [79]. Therefore, in this context, 50 Hz MF-induced NO activation/production could help promote blood circulation.

Considering future perspectives to understand the physiological mechanisms of 50 Hz MFs for hemodynamic responses, the induced EFs in three different regional exposures should be numerically calculated and analyzed in a more realistic model using the modified FEM method in more detail for precise microdosimetry purposes. Thus, computer simulations could open a new avenue for electromagnetically optimizing control of blood circulation, in particular, in ischemic regions. Moreover, objective assessment should be conducted for symptomatic patients with muscle fatigue and pain, in more severe cases, patients with ischemic disorders such as atherosclerosis and diabetes, to clarify the effects and mechanisms of 50 Hz MFs on ischemic regions. In addition, by exposure to 50 Hz MFs, there is a possibility that some specific biomarkers, such as melatonin, cortisol, serotonin and dopamine, could be affected [43, 44] and/or pain perception pathways via opioid receptors could be inhibited [45]. Further studies should be needed to investigate the MF-based therapeutic applications and elucidate the underlying mechanisms of MF effects on pain relief and recovery of muscle fatigue.

Limitations and future study needed

There are several limitations in this study. First, a primary limitation of this study relates to the lack of in vivo real-time measurement of NO production in the blood circulation under MF exposure. In addition to NO production [6, 40–42], the involvement of Ca²⁺ [9–11, 13, 46–48] and ROS [14, 20, 49] in responses to 50 Hz MFs in vitro, which may also affect the FMD, has not been clarified yet in vivo. Moreover, direct real-time measurement of the amounts of the metabolic waste products and endogenous pain producing substances under MF exposure, will make the mechanism of MF effects more noticeable.

Another limitation of the present study relates to small sample size for a pilot study. To detect a statistical difference in the mean change from the baseline between real MF and sham control exposures, we re-estimated the magnitude of the MF effects on blood flow velocity for 15-min exposure in Fig 3 (also refer to Fig 2 and Table 2), by setting power = 0.80 using the above-mentioned EZR software package. Our obtained results of mean (SD) values of blood flow velocity differences between both conditions for 15-min exposure are 22.2% (9.4%), 12.7% (6.0%), and 11.6% (8.5%) in Fig 3A–3C, respectively. In these cases, the re-estimated sample size required to determine significant MF effects on blood flow velocity is at least 9 subjects. For the primary outcome measure, the re-estimated minimum sample size of 10 subjects would be able to detect significant differences between both conditions. In the case of FMD of 16 subjects in protocol B, mean (SD) values of FMD differences between both conditions were 1.59% (1.45%) for 30-min exposure in Fig 6. Here, the estimated minimum sample size is calculated to be 14 subjects per condition by setting power = 0.80 using the EZR software package. Therefore, we estimated that the total sample size of 16 subjects would be large enough to detect significant MF effects on FMD. We cannot rule out the possibility that differences between the MF and sham exposures may have become more significant if more subjects were studied.

Furthermore, the subjects are limited to normal healthy young men with normal vascular endothelial function. We examined men to avoid the cyclic effects of sex hormones on vascular endothelial function in women. Recruiting a large number of subjects would not have critically changed our findings. Thus, significant MF effects were found for a small number of healthy young men in this study, but further studies need to confirm whether MFs are effective in a larger number of older men and women.

Conclusions

The ulnar artery blood flow velocity significantly increased corresponding to the B_max values of MFs. These MF effects seem to be field strength-dependent and may be region-specific from the results of three different regional exposures to MFs. The induced EFs were highest underneath the coils, with minor diffusion to other regions. Furthermore, after muscle loading exercise, MF exposure recovered hemoglobin oxygenation index values faster and higher than sham exposure from the loading condition. The MF exposure significantly increased parasympathetic activity. The MF exposure significantly increased FMD values and the MF-induced increase of FMD values is directly related to the enhancement of NO production. These findings suggest that a 50 Hz MF can activate the parasympathetic nerve and induce hemodynamic responses via cholinergic mediators together with NO-mediated vasodilation. We believe that physiological monitoring results and computer simulations of the induced EFs provide new insight into how hemodynamic parameters can be changed in response to a 50 Hz MF at B_max 180 mT. The therapeutic implications of these findings require further preclinical and clinical investigations.

Supporting information

S1 File. Trial protocol and informed consent form.

(DOC)

Click here for additional data file.^{(5.8MB, doc)}

S2 File. Trial protocol and informed consent form in Japanese.

(DOC)

Click here for additional data file.^{(6MB, doc)}

S3 File. CONSORT checklist.

(DOC)

Click here for additional data file.^{(223KB, doc)}

S4 File. Additional methods, results and figures.

(DOCX)

Click here for additional data file.^{(1.9MB, docx)}

S5 File. Data set.

(XLSX)

Click here for additional data file.^{(315.7KB, xlsx)}

Acknowledgments

We thank Ms. Megumi Hanada (UNEX Co., Ltd.) for her technical support and assistance with the FMD measurement.

Abbreviations

MF: magnetic field
EF: electric field
FEM: finite-element method
fNIRS: functional near infrared spectroscopy
oxyHb: oxyhemoglobin
deoxyHb: deoxyhemoglobin, totalHb, total hemoglobin
ECG: electrocardiogram
RRI: R-R interval
HF: high-frequency
LF: low-frequency
HRV: heart rate variability
FMD: flow-mediated dilation
NO: nitric oxide

Data Availability

All relevant data are within the paper and its Supporting Information files.

Funding Statement

This study represents independent research part funded by the Advanced Institute of Innovative Technology, Saitama University. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. There was no additional external funding received for this study.

References

1.Galli C, Colangelo M, Pedrazzi G, Guizzardi S. The response of osteoblasts and bone to sinusoidal electromagnetic fields: insights from the literature. Calcif Tissue Int. 2019; 105(2): 127–147. doi: 10.1007/s00223-019-00554-9 [DOI] [PubMed] [Google Scholar]
2.Pilla AA. Mechanisms and Therapeutic Applications of Time-varying and Static Magnetic Fields. In: Barnes F, Greenebaum B, editors. Handbook of Biological Effects of Electromagnetic Fields, 3rd Edition. Barnes F., and Greenebaum B., Eds. Boca Raton: CRC Press; 2007. p. 351–411. [Google Scholar]
3.Markov MS, Colbert AP. Magnetic and electromagnetic field therapy. J Back Musculoskelet Rehabil. 2000; 15(1): 17–29. doi: 10.3233/bmr-2000-15103 [DOI] [PubMed] [Google Scholar]
4.Funk RH, Monsees TK. Effects of electromagnetic fields on cells: physiological and therapeutical approaches and molecular mechanisms of interaction. A review. Cells Tissues Organs. 2006; 182(2): 59–78. doi: 10.1159/000093061 [DOI] [PubMed] [Google Scholar]
5.Patruno A, Amerio P, Pesce M, Vianale G, Di Luzio S, Tulli A, et al. Extremely low frequency electromagnetic fields modulate expression of inducible nitric oxide synthase, endothelial nitric oxide synthase and cyclooxygenase-2 in the human keratinocyte cell line HaCat: potential therapeutic effects in wound healing. Br J Dermatol. 2010; 162(2): 258–266. doi: 10.1111/j.1365-2133.2009.09527.x [DOI] [PubMed] [Google Scholar]
6.Patruno A, Ferrone A, Costantini E, Franceschelli S, Pesce M, Speranza L, et al. Extremely low-frequency electromagnetic fields accelerates wound healing modulating MMP-9 and inflammatory cytokines. Cell Prolif. 2018; 51(2): e12432. doi: 10.1111/cpr.12432 [DOI] [PMC free article] [PubMed] [Google Scholar]
7.Zhu BY, Yang ZD, Chen XR, Zhou J, Gao YH, Xian CJ, et al. Exposure duration is a determinant of the effect of sinusoidal electromagnetic fields on peak bone mass of young rats. Calcif Tissue Int. 2018; 103(1): 95–106. doi: 10.1007/s00223-018-0396-2 [DOI] [PubMed] [Google Scholar]
8.Leone L, Podda MV, Grassi C. Impact of electromagnetic fields on stem cells: common mechanisms at the crossroad between adult neurogenesis and osteogenesis. Front Cell Neurosci. 2015; 9: 228. doi: 10.3389/fncel.2015.00228 [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Grassi C, D’Ascenzo M, Torsello A, Martinotti G, Wolf F, Cittadini A, et al. Effects of 50 Hz electromagnetic fields on voltage-gated Ca²⁺ channels and their role in modulation of neuroendocrine cell proliferation and death. Cell Calcium. 2004; 35(4): 307–315. doi: 10.1016/j.ceca.2003.09.001 [DOI] [PubMed] [Google Scholar]
10.Piacentini R, Ripoli C, Mezzogori D, Azzena GB, Grassi C. Extremely low-frequency electromagnetic fields promote in vitro neurogenesis via upregulation of Ca_v1-channel activity. J Cell Physiol. 2008; 215(1): 129–139. doi: 10.1002/jcp.21293 [DOI] [PubMed] [Google Scholar]
11.Ma Q, Chen C, Deng P, Zhu G, Lin M, Zhang L, et al. Extremely low-frequency electromagnetic fields promote in vitro neuronal differentiation and neurite outgrowth of embryonic neural stem cells via up-regulating TRPC1. PLOS One. 2016; 11(3): e0150923. doi: 10.1371/journal.pone.0150923 [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Mastrodonato A, Barbati SA, Leone L, Colussi C, Gironi K, Rinaudo M, et al. Olfactory memory is enhanced in mice exposed to extremely low-frequency electromagnetic fields via Wnt/β-catenin dependent modulation of subventricular zone neurogenesis. Sci Rep. 2018; 8(1): 262. doi: 10.1038/s41598-017-18676-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
13.Song K, Im SH, Yoon YJ, Kim HM, Lee HJ, Park GS. A 60 Hz uniform electromagnetic field promotes human cell proliferation by decreasing intracellular reactive oxygen species levels. PLOS One. 2018; 13(7): e0199753. doi: 10.1371/journal.pone.0199753 [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Falone S, Santini S Jr, Cordone V, Cesare P, Bonfigli A, Grannonico M, et al. Power frequency magnetic field promotes a more malignant phenotype in neuroblastoma cells via redox-related mechanisms. Sci Rep. 2017; 7(1): 11470. doi: 10.1038/s41598-017-11869-8 [DOI] [PMC free article] [PubMed] [Google Scholar]
15.Zhou J, Ming LG, Ge BF, Wang JQ, Zhu RQ, Wei Z, et al. Effects of 50 Hz sinusoidal electromagnetic fields of different intensities on proliferation, differentiation and mineralization potentials of rat osteoblasts. Bone. 2011; 49(4): 753–761. doi: 10.1016/j.bone.2011.06.026 [DOI] [PubMed] [Google Scholar]
16.Huang CY, Chuang CY, Shu WY, Chang CW, Chen CR, Fan TC, et al. Distinct epidermal keratinocytes respond to extremely low-frequency electromagnetic fields differently. PLOS One. 2014; 9(11): e113424. doi: 10.1371/journal.pone.0113424 [DOI] [PMC free article] [PubMed] [Google Scholar]
17.Ma Q, Deng P, Zhu G, Liu C, Zhang L, Zhou Z, et al. Extremely low-frequency electromagnetic fields affect transcript levels of neuronal differentiation-related genes in embryonic neural stem cells. PLOS One. 2014; 9(3): e90041. doi: 10.1371/journal.pone.0090041 [DOI] [PMC free article] [PubMed] [Google Scholar]
18.Liu Y, Liu WB, Liu KJ, Ao L, Cao J, Zhong JL, et al. Extremely low-frequency electromagnetic fields affect the miRNA-mediated regulation of signaling pathways in the GC-2 cell line. PLOS One. 2015; 10(10): e0139949. doi: 10.1371/journal.pone.0139949 [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Ivancsits S, Pilger A, Diem E, Jahn O, Rüdiger HW. Cell type-specific genotoxic effects of intermittent extremely low-frequency electromagnetic fields. Mutat Res. 2005; 583(2): 184–188. doi: 10.1016/j.mrgentox.2005.03.011 [DOI] [PubMed] [Google Scholar]
20.Mattsson MO, Simkó M. Grouping of experimental conditions as an approach to evaluate effects of extremely low-frequency magnetic fields on oxidative response in in vitro studies. Front Public Health. 2014; 2: 132. doi: 10.3389/fpubh.2014.00132 [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Manser M, Sater MR, Schmid CD, Noreen F, Murbach M, Kuster N, et al. ELF-MF exposure affects the robustness of epigenetic programming during granulopoiesis. Sci Rep. 2017; 7: 43345. doi: 10.1038/srep43345 [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Legros A, Modolo J, Brown S, Roberston J, Thomas AW. Effects of a 60 Hz magnetic field exposure up to 3000 μT on human brain activation as measured by functional magnetic resonance imaging. PLOS One. 2015; 10(7): e0132024. doi: 10.1371/journal.pone.0132024 [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Davarpanah Jazi S, Modolo J, Baker C, Villard S, Legros A. Effects of a 60 Hz magnetic field of up to 50 millitesla on human tremor and EEG: A pilot study. Int J Environ Res Public Health. 2017; 14(12): 1446. doi: 10.3390/ijerph14121446 [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Tabor Z, Michalski J, Rokita E. Influence of 50 Hz magnetic field on human heart rate variability: linear and nonlinear analysis. Bioelectromagnetics. 2004; 25(6): 474–480. doi: 10.1002/bem.20039 [DOI] [PubMed] [Google Scholar]
25.Kurokawa Y, Nitta H, Imai H, Kabuto M. Can extremely low frequency alternating magnetic fields modulate heart rate or its variability in humans? Auton Neurosci. 2003; 105(1): 53–61. doi: 10.1016/S1566-0702(02)00296-5 [DOI] [PubMed] [Google Scholar]
26.Taradaj J, Ozon M, Dymarek R, Bolach B, Walewicz K, Rosińczuk J. Impact of selected magnetic fields on the therapeutic effect in patients with lumbar discopathy: A prospective, randomized, single-blinded, and placebo-controlled clinical trial. Adv Clin Exp Med. 2018; 27(5): 649–666. doi: 10.17219/acem/68690 [DOI] [PubMed] [Google Scholar]
27.McNamee DA, Legros AG, Krewski DR, Wisenberg G, Prato FS, Thomas AW. A literature review: the cardiovascular effects of exposure to extremely low frequency electromagnetic fields. Int Arch Occup Environ Health. 2009; 82(8): 919–933. doi: 10.1007/s00420-009-0404-y [DOI] [PubMed] [Google Scholar]
28.McNamee DA, Corbacio M, Weller JK, Brown S, Prato FS, Thomas AW, et al. The cardiovascular response to an acute 1800-μT, 60-Hz magnetic field exposure in humans. Int Arch Occup Environ Health. 2010; 83(4): 441–454. doi: 10.1007/s00420-009-0484-8 [DOI] [PubMed] [Google Scholar]
29.McNamee DA, Corbacio M, Weller JK, Brown S, Stodilka RZ, Prato FS, et al. The response of the human circulatory system to an acute 200-μT, 60-Hz magnetic field exposure. Int Arch Occup Environ Health. 2011; 84(3): 267–277. doi: 10.1007/s00420-010-0543-1 [DOI] [PubMed] [Google Scholar]
30.Ueno S, Okano H. Static, Low-frequency, and Pulsed Magnetic Fields in Biological Systems. In: Lin JC, editor. Electromagnetic Fields in Biological Systems. Boca Raton: CRC Press; 2011. p. 115–196. [Google Scholar]
31.Ohkubo C, Okano H. Magnetic Field Influences on the Microcirculation. In: Markov MS, editor. Electromagnetic Fields in Biology and Medicine. Boca Raton: CRC Press; 2015. p. 103–128. [Google Scholar]
32.Xu S, Okano H, Ohkubo C. Acute effects of whole-body exposure to static magnetic fields and 50-Hz electromagnetic fields on muscle microcirculation in anesthetized mice. Bioelectrochemistry. 2001; 53(1): 127–135. doi: 10.1016/s0302-4598(00)00120-3 [DOI] [PubMed] [Google Scholar]
33.Reilly JP. Neuroelectric mechanisms applied to low frequency electric and magnetic field exposure guidelines—part I: sinusoidal waveforms. Health Phys. 2002; 83(3): 341–355. doi: 10.1097/00004032-200209000-00004 [DOI] [PubMed] [Google Scholar]
34.Saunders RD, Jefferys JG. A neurobiological basis for ELF guidelines. Health Phys. 2007; 92(6): 596–603. doi: 10.1097/01.HP.0000257856.83294.3e [DOI] [PubMed] [Google Scholar]
35.International Commission on Non-Ionizing Radiation Protection (ICNIRP). Guidelines for limiting exposure to time-varying electric and magnetic fields (1 Hz to 100 kHz). Health Phys. 2010; 99(6): 818–836. doi: 10.1097/HP.0b013e3181f06c86 [DOI] [PubMed] [Google Scholar]
36.IEEE. IEEE standard for safety levels with respect to human exposure to electromagnetic fields, 0–3 kHz. IEEE Standard C95.6; 2002. 10.1109/IEEESTD.2002.94143 [DOI]
37.Ramon C, Wang Y, Haueisen J, Schimpf P, Jaruvatanadilok S, Ishimaru A. Effect of myocardial anisotropy on the torso current flow patterns, potentials and magnetic fields. Phys Med Biol. 2000; 45(5): 1141–1150. doi: 10.1088/0031-9155/45/5/305 [DOI] [PubMed] [Google Scholar]
38.Fiocchi S, Chiaramello E, Parazzini M, Ravazzani P. Influence of tissue conductivity on foetal exposure to extremely low frequency magnetic fields at 50 Hz using stochastic dosimetry. PLOS One. 2018; 13(2): e0192131. doi: 10.1371/journal.pone.0192131 [DOI] [PMC free article] [PubMed] [Google Scholar]
39.Ravera S, Bianco B, Cugnoli C, Panfoli I, Calzia D, Morelli A, et al. Sinusoidal ELF magnetic fields affect acetylcholinesterase activity in cerebellum synaptosomal membranes. Bioelectromagnetics. 2010; 31(4): 270–276. doi: 10.1002/bem.20563 [DOI] [PubMed] [Google Scholar]
40.Reale M, De Lutiis MA, Patruno A, Speranza L, Felaco M, Grilli A, et al. Modulation of MCP-1 and iNOS by 50-Hz sinusoidal electromagnetic field. Nitric Oxide. 2006; 15(1): 50–57. doi: 10.1016/j.niox.2005.11.010 [DOI] [PubMed] [Google Scholar]
41.Patruno A, Tabrez S, Pesce M, Shakil S, Kamal MA, Reale M. Effects of extremely low frequency electromagnetic field (ELF-EMF) on catalase, cytochrome P450 and nitric oxide synthase in erythro-leukemic cells. Life Sci. 2015; 121: 117–123. doi: 10.1016/j.lfs.2014.12.003 [DOI] [PubMed] [Google Scholar]
42.Cichoń N, Czarny P, Bijak M, Miller E, Śliwiński T, Szemraj J, et al. Benign effect of extremely low-frequency electromagnetic field on brain plasticity assessed by nitric oxide metabolism during poststroke rehabilitation. Oxid Med Cell Longev. 2017; 2017: 2181942. doi: 10.1155/2017/2181942 [DOI] [PMC free article] [PubMed] [Google Scholar]
43.Touitou Y, Selmaoui B. The effects of extremely low-frequency magnetic fields on melatonin and cortisol, two marker rhythms of the circadian system. Dialogues Clin Neurosci. 2012; 14(4): 381–399. doi: 10.31887/DCNS.2012.14.4/ytouitou [DOI] [PMC free article] [PubMed] [Google Scholar]
44.Bouche NF, McConway K. Melatonin levels and low-frequency magnetic fields in humans and rats: new insights from a Bayesian logistic regression. Bioelectromagnetics. 2019; 40(8): 539–552. doi: 10.1002/bem.22218 [DOI] [PubMed] [Google Scholar]
45.Kavaliers M, Choleris E, Prato FS, Ossenkopp K. Evidence for the involvement of nitric oxide and nitric oxide synthase in the modulation of opioid-induced antinociception and the inhibitory effects of exposure to 60-Hz magnetic fields in the land snail. Brain Res. 1998; 809(1): 50–57. doi: 10.1016/s0006-8993(98)00844-0 [DOI] [PubMed] [Google Scholar]
46.Zhou J, Yao G, Zhang J, Chang Z. CREB DNA binding activation by a 50-Hz magnetic field in HL60 cells is dependent on extra- and intracellular Ca²⁺ but not PKA, PKC, ERK, or p38 MAPK. Biochem Biophys Res Commun. 2002; 296(4): 1013–1018. doi: 10.1016/s0006-291x(02)02022-3 [DOI] [PubMed] [Google Scholar]
47.Zhang X, Liu X, Pan L, Lee I. Magnetic fields at extremely low-frequency (50 Hz, 0.8 mT) can induce uptake of intracellular calcium levels in osteoblasts. Biochem Biophys Res Commun. 2010; 396(3): 662–666. doi: 10.1016/j.bbrc.2010.04.154 [DOI] [PubMed] [Google Scholar]
48.Sun ZC, Ge JL, Guo B, Guo J, Hao M, Wu YC, et al. Extremely low frequency electromagnetic fields facilitate vesicle endocytosis by increasing presynaptic calcium channel expression at a central synapse. Sci Rep. 2016; 6: 21774. doi: 10.1038/srep21774 [DOI] [PMC free article] [PubMed] [Google Scholar]
49.Feng B, Ye C, Qiu L, Chen L, Fu Y, Sun W. Mitochondrial ROS release and subsequent Akt activation potentially mediated the anti-apoptotic effect of a 50-Hz magnetic field on FL cells. Cell Physiol Biochem. 2016; 38(6): 2489–2499. doi: 10.1159/000445599 [DOI] [PubMed] [Google Scholar]
50.Okano H, Fujimura A, Ishiwatari H, Watanuki K. The physiological influence of alternating current electromagnetic field exposure on human subjects. In: Proceedings of the IEEE International Conference on Systems, Man, and Cybernetics (SMC). Piscataway: IEEE; 2017. p. 2442–2447.
51.Kondo T, Okano H, lshiwatari H, Watanuki K.Evaluation of the hemodynamic effects of AC magnetic field exposure by measurement of an FMD and a microscope. In: Lightner NJ, editor. Advances in Human Factors and Ergonomics in Healthcare and Medical Devices. Basel: Springer International Publishing; 2019. p. 68–79. [Google Scholar]
52.Okudera Y, Matsunaga T, Sato M, Chida S, Hatakeyama K, Watanabe M, et al. The impact of high-frequency magnetic stimulation of peripheral nerves: muscle hardness, venous blood flow, and motor function of upper extremity in healthy subjects. Biomed Res. 2015; 36(2): 81–87. doi: 10.2220/biomedres.36.81 [DOI] [PubMed] [Google Scholar]
53.Cope M, Delpy DT, Reynolds EO, Wray S, Wyatt J, van der Zee P. Methods of quantitating cerebral near infrared spectroscopy data. Adv Exp Med Biol. 1988; 222: 183–189. doi: 10.1007/978-1-4615-9510-6_21 [DOI] [PubMed] [Google Scholar]
54.De Blasi RA, Ferrari M, Natali A, Conti G, Mega A, Gasparetto A. Noninvasive measurement of forearm blood flow and oxygen consumption by near-infrared spectroscopy. J Appl Physiol (1985). 1994; 76(3): 1388–1393. doi: 10.1152/jappl.1994.76.3.1388 [DOI] [PubMed] [Google Scholar]
55.Wyatt JS, Cope M, Delpy DT, Wray S, Reynolds EO. Quantification of cerebral oxygenation and haemodynamics in sick newborn infants by near infrared spectrophotometry. Lancet. 1986; 2(8515): 1063–1066. doi: 10.1016/s0140-6736(86)90467-8 [DOI] [PubMed] [Google Scholar]
56.Aldrich CJ, D’Antona D, Spencer JA, Delpy DT, Reynolds EO, Wyatt JS. Fetal heart rate changes and cerebral oxygenation measured by near-infrared spectroscopy during the first stage of labour. Eur J Obstet Gynecol Reprod Biol. 1996; 64(2): 189–195. doi: 10.1016/0301-2115(95)02284-8 [DOI] [PubMed] [Google Scholar]
57.Seo DI, Laager FM, Young K, Chang H, So WY, Kim HT, et al. Ultra-weak photon emission during wrist curl and cycling exercises in trained healthy men. Electromagn Biol Med. 2012;31(2): 122–131. doi: 10.3109/15368378.2011.624655 [DOI] [PubMed] [Google Scholar]
58.Minami J, Ishimitsu T, Matsuoka H. Effects of smoking cessation on blood pressure and heart rate variability in habitual smokers. Hypertension. 1999; 33(1 Pt 2): 586–590. doi: 10.1161/01.hyp.33.1.586 [DOI] [PubMed] [Google Scholar]
59.Pomeranz B, Macaulay RJB, Caudill MA, Kutz I, Adam D, Gordon D, et al. Assessment of autonomic function in humans by heart rate spectral analysis. Am J Physiol. 1985; 248(1 Pt 2): H151–H153. doi: 10.1152/ajpheart.1985.248.1.H151 [DOI] [PubMed] [Google Scholar]
60.Fouad FM, Tarazi RC, Ferrario CM, Fighaly S, Alicandri C. Assessment of parasympathetic control of heart rate by a noninvasive method. Am J Physiol. 1984; 246(6 Pt 2): H838–H842. doi: 10.1152/ajpheart.1984.246.6.H838 [DOI] [PubMed] [Google Scholar]
61.Pagani M, Lombardi F, Guzzetti S, Rimoldi O, Furlan R, Pizzinelli P, et al. Power spectral analysis of heart rate and arterial pressure variabilities as a marker of sympatho-vagal interaction in man and conscious dog. Circ Res. 1986; 59(2): 178–193. doi: 10.1161/01.res.59.2.178 [DOI] [PubMed] [Google Scholar]
62.Thijssen DH, Dawson EA, Tinken TM, Cable NT, Green DJ. Retrograde flow and shear rate acutely impair endothelial function in humans. Hypertension. 2009; 53(6): 986–992. doi: 10.1161/HYPERTENSIONAHA.109.131508 [DOI] [PubMed] [Google Scholar]
63.Tinken TM, Thijssen DH, Hopkins N, Black MA, Dawson EA, Minson CT, et al. Impact of shear rate modulation on vascular function in humans. Hypertension. 2009; 54(2): 278–285. doi: 10.1161/HYPERTENSIONAHA.109.134361 [DOI] [PMC free article] [PubMed] [Google Scholar]
64.West SG, Wagner P, Schoemer SL, Hecker KD, Hurston KL, Likos Krick A, et al. Biological correlates of day-to-day variation in flow-mediated dilation in individuals with Type 2 diabetes: a study of test-retest reliability. Diabetologia. 2004; 47(9): 1625–1631. doi: 10.1007/s00125-004-1502-8 [DOI] [PubMed] [Google Scholar]
65.Wang W, Eisenberg S. A three-dimensional finite element method for computing magnetically induced currents in tissues. IEEE Trans Magn. 1994; 30(6): 5015–5023. 10.1109/20.334289 [DOI] [Google Scholar]
66.Wagner T, Fregni F, Eden U, Ramos-Estebanez C, Grodzinsky A, Zahn M, et al. Transcranial magnetic stimulation and stroke: a computer-based human model study. Neuroimage. 2006; 30(3): 857–870. doi: 10.1016/j.neuroimage.2005.04.046 [DOI] [PubMed] [Google Scholar]
67.Laakso I, Hirata A. Fast multigrid-based computation of the induced electric field for transcranial magnetic stimulation. Phys Med Biol. 2012; 57(23): 7753–7765. doi: 10.1088/0031-9155/57/23/7753 [DOI] [PubMed] [Google Scholar]
68.Laakso I, Tanaka S, Mikkonen M, Koyama S, Sadato N, Hirata A. Electric fields of motor and frontal tDCS in a standard brain space: A computer simulation study. Neuroimage. 2016; 137: 140–151. doi: 10.1016/j.neuroimage.2016.05.032 [DOI] [PubMed] [Google Scholar]
69.Lyder CH. Pressure ulcer prevention and management. JAMA. 2003; 289(2): 223–226. doi: 10.1001/jama.289.2.223 [DOI] [PubMed] [Google Scholar]
70.Hitos K, Cannon M, Cannon S, Garth S, Fletcher JP. Effect of leg exercises on popliteal venous blood flow during prolonged immobility of seated subjects: implications for prevention of travel-related deep vein thrombosis. J Thromb Haemost. 2007; 5(9): 1890–1895. doi: 10.1111/j.1538-7836.2007.02664.x [DOI] [PubMed] [Google Scholar]
71.Hautala A, Tulppo MP, Mäkikallio TH, Laukkanen R, Nissilä S, Huikuri HV. Changes in cardiac autonomic regulation after prolonged maximal exercise. Clin Physiol. 2001; 21(2): 238–245. doi: 10.1046/j.1365-2281.2001.00309.x [DOI] [PubMed] [Google Scholar]
72.Chance B, Dait MT, Zhang C, Hamaoka T, Hagerman F. Recovery from exercise-induced desaturation in the quadriceps muscles of elite competitive rowers. Am J Physiol. 1992; 262(3 Pt 1): C766–C775. doi: 10.1152/ajpcell.1992.262.3.C766 [DOI] [PubMed] [Google Scholar]
73.Hwang J, Ing MH, Salazar A, Lassegue B, Griendling K, Navab M, et al. Pulsatile versus oscillatory shear stress regulates NADPH oxidase subunit expression: implication for native LDL oxidation. Circ Res. 2003; 93(12): 1225–1232. doi: 10.1161/01.RES.0000104087.29395.66 [DOI] [PMC free article] [PubMed] [Google Scholar]
74.Fox JS, Whitehead EM, Shanks RG. Cardiovascular effects of cromakalim (BRL 34915) in healthy volunteers. Br J Clin Pharmacol. 1991; 32(1): 45–49. doi: 10.1111/j.1365-2125.1991.tb05611.x [DOI] [PMC free article] [PubMed] [Google Scholar]
75.Cao TT, Thomson RH, Bailey NW, Rogasch NC, Segrave RA, Maller JJ, et al. A near infra-red study of blood oxygenation changes resulting from high and low frequency repetitive transcranial magnetic stimulation. Brain Stimul. 2013; 6(6): 922–924. doi: 10.1016/j.brs.2013.04.006 [DOI] [PubMed] [Google Scholar]
76.Thomson RH, Cleve TJ, Bailey NW, Rogasch NC, Maller JJ, Daskalakis ZJ, et al. Blood oxygenation changes modulated by coil orientation during prefrontal transcranial magnetic stimulation. Brain Stimul. 2013; 6(4): 576–581. doi: 10.1016/j.brs.2012.12.001 [DOI] [PubMed] [Google Scholar]
77.Rollnik JD, Düsterhöft A, Däuper J, Kossev A, Weissenborn K, Dengler R. Decrease of middle cerebral artery blood flow velocity after low-frequency repetitive transcranial magnetic stimulation of the dorsolateral prefrontal cortex. Clin Neurophysiol. 2002; 113(6): 951–955. doi: 10.1016/s1388-2457(02)00063-9 [DOI] [PubMed] [Google Scholar]
78.Martin CM, Beltran-Del-Rio A, Albrecht A, Lorenz RR, Joyner MJ. Local cholinergic mechanisms mediate nitric oxide-dependent flow-induced vasorelaxation in vitro. Am J Physiol. 1996; 270(2): H442– H446. doi: 10.1152/ajpheart.1996.270.2.H442 [DOI] [PubMed] [Google Scholar]
79.Toda N, Ayajiki K, Okamura T. Cerebral blood flow regulation by nitric oxide: recent advances. Pharmacol Rev. 2009; 61(1): 62–97. doi: 10.1124/pr.108.000547 [DOI] [PubMed] [Google Scholar]

PLoS One. 2021 Aug 5;16(8):e0255242. doi: 10.1371/journal.pone.0255242.r001

Author response to previous submission

3 Mar 2021

Attachment

Submitted filename: PO-journal-Response to Reviewer-21-03-02.docx

Click here for additional data file.^{(48.4KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0255242.r002

Decision Letter 0

Yoshihiro Fukumoto

26 Apr 2021

PONE-D-21-04188

A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

PLOS ONE

Dear Dr. OKANO,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please submit your revised manuscript by Jun 10 2021 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Yoshihiro Fukumoto

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. Thank you for submitting your clinical trial to PLOS ONE and for providing the name of the registry and the registration number. The information in the registry entry suggests that your trial was registered after patient recruitment began. PLOS ONE strongly encourages authors to register all trials before recruiting the first participant in a study.

As per the journal’s editorial policy, please include in the Methods section of your paper:

1) your reasons for your delay in registering this study (after enrolment of participants started);

2) confirmation that all related trials are registered by stating: “The authors confirm that all ongoing and related trials for this drug/intervention are registered”.

3. We note that you attach your application form for Human Research Ethics Committee approval as your "Protocol" instead of the original written comprehensive protocol that would have been submitted along with the application for ethics review. The protocol should be the complete and detailed plan for the conduct and analysis of the trial. Please send this in the original language. If this is in a language other than English, please also provide a translation. Please detail any deviations from this study protocol in the Methods section of your manuscript. Your study protocol will be made available to the editors and reviewers, and will be published as supporting information with your manuscript if accepted for publication. (If you do not agree to this, we will not be able to publish your manuscript). If you have formally published a study protocol for your trial in a journal then you should cite this in your manuscript, but you still need to send us the original document.

4. Thank you for stating in your Funding Statement:

Please provide an amended statement that declares *all* the funding or sources of support (whether external or internal to your organization) received during this study, as detailed online in our guide for authors at http://journals.plos.org/plosone/s/submit-now. Please also include the statement “There was no additional external funding received for this study.” in your updated Funding Statement.

Please include your amended Funding Statement within your cover letter. We will change the online submission form on your behalf.

5. Please include captions for ALL your Supporting Information files at the end of your manuscript, and update any in-text citations to match accordingly. Please see our Supporting Information guidelines for more information: http://journals.plos.org/plosone/s/supporting-information.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Partly

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: No

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: PONE-D-21-04188: statistical review

SUMMARY. This study is a cross-over trial of the effects a magnetic field on hemodynamics, electrocardiogram, and vascular endothelial function in healthy young men. The core statistical analysis correctly relies on repeated-measures ANOVA. I however list below three specific issues that should be addressed.

SPECIFIC ISSUES

1. The Shapiro-Wilk test has been used for testing outcomes normality. The outputs of the tests are however not displayed. Please add these outputs as supplementary material: given the small sample size, checks of normality are crucial!

2. All the results are displayed in the form of figures, which is nice. However, the authors should also provide traditional tables with effects estimates, p-values and variance components. These tables would clarify the details of the statistical analysis and facilitate the replicability of the results.

2. Although the authors declare that the data are available without restrictions, the raw data are not attached to this submission. The data should be included as supplementary material or made available in a public repository.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2021 Aug 5;16(8):e0255242. doi: 10.1371/journal.pone.0255242.r003

Author response to Decision Letter 0

8 Jun 2021

Reply to Editor:

1. PLOS ONE’s style requirements.

We checked the PLOS ONE’s style requirements.

2. Registration.

1) your reasons for your delay in registering this study (after enrolment of participants started).

Please see the methods:

The late registration was due to an error of omission. Such late registration does not affect study results and participants. We confirmed that all ongoing and related trials for this intervention are registered. We hereby state that all future trials will be registered prospectively.

2) confirmation that all related trials are registered by stating: “The authors confirm that all ongoing and related trials for this drug/intervention are registered”.

We confirmed that all trials for this intervention are registered.

3. Protocol.

The protocol should be the complete and detailed plan for the conduct and analysis of the trial.

We addressed “Experimental protocol” attached “S1 file” in supporting information.

Please send this in the original language.

We addressed “Experimental protocol in Japanese” attached “S2 file” in supporting information.

4 Funding Statement.

We declared the statement “There was no additional external funding received for this study.” in our updated Funding Statement.

5. Please include captions for ALL your Supporting Information files at the end of your manuscript, and update any in-text citations to match accordingly.

We attached “S1-S5 files” as shown in supporting information at the end of our manuscript and updated the citations:

Supporting Information

S1 File. Trial protocol and informed consent form.

(DOCX)

S2 File. Trial protocol and informed consent form in Japanese.

(DOCX)

S3 File. CONSORT checklist.

(DOCX)

S4 File. Additional methods, results and figures.

(DOCX)

S5 File. Data set.

(XLSX)

Reply to Reviewer:

1. Analysis of the Shapiro-Wilk test.

We showed all of the outputs of the Shapiro-Wilk tests as “The Shapiro-Wilk test results for normality assumptions” in “Table A in S4 File”:

Supporting Information

S4 File. Additional methods, results and figures.

(DOCX)

Table A. The Shapiro-Wilk test results for normality assumptions.

1. Subject baseline characteristics in the protocol A and B.

2. Comparison of change rate (%) of ulnar arterial blood flow velocity (BFV), blood pressure (BP), heart rate (HR), hemoglobin oxygenation index (HOI), RRI, HF, LF/HF and FMD between 50 Hz MF and sham exposures.

2. Presentation of the tables indicating p-values and variance components.

We showed all of the tables with p-values in the results:

Table 3. Comparison of change rate (%) of ulnar arterial blood flow velocity between 50 Hz MF and sham exposures.

Table 4. Comparison of blood pressure (BP) and heart rate (HR) between 50 Hz MF and sham exposures in the forearm.

Table 5. Comparison of change rate (%) of hemoglobin oxygenation index between 50 Hz MF and sham exposures in the forearm.

Table 6. Comparison of change rate (%) of ECG parameters between 50 Hz MF and sham exposures in the neck.

Table 7. Comparison of FMD (%) between 50 Hz MF and sham exposures in the upper arm.

3. Presentation of the raw data.

We attached all of the raw data as shown in “S5 File”:

Supporting Information

S5 File. Data set.

(XLSX)

PLoS One. doi: 10.1371/journal.pone.0255242.r004

Decision Letter 1

Yoshihiro Fukumoto

13 Jul 2021

A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

PONE-D-21-04188R1

Dear Dr. OKANO,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Yoshihiro Fukumoto

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #1: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

Reviewer #1: (No Response)

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: (No Response)

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

Reviewer #1: (No Response)

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

Reviewer #1: (No Response)

**********

6. Review Comments to the Author

Reviewer #1: (No Response)

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

PLoS One. doi: 10.1371/journal.pone.0255242.r005

Acceptance letter

Yoshihiro Fukumoto

19 Jul 2021

PONE-D-21-04188R1

A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

Dear Dr. Okano:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Yoshihiro Fukumoto

Academic Editor

PLOS ONE

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 File. Trial protocol and informed consent form.

(DOC)

Click here for additional data file.^{(5.8MB, doc)}

S2 File. Trial protocol and informed consent form in Japanese.

(DOC)

Click here for additional data file.^{(6MB, doc)}

S3 File. CONSORT checklist.

(DOC)

Click here for additional data file.^{(223KB, doc)}

S4 File. Additional methods, results and figures.

(DOCX)

Click here for additional data file.^{(1.9MB, docx)}

S5 File. Data set.

(XLSX)

Click here for additional data file.^{(315.7KB, xlsx)}

Attachment

Submitted filename: PO-journal-Response to Reviewer-21-03-02.docx

Click here for additional data file.^{(48.4KB, docx)}

Data Availability Statement

All relevant data are within the paper and its Supporting Information files.

[pone.0255242.ref001] 1.Galli C, Colangelo M, Pedrazzi G, Guizzardi S. The response of osteoblasts and bone to sinusoidal electromagnetic fields: insights from the literature. Calcif Tissue Int. 2019; 105(2): 127–147. doi: 10.1007/s00223-019-00554-9 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref002] 2.Pilla AA. Mechanisms and Therapeutic Applications of Time-varying and Static Magnetic Fields. In: Barnes F, Greenebaum B, editors. Handbook of Biological Effects of Electromagnetic Fields, 3rd Edition. Barnes F., and Greenebaum B., Eds. Boca Raton: CRC Press; 2007. p. 351–411. [Google Scholar]

[pone.0255242.ref003] 3.Markov MS, Colbert AP. Magnetic and electromagnetic field therapy. J Back Musculoskelet Rehabil. 2000; 15(1): 17–29. doi: 10.3233/bmr-2000-15103 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref004] 4.Funk RH, Monsees TK. Effects of electromagnetic fields on cells: physiological and therapeutical approaches and molecular mechanisms of interaction. A review. Cells Tissues Organs. 2006; 182(2): 59–78. doi: 10.1159/000093061 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref005] 5.Patruno A, Amerio P, Pesce M, Vianale G, Di Luzio S, Tulli A, et al. Extremely low frequency electromagnetic fields modulate expression of inducible nitric oxide synthase, endothelial nitric oxide synthase and cyclooxygenase-2 in the human keratinocyte cell line HaCat: potential therapeutic effects in wound healing. Br J Dermatol. 2010; 162(2): 258–266. doi: 10.1111/j.1365-2133.2009.09527.x [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref006] 6.Patruno A, Ferrone A, Costantini E, Franceschelli S, Pesce M, Speranza L, et al. Extremely low-frequency electromagnetic fields accelerates wound healing modulating MMP-9 and inflammatory cytokines. Cell Prolif. 2018; 51(2): e12432. doi: 10.1111/cpr.12432 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref007] 7.Zhu BY, Yang ZD, Chen XR, Zhou J, Gao YH, Xian CJ, et al. Exposure duration is a determinant of the effect of sinusoidal electromagnetic fields on peak bone mass of young rats. Calcif Tissue Int. 2018; 103(1): 95–106. doi: 10.1007/s00223-018-0396-2 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref008] 8.Leone L, Podda MV, Grassi C. Impact of electromagnetic fields on stem cells: common mechanisms at the crossroad between adult neurogenesis and osteogenesis. Front Cell Neurosci. 2015; 9: 228. doi: 10.3389/fncel.2015.00228 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref009] 9.Grassi C, D’Ascenzo M, Torsello A, Martinotti G, Wolf F, Cittadini A, et al. Effects of 50 Hz electromagnetic fields on voltage-gated Ca²⁺ channels and their role in modulation of neuroendocrine cell proliferation and death. Cell Calcium. 2004; 35(4): 307–315. doi: 10.1016/j.ceca.2003.09.001 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref010] 10.Piacentini R, Ripoli C, Mezzogori D, Azzena GB, Grassi C. Extremely low-frequency electromagnetic fields promote in vitro neurogenesis via upregulation of Ca_v1-channel activity. J Cell Physiol. 2008; 215(1): 129–139. doi: 10.1002/jcp.21293 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref011] 11.Ma Q, Chen C, Deng P, Zhu G, Lin M, Zhang L, et al. Extremely low-frequency electromagnetic fields promote in vitro neuronal differentiation and neurite outgrowth of embryonic neural stem cells via up-regulating TRPC1. PLOS One. 2016; 11(3): e0150923. doi: 10.1371/journal.pone.0150923 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref012] 12.Mastrodonato A, Barbati SA, Leone L, Colussi C, Gironi K, Rinaudo M, et al. Olfactory memory is enhanced in mice exposed to extremely low-frequency electromagnetic fields via Wnt/β-catenin dependent modulation of subventricular zone neurogenesis. Sci Rep. 2018; 8(1): 262. doi: 10.1038/s41598-017-18676-1 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref013] 13.Song K, Im SH, Yoon YJ, Kim HM, Lee HJ, Park GS. A 60 Hz uniform electromagnetic field promotes human cell proliferation by decreasing intracellular reactive oxygen species levels. PLOS One. 2018; 13(7): e0199753. doi: 10.1371/journal.pone.0199753 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref014] 14.Falone S, Santini S Jr, Cordone V, Cesare P, Bonfigli A, Grannonico M, et al. Power frequency magnetic field promotes a more malignant phenotype in neuroblastoma cells via redox-related mechanisms. Sci Rep. 2017; 7(1): 11470. doi: 10.1038/s41598-017-11869-8 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref015] 15.Zhou J, Ming LG, Ge BF, Wang JQ, Zhu RQ, Wei Z, et al. Effects of 50 Hz sinusoidal electromagnetic fields of different intensities on proliferation, differentiation and mineralization potentials of rat osteoblasts. Bone. 2011; 49(4): 753–761. doi: 10.1016/j.bone.2011.06.026 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref016] 16.Huang CY, Chuang CY, Shu WY, Chang CW, Chen CR, Fan TC, et al. Distinct epidermal keratinocytes respond to extremely low-frequency electromagnetic fields differently. PLOS One. 2014; 9(11): e113424. doi: 10.1371/journal.pone.0113424 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref017] 17.Ma Q, Deng P, Zhu G, Liu C, Zhang L, Zhou Z, et al. Extremely low-frequency electromagnetic fields affect transcript levels of neuronal differentiation-related genes in embryonic neural stem cells. PLOS One. 2014; 9(3): e90041. doi: 10.1371/journal.pone.0090041 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref018] 18.Liu Y, Liu WB, Liu KJ, Ao L, Cao J, Zhong JL, et al. Extremely low-frequency electromagnetic fields affect the miRNA-mediated regulation of signaling pathways in the GC-2 cell line. PLOS One. 2015; 10(10): e0139949. doi: 10.1371/journal.pone.0139949 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref019] 19.Ivancsits S, Pilger A, Diem E, Jahn O, Rüdiger HW. Cell type-specific genotoxic effects of intermittent extremely low-frequency electromagnetic fields. Mutat Res. 2005; 583(2): 184–188. doi: 10.1016/j.mrgentox.2005.03.011 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref020] 20.Mattsson MO, Simkó M. Grouping of experimental conditions as an approach to evaluate effects of extremely low-frequency magnetic fields on oxidative response in in vitro studies. Front Public Health. 2014; 2: 132. doi: 10.3389/fpubh.2014.00132 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref021] 21.Manser M, Sater MR, Schmid CD, Noreen F, Murbach M, Kuster N, et al. ELF-MF exposure affects the robustness of epigenetic programming during granulopoiesis. Sci Rep. 2017; 7: 43345. doi: 10.1038/srep43345 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref022] 22.Legros A, Modolo J, Brown S, Roberston J, Thomas AW. Effects of a 60 Hz magnetic field exposure up to 3000 μT on human brain activation as measured by functional magnetic resonance imaging. PLOS One. 2015; 10(7): e0132024. doi: 10.1371/journal.pone.0132024 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref023] 23.Davarpanah Jazi S, Modolo J, Baker C, Villard S, Legros A. Effects of a 60 Hz magnetic field of up to 50 millitesla on human tremor and EEG: A pilot study. Int J Environ Res Public Health. 2017; 14(12): 1446. doi: 10.3390/ijerph14121446 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref024] 24.Tabor Z, Michalski J, Rokita E. Influence of 50 Hz magnetic field on human heart rate variability: linear and nonlinear analysis. Bioelectromagnetics. 2004; 25(6): 474–480. doi: 10.1002/bem.20039 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref025] 25.Kurokawa Y, Nitta H, Imai H, Kabuto M. Can extremely low frequency alternating magnetic fields modulate heart rate or its variability in humans? Auton Neurosci. 2003; 105(1): 53–61. doi: 10.1016/S1566-0702(02)00296-5 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref026] 26.Taradaj J, Ozon M, Dymarek R, Bolach B, Walewicz K, Rosińczuk J. Impact of selected magnetic fields on the therapeutic effect in patients with lumbar discopathy: A prospective, randomized, single-blinded, and placebo-controlled clinical trial. Adv Clin Exp Med. 2018; 27(5): 649–666. doi: 10.17219/acem/68690 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref027] 27.McNamee DA, Legros AG, Krewski DR, Wisenberg G, Prato FS, Thomas AW. A literature review: the cardiovascular effects of exposure to extremely low frequency electromagnetic fields. Int Arch Occup Environ Health. 2009; 82(8): 919–933. doi: 10.1007/s00420-009-0404-y [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref028] 28.McNamee DA, Corbacio M, Weller JK, Brown S, Prato FS, Thomas AW, et al. The cardiovascular response to an acute 1800-μT, 60-Hz magnetic field exposure in humans. Int Arch Occup Environ Health. 2010; 83(4): 441–454. doi: 10.1007/s00420-009-0484-8 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref029] 29.McNamee DA, Corbacio M, Weller JK, Brown S, Stodilka RZ, Prato FS, et al. The response of the human circulatory system to an acute 200-μT, 60-Hz magnetic field exposure. Int Arch Occup Environ Health. 2011; 84(3): 267–277. doi: 10.1007/s00420-010-0543-1 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref030] 30.Ueno S, Okano H. Static, Low-frequency, and Pulsed Magnetic Fields in Biological Systems. In: Lin JC, editor. Electromagnetic Fields in Biological Systems. Boca Raton: CRC Press; 2011. p. 115–196. [Google Scholar]

[pone.0255242.ref031] 31.Ohkubo C, Okano H. Magnetic Field Influences on the Microcirculation. In: Markov MS, editor. Electromagnetic Fields in Biology and Medicine. Boca Raton: CRC Press; 2015. p. 103–128. [Google Scholar]

[pone.0255242.ref032] 32.Xu S, Okano H, Ohkubo C. Acute effects of whole-body exposure to static magnetic fields and 50-Hz electromagnetic fields on muscle microcirculation in anesthetized mice. Bioelectrochemistry. 2001; 53(1): 127–135. doi: 10.1016/s0302-4598(00)00120-3 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref033] 33.Reilly JP. Neuroelectric mechanisms applied to low frequency electric and magnetic field exposure guidelines—part I: sinusoidal waveforms. Health Phys. 2002; 83(3): 341–355. doi: 10.1097/00004032-200209000-00004 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref034] 34.Saunders RD, Jefferys JG. A neurobiological basis for ELF guidelines. Health Phys. 2007; 92(6): 596–603. doi: 10.1097/01.HP.0000257856.83294.3e [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref035] 35.International Commission on Non-Ionizing Radiation Protection (ICNIRP). Guidelines for limiting exposure to time-varying electric and magnetic fields (1 Hz to 100 kHz). Health Phys. 2010; 99(6): 818–836. doi: 10.1097/HP.0b013e3181f06c86 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref036] 36.IEEE. IEEE standard for safety levels with respect to human exposure to electromagnetic fields, 0–3 kHz. IEEE Standard C95.6; 2002. 10.1109/IEEESTD.2002.94143 [DOI]

[pone.0255242.ref037] 37.Ramon C, Wang Y, Haueisen J, Schimpf P, Jaruvatanadilok S, Ishimaru A. Effect of myocardial anisotropy on the torso current flow patterns, potentials and magnetic fields. Phys Med Biol. 2000; 45(5): 1141–1150. doi: 10.1088/0031-9155/45/5/305 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref038] 38.Fiocchi S, Chiaramello E, Parazzini M, Ravazzani P. Influence of tissue conductivity on foetal exposure to extremely low frequency magnetic fields at 50 Hz using stochastic dosimetry. PLOS One. 2018; 13(2): e0192131. doi: 10.1371/journal.pone.0192131 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref039] 39.Ravera S, Bianco B, Cugnoli C, Panfoli I, Calzia D, Morelli A, et al. Sinusoidal ELF magnetic fields affect acetylcholinesterase activity in cerebellum synaptosomal membranes. Bioelectromagnetics. 2010; 31(4): 270–276. doi: 10.1002/bem.20563 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref040] 40.Reale M, De Lutiis MA, Patruno A, Speranza L, Felaco M, Grilli A, et al. Modulation of MCP-1 and iNOS by 50-Hz sinusoidal electromagnetic field. Nitric Oxide. 2006; 15(1): 50–57. doi: 10.1016/j.niox.2005.11.010 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref041] 41.Patruno A, Tabrez S, Pesce M, Shakil S, Kamal MA, Reale M. Effects of extremely low frequency electromagnetic field (ELF-EMF) on catalase, cytochrome P450 and nitric oxide synthase in erythro-leukemic cells. Life Sci. 2015; 121: 117–123. doi: 10.1016/j.lfs.2014.12.003 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref042] 42.Cichoń N, Czarny P, Bijak M, Miller E, Śliwiński T, Szemraj J, et al. Benign effect of extremely low-frequency electromagnetic field on brain plasticity assessed by nitric oxide metabolism during poststroke rehabilitation. Oxid Med Cell Longev. 2017; 2017: 2181942. doi: 10.1155/2017/2181942 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref043] 43.Touitou Y, Selmaoui B. The effects of extremely low-frequency magnetic fields on melatonin and cortisol, two marker rhythms of the circadian system. Dialogues Clin Neurosci. 2012; 14(4): 381–399. doi: 10.31887/DCNS.2012.14.4/ytouitou [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref044] 44.Bouche NF, McConway K. Melatonin levels and low-frequency magnetic fields in humans and rats: new insights from a Bayesian logistic regression. Bioelectromagnetics. 2019; 40(8): 539–552. doi: 10.1002/bem.22218 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref045] 45.Kavaliers M, Choleris E, Prato FS, Ossenkopp K. Evidence for the involvement of nitric oxide and nitric oxide synthase in the modulation of opioid-induced antinociception and the inhibitory effects of exposure to 60-Hz magnetic fields in the land snail. Brain Res. 1998; 809(1): 50–57. doi: 10.1016/s0006-8993(98)00844-0 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref046] 46.Zhou J, Yao G, Zhang J, Chang Z. CREB DNA binding activation by a 50-Hz magnetic field in HL60 cells is dependent on extra- and intracellular Ca²⁺ but not PKA, PKC, ERK, or p38 MAPK. Biochem Biophys Res Commun. 2002; 296(4): 1013–1018. doi: 10.1016/s0006-291x(02)02022-3 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref047] 47.Zhang X, Liu X, Pan L, Lee I. Magnetic fields at extremely low-frequency (50 Hz, 0.8 mT) can induce uptake of intracellular calcium levels in osteoblasts. Biochem Biophys Res Commun. 2010; 396(3): 662–666. doi: 10.1016/j.bbrc.2010.04.154 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref048] 48.Sun ZC, Ge JL, Guo B, Guo J, Hao M, Wu YC, et al. Extremely low frequency electromagnetic fields facilitate vesicle endocytosis by increasing presynaptic calcium channel expression at a central synapse. Sci Rep. 2016; 6: 21774. doi: 10.1038/srep21774 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref049] 49.Feng B, Ye C, Qiu L, Chen L, Fu Y, Sun W. Mitochondrial ROS release and subsequent Akt activation potentially mediated the anti-apoptotic effect of a 50-Hz magnetic field on FL cells. Cell Physiol Biochem. 2016; 38(6): 2489–2499. doi: 10.1159/000445599 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref050] 50.Okano H, Fujimura A, Ishiwatari H, Watanuki K. The physiological influence of alternating current electromagnetic field exposure on human subjects. In: Proceedings of the IEEE International Conference on Systems, Man, and Cybernetics (SMC). Piscataway: IEEE; 2017. p. 2442–2447.

[pone.0255242.ref051] 51.Kondo T, Okano H, lshiwatari H, Watanuki K.Evaluation of the hemodynamic effects of AC magnetic field exposure by measurement of an FMD and a microscope. In: Lightner NJ, editor. Advances in Human Factors and Ergonomics in Healthcare and Medical Devices. Basel: Springer International Publishing; 2019. p. 68–79. [Google Scholar]

[pone.0255242.ref052] 52.Okudera Y, Matsunaga T, Sato M, Chida S, Hatakeyama K, Watanabe M, et al. The impact of high-frequency magnetic stimulation of peripheral nerves: muscle hardness, venous blood flow, and motor function of upper extremity in healthy subjects. Biomed Res. 2015; 36(2): 81–87. doi: 10.2220/biomedres.36.81 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref053] 53.Cope M, Delpy DT, Reynolds EO, Wray S, Wyatt J, van der Zee P. Methods of quantitating cerebral near infrared spectroscopy data. Adv Exp Med Biol. 1988; 222: 183–189. doi: 10.1007/978-1-4615-9510-6_21 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref054] 54.De Blasi RA, Ferrari M, Natali A, Conti G, Mega A, Gasparetto A. Noninvasive measurement of forearm blood flow and oxygen consumption by near-infrared spectroscopy. J Appl Physiol (1985). 1994; 76(3): 1388–1393. doi: 10.1152/jappl.1994.76.3.1388 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref055] 55.Wyatt JS, Cope M, Delpy DT, Wray S, Reynolds EO. Quantification of cerebral oxygenation and haemodynamics in sick newborn infants by near infrared spectrophotometry. Lancet. 1986; 2(8515): 1063–1066. doi: 10.1016/s0140-6736(86)90467-8 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref056] 56.Aldrich CJ, D’Antona D, Spencer JA, Delpy DT, Reynolds EO, Wyatt JS. Fetal heart rate changes and cerebral oxygenation measured by near-infrared spectroscopy during the first stage of labour. Eur J Obstet Gynecol Reprod Biol. 1996; 64(2): 189–195. doi: 10.1016/0301-2115(95)02284-8 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref057] 57.Seo DI, Laager FM, Young K, Chang H, So WY, Kim HT, et al. Ultra-weak photon emission during wrist curl and cycling exercises in trained healthy men. Electromagn Biol Med. 2012;31(2): 122–131. doi: 10.3109/15368378.2011.624655 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref058] 58.Minami J, Ishimitsu T, Matsuoka H. Effects of smoking cessation on blood pressure and heart rate variability in habitual smokers. Hypertension. 1999; 33(1 Pt 2): 586–590. doi: 10.1161/01.hyp.33.1.586 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref059] 59.Pomeranz B, Macaulay RJB, Caudill MA, Kutz I, Adam D, Gordon D, et al. Assessment of autonomic function in humans by heart rate spectral analysis. Am J Physiol. 1985; 248(1 Pt 2): H151–H153. doi: 10.1152/ajpheart.1985.248.1.H151 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref060] 60.Fouad FM, Tarazi RC, Ferrario CM, Fighaly S, Alicandri C. Assessment of parasympathetic control of heart rate by a noninvasive method. Am J Physiol. 1984; 246(6 Pt 2): H838–H842. doi: 10.1152/ajpheart.1984.246.6.H838 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref061] 61.Pagani M, Lombardi F, Guzzetti S, Rimoldi O, Furlan R, Pizzinelli P, et al. Power spectral analysis of heart rate and arterial pressure variabilities as a marker of sympatho-vagal interaction in man and conscious dog. Circ Res. 1986; 59(2): 178–193. doi: 10.1161/01.res.59.2.178 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref062] 62.Thijssen DH, Dawson EA, Tinken TM, Cable NT, Green DJ. Retrograde flow and shear rate acutely impair endothelial function in humans. Hypertension. 2009; 53(6): 986–992. doi: 10.1161/HYPERTENSIONAHA.109.131508 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref063] 63.Tinken TM, Thijssen DH, Hopkins N, Black MA, Dawson EA, Minson CT, et al. Impact of shear rate modulation on vascular function in humans. Hypertension. 2009; 54(2): 278–285. doi: 10.1161/HYPERTENSIONAHA.109.134361 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref064] 64.West SG, Wagner P, Schoemer SL, Hecker KD, Hurston KL, Likos Krick A, et al. Biological correlates of day-to-day variation in flow-mediated dilation in individuals with Type 2 diabetes: a study of test-retest reliability. Diabetologia. 2004; 47(9): 1625–1631. doi: 10.1007/s00125-004-1502-8 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref065] 65.Wang W, Eisenberg S. A three-dimensional finite element method for computing magnetically induced currents in tissues. IEEE Trans Magn. 1994; 30(6): 5015–5023. 10.1109/20.334289 [DOI] [Google Scholar]

[pone.0255242.ref066] 66.Wagner T, Fregni F, Eden U, Ramos-Estebanez C, Grodzinsky A, Zahn M, et al. Transcranial magnetic stimulation and stroke: a computer-based human model study. Neuroimage. 2006; 30(3): 857–870. doi: 10.1016/j.neuroimage.2005.04.046 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref067] 67.Laakso I, Hirata A. Fast multigrid-based computation of the induced electric field for transcranial magnetic stimulation. Phys Med Biol. 2012; 57(23): 7753–7765. doi: 10.1088/0031-9155/57/23/7753 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref068] 68.Laakso I, Tanaka S, Mikkonen M, Koyama S, Sadato N, Hirata A. Electric fields of motor and frontal tDCS in a standard brain space: A computer simulation study. Neuroimage. 2016; 137: 140–151. doi: 10.1016/j.neuroimage.2016.05.032 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref069] 69.Lyder CH. Pressure ulcer prevention and management. JAMA. 2003; 289(2): 223–226. doi: 10.1001/jama.289.2.223 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref070] 70.Hitos K, Cannon M, Cannon S, Garth S, Fletcher JP. Effect of leg exercises on popliteal venous blood flow during prolonged immobility of seated subjects: implications for prevention of travel-related deep vein thrombosis. J Thromb Haemost. 2007; 5(9): 1890–1895. doi: 10.1111/j.1538-7836.2007.02664.x [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref071] 71.Hautala A, Tulppo MP, Mäkikallio TH, Laukkanen R, Nissilä S, Huikuri HV. Changes in cardiac autonomic regulation after prolonged maximal exercise. Clin Physiol. 2001; 21(2): 238–245. doi: 10.1046/j.1365-2281.2001.00309.x [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref072] 72.Chance B, Dait MT, Zhang C, Hamaoka T, Hagerman F. Recovery from exercise-induced desaturation in the quadriceps muscles of elite competitive rowers. Am J Physiol. 1992; 262(3 Pt 1): C766–C775. doi: 10.1152/ajpcell.1992.262.3.C766 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref073] 73.Hwang J, Ing MH, Salazar A, Lassegue B, Griendling K, Navab M, et al. Pulsatile versus oscillatory shear stress regulates NADPH oxidase subunit expression: implication for native LDL oxidation. Circ Res. 2003; 93(12): 1225–1232. doi: 10.1161/01.RES.0000104087.29395.66 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref074] 74.Fox JS, Whitehead EM, Shanks RG. Cardiovascular effects of cromakalim (BRL 34915) in healthy volunteers. Br J Clin Pharmacol. 1991; 32(1): 45–49. doi: 10.1111/j.1365-2125.1991.tb05611.x [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0255242.ref075] 75.Cao TT, Thomson RH, Bailey NW, Rogasch NC, Segrave RA, Maller JJ, et al. A near infra-red study of blood oxygenation changes resulting from high and low frequency repetitive transcranial magnetic stimulation. Brain Stimul. 2013; 6(6): 922–924. doi: 10.1016/j.brs.2013.04.006 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref076] 76.Thomson RH, Cleve TJ, Bailey NW, Rogasch NC, Maller JJ, Daskalakis ZJ, et al. Blood oxygenation changes modulated by coil orientation during prefrontal transcranial magnetic stimulation. Brain Stimul. 2013; 6(4): 576–581. doi: 10.1016/j.brs.2012.12.001 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref077] 77.Rollnik JD, Düsterhöft A, Däuper J, Kossev A, Weissenborn K, Dengler R. Decrease of middle cerebral artery blood flow velocity after low-frequency repetitive transcranial magnetic stimulation of the dorsolateral prefrontal cortex. Clin Neurophysiol. 2002; 113(6): 951–955. doi: 10.1016/s1388-2457(02)00063-9 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref078] 78.Martin CM, Beltran-Del-Rio A, Albrecht A, Lorenz RR, Joyner MJ. Local cholinergic mechanisms mediate nitric oxide-dependent flow-induced vasorelaxation in vitro. Am J Physiol. 1996; 270(2): H442– H446. doi: 10.1152/ajpheart.1996.270.2.H442 [DOI] [PubMed] [Google Scholar]

[pone.0255242.ref079] 79.Toda N, Ayajiki K, Okamura T. Cerebral blood flow regulation by nitric oxide: recent advances. Pharmacol Rev. 2009; 61(1): 62–97. doi: 10.1124/pr.108.000547 [DOI] [PubMed] [Google Scholar]

PERMALINK

A 50 Hz magnetic field affects hemodynamics, ECG and vascular endothelial function in healthy adults: A pilot randomized controlled trial

Hideyuki Okano

Akikatsu Fujimura

Tsukasa Kondo

Ilkka Laakso

Hiromi Ishiwatari

Keiichi Watanuki

Roles

Abstract

Introduction

Methods

Participants

Fig 1. Flow chart of the study.

Table 1. Subject baseline characteristics in the protocols A and B.

Study design

Blood flow velocity

Blood pressure and heart rate

fNIRS

ECG

FMD

MF exposure

Sample size

Fig 2. The time course of ulnar artery blood flow velocity (BFV) in forearm exposure to a 50 Hz MF.

Table 2. Sample size required to determine significant 50 Hz MF effects on blood flow velocity (BFV).

Randomization

Blindness

Statistical analyses

Dosimetry

Results

Normality tests

Effects of MF exposure on blood flow velocity

Fig 3. The time course of change rate (%) in ulnar artery blood flow velocity (BFV) in three different regional exposures to a 50 Hz MF.

Table 3. Comparison of change rate (%) of ulnar arterial blood flow velocity between 50 Hz MF and sham exposures.

Effects of MF exposure on blood pressure and heart rate

Table 4. Comparison of blood pressure (BP) and heart rate (HR) between 50 Hz MF and sham exposures in the forearm.

Effects of MF exposure on hemoglobin oxygenation

Fig 4.

Table 5. Comparison of change rate (%) of hemoglobin oxygenation index between 50 Hz MF and sham exposures in the forearm.

Effects of MF exposure on ECG parameters

Table 6. Comparison of change rate (%) of ECG parameters between 50 Hz MF and sham exposures in the neck.

Fig 5. The time course of change rate (%) in ECG parameters in the neck exposure to a 50 Hz MF.

Effects of MF exposure on FMD

Table 7. Comparison of FMD (%) between 50 Hz MF and sham exposures in the upper arm.

Fig 6. The time course of changes in FMD in the upper arm exposure to a 50 Hz MF.

Dosimetry of electric fields (EFs) induced by a 50 Hz MF

Fig 7. Modeled distribution of the induced EFs in three different regional exposures to a 50 Hz MF.

Table 8. The peak EF strengths (mV/m) in tissues induced by a 50 Hz MF for the forearm, upper arm and neck exposures.

Discussion

Limitations and future study needed

Conclusions

Supporting information

Acknowledgments

Abbreviations

Data Availability

Funding Statement

References

Author response to previous submission

Decision Letter 0

Yoshihiro Fukumoto

Roles

Author response to Decision Letter 0

Decision Letter 1

Yoshihiro Fukumoto

Roles

Acceptance letter

Yoshihiro Fukumoto

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
