Modeling photosynthetic resource allocation connects physiology with evolutionary environments

Abstract

The regulation of resource allocation in biological systems observed today is the cumulative result of natural selection in ancestral and recent environments. To what extent are observed resource allocation patterns in different photosynthetic types optimally adapted to current conditions, and to what extent do they reflect ancestral environments? Here, we explore these questions for C₃, C₄, and C₃–C₄ intermediate plants of the model genus Flaveria. We developed a detailed mathematical model of carbon fixation, which accounts for various environmental parameters and for energy and nitrogen partitioning across photosynthetic components. This allows us to assess environment-dependent plant physiology and performance as a function of resource allocation patterns. Models of C₄ plants optimized for conditions experienced by evolutionary ancestors perform better than models accounting for experimental growth conditions, indicating low phenotypic plasticity. Supporting this interpretation, the model predicts that C₄ species need to re-allocate more nitrogen between photosynthetic components than C₃ species to adapt to new environments. We thus hypothesize that observed resource distribution patterns in C₄ plants still reflect optimality in ancestral environments, allowing the quantitative inference of these environments from today’s plants. Our work allows us to quantify environmental effects on photosynthetic resource allocation and performance in the light of evolutionary history.

Introduction

Metabolic efficiency is an important determinant of organismal fitness^1,2. Major constraints on metabolic fluxes can arise from scarcity of chemical compounds, e.g., nitrogen necessary to produce enzymes³, or from the limited solvent capacity of cellular compartments^4,5. To ensure optimal metabolic efficiency, gene regulation has to balance available resources appropriately. Modern methods of modeling metabolism rely strongly on the assumption of metabolic optimality under physicochemical constraints^6–8. Accordingly, resource allocation and its constraints are under intense investigation, although these studies are mostly restricted to unicellular organisms. However, the metabolic efficiency of a given metabolic system is not static, but depends on the environment. Thus, uncertainties about the environmental properties that an organism has adapted to remain a major obstacle in the application of these methods. Autotrophic systems, such as plant leaves, are ideal to study the interaction of the environment and resource allocation, as the diversity of nutrient sources is much lower than for heterotrophs, which results in a reduced complexity of the space of possible environments. Furthermore, the effect of environmental factors on plant performance, e.g., the rate of CO₂ assimilation, have been studied intensively⁹. In particular, C₃ and C₄ photosynthesis represent complementary gene expression and resource allocation patterns that result in high fitness in specific ecological niches.

In all plants, the fixation of carbon from CO₂ is catalyzed by the enzyme ribulose-1,5-bisphosphate carboxylase/oxygenase (Rubisco) as part of the Calvin-Benson cycle. Rubisco also shows an affinity for O₂, resulting in a toxic by-product, which needs to be recycled by the photorespiratory pathway and causes a significant loss of carbon and energy¹⁰. Rubisco is an important resource sink in the leaf proteome of plants: it utilizes up to 30% of leaf nitrogen and up to 65% of total soluble protein^11,12. While C₃ plants operate the Calvin-Benson cycle in their mesophyll cells to fix carbon, C₄ plants express it in the bundle sheath cells and use phosphoenolpyruvate (PEP) carboxylase (PEPC) in their mesophyll cells for the initial fixation of carbon. The resulting C₄ acids are eventually decarboxylated in the bundle sheath cells, creating a local high-CO₂ environment around Rubisco that suppresses photorespiration. While the exact biochemical implementation of the C₄ cycle varies between species, the C₄ cycle is completed by the regeneration of PEP by pyruvate, phosphate dikinase (PPDK).

Compared to C₃ photosynthesis, C₄ metabolism requires additional nitrogen to produce the C₄ enzymes; this additional investment is counteracted by reduced Rubisco requirements due to the concentration of CO₂ around Rubisco¹³. The energy requirements of C₄ metabolism also differ from those of the C₃ pathway¹⁴, as further ATP is needed for the regeneration of PEP, while ATP and NADPH requirements of the photorespiratory pathway are reduced. The metabolic efficiencies of the C₃ and C₄ system depend strongly on the environment. To achieve optimal metabolic efficiency, plants have to coordinate gene expression of the Calvin-Benson cycle, photorespiration, light reactions, and, in the case of C₄ plants, the C₄ cycle; this coordination occurs in a complex response to the availability of light energy and nitrogen and of factors that influence the rate of photorespiration. The diversity of photosynthetic resource allocation patterns is emphasized by the existence of C₃–C₄ intermediate photosynthesis in some plants, where features of the archetypical C₄ syndrome are only partially expressed. The genus Flaveria contains closely related species that employ the C₃, C₃–C₄ intermediate, and C₄ versions of photosynthetic metabolism, making it an ideal system to study the interaction between resource allocation and environment in photosynthesis.

The selection pressures caused by environmental factors over evolutionary time scales are expected to lead to corresponding adaptations of gene regulation. In contrast, environmental variation on the time scale of individual generations may select for regulatory programs that adjust plant metabolism to the environment they currently face, a process called phenotypic plasticity. Reviewing the occurrence of phenotypic plasticity in C₃ and C₄ plants, Sage and McKown¹⁵ argued that C₄ plants show limited regulation of Rubisco content in response to environmental factors like sunflecks and low temperatures. Although the extent of phenotypic plasticity in plants is intensively studied e.g.^15–18, the plasticity in terms of resource allocation is not fully understood. In particular, it is not clear whether the phenotypic plasticity of different plant lineages is sufficient to acclimate optimally to the current environment; instead, many plants might still allocate at least parts of their resources in patterns that were optimal in the environments that dominated their recent evolutionary history.

The areas where C₄ dicotyledonous plants are assumed to have evolved are regions of low latitude showing combinations of heat, drought, and salinity¹³. For Flaveria, analyses that combine phylogenetic context and environmental information point toward an evolutionary origin in open habitats with high temperatures^13,19,20. The last common C₃ ancestor of the current Flaveria species lived 2–3 million years ago²¹, when CO₂ levels were significantly lower than the current, postindustrial level^22,23. In summary, Flaveria species likely faced high light intensities, high temperatures, and low atmospheric CO₂ levels during their recent evolutionary history.

The standard method to model the CO₂ assimilation rate of C₃, C₄, and C₃–C₄ intermediate plants is based on the mechanistic biochemical models of Berry and Farquhar²⁴, Farquhar et al.²⁵, and von Caemmerer^9,26. These models predict the light- and enzyme-limited CO₂ assimilation rate with great success, and take into consideration enzymatic activities and various environmental parameters, including mesophyll CO₂ level and light intensities. In many ecosystems, the most limiting resource for plant growth is nitrogen^27,28, and a high proportion of nitrogen is used in photosynthesis²⁹. The increased nitrogen-use efficiency of C₄ species compared to C₃ relatives indicates that nitrogen availability may have played a major role in C₄ evolution³⁰. Models of optimal nitrogen allocation were successfully used to understand the response to environmental factors like elevated CO₂^31,32, light^33,34, and temperature³⁵, but these approaches were limited to C₃ plants. In order to understand how optimal resource allocation patterns shifted during C₄ evolution, a new modeling framework is required.

Here, we aim for a detailed understanding of the interplay between resource allocation and current and past evolutionary environments in relation to CO₂ assimilation occurring in C₃, C₄, and C₃–C₄ intermediate species. To achieve this goal, we developed a mathematical model for these photosynthetic types that integrates knowledge of resource costs and relevant environmental factors. Using this model, we seek to understand (1) to what extent resource allocation is phenotypically plastic and to what extent it appears adapted to an environment the plants were facing during their evolutionary history; and (2) if resource allocation patterns can be used to identify unique environments to which allocation is optimally adapted.

Methods

Model overview

Here, we present a nitrogen-dependent light- and enzyme-limited model for the steady-state CO₂ assimilation rate, which—depending on its parameterization—can describe C₃, C₃–C₄ intermediate, and C₄ photosynthetic types. Figure 1 shows a schematic overview, highlighting the relationships between the major pools of photosynthetic nitrogen (Rubisco, C₄ cycle, and thylakoids). The definitions of the corresponding model parameters are listed in Table 1. Not all parameters are represented explicitly in Fig. 1, e.g., the schematic figure does not distinguish linear and cyclic electron transport, or the two enzymes PEPC and PPDK that represent the C₄ cycle. In this study, we parameterize the model to describe species from the genus Flaveria; parameter values are listed in Supplementary Table S1. Before describing the model components in detail, we provide an overview of the model in the following paragraphs.

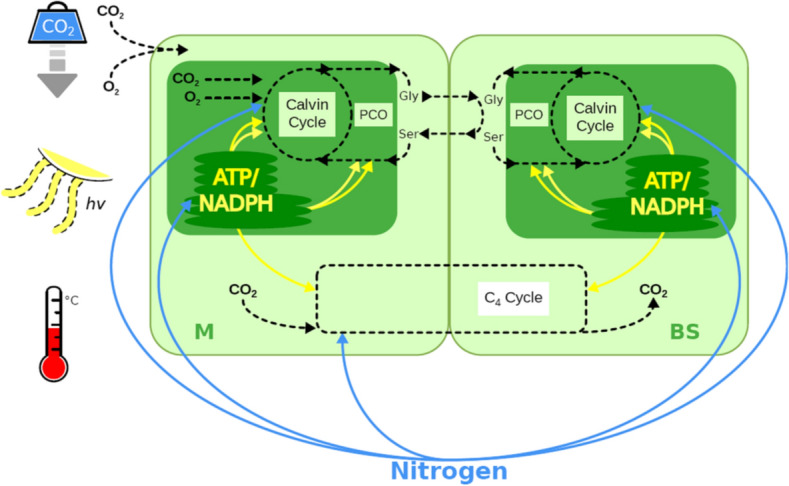

Figure 1.

An overview of the nitrogen-dependent light- and enzyme-limited model. CO₂ entering the mesophyll cell (M) can be fixed by Rubisco (C₃ and intermediates) or PEPC (C₄ and intermediates); The C₄ cycle then shuttles CO₂ fixed by PEPC to the bundle sheath cell (BS) and releases it, allowing it to be re-fixed by Rubisco. The fixation of O₂ by Rubisco leads to photorespiration (PCO). Blue arrows indicate the nitrogen allocation and yellow arrows represent the energy allocation considered in the model.

Table 1.

A list of all parameters used in the mathematical model.

Abbrev	Explanation	Value	Units
A	Achieved CO2 assimilation rate $(A=\min \left(A_j,,,A_c\right))$		µmol m−2 s−1
Ac	CO2 assimilation rate when the electron transport rate is not limiting		µmol m−2 s−1
Aj	Light-limited CO2 assimilation rate ${(A}_j=\min \left(A_j^{\mathit{ATP}},,,A_j^{\mathit{NADPH}}\right))$		µmol m−2 s−1
$A_j^{\mathit{ATP}}$	ATP-limited CO2 assimilation rate		µmol m−2 s−1
$A_j^{\mathit{NADPH}}$	NADPH-limited CO2 assimilation rate		µmol m−2 s−1
${\mathrm{c}}_{\mathrm{E}}$	Number of Rubisco catalytic sites per nitrogen	1.27 × 10–3 36	µmol × (µmol nitrogen)−1
cN	Nitrogen costs of cytochrome f	8.8549	mol nitrogen × (mmol cyt)−1
Chl	Chlorophyll content		µmol m−2
cyt	The amount of cytochrome f per chlorophyll		mmol ×  (mol Chl)−1
cytJmax	The relation of cytochrome f to Jmax	17250	mmol electron × (mmol cyt s)−1
eATP	Assumed ratio of electron per ATP in the linear electron transport	4/366	electron ×  ATP−1
Etot	The amount of Rubisco catalytic sites		µmol m−2
f	A correction factor accounting for the spectral quality of the light	0.159	unitless
gs	The bundle sheath cell conductance		µmol m−2 s−1
I	The absorbed light		µmol m−2 s−1
Jmax	The maximal electron transport rate		µmol m−2 s−1
JmaxCET	The maximal electron transport rate of the cyclic electron transport		µmol m−2 s−1
JmaxCL	A factor that describes the scaling of maximal electron transport rate with cytochrome f for the CET	3 (assumption)	factor
JmaxLET	The maximal electron transport rate of the linear electron transport		µmol m−2 s−1
Jt	Electron transport rate		µmol m−2 s−1
Jmc	Electron transport rate that is available for the Calvin-Benson cycle and the photorespiratory path in the mesophyll cell		µmol m−2 s−1
Jmp,	Electron transport rate that is available for the C4 cycle		µmol m−2 s−1
Js	Electron transport rate that is available for the Calvin-Benson cycle and the photorespiratory path in the bundle sheath cell		µmol m−2 s−1
ICET	Irradiance absorbed by the pigments of the cyclic electron transport		µmol m−2 s−1
ILET	Irradiance absorbed by the pigments of the linear electron transport		µmol m−2 s−1
kccat	Turn-over rate of Rubisco		s−1
kcat,PEPC	Turn-over rate of PEPC	6646	s−1
kcat,PPDK	Turn-over rate of PPDK	6.0246	s−1
Kp	Michaelis constant of PEPC for bicarbonate		µbar
LHC	Light harvesting complexes		mmol ×  (mol Chl)−1
MWPEPC	The nitrogen requirement of a catalytic site of PEPC	96,00046	Da
MWPPDK	The nitrogen requirement of a catalytic site of PPDK	95,00046	Da
nC4	The fraction of photosynthetic nitrogen pool invested into the main enzymes of the C4 cycle: PEPC and PPDK		fraction
$n_{C4}^{\mathit{evo}}$	The optimal fraction of photosynthetic nitrogen pool invested into the main enzymes of the C4 cycle under the evolutionary scenario		fraction
$n_{C4}^{\mathit{growth}}$	The optimal fraction of photosynthetic nitrogen pool invested into the main enzymes of the C4 cycle under the growth scenario		fraction
nChl	Empirical factor that relates the amount of nitrogen invested into thylakoids to the amount of chlorophyll in C3 plants	0.015888739	factor
nEtot	The fraction of photosynthetic nitrogen pool invested into the Calvin-Benson cycle		fraction
$n_{\mathit{Etot}}^{\mathit{evo}}$	The optimal fraction of photosynthetic nitrogen pool invested into the Calvin-Benson cycle under the evolutionary scenario		fraction
$n_{\mathit{Etot}}^{\mathit{growth}}$	The optimal fraction of photosynthetic nitrogen pool invested into the Calvin-Benson cycle under the growth scenario		fraction
nfit	The proportion of nitrogen invested into the thylakoids as a function of the leaf nitrogen level (a fit to empirical data)		fraction
nJmax	The fraction of photosynthetic nitrogen pool invested into the thylakoids, which include the electron transport chains		fraction
$n_{\mathit{Jmax}}^{\mathit{evo}}$	The optimal fraction of photosynthetic nitrogen pool invested into the thylakoids under the evolutionary scenario		fraction
$n_{\mathit{Jmax}}^{\mathit{growth}}$	The optimal fraction of photosynthetic nitrogen pool invested into the thylakoids under the growth scenario		fraction
nRubisco	Empirical nitrogen investment of C3 Flaveria species into Rubisco		fraction
Nps	Photosynthetic nitrogen pool		µmol m−2
Nt	Total leaf nitrogen		µmol m−2
Nthy	Nitrogen invested into the thylakoids		µmol ×  (µmol Chl)−1
p	proportion of linear electron transport		fraction
PSI	Photosystem I	249	mmol ×  (mol Chl)−1
PSICET	Photosystem I that is associated with the cyclic electron transport		mmol ×  (mol Chl)−1
PSILET	Photosystem I that is associated with the linear electron transport		mmol  × (mol Chl)−1
PSII	Photosystem II	2.549	mmol ×  (mol Chl)−1
pIChl	Mol chlorophyll per mol complex of PSI	18449	mol Chl ×  (mol complex)−1
pIIChl	Mol chlorophyll per mol complex of PSII	6049	mol Chl ×  (mol complex)−1
pIN	Nitrogen costs of PSI	32.849	mol nitrogen ×  (mol Chl)−1
pIIN	Nitrogen costs of PSII	83.349	mol nitrogen ×  (mol Chl)−1
lChl	Mol chlorophyll per mol complex of LHC	1349	mol Chl ×  (mol complex)−1
lN	Nitrogen costs of the LHC	2649	mol nitrogen ×  (mol Chl)−1
Vpmax	Maximal C4 cycle activity		µmol m−2 s−1
α	Leaf absorptance	0.849	fraction
β	Rubisco distribution between mesophyll and bundle sheath cells		fraction
δn	Required nitrogen re-allocation		fraction
Θ	The convexity of the transition between the initial slope and the plateau of the hyperbola	0.79	unitless
ξ	The fraction of glycine decarboxylated in the bundle sheath cell that is derived from oxygenation by Rubisco in the mesophyll cell		fraction

For each parameter, we list abbreviation (abbrev.), explanation, default value (if this exists, with reference) and units.

We extended the light- and enzyme-limited C₃–C₄ models originally developed by von Caemmerer⁹ and modified by Heckmann, et al.². We added a fixed budget of nitrogen constraining the total abundance of photosynthetic proteins using previous knowledge about the major nitrogen requirements of photosynthetic components, e.g., Rubisco³⁶. Furthermore, we extended the existing models by explicitly modeling the ATP and NADPH production of the linear and cyclic electron transport (LET and CET, respectively). Thus, an environment-dependent photosynthetic nitrogen budget is distributed across the enzymes of the Calvin-Benson cycle in the mesophyll and bundle sheath cell, the C₄ cycle, and the proteins of the LET and CET in the thylakoid membranes. Combining this model with the temperature dependency of the photosynthetic apparatus³⁷ results in a detailed model of photosynthesis that incorporates leaf nitrogen level, light intensity, mesophyll CO₂ and O₂ levels, and the effects of temperature.

In order to understand physiological data in the context of environmental adaptation, we aim to find optimal resource allocation in a given environment. To this end, we assume that resource allocation has been optimized by natural selection to maximize the CO₂ assimilation rate (A, [µmol m⁻² s⁻¹])^23,38,39. We developed a robust optimization pipeline that reliably finds optimal resource allocation dependent on environments and photosynthetic types. In previous work, optimality assumptions were successfully used in a variety of photosynthetic systems; examples are the explanation of the coordination of ribulose-1,5-bisphosphate carboxylation and regeneration during C₃ photosynthesis^40,41, optimal nitrogen allocation in C₃ plants in different environments^31–35,42, the exploration of evolutionary trajectories from C₃ to C₄ photosynthesis², the exploration of alternative inter-cellular transport pathways in C₂ plants⁴³, and the prediction of proteome allocation in cyanobacteria⁴⁴.

We use optimality of the modeled CO₂ fixation rate to determine (1) the optimal relative investment of nitrogen into Rubisco, the C₄ cycle enzymes, and the proteins of the light-dependent reactions, (2) the optimal partitioning of NADPH between the Calvin-Benson cycle and the photorespiratory pathway, (3) the optimal partitioning of ATP across the Calvin-Benson cycle, photorespiratory pathway, and C₄ cycle (if relevant), and (4) the optimal proportion of LET and CET.

Environmental factors and evolutionary parameters

We specify the environment in terms of the following factors: light intensity, leaf nitrogen level, temperature, and CO₂ and O₂ mesophyll partial pressures. The photosynthetic type is defined by six parameters: the Rubisco distribution between mesophyll and bundle sheath cells (β); the Rubisco kinetics, (specified through a single parameter, k_ccat [s⁻¹], due to the known trade-off relationships between the kinetic parameters⁴⁵); the maximal C₄ cycle activity (V_pmax, [µmol m⁻² s⁻¹]); the fraction of glycine decarboxylated by the glycine decarboxylase complex in the bundle sheath cell that is derived from oxygenation by Rubisco in the mesophyll cell (ξ); the Michaelis constant of PEPC for bicarbonate (K_p, [µbar]), and the bundle sheath cell conductance for CO₂ (g_s, [µmol m⁻² s⁻¹]) (see Heckmann, et al.² for details). The values for the parameters are taken from the literature (see Supplementary Table S1 for details).

Nitrogen allocation

To calculate the CO₂ assimilation rate, we focus on the photosynthetic nitrogen pool (N_ps, [µmol m⁻²]). In our model, N_ps can be allocated across the following major pools of leaf photosynthetic nitrogen: the main enzyme of the Calvin-Benson cycle (n_Etot), Rubisco; the main enzymes of the C₄ cycle (n_C4), PEPC and PPDK (we decided to focus on PEPC and PPDK as the major nitrogen pools of the C₄ cycle based on the enzyme molecular weights and turnover numbers⁴⁶); and the thylakoids (n_Jmax), which include the photosynthetic electron transport chains. The CO₂ assimilation rate and other model parameters can be predicted for a freely chosen nitrogen allocation. Note that we are interested in determining the optimal nitrogen allocation (see Section “Optimization procedure” for details). The environment-specific N_ps is calculated as a fraction of total leaf nitrogen (N_t, [µmol m⁻²]) based on phenomenological observations (see Supplementary Methods S1 for details).

Nitrogen allocated to Rubisco

We only consider the nitrogen requirements of Rubisco in the Calvin-Benson cycle, as it accounts for the major nitrogen costs of this cycle⁴⁷. The amount of catalytic sites of Rubisco (E_tot, [µmol m⁻²]) is calculated from the invested nitrogen by Eq. (1), where n_Etot represents the fraction of N_ps invested into Rubisco:

$$E_{\mathit{tot}}={\mathrm{n}}_{\mathit{Etot}}·N_{\mathit{ps}}·{\mathrm{c}}_{\mathrm{E}},$$ 1

The number of catalytic sites per nitrogen is 1.27 × 10^–3 [${\mathrm{c}}_{\mathrm{E}},$ µmol catalytic sites (µmol nitrogen)⁻¹] and was derived from Harrison et al. ³⁶.

Nitrogen allocated to enzymes of the C₄ cycle

We calculated the nitrogen cost of C₄ cycle enzymes from data on enzyme kinetics. The nitrogen requirements of the C₄ cycle consider co-limitation of PEPC and PPDK, whose molecular weights (MW, [Da]) and turn-over rates (k_cat, [s⁻¹]) are used to calculate the maximal rate of C₄ cycle activity^46,48. Equation 2 represents the relationship between the maximal turnover rate, V_pmax, and nitrogen investment into the C₄ enzymes (n_C4 N_ps),

$$V_{\mathit{pmax}}=\frac{{n_{C4}·N}_{\mathit{ps}}}{\begin{array}{c}\left(\frac{{{\mathit{MW}}^{\ast }}_{\mathit{PPDK}}}{k_{cat,PPDK}}\right)+\left(\frac{{{\mathit{MW}}^{\ast }}_{\mathit{PEPC}}}{k_{cat,PEPC}}\right)\end{array}}$$ 2

where MW* ([Da]) represents the nitrogen requirement of a catalytic site, assuming the nitrogen content of the protein is 16%¹¹; indices indicate the considered enzyme.

Nitrogen and the maximal electron transport rate

Nitrogen invested into the thylakoids (N_thy, [µmol (µmol Chl)⁻¹]) is related to the maximal electron transport rate (J_max, [µmol m⁻² s⁻¹]) via the amount of cytochrome f per chlorophyl (cyt, [mmol (mol Chl)⁻¹]) and by considering photosystems I and II (PSI and PSII, [mmol (mol Chl)⁻¹]) as well as the light harvesting complexes (LHC, [mmol (mol Chl)⁻¹]). In the following, we describe these relationships in quantitative detail [Eqs. (3)–(15)]; indices represent the considered pathway:

$$PS{I}_{\mathit{LET}}=2·p$$ 3

$$PS{I}_{\mathit{CET}}=2·\left(1,-,p\right)$$ 4

$$PSII=2.5$$ 5

$${\mathit{LHC}}_{\mathit{LET}}=\frac{1000·p-PSII·pI{I}_{\mathit{Chl}}-PS{I}_{\mathit{LET}}·p{I}_{\mathit{Chl}}}{l_{\mathit{Chl}}}$$ 6

$${\mathit{LHC}}_{\mathit{CET}}=\frac{1000·\left(1,-,p\right)-PS{I}_{\mathit{CET}}·p{I}_{\mathit{Chl}}}{l_{\mathit{Chl}}}$$ 7

We use previous knowledge about the relationship of thylakoid nitrogen costs and cyt as well as data from Ghannoum et al.⁴⁹ for abundances of PSI and PSII to include phenomenological stoichiometry rules between LHC and the components of the electron transport chain [Eqs. (3)–(7)]; pII_Chl, pI_Chl, and l_Chl represent mol Chl (mol complex)⁻¹ for PSII, PSI, and LHC, respectively). While we parameterize our model for Flaveria, the data of Ghannoum et al.⁴⁹ is for C₄ grasses and for C₃ dicots; however, as the data was very similar between the diverse species examined, it is likely that values in Flaveria are very similar. We assume that the chlorophyll content is shared between PSI, PSII, and LHC [Eqs. (6), (7)]. We extended the previous work by splitting these complexes according to the proportion of LET (p) and CET (1—p).

For the LET, J_max is related to N_thy as described in Eqs. (8)–(11). ${N_{\mathit{thy}}}_{\mathit{LET}}$ represents the available amount of nitrogen for the thylakoids with n_Jmax representing the fraction of photosynthetic nitrogen pool invested into the thylakoids [Eq. (8)], accounting for LHC, PSII, PSI, and cyt [Eqs. (9), (10)]. The amount of cyt can be calculated according to Eq. (10) and related to J_max via the empirical cyt_Jmax; cyt_Jmax describes the relation of cyt to J_max and was measured by Niinemets and Tenhunen⁵⁰, who determined 156 mmol e^- (mmol cyt s)⁻¹ across various C₃ species. We are not aware of a comparable data set for C₄ plants. Assuming 95% of LET in C₃ plants, this leads to a capacity of 172 mmol e^- (mmol cyt s)⁻¹ for cyt_Jmax.

$${N_{\mathit{thy}}}_{\mathit{LET}}=\frac{n_{\mathit{Jmax}}{·N}_{\mathit{ps}}·p}{\mathit{Chl}}$$ 8

$${N_{\mathit{LH}}}_{\mathit{LET}}=PSII·{\mathit{pII}}_N·{\mathit{pII}}_{\mathit{Chl}}·{10}^{-3}+PS{I}_{\mathit{LET}}·{\mathit{pI}}_N·{\mathit{pI}}_{\mathit{Chl}}·{10}^{-3}+LH{C}_{\mathit{LET}}·l_N·l_{\mathit{Chl}}·{10}^{-3}$$ 9

$$cy{t}_{\mathit{LET}}=\frac{1}{{\mathrm{c}}_{\mathrm{N}}}\left(N_{th{y}_{\mathit{LET}}},-,N_{L{H}_{\mathit{LET}}}\right)$$ 10

$$Jma{x}_{\mathit{LET}}=\max \left(0,,,\frac{cy{t}_{\mathit{LET}}·Chl·cy{t}_{\mathit{Jmax}}}{1000}\right)$$ 11

Chlorophyll content (Chl, [µmol m⁻²]) is calculated based on an empirical factor³⁹ that relates the amount of nitrogen invested into thylakoids to the amount of chlorophyll in C₃ plants (see Supplementary Methods S2 for details). We again use work from Ghannoum et al.⁴⁹ to relate N_thy to the amount of cyt [Eqs. (8)–(10)]; c_N represents mol nitrogen per mmol cyt, and pII_N, pI_N, and l_N represent mol nitrogen per mol Chl for PSII, PSI, and LHC, respectively).

The derivation for the CET is analogous to the case of the LET:

$$N_{th{y}_{\mathit{CET}}}=\frac{n_{\mathit{Jmax}}·N_{\mathit{ps}}·\left(1,-,p\right)}{\mathit{Chl}}$$ 12

$${N_{\mathit{LH}}}_{\mathit{CET}}=PS{I}_{\mathit{CET}}·{\mathit{pI}}_N·{\mathit{pI}}_{\mathit{Chl}}·{10}^{-3}+LH{C}_{\mathit{CET}}·l_N·l_{\mathit{Chl}}·{10}^{-3}$$ 13

$$cy{t}_{\mathit{CET}}=\frac{1}{c_N}\left(N_{th{y}_{\mathit{CET}}},-,N_{L{H}_{\mathit{CET}}}\right)$$ 14

$$Jma{x}_{\mathit{CET}}=\max \left(0,,,\frac{cy{t}_{\mathit{CET}}·Chl·cy{t}_{\mathit{Jmax}}·Jma{x}_{\mathit{CL}}}{1000}\right),$$ 15

in the last equation, we additionally required the factor Jmax_CL, which describes the scaling of J_max with cyt for the CET. This factor is assumed to be 3, as PSII is more expensive in terms of nitrogen compared to PSI^47,49.

In summary, the free optimization parameters related to nitrogen allocation to the light reactions, p and n_Jmax, affect J_max in LET and CET via the cytochrome f content.

Optimization procedure

Theoretically, model predictions can be made using a freely chosen resource allocation. To understand the raised questions about environmental adaptation, we will analyze the fittest plants, i.e., plants with the resource allocation that results in the maximal CO₂ assimilation rate. To find the maximal CO₂ assimilation rate under the given environmental, physiological, and biochemical constraints, we optimize the allocation of photosynthetic nitrogen (assumed to depend only on total leaf nitrogen) into Rubisco (n_Etot), C₄ cycle (n_C4), LET, and CET (the latter two represented by p and n_Jmax) through an augmented Lagrangian approach using the auglag-function of the package ‘nloptr’⁵¹. The optimization is constrained to make sure that the results are biologically realistic with respect to the modeled photosynthetic type, e.g., C₃ species were not able to invest nitrogen into the C₄ cycle (see Supplementary Table S2 for details). The model and its optimization were implemented in the R environment⁵² (see Supplementary Methods S3 for details).

Modeling the effect of light

The relationship of the electron transport rate (J_t, [µmol m⁻² s⁻¹]) and the absorbed light of a certain irradiance (I, [µmol m⁻² s⁻¹]) is presented in Eqs. (16)–(18). I is related to J_t by a widely accepted empirical hyperbolic function [Eq. (16)], ^9,53 that includes the following parameters: (1) J_max, the maximum electron transport rate; (2) Θ, the convexity of the transition between the initial slope and the plateau of the hyperbola; (3) α, the leaf absorptance; (4) f, a correction factor accounting for the spectral quality of the light; and (5) p, the fraction of absorbed quanta that reaches PSI and PSII of LET (with (1 − p) reaching the CET). I_abso is set to either I_LET or I_CET depending on the considered path of electron transport. The fraction of irradiance that is absorbed by the LET is shared equally between PSI and PSII [resulting in the factor 0.5 in Eq. (17)], while the fraction of irradiance that is absorbed by the CET is assumed to reach PSI in full.

$$J_t=\frac{I_{\mathit{abso}}+J_{\mathit{max}}-\sqrt{{\left(I_{\mathit{abso}},+,J_{\mathit{max}}\right)}^2-4\theta I_{\mathit{abso}}{J}_{\mathit{max}}}}{2\theta }$$ 16

$$I_{\mathit{LET}}=I·\alpha ·\left(1,-,f\right)·p·0.5$$ 17

$$I_{\mathit{CET}}=I·\alpha ·\left(1,-,f\right)·\left(1,-,p\right)$$ 18

In our model it is assumed that the electron transport chain is the only source of ATP and NADPH and that both are used exclusively for CO₂ fixation⁹. As NADPH production results from LET, the amount of electrons is calculated using Eqs. (16) and (18). The amount of electrons utilized for ATP production depends on both LET and CET. There are multiple pathways of CET⁵⁵; the model considers those pathways with an active Q-cycle and a ratio of two protons per electron. Note that Rubisco is assumed to be fully activated, independent of the irradiance⁹.

The available energy needs to be partitioned between five pools: (1) the Calvin-Benson cycle in the mesophyll; (2) the Calvin-Benson cycle in the bundle sheath; (3) the photorespiratory pathway in the mesophyll; (4) the photorespiratory pathway in the bundle sheath cell; and (5) the C₄ pathway. This means that the available energy is calculated in total and then partitioned⁵⁴ into J_mp, J_mc, and J_s, the fractions of J_max invested into the C₄ cycle, the Calvin-Benson cycle and the photorespiratory pathway in the mesophyll, and the Calvin-Benson cycle and the photorespiratory pathway in the bundle sheath cell, respectively. During optimization, the activity of each process is constrained by its allocated energy pool, i.e., the energy allocation equals the relative energy allocation of the processes (see Supplementary Methods S3 for details). In summary, the optimal energy allocation is a function of the nitrogen pools.

CO₂ assimilation rate

A limitation in the production of both ATP and NADPH arises under light-limited conditions⁹. The ATP-limited ($A_j^{\mathit{ATP}}$) and the NADPH-limited ($A_j^{\mathit{NADPH}}$) CO₂ assimilation rate are calculated according to the light-limiting model of von Caemmerer⁹ (see Supplementary Methods S5 for equations). The light-limited CO₂ assimilation rate is:

$$A_j=\min \left(A_j^{\mathit{ATP}},,,A_j^{\mathit{NADPH}}\right)$$ 19

The model for the CO₂ assimilation rate when the electron transport rate is not limiting (A_c) is taken from Heckmann et al.² and extended by a parameter representing the fraction of PSII activity in the bundle sheath cells, which affects O₂ generation. This parameter is set to p. In the whole model, each limitation is considered independently; the plant’s CO₂ assimilation rate is determined by the lower of the two limitations:

$$A=\min \left(A_j,,,A_c\right)$$ 20

Temperature-dependence

Temperature affects the CO₂ assimilation rate by changing the maximal activity of the C₄ cycle, the carboxylation rate of Rubisco, and the electron transport rate. Temperature also affects the specificity of Rubisco and the Michaelis constants of Rubisco and PEPC. We model the temperature response by an extended Arrhenius function that describes two counteracting effects: rate increases with increasing temperature and enzyme inactivation through thermal instability³⁷. We use parameters taken from literature or fitted to available data.

The extended Arrhenius function is given by Massad et al.³⁷:

$$f\left(T\right)=k_{25}\mathit{exp}\left[E,\frac{T-298.15}{298.15RT}\right]\frac{\left[1,+,\mathit{exp},\left(\frac{298.15S-H}{298.15R}\right)\right]}{\left[1,+,\mathit{exp},\left(\frac{TS-H}{\mathit{TR}}\right)\right]}$$ 21

The parameters of the extended Arrhenius function are: (1) the value of the considered enzyme at temperatures 25 °C (k₂₅); (2) the activation energy (E); (3) the deactivation energy (H); (4) an entropy factor (S); (5) the universal gas constant (R); and (6) the temperature considered (T). (see Supplementary Methods S6 for details and Table S3 for the parameters).

Data used in the analyses

As the raw data of Vogan and Sage³⁹ were not available, we extracted it from the corresponding figures using the Graph Grabber software provided by Quintessa Limited (Version 1.5.5). The measured data include curves of the CO₂ assimilation rate as a function of intercellular CO₂ concentration (C_i) and the ratio of atmospheric CO₂ concentration (C_a) and C_i. We derive the CO₂ concentration in the mesophyll cell (C_m) for a given C_a by considering this C_a/C_i-ratio and assuming that the ratio of C_m to C_i is 0.85 (as CO₂ enters the mesophyll through diffusion, the C_m / C_i ratio has to be below 1). As can be seen from our sensitivity analysis (see below and Supplementary Fig. S1), the exact value for the C_m / C_i ratio does not affect our conclusions.

To transform the in vitro PEPC activity given by Dwyer et al.⁵⁶ to an in vivo activity, the in vitro value is divided by 3^57–59.

Required nitrogen re-allocation (δ_n)

Required nitrogen re-allocation (δ_n, [fraction]) is defined as the total fraction of nitrogen that needs to be re-allocated between photosynthetic pools to optimally adjust photosynthesis from the evolutionary scenario ($n_{\mathit{Etot}}^{\mathit{evo}}$, $n_{C4}^{\mathit{evo}}$, $n_{\mathit{Jmax}}^{\mathit{evo}}$) to a given experimental growth environment ($n_{\mathit{Etot}}^{\mathit{growth}}$, $n_{C4}^{\mathit{growth}}$, $n_{\mathit{Jmax}}^{\mathit{growth}}$):

$${\delta }_n={\sum }_{\mathrm{i}\in \left\{E,t,o,t,,,C,4,,,J,m,a,x\right\}}\left|n_i^{\mathit{evo}},-,n_i^{\mathit{growth}}\right|$$ 22

Statistical information

The differences between adaptation scenarios are tested with Wilcoxon rank sum tests. For details about the calculation of the resource allocation for the data set of Vogan and Sage³⁰ (Fig. 3) see Supplementary Methods S8. All statistical analyses were conducted in R⁵². The difference of δ_n for various photosynthetic types was tested by sign tests.

Figure 3.

The dependence of the CO₂ assimilation rate on leaf nitrogen levels for various Flaveria species is consistent with model results based on optimality in the evolutionary scenario (solid lines). For C₃-C₄ intermediate, C₄-like, and C₄, these results outperform results from simulations assuming optimal phenotypic adaptation to the EGC (dashed lines). The modeled species are F. pringlei (C₃), F. floridana (C₃-C₄), F. palmeri (C₄-like), and F. bidentis (C₄) (data from Vogan and Sage³⁰). See Supplementary Table S9 for the residual sum of squares. Figure created using R 4.0⁵².

Results

Optimal resource allocation in the evolutionarily relevant environment explains physiological data and outperforms models based on the experimental growth environment in C₄Flaveria plants

Do photosynthetic types exhibit differences in phenotypic plasticity, i.e., do they differ in their ability to adjust their photosynthetic resource allocation to optimally fit the environment in which they were grown? Or is resource investment static and reflects past environments in which the plants’ ancestors evolved? To compare these competing hypotheses in the genus Flaveria, we predict physiological data of plants that are either optimally adapted to the experimental growth conditions (EGC) used in the respective studies (‘growth scenario’) or to the environments in which they likely evolved (‘evolutionary scenario’); with respect to our model, these environments differ in terms of atmospheric CO₂ concentration, temperature, and light intensity (Supplementary Tables S4-S7). This in silico experiment also serves as validation for our modeling framework; if the parameterization for Flaveria and our optimality assumptions are correct, we would expect the model to explain physiological responses in one of the two or in an intermediate scenario.

To predict the physiological data of plants that are optimally adapted to the evolutionary scenario, we use our model to identify the optimal resource allocation for C₃, C₃–C₄ intermediate, and C₄ Flaveria species in the evolutionary environment. This environment is based on the suggested environment of C₄ evolution in Flaveria^13,19,20, with high light intensities, high temperature, and 280 µbar atmospheric CO₂ concentration (see Supplementary Table S4 for parametrization). For comparison, we identify the optimal resource allocation under the EGCs of the following studies, which provide information about all considered environmental factors: (1) Vogan and Sage³⁹, (2) Vogan and Sage³⁰, and (3) Dwyer et al.⁵⁶. Vogan and Sage³⁹ measured the net CO₂ assimilation rate as a function of intercellular CO₂ concentration (A-C_i curve) and as a function of temperatures between 15 °C and 45 °C for C₃, C₃–C₄ intermediate, and C₄ Flaveria species. In this experiment, plants were grown at light intensities of 560 µmol quanta m⁻² s⁻¹, 37 °C at daytime, current atmospheric O₂ concentration, and 380 µbar or 180 µbar atmospheric CO₂ concentrations (Supplementary Table S5). In an independent experiment, Vogan and Sage³⁰ measured the dependence of CO₂ assimilation rate on leaf nitrogen levels in C₃, C₃–C₄ intermediate, C₄-like, and C₄ Flaveria species. The plants were grown at 554 µmol quanta m⁻² s⁻¹ light intensity, 30 °C at daytime, at 380 µbar atmospheric CO₂ and current atmospheric O₂ concentrations (Supplementary Table S6). Dwyer et al.⁵⁶ performed detailed experiments on the photosynthetic resource allocation and performance of the C₄ species F. bidentis. The Dwyer et al.⁵⁶ data set allows us to compare the predicted nitrogen investment into the three major photosynthetic components—Rubisco, C₄ cycle, and electron transport chain—, and the corresponding CO₂ assimilation rate, to experimentally observed resource allocation patterns. The plants were grown under 25 °C or 35 °C at daytime, 550 µmol quanta m⁻² s⁻¹, 380 µbar CO₂, and current atmospheric O₂ concentrations (Supplementary Table S7).

In the three studies, the experimental measurement conditions (EMC) differ from both the EGC and the evolutionary condition. Typically, the EMC shows higher light intensities than the EGC. In contrast, the major difference between the evolutionary environment and the EMC is the atmospheric CO₂ concentration. There are additional differences between the conditions that are study-specific, e.g., differences in temperature; detailed comparisons of conditions are listed in Supplementary Tables S4–S7.

For C₃ Flaveria species (F. pringlei or F. robusta), the model results assuming an optimal allocation under the evolutionary scenario agree qualitatively with the measured data of Vogan and Sage^30,39, and visually, they appear to fit the data better than results assuming optimality under the EGC³⁰ (Figs. 2, 3; Supplementary Figs. S2–S5). To allow a statistical comparison between the quality of the two predictions, for each of the two scenarios, we calculated the squared residuals across all C₃ Flaveria data points in Figs. 2, 3 and Supplementary Figs S2–S5 (see Supplementary Table S9); these two distributions were then compared through a Wilcoxon rank sum test. This test was not statistically significant at the 5% level (P = 0.31). Thus, it is possible that the somewhat better fit for the evolutionary scenario is caused by random fluctuations or experimental errors rather than by a superiority of one scenario over the other.

Figure 2.

Model results based on optimality in the evolutionary scenario (solid lines) describe the measured data (circles ± SE) better than the model assuming optimal adaptation to the EGC (dashed lines) for F. robusta (C₃), F. ramosissima (C₃–C₄), and F. bidentis (C₄) grown at the 380 µbar atmospheric CO₂ (data from Vogan and Sage³⁹). (A) The net CO₂ assimilation rate as a function of intercellular CO₂ concentration, measured at 30 °C. SE was calculated based on three independently measured plants. (B) The net CO₂ assimilation rate as a function of temperature at 380 µbar atmospheric CO₂ concentration. See Supplementary Table S9 for the residual sum of squares. Figure created using R 4.0⁵².

The result was very similar for the C₃-C₄ intermediates, F. ramosissima and F. floridana. Again, the predictions assuming an optimal allocation under the evolutionary scenario agree qualitatively with the measured data of Vogan and Sage^30,39, and seem to fit the data better than predictions under the EGC (Figs. 2, 3; Supplementary Figs. S2–S5); however, the prediction errors are again not statistically significantly different between the two scenarios (P = 0.86, Wilcoxon rank sum tests, Supplementary Table S9).

The C₄-like species F. palmeri is only considered in the data set of Vogan and Sage³⁰ (Fig. 3). The model results for F. palmeri assuming optimal resource allocation in the evolutionary scenario are consistent with the measured data. The squared residuals for the evolutionary scenario is significantly smaller than that for the growth scenario (P = 0.02, Wilcoxon rank sum tests, Supplementary Table S9).

Focusing on the C₄ species F. bidentis, curves calculated from a model parameterized for optimal CO₂ assimilation in the EGC are qualitatively different from the experimental curves of Vogan and Sage^30,39 (Figs. 2, 3; Supplementary Figs. S2–S5), except for the A-C_i curves measured at low CO₂ levels, for both 30 °C and 40 °C. In contrast, the modeled curves based on a model optimally adapted to the evolutionary scenario are qualitatively consistent with the measured curves. Jointly considering all measured curves in Figs. 2, 3 and Supplementary Figs. S2–S5^30,39, we find that the squared residuals for the evolutionary scenario is statistically significantly smaller than that for the growth scenario (P = 8.3 × 10^–5, Wilcoxon rank sum tests, Supplementary Table S9).

Dwyer et al.⁵⁶ performed detailed experiments on the photosynthetic resource allocation and performance of the C₄ species F. bidentis. First, we analyze the discrepancy of each model prediction with the empirical measurement. Model predictions of chlorophyll content and the amount of photosystem II agree within a factor of 1.10 to 1.22 (this corresponds to a factor 0.13 to 0.28 assuming a log2-scale as presented in Fig. 4) with values measured by Dwyer et al.⁵⁶ (see Supplementary Table S10 for absolute values). For plants grown at 25 °C, the resource allocation determined under the evolutionary scenario agrees with the measured data within a factor of 0.29 to 1.19 (this corresponds to a factor of − 1.8 to 0.25 assuming a log2-scale; Fig. 4A); at 35 °C, agreement is within a factor of 0.29 to 1.09 (this corresponds to a factor − 1.8 to 0.12 assuming a log2-scale; Fig. 4B). In both cases, agreement is much lower for predictions in the growth scenario (which are 0.10 to 1.42 or − 3.26 to 0.50 on a log2-scale for 25 °C (Fig. 4A) and 0.11 to 1.34 or − 3.12 to 0.42 on a log2-scale for 35 °C (Fig. 4B)). Then, we analyze the overall discrepancy of model prediction and empirical measurement presented in Fig. 4. We determine the deviation (‘error’) between all model predictions and measurements as the squared residuals (normalized to fractions of the experimental means).We assessed the statistical significance of the superior performance of the evolutionary scenario (compared to the growth scenario) by comparing the errors. The resource allocation calculated for the evolutionary scenario outperforms the growth scenario for the data represented in Fig. 4 (P = 1.0 × 10^–4, Wilcoxon rank sum test). In Fig. 4, there is a discrepancy between measured in vitro PEPC activity and predicted in vivo activity, a disparity that has been noted before^57–59. When in vitro PEPC activity is corrected using independent data on in vitro-in vivo differences (Supplementary Fig. S8; for derivation see Methods), the model successfully predicts all measurements; the agreement is within a factor of 0.86 to 1.19 at 25 °C and 0.77 to 1.09 at 35 °C (this corresponds to a factor of − 0.21 to 0.25 at 25 °C and − 0.37 to 0.12 at 35 °C assuming a log2-scale).

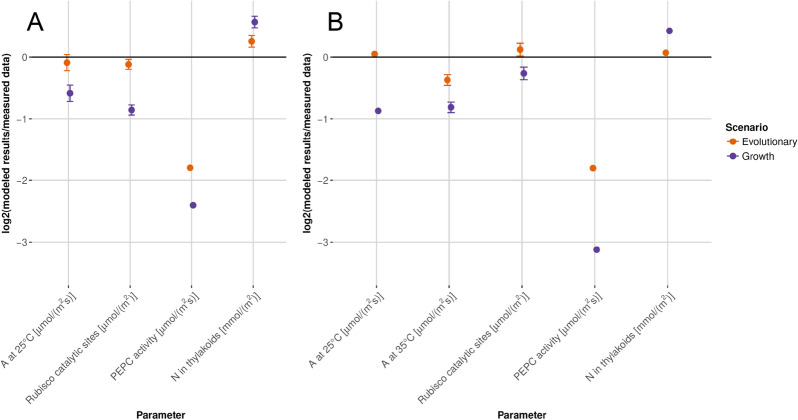

Figure 4.

A detailed analysis of resource allocation and physiology in F. bidentis (C₄) shows a good agreement between experimental data⁵⁶ and model results based on the evolutionary scenario (orange circles). Alternative model results assuming optimal phenotypic adaptation to the EGC consistently show higher disagreement with the data (purple circles). Values are mean log₂(modeled results/measured data) ± SE. (A) Plants grown at 25 °C (B) Plants grown at 35 °C. A = net CO₂ assimilation rate; N = nitrogen. See Dwyer, et al.⁵⁶ for sample sizes. Figure created using R 4.0⁵².

Although we could obtain the majority of our model parameters from the literature, the relationship of cytochrome f and the maximal electron transport rate of the CET had to be estimated (see Methods). We performed a sensitivity analysis to examine the robustness of the results to changes in the estimated parameters and to uncertainties in values obtained from the literature, focusing on parameters with high uncertainty or major expected effect on model predictions (Supplementary Methods S7 and Table S11). The predictions based on the evolutionary scenario outperform those based on the growth environment consistently across all parameter sets (Supplementary Fig. S1).

Adjustments in the nitrogen allocation require substantial changes to protein abundances, which can only be achieved through massive protein breakdown and de-novo synthesis (see Moejes, et al.⁶⁰ for a general discussion and Schmollinger, et al.⁶¹ for an example in Chlamydomonas). Thus, we assume that plants require multiple hours to days in order to adjust their protein levels to a new environmental condition. Accordingly, we assume that plants cannot adapt their resource allocation patterns on the timescale of a measurement, which lasts on the order of minutes to hours. This is our rationale for simulating plants optimally adapted to the EGC, even when analyzing data collected at rather different EMCs. However, it is conceivable that at least the energy allocation, including the proportion of LET, can adjust to the EMC on the timescale of the experiment. We thus performed simulations under an alternative model, where nitrogen allocation is optimized for the EGC, but energy allocation is subsequently optimized for the EMC. The results are qualitatively similar to the above results from simulations where both nitrogen and energy allocation are optimized for the EGC (Supplementary Figs. S9–S16).

The model suggests a unique evolutionary environment for C₄ photosynthesis in Flaveria

Compared to a parameterization optimized for the growth scenario, the model optimally adapted to the evolutionary scenario leads to superior predictions of plant performance and resource allocation in C₄ plants across diverse physiological data sets. The inferior performance of the growth scenario model indicates a lack of phenotypic plasticity of resource allocation in C₄ plants, a result that is in agreement with previous reports based on experimental observations¹⁵. The lack of phenotypic plasticity points to the possibility that the environment most relevant for recent evolutionary adaptation of a given C₄ plant could be inferred quantitatively from observations on plant physiology and resource allocation. Thus, to infer a typical evolutionary environment for C₄ Flaveria bidentis, we calculated optimal resource allocation under conditions covering plausible ranges of mesophyll CO₂ partial pressure, temperature, and light intensities, and we then identified the conditions that best explain the empirical data (Fig. 5). As atmospheric O₂ concentration remained almost constant for at least the last few million years²³, this environmental parameter is set to a constant value. We compare the simulations to the empirical data of Dwyer et al.⁵⁶, as this data set comprises detailed measurements for each nitrogen pool and the resulting CO₂ assimilation rate, allowing us to quantify the discrepancy between modeled and measured values as the mean squared residuals (normalized to fractions of experimental means).

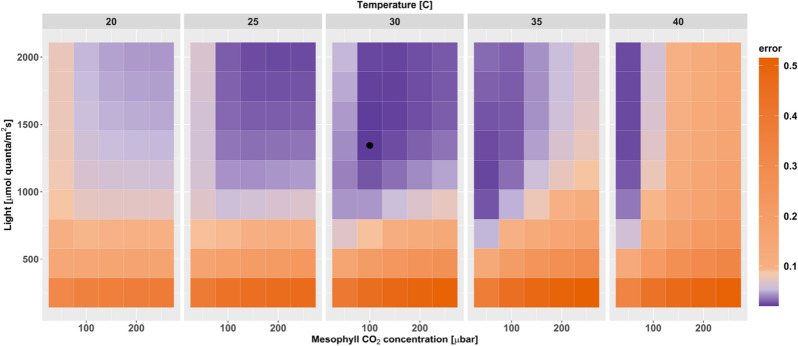

Figure 5.

Discrepancy between measured and modeled F. bidentis data across diverse environments. The black circle indicates the environment that best explains the experimental data of Dwyer, et al.⁵⁶. The deviation between model predictions and measurements (‘error’) is defined as the mean of the squared residuals (which are expressed as fractions of experimental means). Figure created using R 4.0⁵².

The model environment that shows the smallest prediction error defines a unique environment (Fig. 5), characterized by 1343.75 µmol quanta m⁻² s⁻¹ light intensity, 30 °C, a mesophyll CO₂ level of 100 µbar, and an O₂ level of 200 mbar. This environment corresponds to an atmospheric CO₂ concentration of about 280 µbar (Supplementary Table S8). Some similar environments lead to only slightly worse fits to the empirical data; the areas in which the model successfully describes the empirical values generally show high light intensities, intermediate to high temperatures, and a trend towards low CO₂ partial pressures (Fig. 5).

In contrast to our findings for C₄ and C₄-like plants, the performance of the evolutionary and the growth scenario models is similar for C₃ and C₃–C₄ intermediate Flaveria species (Figs. 2, 3; Supplementary Figs. S2–S5 and Table S9). It is conceivable that the lack of superior performance for the evolutionary scenario in C₃ Flaveria species is due to an inappropriate parameterization of the evolutionary scenario. The environment most relevant for the recent evolution of C₃ Flaveria may be different from the environment used in the simulations, which was chosen based on its relevance for the C₄ lineages. To explore this possibility, we simulated a wide range of alternative environments, testing if resource allocation optimized for any of these leads to significantly improved model predictions for the data from Vogan and Sage³⁹ for C₃ plants. However, none of the environments tested led to a significant improvement (Supplementary Figs. S6–S7).

Optimal resource allocation patterns are determined by an interplay between the different environmental factors. For C₄ species, high light intensities (as in the evolutionary scenario) tend to favor an increased nitrogen investment into the dark reactions, which goes along with a reduced investment into the electron transport chain. The effect of temperature is of special importance for plants using the C₄ cycle, as temperature increases PEPC activity drastically³⁷ and therefore reduces the necessary nitrogen investment into the C₄ cycle. This allows an increased investment into Rubisco and the electron transport chain, both of which show reduced activity at elevated temperatures due to thermal instabilities. Lower mesophyll CO₂ levels tend to increase the investment into the C₄ cycle while decreasing the investment into the electron transport chain and (albeit by a small factor) into Rubisco.

Limited phenotypic plasticity is linked to a high requirement of nitrogen re-allocation

Our results indicate that C₄ Flaveria species show a lower degree of photosynthetic phenotypic plasticity than closely related C₃ species (indicated by the inferior performance of the growth model compared to the evolutionary scenario for C₄ Flaveria species, there is no significant difference observed in C₃ Flaveria species; Figs. 2, 3 and Supplementary Figs S2–S5). On a molecular level, phenotypic plasticity predominantly requires the re-allocation of nitrogen between the major photosynthetic protein pools, in addition to post-translational control. After finding the optimal nitrogen allocation patterns in the evolutionary and growth scenarios, we calculated the absolute difference in the fraction of photosynthetic nitrogen allocated to each major pool of photosynthetic nitrogen (Calvin-Benson cycle; C₄ cycle; electron transport). We then summed these fractions to quantify the total fraction of nitrogen that needs to be re-allocated between photosynthetic pools to adjust photosynthesis between the two optimal nitrogen allocation patterns (δ_n, see Methods). Table 2 shows this amount of nitrogen re-allocation for C₃, C₃-C₄ intermediate, C₄-like, and C₄ Flaveria species at four different leaf nitrogen levels. We find that photosynthetic types that utilize C₄ photosynthesis require a consistently higher amount of re-allocation compared to C₃ plants (P = 1.5 × 10^–5, sign test). Our results thus indicate a link between required nitrogen re-allocation and limited photosynthetic phenotypic plasticity, suggesting a possible causal relationship.

Table 2.

Required nitrogen re-allocation (δ_n, [fraction]) for different leaf nitrogen levels for various Flaveria species.

	Leaf nitrogen level
	50 mmol m−2	130 mmol m−2	170 mmol m−2	250 mmol m−2
F. pringlei (C3)	0.039	0.105	0.151	0.273
F. floridana (C3-C4)	0.072	0.159	0.222	0.360
F. palmeri (C4-like)	0.100	0.263	0.325	0.415
F. bidentis (C4)	0.109	0.275	0.334	0.414

The required nitrogen re-allocation represents the total fraction of nitrogen that needs to be re-allocated between photosynthetic pools to optimally adjust photosynthesis from the evolutionary scenario to a given experimental growth environment.

Discussion

Our novel modeling framework allows us to study the interplay between photosynthetic performance, the environment, and resource investment on the molecular level. Comparisons of model predictions with phenotypic and molecular data from the genus Flaveria (Figs. 2, 3, 4) show that models of C₄ plants adapted to an evolutionary environment outperform models that consider the experimental growth conditions. These results suggest a low phenotypic plasticity in terms of resource allocation in C₄ plants of the model genus Flaveria, supporting earlier hypotheses on a low photosynthetic plasticity of C₄ plants¹⁵. In a recent study, Pignon and Long⁶² found that C₄ plants do not appear to have adapted their photosynthetic gene expression to modern levels of atmospheric CO₂, a result that confirms a low phenotypic plasticity in these plants. This limited phenotypic plasticity may potentially be explained by the large amount of nitrogen that needs to be re-allocated by C₄ plants to optimally adapt to a given growth environment (Table 2): adaptation of C₄ photosynthesis requires more drastic changes in gene expression than C₃ photosynthesis. The relatively young age of many C₄ species compared to their C₃ ancestors⁶³ might further enhance this effect, because the required gene-regulatory networks had less time to evolve than those of their C₃ ancestors. Plants with low photosynthetic phenotypic plasticity might contain information about their adaptive environment in their relatively static gene expression patterns. Based on this reasoning, we make quantitative predictions for the environments that dominated the recent evolution of C₄ Flaveria (Fig. 5). Previously, environments relevant for C₄ photosynthesis evolution have been inferred—mostly qualitatively—based on C₃-C₄ habitat comparisons^13,19,20 and geophysiological considerations²¹. Our results are consistent with and refine these earlier estimates.

When C₄ species grow under low CO₂ levels, the model assuming optimality in the growth scenario explains the measured data better than the evolutionary model (Supplementary Figs. S3–S4 and Table S9). To some extent this is consistent with the results presented in Fig. 5, where lower mesophyll CO₂ concentrations and light intensity than assumed in the evolutionary scenario lead to a better fit of simulated and measured data, thus refining our prior assumptions about the evolutionary environment.

Although the predictions for total nitrogen investment into the thylakoids based on the evolutionary scenario are highly consistent with the measurements performed by Dwyer et al.⁵⁶, the model overestimates the amount of cytochrome f by a factor of 2 (1.56 µmol m⁻² instead of the measured 0.87 µmol m⁻² for plants grown at 25 °C, 1.35 µmol m⁻² instead of 0.80 µmol m⁻² at 35 °C, see Supplementary Table S10). However, the experimental error of the measurements is uncertain, as no replicate measurements were performed for this parameter⁵⁶. Discrepancies between model predictions and observations may also be in part due to error propagation from modeled amounts of chlorophyll and the photosystems. In each simulation, we optimized resource allocation for an environment that represents a static approximation to the dynamic environment a plant is facing. As diurnal and annual variations (which are no focus of this work) potentially show short-term trade-offs^44,64, these might lead to a discrepancy between modeled and real evolutionary scenarios. In particular, the natural ancestral habitat must have exhibited periodically as well as randomly fluctuating conditions, compared to the stable EGCs in audited growth chambers and the statically modeled evolutionary scenario.

Given the complexity of our physiological model, we needed to make a number of assumptions. We addressed uncertainties in model parameters through sensitivity analyses, showing that our conclusions are robust against variation in these parameters (Supplementary Fig. S1). Furthermore, our predictions assume that nitrogen availability in the evolutionary scenario was identical to current nitrogen availability. As the role of nitrogen availability in C₄ evolution remains unclear, further research is needed to assess the effect of nitrogen availability on plants under the ancestral, current, and transitional environments. Furthermore, while our approach of maximizing the assimilation rate per available CO₂ concentration will account for water-use efficiency implicitly, a promising avenue for future evolutionary studies will be the explicit inclusion of stomatal responses (see, e.g., Bellasio and Farquhar⁶⁵).

There are only a limited number of data sets available that include the information for each considered environmental factor. In the three available data sets that included all necessary information, plants were not grown under the same conditions under which experiments were performed (i.e., EGC and EMC differed). The EGC and EMC show their biggest difference in the light intensities, but other factors differ also, e.g., temperature (Supplementary Tables S4–S7). While the disparity between EGC and EMC complicated the analysis and interpretation, we argue that the analysis of different photosynthetic types (C₃, C₃–C₄ intermediates, and C₄) across a wide range of environmental conditions provides a solid basis for the presented results. The complexity of the analysis is reduced by considering the model genus Flaveria that allows us to focus on the effect of different photosynthetic types rather than differences across genera.

In contrast to the findings in C₄ and C₄-like plants, the predictive performance of the evolutionary and the growth scenario models is similar for C₃ and C₃–C₄ intermediate Flaveria species (Supplementary Table S9). This similarity could be caused by the similar assimilation rates found for the evolutionary and growth scenario models in C₃ and C₃–C₄ plants, which make it difficult to quantify model performance on noisy data (Figs. 2, 3 and Supplementary Figs. S2–S5). Overall, our results point to a higher phenotypic plasticity of C₃ and C₃–C₄ intermediate plants compared to C₄ and C₄-like plants. Thus, in contrast to the latter photosynthetic types, it may not be possible to estimate ancestral evolutionary environments for C₃ plants based on our approach.

Our model provides a powerful tool to analyze the resource allocation of photosynthetic organisms and its dependence on environmental factors, allowing estimates for the maximal electron transport rate for LET and CET, the proportion of LET and CET as well as the nitrogen and energy allocation for which measurements are currently infeasible or impractical. This may prove to be of particular utility for systematically assessing the likely performance of crops in environments distinct from their natural habitats and for suggesting engineering targets in cases of limited phenotypic plasticity.

Author contributions

E.M.S., M.J.L., and D.H. designed the research, interpreted the results, and wrote the paper. E.M.S. developed and implemented the model for nitrogen allocation and light reactions, and implemented the optimization procedure. D.H. developed and implemented the model for temperature responses. E.M.S. and D.H. conducted simulations and data analysis.

Funding

Open Access funding enabled and organized by Projekt DEAL.

Competing interests

The authors declare no competing interests.

Supplementary Information

The online version contains supplementary material available at 10.1038/s41598-021-94903-0.
