Development and Validation of a Parameter-Free Model Chemistry for the Computation of Reliable Reaction Rates

Abstract

A recently developed model chemistry (jun-Cheap) has been slightly modified and proposed as an effective, reliable, and parameter-free scheme for the computation of accurate reaction rates with special reference to astrochemical and atmospheric processes. Benchmarks with different sets of state-of-the-art energy barriers spanning a wide range of values show that, in the absence of strong multireference contributions, the proposed model outperforms the most well-known model chemistries, reaching a subchemical accuracy without any empirical parameter and with affordable computer times. Some test cases show that geometries, energy barriers, zero point energies, and thermal contributions computed at this level can be used in the framework of the master equation approach based on the ab initio transition-state theory for obtaining accurate reaction rates.

Introduction

For many years, scientists were skeptical about the presence of molecular systems in the interstellar space due to the harsh physical conditions (low temperature and pressure in the presence of high-energy radiation fields) characterizing this environment. However, contrary to these expectations, more than 200 molecules have now been identified in the interstellar and circumstellar medium (ISM),¹ including several so-called interstellar complex organic molecules (iCOMs), namely, molecules containing carbon and a total of more than six atoms.² Most of the observed species should have a very short lifetime according to Earth-based standards, but the intermolecular processes leading to thermodynamic equilibrium are not effective in the ISM due to its extreme physical parameters.^3,4 This situation calls for a strong interplay among observations, laboratory studies, and computational approaches to understand the chemical evolution in these regions and to explain the observed abundances of different species.

Astrochemical models are virtual laboratories including thousands of reactions and whose main goal is to reproduce the observational data to the best possible extent. Although the available astrochemical models show widely different degrees of sophistication,⁵ all of them share the same basic ingredients:⁶ a set of initial conditions (total density, temperature, etc.) and a panel of chemical reactions characterized by their respective temperature-dependent rate constants and most likely exit channels. To improve the current predictions provided by these models, the reactions responsible for the largest uncertainties on the abundances must be studied in more detail by laboratory experiments and/or theoretical methods to provide improved rate constants and branching ratios.

Chemical kinetics plays a fundamental role also in the different but related context of atmospheric models that try to reproduce and interpret the large number of chemical processes occurring in the troposphere and stratosphere. Reaction rate coefficients and product yields have been either traditionally obtained by means of suitable experimental techniques⁷ or estimated using structure–activity relationships.⁸ The massive number of organic compounds released in the atmosphere and the corresponding huge number of possible reactions ruling their oxidation/degradation pathways make experimental measurements of even a small fraction of key processes a daunting task. In recent years, computational chemistry has begun to contribute substantially to a better understanding of several important reaction sequences in the atmosphere.⁹ These contributions have, at their heart, the use of electronic structure calculations to determine the energies and other characteristics (mainly geometries and vibrational frequencies) of stable species, reactive complexes, and transition states, which are then used in theoretical frameworks to determine rate coefficients. The main factor limiting the accuracy of this process is the computation of accurate values for all of the energy barriers ruling the different elementary steps. Next, zero point energies (ZPEs) and finite temperature contributions (FTCs) come into play, whose contributions may become non-negligible already for medium-sized systems.

Several nonempirical procedures have been developed and employed for the generation of accurate thermochemical data, which for small systems come close to the full configuration interaction (FCI) complete basis set (CBS) limit.¹⁰ Among the most successful approaches are the Weizmann-n series (with the most accurate being W4¹¹), the focal point analysis (FPA),^12,13 the Feller–Dixon–Peterson model (FDP),¹⁴ and the extrapolated ab initio thermochemistry (HEAT) protocol.¹⁵⁻¹⁷ A simplified version of the HEAT protocol is obtained by retaining only the extrapolation to the CBS limit at the CCSD(T) level and incorporating the core-valence corrections, thus leading to the model referred to in the following as CBS-CV. This approach is rather well tested in the literature and was shown to provide results with an accuracy well within 0.5 kcal mol^–1. Recently, alternative protocols have been proposed, which employ explicitly correlated approaches:^10,18 thanks to the faster convergence to the complete basis set limit, these approaches allow some computer time saving, but the rate-determining step remains the evaluation of higher-level contributions.

For larger molecular systems, more approximate composite methods are unavoidable, which aim at reaching the so-called chemical accuracy (1 kcal mol^–1). The most well-known among these so-called model chemistries are the last versions of the Gn¹⁹ (G4²⁰) and CBS-x²¹ (CBS-QB3²²) families. However, all of these models include some empirical parameters and employ geometries, which are not fully reliable for transition states and noncovalent complexes ruling the entrance channels of most reactions of astrochemical and atmospheric interest. As a matter of fact, the most reliable protocols (e.g., HEAT) push geometry optimizations to the limit to obtain accurate energetics, whereas, at the other extreme, Gn and CBS-x schemes employ B3LYP geometries, whose accuracy is often unsatisfactory.²³

In the last few years, a reliable and accurate computational protocol, referred to as the cheap scheme (ChS) and devoid of any empirical parameter, has been developed and tested with remarkable success for structural and energetic data.²⁴⁻²⁶ In conjunction with geometries and harmonic frequencies issuing from double-hybrid functionals, ChS has given promising results also for the activation energies of some reactions of astrochemical interest.²⁷⁻³¹ More recently, an improved variant (referred to as the jun-Cheap scheme, jChS) has been introduced, which, thanks to the use of the “june” partially augmented basis set of the “calendar” family,³² provides very accurate results also for noncovalent interactions.^33,34 On these grounds, in this paper, we provide a comprehensive benchmark of the jChS model chemistry for several classes of reactions for which accurate reference results are available or have been purposely computed. Together with electronic energies, we analyze also zero point energies, thermal contributions to enthalpies and entropies, and overall reaction rates computed for elementary reactions in the framework of the master equation (ME) approach based on the ab initio transition-state theory (AITSTME).³⁵⁻³⁷

The paper is organized as follows. In the first part, we validate the jChS model chemistry with reference to some well-known databases: (i) the 24 energy barriers available in the latest updated version of the DBH24 database,³⁸ (ii) the 52 barriers of Truhlar’s HTBH38³⁹ and NHTBH38⁴⁰ databases not included in DBH24, and (iii) seven representative reactions from Karton’s BH28 database.⁴¹ When needed, the reference values are updated by new computations performed with a composite method closely resembling the W3.2 model.⁴²

Next, the reliability of the jChS model chemistry for zero point energies and thermal contributions to enthalpies and entropies is assessed with respect to the new databases THCS21 and THOS10 containing accurate reference values for closed- and open-shell systems, respectively.

Finally, the role of different contributions in determining the overall accuracy of computed reaction rates is analyzed by means of some simple elementary reactions and two more complex reaction networks relevant for astrochemistry and atmospheric chemistry. Conclusions and perspectives are given in the last section.

Computational Details

All of the composite schemes employed in the present work extrapolate single-point energies computed at suitable geometries (see next sections) using the cc-pV(n + d)Z (hereafter nZ)⁴³ or jun-cc-pV(n + d)Z (hereafter jnZ)³² families of basis sets. The coupled cluster (CC) ansatz including single, double, and (perturbative) triple excitations (CCSD(T))⁴⁴ within the frozen-core approximation and in conjunction with 3Z or j3Z basis sets is always employed in the first step. Next, CBS extrapolation and core-valence correlation (CV) are added using either MP2⁴⁵ (leading, in conjunction with jnZ basis sets, to our standard jChS model) or CCSD(T). In the latter case, inclusion of higher-level terms (diagonal Born–Oppenheimer,⁴⁶⁻⁴⁹ scalar relativistic,^50,51 full triple and perturbative quadruple excitations⁵²⁻⁵⁴) and systematic use of nZ basis sets lead to the CBS-CVH scheme.

The effect of spin–orbit coupling is added to the energies of the O, OH, SH, and Cl radicals, lowering their electronic energies by 0.22, 0.20, 0.54, and 0.84 kcal mol^–1, respectively.⁵⁵

Vibrational contributions are always obtained by the rev-DSDPBEP86-D3(BJ) double-hybrid functional,⁵⁶ in conjunction with the j3Z basis set (hereafter rev-DSD). Harmonic frequencies are computed by analytical second derivatives⁵⁷ and anharmonic corrections, when needed, by the generalized second-order vibrational perturbation theory (GVPT2) employing third- and semidiagonal fourth derivatives obtained by numerical differentiation of second derivatives implemented by one of the present authors in Gaussian software.⁵⁸⁻⁶⁰

All of the computations have been performed with the Gaussian code,⁶⁰ except for CCSD(T) geometry optimizations that have been carried out with the Molpro package,⁶¹ CCSDT or CCSDT(Q) energy evaluations with the MRCC program,⁶² and DBOC together with relativistic computations with the CFOUR code.⁶³

jChS Model Chemistry

The jChS total electronic energies are obtained by single-point computations at rev-DSD geometries

1

where the CBS term is

2

and the core-valence correction ΔE_CV is the MP2 energy difference between all electron (ae) and frozen-core (fc) calculations employing the cc-pwCVTZ basis set.⁶⁴ At this level, the extrapolation of Hartree–Fock (HF) and correlation contributions is performed with the same equation and basis sets since several tests have shown that this simplified recipe has a negligible impact on the overall accuracy of the results. Furthermore, scalar relativistic effects are neglected, which is not a serious approximation since the heaviest element involved in this study is Cl.

CBS-CVH Composite Scheme

The CBS-CVH total electronic energies are obtained from single-point computations at geometries optimized by the jChS composite method described above for energies

3

In this case, HF and correlation energies are extrapolated separately. In particular, the HF CBS limit is estimated using Feller’s exponential formula⁶⁵

4

whereas the CBS limit of the correlation energy is obtained by the n^–3 formula proposed by Helgaker and co-workers⁶⁶

5

The three-point extrapolation of HF energies employs 3Z, 4Z, and 5Z basis sets, whereas the two smaller basis sets are used in the two-point extrapolation of correlation energies. The core-valence correction ΔE_CV is computed as the CCSD(T) energy difference between all electron and frozen-core calculations employing the cc-pCVTZ basis set.⁶⁴

The diagonal Born–Oppenheimer correction ΔE_DBOC⁴⁶⁻⁴⁹ and the scalar relativistic contribution to the energy ΔE_rel^50,51 are computed at the HF-SCF/aug-cc-pVDZ and CCSD(T)/aug-cc-pCVDZ levels, after having checked their convergence with respect to contributions calculated with triple-ζ basis sets for a few stationary points.

Finally, the corrections due to full treatment of triple (ΔE_fT) and perturbative treatment of quadruple (ΔE_pQ) excitations are computed, within the fc approximation, as energy differences between CCSDT and CCSD(T) and between CCSDT(Q) and CCSDT calculations employing the cc-pVTZ and cc-pVDZ basis sets, respectively.

Kinetic Models

Global and channel-specific rate constants were computed solving the multiwell one-dimensional master equation using the chemically significant eigenvalue (CSE) method within the Rice–Ramsperger–Kassel–Marcus (RRKM) approximation.⁶⁷ The collisional energy-transfer probability is described using the exponential down model⁶⁸ with a temperature-dependent ΔE_down of 260 × (T/298)^0.875 cm^–1 in an argon bath gas.

For channels ruled by a distinct saddle point, rate coefficients are determined by the conventional transition-state theory (TST) within the rigid-rotor harmonic-oscillator (RRHO) approximation⁶⁹ and including tunneling as well as nonclassical reflection effects using the Eckart model.⁷⁰ Instead, rate constants for barrierless elementary reactions are computed employing the phase space theory (PST),^71,72 again within the RRHO approximation. The isotropic attractive potential V_eff entering the PST is described by a power law, whose C coefficient is obtained by fitting rev-DSD energies computed at various long-range distances of fragments. We obtained the following C coefficients for the PST calculations of barrierless channels: 230 a₀⁶E_h for the H₂S + Cl entrance channel, 64.2 a₀⁶E_h for the CH₃NH₂ + CN entrance channel on the methyl side, and 94.4 a₀⁶E_h for the CH₃NH₂ + CN entrance channel on the nitrogen side.

The rate constants of the overall reactions evaluated in different temperature ranges are fitted by the three-parameter modified Arrhenius equation proposed by Kooij^73,74

6

where A, n, and E are the fitting parameters and R is the universal gas constant.

Results and Discussion

In the original jChS model, geometries and force fields were computed with the B2PLYP double-hybrid functional⁷⁵ augmented by empirical dispersion contributions (namely, the D3(BJ) model)^76,77 in conjunction with partially augmented triple-zeta basis sets.³³ However, the recently developed rev-DSD model⁵⁶ delivers improved descriptions of noncovalent interactions and activation energies.^78,79 Therefore, we benchmarked the performances of this functional (still in conjunction with partially augmented triple-zeta basis sets) for geometrical parameters and vibrational frequencies, obtaining results close to those delivered by the CCSD(T) ansatz in conjunction with comparable basis sets, but at a much reduced computational cost.⁸⁰ As a consequence, the jChS model chemistry now uses by default rev-DSD geometries and force fields.

If the spin contamination from higher spin states is large, the potential energy surfaces computed by unrestricted wave functions can be significantly distorted, showing, for example, anomalously high reaction barriers.⁸¹ This means that UMP2 estimates of CBS and CV contributions in the jChS model could become problematic. On the other hand, CCSD fully eliminates the S + 1 contaminant⁸² and CCSD(T) reduces also the S + 2 contaminant⁸³ so that calculations at the CCSD(T) level are usually relatively insensitive to the choice of (restricted or unrestricted) orbitals.⁸⁴ However, in cases where higher spin contaminants become important, CCSD(T) can also fail.⁸³ On these grounds, all of the jChS and CBS-CVH energies have been computed by the restricted open-shell approach.

Concerning density-functional theory (DFT) methods, it is well-known that the extent of spin contamination in unrestricted versions of hybrid density functionals increases with the amount of HF exchange.⁸⁵ However, Menon and Radom⁸⁶ showed that in unrestricted double-hybrid procedures, the opposing behavior of UHF and UMP2 with respect to spin contamination leads to smaller differences between the energies predicted by unrestricted and restricted open-shell variants. Although rev-DSD energies are not used in the present context, spin contamination can have an effect also on gradients and Hessians. We have, therefore, checked systematically the spin contamination and found that its effect is always negligible (within the target accuracy of the jChS model) except for the CN radical and the transition state ruling the reaction H^• + F₂ → HF + F^•, which will be analyzed in detail in a following section.

Reaction Barriers

The most well-known database of accurate reaction barriers is the DBH24 compilation^38,87 containing results mostly obtained at the CCSDTQ5/CBS level via the W4 theory⁸⁸ for a statistically representative set including three prototypes for each of the following classes of reactions: heavy-atom transfer, nucleophilic substitution, unimolecular and association reactions, and hydrogen-transfer reactions.

Table 1 compares the reaction barriers computed at CCSD(T) and jChS levels to the reference values of ref (38). The arithmetic (mean unsigned error—MUE) and geometric (root-mean-square deviation—RMSD) average errors show that the jChS model chemistry fulfills the target of subchemical accuracy without any outlier above 1 kcal mol^–1 (max error = 0.80 kcal mol^–1). It is also remarkable that estimation of CBS and CV contributions by inexpensive MP2 computations and without any empirical parameter halves the error of the underlying CCSD(T) computation. To investigate the role of geometries on the computed barriers, we repeated the computations using the QCISD/MG3 structures employed in the original compilation.³⁸ It is quite apparent that in this case the results are only marginally affected by geometry optimizations at different computational levels. We will come back to this aspect in the following since the situation could be different for more complex transition structures and/or the noncovalent complexes ruling the entrance channels of barrierless reactions. In this connection, further support to the reliability of rev-DSD structures is provided by the respectable MUE and RMSD (1.7 and 2.4 kcal mol^–1, respectively) of the energy barriers computed at this level.

Table 1. Theoretical Values of Barrier Heights in the DBH24/08 Data Set Obtained at Different Levels of Theory^e.

	reactions	forward/reverse barrier height
		CCSD(T)	jChS	jChSa	refb
	Heavy-Atom Transfer
a1c	H• + N2O → OH• + N2	17.89/84.96	17.53/83.25	17.58/83.27	17.13/82.47
a2	H• + ClH → HCl + H•	18.89/18.89	17.31/17.31	17.33/17.33	18.00/18.00
a3c	CH3• + FCl → CH3F + Cl•	7.21/62.20	7.16/60.37	7.05/60.28	6.75/60.00
	Nucleophilic Substitution
a4	Cl–···CH3Cl → ClCH3···Cl–	13.56/13.56	13.26/13.26	13.28/13.28	13.41/13.41
a5	F–···CH3Cl → FCH3···Cl–	3.52/29.47	3.39/29.09	3.41/29.09	3.44/29.42
a6	OH– + CH3F → HOCH3 + F–	–2.39/17.78	–2.48/17.36	–2.51/17.35	–2.44/17.66
	Unimolecular and Association
a7	H• + N2 → HN2•	15.23/11.01	14.34/11.12	14.36/11.09	14.36/10.61
a8	H• + C2H4 → C2H5•	2.43/42.59	1.9/42.19	1.92/42.21	1.72/41.75
a9	HCN ↔ HNC	47.45/32.77	47.98/33.24	48.02/33.28	48.07/32.82
	Hydrogen Transfer
a10d	OH• + CH4 → CH3• + H2O	7.05/19.05	6.63/20.04	6.52/19.94	6.71/19.60
a11c,d	H• + OH• →H2 + 3O	10.38/14.62	11.51/13.77	11.42/13.78	10.71/13.12
a12c	H• + H2S → H2 + HS•	4.23/19.23	3.7/17.94	3.69/17.96	3.62/17.33
	MAX	2.49	0.80	0.80
	MUE	0.71	0.36	0.35
	RMSD	0.97	0.44	0.43

^aAt QCISD/MG3 geometries.

^bRef (38).

^cSpin–orbit contributions on the reverse reaction barrier.

^dSpin–orbit contributions on the forward reaction barrier.

^eAll of the values (exclusive of ZPE) are in kcal mol^–1.

Zhang and co-workers¹⁸ have shown that, for the same set of reactions, inclusion of explicit correlation (F12) in CCSD(T) computations⁸⁹ reduces the mean and maximum unsigned errors of the conventional CCSD(T) approach (0.66 and 1.77 kcal mol^–1) to 0.29 and 0.85 kcal mol^–1 when using basis sets slightly larger than j3Z (including also f diffuse functions on non-hydrogen atoms). As shown in Table 1, this improvement is close to that obtained when going from CCSD(T)/j3Z (0.71 and 2.49 kcal mol^–1) to jChS (0.36 and 0.80 kcal mol^–1). These trends suggest that inclusion of explicit correlation or two-point extrapolation at the MP2 level is an effective route for improving significantly the accuracy of computed energy barriers, without introducing additional computational bottlenecks with respect to the underlying CCSD(T)/j3Z reference. As a matter of fact, already for reactions involving two heavy atoms (e.g., A7, A8, A9, A10 in Table 1), single-point jChS computations require no more than twice the time of the CCSD(T)/jun-cc-pVTZ step and are an order of magnitude faster than the CBS-CV counterparts. On increasing the dimensions of the systems, the effectiveness of the jChS model increases because of the favorable scaling of MP2 computations with respect to CCSD(T) ones, which can be further enhanced by approaches employing resolution of identity and other acceleration techniques. Furthermore, jChS computations can be performed also with the widely diffused electronic structure codes lacking explicitly correlated approaches (e.g., Gaussian or CFOUR), and the accuracy of the results surpasses that of all of the model chemistries considered by Zheng et al.³⁸

Two larger databases of prototypical reactions are also available for barriers related to transfers of hydrogen and non-hydrogen atoms (HTBH38³⁹ and NHTBH38,⁴⁰ respectively). However, the reaction barriers not already included in the DBH24 set have been obtained at a lower computational level (W1). We have thus decided to compute at the jChS level all of the reactions of the above two sets not contained in the original DBH24 compilation using both rev-DSD and the original QCISD/MG3 geometries. Whenever significant discrepancies were found, the reactions were recomputed also at the CBS-CVH level.

The reactions from the NHTBH38 set not included in the DBH24 selection are collected in Table 2. It is noteworthy that rev-DSD energy barriers, although not directly used in the jChS model chemistry, show MUEs smaller than 2.0 kcal mol^–1, thus suggesting that the corresponding geometries should be sufficiently accurate for single-point energy evaluations at higher computational levels. This is confirmed by the finding that only for reaction NHT3, QCISD and rev-DSD geometries lead to significantly different results (cf. columns 2 and 3 of Table 2). Geometry optimization at the jChS level provides results far from both values (Figure 1a). However, as mentioned in a previous section, unrestricted rev-DSD computations show a strong spin contamination for the TS ruling reaction NHT3 (⟨S²⟩ = 1.03 in place of the correct value of 0.75). We have, therefore, reoptimized the geometry of this TS employing the restricted open-shell approach in conjunction with numerical energy derivatives. The issuing geometrical parameters (rHF = 1.6603, rFF = 1.4672 Å) are closer to the jChS counterparts (rHF = 1.7457, rFF = 1.4663 Å) than the unrestricted values (rHF = 1.5700, rFF = 1.4021 Å) and, indeed, even better than the QCISD/MG3 values of ref (38) (rHF = 1.6151, rFF = 1.4804 Å), thus giving further support to the accuracy of rev-DSD geometries. To check the accuracy of computed energies irrespective of geometry effects, we have recomputed the forward and reverse barriers of reaction NHT3 at the CBS-CVH level employing QCISD/MG3 geometries. The results (1.57 and 104.84 kcal mol^–1) are much closer to the jChS values (1.49 and 105.25, MUE = 0.25 kcal mol^–1) than to the results of ref (38) (2.27 and 105.80, MUE = 0.83 kcal mol^–1), thus confirming the reliability and robustness of the jChS model chemistry. However, in this case, fully reliable results can be obtained only employing more accurate geometries: as a matter of fact, the forward and reverse barriers obtained from single-point CBS-CVH computations at jChS geometries are 2.59 and 105.77 kcal mol^–1, respectively. The seemingly good agreement with the results of ref (38) is due to a fortuitous error compensation between poor geometry and limited accuracy of the electronic energy. With the exception of this reaction, the agreement between jChS energies and the reference values is satisfactory, suggesting that for this kind of reaction the jChS errors are in line with those discussed above for the DBH24 database.

Table 2. Theoretical Values of Barrier Heights for the Forward and Reverse Reactions in the NHTBH38/08 Data Set Not Included in the DBH24 Selection^d.

	reaction		forward/reverse barrier height
		jChS	jChSa	ref (38)
NHT1	H• + FH → HF + H•	41.99/41.99	42.02/42.02	42.18/42.18
NHT2	H• + FCH3 → HF + CH3•	30.31/57.54	30.31/57.54	30.38/57.02
NHT3*	H• + F2 → HF + F•	3.50/107.18b	1.49/105.25	2.27/105.80
NHT4	F– + CH3F → FCH3 + F–	–0.70/–0.70	–0.71/-0.71	–0.34/–0.34
NHT5	F–···CH3F → FCH3···F–	13.21/13.21	13.20/13.20	13.38/13.38
NHT6	Cl– + CH3Cl → ClCH3 + Cl–	2.27/2.27	2.33/2.33	3.10/3.10
NHT7	F– + CH3Cl → FCH3 + Cl–	–12.32/19.29	–12.31/19.31	–12.54/20.11
NHT8	OH–···CH3F → HOCH3···F–	11.14/47.38	11.14/47.38	10.96/47.20
NHT9	H• + CO → HCO•	3.22/22.87	3.19/22.82	3.17/22.68
NHT10	CH3• + C2H4 → CH3CH2CH2•	6.37/32.77	6.35/32.74	6.85/32.97
	MAXc	0.83	0.80
	MUEc	0.33	0.32
	RMSDc	0.42	0.40

^ajChS on QCISD/MG3 geometry.

^bEmploying restricted open-shell geometry; the values using the unrestricted geometry are 4.46/108.14.

^cNeglecting the problematic reaction NHT3 (marked with an asterisk; see the text for discussion).

^dAll of the values (exclusive of ZPE) are in kcal mol^–1.

Figure 1.

Sketch of the structures of the transition states ruling the reactions H^• + F₂ → HF + F^• (NHT3) and H^• + CO → HCO^• (NHT9). The key geometrical parameters issuing from rev-DSD, QCISD/MG3 (italics), and jChS (bold) geometry optimizations are also reported. Bond distances are in Å, and angles are in degrees. The following colors are used for the different atom types: white, H; black, C; red, O; and light blue, F.

The reactions from the HTBH38 set not included in the DBH24 selection are collected in Table 3. Once again, it is noteworthy that the rev-DSD energy barriers, although not directly used in the jChS model chemistry, do not show any unrealistic outlier. Only for reactions HT1 and HT5, QCISD and rev-DSD geometries lead to significantly different results (cf. columns 2 and 3 of Table 3). Geometry optimization at the jChS level provides results close to rev-DSD (Figure 2a) for HT1 and intermediate between rev-DSD and QCISD for HT5 (Figure 2b). The agreement between jChS energies and the reference values is generally worse than for the NHTBH38 set and particularly disappointing for reactions HT1, HT5, HT9, HT10, HT11, HT12, HT13, and HT16. To have a first check of the accuracy of the jChS results irrespective of geometry effects, the forward and reverse barriers of two reactions in this group (HT1 and HT12) have been recomputed at the CBS-CVH level on top of QCISD/MG3 geometries. In the first case, the CBS-CVH values (5.95 and 8.73 kcal mol^–1) are quite close to the results of both ref (38) and the jChS counterparts for the forward barrier and much closer to the jChS result for the reverse barrier. The situation is reversed for reaction HT12, where the CBS-CVH results (9.35 and 22.37 kcal mol^–1) confirm the similar results of jChS and ref (38) for the reverse barrier but are much closer to the jChS ones for the forward barrier. Once again, the jChS model chemistry does not show any outlier above the threshold of chemical accuracy, whereas this is not the case for the original reference values of ref (38). For the forward and reverse barriers of the remaining eight reactions, the deviations of the jChS results from those of ref (38) are well within subchemical accuracy (MUE around 0.5 kcal mol^–1).

Table 3. Theoretical Values of Barrier Heights for the Forward and Reverse Reactions in the HTBH38/08 Data Set Not Included in the DBH24 Selection^e.

	reaction		forward/reverse barrier height
		jChS	jChSa	ref (38)
HT1*b	H• + HCl → H2 + Cl•	4.97/7.80	5.57/7.95	5.49/7.42
HT2c	OH• + H2 → H2O + H•	5.67/21.76	5.58/21.69	5.10/21.20
HT3	CH3• + H2 → CH4 + H•	11.96/14.64	11.95/14.64	12.10/15.30
HT4	H• + H2 → H2 + H•	9.58/9.58	9.58/9.58	9.60/9.60
HT5*c	OH• + NH3→ H2O + NH2•	4.13/14.41	3.55/13.85	3.20/12.70
HT6b	HCl + CH3• → Cl• + CH4	1.69/7.19	1.70/7.61	1.70/7.90
HT7c	OH• + C2H6 → H2O + C2H5•	4.00/20.91	3.84/20.75	3.40/19.90
HT8	F• + H2 → HF + H•	1.69/33.90	1.77/34.00	1.80/33.40
HT9*b,c	3O + CH4 → OH• + CH3•.	14.77/9.83	14.87/9.82	13.70/8.10
HT10*	H• + PH3 → PH2• + H2	2.85/25.09	2.82/25.05	3.10/23.20
HT11*b,c	3O + HCl → OH• + Cl•	10.81/11.38	10.85/11.70	9.80/10.40
HT12*	NH2• + CH3• → CH4 + NH	9.49/22.09	9.50/22.11	8.00/22.40
HT13*	NH2• + C2H5 → NH + C2H6	9.97/19.08	10.39/19.51	7.50/18.30
HT14	NH2• + C2H6 → NH3 + C2H5•	11.24/17.85	11.18/17.80	10.40/17.40
HT15	NH2• + CH4 → NH3 + CH3•	13.82/16.94	13.80/16.92	14.50/17.80
HT16*	s–trans cis-C5H8 → same	39.66/39.66	39.63/39.63	38.40/38.40
	MAXd	1.01	0.88
	MUEd	0.48	0.42
	RMSDd	0.58	0.52

^ajChS on QCISD/MG3 geometry.

^bSpin–orbit corrections on the reverse reaction barrier.

^cSpin–orbit corrections on the forward reaction barrier.

^dNeglecting the problematic reactions (marked with an asterisk).

^eAll of the values (exclusive of ZPE) are in kcal mol^–1.

Figure 2.

Sketch of the structures of the transition states ruling the reactions collected in Table 4. The key geometrical parameters issuing from rev-DSD, QCISD/MG3 (italics), and jChS (bold) geometry optimizations are also reported. Bond distances are in Å, and angles are in degrees. The following colors are used for the different atom types: white, H; black, C; blue, N; red, O; orange, P; and green, Cl.

We then selected six “challenging reactions” among those mentioned above for further investigation. To this end, we report in Table 4 the results obtained at different geometries together with new reference values obtained at the CBS-CVH level on top of jChS geometries. A first general remark is that some of the new reference values differ by more than 1 kcal mol^–1 from those reported in ref (38) (cf. columns 1 and 6 of Table 4). Furthermore, the only barrier showing significant contributions by higher-order terms (mainly full triple and perturbative quadruple excitations) is the reverse barrier of reaction HT5 (cf. columns 5 and 6 in Table 4). Neglecting this barrier, the results of ref (38) show an MUE of 0.82 kcal mol^–1 and a maximum error of 1.61 kcal mol^–1, whereas the jChS approach has an MUE lower than 0.40 kcal mol^–1 without any absolute error larger than 1 kcal mol^–1, irrespective of the level of geometry optimizations. As a matter of fact, the relatively cheap rev-DSD geometries can be confidently employed for reaching subchemical accuracy and the use of more accurate structures does not really improve the results. The CBS-CV approach reduces significantly the MUE, but at the price of employing more accurate (and costly) geometries together with CCSD(T) computations performed with partially augmented 4Z basis sets. In conclusion, the jChS model chemistry can be confidently employed for evaluating reaction barriers of all of the reactions included in the HTBH38 and NHTBH38 data sets with subchemical accuracy without any outlier above 1 kcal mol^–1.

Table 4. Theoretical Values of the Forward and Reverse Barriers Ruling the “Challenging” HTBH38/08 Reactions^d.

geometry		QCISD		rev-DSD	jChS
forward/reverse barrier		ref (38)	jChSa	jChS	jChS	CBS-CV	CBS-CVH
HT1a	H• + HCl → H2 + Cl•	5.49/7.42	5.57/7.95	4.97/7.80	4.97/7.85	5.25/8.23	5.41/8.19
HT5b	OH• + NH3 → H2O + NH2•	3.20/12.70	3.55/13.85	4.13/14.41	4.41/14.60	4.40/14.34	4.39/13.63
HT9a,b	3O + CH4 → OH• + CH3•	13.70/8.10	14.87/9.82	14.77/9.83	14.93/9.76	14.70/9.37	14.64/9.30
HT10	H• + PH3 → PH2• + H2	3.10/23.20	2.82/25.05	2.85/25.09	2.85/25.12	2.87/24.48	2.89/24.52
HT11	3O + HCl → OH• + Cl•	9.80/10.40	10.85/11.70	10.81/11.38	10.67/11.43	10.93/11.34	10.27/10.98
HT12	NH2• + CH3• → CH4 + NH	8.00/22.40	9.50/22.11	9.49/22.09	8.94/21.84	8.87/21.89	9.24/22.26
	MAXc	1.32	0.84	0.57	0.60	0.66
	MUEc	0.74	0.39	0.34	0.34	0.20
	RMSDc	0.87	0.46	0.38	0.38	0.28

^aSpin–orbit corrections on the reverse reaction barrier.

^bSpin–orbit corrections on the forward reaction barrier.

^cNeglecting the reverse barrier of reaction HT5.

^dAll of the values (exclusive of ZPE) are in kcal mol^–1.

To extend the benchmark to larger and more complex systems, we resorted to the BH28 set of ref (41), which includes accurate (W3lite-F12) energy barriers for several pericyclic (BHPERI), bipolar cycloaddition (CADBH), cycloreversion (CRBH), multiple proton exchange (PXBH), and different (BHDIV) reactions. For each of these five classes of reactions, we selected no more than two representative cases. The structures of the seven selected transition states are shown in Figure 3, and the corresponding forward and reverse reaction barriers (BH14 set) are collected in Table 5.

Figure 3.

Sketch of the structures of the transition states ruling the reactions of Table 5. The following colors are used for the different atom types: white, H; black, C; blue, N; red, O; and yellow, S.

Table 5. Theoretical Values of Barrier Heights for the Forward and Reverse Reactions in the BH14 Data Set, Obtained at Different Levels of Theory^h.

	label in BH28	forward/reverse barrier height	forward reaction barrier height
		jChS	jChSa	W3lite-F12b	CCSDT(Q)-CCSD(T)
b1	BHPERI1c	35.07/95.13		35.01	–0.17
b2	CRBH1d	47.24 (78.59)	47.01	46.15	–1.10
b3	CRBH4d	46.54 (64.14)	46.12	44.89	–1.60
b4	CADBH1e	27.26/36.08		27.56	0.00
b5	CADBH4e	11.57/57.52		11.64	–0.24
b6	PXBH1f	48.59/48.59		48.45	–0.12
b7	BHDIV2g	51.15/201.05		50.10	–0.14
	MAX	1.65
	MUE	0.62
	RMSD	0.86

^aUsing the geometries of ref (41).

^bRef (41).

^cRefs (90, 91).

^dRef (92).

^eRefs^{91, 93}.

^fRef (94).

^gRef (95).

^hAll of the values (exclusive of ZPE) are in kcal mol^–1.

The average and maximum errors are larger than those of the DBH24 set; however, a closer inspection of the results shows that, as already pointed out in ref (41), the role of full triple and quadruple excitations is non-negligible for CRBH reactions. This effect cannot be captured, of course, by the jChS model and leads to errors well above 1 kcal mol^–1. In all other cases, the errors are below the target of the jChS model chemistry. As a matter of fact, excluding the contribution of triple and quadruple excitations (last column in Table 5) reduces the MUE of jChS results to 0.24 kcal mol^–1. Furthermore, the error related to the difference between rev-DSD and reference geometries is lower than 0.3 kcal mol^–1 even in the worst cases.

Zero Point Energy and Finite Temperature Contributions

Accurate determination of thermochemical and kinetic parameters by quantum chemical methods requires, in addition to electronic energies, also zero point and finite temperature contributions (FTCs), which are usually obtained within the RRHO approximation, possibly employing empirical scaling factors.⁹⁶ However, it is well-known that the scaling factors are intrinsically different for zero point energies (ZPEs) and vibrational frequencies, with the results for the latter quantities often being not sufficiently accurate.⁹⁷ One effective strategy devoid of any empirical parameter is offered by the generalized second-order vibrational perturbation theory in conjunction with a separate treatment of large-amplitude motions.^58,98 In fact, a resonance-free expression for ZPEs of energy minima and transition states,^99,100 an unsupervised smoothing procedure (HDCPT2) for fundamental frequencies,¹⁰¹ and a fully automatic detection and treatment of torsional motions (hindered rotor, HR, approximation)¹⁰² have been implemented in the Gaussian code⁶⁰ and validated.⁵⁹ As a consequence, a fully black-box procedure is available for taking into account all of these contributions.

Next, the so-called simple perturbation theory (SPT)¹⁰³ can be applied for computing partition functions without the need for performing explicit (or stochastic) summations of individual energy levels. In fact, the SPT retains the formal expression of the harmonic partition function but employing the anharmonic ZPE and fundamental levels (Δ_i) issuing from HDCPT2 and HR computations.

7

This approximation provides results in remarkable agreement with accurate reference values and leads to analytical expressions for the different thermodynamic functions.¹⁰³

On these grounds, we will now analyze the performances of the jChS model chemistry in dealing with these terms starting from a benchmark of the RRHO approximation with reference to accurate quantum chemical results and then proceeding to take into account anharmonic contributions. For illustration purposes, we will focus our attention on ZPEs and absolute entropies (S), which are especially sensitive to high and low frequencies, respectively.

To this end, a new database has been built (ThCS21), which contains accurate experimental values for the ZPEs and absolute entropies of 21 semirigid closed-shell molecules, whose estimated errors are below 0.1 kcal mol^–1 and 0.05 cal (mol K)⁻¹, respectively. The results collected in Table 6 show that already at the harmonic level, the errors are well within the level of accuracy expected from the jChS model chemistry and the anharmonic results can be confidently used in conjunction with the most sophisticated models (e.g., CBS-CVH). Actually, the harmonic frequencies obtained at this level do not require any empirical correction to compensate for method and/or basis set deficiency but only for genuine anharmonic effects, which, in turn, give significant contributions to ZPEs only for some XH bonds (X = C, N, O). As a consequence, an empirical correction of 0.12 kcal mol^–1 for each bond of this kind provides results very close to the anharmonic counterparts (see results in parenthesis in the first column of Table 6).

Table 6. ThCS21 Database: ZPEs in kcal mol^–1 and Absolute Entropies at 298.15 K and 1 atm in cal (mol K)⁻¹.

molecule	ZPEharma	ZPEanha,b	ZPEexpc	Sharma	Sexpd
HF	5.89	5.84	5.86	41.46	41.50
HCl	4.30	4.27	4.24	44.57	44.64
H2	6.36 (6.24)	6.30	6.23	31.13	31.20
N2	3.33	3.32	3.36	45.77	45.77
F2	1.42	1.41	1.30	48.33	48.44
CO	3.09	3.08	3.09	47.24	47.21
Cl2	0.81	0.81	0.80	53.18	53.29
CO2	7.26	7.23	7.30	51.09	51.07
CS2	4.36	4.35	4.34	56.78	56.85
H2O	13.45 (13.21)	13.24	13.26	45.09	45.10
H2S	9.59	9.47	9.48	49.12	49.16
HOF	8.77 (8.65)	8.64	8.65	54.11	54.17
HOCl	8.31 (8.19)	8.19	8.19	56.47	56.49
N2O	6.84	6.80	6.77	52.51	52.54
HCN	10.03 (9.91)	9.95	10.00	48.16	48.21
SO2	4.33	4.31	4.41	59.35	59.30
C2H2	16.72 (16.48)	16.56	16.49	47.91	47.99
H2CO	16.76 (16.52)	16.54	16.52e	52.23	52.30
NH3	21.63 (21.27)	21.26	21.20	45.98	46.04
CH4	28.20 (27.72)	27.79	27.71	44.48	44.48
C2H4	32.06 (31.58)	31.67	31.46f	52.35	52.39
MUE	0.15 (0.04)	0.05		0.05
RMSD	0.22 (0.06)	0.07		0.06

^arev-DSD-PBEP86-D3(BJ)/jun-cc-pV(T + d)Z.

^bHDCPT2 model.

^cFrom ref (96).

^dFrom ref (104). The original values have been lowered by 0.03 cal (mol K)⁻¹ to take into account the passage from 1 bar (0.1 MPa) to 1 atm (0.10135 MPa) references.

^eFrom accurate diffusion Monte Carlo computations¹⁰⁵ since the value of 16.10 reported in ref (96) is affected by an estimated error of 0.51 kcal mol^–1.

^fFrom the accurate computations of ref (106) since the value of 30.70 reported in ref (96) is affected by an estimated error of 0.40 kcal mol^–1.

Accurate entropy values are also available for the same set of molecules, and harmonic computations perform a remarkable job in reproducing the experimental values. However, entropy is exquisitely sensitive to low-frequency vibrations, so that a set of flexible molecules is collected in Table 7. It is apparent that the HRHO model (which does not add any computational burden with respect to the underlying RRHO model) performs a remarkable job for systems containing a single torsion. The situation is more involved for larger flexible systems due to the presence of several low-energy minima contributing to the overall thermodynamic functions. Although this aspect goes beyond the main topic of the present contribution, we point out that several strategies are being proposed, following systematic search,¹⁰⁷ stochastic,¹⁰⁸ and, more recently, machine learning¹⁰⁹ approaches. Other kinds of large-amplitude motions can be taken into account by means of one-dimensional variational or quasi-variational approaches¹¹⁰ followed by SPT or direct count of energy levels.⁹⁸

Table 7. Absolute Entropies at 298.15 K and 1 atm in cal (mol K)⁻¹.

molecule	Sharma	SHRa,b	Sexp
CH3CH3	54.38	54.70	54.79c,d
CH3OH	57.00	57.36	57.29c,d
CH3SH	60.57	60.99	60.96c,d
CH3CHO	62.66	63.11	63.06c,d
CHOCHO	64.93	65.09	65.10c,e

^arev-DSD-PBEP86-D3(BJ)/jun-cc-pV(T+d)Z.

^bIncluding HR correction.

^cThe original values have been lowered by 0.03 cal (mol K)⁻¹ to take into account the passage from 1 bar (0.1 MPa) to 1 atm (0.10135 MPa) references.

^dFrom ref (111).

^eFrom ref (112).

Another issue is represented by open-shell species, which are of paramount importance in both astrochemistry and atmospheric chemistry. In this case, experimental zero point energies are available only for diatomic species and accurate determinations are quite limited also for the other thermodynamic functions. The jChS results collected in Table 8 for a few representative systems (ThOS10 database) suggest that (in the absence of strong multireference effects) the expected accuracy is close to that reached for closed-shell systems.

Table 8. ThOS10 Database: ZPEs and Nonpotential Energy Terms for Representative Open-Shell Species at 298.15 K and 1 atm in cal (mol K)⁻¹.

molecule	ZPEcalca,b	ZPEexpb	Scalca,c	Sexpc,d	H–Hcalc0,a,b	H–Hexp0,b,e
OH(2π)	5.25 (5.33)	5.29e	43.95	43.88	2.07	2.11
SH(2π)	3.88 (3.88)	3.82	47.27	46.76	2.07	2.07
CN(2∑+,f)	2.83 (2.83)	2.95	48.35	48.43	2.07	2.07
NO(2π)	2.80 (2.77)	2.71	50.42	50.34	2.07	2.07
NH2(2B1)	11.89 (11.83)	11.52g	46.49	46.54	2.37	2.37
HCO(2A’)	8.06 (8.09)	8.09h	53.58	53.66	2.39	2.39h
HO2(2A″)	8.85 (8.87)	8.78i	54.67	54.76	2.39	2.39
CH3(2A2″)	18.62 (18.42)	18.48i	46.26	46.38	2.46	2.45
t-HOCO(2A’)	13.00 (13.07)	13.10i	60.08		2.61
CH3CO(2A’)	26.82 (26.85)	26.69i	64.23	63.92	2.98	2.96

^arev-DSD-PBEP86-D3(BJ)/jun-cc-pV(T + d)Z HRHO model and (in parenthesis) HRHO model including a correction to ZPEs of −0.12 for each CH, NH, or OH bond.

^bIn kcal mol^–1.

^cIn cal (mol K) ^–1.

^dFrom ref (113). When needed, entropy values have been lowered by 0.03 cal (mol K)⁻¹ to take into account the passage from 1 bar (0.1 MPa) to 1 atm (0.10135 MPa) references.

^eFrom ref (96).

^fRestricted open shell with an equilibrium bond length of 1.179 Å;; the unrestricted result is 3.43 kcal mol^–1 with S² = 0.854 and an equilibrium bond length of 1.159 Å.

^gCBS-CV results from ref (114).

^hCBS-CV results from ref (115).

ⁱDiffusion Monte Carlo results from ref (105).

Reaction Rates

In this section, we analyze the impact on reaction rates of the different ingredients discussed in the previous section, comparing the results issuing from different model chemistries including CBS-QB3, jChS, and CBS-CVH. Starting from simple elementary mechanisms, we proceed to more complex potential energy surfaces including several intermediates and transition states, possibly leading to different products.

The first test case is the high-pressure limit of the reaction H^• + CO, which has been recently investigated by Vichietti et al.¹¹⁶ This reaction belongs to the HTBH38 set, whose jChS results have been discussed in the section devoted to energy barriers. For purposes of comparison, we have computed also the barriers at the CBS-CVH level on top of jChS geometries obtaining values (3.26 and 22.86 kcal mol^–1) for the forward and reverse barriers very close to the jChS counterparts at rev-DSD geometries (3.22 and 22.87 kcal mol^–1). Although the presence of a van der Waals prereactive complex has been suggested, its stability (if any) is so small that its impact on the computed reaction rates is negligible.

The reaction rates computed in the 50–4000 K temperature interval are shown in Figure 4, and the parameters of the corresponding Arrhenius–Kooij fits obtained by different electronic structure methods are collected in Table 9. The non-Arrhenius behavior of the reaction is quite apparent, but the small errors of all of the fits show that the Arrhenius–Kooij model captures the essence of the deviation. Furthermore, the jChS results are close to the reference values of ref (116), whereas this is not the case for the largely employed CBS-QB3 approach at least at low temperatures.

Figure 4.

Temperature dependence of the H^• + CO reaction rate constants calculated at various levels of theory in the high-pressure limit.

Table 9. Arrhenius–Kooij Parameters for the H^• + CO Reaction.

forward/reverse	ref (116)	jChS	CBS-CVH	CBS-QB3
A (cm3 molecule–1 s–1)	2.98 × 10–11/1.37 × 1013	3.86 × 10–11/1.47 × 1013	3.87 × 10–11/1.46 × 1013	7.96 × 10–11/ 3.81 × 1013
n	1.03/1.06	1.07/1.20	1.06/1.20	1.02/1.04
E (kcal mol–1)	2.64/17.79	2.86/18.14	2.89/18.08	2.76/17.95
rms		4× 10–14/ 3.20 × 10–2	3.9 × 10–14/3.21× 10–2	1.91 × 10–14/ 2.56 × 10–2

We next consider the BHPERI1 and CRBH4 reactions discussed in the section on the energy barriers (see Figure 3a,c). The rates computed in the 300–1000 K temperature interval by different electronic structure methods are shown in Figure 5a,b, whereas the parameters of the corresponding Arrhenius–Kooij fits are collected in Table 10. Both reactions are characterized by quite high energy barriers, and their rates show a clear Arrhenius behavior. In these circumstances, the different electronic structure methods deliver comparable results over the whole temperature range.

Figure 5.

Rate constant temperature-dependence plots of the BHPERI1 and CRBH4 reactions from the BH14 data set for a pressure of 1 atm.

Table 10. Arrhenius–Kooij Parameters for BHPERI1 and CRBH4 Reactions from the BH14 Data Set.

	BHPERI1			CRBH4
	jChS	W3lite-F12	CBS-QB3	jChS	W3lite-F12	CBS-QB3
A (cm3 molecule–1 s–1)	7.43 × 1013	8.18 × 1013	1.26 × 1014	1.24 × 1016	2.58 × 1016	1.14 × 1017
n	–1.05	–1.12	–1.44	–2.81	–3.37	–4.02
E (kcal mol–1)	34.31	34.41	33.53	45.60	44.35	45.83
rms	7.67 × 10–2	7.80 × 10–2	1.06 × 10–1	1.05 × 10–1	1.08 × 10–1	1.06 × 10–1

The next example is the reactive potential energy surface for H₂S + Cl (see Figure 6), which involves a van der Waals prereactive complex (RW) followed by the transition state TS leading to a productlike van der Waals complex (PW) and then to the products, i.e., HS + HCl. Since this reaction has been recently investigated at the CBS-CVH level,²⁸ it represents a meaningful test for the jChS model chemistry. Once again, the largest deviation from the reference values for all of the stationary points is lower than 0.3 kcal mol^–1, to be compared to errors larger than 1 kcal mol^–1 especially for transition states at the CBS-QB3 level. Errors of this magnitude can lead to unreliable rate constants, especially for reactions like this where the dynamical bottleneck is located at the inner transition state, as already pointed out in ref (28).

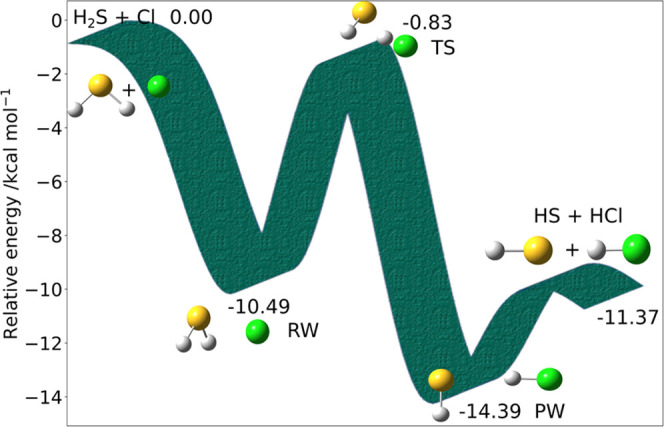

Figure 6.

H₂S + Cl reaction mechanism. Electronic energies are computed at the jChS level.

The reaction rates issuing from jChS computations are compared in Figure 7 to the CBS-QB3 and CBS-CVH counterparts, whereas the parameters of the corresponding Arrhenius–Kooij fittings (see eq 6) are collected in Table 11. The root-mean-square deviations reported in Table 11 demonstrate that the data are indeed well fitted by the Arrhenius–Kooij expression with a negative activation energy (E) at 0 K. The results issuing from jChS and CBS-CVH computations are virtually indistinguishable, whereas significantly larger rates are obtained at the CBS-QB3 level.

Figure 7.

Temperature-dependence plots of the H₂S + Cl reaction rate constants calculated at various levels of theory for a pressure of 1 atm.

Table 11. Arrhenius–Kooij Parameters for the H₂S + Cl Reaction.

	jChS	CBS-CVH	CBS-QB3
A (cm3 molecule–1 s–1)	9.12 × 10–11	9.11 × 10–11	2.63 × 10–10
n	7.65 × 10–2	7.67 × 10–2	1.60 × 10–1
E (kcal mol–1)	–3.42 × 10–1	–3.42 × 10–1	–9.94 × 10–2
rms	2.51 × 10–12	2.51 × 10–12	2.87 × 10–12

The last example is the quite complex reactive potential energy surface ruling the addition of CN to CH₃NH₂ shown in Figure 8 together with the jChS energies of all of the stationary points. The experimental reaction rate at different temperatures¹¹⁷ has been recently well reproduced employing CBS-CVH electronic structure computations within a master equation treatment similar to that employed in the present paper.¹¹⁸ This system represents, therefore, a challenging test for the jChS model.

Figure 8.

CH₃NH₂ + CN reaction mechanism. The pathway for the attack of CN to the N moiety of methylamine is marked in red and for the abstraction of H from the methyl group by CN in blue. Electronic energies are computed at the jChS level.

The attack of CN on the nitrogen side of methylamine proceeds via a potential well associated with a prereactive complex, NC···NH₂CH₃ (IC), which evolves in an inner (submerged) transition state (TS3) that, passing through an NCH···NHCH₃ intermediate (FC02), forms the HCN + NHCH₃ products (P3). Alternative channels, and in particular that leading to NH₂CN + CH₃, are ruled by nonsubmerged transition states and are, therefore, closed under the ISM conditions. The attack on the methyl side forms directly the FC01 complex, which, in turn, leads to HCN + NH₂CH₂ (P1) without any potential energy barrier. In this case, the alternative two-step mechanism (TS0-RI-TS2-P2) leading to aminoacetonitrile + H is open since it involves only submerged transition states, but it is less favorable.

Comparison with the CBS-CVH results of ref (118) shows MAE of 0.26 kcal mol^–1 and a maximum deviation of −0.55 kcal mol^–1 for the relative energies of all of the stationary points. The errors of the CBS-QB3²² model are again larger than 1 kcal mol^–1, in agreement with the estimates of previous studies.¹¹⁹ The reaction rates issuing from jChS computations are compared in Figure 9 with the CBS-QB3 and CBS-CVH counterparts, whereas the parameters of the corresponding Arrhenius–Kooij fits (see eq 6) are collected in Table 12. It is to be noted that pressure does not influence the reaction rate, as the reactants always proceed to form the products without experiencing significant collisional stabilization in the investigated pressure range (0.001–1 bar).

Figure 9.

Temperature-dependence plots of the CH₃NH₂ + CN reaction rate constants calculated at various levels of theory for a pressure of 10^–8 atm.

Table 12. Arrhenius–Kooij Parameters for the CH₃NH₂ + CN Reaction.

	jChS			CBS-CVH			CBS-QB3
	P1	P2	P3	P1	P2	P3	P1	P2	P3
A (cm3 molecule–1 s–1)	4.51 × 10–10	8.95 × 10–12	4.28 × 10–10	4.52 × 10–10	8.38 × 10–12	4.38 × 10–10	5.22 × 10–10	1.86 × 10–12	3.54 × 10–10
n	1.50 × 10–1	8.70 × 10–1	–2.43 × 10–1	1.51 × 10–1	8.84 × 10–1	–2.09 × 10–1	1.63 × 10–1	9.78 × 10–1	–4.45 × 10–1
E (kcal mol–1)	2.10 × 10–3	–8.31 × 10–2	4.99 × 10–2	2.02 × 10–3	–8.48 × 10–2	4.63 × 10–2	5.28 × 10–4	–9.72 × 10–2	6.71 × 10–2
rms	9.70 × 10–13	4.54 × 10–13	1.75 × 10–11	9.40 × 10–13	4.33 × 10–13	1.69 × 10–11	3.31 × 10–13	1.11 × 10–13	1.73 × 10–11

A curved Arrhenius plot is obtained when the activation energy depends on the temperature, and this behavior is captured by the Arrhenius–Kooij equation when this dependence is linear. The root-mean-square deviations reported in Table 12 demonstrate that the data for the different products are indeed well fitted by the Arrhenius–Kooij expression. Within this model, E represents the activation energy at 0 K, and the activation energy at a generic temperature T is given by . In the present case, the activation energy is positive for P1 and P3 as a result of both the capture rate constant and the subsequent energy barriers for the unimolecular steps. The value is instead negative for P2, but in this case, the Arrhenius plot is essentially linear. The n parameter (the first derivative of the activation energy with respect to temperature) is positive for the P1 and P2 products, thus reflecting an increase of the activation energy with temperature, while the opposite behavior (n negative) is obtained for P3. Finally, the value of the pre-exponential factor A is typical for this kind of reaction and rules the branching ratio between the different channels.

Conclusions

Astrochemistry and atmospheric chemistry require accurate kinetic data for processes occurring at low to moderate temperatures and involving barrier heights spanning a large range of values. Furthermore, the chemical species involved in these processes can contain more than 10 non-hydrogen atoms and noncovalent interactions may often rule the entrance channels. We have, therefore, developed and validated a new general model rooted in the master equation formalism employing the ab initio transition-state theory for computing the reaction rates of elementary processes. To this end, we have slightly modified and validated the recently proposed jChS model chemistry with reference to very accurate energetic and kinetic data. The results obtained for a large panel of systems and reaction channels show an average error within 0.3 kcal mol^–1 without the need for any empirical parameter, which allows the evaluation of accurate branching ratios and leads to errors within 20% for reaction rates.

The computational bottleneck of the proposed model chemistry is the CCSD(T)/jun-cc-pVTZ step and, in this connection, recent localized treatments of correlation (e.g., using local pair natural orbitals^120,121) will be investigated to further increase the dimension of molecular systems amenable to accurate computations with reasonable computer requirements. Furthermore, the performances of the jChS model for other classes of reactions of particular interest for astrochemistry and/or atmospheric chemistry (e.g., those involving ozone and Criegee intermediate) need be investigated in deeper detail. In the same vein, further refinements and validations are surely needed for specific situations (e.g., non-negligible static correlation effects or intersystem crossing). However, even taking these caveats into account, we think that the results reported in the present paper pave the route for the accurate study of chemical processes under widely different temperature and pressure conditions.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acs.jctc.1c00406.

• Extended table of results for the HTBH38/08 data set, Cartesian coordinates of all of the stationary points optimized in this work, and MESS input files (PDF)

The authors declare no competing financial interest.
