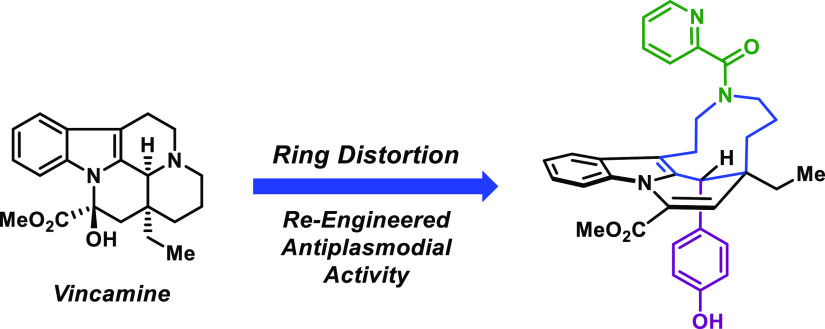

Ring Distortion of Vincamine Leads to the Identification of Re-Engineered Antiplasmodial Agents

Abstract

There is a significant need for new agents to combat malaria, which resulted in ∼409,000 deaths globally in 2019. We utilized a ring distortion strategy to create complex and diverse compounds from vincamine with the goal of discovering molecules with re-engineered biological activities. We found compound 8 (V3b) to target chloroquine-resistant Plasmodium falciparum Dd2 parasites (EC₅₀ = 1.81 ± 0.09 μM against Dd2 parasites; EC₅₀ > 40 μM against HepG2 cells) and established structure–activity relationships for 25 related analogues. New analogue 30 (V3ss, Dd2, EC₅₀ = 0.25 ± 0.004 μM; HepG2, EC₅₀ > 25 μM) was found to demonstrate the most potent activity, which prevents exit on the parasite from the schizont stage of intraerythrocytic development and requires >24 h to kill P. falciparum Dd2 cells. These findings demonstrate the potential that vincamine ring distortion has toward the discovery of novel antimalarial agents and other therapies significant to human health.

Introduction

Malaria is a global health problem caused by several Plasmodium parasites, with Plasmodium falciparum being the most deadly to humans.¹⁻³ The World Health Organization (WHO) estimated 229 million new cases and 409,000 deaths due to malaria in 2019.⁴ Clinical agents used to treat malaria have been developed from drugs initially discovered more than 30 years ago and primarily belong to the artemisinin, aminoquinoline, or antifolate class.⁵ Unfortunately, P. falciparum has developed resistance to each of these major drug classes,⁶ and artemisinin-based combination therapies (ACTs) are becoming ineffective in several regions where malaria has reached epidemic proportions.^7,8 As such, there is a critical need for novel antimalarial agents that operate through unique modes of action to combat the widespread resistance to our current arsenal of drugs.^3,9−11

Natural products have played a critical role in medicine due to their ability to bind and modulate cellular targets involved in disease.¹²⁻¹⁵ Drug-target interactions that enable natural products to be effective therapies are dictated by structural features often involving complex molecular architectures that orient functional groups in space (e.g., morphine,¹⁶ vancomycin,¹⁷ ecteinascidin 743,¹⁸ and tetracycline¹⁹). There are many instances of synthetic analogues enhancing the inherent therapeutic benefit of a natural product; however, we are interested in re-engineering the biological activity of select natural products to explore novel molecular scaffolds in multiple disease areas. To do this, our group has established a ring distortion platform using indole alkaloids as starting points in synthesis pathways aimed to dramatically alter their inherently complex, fused ring systems to generate diverse molecular architectures that could bind alternative disease-relevant targets.^11,20−24

Ring distortion of natural product efforts are distinct from other synthesis-driven discovery approaches, including diversity-oriented synthesis (DOS)²⁵⁻²⁷ and biology-oriented synthesis (BIOS),^28,29 which rely on complexity-generating reactions of simple starting materials to rapidly access compounds inspired by natural products. Each of these approaches (ring distortion of natural products, DOS, and BIOS) aim to generate diverse compound libraries to identify new small-molecule probes and/or hits for drug discovery,³⁰⁻³² and DOS efforts have resulted in the identification of promising antiplasmodial agents.³³⁻³⁵

Tactically, ring distortion efforts prioritize synthetic sequences involving ring cleavage, ring expansion, ring fusion, and ring rearrangement reactions applied to available complex natural products.³⁶⁻³⁹ Our group has reported ring distortion efforts on yohimbine²⁰ and vincamine,²³ while others have successfully employed this approach on abietic acid,⁴⁰ adrenosterone,³⁶ gibberellic acid,³⁶ lycorine,⁴¹ pleuromutilin,^39,42 quinine,³⁶ sinomenine,⁴³ and other steroidal systems.³⁸ Re-engineered biological activities from ring distortion efforts include (1) ferroptocide,³⁹ an anticancer agent produced from the antibiotic pleuromutulin, (2) V2a,²³ a compound that inhibits morphine-seeking behaviors in mice from vincamine, and (3) Y7j,¹¹ an antiplasmodial agent produced from yohimbine. In addition, we have shown that diverse compounds synthesized from vincamine and yohimbine display an array of unique antagonistic activity profiles against GPCRs of disease relevance, including cancer and addiction (168 GPCR panel at DiscoverX).^23,24

Vincamine is a complex indole alkaloid commercially available on deca-gram scale (cost ∼$36 per gram) and utilized as a prescription medication (Oxybral SR) to improve cerebral blood flow and cognition. Vincamine demonstrates no activities against P. falciparum, which was shown during these studies (EC₅₀ > 50 μM against chloroquine-resistant P. falciparum Dd2 parasites). Here, we performed a phenotypic screen to identify new antiplasmodial agents (EC₅₀ < 1 μM against Dd2 cells) from our vincamine ring distortion library. In addition, we investigated structurally related analogues from our vincamine library and performed iterative rounds of chemical synthesis and in vitro testing to identify significantly more potent analogues with re-engineered antiplasmodial activities. We further evaluated the most potent analogue from this work, compound 30 (V3ss), to determine its developmental stage-specific action and kinetic kill rates against P. falciparum.

Results and Discussion

Phenotypic Screen to Identify New Antiplasmodial Agents

We screened 80 diverse, vincamine-derived compounds synthesized using our ring distortion platform for antiplasmodial activity using chloroquine-resistant P. falciparum parasites (strain Dd2) in an unbiased cell-based SYBR Green I assay.⁴⁴⁻⁴⁶ In this phenotypic screen, all compounds were evaluated at 2 μM (96-well format) and positive hits were determined at ≥40% inhibition of parasite growth. Results from the initial screen against Dd2 parasites indicated analogues 7 (V4g) and 8 (V3b) to be among the most active compounds (Figure 1). Follow-up dose–response experiments showed that these compounds had encouraging potencies with EC₅₀ values of 8.85 ± 0.67 μM for 7 and 1.81 ± 0.09 μM for 8 against Dd2 cells [dose–response experiments were performed from freshly made dimethyl sulfoxide (DMSO) stock solutions of test compounds].

Figure 1.

Complex and diverse scaffolds rapidly synthesized from vincamine. In this study, analogues 8 (V3b) and 7 (V4g) were identified as hit compounds demonstrating antiplasmodial activities against Dd2 parasites (note: vincamine does not have antiplasmodial activity).

With analogue 8 (V3b) demonstrating encouraging potency against Dd2 parasites, we evaluated this compound against HepG2 (liver hepatocellular carcinoma) cells and found this agent to demonstrate no cytotoxicity (EC₅₀ > 40 μM, highest test concentration). Based on the Dd2 parasite activity and HepG2 cytotoxicity profiles for 8, the selectivity index (SI) for this initial hit is >22 (EC₅₀ HepG2/EC₅₀ Dd2) and we were very encouraged by this discovery. At this stage, we tested parent vincamine 1 at higher concentrations in dose–response experiments and found it to be inactive against Dd2 parasites (EC₅₀ > 50 μM, highest test concentration). These results clearly demonstrate the antiplasmodial activity of 8 (EC₅₀ = 1.81 ± 0.09 against Dd2, no cytotoxicity against HepG2) as “re-engineered” when compared to parent vincamine 1 (EC₅₀ > 50 μM against Dd2).

Following the identification of analogue 8 (V3b), several structurally related V3 analogues present in the initial vincamine ring distortion library (9/V3c, 10/V3e, 11/V3f, 12/V3i, 13/V3j, 14/V3k, and 15/V3t) were evaluated in dose–response experiments against Dd2 parasites to obtain initial structure–activity relationship (SAR) insights (Figure 2A). Structural diversity among the V3 analogues included (1) variation at R₁ of 8, 9, 10, and 11 or R₃ of 12, 13, 14, and 15 bearing aryl or ether moieties or (2) functionalization of the six-membered ring fused to the indole nitrogen (carbon–carbon double bond in analogues 8–11; α/β hydroxyl group in 12–14; and complete reduction to the corresponding hydrocarbon in 15). Despite the structural variation, each of these V3 analogues displayed reduced activity against Dd2 (EC₅₀ = 2.65–13.2 μM; Table 1) when compared to 8.

Figure 2.

(A) Antiplasmodial activities of V3 analogues from initial investigations with chloroquine-resistant P. falciparum parasites. (B) Future analogues were informed by initial antiplasmodial findings coupled to structural modifications of 8 (V3b) that could be probed with iterative rounds of synthesis and in vitro testing.

Table 1. Summary of Antiplasmodial Activities for V and V3/V4 Analogues^a.

cpd	code	EC50 Dd2 (μM)	EC50 3D7 (μM)	EC50 HepG2 (μM)	selectivity index (SI)	stage-specific activity	kill rate
1	V	>50	>50	-	-	-	-
7	V4g	8.85 ± 0.67	-	-	-	-	-
8	V3b	1.81 ± 0.09	-	>40	>22	-	-
9	V3c	4.94 ± 0.26	-	-	-	-	-
10	V3e	3.77 ± 0.23	-	-	-	-	-
11	V3f	13.2 ± 0.67	-	-	-	-	-
12	V3i	2.65 ± 0.32	-	-	-	-	-
13	V3j	12.2 ± 0.23	-	-	-	-	-
14	V3k	6.68 ± 0.28	-	-	-	-	-
15	V3t	3.10 ± 0.29	-	-	-	-	-
18	V3hh	10.8 ± 2.93	-	-	-	-	-
19	V3gg	6.11 ± 1.56	-	-	-	-	-
20	V3ii	>20	12.0 ± 3.4	-	-	-	-
21	V3jj	0.63 ± 0.12	1.33 ± 0.18	-	-	-	-
22	V3kk	4.10 ± 0.55	-	-	-	-	-
23	V3ll	2.53 ± 0.34	-	-	-	-	-
24	V3mm	1.54 ± 0.004	-	-	-	-	-
25	V3nn	0.55 ± 0.07	2.25 ± 0.40	>25	>45	-	-
26	V3oo	2.48 ± 0.33	1.80 ± 0.36	>25	>10	-	-
27	V3pp	0.73 ± 0.11	1.99 ± 0.30	>25	>34	-	-
28	V3qq	2.14 ± 0.36	0.97 ± 0.03	>25	>11	-	-
29	V3rr	2.98 ± 0.40	3.18 ± 0.07	-	-	-	-
30	V3ss	0.25 ± 0.004	1.19 ± 0.25	>25	>100	late schizont	>24 h
31	V3tt	5.90 ± 0.26	-	-	-	-	-
32	V3uu	0.49 ± 0.10	2.22 ± 0.34	>25	>51	-	-
33	V3vv	0.65 ± 0.009	1.70 ± 0.32	>25	>38	-	-
34	V3ww	2.95 ± 1.14	6.60 ± 1.06	-	-	-	-

^aThe symbol “-” is for compounds not tested in a particular assay/experiment. The selectivity index (SI) was generated based on the relative activity between Dd2 and HepG2 cells [HepG2 EC₅₀/EC₅₀ Dd2 cells]. All values reported in this table are the result of three, or more, independent experiments. Chloroquine was used as a comparator in dose–response experiments (Dd2, EC₅₀ = 0.19 ± 0.01 μM; 3D7, EC₅₀ = 0.017 ± 0.001).

The initial SAR showed that several modifications on the V3 scaffold could be tolerated and guided our next-step plan of attack regarding analogue synthesis. We turned our focus to potential modifications of the enamine functional group present in all initial V3 analogues (Figure 2B). We settled on using 8 (V3b) as a starting point for subsequent analogue synthesis and were curious to know (1) the requirements of the enamine group for antiplasmodial activity and (2) if we could readily transform the enamine to the corresponding amine and amide analogues to enhance the activity of V3 analogues.

Chemical Synthesis of Vincamine-Derived Antiplasmodial Agents with SAR

Our initial efforts focused on scaling up the synthesis of 8 (V3b) as this antiplasmodial agent was the starting point for diversification. Using our previous chemistry,²³ we refluxed vincamine with p-toluenesulfonic acid in toluene to dehydrate 1 and form the corresponding α,β-unsaturated ester 16 (V3ff; 95% yield, 4.5 g; Figure 3A). Subsequent reaction of 16 with methyl propiolate in the presence of excess phenol resulted in indole-promoted C–N ring cleavage which afforded three products, including 8 (47% yield, 2.5 g isolated), 9 (5%), and 17 (12%). The three products from this reaction were readily separated via column chromatography and provided sufficient amounts of 8 for downstream chemistry and biological assessment.

Figure 3.

(A) Scale-up efforts to key ring-cleaved building block 8 (V3b). (B) Chemical synthesis of V3 analogues for initial optimization and to establish an SAR profile. (C) Chemical synthesis of 7 (V4g).

Our ventures into understanding more about the SAR of 8 (V3b) involved two single-point transformations, including (1) acid-mediated hydrolysis of the enamine to amine 18 (V3hh, 77% yield) and (2) acylation of its phenolic hydroxyl to ester 19 (V3gg, 84% yield; Figure 3B) using acetic anhydride. Each transformation was insightful as amine analogue 18 showed a 6.0-fold loss in antiplasmodial activity (EC₅₀ = 10.8 μM against Dd2 parasites; Figure 4 and Table 1), while acylated agent 19 reported a 3.4-fold loss in activity (EC₅₀ = 6.11 μM) when compared to 8.

Figure 4.

Detailed SAR profiles regarding the V3 antiplasmodial agents.

Based on SAR findings with 18 and 19 (Figure 4), we were curious to evaluate V3 analogues that replace the enamine moiety with amides and utilized 18 as the key synthetic intermediate for diversification. Collectively, we employed four amidation protocols using amine 18 and readily available acyl chlorides or carboxylic acids to generate 15 new amide analogues in 28–95% yield (Figure 3B). During this phase of our investigations, we carried out iterative rounds of synthesis (three to five new amide analogues) and in vitro testing against P. falciparum that served to inform the next round of analogue synthesis. Encouragingly, we found several amide analogues to demonstrate more potent antiplasmodial activities than 8.

Our initial amidation efforts led to analogues 20 (V3ii)–24 (V3mm) in 28–51% yield (Figure 3B). In vitro testing of these compounds against Dd2 parasites revealed that 21 (V3jj), an amide analogue bearing a pyridine heterocycle, has the most potent activity in this subseries (EC₅₀ = 0.63 μM, Table 1) against P. falciparum. This insight guided the remainder of our synthesis, which prioritized heterocyclic amide analogues (pyridine, furan, pyrrole, isoxazole, and pyrimidine) for biological testing. Thus, 25 (V3nn)–34 (V3ww) were synthesized in 30–95% yield; however, there were some cases of over acylation of the phenol group, which was remedied by a one-pot, two-step ester saponification with potassium carbonate in methanol.

Collectively, six amide analogues reported good antiplasmodial activities against Dd2 parasites with EC₅₀ values ≤0.8 μM (Table 1), including 30 (V3ss, EC₅₀ = 0.25 ± 0.004 μM), 32 (V3uu, EC₅₀ = 0.49 ± 0.10 μM), 25 (V3nn, EC₅₀ = 0.55 ± 0.07 μM), 21 (V3jj, EC₅₀ = 0.63 ± 0.12 μM), 33 (V3vv, EC₅₀ = 0.65 ± 0.009 μM), and 27 (V3pp, EC₅₀ = 0.73 ± 0.11 μM). Several amide analogues were advanced to cytotoxicity testing against HepG2 cells and were found to have minimal activities at the highest test concentration of 25 μM (EC₅₀ > 25 μM, Table 1). SIs were then generated based on HepG2 cytotoxicity (EC₅₀)/Dd2 parasite activity (EC₅₀), which demonstrated 30 (SI > 100), 32 (SI > 51), and 25 (SI > 45) to have ideal plasmodial targeting. In addition, several new amide analogues were evaluated against wild-type P. falciparum 3D7 cells, and we found this strain to display lower levels of sensitivity to most amide analogues (e.g., 30/V3ss, EC₅₀ = 1.19 ± 0.25 μM against 3D7 cells; Table 1), which was unexpected and we are actively looking further to understand the reason.

We present a focused SAR from initial hit 8 (V3b) to key analogues that led to our most potent agent 30 (Figure 4). Several amide analogues significantly improved antiplasmodial activities when compared to amine 18. Several pyridinyl amide analogues (21/V3jj, 25/V3nn, 30/V3ss, and 31/V3tt) gave insights into nitrogen placement relative to the amide moiety to find that the nitrogen ortho (30) and meta (21 and 25) were significantly more active than when the nitrogen atom was placed para (31). Analogue 34 (V3ww) has a phenyl amide and demonstrates that the removal of the nitrogen atom from the aromatic moiety also reduces activity compared to the pyridinyl analogues with a nitrogen atom in the ortho- and meta-positions. Upon further analysis, cyclohexyl amide 23 and 34 had improved potencies against Dd2 parasites compared to pyridine analogue 31 bearing the nitrogen para to the amide group, demonstrating that a nitrogen in this position significantly reduces activity in this analogue series.

In addition to analogue 30 (V3ss) demonstrating good antiplasmodial activities against resistant P. falciparum parasites, we determined some solubility and chemical stability properties. For solubility, we found 30 to readily dissolve in DMSO to make a 100 mM solution (highest concentration tested). Additionally, phosphate-buffered saline (PBS) was slowly titrated into a 10 mM DMSO stock of 30 to make a final 100 μM aqueous solution which was completely soluble at room temperature by visual inspection (500 μL aliquot). To determine chemical stability, we prepared solutions of 30 in PBS buffer at pH 2.0 and 7.4 (physiologically relevant) and allowed this agent to incubate for 24 h at room temperature and then for an additional 24 h at 37 °C. After each 24 h time point, stability was determined by TLC analysis to show no compound breakdown (see Supporting Information), which was also confirmed by NMR analysis. For additional insights regarding chemical stability, all NMR experiments of 30 (and related analogues) were conducted at 100 °C for multiple hours without showing compound breakdown. Overall, we found the solubility properties and chemical stability of analogue 30 to be quite good.

In addition to V3 amide analogues, we found 7 (V4g) to display antiplasmodial activity against Dd2 parasites. Compound 7 (V4g) was synthesized from vincamine using a three-step sequence that involved (1) a microwave-mediated, regioselective von Braun ring cleavage of 1 using cyanogen bromide to give 35 (determined by HMBC and extensive NOEs, 50% yield; Figure 3C and Supporting Information), (2) sodium azide displacement of the primary bromide in 35 that readily gave azide 36 under microwave heating in N,N-dimethylformamide (DMF) and was accompanied by an unexpected inversion of the hydroxyl group as determined by NOE (60% yield), and (3) a final click reaction of 36 with 1-chloro-3-ethynylbenzene that gave 7 (V4g) in 91% yield. Analogues of 7 were not pursued further, so we could focus our efforts on the more potent V3 amide derivatives; however, 7 (V4g) could be a starting point for future endeavors regarding vincamine-derived antiplasmodial agents.

Developmental Stage-Specific Action for Analogue 30 (V3ss)

Elucidation of the developmental stage in the intraerythrocytic life cycle at which antiplasmodial agents act can provide critical insights into potential modes of action and clinical clearance of the parasite. To further probe the antiplasmodial activity of 30 (V3ss), we evaluated its developmental stage-specific action using microscopy and flow cytometry (Figure 5).^47,48 The delineated timing of action was determined using tightly synchronized P. falciparum Dd2 cells treated with 30 (1.25 μM; 5X EC₅₀ concentration) at 6, 18, 30, and 42 h postinvasion (HPI) of erythrocytes by merozoites. Following this, microscopic evaluation of Giemsa-stained smears and flow cytometric assessments were conducted at 12 h intervals.

Figure 5.

Stage-specific activity of 30 (V3ss) in P. falciparum Dd2 cells. Tightly synchronized Dd2 cultures were treated with 5 x EC₅₀ of 30 at 6, 18, 30, and 42 HPI. Blood smears and Giemsa staining were taken at each time point as well to verify the phenotype. Flow cytometry was performed to quantify the stage of action for V3ss at the time of harvesting, following 6, 18, 30, and 42 HPI treatments. For flow cytometry analysis, collected samples were fixed in a freshly prepared solution of 4% paraformaldehyde and 0.0075% glutaraldehyde, permeabilized with 0.25% Triton X-100, treated with RNase (50 μg/mL), and stained with YOYO-1. Data acquisition was performed in a CytoFLEX (Beckman) flow cytometer. DHA and atovaquone were evaluated as positive controls in stage-specific activity assays, and results from these experiments can be viewed in Supporting Information. Parasites following exposure to 30 (V3ss) are arrested at the late schizont stage.

Infected red blood cells treated with 0.1% DMSO served as negative controls in these experiments and this culture matured as expected through the trophozoite/schizont (30 HPI) and segmenter (42 HPI) stages and reappears as rings after reinvasion (54 HPI) with a concurrent increase in parasitemia (determined by flow cytometry, Figure 5). P. falciparum Dd2 cells treated with 30 (V3ss) at 6, 18, and 30 HPI progress into nuclear division and, however, do not advance beyond the late schizont stage (Figure 5). In addition, Dd2 cells treated with 30 at 6, 18, and 30 HPI showed a remarkable decrease in parasitemia (flow cytometry). Parasites treated at 42 HPI did not inhibit maturation through the remainder of the development cycle (Figure 5). Collectively, based on microscopy and flow cytometry findings, we conclude that the antiplasmodial action of 30 occurs specifically on the exit from the schizont stage.⁴⁹

Killing Kinetics for Analogue 30 (V3ss)

A series of kinetic kill experiments were performed in Dd2 cultures to determine if 30 (V3ss) elicits its antiplasmodial activities through a parasitocidal or parasitostatic mechanism (Figure 6). To conduct this, we treated asynchronous parasite cultures with 30 (5× EC₅₀ concentration) for 6, 12, 24, and 48 h. Following each of these time points, the compound was washed out and parasite growth of the Dd2 cultures was evaluated for 96 h. Results from these kinetic kill experiments show that 30 reduces parasitemia after 24 h treatment (based on the 96 h time point, Figure 6C); however, there is a more dramatic parasitocidal effect after 48 h treatment with this compound (Figure 6D). From these experiments, we conclude that 30 is a (slow-killing) parasitostatic agent that displays a kinetic kill profile similar to atovaquone, a clinically used antiplasmodial agent (comparator with parasitostatic activity; Figure 6).

Figure 6.

Kinetic kill experiments used to determine parasitocidal/parasitostatic activity of 30/V3ss in P. falciparum Dd2 cultures. Asynchronous cultures were treated with 30 at 5 × EC₅₀ for (A) 6, (B) 12, (C) 24, and (D) 48 h. Following each treatment, cultures were washed three times in RPMI, then resuspended in culture media, and monitored daily for parasite growth. Note: Dihydroartemisinin (DHA) was used as a positive control for rapid parasite killing (5 × EC₅₀ = 50 nM) and atovaquone was used as a positive control for slow parasite killing (5 × EC₅₀ = 6.6 nM) in these experiments. DMSO concentration was 0.15% in kinetic kill experiments.

Conclusions

In conclusion, our vincamine ring distortion efforts to produce a unique and diverse library of complex small molecules have resulted in new antiplasmodial agents. As vincamine has no antiplasmodial activities (EC₅₀ > 50 μM against Dd2 parasites), ring-distorted agents such as 30/V3ss (EC₅₀ = 0.25 ± 0.004 μM against Dd2) display re-engineered biological activities against deadly parasites, which is an ultimate goal of this program. We detail SAR profiles of V3 agents from 25 structurally related analogues, including 17 new ring-cleaved compounds synthesized during these efforts. This new series of compounds displayed good plasmodial targeting with six analogues reporting an EC₅₀ ≤ 0.8 μM against Dd2 parasites while demonstrating minimal cytotoxicity against HepG2 cells (EC₅₀ > 25 μM; SI > 100 for V3ss). Analogue 30/V3ss was also shown to act specifically on the trophozoite/schizont stage and required >24 h treatment to eradicate P. falciparum Dd2 parasites in kill kinetic experiments. Future studies aim to determine the mode of action regarding V3 analogues and advance these agents to additional hit-to-lead optimization efforts to improve potency and mitigate any metabolic liabilities (i.e., phenol moiety). Our vincamine ring distortion platform has led to the discovery of new re-engineered antiplasmodial agents, and we aim to further develop these agents to combat malaria.

Experimental Section

All reactions were carried out under an atmosphere of argon unless otherwise specified. Chemical reagents were purchased from commercial sources and used without further purification. Vincamine was purchased from AK Scientific at >98% purity (∼$36 per gram during these studies). Anhydrous solvents were transferred via a syringe to flame-dried glassware, which was cooled under a stream of dry argon. Analytical thin-layer chromatography (TLC) was performed using 250 μm silica gel 60 F254 precoated plates (EMD Chemicals Inc). Flash column chromatography was performed using 230–400 Mesh 60 Å silica gel (Sorbent Technologies).

NMR experiments were recorded on the following instruments: Varian Unity spectrometer (400 MHz for ¹H NMR; 101 MHz for ¹³C NMR), Bruker Avance III spectrometer (500 MHz for ¹H NMR; 126 MHz for ¹³C NMR), Bruker AVANCE II spectrometer (600 MHz for ¹H NMR; 151 MHz for ¹³C NMR), and Agilent Systems VNMRS spectrometer (600 MHz for ¹H NMR; 151 MHz for ¹³C NMR). All spectra are presented using MestReNova 11.0 (Mnova) software and are displayed without the use of the signal suppression function. Spectra were obtained in the following solvents (reference peaks also included for ¹H and ¹³C NMRs): CDCl₃ (¹H NMR: 7.26 ppm; ¹³C NMR: 77.23 ppm) and C₂D₂Cl₄ (¹H NMR: 6.00 ppm; ¹³C NMR: 73.78 ppm). NMR samples where the respective solvent peaks were buried in the sample signals referenced TMS at 0.00 ppm for ¹H NMR experiments. Chemical shift values (δ) are reported in parts per million (ppm) for all ¹H NMR and ¹³C NMR spectra. ¹H NMR multiplicities are abbreviated and reported as follows: s = singlet, d = doublet, t = triplet, q = quartet, p = pentet, m = multiplet, and br = broad. Temperatures of NMR experiments are indicated with tabulated data, and several compounds required elevated temperatures to obtain publishable spectra.

NMR Dynamics of V3 Series: NMR spectra were recorded at 100 °C for amide analogues 20 (V3ii)–34 (V3ww). Based on variable temperature NMR experiments with 21/V3jj (Supporting Information Figure 2) and other select analogues, we believe that V3 series amide analogues are slowly interconverting conformers (as observed at room temperature). Many sharp signals for V3 amide analogues can be observed at 100 °C. However, some ¹H and ¹³C nuclei remain very broad or not visible in our spectra (including 2-D NMR experiments, which are included in Supporting Information). Similar phenomena in medium-sized ring systems have been reported in the literature.⁵⁰⁻⁵²

Melting points were obtained on a Mel-Temp II capillary melting point apparatus and were uncorrected. High-resolution mass spectra (HRMS) were obtained from the Mass Spectrometry Facility in the Chemistry Department at the University of Florida. Optical rotations were acquired on a Perkin Elmer Polarimeter 341, and concentrations were adjusted and reported as g/100 mL. Compound structures were converted into IUPAC names using MarvinSketch (ChemAxon; Cambridge, MA).

The purities of all compounds evaluated in biological assays were confirmed to be ≥95% by LC–MS using a Shimadzu Prominence HPLC system, an AB Sciex 3200 QTRAP spectrometer, and a Kinetex EVO C18 column (50 mm × 2.1 mm × 2.6 μm) with a 30-min linear gradient from 10–95% acetonitrile in water at a flow rate of 0.20 mL/min. All biological experiments, including antiplasmodial screening with Dd2 parasites, dose–response assays with Dd2 and 3D7 strains, stage-specific activity assays, kill kinetics, and HepG2 (liver) cytotoxicity assays, were performed using protocols previously reported by the Chakrabarti lab.⁴⁸

Chemical Synthesis Procedures and Characterization of New Compounds

Synthesis of 7 (V4g)

Anhydrous copper sulfate (3.0 mg, 0.017 mmol) and sodium ascorbate (16.4 mg, 0.053 mmol) were added to a vial and dissolved in a solution of 0.9 mL of tert-butanol/water (1:2). The resulting mixture was then added to a round-bottom flask containing compound 36 (V4i; 24.1 mg, 0.06 mmol). Following this, 3-chloro-1-ethynylbenzene (9.70 μL, 0.11 mmol) was added dropwise to the reaction mixture as a 0.3 M solution in dichloromethane. The reaction mixture was vigorously stirred at room temperature for 1.5 h, and upon completion, the biphasic mixture was quenched with brine. The crude mixture was then extracted with dichloromethane, and the organic layer was subsequently collected, dried with sodium sulfate, filtered, and concentrated in vacuo. Finally, the crude product was purified via column chromatography using a gradient of 83:17 hexanes/ethyl acetate to 100% ethyl acetate to afford 7 (V4g) as a white solid (18.2 mg, 91%). ¹H NMR (400 MHz, CDCl₃): δ 7.64 (m, 1H), 7.54–7.47 (m, 2H), 7.35 (s, 1H), 7.29–7.12 (m, 5H), 4.94 (ddd, J = 13.5, 6.1, 4.1 Hz, 1H), 4.72 (s, 1H), 4.68 (m, 1H), 3.81 (s, 3H), 3.78 (d, J = 1.1 Hz, 1H), 3.63–3.50 (m, 2H), 3.44 (m, 1H), 3.20 (td, J = 12.7, 3.3 Hz, 1H), 2.85 (d, J = 14.3 Hz, 1H), 1.86–1.73 (m, 3H), 1.69–1.57 (m, 2H), 1.36–1.19 (m, 2H), 0.68–0.57 (m, 3H). ¹³C NMR (101 MHz, CDCl₃): δ 174.4, 146.4, 135.2, 135.0, 132.7, 130.2, 128.6, 128.2, 128.1, 126.1, 124.1, 124.0, 121.6, 121.3, 119.3, 116.6, 113.5, 111.6, 82.4, 57.9, 54.6, 51.0, 50.5, 35.2, 35.0, 33.0, 30.3, 26.2, 20.4, 7.1. HRMS (ESI): calcd for C₃₀H₃₁ClN₆O₃Na [M + Na]⁺, 581.2038; found, 581.2030. mp 101–103 °C. [α]₂₀^D −6° (c 0.90 g/100 mL, CH₂Cl₂).

Synthesis of 18 (V3hh), Methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate

Compound 8 (1.51 g, 2.94 mmol) was added to a stirring solution of 1 M hydrogen chloride solution in methanol (10 mL). The reaction mixture was then slowly warmed to 50 °C and allowed to stir for 26 h. Upon completion, the reaction was quenched with brine and extracted with ethyl acetate. The organic layer was collected, dried with sodium sulfate, filtered, and concentrated in vacuo. The crude material was then purified via column chromatography using a gradient of 99:1 chloroform/triethylamine to 96:3:1 chloroform/methanol/triethylamine to afford amine 18 (852 mg, 66%) as white foam. ¹H NMR (600 MHz, CDCl₃): δ 7.47 (d, J = 7.7 Hz, 1H), 7.26 (d, J = 8.2 Hz, 1H), 7.20 (ddd, J = 8.4, 6.8, 1.2 Hz, 1H), 7.14 (dd, J = 8.5, 7.6 Hz, 1H), 6.95 (d, J = 8.6 Hz, 2H), 6.58 (d, J = 8.6 Hz, 2H), 6.21 (d, J = 1.2 Hz, 1H), 4.47 (s, 1H), 4.00 (s, 3H), 3.11 (ddd, J = 12.6, 12.2, 4.4 Hz, 1H), 3.07–2.92 (m, 3H), 2.85 (m, 1H), 2.73 (m, 1H), 1.75 (dd, J = 15.1, 13.6 Hz, 1H), 1.63 (sextet, J = 7.3 Hz, 1H), 1.55 (m, 1H), 1.46 (ddd, J = 15.7, 7.2, 2.0 Hz, 1H), 1.26 (m, 1H), 0.89 (t, J = 7.4 Hz, 3H), 0.64 (dd, J = 15.0, 13.7 Hz, 1H). ¹³C NMR (151 MHz, CDCl₃): δ 164.5, 155.9, 138.0, 135.6, 130.7, 130.5, 130.0, 128.9, 128.6, 122.9, 121.2, 119.0, 115.4, 112.3, 110.2, 52.9, 46.0, 45.0, 44.7, 44.4, 26.5, 25.8, 22.5, 21.5, 8.2. HRMS (ESI): calcd for C₂₇H₃₁N₂O₃ [M + H]⁺, 431.2329; found, 431.2346. mp 190–192 °C. [α]₂₀^D −35° (c 0.26 g/100 mL, CH₂Cl₂). Note: COSY, TOCSY, and HSQC with key correlations highlighted of 18 (V3hh) can be viewed in the spectra section of the Supporting Information.

Synthesis of 19 (V3gg), Methyl (11S,19S)-19-[4-(acetyloxy)phenyl]-11-ethyl-15-[(1E)-3-methoxy-3-oxoprop-1-en-1-yl]-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate

Compound 8 (112 mg, 0.217 mmol) was added to a flame-dried round-bottom flask and then dissolved in anhydrous dichloromethane (3.3 mL). The solution was then cooled to 0 °C before triethylamine (30 μL, 0.217 mmol) and a catalytic 4-dimethylaminopyridine (DMAP, one crystal) were added sequentially. Following this, acetic anhydride (21 μL, 0.217 mmol dissolved in 1 mL of anhydrous dichloromethane) was added dropwise to the reaction mixture. The resulting mixture slowly warmed to room temperature over an hour. Upon completion by TLC, the reaction was quenched with saturated aqueous brine and extracted with dichloromethane. The combined organic layers were dried with sodium sulfate, filtered, and concentrated in vacuo to give the crude material that was purified via column chromatography using a gradient of 100% hexanes to 2:1 hexanes/ethyl acetate to afford 19 (104 mg, 86%) as a colorless residue. ¹H NMR (600 MHz, CDCl₃ at 50 °C): δ 7.66 (d, J = 13.3 Hz, 1H), 7.43 (d, J = 7.6 Hz, 1H), 7.24 (d, J = 8.1 Hz, 1H), 7.21 (ddd, J = 8.4, 7.6, 1.2 Hz, 1H), 7.16 (ddd, J = 8.1, 6.9, 1.3 Hz, 1H), 7.10 (d, J = 8.7 Hz, 2H), 6.93 (d, J = 8.6 Hz, 2H), 6.17 (s, 1H), 4.84 (d, J = 13.4 Hz, 1H), 4.24 (s, 1H), 4.00 (s, 3H), 3.77 (m, 1H), 3.75 (s, 3H), 3.56 (dd, J = 14.5, 7.3 Hz, 1H), 3.14 (dd, J = 15.8, 13.7 Hz, 1H), 3.02 (dd, J = 14.9, 12.7 Hz, 1H), 2.75 (br d, J = 13.1 Hz, 1H), 2.56 (dd, J = 14.4, 8.7 Hz, 1H), 2.24 (s, 3H), 1.83 (br dd, J = 15.6, 13.3 Hz, 1H), 1.69 (m, 1H), 1.46 (sextet, J = 7.3 Hz, 1H), 1.33 (m, 1H), 1.05 (sextet, J = 7.3 Hz, 1H), 0.96 (m, 1H), 0.85 (t, J = 7.4 Hz, 3H). ¹³C NMR (151 MHz, CDCl₃ at 50 °C): δ 169.7, 169.4, 164.4, 151.2, 149.9, 137.3, 136.0, 135.2, 130.6, 130.3, 129.0, 128.7, 122.8, 121.5, 121.1, 118.1, 113.4, 112.3, 87.5, 59.3, 56.8, 52.8, 50.8, 45.9, 43.4, 34.4, 27.3, 21.9, 21.2, 8.3. Note: One aliphatic ¹³C was not visible in this spectra. HRMS (ESI): calcd for C₃₃H₃₇N₂O₆ [M + H]⁺, 557.2646; found, 557.2658. [α]₂₀^D −67° (c 0.34 g/100 mL, CH₂Cl₂).

General Amidation Procedure A

To a stirring solution of amine 18 (V3hh, 1.0 equiv) in anhydrous dichloromethane (0.05 M) at 0 °C was added potassium carbonate (1–2 equiv). Next, acyl chloride (1.0 equiv) was added to the mixture dropwise, and the resulting reaction mixture was stirred at 0 °C for 1 to 3 h (select reactions warmed to room temperature and were allowed to stir overnight). Upon completion (by TLC), the reaction was quenched with brine and extracted with dichloromethane. The combined organic layers were then dried with sodium sulfate, and the crude product was then purified by silica gel chromatography.

General Amidation Procedure B

Dicylcohexylcarbodiimide (1.0 equiv) was added at 0 °C to a stirring solution of amine 18 (V3hh, 1.0 equiv) dissolved in anhydrous dichloromethane (0.05 M). DMAP (one crystal) and carboxylic acid (1.0 equiv) were then sequentially added, and the mixture was allowed to warm to room temperature slowly and continued to stir for 24 h. Upon completion of the reaction (by TLC), the contents of the mixture were filtered through a fritted funnel, and the resulting filtrate was concentrated in vacuo. The dried filtrate was then dissolved in a (1:1) 10% w/v aqueous potassium bicarbonate/methanol solution (0.3 M) and allowed to stir at room temperature for 12 h. After this time, the reaction was quenched with brine and extracted with dichloromethane. The combined organic layers were then dried with sodium sulfate, and the crude material was purified by silica gel chromatography.

General Amidation Procedure C

Potassium carbonate (1.0–2.0 equiv) was added at 0 °C to a stirring solution of amine 18 (V3hh, 1.0 equiv) in anhydrous dichloromethane (0.05 M). Acyl chloride (1.0 equiv) was then added dropwise, and the resulting mixture was allowed to stir at 0 °C for 1 to 3 h. Upon completion of the reaction (by TLC), the mixture was concentration in vacuo, dissolved in a (1:1) 10% w/v aqueous potassium bicarbonate/methanol solution (0.3 M), and allowed to stir at room temperature for 3 to 12 h. After this time, this second reaction was quenched with brine and extracted with dichloromethane. The organic layers were then combined and dried with sodium sulfate to give a crude product, which was purified by silica gel chromatography.

General Amidation Procedure D

Triethylamine (2.0 equiv) and DMAP (one crystal) were sequentially added to a stirring solution of amine 18 (V3hh, 1.0 equiv) in anhydrous dichloromethane (0.04 M) at 0 °C. Acyl chloride (2.0 equiv) was then added dropwise to the mixture, and the reaction mixture was allowed to slowly warm to room temperature and continued to stir overnight (∼19 h). Upon consumption of the starting material (by TLC analysis), the reaction contents were then concentration in vacuo, dissolved in a (1:1) 10% w/v aqueous potassium bicarbonate/methanol solution (0.3 M), and allowed to stir at room temperature for 3 to 12 h. After this time, the reaction was quenched with brine and extracted with dichloromethane. The combined organic layers were dried with sodium sulfate, and the crude product was purified by silica gel chromatography.

According to general procedure A, 18 (107 mg, 0.246 mmol) and acetyl chloride (17 μL, 0.246 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 1:3 hexanes/ethyl acetate to yield 20 (V3ii), methyl (11S,19S)-15-acetyl-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as white foam (43.5 mg, 37%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 7.49 (m, 1H), 7.28 (m, 1H), 7.27–7.18 (m, 2H), 7.06 (d, J = 8.6 Hz, 2H), 6.76 (d, J = 8.6 Hz, 2H), 6.22 (s, 1H), 5.52 (br s, 1H), 4.28 (s, 1H), 4.05 (s, 3H), 3.90 (br m, 2H), 3.13 (br m, 2H), 2.98 (dd, J = 13.1, 4.4 Hz, 1H), 2.38 (br m, 1H), 2.19 (s, 3H), 1.84 (ddd, J = 15.6, 9.9, 1.8 Hz, 1H), 1.62–1.43 (m, 2H), 1.41 (m, 1H), 1.17 (br m, 1H), 0.94 (br m, 1H), 0.88 (t, J = 7.3 Hz, 3H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 172.1, 164.1, 154.7, 137.6, 135.1, 130.4, 129.9, 128.5, 122.3, 120.7, 117.8, 115.3, 112.0, 54.5, 52.9, 52.2, 45.2, 43.2, 33.8, 27.0, 24.2, 21.9, 7.9. Note: four ¹³C signals were not observed within our spectra (three ¹³C > 100 ppm and one ¹³C < 100 ppm). HRMS (ESI): calcd for C₂₉H₃₃N₂O₄ [M + H]⁺, 473.2435; found, 473.2436. [α]₂₀^D −32° (c 0.40 g/100 mL, CH₂Cl₂).

According to general procedure B, 18 (48.5 mg, 0.113 mmol), dicylcohexyldiimide (23.3 mg, 0.113 mmol), and one crystal of 4-dimethylamiopyridine were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 1:1 hexanes/ethyl acetate to furnish 21 (V3jj), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(6-methoxypyridine-3-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate (30.5 mg, 48%), as a white solid. ¹H NMR (400 MHz, C₂Cl₄D₂ at 100 °C): δ 8.13 (s, 1H), 7.41 (d, J = 7.7 Hz, 1H), 7.31 (m, 1H), 7.30–7.21 (m, 2H), 7.17 (t, J = 7.3 Hz, 1H), 7.11 (d, J = 8.2 Hz, 2H), 6.77 (d, J = 8.2 Hz, 2H), 6.64 (d, J = 8.5 Hz, 1H), 6.25 (s, 1H), 4.80 (br s, 1H), 4.42 (s, 1H), 4.05 (s, 3H), 4.01 (s, 3H), 3.89–3.73 (m, 2H), 3.47 (ddd, J = 14.1, 10.6, 3.3 Hz, 1H), 3.17 (ddd, J = 14.7, 10.6, 3.7 Hz, 1H), 3.03 (m, 1H), 2.80 (dt, J = 14.0, 4.2 Hz, 1H), 1.91–1.41 (m, 4H), 1.24 (sextet, J = 7.0 Hz, 1H), 0.90 (t, J = 7.3 Hz, 3H), 0.90 (m, 1H; buried under triplet). ¹³C NMR (101 MHz, C₂Cl₄D₂ at 100 °C): δ 171.3, 164.5, 164.0, 154.4, 145.6, 137.3, 137.1, 135.0, 130.3, 130.1, 129.4, 128.6, 126.1, 122.4, 120.8, 118.3, 115.3, 112.0, 111.1, 110.2, 99.5, 53.5, 52.4, 52.2, 50.9, 44.7, 43.7, 32.3, 26.5, 23.6, 21.8, 7.9. HRMS (ESI): calcd for C₃₄H₃₆N₃O₅ [M + H]⁺, 566.2649; found, 566.2650. [α]₂₀^D −47° (c 0.31 g/100 mL, CH₂Cl₂).

According to general procedure B, 18 (25.9 mg, 0.060 mmol), dicylcohexyldiimide (12.4 mg, 0.060 mmol), and one crystal of 4-dimethylamiopyridine were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 hexanes/ethyl acetate to 100% ethyl acetate to 49:1 ethyl acetate/methanol to yield 22 (V3kk), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-{2-[2-(2-methoxyethoxy)ethoxy]acetyl}-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate (9.9 mg, 28%), as a colorless residue. ¹H NMR (400 MHz, C₂Cl₄D₂ at 100 °C): δ 7.48 (d, J = 7.5 Hz, 1H), 7.27 (d, J = 8.1 Hz, 1H), 7.25–7.16 (m, 2H), 7.04 (d, J = 8.1 Hz, 2H), 6.74 (d, J = 8.2 Hz, 2H), 6.23 (s, 1H), 5.84 (br s, 1H), 4.32–4.13 (m, 2H), 4.26 (s, 1H), 4.05–3.78 (br m, 2H), 4.03 (s, 3H), 3.70–3.56 (m, 6H), 3.55–3.50 (m, 2H), 3.36 (s, 3H), 3.24–3.08 (m, 2H), 3.00 (br m, 1H), 2.44 (br m, 1H), 1.87–1.56 (m, 3H), 1.50 (sextet, J = 7.3 Hz, 1H), 1.16 (m, 1H), 0.87 (t, J = 7.4 Hz, 3H), 0.84 (m, 1H; partially buried under triplet). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 170.9, 164.0, 154.8, 137.5, 135.1, 130.3, 130.1, 130.0, 129.9, 129.4, 128.5, 122.3, 120.7, 117.9, 115.2, 112.0, 71.8, 70.7, 70.3, 70.3, 70.2, 58.5, 53.8, 52.2, 50.9, 44.8, 43.4, 33.4, 26.7, 24.0, 22.0. 7.9. HRMS (ESI): calcd for C₃₄H₄₃N₂O₇ [M + H]⁺, 591.3065; found, 591.3070. [α]₂₀^D −34° (c 0.53 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (102 mg, 0.235 mmol) and cylcohexanecarbonyl chloride (31 μL, 0.235 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 99.8:0.2 to 99.5:0.5 chloroform/methanol to yield 23 (V3ll), methyl (11S,19S)-15-cyclohexanecarbonyl-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as white foam (64.4 mg, 51%). ¹H NMR (400 MHz, C₂Cl₄D₂ at 100 °C): δ 7.50 (d, J = 7.3 Hz, 1H), 7.28 (d, J = 8.0 Hz, 1H), 7.26–7.18 (m, 2H), 7.05 (d, J = 8.1 Hz, 2H), 6.74 (d, J = 8.2 Hz, 2H), 6.20 (s, 1H), 4.87 (br s, 1H), 4.27 (s, 1H), 4.04 (s, 3H), 4.00 (br m, 1H), 3.82 (br m, 1H), 3.20 (br m, 1H), 3.14–2.95 (m, 2H), 2.64–2.38 (m, 2H), 1.95–1.08 (m, 15H), 0.89 (t, J = 7.4 Hz, 3H), 0.89 (m, 1H; buried under triplet). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 177.9, 164.1, 154.5, 137.4, 135.1, 130.5, 130.0, 129.7, 129.4, 128.6, 122.3, 121.0, 120.7, 117.9, 115.2, 112.0, 53.3, 52.2, 51.4, 44.8, 43.4, 41.6, 32.9, 29.9, 28.8, 26.9, 25.7, 25.6, 25.1, 24.6, 22.1, 7.9. HRMS (ESI): calcd for C₃₄H₄₁N₂O₄ [M + H]⁺, 541.3061; found, 541.3064. mp 120–122 °C. [α]₂₀^D −69° (c 0.14 g/100 mL, CH₂Cl₂).

According to general procedure D, 18 (56.8 mg, 0.132 mmol) and 4-(trifluoromethyl)benzoyl chloride (39.2 μL, 0.264 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 1:1 hexanes/ethyl acetate to yield 24 (V3mm), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-[4-(trifluoromethyl)benzoyl]-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a colorless solid (27.9 mg, 35%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 7.52 (d, J = 7.9 Hz, 2H), 7.33 (d, J = 8.7 Hz, 2H), 7.27 (dd, J = 8.6, 8.0 Hz, 1H), 7.16–7.01 (m, 5H), 6.77 (d, J = 8.5 Hz, 2H), 6.25 (s, 1H), 4.73 (s, 1H), 4.39 (s, 1H), 4.06 (s, 3H), 3.75–3.62 (br m, 2H), 3.54 (br dd, J = 14.0, 12.0 Hz, 1H), 3.12 (ddd, J = 12.5, 10.4, 4.0 Hz, 1H), 3.08–2.80 (br m, 2H), 1.78–1.66 (br m, 2H), 1.59 (br m, 1H), 1.25 (sextet, J = 7.3 Hz, 1H), 0.92 (t, J = 7.3 Hz, 3H), 0.90 (m, 1H). Note: Due to excessive line broadening in our spectra, we were unable to characterize one proton signal in the upfield aliphatic region (see Supporting Information). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 172.1, 164.0, 154.4, 140.6, 137.2, 135.1, 130.9 (d, J = 33 Hz), 130.4, 130.2, 130.1, 129.2, 128.7, 126.7, 125.2, 123.6 (q, J = 271 Hz), 122.5, 120.9, 118.5, 115.3, 112.0, 110.9, 52.3, 51.0, 50.2, 44.7, 43.6, 31.1, 26.4, 22.9, 21.2, 7.9. ¹⁹F NMR (565 MHz, CDCl₃): δ −63.36. HRMS (ESI): calcd for C₃₅H₃₄F₃N₂O₄ [M + H]⁺, 603.2465; found, 603.2464. mp 172–174 °C. [α]₂₀^D −6° (c 0.35 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (111 mg, 0.257 mmol) and nicotinoyl chloride hydrochloride (46.0 mg, 0.257 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 99:1 to 97.5:2.5 chloroform/methanol to yield 25 (V3nn), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(pyridine-3-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a white solid (52.7 mg, 38%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 8.61 (d, J = 3.7 Hz, 1H), 8.47 (br s, 1H), 7.37 (d, J = 3.6 Hz, 1H), 7.34–7.29 (m, 2H), 7.25 (dd, J = 8.4, 8.0 Hz, 1H), 7.22 (br m, 1H), 7.20–7.13 (m, 2H), 7.10 (d, J = 8.2 Hz, 2H), 6.76 (d, J = 8.3 Hz, 2H), 6.25 (s, 1H), 4.38 (s, 1H), 4.05 (s, 3H), 3.86–3.67 (br m, 2H), 3.50 (br dd, J = 15.2, 12.1 Hz, 1H), 3.13 (m, 1H), 3.04 (br m, 1H), 2.86 (dt, J = 14.4, 4.6 Hz, 1H), 1.98–1.63 (br m, 3H), 1.56 (m, 1H), 1.25 (sextet, J = 7.4 Hz, 1H), 0.90 (t, J = 7.4 Hz, 3H), 0.87 (m, 1H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 170.8, 163.9, 154.5, 149.6, 147.0, 137.3, 135.1, 134.0, 133.2, 130.4, 130.1, 129.9, 129.3, 128.6, 123.2, 122.5, 120.9, 118.4, 115.3, 112.0, 110.9, 52.3, 51.9, 50.1, 44.7, 43.6, 31.8, 26.5, 23.1, 21.5, 7.9. HRMS (ESI): calcd for C₃₃H₃₄N₃O₄ [M + H]⁺, 536.2544; found, 536.2522. [α]₂₀^D −43° (c 0.18 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (30.4 mg, 0.071 mmol) and 2-furoyl chloride (7.02 μL, 0.071 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 100% chloroform to 87.5:12.5 chloroform/ethyl acetate to yield 26 (V3oo), methyl (11S,19S)-11-ethyl-15-(furan-2-carbonyl)-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as white foam (25.7 mg, 69%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 7.54 (s, 1H), 7.49 (d, J = 7.6 Hz, 1H), 7.29 (d, J = 8.3 Hz, 1H), 7.26–7.18 (m, 2H), 7.10 (d, J = 3.4 Hz, 1H), 7.02 (d, J = 8.1 Hz, 2H), 6.71 (d, J = 8.1 Hz, 2H), 6.56 (dd, J = 3.2, 1.5 Hz, 1H), 6.25 (s, 1H), 4.70 (br s, 1H), 4.43 (s, 1H), 4.37 (dt, J = 14.2, 3.3 Hz, 1H), 4.25 (dd, J = 13.9, 9.0 Hz, 1H), 4.04 (s, 3H), 3.39 (ddd, J = 15.5, 11.3, 2.2 Hz, 1H), 3.19 (dd, J = 14.6, 13.1 Hz, 1H), 3.00 (m, 1H), 2.44 (d, J = 13.5 Hz, 1H), 1.91 (dd, J = 15.5, 10.5 Hz, 1H), 1.77–1.57 (m, 2H), 1.44 (sextet, J = 7.3 Hz, 1H), 1.14 (sextet, J = 7.4 Hz, 1H), 0.94 (m, 1H), 0.85 (t, J = 7.4 Hz, 3H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 164.0, 161.7, 154.3, 148.9, 143.6, 137.7, 134.9, 130.8, 130.2, 130.1, 129.5, 128.6, 122.2, 120.6, 117.9, 115.8, 115.1, 112.0, 111.2, 55.4, 53.1, 52.2, 44.9, 43.4, 34.6, 26.7, 24.5, 22.3, 7.9. Note: Despite multiple attempts to characterize all carbon atoms at 100 °C, one ¹³C signal >100 ppm was not visible. HRMS (ESI): calcd for C₃₂H₃₃N₂O₅ [M + H]⁺, 525.2384; found, 525.2388. mp 141–143 °C. [α]₂₀^D −67° (c 0.11 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (101 mg, 0.234 mmol) and 5-pyrimidinecarbonyl chloride (33.5 mg, 0.234 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 99.5:0.5 to 98.2:1.8 chloroform/methanol to yield 27 (V3pp), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(pyrimidine-5-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as off-white foam (91.1 mg, 73%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 9.20 (s, 1H), 8.37 (br s, 2H), 7.45–7.30 (m, 2H), 7.26 (dd, J = 7.9, 7.4 Hz, 1H), 7.14 (dd, J = 7.5, 7.4 Hz, 1H), 7.10 (d, J = 8.4 Hz, 2H), 6.77 (d, J = 8.5 Hz, 2H), 6.25 (s, 1H), 4.87 (br s, 1H), 4.33 (s, 1H), 4.05 (s, 3H), 3.88–3.49 (br m, 3H), 3.26–2.97 (br m, 2H), 2.90 (dt, J = 10.6, 4.8 Hz, 1H), 1.94–1.64 (br m, 3H), 1.56 (m, 1H), 1.27 (sextet, J = 7.3 Hz, 1H), 0.91 (t, J = 7.4 Hz, 3H), 0.81 (br m, 1H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 168.1, 163.9, 158.5, 154.5, 154.2, 137.1, 135.1, 131.1, 130.4, 130.0, 129.9, 129.2, 128.5, 122.6, 121.0, 118.4, 115.3, 112.0, 110.8, 52.3, 51.9, 49.6, 44.7, 43.6, 31.6, 26.4, 23.0, 21.4, 7.9. HRMS (ESI): calcd for C₃₂H₃₃N₄O₄ [M + H]⁺, 537.2496; found, 537.2505. mp 155–157 °C, decomposed. [α]₂₀^D −37° (c 0.32 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (129 mg, 0.299 mmol) and isoxazole-5-carbonyl chloride (29 μL, 0.299 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 100% chloroform to 99:1 chloroform/methanol to yield 28 (V3qq), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(1,2-oxazole-5-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a colorless residue (61.9 mg, 39%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 8.32 (s, 1H), 7.45 (d, J = 7.7 Hz, 1H), 7.30 (d, J = 8.3 Hz, 1H), 7.25 (dd, J = 8.3, 8.0 Hz, 1H), 7.20 (dd, J = 8.2, 7.1 Hz, 1H), 7.05 (d, J = 8.1 Hz, 2H), 6.73 (d, J = 8.2 Hz, 2H), 6.64 (s, 1H), 6.24 (s, 1H), 5.17 (br s, 1H), 4.32 (s, 1H), 4.24 (br m, 1H), 4.12 (m, 1H), 4.05 (s, 3H), 3.34–3.23 (m, 2H), 3.05 (br m, 1H), 2.60 (br m, 1H), 1.86 (br m, 1H), 1.80–1.52 (m, 2H), 1.46 (br m, 1H), 1.19 (sextet, J = 7.4 Hz, 1H), 0.94 (br m, 1H), 0.86 (t, J = 7.4 Hz, 3H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 164.1, 164.0, 159.9, 154.6, 149.7, 137.5, 135.0, 130.3, 130.2, 129.9, 129.3, 128.4, 122.4, 120.8, 118.0, 115.3, 112.0, 111.4, 106.4, 54.7, 52.5, 52.3, 44.9, 43.3, 33.9, 26.8, 24.1, 21.9, 7.8. HRMS (ESI): calcd for C₃₁H₃₂N₃O₅ [M + H]⁺, 526.2336; found, 526.2332. [α]₂₀^D −121° (c 0.24 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (80.5 mg, 0.187 mmol) and pyrrole-2-carbonyl chloride (25.8 mg, 0.187 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 1:1 hexanes/ethyl acetate to yield 29 (V3rr), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(1H-pyrrole-2-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a white solid (93 mg, 95%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 9.50 (s, 1H), 7.50 (d, J = 7.5 Hz, 1H), 7.30 (d, J = 7.8 Hz, 1H), 7.25 (dd, J = 8.3, 7.6 Hz, 1H), 7.23 (dd, J = 7.8, 7.3 Hz, 1H), 6.99 (m, 1H, buried), 6.98 (d, J = 8.5 Hz, 2H), 6.69 (m, 1H, buried), 6.68 (d, J = 8.3 Hz, 2H), 6.35 (q, J = 3.2 Hz, 1H), 6.25 (s, 1H), 4.79 (br s, 1H), 4.55 (dq, J = 14.6, 2.0 Hz, 1H), 4.40 (s, 1H), 4.27 (m, 1H), 4.05 (s, 3H), 3.38 (ddd, J = 14.4, 11.4, 2.7 Hz, 1H), 3.24 (dd, J = 14.8, 12.4 Hz, 1H), 3.07 (dd, J = 15.3, 3.7 Hz, 1H), 2.44 (br dd, J = 13.9, 3.2 Hz, 1H), 1.97 (ddd, J = 15.3, 9.8, 2.1 Hz, 1H), 1.82 (m, 1H), 1.67 (m, 1H), 1.44 (sextet, J = 7.4 Hz, 1H), 1.13 (sextet, J = 7.4 Hz, 1H), 0.94 (m, 1H), 0.86 (t, J = 7.4 Hz, 3H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 164.0, 163.7, 154.3, 137.7, 135.0, 130.7, 130.2, 130.0, 129.6, 128.5, 125.5, 122.3, 120.8, 120.7, 117.8, 115.1, 112.0, 112.0, 111.9, 110.2, 55.8, 53.3, 52.2, 44.8, 43.5, 34.7, 26.7, 24.8, 22.6, 7.9. HRMS (ESI): calcd for C₃₂H₃₄N₃O₄ [M + H]⁺, 524.2544; found, 524.2535. mp 160–162 °C. [α]₂₀^D −82° (c 0.22 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (90 mg, 0.21 mmol) and pyridine-2-carbonyl chloride hydrochloride (37 mg, 0.21 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 100% hexanes to 1:4 hexanes/ethyl acetate to yield 30 (V3ss), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(pyridine-2-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as an off-white solid (48 mg, 43%). ¹H NMR (400 MHz, C₂Cl₄D₂ at 100 °C): δ 8.62 (dt, J = 4.6, 1.1 Hz, 1H), 7.77 (ddd, J = 8.7, 7.7, 1.7 Hz, 1H), 7.48 (d, J = 7.6 Hz, 1H), 7.40 (m, 1H), 7.35 (ddd, J = 7.6, 4.9, 1.0 Hz, 1H), 7.29 (dt, J = 8.2, 0.7 Hz, 1H), 7.23 (ddd, J = 8.3, 7.0, 1.2 Hz, 1H), 7.20–7.13 (m, 3H), 6.77–6.71 (m, 2H), 6.26 (s, 1H), 5.05 (br s, 1H), 4.61 (s, 1H), 4.17 (ddd, J = 14.0, 9.0, 2.8 Hz, 1H), 4.10 (br m, 1H; buried), 4.05 (s, 3H), 3.51 (m, 1H), 3.20 (ddd, J = 14.8, 11.5, 1.5 Hz, 1H), 2.78 (br m, 1H), 2.51 (br m, 1H), 1.99–1.43 (m, 4H), 1.18 (sextet, J = 7.4 Hz, 1H), 0.97 (m, 1H), 0.86 (t, J = 7.2 Hz, 3H). ¹³C NMR (126 MHz, C₂Cl₄D₂ at 100 °C): δ 170.8, 164.1, 155.2, 154.3, 148.1, 137.9, 136.5, 135.0, 131.1, 130.3, 129.6, 128.7, 124.0, 122.8, 122.1, 120.6, 117.9, 115.1, 111.9, 54.3, 52.8, 52.2, 44.9, 43.4, 34.1, 26.9, 23.9, 22.1, 7.9. Note: Two ¹³C nuclei are missing within the spectra (>100 ppm) due to significant peak broadening. HRMS (ESI): calcd for C₃₃H₃₄N₃O₄ [M + H]⁺, 536.2544; found, 536.2552. mp 149–151 °C, decomposed. [α]₂₀^D −50° (c 0.10 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (27.7 mg, 0.064 mmol) and isonicotinoyl chloride hydrochloride (8.9 mg, 0.064 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 99.5:0.5 to 9:1 chloroform/methanol to yield 31 (V3tt), methyl (11S,19S)-11-ethyl-19-(4-hydroxyphenyl)-15-(pyridine-4-carbonyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a colorless residue (14.4 mg, 42%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 8.52 (d, J = 4.1 Hz, 2H), 7.40–7.30 (m, 2H), 7.27 (dd, J = 9.0, 8.0 Hz, 1H), 7.15 (dd, J = 8.1, 7.4 Hz, 1H), 7.12 (d, J = 8.1 Hz, 2H), 6.87–6.80 (br m, 2H), 6.77 (d, J = 8.1 Hz, 2H), 6.25 (s, 1H), 4.35 (s, 1H), 4.06 (s, 3H), 3.81–3.57 (br m, 2H), 3.51 (m, 1H), 3.24–2.77 (m, 3H), 2.30–1.48 (m, 4H), 1.26 (sextet, J = 7.4 Hz, 1H), 0.92 (t, J = 7.4 Hz, 3H), 0.90 (m, 1H; partially buried). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 171.0, 164.0, 154.7, 149.7, 144.5, 137.2, 135.1, 130.4, 130.1, 129.9, 129.2, 128.6, 122.5, 120.9, 120.6, 118.5, 115.3, 112.0, 110.7, 52.3, 50.9, 50.2, 44.7, 43.6, 31.0, 26.4, 22.9, 21.1, 7.9. HRMS (ESI): calcd for C₃₃H₃₄N₃O₄ [M + H]⁺, 536.2544; found, 536.2519. [α]₂₀^D −5° (c 0.15 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (55.6 mg, 0.129 mmol) and 5-chloropyridine-3-carbonyl chloride (22.6 mg, 0.129 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 1:1 hexanes/ethyl acetate to yield 32 (V3uu), methyl (11S,19S)-15-(5-chloropyridine-3-carbonyl)-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a white solid (35.7 mg, 49%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 8.59 (s, 1H), 8.22 (br s, 1H), 7.40–7.25 (m, 3H), 7.25 (dd, J = 8.8, 7.6 Hz, 1H), 7.15 (dd, J = 8.8, 7.6 Hz, 1H), 7.11 (d, J = 8.5 Hz, 2H), 6.77 (d, J = 8.6 Hz, 2H), 6.25 (s, 1H), 5.29 (br s, 1H), 4.34 (s, 1H), 4.05 (s, 3H), 3.79 (m, 1H), 3.70 (br m, 1H), 3.57 (m, 1H), 3.19–3.01 (m, 2H), 2.86 (dt, J = 14.4, 4.7 Hz, 1H), 1.90–1.61 (br m, 3H), 1.56 (m, 1H), 1.27 (sextet, J = 7.3 Hz, 1H), 0.91 (t, J = 7.4 Hz, 3H), 0.83 (br m, 1H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 169.1, 163.9, 154.6, 148.9, 144.7, 137.1, 135.1, 133.9, 133.7, 131.8, 130.5, 130.1, 129.9, 129.2, 128.4, 122.6, 121.0, 118.3, 115.3, 112.0, 110.7, 52.3, 52.0, 50.2 (br), 44.7, 43.6, 31.9, 26.6, 23.0, 21.5, 7.9. HRMS (ESI): calcd for C₃₃H₃₃ClN₃O₄ [M + H]⁺, 570.2154; found, 570.2156. mp 130–132 °C. [α]₂₀^D −7° (c 0.39 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (48.9 mg, 0.114 mmol) and 5-bromopyridine-3-carbonyl chloride (25.1 mg, 0.114 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 9:1 to 3:1 hexanes/ethyl acetate to yield 33 (V3vv), methyl (11S,19S)-15-(5-bromopyridine-3-carbonyl)-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a white solid (20.8 mg, 30%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 8.70 (s, 1H), 8.25 (br s, 1H), 7.49 (br m, 1H), 7.37 (br m, 1H), 7.32 (d, J = 7.5 Hz, 1H), 7.26 (dd, J = 8.5, 7.7 Hz, 1H), 7.15 (dd, J = 8.5, 7.4 Hz, 1H), 7.11 (d, J = 8.2 Hz, 2H), 6.77 (d, J = 8.2 Hz, 2H), 6.25 (s, 1H), 4.88 (br s, 1H), 4.35 (s, 1H), 4.05 (s, 3H), 3.80 (m, 1H), 3.70 (m, 1H), 3.56 (m, 1H), 3.23–2.99 (br m, 2H), 2.83 (m, 1H), 1.89–1.62 (br m, 3H), 1.56 (m, 1H), 1.27 (sextet, J = 7.3 Hz, 1H), 0.92 (t, J = 7.4 Hz, 3H), 0.84 (m, 1H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 169.0, 163.9, 154.5, 151.1, 145.0, 137.1, 136.5, 135.1, 134.3, 133.7, 130.5, 130.1, 129.2, 128.5, 122.6, 121.0, 120.4, 118.3, 115.3, 112.0, 110.8, 52.3, 52.2, 50.1 (br), 44.7, 43.6, 31.9, 26.6, 23.0, 21.6, 7.9. HRMS (ESI): calcd for C₃₃H₃₃BrN₃O₄ [M + H]⁺, 614.1649; found, 614.1670. mp 123–125 °C. [α]₂₀^D −13° (c 0.12 g/100 mL, CH₂Cl₂).

According to general procedure A, 18 (21.7 mg, 0.050 mmol) and benzoyl chloride (5.80 μL, 0.050 mmol) were reacted. The crude product was purified by silica gel chromatography using a gradient of 99.5:0.5 to 99:1 chloroform/methanol to yield 34 (V3ww), methyl (11S,19S)-15-benzoyl-11-ethyl-19-(4-hydroxyphenyl)-8,15-diazatetracyclo[9.6.2.0^2,7.0^8,18]nonadeca-1(18),2(7),3,5,9-pentaene-9-carboxylate, as a colorless residue (17.2 mg, 64%). ¹H NMR (600 MHz, C₂Cl₄D₂ at 100 °C): δ 7.43–7.36 (m, 2H), 7.36–7.29 (m, 3H), 7.25 (dd, J = 8.3, 7.9 Hz, 1H), 7.20–7.15 (m, 3H), 7.13 (d, J = 8.6 Hz, 2H), 6.77 (d, J = 8.6 Hz, 2H), 6.25 (s, 1H), 4.80 (br s, 1H), 4.46 (s, 1H), 4.05 (s, 3H), 3.91–3.74 (br m, 2H), 3.40 (ddd, J = 14.8, 9.5, 2.2 Hz, 1H), 3.15 (ddd, J = 15.8, 10.7, 3.2 Hz, 1H), 2.95 (br m, 1H), 2.76 (m, 1H), 1.86–1.63 (m, 3H), 1.56 (m, 1H), 1.23 (sextet, J = 7.4 Hz, 1H), 0.94 (m, 1H), 0.91 (t, J = 7.4 Hz, 3H). ¹³C NMR (151 MHz, C₂Cl₄D₂ at 100 °C): δ 173.5, 164.0, 154.4, 137.3, 137.3, 135.1, 130.4, 130.3, 130.1, 129.4, 129.0, 128.7, 128.2, 126.4, 122.3, 120.8, 118.4, 115.2, 111.9, 111.3, 52.5, 52.2, 51.1, 44.8, 43.7, 32.4, 26.5, 23.6, 21.8, 7.9. HRMS (ESI): calcd for C₃₄H₃₅N₂O₄ [M + H]⁺, 535.2591; found, 535.2614. [α]₂₀^D −26° (c 0.10 g/100 mL, CH₂Cl₂).

Synthesis of 35 (V4h)

Vincamine (802.1 mg, 2.26 mmol) was added to a flame-dried microwave flask and dissolved in DMF (17.5 mL). A 3.0 M solution of cyanogen bromide in dichloromethane (2.30 mL, 6.79 mmol) was added dropwise to the resulting solution. The reaction was subjected to microwave irradiation at 100 °C for 3 min. The mixture was then cooled to room temperature, diluted with ethyl acetate, and quenched with brine (3 × 100 mL) and transferred to a separatory funnel for extraction. The organic layer was then collected, dried with sodium sulfate, filtered, and concentrated in vacuo. The crude material was then purified via column chromatography using a gradient of 100% chloroform to 24:1 chloroform/acetone to yield 35 (V4h) as a white solid (520 mg, 50%). ¹H NMR (600 MHz, CDCl₃): δ 7.58 (dd, J = 7.0, 1.0 Hz, 1H), 7.22 (dd, J = 7.6, 0.9 Hz, 1H), 7.21–7.14 (m, 2H), 4.52 (s, 1H), 4.36 (s, 1H), 3.71 (s, 3H), 3.70–3.61 (m, 2H), 3.49–3.38 (m, 2H), 3.31–3.21 (m, 2H), 2.45 (d, J = 14.8 Hz, 1H), 2.29 (d, J = 14.8 Hz, 1H), 2.00 (m, 1H), 1.78 (m, 1H), 1.71–1.63 (m, 2H), 1.59 (pentet, J = 7.5 Hz, 1H), 1.54 (m, 1H), 0.85 (t, J = 7.5 Hz, 3H). ¹³C NMR (151 MHz, CDCl₃): δ 172.9, 135.4, 128.5, 128.2, 123.5, 121.0, 119.0, 118.2, 114.2, 111.8, 82.4, 59.8, 54.2, 48.0, 40.9, 36.3, 32.3, 29.4, 29.1, 28.5, 19.8, 7.3. HRMS (ESI): calcd for C₂₂H₂₆BrN₃O₃Na [M + Na]⁺, 482.1050; found, 482.1071. mp 155–157 °C. [α]₂₀^D +4° (c 0.40 g/100 mL, CH₂Cl₂). Extensive 2D NMR (COSY, HSQC, and HMBC) and NOE experiments were performed on this compound and can be viewed in the Supporting Information. Note: We found this reaction to be sensitive to water and the addition of 4 Å of molecular sieves increased the yield of 35 (V4h). In addition, 35 can be purified via column chromatography using hexanes/ethyl acetate solvent systems to elute.

Synthesis of 36 (V4i)

Compound 35 (V4h) (203 mg, 0.441 mmol) was added to a flame-dried microwave flask and dissolved in DMF (4.41 mL). Sodium azide (230 mg, 3.53 mmol) was then added to the resulting solution, which was subjected to microwave irradiation at 100 °C for 4 min. The resulting mixture was allowed to cool to room temperature before being diluted with ethyl acetate and quenched with brine (3 × 50 mL). The contents were then transferred to a separatory funnel, and the organic layer was collected, dried with sodium sulfate, filtered, and concentrated in vacuo. The crude material was then purified via column chromatography using a gradient of 100% chloroform to 49:1 chloroform/acetone to yield 36 (V4i) as a white solid (111.4 mg, 60%). ¹H NMR (400 MHz, CDCl₃): δ 7.58 (m, 1H), 7.23–7.12 (m, 3H), 4.73 (s, 1H), 4.19 (d, J = 1.4 Hz, 1H), 3.82 (s, 3H), 3.72 (ddd, J = 12.2, 7.0, 5.8 Hz, 1H), 3.64–3.53 (m, 2H), 3.25 (td, J = 12.6, 3.0 Hz, 1H), 3.14–3.06 (m, 2H), 2.98 (d, J = 14.2 Hz, 1H), 1.97–1.82 (m, 3H), 1.75–1.63 (m, 2H), 1.43 (td, J = 14.2, 6.5 Hz, 1H), 1.18 (sextet, J = 7.4 Hz, 1H), 0.91 (t, J = 7.4 Hz, 3H). ¹³C NMR (101 MHz, CDCl₃): δ 174.6, 135.0, 128.4, 128.0, 123.8, 120.9, 119.6, 116.5, 114.3, 111.4, 82.2, 57.8, 54.8, 51.6, 51.0, 35.4, 35.1, 32.9, 30.1, 24.5, 20.4, 7.3. HRMS (ESI): calcd for C₂₂H₂₆N₆O₃Na [M + Na]⁺, 445.1959; found, 445.1979. mp 127–129 °C. [α]₂₀^D −8° (c 0.91 g/100 mL, CH₂Cl₂).

Determination of Solubility and Chemical Stability for Analogue 30 (V3ss)

Solubility

Compound 30 (3Vss) was determined to have 100 mM (highest concentration tested) solubility in biological grade DMSO. The 100 mM solution of 30 in DMSO was then diluted to a 10 mM solution for additional solubility and chemical stability studies. To determine the water solubility of compound 30, 5 μL of the 10 mM DMSO solution was added to an Eppendorf tube before PBS buffer (495 μL) was slowly titrated in to give a 100 μM solution (highest concentration tested). The resulting aqueous solution of 30 remained completely transparent over 24 h and was compared to a PBS standard.

Chemical Stability

Two separate aqueous solutions of 30 were prepared at 100 μM (15 mL). In the first solution, 14.85 mL of acidified (pH = 1.95) PBS buffer was added to 150 μL of a 10 mM stock solution of 30 in DMSO. In the second solution, 14.85 mL of PBS buffer (pH = 7.4) was added to 150 μL of the 10 mM stock solution of 30 in DMSO. Each 100 μM solution was allowed to stir at room temperature overnight. In both the acidified and neutral solutions, a small amount of precipitate was formed overnight. After 24 h, the solutions were placed inside a 37 °C chamber for an additional 24 h. At the 48 h time point, the appearance of both solutions looked similar to the 24 h time point and both were extracted using ethyl acetate. TLC at the 24 and 48 h time point revealed no degradation of 30. ¹H NMR of the recovered solids from both solutions confirmed that 30 remained intact and was stable in the neutral and acidic solutions for up to 48 h.

Glossary

Abbreviations

3D7

chloroquine-sensitive P. falciparum strain

ACTs

artemisinin-based combination therapies

Ac₂O

acetic anhydride

°C

degrees Celsius

CHCl₃

chloroform

CH₂Cl₂

dichloromethane

Dd2

chloroquine-resistant P. falciparum strain

DHA

dihyroartemisinin

DCC

dicyclohexylcarbodiimide

DMAP

4-dimethylaminopyridine

DMF

N,N′-dimethylformamide

DMSO

dimethylsulfoxide

EC₅₀

concentration of a drug that gives half-maximal response

h

hour

HCl

hydrochloric acid

HepG2

a human liver cancer cell line

HPI

hours postinvasion

K₂CO₃

potassium carbonate

MeOH

methanol

NMR

nuclear magnetic resonance

PBS

phosphate-buffered saline

PhMe

toluene

PhOH

phenol

p-TSA

para-toluenesulfonic acid

RCO₂H

carboxylic acid

RCOCl

acyl chloride

SAR

structure–activity relationship

SI

selectivity index

TLC

thin-layer chromatography

μM

micromolar

V

vincamine

V3

V3 scaffold series of ring-distortion analogues

WHO

World Health Organization

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.1c02480.

• Dose–response curves for vincamine-derived antiplasmodial agents against chloroquine-resistant (Dd2) and chloroquine-sensitive (3D7) cells, kill kinetics, stage-specific activity for positive controls, NMR spectra (¹H and ¹³C NMR spectra, select 2-D NMR) for new compounds, and purity analysis (LC traces) for compounds evaluated in biological assays (PDF)

The authors declare no competing financial interest.
