Chemical control and insecticide resistance status of sand fly vectors worldwide

Abstract

Background

Phlebotomine sand flies are prominent vectors of Leishmania parasites that cause leishmaniasis, which comes second to malaria in terms of parasitic causative fatalities globally. In the absence of human vaccines, sand fly chemical-based vector control is a key component of leishmaniasis control efforts.

Methods and findings

We performed a literature review on the current interventions, primarily, insecticide-based used for sand fly control, as well as the global insecticide resistance (IR) status of the main sand fly vector species. Indoor insecticidal interventions, such as residual spraying and treated bed nets are the most widely deployed, while several alternative control strategies are also used in certain settings and/or are under evaluation. IR has been sporadically detected in sand flies in India and other regions, using non-standardized diagnostic bioassays. Molecular studies are limited to monitoring of known pyrethroid resistance mutations (kdr), which are present at high frequencies in certain regions.

Conclusions

As the leishmaniasis burden remains a major problem at a global scale, evidence-based rational use of insecticidal interventions is required to meet public health demands. Standardized bioassays and molecular markers are a prerequisite for this task, albeit are lagging behind. Experiences from other disease vectors underscore the need for the implementation of appropriate IR management (IRM) programs, in the framework of integrated vector management (IVM). The implementation of alternative strategies seems context- and case-specific, with key eco-epidemiological parameters yet to be investigated. New biotechnology-based control approaches might also come into play in the near future to further reinforce sand fly/leishmaniasis control efforts.

Author summary

Phlebotomine sand flies, mainly aggregated in the tropics and subtropics, are prominent vectors Leishmania parasites that cause leishmaniasis, which comes second to malaria in terms of parasitic causative fatalities globally. In the absence of human vaccines, sand fly vector control is a key component of leishmaniasis prevention and control efforts. Here, we review the current methods and active ingredients applied for sand fly chemical control, as well as the IR data (bioassay and underlying mechanisms) available for dominant sand fly vector species worldwide. Future perspectives for improving the efficiency and sustainability of sand fly control applications, in the genomics era, including the use of molecular diagnostics for evidence-based IRM and the introduction of alternative biotechnology-based approaches, are discussed.

Introduction

Phlebotomine (Diptera: Psychodidae) sand flies represent major vectors of human and animal pathogens, such as Leishmania spp., Bartonella spp. (Carrion disease), and arboviruses, which are responsible for several diseases including sand fly fever, vesicular stomatitis, and Chandipura encephalitis [1]. Leishmaniasis, reportedly among the neglected tropical diseases with the highest global burden [2], is caused by parasitic protozoa of the genus Leishmania (Trypanosomatida: Trypanosomatidae), which are transmitted zoonotically and/or anthroponotically by Phlebotomus and Lutzomyia spp. in the Old and New World, respectively [1]. Three main disease forms exhibiting different clinical manifestations occur: cutaneous leishmaniasis (CL), mucocutaneous leishmaniasis, and visceral leishmaniasis (VL), also known as kala-azar, which is fatal if left untreated [3]. Leishmaniases are endemic in over 98 countries in the tropics, subtropics, and the Mediterranean basin, with approximately one million new infection cases and 20,000 to 30,000 associated deaths (mainly attributed to the VL form of the disease) occurring annually [2,3]. Over 90% of the global VL load occurs in Brazil, Eritrea, South Sudan, Sudan, Ethiopia, Kenya, Somalia, and India, whereas Brazil, Peru, Venezuela, Bolivia, Colombia, Algeria, Syria, Iran, Afghanistan, and Pakistan note the highest morbidity and mortality caused by CL [3]. Experts fear that the leishmaniasis burden may increase further in the years to come. The ongoing climate and environmental change in conjunction with the high population mobility and unplanned urbanization occurring across the globe comprise important risk factors altering the spatiotemporal distribution of vector species and their associated pathogens [4].

Early case detection and treatment are essential prerequisites for leishmaniasis control [3]. Indicatively, case management comprises the core leishmaniasis control strategy in a number of countries (i.e., Kenya, Ethiopia, and Sudan) recently witnessing a VL incidence rate increase [5,6]. However, many high-risk endemic regions lack systematic infection surveillance systems and proper diagnostic tools/expertise to conduct preventive control of the disease. Furthermore, most of the available therapeutic drugs are accompanied by severe side effects, while preventive human vaccines are still under development or clinical trial phases [7]. Hence, leishmaniasis elimination programs largely rely on vector control by means of synthetic insecticides and environmental management [8]. Notably, in many foci, sand fly control is often a by-product of antimalarial vector control efforts [8].

Environmental vector management (EVM), aiming at removing or rendering unfavorable phlebotomine sand fly potential breeding and resting microhabitats, was the standard method for controlling vector populations, until 1940. Widely implemented modifications including removing tree stumps, filling soil and indoor cracks/crevices (making them impermeable to oviposition and sand fly emergence), regular cleaning of peridomicile areas and animal shelters, and removal of organic materials and rubbish have considerably contributed to the control of vector populations [8]. EVM, depending to a large extent on local community awareness and involvement, may offer the maximum toward vector population reduction when integrated with other leishmaniasis elimination methods rather than serve as a stand-alone approach [9].

Chemical interventions, such as indoor residual spraying (IRS), space spraying (predominantly ultra-low volume (ULV) fogging), insecticide-treated nets (ITNs), topical and spatial repellents, and impregnated dog collars (IDCs), are some of the most powerful tools to control sand flies [8,10]. Nevertheless, the reliance on insecticides for controlling Leishmania transmission and/or other co-endemic vector-borne diseases (e.g., malaria), as well as additional pressure from agricultural insecticidal interventions, has triggered the development of insecticide resistance (IR) in key sand fly vector species’ populations in India and elsewhere [10–12], likely threatening the efficacy and operational impact of the respective control programs.

The objectives of the current article are to: (i) critically summarize sand fly chemical control interventions, including their uses, efficacy reports, and limitations; (ii) depict the global status of phlebotomine sand fly IR at the bioassay level; (iii) review the underlying IR mechanism reports across sand fly species and geographical regions; and (iv) discuss the importance and perspectives of sand fly genomics—for improving the management, efficiency, and sustainability of chemical control applications, as well as the introduction of alternative biotechnology-based vector control strategies.

Methods

Search methodology

We searched the published literature on sand fly chemical control, sand fly IR against major classes of insecticides, and molecular/biochemical tools for resistance tracking in wild sand fly populations. The published studies were sought from the PubMed and Web of Knowledge databases of published studies.

Key words/terms used to guide the searches included “sand flies,” “leishmaniasis,” “vector control,” “chemical control,” “insecticides,” “impregnated dog collars,” “attractive toxic sugar baits,” “insecticide resistance,” “insecticide susceptibility,” “bioassay,” “kdr mutation,” “vgsc gene,” “biochemical analysis,” and “acetylcholinesterase.” Abstracts in languages other than English (i.e., Spanish, Turkish) were translated into English and, in case of relevance, the corresponding full length manuscripts were also translated and considered for inclusion.

Inclusion and exclusion criteria

Concerning bioassay reports, only data published as of 2000, recording mortality percentages (%) and/or lethal times (LT values) and/or lethal concentrations (LC values) of exposure to insecticides through applying WHO, CDC, or WHO/CDC modified protocols, were evaluated. Bioassay experiments on laboratory colonies, non-Phlebotomus or Lutzomyia species, and on populations for which a defined field collection date and location was not provided were excluded.

Findings

Chemical control of sand flies

Indoor residual and space spray applications

IRS comprises the backbone of chemical control interventions in high-burden areas [13]. IRS involves coating of the inner walls and other surfaces of households and animal shelters with a residual insecticide, primarily targeting endophilic and endophagic vector species (Table 1). The intervention’s operational success relies on multifarious parameters, including commitment to the technical guidelines by properly trained spraying personnel, effective ground program supervision, the type of wall surface treated/sprayed, the quality and residual activity of the active ingredients/formulations used, the climatic conditions, and the entomological/epidemiological features of the intervention area (e.g., levels of indoor versus outdoor transmission) [14,15].

Table 1. Summary description of sand fly vector control practices discussed in the present review article and associated challenges/limitations.

Control strategy	MoAa	A.I.b	Targeted life stage	Operational application	Species mainly targeted/tested	Countryc	Selected references	Challenges/Limitations
Environmental management	HM	-	Immature	Outdoors				• Breeding/immature habitats are terrestrial, widely dispersed, and not easily detected • Possible impact on local environmental features • Reliance on community’s involvement and awareness
Indoor residual spraying	LD	PY, OP, CAR (OC)	Adult	Indoors	Lutzomyia spp., P. argentipes, P. duboscqi, P. papatasi, P. sergenti	Bangladesh, India, Iran, Mali, Morocco, Nepal, Peru, Venezuela	[10,11,14–16,18–22]	• Protective only against intradomestic transmission (indoor-resting/indoor-biting species) • Efficacy affected by timing and rounds of spraying, wall surface type, insecticide bioavailability, etc. • Requires trained personnel and strong commitment to the technical guidelines/operational complexity
ITNs/LLINs	HC, LD	PY	Adult	Indoors	L. youngi, L. ovallesi, P. argentipes, P. orientalis, P. perfiliewi, P. perniciosus, P. sergenti, P. tobbi	Afghanistan, Bangladesh, Colombia, India, Iran, Italy, Nepal, Sudan, Syria, Turkey, Venezuela	[10,16,19,20,28–35,37–39]	• Protective only against indoor-biting species • Reliance on community’s sleeping behavior compliance • Efficacy potentially affected by vector’s biting time • High coverage required for community-wide protection effect • Limited distribution, especially in poor areas/costly
Insecticide-impregnated durable wall lining	LD	PY	Adult	Indoors	P. argentipes	Bangladesh, India, Nepal	[13,24,25]	• Costly • Installation and maintenance specialist teams required • Poor house ventilation • Large-scale evidence against sand flies required
Insecticide-treated clothing	HC (LD)	PY	Adult	Indoors/outdoors	P. papatasi		[41]	• Health risks/small amount of insecticide possibly absorbed through dermal contact
Topical/spatial repellents	HC (LD)	Natural compounds, synthetic compounds (e.g., PY, SS220, DEET, picaridin)	Adult	Indoors/outdoors	P. argentipes, P. papatasi, P. perniciosus		[10,51,52]	• Repellency effect varying between sand fly species
ATSB	LD	Neonicotinoids, spinosyns, boric acid, PY	Adult	Outdoors	P. papatasi, P. sergenti	Iran, Israel, Morocco	[46–50]	• Large-scale evidence against sand flies required • Coverage and use need to be defined • Possible effects on non-target organisms
Insecticide-impregnated dog collars	HC (LD)	PY	Adult	Outdoors	L. longipalpis, P. kandelakii, P. perfiliewi, P. perniciosus	Brazil, Iran, Italy	[10,65–67]	• High rate of coverage required to eliminate canine leishmaniasis • Regular replacement required • Costly • Collar loss often occurring
Animal feed-through insecticide baits	LD	PY, IGRs, ivermectin, fipronil	Immature/adult	Outdoors	P. argentipes, P. duboscqi, P. papatasi	India	[56,59–64]	• Field-scale evaluation required • Optimal placement of livestock shelters needed • Reliance on vector species’ host preference
Space spraying	LD	PY	Adult	Outdoors	P. duboscqi, P. perfiliewi	Greece, Kenya	[10,44,45]	• Inadequate coverage of sand fly habitats • Short residual efficacy requiring re-application • Requires trained personnel and strong commitment to the technical guidelines/operational complexity • Possible effects on non-target organisms
Insecticide-impregnated fences nets	HC (LD)	PY	Adult	Outdoors	P. papatasi, P. sergenti	Israel	[42,43]	• Large-scale evidence against sand flies required
Biological/chemical larvicides	LD	Microbial larvicides (Bt), IGRs, OPs	Immature	Outdoors	L. longipalpis, P. argentipes, P. duboscqi, P. martini, P. papatasi	Argentina, Bangladesh, Kenya	[10,19,54,55]	• Breeding/immature habitats are terrestrial, widely dispersed and not easily detected

^aMoA, Mode of Action; HM, habitat modification/ manipulation; LD, reduction of sand fly longevity and population density; HC, reduction of host–sand fly contact.

^bA.I., Active Ingredient; PY, pyrethroid; OP, organophosphate; CAR, carbamate; OC, organochlorine; Bt, Bacillus thuringiensis; IGR, insect growth regulator.

^cThe list refers to countries where field trials of the respective control strategies have been conducted.

Dichlorodiphenyltrichloroethane (DDT)-based IRS, often integrated within malaria elimination programs, was the mainstay of sand fly control since 1944 and for several decades to follow [8], largely contributing to leishmaniasis transmission suppression in this period in countries such as India, Nepal, Iran, Syria, Italy, Greece, and Peru [10,11,16]. However, the introduction of restrictive measures against several organochlorines (OCs) in the 1970s, due to their high toxicity risk (for human and animal health) and environmental persistence, in conjunction with reports on DDT resistance in sand fly vector populations in disease-endemic regions (e.g., India) [11], imposed a shift toward the use of safer insecticides. To date, pyrethroids are the primary insecticide class used in IRS applications around the globe [17]. Indicatively, interior wall spraying with lambda-cyhalothrin in villages of the Peruvian Andes [10] and deltamethrin in regions of the Indian subcontinent [14,18] resulted in a 70% or higher household-level reduction in the abundance of Lutzomyia spp. and Phlebotomus argentipes sand flies, respectively, for up to 6 months post-intervention. During a controlled trial in villages of Bangladesh, 2 rounds of alpha-cypermethrin spraying resulted in an average maximum of 75% P. argentipes population density reduction (14 months post-first round and 2 months post-second round) [19]. A markedly lower vector density was reported in pyrethroid-treated kala-azar–endemic districts in eastern Nepal (mean drop of 94.5% in the number of sand flies trapped per night/per house over a 5-month period post-intervention) [9]. Furthermore, alpha-cypermethrin spraying in areas of northern Morocco significantly limited CL cases from 9 to 0 per 1,000 inhabitants [15], yet no considerable effect was observed on the abundance of Phlebotomus sergenti, the main CL vector in the region.

Several field studies have reported suboptimal results upon IRS operations with the duration of insecticides’ residual efficacy being the critical point. For example, recent small-scale pyrethroid IRS trials targeting P. argentipes in high-risk areas of the Indian subcontinent failed to sustain a significant population reduction for more than 12 weeks [14,20]. Similar results were reported following lambda-cyhalothrin IRS applications against Lutzomyia vectors in Margarita Island, Venezuela [21,22].

Insecticide-treated durable wall lining (DWL) is an alternative type of indoor residual intervention, relying on the application of an insecticide-treated thin polyethene net covering partially or completely the inner wall surfaces [23] (Table 1). This new technology was created to improve the residual effect of insecticides commonly observed in IRS treatments and for the practicality of the application. Although we lack epidemiological data showing the method’s impact on leishmaniasis focal incidence, recent comparative analyses of different interventions (DWL, IRS, and slow-release insecticide tablet impregnation of bed nets) in southern Asian countries evaluated DWL as the most powerful tool for reducing the abundance of local P. argentipes populations [13,24]. Indicatively, Huda and colleagues [25] recorded a 63% to 73% decrease of the indoor female sand fly density in the DWL intervention clusters 1 month post-installation, while the material retained its insecticidal activity for at least 12 months. Overall, linings have been accepted in a number of traditional settings (particularly in isolated villages), where IRS logistics pose a significant challenge. However, the intervention’s high cost along with the deposition and handling of the large volume of insecticide-treated plastic surfaces following their use remain critical issues possibly having triggered the cessation of the manufacturing processes.

Indoor space spraying (ISS), targeting resting or flying individuals, has been performed against malaria mosquitoes especially as an emergence response, offering a one-off knockdown (KD) effect (often also exploited for monitoring purposes), followed by a short residual effect. Even though ISS adulticidal outcome on mosquito vectors has been assessed [26], there is currently no evidence available of its potential operational efficacy against sand fly vectors.

Insecticide-treated bed nets

ITNs and long-lasting ITNs (LLINs) comprise important intradomestic Leishmania transmission control tools through acting as a toxic physical barrier against blood-seeking sand flies [27], offering both personal- and community-level protection upon high net coverage/distribution (Table 1). Their field efficacy has been evidenced in countries of the Mediterranean basin, Latin America, and Africa [10]. In community-wide trials conducted in Sudan and countries of the Middle East, broad distribution of ITNs reduced the leishmaniasis burden by 59% to 98% for at least 1 year [28–30]. Specifically in Iran, epidemiological evidence revealed a close to elimination of CL incidence rate in high-risk regions of the country where pyrethroid-treated bed nets and curtains had been in use for 1- or 2-year trials [16,30–32]. A remarkable drop in the annual CL incidence (compared to control regions) was also reported upon ITNs deployment in 2 intervention areas in Sanliurfa, Turkey [33]. Mondal and colleagues [34] and Chowdhury and colleagues [35] reported a 66.5% and 46.8% VL incidence reduction in rural areas of Bangladesh after 1 and 3 years of ITNs application, respectively.

A small number of community-scale ITNs/LLINs trials, alongside the recorded reduction of leishmaniasis incidence, also report a reduction of the local vector populations’ abundancy [9,20,30,36]. Indicatively, Chowdhury and colleagues [19] observed a maximum drop of 78% in P. argentipes household density following village trials in Bangladesh. A similar effect (60% reduction) against the same vector species, lasting for at least 18 months, was observed by Mondal and colleagues [34], accompanying deltamethrin impregnation of the existing bed nets. In addition, trials conducted in the Indian subcontinent have shown a sand fly density drop persisting for 9 months in the ITN clusters [24].

The cotreatment of LLINs with insecticide synergists, such as piperonyl butoxide (PBO; a known inhibitor of P450 monoxygenases), appears a highly promising supplement for vector control in vector-borne disease (VBD) endemic areas of intense pyrethroid resistance. Gunay and colleagues [37], having assessed the protective efficacy of Olyset Plus LLIN (2% permethrin and 1% PBO) in a hyperendemic village in Cukurova region, Turkey, reported a 92% protection rate from Phlebotomus tobbi bites and a decrease of CL prevalence up to 4.78%, during the post-intervention year.

In some cases, village-wide distribution of LLINs in India and Nepal did not significantly impact the infection rates nor affected the transmission occurring in these regions’ ecological settings [38]. Operational issues, short residual efficacy, lack of community compliance, and/or possible IR/tolerance, including potential behavioral shifts in vector species’ feeding patterns, are likely to be responsible for such unsatisfactory results [13,20,38,39]. Indicatively, the KALANET project, a cluster randomized controlled trial of mass ITNs distribution implemented in India and Nepal, failed at remarkably diminishing vector’s survival and, thus, VL infection rates, due to P. argentipes exhibiting a more intensely zoophilic and exophagic behavior than previously observed in some endemic biotopes [39,40].

Other insecticide-treated materials (ITMs) for personal and community protection

In VBD high risk–prone regions, workers, the public, and the military commonly utilize clothing impregnated with insecticides [41] (Table 1). Permethrin is the preferred active ingredient (for treating clothing), due to its low health risk, combined with its insecticidal and repellent effect. Although the protective efficiency of insecticide-treated clothing is substantial against mosquitoes, we lack robust evidence concerning sand flies. The few available studies report a leishmaniasis protection rate varying from 0% to 79% [41].

In Jordan Valley, Iran, field trials with pyrethroid-impregnated vertical fine mesh nets serving as physical barriers against sand flies entering inhabited areas [42,43] reduced the abundance of sand flies trapped in the enclosed areas by over 60% compared to pre-fence net placement. These preliminary results suggest that this could be a valuable additive measure integrated in comprehensive chemical control campaigns.

Outdoor residual and space spray applications

Insecticide spraying on trees and vegetation around human dwellings, animal shelters, or in barrier zones targeting flying, breeding, or resting insects is not a widely applicable measure against Leishmania vectors, as it comes with important limitations due to inadequate habitat coverage and poor insecticide residual activity [10] (Table 1).

However, multiple trials of cold fogging or ULV space spray insecticide applications in countries of Latin America have demonstrated satisfying results in the reduction of sand fly population and leishmaniasis incidence within the intervention sites [10]. In a recent study carried out in western Kenya, malathion and synthetic pyrethroid + PBO formulations tested in ULV applications suppressed the local sand fly populations (mainly, Phlebotomus duboscqi) by at least 50%, immediately after spraying [44]. Encouraging results were also published by Chaskopoulou and colleagues [45], where Phlebotomus perfiliewi populations decreased by 66% in heavily infested animal facilities of Greece, 24 hours post-high rate ULV ground application of a deltamethrin-based formulation.

Attractive toxic sugar baits (ATSBs)

Composed of a sugar source, an attractant and an oral toxin/insecticide, attractive toxic sugar baits (ATSBs) are applied against indoor or outdoor insect vector populations, targeting their sugar-seeking behavior (Table 1). This method appears to act on both male and female insects during their adult life span, by killing them either directly or through dissemination [46]. ATSBs have been applied in small-scale field trials in multiple formats: (i) sprayed on vegetation; (ii) coating barrier fences around villages; and (iii) incorporated into bait stations, overall generating encouraging preliminary results. In zoonotic CL-endemic regions of the Middle East, specifically Iran and Israel, vegetation and barrier fencing ATSB applications including 1.0% w/w boric acid led to a close to 90% reduction of the Phlebotomus papatasi populations [47–49]. In addition, evaluation of the residual activity of ATSB-treated barrier fence nets in central Iran revealed their potency for at least 60 days post-installation, causing at that time point a mortality rate of 51% in the field-caught, cone bioassay–exposed P. papatasi sand flies [50]. Finally, Qualls and colleagues [46], following a 4-week period of ATSB vegetation spraying and bait station deployment in a Moroccan agricultural area, recorded an 83% decrease in P. papatasi and P. sergenti populations within the treated sites, with negligible impact on non-target insects.

Topical and spatial repellents

Natural or synthetic compounds with repellent activity are commonly applied against several insect vectors either at the household level or on skin/clothing for personal protection, hindering the vector–human interaction (Table 1). Spatial repellents appear in different formats, such as candles, coils, and sprays.

Laboratory pilot trials on the repellency effect of several chemical compounds, such as picaridin, SS220, N,N-diethyl-3-methylbenzamide (DEET), and ethyl-butylacetylaminoproprionate (IR3535), proved that they could serve as biting deterrents against different sand fly species (e.g., P. papatasi, P. duboscqi, Phlebotomus perniciosus). However, the repellency effect and duration seem to vary depending on the targeted species [51]. Active natural ingredients derived from plants, such as Ricinus communis, Solanum jasminoides, Capparis spinosa, and Geranium spp., have also been tested against sand fly laboratory colonies, displaying repellent and/or insecticidal properties [52], yet the potential effect of natural ingredients’ field application against local sand fly population abundance and/or protection from sand fly bites remains greatly understudied.

Applications targeting sand fly immature stages

The control of sand flies at their immature stages mainly relies on habitat modification and manipulation (within the EVM context). Sand flies breed in a wide variety of terrestrial sites that are not easily detectable nor well characterized, making the use of larvicides difficult (Table 1). However, an increasing effort to develop tools for easy identification of sand fly larval habitats [53] may greatly enhance the precision and efficacy of larviciding interventions.

Within the framework of larval chemical control, Gómez-Bravo and colleagues [54] evaluated the Dragon Max formulation (i.e., a combination of 2 active ingredients: permethrin + pyriproxyfen (insect growth regulator (IGR)) versus a permethrin (only) formulation, in field applications in Clorinda, Argentina. Chicken coops and surrounding vegetation were sprayed, covering potential phlebotomine breeding sites. The denoted drastic decrease in the abundance of Lutzomyia longipalpis exposed to Dragon Max lasted for 21 weeks and was not observed in areas exposed to permethrin-only treatments. In another study conducted in Bangladesh, no significant reduction was observed following chlorpyrifos (organophosphate (OP)) spraying in sand fly oviposition sites, i.e., shady, moisture, and rich in organic materials (e.g., cow dung) places, outside human dwellings, and cattle shades [19].

Other active ingredients of biological origin, such as formulations of Bacillus thuringiensis var. israelensis (Bti) and Bacillus sphaericus (Bsph) have been also tested against sandflies. Bti has been shown to cause significant mortality in both larval and adult stages, under laboratory conditions, whereas a similar effect was noticed upon Bsph field spraying on vegetation [10]. Application of the entomopathogenic fungi Metarhizium anisopliae in termite mounds used for resting/breeding sites led to 3- to 10-fold increase in mortalities of the sand fly vectors Phlebotomus martini and P. duboscqi, 9 weeks post-application in Rabai, Kenya, while a reduced adult sand fly longevity was also observed [55]. However, the operational efficiency of such interventions is yet to be evidenced.

Insecticide zooprophylaxis and animal protection

Systemic treatment of livestock (e.g., cattles) and/or other sand fly vertebrate reservoir hosts with orally administered insecticides displays promising potential in facilitating the control of outdoor blood-feeding adults and/or feces-feeding larvae (Table 1). To date, several laboratory studies have revealed reduced survival of Phlebotomus spp. larvae upon feeding on Mesocricetus auratus hamsters’ feces treated with IGR larvicides, such as diflubenzuron, novaluron, and juvenile hormone analogues [56]. Ivermectin, widely used against zoophilic and anthropophilic/anthropozoophilic insect vectors and the pathogens they transmit [57,58], has proved a powerful rodent feed through insecticide in Leishmania vector control laboratory trials [59]. Additionally, the significant activity of the systematic use of ivermectin-treated livestock against Anopheles mosquito vectors’ survival in field conditions may have a similar impact on sand fly populations [60]. Similarly, fipronil single dose–treated rodent (Meriones shawi, Rattus rattus, Bandicota bengalensis, etc.) and cattle (Bos taurus, Bos indicus) baits have been evaluated, under both laboratory and field conditions, against Phlebotomus spp. (i.e., P. argentipes, P. papatasi), causing an effect of almost total larvae/adult mortality (80% to 100%) lasting for 3 to 6 weeks [61–64]. Protection of dogs, the principal Leishmania infantum reservoir host, from sand fly bites is commonly mediated by slow-release insecticide IDCs that maintain an antifeeding and insect-killing activity for approximately 6 to 8 months (Table 1). So far, collars impregnated with deltamethrin and flumethrin/imidacloprid have been developed and validated both in laboratory and field studies [65]. Recently, Yimam and colleagues [66] systematically reviewed the effectiveness of IDCs. Mass use of IDCs has efficiently reduced the risk of canine leishmaniasis (canL) transmission by 46% to 86% during intervention trials in Italy, Iran, and Brazil. High collar coverage (approximately 90%) within the target area was shown to be essential to abate canL occurrence. However, this comes at a considerable economic cost and is not always feasible [66]. Interestingly, community-wide deployment of deltamethrin IDCs in Iran demonstrated an additional protective efficiency against infantile L. infantum infections [67].

Biocidal spot-on formulations such as lotions and sprays comprise complementary prophylactic measures mostly applied at an individual–animal level [68].

Insecticide resistance—Bioassay data

Historical data on IR phenotypes of Lutzomyia and Phlebotomus vector species have been reviewed by Alexander and Maroli [10], Dhiman and Yadav [11], and Rocha and colleagues [12]. Here, we summarize global reports since 2000 and the most recent bioassay data (2016 to 2020) from southeastern Asia.

Despite the prolonged exposure of sand flies to insecticides [17], our knowledge on their susceptibility status remains narrow. Notably, the available bioassay data are geographically aggregated in the highest leishmaniasis burden countries with important spatiotemporal data coverage gaps in all continents. To date, Bihar and West Bengal, the main epicenters of VL transmission in India, are the only regions with systematic data coverage over the years [11,12]. Limitations in data availability can partially be attributed to challenges in sand fly collection and rearing and to the lack of sand fly standardized bioassay protocols (i.e., established diagnostic doses and exposure times) [12,69]. Hitherto, the majority of susceptibility tests have been carried out following WHO tube or CDC bottle protocol and the corresponding diagnostic doses derived from mosquitoes [12,70,71], while very few studies have implemented WHO or CDC bottle bioassay protocols for establishing lethal concentrations and exposure times specific and up to date against sand flies [69,72–74]. Overall, the straight comparison and consistent interpretation of sand fly bioassay results generated in different studies are difficult to be made, due to (i) the remarkable variation in the bioassay protocols applied; and (ii) the lack of susceptible laboratory colonies tested simultaneously with the field-caught populations (in the vast majority of studies) [12].

Throughout the text and in Fig 1, population data extracted from WHO tube or CDC bottle bioassays are classified as susceptible, suspected resistance/tolerance, and resistance based on the percentage (%) of mortality recorded 24 hours post-insecticide exposure (i.e., 60 minutes of exposure at the putative diagnostic doses extrapolated from mosquitoes [70,71]). As described in WHO/CDC guidelines, mortality ≥98% shows susceptibility, 90% to 97% indicates the possibility of resistance, and <90% denotes resistance. In all other cases where (i) non-discriminating doses were tested; or (ii) other than mortality percentage metrics were provided, the susceptibility/resistance profiles of the corresponding populations are presented as defined by the respective authors. The bioassay records included in the review are presented per region, and all respective assay details (including sand fly species, bioassay protocols deployed, and generated test values) are synopsized in S1 Table.

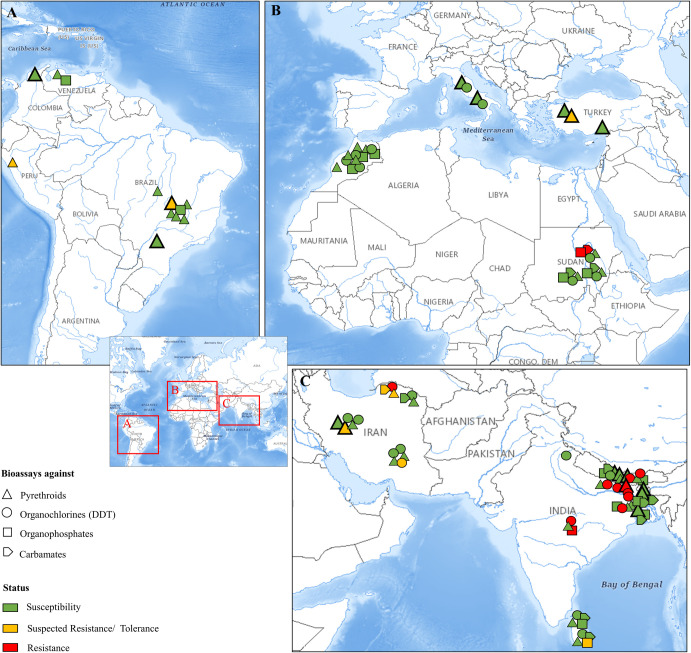

Fig 1. Global geographical distribution of IR bioassay reports in Lutzomyia and Phlebotomus sand fly vector species.

The global map focuses in regions with data coverage since 2000: (A) Latin America, (B) Mediterranean basin and north-central Africa, and (C) the Middle East and southeastern Asia. The sand fly species analyzed per region are (A) L. longipalpis, L. evansi, and L. peruensis, (B) mainly, P. papatasi, P. sergenti, and P. tobbi, and (C) mainly, P. papatasi, P. sergenti, and P. argentipes. Data correspond to WHO tube or CDC bottle bioassays in adult field-caught sand fly populations, against compounds of the 4 main insecticide classes. For WHO and CDC bioassay experiments using insecticide discriminating doses, the resistance status is determined by the mortality percentage (%) recorded 24 hours post-exposure (1 hour of exposure), as follows: ≥98% shows susceptibility (green), 90%–97% indicates the possibility of resistance (yellow), and <90% denotes resistance (red). Regarding the cases where (i) KD rates (%) at 1 hour of exposure are given; (ii) other than discriminating doses were tested; or (iii) dose–or time–response KD/mortality curves were provided, the susceptibility/resistance status is presented as defined by the respective authors. The symbol size varies depending on the number of insecticides of the same class tested against a specific population. In cases of differences in the population’s response against these insecticides, the less sensitive condition is presented. A detailed dataset for each bioassay experiment is provided in S1 Table. Maps were obtained from USGS (https://apps.nationalmap.gov/viewer/). DDT, dichloro-diphenyltrichloroethane; IR, insecticide resistance; USGS, US Geological Survey.

Indian subcontinent

In India, important leishmaniasis vector species appear resistant to a number of public health insecticides. The most alarming problem is that of DDT resistance, documented in P. argentipes and P. papatasi populations from West Bengal and Bihar. Indicatively, a series of studies report DDT 4% exposure mortality rates ranging from 43% to 100% [11,75–77] and KDT₅₀ (i.e., time of exposure causing 50% KD of the tested population) values exceeding 30 minutes [76] in both vector species. Resistance has also been recorded against the OC dieldrin in West Bengal and Uttar Pradesh P. papatasi populations [10–12]. The only recent record (from 2000 onward) of pyrethroid resistance in the country was documented in Bihar P. argentipes populations, with mortality rates of 56% and 84% against deltamethrin and alpha-cypermethrin 0.05%, respectively [75]. Both P. argentipes and P. papatasi Indian populations have occasionally displayed evidence of resistance against carbamates (i.e., propoxur) and OPs (i.e., malathion) [11], yet the majority of bioassay records against these compounds denoted susceptibility [11,76].

Elsewhere in the Indian subcontinent, evidence of DDT resistance has been recorded in P. argentipes specimens from Sunsari district, Nepal (with a DDT 4% KD value of 51% and mortality 62%), whereas the same population appeared sensitive to deltamethrin 0.05% [11]. In 2015 to 2016, Chowdhury and colleagues [78] evaluated the sensitivity status of P. argentipes in VL-endemic areas of southeastern Nepal and Bangladesh revealing KD percentages >81% and 100% mortality following exposure to alpha-cypermethrin 0.05%, deltamethrin 0.05%, lambda-cyhalothrin 0.05%, permethrin 0.75%, malathion 5%, and bendiocarb 0.10%.

The sole study depicting (through WHO dose response assays) the phenotypic status of P. argentipes populations from Sri Lanka showed DDT, malathion, propoxur, and deltamethrin sensitivity in 3 of the 4 tested populations, with LC₁₀₀ (i.e., insecticide concentration leading to 100% mortality of the tested population) values of 0.8%, 0.9%, 0.017%, and 0.007%, respectively [79]. The Mamadala (fourth) population displayed lower sensitivity against malathion (LC₁₀₀ 2%), DDT (LC₁₀₀ 1.5%), and propoxur (LC₁₀₀ 0.03%), possibly indicating incipient resistance associated with the prolonged exposure of the district population to OPs and carbamates for public health and agricultural purposes.

Mediterranean basin and the Middle East

Recent studies have evaluated the susceptibility status of vector populations in Italy, Turkey, Morocco, Sudan, and Iran. In 2002, Maroli and colleagues [80] reported the susceptibility of recently colonized P. papatasi and P. perniciosus populations from Italy against DDT (2%), lambda-cyhalothrin (0.06%), and permethrin (0.2%). In Turkey, 2 studies from Karakus and colleagues, in 2016 and 2017 [81,82], evaluated the response of mixed field-caught Phlebotomus and Sergentomyia populations from leishmaniasis-endemic villages of Mugla, Aydin, and Adana Provinces against deltamethrin 0.05% and permethrin 0.75%. The dose–response WHO bioassays showed sensitivity to both compounds for the Adana [81] and Aydin [82] populations, the latter unexposed to any prior insecticidal pressure displaying KDT₅₀s values <23 minutes and 100% mortality. On the contrary, in Mugla, where pyrethroid-based mosquito control programs have been in operation for a long time, the field population proved tolerant to both deltamethrin and permethrin with KDT₅₀ values <37.5 minutes and mortality rates below 93.3% [82].

Faraj and colleagues [83] assessed the insecticide susceptibility status of P. papatasi and P. sergenti populations from CL-endemic villages of Morocco through applying the standard WHO protocol and discriminating doses established for sand flies (1981) [84]. KD rates of 100% (at the 1-hour exposure time point) against DDT (4%), lambda-cyhalothrin (0.05%), and malathion (5%) were recorded, denoting susceptibility of both vector species to these compounds. Although within the susceptible status frame, the tested populations exhibited noticeable differences in their KDT₅₀ values (ranging from 11 to 33.8 minutes) with the higher values reported in populations from areas exposed to local DDT and pyrethroid-based malaria/leishmaniasis control spraying operations [83].

Hassan and colleagues [85] analyzed the resistance status of 3 P. papatasi populations from Sudan against compounds of all 4 major insecticide classes. The White Nile area and Rahad Game Reserve Camp populations showed full sensitivity against all tested compounds, while the population from Khartoum (an area with intense malaria vector control programs) displayed resistance against malathion (5%) and propoxur (0.10%) (KDT_95s > 24 hours and mortality rates < 20%) and suspected tolerance against DDT (4%) and permethrin (0.75%) (KDT₉₅ values of 85 minutes and 194 minutes, respectively).

In Iran, P. papatasi and P. sergenti populations collected in 2010 from Bam district, Kerman Province, showed susceptibility against DDT 4% and deltamethrin 0.05% [86]. Likewise, P. papatasi populations from Badrood district (a leishmaniasis-hyperendemic focus of Esfahan Province) sampled in the same year displayed susceptibility to cyfluthrin (0.15%), permethrin (0.75%), deltamethrin (0.05%), lambda-cyhalothrin (0.05%), and DDT (4%) (mortalities >98%) [87,88]. However, a follow-up study in Badrood district in 2015 reported P. papatasi incipient resistance (mortalities <98%) against DDT, permethrin, and deltamethrin [89].

Signs of tolerance were also reported in P. sergenti populations from North Khorasan villages (sampled in 2015) against DDT (4%), permethrin (0.75%), and bendiocarb (0.10%) [90]. Overall, despite the restriction of DDT usage in Iran over the last decade, it appears that both P. papatasi and P. sergenti populations retain greater sensitivity to compounds of other insecticide classes (i.e., pyrethroids and carbamates) compared to DDT.

South America

The pyrethroid and OP insecticide susceptibility profiles of several Lutzomyia species have been evaluated in South America, where insecticide compounds of these classes are the most commonly deployed for IRS in the continent [17]. L. longipalpis populations from Monte Claros, Brazil, showed resistance to deltamethrin 0.05% (63.7% mortality) and possible permethrin tolerance, as increased LT₅₀ (time of exposure causing 50% mortality of the tested population) permethrin (0.10%) values were recorded compared to other field populations tested (Lapinha Cave) [91]. In 2015, Rocha and colleagues [92] performed dose–response CDC bottle bioassays against alpha-cypermethrin in mixed Lutzomyia spp. populations (L. longipalpis was the most frequent species) collected from Minas Gerais localities, Brazil. All populations were characterized susceptible (with LC₅₀ values ranging from 1.48 to 2.57 μg/mL), despite the systematic appliance of alpha-cypermethrin in local sand fly control programs. Recently, González and colleagues [74], having deployed a modified WHO tube assay, reported susceptibility (100% mortality and KDT₅₀ values <31 minutes) of a Sao Paulo, Brazil, L. longipalpis population against deltamethrin 0.50% and lambda-cyhalothrin 0.05%. Last but not least, a number of WHO/CDC dose–response bioassay studies have been conducted in Brazil, Peru, Venezuela, and Colombia, in order to define the LC values (LC₅₀, LC₉₅, or LC₉₉) for L. longipalpis [93], Lutzomyia evansi [94,95], and Lutzomyia peruensis [96] field populations against commonly used insecticides. The respective test values are given in S1 Table.

Mechanisms of insecticide resistance

The underlying mechanisms of resistance in sand flies remain largely unknown. Most molecular studies focus on target-site mutations with fewer reports on metabolic resistance. Cuticular or behavioral resistance mechanisms, which have been reported and described in other insect vectors [97,98], have not been investigated in sand flies. Nevertheless, the gradual shift of P. argentipes to a more exophagic–zoophagic pattern (i.e., cattles shades) in Indian endemic foci, such as West Bengal, is speculatively attributed to the long-term indoor DDT exposure, consisting a behavioral adaptation hint [39].

Target-site resistance

Resistance to DDT and pyrethroids (type I and II) has been correlated with multiple point mutations in the voltage-gated sodium channel (VGSC) gene (i.e., knockdown resistance (kdr) mutations), which are reportedly widespread and well conserved in several insects of public health and agricultural importance [99]. Among them, 2 polymorphisms at the VGSC transmembrane segment IIS6 locus 1014, L1014S (from TTA to TCA), and L1014F (from TTA or TTG to TTT or TTC), both functionally associated with reduced sensitivity against type I and type II pyrethroids [100], have been found in phlebotomine sand flies (Fig 2 and S2 Table). The available kdr mutation reports amount to: (i) the presence of both 1014F and 1014S mutations in the major VL vector P. argentipes in Bihar and West Bengal states, India, with allelic frequencies ranging from 27% to 54% [75,76]; (ii) 1014F occurrence, at a close to 50% allelic frequency in a small number of P. papatasi specimens from Sanliurfa, an important CL focus in Turkey [101]; and (iii) the presence of the 1014F and 1014S mutant alleles in P. argentipes specimens from Sri Lanka at overall frequencies of 53.77% and 1.88%, respectively [79].

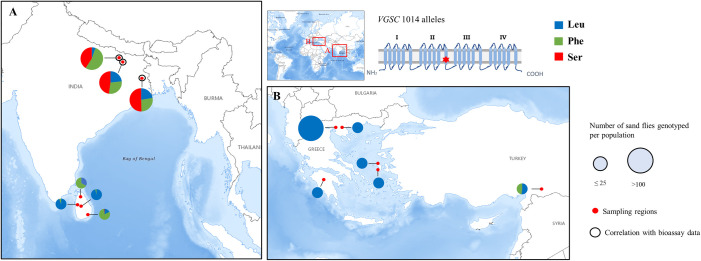

Fig 2. Global geographical distribution and respective allelic frequencies (%) of the kdr mutations at VGSC locus 1014 in sand fly populations.

Molecular analyses refer to (A) P. argentipes populations from India and Sri Lanka and (B) mixed Phlebotomus spp. populations from Greece and P. papatasi populations from Turkey. The size of the pie charts is proportional to the number of specimens genotyped per population. Red dots denote the sampling regions in the 4 countries. Genotyping data correlated with results of bioassay experiments are marked with a black circle. The allelic frequencies, the number of total specimens analyzed per population, and the species included are given in detail in S2 Table. Maps were obtained from USGS (https://apps.nationalmap.gov/viewer/). kdr, knockdown resistance; Leu, leucine (wild-type allele); Phe, phenylalanine (mutant allele); Ser, serine (mutant allele); USGS, US Geological Survey; VGSC, voltage-gated sodium channel.

Sequencing analyses for the presence of other known kdr mutations (i.e., VGSC I1011M, V1016G, and F1020S) in sand fly populations from India, Greece, and Turkey reported their absence (in the respective specimens) [75,76,79,102], including the non-detection of 1014F/S mutations in the Greek populations (comprising of Phlebotomus neglectus, P. perfiliewi, Phlebotomus simici, and P. tobbi specimens) [101,102].

Gomes and colleagues [75] and Sardar and colleagues [76], investigating sand fly resistance in important foci of VL in India, correlated the recorded DDT and, possibly, pyrethroid type II resistance phenotypes with the kdr mutation 1014F in homozygosity and to a lesser extent with 1014S. Notably, in India, Sri Lanka, and Turkey (where the kdr mutations have been recorded), DDT and pyrethroids have been intensely used against mosquitoes or other disease vectors [11,17,81], possibly imposing strong selection pressure on the local sand fly populations, resulting in the reported 1014F/S allele frequencies.

OP and carbamate resistance has been correlated (in several insects) with reduced acetylcholinesterase (AChE) sensitivity attributed to specific point mutations in the ace1,2 genes [99]. Sand fly biochemical studies have revealed possible reduced AChE susceptibility in P. argentipes field populations from Sri Lanka [79,103] and AChE insensitivity (>80% residual activity) against malathion and propoxur in a P. papatasi population from Khartoum, Sudan [85]. The presence of known ace mutations (e.g., G119S, F455W), conferring target-site insensitivity to OPs and carbamates in mosquitoes and other insects [104], is yet to be examined in sand flies. However, taking into account: (i) the conserved (among a number of dipterans) ace gene motifs in the L. longipalpis AchE gene [105]; (ii) the L. longipalpis and P. papatasi AChEs’ common amino acid identity (>85%) with those of major mosquito vectors (e.g., Culex pipiens, Aedes aegypti) [105,106]; and (iii) the similar P. papatasi AChE biochemical properties to those of Ae. aegypti recombinant AChE [106], it is possible that such mutations may also occur in wild sand fly populations.

In contrast to mosquitoes and agricultural pests, target-site resistance mutations against neonicotinoids, IGRs, or Bt active ingredients have not been explored in sand flies.

Metabolic resistance

Metabolic detoxification, which inactivates and sequesters insecticides [99,107], is a common mechanism of IR (found across multiple insects), which can cause operationally relevant resistance levels, especially when combined with target-site resistance mutations [108]. Fawaz and colleagues [109] highlighted the role of metabolic detoxification pathways in a permethrin-resistant P. papatasi colony (established under laboratory selection); biochemical and molecular analyses revealed that the observed resistance was mediated by elevated oxidase and esterase activity levels.

Quantitative changes of esterase activity levels were also reported in OP- and carbamate-resistant P. argentipes populations originating from Delft Island, Sri Lanka [103]. Last but not least, glutathione-S transferase and esterase activity levels above the discriminating values given for mosquitoes were recorded in P. argentipes populations sampled across Sri Lanka [79], although the relevance of this dataset with resistance remains to be validated.

Outlook and future perspectives

Leishmaniasis prevention/control campaigns are required and implemented in multifaceted risk-prone settings displaying a wide diversity of entomological, epidemiological, ecological, and socioeconomic factors. Several control tools including IRS, ITNs, and other ITMs, as well as outdoor insecticidal interventions are currently used for sand fly control. Nevertheless, no intervention implemented under a “stand-alone–silver bullet” approach may suffice to sustainably prevent leishmaniasis transmission. Uptake of the IVM concept, supporting the case-specific deployment of control measures (alone or in combination), tailored to the local entomological, ecological, and epidemiological features of each endemic focus, under an evidence-based, cost-effective, sustainable, and ecologically friendly approach, may greatly enhance the performance of sand fly control programs. However, critical evaluation of control methods—including quality of trial designs—is lacking. Within this framework, the establishment of guidelines for leishmaniasis vector control supporting the design and assessment of field trial control interventions may greatly facilitate the realization of high-quality IVM programs.

The standardization of sand fly–specific WHO and CDC bioassay protocols and the establishment of operationally relevant diagnostic doses against the active ingredients used for their control are essential for evidence-based management of chemical control interventions [12]. In addition, the identification of robust molecular markers associated with IR, as well as additional population traits (e.g., species composition and presence of Leishmania parasites), and the subsequent development and application of individual or multiplex/integrated molecular diagnostic tools are prerequisites for systematic entomological monitoring and evidence-based control.

The arsenal of sand fly control interventions may be reinforced in the near future as alternative biotechnology-based control methods might be developed or adapted from other vectors. The ongoing effort to sequence the genome of several sand fly species should stimulate research, allowing the devise of new strategies. For example, gene editing via CRISPR/Cas9 methodology in P. papatasi and L. longipalpis, aiming to target leishmanial vector competence, has been recently attempted [110]. Furthermore, Phlebotomus and Lutzomyia species have been found naturally infected with Wolbachia strains [111], and a potential for the use of Wolbachia, alone or in combination with sterile insect technique, has been indicated [112]. Gut microbiome alterations have also been shown to impair vectorial capacity in sand flies [113]. Nevertheless, the fact that more than one sand fly species may be prevalent in leishmaniasis-endemic regions might limit the potential applications of such biotechnology approaches, thus further favoring chemical-based interventions including novel insecticides.

Key Learning Points

• Indoor residual spraying (IRS) and insecticide-treated bed nets (ITNs) are the most common interventions implemented against sand fly vectors.

• Bioassay records of insecticide resistance (IR) mainly focus on P. argentipes and P. papatasi populations from India, the Mediterranean basin, and the Middle East, while there are also sporadic reports for Lutzomyia populations in South America.

• Target-site pyrethroid resistance mutations (knockdown resistance (kdr) L1014F/S) have been detected in several Phlebotomus populations worldwide, while metabolic resistance has not been adequately studied.

• The impact of sand fly IR on control failure needs to be further evaluated to assess risk thresholds for decision-making. Evidence for IR management (IRM) is lacking behind, due to the sporadic IR studies with non-standardized bioassays and the lack of molecular markers for resistance monitoring.

• Several alternative sand fly vector control strategies are in the development pipeline and under evaluation, including attractive toxic sugar baits (ATSBs), repellents, and zooprophylaxis approaches, as well as biotechnology-based approaches in the longer term, but lack evidence with regard to when and where such strategies and/or products could offer greatest public health value. Such alternative strategies would be introduced using an approach of integrated vector management (IVM), in combination with existing products.

Top five papers

1. Dhiman RC, Yadav RS. Insecticide resistance in phlebotomine sandflies in Southeast Asia with emphasis on the Indian subcontinent. Infect Dis Poverty. 2016;5(1):106. doi: 10.1186/s40249-016-0200-3. PMID: 27817749; PMCID: PMC5098277.

2. Fotakis EA, Giantsis IA, Demir S, Vontas JG, Chaskopoulou A. Detection of pyrethroid resistance mutations in the major leishmaniasis vector Phlebotomus papatasi. J Med Entomol. 2018;55(5):1225–1230. doi: 10.1093/jme/tjy066. PMID: 29912381.

3. Gomes B, Purkait B, Deb RM, Rama A, Singh RP, Foster GM, Coleman M, Kumar V, Paine M, Das P, Weetman D. Knockdown resistance mutations predict DDT resistance and pyrethroid tolerance in the visceral leishmaniasis vector Phlebotomus argentipes. PLoS Negl Trop Dis. 2017 Apr 17;11(4):e0005504. doi: 10.1371/journal.pntd.0005504. PMID: 28414744.

4. Hassan MM, Widaa SO, Osman OM, Numiary MS, Ibrahim MA, Abushama HM. Insecticide resistance in the sand fly, Phlebotomus papatasi from Khartoum State, Sudan. Parasit Vectors. 2012;5:46. doi: 10.1186/1756-3305-5-46. PMID: 22397726.

5. Huda MM, Ghosh D, Alim A, Almahmud M, Olliaro PL, Matlashewski G, Kroeger A, Mondal D. Intervention packages for early visceral leishmaniasis case detection and sand fly control in Bangladesh: A comparative analysis. Am J Trop Med Hyg. 2019;100(1):97–107. doi: 10.4269/ajtmh.18-0290. PMID: 30457088.

Supporting information

S1 Table. Insecticide resistance bioassay records in Phlebotomus and Lutzomyia vector species populations worldwide.

(XLSX)

S2 Table. Reports of kdr mutation L1014F/S in Phlebotomus spp. populations globally.

(XLSX)

Funding Statement

The author(s) received no specific funding for this work.
