LATE–a novel sensitive cell-based assay for the study of CRISPR/Cas9-related long-term adverse treatment effects

Abstract

Since the introduction of clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9), genome editing has been broadly applied in basic research and applied biotechnology, whereas translation into clinical testing has raised safety concerns. Indeed, although frequencies and locations of off-target events have been widely addressed, little is known about their potential biological consequences in large-scale long-term settings. We have developed a long-term adverse treatment effect (LATE) in vitro assay that addresses potential toxicity of designer nucleases by assessing cell transformation events. In small-scale proof-of-principle experiments we reproducibly detected low-frequency (<0.5%) growth-promoting events in primary human newborn foreskin fibroblasts (NUFF cells) resulting from off-target cleavage in the TP53 gene. Importantly, the LATE assay detected not only off-target effects in TP53 not predicted by popular online tools but also growth-promoting mutations in other tumor suppressor genes, such as p21 and PLZF. It convincingly verified strongly reduced off-target activities of high fidelity compared with first-generation Cas9. Finally, the LATE assay was readily adapted to other cell types, namely clinically relevant human mesenchymal stromal cells (hMSCs) and retinal pigmented epithelial (RPE-1) cells. In conclusion, the LATE assay allows assessment of physiological adverse effects of the CRISPR/Cas system and might therefore be useful for preclinical safety studies.

Graphical abstract

The authors introduce an in vitro (“LATE”) assay that facilitates the analysis of potential long-term toxicity of designer nucleases. They provide evidence that this assay is able to detect growth-promoting events that occurred as consequence of CRISPR/Cas off-target activity.

Introduction

In 2011, clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9) designer nucleases were first described for use in other than the original bacteria.¹ Soon thereafter, their DNA interference mechanism was precisely described by Doudna and Charpentier and collaborators.² Since then, the attention given to CRISPR/Cas has been rising exponentially. The system was quickly optimized toward application in eukaryotic and eventually human cells.3, 4, 5 Meanwhile, CRISPR/Cas9 systems from various bacteria have been cloned, and many improvements have been introduced, e.g., to obtain high-fidelity enzymes that combine excellent efficiency with low off-target activity. The latest remarkable innovations were the introduction of base editors that allow direct correction of single-point mutations without the need of DNA strand breaks^6,7 and the invention of prime editing, a “search-and-replace” genome editing technology that facilitates a large variety of targeted genomic changes independent of cellular repair mechanisms. In fact, prime editing was shown to mediate targeted insertions, deletions, all 12 possible base-to-base conversions, and combinations thereof in human cells without requiring double-strand breaks (DSBs) or donor DNA templates.⁸ Altogether, genome editing and particularly CRISPR/Cas9 have become a broadly used tool in many biotech fields but also in biomedicine.⁹

This fast progress has also led to the translation of first genome editing approaches toward clinical application, initially based on zinc-finger nucleases (ZFNs)¹⁰ and transcription activator-like effector nucleases (TALENs),¹¹ but more recently also with CRISPR/Cas.¹² However, rapid translation into clinical testing has also raised some concerns. Indeed, rare unwanted effects of designer nucleases in general and CRISPR/Cas9 in particular might become relevant for large-scale application in human gene therapy, as previously observed with retroviral vectors.¹³ Specifically, little is known about the actual impact of (1) immunogenicity of designer nucleases, (2) off-target cutting, and (3) the activation of the cellular repair response. In this regard, it is important to note that recent data even suggest that adverse effects might be more pronounced than anticipated. In fact, preexisting immune answers against Cas9 proteins of the most broadly used CRISPR/Cas9 systems from Streptococcus aureus and Streptococcus pyogenes were described in the vast majority of tested individuals.^14,15 Moreover, unexpectedly high rates of chromosomal aberrations after CRISPR/Cas9 treatment were found in recent studies.¹⁶ In line with this, in studies with the CRISPR/Cas9 system in rats and mice many off-target events were observed that had not been predicted by widely used bioinformatics algorithms.¹⁷ Finally, a potential selection for p53-mutated cells as a result of genome editing was reported.¹⁸ This is a worrying finding, since p53 mutations represent a hallmark of cancer and are present in almost all human malignancies.¹⁹

In view of the obvious risks associated with off-targets, many groups have investigated their actual frequencies. This has resulted not only in the establishment of various algorithms predicting likelihood of an off-target mutation at a given site (e.g., CRISPOR,²⁰ CHOPCHOP,²¹ and Cas-OFFinder²²), but also in several unbiased, versatile techniques to profile genome-wide DSBs (e.g., GUIDE-seq,²³ Digenome-seq,²⁴ BLESS,²⁵ CIRCLE-seq,²⁶ Vivo [partially using CIRcLE-seq²⁷], and qEva-CRISPR²⁸). All the empirical methods rely on some form of high-throughput sequencing to detect mutations either in pre-selected regions or on a genome-wide scale. Next-generation sequencing (NGS), however, is a rather expensive method and requires advanced bioinformatics for detailed data analysis. This is particularly true for very rare events that require ultra-deep sequencing for detection. Moreover, all the above algorithms and methods are purely descriptive, i.e., they provide only information on locations and frequencies of the off-target mutations, whereas the much more relevant point—their potential consequences for cellular physiology—remains elusive. In order to minimize actual risks, it will be crucial to thoroughly investigate these potential side effects, thus ensuring well-grounded risk/chance assessments for genome editing-based clinical strategies. This holds particularly true for in vivo applications of genome editing and the problem of any hypothetical tumor-promoting side effects, as previously seen with integrating γ-retroviral vectors.²⁹ However, meaningful tests on potential adverse long-term effects of designer nucleases are still lacking.

To address this deficit, we have recently started development of the LATE assay (long-term adverse treatment effects identification assay). Deploying a worst-case scenario this assay aims at assessing the risk of growth-promoting off-target events based on the use of permanently genetically marked cells as targets of CRISPR/Cas9 delivery and sensitive readout methods including flow cytometry (FC) and digital PCR (ddPCR). In this proof-of-concept study we demonstrate the potential of the LATE assay to identify low-frequency growth-promoting off-target events and to compare off-target toxicity of different Cas9 proteins.

Results

LATE assay principle: design and proof of concept

It was previously shown that TP53 knockout in primary human newborn foreskin fibroblasts (NUFFs) leads to relative growth advantage resulting in positive selection and eventual outgrowth of affected clones.³⁰ We reasoned that this established growth advantage might be used for proving the concept of the envisioned principle of the LATE assay as depicted in Figure 1. To test the proposed assay design, we made use of an all-in-one lentiviral vector that co-expressed “classical” SpCas9, a TP53-targeting guide RNA (gRNA), and the eGFP marker (“LeGO-CC-p53”), where the gRNA targeted the previously described region³⁰ in exon 4 of TP53 (Figure 2A, Table 1).

Figure 1.

LATE assay principle

The principle of the LATE assay includes (1) transduction of primary human newborn foreskin fibroblasts (NUFFs) with all-in-one lentiviral vectors encoding fluorescent protein, designer nuclease (Cas9), and gRNA, (2) FC analysis of the cells for up to 10 weeks including baseline, and final check (3) readout, with increasing numbers of transduced cells as an indicator of a growth advantage acquired by the cells as a (side) effect of genome editing.

Figure 2.

LATE assay is able to detect growth-promoting genome editing events

(A) Schematic representation of the TP53 gene and two of the gRNA sequences applied to validate LATE assay (listed in Table 1). TP53 gRNA is fully complementary to the shown fragment of exon 4 of TP53 gene, whereas CYP1A1(off TP53) gRNA contains a single mismatch to the TP53 sequence (marked in red). Cas9 cleavage sites are marked with arrows. (B) Results of the FC analysis of the NUFF cells transduced with three different MOIs of all-in-one lentiviral particles encoding eGFP, Cas9, and TP53 gRNAs. (C) Comparison of the FC analysis of the NUFF cells transduced with all-in-one lentiviral particles encoding different gRNA sequences (TP53, CYP1A1(off TP53), or CYP1A1-2) marked with appropriate colors above the graphs. Red lines mark initial transduction rate. Based on LATE assay principles, positive and negative LATE results are marked with yellow and blue-gray colors, respectively (data are represented as mean ± SEM, n=3).

Table 1.

List and specification of the gRNAs used and their alignment to TP53 exon 4 sequence

gRNA name	Primary target	Targeting TP53	No. of MMs	Target sequence + PAM (corresponding TP53 sequence, MMs indicated)
TP53	TP53	yes	0	GACGGAAACCGTAGCTGCCC TGG
CYP1A1(off TP53)	CYP1A1	yes	1	GACAGAAGATGACAGAGGCC AGA (GACAGAAGATGACAGGGGCC AGG)
CYP1A1-2	CYP1A1	no	n.a.	GATTGGGCACATGCTGACCC TGG
CYP1A2(off TP53)	CYP1A2	yes	3	GGCAGAAGATGGCAGAGGCC AGG (GACAGAAGATGACAGGGGCC AGG)
CYP-BOTH	CYP1A1 CYP1A2	no	n.a.	ACCCGCACCTGGCACTGTCA AGG
GFOD(off TP53)	GFOD1	yes	2	GGAGCAGGAGCTGCTGGTGC AGG (GGTGTAGGAGCTGCTGGTGC AGG)
OBSL(off TP53)	OBSL1	yes	3	GCAGCCGTAGGTGCCCTGGT CGG (GAAACCGTAGCTGCCCTGGT AGG)
RFX(off TP53)	RFX1	yes	3	GAAGCCGGCGCTGCCCTGGT AGG (GAAACCGTAGCTGCCCTGGT AGG)
SOX(off TP53)	SOX11	yes	2	TGCAGGAGCTGCTGGTGCGG TGG (TGTAGGAGCTGCTGGTGCAG GGG)

MM, mismatches; n.a., not applicable.

A sine qua non for the usefulness of the assay is the outgrowth of small numbers of mutated cells ensuring detection of rare events. To address this, we performed a limiting-dilution approach with decreasing amounts of LeGO-CC-p53 vector-containing supernatant (6 μL, 1.25 μL, 0.25 μL) applied to transduce NUFF cells. Initial transduction rates as measured by FC were 16.5% (calculated multiplicity of infection [MOI]: 0.2) and 3.2% (calculated MOI: 0.04) for the first two groups. At the same time, in the group transduced with the lowest amount of vector (calculated MOI: 0.008), no transduced cells could be distinguished from the background fluorescence (control) based on eGFP expression (Figure 2B). Given the applied MOI, the expected transduction rate for this group would be ~0.5%. Cells were kept in culture and analyzed by FC every week for up to 9 weeks after transduction. As evident from Figure 2B, transduced cells had a strong growth advantage independent of the initial transduction rate. Based on the above transduction rate, the calculated number of transduced cells in the group transduced at the lowest MOI was below 150 (out of a total of 30,000 cells). This indicates that even with these low starting cell numbers the LATE assay has a high sensitivity, detecting growth-promoting events at frequencies below 0.5%.

To confirm that our observation was not related to donor-specific features, we repeated the LATE assay using the same LeGO-CC-p53 and NUFF cells from three different donors. In all three experiments the assay gave a positive output, showing acquired growth advantage of transduced cells (Figure S1). On the basis of these results, we defined the following principles for this first-generation LATE assay: (1) NUFF transduction with all-in-one lentiviral vectors, (2) checking baseline transduction rate and follow-up for up to 10 weeks by FC, and (3) positive readout, with increasing numbers of transduced cells as indicator of an acquired growth advantage in the process of genome editing (Figure 1).

Application of the LATE assay to detect off-target related adverse effects

Next, we asked whether the LATE assay will also be useful to detect growth advantages caused by unintended off-target knockout. To this end, we modeled the unwanted knockout of TP53 as the result of the off-target activity of a CRISPR/Cas9-gRNA combination directed against a completely different target. Obviously, any off-target cutting of the TP53 would be expected to occur at much lower frequencies compared with targeted TP53 knockout, where a large percentage (if not all) of the transduced cells are predicted to harbor TP53 mutations. Consequently, in the case of off-targeting TP53, only a small fraction of transduced (eGFP⁺) cells will potentially obtain a growth advantage. Since the actual off-target activity of a given gRNA could not be predicted, we aimed at testing several gRNAs targeting different genes and having various degrees of similarity to the same exon as targeted by LeGO-CC-p53. We identified gRNAs matching our requirements of intentionally off-targeting TP53 and picked six of them, containing one to three mismatches to the TP53-encoding sequence (Table 1).

These different gRNAs were next subjected to the LATE assay as described above. To this end, NUFF cells were transduced with all-in-one LeGO-CC vectors co-expressing Cas9 with each of the gRNAs. Transduced cells were kept in culture and analyzed by FC for up to 9 weeks. We aimed at initial transduction rates below 30% in order to deliver single vector copies to the majority of cells. At the same time, in our small-scale setting 30% transduction would result in a maximum of 9,000 transduced cells, which, for a TP53 off-targeting probability of 1% would result in 90 cells with potential growth advantage. Indeed, over time a gradual increase in the proportion of eGFP⁺ cells (positive readout) was observed in samples transduced with five of the six gRNAs off-targeting TP53 and targeting CYP1A1 (CYP1A1(off TP53)), RFX1 (RFX(off TP53)), OBSL1 (OBSL(off TP53)), GFOD1 (GFOD(off TP53)), and SOX11 (SOX(off TP53)) (Figure 2C; Figure S2). In contrast, there was no increase in numbers of transduced cells when the CYP1A2-targeting gRNA (CYP1A2(off TP53)) was used (Figure 2C). The negative result for the CYP1A2(off TP53) gRNA was confirmed with NUFF cells from 3 additional donors (Figure S1). Notably, this gRNA contains 3 mismatches to the TP53-encoding sequence, including a mismatch within 5 nucleotides of the 5′ end of the PAM sequence, i.e., within the so-called seed sequence. The latter is known to be most important for targeted DNA sequence recognition by the Cas9-gRNA complex. Therefore, the CYP1A2-specific gRNA had been expected to have the lowest probability of TP53 off-targeting among all tested gRNA sequences.

In the next step, we asked whether the observed growth advantages of transduced cells might have been caused by a knockout of the primary targets rather than an off-target of the used gRNAs (Table 1). To do so, we designed gRNAs targeting either solely CYP1A1 (CYP1A1-2) or a conserved region in both CYP1A1 and A2 (CYB-BOTH); both had no sequence similarity to TP53 (Table 1; Figure S3). All-in-one LeGO-CC vectors were derived and used for the LATE assay with NUFF cells as described above. In both cases, no outgrowth of transduced cells was detected (Figure 2C; Figure S2), demonstrating that the growth advantages observed in LATE assays were obviously not caused by a knockout of CYP1A1 or CYP1A2.

Positive LATE assay correlates with induced insertions/deletions in TP53

A positive readout in the LATE assay might theoretically also have been caused by reasons other than off-target TP53 knockout, e.g., insertional mutagenesis.³¹ To investigate the link between the positive readout of the LATE assay and (de novo generated) TP53 indels, we applied gene-editing frequency digital PCR (GEF-dPCR), also referred to as drop-off assay, a technique developed in our laboratory.^32,33 GEF-dPCR allows quantification of insertion/deletion (indel) rates at the gRNA-binding site resulting from non-homologous end joining (NHEJ) during repair of the Cas9-mediated DSBs. In short, GEF-dPCR represents a modified “TaqMan” assay that utilizes two dual-labeled hydrolysis probes instead of one. One (here HEX labeled) probe binds to a region far from the gRNA recognition sequence, and thus its binding will expectedly not be influenced by the DNA repair process. In contrast, binding of the other (here FAM labeled) “drop-off” probe will be impaired by the presence of NHEJ-generated indels (probes and cleavage sites schematically presented in Figure 3A).

Figure 3.

Growth advantage gained by NUFF cells correlates with indel frequencies in TP53

(A) Graphical representation of the fragment of the TP53 exon 4 and complementary FAM- and HEX-labeled probes used in GEF-dPCR. FAM-labeled probes were designed to bind positions to which Cas9 was targeted by gRNAs; thus, their binding to the TP53 sequence depends on the absence of indels within their complementary region. HEX-labeled probe was designed to bind TP53 sequence outside of the Cas9 cleavage sites. (B) On-target TP53 indel rate (in exon 4) over time, measured by GEF-dPCR. Genomic DNA samples were obtained at the indicated time points from NUFF cells transduced with all-in-one lentiviral particles encoding eGFP, Cas9, and TP53-directed gRNA (LeGO-CC-p53) at three different MOIs (data are represented as mean ± SEM, n=3). (C) Off-target TP53 indel rates (in exon 4) over time, measured by GEF-dPCR. Genomic DNA samples were obtained at the indicated time points from NUFF cells transduced with all-in-one lentiviral particles encoding gRNAs targeting Cas9 to CYP1A1, OBSL1, or RFX1 and at the same time off-targeting TP53 (Table 1). (D) Most frequent reads found in deep sequencing analysis of TP53 exon 4 on days 7 and 53 after treatment with LeGO-CC-p53. Changes in the contribution of individual reads over time are indicated.

To test the approach, we first applied GEF-dPCR to enumerate indels at the TP53 on-target site, i.e., after treatment with LeGO-CC-p53. We used three different amounts of vector supernatant (i.e., MOIs) as in the previous experiment (see above). For each time point and MOI we isolated three samples of genomic DNA (gDNA), and for each gDNA isolation we pooled cells from two wells. In all of the measured samples we observed an increasing number of the TP53 indels over time, starting from 1%–22% of the cells with indels at day 7 after transduction and peaking at 44%–85% cells after 52 days (Figure 3B). Notably, already at day 7 TP53 indels were detectable for the lowest applied MOI of LeGO-CC-p53 (Figure 3B), even though initially there were essentially no transduced cells detectable by FC (see above, Figure 2B).

We moved on and applied GEF-dPCR to quantify indels at TP53 off-target sites in cells transduced with LeGO-CC vectors encoding Cas9 and CYP1A1(off TP53), OBSL(off TP53), or RFX(off TP53) gRNAs. For this purpose, we used the same PCR primers and HEX-labeled probe and designed target-specific FAM-labeled “drop-off” probes (Figure 3A). We found that positive LATE assay readouts for all three gRNAs indeed correlated with increasing rates of TP53 indels (Figure 3C; Figure S4). Notably, in the case of OBSL(off TP53) gRNA the first detectable TP53 indel rates were as low as 0.2% (Figure 3C), but such low off-target activity became still detectable by outgrowth in the LATE assay. This observation underlines the sensitivity of the LATE assay in discovering even rare growth-promoting events. Importantly, we did not detect similar exon 4 TP53 mutations/indels in any of the control samples.

Amplicon deep sequencing and RGB marking demonstrate clonal growth advantages in the LATE assay

The GEF-dPCR data indicated that the LATE assay allows detection of very rare events based on the outgrowths of potentially single cells. To confirm this assumption and validate GEF-dPCR data, we made use of two additional techniques: amplicon deep sequencing of the targeted region in TP53 exon 4 as well as red-green-blue (RGB) marking, a method for color-guided clonal cell tracking developed in our laboratory.^34,35

First, we performed deep sequencing using genomic DNA isolated from NUFF cells 7 and 53 days after initial treatment with LeGO-CC-p53 (at MOI 0.2). At day 7, the indel rate measured by NGS (30.5%) was slightly higher than that estimated by GEF-dPCR (22%). This is not unexpected, since GEF-dPCR might be less susceptible to single-nucleotide losses or exchanges than NGS. In fact, among the three indels that occurred in >1% of the analyzed loci the deletion of one single cytidine (−1) was most frequent (16.13%) (Figure 3D). As expected, we observed a variety of different NHEJ-generated indels (Figure S5). On day 53 after transduction, only 6.84% of all NGS reads showed the wild-type sequence (Figure 3D), which was in accord with GEF-dPCR data (Figure 3B). Interestingly, the indels/clones most abundant already at day 7 remained predominant, with the variant containing the single cytidine deletion (−1) now representing 54% of all reads. The second most frequent TP53 variant harbored a 5-nucleotide deletion (−5) and was uncovered in >16% of the analyzed loci (Figure 3D; Figure S5). Thus, these two frameshifting deletions were found together in >80% (compared to 22% at day 7) of all reads. These data underline the substantial growth advantage of NUFF cells harboring TP53 frameshifting deletions.

To directly visualize potential clonal outgrowth, we prepared RGB-marked NUFF-derivative cells—fibroblasts marked with up to three (red-green-blue) fluorescence proteins (NUFF-RGB)—and transduced them with all-in-one LeGO-CC vectors encoding CYP1A1(off TP53) or TP53 gRNA. Transduced NUFF-RGB cells were submitted to the LATE assay.

As shown by FC (Figure S6), NUFF-RGB samples of both the CYP1A1(off TP53) and the TP53 gRNA groups showed evidence of clonal dominance as early as 25 days after transduction, whereas the control population remained largely polyclonal. This confirmed that the increasing proportions of eGFP-positive cells and TP53 indel rates measured in the LATE assay were due to the outgrowth of limited numbers of cells gaining higher fitness.

Together our data obtained so far have proven that the LATE assay is able to detect clonal growth advantages resulting from tumor suppressor gene (TSG) loss of function caused by CRISPR/Cas9 on- as well as off-target activities in a very sensitive manner.

LATE assay can be applied to different cell types

For many purposes, NUFF cells might not be the relevant indicator cell type. To address this limitation, we next tested the versatility of the LATE assay. To this end, we applied it to two further cell types: (1) human mesenchymal stromal cells (hMSCs) and (2) human telomerase reverse transcriptase (h-TERT)-immortalized primary retinal pigmented epithelial (RPE-1) cells. hMSCs are of great interest, particularly in regenerative medicine, thanks to their multi-lineage differentiation capacity and their immune-regulatory properties. Their potential in regenerative medicine was recently reviewed in detail by Han and collaborators.³⁶ In line with that work, genome editing is a promising approach to generate tailored hMSCs for different clinical applications. RPE-1 cells combine genetic features of primary cells with the cell line’s ability to divide continuously in vitro and might therefore be useful to develop standardized assays to detect potential adverse effects of genome editing in these cells.

To provide proof of principle, we again made use of all-in-one LeGO-CC-p53 vectors. However, in view of the significantly different transduction efficiencies of hMSCs and RPE-1 cells with our vesicular stomatitis virus glycoprotein (VSV-G)-pseudotyped vectors we had to apply much higher MOIs of LeGO-CC-p53, i.e., concentrated vector preparations to transduce hMSCs and lower MOIs to transduce RPE-1 cells. Again, in both cases, we observed an induced growth advantage of eGFP⁺ cells manifesting in their slow but permanent outgrowth (Figures 4A and 4B, left). As for NUFF, we next asked whether this increase was due to an increasing number of cells harboring indels within TP53. To do so, we again applied GEF-dPCR to enumerate cells with mutated TP53 at the gRNA on-target site (Figures 4A and 4B, right). As expected, the observed overgrowth of eGFP⁺ cells in both cases was correlated with increasing rates of TP53 indels.

Figure 4.

LATE assay can be applied to hMSCs and to h-TERT-immortalized cells

Results of the LATE assay in hMSCs (A) and RPE-1 cells (B). Left: Percentages of eGFP⁺ MSCs/RPE-1 cells over time after transduction with all-in-one lentiviral particle LeGO-CC-p53 encoding eGFP, Cas9, and TP53-directed gRNAs. Red line marks initial transduction rate. Right: Relative numbers of indels in exon 4 of TP53 over time as measured by GEF-dPCR. For each DNA isolation, cells from three wells from a 12-well plate were pooled (hMSCs) or measured separately (RPE-1 cells) (data are represented as the pooled sample result or by mean ± SEM, n=3).

These data indicate that the principle of the LATE assay can readily be adapted to different types of cultured and primary cells. This will be of potential relevance, since side effects of genome editing might be cell type specific.

LATE assay detects growth-accelerating events for gRNAs not targeting TP53

With a sole focus on TP53, the usefulness of the assay would be limited, since off-targeting of the TP53 gene could be largely avoided by carefully designing gRNAs. That is why we extended our preliminary work to other TSGs of different functional classes. These included genes encoding proteins involved in DNA repair (BRCA1) as well as genes involved in epigenetic modifications (ARID1A, SMARC2B), transcription (PLZF), and cell death/cell cycle control (PTEN, p21). Again, we exemplarily applied the LATE assay to NUFF cells, in which the chosen TSGs were targeted. Importantly, we found different targets that gave positive readouts in the LATE assay, particularly p21 and PLZF (Figures 5A and 5C, respectively). That prompted us to test whether the application of Cas9 in combination with gRNAs containing mismatches to PLZF will result in measurable growth advantage of transduced cells. We designed these gRNAs to harbor either 2 or 3 mismatches at the 5′ end of the gRNA (Figure 5B). In both cases, the LATE assay gave positive results, proving its broad applicability. In summary, these results clearly demonstrate that the LATE assay is not limited to TP53 but can detect off-targets in a variety of genes.

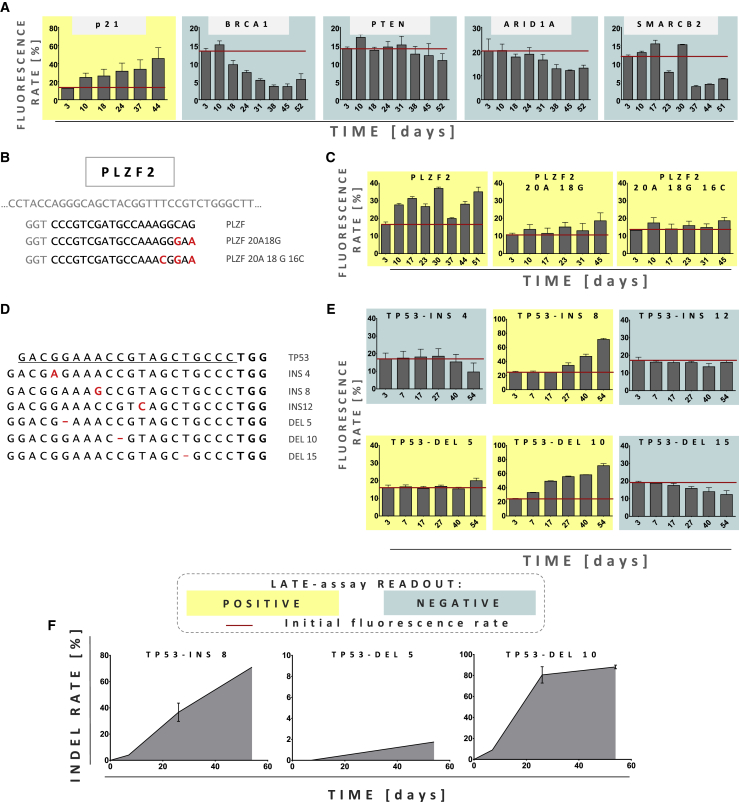

Figure 5.

LATE assay is able to detect growth-promoting events in different TSGs

(A) FC analysis of NUFF cells transduced with all-in-one lentiviral particles encoding eGFP, Cas9, and gRNAs targeting different functional classes of TSG: p21, BRCA1, PTEN, ARID1A, and SMARCB2. Red lines mark initial transduction rate. Based on LATE assay principles, positive and negative LATE results are marked with yellow and blue-gray colors, respectively (data are represented as mean ± SEM, n = 3). (B) Graphical representation of the fragment of the PLZF and gRNAs used in the experiment. Mismatches are marked in red. (C) FC analysis of the NUFF cells transduced with all-in-one lentiviral particles encoding eGFP, Cas9, and gRNAs presented in (B). Red lines mark initial transduction rate. Based on LATE assay principles, positive and negative LATE results are marked with yellow and blue-gray colors, respectively (data are represented as mean ± SEM, n = 3). (D) Alignment of the TP53-specific gRNAs and the gRNA variants containing single-nucleotide indels. Indels are marked with red color. (E) FC analysis of the NUFF cells transduced with all-in-one lentiviral particles encoding eGFP, Cas9, and gRNAs presented in (D). Based on LATE assay principles, positive and negative LATE results are marked with yellow and blue-gray colors, respectively (data are represented as mean ± SEM, n = 3). Average of the initial transduction rate of each sample is marked with a red line. (F) Off-target TP53 indel rates (in exon 4) over time, measured by GEF-dPCR. Genomic DNA samples were obtained at the indicated time points from NUFF cells transduced with all-in-one lentiviral particles encoding gRNAs/RNPs targeting TP53(data are represented as mean ± SEM, n=3).

Still, it could be argued that gRNAs off-targeting TSGs (or proto-oncogenes) would readily be predicted by bioinformatics tools and therefore could be excluded. Importantly, recent work demonstrated that gRNAs might also bind to (off-target) sequences containing single-nucleotide indels compared to their actual target sequence.^37,38 Cleavage of such targets by Cas nucleases requires bulge formation, a possibility obviously not foreseen by the algorithms employed by commonly used off-target predicting tools that apparently fail to identify those potential off-target sequences.^37,38 We therefore tested empirically whether indel-containing TP53-specific gRNAs will still promote a growth of transduced NUFF cells and thus result in a positive readout of the LATE assay. To do so, we designed 6 gRNA spacers with single-base indels compared to the TP53 sequence. To conserve the 20-nt length of the spacer sequence, we balanced deletions with the addition of a single G base at the 5′ end of gRNA (Figure 5D). We transduced NUFF cells with all-in-one LeGO-CC vectors as above and observed growth advantage (= positive LATE readout) in 3 out of 6 cases (Figure 5E). The LATE readout was again confirmed by GEF-dPCR (Figure 5F). Interestingly, 2 of the 3 gRNAs (INS8 and DEL10) were not predicted to off-target TP53 by CRISPOR, one of the most frequently used tools for off-target prediction. In contrast, Off-Spotter listed TP53 as a potential off-target but indicated 5 mismatches, thus suggesting an extremely low likelihood for off-target activity. The only tested online tool that indicated a high TP53 off-targeting probability for the indel-containing gRNAs was the search tool offered by Integrated DNA Technologies (IDT). In fact, IDT’s online tool was able to precisely show the type and position of differences between designed spacers and TP53 sequences.

LATE assay facilitates assessment of Cas9 specificity

Early after the introduction of CRISPR/Cas9, the comparatively high off-target activity of the new genome editing tools became apparent.39, 40, 41 Since then, significant efforts have been made to decrease the probability of unwanted off-target cutting. Those improvements were directed toward both compounds of CRISPR/Cas9 system, nucleic acid and protein,^42,43 but the Cas9 nuclease has become the preferred target to increase on-target specificity. In fact, SpCas9 has been subjected to rational design for structural modifications as well as random mutagenesis, and multiple Cas9 variants of increased specificity have been engineered, e.g., K855ACas9, eSpCas9,⁴⁴ HF-Cas9,⁴⁵ HypaCas9,⁴⁶ and SniperCas9.⁴⁷ A single alanine substitution of the positively charged residue (K855A) was described to lower Cas9 off-target activity.⁴⁴ Almost no detectable off-target activity (within the used detection limit) was found for a Cas9 variant with quadruple substitutions (Cas9-HF1-N497A/R661A/Q695A/Q926A).⁴⁵ We wanted to test whether our LATE assay is able to discriminate between different Cas9 variants with regard to their actual specificities on the functional level. To do so, we performed targeted mutagenesis to generate the above mentioned SpCas9 K855A, with a single amino acid substitution, and eSpCas9 1.0 harboring alanine substitution of three positively charged residues (K810A/K1003A/R1060A). We replaced the classical Cas9 by each one of the improved Cas9 variants in several all-in-one LeGO-CC vectors combining them with the TP53, CYP1A1(off TP53), and CYP1A1-2 gRNAs. Using those vectors, we transduced NUFF cells and performed the standard LATE assay as above.

First, we analyzed the nuclease activity of SpCas9 K855A by on-targeting TP53. As shown in Figure 6A, at similar initial transduction rates the outgrowth kinetics of eGFP-positive cells were comparable for SpCas9 K855A and wt Cas9-treated cells. We again confirmed the presence of indels in the targeted region of TP53 by GEF-dPCR and deep amplicon sequencing. As with wt Cas9, both techniques confirmed increasing numbers of cells harboring indels in TP53 over time: With GEF-dPCR the maximum indel frequency reached ~65% at day 52 (Figure 6A), whereas almost 80% of NGS reads contained indels at day 55 post transduction (Figure S6). Again, we found a variety of NHEJ-generated indels; the most abundant TP53 indel variants were single cytidine deletion (−1) (change from 8% to 28%) and deletion of five base pairs (change from 0.9% to 19.5%) (Figure 6B; Figure S7).

Figure 6.

LATE assay distinguishes SpCas9 variants with different fidelities

(A) Comparison of the FC analysis of NUFF cells transduced with all-in-one LeGO-CC particles encoding wild-type (wt) SpCas9 (gray) or one of two mutated (mut) variants of SpCas9 (black). gRNAs were directed against TP53 and CYP1A1 (off-targeting and not off-targeting TP53) as indicated above the graphs. Red lines mark initial transduction rates for vectors encoding mutated SpCas9 variants. Following LATE principles, assay positivity and negativity are indicated by yellow and blue-gray colors, respectively (data are represented as mean ± SEM, n=3). (B) Relative numbers of indels over time as measured by GEF-dPCR after on-targeting (TP53) and off-targeting (CYP1A1(off TP53)) exon 4 of TP53. Data are shown separately for both SpCas9 mutants. For each DNA isolation, cells from three wells of a 24-well plate were pooled.

Interestingly, when SpCas9 K855A was used with CYP1A1(off TP53) gRNA, the proportion of the eGFP⁺ cells was growing much slower compared to the NUFF cells treated with the same gRNA and wt Cas9 (Figure 6A). The LATE assay eventually became “positive”; the slower and smaller outgrowth indicated lower initial off-target rates and was thus consistent with the predicted improved SpCas9 K855A specificity. Also as expected, no measurable growth advantage of eGFP⁺ cells was observed when CYP1A1-2 gRNA was applied (Figure 6A). To confirm our phenotypic observations on the molecular level, we again used GEF-dPCR to quantify indel numbers within the off-targeted region of TP53 (exon 4). As evident from Figure 6B, there was an excellent concordance between the delayed outgrowth of eGFP⁺ cells and the corresponding late increase in TP53 indel rates with SpCas9 K855A.

In a second set of experiments, we performed the same analyses for eSpCas9 1.0, reported to have even further improved specificity. Indeed, off-targeting TP53 with CYP1A1(off TP53) gRNA we did not observe an outgrowth of eGFP⁺ cells in the LATE assay, whereas TP53 on-targeting was at least as efficient as with wt Cas9 (Figure 6A). Accordingly, we did not detect any indel formation in the off-targeted region of TP53 by GEF-dPCR (Figure 6B). As expected, the LATE assay was negative with CYP1A1-2 gRNA (Figure 6A). These data confirm the excellent specificity of eSpCas9 1.0 and clearly prove the usefulness of the LATE assay to test specificity of different nucleases using a relevant functional readout.

Discussion

Genome editing has revolutionized many areas of basic bioresearch as well as applied biotechnology. As a next big step, broad implementation of genome editing techniques in clinical gene therapy has been suggested. However, unwanted side effects, e.g., due to off-target cutting, often not relevant or easily excluded in research, might represent a definitive risk in human applications, where huge cell numbers will be modified and consequences of side effects might develop over decades. In fact, malignant transformation mediated by insertional mutagenesis had long been considered an extremely unlikely event in retroviral gene therapy, until it was first observed in a murine study⁴⁸ and shortly thereafter in the SCID-X1 trial in Paris.¹³

Therefore, suitable assays are required that allow thorough testing of novel genome editing techniques regarding their potential adverse effects. Whereas a large variety of techniques was introduced to predict and empirically detect off-targets of designer nuclease,20, 21, 22, 23, 24, 25, 26, 27, 28, 29 the obtained genetic information can in the best case only indirectly predict possible functional consequences of off-targeting.

To address this problem, we designed and established a novel cellular assay referred to as the LATE assay. In this work we have provided proof of concept demonstrating that the LATE assay facilitates detection of the functional impact of Cas9 off-target cutting. To do so, we first designed gRNAs targeting relevant genes and simultaneously off-targeting TP53, a crucial TSG. We were able to demonstrate that the LATE assay is indeed able to detect growth-promoting genome editing events within TP53 as well as other TSGs, namely p21 and PLZF. Our finding provides, to our knowledge, the first demonstration of an assay that allows discovery of physiologically adverse effects of the CRISPR/Cas system, specifically gain of growth advantage, one of the major tumorigenicity hallmarks.¹⁹

In our proof-of-concept study, we used flow cytometry as the main readout to directly visualize the growth advantage of cells that underwent genome editing. Subsequently, we confirmed that the observed growth advantage was indeed related to on- and off-target activity of Cas9 in conjunction with the tested gRNAs on the molecular level. To do so, we used a dedicated digital-PCR technique (GEF-dPCR)^32,33 as well as deep amplicon sequencing for direct indel detection in the target region. Finally, we showed that clonal outgrowth can be directly visualized by RGB marking.^34,35

To establish the principle of the LATE assay, we tested the different Cas9-gRNA combinations on 30,000 NUFF cells per single well (in triplicates). Using this low cell number, we were still able to detect functionally relevant off-target events at frequencies below 0.5%. It is safe to propose that the LATE assay can easily be upscaled to much larger cell numbers, which expectedly will result in higher sensitivities. However, even the current sensitivity is comparable with NGS-based methods, bounded by the actual error rate of NGS for indels (~0.1%). Considering the easy analysis and the relatively low costs (particularly as compared to deep sequencing required for similar sensitivity) the LATE assay has also clear advantages from a practical point of view.

Given the universal readout, the LATE assay can be used with any type of designer nuclease, including different CRISPR/Cas variants. In fact, we have shown that our assay clearly distinguished functionally relevant off-target activities of wt Cas9 and recently developed high-fidelity variants. In addition, we provided evidence that the LATE assay can readily be adapted to other cell types, particularly highly relevant primary hMSCs. Thus, the LATE assay can be employed to verify cell type-specific probabilities and impact of off-target activities of a given designer nuclease.

Current limitations of the LATE assay include the long time for readout and the low cell numbers used. Obviously, with starting cell numbers of 30,000 and transduction rates of 20%, the maximal sensitivity would be limited to ~1 off-target event in 2,000 cells (considering Poisson distribution). However, as noted above and supported by our preliminary data (not shown), the assay should be readily scalable to ensure higher sensitivities. In the presented proof-of-principle setting we focused on off-targets in well-known TSGs such as TP53 and the easy FC-based readout. At the same time, we do not see any reason why the assay should not work with other growth-promoting events as well. Moreover, the assay might readily be adapted to more subtle changes in the clonal composition by including sensitive readouts, such as DNA barcoding.^49,50

Finally, one might argue that the tested situation is too far from reality, since no one would use a gRNA off-targeting any established TSG, proto-oncogene, or regulatory sequence thereof. In this regard it was important to observe that the LATE assay was able to detect TP53-mediated adverse effects for gRNAs that were not labeled with a “red flag” by commonly used online tools. In fact, two gRNAs conferring TP53 knockout were not found to off-target this gene by the popular CRISPOR tool, whereas Off-Spotter listed TP53 as an unlikely off-target containing 5 mismatches. In contrast, the IDT online tool correctly predicted the TP53 off targets. These data confirmed recent findings by Lin et al.³⁸ and Jones et al.³⁷ that Cas9 does accept single-nucleotide indels in the target region and highlight the importance of adapting the algorithms for off-target identification to include single-nucleotide indels in all prediction tools.

In conclusion, we propose that the LATE assay presented here might fill the gap as an easy, fast, and cheap technology for testing unwanted adverse effects of a given genome editing strategy on cell growth regulation. The assay is complementary to genome-wide off-target detection methods based on NGS and should always be used in conjunction. Finally, the LATE assay provides a handy tool to test specificity of genome editing instruments, e.g., different Cas9 nucleases.

Materials and methods

Cells, cell lines, and cell culture

Primary fibroblasts, HEK293T (ATCC CRL-3216), RPE-1 cells (ATCC CRL-4000), and their derivatives were cultured in Dulbecco’s modified Eagle’s medium (DMEM Glutamax, Life Technologies) supplemented with 10% fetal calf serum (FCS) (5% for RPE-1 cells), l-glutamine (2 mM), penicillin (100 U/mL), and streptomycin (100 μg/mL). hMSCs were cultured in DMEM (Life Technologies) supplemented with 10% non-heat-inactivated FCS and l-glutamine (2 mM).

Cell culture was performed under standard conditions (37°C, 100% relative humidity, 5% CO₂). Cell culture material was purchased from Corning (Corning, NY, USA), Greiner Bio One (Frickenhausen, Germany), and Sarstedt (Nümbrecht, Germany).

Molecular cloning

All-in-one CRISPR/Cas9 LeGO (“LeGO-CC”) vectors⁵¹ were generated by cloning human codon-optimized Streptococcus pyogenes Cas9 gene (SpCas9) containing Nuclear Localization Signal and chimeric gRNA scaffold under hU6 promotor from pX330 (3, Addgene #42230), a kind gift from the Feng Zhang lab, into LeGO-iG2 (Addgene #27341) and LeGO-iC2 (Addgene #27345) vectors.^52,53 To generate constructs that express the gRNAs of choice, the respective sequences with addition of ACC at the 5′ end of the leading strand, followed by G if necessary (required for polymerase III dependent transcription) and AAC at 5′ end of complementary strand, were synthetized. ACC/AAC were added to allow for cloning into the SapI cloning site of LeGO-CC-iC2 or LeGO-CC-iG2 vectors.

To obtain the K855A and e1.0 (K810A/K1003A/R1060A) Cas9 variants, suitable primers were designed to introduce the desired mutations by PCR with Q5 DNA polymerase (NEB, Ipswich, MA, USA). The resulting linear PCR products were digested with DpnI for 1 h at 37°C and subsequently circularized with T4 ligase (Thermo Fisher Scientific, Waltham, MA, USA) for 2 h at 16°C in a blunt-end ligation. Ligation, transformation, and plasmid preps followed common protocols.

Primer sequences used in this project are shown in Table S1.

Lentiviral vector production and cell transduction

Described all-in-one LeGO-CC vectors were used to obtain third-generation lentiviral particles that were produced in accordance with our standard protocols.⁵² VSV-G-encoding plasmid (phCMV-VSV-G) was used for viral pseudotyping.⁵² In brief, 5 × 10⁶ cells were seeded and after overnight culture were transfected with appropriate plasmids. Medium was exchanged after 6 h, and the viral supernatant was harvested and filtered 24 h later. If indicated, all-in-one LeGO-CC vectors were concentrated by centrifugation (4°C, 16 h, 8,000 × g).

To transduce primary fibroblasts with lentiviral supernatant, 3 × 10⁴ cells were plated in 500 μL of medium in a 24-well plate. Two hours later viral supernatants and polybrene (8 μg/mL) were added (in triplicates). After 24 h medium was exchanged to standard growth medium. To check the initial transduction rate, cells were analyzed ~72–96 h after transduction by FC. Subsequently, cells were analyzed at different time points as indicated in Results.

To transduce hMSCs with lentiviral supernatant, 5 × 10⁴ cells were plated in 1 mL of medium supplemented with 20 mM HEPES in a 12-well plate. Two hours later concentrated viral supernatants and polybrene (8 μg/mL) were added in triplicates. Further steps did not differ from the protocol used for transducing fibroblasts.

RGB marking of NUFF cells

RGB marking of cells for clonal tracking was performed as described previously.^34,35 For the labeling of primary human NUFFs, 50,000 cells were plated per well of a 12-well cell culture plate in 1 mL of medium. RGB marking was carried out with concentrated stocks of three VSV-G-pseudotyped LeGO vectors, each encoding a fluorescent protein of one of the basic colors under control of an EF1α promoter, linked to a puromycin resistance by a 2A sequence: LeGO-EF1a-B2-Puro+ (encoding mTagBFP, blue), LeGO-EF1a-V2-Puro+ (encoding Venus, green), and LeGO-EF1a-C2-Puro+ (encoding mCherry, red).⁵³ Functional titers were in the range of 3.5 × 10⁸ to 6.2 × 10⁸/mL, titrated on 293T cells. An absolute MOI of ~3 (MOI 1 per color) was applied for optimal color distribution within the RGB-marked cells. Selection of transduced cells was done by addition of 1 μg/mL puromycin.

Flow cytometry

Cells from 12/24-well plates were dissociated with 400/200 μL of 0.5% trypsin-EDTA. Cells were transferred to FC tubes and centrifuged for 5 min at 310 × g. Cell pellets were resuspended in 250 μL of PBS and subjected to FC analysis, performed on LSRFortessa or CantoII (both BD Biosciences) at the Cytometry and Cell Sorting Core Unit of the UMC Hamburg-Eppendorf. Data were analyzed with BD FACSDiva (BD Biosciences) or FlowJo (FlowJo). Initially, cells were gated based on (1) SSC-A/FSC-A, (2) FSC-A/FSC-H, (3) FSC-A/eGFP-A parameters. In such cases, the fluorescence rate of control samples is presented. To reduce autofluorescence signal, we measured an additional parameter and changed the gating strategy to (1) SSC-A/FSC-A, (2) FSC-A/FSC-H, (3) mCherry-A/eGFP-A. After FC data were obtained, cells were collected for genomic DNA purification.

Digital PCR

Fibroblasts and hMSCs were harvested, and genomic DNA was purified with the DNeasy Blood & Tissue Kit (QIAGEN) and quantified with a NanoDrop Spectrophotometer (Thermo Fisher Scientific). ddPCRs were designed, prepared, and carried out essentially as described in our published protocol,^32,33 but on a Naica Crystal Digital PCR system (Stilla Technologies, Villejuif, France). In short, PCR mixtures were assembled with 1× PerfeCTa Multiplex qPCR ToughMix (Quanta Biosciences, Gaithersburg, MD, USA), 100 nM fluorescein (Sigma, St. Louis, MO, USA), 1 μM dPCR p53 forward primer and 1 μM dPCR p53 reverse primer for amplification of the target sequence, 250 nM p53-p53 HEX reference probe, and 40–80 ng of genomic DNA. 250 nM of FAM-drop-off probe was added corresponding to the cleavage site that was to be analyzed (FAM CYP1-p53 for CYP1A1(off TP53) sgRNA off-target cleavage site and FAM p53-p53 for TP53 on-target cleavage site). PCR reactions were loaded onto Sapphire or Opal chips (Stilla Technologies), compartmentalized into 2D monolayers of droplet partitions, and amplified with the Naica Geode instrument. Cycling conditions were step 1: 95°C for 3 min; step 2: 95°C for 10 s; step 3: 61°C for 1 min; repeat steps 2 and 3 45 times. Chips containing the generated droplets were imaged with the Naica Prism3 reader (Stilla Technologies), and fluorescent data were analyzed with Crystal Miner software (Stilla Technologies). Negative and positive droplets were discriminated by manual thresholding according to the wt controls included in each individual experiment.

To analyze TP53 off-target of wt Cas9 targeting OBSL1, RFX1, and CYP1A1 the digital PCR (dPCR) reaction mixture was prepared with the following: 1× ddPCR supermix for probes (no dUTP; Bio-Rad) and the same amounts of the primers and DNA as in the case of the reactions prepared to analyze on the Naica system. DG8 Cartridges (Bio-Rad) were filled with ddPCR reaction mixtures and Droplet Generation Oil for Probes (Bio-Rad). Droplets were generated with a QX100 Droplet Generator (Bio-Rad) according to the manufacturer’s instructions and then transferred into a 96-well PCR plate for PCR using a T100 Thermal Cycler (Bio-Rad). We used the same PCR program as in the Naica system. Data were analyzed with QuantaSoft software (Bio-Rad). Negatives and positives droplets were discriminated by manual thresholding according to the non-edited controls included in each individual experiment.

Deep sequencing

To prepare the sequencing libraries, fibroblasts were harvested at the indicated time point, and genomic DNA was purified with the DNeasy Blood & Tissue Kit (QIAGEN) and quantified with a NanoDrop Spectrophotometer (Thermo Fisher Scientific). The genomic region flanking the CRISPR target site was amplified. To do so, 60–80 ng of the genomic DNA was submitted to PCR (Q5 polymerase, NEB) that simultaneously added Illumina adapters to the amplicons (primer sequences in Table S1). Cycling conditions were step 1: 98°C for 2 min; step 2: 98°C for 10 s; step 3: 69°C for 20 s; step 4: 72°C for 20 s; repeat steps 2–4 5 times; step 5: 98°C for 10 s; step 6: 72°C for 30 s; repeat steps 5 and 6 30 times. PCR products were purified with the PCR Purification Kit (QIAGEN), following the manufacturer’s protocol. Purified DNA samples were quantified with Qubit (Thermo Fisher Scientific) and adjusted to 20 ng/μL. NGS of the prepared libraries and data analysis service were performed by GENEWIZ on Illumina devices. A minimal amount of 50,000 reads for each sample were obtained. Received data were analyzed with the web-based tool CRISPResso2.⁵⁴

Statistical analysis

Datasets shown as bar graphs represent the average of three independent experiments, with error bars indicating standard deviation (SD), if not specified otherwise. Statistical significance was determined with a two-tailed, homoscedastic Student’s t test.
