. 2021 Sep 4;78:105746. doi: 10.1016/j.ultsonch.2021.105746

Facile ultrasonic preparation of a polypyrrole membrane as an absorbent for efficient oil-water separation and as an antimicrobial agent

Moorthy Maruthapandi a, Arumugam Saravanan a, Shanmugasundaram Manoj a, John HT Luong b, Aharon Gedanken a,⁎
PMCID: PMC8429107  PMID: 34507263

Highlights

  • •

    Synthesis of polypyrrole from pyrrole involves only carbon dots as the catalyst.

  • •

    PPY particles are optimally deposited on fluorinated nonwoven fabric by ultrasonication after 30 min.

  • •

    With enhanced hydrophilicity, the resulting membrane can separate oil from a mixture of oil–water within 30 s with good reusability and efficiency.

  • •

    The incorporation of PPY in the fluorinated nonwoven membrane also imparts superior antibacterial properties against E. coli (Gram-negative) and S. aureus (Gram-positive).

Keywords: Polypyrrole, Ultra-sonication coating, Oil absorption, Antibacterial activity

Abstract

Polypyrrole (PPY) spherical particles synthesized using carbon dots as an efficient catalyst were strongly embedded on fluorinated nonwoven fabric by ultrasonication to form a membrane with high hydrophilicity. An optimal amount of PPY adhered to the membrane after 30 min of sonication enhanced the overall membrane area with high hydrophilicity. Oil with high hydrophobicity was repelled by the resulting membrane, whereas water was freely penetrated and diffused from the membrane. The membrane exhibited good reusability and efficiency for the recovery of oil from a cooking oil–water mixture within 30 s. The incorporation of PPY in the fluorinated fabric imparts significant antibacterial properties against two common pathogens, Escherichia coli (Gram-negative) and Staphylococcus aureus (Gram-positive). The anti-biofouling membrane could pave the way for its potential application to separate spilled oil from contaminated waters, comprising different microorganisms and living species. The novelty of this manuscript is described in a new system, the fabrication of PPY membranes with two important properties: biocidal and oil/water separation.

1. Introduction

Oil spill incidents occur during storage, transportation, and extraction, which are considered major environmental issues with serious long-lasting health and ecological effects. Considering the frequent oil spill worldwide, it is of uttermost importance to isolate and separate oily wastewater from the ocean, lakes, and river waters [1], [2], [3]. Various chemical, biological, and mechanical processes have been explored for dealing with oil–water contamination, e.g., filtration [4], degradation [5], skimming [6], in situ burning [7], and separation [8], [9]. A fast and simple step to remove the bulk oil is an important route to avoid further environmental pollution and the spread of contaminated water. Among such methods, the absorption process via polymer materials has been considered applicable due to its straightforward operation, no secondary water contamination, and energy conservation [10], [11], [12], [13], [14]. However, traditional natural and inorganic materials have a rather insufficient recyclability and low absorption capacity. Hydrophobic polymer materials have attracted considerable attention due to their high surface area and low density. Of note for the water–oil separation are cross-linked polymer materials [15], [16], coated polymer membranes [2], [17], chitosan [18], [19], [20], and cellulose materials [21], [22] with good porous and absorption properties. However, the diffusion of highly viscous oil into such polymer materials is sluggish, resulting in inefficient oil removal. Polymer-coated filters provide an inexpensive, environmentally friendly, and effortless way to separate oil from contaminated water without chemical additives. Hydrophilic pores in a polymer-coated membrane are smaller compared to the oil droplet, i.e., water can easily infuse through the membrane. In contrast, oil droplets remain on the membrane due to their larger size and the repulsive capillary force applied via the pores [23], [24], [25], [26]. Polypyrrole (PPY) [2], [27], [28] is a versatile polymer with remarkable optical, electronic, and magnetic properties over semiconductors or metals. Its other distinct features include flexibility, adjustable electrical conductivity, ease of processing, and low toxicity [24], [29], [30], [31].

The paper unravels a facile, eco-friendly, and ultrasonication process for coating PPY particles on fluorinated nonwoven fabric. PPY particles can be easily synthesized by carbon dot-initiated polymerization methods [32], [33], [34], [35]. Polypyrrole/silver nanoparticles (PPy/AgNPs) have been loaded onto spandex fabric for separating the water and oil. However, PPY has not been used to modify fluorinated nonwoven fabric for oil–water separation [36]. The ultrasonication makes sound energy for the activation and deposition of PPY on the membrane. Apart from the sonication amplitude, the only controlled parameter is the sonication time that is optimized to attain the maximum PPY amount coated on the membrane. The PPY-coated membrane is demonstrated as an absorbent to separate oil and other organic chemicals from water. The antibacterial activity of the PPY membrane is also systematically investigated against E. coli and S. aureus toward the development of a new class of membrane with anti-fouling properties.

2. Experimental methods

2.1. Materials

The fluorinated non-woven fabric material was commercially obtained from FILC d.o.o., Trata 48, Škofia Loka, Slovenia (https://www.filc.si/en/). Cooking oil and vacuum oil were purchased from a local market. Toluene, petroleum ether, chloroform, and dimethyl sulfoxide were supplied by Sigma Aldrich, Israel.

2.2. Synthesis of PPY

0.8-g PPY and 3 mL of (carbon dots) CDs were added to a round bottom flask having H2SO4 and HCl (1 M 1:2 ratio). The reaction mixture was allowed for 3 min of microwave irradiation, resulting in a deep brown solid. The precipitated polymer was filtered, washed 3 times with double distilled water (DDW), and dried under vacuum. [32]

2.3. Contact angle measurement

A Rame–Hart goniometer was used to determine the apparent contact angle of the reported membranes (Model 500). A micro-syringe was used to delicately deposit 10-mL drops of bi-distilled water onto the surfaces of membranes, and the contact angle was recorded. The mean apparent contact angle on membrane surfaces was calculated using 6 measurements.

2.4. Instruments and characterization

An FEI Magellan 400 L microscope was used to examine the morphology of PPY-coated fabric (FEI, Hillsboro, OR, USA). The XRD pattern was analyzed using an X-ray diffraction technique on a Bruker AXS D8 Advance diffractometer. A Transon 27 spectrometer was used to acquire FTIR spectra (Bruker, Bremen, Germany). A Nexsa X-ray photoelectron spectrometer (XPS) was used for X-ray photoelectron spectroscopy (Thermo Fisher, England). High-resolution scanning electron microscopy (HRSEM) using an FEI Megallon 400 L microscope. For HRSEM, the sample was prepared by placing a small piece of the material on a carbon tape with a copper plate and it was coated with Au to avoid the charging effect.

3. Result and discussion

3.1. Ultrasonic-assisted coating of PPY on fabric

The ultra-sonication makes sound energy that activates the PPY to deposit it on the membrane in the solution. Acoustic cavitation is the process that includes the formation, growth, and implosive collapse of the gas bubbles that are formed in the liquid. The bubbles are formed due to the decrease in the intermolecular forces by the presence of invisible particles or gas bubbles. The formed bubble grows by diffusion of solute vapor to the volume of the bubble. The localized hotspots forming extreme conditions that reduce the PPY particle consequently stimulating the small-sized PPY particle to place on the membrane by the sonicating system. Ultrasound cavitation forms a strong interaction between the PPY and membrane. Ultrasound cavitation in liquid–solid systems creates shockwaves and microjets that are directed toward the solid surface and accelerates the PPY particles to higher velocities, which can lead to strong direct deposition on a membrane and forming strong adsorbent material. In brief, 0.3-g PPY was dispersed in 80-mL DDW and sonicated for 1 min for the broad dispersion of PPY particles. The membrane (fluorinated non-woven fabric material) was introduced in the solution and the reaction mixture was kept under sonication for different times (Table 1) with a 35% amplitude. It is worth mentioning that particles were strongly embbeded in the fabric, which could not be removed by simple washing. The sonochemical coating of cotton withstands 65 washing cycles at hospital-washing standards and retains its antibacterial properties after sonication [37]. In this work, the sonochemical method was used to deposit the PPY on the fabric and washed several times with double-distilled water, and dried at 60 °C (Scheme 1). The weight of the membrane was recorded (before and after coating) to estimate the quantity of PPY particles on the membrane (Table 1).

Table 1.

The quantity of PPY particles on fabric with different sonication times.

Material Sonication time (min) with 35% of the amplitude Coated number of PPY particles on fabric (g) Particle size (nm)
PPYM1 5 0.024 50–500
PPYM2 15 0.062
PPYM3 30 0.087
Open in a new tab

Scheme 1.

Scheme 1

Open in a new tab

Ultrasonication-assisted coating of PPY particles on fluorinated nonwoven fabric.

3.2. Oil/water separation method

All oil–water experiments were conducted by 10 mL of various oil/organic solvents including (corn oil, vacuum oil, toluene, petroleum ether, chloroform, and dimethyl sulfoxide). Oil in water with a volumetric ratio (2:1) in a 50-mL flask and the PPY membrane were positioned under the flask to filter oil from the water. The weight variation was observed (before and after) oil absorption to calculate the absorption capacity. The absorption capacity was conducted by three wt.% PPY-coated membranes. The oil absorption experiment was also conducted in the seawater. The absorption capacity (AC) is analyzed as (Wf-Wi)/Wi where Wi and Wf are the weight of the PPY membrane before and after oil absorption. At equilibrium, the collection capacity (CC) is calculated as (Wf-Wi)/Wt with Wt as the total amount of oil in the oil–water mixture. The volumetric flux (Fo, Lm-2h-1atm−1) of oil is then calculated as Vo/A) pts, where A is the active area, ts = separation time (s), and p = atmospheric pressure (atm). The separation efficiency (η) is defined as (Vi/Vf) *100, where Vi is the initial oil volume and Vf is the final oil volume after separation.

SEM morphological studies confirmed the different wt% of PPY particles on the membrane as a function of the sonication time. The micro tube-sized membrane without coating with different magnifications of the SEM image is shown in Fig. 1a, b. The deposition of PPY particles on the membrane wall by ultrasonication with various sonication times is illustrated in Fig. 1 c-f. The amount of particle deposition increased with increasing sonication time with a sizable number of PPY particles ranging from 50 to 1000 nm after 30 min of sonication (Fig. 1e). Of note was the use of an amplitude of 35% of the probe, which was needed to reduce the PPY particle sizes during sonication.

Fig. 1.

Fig. 1

Open in a new tab

Microscopic morphological images of fibers. Low and high magnification SEM images of (a and b) Membrane (c-f) PPY on fabric.

The functional groups of blank fabric and PPY-coated fabric were characterized with FTIR (Fig. 2a and b). The blank fabric shows three major sharp peaks at 1710 cm−1 , which were assigned to C = O stretching (non-conjugated carbonyl) [38]. The peaks at 1240 and 1088 cm−1 were accredited to C-O stretching. The lower peaks located at 1398 and 1456 cm−1 were assigned to C–H deformation. The peak at 2960 cm−1 was allotted to the aliphatic C–H of fabric. While in the case of PPY coated fabric, the peaks at 3213 and 2960 cm−1 were assigned to N–H stretching of PPY and aliphatic C–H of the blank fabric. The other peaks at 1706 and 1645 cm−1 were attributed C = O for non-conjugated carbonyl and conjugated carbonyl stretching vibration.[38]. Fig. 2c shows X-ray diffraction (XRD) of blank fabric and PPY coated fabric. The diffraction peaks at 17°, 22.5° and 25.7° were related to the fabric surface. The concentration of PPY on the surface of fabric is very less (24 mg), compared to pristine PPY. There were no obvious changes and crystallinity in the XRD pattern of blank and PPY-coated sample.

Fig. 2.

Fig. 2

Open in a new tab

FTIR spectra of blank fabric (a), PPY-coated fabric (b), and XRD pattern of blank fabric and PPY-coated fabric (c).

XPS analysis confirmed the presence of key chemical compositions in the prepared samples. The full XPS survey spectrum of the blank membrane in Fig. 3a shows the presence of C1s, O1s, and F1s in the pristine membrane. The nitrogen element was observed in the PPY-coated membrane reveals the confirmation of PPY-deposition (Fig. 4a). Fig. 3b and 4b show the C1s spectrum of blank and PPY-coated membrane. The deconvoluted C1s spectra of blank fabric show five peaks located at 285, 284.3, 288.7, 287.1, and 292.1 eV are attributed to C-O, C–C, C = O, C-CFx, and CF2 bonds, whereas, C-OH (285.1 eV), C = O (288.9 eV), C–C (284.4 eV), and C = N (286.4 eV) bonds appeared in PPY-coated fabric. Both O1s spectra of blank fabric (Fig. 3c) and PPY-coated fabric (Fig. 4d) show that the O element consists of C-OH (533.2 and 533.6 eV) and C-O-C (532.2 eV) bonds. Fig. 3d and 4e show flourine spectra composed of CF (689.5 eV and 684.2 eV) bond in blank fabric and PPY-coated fabric. The obvious N1s spectra have appeared only in PPY-coated fabric with N-H (401.1 eV) and C-N-C (399.8 eV) bonds. N1s spectra of PPY-coated confirm the well deposited PPY to the fabric surface [39], [40], [36], [41].

Fig. 3.

Fig. 3

Open in a new tab

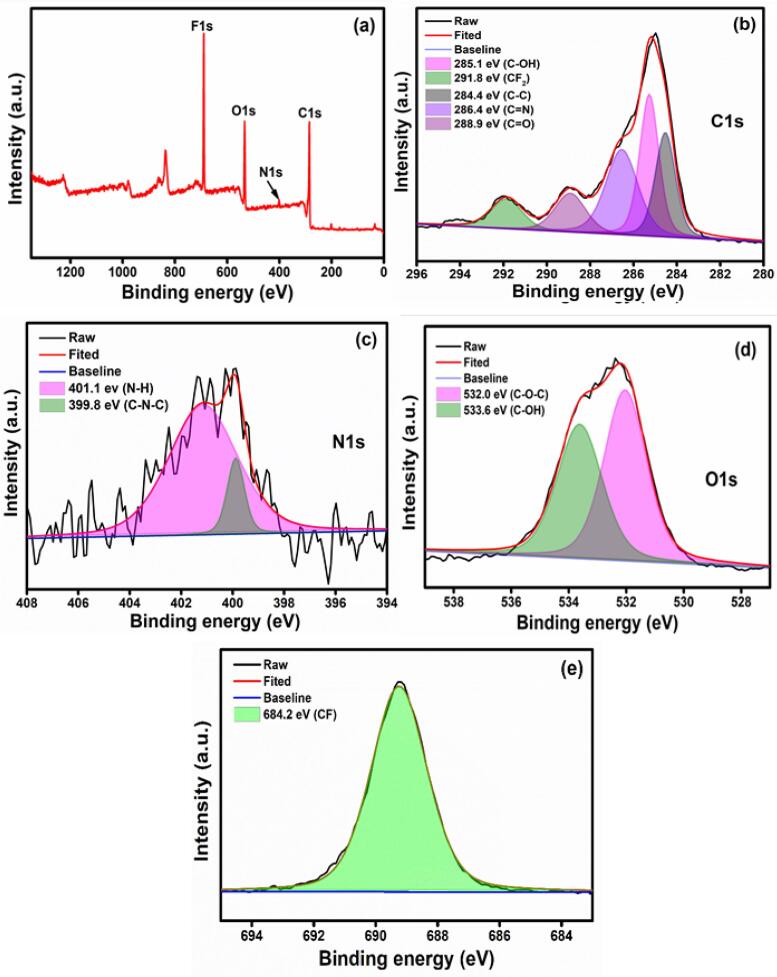

(a) XPS survey spectrum of the blank membrane, (b) High-resolution XPS spectra of C1s (c) O1s and (d) F1s.

Fig. 4.

Fig. 4

Open in a new tab

(a) XPS survey spectrum of the PPY coated membrane, (b) High-resolution XPS spectra of C1s (c) N1s, (d) O1s, and (e) F1s.

3.3. Contact angle measurement

The surface wettability of the blank fabric and the PPY-coated fabric was assessed by water contact angle measurement. A drop of water on the pristine fabric was extremely spherical with a water contact angle (WCA) of 127°±7°, corroborating its hydrophobicity (Fig. 5a). When a water drop was placed on the PPY-coated fabric, the water was absorbed immediately, resulting in excellent hydrophilicity. Pristine fabric impeded the passage of both water and oil, whereas the PPY-coated fabric only allowed the passage of water. Hence, the PPY-coated fabric could be useful for oil/water separation and oil recovery.

Fig. 5.

Fig. 5

Open in a new tab

Water contact angle measurements of (a) PPY-fabric and (b) pristine fabric.

3.4. Wettability

The PPY coated fabric was immersed in water to visually examine its surface-wetting capability. After being dipped and soaking numerous times in water, the PPY coated material floating on the surface (Fig. 6b). Furthermore, water and oil droplets were deposited on the surface of the coated material. The oil droplet (red) remained on the surface, while water rapidly diffused into the fabric (Fig. 6a), illustrating that the coated surface can easily separate the oil from water contamination.

Fig. 6.

Fig. 6

Open in a new tab

(a) Droplet-resistant test and (b) Wettability of the PPY-coated membrane.

3.5. Oil absorption

For water–oil separation and absorption, the PPY coated membrane exhibits good absorption capabilities. Other organic solvents and water mixtures were chosen as light and heavy oil absorption models, respectively, to examine the selective absorption ability of the PPY coated membrane toward oil and water. Various oils and organic chemicals were used in the absorption studies, including cooking oil, vacuum oil, toluene, petroleum ether, chloroform, and DMSO. The oil layer was absorbed by the PPY-coated membrane within 30 s of being soaked in the cooking oil/water mixture. Furthermore, significant oil absorption on the PPY coated membrane was due to the capillary force, which broke the trapped air layer between the material and water. The results show that the PPY membrane has high absorption of cooking oil and vacuum oil. The substance did not absorb all the other solvents entirely. In a comparable experiment without PPY, there was no difference in the absorption of oil by the uncoated material. The separation efficiency and absorption capacity for oil and other organic substances are shown in Fig. 7a, b, and Table 2. In brief, PPYM1 exhibited the strongest ability to absorb oil over all organic compounds. The enhanced absorption capacity could be attributed to the strong ultrasonic coating of PPY particles, which were well occupied on the membrane surface. Such results unraveled that only a small amount of ultrasonic energy was sufficient to anchor PPY particles on the membrane. Prolonged sonication might damage the membrane and/or delaminated PPY particles from the membrane. PPY particles reduce the surface energy and enhance the surface area for oil absorption as shown in Table 3.

Fig. 7.

Fig. 7

Open in a new tab

(a,b) The separation efficiency and absorption capacity of the PPY coated membrane and (c) the separation experimental setup for oil–water separation.‘-’: Not mentioned.

Table 2.

The absorption capacity of PPY

Absorption capacity (g)
Materials C. oil V. Oil Toluene Pet. ether CHCl3 DMSO
PPYM1 207 62 10 4 3 1
PPYM2 100 41 2 1 0.5 2
PPYM3 86 50 2 1 1.2 1.4
Open in a new tab

Table 3.

The comparison table of oil separation efficiency with existing literature.

Adsorbent material Fabrication method Emulsion type The amount of oil absorbed (%) Ref.
PPy/Ag fabricPPy/Ag/OTS fabric Gentle magnetic stirring Water in chloroform emulsion 96.84 [36]
Water in n-hexane emulsion 95.68
Methylbenzene in water emulsion 99.85
PAN/PANI nanofiber Electrospinning-Polymerization Surfactant free-toluene in oil emulsion 99.8 [42]
1sBAT/PAN Blending-Electrospinning Surfactant free-hexane in oil emulsion 99.8 [43]
Au@ZIF-8@PAN-TD Blending-Electrospinning-Surface modification Surfactant stabilized oil-in-water emulsion 97.8 [44]
PAN/PS Double layer electrospinning Surfactant stabilized hexane-in-water emulsion – [45]
Laponite/CGN/h-PAN Layer by layer modification Surfactant stabilized n-hexadecane-in-water emulsion > 99 [46]
PVA-SiO2/PDA/PEI – Surfactant stabilized oil-in-water microemulsion 99.5 [47]
PVP-TiO2 NPs – Gasoline-in-water emulsion >99 [48]
PPY membrane Ultra-sonication method Cooking oil 93 This work
Vacuum oil 81
Toluene 70
Open in a new tab

After oil separation, the spent PPY membrane was immersed in n-hexane to remove the absorbed oil to investigate the reuse of PPY materials. During the second and third cycles of the test, the PPY-coated fabric exhibited similar absorption. A lab-made setup consisting of an oil–water mixture tube (acted as a filter tube) with a dropper was designed to observe the high separation capacity of the PPY material (Fig. 7c). In this setup, the PPY coated fabric was placed between the beaker and the filter tube, containing a mixture of water and oil. When the filter tube was filled with an oil–water mixture, the PPY membrane only retained the oil but let the water flow through. The oil absorption efficiency of the PPY coated membrane was compared with the literature information (Table 3).

3.6. Antibacterial activity

For the antibacterial activity, both bacterial strains (E. coli and S. aureus) were incubated overnight under aerobic conditions at 37 °C in Luria-Bertani (LB) broth. The bacterial concentration was measured using OD595 and a final concentration of 105 bacteria was attained. For the antibacterial tests, 500 µL of the sample was added to the 500 µL of the bacterial suspension. After the mixture was incubated at 37 °C with shaking at 200 rpm, 100 mL aliquots were removed after 0, 12, and 24 h, diluted 10-fold in 20% LB medium and plated on nutrient agar plates. The materials were cut into small pieces (4*4 cm) and folded to prepare a multilayer for a precise antibacterial test. The multilayer material was then dipped into the bacterial solution for 24 h. The bacterial solution was serially diluted in a 96-well plate and plated on several agar plates.

The antibacterial activity was studied for the PPY membrane using the colony-forming per unit (CFU) method. The PPY membrane was treated against E. coli and S. aureus. Bacterial growth was checked for different incubation times to assess the killing ability and long-term activity of the PPY membrane. The bacterial test was conducted by dipping a multifold PPY membrane into the bacterial solution, followed by incubation at 6, 12, or 24 h. The PPY membrane was prepared to form a multilayer fold to absorb the bacterial solution completely and avoid the surface absorption of the bacterial solution. E. coli and S. aureus were subject to broad eradication after 24 h of exposure to the PPY membrane (Fig. 8a, b). The rationale behind the cell damage is the formation of free radicals by PPY, which was confirmed by electron paramagnetic resonance (EPR). For EPR analysis 5, 5-dimethyl-1-pyrroline-N-oxide (DMPO) was used as a spin trap to measure ROS generation. The spin trap material captures the OH radicals and superoxide anions to form DMPO-OH as a final product with high-intensity signals (Fig. 8c). The free radicals can interact with the cell membrane and control the cell growth activity on the surface. Oxidative DNA damage is well recognized as the primary cause of cell death. Moreover, the synergetic effect of the PPY was due to the free electrons in the polymer chain, which can be combined with oxygen in the solution to augment ROS production. Cell lysis could also be due to electrostatic and ionic interactions of the cell with abundant functional groups of the PPY ring. As the amine (NH) group of PPY with a positive charge readily interacts with negatively charged bacteria, leading to cell death. Detailed information on cell lysis can be found elsewhere [32], [33], [34], [35]. Biofouling is a serious problem for the use of membranes to process contaminated water as microorganisms adhere and grow on the membrane. They often produce extracellular polymers to impair the properties and efficiency of membranes. In this context, the PPY membrane with anti-biofouling is anticipated to process contaminated water, which is exposed to a broad range of microbes, including aerobic, anoxic, and anaerobic species. Fluorinated nonwoven materials exhibit some antimicrobial activities [49], however, this effect was not observed from the pristine membrane for both E. coli and S. aureus (control experiment).

Fig. 8.

Fig. 8

Open in a new tab

(a,b) Antibacterial activity of E. coli and S. aureus on PPYM and (c) EPR spectrum for the PPY.

4. Conclusion

In brief, the PPY material is successfully coated on the membrane using a simple one-step ultrasonication process. For the proper coating of PPY on the membrane, several ultrasonication times were used. An insignificant amount of the PPY is required for membrane coating and oil absorption. The ultrasonic approach can generate an excellent coating on the fabric or membrane. The developed PPYM material proved to be an effective adsorbent with selective absorption capability. The PPYM material could absorb various oils with an absorption capacity of 207 and 62 g/g, respectively, for the C and V oils. Furthermore, the antibacterial activity of the PPYM was investigated, with E. coli and S. aureus serving as two common model pathogens for the antibacterial test. The incorporation of PPY in fluorinated nonwoven fabric imparts antimicrobial activities against both Gram-negative and Gram-positive common pathogens.

CRediT authorship contribution statement

Moorthy Maruthapandi: Conceptualization, Data curation, Methodology, Writing – original draft. Arumugam Saravanan: Data curation, Formal analysis, Methodology. Shanmugasundaram Manoj: Data curation, Software. John H.T. Luong: Writing – review & editing. Aharon Gedanken: Supervision.

Declaration of Competing Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  • 1.Singh S., Jelinek R. Solar-mediated oil-spill cleanup by a carbon dot-polyurethane sponge. Carbon N. Y. 2020;160:196–203. doi: 10.1016/j.carbon.2020.01.016. [DOI] [Google Scholar]
  • 2.Yihan S., Mingming L., Guo Z. Ag nanoparticles loading of polypyrrole-coated superwetting mesh for on-demand separation of oil-water mixtures and catalytic reduction of aromatic dyes. J. Colloid Interface Sci. 2018;527:187–194. doi: 10.1016/j.jcis.2018.05.048. [DOI] [PubMed] [Google Scholar]
  • 3.Yang Y., Li Y., Cao L., Wang Y., Li L., Li W. Electrospun PVDF-SiO2 nanofibrous membranes with enhanced surface roughness for oil-water coalescence separation. Sep. Purif. Technol. 2021;269:118726. doi: 10.1016/j.seppur.2021.118726. [DOI] [Google Scholar]
  • 4.Nayak K., Kumar A., Das P., Tripathi B.P. Amphiphilic antifouling membranes by polydopamine mediated molecular grafting for water purification and oil/water separation. J. Memb. Sci. 2021;630:119306. doi: 10.1016/j.memsci.2021.119306. [DOI] [Google Scholar]
  • 5.Liu J., Zhang Q., Tian X., Hong Y.e., Nie Y., Su N., Jin G., Zhai Z., Fu C.e. Highly efficient photocatalytic degradation of oil pollutants by oxygen deficient SnO2 quantum dots for water remediation. Chem. Eng. J. 2021;404:127146. doi: 10.1016/j.cej.2020.127146. [DOI] [Google Scholar]
  • 6.Abidli A., Huang Y., Cherukupally P., Bilton A.M., Park C.B. Novel separator skimmer for oil spill cleanup and oily wastewater treatment: From conceptual system design to the first pilot-scale prototype development. Environ. Technol. Innov. 2020;18:100598. doi: 10.1016/j.eti.2019.100598. [DOI] [Google Scholar]
  • 7.Amir-Heidari P., Raie M. Response planning for accidental oil spills in Persian Gulf: A decision support system (DSS) based on consequence modeling. Mar. Pollut. Bull. 2019;140:116–128. doi: 10.1016/j.marpolbul.2018.12.053. [DOI] [PubMed] [Google Scholar]
  • 8.Tong Y., Zuo C., Ding W., Jiang S., Li W., Xing W. Sulfonic nanohydrogelled surface-modified microporous polyvinylidene fluoride membrane with excellent antifouling performance for treating water-oil separation of kitchen wastewater. J. Memb. Sci. 2021;628:119113. doi: 10.1016/j.memsci.2021.119113. [DOI] [Google Scholar]
  • 9.Zhu X.u., Zhu L., Li H., Zhang C., Xue J., Wang R., Qiao X., Xue Q. enhancing oil-in-water emulsion separation performance of polyvinyl alcohol hydrogel nanofibrous membrane by squeezing coalescence demulsification. J. Memb. Sci. 2021;630:119324. doi: 10.1016/j.memsci.2021.119324. [DOI] [Google Scholar]
  • 10.Chuang C.-Y., Zhang M.-H., Tseng W.J. Emulsion preparation of ultralight TiO2 foams for selective oil absorption. J. Eur. Ceram. Soc. 2021;41(7):4349–4354. doi: 10.1016/j.jeurceramsoc.2021.02.037. [DOI] [Google Scholar]
  • 11.Guselnikova O., Barras A., Addad A., Sviridova E., Szunerits S., Postnikov P., Boukherroub R. Magnetic polyurethane sponge for efficient oil absorption and separation of oil from oil-in-water emulsions. Sep. Purif. Technol. 2020;240 doi: 10.1016/j.seppur.2020.116627. [DOI] [Google Scholar]
  • 12.Li Y., Lin Z., Wang X., Duan Z., Lu P., Li S., Ji D., Wang Z., Li G., Yu D., Liu W. High-hydrophobic ZIF-8@PLA composite aerogel and application for oil-water separation. Sep. Purif. Technol. 2021;270:118794. doi: 10.1016/j.seppur.2021.118794. [DOI] [Google Scholar]
  • 13.Lehtinen M.J., Liu G., Wu J., Pasternak A.R.O. Antimicrobial janus filters that break oil-in-water emulsions and separate oil. ACS Appl. Polym. Mater. 2020;2(12):5851–5863. doi: 10.1021/acsapm.0c0109110.1021/acsapm.0c01091.s001. [DOI] [Google Scholar]
  • 14.Mondal S., Rana U., Das P., Malik S. Network of polyaniline nanotubes for wastewater treatment and oil/water separation. ACS Appl. Polym. Mater. 2019;1(7):1624–1633. doi: 10.1021/acsapm.9b0019910.1021/acsapm.9b00199.s001. [DOI] [Google Scholar]
  • 15.Zuo C., Wang L., Tong Y., Shi L., Ding W., Li W. Co-deposition of pyrogallol/polyethyleneimine on polymer membranes for highly efficient treatment of oil-in-water emulsion. Sep. Purif. Technol. 2021;267:118660. doi: 10.1016/j.seppur.2021.118660. [DOI] [Google Scholar]
  • 16.Niu H., Qiang Z., Ren J. Durable, magnetic-responsive melamine sponge composite for high efficiency, in situ oil–water separation. Nanotechnology. 2021;32(27):275705. doi: 10.1088/1361-6528/abef2e. [DOI] [PubMed] [Google Scholar]
  • 17.Zhao X., Wang R., Lan Y., Wang T., Pan J., Liu L. Engineering superwetting membranes through polyphenol-polycation-metal complexation for high-efficient oil/water separation: From polyphenol to tailored nanostructures. J. Memb. Sci. 2021;630:119310. doi: 10.1016/j.memsci.2021.119310. [DOI] [Google Scholar]
  • 18.Zhao S., Tao Z., Chen L., Han M., Zhao B., Tian X., Wang L., Meng F. An antifouling catechol/chitosan-modified polyvinylidene fluoride membrane for sustainable oil-in-water emulsions separation. Front. Environ. Sci. Eng. 2021;15(4) doi: 10.1007/s11783-020-1355-5. [DOI] [Google Scholar]
  • 19.Kolesnyk I., Konovalova V., Kharchenko K., Burban A., Kujawa J., Kujawski W. Enhanced transport and antifouling properties of polyethersulfone membranes modified with α-amylase incorporated in chitosan-based polymeric micelles. J. Memb. Sci. 2020;595:117605. doi: 10.1016/j.memsci.2019.117605. [DOI] [Google Scholar]
  • 20.Cao C., Kim E., Liu Y.i., Kang M., Li J., Yin J.-J., Liu H., Qu X., Liu C., Bentley W.E., Payne G.F. Radical scavenging activities of biomimetic catechol-chitosan films. biomacromolecules. 2018;19(8):3502–3514. doi: 10.1021/acs.biomac.8b0080910.1021/acs.biomac.8b00809.s001. [DOI] [PubMed] [Google Scholar]
  • 21.Huang F., Li Q., Ji G., Tu J., Ding N.a., Qu Q., Liu G. Oil/water separation using a lauric acid-modified, superhydrophobic cellulose composite membrane. Mater. Chem. Phys. 2021;266:124493. doi: 10.1016/j.matchemphys.2021.124493. [DOI] [Google Scholar]
  • 22.Cheng H., Gu B., Pennefather M.P., Nguyen T.X., Phan-Thien N., Duong H.M. Cotton aerogels and cotton-cellulose aerogels from environmental waste for oil spillage cleanup. Mater. Des. 2017;130:452–458. doi: 10.1016/j.matdes.2017.05.082. [DOI] [Google Scholar]
  • 23.Chen P.C., Xu Z.K. Mineral-coated polymer membranes with superhydrophilicity and underwater superoleophobicity for effective oil/water separation. Sci. Rep. 2013;3:1–6. doi: 10.1038/srep02776. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Tan X., Hu C., Li X., Liu H., Qu J. Reversible superwettability switching of a conductive polymer membrane for oil-water separation and self-cleaning. J. Memb. Sci. 2020;605:1–9. doi: 10.1016/j.memsci.2020.118088. [DOI] [Google Scholar]
  • 25.Li H., Zhao X., Wu P., Zhang S., Geng B. Facile preparation of superhydrophobic and superoleophilic porous polymer membranes for oil/water separation from a polyarylester polydimethylsiloxane block copolymer. J. Mater. Sci. 2016;51(6):3211–3218. doi: 10.1007/s10853-015-9632-6. [DOI] [Google Scholar]
  • 26.Crick C.R., Gibbins J.A., Parkin I.P. Superhydrophobic polymer-coated copper-mesh; Membranes for highly efficient oil-water separation. J. Mater. Chem. A. 2013;1:5943–5948. doi: 10.1039/c3ta10636e. [DOI] [Google Scholar]
  • 27.Yang C., Bai B.o., He Y., Hu N.a., Wang H., Suo Y. Novel fabrication of solar light-heated sponge through polypyrrole modification method and their applications for fast cleanup of viscous oil spills. Ind. Eng. Chem. Res. 2018;57(14):4955–4966. doi: 10.1021/acs.iecr.8b00166. [DOI] [Google Scholar]
  • 28.Zhang J., Xu H., Guo J., Chen T., Liu H. Superhydrophobic polypyrrole-coated cigarette filters for effective oil/water separation. Appl. Sci. 2020;10(6):1985. doi: 10.3390/app10061985. [DOI] [Google Scholar]
  • 29.Jha P., Koiry S.P., Sridevi C., Putta V., Gupta D., Chauhan A.K. A strategy towards the synthesis of superhydrophobic/superoleophilic non-fluorinated polypyrrole nanotubes for oil-water separation. RSC Adv. 2020;10(56):33747–33752. doi: 10.1039/D0RA06409B. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Dashairya L., Sahu A., Saha P. Stearic acid treated polypyrrole-encapsulated melamine formaldehyde superhydrophobic sponge for oil recovery. Adv. Compos. Hybrid Mater. 2019;2(1):70–82. doi: 10.1007/s42114-019-00084-w. [DOI] [Google Scholar]
  • 31.Saleh T.A., Baig N., Alghunaimi F.I., Aljuryyed N.W. A flexible biomimetic superhydrophobic and superoleophilic 3D macroporous polymer-based robust network for the efficient separation of oil-contaminated water. RSC Adv. 2020;10(9):5088–5097. doi: 10.1039/C9RA06579B. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Maruthapandi M., Sharma K., Luong J.H.T., Gedanken A. Antibacterial activities of microwave-assisted synthesized polypyrrole/chitosan and poly (pyrrole-N-(1-naphthyl) ethylenediamine) stimulated by C-dots. Carbohydr. Polym. 2020;243:116474. doi: 10.1016/j.carbpol.2020.116474. [DOI] [PubMed] [Google Scholar]
  • 33.Maruthapandi M., Nagvenkar A.P., Perelshtein I., Gedanken A. Carbon-dot initiated synthesis of polypyrrole and polypyrrole@CuO micro/nanoparticles with enhanced antibacterial activity. ACS Appl. Polym. Mater. 2019;1(5):1181–1186. doi: 10.1021/acsapm.9b0019410.1021/acsapm.9b00194.s001. [DOI] [Google Scholar]
  • 34.Maruthapandi M., Kumar V.B., Luong J.H.T., Gedanken A. Kinetics, isotherm, and thermodynamic studies of methylene blue absorption on polyaniline and polypyrrole macro-nanoparticles synthesized by C-dot-initiated polymerization. ACS Omega. 2018;3:7196–7203. doi: 10.1021/acsomega.8b00478. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 35.Maruthapandi M., Saravanan A., Luong J.H.T., Gedanken A. Antimicrobial properties of polyaniline and polypyrrole decorated with zinc-doped copper oxide microparticles. Polymers (Basel). 2020;12(6):1286. doi: 10.3390/polym12061286. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Zhang M., Wang C., Ma Y., Du X., Shi Y., Li J., Shi J. Fabrication of superwetting, antimicrobial and conductive fibrous membranes for removing/collecting oil contaminants. RSC Adv. 2020;10(36):21636–21642. doi: 10.1039/D0RA02704A. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 37.Perelshtein I., Ruderman Y., Perkas N., Beddow J., Singh G., Vinatoru M., Joyce E., Mason T.J., Blanes M., Mollá K., Gedanken A. The sonochemical coating of cotton withstands 65 washing cycles at hospital washing standards and retains its antibacterial properties. Cellulose. 2013;20:1215–1221. doi: 10.1007/s1sss0570-013-9929-z. [DOI] [Google Scholar]
  • 38.Ji X., Liu S., Wang Q., Yang G., Chen J., Fang G. Wet oxidation pretreatment of wood pulp waste for enhancing enzymatic saccharification. BioRes. 2015;10(2):2177–2184. [Google Scholar]
  • 39.Wang Y., Wang A., Yang P., Hu W., Guo X., Zhang J., Li C., Zhang C. A polypyrrole hybrid material self-assembled with porphyrin: facial synthesis and enhanced optical limiting properties. Journal of Materials Science and Chemical Engineering. 2017;5(10):1–26. doi: 10.4236/msce.2017.510003. [DOI] [Google Scholar]
  • 40.González-Torres M., Olayo M.G., Cruz G.J., Gómez L.M., Sánchez-Mendieta V., González-Salgado F. XPS study of the chemical structure of plasma biocopolymers of pyrrole and ethylene glycol. Adv. Chem. 2014;2014:1–8. doi: 10.1155/2014/965920. [DOI] [Google Scholar]
  • 41.Zhang X., Gao M., Tong L., Cai K. Polypyrrole/nylon membrane composite film for ultra-flexible all-solid supercapacitor. J. Materiomics. 2020;6(2):339–347. doi: 10.1016/j.jmat.2019.11.004. [DOI] [Google Scholar]
  • 42.Shakiba M., Nabavi S.R., Emadi H., Faraji M. Development of a superhydrophilic nanofiber membrane for oil/water emulsion separation via modification of polyacrylonitrile/polyaniline composite. Polym. Adv. Technol. 2021;32(3):1301–1316. doi: 10.1002/pat.v32.310.1002/pat.5178. [DOI] [Google Scholar]
  • 43.Karki H.P., Kafle L., Kim H.J. Composite membrane of polyacrylonitrile and spent alkaline battery powder for filtration of oil-in-water emulsions. Microporous Mesoporous Mater. 2020;297:110026. doi: 10.1016/j.micromeso.2020.110026. [DOI] [Google Scholar]
  • 44.Zhang Z., Yang Y., Li C., Liu R. Porous nanofibrous superhydrophobic membrane with embedded Au nanoparticles for the integration of oil/water separation and catalytic degradation. J. Memb. Sci. 2019;582:350–357. doi: 10.1016/j.memsci.2019.04.024. [DOI] [Google Scholar]
  • 45.Liang Y., Kim S., Kallem P., Choi H. Capillary effect in Janus electrospun nanofiber membrane for oil/water emulsion separation. Chemosphere. 2019;221:479–485. doi: 10.1016/j.chemosphere.2019.01.048. [DOI] [PubMed] [Google Scholar]
  • 46.Prasannan A., Udomsin J., Tsai H.-C., Wang C.-F., Lai J.-Y. Robust underwater superoleophobic membranes with bio-inspired carrageenan/laponite multilayers for the effective removal of emulsions, metal ions, and organic dyes from wastewater. Chem. Eng. J. 2020;391:123585. doi: 10.1016/j.cej.2019.123585. [DOI] [Google Scholar]
  • 47.Zhu Z., Li Z., Zhong L., Zhang R., Cui F., Wang W. Dual-biomimetic superwetting silica nanofibrous membrane for oily water purification. J. Memb. Sci. 2019;572:73–81. doi: 10.1016/j.memsci.2018.10.071. [DOI] [Google Scholar]
  • 48.Zhang Y., Chen Y., Hou L., Guo F., Liu J., Qiu S., Xu Y., Wang N.ü., Zhao Y. Pine-branch-like TiO2 nanofibrous membrane for high efficiency strong corrosive emulsion separation. J. Mater. Chem. A. 2017;5(31):16134–16138. doi: 10.1039/C7TA00833C. [DOI] [Google Scholar]
  • 49.Prorokova N.P., Istratkin V.A., Kumeeva T.Y., Vavilova S.Y., Kharitonov A.P., Bouznik V.M. Improvement of polypropylene nonwoven fabric antibacterial properties by the direct fluorination. RSC Adv. 2015;5:44545–44549. doi: 10.1039/C5RA05112F. [DOI] [Google Scholar]
