Unmasking Steps in Intramolecular Aromatic Hydroxylation by a Synthetic Nonheme Oxoiron(IV) Complex

Abstract

In this study, a methyl group on the classic tetramethylcyclam (TMC) ligand framework is replaced with a benzylic group to form the metastable [Fe^IV(O_syn)(Bn3MC)]²⁺ (2-syn; Bn3MC = 1-benzyl-4,8,11-trimethyl-1,4,8,11-tetraazacyclotetradecane) species at −40 °C. The decay of 2-syn with time at 25 °C allows the unprecedented monitoring of the steps involved in the intramolecular hydroxylation of the ligand phenyl ring to form the major Fe^III–OAr product 3. At the same time, the Fe^II(Bn3MC)²⁺ (1) precursor to 2-syn is re-generated in a 1:2 molar ratio relative to 3, accounting for the first time for all the electrons involved and all the Fe species derived from 2-syn as shown in the following balanced equation:

$$3\left[{\mathrm{Fe}}^{\mathrm{IV}}\right(\mathrm{O}\left)\right({\mathrm{L}}^{\mathrm{Ph}}\left){]}^{2+}\right(\mathbf{2}-syn)\to 2[{\mathrm{Fe}}^{\mathrm{III}}\left({\mathrm{L}}^{\mathrm{OAr}}\right){]}^{2+}\left(\mathbf{3}\right)+\left[{\mathrm{Fe}}^{\mathrm{II}}\right({\mathrm{L}}^{\mathrm{Ph}}\left){]}^{2+}\right(\mathbf{1})+{\mathrm{H}}_2\mathrm{O}.$$ (1)

This system thus serves as a paradigm for aryl hydroxylation by Fe^IV=O oxidants described thus far. It is also observed that 2-syn can be intercepted by certain hydrocarbon substrates, thereby providing a means to assess the relative energetics of aliphatic and aromatic

C–H hydroxylation in this system.

Graphical Abstract

The nonheme Fe^IV=O complex 2-syn (in green circle) can be generated from the reaction of its precursor [Fe^II(Bn3MC)]²⁺ (1) with an oxo-transfer agent. At 25 °C, 2-syn decays to form the major Fe^III–OAr oxidation product 3 (in blue circle) and regenerates its Fe^II(Bn3MC)²⁺ precursor (in red circle) in a 2:1 ratio. This observed stoichiometry demonstrates for the first time the electron flow required to effect this novel transformation.

Introduction

The direct functionalization of aromatic rings is by nature of interest to researchers.^[1] Owing to the high stability of aromatic rings, these synthetic methods are mostly found to require either harsh acidic conditions or catalysis by late transition metals.^[2] Nature provides us the inspiration by utilizing the combination of iron and oxygen atoms to generate a highly reactive oxoiron(IV) (Fe^IV=O) species that is capable of selectively hydroxylating the arene-containing amino acids within an acid-sensitive protein framework.^[3] Phenylalanine hydroxylase (PheH), tyrosine hydroxylase (TyrH) and tryptophan hydroxylase (TrpH) make up this small family of pterin-dependent nonheme iron enzymes,^[3] all of which play pivotal roles in important biological transformations. PheH controls the level of phenylalanine by converting it to tyrosine, while its malfunction is associated with a severe metabolic disorder called phenylketonuria. TyrH and TrpH are responsible for the respective biosynthesis of the key precursors to dopamine and serotonin, neurotransmitters that affect our mood and behavior. These enzymes utilize the combination of dioxygen and a tetrahydrobiopterin cofactor to generate Fe^IV=O species from their Fe(II) resting states,^[3] as evidenced directly by Mössbauer spectroscopy,^[4] to incorporate an oxygen atom onto their namesake amino acids (Scheme 1).

Scheme 1.

General mechanism proposed for pterin-dependent hydroxylases with phenylalanine hydroxylase shown as an example.

On the other hand, the properties of nonheme Fe^IV=O species have been broadly investigated since the report of the first crystal structure of a synthetic Fe^IV=O complex in 2003 by Que, Nam and coworkers.^[5] Such synthetic Fe^IV=O complexes have significantly increased in number over the past twenty years and exhibit different lifetimes and a range of reactivity properties.^{[3f, 6]} Most of these complexes possess iron(IV) centers with an intermediate spin state (S = 1),^[6] in contrast to the more reactive high-spin (S = 2) species found in the enzymes.^[7] The best documented reactions performed by synthetic Fe^IV=O species are hydrogen atom transfer (HAT) reactions,^[6] in which the Fe^IV=O species abstracts an H-atom from a substrate C–H bond, generating a meta-stable Fe^III–OH species and an organic radical that can in principle combine to form the product C–OH bond by oxygen rebound. However, this step is often not fast enough, thus allowing the substrate radical to escape from the solvent cage and be intercepted by O₂.^[8]

To date, the reactivity of synthetic Fe^IV=O species with respect to two-electron transfer has mainly been exemplified by oxygen-atom transfer (OAT) reactions to phosphines or thioethers, which are substrates that readily form corresponding oxides. Much less common are examples of more intriguing reactions such as olefin epoxidation,^[9] where the O-atom is transferred to a C=C bond, or aromatic hydroxylation, where O-atom transfer results in the functionalization of the aromatic ring.^[10] With respect to the latter, no Fe^IV=O species characterized to date has been reported to convert benzene directly to phenol. The most closely related reaction analog is the oxidation of anthracene to anthraquinone investigated by Nam and de Visser.^[10a] More success has been achieved in the hydroxylation of phenyl rings that are incorporated into the supporting ligand framework to place them in close proximity to the Fe^IV=O units.^{[10b–d, 11]} However, it has been challenging to trap and characterize the Fe^IV=O oxidant prior to its reaction with its pendant phenyl group.

In fact, only in this past decade has direct evidence been found for Fe^IV=O species that hydroxylate a phenyl ring built into the supporting ligand framework to generate an Fe^III–OAr product. Using a C₃-symmetric tripodal ligand with pendant phenyl rings, Chang reported the trapping of an Fe^IV=O complex at −40 °C that upon warming underwent intramolecular conversion into an Fe^III–OAr species.^[10b] Subsequently, Goldberg and coworkers introduced fluorine atoms to block the 2,6- positions of the phenyl groups on a phenyl-modified N4Py ligand (N4Py = N,N-bis(2-pyridylmethyl)bis(2-pyridyl)methylamine) to trap an Fe^IV=O complex, which was characterized at –20 °C with cold-spray ionization mass spectrometry (CSI-MS) and Mössbauer spectroscopy.^[10c] Warming to ambient temperature led to the unprecedented cleavage of the aromatic C–F bond to generate the Fe^III–OAr product. A subsequent study showed that complexes with MeO-substituted phenyl groups on the ligand accelerated the aryl hydroxylation rate, strongly implicating the involvement of an electrophilic transition state that generated chromophoric Fe^III–OAr products.^[10c],[10d]

The observation of such Fe^III–OAr products in the synthetic reactions instead of Fe^II(L^Ar-OH) species suggests that there is a facile subsequent one-electron oxidation step that prevents the reaction from becoming catalytic, unlike in the case of phenylalanine hydroxylase, in which the tyrosine product dissociates to allow the iron center to be primed for the next cycle of substrate oxidation. To date, however, the mechanistic details for hydroxylating a pendant aromatic group have not been sufficiently uncovered to provide useful mechanistic insight into how to unleash the potential of Fe^IV=O species for effecting aromatic hydroxylation reactions. We describe our efforts below.

Results and Discussion

Our efforts start with Bn3MC (1-benzyl-4,8,11-trimethyl-1,4,8,11-tetraaza-cyclotetradecane), a variant of the widely studied macrocyclic TMC ligand framework (TMC = 1,4,8,11-tetramethyl-1,4,8,11-tetraazacyclotetradecane), which is known for its ability to support a relatively stable Fe^IV=O unit with a t_1/2 of 10 h at 25 °C.^[5] In this structure, the oxo atom is bound to the iron center on the face opposite to all four methyl groups of the TMC ligand (Scheme 2). Subsequent studies have led to the characterization of the isomeric [Fe^IV(O_syn)(TMC)(NCMe)](OTf)₂ in which the oxo moiety is positioned on the same face as all four methyl groups.^[12] It is thus anticipated that the corresponding isomers with the Bn3MC ligand can be generated (Scheme 2), with the benzyl group on the syn isomer expected to be in the correct orientation for hydroxylation by the Fe^IV=O unit. In fact, the results of this investigation confirm this hypothesis.

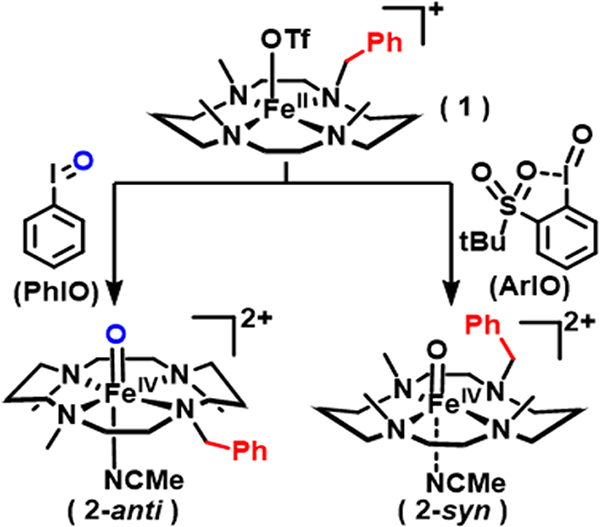

Scheme 2.

Generation of the anti (2-anti) and syn (2-syn) isomers of [Fe^IV(O)(Bn3MC)]²⁺ from Fe^II(Bn3MC)(OTf)⁺ (1) with the respective use of PhIO and 2-(t-BuSO₂)C₆H₄IO (s-ArIO) as oxo-transfer reagents in MeCN. Benzyl groups are marked in red for emphasis.

The detailed characterization of [Fe^II(Bn3MC)(OTf)](OTf) (1) is described in the SI. Its crystal structure (Figure S15) shows the expected arrangement of ligating N atoms from the macrocyclic ligand and an axial triflate. Its ¹H-NMR spectrum (Figure 1) reveals features similar to those of Fe^II(TMC)(OTf)₂ but is more complex due to the loss of C_2v symmetry upon the replacement of one of the four methyl groups with a benzyl group. The remaining three methyl groups are found at 163 and 117 ppm with an approximate 2:1 intensity ratio. These peaks exhibit a weighted average chemical shift of 148 ppm, close to that of the 140-ppm peak assigned to its four methyl groups in Fe^II(TMC)(OTf)₂.^[12]

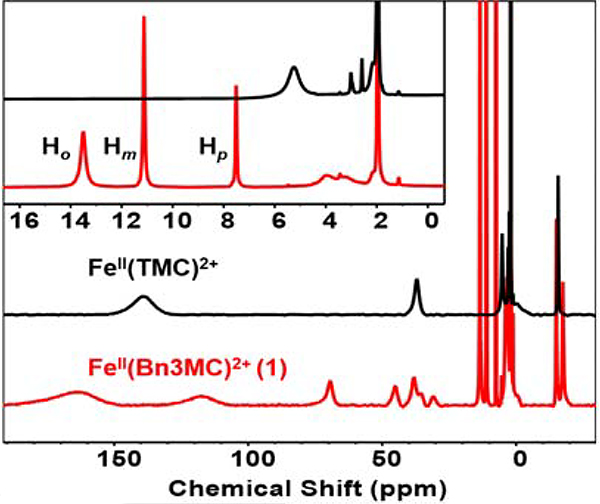

Figure 1.

¹H-NMR spectra of 1 (red trace) and the TMC analog (black trace) in MeCN-d₃ at 298 K. Inset shows the 0 ~ 16 ppm region where the sharp phenyl proton signals on 1 can be found.

The features arising from the benzyl substituent can be assigned to new peaks at 70 ppm and in the 7–14 ppm range. The 70-ppm peak has a linewidth comparable to those of a cluster of peaks around 40 ppm region that are associated with CH₂ protons next to the N-atoms of the macrocycle and has an integration of 2 H versus 8 H for the peak cluster at 40 ppm. The 70-ppm peak can thus be assigned to the methylene protons of the benzyl group. On the other hand, the three sharper peaks within the 7 – 14 ppm range with relative integrations of 2:2:1 from left to right can be associated with the ring protons of the benzyl group introduced in 1. The broader peak at ~14 ppm is assigned to the much closer ortho protons (H_o), while the two sharper peaks can be associated with the meta (H_m) and para (H_p) protons from left to right based on their relative integrations and their narrower linewidths that reflect their greater distance from the iron center.

Generation of [Fe^IV(O_anti)(Bn3MC)]²⁺ (2-anti) and [Fe^IV(O_syn)(Bn3MC)]²⁺ (2-syn)

Based on previous work on the TMC-supported Fe^IV=O species,^{[5, 12]} it is known that treating Fe^II(TMC)(OTf)₂ with different oxidants, specifically iodosylbenzene (PhIO) and 2-(tert-butylsulfonyl)-iodosylbenzene (s-ArIO), results in the generation of distinct Fe^IV=O species, even though their UV-Vis-NIR features look very similar. We have verified that parallel outcomes are obtained for the benzyl-substituted complex 1. Thus, the reaction of 1 in MeCN with 1 equiv PhIO (dissolved in CF₃CH₂OH) at 233 K generates 2-anti in quantitative yield with the appearance of its characteristic near-IR band at 831 nm (ε_M = 400, Figure 2, top panel). ESI-MS characterization of this new species shows a major peak at m/z = 553.2, indicating O-atom incorporation into 1, while its Raman spectrum exhibits a ν(Fe=O) at 842 cm⁻¹ (Figure S2), similar to the 839-cm⁻¹ peak found for [Fe^IV(O_anti)(TMC)(NCMe)]²⁺.^[13] The ¹H-NMR spectrum of 2-anti, compared to that of the corresponding TMC complex in Figure S3, shows similar features but is more complex due to the lower symmetry of the former. Warming this solution to 298 K over 60 min results in the loss of only 10% of the Fe^IV=O complex, indicating its relative thermal stability (Figure 2, top panel).

Figure 2.

Top: Generation of 2-anti (black trace) from a 0.45 mM solution of 1 (red trace) in MeCN at 298 K, grey trace represents the spectrum after standing for 1 h at 298 K. Bottom: Generation of 2-syn (black trace) from a 1 mM solution of 1 (red trace) in MeCN at 298 K; the blue traces represent the generation of the product 3 over a 90-min period. Inset shows that the decrease of the absorbance at 950 nm following the decay of 2-syn appears to be concomitant with the generation of 3 as indicated by the increase in the absorbance at 618 nm. The absorbances at 618 and 950 nm were normalized for the plot to emphasize that these steps appear to be governed by the same rate constant.

In contrast, treating the same MeCN solution of 1 with 1.1 equiv s-ArIO (90% pure dissolved in a small amount of CD₂Cl₂) at 233 K results in the formation of a species with a similar near-IR band at 826 nm (ε_M = 400, Figure 2, bottom panel) but showing a distinct Fe=O Raman vibration at 860 cm⁻¹ (Figure S2), which resembles the 858 cm⁻¹ value associated with the ν(Fe=O) of [Fe^IV(O_syn)(TMC)(NCMe)]²⁺.^[13] This species is thus assigned to 2-syn. The Raman spectrum of the 2-syn sample also shows the presence of some 2-anti, with relative intensities indicating a 4:1 2-syn/2-anti ratio. This observation is corroborated by the NMR spectrum of this sample, which exhibits resonances for both 2-syn and 2-anti in a 4:1 intensity ratio (Figure S4), as previously observed in the reaction of Fe^II(TMC)(OTf)₂ with s-ArIO.^[12] EXAFS analysis of a frozen MeCN solution of 2-syn (Figure S16 and Table S1) reveals a first coordination sphere consisting of 1 O atom at 1.62 Å and 5 N/O atoms averaging 2.07 Å, in agreement with values found in the crystal structure of [Fe^IV(O_syn)(TMC)(OTf)]⁺ (Table S2).^[13]

Conversion of [Fe^IV(O_syn)(Bn3MC)]²⁺ (2-syn) into 3 at 298 K

The thermal stability of 2-syn significantly differs from that of the more stable 2-anti. Unlike the latter, 2-syn decays rapidly upon warming from 233 K to 298 K, generating a blue species with an intense band centered at 618 nm (Figure 2, bottom) that is often associated with Fe^III–OAr complexes.^[14] This notion is confirmed by ESI-MS data that shows a major peak at m/z 552.1 with an isotope pattern associated with the [Fe^III(Bn3MC)(OTf)+O-H]⁺ (3) ion, implicating the replacement of an H-atom on the ligand framework by an O-atom. Furthermore, 3 exhibits a resonance Raman spectrum (Figure S5) with vibrational features typical of an Fe^III–OAr chromophore.^[14] This distinct switch in reactivity in the case of 2-syn provides an unprecedented opportunity to monitor steps in the hydroxylation of an aromatic ring by a well-characterized Fe^IV=O species. Similar hydroxylations of phenyl rings attached to ligand frameworks with heterocyclic donors have been documented previously,^[11] but this result represents the first example for a complex with a tetraalkylcyclam framework.

A solution of 1-mM 2-syn in MeCN has a half-life (t_1/2) of ~11 min when formed at 298 K, based on the disappearance of absorption at 950 nm (Figure 2, bottom panel), a wavelength chosen to minimize interference from the growth of the broad and more intense band at 618 nm arising from the Fe^III–OAr product. An apparent “isosbestic point” can be observed at 830 nm that appears to indicate the clean transformation of 2-syn to 3.

Kinetic analysis shows that both the decay of 2-syn (as monitored by the decrease in absorbance at 950 nm) and the generation of 3 (as followed by the increase in absorbance at 618 nm) can be fit by exponential functions with comparable first order rate constants of 1.3(1) x 10⁻³ s⁻¹ and 1.2(1) x 10⁻³ s⁻¹, respectively (Figures 2, bottom panel, & S6). These observations support the notion that the decay of 2-syn leads to the formation of the 618-nm chromophore, making it the rate-determining step (rds). Both the reaction rate and the yield of 3 (~50%, estimated from Figure S7) are found to be insensitive to O₂, so O₂ does not play a role.

We have also deuterated the phenyl group of 1 to perturb its hydroxylation by the Fe^IV=O unit. Treatment of Fe^II(Bn3MC-d₅)²⁺ (1-d₅) (Figures S8 & S9) with 1.1 equiv s-ArIO at 298 K affords the the same near-IR band at 826 nm as observed for 2-syn. The self-decay kinetics of 2-syn-d₅ has almost the same reaction profile as its unlabeled counterpart, with the same rate constants for 2-syn decay and 3 formation (Figure S10). Thus, the inverse KIE typically expected for an electrophilic aromatic substitution reaction is not observed.^{[2b, 10a]} In fact, no KIE is found for either the decay of 2-syn-d₅ or the generation of 3-d₄, even though ESI-MS confirms the loss of a deuterium atom upon ring hydroxylation (Figure S8), suggesting that aromatic C–H bond cleavage must not be involved in the rate determining step of the reaction.

However, there are subtle differences in the kinetic behavior of the two isotopomers, which are clarified when plots for the generation of 3 and 3-d₄ are compared (Figure 3). Closer scrutiny of the 4000-s profile for the formation of 3 shows the presence of an initial lag phase (LP) in the first 35 seconds, after which the reaction exhibits a proper exponential growth behavior typical for a first-order reaction for the 618-nm chromophore (Figure 3, left panel, red box). The latter step, assigned to the formation of 3, has a first order rate constant that matches that for the decay of 2-syn (Figure 2, bottom panel inset). Interestingly, this LP becomes more pronounced upon deuteration of the phenyl group, doubling in length from ~35 s to ~70 s (the length of the LP being defined by the crossing point with the time axis of a linear extrapolation of the initial exponential growth) (Figure 3, right panel). In contrast, such a lag phase is not observed in the decay profile of 2-syn (Figure 3, right panel, black trace), suggesting that the lag phase is not connected with the decay of 2-syn but associated only with the generation of 3. The existence of this lag phase and its enhancement upon deuteration of the phenyl ring suggest that there could be an intervening step involving an as yet unidentified intermediate between 2-syn and 3.

Figure 3.

Left panel: Time traces at 618 nm reflecting the generation of 3 (blue line) and 3-d₄ (red line) at 298 K. The red box is the region that is enlarged in the right panel. Right panel: Enlarged 0 ~ 300 s region showing the difference between the lag phases for 3 and 3-d₄. The dashed lines represent linear extrapolations from the exponential curves in the accumulation of 3 (blue line) and 3-d₄ (red line) to earlier time points, which cross the time axis respectively at 35 s and 70 s. The black line shows the absence of a lag phase in the decay of 2-syn, as monitored at 950 nm within the same time window.

We have tracked the flow of electrons in as much detail as possible to find support for the involvement of an intermediate between 2-syn and 3. From a scrutiny of their structures, it is obvious that 2-syn must lose an H-atom in order to generate 3. The ability of an Fe^IV=O species to carry out 1-e^- oxidations may be facilitated by its acquisition of some Fe^III–oxyl character along the reaction trajectory (Scheme 3). Indeed, DFT calculations reveal the Fe^III–oxyl electromer to be one of its lower-lying excited states.^[15] The hydroxylation of the phenyl group by an Fe^IV=O moiety can thus be considered as initiated by oxyl radical attack on the π system of the arene, avoiding the cleavage of its very strong aromatic C–H bond (~ 110 kcal/mol). Such a step should result in the formation of a C–O bond that allows the unpaired electron to become delocalized onto the pentadienyl moiety (Scheme 3, intermediate R). Transfer of another electron from the pentadienyl radical moiety to the Fe^III center generates a Wheland intermediate bound to an Fe^II center (Scheme 3, intermediate W), which is favored by a computational study to be thermodynamically more stable than intermediate R.^[10a] Subsequent aromatization of W is accomplished by a proton shift from the ipso-C atom to the O-atom of the nascent phenolate, which is the only basic site in the system, to form an Fe^II-phenol species we designate as Int_Fe(II) (Scheme 3). In the last step of the reaction, Int_Fe(II) is in turn oxidized to the highly chromophoric 3 via the transfer of the H-atom from the nascent hydroxyl group of the pendant phenol of Int_Fe(II) to residual 2-syn.

Scheme 3.

A reactivity mode for aromatic substrates in which the Fe^IV=O moiety attacks a phenyl ring to form a C–O bond to generate a pentadienyl radical intermediate (R). Tautomerization of R yields an electromer in which the iron center is reduced to the Fe(II) state with a bound Wheland intermediate (W). Subsequent conversion of W to Int_Fe(II) by a proton shift from C to O and followed by loss of an H-atom generates 3.

Mechanistic analysis

The reaction mechanism proposed in Scheme 3 involves an initial intramolecular step with the Fe^IV=O unit of 2-syn attacking the pendant phenyl ring to effect its hydroxylation and leading to Int_Fe(II). This step is followed by the rapid transfer of an H-atom on Int_Fe(II) to residual 2-syn to form the highly chromophoric 3. In the reaction mixture derived from the reaction of s-ArIO with 1, 2-syn and 2-anti represent the only two potential oxidants present in solution at the start that are the likely acceptors for the H-atom generated in the conversion of 2-syn to 3. As shown by NMR (Figure S11), 2-anti remains unchanged throughout the reaction process. It thus behaves merely as a spectator species, leaving 2-syn as the only oxidant available in the reaction.

In our proposed mechanism, 2-syn must play two roles. Its primary role is the intramolecular hydroxylation of the phenyl ring to form Int_Fe(II), and its secondary role is to extract an H-atom from Int_Fe(II) in the conversion of the latter to 3, which is a bimolecular reaction (Scheme 3). As a consequence, the generation of 3 should be affected by changing the concentration of 2-syn as its formation is an intermolecular reaction, but the intramolecular generation of Int_Fe(II) should not. In addition, a fraction of 2-syn must become reduced to balance the reaction and convert into an Fe^III–OH derivative or the Fe^II–OH₂ product 1.

To answer the questions raised above, we have investigated the effect of changing the concentration of 2-syn. At 0.7 mM 2-syn decays at a rate of 1.3(1) x 10⁻³ s⁻¹ and 3 is generated at a rate of 1.2(1) x 10⁻³ s⁻¹ (Figure S10), values that are essentially the same as those for the 1-mM experiment (see Figure 2 bottom and accompanying text). However, when the 2-syn concentration is further reduced to 0.3 mM, the two steps become more asynchronous. 2-syn decays as soon as it is generated at a rate of about 1.4(1) x 10⁻³ s⁻¹, which is comparable to values obtained at the other two concentrations of 2-syn (Figure 4A, gray traces & Figure S10), but the generation of 3 slows to 1.0(1) x 10⁻³ s⁻¹, a rate constant distinct from that for the decay of 2-syn (Figure 4A, blue traces & Figure S10). As a consequence, the crossing points of the traces progressively shift to the right as the reaction proceeds, resulting in the disappearance of the isosbestic point observed in the 1-mM experiment (compare Figure 4A inset vs Figure 2 bottom). Unlike at higher concentrations of 2-syn, the decay of 2-syn is no longer clearly the rate determining step and the formation of 3 has become slow enough to become competitive with 2-syn decay. Figure 4B compares the growth curves of the 618-nm chromophore obtained from 0.3-, 0.7- and 1.0-mM solutions of 2-syn. All are plotted with normalized absorbance to allow a visual comparison of their LPs together with a first-order curve through the zero point (Figure 4B, red dashed trace). The decrease in the concentration of 2-syn results in growth curves of the corresponding 618-nm band that progressively deviate from the standard exponential curve. In particular, the curve shape for the 0.3-mM experiment (Figure 4B, red solid trace) does not overlap at all with the standard, further supporting the notion that the decay of 2-syn has become faster than the generation of 3 in this case. Inset shows plots of the initial 500 seconds versus time in logarithmic scale to highlight the lengthening of the LPs at the onset of the reaction with decreasing 2-syn concentration.

Figure 4.

A) Conversion of 0.3 mM 2-syn in MeCN (black trace) to 3 (blue trace) at 298 K over a 90-min period. Gray and lighter blue traces correspond respectively to the decay of 2-syn and the growth of 3 during the conversion. Inset shows the enlarged 750–900 nm region, emphasizing the asynchrony of the two steps. B) Comparison of time traces at 618 nm associated with the generation of 3 from initial concentrations of 2-syn of 1.0 mM (black), 0.7 mM (blue), and 0.3 mM (red). Curves have been normalized to facilitate visual comparison. The dashed red line represents ideal exponential behavior. Note the more pronounced initial lag phase observed for the 0.3-mM sample. Inset shows plots of the initial 500 seconds versus ln(time) to highlight the lengthening lag phase at the onset of the reaction with decreasing [2-syn].

These observations agree with our analysis of the reaction scheme: the reaction leading to 3 is a bimolecular reaction that is affected by the concentration of 2-syn. Due to its intermolecular nature, the generation of 3 is more sensitive to the decreasing concentration of 2-syn than the intramolecular decay of 2-syn such that the formation of 3 becomes obviously slower than the decay of 2-syn in the experiment with 0.3 mM 2-syn. This mechanistic hypothesis is corroborated by the lengthening of LP upon deuteration of the phenyl ring, reflecting the kinetic isotope effect (KIE) for the slower “D-atom” transfer step from 2-syn-d₅ (Figure 3). In conclusion, 3 is the product of Int_Fe(II) reacting with residual 2-syn, in agreement with the observed kinetic data where the generation rate of 3 drops faster than the decay rate of 2-syn, as both reactants leading to 3 have a first-order dependence on the concentration of 2-syn.

We have also monitored the reaction by ¹H-NMR to identify other components of the reaction mixture. Over the course of an hour, signals from 2-anti remain unchanged in intensity relative to the residual 1-(tert-butylsulfonyl)-2-iodobenzene (s-ArI) byproduct from the s-ArIO internal standard (Figure S11). However, two sharp peaks at 11.3 ppm and 13.5 ppm are observed to grow as the reaction progresses and can be assigned to H_o and H_m of 1 (Figure S12a); other NMR features of 1 can also be found upon the decay of 2-syn (Figure S12b). Taken together, these data show that 1 is in fact regenerated in ~30% yield, which accounts for roughly 1/3 of the starting 2-syn (~80%). Taking into consideration the ~50% yield of the major product 3 and the ~30 % yield of 1, it becomes clear that 2-syn decay affords 3 and 1 in a 2:1 ratio, with the remaining ~20% being 2-anti, the typical side-product in the generation of 2-syn with s-ArIO, which remains uninvolved in the reaction pathway (Figure S11).

With the spectroscopic results described above, we have tracked the fate of 2-syn in its conversion into a 2:1 ratio of 3 and 1 products. There is no direct evidence found for the two species that bridge the gap between 2-syn and its products. Int_Fe(II) is an isomer of 2-syn that when formed is proposed to convert immediately to 3 by the loss of an H-atom (Scheme 4). The H-atom released is absorbed by residual 2-syn, which is in turn reduced back to 1 and one equivalent of H₂O. Both the starting material and the product can be observed by NMR and quantified to establish the reaction stoichiometry summarized in Scheme 4.

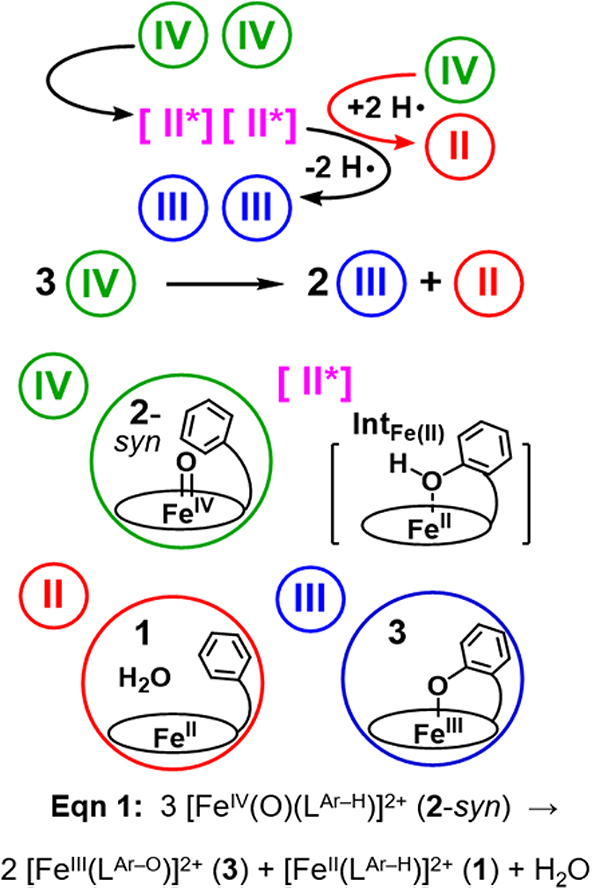

Scheme 4.

Top: Proposed mechanism for the aromatic hydroxylation reaction performed by the oxoiron(IV) species 2-syn. The first step is the conversion of 2-syn (or (IV)) into the unobserved Int_Fe(II) (or [II*]) by insertion of the oxo-atom into the target C–H bond. In the next step, Int_Fe(II) is oxidized to 3 (or (III)) by transfer of an H-atom to residual 2-syn. Two consecutive H-atom transfers to 2-syn generate a molecule of 1 (or (II)). Overall, the reaction converts 3 equiv. 2-syn into 2 equiv. 3 and 1 equiv. 1, for a theoretical yield of 67% for 3 and 33% for 1. Bottom: Structures associated with the four species involved in the reaction.

The chemistry represented by the initial step in the model system in the conversion of 2-syn to Int_Fe(II) corresponds to that for the key transformation catalyzed by the nonheme iron enzyme phenylalanine hydroxylase, in which an Fe^IV=O oxidant generated at the iron active site hydroxylates the phenylalanine substrate to form tyrosine. In the case of the enzyme, the tyrosine product is released from the active site, and the starting Fe^II center is regenerated for the next cycle of catalysis.^[3a–e] However, for our biomimetic Bn3MC complex, the analog to the enzyme-product complex is in fact Int_Fe(II), but it rapidly reacts with residual Fe^IV=O oxidant, which extracts the equivalent of an H-atom from Int_Fe(II) to generate the blue-colored product 3 (Scheme 3), thereby preventing the initiation of the next cycle of oxidation. It would be impossible for this latter step to occur in the isolation of the enzyme active site.

Lastly, the formation of chromophoric 3 provides a spectroscopic handle with which to probe the relative energetics of intramolecular aromatic hydroxylation versus intermolecular aliphatic C–H bond cleavage by the nascent 2-syn species. We find that the addition of even 1 eq cyclohexadiene (CHD, D_C–H 76 kcal/mol) to the reaction mixture results in the immediate interception of 2-syn, decreasing the yield of 3 to ~20% (Figure S13). The yield of 3 drops even further to ~10% with 5 eq CHD. On the other hand, no noticeable interception is observed with 100 eq toluene (D_C–H 90 kcal/mol), thereby bracketing the strength of aliphatic C–H bonds that can be cleaved by 2-syn. The most intriguing result comes from using cyclohexene (D_C–H 82 kcal/mol) as the intercepting substrate. Self-hydroxylation is predominantly observed in the presence of 10 eq cyclohexene, but increasing to 100 eq cyclohexene results in 80% interception (Figure S14). The clear switch between competing reaction pathways in this series of cyclohexene experiments demonstrates the comparable activation barriers for the two reactions described, providing a qualitative understanding of the barriers for an oxoiron(IV) species to hydroxylate its pendant aromatic ring versus oxidizing an externally added substrate.

Conclusion

In the current study, we have demonstrated that the thermal decay of [Fe^IV(O)(Bn3MC)]²⁺ (2-syn) results in the hydroxylation of the pendant phenyl ring leading to the formation of Fe^III–OAr (3) and [Fe^II(Bn3MC)]²⁺ (1) products in a 2:1 ratio (Scheme 4). This study identifies for the first time the formation of the latter as a byproduct of the reaction, accounting completely for the electron flow and stoichiometry within this system. Thus, our proposed reaction scheme rationalizes the consistently observed 65% yield of the Fe^III–OAr product reported for the three different Fe^IV=O complexes that effect intramolecular arene hydroxylation.^{[11a, 11f]} With the general problem identified in our example that the reaction between residual 2-syn and Int_Fe(II) prevents a proper biomimetic catalytic cycle to be completed, measures could be taken to improve the design of the biomimetic system to minimize such side reactions.

Moreover, our results reveal that the Fe^IV=O oxidant of a TMC-derived ligand is actually powerful enough to hydroxylate a pendant phenyl ring. This intramolecular hydroxylation is in fact competitive with the intermolecular hydroxylation of cyclohexene, qualitatively providing an experimental estimate of the activation barrier for such a reaction for the first time. Although previous DFT calculations by de Visser to assess the reactivity of [Fe^IV(O)(TMC)(NCMe)]²⁺ had revealed a strong preference for the hydroxylation for aliphatic C–H bonds over aromatic hydroxylation,^[16] the experimental results reported here demonstrate that this Fe^IV=O unit has a more versatile reactivity than predicted by these DFT calculations.

Figure 5.

NMR spectra of the reaction taken 10, 20 and 60 min after mixing 10 mM 1 with 1.1 equiv. s-ArIO at 298 K in MeCN-d₃. The sharp peak at 8.5 ppm is associated with phenyl protons on 2-syn, which decreases in intensity upon conversion of 2-syn to 3. Concomitantly, the red-labeled peaks at 11.3 and 13.5 ppm assigned to the ortho and meta proton signals of the phenyl group of 1 grow in intensity during the course of the transformation.
