. 2021 Sep 10;16(9):e0257305. doi: 10.1371/journal.pone.0257305

Effects of blood urea nitrogen independent of the estimated glomerular filtration rate on the development of anemia in non-dialysis chronic kidney disease: The results of the KNOW-CKD study

Hyo Jin Kim 1,2, Tae Eun Kim 3, Miyeun Han 4, Yongin Yi 5, Jong Cheol Jeong 3,6, Ho Jun Chin 3,6, Sang Heon Song 1,2, Joongyub Lee 7, Kyu-Beck Lee 8, Suah Sung 9, Seung Hyeok Han 10, Eun Young Seong 1,2, Curie Ahn 11, Kook-Hwan Oh 6,12, Dong-Wan Chae 3,6,*
Editor: Ping-Hsun Wu13
PMCID: PMC8432877  PMID: 34506574

Abstract

Background

Anemia is a common complication of chronic kidney disease (CKD). Blood urea nitrogen (BUN) in CKD represents nitrogenous uremic toxin accumulation which could be involved in anemia of CKD. We investigated the effects of BUN independent of estimated glomerular filtration rate (eGFR) on anemia in non-dialysis CKD (NDCKD).

Methods

This prospective study included 2,196 subjects enrolled in the KoreaN Cohort Study for Outcome in Patients With Chronic Kidney Disease (KNOW-CKD) cohort with BUN and hemoglobin level data. Initially, we investigated the association between BUN and hemoglobin level. To examine the impact of baseline BUN on the incident anemia, a longitudinal study was performed on 1,169 patients without anemia at study enrollment. BUN residuals were obtained from the fitted curve between BUN and eGFR. Anemia was defined as a hemoglobin level of <13.0 g/dL for men and <12.0 g/dL for women.

Results

BUN residuals were not related to eGFR but to daily protein intake (DPI), while BUN was related to both eGFR and DPI. BUN was inversely associated with hemoglobin level (β -0.03; 95% confidence interval [CI] -0.04, -0.03; P <0.001) in the multivariable linear regression analysis adjusted for multiple confounders including eGFR, and BUN residual used instead of BUN was also inversely associated with hemoglobin level (β -0.03; 95% CI -0.04, -0.02; P <0.001). Among the 1,169 subjects without anemia at baseline, 414 (35.4%) subjects newly developed anemia during the follow-up period of 37.5 ± 22.1 months. In the multivariable Cox regression analysis with adjustment, both high BUN level (Hazard ratio [HR] 1.02; 95% CI 1.01, 1.04; P = 0.002) and BUN residual used instead of BUN (HR 1.02; 95% CI 1.00, 1.04; P = 0.031) increased the risk of anemia development. Moreover, BUN, rather than eGFR, increased the risk of anemia development in patients with CKD stage 3 in the multivariable Cox regression.

Conclusion

Higher BUN levels derived from inappropriately high protein intake relative to renal function were associated with low hemoglobin levels and the increased risk of anemia independent of eGFR in NDCKD patients.

Introduction

Anemia is a common complication of chronic kidney disease (CKD), the prevalence of which increases progressively as renal function declines [1]. Anemia leads to decreased quality of life, left ventricular hypertrophy, and mortality in CKD [2].

Although relative erythropoietin (EPO) deficiency and disordered iron metabolism are the major mechanisms of anemia of CKD, uremia-induced circulating inhibitors of erythropoiesis have also been reported to play some role in this disorder [36]. In a previous experimental study, primary bone marrow cells have shown dose-dependent growth inhibition when treated with the serum of uremic patients [7]. In another experimental study, acrolein (a uremic toxin) stimulated suicidal erythrocyte death [8]. Removal of furancarboxylic acid, an inhibitor of erythropoietin, by albumin-leaking hemodialysis (HD) significantly increased hematocrit in HD patients [9]. In this regard, it appears uremic toxins might influence anemia development in CKD patients although no specific uremic toxin(s) responsible for anemia of CKD has been identified yet.

Urea is a small water-soluble molecule that is freely filtered by the glomeruli and absorbed by the proximal and distal tubules of the kidney. Several urea transporters are involved in urea handling along the nephron [10]. Urea has quantitively the highest serum concentration among the different organic solutes retained in patients with CKD [11].

Blood urea nitrogen (BUN) is traditionally one of the indicators for evaluating kidney function, and BUN levels are inversely correlated with kidney function [12]. Besides glomerular filtration, BUN levels are also influenced by tubular resorption and production of urea. In acute illnesses, such as acute heart failure [13], acute pancreatitis [14], and extensive diuretic use [15], increased tubular reabsorption of urea consequent to neurohumoral activation originating from the depletion of effective circulating volume is a common cause of higher elevation of BUN compared to glomerular filtration rate (GFR) leading to higher BUN/creatinine ratio in these patients.

Increased production of urea secondary to increased protein intake, is the most important extrarenal cause of elevation of BUN in stable CKD patients [16]. Different BUN levels were frequently observed in CKD patients having the same GFR [17] and the effect of protein intake on BUN became larger as estimated GFR (eGFR) declined in CKD [18]. Hence BUN in CKD is not only an indicator of kidney function but is also a marker of retention of nitrogenous uremic solutes mainly originating from protein intake. A very low-protein diet supplemented with essential amino acids reduced the EPO requirement to maintain the hemoglobin level in non-dialysis CKD (NDCKD) [19]. Increased urea reduction ratio increased hematocrit [20] or increased Kt/V urea reduced EPO requirement [21] in HD patients.

Therefore, we hypothesized that BUN would have independent effects of eGFR on the development of anemia in NDCKD by representing the accumulation of uremic toxins which could inhibit effective erythropoiesis in NDCKD. Because both BUN and hemoglobin level in CKD are strongly influenced by renal function represented by eGFR, a parameter which excludes the effect of eGFR on BUN is needed to evaluate the effect of BUN independent of eGFR on anemia in CKD. Residual was proposed as one of the methods modeling the association of a specific constituent and outcome [22] similar to our study in which eGFR, volume status, protein intake are important constituents of BUN. BUN residual was actually used in a study to assess the independent association of eGFR between BUN and the development of diabetes mellitus [23]. Considering that the distribution of BUN is widely spread at the same eGFR [17], the authors calculate BUN residual to minimize the impact of kidney function on BUN levels. BUN residuals were obtained from the fitted curve between BUN and eGFR to minimize the confounding effects from the strong collinearities between BUN, eGFR, and anemia [22, 23]. BUN residual may be an indicator that reflects factors affecting the BUN level except for the effects of eGFR, and in stable CKD patients, the count of protein intake will be the main factor in determining BUN residual. We also performed subgroup analyses in which the discordant effects of BUN and eGFR on the development of anemia could be found.

Methods

Study design and population

The KoreaN Cohort Study for Outcome in Patients With Chronic Kidney Disease (KNOW-CKD) is an ongoing Korean multicenter prospective cohort study conducted in patients with CKD stage 1–5. The detailed methods and design of the KNOW-CKD study have been previously described (NCT01630486 at http://www.clinicaltrials.gov) [24]. Briefly, patients aged between 20 and 75 years with various causes of CKD stages 1–5 were screened in each participating center from 2011 to 2016. In the initial study design of this prospective cohort, the authors had aimed to enroll a total of 2,450 patients. This number was calculated to include approximately 600 subjects in each subgroup (diabetic nephropathy, hypertensive nephropathy, glomerulonephritis, and polycystic kidney disease) with 80% power achieved to detect hazard ratios of approximately 2.00 and 1.60 for exposure with prevalence of 0.1 and 0.5, respectively, and a dropout rate of 10%. CKD was defined as eGFR <60 mL/min/1.73m2 for ≥3 months by Chronic Kidney Disease Epidemiology Collaboration (CKD-EPI) creatinine equation [25] or presence of kidney damages, such as albuminuria, or pathologic or structural abnormalities detected by kidney biopsy or imaging study according to the Kidney Disease: Improving Global Outcomes (KDIGO) guidelines [26]. Of the 2,238 patients enrolled in the study from 2011 to 2016, we included 2,196 patients with BUN and hemoglobin data measured at enrollment (Fig 1). The protocol of the KNOW-CKD study was approved in 2011 by the ethical committees of all participating clinical centers, that is, the Institutional Review Boards of Seoul National University Hospital (1104-089-359), Seoul National University Bundang Hospital (B-1106/129-008), Yonsei University Severance Hospital (4-2011-0163), Seoul St. Mary’s Hospital (KC11OIMI0441), Kangbuk Samsung Medical Center (2011-01-076), Eulji General Hospital (201105–01), Gil Hospital (GIRBA2553), Chonnam National University Hospital (CNUH-2011-092), and Pusan Paik Hospital (11–091). This study was performed in accordance with the principles of the Declaration of Helsinki and all study subjects provided written informed consent.

Fig 1. Flow chart of subject enrollment and analyses.

Fig 1

Clinical and laboratory measurements

Clinical characteristics, such as demographic factors, laboratory values, and medications, were extracted from an electronic data management system (http://www.phactax.org). Hypertension (HTN) was defined as a systolic blood pressure (SBP) of ≥140 mmHg or diastolic blood pressure of ≥90 mmHg, a history of HTN, or taking antihypertensive drugs. Diabetes mellitus (DM) was defined as a fasting serum glucose of ≥126 mg/dL, a history of DM, or taking insulin or oral antidiabetic drugs. The laboratory variables were measured using ≥8-hour fasting blood samples. The laboratory tests including complete blood count and blood chemistry were performed at baseline, at 6 and 12 months after study commencement, and annually thereafter. The serum creatinine level was measured using an isotope dilution mass spectrometry (IDMS)-traceable method [27] at a central laboratory (Lab Genomics, Seoul, Korea). eGFR was calculated using the CKD-EPI creatinine equation [25]. Stage 1–5 CKD was defined according to the KDIGO guidelines [26]. Anemia was defined as a hemoglobin level of <13.0 g/dL for men and <12.0 g/dL for women using the World Health Organization criteria [28]. Transferrin saturation (TSAT) was calculated by dividing the serum iron level by the total iron-binding capacity. Iron deficiency was defined as a ferritin level of ≤100 ng/mL and a TSAT of ≤20% [29]. Intravenous or oral iron supplementation was prescribed under the discretion of physicians in participating hospitals if physicians judged it necessary to raise the hemoglobin of his patient or to reduce the dose of ESA in accordance with the KDIGO guidelines [30]. Erythropoiesis-stimulating agent (ESA) was prescribed under the discretion of physicians in participating hospitals in patients with anemia of CKD with hemoglobin < 10 g/dL in accordance with the KDIGO guidelines [30], excluding other causes of anemia. In addition, ESA was started in patients with eGFR < 30 mL/min/1.73m2 in accordance with the insurance coverage of Korea. During the use of ESA, physicians adjusted the dose of ESA to maintain hemoglobin at 10–11 g/dL (or hematocrit 30–33%) and stopped ESA if hemoglobin was > 11 g/dL (or hematocrit > 33%).

Second voided or random urine samples were immediately sent to a central laboratory to determine urine creatinine and protein levels. The urinary protein excretion was quantified using random urinary protein-to-creatinine ratio (UPCR, g/g). Twenty-four hours urine was also collected. The completeness of 24 hours urine collection was determined by a ratio of the measured 24 hours urine creatinine to the expected 24 hours urine creatinine, which was calculated using the Tanaka equation [31]. Estimated daily protein intake (DPI) was estimated using the Maroni-Mitch formula: 6.25 × [urine urea nitrogen (g/day) + 0.03 × ideal body weight (kg)] + proteinuria (g/day) [32], and DPI was calculated by dividing the estimated DPI by actual body weight (g/kg/day). The serum hepcidin level was measured at a central laboratory via cELISA using EIA5258 kits (DRG Diagnostics, Marburg, Germany), according to the manufacturer’s instructions.

Primary outcome

Initially, we investigated the association between BUN and hemoglobin levels in the 2,196 patients at baseline. To examine the impact of baseline BUN level on incident anemia, a longitudinal study was performed on 1,169 patients who did not have anemia at study enrollment. The primary outcome of the present study was the onset of de novo anemia development during follow-up.

Statistical analyses

Continuous variables were presented as mean ± standard deviation (SD) or as median (interquartile range) and compared using one-way analysis of variance (ANOVA) or Kruskal-Wallis test in Table 1 and t-test or Mann-Whitney test in Table 3. Categorical variables were presented as the frequencies and percentages and analyzed using the Chi-square test or Fisher’s exact test as appropriate. The P-value for the trend, which represents the dose-dependent effect of BUN on variables, was obtained using the ANOVA linear contrasts or Jonckheere-Terpstra test (continuous variables) or linear by linear association (categorical variables) in Table 1. Log transformation was used to normalize variables with a skewed distribution. To remove the effect of eGFR on BUN, a fitted curve between eGFR and BUN was obtained using the “splines” packages in R Statistics (version 4.04) which calculated the expected BUN value corresponding to eGFR using prediction function. The BUN residual was obtained by the vertical distance from each BUN value to the fitted curve between eGFR and BUN (Fig 2) [22, 23]. Multivariable linear regression analysis was performed to find the factors related to BUN and BUN residual. Multivariable linear regression analysis was also conducted after adjusting for the multiple confounders to investigate the association between BUN and serum hemoglobin levels; BUN residual was used instead of BUN in this analysis also. These models were constructed after rigorous and stepwise adjustments for confounding factors. Model 1 was unadjusted model with no covariables. Model 2 was adjusted for demographic information and comorbidities data including age, sex, smoking, SBP, DM, HTN, and Charlson comorbidity index (CCI). Model 3 included laboratory parameters of eGFR, UPCR, white blood cell (WBC), platelet, C-reactive protein (CRP), albumin, total cholesterol, ferritin, hepcidin, iron, and TSAT in addition to the variables adjusted in model 2. Model 4 further included medications such as iron replacement therapy, ESA, angiotensin converting enzyme inhibitor (ACEi) or angiotensin II receptor blocker (ARB), statin, and diuretics. The data of the 1,169 (53.2%) patients without anemia at enrollment were subjected to further analysis to determine whether baseline BUN can predict the future development of anemia. Cox proportional hazard models adjusted for confounders were used to determine whether the continuous and categorical values of BUN were associated with anemia development. The results were presented as hazard ratios (HRs) and 95% confidence intervals (CIs). The same analysis was also performed using BUN residual instead of BUN to determine whether the continuous and categorical values of BUN residual were associated with anemia development. For each analysis, aforementioned four different sequential adjust models were used. A cubic spline analysis was used to evaluate any non-linear relationship between BUN or BUN residual levels as continuous variable and the risk of anemia development after adjusting for the confounders. Subgroup analyses were also performed to find the discordant effects of BUN and eGFR on the development of anemia according to the CKD stages. A P-value of <0.05 was considered statistically significant. The “survival and splines” R software package (version 4.04) was used to obtain BUN residual, and restricted cubic spline curves. SPSS statistical software (SPSS version 20.0, IBM Co., Armonk, NY, USA) was used for the other statistical analyses.

Table 1. Clinical characteristics of the study subjects at enrollment stratified by BUN levels.

Characteristics Total (N = 2,196) Blood urea nitrogen P-value ††P for trend
1st quartile 2nd quartile 3rd quartile 4th quartile
(5.0–17.0 mg/dL) (17.1–23.9 mg/dL) (24.0–35.0 mg/dL) (35.1–112.0 mg/dL)
(n = 572) (n = 520) (n = 557) (n = 547)
Age (mean ± SD) 53.7 ± 12.3 47.5 ± 12.0 54.1 ± 11.7 56.3 ± 11.8 57.0 ± 11.1 <0.001 <0.001
Sex, male, n (%) 1339 (61.0) 326 (57.0) 327 (62.9) 347 (62.3) 339 (62.0) 0.155 0.111
SBP (mmHg) 127.8 ± 16.2 126.5 ± 14.6 127.1 ± 15.6 127.0 ± 15.9 130.8 ± 18.4 <0.001 <0.001
BMI (kg/m2) 24.6 ± 3.4 24.5 ± 3.6 24.8 ± 3.4 24.5 ± 3.2 24.5 ± 3.3 0.484 0.675
DM, n (%) 743 (33.9) 103 (18.1) 140 (27.0) 226 (40.6) 274 (50.1) <0.001 <0.001
HTN, n (%) 2109 (96.1) 519 (90.7) .505 (97.1) 544 (97.8) 541 (98.9) <0.001 <0.001
Age adjusted CCI 3.4 ± 2.2 1.6 ± 1.8 3.3 ± 2.0 4.3 ± 1.8 4.6 ± 1.7 <0.001 <0.001
Smoking status, n (%) 0.027 0.003
 Never 1184 (53.9) 334 (58.4) 281 (54.1) 299 (57.7) 270 (49.4)
 Current or former 1011 (46.1) 238 (41.6) 238 (45.9) 258 (46.3) 277 (50.6)
CKD stage, n (%) <0.001 <0.001
 Stage 1 354 (16.1) 298 (52.1) 48 (9.2) 7 (1.3) 1 (0.2)
 Stage 2 414 (18.9) 199 (34.8) 163 (31.3) 44 (7.9) 8 (1.5)
 Stage 3a 360 (16.4) 55 (9.6) 189 (36.3) 109 (30.3) 7 (1.3)
 Stage 3b 458 (20.9) 17 (3.0) 104 (20.0) 248 (44.5) 89 (16.3)
 Stage 4 473 (21.5) 2 (0.3) 16 (3.1) 143 (25.7) 312 (57.0)
 Stage 5 137 (6.2) 1 (0.7) 0 (0.0) 6 (1.1) 130 (23.8)
Cause of CKD <0.001 0.012
 GN 785 (35.7) 250 (41.3) 215 (41.3) 176 (31.6) 144 (26.3)
 DN 508 (23.1) 45 (7.9) 81 (15.6) 161 (28.9) 221 (40.4)
 Hypertensive nephropathy 405 (18.4) 68 (11.9) 96 (18.5) 129 (23.2) 112 (20.5)
 ADPKD 362 (16.5) 173 (30.2) 98 (18.8) 53 (9.5) 38 (6.9)
 Others 136 (6.2) 36 (6.3) 30 (5.8) 38 (6.8) 32 (5.9)
Creatinine (mg/dL) 1.8 ± 1.2 0.9 ± 0.4 1.3 ± 0.4 1.9 ± 0.6 3.1 ± 1.4 <0.001 <0.001
eGFR(mL/min/1.73m2) 53.0 ± 30.8 88.9 ± 23.4 59.5 ± 20.1 39.9 ± 15.4 22.7 ± 11.1 <0.001 <0.001
BUN (mg/dL) 28.3 ± 15.8 13.6 ± 2.6 20.4 ± 1.9 28.9 ± 3.3 50.6 ± 14.1 <0.001 <0.001
BUN residual (mg/dL) 0 ± 8.6 -3.0 ± 4.1 -1.8 ± 5.2 -1.1 ± 7.1 5.9 ± 12.4 <0.001 <0.001
*DPI, median, (Q1, Q3) (g/kg/day) 0.99 (0.84, 1.18) 0.99 (0.82, 1.16) 1.00 (0.86, 1.22) 0.99 (0.83, 1.18) 0.98 (0.84, 1.16) 0.222 0.930
WBC (×103/mm3) 6611 ± 1916 6397 ± 1882 6495 ± 1827 6851 ± 2014 6701 ± 1905 <0.001 <0.001
Platelet (×103/mm3) 231 ± 62 237 ± 59 229 ± 62 230 ± 61 227 ± 65 0.020 0.008
Hemoglobin (g/dL) 12.8 ± 2.0 14.0 ± 1.6 13.6 ± 1.8 12.5 ± 1.9 11.2 ± 1.5 <0.001 <0.001
Iron (ug/dL) 92.6 ± 35.1 102.1 ± 39.2 96.4 ± 34.4 88.7 ± 33.4 83.2 ± 29.9 <0.001 <0.001
Ferritin (pmol/L) 99.7 (53.7, 176.3) 88.8 (42.9, 161.4) 91.6 (53.3, 174.4) 96.9 (58.9, 176.6) 115.2 (63.7, 196.0) <0.001 <0.001
TSAT (%) 31.7 ± 12.1 32.9 ± 13.2 32.0 ± 11.7 31.2 ± 11.7 30.6 ± 11.4 0.011 0.001
Anemia (%) 970 (44.2) 75 (13.1) 137 (26.3) 303 (54.4) 455 (83.2) <0.001 <0.001
Iron deficiency, n (%) 1183 (54.9) 316 (56.7) 292 (27.4) 308 (56.3) 267 (49.4) 0.030 0.017
ESA use, n (%) 167 (7.6) 0 (0) 4 (0.8) 32 (5.8) 131 (24.0) <0.001 <0.001
Iron supplement, n (%) 322 (14.7) 20 (3.5) 49 (9.5) 85 (15.4) 168 (30.8) <0.001 <0.001
Albumin (g/dL) 4.2 ± 0.4 4.3 ± 0.4 4.2 ± 0.4 4.1 ± 0.5 4.1 ± 0.4 <0.001 <0.001
Phosphorus (mg/dL) 3.7 ± 0.7 3.5 ± 0.5 3.5 ± 0.5 3.7 ± 0.6 4.2 ± 0.8 <0.001 <0.001
Uric acid (mg/dL) 7.0 ± 1.9 5.9 ± 1.6 6.8 ± 1.6 7.4 ± 1.8 8.1 ± 2.0 <0.001 <0.001
Total CO2 (mmol/L) 25.7 ± 3.7 27.7 ± 3.0 26.9 ± 3.0 25.1 ± 3.2 23.0 ± 3.5 <0.001 <0.001
Sodium (mmol/L) 140.8 ± 2.5 140.7 ± 2.3 141.0 ± 2.2 141.0 ± 2.7 140.6 ± 2.7 0.016 0.680
Potassium (mmol/L) 4.6 ± 0.6 4.3 ± 0.4 4.4 ± 0.4 4.7 ± 0.6 5.0 ± 0.6 <0.001 <0.001
Total cholesterol (mg/dL) 174.1 ± 39.3 177.4 ± 35.1 177.7 ± 39.8 173.0 ± 40.6 168.4 ± 40.9 <0.001 <0.001
LDL cholesterol (mg/dL) 96.9 ± 31.9 101.0 ± 31.4 99.6 ± 31.2 95.3 ± 32.8 91.9 ± 31.3 <0.001 <0.001
Triglyceride (mg/dL) 157.1 ± 98.4 145.6 ± 82.8 156.8 ± 101.7 165.2 ± 104.7 161.2 ± 102.7 0.007 0.004
HDL cholesterol (mg/dL) 49.3 ± 15.4 53.3 ± 15.8 50.5 ± 15.4 47.8 ± 14.3 45.4 ± 14.9 <0.001 <0.001
CRP, median, (Q1, Q3) (mg/L) 0.6 (0.2, 1.7) 0.5 (0.2, 1.5) 0.6 (0.2, 1.4) 0.7 (0.3, 1.9) 0.7 (0.3, 2.0) <0.001 <0.001
UPCR, median, (Q1, Q3) (g/g) 0.5 (0.1, 1.5) 0.2 (0.1, 0.7) 0.3 (0.1, 1.0) 0.6 (0.2, 2.0) 1.1 (0.4, 2.6) <0.001 <0.001
Hepcidin (ng/mL) 12.9 (6.5, 23.8) 8.9 (4.5, 16.7) 11.0 (6.1, 19.1) 14.2 (7.2, 24.9) 21.1 (10.8, 37.1) <0.001 <0.001
**24hr-urine volume, median, (Q1, Q3) (ml/day) 1870 (1500, 2350) 1800 (1400, 2206) 1840 (1495, 2300) 1900 (1500, 2325) 1960 (1630, 2500) <0.001 <0.001
ACEi or ARB, n (%) 1874 (85.3) 477 (83.4) 454 (87.3) 476 (85.5) 467 (85.4) 0.341 0.513
Diuretics, n (%) 651 (30.3) 70 (12.6) 108 (21.4) 198 (36.0) 275 (50.9) <0.001 <0.001
Statin, n (%) 1133 (51.6) 248 (21.9) 272 (24.0) 321 (28.3) 292 (25.8) <0.001 <0.001

††P for the trend representing the dose-dependent effect of BUN on variables was obtained using the one-way analysis of variance linear contrasts or Jonckheere-Terpstra test (continuous variables) or linear by linear association (categorical variables).

SD, standard deviation; SBP, systolic blood pressure; BMI, body mass index; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; GN, glomerulonephritis; DN, diabetic nephropathy; ADPKD, autosomal dominant polycystic kidney disease; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; BUN, blood urea nitrogen; DPI, dietary protein intake; WBC, white blood cell; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agent; LDL, low-density lipoprotein; HDL, high-density lipoprotein; CRP, C-reactive protein; UPCR, urinary protein-to-creatinine ratio; ACEi, angiotensin converting enzyme inhibitor; ARB, angiotensin II receptor blocker

*Only 1522 and **1627 patients in whom 24hr-urine were properly collected and DPI could be calculated were included in the analysis.

Loop or distal tubule diuretics

Fig 2. Relationship between eGFR and BUN.

Fig 2

The BUN residuals were obtained from the regression curve between baseline BUN and eGFR levels to examine the effect of BUN on anemia development uncorrelated with eGFR. The solid line represents the fitted curve between BUN and eGFR. The BUN residuals were calculated as the vertical distance from each observation point to the fitted curve (arrows). Even at the same eGFR level, BUN concentration demonstrated a wide range (exemplified by a vertical dotted line). The dotted curve represents ± 0.5 × standard deviation from the fitted curve. The blue circles represent patients who had anemia at enrollment and the red circles denote patients who did not have anemia at enrollment. BUN, blood urea nitrogen; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation.

Results

Baseline clinical characteristics of the study subjects

The clinical characteristics of the 2,196 subjects by serum BUN quartile are presented in Table 1. The mean age was 53.7 ± 12.3 years, and 1,339 (61.0%) of the patients were men. The mean eGFR was 53.0 ± 30.8 mL/min/1.73m2. The prevalence of DM (P <0.001) and HTN (P <0.001) were higher in the high BUN quartiles. eGFR (P <0.001) was lower and the BUN residual (P <0.001) was higher in the high BUN quartiles. However, DPI was not significantly different according to the BUN quartiles (P = 0.222). The mean hemoglobin level was 12.8 ± 2.0 g/dL and was lower in the high BUN quartiles (P <0.001). In addition, serum iron (P <0.001) and TSAT (P = 0.011) levels were also lower in the high BUN quartiles. The serum ferritin was higher in the high BUN quartiles (P <0.001). As anemia was more prevalent in the high BUN quartiles, subjects in the high quartiles received more ESA and iron supplement therapy (P <0.001 for both). Subjects in the high BUN quartiles received more diuretics (P <0.001). Considering the types and dose of diuretics, the actual dose of the diuretics was not so high (S1 Table).

Blood urea nitrogen residual

The scatter plot derived from baseline eGFR and BUN of the individual patients (Fig 2) demonstrated that BUN was inversely associated with eGFR, and BUN showed a range of different values at the same eGFR. The slope of the fitted curve between BUN and eGFR obtained from this scatter plot rapidly increased as eGFR decreased. The BUN residuals were calculated as the vertical distance from each observation point to the fitted curve. The BUN residual was higher in high BUN quartiles (Table 1; P <0.001). This scatter plot also demonstrated that the frequency of anemia increased as eGFR decreased. Interestingly, the frequency of anemia in patients with the same eGFR differed widely depending on their BUN values. The subjects with BUN value above the fitted curve (i.e., higher BUN residual) had anemia more frequently than those with BUN value below the curve (i.e., lower BUN residual) despite having the same eGFR value. As shown in S2 Table, BUN residual was not significantly related to eGFR or CKD stage, while BUN showed significant associations with eGFR (P <0.001) and CKD stage in the multivariable linear regression analysis. Interestingly, DPI was the main determinant of BUN and BUN residual in the same analysis. Sex, daily urine volume, statin usage, and diuretic usage were associated with both BUN and BUN residual. The constituents of dietary protein such as phosphate, uric acid, and total CO2 content which is affected by acid content in protein were also related to both BUN and BUN residual. Importantly, there was no difference in the significant variables determining BUN and BUN residual except eGFR and CKD stage.

Cross-sectional analysis of the association between BUN, BUN residual, and hemoglobin level

Table 2 summarizes the results of the linear regression analysis for the association between BUN, BUN residual, and hemoglobin level. The hemoglobin level was inversely associated with BUN in the unadjusted model (β -0.07; 95% CI -0.07, -0.06; P <0.001), and this association persisted after sequential adjustments for confounders (models 2–4). In the model fully adjusted for age, sex, smoking, SBP, DM, HTN, CCI, eGFR, log UPCR, WBC, platelet, platelet, log CRP, albumin, total cholesterol, log ferritin, log hepcidin, iron, TSAT, iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics, the hemoglobin level was significantly associated with BUN (β -0.03; 95% CI -0.04, -0.03; P <0.001). The hemoglobin level was also inversely associated with BUN residual in the unadjusted model (β -0.02; 95% CI -0.03, -0.01; P < 0.001), and this association persisted after sequential adjustments for confounders (models 2–4). In the fully adjusted model (model 4), hemoglobin was significantly associated with the BUN residual (β -0.03; 95% CI -0.04, -0.02; P <0.001). When adjustment was done for the types and dose of diuretics and not just the use of diuretics (group 1: none; group 2: hydrochlorothiazide ≤ 12.5 mg, indapamide ≤ 1.5 mg, metolazone ≤ 2.5 mg; group 3: hydrochlorothiazide > 12.5 mg, indapamide > 1.5 mg, metolazone > 2.5 mg; group 4: furosemide ≤ 20 mg, torasemide ≤ 10 mg; group 5: furosemide > 20 mg), the results were similar in relation to hemoglobin and BUN (fully adjusted model; β -0.03; 95% CI -0.04, -0.03; P <0.001) and BUN residual (β -0.03; 95% CI -0.04, -0.02; P <0.001).

Table 2. Multivariable linear regression analyses of the association between BUN, BUN residual, and hemoglobin level.

Model 1 Model 2 Model 3 Model 4
β (95% CI) P value β (95% CI) P value β (95% CI) P value β (95% CI) P value
BUN (per 1 mg/dL) -0.07 (-0.07, -0.06) <0.001 -0.06 (-0.06, -0.05) <0.001 -0.04 (-0.04, -0.03) <0.001 -0.03 (-0.04, -0.03) <0.001
BUN residual* (per 1 mg/dL) -0.02 (-0.03, -0.01) <0.001 -0.03 (-0.04, -0.02) <0.001 -0.03 (-0.04, -0.02) <0.001 -0.03 (-0.04, -0.02) <0.001

*BUN residual was calculated as the vertical distance from each observation point to the regression fitted curve between baseline BUN and eGFR levels

Model 1: Unadjusted

Model 2: Adjusted for age, sex, smoking, SBP, DM, HTN, CCI

Model 3: Model 2 + adjustment for eGFR, log UPCR, WBC, platelet, log CRP, albumin, total cholesterol, log ferritin, log hepcidin, iron, and TSAT

Model 4: Model 3 + adjustment for use of iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics.

BUN, blood urea nitrogen; SBP, systolic blood pressure; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; WBC, white blood cell; UPCR, urinary protein-to-creatinine ratio; CRP, C-reactive protein; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agent; ACEi, angiotensin converting enzyme inhibitor; ARB, angiotensin II receptor blocker

Characteristics of patients who developed anemia

Out of the 1,169 patients without anemia at baseline, 414 (35.4%) newly developed anemia during a mean follow-up period of 37.5 ± 22.1 months. The baseline clinical characteristics according to anemia development in these patients are shown in Table 3. The patients in the de novo anemia group were older (P <0.001) and had more comorbidities such as DM (P <0.001), HTN (P = 0.008), or higher CCI (P <0.001). They also had higher proteinuria levels (P <0.001) and lower albumin levels (P <0.001), but their CRP levels were not different. BUN was higher and eGFR was lower in the de novo anemia group. However, both BUN residual (P = 0.017) and DPI (P = 0.039) were lower in the de novo anemia group. Extremely lower BUN residual in CKD stage 4 and 5 patients with de novo anemia led to a lower mean value of BUN residual and also lower DPI in CKD stage 4 and 5 patients with de novo anemia, which led to a lower DPI in this group as a whole (S3 Table). Nonetheless, DPI was strongly associated with BUN residuals in these patients without anemia at baseline (log-transformed 1000 × DPI; β 12.97; 95% CI 9.03, 16.92; P <0.001). In addition, ESA and iron supplements were administered more often to patients of the de novo anemia group (P <0.001 for both). Subjects in the de novo anemia group received more diuretics (P <0.001). Considering the types and dose of diuretics, the actual dose of the diuretic was not so high (S4 Table).

Table 3. Clinical characteristics of the study subjects with respect to anemia development.

Characteristics Total (N = 1,169) Groups P-value
Incident anemia (-) (n = 755) Incident anemia (+) (n = 414)
Age (mean ± SD) 51.9 ± 12.3 50.8 ± 12.3 53.8 ± 12.1 <0.001
Sex, male, n (%) 770 (65.9) 519 (68.7) 251 (60.6) 0.005
SBP (mmHg) 126.5 ± 14.5 125.4 ± 14.2 128.4 ± 14.9 0.001
BMI (kg/m2) 24.8 ± 3.4 24.9 ± 3.4 24.7 ± 3.4 0.304
DM, n (%) 251 (21.5) 137 (18.2) 114 (27.7) <0.001
HTN, n (%) 1115 (95.4) 711 (94.2) 404 (97.6) 0.008
Age adjusted CCI 2.7 ± 2.1 2.3 ± 2.0 3.4 ± 2.1 <0.001
Smoking status, n (%) 0.242
 Never 597 (51.1) 376 (49.8) 221 (53.4)
 Current or former 572 (48.9) 379 (50.2) 193 (46.6)
CKD stage, n (%) <0.001
 Stage 1 295 (25.2) 252 (33.4) 43 (10.4)
 Stage 2 314 (26.9) 239 (31.7) 75 (18.1)
 Stage 3a 224 (19.2) 141 (18.7) 83 (20.0)
 Stage 3b 227 (19.4) 101 (13.4) 126 (30.4)
 Stage 4 103 (8.8) 22 (2.9) 81 (19.6)
 Stage 5 6 (0.5) 0 (0.0) 6 (1.4)
Cause of CKD <0.001
 GN 500 (42.8) 330 (43.7) 170 (41.1)
 DN 123 (10.5) 57 (7.5) 66 (15.9)
 Hypertensive nephropathy 233 (19.9) 155 (20.5) 78 (18.8)
 ADPKD 250 (21.4) 167 (22.1) 83 (20.0)
 Others 63 (5.4) 46 (6.1) 17 (4.1)
Creatinine (mg/dL) 1.4 ± 0.6 1.2 ± 0.5 1.7 ± 0.7 <0.001
eGFR(mL/min/1.73m2) 66.4 ± 29.1 74.8 ± 27.2 51.1 ± 26.1 <0.001
BUN (mg/dL) 21.2 ± 9.3 18.8 ± 7.1 25.6 ± 11.1 <0.001
BUN residual (mg/dL) -1.0 ± 5.8 -0.7 ± 4.3 -1.3 ± 7.8 0.017
*DPI, median, (Q1, Q3) (g/kg/day) 1.01 (0.87, 1.21) 1.03 (0.87, 1.22) 0.99 (0.86, 1.15) 0.039
WBC (×103/mm3) 6694 ± 1921 6599 ± 1833 6866 ± 2062 0.028
Platelet (×103/mm3) 230 ± 57 230 ± 53 230 ± 63 0.968
Hemoglobin (g/dL) 14.2 ± 1.3 14.6 ± 1.3 13.5 ± 1.0 <0.001
Iron (ug/dL) 102.3 ± 35.8 105.3 ± 35.7 96.8 ± 35.3 <0.001
Ferritin (pmol/L) 99.3 (55.0, 174.4) 105.7 (56.2, 175.4) 89.8 (52.6, 170.7) 0.112
TSAT (%) 33.5 ± 12.0 34.0 ± 11.9 32.6 ± 12.3 0.051
Iron deficiency, n (%) 617 (53.6) 373 (50.3) 244 (59.7) 0.002
ESA use, n (%) 17 (1.5) 1 (0.1) 16 (3.9) <0.001
Iron supplement, n (%) 50 (4.3) 8 (1.1) 42 (10.2) <0.001
Albumin (g/dL) 4.3 ± 0.3 4.3 ± 0.3 4.2 ± 0.4 <0.001
Phosphorus (mg/dL) 3.5 ± 0.5 3.4 ± 0.5 3.6 ± 0.5 <0.001
Uric acid (mg/dL) 6.7 ± 1.8 6.5 ± 1.7 7.1 ± 1.9 <0.001
Total CO2 (mmol/L) 26.8 ± 3.2 27.2 ± 3.0 26.1 ± 3.3 <0.001
Sodium (mmol/L) 140.9 ± 2.2 140.8 ± 2.2 141.1 ± 2.3 0.049
Potassium (mmol/L) 4.4 ± 0.5 4.4 ± 0.4 4.6 ± 0.5 <0.001
Total cholesterol (mg/dL) 177.7 ± 37.6 178.8 ± 36.8 175.6 ± 39.0 0.168
LDL cholesterol (mg/dL) 99.9 ± 31.3 101.5 ± 31.4 96.8 ± 31.0 0.015
Triglyceride (mg/dL) 160.7 ± 102.9 156.9 ± 97.6 167.4 ± 111.6 0.113
HDL cholesterol (mg/dL) 50.9 ± 15.2 51.4 ± 15.0 50.5 ± 15.4 0.147
CRP, median, (Q1, Q3) (mg/L) 0.6 (0.2, 1.6) 0.6 (0.2, 1.4) 0.6 (0.2, 1.7) 0.593
UPCR (Q1, Q3) (g/g) 0.3 (0.1, 0.9) 0.2 (0.1, 0.6) 0.5 (0.1, 1.5) <0.001
Hepcidin (ng/mL) 11.2 (6.1, 19.1) 11.1 (6.2, 18.4) 11.6 (5.7, 20.7) 0.472
**24hr-urine volume, median, (Q1, Q3) (ml/day) 1850 (1500, 2300) 1830 (1490, 2265) 1900 (1550, 2400) 0.025
ACEi or ARB, n (%) 1004 (85.9) 655 (86.8) 349 (84.3) 0.249
Diuretics, n (%) 238 (20.4) 132 (17.5) 106 (25.6) <0.001
Statin, n (%) 581(49.7) 363 (48.1) 218 (52.7) 0.134

SD, standard deviation; SBP, systolic blood pressure; BMI, body mass index; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; GN, glomerulonephritis; DN, diabetic nephropathy; ADPKD, autosomal dominant polycystic kidney disease; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; BUN, blood urea nitrogen; DPI, dietary protein intake; WBC, white blood cell; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agent; LDL, low-density lipoprotein; HDL, high-density lipoprotein; CRP, C-reactive protein; UPCR, urinary protein-to-creatinine ratio; ACEi, angiotensin converting enzyme inhibitor, ARB, angiotensin II receptor blocker

**Only 872 and **924 patients in whom 24hr-urine were properly collected and DPI could be calculated were included in the analysis.

Loop or distal tubule diuretics

BUN and anemia development

The Kaplan-Meier curves (Fig 3A) show that higher BUN quartile groups had a significantly higher cumulative hazard of anemia development (P <0.0001). The multivariable Cox regression analysis showed that as compared to the lowest BUN quartile, the third and the highest BUN quartiles were associated with increased risk of anemia development (3rd vs. 1st quartile; HR 1.62; 95% CI 1.09, 2.40; P = 0.017: 4th vs. 1st quartile; HR 2.13; 95% CI 1.28, 3.52; P = 0.003; Table 4). When BUN was analyzed as a continuous variable, the HR for every 1 mg/dL increase in the BUN level was 1.02 (95% CI 1.01, 1.04; P = 0.002). Furthermore, the restricted cubic spline curve adjusted by all the confounding variables showed an almost linear positive relation of BUN to the risk of anemia development (Fig 4A). To remove the effect of possible misassignment of subjects using ESA or iron to group without incident anemia, analysis excluding iron replacement therapy and ESA use in model 4 (model 5) was performed, which showed the association between anemia development and BUN (HR, 1.03, 95% CI 1.01, 1.04; P <0.001) similar to model 4 (Table 4). In another way, sensitivity analysis was performed excluding 9 patients in the non-incident anemia group who were prescribed iron replacement therapy or ESA at enrollment without adjustment by iron replacement therapy and ESA use. The association between anemia development and BUN (HR, 1.03, 95% CI 1.01, 1.04; P <0.001: model 5) presented similar results. When adjustment was done for the types and dose of diuretics and not just the use of diuretics (group 1: none; group 2: hydrochlorothiazide ≤ 12.5 mg, indapamide ≤ 1.5 mg, metolazone ≤ 2.5 mg; group 3: hydrochlorothiazide > 12.5 mg, indapamide > 1.5 mg, metolazone > 2.5 mg; group 4: furosemide ≤ 20 mg, torasemide ≤ 10 mg; group 5: furosemide > 20 mg), the effect of BUN on anemia development was similar (HR, 1.02: 95% CI 1.01, 1.04; P = 0.002).

Fig 3. Kaplan-Meier curves for anemia development according to the BUN quartiles and BUN residual groups.

Fig 3

3A. The higher BUN quartile groups had a significantly higher cumulative hazard of anemia development (P < 0.0001). 3B. Compared to the group with BUN residual in the fitted curve ± 0.5 × SD, the BUN residual group ≥ fitted curve + 0.5 × SD and ≤ fitted curve– 0.5 × SD had a significantly higher cumulative hazard of anemia development (P < 0.0001). BUN, blood urea nitrogen; SD, standard deviation.

Table 4. Cox regression analysis of the relationship between BUN, BUN residual, and anemia development.

Variables Model 1 Model 2 Model 3 Model 4 Model 5
HR (95% CI) P value HR (95% CI) P value HR (95% CI) P value HR (95% CI) P value HR (95% CI) P value
BUN Quartile 1 1.00 (reference) 1.00 (reference) 1.00 (reference) 1.00 (reference) 1.00 (reference)
Quartile 2 1.92 (1.46, 2.52) <0.001 1.22 (0.90, 1.66) 0.203 1.21 (0.87, 1.69) 0.256 1.25 (0.89, 1.76) 0.193 1.22 (0.87, 1.71) 0.252
Quartile 3 3.37 (2.58, 4.41) <0.001 1.52 (1.06, 2.17) 0.022 1.64 (1.12, 2.41) 0.011 1.62 (1.09, 2.40) 0.017 1.62 (1.10, 2.40) 0.015
Quartile 4 6.62 (4.81, 9.10) <0.001 2.08 (1.33, 3.24) 0.001 2.33 (1.43, 3.79) 0.001 2.13 (1.28, 3.52) 0.003 2.19 (1.33, 3.60) 0.002
Continuous variable (per 1 mg/dL) 1.05 (1.05, 1.06) <0.001 1.02 (1.01, 1.03) <0.001 1.03 (1.02, 1.04) <0.001 1.02 (1.01, 1.04) 0.002 1.03 (1.01,1.04) <0.001
BUN residual * Fitted curve ± 0.5 × SD 1.00 (reference) 1.00 (reference) 1.00 (reference) 1.00 (reference) 1.00 (reference)
≤Fitted curve—0.5 × SD 2.05 (1.59, 2.64) <0.001 1.46 (1.12, 1.90) 0.005 0.90 (0.68, 1.21) 0.497 0.85 (0.63, 1.14) 0.273 0.87 (0.65, 1.17) 0.345
≥Fitted curve + 0.5 × SD 2.11 (1.52, 2.94) <0.001 1.95 (1.40, 2.72) <0.001 1.82 (1.26, 2.62) 0.001 1.63 (1.11, 2.40) 0.013 1.71 (1.16, 2.50) 0.006
Continuous variable (per 1 mg/dL) 0.99 (0.97, 1.01) 0.262 1.00 (0.99, 1.02) 0.808 1.02 (1.00, 1.04) 0.017 1.02 (1.00, 1.04) 0.031 1.02 (1.00,1.04) 0.035

*BUN residual was calculated as the vertical distance from each observation point to the regression fitted curve between baseline BUN and eGFR levels

Model 1: Unadjusted

Model 2: Adjusted for age, sex, smoking, SBP, DM, HTN, and CCI

Model 3: Model 2 + adjustment for eGFR, log UPCR, WBC, platelet, log CRP, albumin, total cholesterol, log ferritin, log hepcidin, iron, and TSAT

Model 4: Model 3 + adjustment for use of iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics.

Model 5: Model 3 adjustment for use of ACEi or ARB, statin, and diuretics.

BUN, blood urea nitrogen; HR, hazard ratio; CI, confidence interval; SD, standard deviation; SBP, systolic blood pressure; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; WBC, white blood cell; UPCR, urinary protein-to-creatinine ratio; CRP, C-reactive protein; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agent; ACEi, angiotensin converting enzyme inhibitor, ARB, angiotensin II receptor blocker

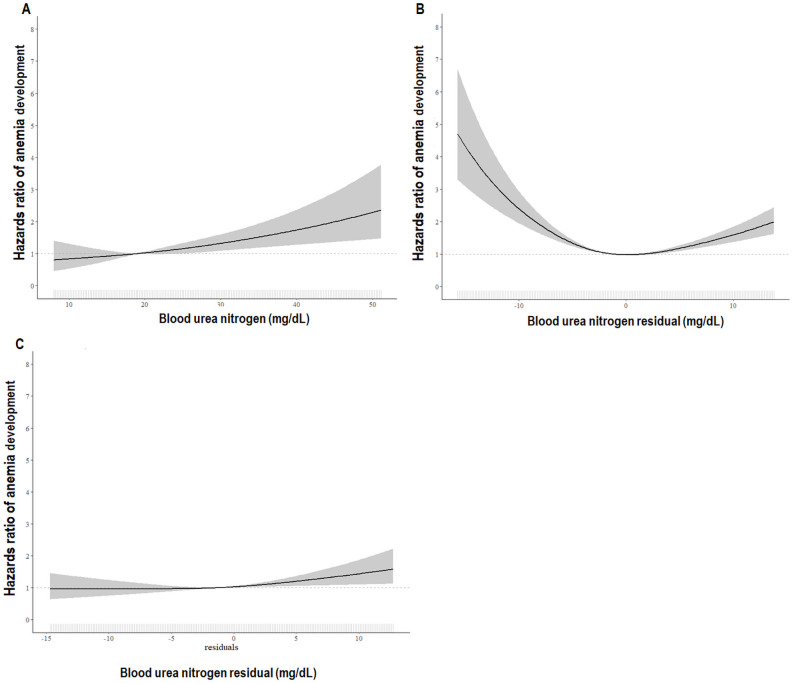

Fig 4. HRs of anemia development according to BUN and BUN residual.

Fig 4

4A. Multivariable-adjusted HRs of anemia development according to BUN. A restricted cubic spline curve adjusted by all confounding variables shows almost a linear positive relationship between BUN and the risk of anemia development. The adjusted HR of anemia development was significantly higher at BUN levels >19 mg/dL. Adjusted for BUN, age, sex, smoking, SBP, DM, HTN, CCI, eGFR, log UPCR, WBC, platelet, log CRP, albumin, total cholesterol, log ferritin, log hepcidin, iron, and TSAT, use of iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics. 4B. Unadjusted HRs of anemia development according to the BUN residual. Consistent with the Kaplan-Meier curve, the unadjusted cubic spline curve shows a U-shaped relationship between the BUN residual and HR of anemia development. 4C. Multivariable-adjusted HRs of anemia development according to the BUN residual. A restricted cubic spline curve adjusted by all confounding variables shows an almost linear positive relationship between the BUN residual and the risk of anemia development. The adjusted HR of anemia development was significantly higher at BUN residual levels >-1.3 mg/dL. Adjusted for BUN residual, age, sex, smoking, SBP, DM, HTN, CCI, eGFR, log UPCR, WBC, platelet, log CRP, albumin, total cholesterol, log ferritin, log hepcidin, iron, and TSAT, use of iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics. The solid line represents the HRs of anemia, and the shaded areas indicate 95% CI. HR, hazard ratio; SBP, systolic blood pressure; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; BUN, blood urea nitrogen; WBC, white blood cell; UPCR, urinary protein-to-creatinine ratio; CRP, C-reactive protein; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agents; ACEi, angiotensin converting enzyme inhibitor, ARB, angiotensin II receptor blocker; CI, confidence interval.

BUN residual and anemia development

The patients were categorized based on 0.5 × SD of BUN from the fitted curve as shown in Fig 2. Kaplan-Meier curves (Fig 3B) show that compared to the group with BUN residual = fitted curve ± 0.5 × SD, the BUN residual group ≤fitted curve—0.5 × SD and ≥fitted curve + 0.5 × SD had significantly higher cumulative hazard of anemia development (P <0.0001). Multivariable Cox regression analysis showed that, compared to the group with BUN residual = fitted curve ± 0.5 × SD, BUN residual group ≥fitted curve + 0.5 × SD was associated with the increased risk of anemia development (HR, 1.63; 95% CI 1.11, 2.40; P = 0.013; Table 4). When the BUN residual was analyzed as a continuous variable, the HR per 1 mg/dL increase in BUN residual level was 1.02 (95% CI 1.00, 1.04; P = 0.031; Table 4). To remove the effect of possible misassignment of subjects using ESA or iron to group without incident anemia, analysis excluding iron replacement therapy and ESA use in model 4 (model 5) was performed, which showed the association between anemia development and BUN residual (HR, 1.02, 95% CI 1.00, 1.04; P = 0.035) similar to model 4 (Table 4). In another way, sensitivity analysis was performed excluding 9 patients in the non-incident anemia group who were prescribed iron replacement therapy or ESA at enrollment without adjustment by iron replacement therapy and ESA use. The association between anemia development and BUN residual (HR, 1.02, 95% CI 1.00, 1.04; P = 0.027: model 5) presented similar results. Similar results were obtained after adjustment for the types and dose of diuretics and not just the use of diuretics (HR, 1.02; 95% CI 1.00, 1.04; P = 0.036). Consistent with the Kaplan-Meier curve, the unadjusted cubic spline curve showed a U-shaped relationship between the BUN residual and HR of anemia development (Fig 4B). But the restricted cubic spline curve became rapidly linear as soon as it was adjusted by eGFR, demonstrating an almost linear positive relation of BUN residual with the risk of developing anemia (Fig 4C). In the receiver operating characteristics curves for anemia development, the area under the curve (AUC) value of the BUN residual model (AUC = 0.749) was similar to that of the BUN model (AUC = 0.742).

Discordant effects of BUN, BUN residual, and eGFR according to the CKD stage

We performed subgroup analysis to show discordant effects of BUN, BUN residual, and eGFR according to the CKD stage (Table 5). BUN, BUN residual, and eGFR were analyzed as continuous variables. In CKD stages 1 and 2, eGFR was associated with the risk of anemia development, while BUN or BUN residual was not. In CKD stage 3, BUN was associated with the risk of anemia development, while eGFR was not. However, eGFR was associated with the risk of anemia development when the BUN residual instead of BUN was used in the same analysis. eGFR, BUN, and BUN residual were not associated with the risk of anemia development in CKD stages 4 and 5.

Table 5. Cox regression analysis of the relationship between BUN, BUN residual, eGFR, and anemia development according to the stages of CKD.

CKD stage Hemoglobin level (g/dL) Anemia development, n (%) Model A Model B
BUN eGFR BUN residual eGFR
HR (95% CI) P value HR (95% CI) P value HR (95% CI) P value HR (95% CI) P value
Stage 1–2 (n = 609) 14.4 ± 1.3 118 (19.4) 1.04 (0.99, 1.10) 0.154 0.98 (0.97, 1.00) 0.009 1.04 (0.99, 1.10) 0.154 0.98 (0.96, 0.99) 0.001
Stage 3 (n = 451) 14.2 ± 1.3 209 (46.3) 1.03 (1.01, 1.05) 0.010 0.99 (0.97, 1.01) 0.265 1.03 (1.01, 1.06) 0.010 0.97 (0.96, 0.99) 0.007
Stage 4–5 (n = 109) 13.4 ± 1.1 87 (79.8) 1.00 (0.97, 1.04) 0.870 1.00 (0.93, 1.07) 0.948 1.00 (0.96, 1.03) 0.872 1.00 (0.94, 1.06) 0.887

Model A: Adjusted for BUN, age, sex, smoking, SBP, DM, HTN, CCI, eGFR, log UPCR, WBC, platelet, log CRP, albumin, total cholesterol, Log ferritin, log hepcidin, iron, and TSAT, use of iron replacement therapy, ESA, ACEi or ARB, statin, and diuretics.

Model B: Adjusted for BUN residual instead of BUN in model A.

BUN, blood urea nitrogen; HR, hazard ratio; CI, confidence interval; SBP, systolic blood pressure; DM, diabetes mellitus; HTN, hypertension; CCI, Charlson comorbidity index; eGFR, estimated glomerular filtration rate as determined by the CKD-EPI creatinine equation; WBC, white blood cell; UPCR, urinary protein-to-creatinine ratio; CRP, C-reactive protein; TSAT, transferrin saturation; ESA, erythropoiesis-stimulating agent; ACEi, angiotensin converting enzyme inhibitor, ARB, angiotensin II receptor blocker

Discussion

This study showed that higher BUN was significantly associated with lower hemoglobin levels and an increased risk of de novo anemia development in NDCKD patients in models adjusted by multiple confounding variables including eGFR. This association persisted when the BUN residual was used instead of BUN in the same analysis. Furthermore, the discordant effect of BUN and eGFR on the risk of anemia development was demonstrated in patients with CKD stage 3 in which BUN, not eGFR, was associated with the risk of anemia development. All these findings strongly supported the effects of BUN independent of eGFR on anemia in NDCKD.

BUN is traditionally one of the indicators of kidney function and BUN levels are inversely correlated with GFR [12]. Besides GFR, tubular handling of urea and the production rate of urea are also important determinants of BUN. Consistent with a previous study [17], the scatter plot between eGFR and BUN in this study showed a wide range of BUN concentration at the same eGFR level, which suggested that factors other than eGFR also determine BUN. To eliminate the effect of eGFR on BUN, we obtained the BUN residual [22] from the fitted curve between BUN and eGFR in the scatter plot. As expected, the BUN residual was not related to the eGFR or CKD stage, whereas BUN was related to both eGFR and CKD stage. Importantly, there was no difference in the variables determining BUN and BUN residual except eGFR and CKD stage. Out of the common variables related to BUN and BUN residual, DPI was outstanding in the magnitude of β value and statistical significance. Protein intake has been shown to be the main determinant of BUN in previous studies. Urea production showed a linear relationship with serum amino acid concentration [33]. Urea concentration in serum increased when the dietary nitrogen intake increased [34] and BUN levels were widely different depending on the protein intake with the same urea clearance [16]. Lower protein intake reduced BUN in clinical trials involving very low-protein diets in CKD [35]. However, the BUN residual in this study represents DPI relative to eGFR rather than an absolute amount of DPI. Therefore, the same DPI could bring about a higher BUN residual in an individual with lower eGFR and vice versa. A lower eGFR in the higher BUN quartile group might lead to a higher BUN residual despite a similar amount of protein intake between the BUN groups in this study. The larger absolute value of BUN residual in more advanced CKD stage in this study suggested the larger effect of DPI on BUN and BUN residual in subjects with smaller kidney function, which was well demonstrated in a previous study [16]. Therefore, the absolute values of the BUN residual were highly dependent on eGFR although the real numbers of BUN residual were definitely independent on eGFR. The relation of serum phosphorous, uric acid and total CO2 content to BUN and BUN residual might reflect the presence of phosphorous, uric acid, and hydrogen as constituents of protein. Because the patients in the present study were generally stable NDCKD, acute adverse events, such as protein catabolism, dehydration, gastrointestinal bleeding, or severe heart failure scarcely affected BUN or BUN residual. However, it should not be ignored that urine volume and diuretic use also contributed to the variations in BUN and BUN residual by altering tubular handling of urea in this study.

Both BUN and BUN residual were related to baseline hemoglobin and future development of new anemia in this study. Patients with higher BUN might have more production of urea and concomitant nitrogenous uremic toxin than can be excreted by their renal function, which was expressed as higher BUN residual. In addition to EPO deficiency from low eGFR, patients with high BUN might have higher protein-derived uremic toxin(s) hindering effective erythropoiesis, which could explain the effects of high BUN independent of eGFR on anemia in NDCKD in the present study.

Based on the finding that a U-shaped relationship between BUN residual and risk of anemia development in the unadjusted spline curve became linearized when adjusted by eGFR, we performed subgroup analyses according to the CKD stage which showed that not eGFR but BUN increased the risk of anemia development in CKD stage 3. Interestingly, even the unadjusted cubic spline curve between BUN residual and risk of anemia development was almost linear in patients with CKD stage 3. The representation of eGFR, as well as uremic toxin(s) inhibiting effective erythropoiesis by BUN, might make eGFR insignificant in relation to anemia development in CKD stage 3. Because the BUN residual did not relate to eGFR, eGFR was a significant risk factor for anemia development when the BUN residual was used instead of BUN in the same analysis in CKD stage 3. Because the number of CKD stage 4–5 group patients was smaller than that of other CKD stages, it should be noted that too many variables compared to the number of patients could overly adjust the analysis in these stage groups compared to the number of patients. However, when multivariable correction factors were reduced for analysis (adjusted for BUN (or BUN residual), age, sex, eGFR, UPCR, DM, CCI, log CRP, albumin, TSAT, and ferritin), there was no significant association of BUN, BUN residual, and eGFR with anemia development.

This study raised the importance of adequate protein intake in patients with CKD. While fixed amounts of protein intake were used in all previous studies for the effectiveness of low- or very low-protein diet in retarding renal progression in NDCKD [36, 37], this study suggested that individualized protein intake based on the kidney function rather than an absolute amount of protein intake was important in anemia in NDCKD. A similar concept was actually present with regard to an adequate dose of dialysis. The National Cooperative Dialysis Study demonstrated that patients receiving inadequate dialysis dose to handle their protein intake had a higher failure rate of the attaining the target midweek pre-dialysis BUN [38].

This study is the first study to demonstrate the effects of BUN independent of eGFR on anemia in NDCKD using data from large numbers of NDCKD spanning all CKD stages in a prospective CKD cohort. However, several limitations of this study should be discussed. First, due to observational, not interventional nature of this study, we could not confirm causal relationship between BUN and anemia in our study population. Furthermore, this study could not provide an answer to the question of whether urea is a simple surrogate marker of uremic toxin(s) hindering effective erythropoiesis or direct toxin responsible for the anemia. The effect of urea on erythropoiesis in CKD has been controversial. Urea itself and its metabolic compounds such as cyanate, carbamylated compounds, and ammonia have all been associated with biological changes [39] and linked with atherosclerosis, renal fibrosis, systemic inflammation, and anemia [4044]. Carbamylated hemoglobin levels were increased by exposure to urea in concentration and time-dependent manners [45]. Another experimental study has shown that carbamylated erythropoietin by cyanate in vitro is less biologically active than normal erythropoietin [46]. On the contrary, other study results suggested that urea was not a direct toxin for renal anemia but a surrogate marker for the accumulation of putative uremic toxin(s). The removal of furancarboxylic acid, an inhibitor of erythropoiesis, by albumin-leaking HD improved anemia irrespective of BUN level [9]. A high flux HD improved renal anemia compared with low flux HD with similar Kt/V urea [47]. It was the reduction of parathyroid hormone consequent to better phosphorous control which reduced EPO requirement in CKD patients randomized to a very low-protein diet [19]. In a previous study, higher phosphorous levels (>3.5 mg/dL) were associated with a greater risk for anemia in early CKD stages which suggests that phosphorous may play a role in hemopoiesis [48]. In this regard, it was worthy of noting that phosphorus was also related to BUN in our study and FGF23, the main phosphaturic hormone, was reported to be related to anemia in NDCKD [49, 50]. Second, because this study was performed on a Korean cohort, extrapolations of our findings to other ethnicities should be approached cautiously. The proportion of red meat [51], or plant protein [52], which have been reported to play some role in renal progression would be different among diverse ethnic groups. Different usage of medication among different countries should be considered. The inhibitors of renin-angiotensin system which was associated with significant decrease in hemoglobin concentration [53] was prescribed in 85.3% of this study subjects even though BUN was not related to this drug category in analysis. Lastly, because BUN residuals were derived from the distributions of eGFR and BUN of our study subjects, the value of BUN residuals would be different depending on the characteristics of subjects of different studies. However, the serial changes in BUN/eGFR ratio in stable NDCKD patients without intercurrent events that could alter tubular handling of urea and/or protein catabolism could be used to guess the changes in protein intake of specific patients.

In conclusion, higher BUN levels were significantly associated with low hemoglobin levels and increased risk of development of de novo anemia independent of eGFR in CKD patients. Our results suggested the importance of an adequate amount of protein intake relative to eGFR in individual NDCKD patients.

Supporting information

S1 Table. Types and dose of diuretics according to BUN levels.

(DOCX)

S2 Table. Multivariable linear regression analysis for related factors to BUN and BUN residual.

(DOCX)

S3 Table. BUN residual and DPI according to CKD stages.

(DOCX)

S4 Table. Types and dose of diuretics with respect to anemia development.

(DOCX)

Data Availability

All relevant data are within the paper and its Supporting information.

Funding Statement

This study was supported by the Research Program funded by the Korea Center for Disease Control and Prevention (2011E3300300, 2012E3301100, 2013E3301600, 2013E3301601, 2013E3301602, 2016E3300200, 2016E3300201, 2016E3300202, 2019E320100, and 2019E320101). In addition, the authors thank the KNOW-CKD investigators, clinical research nurses, and the patients included in the study.

References

  • 1.Astor BC, Muntner P, Levin A, Eustace JA, and Coresh J. Association of kidney function with anemia: the Third National Health and Nutrition Examination Survey (1988–1994). Arch Intern Med. 2002;162(12):1401–1408. doi: 10.1001/archinte.162.12.1401 . [DOI] [PubMed] [Google Scholar]
  • 2.Fishbane S and Spinowitz B. Update on Anemia in ESRD and Earlier Stages of CKD: Core Curriculum 2018. Am J Kidney Dis. 2018;71(3):423–435. doi: 10.1053/j.ajkd.2017.09.026 . [DOI] [PubMed] [Google Scholar]
  • 3.Bamgbola OF. Pattern of resistance to erythropoietin-stimulating agents in chronic kidney disease. Kidney Int. 2011;80(5):464–474. doi: 10.1038/ki.2011.179 . [DOI] [PubMed] [Google Scholar]
  • 4.Macdougall IC. Role of uremic toxins in exacerbating anemia in renal failure. Kidney Int Suppl. 2001;78:S67–72. doi: 10.1046/j.1523-1755.2001.59780067.x . [DOI] [PubMed] [Google Scholar]
  • 5.Cases A, Egocheaga MI, Tranche S, Pallares V, Ojeda R, Gorriz JL, et al. Anemia of chronic kidney disease: Protocol of study, management and referral to Nephrology. Nefrologia. 2018;38(1):8–12. doi: 10.1016/j.nefro.2017.09.004 . [DOI] [PubMed] [Google Scholar]
  • 6.Babitt JL and Lin HY. Mechanisms of anemia in CKD. J Am Soc Nephrol. 2012;23(10):1631–1634. doi: 10.1681/ASN.2011111078 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Ohno Y, Rege AB, Fisher JW, and Barona J. Inhibitors of erythroid colony-forming cells (CFU-E and BFU-E) in sera of azotemic patients with anemia of renal disease. J Lab Clin Med. 1978;92(6):916–923. . [PubMed] [Google Scholar]
  • 8.Ahmed MS, Langer H, Abed M, Voelkl J, and Lang F. The uremic toxin acrolein promotes suicidal erythrocyte death. Kidney Blood Press Res. 2013;37(2–3):158–167. doi: 10.1159/000350141 . [DOI] [PubMed] [Google Scholar]
  • 9.Niwa T, Asada H, Tsutsui S, and Miyazaki T. Efficient removal of albumin-bound furancarboxylic acid by protein-leaking hemodialysis. Am J Nephrol. 1995;15(6):463–467. doi: 10.1159/000168887 . [DOI] [PubMed] [Google Scholar]
  • 10.Weiner ID, Mitch WE, and Sands JM. Urea and Ammonia Metabolism and the Control of Renal Nitrogen Excretion. Clin J Am Soc Nephrol. 2015;10(8):1444–1458. doi: 10.2215/CJN.10311013 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Vanholder R, De Smet R, Glorieux G, Argiles A, Baurmeister U, Brunet P, et al. Review on uremic toxins: classification, concentration, and interindividual variability. Kidney Int. 2003;63(5):1934–1943. doi: 10.1046/j.1523-1755.2003.00924.x . [DOI] [PubMed] [Google Scholar]
  • 12.Dossetor JB. Creatininemia versus uremia. The relative significance of blood urea nitrogen and serum creatinine concentrations in azotemia. Ann Intern Med. 1966;65(6):1287–1299. . [DOI] [PubMed] [Google Scholar]
  • 13.Matsue Y, van der Meer P, Damman K, Metra M, O’Connor CM, Ponikowski P, et al. Blood urea nitrogen-to-creatinine ratio in the general population and in patients with acute heart failure. Heart. 2017;103(6):407–413. doi: 10.1136/heartjnl-2016-310112 . [DOI] [PubMed] [Google Scholar]
  • 14.Wu BU, Bakker OJ, Papachristou GI, Besselink MG, Repas K, van Santvoort HC, et al. Blood urea nitrogen in the early assessment of acute pancreatitis: an international validation study. Arch Intern Med. 2011;171(7):669–676. doi: 10.1001/archinternmed.2011.126 . [DOI] [PubMed] [Google Scholar]
  • 15.Dal Canton A, Fuiano G, Conte G, Terribile M, Sabbatini M, Cianciaruso B, et al. Mechanism of increased plasma urea after diuretic therapy in uraemic patients. Clin Sci (Lond). 1985;68(3):255–261. doi: 10.1042/cs0680255 . [DOI] [PubMed] [Google Scholar]
  • 16.Walser M. Determinants of ureagenesis, with particular reference to renal failure. Kidney Int. 1980;17(6):709–721. doi: 10.1038/ki.1980.84 . [DOI] [PubMed] [Google Scholar]
  • 17.Duranton F, Depner TA, and Argiles A. The Saga of Two Centuries of Urea: Nontoxic Toxin or Vice Versa? Semin Nephrol. 2014;34(2):87–96. doi: 10.1016/j.semnephrol.2014.02.002 . [DOI] [PubMed] [Google Scholar]
  • 18.Walser M. Keto-analogues of essential amino acids in the treatment of chronic renal failure. Kidney Int Suppl. 1978;(8):S180–184. . [PubMed] [Google Scholar]
  • 19.Di Iorio BR, Minutolo R, De Nicola L, Bellizzi V, Catapano F, Iodice C, et al. Supplemented very low protein diet ameliorates responsiveness to erythropoietin in chronic renal failure. Kidney Int. 2003;64(5):1822–1828. doi: 10.1046/j.1523-1755.2003.00282.x . [DOI] [PubMed] [Google Scholar]
  • 20.Ifudu O, Feldman J, and Friedman EA. The intensity of hemodialysis and the response to erythropoietin in patients with end-stage renal disease. N Engl J Med. 1996;334(7):420–425. doi: 10.1056/NEJM199602153340702 . [DOI] [PubMed] [Google Scholar]
  • 21.Movilli E, Cancarini GC, Zani R, Camerini C, Sandrini M, and Maiorca R. Adequacy of dialysis reduces the doses of recombinant erythropoietin independently from the use of biocompatible membranes in haemodialysis patients. Nephrol Dial Transplant. 2001;16(1):111–114. doi: 10.1093/ndt/16.1.111 . [DOI] [PubMed] [Google Scholar]
  • 22.Mostofsky E, Schwartz J, Coull BA, Koutrakis P, Wellenius GA, Suh HH, et al. Modeling the association between particle constituents of air pollution and health outcomes. Am J Epidemiol. 2012;176(4):317–326. doi: 10.1093/aje/kws018 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Xie Y, Bowe B, Li T, Xian H, Yan Y, and Al-Aly Z. Higher blood urea nitrogen is associated with increased risk of incident diabetes mellitus. Kidney Int. 2018;93(3):741–752. doi: 10.1016/j.kint.2017.08.033 . [DOI] [PubMed] [Google Scholar]
  • 24.Oh KH, Park SK, Park HC, Chin HJ, Chae DW, Choi KH, et al. KNOW-CKD (KoreaN cohort study for Outcome in patients With Chronic Kidney Disease): design and methods. BMC Nephrol. 2014;15:80. doi: 10.1186/1471-2369-15-80. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Levey AS, Stevens LA, Schmid CH, Zhang YL, Castro AF 3rd, Feldman HI, et al. A new equation to estimate glomerular filtration rate. Ann Intern Med. 2009;150(9):604–612. . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Chapter 1: Definition and classification of CKD. Kidney Int Suppl (2011). 2013;3(1):19–62. doi: 10.1038/kisup.2012.64 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Siekmann L. Determination of creatinine in human serum by isotope dilution-mass spectrometry. Definitive methods in clinical chemistry, IV. J Clin Chem Clin Biochem. 1985;23(3):137–144. . [PubMed] [Google Scholar]
  • 28.McLean E, Cogswell M, Egli I, Wojdyla D, and de Benoist B. Worldwide prevalence of anaemia, WHO Vitamin and Mineral Nutrition Information System, 1993–2005. Public Health Nutr. 2009;12(4):444–454. doi: 10.1017/S1368980008002401 . [DOI] [PubMed] [Google Scholar]
  • 29.Kdoqi. KDOQI Clinical Practice Guideline and Clinical Practice Recommendations for anemia in chronic kidney disease: 2007 update of hemoglobin target. Am J Kidney Dis. 2007;50(3):471–530. doi: 10.1053/j.ajkd.2007.06.008 . [DOI] [PubMed] [Google Scholar]
  • 30.Drueke TB and Parfrey PS. Summary of the KDIGO guideline on anemia and comment: reading between the (guide)line(s). Kidney Int. 2012;82(9):952–960. doi: 10.1038/ki.2012.270 . [DOI] [PubMed] [Google Scholar]
  • 31.John KA, Cogswell ME, Campbell NR, Nowson CA, Legetic B, Hennis AJ, et al. Accuracy and Usefulness of Select Methods for Assessing Complete Collection of 24-Hour Urine: A Systematic Review. J Clin Hypertens (Greenwich). 2016;18(5):456–467. doi: 10.1111/jch.12763 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Maroni BJ, Steinman TI, and Mitch WE. A method for estimating nitrogen intake of patients with chronic renal failure. Kidney Int. 1985;27(1):58–65. doi: 10.1038/ki.1985.10 . [DOI] [PubMed] [Google Scholar]
  • 33.Rafoth RJ and Onstad GR. Urea synthesis after oral protein ingestion in man. J Clin Invest. 1975;56(5):1170–1174. doi: 10.1172/JCI108193 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 34.Shaw SN, Elwyn DH, Askanazi J, Iles M, Schwarz Y, and Kinney JM. Effects of increasing nitrogen intake on nitrogen balance and energy expenditure in nutritionally depleted adult patients receiving parenteral nutrition. Am J Clin Nutr. 1983;37(6):930–940. doi: 10.1093/ajcn/37.6.930 . [DOI] [PubMed] [Google Scholar]
  • 35.Garneata L, Stancu A, Dragomir D, Stefan G, and Mircescu G. Ketoanalogue-Supplemented Vegetarian Very Low-Protein Diet and CKD Progression. J Am Soc Nephrol. 2016;27(7):2164–2176. doi: 10.1681/ASN.2015040369 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 36.Riccio E, Di Nuzzi A, and Pisani A. Nutritional treatment in chronic kidney disease: the concept of nephroprotection. Clin Exp Nephrol. 2015;19(2):161–167. doi: 10.1007/s10157-014-1041-7 . [DOI] [PubMed] [Google Scholar]
  • 37.Yan B, Su X, Xu B, Qiao X, and Wang L. Effect of diet protein restriction on progression of chronic kidney disease: A systematic review and meta-analysis. PLoS One. 2018;13(11):e0206134. doi: 10.1371/journal.pone.0206134. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 38.Gotch FA. Evolution of the single-pool urea kinetic model. Semin Dial. 2001;14(4):252–256. doi: 10.1046/j.1525-139x.2001.00064.x [DOI] [PubMed] [Google Scholar]
  • 39.Vanholder R, Gryp T, and Glorieux G. Urea and chronic kidney disease: the comeback of the century? (in uraemia research). Nephrol Dial Transplant. 2018;33(1):4–12. doi: 10.1093/ndt/gfx039 . [DOI] [PubMed] [Google Scholar]
  • 40.Massy ZA, Pietrement C, and Toure F. Reconsidering the Lack of Urea Toxicity in Dialysis Patients. Semin Dial. 2016;29(5):333–337. doi: 10.1111/sdi.12515 . [DOI] [PubMed] [Google Scholar]
  • 41.Shaykh M, Pegoraro AA, Mo W, Arruda JA, Dunea G, and Singh AK. Carbamylated proteins activate glomerular mesangial cells and stimulate collagen deposition. J Lab Clin Med. 1999;133(3):302–308. doi: 10.1016/s0022-2143(99)90086-0 . [DOI] [PubMed] [Google Scholar]
  • 42.Jaisson S, Lorimier S, Ricard-Blum S, Sockalingum GD, Delevallee-Forte C, Kegelaer G, et al. Impact of carbamylation on type I collagen conformational structure and its ability to activate human polymorphonuclear neutrophils. Chem Biol. 2006;13(2):149–159. doi: 10.1016/j.chembiol.2005.11.005 . [DOI] [PubMed] [Google Scholar]
  • 43.Ok E, Basnakian AG, Apostolov EO, Barri YM, and Shah SV. Carbamylated low-density lipoprotein induces death of endothelial cells: a link to atherosclerosis in patients with kidney disease. Kidney Int. 2005;68(1):173–178. doi: 10.1111/j.1523-1755.2005.00391.x . [DOI] [PubMed] [Google Scholar]
  • 44.Apostolov EO, Ray D, Savenka AV, Shah SV, and Basnakian AG. Chronic uremia stimulates LDL carbamylation and atherosclerosis. J Am Soc Nephrol. 2010;21(11):1852–1857. doi: 10.1681/ASN.2010040365 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 45.Stim J, Shaykh M, Anwar F, Ansari A, Arruda JA, and Dunea G. Factors determining hemoglobin carbamylation in renal failure. Kidney Int. 1995;48(5):1605–1610. doi: 10.1038/ki.1995.454 . [DOI] [PubMed] [Google Scholar]
  • 46.Mun KC and Golper TA. Impaired biological activity of erythropoietin by cyanate carbamylation. Blood Purif. 2000;18(1):13–17. doi: 10.1159/000014403 . [DOI] [PubMed] [Google Scholar]
  • 47.Ayli D, Ayli M, Azak A, Yuksel C, Kosmaz GP, Atilgan G, et al. The effect of high-flux hemodialysis on renal anemia. J Nephrol. 2004;17(5):701–706. . [PubMed] [Google Scholar]
  • 48.Tran L, Batech M, Rhee CM, Streja E, Kalantar-Zadeh K, Jacobsen SJ, et al. Serum phosphorus and association with anemia among a large diverse population with and without chronic kidney disease. Nephrol Dial Transplant. 2016;31(4):636–645. doi: 10.1093/ndt/gfv297 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 49.Mehta R, Cai X, Hodakowski A, Lee J, Leonard M, Ricardo A, et al. Fibroblast Growth Factor 23 and Anemia in the Chronic Renal Insufficiency Cohort Study. Clin J Am Soc Nephrol. 2017;12(11):1795–1803. doi: 10.2215/CJN.03950417 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 50.Nam KH, Kim H, An SY, Lee M, Cha MU, Park JT, et al. Circulating Fibroblast Growth Factor-23 Levels are Associated with an Increased Risk of Anemia Development in Patients with Nondialysis Chronic Kidney Disease. Sci Rep. 2018;8(1):7294. doi: 10.1038/s41598-018-25439-z. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 51.Lew QJ, Jafar TH, Koh HW, Jin A, Chow KY, Yuan JM, et al. Red Meat Intake and Risk of ESRD. J Am Soc Nephrol. 2017;28(1):304–312. doi: 10.1681/ASN.2016030248 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 52.Chen X, Wei G, Jalili T, Metos J, Giri A, Cho ME, et al. The Associations of Plant Protein Intake With All-Cause Mortality in CKD. Am J Kidney Dis. 2016;67(3):423–430. doi: 10.1053/j.ajkd.2015.10.018 . [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 53.Mohanram A, Zhang Z, Shahinfar S, Lyle PA, and Toto RD. The effect of losartan on hemoglobin concentration and renal outcome in diabetic nephropathy of type 2 diabetes. Kidney Int. 2008;73(5):630–636. doi: 10.1038/sj.ki.5002746 . [DOI] [PubMed] [Google Scholar]

Decision Letter 0

Ping-Hsun Wu

10 Mar 2021

PONE-D-20-41118

Effects of blood urea nitrogen independent of the estimated glomerular filtration rate on the development of anemia in non-dialysis chronic kidney disease : The results of the KNOW-CKD study

PLOS ONE

Dear Dr. Dong Wan Chae,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please submit your revised manuscript by Apr 05 2021 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

  • A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.

  • A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.

  • An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols

We look forward to receiving your revised manuscript.

Kind regards,

Ping-Hsun Wu, M.D. PhD.

Academic Editor

PLOS ONE

Additional Editor Comments (if provided):

More information on BUN residual is needed in the introduction section. The criteria of ESA prescription should be mentioned in the method section. The medications or conditions that potentially influence the BUN level should be considered in this study.

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

1) Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2)  Please provide a sample size and power calculation in the Methods, or discuss the reasons for not performing one before study initiation.

3) Please note that PLOS does not permit references to “[data] not shown.” Authors should provide the relevant data within the manuscript, the Supporting Information files, or in a public repository. If the data are not a core part of the research study being presented, we ask that authors remove any references to these data.

4) We noticed you have some minor occurrence of overlapping text with the following previous publication(s), which needs to be addressed:

- https://centerhealthyminds.org/assets/files-publications/goldberg-still-facial-photographs.pdf

- https://bmcnephrol.biomedcentral.com/articles/10.1186/s12882-018-1005-3

- https://www.nature.com/articles/s41598-019-52499-6

In your revision ensure you cite all your sources (including your own works), and quote or rephrase any duplicated text outside the methods section. Further consideration is dependent on these concerns being addressed.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Partly

Reviewer #2: Partly

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Reviewer #2: No

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: In this article, the authors investigated the effects of BUN on anemia in non-dialysis CKD patients. By obtaining the BUN residual from the fitted curve between BUN and eGFR, they found that high BUN residual level was associated with anemia development. The manuscript is well written and easy to follow and the study has novelty. However, some queries need to be clarified before making the conclusion.

1. What is the clinical meaning of the BUN residual? The authors need to expand more details of BUN residual in the section of INTRODUCTION.

2. The type and dose of diuretics are the major concern in this study. Higher diuretic dose would change the levels of BUN and BUN residual easily. How did the authors adjust this variable?

3. BUN residual is not easy to get during daily medical practice. If physicians cannot get the BUN residual easily, how to expand its clinical usage?

4. Table 5 dose not list the reference group.

Reviewer #2: Kim et al. conducted a prospective cohort study demonstrating that BUN and BUN residuals predict the development of anemia in non-dialysis CKD patients. Although the article is interesting, a few questions were raised and should be further addressed.

1. In the Introduction, there is a sentence “no specific uremic toxin(s) responsible for anemia of 90 CKD has not been identified yet”. I guess “not” is redundant.

2. Although mentioned in the main text of Results, the proportions of patients receiving iron therapy or ESA should be added in Tables 1 and 2.

3. Model 4 were adjusted for several additional variables including ESA. What is the criteria of ESA prescription? According to KDIGO guideline 2012 for anemia, 3.4.1: For adult CKD ND patients with Hb concentration >= 10.0 g/dl, we suggest that ESA therapy NOT be initiated. (2D) A lower Hb should be detected prior to ESA prescription, suggesting that the primary outcome, the development of anemia (Hb <13 for men and Hb <12 for women), occurred prior to ESA prescription. In this condition, why ESA is a concern and required to be adjusted?

4. Another important issue is that the primary outcome, the occurrence of anemia, is a condition confounded by renal function at that time. As shown in Table 3, patients having incident anemia had higher Cre, lower eGFR, and higher CKD stages. To avoid this confounding, the authors should, for example, look at the proportion of anemia or Hb levels when entering CKD stage 4 or 5, or adjust for renal function when the primary outcome occurred (not simply adjusted for the baseline renal function).

5. The sentence below the subtitle of “BUN residual and anemia development”, I think it’s “0.5 x SD of BUN” rather than “0.5 x SD of BUN residual”?

6. Is there statistical evidence to support the use of 0.5 SD as a criterion of fitting the curve? or it’s simply empirical?

7. The problems of discordant effects of BUN, BUN residuals, and eGFR as per the CKD stage shown in Table 5 were again confounded by renal function at the time of anemia developed.

8. The authors used single measurement of BUN for analysis; however, several conditions may influence BUN levels, particularly daily protein intake and a relatively dehydration status after more than 8-hour fasting for the blood test. Did the authors consider to average the BUN levels within a given period of time for a better representation of the actual situation?

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

Decision Letter 1

Ping-Hsun Wu

3 Jun 2021

PONE-D-20-41118R1

Effects of blood urea nitrogen independent of the estimated glomerular filtration rate on the development of anemia in non-dialysis chronic kidney disease : The results of the KNOW-CKD study

PLOS ONE

Dear Dr. Dong Wan Chae,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please submit your revised manuscript by Jul 18 2021 11:59PM. If you will need more time than this to complete your revisions, please reply to this message or contact the journal office at plosone@plos.org. When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

  • A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.

  • A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.

  • An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Ping-Hsun Wu, M.D. PhD.

Academic Editor

PLOS ONE

Journal Requirements:

Please review your reference list to ensure that it is complete and correct. If you have cited papers that have been retracted, please include the rationale for doing so in the manuscript text, or remove these references and replace them with relevant current references. Any changes to the reference list should be mentioned in the rebuttal letter that accompanies your revised manuscript. If you need to cite a retracted article, indicate the article’s retracted status in the References list and also include a citation and full reference for the retraction notice.

Additional Editor Comments (if provided):

There are still several excellent comments and suggestions from Reviewer 2. ESA and iron treatment are important issues for analysis in this study. Besides, the statistical methods to fit the curve between eGFR and BUN should be described clearly. Please revise accordingly.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #1: All comments have been addressed

Reviewer #2: (No Response)

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

Reviewer #2: Partly

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Reviewer #2: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

**********

6. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: The authors have answered all the questions well, including the e information on BUN residual and the types and dose of diuretics. I have no further comments.

Reviewer #2: Kim et al. conducted a study evaluating the effects of BUN (and its residual) on anemia in non-dialysis CKD patients. Although interesting, a number of questions and concerns remained unanswered.

1. In the Method section, the statistical methods (or equations) that used to fit the curve between eGFR and BUN should be disclosed, since BUN residual is an important factor discussed throughout the article.

2. To better illustrate the dose-dependent effects of BUN on variables in Table 1, did the authors consider the p-value for trend instead of just p-value?

3. Based on the description in the article, ESA was prescribed in patients with renal anemia with hemoglobin < 10 g/dL in accordance with the KDIGO guidelines. The authors did not disclose the indication of iron supplementation. Besides iron deficiency based on iron profile, we usually prescribe iron only when Hb falls below certain level. In my opinion, those patients on ESA and iron treatment should still be removed from the second part of analysis because their Hb levels had already dropped earlier and against the notion to detect de novo anemia. The patients remained non-anemic by definition during follow-up could simply be owing to escalated dose of ESA and iron, which could possibly offset the effect of increased BUN. If the authors decided not to change the current analysis, at least the description in the responding to reviewers’ comments “we performed the analysis with adjustment excluding ESA use in which the association between anemia development and BUN (HR, 1.02, 95% CI 1.01, 1.04; P=0.001) or BUN residual (HR, 1.02, 95% CI 1.00, 1.04; P=0.027) showed similar results to the previous analysis” should be added in the article.

4. As disclosed in the Methods, the study cohort enrolled about 600 subjects with polycystic kidney disease. How many patients had polycystic kidney disease in this study? Anemia is on average less severe in ADPKD patients.

5. In a paragraph evaluating the dose of diuretics, which kind of thiazide did the authors refer to? Thiazides actually represent a group of agents, such as hydrochlorothiazide and chlorothiazide. And according to WHO Collaborating Centre for Drug Statistics Methodology (https://www.whocc.no/atc_ddd_index/?code=C03BA&showdescription=no), the DDDs for indapamide and metolazone are 2.5 mg and 5 mg. What’s the rationale of 1.5 mg for indapamide and 2.5 mg for metolazone in groups 2 and 3?

6. Is it possible that low BUN residual and low DPI in patients with de novo anemia shown in Table 3 simply suggested that these patients had malnutrition?

7. In Table 5, I am not sure how the statistical process was performed. Did the authors repeat the regression analysis in each CKD stage for the effects of BUN and BUN residual on anemia development? If so, there’s only 109 patients in CKD stage 4-5, and over-adjustment for variables is a concern.

8. In the Discussion, a sentence goes “The National Cooperative Dialysis Study demonstrated that patients with higher midweek pre-dialysis BUN resulting from inadequate dialysis dose to handle their protein intake had a higher failure rate [38].” What kind of failure did the authors refer to?

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

Decision Letter 2

Ping-Hsun Wu

31 Aug 2021

Effects of blood urea nitrogen independent of the estimated glomerular filtration rate on the development of anemia in non-dialysis chronic kidney disease : The results of the KNOW-CKD study

PONE-D-20-41118R2

Dear Dr. Dong Wan Chae,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Ping-Hsun Wu, M.D. PhD.

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

All suggestions had been revised accordingly. This manuscript is available for publication.

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #1: All comments have been addressed

Reviewer #2: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

Reviewer #2: Yes

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Reviewer #2: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

**********

6. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: The authors have comprehensively answered all the questions of reviewer 2 . I have no further comments.

Reviewer #2: The authors have addressed all the comments. There is no more question from my side. Thank you for your time and all the efforts.

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Acceptance letter

Ping-Hsun Wu

3 Sep 2021

PONE-D-20-41118R2

Effects of blood urea nitrogen independent of the estimated glomerular filtration rate on the development of anemia in non-dialysis chronic kidney disease: The results of the KNOW-CKD study

Dear Dr. Chae:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Ping-Hsun Wu

Academic Editor

PLOS ONE

Associated Data

    This section collects any data citations, data availability statements, or supplementary materials included in this article.

    Supplementary Materials

    S1 Table. Types and dose of diuretics according to BUN levels.

    (DOCX)

    S2 Table. Multivariable linear regression analysis for related factors to BUN and BUN residual.

    (DOCX)

    S3 Table. BUN residual and DPI according to CKD stages.

    (DOCX)

    S4 Table. Types and dose of diuretics with respect to anemia development.

    (DOCX)

    Attachment

    Submitted filename: Reponse letter.docx

    Attachment

    Submitted filename: Response letter_R2_20210715_v3.1.docx

    Data Availability Statement

    All relevant data are within the paper and its Supporting information.


    Articles from PLoS ONE are provided here courtesy of PLOS

    RESOURCES
