Syntheses of MTT-Type Zeolites with the Presence of Both Octyltrimethylammonium Chloride and SFE-Type Zeolite Seeds

Duozheng Ma †,‡, Wenhua Fu ‡, Chuang Liu ‡, Jun Liang †,‡, Zhiqing Yuan ‡, Weichuan Tao ‡, Zhendong Wang ‡,*, Weimin Yang †,‡,*
PMCID: PMC8444303  PMID: 34549157

Abstract

graphic file with name ao1c03810_0011.jpg

Structure-directing agents (SDAs) play important roles in directing the formation of specific zeolite frameworks. Mechanisms and working hypothesis were proposed for understanding how SDAs work during the crystallization of zeolites. The lately reported cooperative structure-directing effect based on the investigation into the synthetic system containing both seed and organic species is one of them and is believed to be effective for synthesizing zeolites which are difficult to access or with novel structures. However, more examples are still needed to support the thesis. Herein, we report for the first time the syntheses of MTT-type zeolites with the simultaneous presences of octyltrimethylammonium chloride (OTMAC) and SFE zeolite seeds in the borosilicate system. SFE borosilicate zeolites serve as exotic seeds for the crystallization of MTT-type zeolites and together with OTMAC play cooperative structure-directing roles. Besides, Al,B-MTT and heteroatom (Zr, V, and Fe)-incorporated MTT-type zeolites were directly synthesized with the introduction of metal sources into the borosilicate system. Physicochemical properties of the obtained MTT zeolites were characterized by X-ray diffraction, scanning electron microscopy, transmission electron microscopy, N2 physisorption, NH3-TPD, 27Al NMR, 13C NMR, 11B NMR, UV–visible spectroscopy, and UV Raman spectroscopy. The herein-reported phenomenon provides an example to better understand the mechanism of zeolite crystallization, and the synthesized zeolites may act as promising catalytic materials in several organic reactions.

1. Introduction

Zeolites are an important class of crystalline microporous materials with industrial applications in ion exchange, adsorption, and catalysis.1 The syntheses of zeolites usually need the use of N-containing amines or ammoniums which are commonly called organic structure-directing agents (OSDAs), acting as (1) pore fillers, (2) structure-directing agents (SDAs), and (3) templates. The introduction of OSDAs has favored the syntheses of high-silica zeolites and promoted the discovery of new zeolite structures.2−4 However, OSDA increases the cost of zeolite synthesis and results in energy consumption and pollution during its removal via calcination.3,5−7 The seed-directed synthesis (SDS) routes of zeolites have made great progress recently because they avoided or decreased the use of OSDAs. In OSDA-free syntheses of zeolites, zeolite seeds actually direct the crystallization and thus are considered as the third SDAs.8 According to the structural similarity between the zeolite seed and product, the SDS routes could be divided into conventional seeds and exotic seeds. Conventional seeds mean that the seeds and products are of the same structure, while exotic seeds mean that the structure of the product is different from that of the seeds.8 There are a lot of zeolites that have been synthesized through SDS routes, including beta (*BEA),9,10 ZSM-12 (MTW),11 EU-I (EUO),7 ZJM-2 (FER),12 levyne (LEV),13 mordenite (MOR),14 ZSM-5 (MFI), and ZSM-11 (MEL).15 When used as “seed”, the amount of zeolite in the starting mixture was usually less than 20% corresponding to the amount of silica source.16 Besides, using zeolites including FAU,17−19GIS,20,21 *BEA,22 and LTL(23) as silica and/or aluminum source in the starting mixture is another strategy for preparing target zeolites, which results in both the “green” syntheses of known zeolites10 and the discovery of novel zeolite.24

Lately, the cooperative structure-directing method was reported.25 Hydrothermally stable aluminogermanosilicate IWR zeolite was synthesized with the simultaneous presences of both *BEA seed and choline, which together direct the crystallization of IWR zeolite. Fang et al. synthesized NU-87 (NES) zeolite by adding zeolite EU-1 (EUO) as the exotic seed in the presence of decamethonium bromide.26 Such syntheses required the presences of both an exotic zeolite and an organic compound, and they directed the formation of the product together. It is a promising route for the syntheses of zeolites which have not been accessible by traditional hydrothermal synthetic methods, as well as zeolites with novel structures. However, there is only rather limited examples of such methodology.

The MTT zeolite, first reported as ZSM-23, possesses noninterconnected 10-MR one-dimensional channels with drop-shaped pore openings of 0.52 × 0.45 nm in diameter. ZSM-23 showed promising applications in the isomerization of butene and catalytic cracking reactions.27−30 Numerous OSDAs have been employed in the synthesis of MTT zeolite, including N,N-dimethylformamide,5,31 isopropylamine (IPA),28,31 ethylene glycol,31 and pyrrolidine (PY).32,33 Moreover, Moini et al. have used a variety of linear-type diquaternary ammonium, including Me6-diquat-5, Me6-diquat-6, Me6-diquat-11, and Me6-diquat-12, to prepare ZSM-23 zeolite.34 Studies on the preparations of zeolites using quaternary ammoniums with carbon chain lengths greater than 6 are rather limited, the reason of which may lie in the weak structure-directing ability of this family of compounds.35 Wu et al. prepared Ti-MWW zeolite using octyltrimethylammonium hydroxide (OTMAOH) as OSDA.35 However, there is no report on the use of octyltrimethylammonium chloride (OTMAC) to synthesize MTT zeolite in the literature. The broom-like shape of the octyltrimethylammonium molecule matches the one-dimensional straight channel of MTT, inspiring us that it can be utilized to direct the formation of MTT zeolite.

Herein, we report the syntheses of borosilicate MTT-type zeolites with the presence of both linear-type organic species OTMAC and SFE-type zeolite seeds, which act together as the cooperative SDAs. In addition, Al, Zr, V, and Fe atom-incorporated MTT zeolites were also successfully synthesized.

2. Results and Discussion

B-SFE zeolite seed (Figures S1 and S2) and OTMAC were used for the syntheses of MTT zeolites. Figure 1 shows the X-ray diffraction (XRD) patterns of solid products obtained under different conditions. The XRD pattern of the obtained MTT borosilicate zeolite [run 7 (corresponding to the run number listed in Table S1, indicating the crystallization parameters for the synthesis of the corresponding zeolite)] with the presence of both OTMAC and SFE zeolite seed (Figure 1a) showed a series of characteristic peaks corresponding to the MTT structure,28,32,36,37 which are consistent with the peaks of the simulated XRD pattern, proving the successful synthesis of MTT zeolite.

Figure 1.

Figure 1

Open in a new tab

XRD patterns of the obtained products synthesized with the presence of both B-SFE seed and OTMAC, run 7 (a), B-SFE seed, run 3 (b), OTMAC, run 5 (c), and without zeolite seed and OTMAC, run 1 (d).

However, when crystallizations were carried out with the presence of only SFE zeolite seed (run 2–4) or OTMAC (run 5–6), only dense-phase SiO2 (Figure 1b) or magadiite (Figure 1c) was obtained. Besides, still no MTT zeolite was obtained by increasing the amount of SFE zeolite seed (run 4) or OTMAC (run 6). The attempt to synthesize zeolite without OTMAC and seed resulted in the formation of magadiite (Figure 1d, run 1). It is worth noting that the addition of OTMAC did not change the synthetic product in comparision with the gel without organics and seeds. This may be due to the fact that OTMAC, as a linear quaternary ammonium, has a relatively weak structure-directing ability for the MTT zeolite structure.

It seems that the SFE zeolite seed and OTMAC together direct the crystallization of MTT zeolite in the herein-adopted system. The seed-directed synthesis without OTMAC in this work falls in the category of SDS without OSDA, in which a working hypothesis was proposed by Okubo et al.16 According to the hypothesis, SFE zeolite is a potential seed candidate for the synthesis of MTT zeolite, since they share the same common composite building units (jbw, mtt, bik, and ton). Considering that the hypothesis was proposed on the basis of the results of OSDA-free synthesis of beta, mordenite, and ferrierite in the aluminosilicate system, the most likely explanation for the herein-reported phenomena is that the synthesis of MTT borosilicate zeolite follows another mechanism. Both OTMAC and SFE zeolite seed are needed for the synthesis of MTT zeolite, which is similar to the synthesis of IWR zeolite with the presence of both *BEA zeolite seed and choline.25 Thus, it is appropriate to say that the synthesis was realized successfully through a cooperative structure-directing method.

Effects of synthetic parameters on the crystallization of MTT zeolites were investigated using starting mixtures with different molar ratios (Table S1). MTT borosilicate zeolites were synthesized with SiO2/B2O3 molar ratios ranging from 10 to 80 (run 7–9 in Table S1). The amorphous phase was obtained when the starting SiO2/B2O3 molar ratio was lower than 10. When the initial gel did not contain any boron, in other words, SiO2/B2O3 = inf, layered phase searlesite appeared as the only crystalline product (run 10). The XRD patterns of products synthesized under different alkali contents are depicted in Figure S3. When the NaOH/SiO2 molar ratios varied from 0.30 to 0.50, ZSM-48 (*MRE) zeolite (run 11–12) and ZSM-12 (MTW) zeolite (run 13) were obtained. The suitable NaOH/SiO2 molar ratios for the syntheses of MTT zeolites were between 0.60 and 0.65 (run 7 and run 14). Further increasing the NaOH/SiO2 molar ratio to 0.7 would result in the formation of kenyaite (Figure S3f, run 15). It is worth noting that the successful syntheses of both *MRE and MTW zeolites, besides MTT zeolite, followed the cooperative structure-directing effect of exotic SFE seeds and OTMAC.

Water content in the initial gel also possessed great influence on the phases of products. MTT zeolite could be synthesized with H2O/SiO2 molar ratios ranging from 20 to 30, while MTW and MFI phases were obtained by increasing water content (run 16–17).

Figure 2 shows the field emission scanning electron microscopy (FE-SEM) image and its high-resolution transmission electron microscopy (HRTEM) pattern and the fast Fourier transform (FFT) pattern of B-MTT (run 7, Table S1). The synthesized MTT borosilicate zeolite shows a rodlike morphology with a length of 1000 nm and a diameter of about 100 nm (Figure 2a), which is in good agreement with those of ZSM-23 zeolites reported previously.28,29,36 The HRTEM image and corresponding FFT pattern (Figure 2b,c) illustrated that the obtained B-MTT zeolite is of high crystallinity and the longest dimension of the crystal is along the direction of 1D channel. The solid yield of MTT zeolite was about 36% due to the high alkalinity which increased the solubility of silicon and the boron source.38 The bulk molar compositions of B-MTT zeolites were much higher than those in the starting gels (run 7–9 in Table S1) because boron species are difficult to be incorporated into the framework.39

Figure 2.

Figure 2

Open in a new tab

FE-SEM image of B-MTT (a) and its HRTEM pattern (b) and FFT pattern (c).

OTMAC acted as the co-SDA in the synthesis of MTT borosilicate zeolite. The 13C MAS NMR spectrum of the as-synthesized MTT borosilicate zeolite (Figure 3A(b), run 7) fits well with the 13C liquid NMR spectrum of OTMAC in D2O (Figure 3A(a)), indicating that OTMAC was occluded in the synthesized MTT zeolite without decomposition. The broadness of the resonances in the range of 10–35 ppm was observed because the methyl carbon (−CH3) and methylene carbons (−CH2−) were in a similar environment, while the splits of the signals ranging from 50 to 70 ppm corresponding to the methyl carbons (−CH3) and methylene carbon near the N atom (−CH2−) were caused by the geometric constrain and van der Waals interactions.35Figure 3B shows the TG–DTG profiles of the as-made B-MTT (run 7) and confirmed the presence of OTMAC. Several exothermic processes accompanied by continuous weight loss originating from the removal of water and organic species were observed. The weight loss (1.5 wt %) in the low-temperature region (25–200 °C) was mainly due to the desorption of physically adsorbed water. The weight loss (8.1 wt %) in the high-temperature region (200–750 °C) was originated from the removal of the occluded organic species.

Figure 3.

Figure 3

Open in a new tab

(A) 13C liquid NMR spectrum of OTMAC in D2O (a) and 13C CPMAS NMR spectrum of the as-made B-MTT zeolite, run 7 (b). (B) TG–DTG curve of the as-made B-MTT zeolite, run 7.

Samples at different crystallization times were collected and investigated by X-ray diffraction (XRD) and scanning electron microscopy (SEM) to illustrate the crystallization process. At the very beginning of crystallization, diffraction peaks corresponding to SFE zeolite seed were detected (Figure 4, 0 h). The MTT structure was detected after 12 h’ crystallization. With prolonging the crystallization time, increases in the intensities of diffraction peaks originating from MTT zeolite were observed (Figure 4, 36–72 h). The fully crystallized MTT zeolite was obtained at 88 h. SEM images of samples obtained during crystallization of the sample run 7 are shown in Figure 5. At 6 h, the solid product shows a wormhole-like morphology (Figure 5a). After crystallization for 12 h, spheres with different sizes are observed (Figure 5b). After 36 h of hydrothermal treatment, both spheres and rods are observed. Considering the final rodlike morphology of the B-MTT zeolite and the partially crystalline nature of the sample collected at this stage, the spheres are believed to be amorphous, while the rods are B-MTT zeolite crystals (Figure 5c). With prolonging the crystallization time to 88 h, highly crystalline rod-shaped crystals are obtained (Figure 5d). The size of the MTT zeolite product is significantly larger than that of the SFE seed (Figure S2).39

Figure 4.

Figure 4

Open in a new tab

XRD patterns of samples obtained at different crystallization times.

Figure 5.

Figure 5

Open in a new tab

SEM images of samples collected at 6 (a), 12 (b), 36 (c), and 88 h (d).

Al,B-MTT zeolites were also directly synthesized with the presences of both SFE zeolite seeds and OCTMA (Figure S4). The morphologies of Al,B-MTT are all rodlike and similar to that of B-MTT. It is worth noting that the introduction of Al decreased the crystal size of MTT zeolites (Figure S5). The SiO2/Al2O3 molar ratios of the solid Al,B-MTT products are lower than those in the gels, which may be caused by the high alkalinity (Table 1). The solid yield of Al,B-MTT zeolite is slightly higher than that of B-MTT because of the introduction of Al (Table S1). Figure 6 shows the nitrogen adsorption–desorption isotherms of the Al,B-MTT (run 18, 19, and 20) and B-MTT (run 7) zeolites, and the corresponding textural properties are listed in Table 1. All isotherms were classified as type I corresponding to the classic microporous material. The textural parameters of Al,B-MTT zeolites, including the total BET area, micropore surface area, external surface area, micropore volume, and total pore volume, are all obviously larger than those of B-MTT (Table 1). It was reported that parts of boron elements would be extracted from the framework during the calcination process. These expelled species may block the pores, leading to the reduced BET area and pore volume.2,40 The textural properties of obtained Al,B-MTT-type zeolites increase first and then decrease with the increase in SiO2/Al2O3 molar ratios (Table 1). The BET area and micropore volume of Al,B-MTT are in good agreement with those of ZSM-23 zeolites synthesized using PY and/or IPA as SDAs.28,32,41

Table 1. SiO2/Al2O3 Molar Ratios and Textural Properties of B-MTT and Al,B-MTT Samples.

no.a SiO2/Al2O3b SBETc(m2/g) Smicroc(m2/g) Sextc(m2/g) Vtotalc(cm3/g) Vmicroc(cm3/g)
Al,B-MTT (run 18) 96 224 204 20 0.22 0.087
Al,B-MTT (run 19) 148 276 244 32 0.29 0.103
Al,B-MTT (run 20) 206 228 206 22 0.24 0.089
B-MTT (run 7) inf 157 140 17 0.19 0.057
Open in a new tab
a

All samples were synthesized using the gels with molar compositions of OTMAC/SiO2 = 0.3, NaOH/SiO2 = 0.6, and H2O/SiO2 = 25 and 5.0 wt % calcined B-SFE seeds at 150 °C for 88 h.

b

Determined by ICP-AES.

c

Determined by BET and t-plot methods.

Figure 6.

Figure 6

Open in a new tab

N2 adsorption–desorption isotherms of Al,B-MTT zeolites obtained with different SiO2/Al2O3 molar ratios: 200 (a), 400 (b), 560 (c), and B-MTT (d). The isotherms are offset vertically by 60 cm3 g–1 for clarity.

The incorporation of B and Al was confirmed by solid-state 11B and 27Al MAS NMR measurements. As shown in Figure 7A, the narrowly clustered resonances in the range of −5 to 0 ppm are assigned to tetrahedrally coordinated boron species (B(4)).40,42,43 The presence of a residual line at −2.4 ppm for B-MTT indicated the existence of a small amount of boron species in the form of twisted B(4).44 The only resonances centered at δ = 59 ppm in the 27Al MAS NMR spectra of the Al-MTT zeolites with SiO2/Al2O3 molar ratios of 200 and 560 (Figure 7 B) revealed the incorporation of Al into the framework and the absence of octahedrally coordinated nonframework Al species.

Figure 7.

Figure 7

Open in a new tab

(A) Solid-state 11B MAS NMR spectra of the as-synthesized B-MTT, run 7 (a) and Al,B-MTT, run 18 (b); (B) solid-state 27Al MAS NMR spectra of the as-synthesized Al,B-MTT-200, run 18 (a) and Al,B-MTT-560, run 20 (b). The numbers 200 and 560 represent SiO2/Al2O3 molar ratios of the gel.

Acidic properties of H–B-MTT and H–Al,B-MTT zeolites with different SiO2/Al2O3 molar ratios were investigated by NH3-TPD (Figure 8). A desorption peak at around 125–225 °C was observed in the NH3-TPD curves of B-MTT. Besides, a very small adsorption peak in the high-temperature zone was also observed (Figure 8a). H–Al,B-MTT zeolites possess both weak and strong acid sites. Two peaks corresponding to ammonia desorption from weak acid (centered at 100–250 °C) and strong acid (250–550 °C) were observed (Figure 8b–d). The estimation of the acidic sites of various samples is presented in Table S2. The weak acid amount, strong acid amount, and total acid amount of Al,B-MTT vary with the Al content. More Al atoms endow Al,B-MTT zeolites with more acid sites.

Figure 8.

Figure 8

Open in a new tab

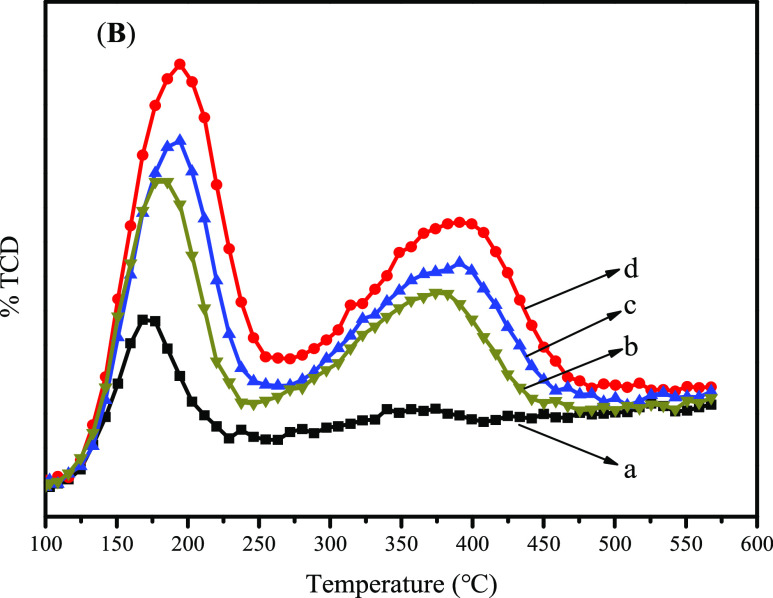

NH3-TPD curves of B-MTT, run 7 (a) and Al,B-MTT obtained from synthetic gels with different SiO2/Al2O3 molar ratios of 560, run 18 (b), 400, run 19 (c), and 200, run 20 (d).

The incorporation of heteroatoms into the framework would endow zeolite with promising catalytic properties.33,45 Attempts to synthesize Zr/V/Fe incorporated B-MTT zeolites were carried out. The detailed synthetic parameters are listed in Table S3. XRD patterns confirmed the successful formation of the MTT structure (Figure S6). All samples show rodlike morphologies, similar to that of B-MTT zeolite (Figure S7). The incorporation of heteroatoms was confirmed by the UV–visible spectra and UV Raman spectra shown in Figure 9A,B, respectively. For B-MTT, there is an extremely weak band at 211 nm in the UV–visible spectrum, which is typically attributed to the charge transfer from the framework oxygen (Oz) to the other framework hybrid atoms (Si or B) of zeolite.46 The Raman spectrum of the B-MTT shows bands at 525, 775, and 1170 cm–1, which are assigned to the symmetric stretching and asymmetric stretching vibrations of framework Si–O–Si species due to the resonance Raman effect.47 Zr,B-MTT zeolite exhibited a strong absorbance band at 212 nm and a weak absorbance band at 244 nm in the UV–visible spectrum ascribed to the charge–transfer transition between O2– and the tetrahedral Zr2+. The bands at 490, 640, and 991 cm–1 in the Raman spectrum are generally accepted as the catalytically active Zr species with tetrahedral coordinations.48,49 For V,B-MTT, the two strong bands at 215 and 240 nm in the UV–visible spectrum and three bands at 931, 989, and 1038 cm–1 in the Raman spectrum demonstrate the dominating existence of tetrahedral vanadium species in V,B-MTT. The broad band at around 290 nm in the UV–visible spectrum reveals the formation of a small amount of vanadium nanoclusters.50,51 The Fe,B-MTT sample exhibits two very strong absorbance bands at 217 and 239 nm in the UV–visible spectrum, which are assigned to electron transfer from O2– to tetrahedral Fe3+, a framework-doped ion.47 The Raman spectra of the samples show strong Raman bands at 520, 636, and 1040 cm–1, which have been assigned to the symmetric stretching and asymmetric stretching vibrations of framework Fe–O–Si species due to the resonance Raman effect.52,53 These implied that Fe3+ ions are mainly located at isolated tetrahedral framework sites. It is expected that the incorporation of Zr/V/Fe would change the acidic properties and endow zeolite with different catalytic performances.

Figure 9.

Figure 9

Open in a new tab

(A) UV–visible spectra and (B) UV Raman spectra of heteroatom zeolites with the MTT-type framework.

3. Conclusions

In summary, MTT-type zeolites, including B-MTT and Al,B-MTT, and heteroatom-incorporated MTT zeolites were successfully synthesized in a borosilicate system with the presence of both SFE zeolite seed and OTMAC. The exotic SFE zeolite seed and OTMAC together act as the cooperative SDA and direct the formation of the MTT structure. The synthesis provides an example for further investigating the directing effects of zeolite seeds and OSDAs. The obtained Al,B-MTT and heteroatom-incorporated MTT zeolites may be promising materials for catalytic applications.

4. Experimental Section

4.1. Materials

Ludox (40 wt %, HS-40 colloidal silica, Sigma-Aldrich), boric acid [99.8% wt %, China Medicine (Group)], sodium aluminate [NaAlO2, Al2O3 40.4 wt %, Na2O 30.6 wt %, China Medicine (Group)], sodium hydroxide (NaOH, 96 wt % Sinopharm Chemical Reagent Co. Ltd), 4-dimethylaminopyridine [DMAP, 99.0 wt %, TCI (Shanghai)], OTMAC [99.0 wt %, TCI (Shanghai)], zirconium(IV) oxychloride octahydrate [99.0 wt %, China Medicine (Group)], sodium metavanadate [99.0 wt %, China Medicine (Group)], and iron(III) sulfate hydrate [Fe, 23.0 wt %, China Medicine (Group)] were used as starting materials without any purifications. Deionized water was made in our laboratory.

4.2. Synthesis of Borosilicate SFE-type Zeolite Seed (B-SFE)

B-SFE zeolite seed was prepared according to the literature39 with a reaction mixture with molar composition of 1 SiO2:0.05 B2O3:0.6 DMAP:25 H2O. The hydrothermal crystallization was carried out at 170 °C for 120 h under rotation (20 rpm). The product was recovered by filtration, washed thoroughly with distilled water, and dried at 80 °C over night. The occluded OSDA was removed completely by calcination in an air atmosphere at 550 °C for 6 h.

4.3. Syntheses of MTT-type Zeolites

Borosilicate MTT-type zeolite (B-MTT) was synthesized in the presence of OTMAC and B-SFE zeolite seed. Molar ratios of the starting mixtures and crystallization conditions are listed in Table S1. In a typical synthesis (run 7), 0.59 g of NaOH was dissolved in 8.87 g of deionized water, followed by the addition of 1.53 g of OTMAC and 0.31 g of boric acid. Then, 3.70 g of Ludox (40 wt %) and 0.075 g of B-SFE zeolite seed (5.0 wt % corresponding to SiO2 in the silica source) were added into the mixture to obtain a reaction gel with molar composition of 1.0 SiO2:0.10 B2O3:0.3 OTMAC:0.6 NaOH:25 H2O. After being stirred for 2 h, a homogeneous gel was obtained and transferred to a stainless-steel autoclave. Hydrothermal crystallization was carried out at 150 °C for 88 h. When the crystallization was over, the autoclave was quenched with cold water and the solid product was separated by centrifugation, washed with deionized water, dried at 80 °C for 12 h, and calcined at 550 °C for 5 h in an air atmosphere.

The syntheses of Al and heteroatom-incorporated MTT-type zeolites (Al,B-MTT, Zr,B-MTT, V,B-MTT, anf Fe,B-MTT) were synthesized following similar procedures for the synthesis of B-SFE zeolite except for the introduction of NaAlO2, zirconium(IV) oxychloride octahydrate, sodium metavanadate, and iron(III) sulfate hydrate as metal sources into the mixture before Ludox. The crystallizations of Al/Zr/V/Fe-incorporated MTT-type zeolites were carried out under rotation at 150 °C for 96–168 h.

The protonated forms of B-MTT and Al,B-MTT zeolites were obtained via ion exchange by adding 1.0 g of calcined zeolite into 25 mL of 0.5 M NH4Cl solution. The ion exchange was carried out three times under stirring at 80 °C for 2 h. The obtained samples were separated, dried, and calcined at 550 °C for 5 h. The obtained materials were denoted as H–B-MTT and H–Al,B-MTT, respectively.

4.4. Characterization

Powder XRD patterns were recorded on a D8 Advance SS X-ray diffractometer using Cu Kα radiation (λ = 1.54 Å) operated at 40 kV and 40 mA. After subtracting the background using Origin software, the relative crystallinity of the MTT-type zeolite is calculated using the diffraction peak area in the 2θ range between 20 and 30° in the XRD patterns. SEM measurements were performed on a Hitachi S-4800 field-emission scanning electron microscope (Hitachi, Japan) with an acceleration voltage of 3 kV. The transmission electron microscopy (TEM) image was collected on a JEOL JEM2100 TEM at 200 kV. Thermogravimetric analysis (TGA) was measured on a TA SDT-Q600 instrument by heating the samples up to 700 °C at a rate of 10 °C/min. Nitrogen adsorption isotherms were measured at 77 K on a Microtrac Belsorp-MaxII volumetric adsorption analyzer. The samples were outgassed at 573 K for 4 h before the measurements. The Brunauer–Emmet–Teller (BET) specific surface area was calculated based on the adsorption data acquired in a relative pressure (p/p0) range of 0.01–0.1, and the total pore volume was determined from the amount adsorbed at a relative pressure of about 0.99. The amounts of Al and B were quantified by inductively coupled plasma (ICP) on a Varian 725-ES instrument after dissolving the samples in HF solution. The liquid 13C nuclear magnetic resonance spectrum was recorded on a Bruker AV-400 spectrometer. 11B, 27Al, and 13C magic angle spinning nuclear magnetic resonance (MAS NMR) measurements were performed using a Bruker 600 Ascent spectrometer. 11B and 27Al NMR spectra were recorded with a 4 mm T3HXY probe at 100.54 MHz and a spinning rate of 9 kHz. 13C NMR spectra were recorded with a 7.5 mm T3HX probe at 100.54 MHz and a spinning rate of 5 kHz. The acidity of the catalysts was measured by the temperature-programmed desorption of ammonia (NH3-TPD). UV Raman spectra were measured with a UV Raman-100 triple-stage spectrograph with a spectral resolution of 2 cm–1. The 244 nm line from a Coherent Innova 300 Fred laser with a power of around 1.0 mW on the sample was used. The accumulation time for the spectrum is 50 s. UV–vis absorption spectra were measured at 258C using a VARIAN Cary5000 digital spectrophotometer equipped with an integrating sphere, in which BaSO4 was used as a reference.

Acknowledgments

This work was supported by the National Key R&D Program of China (2017YFB0702800) and the National Natural Science Foundation of China (21972168 and 21802168).

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.1c03810.

  • XRD patterns; SEM images; specific synthesis conditions; molar ratios and acidic concentrations; and textural properties of zeolite (PDF)

The authors declare no competing financial interest.
