. 2021 Sep 1;6(36):23558–23563. doi: 10.1021/acsomega.1c03652

Reaction Behaviors and Crystal Transformation of Industrial Vanadium–Phosphorus–Oxygen (VPO) Catalysts for n-Butane Oxidation

Xia Zhang †, Haibo Wang †, Lianke Gou †, Lanpeng Li †, Aijun Duan ‡,*, Zhengkai Cao †,‡,*
PMCID: PMC8444314  PMID: 34549152

Abstract

graphic file with name ao1c03652_0010.jpg

A long-time evaluation of n-butane oxidation over an industrial vanadium–phosphorus–oxygen (VPO) catalyst was implemented. The catalytic performances for n-butane oxidation during this period were obtained. It was shown that the conversion of n-butane increased with the evaluation time, but the selectivity of the maleic anhydride (MA) product decreased gradually. To investigate the crystal transformation of the VPO catalyst, the properties of fresh and evaluated VPO catalysts were measured by a series of characterization methods, including X-ray diffraction (XRD), N2 adsorption and desorption, NH3-temperature programmed desorption (TPD), Raman spectroscopy, and X-ray photoelectron spectroscopy (XPS). The results showed that the acidities and valence of vanadium increased after evaluation due to the appearance of a β-VOPO4 phase. The crystal transformation would increase the activity for n-butane oxidation. Meanwhile, during the evaluation period, the decrease in selectivity of the MA product should be related to the decreasing percentage of Lat-O species in the VPO catalyst.

1. Introduction

Vanadyl pyrophosphate (VPO) catalysts have been proved to be effective for selectively oxidizing n-butane into maleic anhydride (MA).1−3 The correlation of catalytic behaviors for n-butane oxidation with crystalline phases in VPO catalysts has been reviewed widely.4−7 The crystalline phases can easily transform into other forms during calcination and activation. Therefore, it is really difficult to correlate the activity and selectivity with the crystalline phases.

Common VPO catalysts have (VO)2P2O7 with a vanadium valence of 4+ and (α-, β-, γ-, δ-) VOPO4 phases with a vanadium valence of 5+. The precursor VOHPO4·0.5H2O of the VPO catalyst will be transformed into V5+ and (VO)2P2O7 phases in an oxidative atmosphere.8 It has been reported that (VO)2P2O7 will transform into the β-VOPO4 phase in an oxygen atmosphere.9 The β-VOPO4 phase is treated as the most stable species among anhydrous orthophosphates.8 The roles of V5+ and V4+ crystalline phases in the catalytic performance for n-butane oxidation were argued by many researchers.10,11 Some believed that the (VO)2P2O7 phase was considered as the active phase in the VPO catalyst for n-butane oxidation.12 Others argued that the V5+/V4+ dimeric species in the topmost oxidized layer of vanadyl pyrophosphate were the active sites.13 Abon et al. reported that thestrong interaction of the isolated V5+ phase with the (VO)2P2O7 phase would increase the selectivity of the MA product.14 Mestl et al. found that a higher proportion of vanadyl pyrophosphate would lead to a more active catalytic performance. The surface amorphous V5+ species of the α-VOPO4 phase could improve the activity for n-butane oxidation.15 Above all, the crystalline phases of the VPO catalyst play an important role in the catalytic performance for n-butane oxidation.

Meanwhile, the stability of the VPO catalyst was significant for its industrial application. Patience et al. believed that carbon deposition was the primary cause of poor catalytic performance of the evaluated catalyst.16 Li et al. studied the stability and reusability of a VPO catalyst. The authors assigned the deactivation to the carbon deposition on the active phase. They refreshed the used catalyst by calcination in an air atmosphere at 400 °C. However, the catalytic performance of the refreshed VPO catalyst was also decreased.17

In our work, a long-time evaluation of n-butane oxidation over an industrial VPO catalyst was implemented, and the changes of crystalline phases, pore parameters, and acidities between the fresh VPO catalyst and evaluated catalyst were compared carefully. The principle behind the change in conversion of n-butane and selectivity of the MA product with evaluation time was disclosed.

2. Experimental Section

2.1. Catalyst

The industrial VPO catalyst was synthesized by Dalian Research Institute of Petroleum and Petrochemicals, SINOPEC. The preparation method was as follows: Isobutanol was selected as a reducing agent. V2O5 was applied as V sources, and phosphoric acid was chosen as P sources. Different raw materials for synthesis were mixed and reacted at 90 °C. The precursor was obtained and then dried in an air atmosphere. Thereafter, the obtained powder was mixed with a certain amount of graphite, and then the mixture was pressed into a tablet. Finally, the precursor was activated in a N2/air (1:1) atmosphere at 390 °C with a temperature rising rate of 5 °C/h for 10 h.

2.2. Characterization Methods

The characterization methods for all of the VPO catalysts included N2 adsorption–desorption, NH3-TPD, X-ray diffraction (XRD), Raman spectroscopy, ammonia temperature-programmed desorption (NH3-TPD), and X-ray photoelectron spectroscopy (XPS). The details of the above characterization methods are provided in the Supporting Information.

2.3. Evaluation Methods

Typically, 4.0 g of the VPO catalysts was used for the oxidation of n-butane to maleic anhydride. VPO catalysts with a mesh number of 10–20 were mixed with the same size silica sand (volume ratio 1:1). The mixture was loaded in the middle of a stainless-steel fixed-bed reactor. The reactor diameter was 14 mm. The length of the catalyst bed was about 7.0 cm. The position of a thermocouple would be adjusted at the hot point of the catalyst bed at different reaction conditions. The gas feed consisted of n-butane and air, and the volume percentage of n-butane was 1.392%. The oxidation of n-butane over all of the VPO catalysts was evaluated under the conditions of P = 0.03 MPa, T = 400 °C, and gas hourly space velocity (GHSV) = 2000 h–1. The outlet gas stream from oxidation of n-butane for all of the catalysts was analyzed by gas chromatography (Agilent).

2.4. Calculation Methods

The n-butane conversion (X), selectivity of the MA product (S), and yields of the MA product (Y) were calculated by the following equations

2.4. 1
2.4. 2
2.4. 3

In the above equations, y represents the volume or molar percentage; ynin and ynout represent the volume percentages of n-butane in the feed and product, respectively; and yCO and yCO2 represent the volume percentages of CO and CO2 (COx) in the gas product, respectively.

3. Results and Discussion

3.1. Long-Time Evaluation for the VPO Catalyst

The n-butane oxidation performance of the industrial VPO catalysts was evaluated for 528 h. The conversion of n-butane (X), selectivity of MA (S), mass yield of MA, and temperature rise (ΔT) were obtained and are shown in Figure 1. It presented that the conversion of n-butane increased with the evaluation time. After evaluation for 528 h, the X values increased from 78.67 to 88.20%. However, the selectivity of the MA product decreased with the evaluation time. The S values decreased from 68.44 to 64.33%. As reported in the literature, the selectivity of the MA product for a typical VPO catalyst was about 56%, which was lower than our prepared catalyst. Moreover, the mass yield of the MA product increased with the evaluation time before 312 h. Thereafter, the mass yield of the MA product decreased sharply from 97.37 to 95.87%. The temperature rise also increased with the evaluation time, which indicated that the activity increased with the evaluation time. In addition, the selectivities of CO and CO2 products during the long-time evaluation period are also shown in Figure S1. It showed that the selectivity of CO2 increased from 11.1 to 14.1%, and the selectivity of CO increased from 18.1 to 21.1% gradually. Accordingly, it was significant to clarify the mechanism of the dramatic change in the n-butane oxidation performance of the VPO catalyst during such a short time.

Figure 1.

Figure 1

Open in a new tab

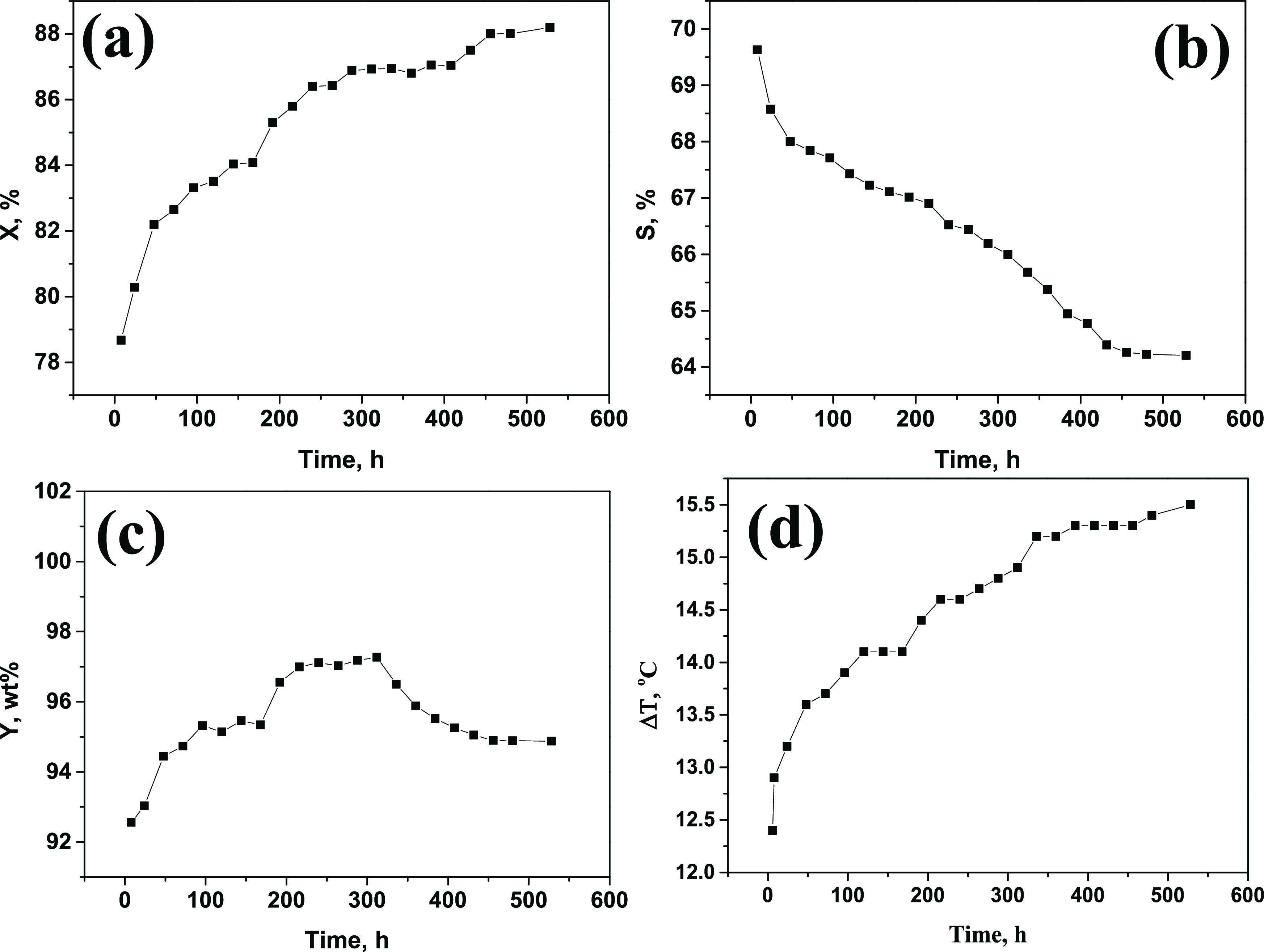

(a) Conversion of n-butane (X); (b) selectivity of MA (S); (c) mass yield of MA; and (d) temperature rise (ΔT).

3.2. Properties of Fresh and Evaluated Catalysts

To investigate the change of pore properties for fresh and evaluated VPO catalysts, N2 adsorption and desorption measurements were applied. The result is shown in Figure 2, and the pore properties of fresh and evaluated VPO catalysts are given in Table 1. From Figure 2, fresh and evaluated catalysts showed type V curves with H3 hysteresis loops. As shown in Table 1, the surface area of the evaluated catalyst was lower than that of the fresh catalyst. The pore volume and pore diameter of the evaluated catalyst were higher than those of the fresh catalyst. In general, the pore properties of fresh and evaluated catalysts had a small change. Moreover, the contents of phosphorus in the fresh and evaluated catalysts were 18.97 and 18.48 wt %, respectively. This could indicate that a phosphorus loss would occur during the long-time evaluation. The phosphorus loss would influence the crystal composition and catalytic behaviors. It has been reported that the phosphorus loss would decrease the selectivity of the MA product. The catalyst must compensate for the loss of phosphorus to maintain stable operation at a certain time.3,18−20

Figure 2.

Figure 2

Open in a new tab

N2 adsorption–desorption isotherm of fresh and evaluated catalysts.

Table 1. Properties of Fresh and Evaluated Catalysts.

catalyst fresh catalyst evaluated catalyst
surface area, m2/g 27.72 27.39
volume, cm3/g 0.14 0.16
pore diameter, nm 20.35 23.96
P contents, wt % 18.97 18.48
Open in a new tab

NH3-TPD spectra were used to determine the acidities of fresh and evaluated catalysts. The NH3-TPD patterns and acidities of the two catalysts are shown in Figure 3 and Table 2, respectively. The strengths of acidities were assigned as weak (150–250 °C), medium (250–400 °C), and strong (400–450 °C) on the basis of NH3 desorption temperatures. It was shown that the total amount of acidity of the evaluated catalyst was higher than that of the fresh catalyst. Noticeably, V5+ species could accept an electron and transform into V4+. V5+ species could be considered as Lewis acid sites. Meanwhile, it has been reported that the amount of Lewis sites for VPO catalysts is more higher than that of Bronsted sites.21 Therefore, it could be deduced that the percentage of V5+ species on the surface of the catalyst would be increased due to the increment of total acidity.

Figure 3.

Figure 3

Open in a new tab

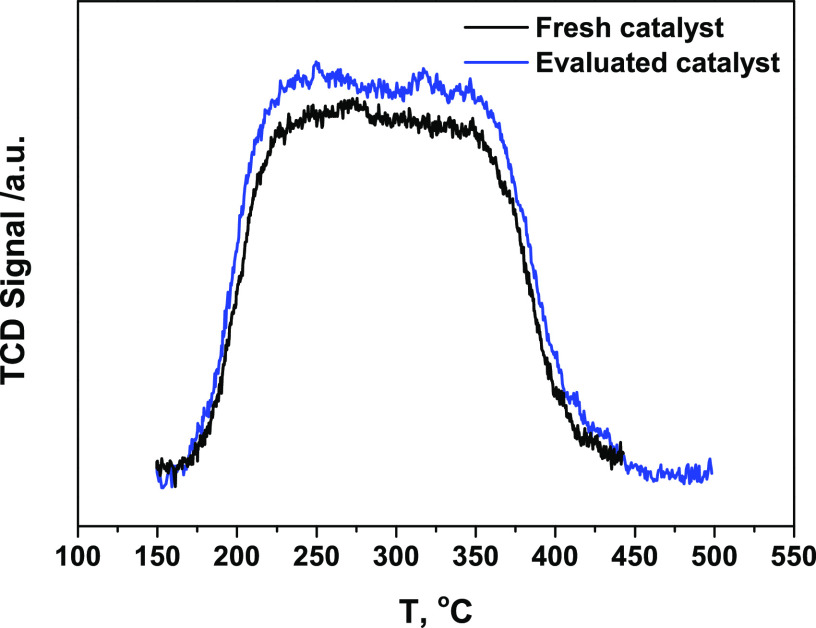

NH3-TPD patterns of fresh and evaluated catalysts.

Table 2. Acidities of Fresh and Evaluated Catalysts.

catalyst 150–250 °C, mL/g 250–400 °C, mL/g 400–450 °C, mL/g total amount, mL/g
fresh catalyst 1.378 2.124 0.794 4.306
evaluated catalyst 1.776 2.212 0.883 4.871
Open in a new tab

The XRD measurement was implemented to investigate the crystal transformation of fresh and evaluated catalysts, and the corresponding patterns are shown in Figure 4. For the fresh catalyst, the peaks appearing at 18.5, 21.7, 23.0, 28.5, 29.9, 33.7, 36.4, and 38.1° should be ascribed to the (VO)2P2O7 phase with the (020), (113), (200), (024), (032), (016), (230), and (232) crystal faces, respectively.22,23 For the evaluated catalyst, the peak at 21.7° assigned to the (VO)2P2O7 phase could not be observed. However, the new peak at 29.3° assigned to the β-VOPO4 phase from the (020) direction could be observed. The vanadium valence of the (VO)2P2O7 phase was 4+, and the vanadium valence of the β-VOPO4 phase was 5+.8 Accordingly, the vanadium valence of the VPO catalyst would be increased after evaluation due to the appearance of the β-VOPO4 crystal phase.

Figure 4.

Figure 4

Open in a new tab

XRD patterns of fresh and evaluated catalysts.

The more sensitive Raman measurement was applied to study the crystal changes of fresh and evaluated catalysts. The Raman spectra are shown in Figure 5. It exhibited that the crystal phases of the VPO catalyst changed a lot after evaluation. For the fresh catalyst, the peaks at about 597, 649, 938, 1020, 1090, and 1186 cm–1 were assigned to the (VO)2P2O7 crystal phase. For the evaluated catalyst, some new peaks at about 438, 998, and 1070 cm–1 were ascribed to the β-VOPO4 phase.6,23,24 Therefore, the appearance of the β-VOPO4 phase would occur after the long-time evaluation. This could lead to the increment of vanadium valence for the VPO catalyst, which was in accordance with the XRD measurement.

Figure 5.

Figure 5

Open in a new tab

Raman spectra of fresh and evaluated catalysts.

The XPS measurement was used to study the surface V and O species of fresh and evaluated catalysts.12,25 The XPS spectra of fresh and evaluated catalysts in the V 2p3/2 and O 1s regions are shown in Figures 6 and 7, respectively. The obtained percentages of V4+ and V5+, average vanadium valence, and Lat-O/Sur-O ratio are given in Table 3. The binding energies from 528 to 536 eV were assigned to O 1s species of the VPO catalyst.26,27 The existent states of oxygen species over the VPO catalyst included surface hydroxide ions and carbonates (Sur-O) and lattice oxygen ions (Lat-O).28,29 The binding energy of Sur-O species was 533.1 eV, and the binding energy of Lat-O species was nearly 532.1 and 531.1 eV.26,30 From Table 3, compared with the fresh VPO catalyst, the Lat-O/Sur-O ratio decreased from 1.39 to 1.30 after the long-time evaluation.

Figure 6.

Figure 6

Open in a new tab

XPS spectra in the V 2p3/2 region for fresh and evaluated catalysts.

Figure 7.

Figure 7

Open in a new tab

XPS spectra in the O 1s region for fresh and evaluated catalysts.

Table 3. XPS Data of Different Catalysts.

catalysts P (V4+) P (V5+) Vava Lat-O/Sur-O
fresh catalyst 0.59 0.41 4.41 1.39
evaluated catalyst 0.13 0.87 4.87 1.30
Open in a new tab
a

Vav = 4 × P (V4+) + 5 × P (V5+).

In Figure 7, the binding energies from 512 to 520 eV were ascribed to V 2p3/2 species in the VPO catalyst. It has been reported that the binding energies of V4+ and V5+ species were 516.8 and 517.8 eV, respectively.31,32 As shown in Table 3, the percentage of V5+ and average vanadium valence of the evaluated VPO catalyst were higher than those of the fresh VPO catalyst. The XPS results were consistent with the NH3-TPD, XRD, and Raman measurements. AïT-Lachgar et al. proposed that the Sur-O species was associated with the appearance of V5+ ions.14 In our experiment, the increased vanadium valence and percentage of Sur-O species for the VPO catalyst after evaluation confirmed the above proposition.

3.3. Mechanism of Crystal Phase Transformation

The pore property, acidity, crystal phases, and nature of oxygen species of VPO catalysts would play an important role in the catalytic performance for n-butane oxidation. The N2 adsorption and desorption results showed that the pore diameter, pore volume, and surface area changed little after the long-time evaluation. However, the amount of acidity for the VPO catalyst was increased after evaluation. It has been reported that the acid sites could particularly activate n-butane molecules.33 If the acid sites were poisoned by NH3 or K, the reaction of n-butane to MA would be strongly prohibited.34,35 Therefore, the increase in conversion of n-butane should be correlated with the increase in acidity. Moreover, the transformation of the crystal phase for the VPO catalyst would also occur during the evaluation period. The XRD, Raman, and XPS measurements confirmed that the vanadium valence was increased due to the existence of the β-VOPO4 phase after the long-time evaluation. Some researchers compared a (VO)2P2O7 catalyst without V5+ species and a conventional VPO catalyst with V5+ species. It was revealed that the presence of residual V5+ entities on the V4+ matrix could favor the conversion of n-butane to MA.36 Some researchers also disclosed that the isolated V5+ sites in strong interaction with (VO)2P2O7 were important in the selective oxidation of n-butane to MA, and the best V5+/V4+ ratio should be 0.25. Therefore, the fact that the activity of n-butane oxidation showed an increasing trend in our experiment should also be associated with the increasing percentage of V5+ in the VPO catalyst. In conclusion, the increase in conversion of n-butane and selectivities of CO and CO2 during the long-time evaluation should be due to the increase in vanadium valence and acidity of the VPO catalyst.

The reaction path of n-butane oxidation is shown in Scheme 1. The Lat-O species could facilitate the formation of the MA product, while the Sur-O species could lead to the deep oxidation into COx.37 Hence, the Lat-O/Sur-O ratio might be well related to the selectivity of the MA product in the oxidation of n-butane. The evaluated VPO catalyst showed a lower Lat-O/Sur-O ratio than the fresh catalyst. The selectivity of the MA product presented a decreasing trend during the long-time evaluation, which should be caused by the loss of Lat-O species.

Scheme 1. Reaction Path of n-Butane Oxidation.

Scheme 1

Open in a new tab

4. Conclusions

An industrial VPO catalyst was evaluated for a long time. The results showed that the conversion of n-butane and reaction activities increased with running time. However, the selectivity of the MA product decreased with the running time. At a certain time, the yield of the MA product decreased sharply.

The properties of fresh and evaluated VPO catalysts were compared systematically. The characterization results revealed that the acidities and valence state of vanadium of the evaluated VPO catalyst were higher than those of the fresh catalyst due to the appearance of the β-VOPO4 phase. The crystal transformation of the VPO catalyst would promote the oxidation of n-butane.

Finally, the influences of crystal phase transformation on the activity for n-butane oxidation and selectivity of the MA product were revealed. The increasing activities should be due to the increasing percentage of V5+ in the VPO catalyst. The decreasing selectivity of the MA product should be due to the decreasing percentage of Lat-O species.

Acknowledgments

The authors thank the National Natural Science Foundation of China (Project Nos. 21878330, 21676298, and 21808079) for supporting their research.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.1c03652.

  • Detailed characterization methods for fresh and evaluated catalysts and selectivities of CO and CO2 products during the long-time evaluation period (Figure S1) (PDF)

The authors declare no competing financial interest.
