Quantitative Determination and Characterization of a Kashmir Saffron (Crocus sativus L.)-Based Botanical Supplement Using Single-Laboratory Validation Study by HPLC-PDA with LC–MS/MS and HPTLC Investigations

Abstract

Food ingredients hold a higher nutritional value as a botanical supplement playing a vital role in modifying and maintaining the physiological conditions that improve human health benefits. The Kashmir saffron (Crocus sativus L; KCS) obtained from dried stigmas is known for its aroma precursors and apocarotenoid derivatives, imparting a wide range of medicinal values and therapeutic benefits. In the present study, a simultaneous determination of apocarotenoids and flavonoids in stigma-based botanical supplements was carried out using analytical investigations. The high-performance thin-layer chromatography-based qualitative analysis of the raw material (stigmas, stamens, and tepals) and stigma extract has been carried out to identify apocarotenoids and flavonoids. The rapid HPLC-PDA method for the simultaneous quantification of KCS apocarotenoids was robust, precise (<5.0%), linear (R² > 0.99), and accurate (80–110%) as per the single-laboratory validation data. Furthermore, the combined-expanded uncertainty (95%; K = 2) was calculated and found as 0.0035–0.007% (<5.0%) as per the EURACHEM guide for this HPLC analysis. Additionally, an untargeted identification of 36 compounds in the botanical supplement was based on the elution order, UV–vis spectra, mass fragmentation pattern, and standards by ESI-MS/MS analysis with comprehensive chromatographic fingerprinting. Thus, these analytical approaches enable a composite profile of the stigma-based extract as a potential supplement for human health benefits.

1. Introduction

Crocus sativus L., known as saffron, is cultivated as a food crop known for its labor-intensive harvesting of the stigmas from flowers. It is a well-admired and essential food condiment used across the globe. Saffron is prominently cultivated in India (Kashmir saffron, KCS), Spain (Spanish saffron), Iran (Persian saffron), Afghanistan, France, Morocco, and Greece, with suppliers offering them in various grades depending upon their quality. Kashmir Saffron (KCS) is known for its high aroma, deep color, and long and thick threads (stigmas). The primary distribution is in Pulwama (74.60%), Anantnag, Badgam (16.13%), Srinagar (6.68%), and Baramulla districts. This KCS, known as kesar in India, has recently been validated as geographical indications (GI) based on its rich cultivation history and usage from this specific region with agriculture initiatives such as the National Saffron Mission (India).¹⁻⁶ This saffron is available in different grades in local markets as Mongra (detached stigmas from styles), Lacha (attached stigmas with styles), and Zarda (detached styles from stigmas). This regional grading system is independent of Persian, Spanish, Greek saffron grading.^6,7 While exploring the phytochemicals, apocarotenoids (picrocrocin, crocetins and crocetin esters, and safranal), terpenoids, and flavonoids (glycoconjugates of Kaempferol) were most evident.⁸

This food condiment is well known for imparting color, flavor, and aroma worldwide.⁹⁻¹⁷ This KCS is also popular folklore and Indian traditional medicine for eye health, skin conditions, digestive ailments, women’s health, and other ailments.^18,19 Recently, this botanical supplement has shown prominent action against neurodegenerative disorders, namely, Alzheimer’s (AD), Parkinson’s disease, dementia, and anxiety, due to the presence of bioactive constituents.²⁰⁻²⁵

In our previous research, KCS-based botanical supplement (C. sativus extract, CSE), was evaluated for its neuroprotective potential in vitro and in vivo. Crocins and crocetin were essential in delaying and/or preventing AD.^20,26,27 Among secondary metabolites of saffron, crocins are the significant components contributing to its pharmacological properties. Although crocins occur naturally in abundance, however, it undergoes bioactivation in the biological system to produce lipophilic crocetin (aglycone) that crosses the blood–brain barrier. We have previously shown that crocin, trans-crocetin, and safranal display an anti-Alzheimer effect by either Aβ-clearance or blocking neuroinflammation.^20,26,28 Furthermore, the recent pharmacokinetic study revealed the presence of these crocins and crocetin, with picrocrocin and safranal in vivo after oral administration of CSE, demonstrating its role as a promising botanical lead.²⁹ Thus, in the present study, we have carried out quantification studies for these crocins and crocetin. The currently available methods for saffron analysis are based only on one or two marker compounds. Most of the reports lack data on single-laboratory validation or uncertainty of the robust evaluation of these analytical methods.³⁰⁻³² However, the method reported herein comprises seven markers, including four crocetin-esters (crocins), trans-crocetin, picrocrocin, and safranal for quantifying the different batches of the KCS.

Herein, a stigma-based extract-standardized botanical supplement (CSE) was characterized by high-performance thin-layer chromatography (HPTLC), reversed-phase high-performance liquid chromatography with a photodiode-array detector (HPLC-PDA), and triple quadrupole mass spectrometry (TQ-MS/MS) analyses. A new HPTLC method was developed as a visual aid for the rapid qualitative analysis of stigmas, stamens, and tepals of KCS along with CSE at 254 and 366 nm. A sensitive HPLC-PDA method was developed to determine the apocarotenoids (picrocrocin, safranal, trans-4-GG-crocin, trans-3-Gg-crocin, cis-4-GG-crocin, and trans-2-gg-crocin with trans-crocetin) simultaneously in CSE with single-laboratory validation and measurement of uncertainty data. In addition, a total of 36 compounds from apocarotenoids and flavonoid classes were identified via HPLC, followed by a comprehensive profile by the MS/MS method. Therefore, the identification by HPTLC fingerprinting, robust quantification by HPLC-PDA, and characterization of MS/MS give the composition of KCS and CSE with its adaptability for any product manufacturers and researchers.

2. Results and Discussion

2.1. Morphological and HPTLC Profiling of KCS Flower

Saffron is a perennial herb, about 20–30 cm tall, with three types of roots: adventitious, absorbing, and contractile. The number of fragrant flowers arising from each corm is 1–4, depending upon the size of the corm. Perianth segments are 3–5 cm in length and 1–2 cm wide, dark lilac or violet to purple, rarely reticulate veined at the collar, and obovate or oblanceolate with a blunt tip. The anthers are 15–20 mm long, and the ovary is inferior, three-locular, syncarpous with an orange-red style situated adjacent to or below the soil surface. A single three-parted pistil with an inferior ovary and a long style terminating with three red stigmas underneath yellow stamens to purple tepals is a characteristic feature of the saffron flower (Figure 1).

Figure 1.

Kashmir saffron (C. sativus L.). Habit (A), local gradings of Kashmir saffron (B), dried stigmas (C), stamens (D), and tepals (E).

Thus, this KCS flower and its parts such as stigmas, stamens, and tepals were further characterized by HPTLC profiling in this study. The mobile phase was developed as ethyl acetate: methanol: water (9:2:1.5 v/v/v) on a normal-phase silica gel plate followed by visualization at 254 and 366 nm and a visible-light NP-PEG derivatizing reagent. The characteristic R_f values at 0.63, 0.15, 0.33, 0.53, 0.73, and 0.42 confirmed the presence of apocarotenoids (1–3) and flavonoids (8–10) under optimized conditions (Table 1) (Figure 2).

Table 1. Identification of Analytes with R_f Values by HPTLC Profiling under Optimized Conditions.

compound. no.	analytes	Rf	before derivatization-UV (254 nm)	after derivatization-visible	after derivatization-UV (366 nm)
1	picrocrocin	0.63	black
2	trans-4-GG-crocin	0.15	light gray	yellow	light gray
3	trans-3-Gg-crocin	0.33	light gray	yellow	light gray
8	kaempferol 3-O-β-sophoroside	0.53	light gray	light yellow	yellowish white
9	kaempferol-O-glucoside	0.73	light gray	pale yellow	yellowish white
10	quercetin-3,4′-di-O-glucoside	0.42	light gray	yellowish-brown	yellowish orange

Figure 2.

Structure of apocarotenoids and flavonoids from Kashmir saffron (C. sativus L.). Picrocrocin (1), trans-4-GG-crocin (2), trans-3-Gg-crocin (3), cis-4-GG-crocin (4), trans-2-gg-crocin (5), trans-crocetin (6), safranal (7), kaempferol-3-O-β-sophoroside (8), quercetin-3-O-sophoroside (9), and quercetin-3,4′-di-O-glucoside (10).

The stigma samples showed compounds (1–3 and 8) distinctly at 254 and 366 nm after derivatization. The compound (3) picrocrocin was present only in stigmas, differentiating it from stamen and tepal samples. It showed a light gray band before derivatization at 254 nm. The compounds (2–3) also displayed a blackish band at 254 nm before derivatization and at 366 nm wavelength after derivatization. The flavonoids (8–10) showed characteristic light gray and yellowish-white bands as short-wave UV 254 nm and long-wave UV 366 nm before and after derivatization. The tepals showed the presence of yellowish-white bands for compounds (8) and (9). In contrast, the stamens showed a yellowish-orange band of compound (10) at 366 nm after derivatization and yellowish-brown at visible light (Figure 3).

Figure 3.

HPTLC fingerprinting of flower parts of Kashmir saffron (KCS) under UV 254 nm (A), under 366 nm (B), under white light after derivatization (C), and under UV 366 nm after derivatization (D); track details: T1–T6: reference standards, where, picrocrocin (1), trans-4-GG-crocin (2), trans-3-Gg-crocin (3), kaempferol-3-O-β-sophoroside (8), kaempferol-O-glucoside (9), and quercetin-3,4′ di-O-glucoside (10); T7–T10: the stigma of KCS; T11–T14: stamens of KCS; and T15–T18: tepals of KCS.

Along with the above-mentioned KCS compounds, the optimized method shows the following distinctive unknown zones differentiating in the profile of flower parts: before derivatization in stigmas (254/366 nm; R_f 0.25, 0.45, and 0.74), stamens (366 nm; R_f 0.40 and 0.56), and tepals (366 nm; R_f 0.35) and after derivatization in stigmas (R_f 0.20, 0.45) and tepals (R_f 0.35) at 366 nm in KCS samples.

Thus, the above-mentioned method was found suitable for rapid authentication and visual comparison of various flower parts (stigmas, stamens, and tepals). Furthermore, these data provided a novel and cost-effective qualitative analysis for the authentication of the KCS flower.

2.2. Liquid Chromatography-Photo Diode Array (HPLC-PDA) Analysis

2.2.1. Matrix Extraction Optimization

Solvents play a critical role in the selective extraction and stability of the compounds, especially carotenoid-based constituents from the plant matrix. Bioactive components of saffron are well known for rapid degradation and isomeric conversion during analysis. Therefore, the matrix extraction was a crucial step to avoid variations in the analysis of saffron and its products. Different solvents and their combination were applied to the samples (CSE) for maximum and consistent separation with the extraction of targeted analytes (1–7) (Figure 2). The extraction solvents were chosen based on the literature and the solubility of targeted apocarotenoids.^25,28−32 The solvent system 1 [dimethyl sulfoxide (DMSO)/methanol, 20:80 v/v], solvent system 2 (water/methanol, 50:50 v/v), solvent system 3 (water), solvent system 4 (methanol), and solvent system 5 (DMSO) were optimized with ultrasonication-assisted extraction with temperature (25–30 °C) followed by HPLC analysis. A simple liquid–liquid extraction technique of solvent system 1 (DMSO: methanol, 20:80 v/v) was finalized for further analysis based on stability, the maximum response of targeted analytes with reproducible results compared to other solvents (Figures S1–S3, Supporting Information).

2.2.2. Chromatographic Condition Optimization

The HPLC method was developed to achieve a reproducible method by optimizing mobile-phase composition, column oven temperature, wavelength, flow rate, and change columns. A gradient program was used to separate the active constituents in a single run. The detection wavelengths were set according to the ultraviolet (UV) absorption maxima (λmax) of compounds. Apocarotenoids (1 and 7) were detected at 250 and 320 nm, respectively, and (2–6) were found at higher UV absorption (440 nm). These seven compounds were eluted separately in the following order: 1–7 at Rt 7.435, 8.555, 8.971, 9.783, 10.261, 13.419, and 14.059 min, respectively (Figure S4, Supporting Information).

2.2.3. Single-Laboratory-Based Validation Data

2.2.3.1. System Suitability

In the suitability of the system, the following parameters were considered to define the optimal performance of the method. (i) Injection of mix standard preparation in duplicate; (ii) peak resolution between 2 and 3 which was found to be >2.0; (iii) the tailing factor for each analyte, found as <1.5; and (iv) the relative retention time for crocins compared to compound (2) which was found to be 1.047 for (3), 1.145 for (4), 1.198 for (5), and 1.567 for (6). The repeatability precision of area and Rt was <2.0 with theoretical plates (>2000).

2.2.3.2. Linearity, LOD, and LOQ

The mean peak areas of the linearity standards were plotted against concentration. After performing linear regression, the linearity was assessed by determining goodness-of-fit (coefficient of the correlation) at eight different levels to address the wide range of the applicability. The residuals (SSR) over these concentration ranges were determined with AUC (peak area/concentration) at each concentration level (Figure S5, Supporting Information). The linear regression plots in CCS were linear with R² > 0.999 with a reduced Y-intercept in most cases for all compounds (Table 2). The range for each analyte was found to be linear and as follows: 0.78–100 μg/mL (1–2), 0.31–40 μg/mL (3), 3.12–400 μg/mL (4–5), and 0.16–20 μg/mL (6–7). The limits of detection (LODs) for compounds (1–7) were found to be 0.178, 0.277, 0.095, 0.978, 0.877, 0.048, and 0.040 μg/mL, with limits of quantitation (LOQs) as 0.844, 0.839, 0.288, 2.964, 2.659, 0.146, and 0.122 μg/mL, respectively (Table 3).

Table 2. Linear Regression Range, LOD and LOQ, Recovery, and Precision of the Developed HPLC-PDA Method at Different Concentrations of Picrocrocin, trans-4-GG-Crocin, trans-3-Gg-Crocin, cis-4-GG-Crocin, trans-2-gg-Crocin, trans-Crocetin, and Safranal in HPLC-PDA Single-Laboratory-Based Validation.

analyte	Rt	wavelength (mm)	range (μg/mL)	linear regression equationa	R2	LOD (μg/mL)	LOQ (μg/mL)	average recoveryb (±SD)	intermediate precision (%, RSD)
picrocrocin	7.435	250	0.78–100	y = 15392x – 955.9	1.000	0.178	0.844	90.36 ± 0.55	0.684
trans-4-GG-crocin	8.555	440	0.78–100	y = 58363x + 20042	0.999	0.277	0.839	82.49 ± 2.48	0.506
trans-3-Gg-crocin	8.971	440	0.31–40	y = 82239x – 658.89	0.999	0.095	0.288	86.55 ± 2.15	1.674
cis-4-GG-crocin	9.783	440	3.12–400	y = 925.81x + 2302	0.999	0.978	2.964	88.65 ± 1.95	0.544
trans-2-gg-crocin	10.261	440	3.12–400	y = 1799.9x – 295.52	0.999	0.877	2.659	90.78 ± 2.15	0.525
trans-crocetin	13.419	440	0.16–20	y = 73529x – 2315.7	1.000	0.048	0.146	90.96 ± 2.63	0.577
safranal	14.059	320	0.16–20	y = 33447x + 271.5	1.000	0.040	0.122	92.96 ± 0.91	0.557

^aLinear regression replications (n = 8 × 5).

^b% recovery (n = 3 × 3) and precision (n = 6 × 3).

Table 3. Linearity Results and Precision of Area and Retention Time of Standard Solution by HPLC-PDA Methodology^a.

		peak response (AUC)			retention time (Rt)
compound	*concentration	mean peak area	**RSD	R2	mean (min)	**RSD
picrocrocin	0.78	13,119	1.244	1.0000	7.44	0.066
	1.56	25,334	0.221		7.45	0.132
	3.13	48,211	0.648		7.45	0.081
	6.25	94,756	0.931		7.47	0.073
	12.5	186,033	0.525		7.46	0.060
	25	387,530	1.026		7.47	0.154
	50	762,967	0.242		7.47	0.060
	100	1,540,760	0.142		7.46	0.100
trans-4-GG crocin	0.78	46,612	0.342	0.9999	8.56	0.052
	1.56	94,230	0.515		8.56	0.057
	3.13	185,125	0.104		8.56	0.064
	6.25	370,392	1.038		8.56	0.000
	12.5	737,008	0.592		8.57	0.000
	25	1,542,668	0.879		8.57	0.107
	50	2,996,811	0.230		8.57	0.057
	100	5,814,605	0.167		8.57	0.057
trans-3-Gg crocin	0.31	25,326	0.149	0.9999	8.97	0.061
	0.63	51,050	0.674		8.97	0.061
	1.25	100,145	0.078		8.98	0.061
	2.5	200,421	1.042		8.98	0.055
	5	399,730	0.592		8.98	0.067
	10	840,876	0.881		8.98	0.109
	20	1,645,852	0.223		8.99	0.075
	40	3,284,919	0.090		8.98	0.067
cis-4-GG crocin	3.12	3517	1.363	0.9999	9.78	0.056
	6.25	6349	0.614		9.76	0.000
	12.5	14,124	0.848		9.76	0.050
	25	25,724	0.959		9.76	0.062
	50	49,984	0.700		9.76	0.070
	100	97,005	0.454		9.76	0.000
	200	187,596	0.276		9.76	0.062
	400	371,869	0.117		9.77	0.057
trans-2-gg crocin	3.12	6203	0.610	1.0000	10.25	0.059
	6.25	11,923	1.193		10.23	0.089
	12.5	23,244	0.658		10.23	0.069
	25	45,552	0.466		10.23	0.049
	50	90,122	0.675		10.23	0.079
	100	177,148	0.144		10.23	0.099
	200	356,131	0.563		10.23	0.059
	400	722,238	0.206		10.23	0.099
trans-crocetin	0.16	11,270	0.454	1.0000	13.42	0.033
	0.31	22,426	0.774		13.42	0.033
	0.63	44,264	0.218		13.42	0.041
	1.25	88,390	1.103		13.43	0.037
	2.5	176,108	0.601		13.43	0.037
	5	370,557	0.968		13.43	0.045
	10	728,893	0.221		13.44	0.000
	20	1,469,695	0.071		13.43	0.045
safranal	0.16	6250	0.964	0.9996	14.05	0.035
	0.31	11,433	1.114		14.05	0.053
	0.63	21,535	0.286		14.06	0.063
	1.25	41,788	1.005		14.06	0.067
	2.5	81,578	0.567		14.07	0.035
	5	169,766	0.989		14.07	0.043
	10	332,776	0.055		14.07	0.043
	20	669,921	0.042		14.06	0.053

^a*μg/mL, **relative standard deviation.

2.2.3.3. Specificity and Selectivity

The peaks were well separated, with similar retention times to the individual standard injection. Few other peaks were also observed in the samples compared to individual standards. However, the major composition of CSE consists of apocarotenoids (1 and 7) detected at 250 and 320 nm, respectively, with compounds 2–6 detected at 440 nm. The relative Rt of apocarotenoids (2–6) was observed to be similar to those in the mixed standard. The UV spectra of the corresponding standard and the peak purities based on PDA spectral analysis were >0.99 in each analyte. The RRt of 2–6 was found at 1.047 for (3), 1.145 for (4), 1.198 for (5), and 1.567 for (6) with 1.00 for (2). Identification of analytes in CSE was determined by comparing peak retention times and the UV spectrum to reference standards. All seven compounds were eluted separately in the following order: compound (1) at 250 nm, compounds (2–6) at 440 nm, and compound (7) at 320 nm.

2.2.3.4. Precision Studies

The intermediate precision of validation was carried out based on the measurement of each analyte content on a different day, and different analysts with concentration levels were 200 μg/mL (n = 6) (% relative standard deviation (RSD), <2.0) (Table 2). The repeatability precision of standards was determined based on measuring the peak area and retention times. Percentage RSD from five replicate injections of standard solution at each concentration was found to be <2.0. The repeatability was carried out to determine the content of each analyte in CSE. The sample analysis was performed in triplicate in two concentration levels as 100 and 200 μg/mL (% RSD, <1.0) for each analyte. The reproducibility was carried out to determine the content of each analyte in CSE. The samples were prepared in six concentration ranges 6.25–200 μg/mL; analysis was performed five times with % RSD, <1.2 for the content of each analyte (Tables S1, S2, Supporting Information).

2.2.3.5. Recovery and Solution Stability

The average recovery of each analyte was found to be 90.36% (1), 82.49% (2), 86.55% (3), 88.65% (4), 90.78% (5), 90.96% (6), and 92.96% (7). It showed the accuracy of the method for targeted analytes in ambiguous matrices.

The solution stability was evaluated every 7 h with standard stock solutions and CSE. The chromatographic profile of the analyte in reference standards and sample solution did not exhibit any significant change over 42 h at autosampler stability. In addition, no significant decrease in total content in the sample extract over 42 h was observed at autosampler temperature (Figures S6 and S7 and Tables S3 and S4, Supporting Information).

2.2.4. HPLC-PDA Quantification of Apocarotenoids in CSE

The quantification of the developed method can be used for routine analysis of quality control (QC) and research laboratories. Herein, a reversed-phase approach for rapid matrix extraction for polar solvents was utilized to obtain chromatographic profiling and standardized CSE fingerprinting (Figure 4). This approach can also be applied to hyphenated techniques such as LC–MS/MS to confirm apocarotenoids and flavonoids in CSE. The CSE profile was generated in 10 batches (n = 3) to develop a robust method (Table 4).

Figure 4.

Kashmir saffron (C. sativus L.)-based botanical supplement (CSE) standardization by batch analysis (n = 3) by HPLC-PDA analysis. Representative chromatogram at wavelengths of 250 nm (compound 1), 440 nm (compound 2–6), and 320 nm (compound 7).

Table 4. Quantification Results for Percent in the Kashmir Saffron (C. sativus L.) Extract (CSE) from Batch Analysis by HPLC-PDA^a.

	batch analysisb
analyte	#CSE01	#CSE02	#CSE03	#CSE04	#CSE05	#CSE06	#CSE07	#CSE08	#CSE09	#CSE10
picrocrocin	9.310 ± 0.035	9.110 ± 0.060	9.951 ± 0.128	9.551 ± 0.062	9.151 ± 0.075	8.782 ± 0.085	8.361 ± 0.095	8.965 ± 0.085	9.231 ± 0.095	9.528 ± 0.086
trans-4-GG crocin	9.120 ± 0.022	8.750 ± 0.011	8.921 ± 0.026	9.045 ± 0.006	8.915 ± 0.005	9.538 ± 0.040	8.748 ± 0.035	9.218 ± 0.025	9.517 ± 0.045	9.256 ± 0.055
trans-3-Gg crocin	1.151 ± 0.005	1.560 ± 0.007	1.691 ± 0.008	1.674 ± 0.005	1.264 ± 0.003	1.158 ± 0.013	0.945 ± 0.010	1.645 ± 0.015	1.315 ± 0.020	1.478 ± 0.030
cis-4-GG crocin	0.243 ± 0.001	0.119 ± 0.004	0.107 ± 0.045	0.156 ± 0.002	0.131 ± 0.001	0.170 ± 0.005	0.190 ± 0.015	0.165 ± 0.010	0.125 ± 0.009	0.156 ± 0.010
trans-2-gg crocin	0.495 ± 0.002	0.211 ± 0.002	0.222 ± 0.003	0.245 ± 0.002	0.353 ± 0.003	0.280 ± 0.012	0.270 ± 0.010	0.285 ± 0.013	0.210 ± 0.015	0.295 ± 0.009
trans-crocetin	0.048 ± 0.010	0.040 ± 0.001	0.046 ± 0.002	0.047 ± 0.005	0.060 ± 0.008	0.035 ± 0.015	0.040 ± 0.003	0.046 ± 0.002	0.048 ± 0.003	0.040 ± 0.002
safranal	0.041 ± 0.001	0.022 ± 0.001	0.017 ± 0.001	0.026 ± 0.007	0.020 ± 0.009	0.025 ± 0.003	0.020 ± 0.001	0.022 ± 0.002	0.024 ± 0.001	0.021 ± 0.001

^aData represented in (mean ± SD).

^bBatch analysis (n = 10 × 3).

This was further confirmed by the untargeted identification of carotenoid and apocarotenoid from CSE by LC–MS/MS analysis in both negative and positive ionization scan modes. The compounds present in CSE samples were additionally confirmed from 3D information (UV–vis spectrum, Rt, and MS spectrum) (Table S5 and Figure S8, Supporting Information).

2.2.5. Assessment of Uncertainty

The expanded uncertainty of the method for quantifying compounds (1–7) in CSE was calculated. The sources of uncertainty, which were considered, are the uncertainty associated with reproducibility, instrument operation, standard and sample weights, and its dilutions (Figure S9, Supporting Information). The observed significant influence in the combined uncertainty comes from standard preparation. This is due to the number of sources of uncertainty (purity of standard, weight, calibration, and dilution) and concentration of the standard and sample at a level of mg/mL. In the contribution of uncertainty associated with validation data, the low influence of recovery uncertainty gives an idea for the good accuracy of the method. For the EURACHEM guideline and method validation approach, the expanded uncertainty U_exp at a 95% confidence level was obtained by multiplying the combined uncertainties by the coverage factor (K = 2). The results of the seven compounds and their overall uncertainty are about 9.22 ± 1.34, 9.49 ± 1.37, 1.46 ± 0.21, 0.35 ± 0.05, 0.57 ± 0.08, 0.053 ± 0.008, and 0.047 ± 0.007%, for apocarotenoid quantification (Table 5).

Table 5. Contributions of the Combined Uncertainties (U_comb) with Expanded Uncertainty (U_exp) at the 95% Confidence Level with K = 2, Coverage Factor According to the EURACHEM Guide.

sr. no.	analyte	mean average content (%)	Ucomb (%)	Uexp (%) (K = 2, 95%)
1	picrocrocin	9.22	0.67	1.34
2	trans-4-GG crocin	9.49	0.69	1.37
3	trans-3-Gg crocin	1.46	0.11	0.21
4	cis-4-GG crocin	0.35	0.03	0.05
5	trans-2-gg crocin	0.57	0.04	0.08
6	trans-crocetin	0.053	0.004	0.008
7	safranal	0.047	0.0035	0.007

2.3. HPTLC Characterization of Apocarotenoids and Flavonoids in CSE (n = 10)

A simple and rapid HPTLC fingerprinting was performed for apocarotenoids (1–3) and flavonoids (8) in the batch analysis of CSE samples (n = 10). All four marker compounds (1–3 and 8) showed major bands at 366 nm and under white light after derivatization with the NP-PEG reagent. This method was found to be useful when it was applied to the standardized extract and botanical supplement of KCS stigmas. The apocarotenoids (1–3) with flavonoid (8) were observed prominently in all CSE samples (Figure 5).

Figure 5.

HPTLC fingerprinting of the stigma-based botanical supplement from KCS (n = 10) with reference standards under UV 254 nm (A), under UV 366 nm (B), under white light after derivatization (C), and under 366 nm after derivatization (D). Track details: T1–T4: reference standards, where picrocrocin (1), trans-4-GG-crocin (2), trans-3-Gg-crocin (3), and kaempferol-3-O-β-sophoroside (8), and T5–T14: samples of stigma-based botanical supplements (CSE).

After derivatization with the NP-PEG reagent, the yellow-colored and dark brownish bands showed confirmed major compounds (1–3 and 8) at white light and 366 nm in CSE samples using Camag TLC visualizer 2. Thus, this method was found to be rapid and useful for visual aid identification of stigmas and its extracts in the QC and processing of KCS.

2.4. LC–MS/MS-Based Identification of Apocarotenoids and Flavonoids from KCS and Its Botanical Supplements

An untargeted identification of bioactive constituents from CSE samples was achieved by HPLC-based ESI-MS/MS analysis in both negative and positive ionization modes. These compounds were found from the classes of apocarotenoids and flavonoids mainly. In addition, the structural correlation and confirmation were investigated based on possible fragmentation characteristics of compounds and the information from the literature^30,33−40 (Figure 6).

Figure 6.

LC–MS/MS TIC of 36 compounds from apocarotenoids and flavonoids from KCS and its botanical supplements in the positive and negative mode.

Recently, the identification of picrocrocin and related compounds has gained much attention. Picrocrocin (1) is a monoterpene precursor of an aroma compound safranal (7) which forms due to the cleavage of carotenoids and is known as apocarotenoids. Due to the polar nature, these apocarotenoids elute early from Rt 2.9–7.12 min with a characteristic UV wavelength (208–286 nm). These apocarotenoids were illustrated as AP1–AP4, AP6–AP17, and AP36 in Figure 6. The minor compounds, kaempferol derivatives, were found at Rt of 3.9, 7.8, and 11.8 min identified as FL5, FL19, and FL34, respectively, in CSE with characteristic UV max (320–350 nm) with distinct polar R_f in HPTLC analysis.

The major group identified is apocarotenoids as crocin derivatives and crocetins with the sugar moieties [like β-d-glucose (g), β-d-gentiobiose (G), β-d-neapolitanose (n), and tri-β-d-glucose(t)]. The isomeric forms of crocins were identified at Rt 7.5–11 min with comparative elution of crocetins after 12 min. Mainly sodium and potassium adducts separated by 16 Da were found with precursors in the crocin analysis as higher energy gives suitable product ions. Due to the complexity of the crocin structure and its isomeric forms, the MS/MS analysis based on polarity, the conversion of crocin to crocetin, ester-sugar moieties, and reference standards was used to ascertain these lesser stable compounds. The peaks were assigned and ascertained as CR18 and CR20–CR35 by ESI-MS/MS (Figure S10, Supporting Information).

Thus, the structure of 36 compounds present in the standardized extract of C. sativus was fully or partially characterized using the combined interpretation of the Rt, R_f, UV spectra, precursor ion, and fragmentation patterns of the compounds obtained by HPLC-PDA, HPTLC, and MS/MS analyses (Table 6). These data were compared with experimental and literature data, those for the flavonoids and apocarotenoids present in Crocus species (SR2, Supporting Information for reviewers).^30,33−40

Table 6. Summary of Chemical Constituents Identified in the Standardized Botanical Supplement by LC–MS/MS.

							m/z observed
sr.no.	retention time (Rt)	Rf	(λmax)a	peak number	MFb	MWc	+ve mode	–ve mode	references
1	2.943		208	AP1	unknown		349, 367	345, 355
2	3.115		212	AP2	unknown		348, 370
3	3.640		225, 262	AP3	C16H24O8	344	345, 367		(30)
4	3.866		231, 286	AP4	C16H28O8	348	371, 387	391	(30)
5	3.982			FL5	kaempferol-3.7.4′-triglucoside	773	773, 795	771, 817	(30, 35, 36)
6	4.121		238	AP6	C20H30O13	478	501	523	(30)
7	4.367		241	AP7	C20H30O13	478	501		(30)
8	4.648		245	AP8	unknown	434	435, 467
9	4.821		245	AP9	C20H30O13	332	355, 371	377
10	5.013		242	AP10	(C16H26O8)	346	369, 385, 410	391, 417	(30)
11	5.400		249	AP11-12	C14H20O8	316	355, 317, 339	361, 429	(30)
12	5.596		248	AP13	C22H36O12	492	515	537	(30)
13	6.019		248	AP14	unknown	360	383	473
14	6.680		247	AP15	unknown	330	353,	376, 365, 443
15	6.901		254	AP16	unknown	343	366, 406	387
16	7.172	0.63	250	AP17	picrocrocin	330	353, 369, 399	376, 365, 443	(30, 36)
17	7.563		244, 262	CR18	unknown	453	454, 476	565, 497, 566
18	7.856	0.53	442	FL19	kaempferol-3-sophoroside	610	611, 633	609, 610, 655	(30, 38, 39)
19	8.119		439	CR20	trans-5-tG-crocin	1138	329, 635, 1161	1183	(35, 38)
20	8.273		418, 436	CR21	trans-5-nG-crocin	1138	329, 635, 1161	1183	(28, 30)
21	8.530	0.16	440, 463	CR22	trans-4-GG-crocin	976	329, 681, 999,	723, 533, 1021	(28−30, 36, 37, 40)
22	8.725		439, 462	CR23	unknown		794, 816
23	8.925	0.33	437	CR24	trans-3-Gg-crocin	814	837, 832, 814, 815	859, 860, 849	(28−30, 36, 40)
24	9.28		440, 463	CR25	cis-5-tG-crocin	1138		1138	(48)
25	9.446		436	CR26	trans-2-G-crocin	652	329, 547, 675, 837	697, 765, 249	(28, 30, 37, 39, 40)
26	9.516		434	CR27	cis-5-nG-crocin	1138	329, 625, 837, 1139		(30, 43)
27	9.786		431	CR28	cis-4-GG-crocin	976	329, 508, 697, 735, 999	651, 975, 1089	(30, 37, 40, 43)
28	10.259		434, 457	CR29	trans-2-gg-crocin	652	329, 651, 675, 691	697, 651, 698	(30, 38−40)
29	10.279		433, 456	CR30	cis-3-Gg-crocin	814	329, 837, 675	697, 765, 859	(28, 30, 33, 37)
30	10.880		252, 427	CR31	cis-2G-crocin	652	329, 541, 675	563, 631, 517	(30, 37, 40)
31	11.122		251, 426	CR32	trans-1-g-crocin	490	554, 329, 513	535, 525, 681	(28, 30, 40)
32	11.370		255, 432	CR33	cis-2-gg-crocin	652	274, 329, 675		(28, 30, 39)
33	11.984			FL34	dihydro kaempferol	288	288, 330	286, 354
34	13.486		425, 450	CR35	trans-crocetin	328	329, 594		(28, 30, 36, 43)
35	14.146		265	AP36	safranal	150	151, 192		(28, 30, 36, 39)

^aWavelength.

^bMolecular formula.

^cMolecular weight.

2.5. MS/MS Characterization and Fragmentation of Compounds (1–7) in HPLC Analysis

The primary composition of CSE comprises compounds (1–7) detected at Rt 7.172, 8.530, 8.925, 9.446, 9.786, 10.259, and 14.146 min as peaks AP17, CR22, CR23, CR24, CR26, CR28, CR29, and AP36, respectively, from TIC data. These seven apocarotenoids were further characterized by MS/MS analysis to study their fragmentation pattern based on the precursor and product ions.

Compound (1) picrocrocin showed m/z 331.3 [M+H]⁺ as a prominent ion which on fragmentation gets converted into safranal (7) m/z 151.0 (loss of one sugar molecule, 180 Da), which further showed the loss of (C₄H₆O) m/z 81.4. Similarly, compound (7) which showed fragmentation gives two major fragments at m/z 123.1 (loss of CO molecule, 28 Da) and m/z 81.0 (loss of C₄H₆O molecule, 70 Da) (Figure 7A,B).

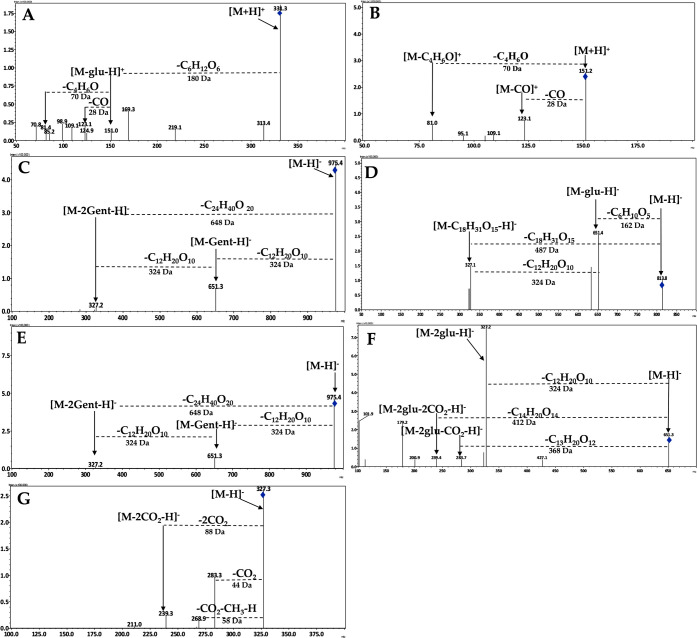

Figure 7.

Positive and negative ESI-MS/MS spectra highlighting the main fragments of detected peaks as (AP17) picrocrocin and (AP36) safranal (A,B) with (CR22) trans-4-GG crocin, (CR24) trans-3-Gg crocin, (CR28) cis-4-GG crocin, (CR29) trans-2-gg crocin, and (CR35) trans-crocetin (C–G), respectively. In the case of these apocarotenoids, the fragmentation patterns were in accordance with those proposed by refs (26) and (30).

The crocins and their derivatives (2–6) showed characteristic fragmentation with loss of sugar moieties in MS/MS analysis. Compound (2) trans-4-GG-crocin fragmentation with m/z 975.4 was led by three major fragment ions, [M–H]⁻, m/z 651.25 (loss of a gentiobiose sugar moiety 324 Da), and [M–2Gent-H]⁻, m/z 327.20 (loss of both gentiobiose sugar moieties, each 324 Da). Compound (3) trans-3-Gg-crocin also showed characteristic m/z 814.8 followed by removal of a gentiobiose sugar moiety (324 Da) at m/z 651.25 with subsequent removal of a sugar molecule (162 Da, C₆H₁₀O) further as the trans-crocetin (6) ion as m/z 327.1 [M–H]⁻ which is unanimously the most prominent ion observed among all crocins. Compound (5) trans-2-gg-crocin with the precursor ion at m/z 651.3 in the negative mode showed loss of the gentiobiose moiety (324 Da) with two other fragments as m/z 283.7 (loss of the −2CO₂ group) and m/z 239.4 (loss of the CO₂ group) in MS/MS fragmentation. The compound (4) was found unstable as cis-4-GG-crocin with a similar precursor and product ions, suggesting a fragmentation pattern in accordance with trans-4-GG-crocin, which is a more stable form. Compound (6) trans-crocetin was the most prominent and comparatively nonpolar fragment observed with all crocins, which showed four fragments at m/z 283.3 (loss of CO₂ groups, 44 Da), m/z 268.9 (loss of CO₂–CH₃, 58 Da), and m/z 239.4 (loss of the 2CO₂ group) from its precursor m/z 327.3 in these data. The studied fragmentation pattern is represented in Figure 7C–G.

3. Conclusions

Kashmir saffron (C. sativus L., KCS), a well-known food condiment, is an ideal lead for a botanical supplement with its unique cultivated supply and rich heritage. Additionally, the Indian traditional medicinal systems and modern scientific data validate this botanical’s efficacy in brain health. Thus, the present study and data for the validated HPLC-PDA method with HPTLC and LC–MS/MS can be used to standardize this popular food condiment in the botanical-health supplement segment. These methods were applied to characterize apocarotenoids and flavonoids in KCS and its standardized botanical supplement (CSE).

An HPTLC analytical approach with the precise detection mode was helpful in the identification of picrocrocin and flavonoids as distinct patterns in fingerprinting for flower parts and CSE. The rapid HPLC-PDA method for the simultaneous quantification of KCS apocarotenoids was robust, precise (<5.0%), linear (R² > 0.99), and accurate (80–110%) as per the single-laboratory validation data. This HPLC-PDA method was found to be sensitive and specific for routine analysis of apocarotenoids, measuring uncertainty. The results showed that uncertainty associated with the KCS and CSE analysis has more influence of the reference standard and sample preparation than other HPLC methodology factors. These findings are in accordance with the study’s aim for precise and reproducible results of targeted KCS apocarotenoids compared with different solvent systems. Furthermore, a specific MS/MS fragmentation-based rapid screening with detailed structural identification of 36 compounds is helpful in the CSE composite profile. Data obtained by UV-based HPTLC and HPLC-PDA methods were found to be a precise approach to establish a QC method for KCS and its extract-based botanical health supplements.

Hence, the results suggest that this validated analytical method can be applied to quantify apocarotenoids obtained from the stigma extract of C. sativus L. in different preclinical and clinical studies. The absorption, distribution, metabolism, and excretion of these KCS constituents (pharmacokinetics), along with their effects (pharmacodynamics), could be studied quantitatively and qualitatively with these robust analytical investigation techniques.

4. Materials and Methods

4.1. Plant Material and Extract

Samples were collected from Srinagar (Jammu and Kashmir), India, for this study. The sample was identified and authenticated from the Botanical Survey of India (Jodhpur), with voucher specimen (BSI/AZRC/1.12012/Tech./19-20/(PI.Id)/671). The herbarium specimens and samples were deposited in the Botanical Repository of Pharmanza Herbal Pvt. Ltd., Gujarat, India (Table 7). The dried stigmas were grounded to a coarse powder (200 g) and extracted with ethanol–water at 40 °C for 3 h. Extraction was repeated twice, followed by distillation of the solvent below 50 °C with yield (20%). The extract powder (CSE) obtained was stored in an amber-colored bottle below −4 °C after distillation. The CSE (110 g) was suspended in water, followed by partitioning with hexane-ethyl acetate. Furthermore, the hexane-ethyl acetate fraction (12 g) compound 1 (28 mg) and compound 6 (34 mg) were isolated and characterized by nuclear magnetic resonance (NMR) and MS/MS analysis (SR1, Supporting Information for reviewers).^27,28

Table 7. Locations, Flower Parts, and Accession Numbers of Samples of Kashmir Saffron (C. sativus).

sr. no.	flower part	accession no.a	location (district)
1	stigma	2101-A	Pampore (Pulwama)
2	stamen	2101-B	Pampore (Pulwama)
3	tepal	2101-C	Pampore (Pulwama)
4	stigma	2102-A	Dawlatpura (Budgam)
5	stamen	2102-B	Dawlatpura (Budgam)
6	tepal	2102-C	Dawlatpura (Budgam)
7	stigma	2103-A	Sampora (Srinagar)
8	stamen	2103-B	Sampora (Srinagar)
9	tepal	2103-C	Sampora (Srinagar)
10	stigma	2104-A	Poochal (Kishtwar)
11	stamen	2104-B	Poochal (Kishtwar)
12	tepal	2104-C	Poochal (Kishtwar)

^aAccession numbers.

4.2. Chemicals and Standards

Compounds used in this study are picrocrocin (1), trans-4-GG-crocin (2), trans-3-Gg-crocin (3), cis-4-GG-crocin (4), trans-2-gg-crocin (5), trans-crocetin (6), safranal (7), kaempferol 3-O-β-sophoroside (8), kaempferol-O-glucoside (9), and quercetin-3,4′-di-O-glucoside (10) (Figure 2). Compounds (1 and 6) were isolated in-house using previously reported extraction and column chromatographic methods and further characterized by ¹H and ¹³C NMR, LC–MS/MS, and HPLC-PDA. The reference standards were procured from the following suppliers: compounds (2–3) were procured from Chromadex (CA, USA) and PhytoLab, (Germany), respectively. Compound 7 and compounds 8–9 and 11 were procured from Sigma-Aldrich (St. Louis, USA) and Chemfaces (Hubei, China), and USP (USA), respectively. Compounds 4–5 were isolated in-house at CSIR-IIIM laboratory (Jammu, India) as per previous reports.²⁵ The purity of reference standards was checked by analyzing high-concentration (1 mg/mL) solution by HPLC-PDA and was found pure (>90%). Acetonitrile, methanol, water (JT Baker, India), and formic acid, MS grade (Fluka, Honeywell, India), were used in the LC–MS/MS study.

4.3. Preparation of Standard Solutions

For HPTLC analysis, compounds 1–3 and 8–10 (1 mg/mL) were prepared with DMSO/methanol (2:8 v/v), and for HPLC-PDA and LC–MS/MS analysis, stock solution of standards (1–3) 0.5 mg/mL, (4–5) 1.0 mg/mL, and (6–7) (0.1 mg/mL) were prepared and stored in amber-colored glass vials at −4 °C until analysis.

4.4. Sample Preparation of Flower Parts for HPTLC Analysis

Dried and powdered crude materials of KCS stigma, stamen, and tepal (1 g) were kept in an HPLC-grade methanol amber-colored volumetric flask for sonication for 10 min at room temperature. After sonication, samples were centrifuged at 5000 rpm for 5 min, and the supernatant was collected, filtered through a 0.22 μm filter, and used for HPTLC analysis.

4.5. Sample Preparation of CSE for HPTLC, HPLC-PDA, and LC–MS/MS Analysis

Accurately weighed CSE (1.0 mg/mL) was transferred in an amber-colored volumetric flask, DMSO/methanol (2:8) was added, and it was sonicated for 10–15 min followed by centrifugation at 5000 rpm for 5 min (1000 μg/mL). The working solution of CSE was prepared with the dilution of methanol (200 μg/mL) used for HPLC-PDA and MS/MS analysis. For HPTLC analysis, the stock (10 mg/mL) and working solution of CSE (1000 μg/mL) were prepared with the same method. All the samples were stored below −4 °C in the dry and solution form during the study.

4.6. Instrumentation and Experimental Conditions

4.6.1. HPTLC Analysis

Samples were applied in the 8 mm band using a Hamilton syringe (100 μL) (Hamilton, Switzerland) on the precoated silica gel plate 60 F₂₅₄ (size 20 × 10 cm × 0.2 mm thickness and particle size 5–6 μm) (Merck, Darmstadt, Germany) using the TLC applicator Linomat 5 (Camag, Switzerland) with vision CATS software (version 3.0.20196.1). The application positions (X and Y) were 20 and 8 mm, respectively, with a development of 80 mm in length. The solvent system used ethyl acetate: methanol: water (9:2:1.5 ) v/v/v) followed by TLC development using a 20 × 10 cm twin trough chamber. The optimized chamber saturation time for the solvent system was 20 min, at the temperature 25 ± 2 °C. The plates were dried and were analyzed at 254 and 366 nm and white light before and after derivatization with the NP-PEG reagent in TLC visualizer 2 (Camag, Switzerland).³³

4.6.2. High-Performance Liquid Chromatography-Photodiode Array-Mass Spectrometry

Chromatography was achieved using a Shimadzu N-Series XS Al-PDA HPLC system. Chromatographic separation was carried out on a Phenomenex Luna, 5 μm C18 (2) 100 Å column (150 × 4.6 mm × 5 μm) at 30 °C. The mobile phase consisted of 0.1% formic acid in water (A) and acetonitrile (B). The gradient condition was 0.01–5.00 min, 20–20% B; 5.00–13.00 min, 20–80% B; 13.00–18.00 min, 80–80% B; and 18.00–21.00 min, 80–20% B. The run time was 25 min, followed by a flow rate of 1.0 mL/min and an injection volume of 10 μL, and the detection wavelengths are 250 nm for (1), 320 nm for (7), and 440 nm for (2–6).

4.6.3. Liquid Chromatography Triple-Quadrupole Mass Spectrometry (LC–MS/MS) Analysis

Qualitative analysis was performed on Shimadzu Nexera X2 (Shimadzu Tech., Kyoto, Japan) consisting of a quaternary pump (LC-30AD), autosampler (SIL-30AC), column oven (CTO-20 AC), and diode array detector (SPD-M20A) and coupled with LCMS-8045 (Shimadzu Tech., Kyoto, Japan). The TQ-MS/MS was equipped with a thermally assisted ESI source with an outlet of the PDA detector connected to a splitter (Split; ratio 4:1) with the same chromatographic conditions with a precolumn (Phenomenex security guard ULTRA with C18 cartridge). The autosampler temperature was set at 15 °C with a flow rate of 1.0 mL/min and an injection volume of 10 μL for total ion chromatogram (TIC) acquisition. Mass analyses were performed for precursor ion scan in both positive- and negative-ion modes at a scan speed of 2000 u/sec with an interface temperature of 300 °C. The desolvation line and heat block temperatures were set to 250 and 300 °C, respectively. The gas flows for nebulizing, heating, and drying gas were kept at flow 10, 3, and 10 L/min, respectively. The sample (CSE) was analyzed in the Q1 scan mode, where the scan range was kept at 100–2000 m/z. The MS/MS fragmentation of compounds (1–7) was carried out in an ESI interface using the MRM mode. The mass resolution was set at 0.05 full width at half-maximum with resolving power Rp (1000–3000). The quadruple setting was set as voltage Q1 RF gain: 4998 Q1 RF offset 4990 and Q1 post-rod bias: −5.0 V CID CELL exit lens: −4.0 V. Datawere analyzed using Lab Solution software (Version 6.80).^{28,34,41−43}

4.7. Single-Laboratory-Based Validation Data of HPLC-PDA

4.7.1. System Suitability and Selectivity

The system suitability was demonstrated for a chromatographic system with retention time (Rt), peak area, peak shape USP tailing factor, theoretical plates (N), capacity factor (k′), resolution (Rs), and the relative retention time (RRt) of each analyte. The selectivity of the analytical method determines the targeted analytes in the multicomponent matrix without the interference of other compounds which was determined by injecting individual reference standards.⁴⁴

4.7.2. Specificity and Linearity

Specificity and linearity were assessed by the method’s accurate and specific analysis of targeted analytes in the range of the method response determining the spectral similarity peak resolution and purity using a PDA detector. The linearity was demonstrated in the range of 0.78–100 μg/mL for standards 1–2, 3.12–400 μg/mL for standards 4–5, 0.16–20 μg/mL for standards 6–7, and 0.31–40 μg/mL for standard 3 with eight concentration levels with a LOD and LOQ.^45,46

4.7.3. Repeatability, Reproducibility, and Intermediate Precision

The required precision was demonstrated by repeatability (at different sample concentrations), reproducibility (at different concentrations), and intermediate precision (under different laboratory conditions) to indicate the robustness and relative error of the developed method. These experiments were carried out for CSE samples as repeatability with three samples at two concentrations (n = 6 × 3) and reproducibility of six concentrations (n = 6 × 3), with intermediate precision (n = 6 × 3). These parameters were investigated for preciseness, accuracy, and reproducibility of the HPLC method for the content of compounds (1–7).

4.7.4. Extraction Recovery and Solution Stability

The accuracy was determined by recovery values ranging from 80 to 110% spiked into different concentration levels of the target analytes with the solution stability for samples and standards until 42 h.

4.8. Calculation of Apocarotenoids

The percentage of apocarotenoids (1–7) was calculated from mean peak areas of the duplicate test solution injections and the mean triplicate mixed standard preparation injection producing the most similar peak areas using the formula

1

4.9. Measurement of Uncertainty

The measurement and assessment uncertainty based on method validation and calibration conditions were estimated according to the procedures recommended by EURACHEM/CITAC Guide CG4/NABL 141 and protocol.^47,48 The exercise includes (i) defining measurement criteria, (ii) identifying the sources of uncertainty, (iii) measuring the uncertainties, and (iv) calculating combined and expanded uncertainty.⁴⁹

4.10. Assessment of Uncertainty

To accurately evaluate the true value of analysis, it is necessary to know the associated uncertainty in which a true value lies. The uncertainty sources were identified and represented in the Ishikawa diagram to identify the influential factors that will affect the analytical results, representing the cause-and-effect analysis.^47,50 Uncertainty analysis applies to the whole analytical measurement process. We found that elemental uncertainties were assigned as either type A or type B during the uncertainty analysis. The difference is defined by the EURACHEM/CITAC Guide CG4/NABL 141 guideline.^47,48 Type A uncertainty (systematic approach) is evaluated by the statistical analysis of method reproducibility (U_rep) with analytical observations. Type A uncertainty cannot be used as the only estimate of the measurement uncertainty. Additional components such as uncertainty associated with laboratory operation (e.g., weighing, dilutions, and certified reference material), bias, instrumental operation (HPLC), and different analysts are considered.

Type A uncertainty was determined by measuring 10 batches of samples under conditions of reproducibility and repeatability. It was quantified using eq 2 as

2

where U_rep is the standard uncertainty of reproducibility, SD is the standard deviation, and n is the independent observations.

For type B uncertainty instrument operation (U_ins), laboratory operation including the weight of the standard, sample, its dilutions (U_mass and U_vol), and purity of reference standards (U_ref) was identified as the random source of uncertainty. The uncertainty of instrument operation (U_ins) was determined by measuring system suitability samples based on eq 2.

The uncertainty of laboratory operation, including the weight of the standard and sample (U_mass and U_vol) considered as rectangular distribution, was estimated by dividing the expanded combined uncertainty (U_cert) (a measured uncertainty from the certificate of analysis or other specification given by the manufacturer) by the coverage factor K = 2 in eq 3.

3

where U_mass and U_vol are the standard uncertainty of weighing and dilution, respectively, U_comb is the combined uncertainty, and 2 is the coverage factor (K). The uncertainty purity of reference standards (U_ref) (in the case of the absence of the certificate) was estimated based on eq 4 derived from rectangular distribution.

4

where U_ref is the standard uncertainty of the reference standard and P is the purity given in manufacturer certificates.

All the identified components, including type A and B, were combined by the rule of error propagation to evaluate the relative combined measurement uncertainty (U_comb) using eq 5

5

6

Finally, expanded combined uncertainty (U_exp) was evaluated by multiplying the U_comb with the coverage factor (K) of 2 (95% confidence level used), eq 6. This exercise helped find the precision and accuracy of these unstable apocarotenoids and their analysis for lab-to-lab variation.⁵¹

Glossary

Abbreviations

TIC

total ion chromatograms

KCS

Kashmir saffron (Crocus sativus L)

CSE

Crocus sativus standardized extract

LOQ

limit of quantitation

LOD

limit of detection

PDA

photodiode array

DMSO

dimethyl sulfoxide

GI

geographical indications

HPLC

high-performance liquid chromatography

g

β-d-glucose sugar

G

β-d-gentiobiose

n

β-d-neopolitanose.s

t

tri-β-d-glucose

MRM

multiple reaction monitoring

Rt

retention time

ESI-MS

electron spin ionization mass spectrometry

u/sec

unit/second

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.1c03470.

• Optimization of matrix extraction; HPLC-PDA validation optimization, linearity repeatability, and reproducibility precision studies; solution stability; LC-based ESI-MS/MS identification and mass scan of apocarotenoids confirmed in CSE; Ishikawa diagram for factors affecting uncertainty in HPLC analysis of apocarotenoids in CSE based on a single-laboratory validation study; and HPLC-ESI-MS/MS chromatogram spectra in the positive and negative mode of KCS compounds from apocarotenoids and flavonoids classes in CSE (PDF)

Author Present Address

^∥ Shobhaben Pratapbhai Patel School of Pharmacy & Technology Management, SVKM’s NMIMS, V.L. Mehta Road, Vile Parle (W), Mumbai-400056, India

Author Present Address

^⊥ Council of Scientific & Industrial Research, CSIR Headquarters, Anusandhan Bhavan, RafiMarg, New Delhi-110001, India.

The authors declare no competing financial interest.
