. 2021 Sep 20;4(1):119–128. doi: 10.1007/s42765-021-00100-z

Non-Leaching, Rapid Bactericidal and Biocompatible Polyester Fabrics Finished with Benzophenone Terminated N-halamine

Shu Wang 1,#, JianNa Li 2,#, Yihong Cao 1, JingWei Gu 1, YuanFeng Wang 1,✉, ShiGuo Chen 1,✉
PMCID: PMC8450708  PMID: 35359822

Abstract

Pathogenic bacteria can proliferate rapidly on porous fabrics to form bacterial plaques/biofilms, resulting in potential sources of cross-transmissions of diseases and increasing cross-infection in public environments. Many works on antibacterial modification of cotton fabrics have been reported, while very few works were reported to endow poly(ethylene terephthalate) (PET) fabrics with non-leaching antibacterial function without compromising their innate physicochemical properties though PET is the most widely used fabric. Therefore, it is urgent to impart the PET fabrics with non-leaching antibacterial activity. Herein, a novel N-halamine compound, 1-chloro-3-benzophenone-5,5-dimethylhydantoin (Cl-BPDMH), was developed to be covalently bonded onto PET fabrics, rendering non-leaching antibacterial activity while negligible cytotoxicity based on contact-killing principle. Bacterial was easily adhered to Cl-BPDMH finished PET fabrics, and then it was inactivated quickly within 10 s. Furthermore, the breaking strength, breaking elongation, tearing strength, water vapor permeability, air permeability and whiteness of Cl-BPDMH finished PET fabrics were improved obviously compared to raw PET fabrics. Hence, this work developed a facile approach to fabricate multifunctional synthetic textiles to render outstanding and rapid bactericidal activity without compromising their physicochemical properties and biocompatibility.

Supplementary Information

The online version contains supplementary material available at 10.1007/s42765-021-00100-z.

Keywords: Poly(ethylene terephthalate), Fabric, Bactericidal, N-halamine, Photochemical reaction

Introduction

Poly(ethylene terephthalate) (PET) fabrics have been widely used in our daily clothes due to their excellent strength, easy processability, quick drying, dimensional stability, and wrinkle resistance [1]. However, pathogenic bacteria can proliferate rapidly on porous PET fabrics to form bacterial plaques/biofilms, resulting in irreversibly damaging their appearance, adversely affecting human health, and increasing cross-infection in public environments [2], since bacterial infection is one of the most serious threat to global safety especially drug-resistant bacteria [3–6]. To endow fabrics with antibacterial activity, ciprofloxacin [7], metal salts and nanoparticles [8–10], metallic oxide [11], rose Bengal [12], chitosan [13–15], betaine [16, 17], surface stereochemistry [18], quaternary ammonium salt(QAS) [19–21]. dopamine-menthol [22], guanidine [23, 24], and N-halamine [25–27] have been developed, and impressive achievements have been gained. Among them, N-halamine has become a popular antimicrobial due to its remarkable antibacterial activity against wide-spectrum pathogens even drug-resistant pathogenic bacteria [25, 28], rapidly inactivating bacteria [29], and reproducible biocidal activity [30, 31]. Moreover, strenuous efforts have been made to develop N-halamine as disinfectants [32, 33] for water treatment [30], food packaging [34, 35], hydrogel [25], and antibacterial fabrics [36, 37]. Siloxane [38–40] or epoxide [41] terminated N-halamines have been developed to fabricate antibacterial cotton fabrics through a powerful covalent-bonding method.

The aforementioned strategies were suitable for natural fibers containing reactive NH2 or OH group, while an effective finishing method to fabricate antibacterial PET fabrics without compromising their intrinsic physicochemical properties is still not satisfactory owing to no reactive group in the PET molecular skeleton [2]. To endow PET fabrics with permanent antibacterial, reactive NH2, COOH, and OH groups were introduced by local destruction of polymer chains, and then the antibacterial constituents were covalently bonded to the locally damaged PET molecular chain through surface coupling reaction [42]. However, those strategies would lead to significant decrease in the mechanical properties and surface roughness of PET fabrics [43]. Therefore, it is urgent to develop a convenient strategy to fabricate permanent antibacterial PET fabrics with well-preserved physicochemical properties. Recently, we developed a benzophenone terminated quaternary ammonium salt (BP-QAS) for PET fabric by a photochemical finishing method, rendering perdurable antibacterial, and anti-mite activities without compromising their physicochemical properties [2]. Therefore, the benzophenone terminated N-halamine may be an optimal antibacterial agent for durable antibacterial PET fabrics. However, hydrophilic surface is not suitable for protective textiles such as medical surgical masks and protective clothing with waterproof requirements.

Herein, 1-chloro-3-benzophenone-5,5-dimethylhydantoin (Cl-BPDMH) was developed to finish PET fabrics by covalent bond via a photochemical hydrogen abstraction reaction. The Cl-BPDMH finished PET fabrics exhibited (i) excellent bactericidal activities against Gram-negative Escherichia coli (E. coli) and Gram-positive Staphylococcus aureus (S. aureus); (ii) greatly improved mechanical properties, softness, and air permeability; (iii) negligible cytotoxicity; (iv) rapidly attaching and killing bacteria; (v) well-preserved water vapor permeability and whiteness. This work proposed a potential avenue to develop non-leaching bactericidal synthetic fabrics with great potential applications including but not limited to water purification, masks, home textiles and protective clothing.

Experimental

Materials

5,5-dimethylhydantoin (DMH, 99%), 4-(Bromomethyl) benzophenone (BP-Br, 99%), trichloroisocyanuric acid (TCCA, 99%), sodium hydroxide (NaOH, 99%), sodium hypochlorite (available chlorine ≥ 8.25%), sodium thiosulfate (Na2S2O3, 99%), and potassium iodide (KI, 99%) were purchased from Energy Chemical Co. Ltd., China. Ethyl acetate (EA, AR), hexane (AR), and acetone (AR) were purchased from Guangzhou Chemical Reagent Factory, China. Gram-negative bacteria E. coli, (ATCC25922), Gram-positive bacteria S. aureus (ATCC6538) were purchased from Guangdong Institute of Microbiology, China. Cell Counting Kit-8 (CCK-8) was purchased from Beyotime Biotechnology Inc. China. NIH 3T3 mouse embryonic fibroblast cells were sent by Zhejiang University.

Synthesis of Cl-BPDMH

The typical synthetic reaction of Cl-BPDMH was following. The intermediate product 3-benzophenone-5,5-dimethylhydantoin (BPDMH, a pale yellow powder) was obtained by a nucleophilic substitution reaction of 5,5-dimethylhydantoin and 4-(bromomethyl) benzophenone (BP-Br) under constant stirring at 80 °C for 24 h (yield, 65%). Then, the crude product Cl-BPDMH was prepared by the chlorination reaction of the BPDMH and trichloroisocyanuric acid under continuous stirring for 12 h at room temperature. And the final product Cl-BPDMH was obtained after being purified by silica gel column chromatography using petroleum ether as the eluent (yield, 84%).

Antibacterial Finishing

The PET fabrics were finished with Cl-BPDMH as following. Typically, the commercial PET fabrics were sequentially immersed in acetone solution for 2 min and purified water for 5 min under ultrasonic vibration, after being dried in blast drying oven at 50 ℃, the clean PET fabrics (defined as raw PET) were obtained. The raw PET fabrics were completely immersed in finishing solution containing Cl-BPDMH (liquor ratio 6:1) at room temperature, then the PET fabrics were irradiated under mild light (1.5 mW, λ = 365 nm) for 1 min. Finally, the Cl-BPDMH finished PET fabrics were obtained after being washed with purified water and air-dried. The PET fabrics finished with different Cl-BPDMH content were defined PET-2 (20 mg/ml), PET-3 (30 mg/ml), and PET-4(40 mg/ml), respectively.

Structural Characterization

Fourier transform infrared (FTIR) spectra of BP-Br, MDH, BPDMH, and Cl-BPDMH were recorded on a Nicolet 6700 FTIR spectrometer with a scan range of 400–4000 cm−1 at a resolution of 4 cm−1 and 32 scans. The proton magnetic resonance (1H-NMR) spectra of BPDMH and Cl-BPDMH were collected on a Bruker Avance-400 spectrometer at 400 MHz by using CDCl3 and DMSO-d6 as solvents, respectively, and tetramethylsilane (TMS) was used as the internal standard. The morphologies of the raw PET and Cl-BPDMH finished PET fabrics were observed by field emission scanning electron microscope (FE-SEM, Hitachi SU-70). The chemical element compositions of the raw PET and Cl-BPDMH finished PET fabrics were determined by energy dispersive X-ray spectroscopy (EDS) elemental mapping. The oxidative chlorine content of Cl-BPDMH finished PET fabrics were determined by the iodimetric/thiosulfate titration method as compared with raw PET fabrics[44, 45].

Comprehensive Performance Evaluation

The tearing strength, bursting strength, breaking strength, breaking elongation, water contact angle (WCA), moisture permeability and air permeability of raw PET and PET-3 were characterized according to our previous work[16, 46], and the detailed test processes were provided in supporting information. The whiteness of raw PET and PET-3 was evaluated by the AATCC 110–2015 test method on a WSB-3A Intelligent Whiteness tester.

Antibacterial and Biocompatibility

The quantitative antibacterial activity of the Cl-BPDMH finished PET fabrics against E. coli and S. aureus was evaluated by flask oscillation method and the plate count method according to FZ/T 73,023–2006 standard [20]. The antibacterial kinetics were carried out using the above experimental operation method while the shaking time was replaced by other predetermined time. The diameters of the inhibition zone (DIZs) were measured by the agar plate diffusion method to evaluate release behavior of the antibacterial constituent from the Cl-BPDMH finished PET fabrics [17]. To investigate the washing durability of antibacterial activity, the antibacterial rates of PET-3 compared with raw PET (control) against E. coli and S.aureus after being washed for 5, 10 and 20 laundering times, respectively, were performed according to FZ/T 73,023–2006 standard method. Each experiment was carried out in triplicate and the mean results were reported for analysis [2].

To further visualize the antibacterial process of the Cl-BPDMH finished PET-3 fabrics, E. coli was stained using the live/dead BacLight Bacterial Viability Kit [47, 48]. Afterward, the dynamic process of stained E.coli contacting with PET-3 fabrics compared with raw PET fabrics was observed by rotating confocal fluorescence microscope (Olympus IX explore SpinSR10 instrument). Living E.coli was green and dead E.coli was red.

The cytotoxicity of Cl-BPDMH finished PET fabrics was evaluated by a CCK-8 assay using NIH 3T3 mouse embryonic fibroblast cells, and rabbit skin irritation was carried out to evaluate their skin irritation according to our previous work[24].

Results and Discussion

Preparation and Structural Characterization

The Cl-BPDMH was synthesized by two step typical chemical reactions as showed in Fig. 1a. The FTIR spectra of DMH, BP-Br, BPDMH and Cl-BPDMH were shown in Fig. 1b. A peak at about 1650 cm −1 assigned to C=O characteristic peaks of diaryl ketone appeared in the FTIR spectra of BP-Br, BPDMH and Cl-BPDMH. While a peak at 3240 cm−1 assigned to the N–H characteristic peaks of Hein ring appeared in the FTIR spectra of DMI and BPDMH. Compared with BDMMH, a new peak at 752 cm−1 assigned to N-Cl group appeared and the characteristic peak of N–H group at 3240 cm −1 disappeared in the FTIR spectrum of the Cl-BPDMH[49]. The molecular structures of BPDMH and Cl-BPDMH were further confirmed by 1H-NMR spectra (Fig. 1c, d). 1H-NMR of BPDMH (400 MHz, CDCl3, TMS, Fig. 1c): δ6.38–6.53 (s, 1H), 4.58–4.86(s, 2H), 1.40–1.54(s, 6H), 7.40–7.89(m, 9H). 1H-NMR of Cl-BPDMH (400 MHz, DMSO, TMS, Fig. 1d.): δ4.58–4.69(s, 2H), 1.27–1.41(s, 6H), 7.34–7.77(m, 9H). Therefore, we confirmed that the Cl-BPDMH was synthesized successfully.

Fig. 1.

Fig. 1

Open in a new tab

a Synthetic route of 1-chloro-3-benzophenone-5,5-dimethylhydantoin (Cl-BPDMH); b FTIR spectra of BP-Br, DMH, BPDMH, Cl-BPDMH; 1H-NMR spectra of c BPDMH and d Cl-BPDMH

The Cl-BPDMH finished PET fabrics were fabricated by covalently binding Cl-BPDMH to raw PET fabrics though a facilely photochemical hydrogen abstraction reaction as showed in Fig. 2a. Compared to raw PET, the surface and cross-sectional morphology of PET-3 exhibited no obvious damage (Fig. 2b), indicating that PET-3 fabrics could maintain their original structures well during the finishing process. Compared to raw PET fabric, a weak signal of Cl (0.12 wt%) ascribed to N–Cl bond appeared in PET-3 (Fig. 2b, insert figure), and the oxidative chlorine content of the Cl-BPDMH finished PET fabrics increased from 0.067 to 0.18 wt% as the concentration of the finishing agent increased (Fig. 2c). The distribution mapping of N and Cl elements (Fig. 2d) could be further confirmed that Cl-BPDMH was successfully bonded to the PET fabrics.

Fig. 2.

Fig. 2

Open in a new tab

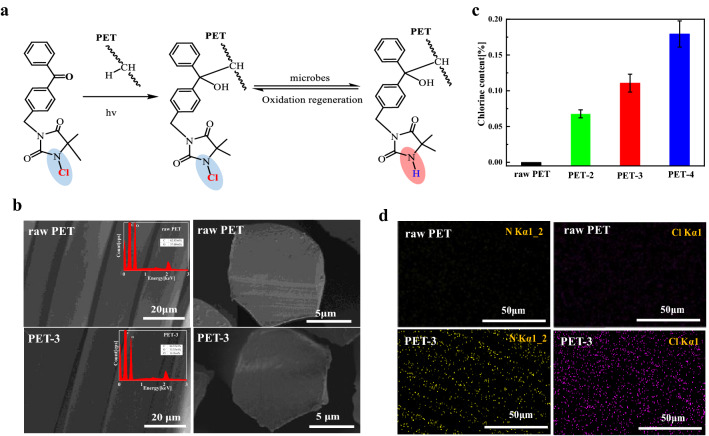

a Photochemical reaction principle of PET finished with Cl-BPDMH under UV irradiation; b FE-SEM images and EDS (insert figure); c Oxidative chlorine content; d The chemical element mapping images of the raw PET fabric and antibacterial PET-3

Antibacterial Activities

As shown in Fig. 3a, no live S.aureus could be observed when it was incubated with Cl-BPDMH finished PET fabrics for 24 h, while about 65% of live E.coli could be observed when it incubated with PET-2 for 24 h. Obviously, no live bacteria could be observed for both test bacteria when they incubated with PET-3 and PET-4 for 24 h.

Fig.3.

Fig.3

Open in a new tab

Antibacterial activities evaluation. a The culture medium images of raw PET, PET-2, PET-3 and PET-4; b The diameters of inhibition zone (DIZs) of raw PET, PET-2, PET-3 and PET-4; c The durable antibacterial rate of PET-3 compared with the raw PET fabric (control); d Antibacterial kinetics of PET-3 as compared with raw PET against E. coli (ATCC 25,922) and S. aureus (ATCC 6538); e Ultra-high resolution fluorescence microscopy of E.coli treated with PET-3 for 5 min. Notes: the contacting time of a–b was 24 h, and error bars of c were based on the maximum and minimum values of three parallel samples

The DIZs were all zero, and no live bacteria was existed under antibacterial PET fabrics (Fig. 3b), indicating that no Cl-BPDMH was leached from the Cl-BPDMH finished PET fabrics. Therefore, the antibacterial mechanism of the Cl-BPDMH finished PET fabrics was proven to contact killing mechanism [28] by directly transferring the oxidative chlorine from N-halamine to bacterial receptors [31, 50]. Non-leaching characteristics of antibacterial fabrics usually exhibited long-lasting antibacterial activity [46]. The antimicrobial rates of PET-3 were higher than 99% against both S.aureus and E.coli after being washed for 5,10, and 20 laundering times, respectively (Fig. 3c), which were much than the reference values of AA class (FZ/T 73,023–2006 standard). The bactericidal kinetics of PET-3 were carried out compared with raw PET fabrics as shown in Fig. 3d. PET-3 could inactivate all of S. aureus and E.coli within 1 h and 3 h, respectively. Gram-positive S.aureus were more susceptible to N-halamine than Gram-negative E.coli may be the cell walls of Gram- negative E.coli were more complex than that of Gram positive S.aureus [51]. Thus, the non-leaching Cl-BPDMH finished fabrics exhibited excellent antibacterial activity and PET-3 was selected as the following experimental sample.

To further visualize the process of bacteria contacting with PET-3, and its real bactericidal speed, the in-situ dynamic process of E.coli contacting with PET-3 compared with raw PET fabrics was observed by rotating confocal fluorescence microscope as shown in Fig. 3e. The ultra-high resolution fluorescence microscopy image of E.coli treated with raw PET was full of live bacterial (green). Interestingly, E.coli was inactivated (red) after contacting with PET-3 within 10 s. Therefore, bacteria can be easily adhered to Cl-BPDMH finished PET fabrics, thereby being inactivated quickly within a few seconds, further indicating the main antibacterial mechanism of the Cl-BPDMH finished PET fabrics was contact killing. Though antiviral activity was not provided here, and it would be carried out in the future, N-haloamines have been proved to have excellent antiviral activity [52]. Therefore, Cl-BPDMH finished PET fabrics have potential applications in quick sterilization, including but not limited to water purification, biochemical protective clothing, mask, food packaging, antibacterial textiles.

Comprehensive Performance Evaluation

Mechanical property is one of the most critical requirements of the fabrics. Compared with the raw PET fabric, the breaking strength and breaking elongation, tearing strength and bursting strength of PET-3 all showed a general increase (Fig. 4a–d). Specifically, the breaking strength increased by 8.3% in the warp direction from 1450.6 to 1570.3 N, and it increased by 38.5% in the weft direction from 511.7 to 708.4 N (Fig. 4a). Additionally, the breaking elongation increased by 8.0% in the warp direction from 31.7 to 34.2%, and it increased by 69.22% in the weft direction from 11.3 to 19.2% (Fig. 4b) because the increase of the interaction between Cl-BPDMH and PET chains improved the portion of amorphous region [53]. The tearing strength of PET-3 increased by 10.1% in the warp direction from 15.4 to 17.0 N, and it increased by 20.5% in the weft direction from 7.0 to 8.5 N (Fig. 4c). Therefore, the breaking strength, breaking elongation and tearing strength of PET-3 increased obviously compared with raw PET fabrics because the intermolecular forces could increase by introducing polar chlorine group [54] after binding Cl-BPDMH, and extracting an active hydrogen to generate free radicals by mild light irradiating on the surface of PET fabric for a short time would not damage to PET structure [53]. The bursting strength remained basically unchanged as compared with raw PET (Fig. 4d), while the bending stiffness decreased obviously (Fig. 4e), indicating improved wear comfort property due to its enhanced softness.

Fig. 4.

Fig. 4

Open in a new tab

Comprehensive performance of raw PET and Cl-BPDMH finished PET fabrics. a Breaking strength; b Breaking elongation; c Tearing strength; d Bursting strength; e Bending stiffness; f Whiteness; g Water vapor permeability (WVP); and h Air permeability of raw PET and PET-3; i Water contact angle (WCA) of the raw PET, PET-2, PET-3 and PET-4 fabrics. Error bars were based on the maximum and minimum values of five parallel samples

The whiteness of Cl-BPDMH finished PET fabrics was well remained without obvious changes as compared with raw PET (Fig. 4f). The water vapor transmission (Fig. 4g) and air permeability (Fig. 4h) of PET-3 both increased slightly may be the pore size of the Cl-BPDMH finished PET fabric were slightly increased during the finishing process, resulting in improving the ability of water vapor and air flow to penetrate the PET fabrics [2]. Compared to raw PET, the water contact angle (WCA) of PET-2, PET-3 and PET-4 all increased, meaning that Cl-BPDMH finished PET fabrics can improve the hydrophobicity of PET fabrics due to the mainly influence of the diaryl group (hydrophobic group) on the chain of Cl-BPDMH (Fig. 4i), which was conducive to adhering bacteria, and thereby inactivated them quickly (Fig. 3e). This strategy has obvious advantages over hydrophilic antibacterial surfaces for medical surgical clothing and masks with waterproof requirements.

Cytotoxicity and Skin Irritation

Cytotoxicity of PET-2, PET-3 and PET-4 compared with raw PET were shown in Fig. 5a. After being co-cultured with PET fabrics for 24 h, the viability of NIH 3T3 cell treated with Cl-BPDMH finished PET fabrics showed a slight decrease. Interestingly, compared with raw PET fabrics, the cell viability of PET-2, PET-3 and PET-4 were all more than 95%. Almost no cell was inactivated (red) after incubated with both raw PET and PET-3 for 24 h compared with NIH 3T3 cell only (Fig. 5b). Therefore, the Cl-BPDMH finished PET fabrics exhibited negligible cytotoxicity.

Fig. 5.

Fig. 5

Open in a new tab

Biocompatibility evaluation. a Quantitative cell survival rate of NIH 3T3 cell incubated with raw PET and Cl-BPDMH finished PET fabrics for 24 h; b The fluorescence microscope photos of NIH 3T3 cell only, or NIH 3T3 cell incubated with raw PET and PET-3 for 24 h; Error bars of the fluorescence microscope photos were all 50 μm. c The images of rabbits’ back skin contacting with raw PET and PET-3 at different contact time; d HE staining images of skin contacted with raw PET and PET-3, the scale bars were all 250 μm

Raw PET and PET-3 were further exposed to the back of rabbit’s skin to test their irritation responses. After being contacted for 12, 24, 48, and 72 h, respectively, no erythema and edema of rabbit’s skin treated with both raw PET and PET-3 was found on (Fig. 5c). Besides, no distinct histopathological abnormal was found in hematoxylin & eosin (H&E) stained images at any evaluated areas masked by raw PET and PET-3 (Fig. 5d).

Conclusion

Cl-CBPDMH was synthesized to fabricate non-leaching bactericidal PET fabrics by photocatalytic hydrogen abstraction reaction. The Cl-CBPDMH finished PET fabrics can inactivate bacteria within 10 s, indicating their outstanding bactericidal activity against both Gram-positive S.aureus and Gram-negative E.coli. Moreover, PET fabrics can maintain even improve their mechanical properties, comfort properties and biocompatibility after being finished with Cl-BPDMH. Therefore, the Cl-BPDMH was a preferred antimicrobial to fabricate excellent bactericidal PET fabrics while negligible toxicity. Selecting C–H bond as the modified active site, this strategy can be widely applied to finish synthetic fiber fabrics, including but not limited to polyester, polyamide, polypropylene, and polyacrylonitrile. This work can promote the development of permanent antibacterial finishing strategy of synthetic fibers. And Cl-BPDMH finished synthetic fiber fabrics has promising applications including but not limited to water purification, masks, and medical textiles, socks, curtains, carpet and so on.

Supplementary Information

Below is the link to the electronic supplementary material.

Supplementary file1 (DOCX 21 kb) (21.7KB, docx)

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (No.51773117), the Science and Technology Project of Shenzhen city (No. JSGG20201102154400001), the Collaborative Innovation and Nanshan District Key lab for Biopolymers and Safety Evaluation (No. KC2014ZDZJ0001A).

Biographies

Shu Wang

received the bachelor degree of Food Science and Engineering from Beijing Forest University, the master degree of Material Engineering from Shenzhen University. Her research focuses on antibacterial materials.graphic file with name 42765_2021_100_Figa_HTML.jpg

Jianna Li

is an associate professor at School of Basic Medical Sciences at Shenzhen University Health Sciences Center. She graduated from School of Life Sciences at Sun Yat-sen University with a PhD, and College of engineering at Hainan University with a master’s degree. She was a visiting scholar at Johns Hopkins University School of Medicine in 2019. Her main research interests are multifunctional wound dressings and skin regeneration, and biosafety evaluation of antibacterial materials.graphic file with name 42765_2021_100_Figb_HTML.jpg

Yihong Cao

received the bachelor degree of textile engineering from Wuyi University, and she is presently completing his Master study in the College of Materials Science and Engineering at Shenzhen University, China. Her current research interests are antibacterial materials. graphic file with name 42765_2021_100_Figc_HTML.jpg

Jingwei Gu

received the bachelor degree of Nonwoven Material and Engineering from Soochow University, the master degree of Material Science and Engineering from Shenzhen University. His research focuses on antibacterial materials. graphic file with name 42765_2021_100_Figd_HTML.jpg

Yuanfeng Wang

is currently an assistant professor at the College of Materials Science and Engineering at Shenzhen University. He graduated from The Hong Kong Polytechnic University with a PhD, and Donghua University with a master's degree. His main research interests include smart and functional fibers/textiles, biomimetic materials/interfaces, super-wettable materials, and bio-/medical-materials.graphic file with name 42765_2021_100_Fige_HTML.jpg

Shiguo Chen

received his BSc degree in chemistry from Jishou University in 2000, a PhD degree in polymer chemistry and physics from Sun Yat-sen University in 2005. He is now a professor of the College of Materials Science and Engineering at Shenzhen University. His research interests include structure–property–processing relationships, characterization techniques and applications of multifunctional fibers/textiles/coatings, and bio-/medical-materials. graphic file with name 42765_2021_100_Figf_HTML.jpg

Declarations

Conflict of interest

The authors declare that there is no financial and non-financial competing interest.

Footnotes

Shu Wang and JianNa Li contributed equally to this work.

Contributor Information

YuanFeng Wang, Email: wangyuanfeng@szu.edu.cn.

ShiGuo Chen, Email: csg@szu.edu.cn.

References

  • 1.Wang ML, Zhang MJ, Pang LJ, Yang CG, Zhang YM, Hu JT, Wu GZ. Fabrication of highly durable polysiloxane-zinc oxide (ZnO) coated polyethylene terephthalate (PET) fabric with improved ultraviolet resistance, hydrophobicity, and thermal resistance. J Colloid Interf Sci. 2019;537:91. doi: 10.1016/j.jcis.2018.10.105. [DOI] [PubMed] [Google Scholar]
  • 2.Chen SG, Zhang SB, Galluzzi M, Li F, Zhang XC, Yang XH, Liu XY, Cai XH, Zhu XL, Du B, Li JN, Huang P. Insight into multifunctional polyester fabrics finished by one-step eco-friendly strategy. Chem Eng J. 2019;358:634. doi: 10.1016/j.cej.2018.10.070. [DOI] [Google Scholar]
  • 3.Brown ED, Wright GD. Antibacterial drug discovery in the resistance era. Nature. 2016;529:336. doi: 10.1038/nature17042. [DOI] [PubMed] [Google Scholar]
  • 4.Li N, Pranantyo D, Kang ET, Wright DS, Luo HK. In situ self-assembled polyoxotitanate cages on flexible cellulosic substrates: multifunctional coating for hydrophobic, antibacterial, and uv-blocking applications. Adv Funct Mater. 2018;28:1800345. doi: 10.1002/adfm.201800345. [DOI] [Google Scholar]
  • 5.Xia GX, Wu YM, Bi YF, Chen K, Zhang WW, Liu SQ, Zhang WJ, Liu RH. Antimicrobial properties and application of polysaccharides and their derivatives. Chinese J Polym Sci. 2021;39:133. doi: 10.1007/s10118-021-2506-2. [DOI] [Google Scholar]
  • 6.Zhou M, Qian Y, Xie J, Zhang W, Jiang W, Xiao X, Chen S, Dai C, Cong Z, Ji Z, Shao N, Liu L, Wu Y, Liu R. Poly(2-Oxazoline)-based functional peptide mimics: eradicating MRSA infections and persisters while alleviating antimicrobial resistance. Angew Chem Int Ed. 2020;59:6412. doi: 10.1002/anie.202000505. [DOI] [PubMed] [Google Scholar]
  • 7.Sreeja S, Muraleedharan CV, Varma PRH, Sailaja GS. Surface-transformed osteoinductive polyethylene terephthalate scaffold as a dual system for bone tissue regeneration with localized antibiotic delivery. Mater Sci Eng C. 2020;109:16. doi: 10.1016/j.msec.2019.110491. [DOI] [PubMed] [Google Scholar]
  • 8.Wu M, Ma B, Pan T, Chen S, Sun J. Silver-nanoparticle-colored cotton fabrics with tunable colors and durable antibacterial and self-healing superhydrophobic properties. Adv Funct Mater. 2016;26:569. doi: 10.1002/adfm.201504197. [DOI] [Google Scholar]
  • 9.Liu QX, Huang J, Zhang JM, Hong Y, Wan YB, Wang Q, Gong ML, Wu ZG, Guo CF. Thermal, waterproof, breathable, and antibacterial cloth with a nanoporous structure. ACS Appl Mater Interfaces. 2018;10:2026. doi: 10.1021/acsami.7b16422. [DOI] [PubMed] [Google Scholar]
  • 10.Yun G, Pan S, Wang TY, Guo J, Richardson JJ, Caruso F. Synthesis of metal nanoparticles in metal-phenolic networks: Catalytic and antimicrobial applications of coated textiles. Adv Healthcare Mater. 2018;7:1700934. doi: 10.1002/adhm.201700934. [DOI] [PubMed] [Google Scholar]
  • 11.Amani A, Montazer M, Mahmoudirad M. Low starch/corn silk/ZnO as environmentally friendly nanocomposites assembling on PET fabrics. Int J Biol Macromol. 2021;170:780. doi: 10.1016/j.ijbiomac.2020.12.168. [DOI] [PubMed] [Google Scholar]
  • 12.Zhang T, Yu H, Li J, Song H, Wang S, Zhang Z, Chen S Green light–triggered antimicrobial cotton fabric for wastewater disinfection, Mater Today Phys, 2020;15:100254.
  • 13.Gao D, Li Y, Lyu B, Lyu L, Chen S, Ma J. Construction of durable antibacterial and anti-mildew cotton fabric based on P(DMDAAC-AGE)/Ag/ZnO composites. Carbohyd Polym. 2019;204:161. doi: 10.1016/j.carbpol.2018.09.087. [DOI] [PubMed] [Google Scholar]
  • 14.Rehan M, El-Naggar ME, Mashaly HM, Wilken R. Nanocomposites based on chitosan/silver/clay for durable multi-functional properties of cotton fabrics. Carbohyd Polym. 2018;182:29. doi: 10.1016/j.carbpol.2017.11.007. [DOI] [PubMed] [Google Scholar]
  • 15.Ding S, Wang Y, Li J, Chen S.Progress and prospects in chitosan derivatives: Modification strategies and medical applications, J Mater Sci Technol2021; in press 10.1016/j.jmst.2020.12.008.
  • 16.Chen SG, Yuan LJ, Li QQ, Li JN, Zhu XL, Jiang YG, Sha O, Yang XH, Xin JH, Wang JX, Stadler FJ, Huang P. Durable antibacterial and nonfouling cotton textiles with enhanced comfort via zwitterionic sulfopropylbetaine coating. Small. 2016;12:3516. doi: 10.1002/smll.201600587. [DOI] [PubMed] [Google Scholar]
  • 17.Chen SG, Chen SJ, Jiang S, Xiong ML, Luo JX, Tang JN, Ge ZC. Environmentally friendly antibacterial cotton textiles finished with siloxane sulfopropylbetaine. ACS Appl Mater Interfaces. 2011;3:1154. doi: 10.1021/am101275d. [DOI] [PubMed] [Google Scholar]
  • 18.Xu J, Zhao H, Xie Z, Ruppel S, Zhou X, Chen S, Liang JF, Wang X. Stereochemical strategy advances microbially antiadhesive cotton textile in safeguarding skin flora. Adv Healthcare Mater. 2019;8:1900232. doi: 10.1002/adhm.201900232. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 19.Li X, Bai H, Yang Y, Yoon J, Wang S, Zhang X. Supramolecular antibacterial materials for combatting antibiotic resistance. Adv Mater. 2019;31:1805092. doi: 10.1002/adma.201805092. [DOI] [PubMed] [Google Scholar]
  • 20.Zhang SB, Yang XH, Tang B, Yuan LJ, Wang K, Liu XY, Zhu XL, Li JN, Ge ZC, Chen SG. New insights into synergistic antimicrobial and antifouling cotton fabrics via dually finished with quaternary ammonium salt and zwitterionic sulfobetaine. Chem Eng J. 2018;336:123. doi: 10.1016/j.cej.2017.10.168. [DOI] [Google Scholar]
  • 21.Zhang SM, Li R, Huang D, Ren XH, Huang TS. Antibacterial modification of PET with quaternary ammonium salt and silver particles via electron-beam irradiation. Mater Sci Eng C. 2018;85:123. doi: 10.1016/j.msec.2017.12.010. [DOI] [PubMed] [Google Scholar]
  • 22.Xu J, Xie Z, Du F, Wang X. One-step anti-superbug finishing of cotton textiles with dopamine-menthol. J Mater Sci Technol. 2021;69:79. doi: 10.1016/j.jmst.2020.08.007. [DOI] [Google Scholar]
  • 23.Han H, Zhu J, Wu DQ, Li FX, Wang XL, Yu JY, Qin XH. Inherent guanidine nanogels with durable antibacterial and bacterially antiadhesive properties. Adv Funct Mater. 2019;29:1806594. doi: 10.1002/adfm.201806594. [DOI] [Google Scholar]
  • 24.Cao YH, Gu JW, Wang S, Zhang ZC, Yu HL, Li JN, Chen SG. Guanidine-functionalized cotton fabrics for achieving permanent antibacterial activity without compromising their physicochemical properties and cytocompatibility. Cellulose. 2020;27:6027. doi: 10.1007/s10570-020-03137-2. [DOI] [Google Scholar]
  • 25.Chen W, Zhu Y, Zhang Z, Gao Y, Liu W, Borjihan Q, Qu H, Zhang Y, Zhang Y, Wang Y, Zhang L, Dong A. Engineering a multifunctional N-halamine-based antibacterial hydrogel using a super-convenient strategy for infected skin defect therapy. Chem Eng J. 2020;379:122238. doi: 10.1016/j.cej.2019.122238. [DOI] [Google Scholar]
  • 26.Tang X, Xu H, Shi Y, Wu M, Tian H, Liang J. Porous antimicrobial starch particles containing N-halamine functional groups. Carbohyd Polym. 2020;229:115546. doi: 10.1016/j.carbpol.2019.115546. [DOI] [PubMed] [Google Scholar]
  • 27.Bai R, Kang J, Simalou O, Liu WX, Ren H, Gao TY, Gao YY, Chen WJ, Dong A, Jia R. Novel N-Br bond-containing N-halamine nanofibers with antibacterial activities. ACS Biomater Sci Eng. 2018;4:2193. doi: 10.1021/acsbiomaterials.7b00996. [DOI] [PubMed] [Google Scholar]
  • 28.Dong A, Wang Y, Gao Y, Gao T, Gao G. Chemical insights into antibacterial N-halamines. Chem Rev. 2017;117:4806. doi: 10.1021/acs.chemrev.6b00687. [DOI] [PubMed] [Google Scholar]
  • 29.Liang M, Wang F, Liu M, Yu J, Si Y, Ding B N-halamine functionalized electrospun poly(vinyl alcohol-co-ethylene) nanofibrous membranes with rechargeable antibacterial activity for bioprotective applications, Adv Fiber Mater2019; 1:126.
  • 30.Chen YJ, Worley SD, Kim J, Wei CI, Chen TY, Santiago JI, Williams JF, Sun G. Biocidal poly(styrenehydantoin) beads for disinfection of water. Ind Eng Chem Res. 2003;42:280. doi: 10.1021/ie020266+. [DOI] [Google Scholar]
  • 31.Chen Y, Wang YY, Feng CY, He QK, Chen Q, Wang ZD, Han QX. Novel quat/di-N-halamines silane unit with enhanced synergism polymerized on cellulose for development of superior biocidability. Int J Biol Macromol. 2020;154:173. doi: 10.1016/j.ijbiomac.2020.03.117. [DOI] [PubMed] [Google Scholar]
  • 32.Tsao TC, Williams DE, Worley CG, Worley SD. Novel N-halamine disinfectant compounds. Biotech Prog. 1991;7:60. doi: 10.1021/bp00007a010. [DOI] [Google Scholar]
  • 33.Kovacic P, Lowery MK, Field KW. Chemistry of N-bromamines and N-chloramines. Chem Rev. 1970;70:639. doi: 10.1021/cr60268a002. [DOI] [Google Scholar]
  • 34.Ren T, Hayden M, Quo M, Huang TS, Ren X, Weesel J. Absorbent pads containing N-halamine compound for potential antimicrobial use for chicken breast and ground chicken. J Agric Food Chem. 2018;66:1941. doi: 10.1021/acs.jafc.7b05191. [DOI] [PubMed] [Google Scholar]
  • 35.Ma Y, Li J, Si Y, Huang K, Nitin N, Sun G. Rechargeable antibacterial N-halamine films with antifouling function for food packaging applications. ACS Appl Mater Interfaces. 2019;11:17814. doi: 10.1021/acsami.9b03464. [DOI] [PubMed] [Google Scholar]
  • 36.Wang YF, Yin ML, Ma W, Li ZG, Xu ZZ, Ren XH N-halamine modified mesoporous silica coated cotton as multipurpose protective fibrous materials, Cellulose, 2020; 27: 10461.
  • 37.Sun X, Zhang L, Cao Z, Deng Y, Liu L, Fong H, Sun Y. Electrospun composite nanofiber fabrics containing uniformly dispersed antimicrobial agents as an innovative type of polymeric materials with superior antimicrobial efficacy. ACS Appl Mater Interfaces. 2010;2:952. doi: 10.1021/am100018k. [DOI] [PubMed] [Google Scholar]
  • 38.Liang J, Chen Y, Barnes K, Wu R, Worley SD, Huang TS N-halamine/quat siloxane copolymers for use in biocidal coatings, Biomaterials, 2006; 27:2495. [DOI] [PubMed]
  • 39.Liu Y, Li J, Li L, McFarland S, Ren X, Acevedo O, Huang TS. Characterization and mechanism for the protection of photolytic decomposition of N-halamine siloxane coatings by titanium dioxide. ACS Appl Mater Interfaces. 2016;8:3516. doi: 10.1021/acsami.5b12601. [DOI] [PubMed] [Google Scholar]
  • 40.Liu C, Shan H, Chen X, Si Y, Yin X, Yu J, Ding B. Novel inorganic-based N-halamine nanofibrous membranes as highly effective antibacterial agent for water disinfection. ACS Appl Mater Interfaces. 2018;10:44209. doi: 10.1021/acsami.8b18322. [DOI] [PubMed] [Google Scholar]
  • 41.Kocer HB, Cerkez I, Worley SD, Broughton RM, Huang TS. Polymeric antimicrobial N-halamine epoxides. ACS Appl Mater Interfaces. 2011;3:2845. doi: 10.1021/am200351w. [DOI] [PubMed] [Google Scholar]
  • 42.Lv J, Zhou Q, Zhi T, Gao D, Wang C. Environmentally friendly surface modification of polyethylene terephthalate (PET) fabric by low-temperature oxygen plasma and carboxymethyl chitosan. J Clean Prod. 2016;118:187. doi: 10.1016/j.jclepro.2016.01.058. [DOI] [Google Scholar]
  • 43.Del Hoyo GS, Pérez Álvarez L, Gómez Galván F, Lizundia E, Kuritka I, Sedlarik V, Laza JM, Vila Vilela JL. Construction of antibacterial poly(ethylene terephthalate) films via layer by layer assembly of chitosan and hyaluronic acid. Carbohyd Polym. 2016;143:35. doi: 10.1016/j.carbpol.2016.02.008. [DOI] [PubMed] [Google Scholar]
  • 44.Zhang S, Kai C, Liu B, Zhang S, Wei W, Xu X, Zhou Z. Preparation, characterization and antibacterial properties of cellulose membrane containing N-halamine. Cellulose. 2019;26:5621. doi: 10.1007/s10570-019-02492-z. [DOI] [Google Scholar]
  • 45.Ma W, Li L, Xiao X, Du H, Ren X, Zhang X, Huang T. Construction of chlorine labeled ZnO–chitosan loaded cellulose nanofibrils film with quick antibacterial performance and prominent UV stability. Macromol Mater Eng. 2020;305:2000228. doi: 10.1002/mame.202000228. [DOI] [Google Scholar]
  • 46.Gu JW, Yuan LJ, Zhang Z, Yang XH, Luo JX, Gui ZF, Chen SG. Non-leaching bactericidal cotton fabrics with well-preserved physical properties, no skin irritation and no toxicity. Cellulose. 2018;25:5415. doi: 10.1007/s10570-018-1943-8. [DOI] [Google Scholar]
  • 47.Zhang T, Gu JW, Liu XY, Wei D, Zhou HL, Xiao HH, Zhang ZC, Yu HL, Chen SG. Bactericidal and antifouling electrospun PVA nanofibers modified with a quaternary ammonium salt and zwitterionic sulfopropylbetaine. Mater Sci Eng C. 2020;111:110855. doi: 10.1016/j.msec.2020.110855. [DOI] [PubMed] [Google Scholar]
  • 48.Chen YX, Li JN, Li QQ, Shen YY, Ge ZC, Zhang WW, Chen SG. Enhanced water-solubility, antibacterial activity and biocompatibility upon introducing sulfobetaine and quaternary ammonium to chitosan. Carbohyd Polym. 2016;143:246. doi: 10.1016/j.carbpol.2016.01.073. [DOI] [PubMed] [Google Scholar]
  • 49.Dong A, Lan S, Huang J, Wang T, Zhao T, Wang W, Xiao L, Zheng X, Liu F, Gao G, Chen Y. Preparation of magnetically separable N-halamine nanocomposites for the improved antibacterial application. J Colloid Interf Sci. 2011;364:333. doi: 10.1016/j.jcis.2011.08.036. [DOI] [PubMed] [Google Scholar]
  • 50.Zheng Y, Pan N, Liu Y, Ren X. Novel porous chitosan/N-halamine structure with efficient antibacterial and hemostatic properties. Carbohyd Polym. 2021;253:117205. doi: 10.1016/j.carbpol.2020.117205. [DOI] [PubMed] [Google Scholar]
  • 51.Kell AJ, Stewart G, Ryan S, Peytavi R, Boissinot M, Huletsky A, Bergeron MG, Simard B. Vancomycin-modified nanoparticles for efficient targeting and preconcentration of Gram-positive and Gram-negative bacteria. ACS Nano. 2008;2:1777. doi: 10.1021/nn700183g. [DOI] [PubMed] [Google Scholar]
  • 52.Zhou J, Hu Z, Zabihi F, Chen Z, Zhu M. Progress and perspective of antiviral protective material. Adv Fiber Mater. 2020;2:123. doi: 10.1007/s42765-020-00047-7. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 53.Chen X, Wang Y, Dai GL, Peng J, Li JQ, Shi MW, Zhai ML. Radiation grafting of glycidyl methacrylate and divinylbenzene onto polyethylene terephthalate fabrics for improving anti-dripping performance. Radiat Phys Chem. 2016;127:256. doi: 10.1016/j.radphyschem.2016.07.019. [DOI] [Google Scholar]
  • 54.Chao P, Chen H, Zhu Y, Zheng N, Meng H, He F. Chlorination of conjugated side chains to enhance intermolecular interactions for elevated solar conversion. Macromolecules. 2020;53:165. doi: 10.1021/acs.macromol.9b02395. [DOI] [Google Scholar]
