Consistency of pituitary adenomas: Amounts of collagen types I and III and the predictive value of T2WI MRI

Abstract

Pituitary adenomas, the most common type of lesion in the sellar region, rank third among all brain tumors, with an incidence of 73-94 cases per 100,000 individuals. Due to its high resolution, MRI is highly efficient in brain imaging and has emerged as the most appropriate method for tumor consistency evaluation. The present study aimed to assess the levels of collagen types I and III in pituitary adenomas with different consistencies and to determine the value of T2-weighted imaging (T2WI) MRI for predicting tumor consistency. A total of 55 patients with pituitary adenomas were divided into the soft and firm tumor groups according to intraoperative tumor consistency. The ratio of the tumor to Pons' signal intensities on T2WI scans was determined. A receiver operating characteristic curve was plotted to assess the specificity and sensitivity of T2WI in predicting tumor consistency. Average optical density (AOD) values for collagen types I (0.046±0.008 vs. 0.052±0.012, P=0.033) and III (0.044±0.008 vs. 0.050±0.010, P=0.016) were significantly lower in the soft tumor group compared with those in the firm tumor group. There was no significant difference in the ratio of the tumor to Pons' signal intensities on T2WI scans. The area under the ROC curve was 0.595±0.078 (P=0.250). The maximum tumor diameter significantly differed between the soft and firm tumor groups (P=0.001). AOD values for collagen types I and III were significantly correlated with the maximum tumor diameter (P<0.001). The amounts of collagen types I and III were elevated in firm pituitary tumors compared with the soft ones. The ratio of tumor to Pons' signal intensities on T2WI scans was not able to accurately predict tumor consistency. The size of pituitary adenomas may be associated with the expression levels of collagen types I and III.

Introduction

Pituitary adenoma (PA) is a common benign tumor in neurosurgery that ranks third among brain tumors (1). Pituitary adenomas are overwhelmingly of soft consistency; thus, typical methods of resection with curettage and suction appear to be clinically efficient (2-5). Tumors of the pituitary gland and sellar region account for 15% of all brain tumors (6-8). The most common tumors are by far pituitary adenomas and benign neuroendocrine neoplasms confined to the sella (9). Early diagnosis of pituitary tumors is highly significant and their proper classification is of paramount importance for treatment and prognostic purposes (10). The initial treatment of pituitary adenomas includes surgery and certain cases may require chemotherapy with somatostatin analogs, cabergoline and/or pegvisomant (11-13). Compression of and invasion to surrounding structures by PA, including the sella, optic chiasm, optic nerve, cavernous sinus, skull base and brain-stem, may result in serious obstruction of the corresponding organ functions. Tumor texture is considered an important factor influencing the rate of surgical resection (14,15).

In surgery, tumor consistency is one of the most important factors that affect surgical difficulty and safety. Therefore, accurately predicting tumor texture may preoperatively guide surgeons in risk assessment and surgical planning (16). The soft and firm consistencies of tumors directly affect the degree of tumor resection (17,18). Previous studies indicated that preoperative MRI signals may predict tumor consistency (18-20). However, tumor consistency remains controversial and deserves further investigation. A previous study demonstrated that low signal intensity on T2-weighted imaging (T2-WI) MRI is correlated with increased collagen content at pathologic diagnosis, and therefore, fibrous consistency (3).

Pierallini et al (5) pointed out that signal intensity on diffusion-weighted imaging (DWI) is associated with the collagen content on pathologic examination. However, other studies indicated no statistically significant correlation between consistency and imaging (1,3,21,22).

Of note, collagen types I and III are highly important in pituitary adenomas (21), while differences in collagen composition between soft and firm pituitary tumors have remained largely elusive.

In previous studies on the texture of pituitary tumors, quantitative analysis with immunofluorescence was rarely used for evaluating the collagen content. Furthermore, whether T2WI is able to predict tumor texture has remained controversial (20). Therefore, the present study aimed to evaluate the levels of collagen types I and III in pituitary adenomas with different consistencies using immunofluorescence. In addition, the significance of T2-weighted imaging (T2WI) sequences in predicting tumor consistency was highlighted.

Materials and methods

Patients

In the present prospective study, 55 patients with pituitary tumors, who were admitted to Beijing Tiantan Hospital, Capital Medical University (Beijing, China) between September 2018 and March 2019, were recruited. The patients' demographic and clinical data, including sex, age at surgery, clinical subtypes and Knosp grade (23) were recorded. All patients underwent transphenoidal or transcranial surgery. During surgery, the consistency category (soft or firm) was determined by two experienced neurosurgeons with >20 years of experience in pituitary tumor surgery. Adenomas that were easily removed in the standard fashion with curettage and suction were considered soft tumors. Those resistant to removal by curettage or requiring adjuvant methods were considered firm tumors. Patients with microadenoma, tumor cysts or stroke were excluded. The study was approved by the Ethics Committee of Beijing Tiantan Hospital, Capital Medical University (Beijing, China) and informed consent was obtained from each patient or their relatives.

Immunofluorescence

Tissue sections (thickness, 4-µm) were dewaxed in xylene and dehydrated by an ethanol gradient. Citrate buffer (pH 6.0) was used for antigen retrieval by boiling for 2 min. After incubation with 0.25% PBS containing Triton X for 15 min, sheep serum (10%; ZLI-9021; OriGene Technologies, Inc.) was added for blocking at 37˚C for 30 min, followed by successive incubations with primary (overnight, 4˚C) and secondary (room temperature, 60 min in the dark) antibodies. Primary antibodies were for COLIII (cat. no. ab23445) and COLI (cat. no. ab90395; both from Abcam). The secondary antibody was goat anti-mouse fluorescein isothiocyanate-labeled IgG (1:100; cat. no. ZF-0312; OriGene Technologies, Inc.). Furthermore, 4',6-diamidino-2-phenylindole (DAPI) was used for counterstaining. Fluorescence microscopy was used for imaging and microscopic settings were kept stable throughout the imaging. The intensity of green fluorescence signals in each section was measured using Image-J software (v1.52; National Institutes of Health). The contents of collagen types I and III were determined as average optical density (AOD) values. First, fluorescent micrographs were converted into 8-bit grayscale images and inverted to white. Subsequently, measurements (set area, integrated density and limit to the threshold) were set via adjusting for thresholds (lower and upper threshold levels were set to 2.71 and 0.01, respectively). Finally, the integrated density and the sum of the original green fluorescence areas were measured. The AOD was calculated by dividing the integrated optical density (sum) by the area (sum).

MRI

All MRI examinations were performed on a Siemens 3.0 T MRI system (Siemens Healthineers AG). The parameters used for conventional MRI were repetition time of 3000 msec and echo time of 98 msec. The OsiriX Lite system (v10.0; Pixmeo Sàrl) was used to analyze MRI data. A region of interest (ROI) was selected within the lesion for homogenous adenomas, while multiple ROIs were selected for heterogeneous lesions and their mean intensity was calculated. An ROI from the pons was selected and the mean intensity was determined. The ratios of tumor to pons signal intensities on T2WI were calculated. The maximum diameter of each tumor was also determined by MRI preoperatively.

Statistical analysis

All statistical analyses were performed using SPSS 25.0 software (IBM Corp.). GraphPad Prism 7 (GraphPad Software, Inc.) was used to plot figures and the receiver operating characteristic (ROC) curve. Continuous variables were expressed as the mean ± standard deviation or median with interquartile ranges. Categorical variables were expressed as n (%). The two-samples t-test or the Mann-Whitney U test was employed to determine significant differences between the two groups for continuous data. Pearson's χ² and Fisher's exact tests were utilized to assess the differences in proportions between groups. Pearson's correlation analysis was used to investigate the relationship between two individual variables. A two-sided P<0.05 was considered to indicate statistical significance. The ROC curve was plotted to evaluate the significance of signal intensity on T2WI images to predict tumor consistency. An area under the ROC curve (AUC) of >0.7 was considered to indicate a certain predictive value.

Results

Demographics and clinical characteristics

The intraoperative consistency of each tumor was recorded based on resection characteristics and ease of adenoma removal. There were 36 soft and 19 firm tumors and the patients were grouped accordingly. The patients included 29 males and 26 females, with a mean age at diagnosis of 47.9±12.7 years (range, 17-72 years). Of the 55 patients, 12 had hypopituitarism prior to surgery. In addition, 39 (71%) were categorized as Knosp grade 3-4, while 16 (29%) were grade 0-2. There were 25 (45%) patients with suprasellar extension, according to MRI findings. The clinical manifestations and preoperative endocrinological examination results indicated that 42 (76%) cases had non-functional pituitary adenomas. The distribution of soft and firm tumors was different between functional and non-functional pituitary adenomas (P=0.046). The major clinical manifestations were visual disturbance (38.2%) and visual field defect (32.7%). The detailed demographic and clinical features are presented in Table I.

Table I.

Characteristics of the patients with soft and firm tumors.

Item	Soft (n=36)	Firm (n=19)	P-value
Age (years)	47.2±12.6	49.3±13.5	0.575
Sex			0.024
Male	15 (41.7)	14 (72.7)
Female	21 (58.3)	5 (26.3)
Clinical subtype			0.046
Functional	12 (33.3)	1 (5.3)
Non-functional	24 (66.7)	18 (94.7)
Hypopituitarism			0.733
Yes	7 (19.4)	5 (26.3)
No	29 (80.6)	14 (72.7)
Knosp grade			0.406
0	4 (11.1)	0 (0.0)
1	4 (11.1)	1 (5.3)
2	3 (8.3)	4 (21.1)
3	15 (41.7)	4 (21.1)
4	10 (27.8)	10 (52.7)
Suprasellar extension			0.057
Yes	13 (36.1)	12 (63.2)
No	23 (63.9)	7 (36.8)

Values are expressed as n (%) or the mean ± standard deviation.

Expression levels of collagen types I and III

The contents of collagen types I (Fig. 1) and III (Fig. 2) were detected using staining in all 55 cases as green signals by immunofluorescence. AOD values for collagen types I (0.046±0.008 vs. 0.052±0.012, P=0.033) and III (0.044±0.008 vs. 0.050±0.010, P=0.016) were significantly lower in the soft tumor group compared with those in the firm tumor group (Fig. 3). AOD values for collagen types I and III exhibited a significant correlation (P<0.001), with a correlation coefficient of 0.986 (Fig. 3).

Figure 1.

(A) Representative immunofluorescence signals of (A-a) COLI and (A-b) DAPI in firm tumors; (A-c) merged image of A-a and A-b. (B) Representative immunofluorescence signals of (B-a) COLI and (B-b) DAPI in soft tumors; (B-c) merged image of B-a and B-b (magnification, x400; scale bars, 50 µm). COLI, collagen type I.

Figure 2.

(A) Representative immunofluorescence signals of (A-a) COLIII and (A-b) DAPI in firm tumors; (A-c) merged image of A-a and A-b. (B) Representative immunofluorescence signals of (B-a) COLIII and (B-b) DAPI in soft tumors; (B-c) merged image of B-a and B-b (magnification, x400; scale bars, 50 µm). COLIII, collagen type III.

Figure 3.

Average optical density values for collagen compared between soft and firm adenomas. (A) Collagen type I (P=0.033) and (B) collagen type III (P=0.016). Each dot represents one sample. Data are presented as mean ± standard error of mean. ^*P<0.05.

T2WI MRI signals are similar in the soft and firm tumor groups

There was no significant difference in the ratio of tumor to Pons' T2WI MRI signal intensities between the soft and firm tumor groups. The ROC curve demonstrated no predictive value for this ratio regarding tumor consistency [AUC=0.595 (95% CI: 0.442-0.748); P=0.250; Fig. 4]. The median maximum tumor diameter was 2.82 (2.07, 3.25) cm. There was a statistically significant difference in the maximum tumor diameter between the soft [2.38 (2.01, 2.99) cm] and firm [3.25 (2.92, 3.68) cm] tumor groups (P=0.001; Table II).

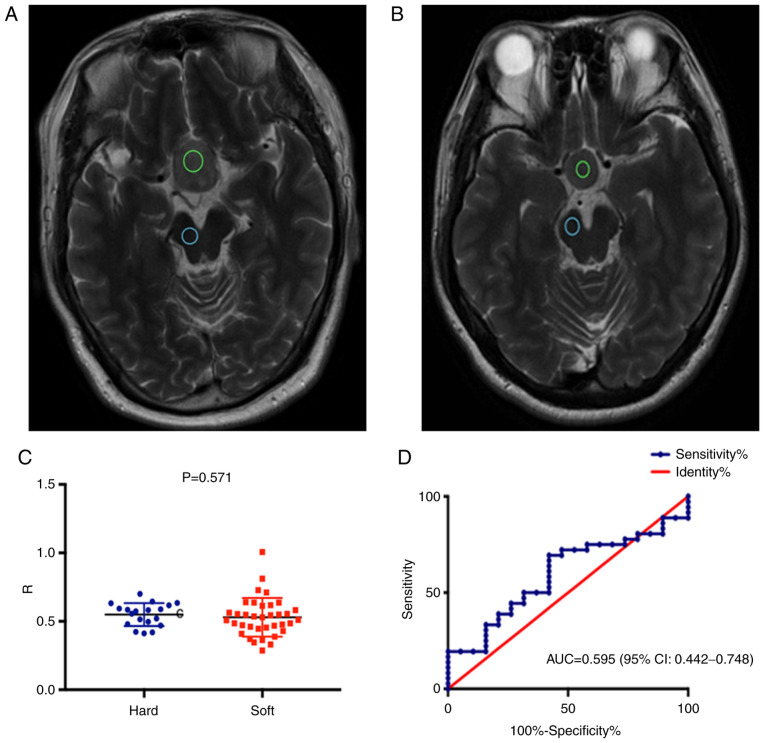

Figure 4.

(A and B) Preoperative MRI scans of two patients with pituitary adenomas grouped as having (A) firm and (B) soft tumors during surgery. The regions of interest indicate the tumor (green circles) and Pons (blue circles) signal intensities on T2WI scans. (C) Dot plot of the ratio of tumor to Pons' T2WI MRI signal intensities for soft and firm adenomas (P=0.571). (D) ROC curve illustrating a lack of predictive value of T2WI MRI signal intensity for tumor consistency (AUC=0.595, 95%CI: 0.442-0.748; P=0.250). T2WI, T2-weighted imaging; ROC, receiver operating characteristic; AUC, area under the ROC curve; R, ratio.

Table II.

Tumor to Pons' signal intensities and tumor diameters in the soft and firm tumor groups.

Item	Soft (n=36)	Firm (n=19)	P-value
Ratio of the tumor to Pons' T2WI MRI signal intensities	0.53±0.14	0.55±0.08	0.571
Maximum diameter (cm)	2.38 (2.01,2.99)	3.25 (2.92,3.68)	0.001

Values are expressed as the median (25, 75th quartiles) or the mean ± standard deviation. T2WI, T2-weighted imaging.

Discussion

The present prospective study strongly suggested that the levels of collagen types I and III were higher in the firm tumor group compared with those in the soft tumor group. The size of pituitary adenomas defined by T2WI may be associated with the collagen content, while the ratio of tumor to Pons' signal intensities on T2WI scans were not able to predict tumor consistency.

Previous studies employed immunohistochemistry for determining collagen content in tumors (3,24,25). In the present study, immunofluorescence was applied and ImageJ software was used to analyze the amounts of collagen types I and III. Fibrillar collagen consists of types I, II, III, V and XI. Of these, collagen types I, III and V are mainly detected in stromal connective tissues, whereas collagen types II and XI are found in cartilaginous tissues (21).

Type I collagen is the major component of the extracellular matrix in the skin, bone and ligaments, while type III collagen, an important structural protein, is one of the major fibrillar collagens (26). The expression of type III collagen was previously assessed in various benign and malignant tumors by immunostaining (27). In the present study, collagen types I and III were detected in all cases. Collagen types I and III are at times detected in the same fibrils (28,29). Increased expression of collagen type III is observed in several human fibrotic diseases. Collagen type III is known to interact with collagen types I and II in fibril formation and may regulate fibril diameter (27).

The present results suggested that the expression levels of collagen types I and III were higher in firm pituitary adenomas compared with those in soft pituitary adenomas. These results suggest that the collagen content may reflect the firmness of adenomas detected during the operation. According to Pearson correlation analysis, the maximum tumor diameter and collagen content were significantly correlated. Consistent with previous studies (27,29), the present study demonstrated that fibrous tumors may have a larger volume than soft ones. To the best of our knowledge, the secretion and architecture of collagens in tumors are influenced by mutations in tumor suppressor genes (30). Therefore, tumors with high production of collagen may be larger. Various molecules in tumors with high amounts of collagens are associated with cell activity modulation toward more aggressive features (31-33). Different types of cells, including immune cells and fibroblasts, are also present within tumors and participate in the tumor's immune escape and mutual feedback loops that may lead to cancer recurrence (34,35). High collagen content in breast cancer was reported to suppress the proliferation of T cells (36). Therefore, tumors with high amounts of collagens are not only larger and firmer compared with adenomas, but also more likely to have aggressive features. This should be considered in patient management on an individual basis. Importantly, firm but small tumors may be easier to resect, as they may be limited to the gland.

MRI T2WI signals have a significant role in predicting tumor consistency prior to surgery. Although T2WI was demonstrated to be able to predict the consistency and texture of pituitary adenomas (3,16,21,37,38), opposite results have been previously reported (18-20). In the present prospective study, the ratios of the tumor to Pons' signal intensities on T2WI scans were similar in the firm and soft tumor groups. The present results were consistent with those reported by Thotakura et al (39), who demonstrated that it was not possible to reliably predict the consistency of pituitary adenomas by preoperative MRI. In agreement with this, Mastorakos et al (40) pointed out that the ratio of tumor to cerebellar peduncle T2-WI intensity is not associated with tumor consistency. Furthermore, Bahuleyan et al (2) concluded that the consistency of pituitary macroadenomas was not able to be accurately predicted based on MRI signal intensity. However, MRI sequences may provide more information. DWI may be used for determining the texture of adenomas (16), as well as the Fast Imaging Employing Steady-State Acquisition sequence (41). High-resolution MRI using high-power magnetic fields was also reported to be predictive of texture (42). In future studies, multiple MRI sequences and their associations with collagen content and adenoma consistency require to be assessed. A combination of those sequences may assist in determining the consistency of tumors and performing therapeutic management.

According to the MRI findings of the present study, 63.2% of patients with firm tumors had suprasellar extension lesions vs. 36.1% in the soft tumor group. In the firm tumor group, it was difficult to remove the lesions in the suprasellar region. Koktekir et al (43) described the successful use of a transventricular endoscope as an adjunctive measure to remove giant pituitary adenomas by the transsphenoidal approach. They concluded that this technique may be safely used in selected cases. Case selection and surgical strategies should be based on pre-operative MRI findings, ventricular size and the availability of experienced surgeons.

The present study had a number of limitations. First, it was a single-center trial with small sample size, and it was not possible to adjust for important confounders in the statistical analysis, e.g., sex. Thus, larger studies are required to confirm the present findings. In addition, certain tumors had uneven consistency and the specimens may not completely represent the entire tumor. Furthermore, the results indicated that most of the functional pituitary adenomas were soft and most of the non-functional pituitary adenomas were firm. Studies with a larger cohort size are also required to confirm the present results.

In conclusion, the present prospective study demonstrated that the levels of collagen types I and III were higher in pituitary tumors with firm consistency compared with those with soft lesions. In addition, the size of pituitary adenomas observed by MRI was correlated with the amounts of collagen types I and III, and the ratio of tumor to Pons' signal intensities on T2WI scans was not able to predict tumor consistency.
